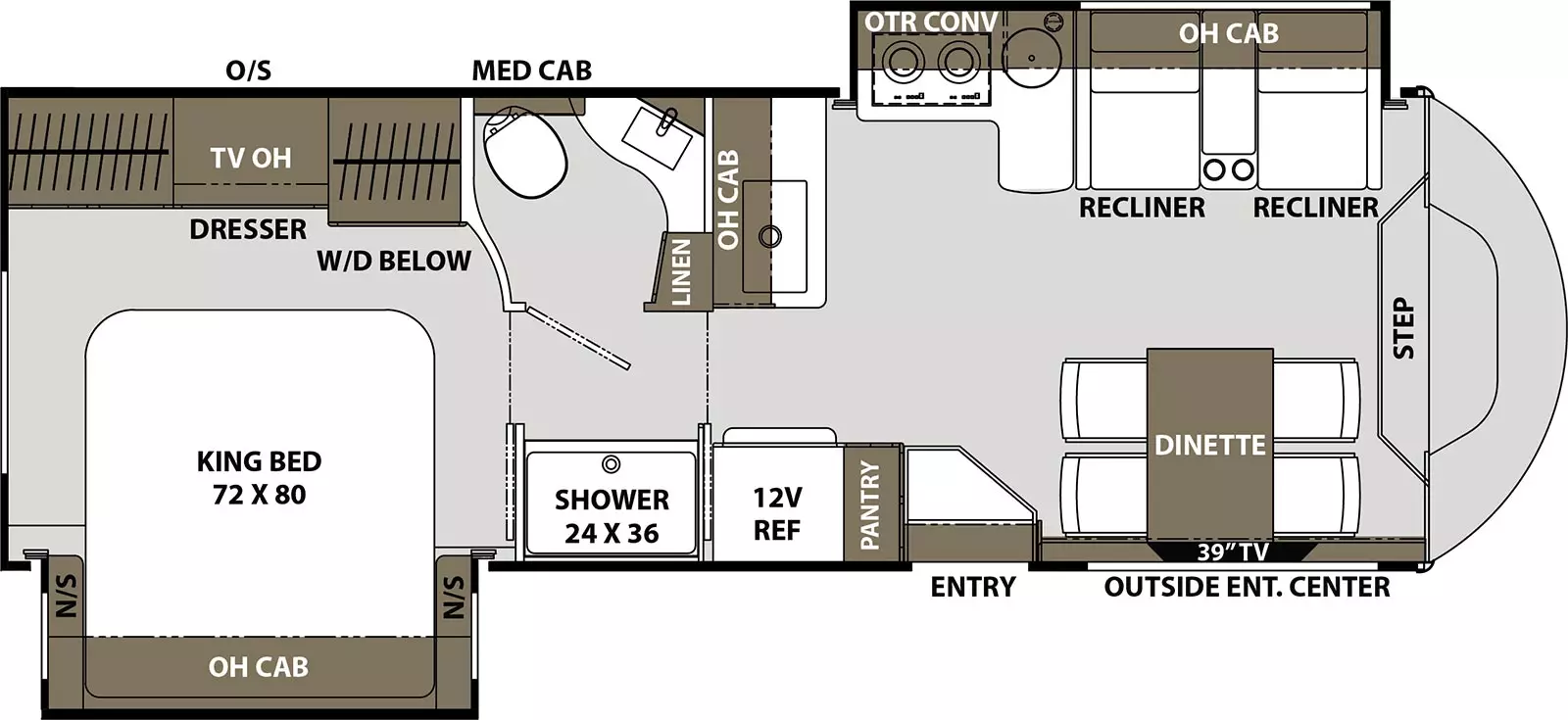

321DS Floorplan

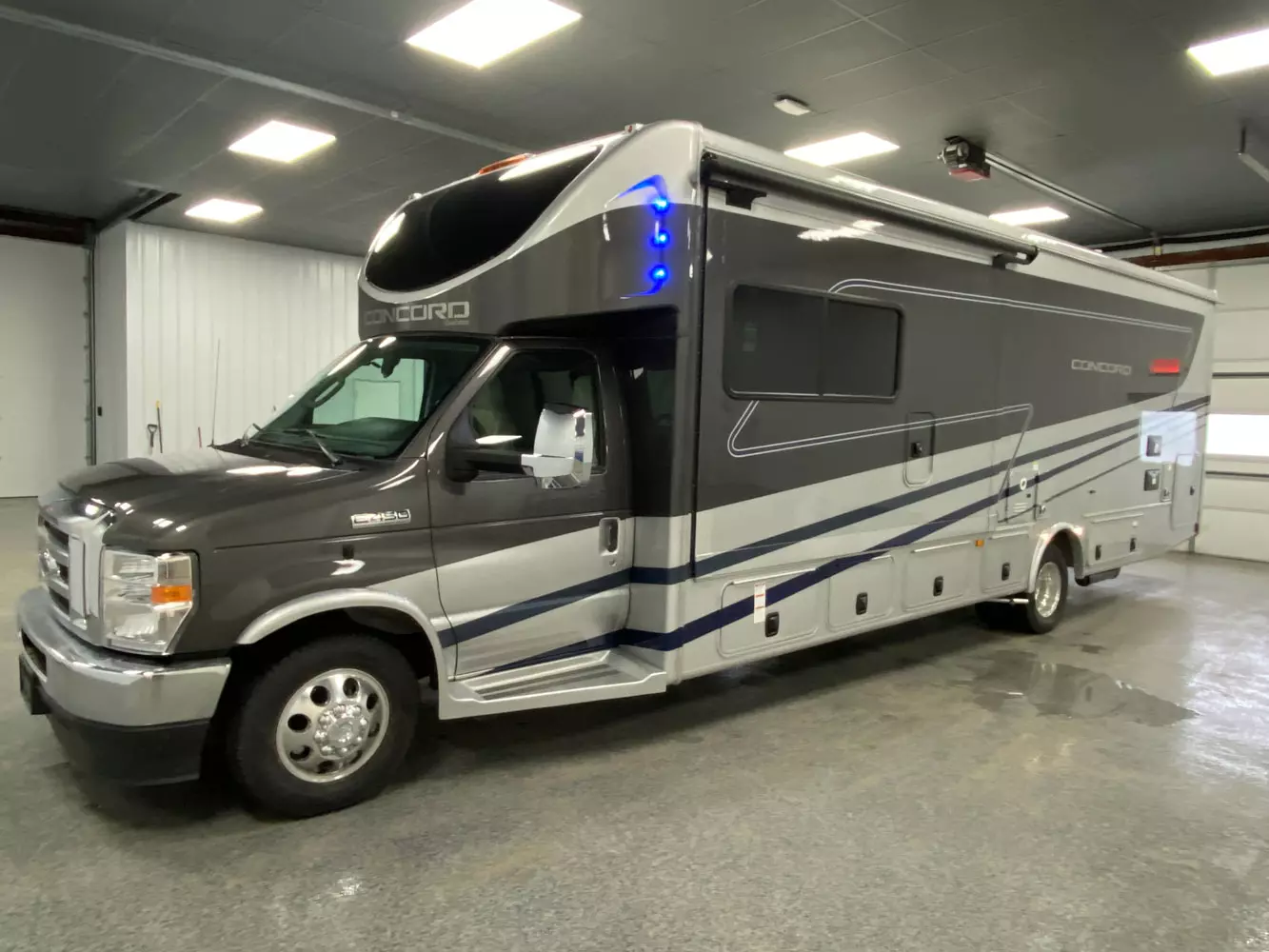

Ford E-450 V8 7.3L Chassis

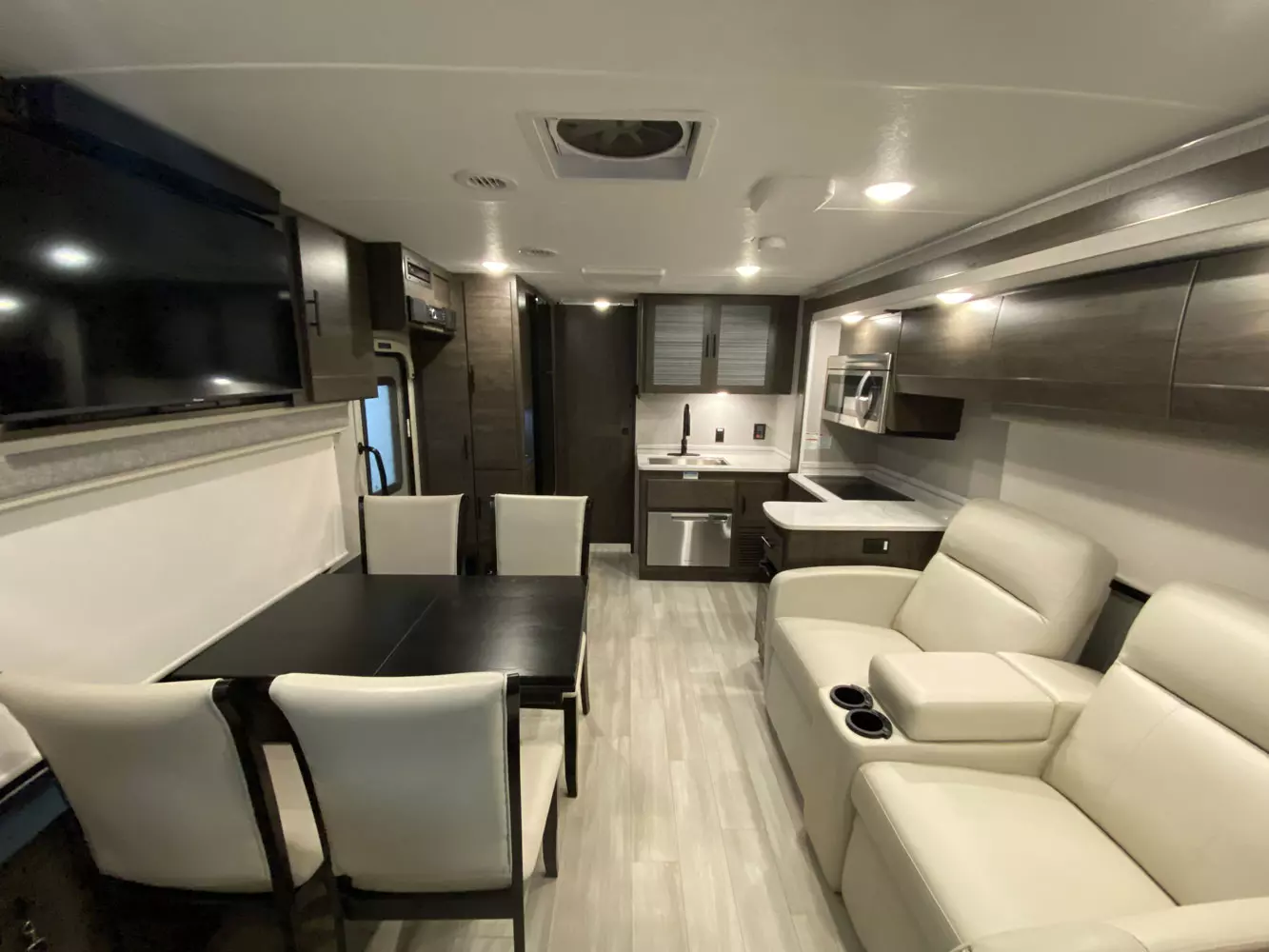

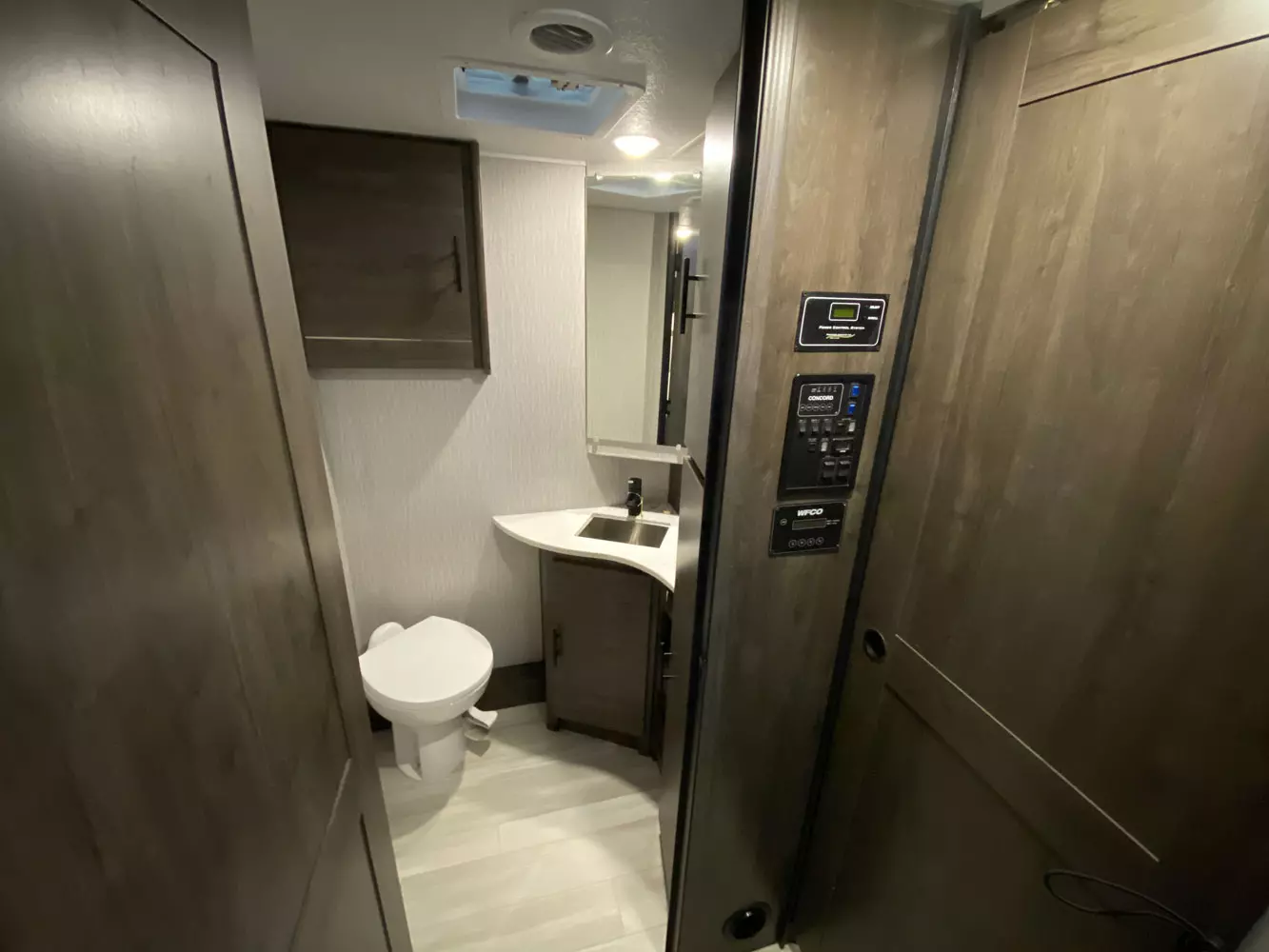

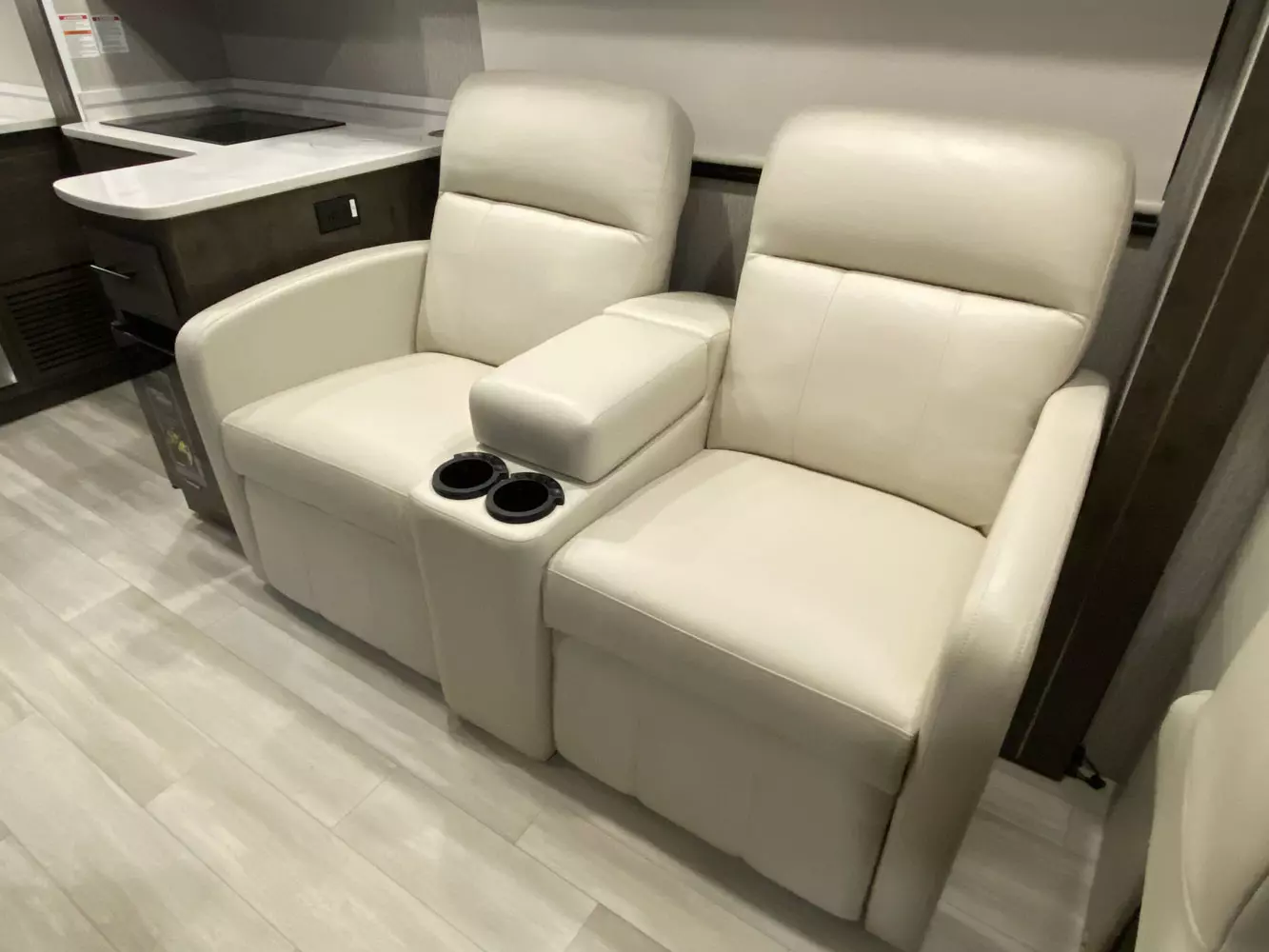

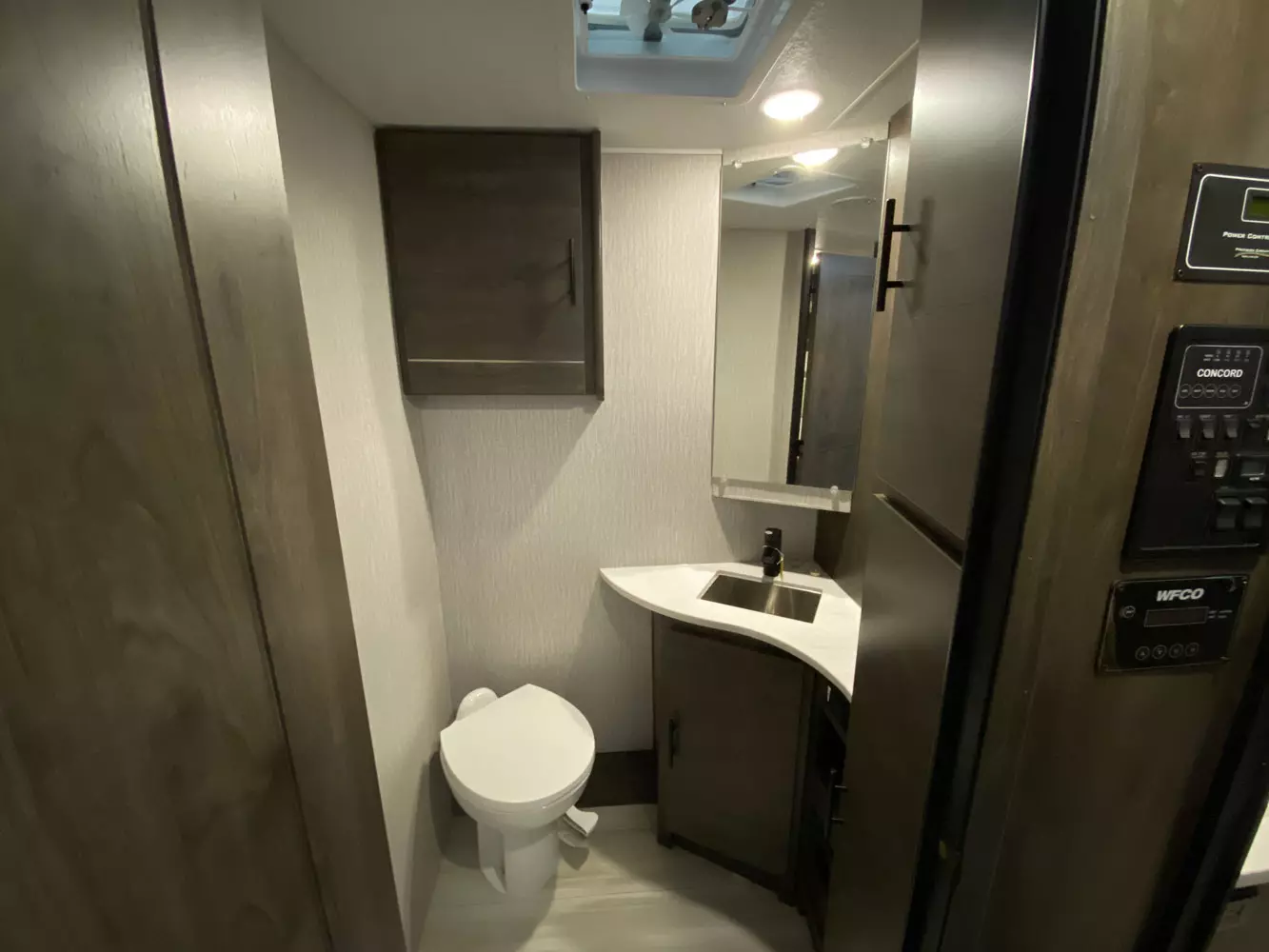

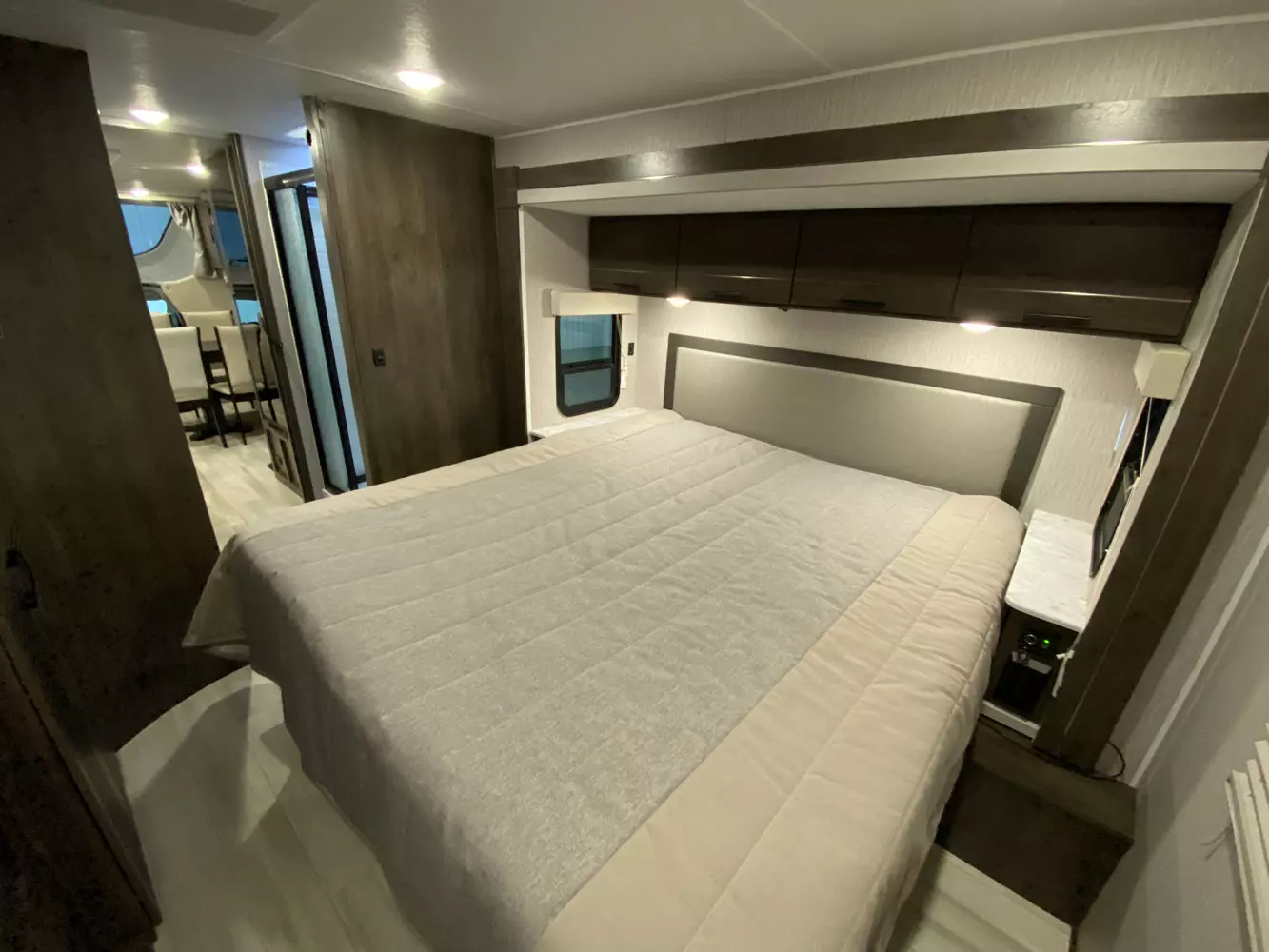

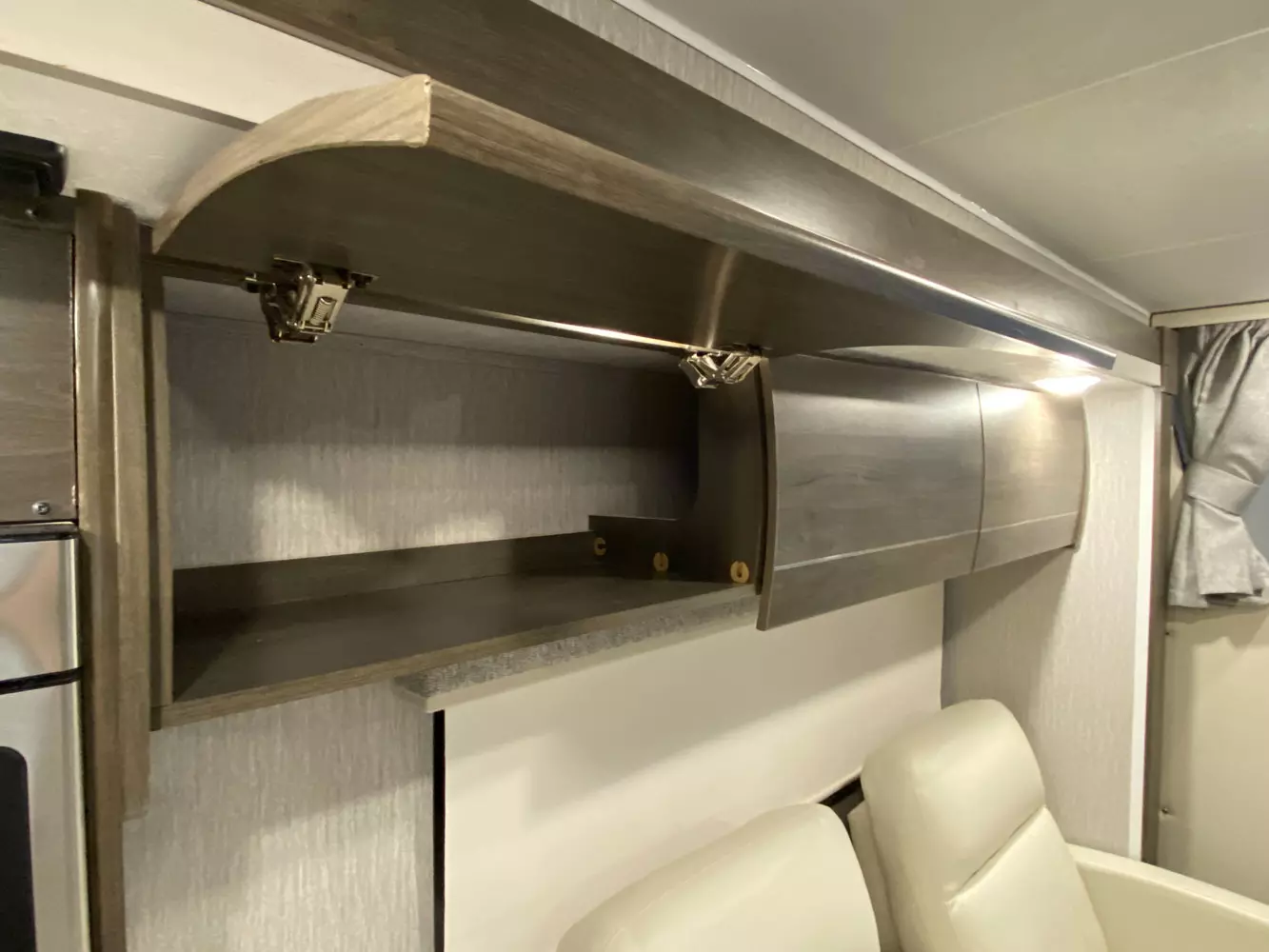

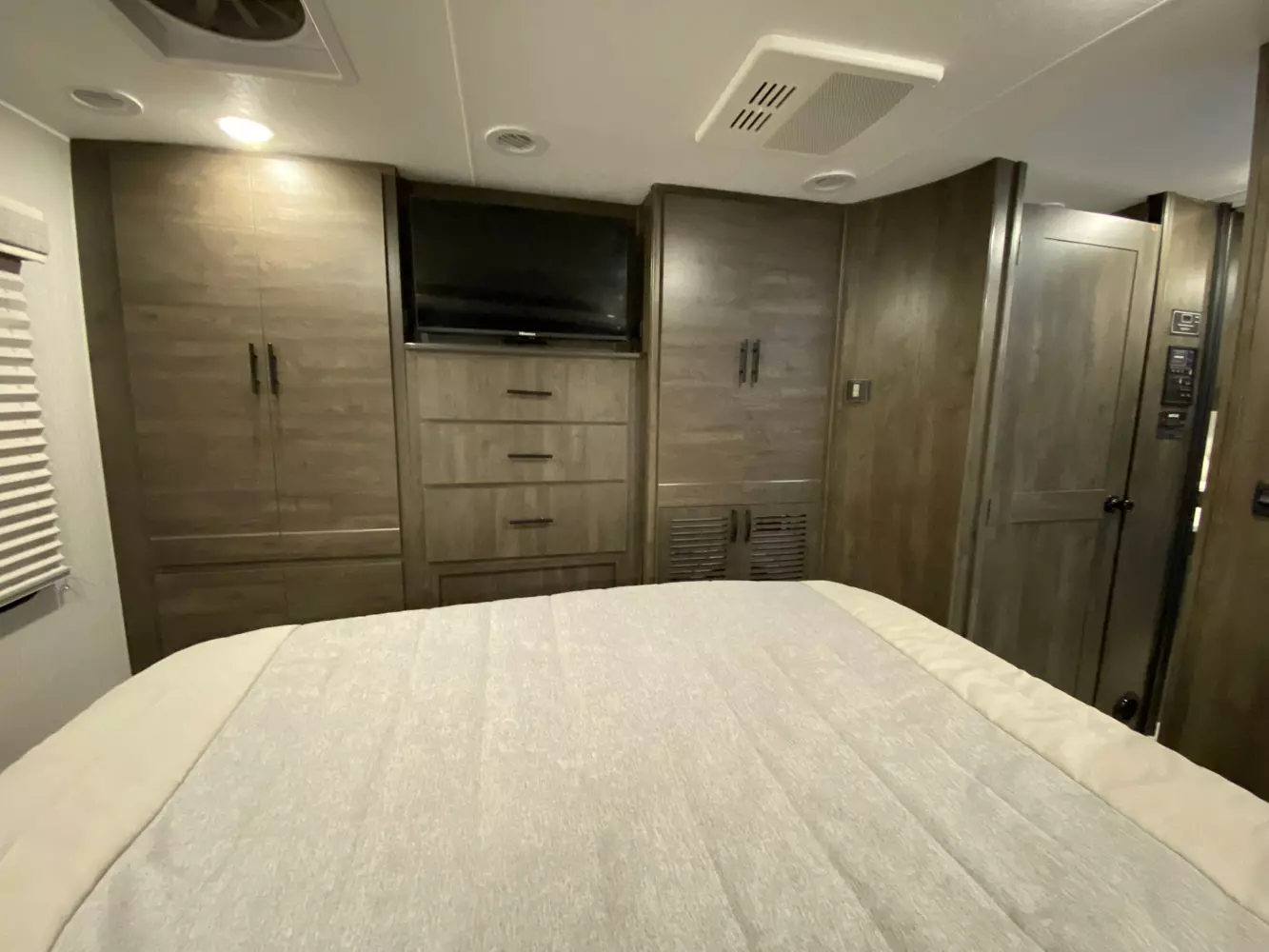

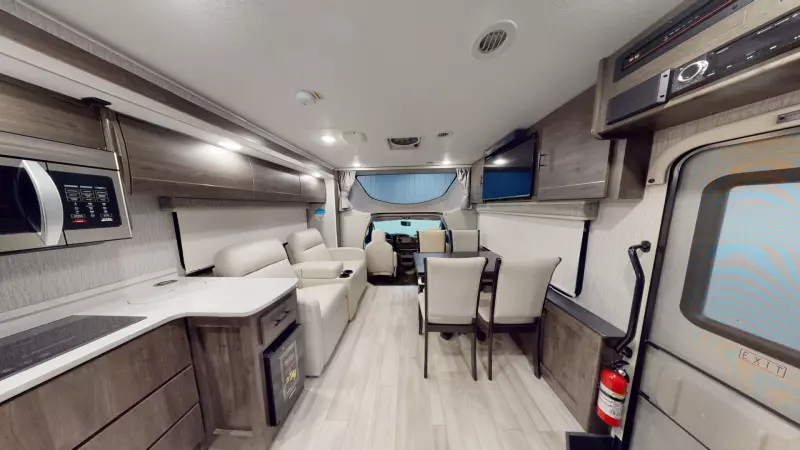

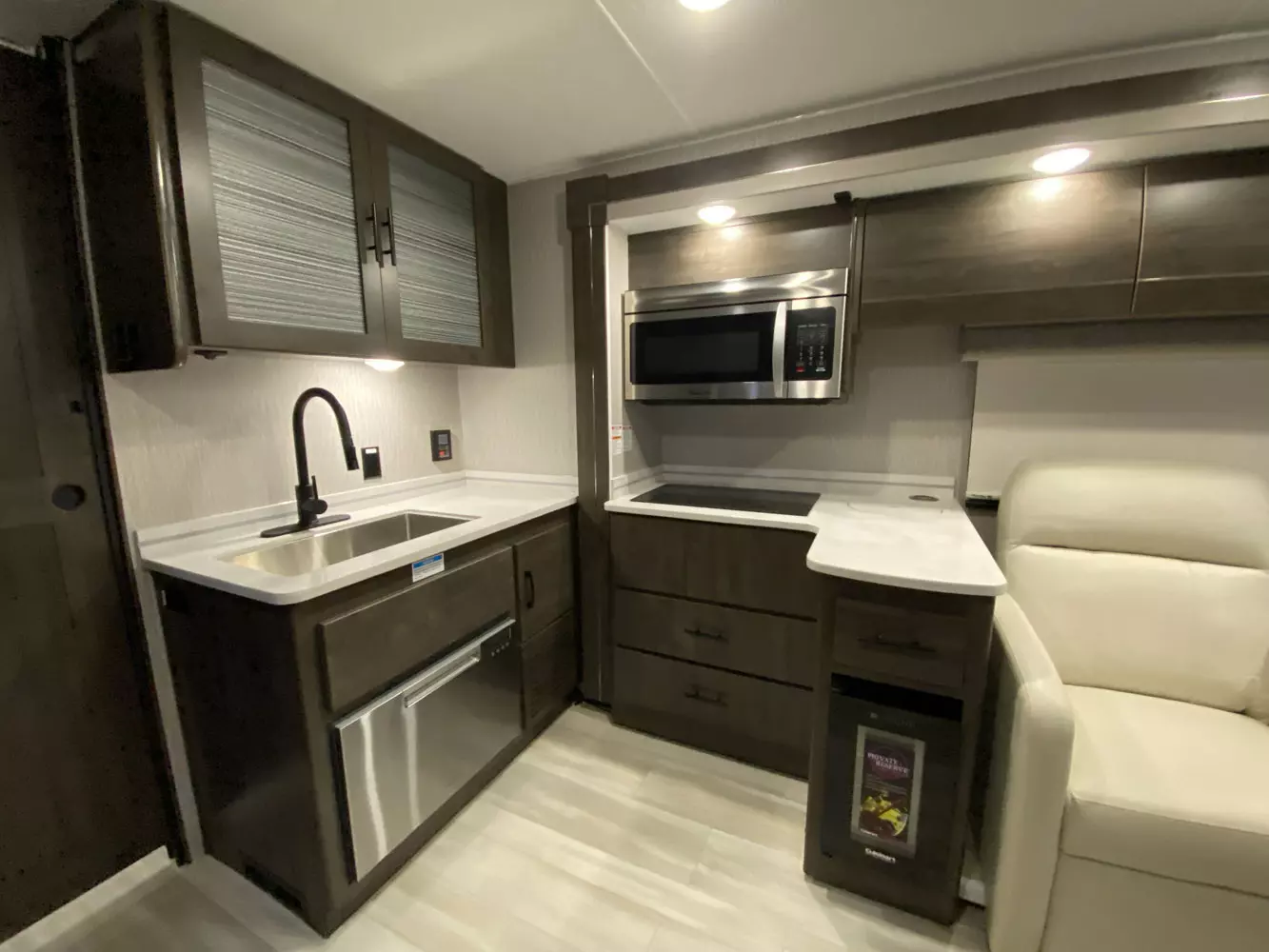

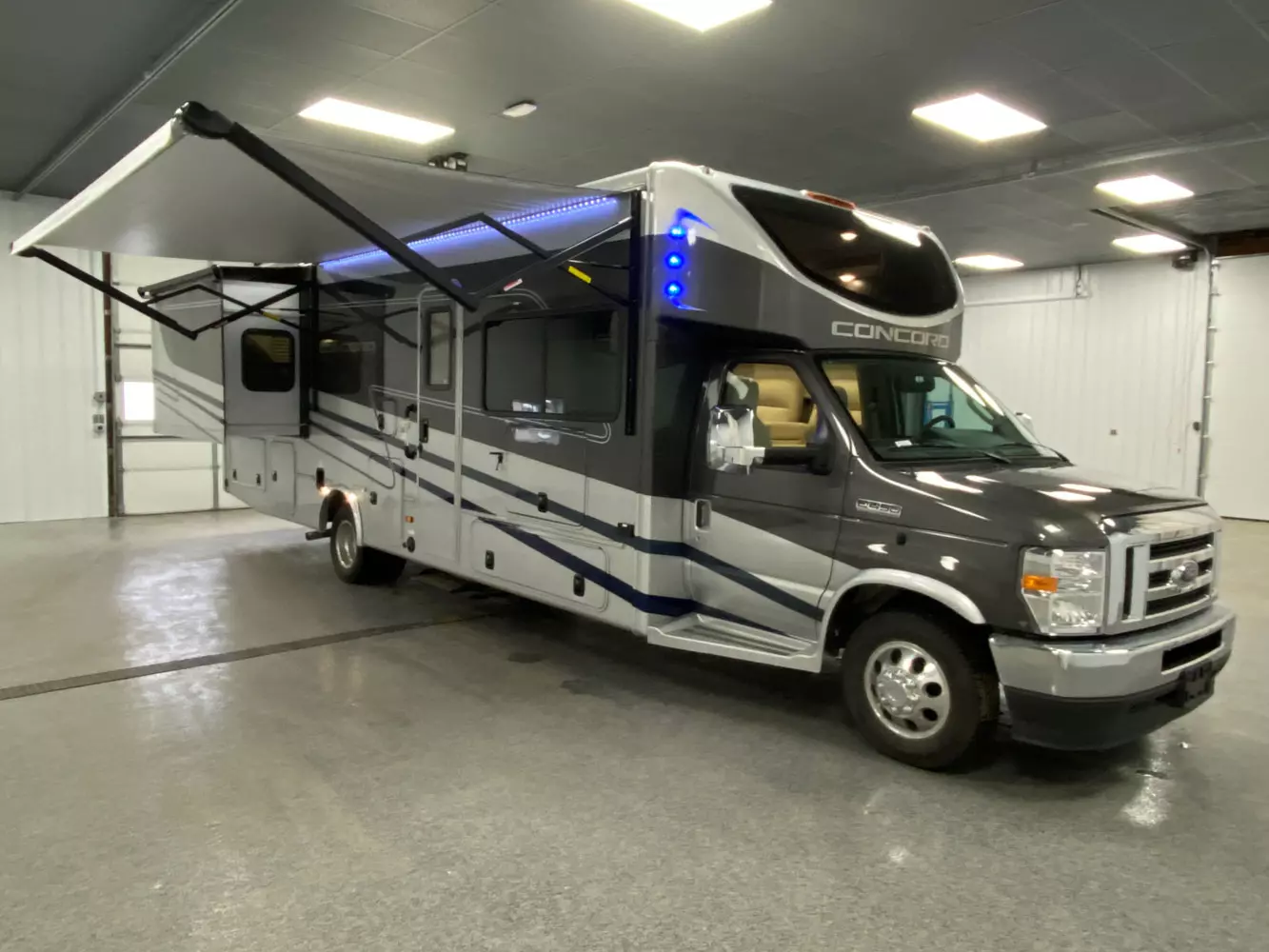

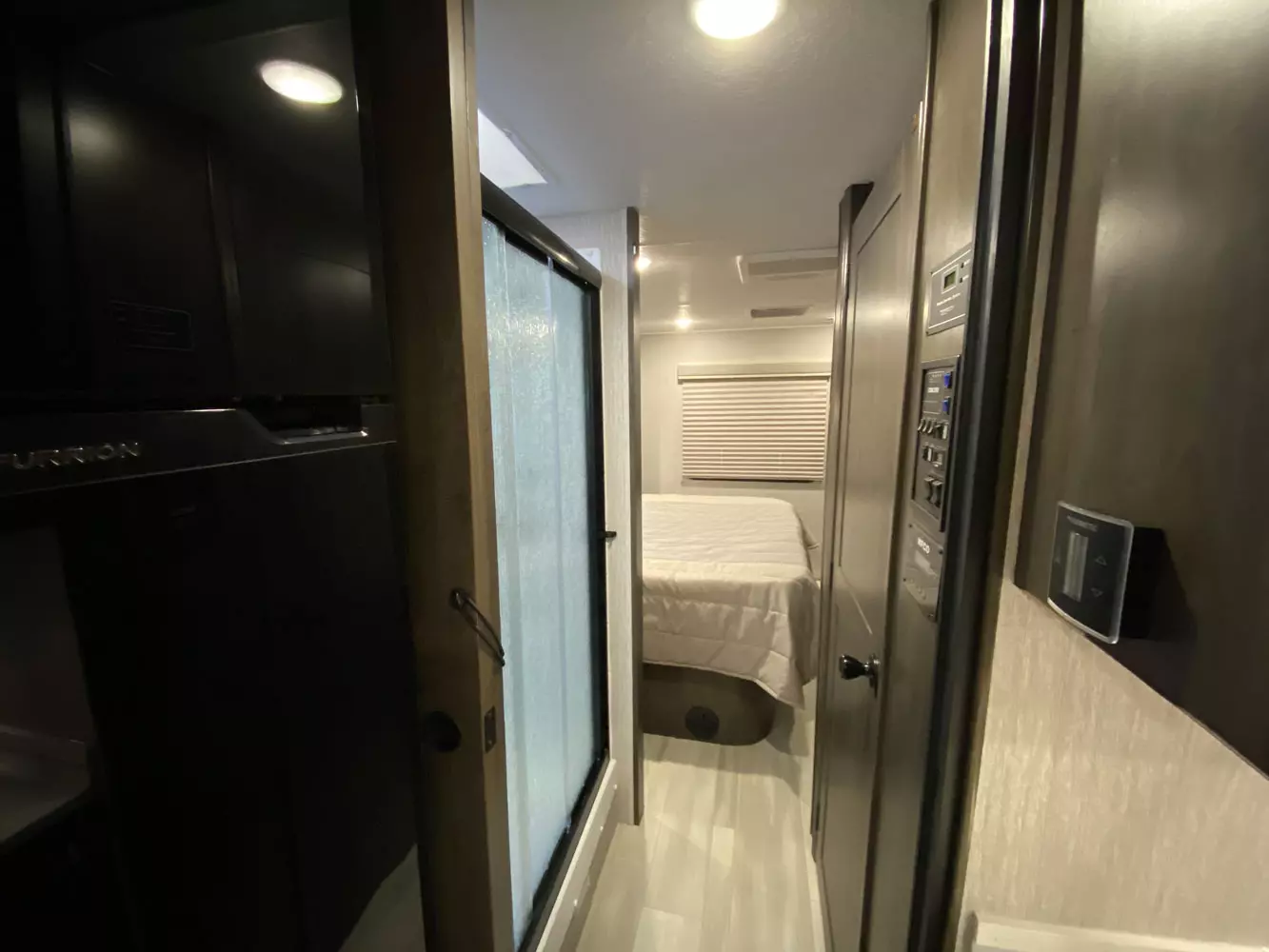

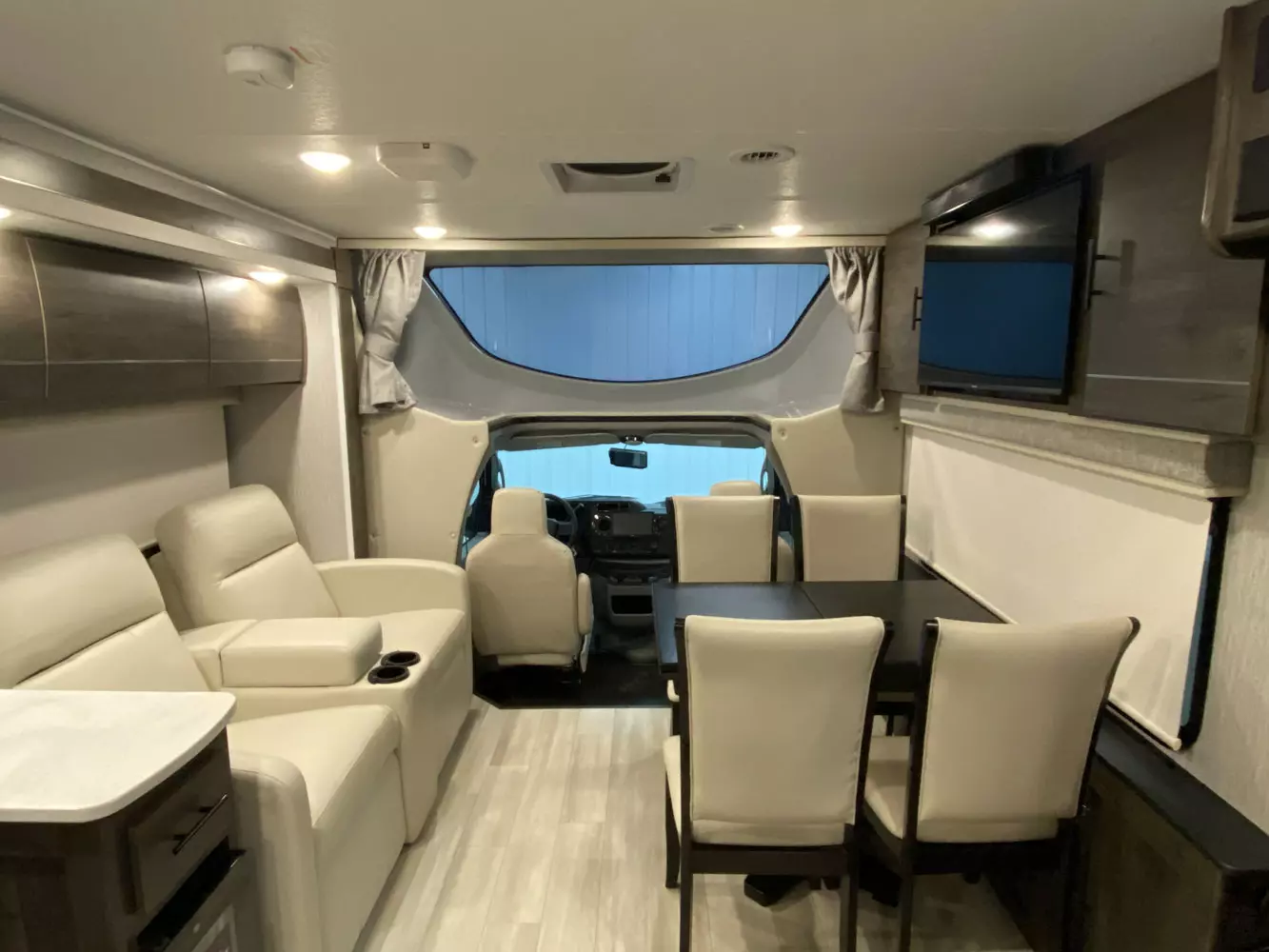

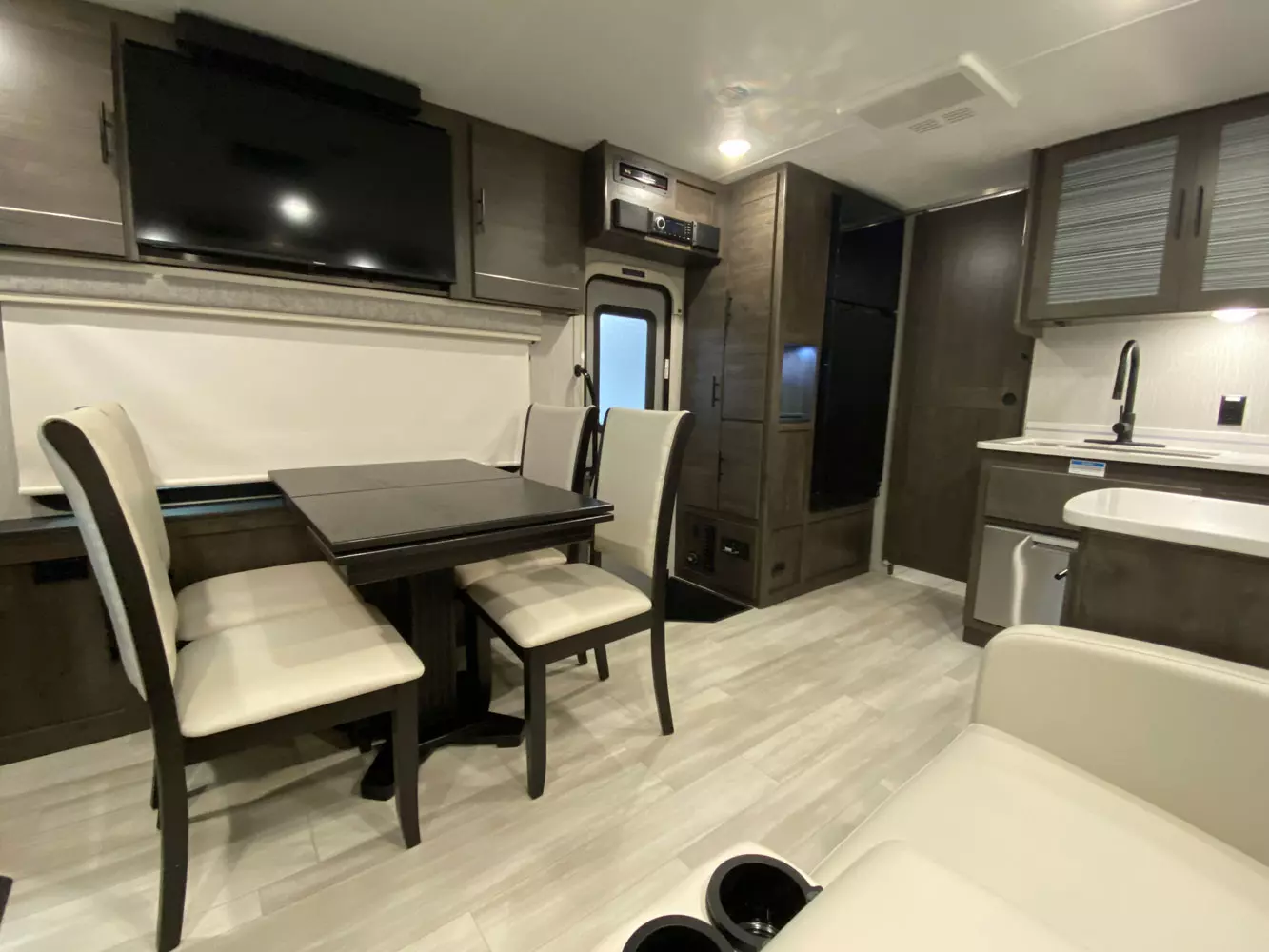

The 321DS has 2 slide outs and 1 entry door. Exterior features include an outside shower and outside entertainment center. Interior layout from front to back: off-door slide out with over the range convection microwave, stove top, sink, 2 recliners and overhead cabinet; door side dinette with 39" TV; pantry and 12V refrigerator near entry door; front facing sink with overhead cabinet; walk through bathroom with 24 x 36 inch shower on the door side and toilet, medicine cabinet, linen storage and vanity on the off-door side; rear bedroom with 72 x 80 King bed in a door side slide out; nightstands on each side of the bed; dresser with TV overhead and washer/dryer.


14,500 lb.
22,000 lb.
GAWR Rear:
9,600 lb.
GAWR Front:
5,000 lb.
Fuel Capacity:
55 gal.
Exterior Length:
32' 9"
Exterior Height:
10' 11"
Exterior Width:
Fresh Water:
48.00 gal.
Gray Water:
34.00 gal.
Black Water:
31.00 gal.
Awning Size:


GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GCWR (Gross Combined Weight Rating) - Is the maximum permissible loaded weight of your motor home and any towed trailer or towed vehicle. Actual GCWR of this vehicle may be limited by the sum of the GVWR and the installed hitch receiver maximum capacity rating; see hitch rating label for detail.

GAWR (Gross Axle Weight Rating) - is the maximum permissible weight, including cargo, fl uids, optional equipment and accessories that can be safely supported by each axle.

UVW (Unloaded Vehicle Weight)* - is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s), including full fuel, all fl uids and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, passengers, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before fi lling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Coachmen RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Coachmen RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Actual towing capacity is dependent upon your particular loading and towing circumstances, which includes the GVWR, GAWR and GCWR as well as adequate trailer brakes. Please refer to the Operator's Manual of your vehicle for further towing information.


Features & Options

  • Factory Reclining Pilot $ Passenger Seats with Covers
  • Driver and Passenger Swivel Seats w/Cockpit Folding Table
  • Driver and Passenger Air Bags
  • Cruise Control
  • Tilt Steering Wheel
  • Dash Air Conditioning
  • Chrome Heated Exterior Remote Mirrors
  • Power Windows and Locks

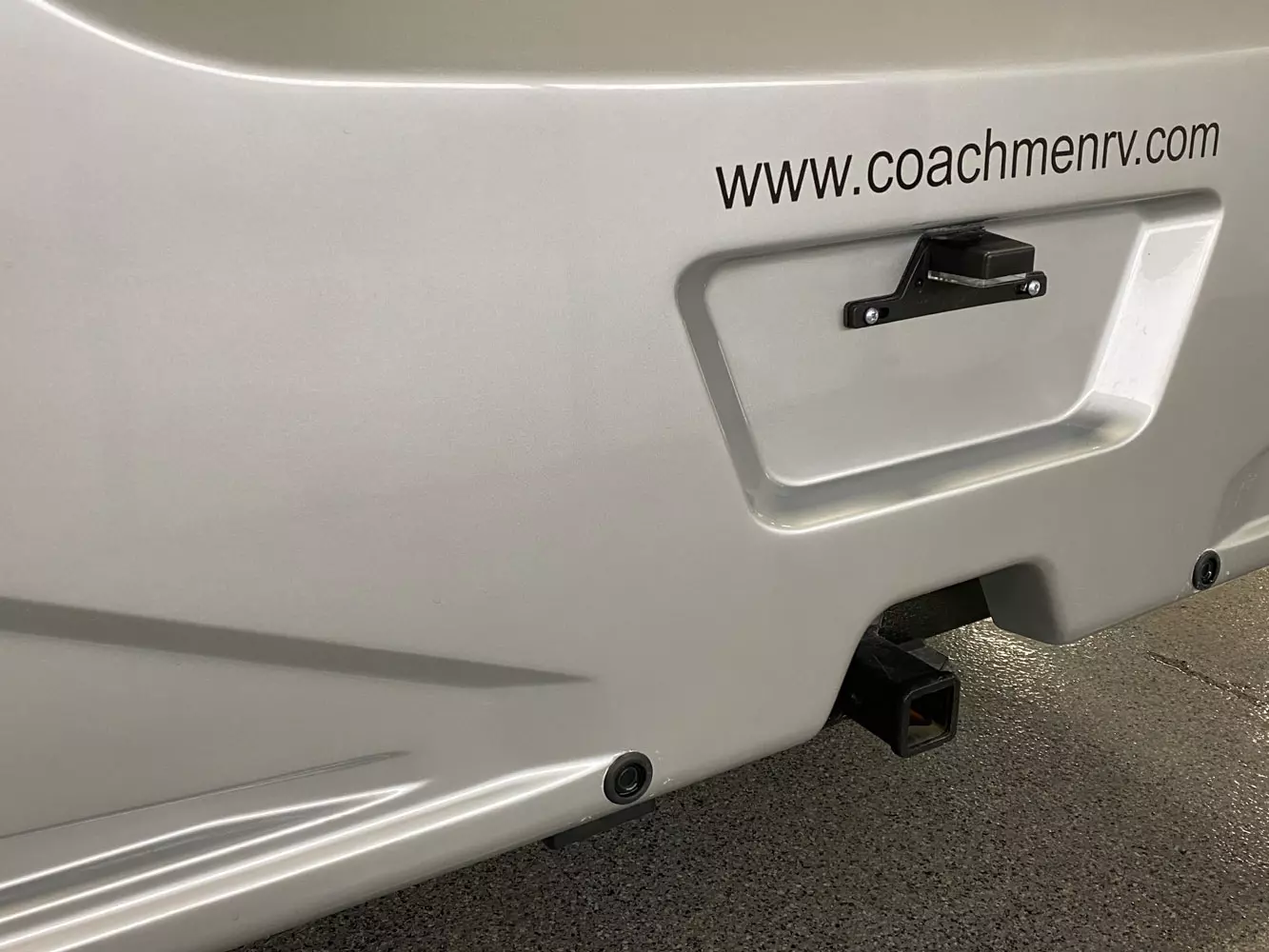

  • 7,500 lb. Towing Hitch with 7-way Plug
  • 55-Gallon Fuel Tank (Ford)
  • Full Aluminum Framed Walls, Roof, Floor Structures

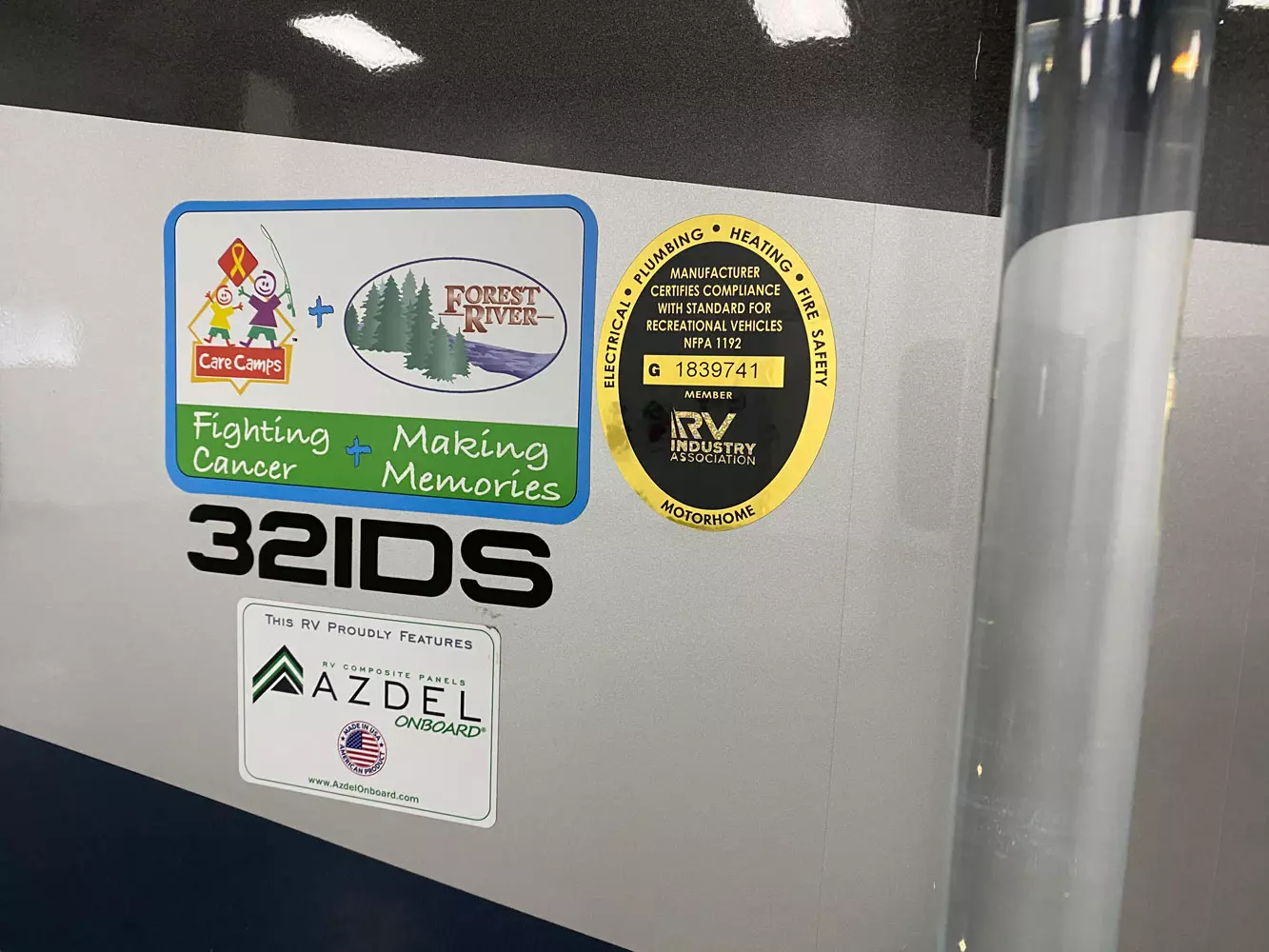

  • Azdel Composite Sidewall and Cabover Construction
  • Vacu-bond Laminated Walls, Roof, and Floor
  • Crown Laminated TPO Roof

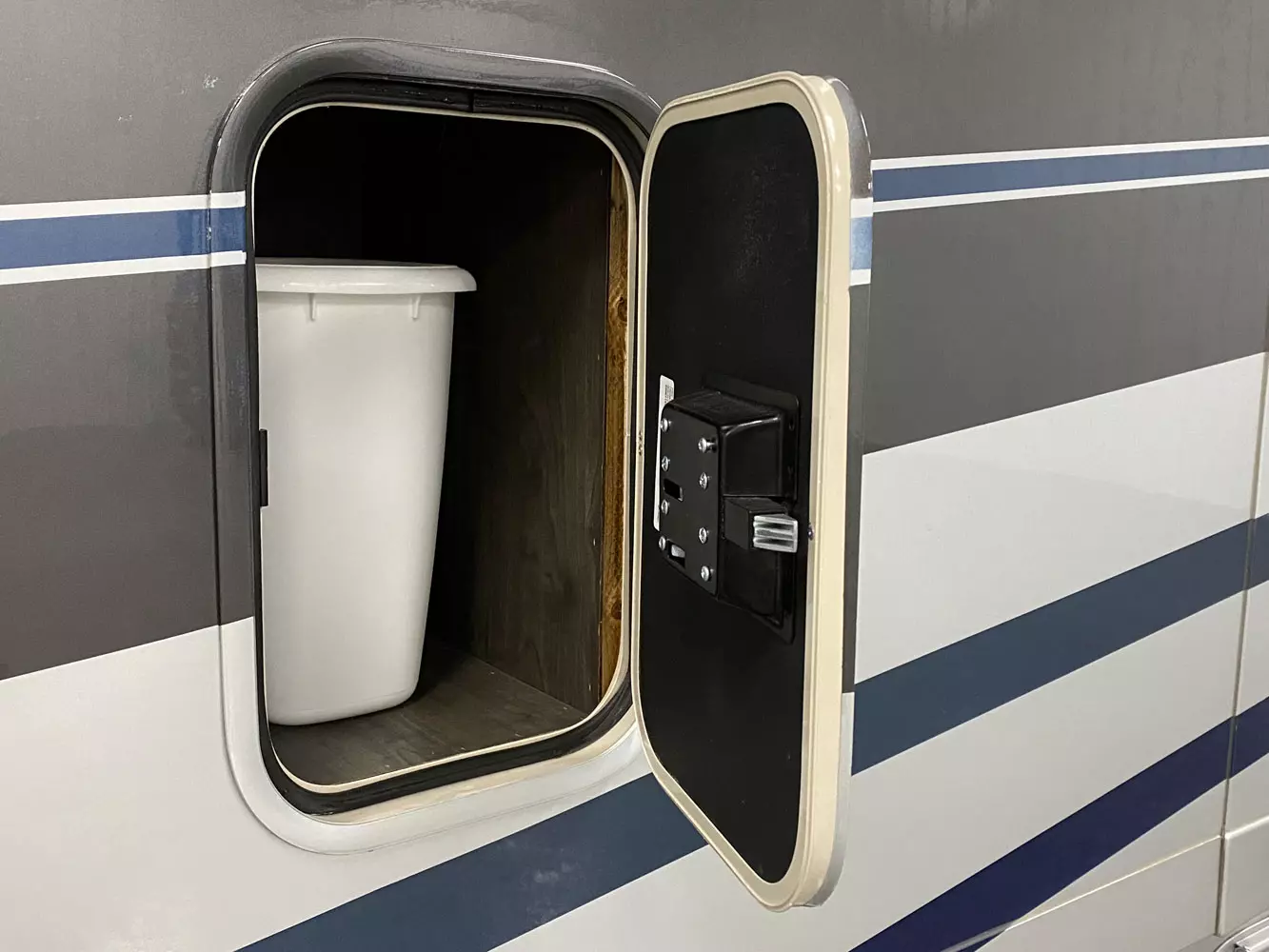

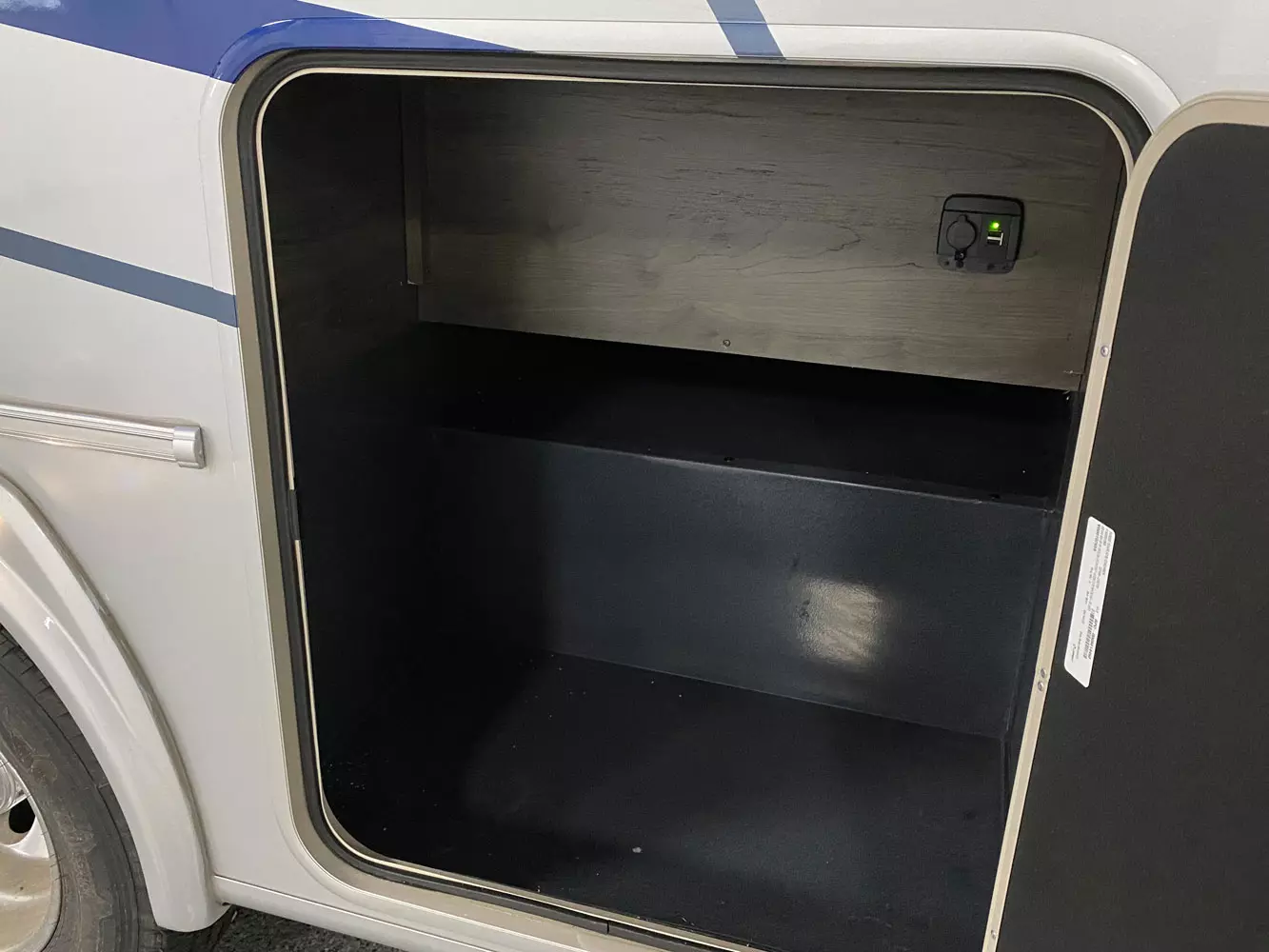

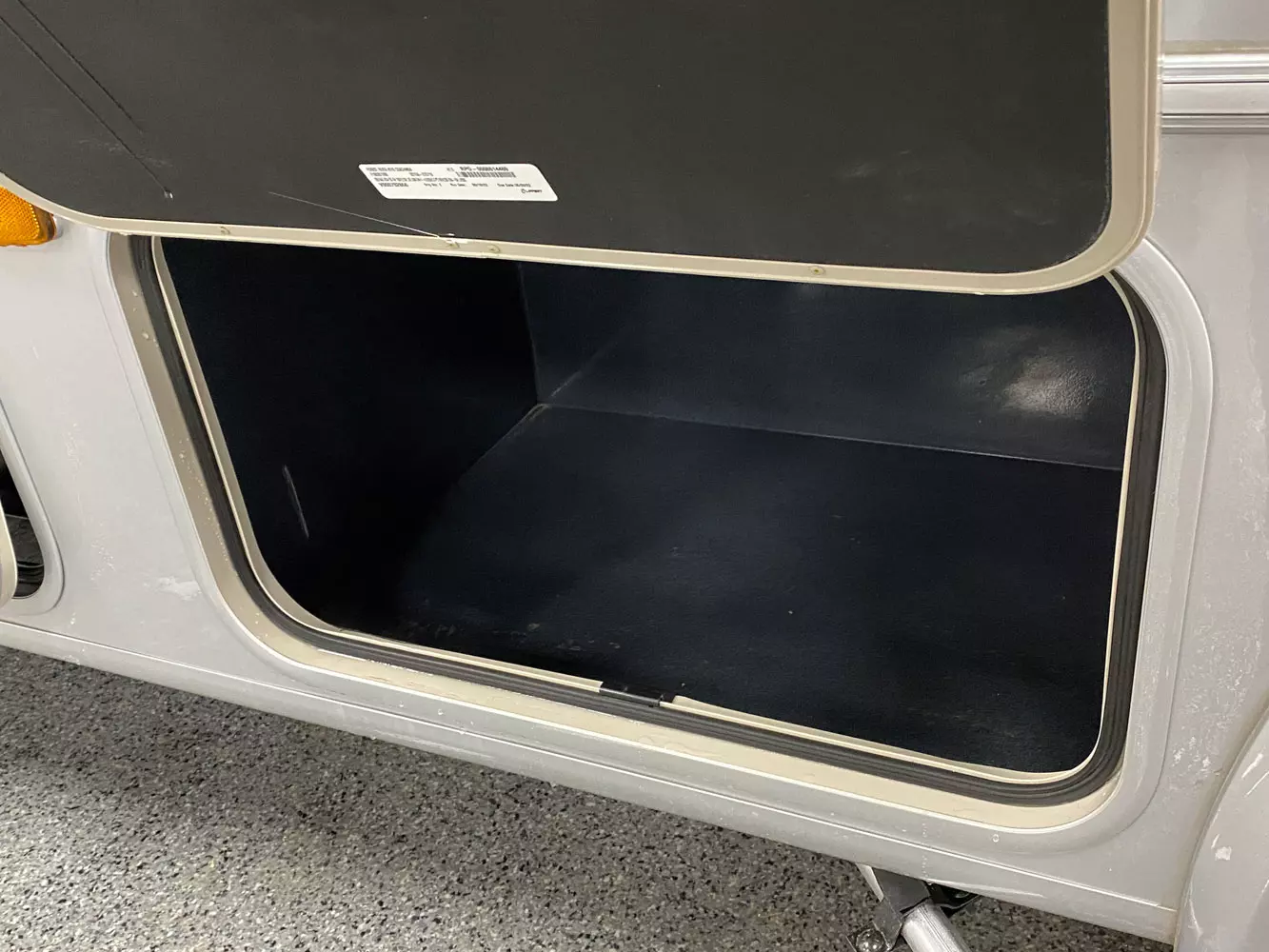

  • Metal Slam Latch Trunk Doors w/Magnetic Holders

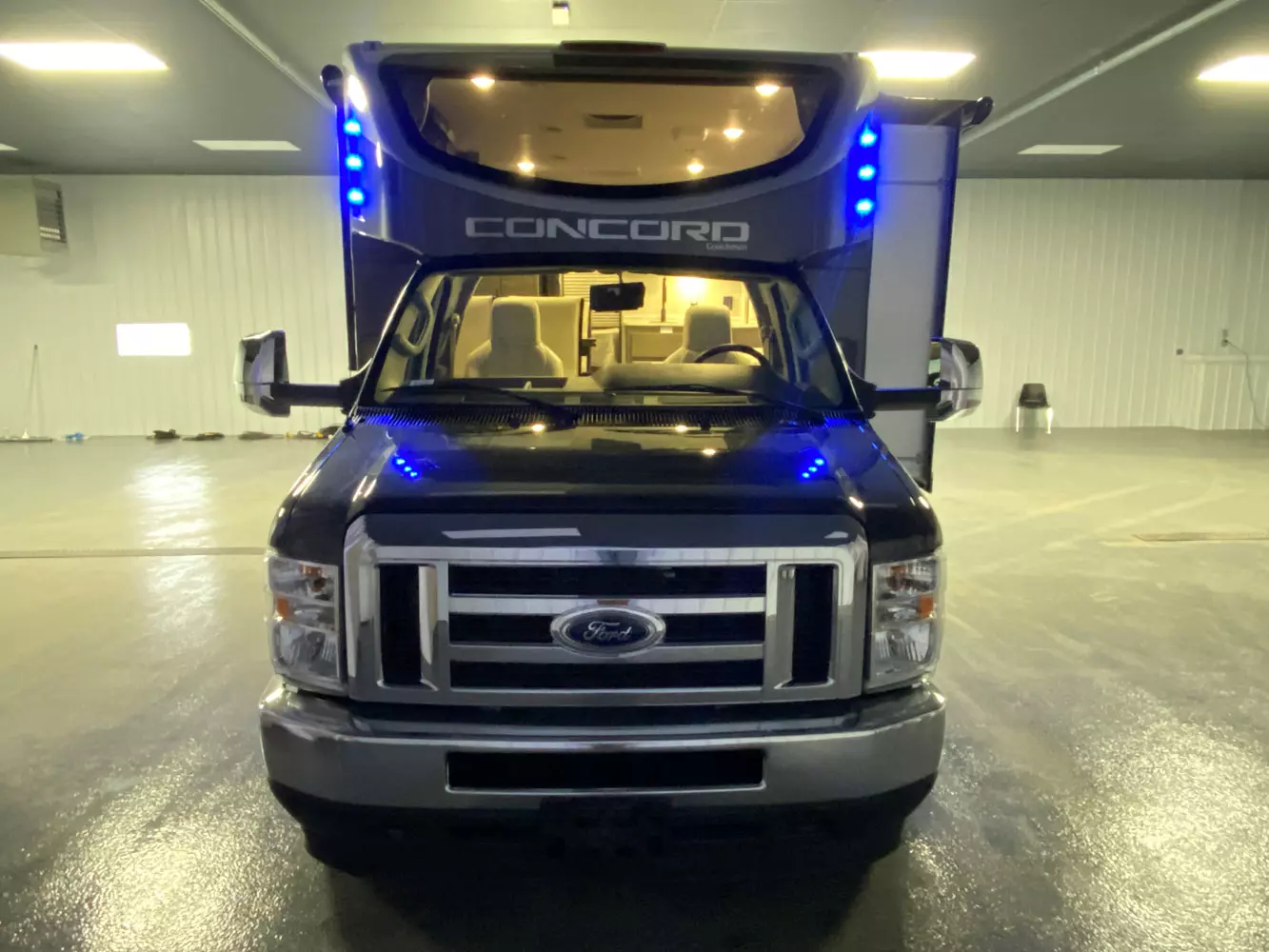

  • Front Cap with Large Window And Bullet Lights
  • Fiberglass Front Cap Interior Liner
  • Fiberglass Running Boards
  • Fiberglass Rear Cap
  • Fiberglass Rear Wheel Skirts w/Bullet Lights

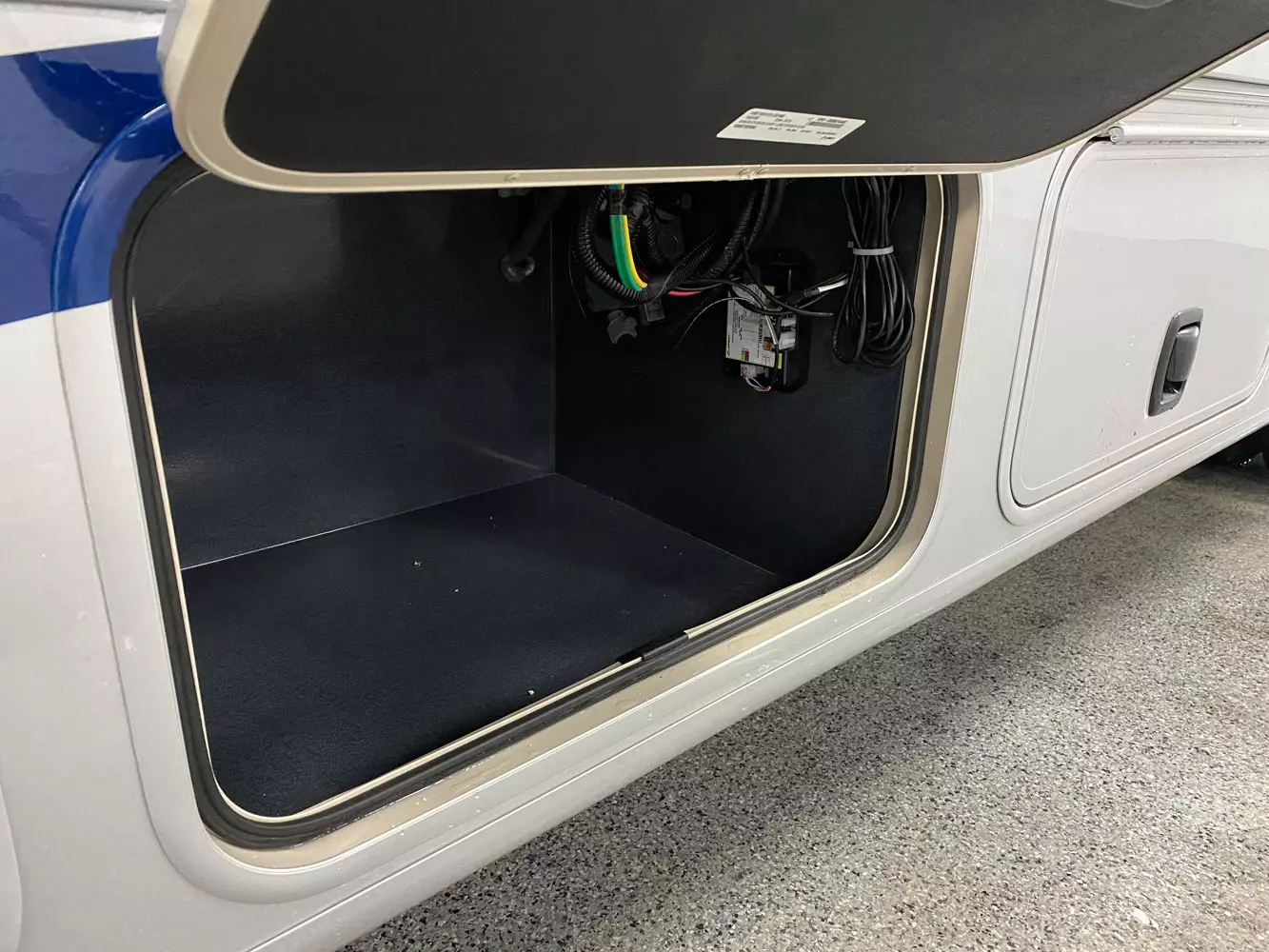

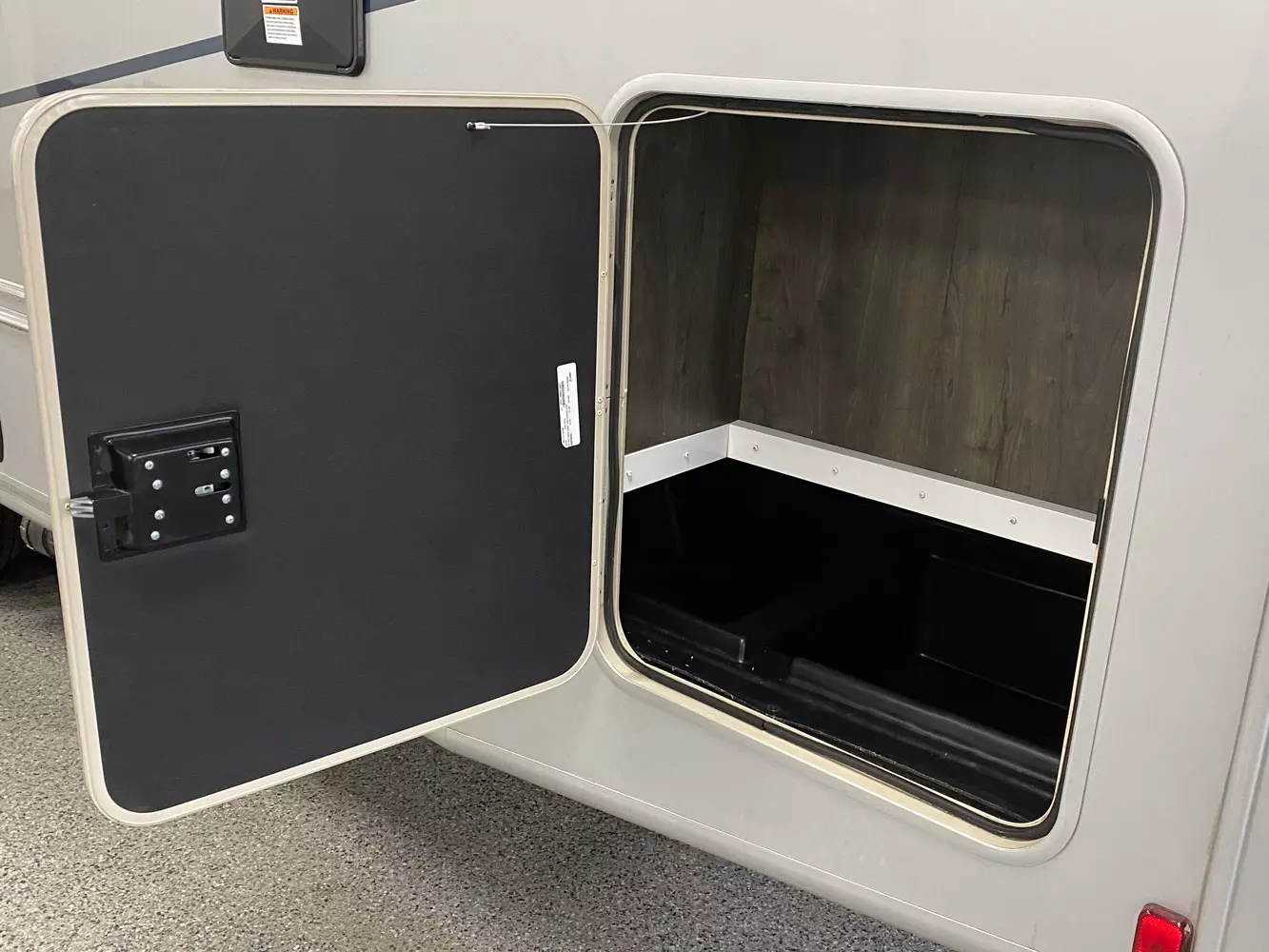

  • Roto Mold Rear Trunk Box & Plasti-Cote Metal Side Boxes
  • Carefree Power Awning w/LED Light
  • Auto Flex Rear Air Ride Suspension
  • Enclosed & Heated Holding Tanks
  • Aluminum Rims
  • Exterior LED Marker and Halo Taillights
  • Rear Trunk Light
  • Single Power Step
  • Black Slide Out Awnings
  • Upgrade Rear Ladder
  • Ultra Leather Harbor Shores Décor
  • Seal Cherry Wood Grain
Exterior Full-Body Paint
  • Gold Rush
  • Sapphire
  • Winegard Air 360+ and 4G/Wi-Fi Booster
  • LP Leak Alarm
  • Smoke Detector
  • Carbon Monoxide Detector
  • Fire Extinguisher
  • Carbon Fiber Dash
  • Chameleon Touch Screen Radio & Back Up Monitor with Car Play
  • Rear Color Backup Camera

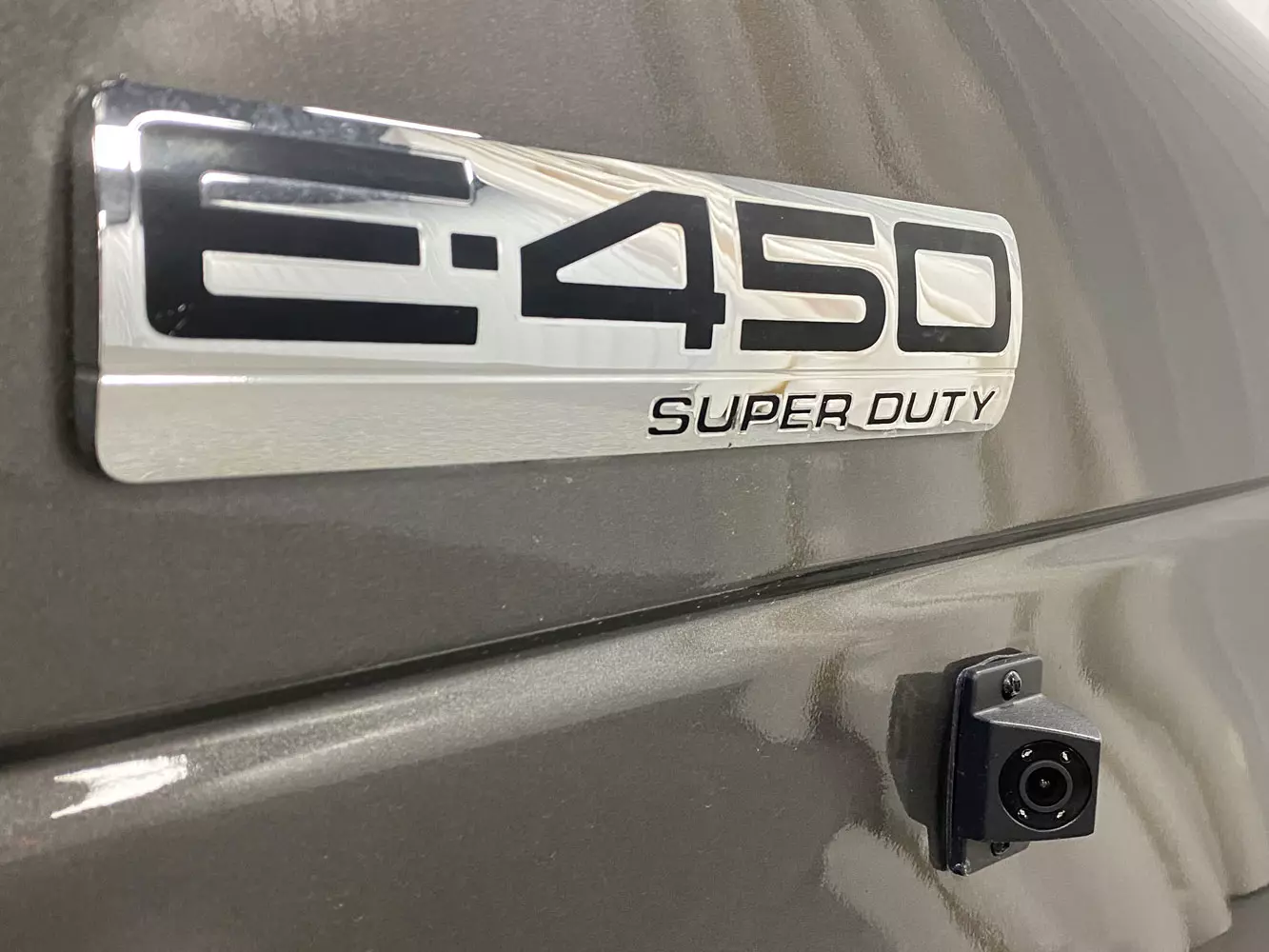

  • Side View Cameras
  • Backup Proximity Sensors
  • Smart 32" LG TV and Powered Sound Bar
  • 32" TV/HDMI Port/Bluetooth Soundbar Exterior Entertainment Center
  • Cedar Lined Closets

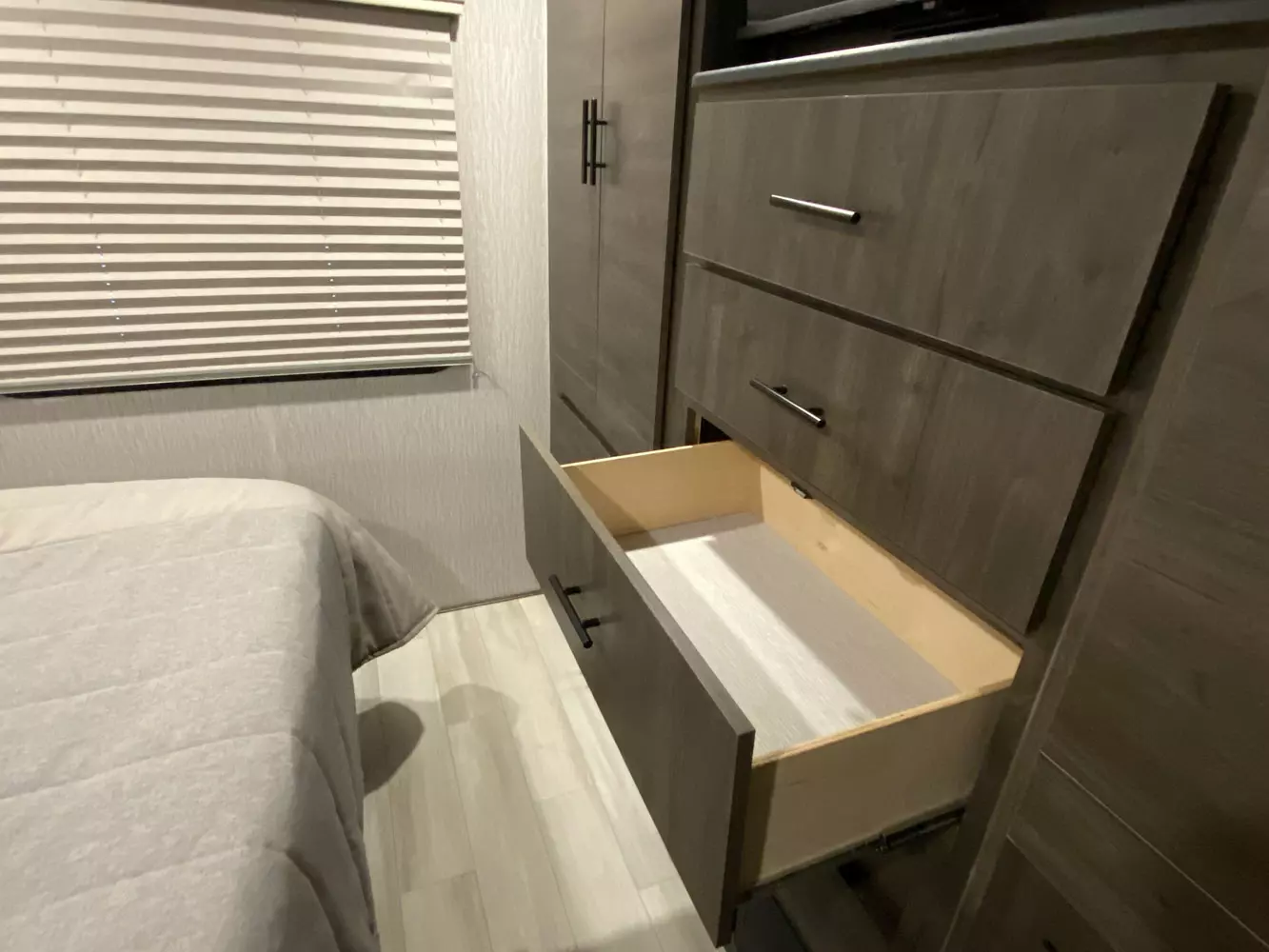

  • Roller Bearing Drawer Guides
  • Day & Night Roller Blinds w/Ultra Leather Covered Valances

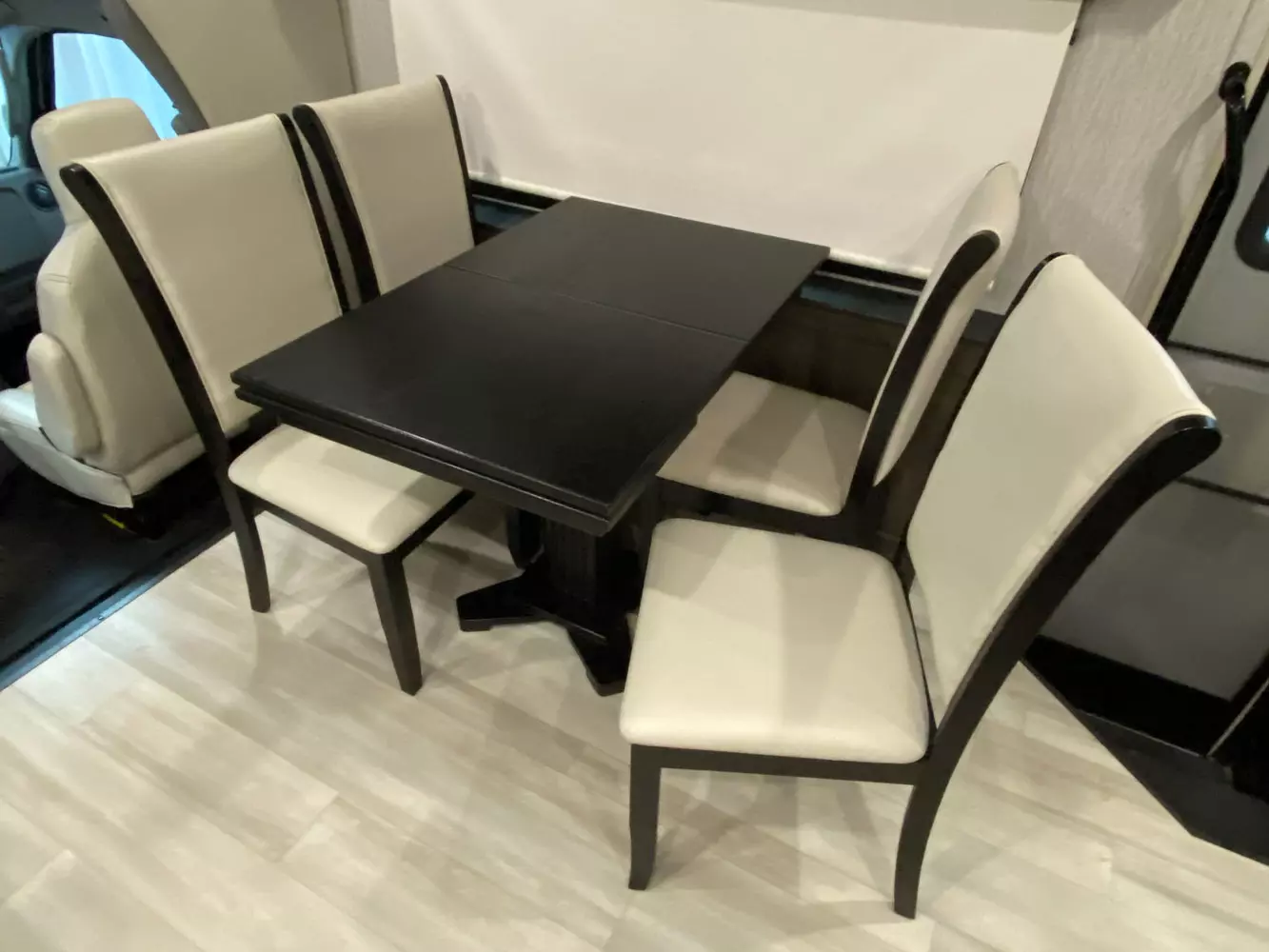

  • Residential Dinette Table w/4 Chairs
  • Large Metal Interior Safety Grab Handle at Entrance Door
  • Vinyl Padded Up and Angle Pads
  • Vinyl Padded Head Knocker
  • Cabinet Above Entrance Door with Stereo
  • Two Burner Induction Cooktop
  • Convection Microwave w/Charcoal Filter
  • Furrion Glass Front - 10 cu. Ft. 12V Double Door Refrigerator
  • Undermount Stainless Farmers Kitchen Sink & Solid Surface Cover
  • Black Kitchen Faucet with Sprayer
  • Cloudbank Solid Surface Kitchen Countertop

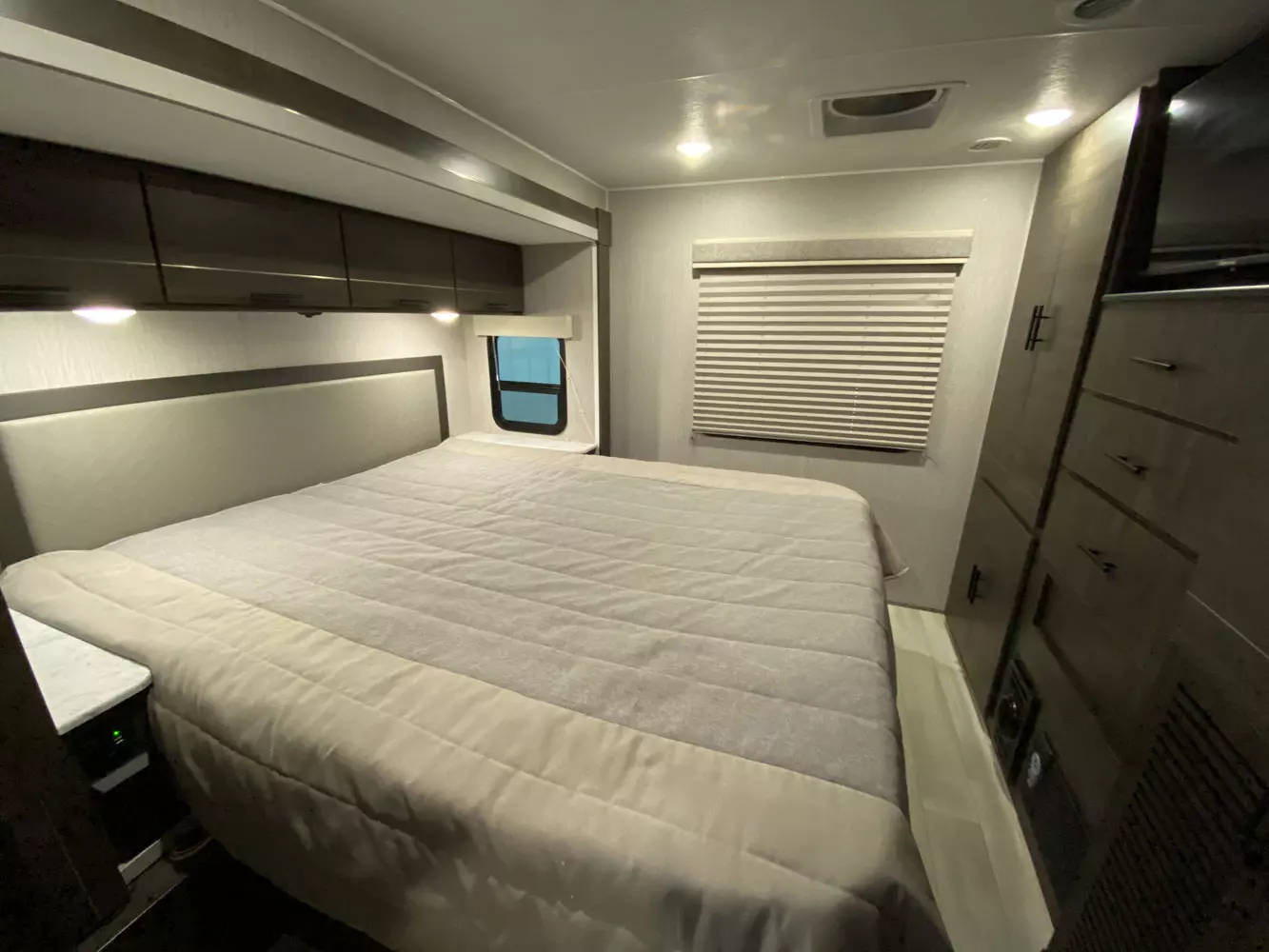

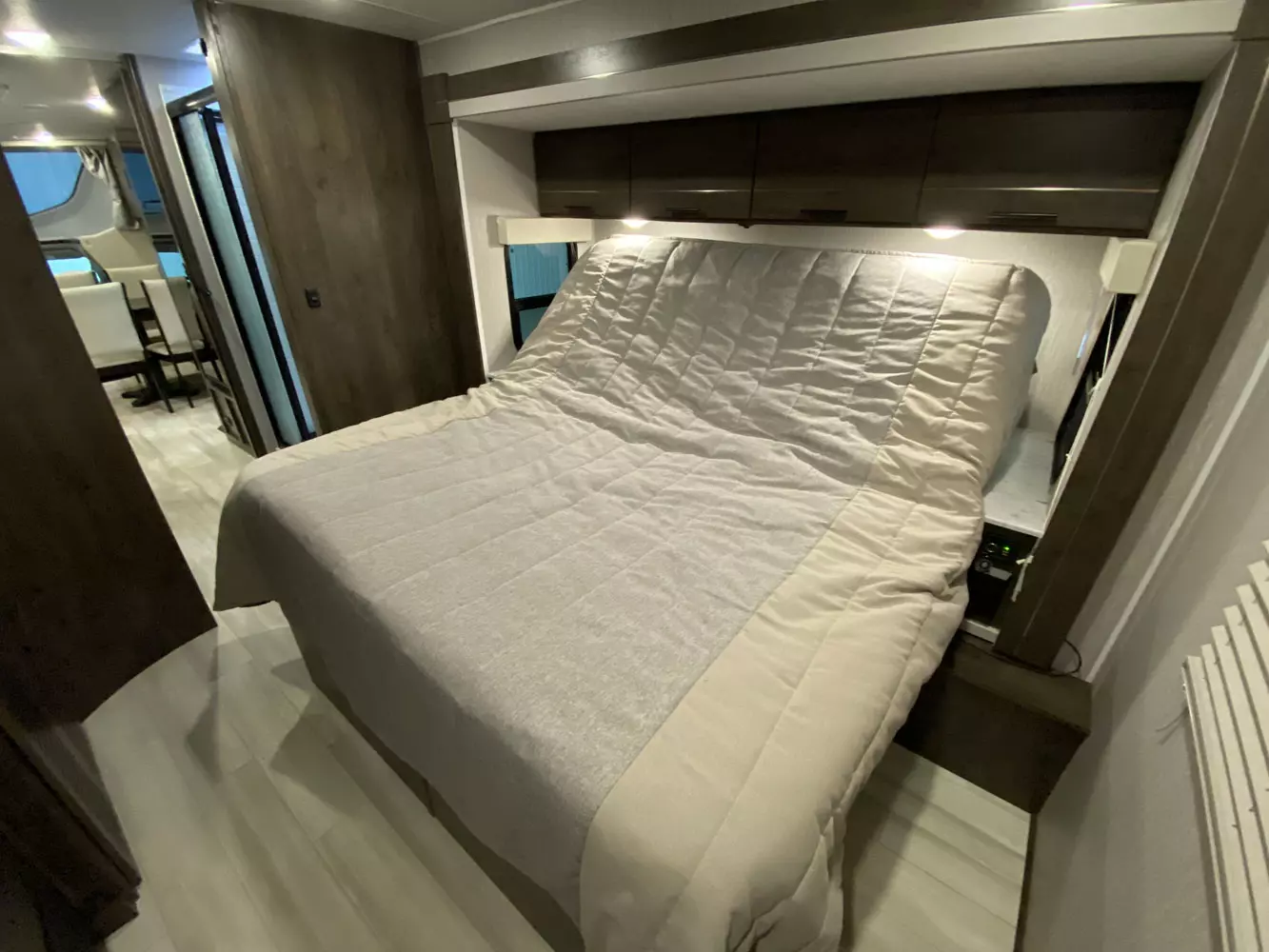

  • 72" x 80" Residential King Bed
  • Power Bed Raising System
  • Exterior Windshield Cover
  • Upgraded Bedspread & Headboard
  • Shower Mizer Water System
  • Enclosed & Heated Holding Tanks
  • LP Girard Tankless Water Heater
  • Water Panel w/City, Tank, Winterize, & Waste Tank Flush Connections
  • Low Point Drain and Winterize Valve at Fresh Tank
  • Power Bath Vent
  • Demand Water Pump
  • Stainless Steel Lavatory Sink
  • Black Long Bar Shower Faucet & Head
  • Medicine Cabinet and Wall Mirrors

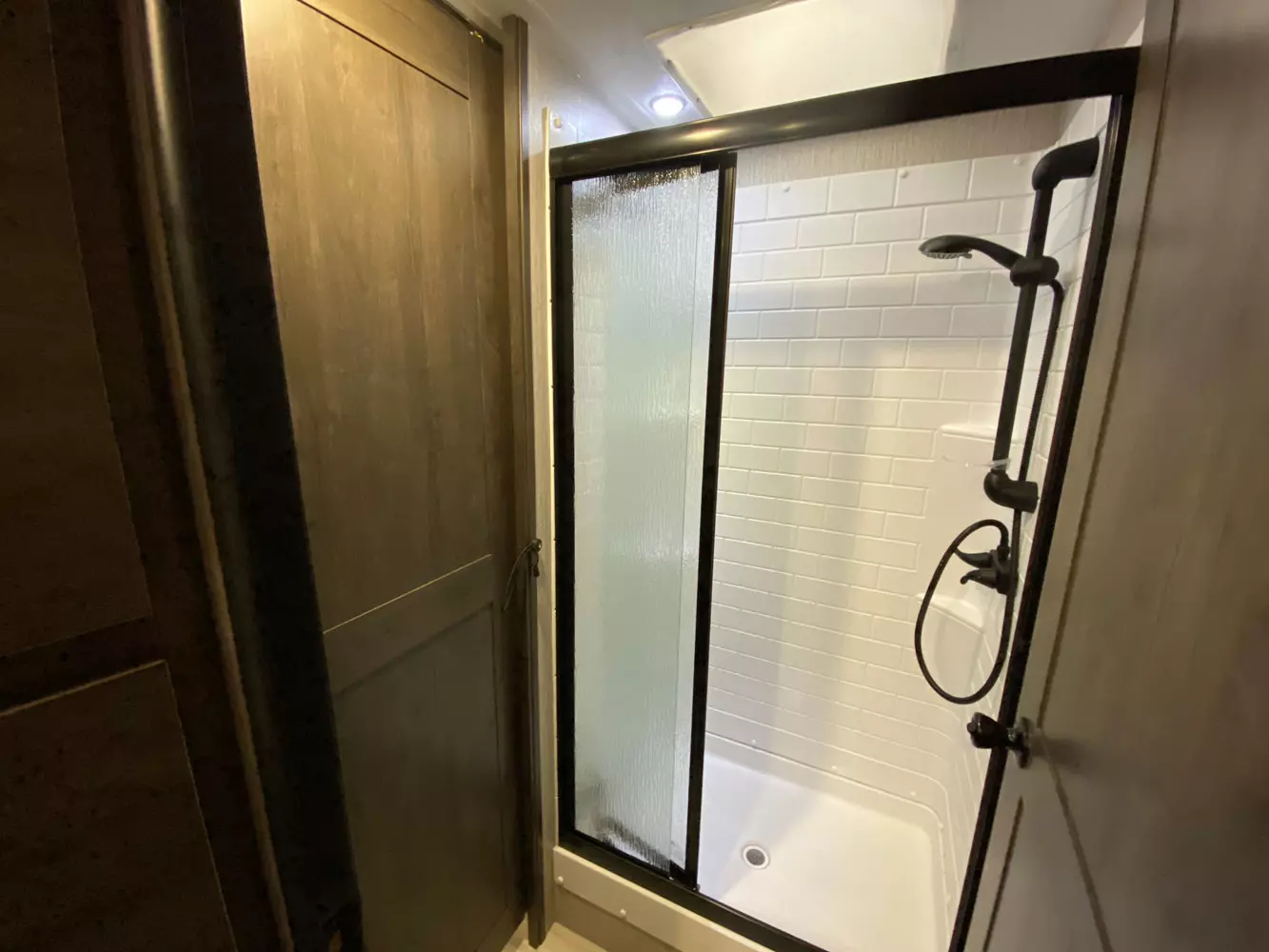

  • Black Retractable Shower Door
  • Porcelain Foot Flush Toilet

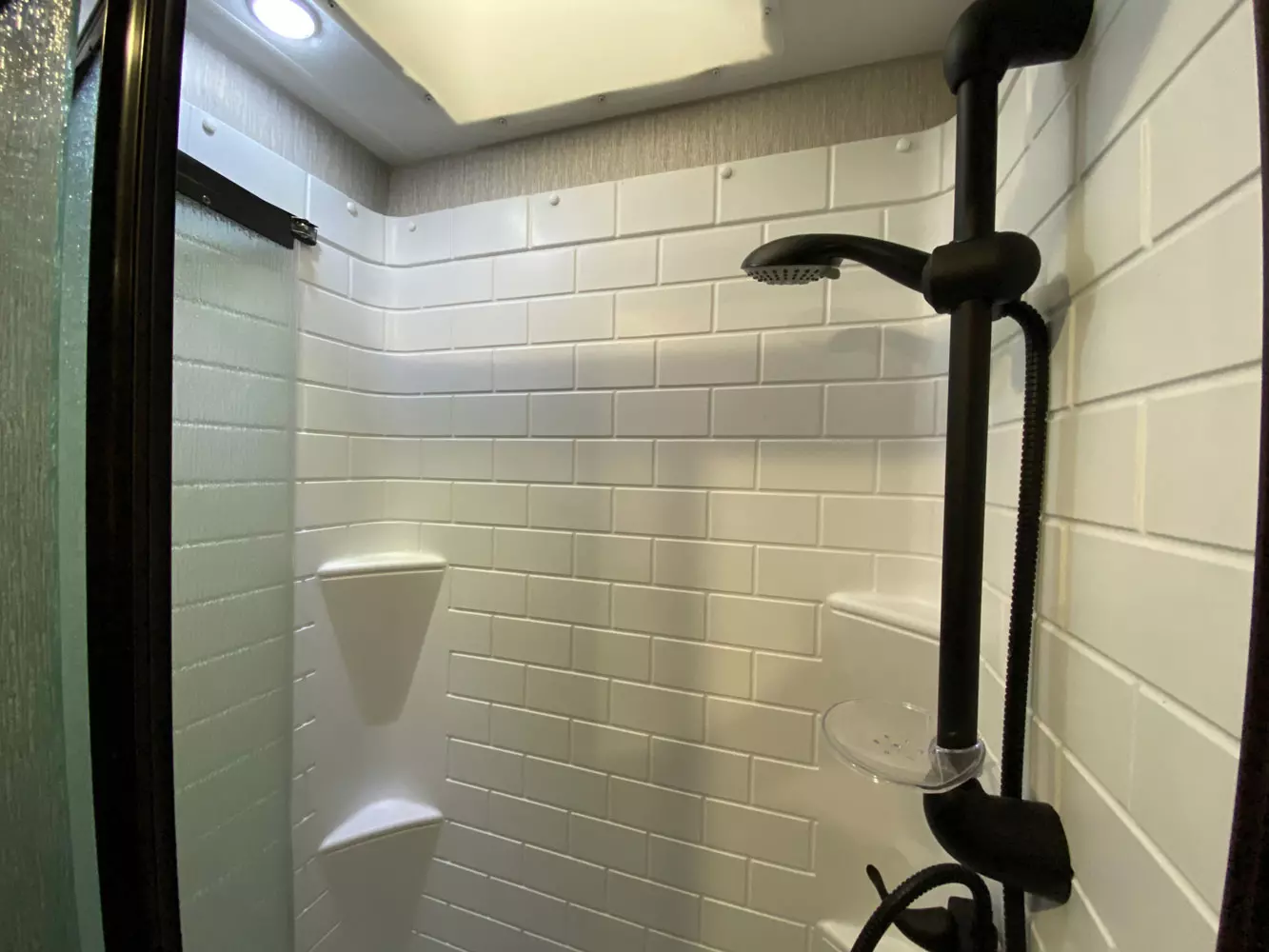

  • Skylight Over Shower
  • Exterior Shower
  • 50 Amp Power Cord
  • 50 Amp Power Center
  • EMS Power Management System
  • Emergency Start Button on Dash
  • Dual Auxiliary Batteries

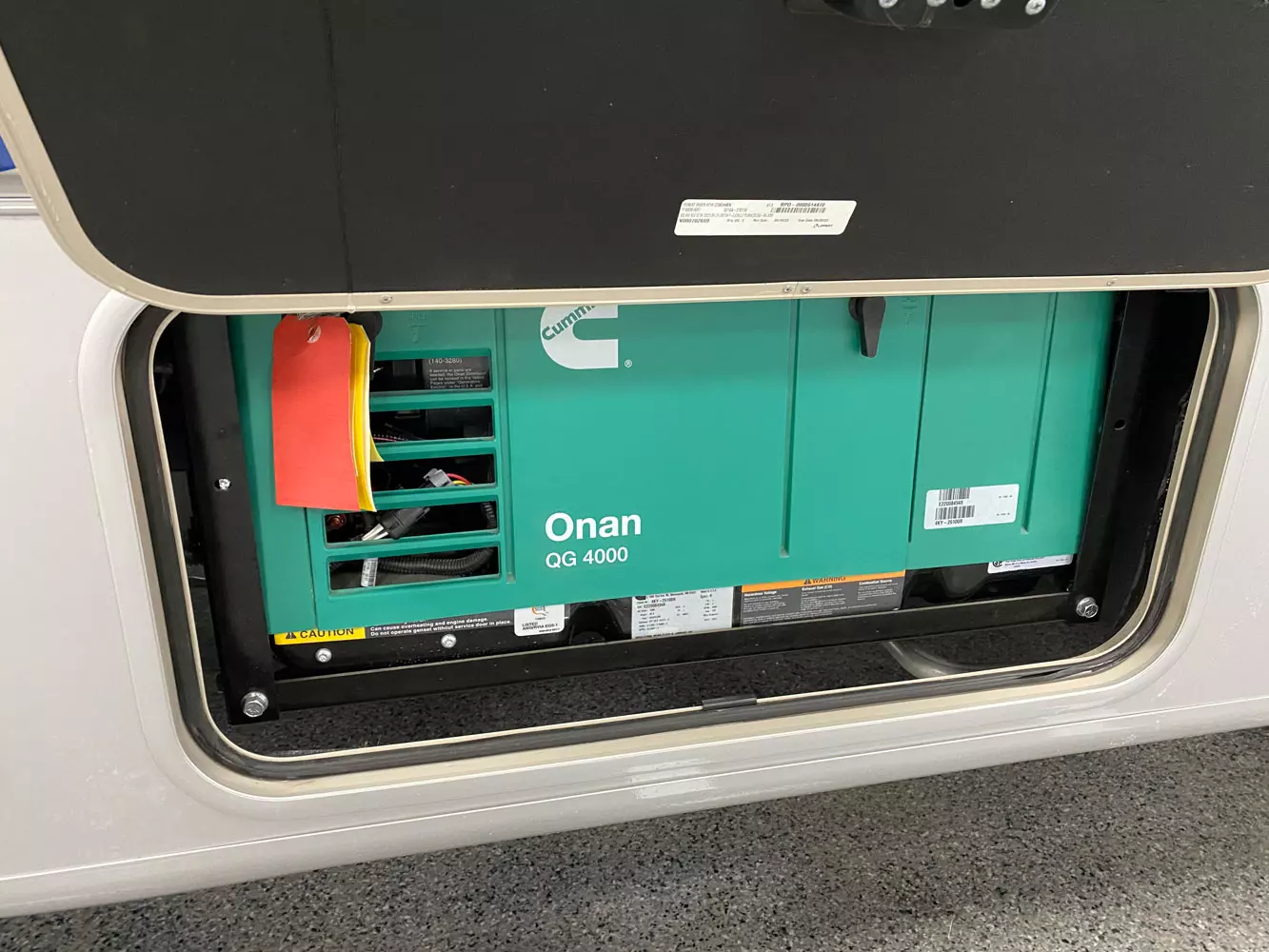

  • 4.0KW Onan Gas Generator
  • GFI Circuit
  • Black Mounted Auxiliary Battery Disconnect
  • Wall Mounted Thermostat
  • Two - 18K BTU Ducted Furnaces
  • Dual A/C 11,000 Penguin HE Rear/15,000 Penguin Front w/Heat Pump

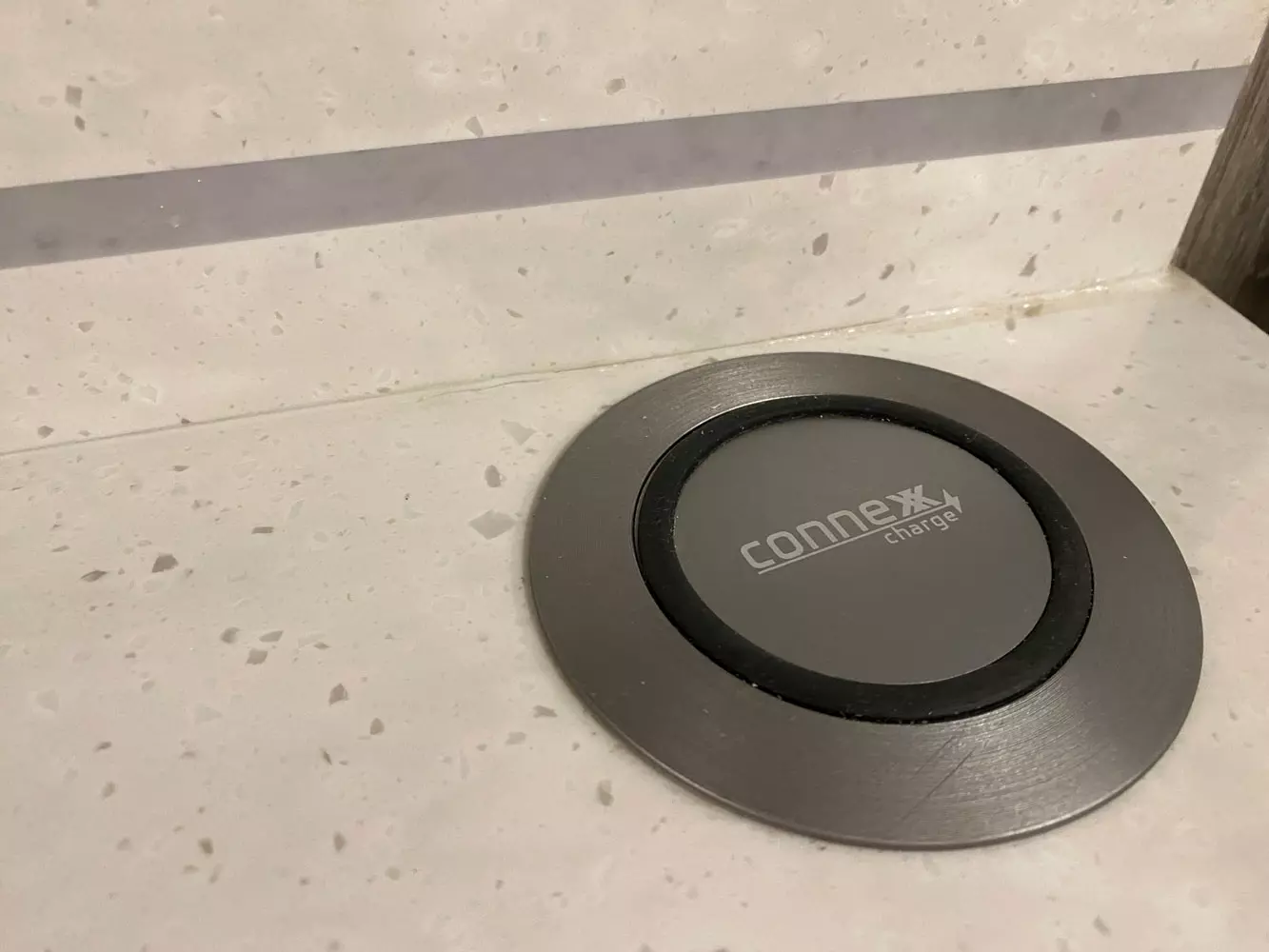

  • Wireless Phone Charger
  • Exterior Solar Panel Plug-in Connection

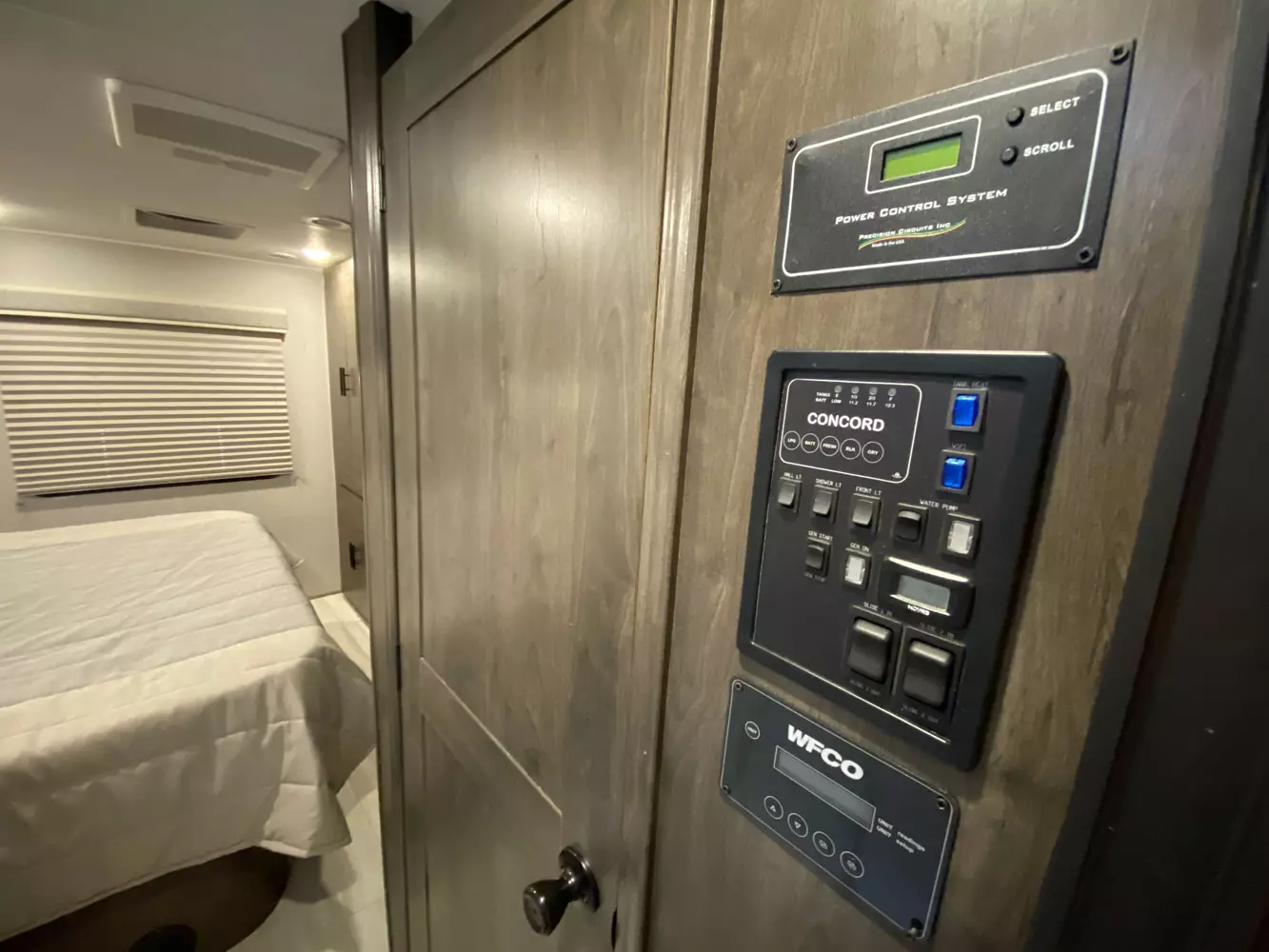

  • Concord Command Center
  • Powered Power Cord Reel
  • Exterior LP Quick Connect

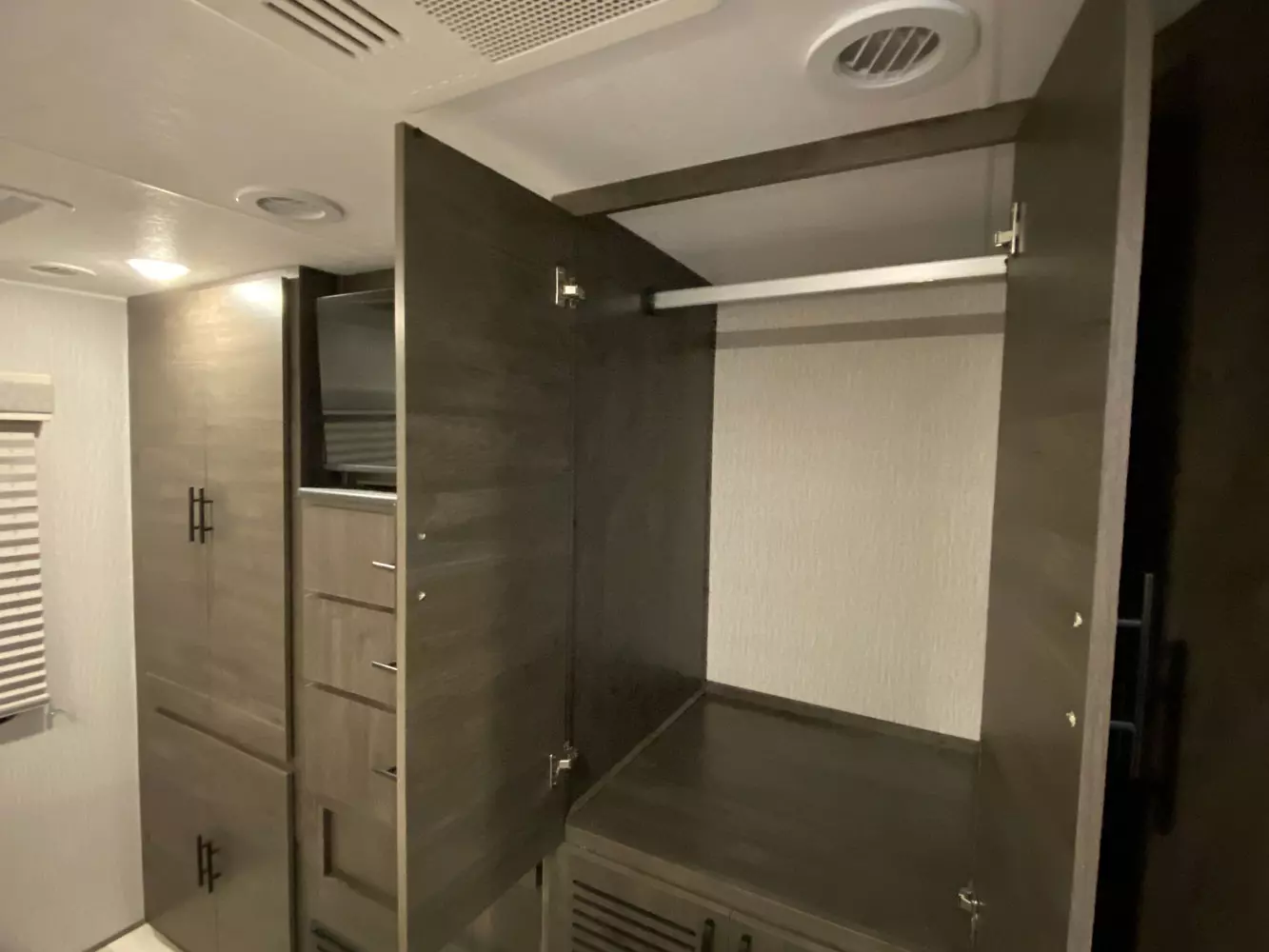

  • Lit Closet Rod w/Plastic Hangers
Interior Options

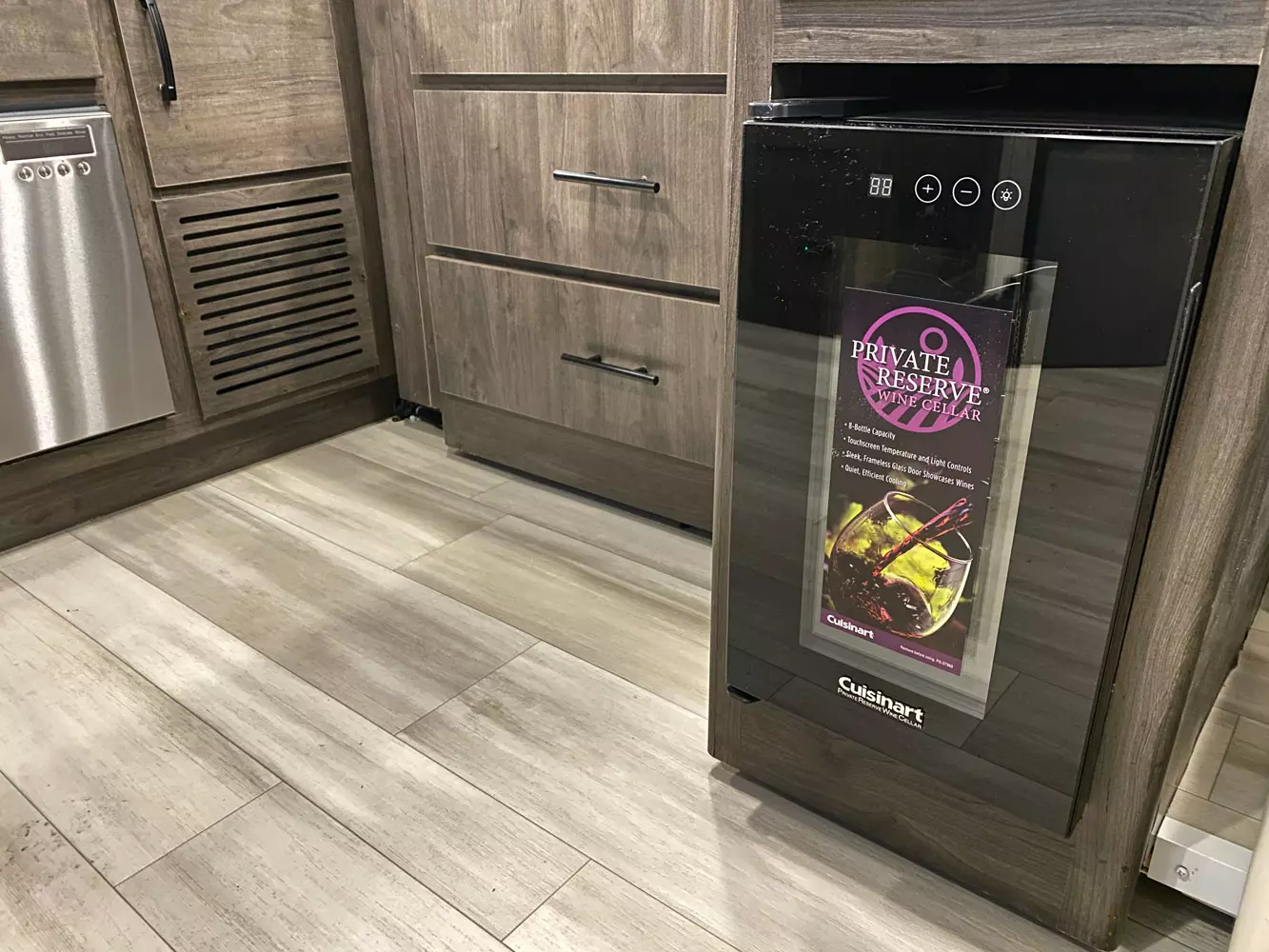

  • Wine Chiller

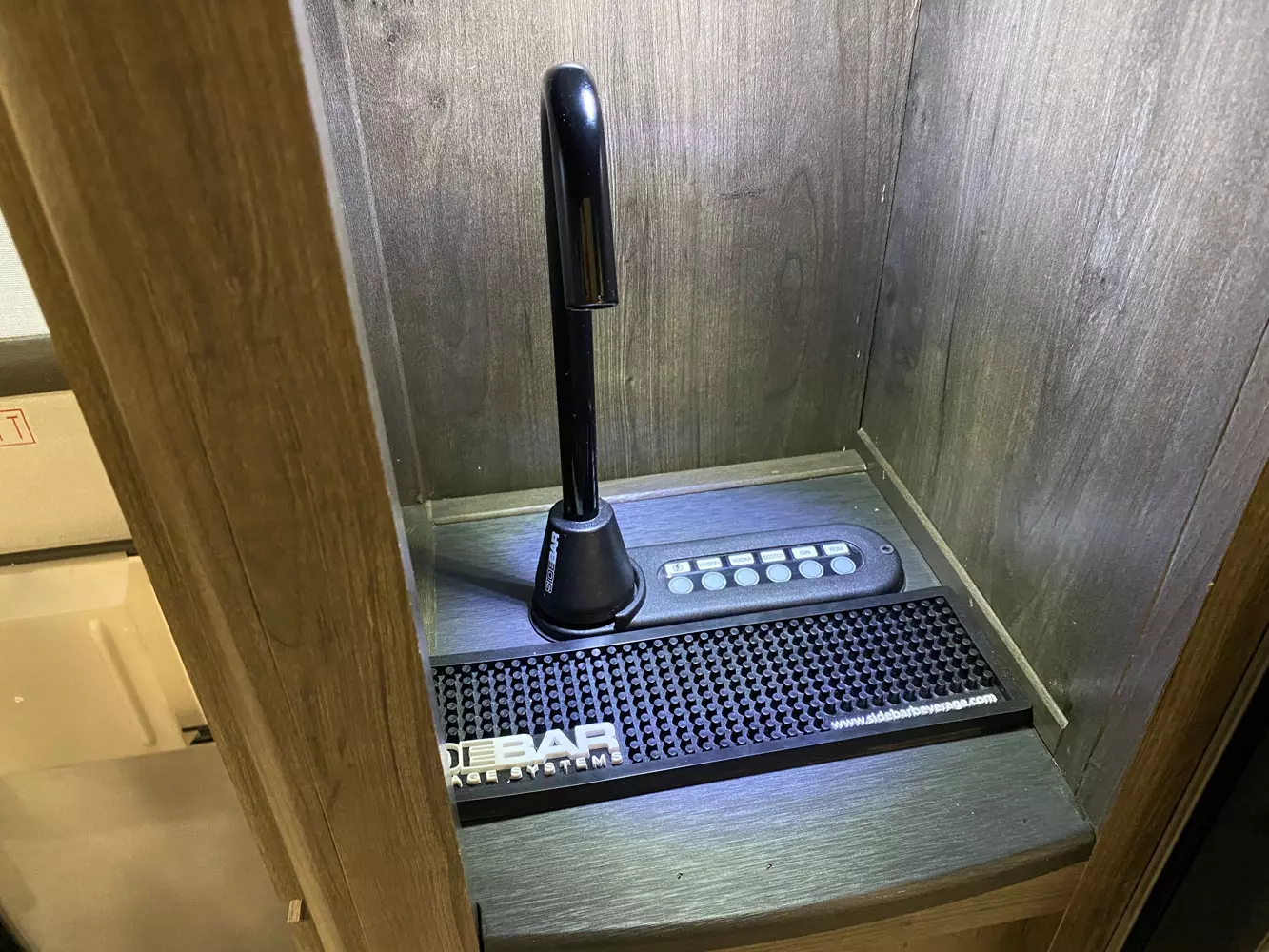

  • Beverage Dispenser
  • Dishwasher

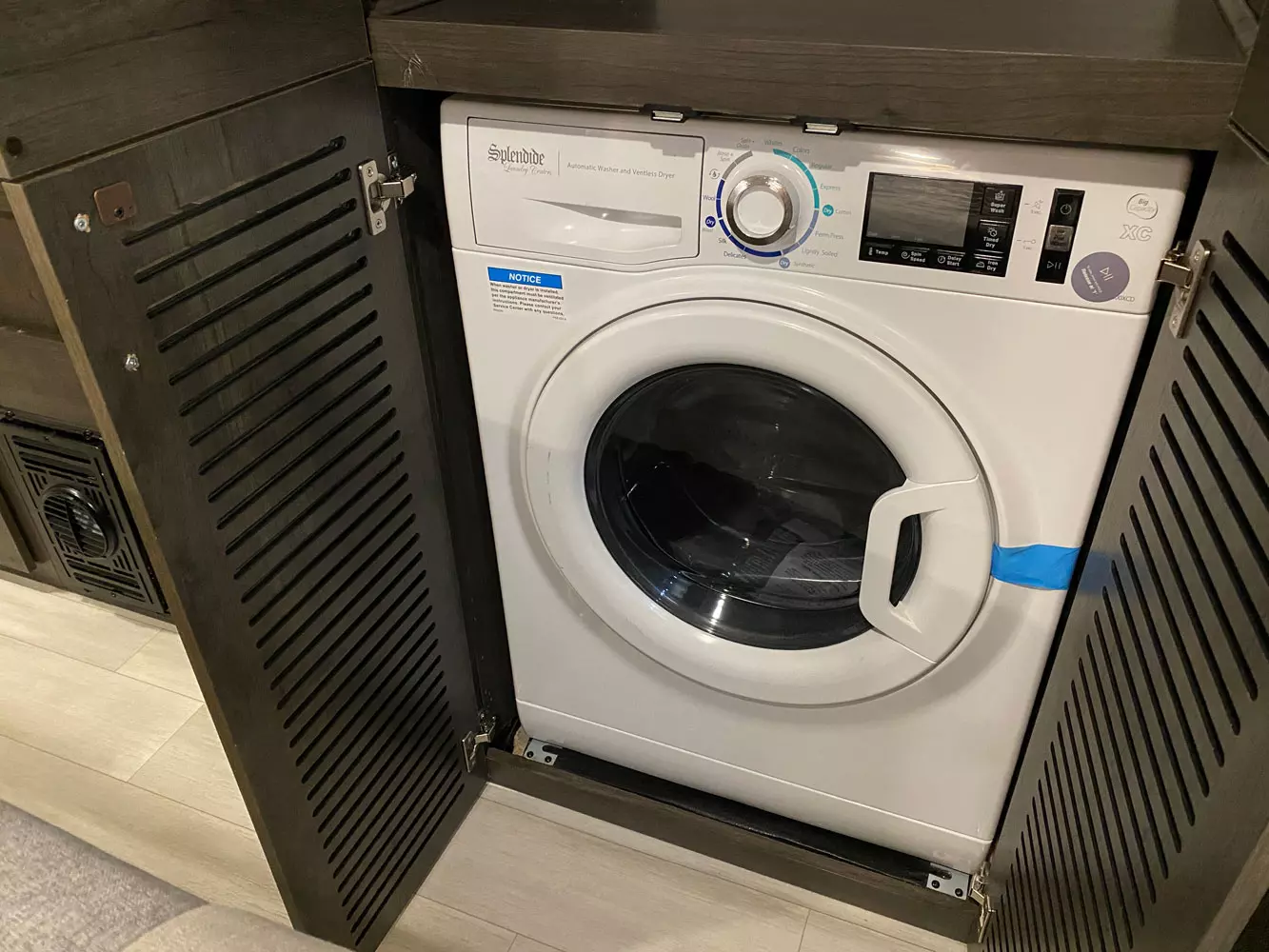

  • Washer/Dryer Combo
TV and Entertainment Options
  • 32" LCD Smart Bedroom TV
  • Tailgater Satellite Dome & Receiver
Exterior Options
  • Portable AC/DC Refrigerator/Freezer
  • Hydraulic Leveling Jacks
Codes and Standards
  • Canadian Compliance (KPM Speedo)(Ford Only)
  • CD-MVSA (Ford Only)(Mandatory on Canadian Units)
  • Z240 CSA (Ford Only)
  • Nebraska State Seal
  • Washington State Seal
