22XG - Ford 450 Floorplan

Freelander - Ford Models

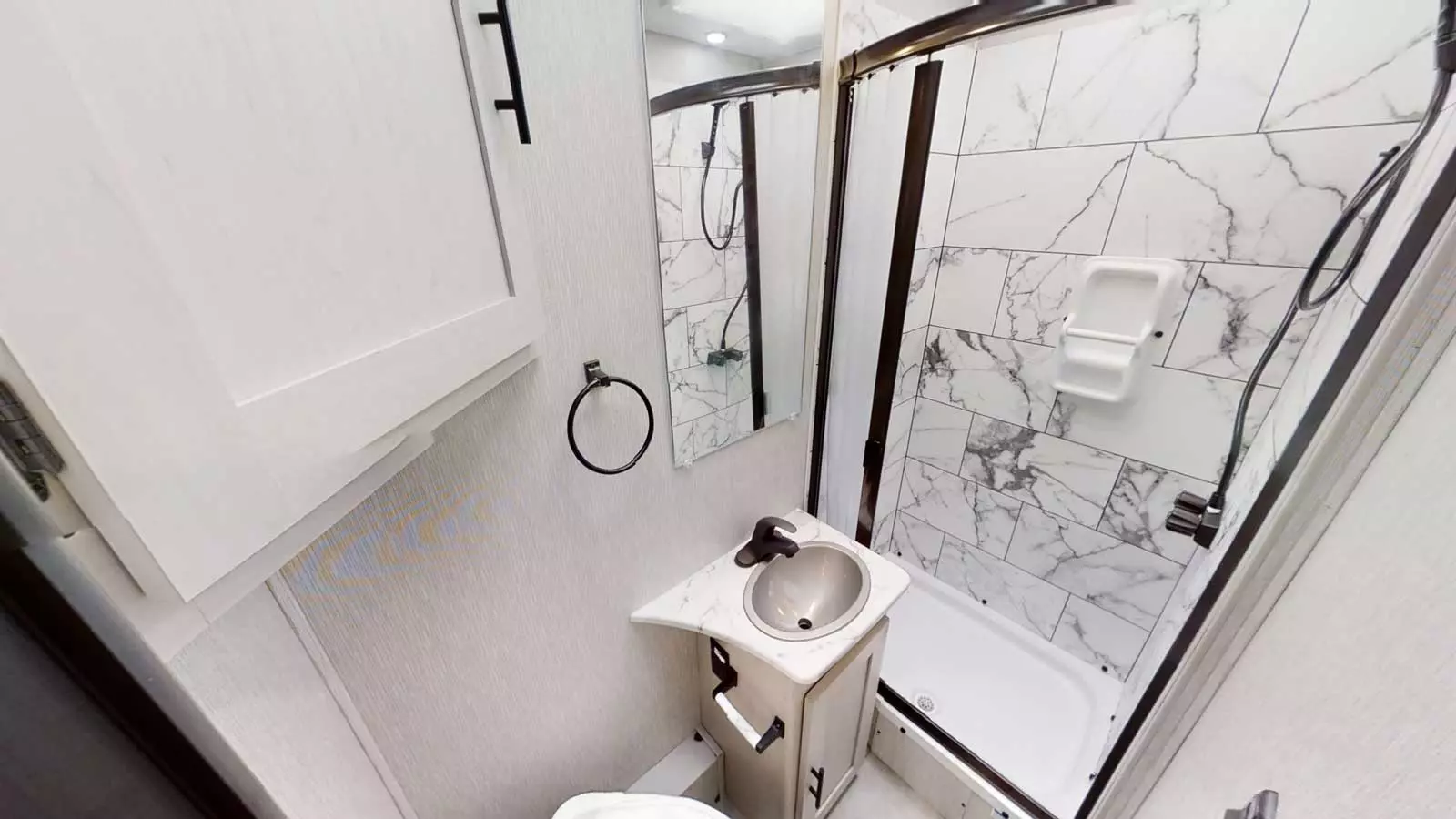

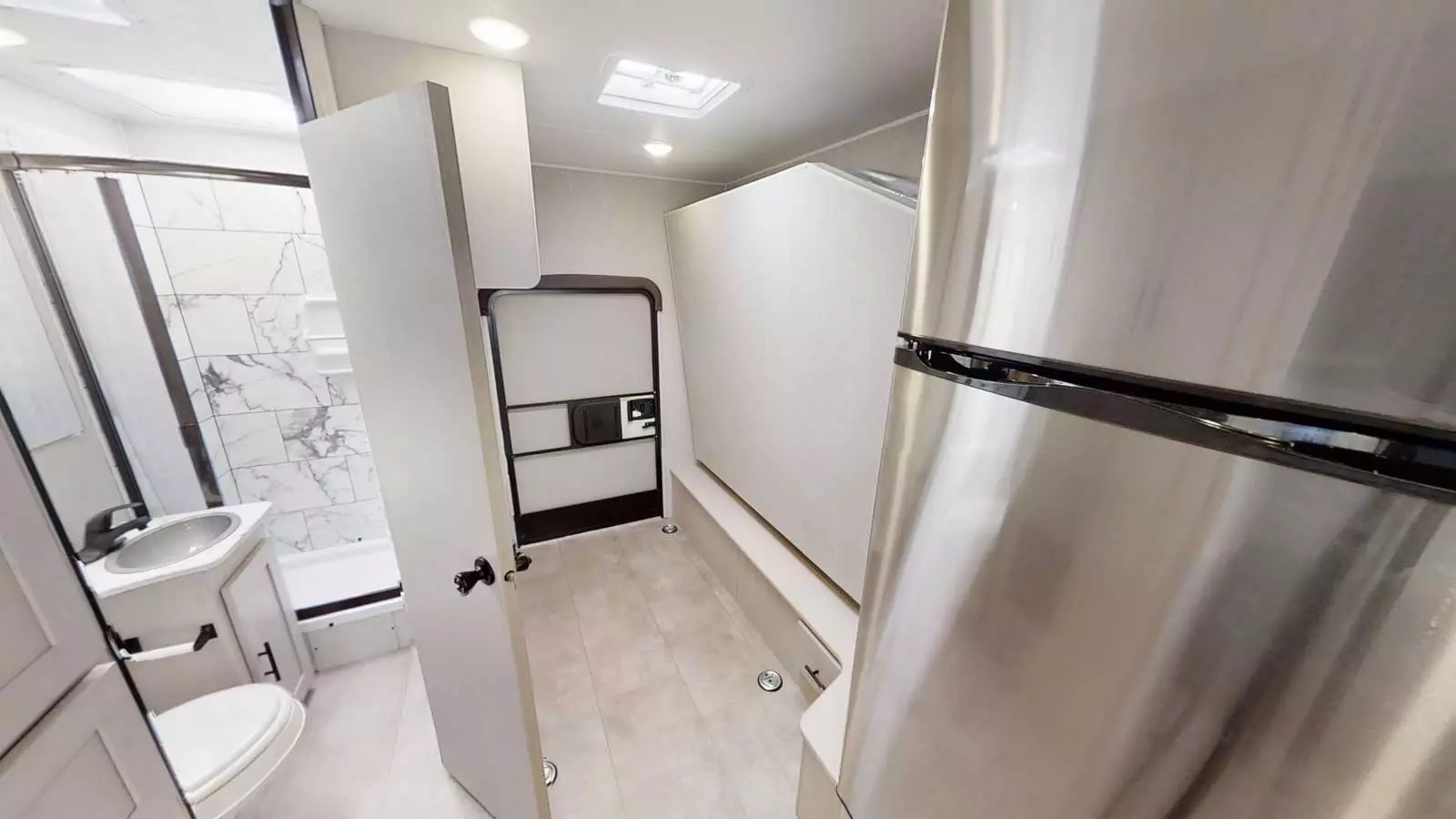

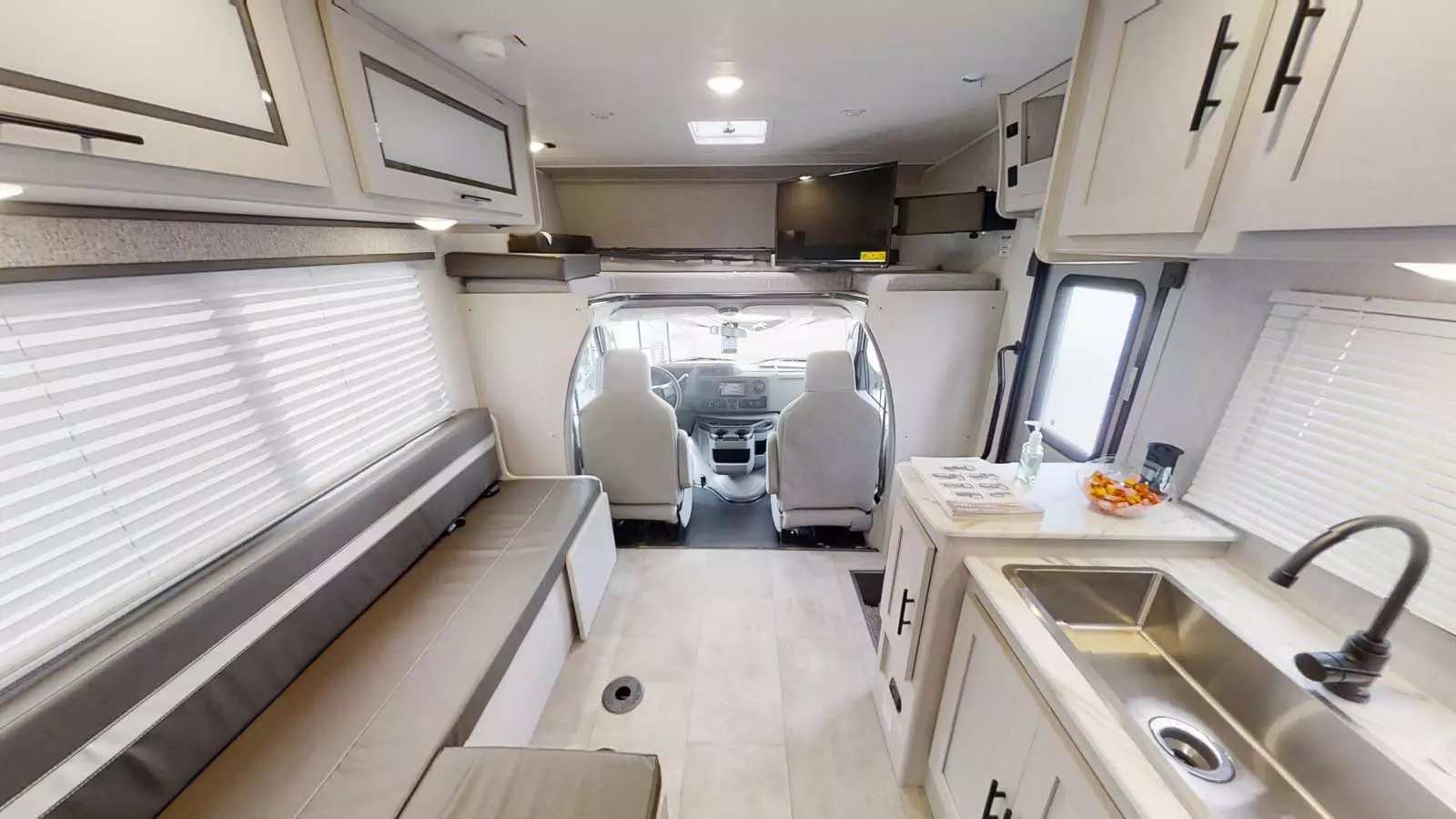

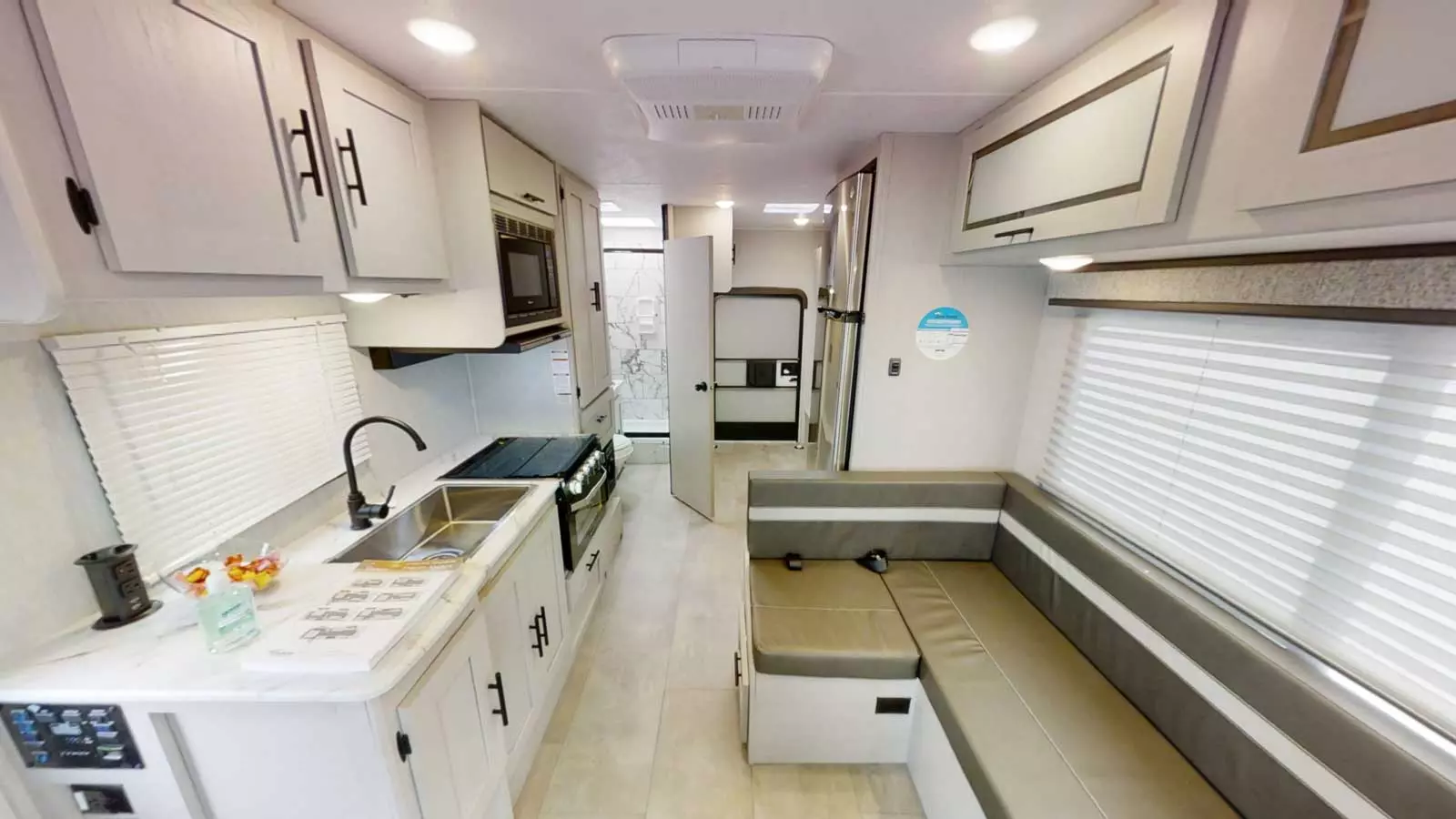

The Freelander 22XG FORD 450  has 0 slideouts. Interior layout from front to back; front 57 inch by 95 inch bunk with swing arm TV; door side kitchen with microwave above stovetop, double basin sink and overhead cabinet; off-door side 44 inch by 76 inch J-Lounge with 18 inch extension and overhead cabinets and refrigerator; rear off-door side 60 inch by 80 inch murphy queen bed in multi-function bedroom/cargo bay area; rear door side bathroom with shower, toilet and sink with overhead cabinets.
Enlarge

Specifications

Wheelbase:
158"
GVWR:
14,500 lb.
GCWR:
22,000 lb.
GAWR Rear:
9,600 lb.
GAWR Front:
5,000 lb.
Fuel Capacity:
55 gal.
Exterior Length:
24' 3"
Exterior Height:
10' 11"
Exterior Width:
100"
Fresh Water:
41.00 gal.
Gray Water:
28.00 gal.
Black Water:
31.00 gal.
Awning Size:
15'



GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GCWR (Gross Combined Weight Rating) - Is the maximum permissible loaded weight of your motor home and any towed trailer or towed vehicle. Actual GCWR of this vehicle may be limited by the sum of the GVWR and the installed hitch receiver maximum capacity rating; see hitch rating label for detail.

GAWR (Gross Axle Weight Rating) - is the maximum permissible weight, including cargo, fl uids, optional equipment and accessories that can be safely supported by each axle.

UVW (Unloaded Vehicle Weight)* - is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s), including full fuel, all fl uids and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, passengers, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before fi lling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Coachmen RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Coachmen RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Actual towing capacity is dependent upon your particular loading and towing circumstances, which includes the GVWR, GAWR and GCWR as well as adequate trailer brakes. Please refer to the Operator's Manual of your vehicle for further towing information.



Video Tour



Features & Options


  • Booth Dinette (27QB)
  • J-Dinette w/Pullout (22XG, 26DS, 29KB)
  • Small U-Dinette (23FS)
  • Large U-Dinette (31FS, 31MB)
  • Magazine Rack above Entrance Door with HDMI and Charge Station
  • Glass Shower Door (26DS, 29KB, 31FS, 31MB)
  • Low Point Drain and Winterize Valve at Fresh Tank
  • Murphy Residential Size Queen Bed - 60" X 80" (22XG)
  • Window at Head of Bed (27QB)
  • Upgraded Headboard (26DS, 29KB, 31FS, 31MB)
  • NPS 4500 Generator w/Key Fob (26DS, 29KB, 31FS, 31MB)
  • 13,500 BTU Ducted Roof A/C (26DS, 27QB, 29KB, 31FS, 31MB)
  • Solar Prep at Roof and Entry Cabinet
  • 55-Gallon Fuel Tank (Ford)
  • Upgraded Exterior Safety Grab Handle (26DS, 29KB, 31FS, 31MB)
Exterior
  • Freelander Graphics Package
Optional
  • Partial Paint Exteriors w/Chrome Heated Remote Mirrors
  • Electric Fireplace (31MB)
  • Washer/Dryer Combo (29KB, 31FS)
  • Solid Surface Kitchen Countertops w/Under Mount Stainless Steel Sink (26DS, 29KB, 31FS, 31MB)
TV and Entertainment Options
  • Ext. Entertainment Ctr. w/24" TV and Bluetooth Soundbar (26DS, 31FS)
  • Ext. Entertainment Ctr. w/32" TV and Bluetooth Soundbar (29KB, 31MB)
  • 24" Bedroom TV (26DS, 31MB)
  • 22" Bedroom TV (31FS)
  • 32" Bedroom TV (29KB)
Exterior Options
  • Exterior Camp Table (26DS)
  • Exterior Camp Kitchen Table (31MB)
  • 15K BTU A/C w Heat Pump (N/A 22XG, 23FS, or w/ Dual A/C)
  • Dual A/C - 11.5 BTU Ducted Front & 11.5 BTU Non-Ducted Rear (N/A 22XG, 23FS, 27QB)
  • Hydraulic Leveling Jacks (26DS, 29KB, 31FS, 31MB)
  • Equalizer Stabilizer Jacks (Mandatory - 26DS, 23FS, 29KB, 31FS, 31MB)
Codes and Standards
  • Canadian Compliance (KPM Speedo)(Ford Only)
  • CD-MVSA (Ford Only)(Mandatory on Canadian Units)
  • Z240 CSA (Ford Only)
  • Nebraska State Seal
  • Washington State Seal
