26DS - Ford 450 Floorplan

Freelander - Ford Models

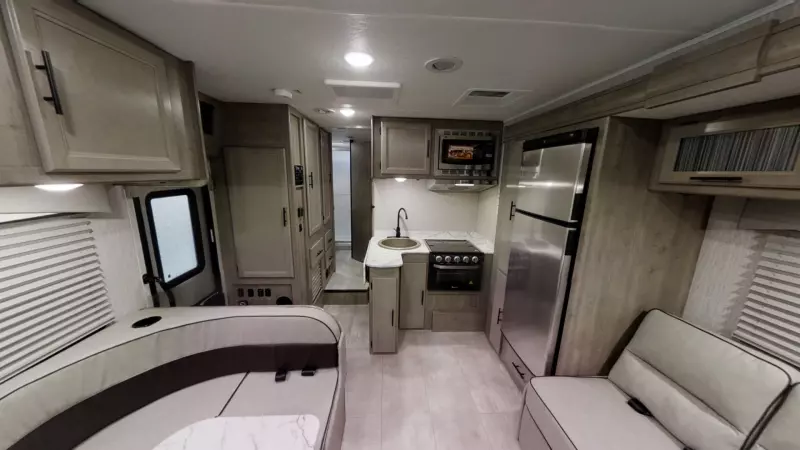

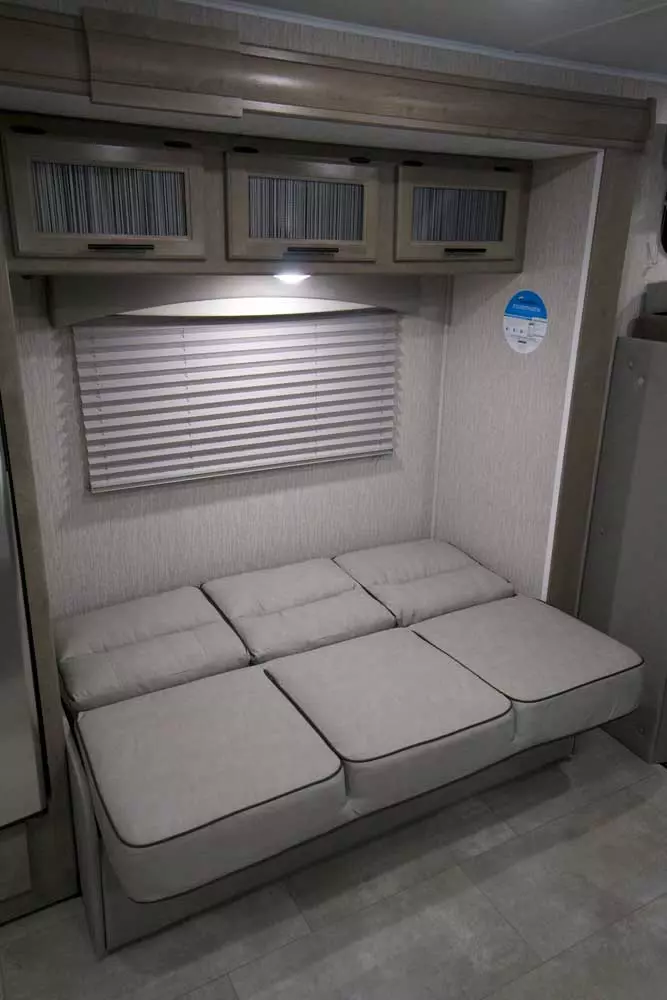

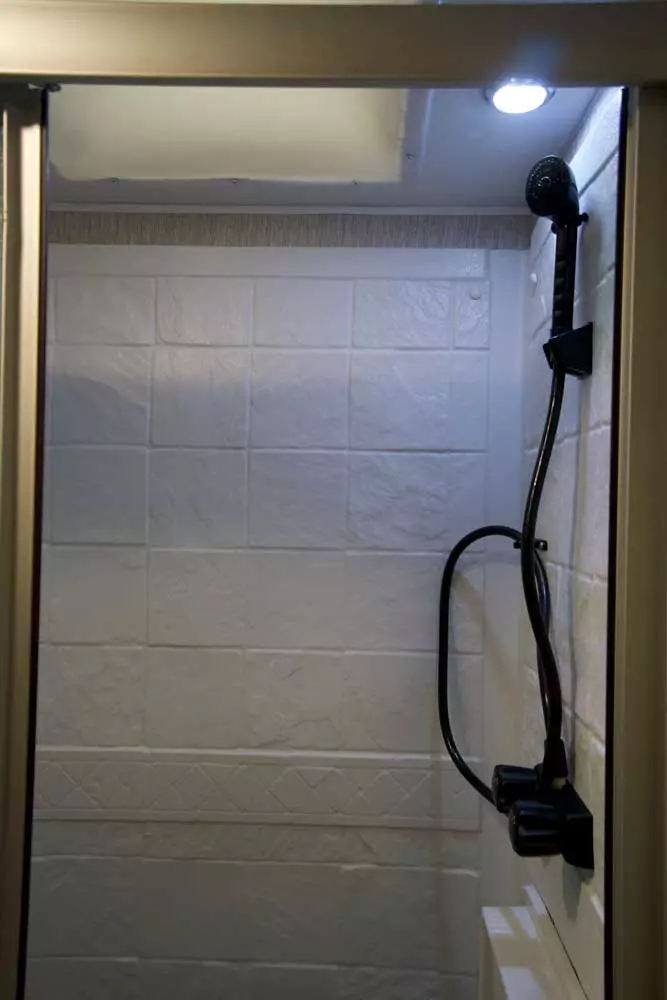

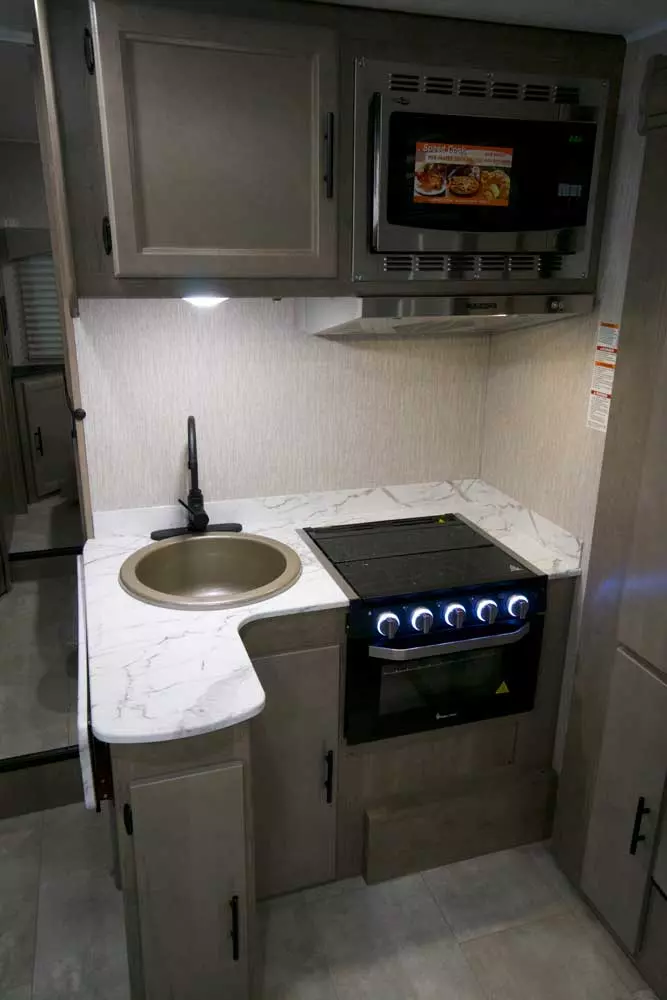

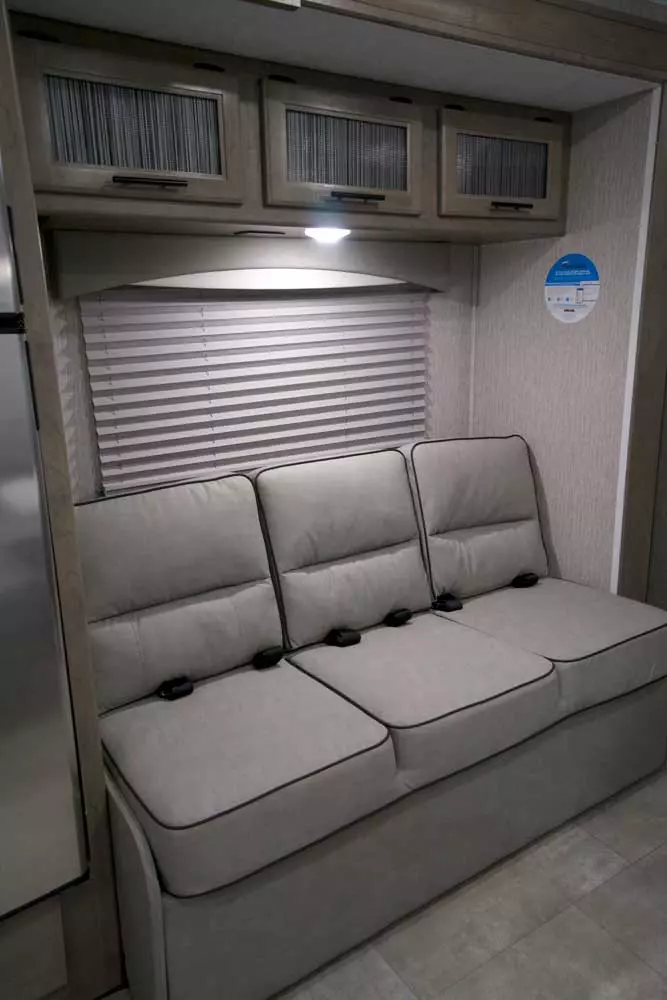

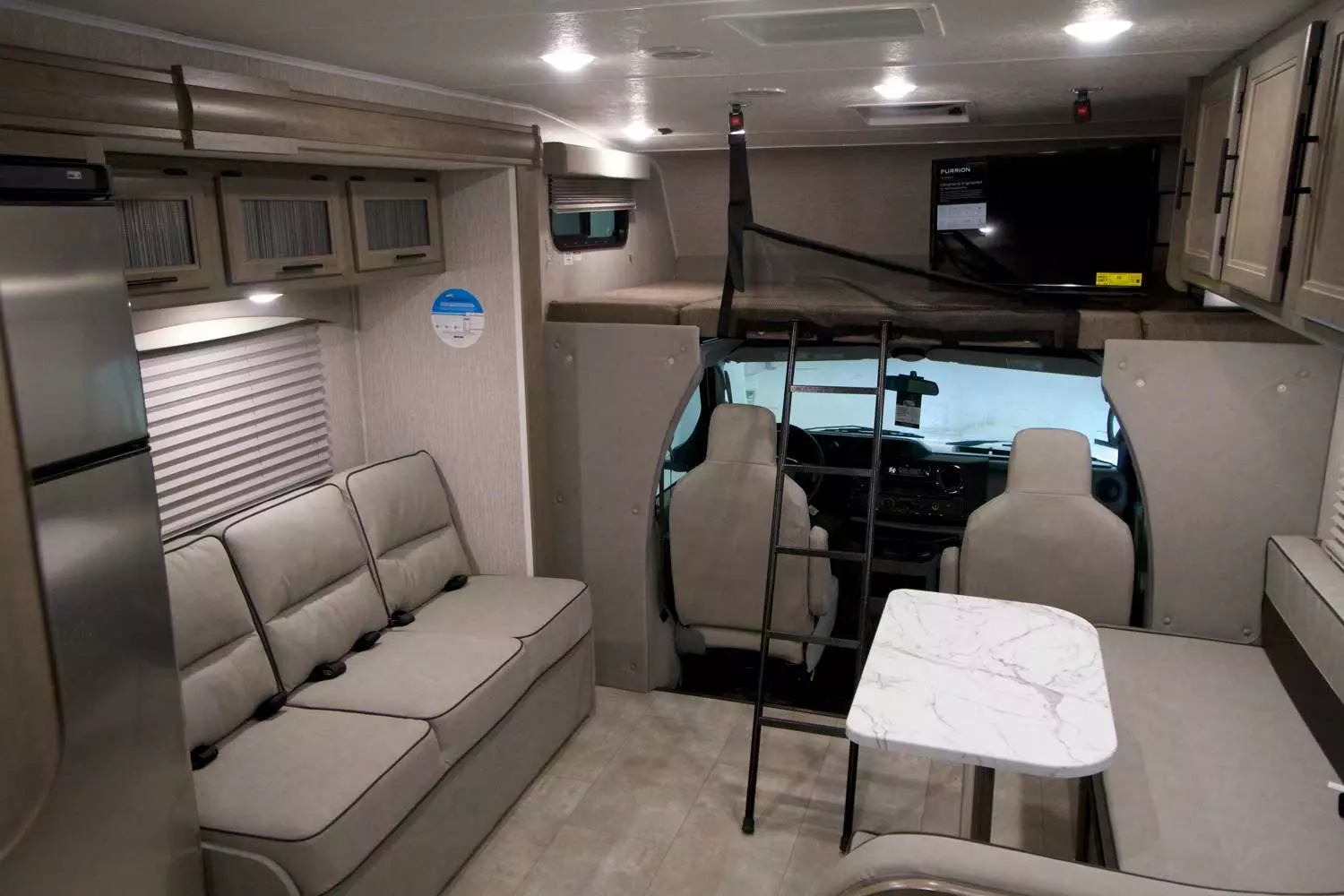

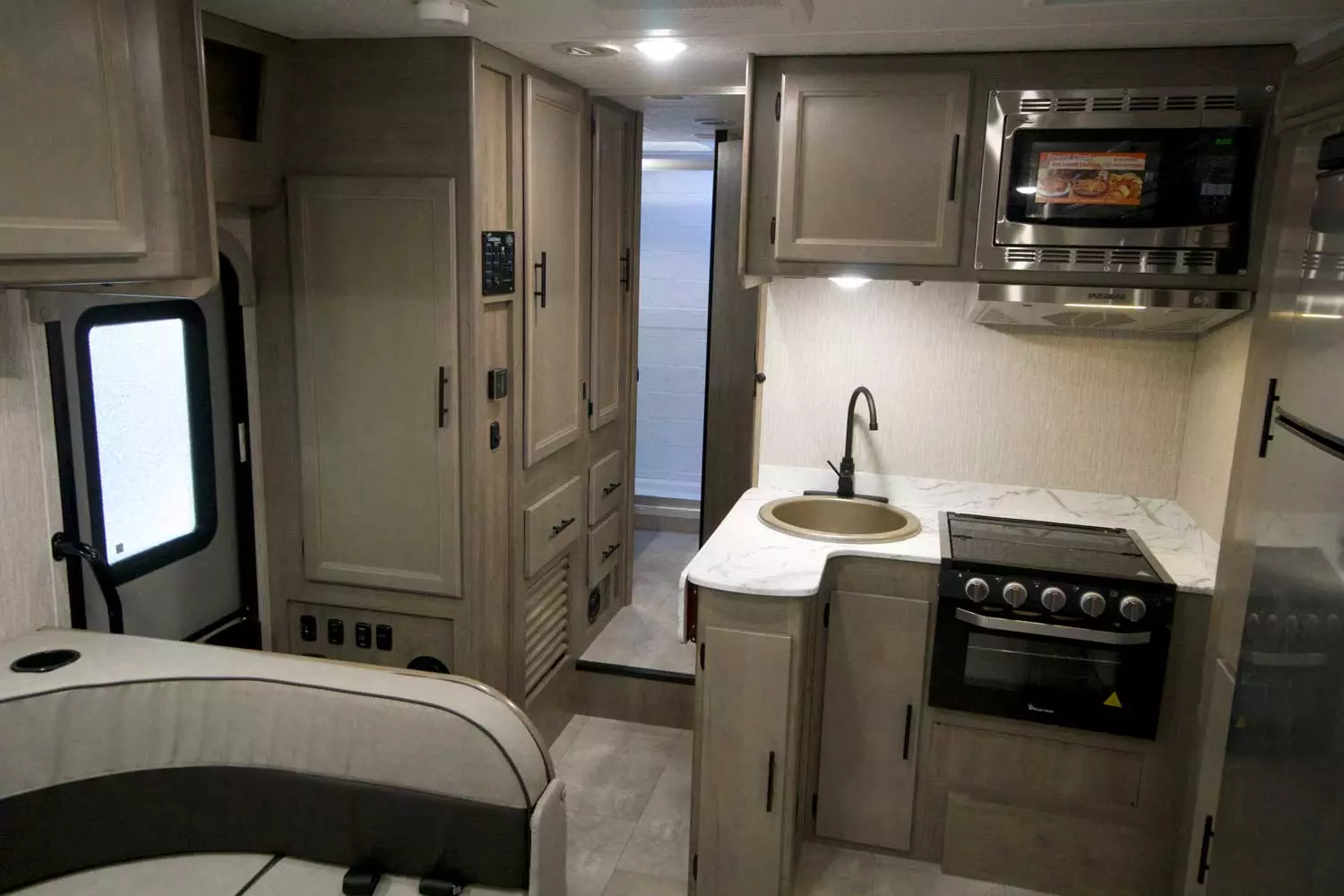

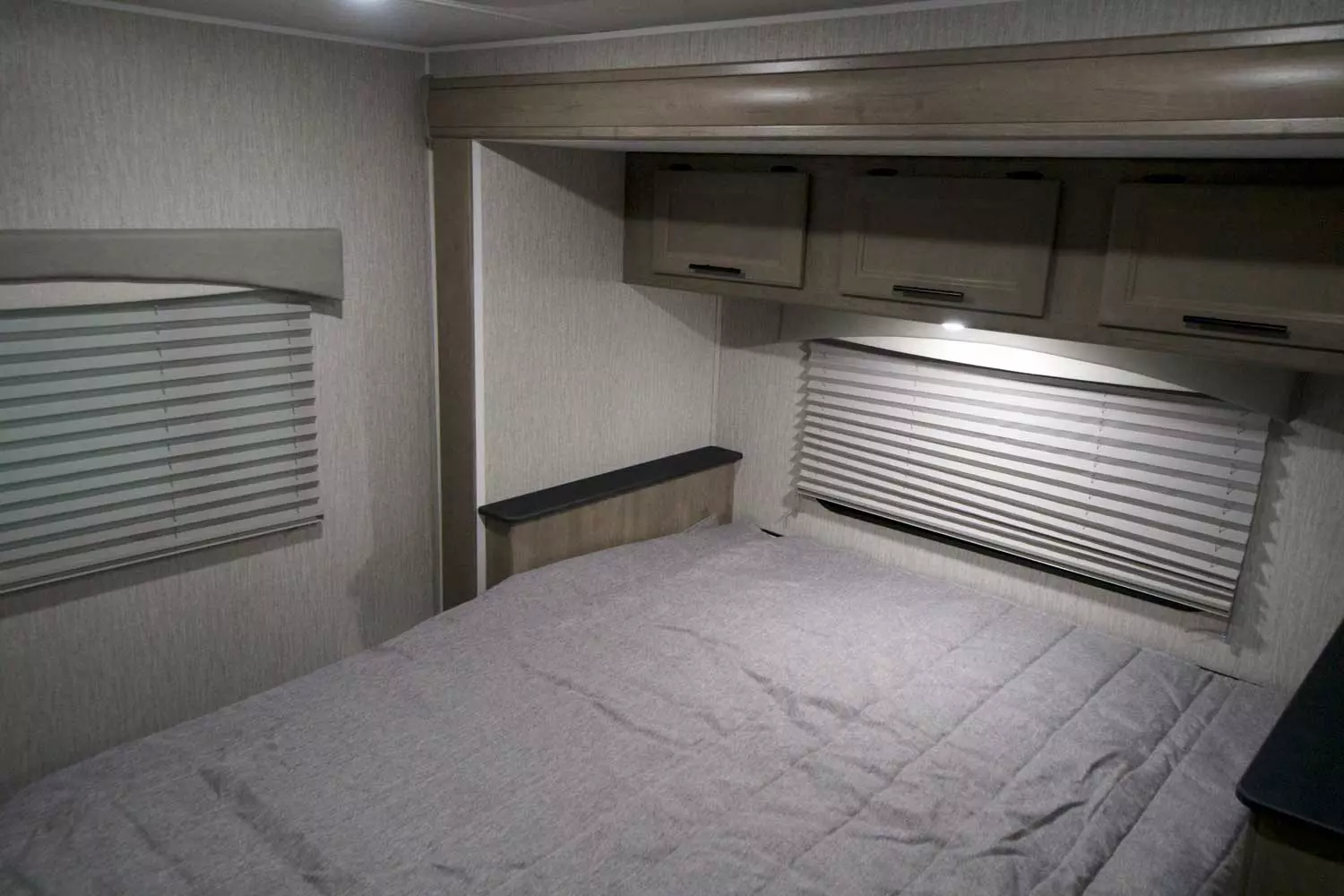

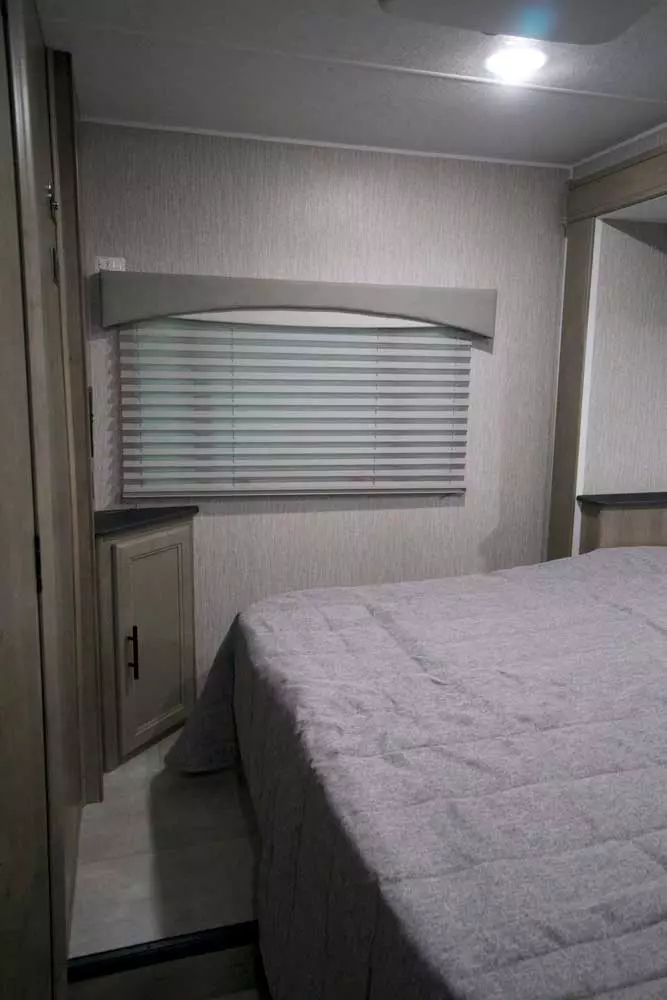

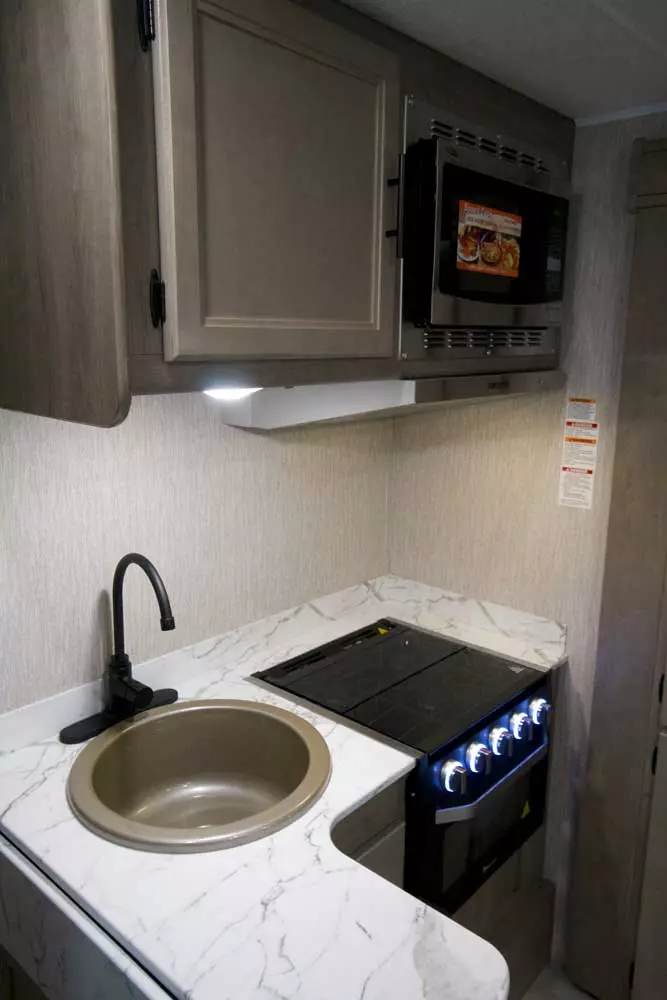

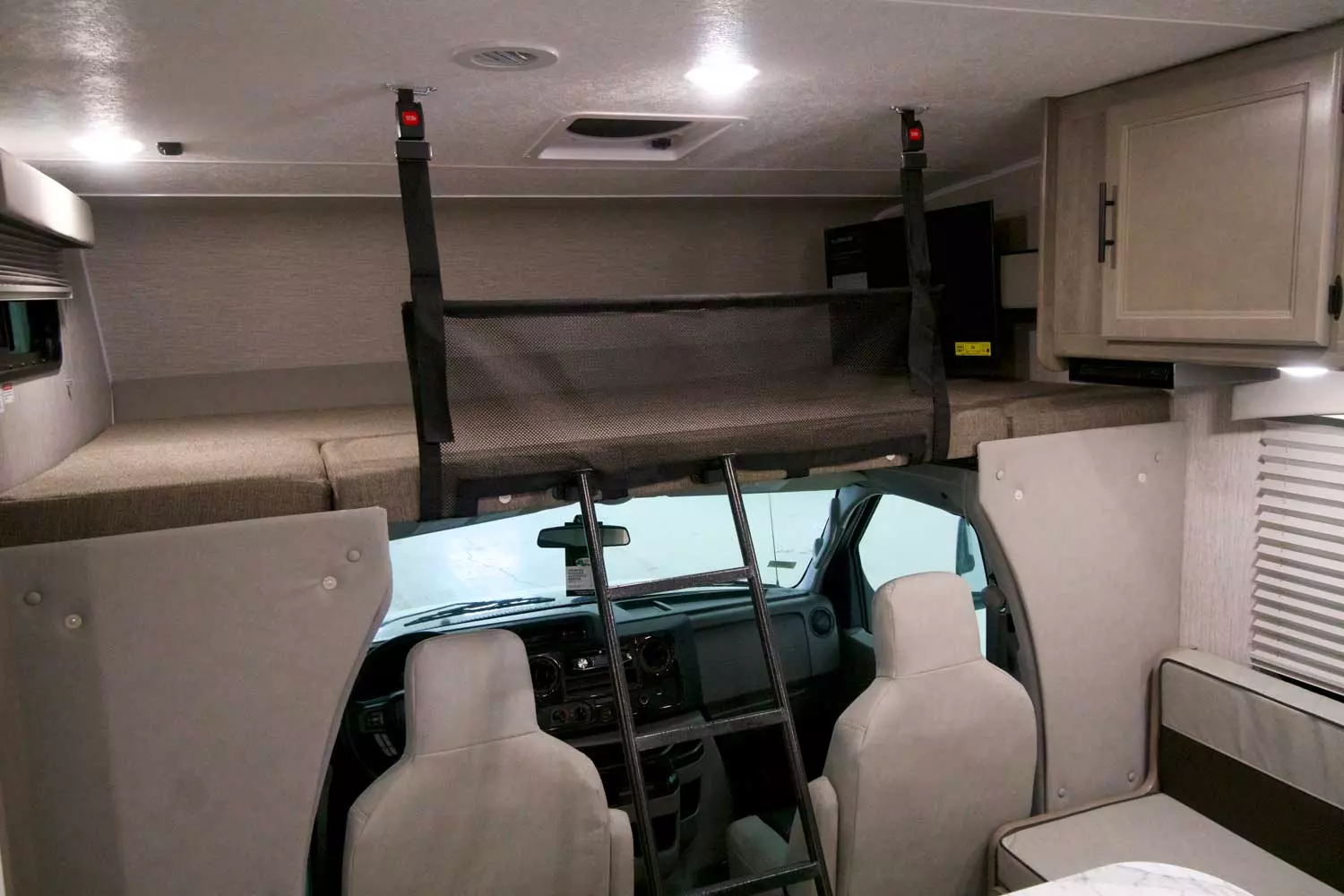

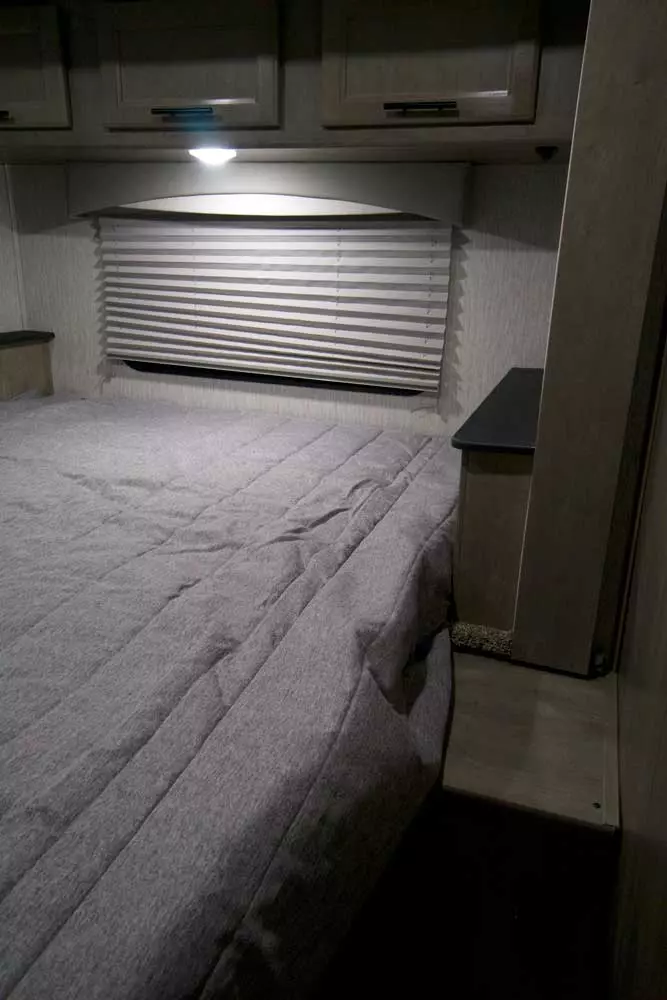

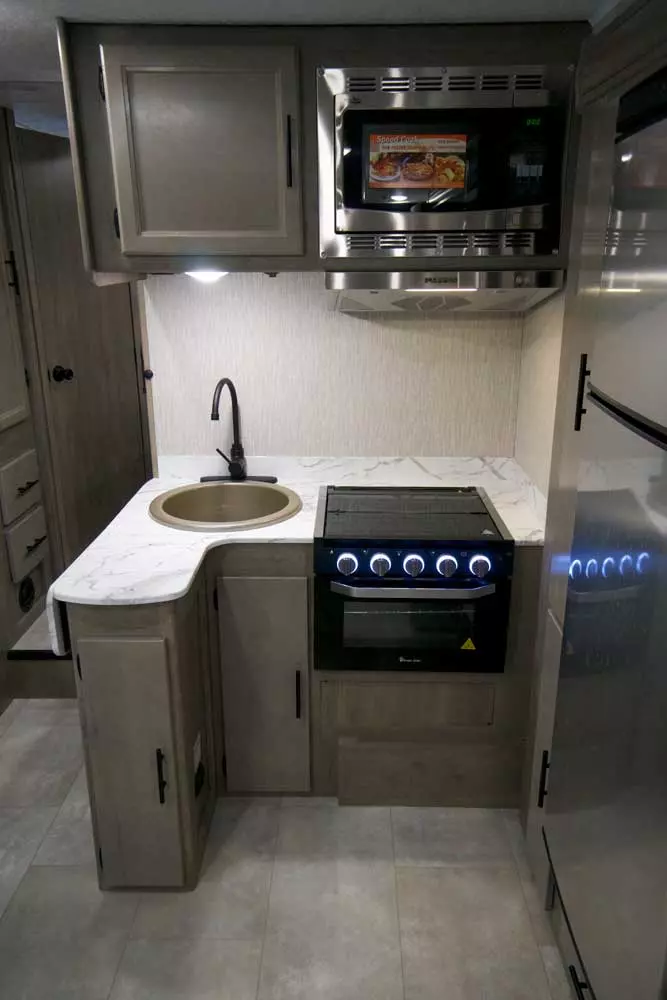

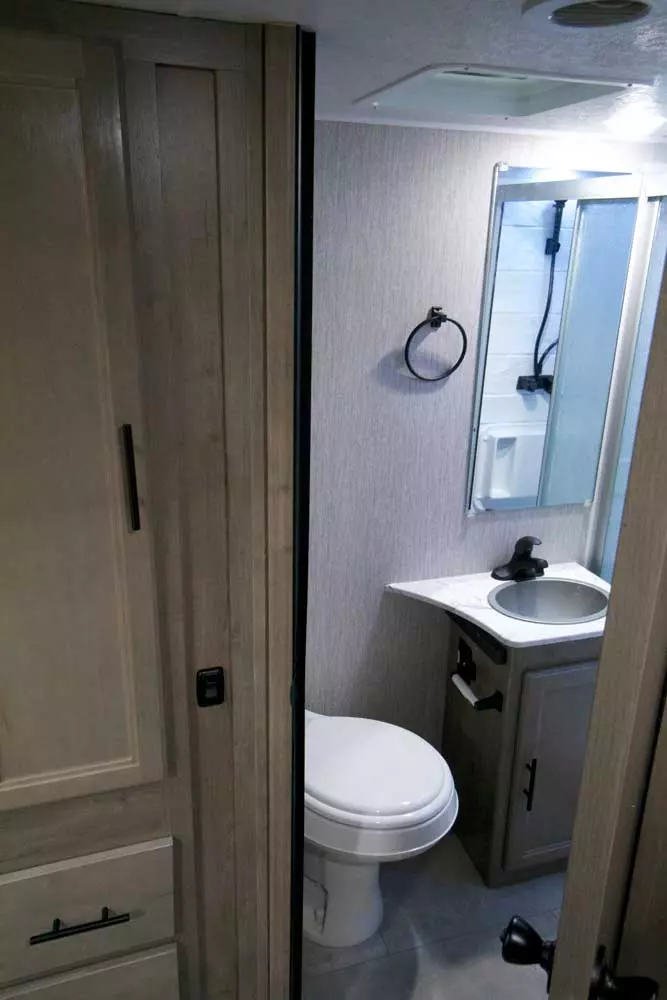

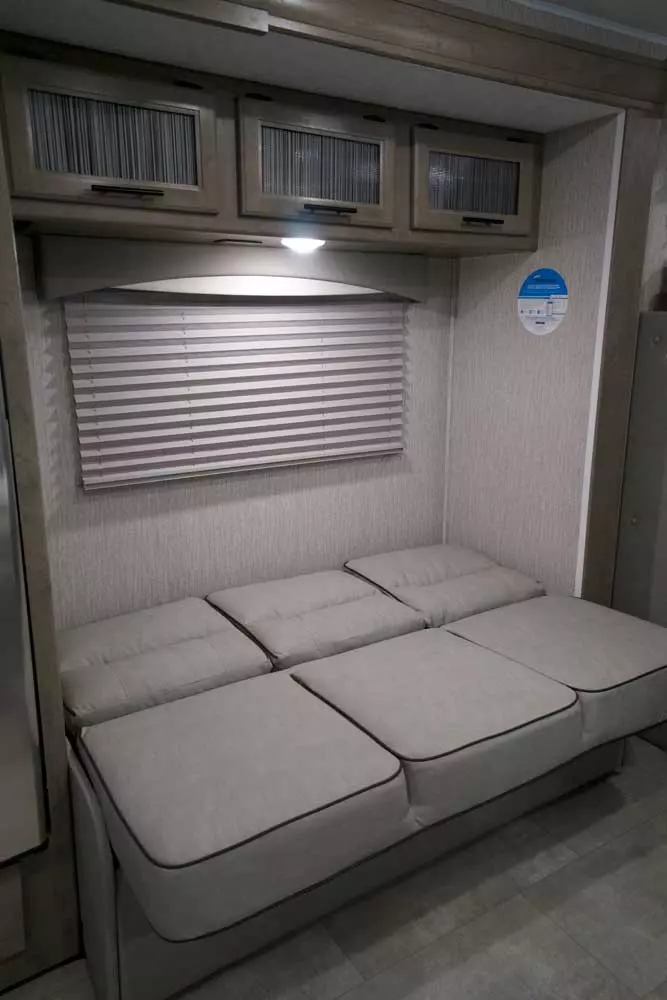

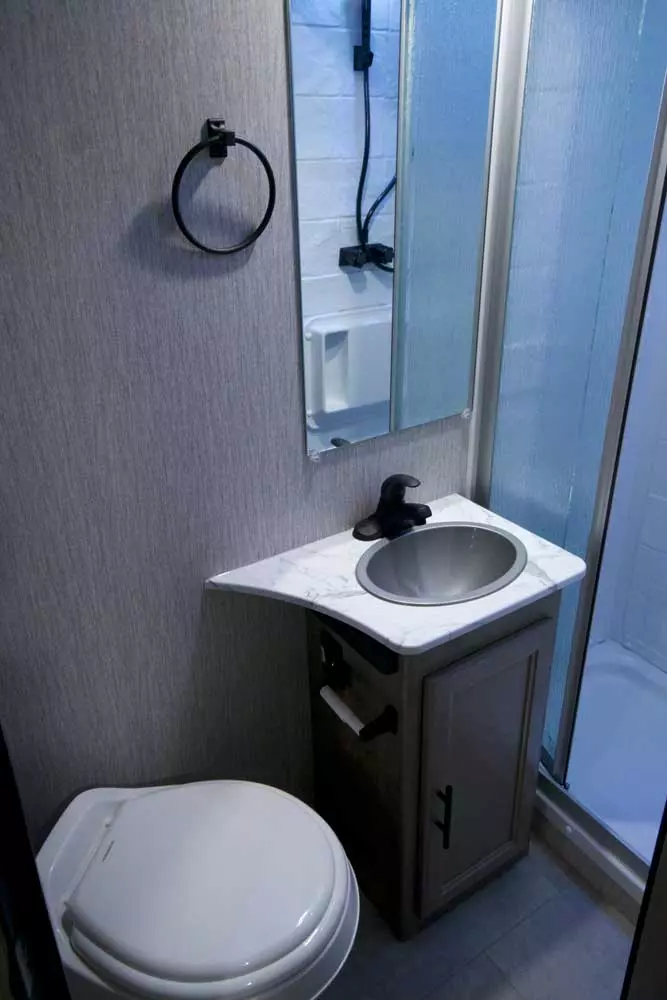

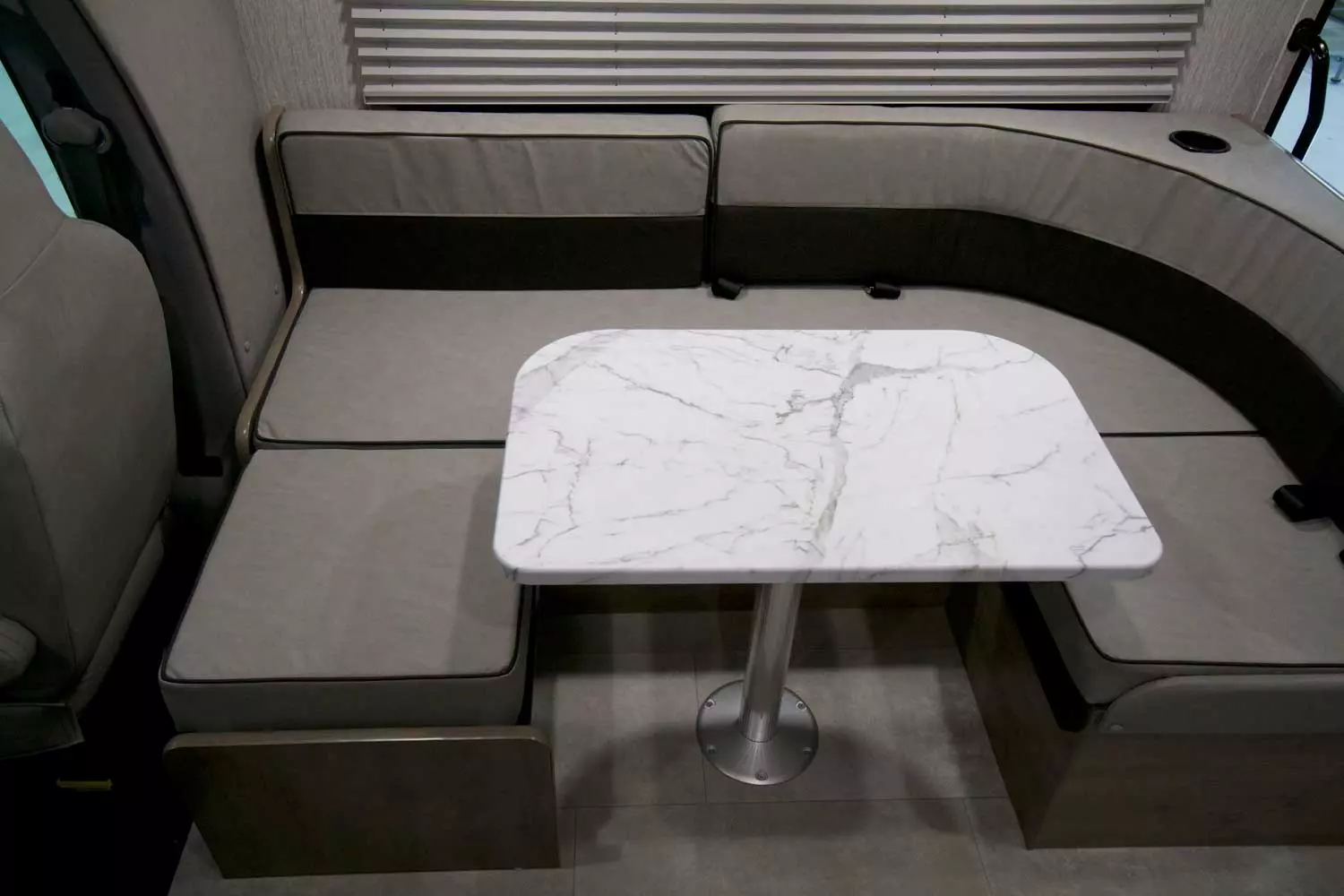

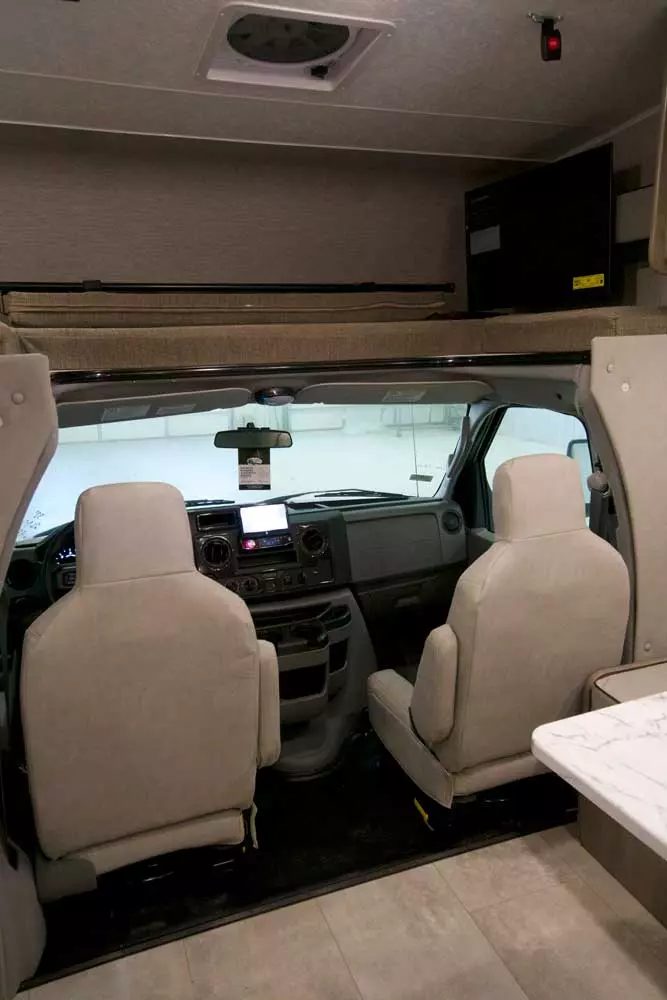

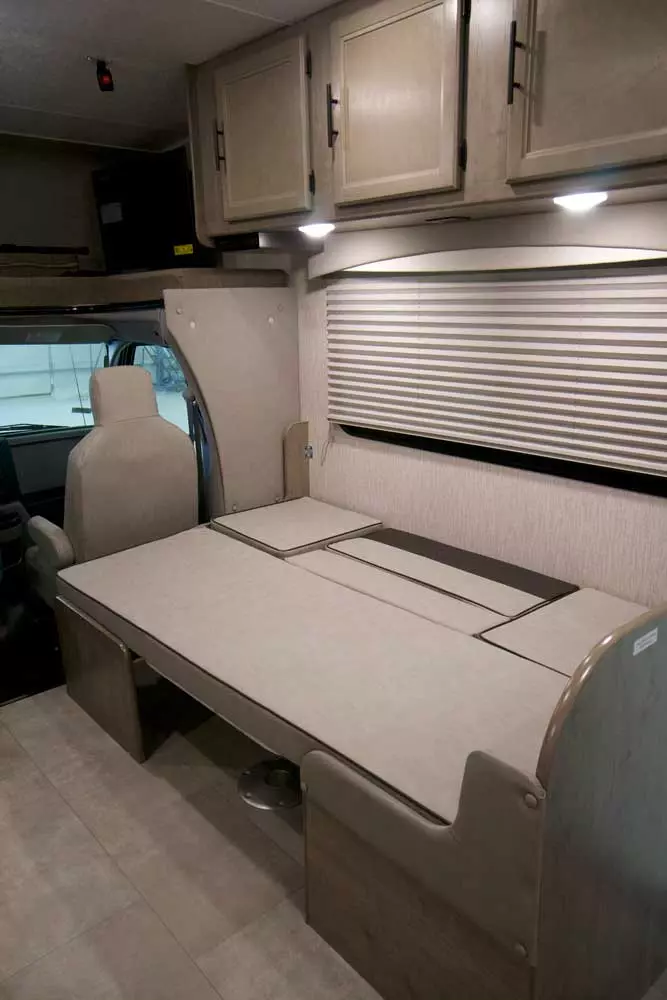

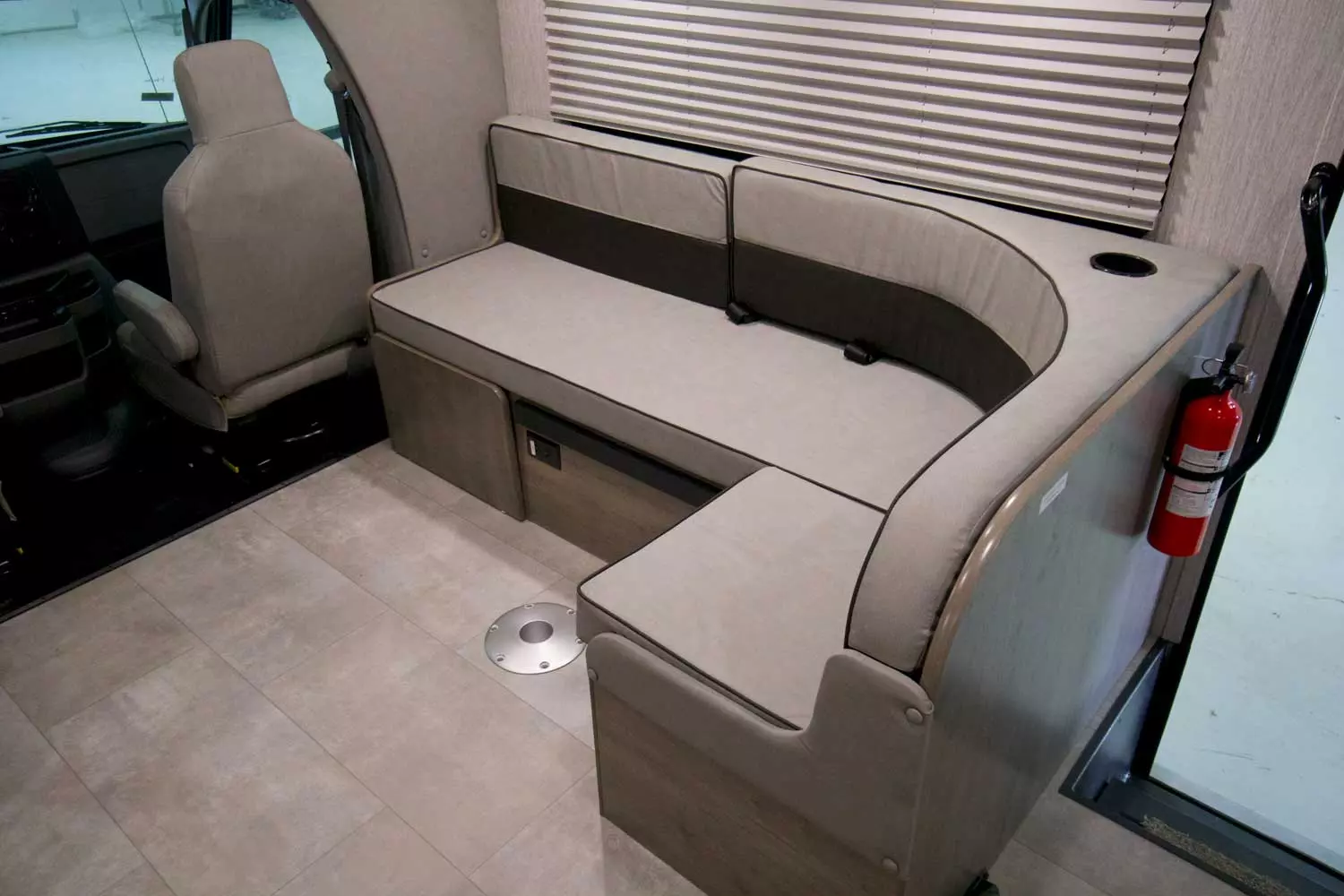

The Freelander 26DS FORD 450 has 2 slideouts, 2 on off-door side and 0 on door side and 1 entry door.  Interior layout from front to back; front 57 inch by 95 inch bunk with swing arm TV; door side 44 inch by 76 inch J-Lounge with 18 inch extension with overhead cabinets; off-door side 62 inch sofa with overhead cabinets; off-door side refrigerator and pantry with wrap around cooktop with microwave, overhead cabinets and single sink with flip down extension; door side pantry; rear bedroom with 60 inch by 80 inch foot facing queen bed with overhead cabinets and night stand on either side; rear door side bathroom with shower, toilet, sink and linen closet. Optional recliners and outdoor kitchen table with pull out extension..
Enlarge

Specifications

Wheelbase:
190"
GVWR:
14,500 lb.
GCWR:
22,000 lb.
GAWR Rear:
9,600 lb.
GAWR Front:
5,000 lb.
Fuel Capacity:
55 gal.
Exterior Length:
27' 5"
Exterior Height:
10' 11"
Exterior Width:
100"
Fresh Water:
50.00 gal.
Gray Water:
31.00 gal.
Black Water:
31.00 gal.
Awning Size:
18'



GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GCWR (Gross Combined Weight Rating) - Is the maximum permissible loaded weight of your motor home and any towed trailer or towed vehicle. Actual GCWR of this vehicle may be limited by the sum of the GVWR and the installed hitch receiver maximum capacity rating; see hitch rating label for detail.

GAWR (Gross Axle Weight Rating) - is the maximum permissible weight, including cargo, fl uids, optional equipment and accessories that can be safely supported by each axle.

UVW (Unloaded Vehicle Weight)* - is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s), including full fuel, all fl uids and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, passengers, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before fi lling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Coachmen RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Coachmen RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Actual towing capacity is dependent upon your particular loading and towing circumstances, which includes the GVWR, GAWR and GCWR as well as adequate trailer brakes. Please refer to the Operator's Manual of your vehicle for further towing information.



Video Tour



Features & Options


  • Appalachian Maple Cabinetry
  • Hardwood Cabinet Doors and Drawer Fronts
  • One-Piece Thermofoil Countertops
  • Vinyl Flooring
  • Roller Bearing Drawer Guides
  • Pleated Night Shades and Valances
  • Tinted Radius Slider Windows - Safety Glass
  • Single Child Tether at Forward Facing Dinette (N/A 31FS)
  • Jackknife Sofa (N/A 22XG, 23FS)
  • Interior Safety Grab Handle at Entrance Door
  • Booth Dinette (27QB)

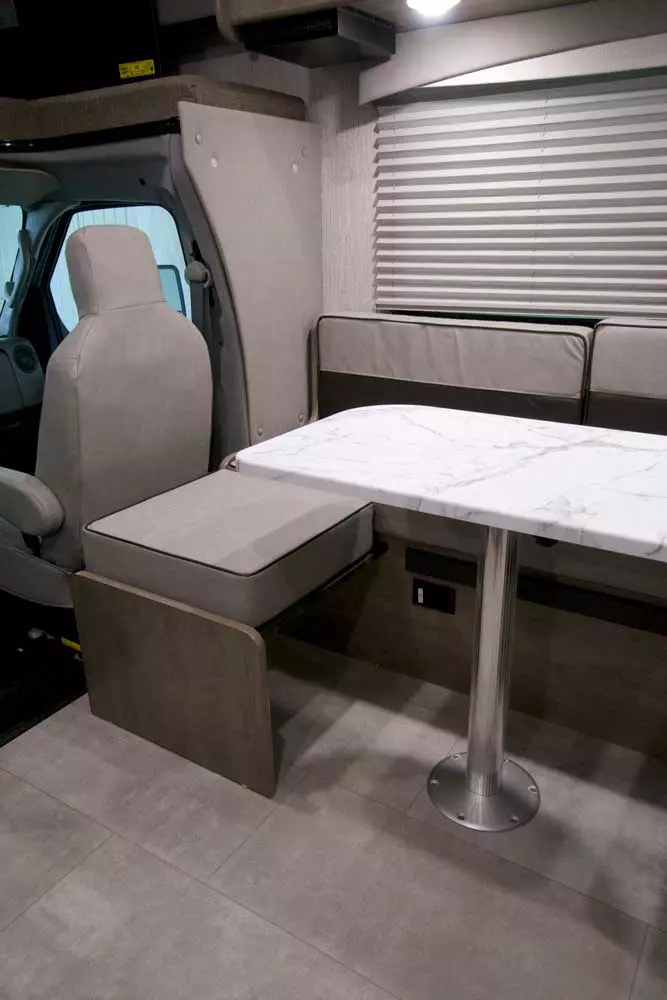

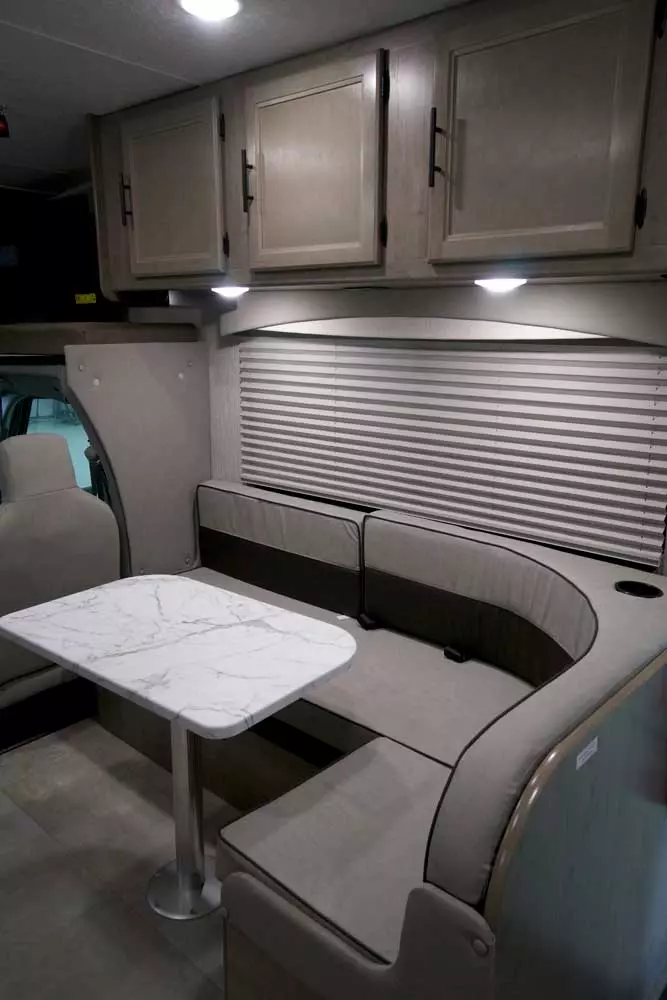

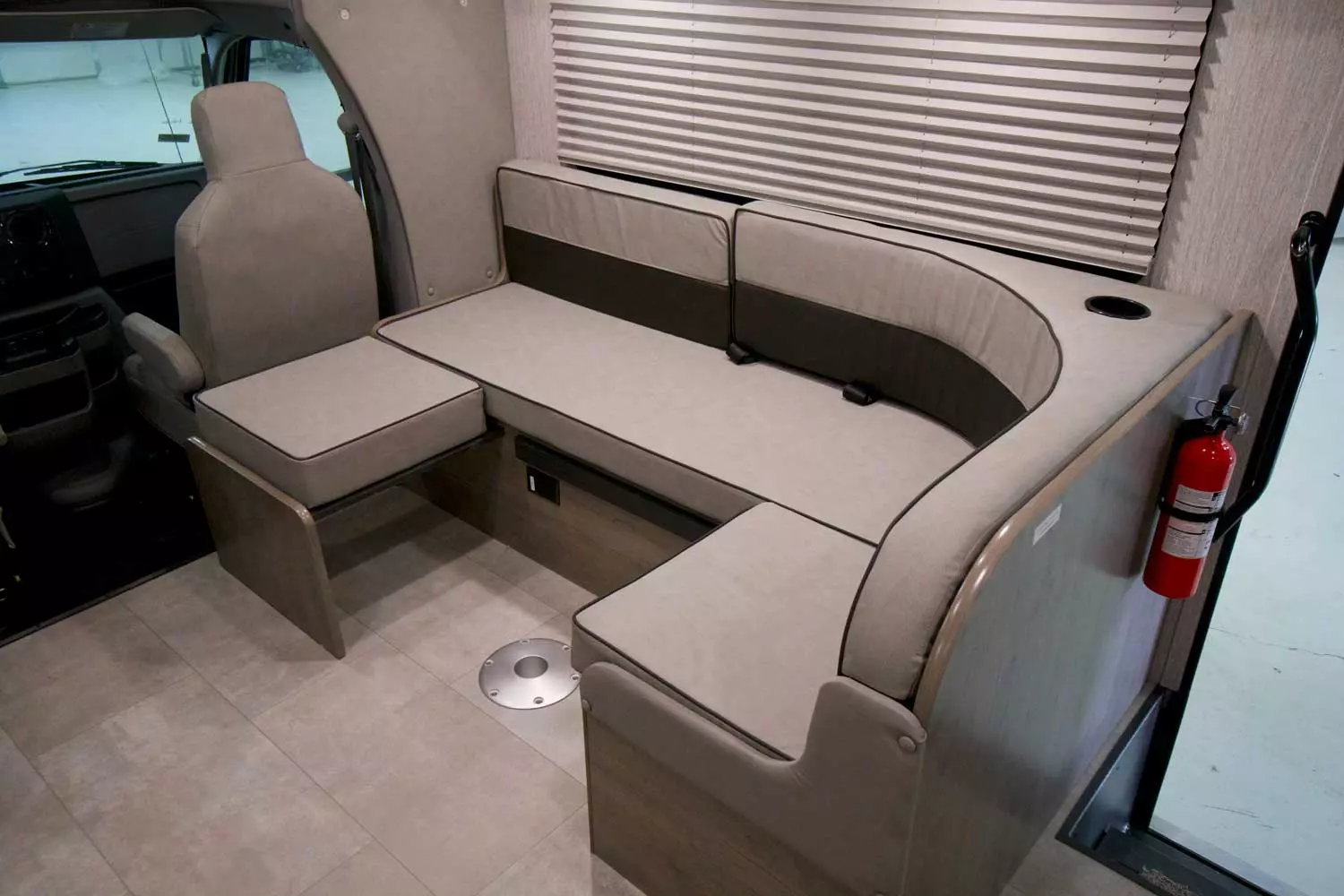

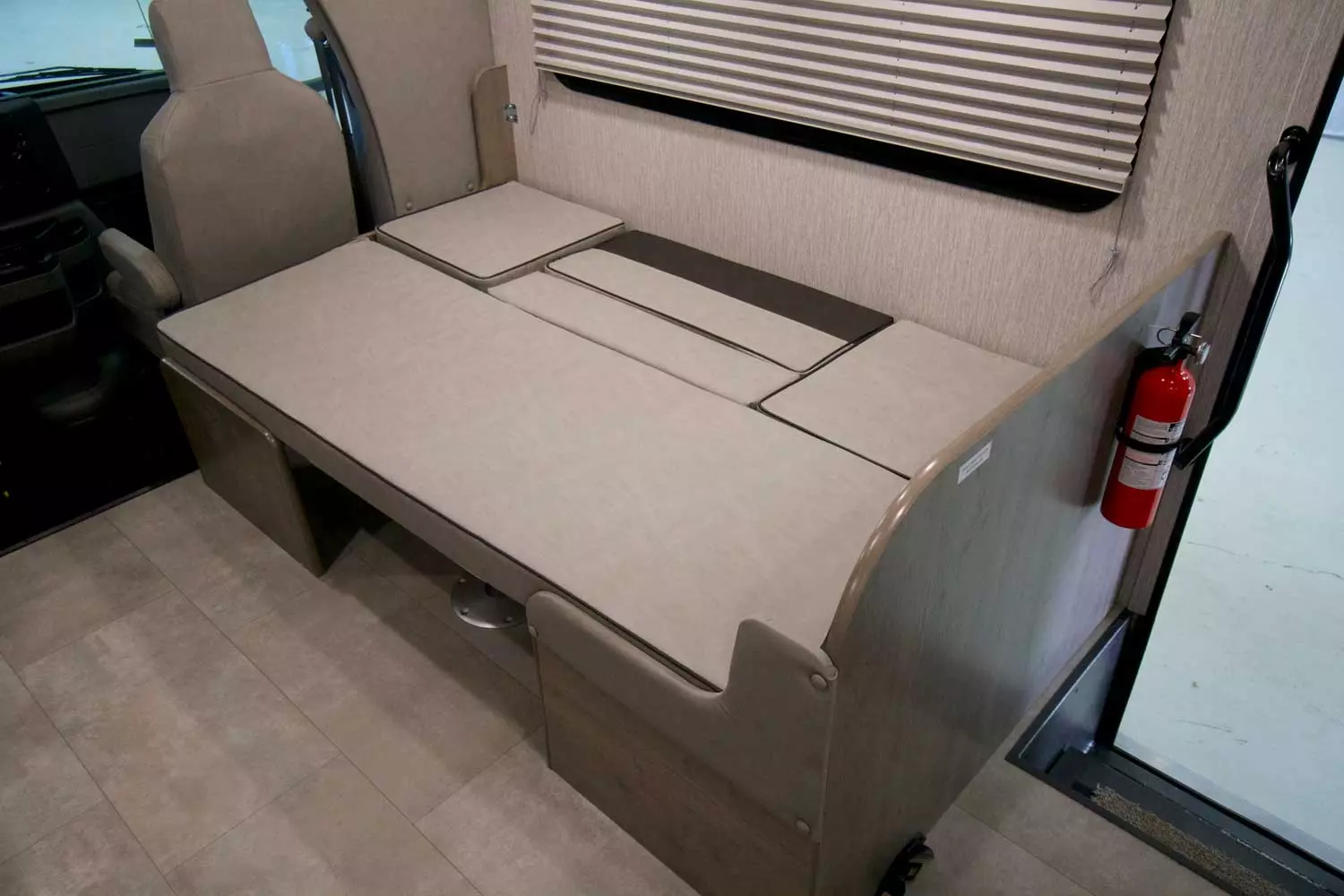

  • J-Dinette w/Pullout (22XG, 26DS, 29KB)
  • Small U-Dinette (23FS)
  • Large U-Dinette (31FS, 31MB)
  • Magazine Rack above Entrance Door with HDMI and Charge Station
  • Winegard Air 360+ TV/FM/AM Antenna
  • LP Leak Alarm
  • Smoke Detector
  • Carbon Monoxide Detector
  • Fire Extinguisher
  • Touch Screen Radio & Back Up Monitor w/Dash Speakers
  • Rear Color Backup Camera
  • Bedroom TV Prep
  • Cable TV, Portable Satellite Dish Exterior Hookup
  • 32" Coach TV (22XG, 23FS, 27QB, 26DS)
  • HDMI Port for Living Room TV
  • USB Charging Ports
  • Residential Size Microwave Oven

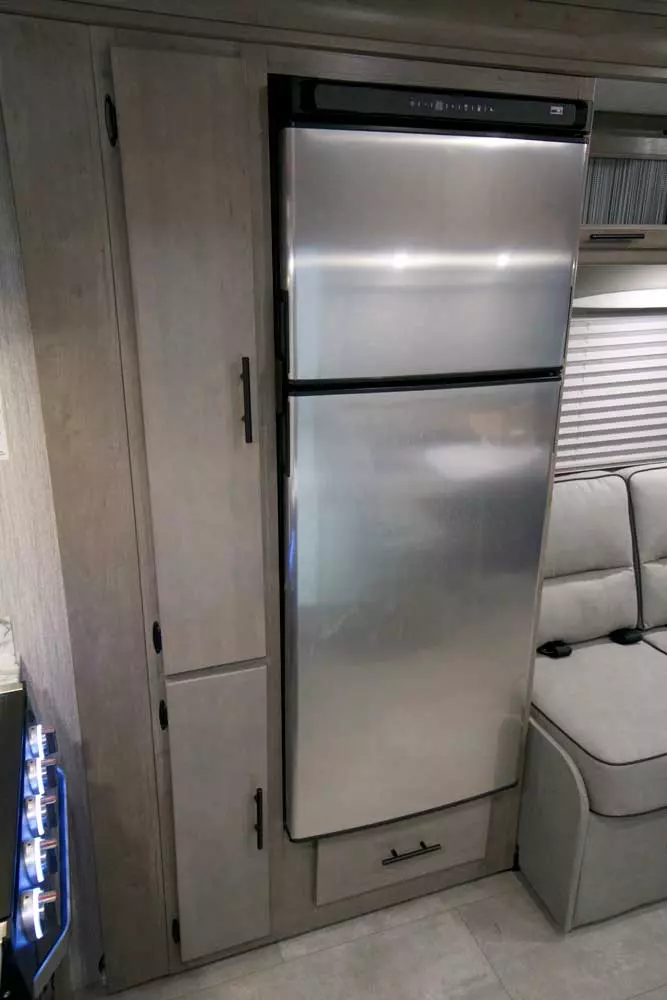

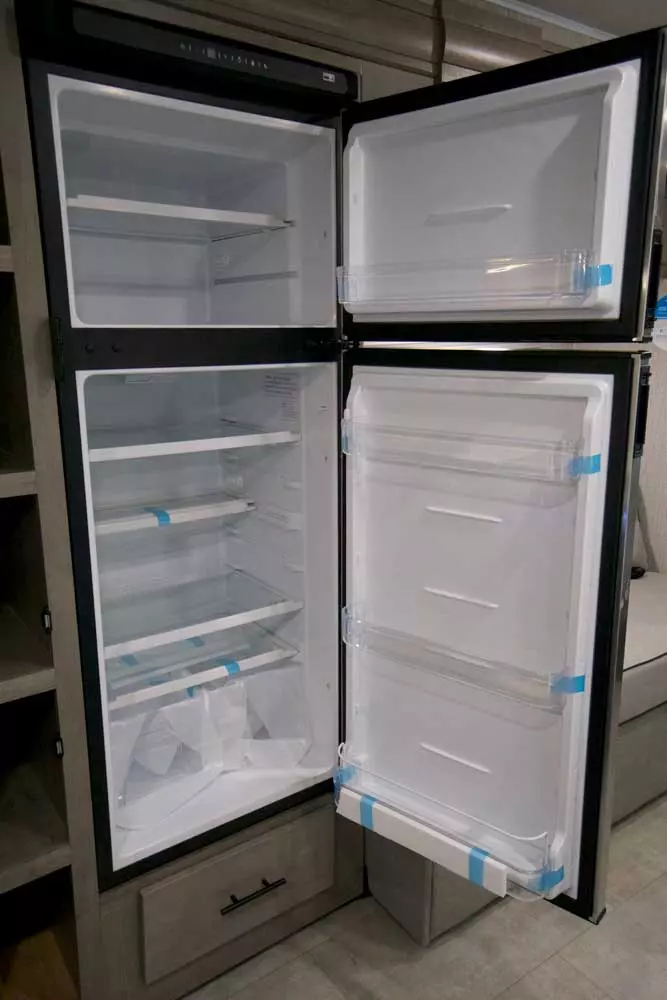

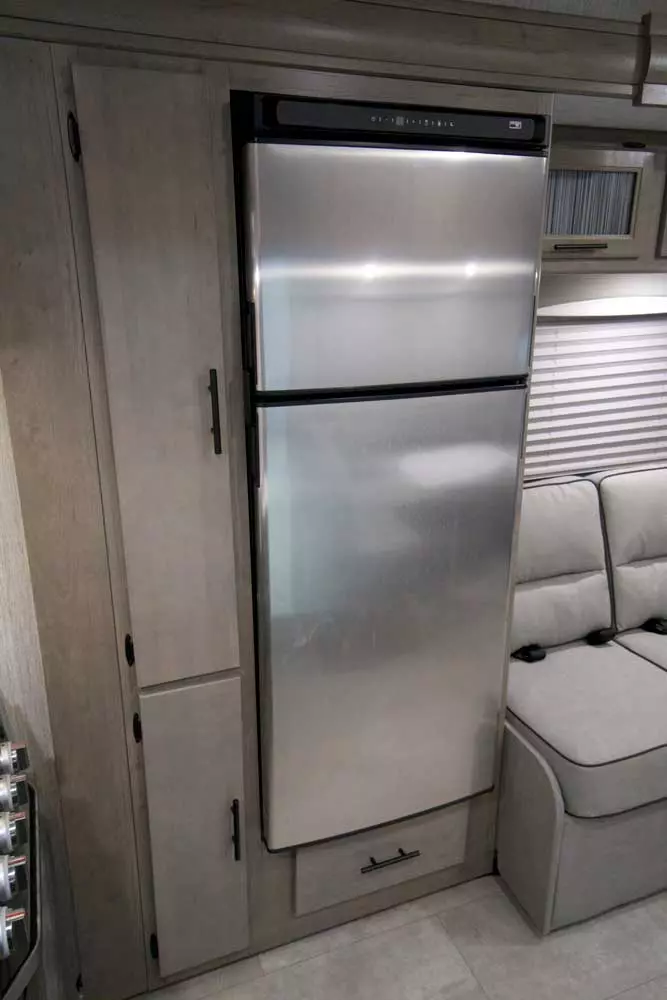

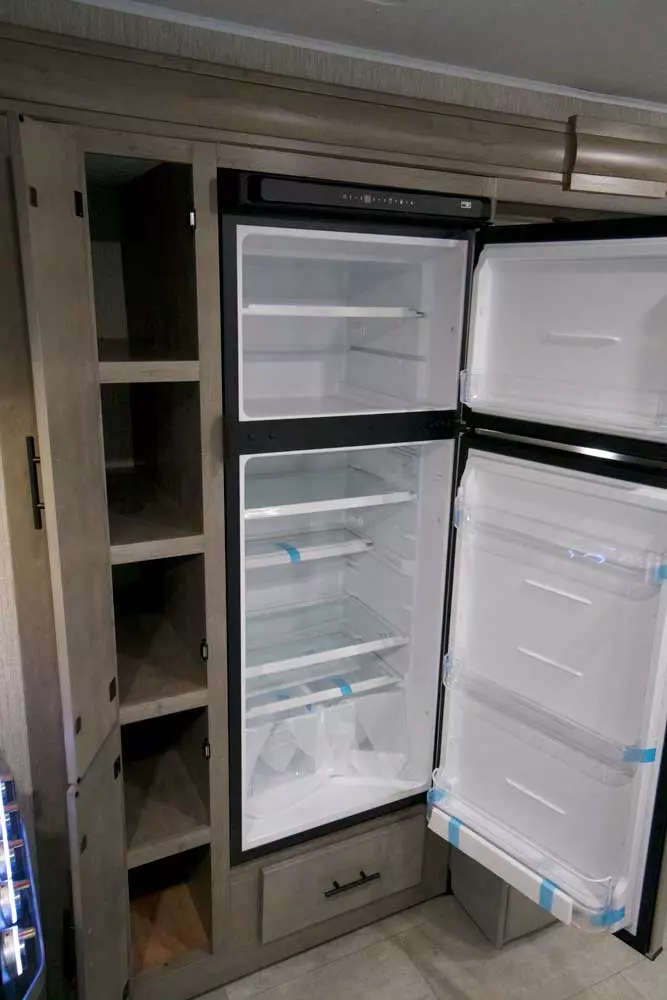

  • 10 cu. ft., 12V Double Door Refrigerator (N/A 31FS)
  • Top Mount Stainless Steel Farmers Kitchen Sink (N/A 26DS)
  • Power, Lighted Range Hood
  • Recessed 3-Burner Cooktop with Cover
  • High-rise Kitchen Faucet

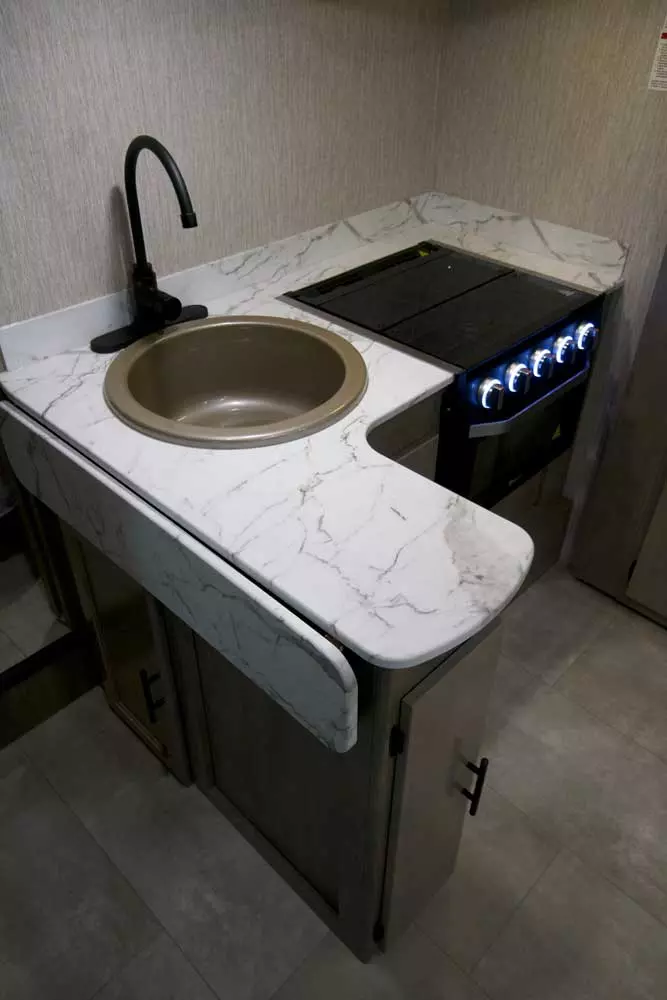

  • Countertop Extension (26DS, 29KB)
  • Kitchen Backsplash
  • Power Bath Vent
  • Single Bowl Lavatory Sink
  • Single Lever Lavatory Faucet
  • Premium Showerhead and Faucet
  • Vanity Mirror

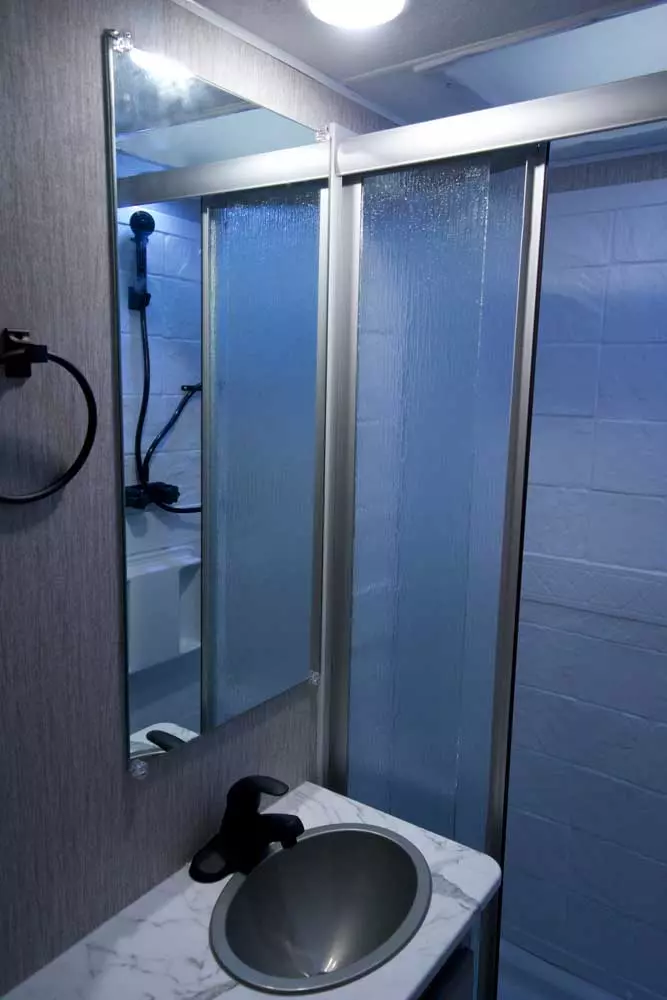

  • Plastic Curved Shower Door (22XG, 23FS, 27QB)
  • Glass Shower Door (26DS, 29KB, 31FS, 31MB)
  • Skylight Over Shower
  • Foot Flush Toilet
  • 6-Gallon Gas Water Heater
  • Water Panel w/City/Tank/Winterize/Waste Tank Flush
  • Low Point Drain and Winterize Valve at Fresh Tank
  • Demand Water Pump
  • Exterior Shower (26DS, 29KB, 31FS, 31MB)
  • Upgraded 6" Mattress w/Bedspread
  • Murphy Residential Size Queen Bed - 60" X 80" (22XG)
  • Folding Residential Size Queen Bed - 60" X 80" (26DS, 31FS)
  • Window at Head of Bed (27QB)
  • Bedroom Curtain (23FS, 27QB, 31MB)
  • Upgraded Headboard (26DS, 29KB, 31FS, 31MB)

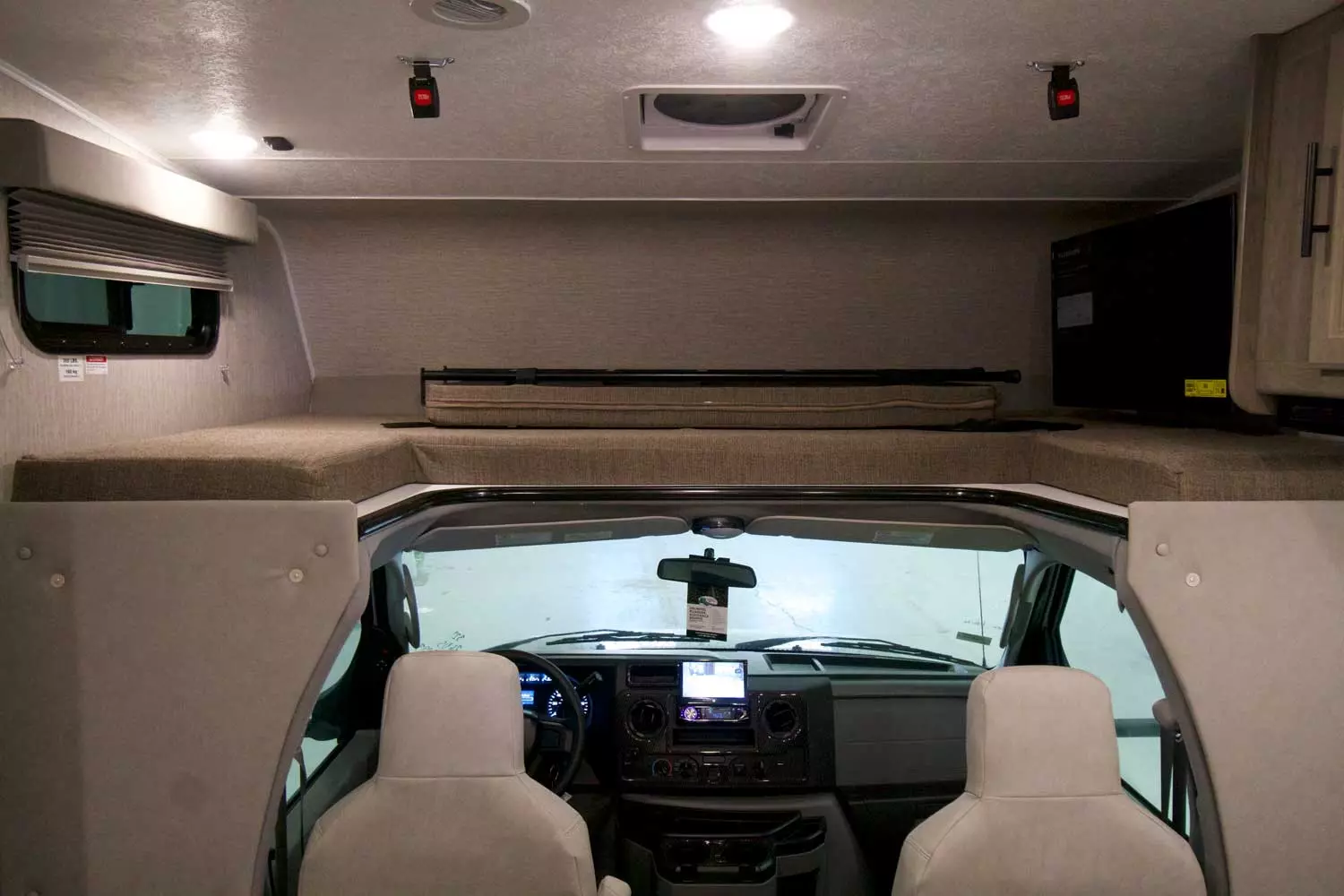

  • Large Cab over Bunk - 57" X 95

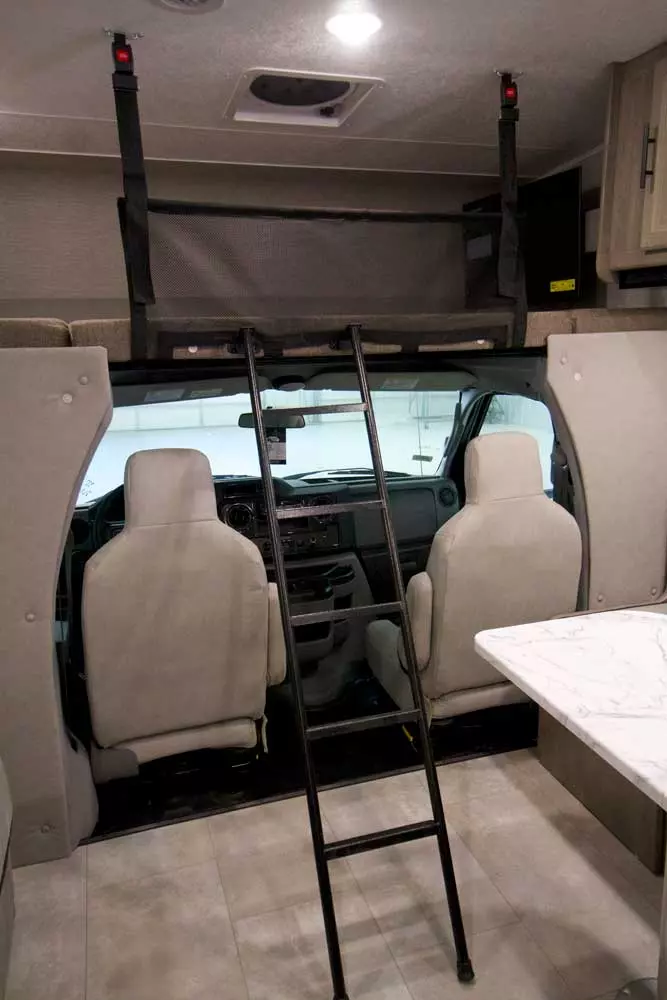

  • Cab Over Bunk Ladder w/Velcro Restraints
  • 30 amp Power Cord
  • 55 amp Electronic Converter
  • Auxiliary House Battery
  • Auto Generator Changeover
  • NPS 4500 Generator w/Key Fob (26DS, 29KB, 31FS, 31MB)
  • Onan 4.0KW Gas Generator (22XG, 23XG, 27QB)
  • GFI Circuit
  • Wall Mounted Thermostat
  • Propane Furnace
  • 13,500 BTU Non-Ducted Roof A/C (22XG, 23FS)
  • 13,500 BTU Ducted Roof A/C (26DS, 27QB, 29KB, 31FS, 31MB)
  • Even-Cool A/C Ducting System (26DS, 27QB, 29KB, 31FS, 31MB)
  • Dual A/C Pre-Wire (26DS, 29KB, 31FS, 31MB)
  • LED Ceiling Lights
  • Exterior Solar Port Connection
  • Solar Prep at Roof and Entry Cabinet
  • Bed Area 110V, 12V CPAP Ready
  • Bed Area USB Port

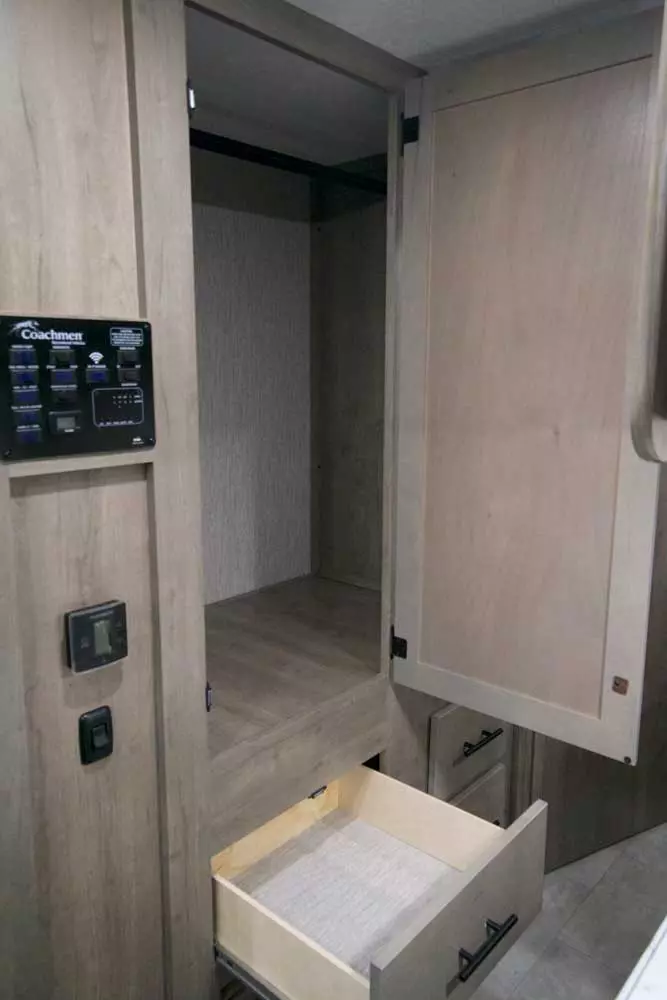

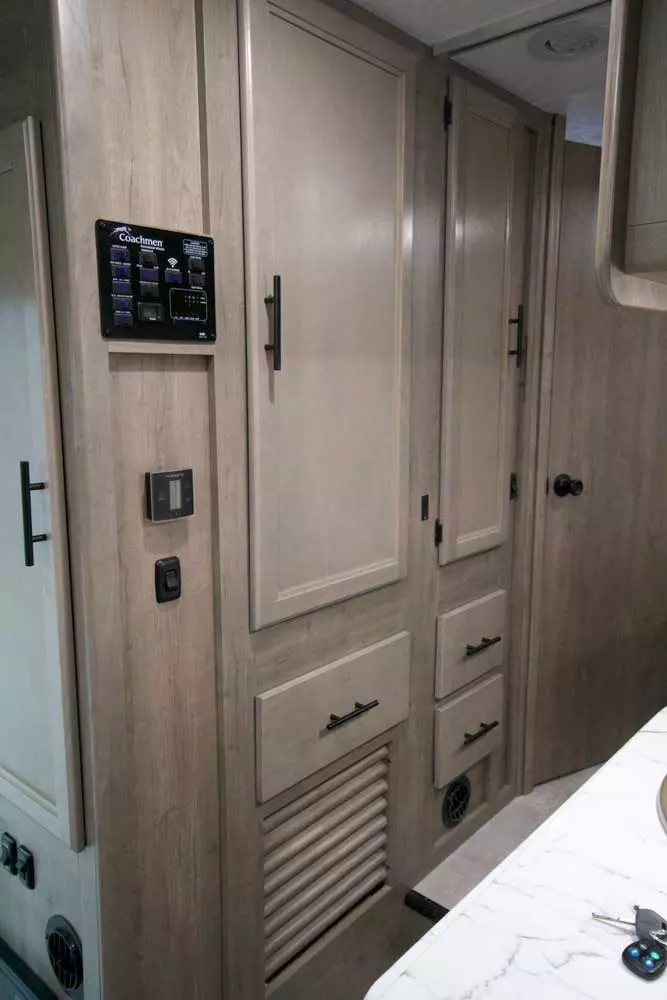

  • Systems Command Center
  • Exterior LP Quick Connect
  • Deluxe Chassis Package

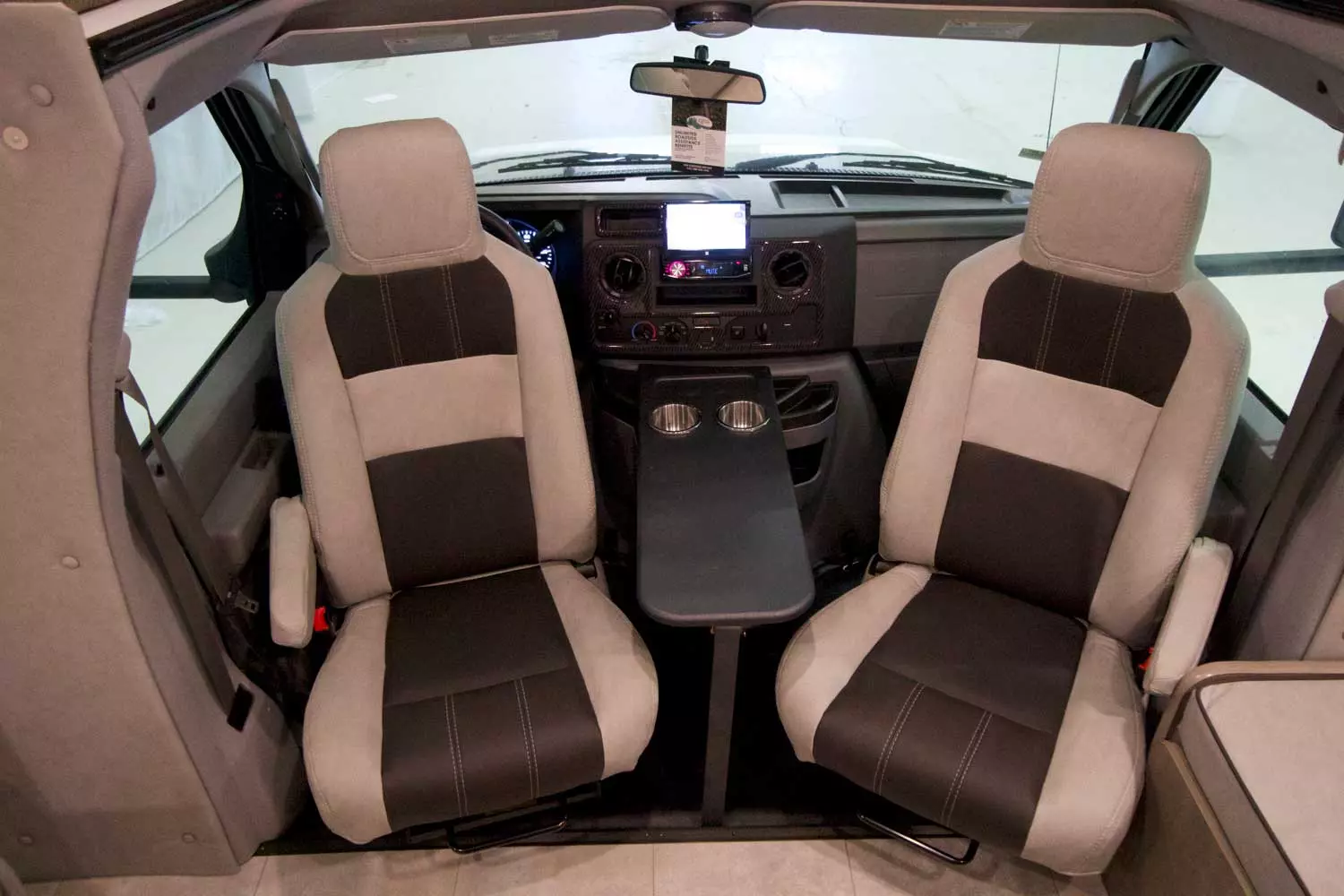

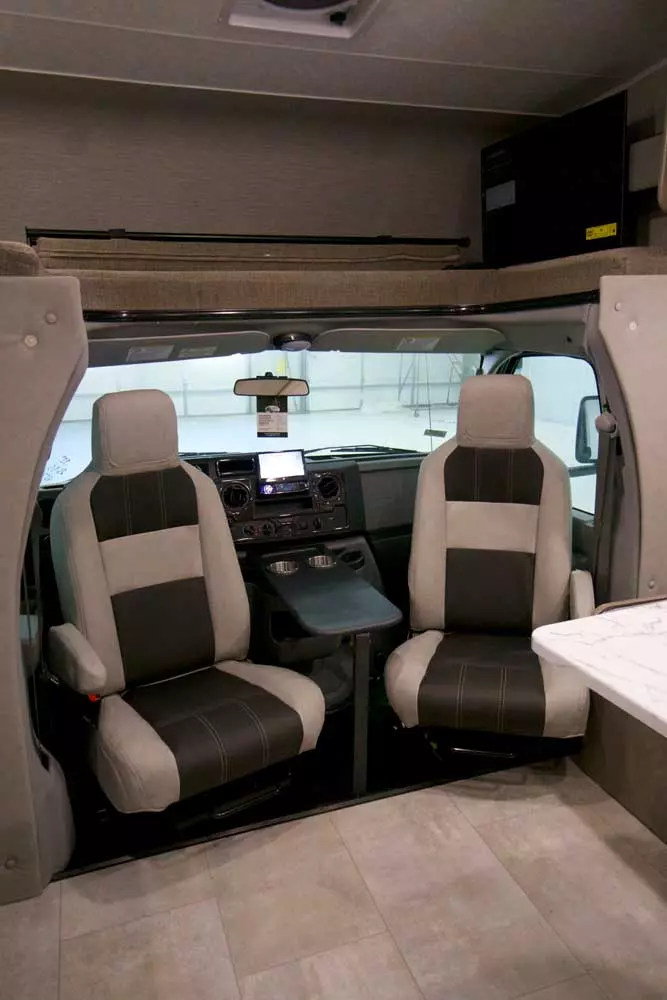

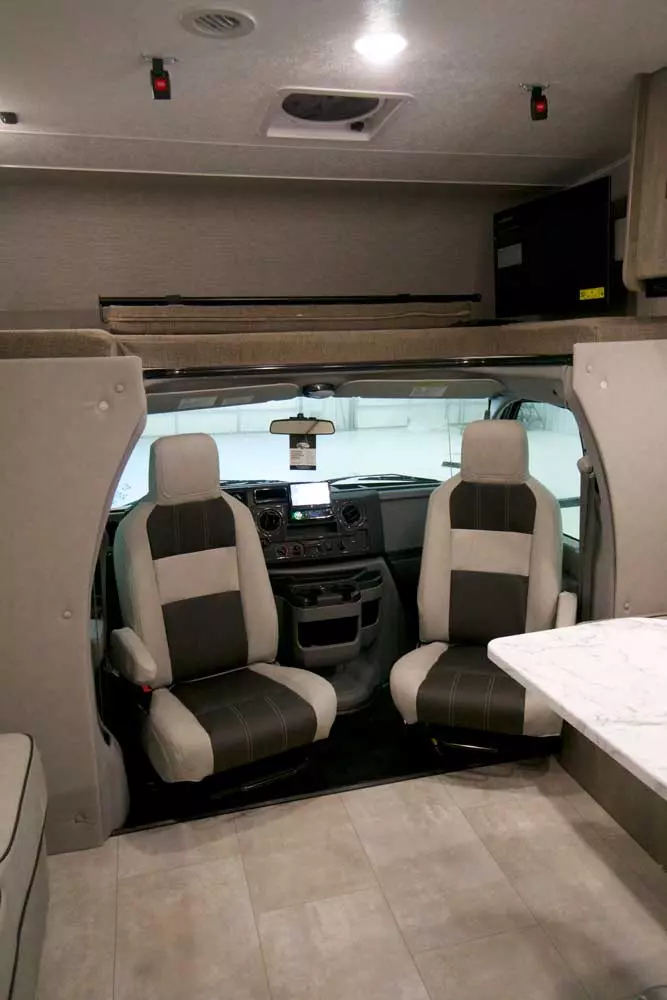

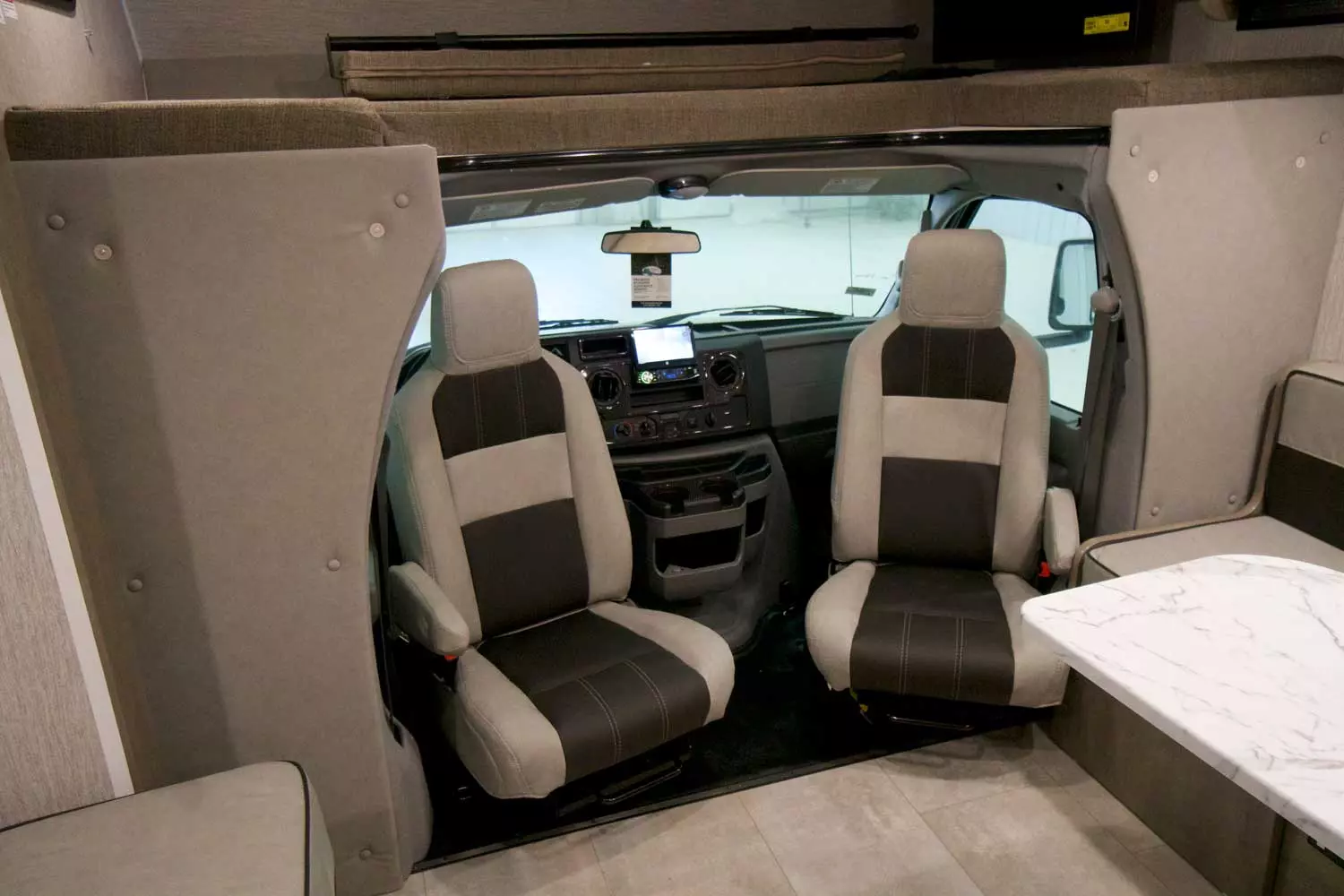

  • Factory Reclining Pilot and Passenger Cockpit Seats
  • Driver and Passenger Air Bags
  • Cruise Control
  • Tilt Steering Wheel
  • Dash Air Conditioning
  • Power Windows and Locks
  • Stainless Steel Wheel Liners
  • Upgraded Steel Running Boards
  • Upgrade Sideview Mirrors
  • 7,500 lb. Towing Hitch w/ 7-way Plug
  • 55-Gallon Fuel Tank (Ford)
  • Molded Cabover Front Wrap
  • Full Aluminum Framed Walls, Roof, Floor Structures
  • Azdel Composite Sidewall and Cabover Construction
  • Vacu-bond Laminated Walls, Roof, and Floor
  • White Fiberglass Walls with Graphics Package
  • CrossFlex PVC, Polyester Reinforced Roof Material
  • Steel Entry Stepwell with Auxiliary House Battery Storage

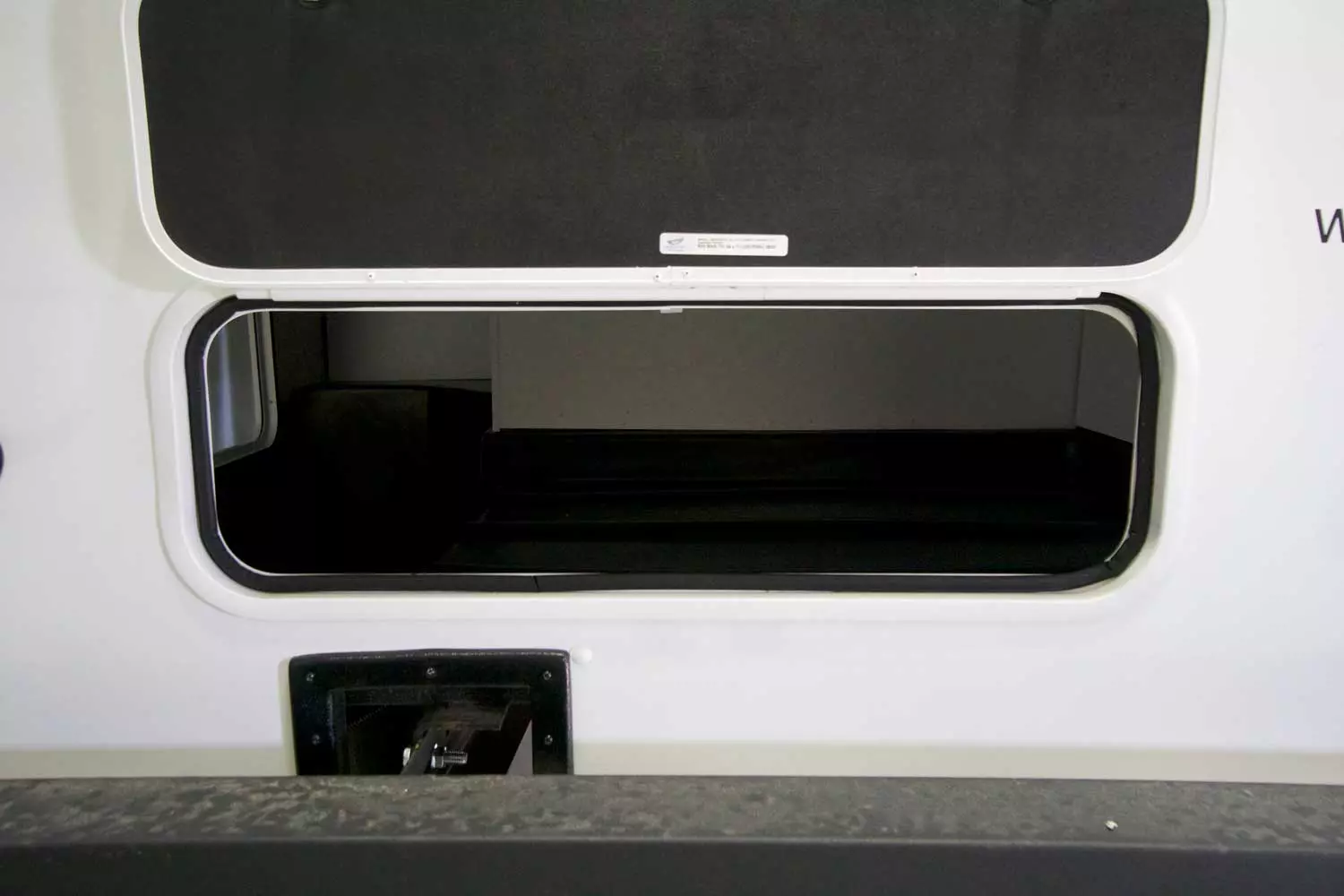

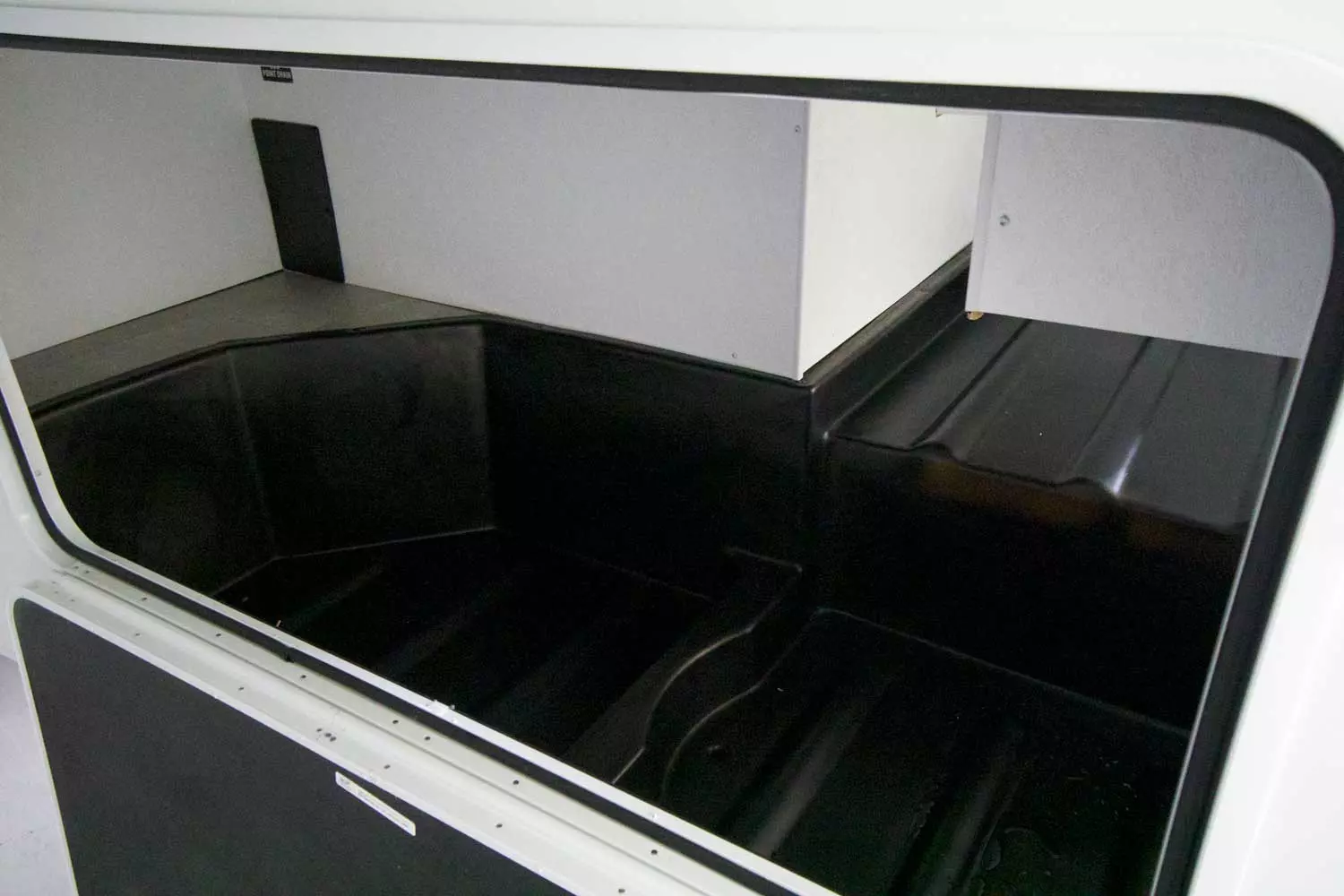

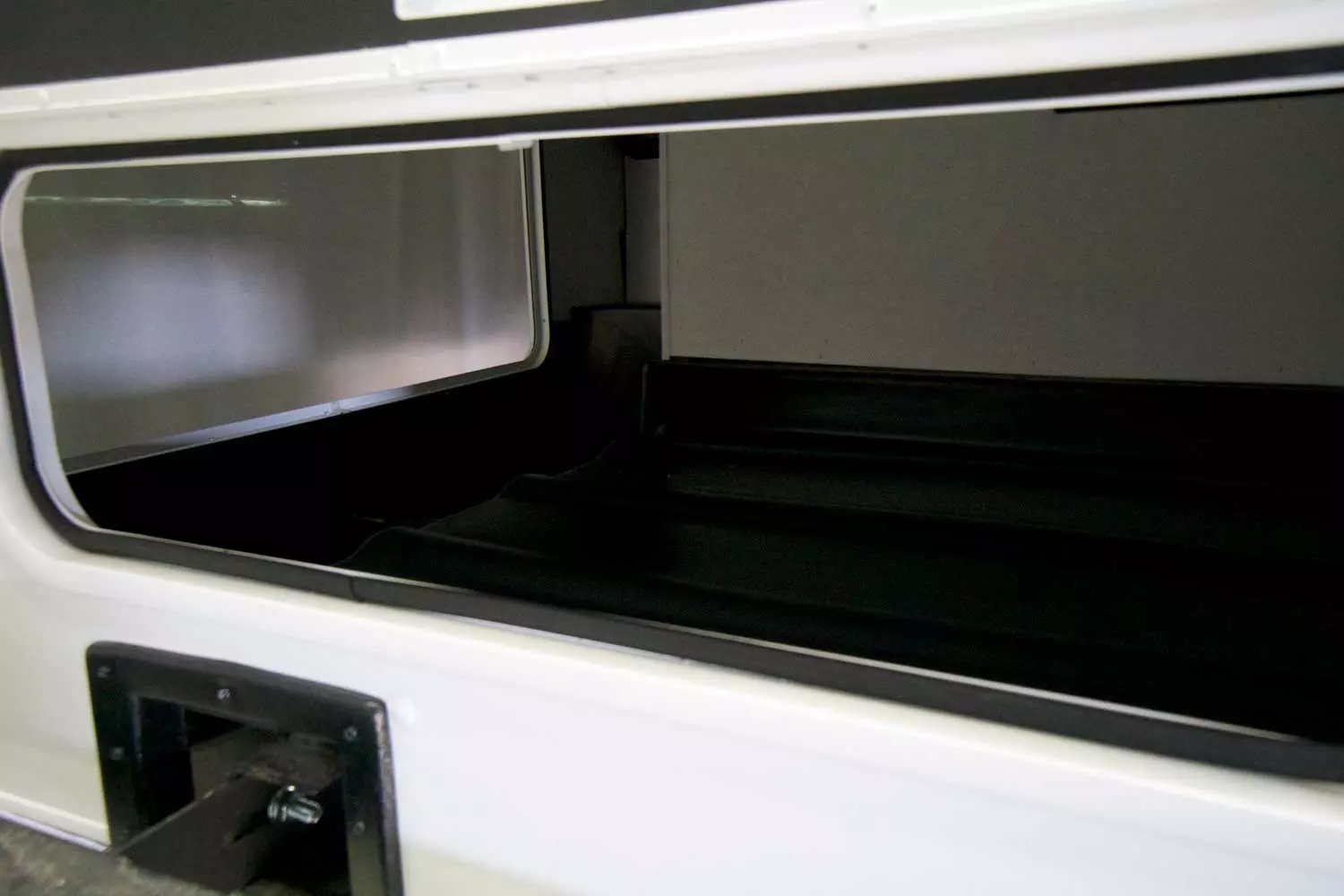

  • Roto-Cast Rear Warehouse Storage Compartment
  • Rear Steel Bumper
  • Exterior Safety Grab Handle (22XG, 23FS, 27QB)
  • Upgraded Exterior Safety Grab Handle (26DS, 29KB, 31FS, 31MB)

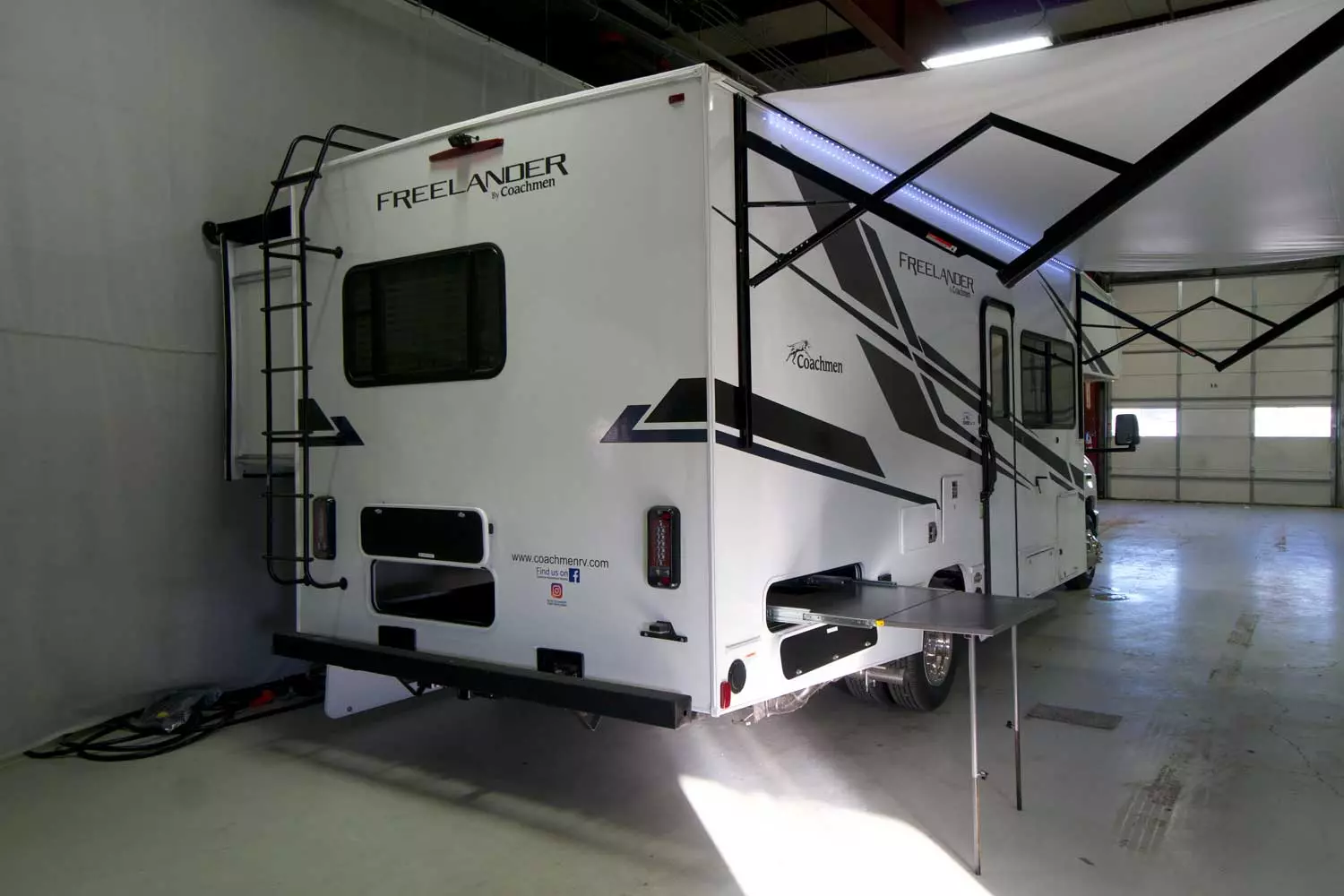

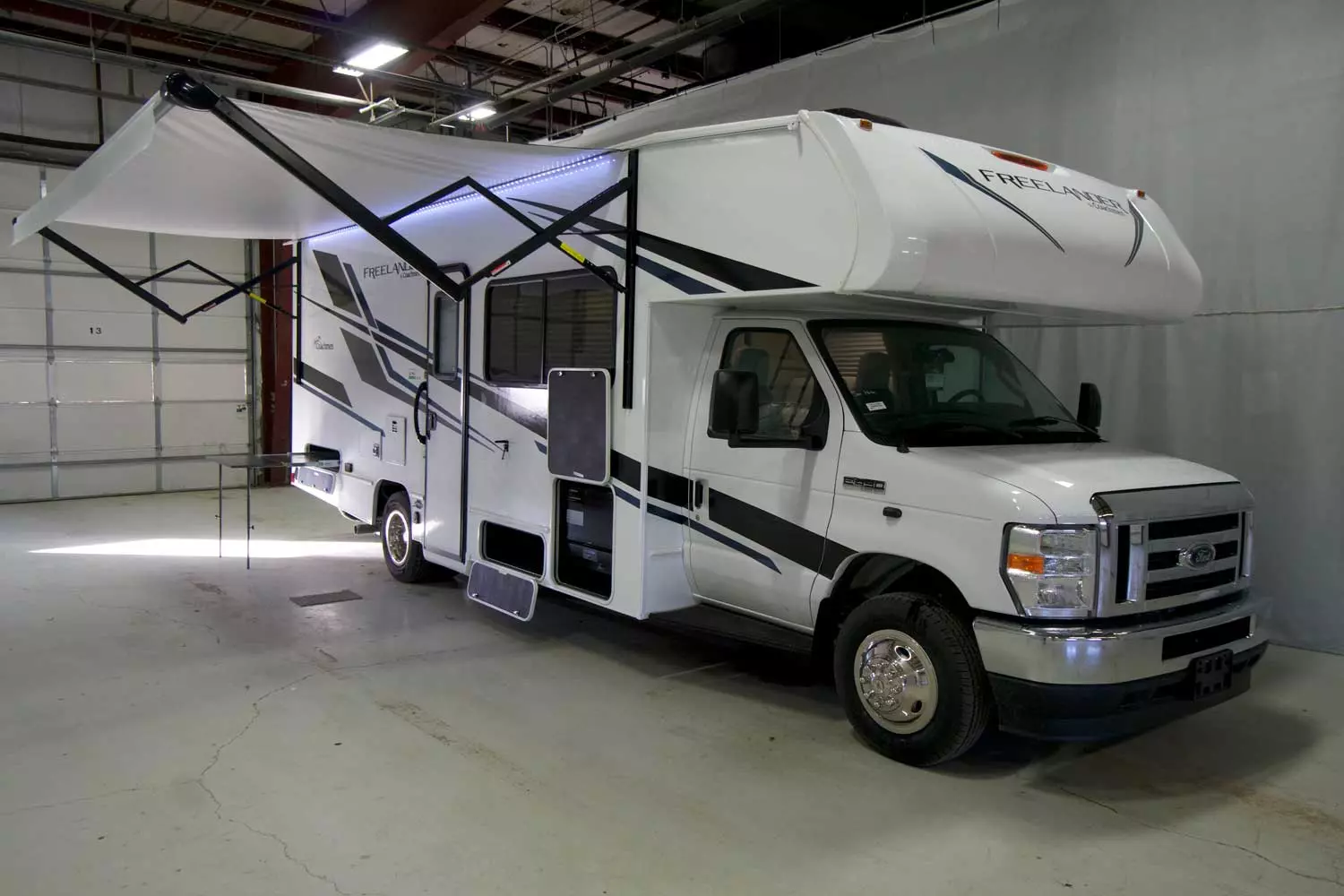

  • Power Patio Awning with LED Light Strip

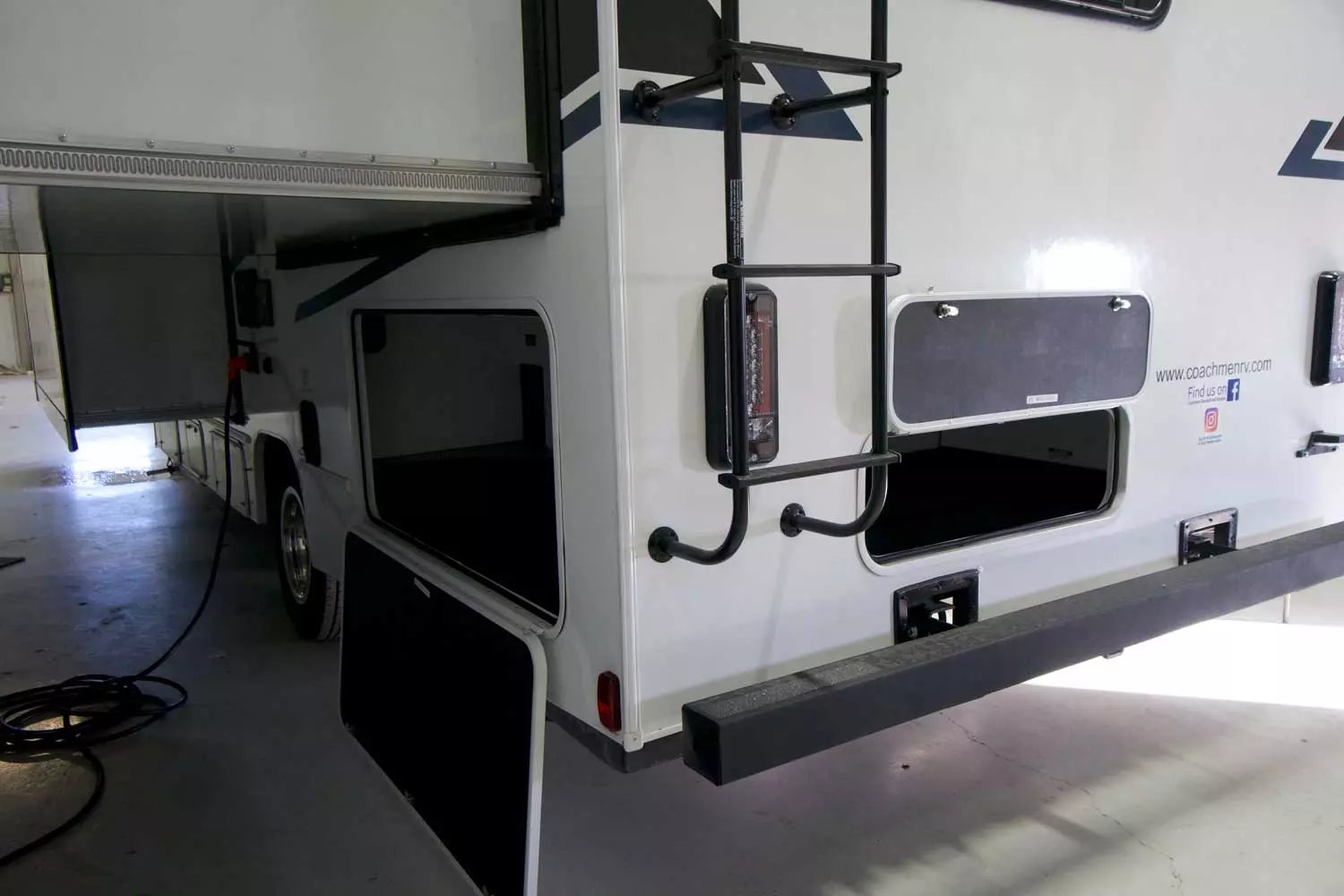

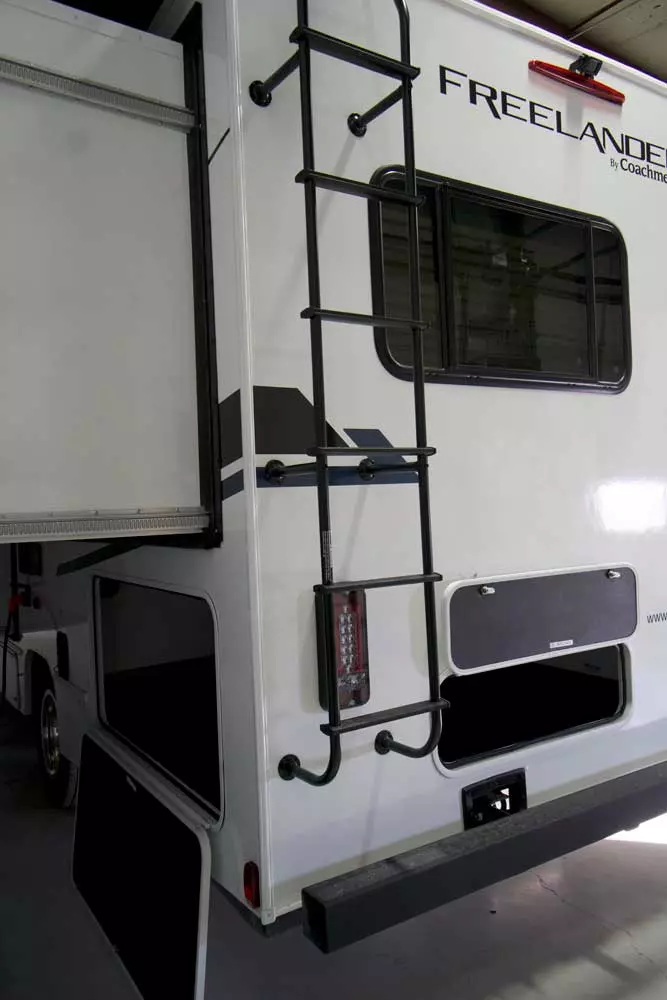

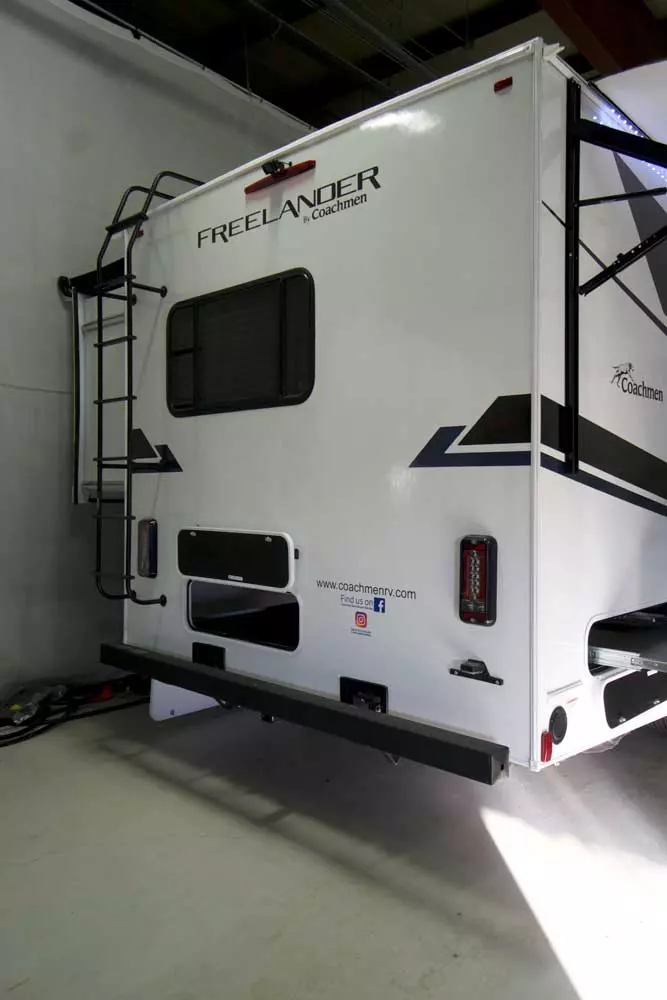

  • Rear Roof Ladder (26DS, 29KB, 31FS, 31MB)
  • Exterior LED Taillights and Marker Lights
  • Exterior Entertainment TV Ready Compartment (26DS, 29KB, 31FS, 31MB)
  • Safe Ride RV Roadside Assistance
  • Pewter Décor
  • Appalachian Maple Woodgrain
Exterior

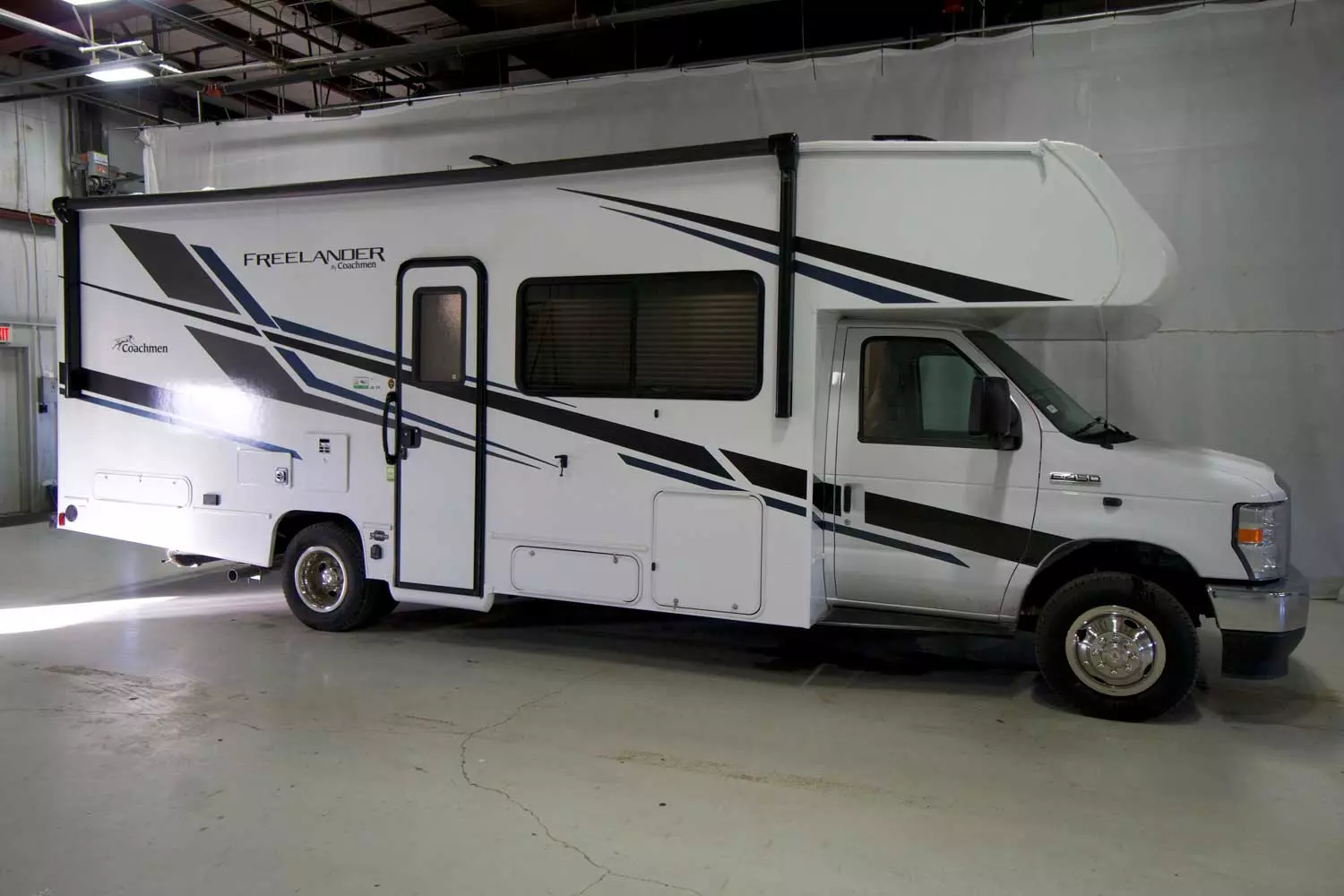

  • Freelander Graphics Package
Optional
  • Partial Paint Exteriors w/Chrome Heated Remote Mirrors
  • CarPlay Dash Radio
  • Rear View Mirror Back-up Camera Monitor
  • Sideview Cameras
  • 6 Gal Gas and Electric Water Heater
  • Convection Microwave
  • Heated Remote Sideview Mirrors
  • Child Safety Net at Cab Over Bunk
  • Power Vents w/MaxxAir Covers (N/A w/Dual A/C option)
  • Winegard Air 360+ 4G/Wi-Fi Booster
  • Auto Generator Start w/Dual Coach Batteries
  • Molded Fiberglass Front Cap
  • Porcelain Toilet
  • Kitchen Faucet w/Sprayer
  • Recessed 3-Burner Range w/Oven
  • Large Entry Door Handles
  • Upgraded Running Boards
  • SumoSpring Front Shock Absorbers
  • SuperSpring Rear Self-Adjusting Helper Spring
  • Chassis Electronic Stability Control
  • Dynamic Balanced Driveshaft System
  • Heavy Duty Front and Rear Stabilizer Bars
Interior Options
  • Dual Recliners (26DS, 29KB, 31FS, 31MB)
  • Electric Fireplace (31MB)
  • Washer/Dryer Combo (29KB, 31FS)
  • Solid Surface Kitchen Countertops w/Under Mount Stainless Steel Sink (26DS, 29KB, 31FS, 31MB)
TV and Entertainment Options

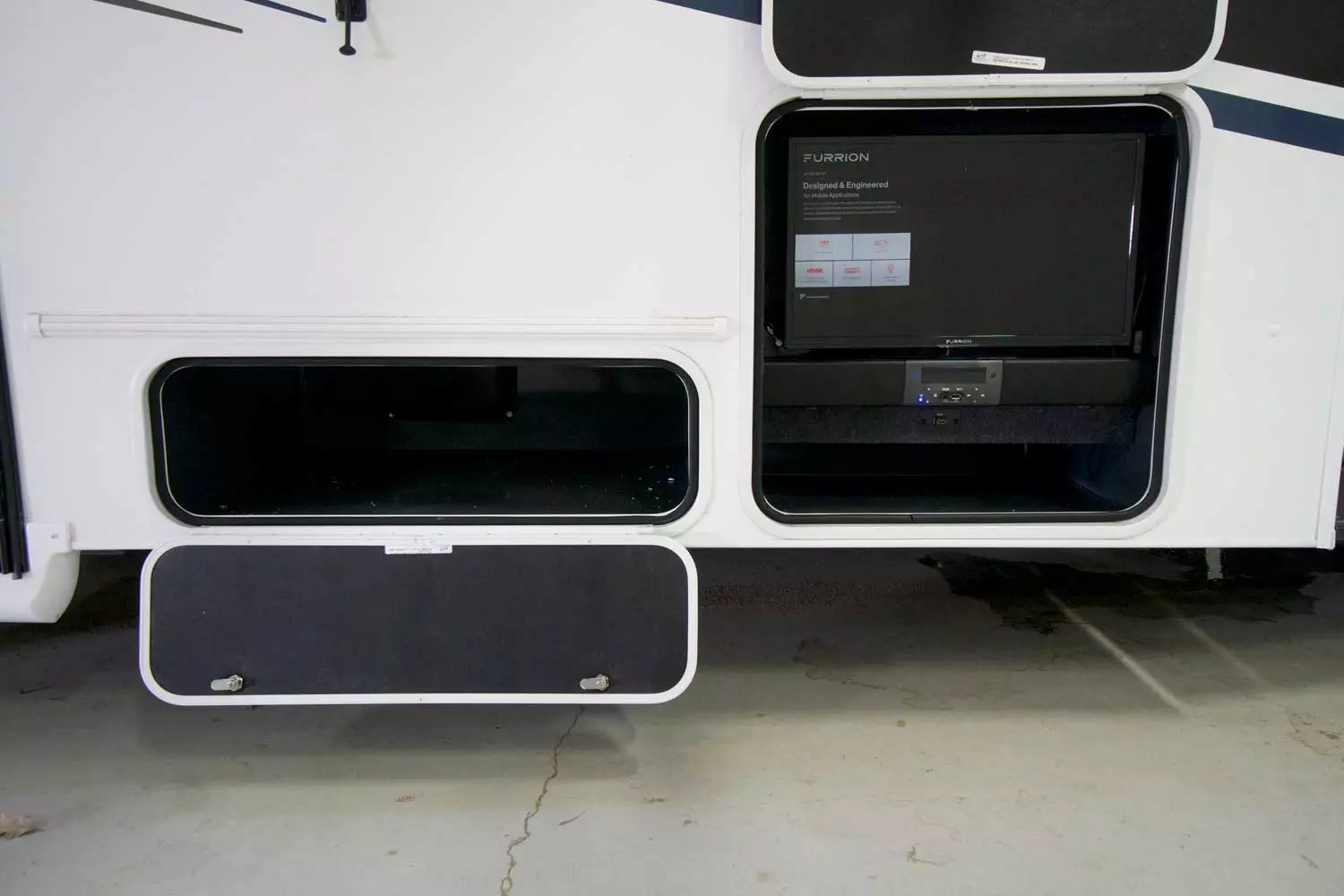

  • Ext. Entertainment Ctr. w/24" TV and Bluetooth Soundbar (26DS, 31FS)
  • Ext. Entertainment Ctr. w/32" TV and Bluetooth Soundbar (29KB, 31MB)
  • 24" Bedroom TV (26DS, 31MB)
  • 22" Bedroom TV (31FS)
  • 32" Bedroom TV (29KB)
Exterior Options

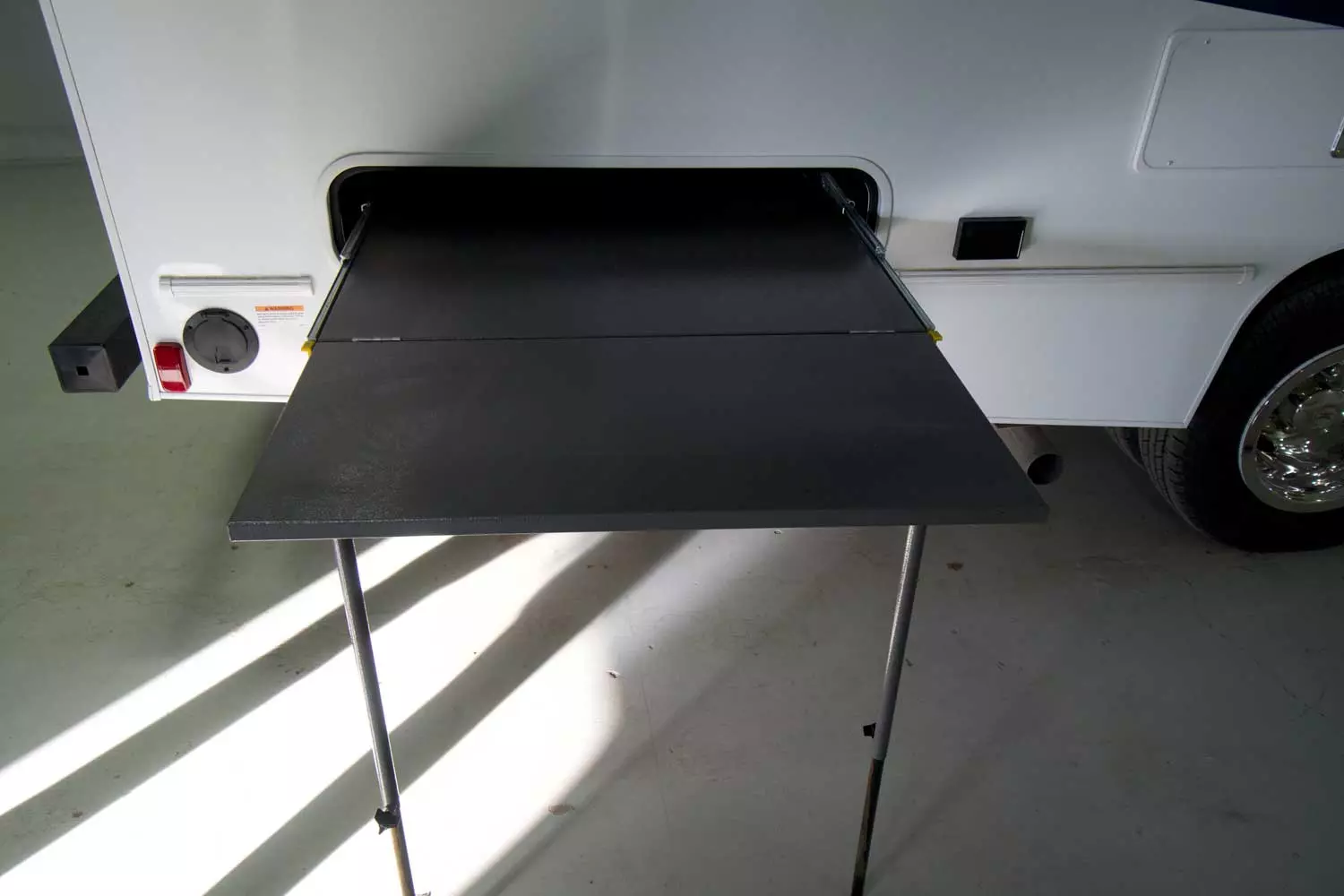

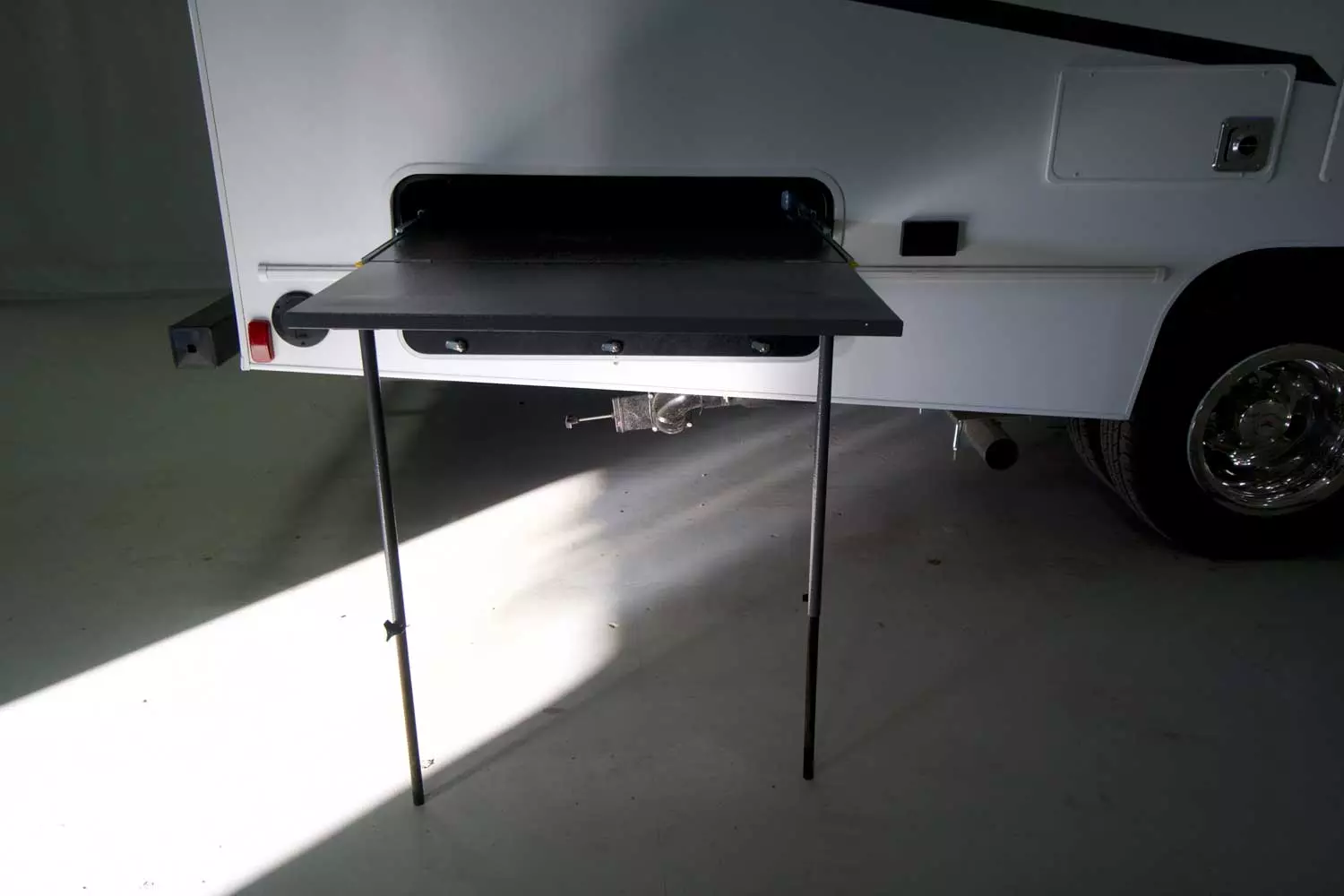

  • Exterior Camp Table (26DS)
  • Exterior Camp Kitchen Table (31MB)
  • 15K BTU A/C w Heat Pump (N/A 22XG, 23FS, or w/ Dual A/C)
  • Dual A/C - 11.5 BTU Ducted Front & 11.5 BTU Non-Ducted Rear (N/A 22XG, 23FS, 27QB)
  • Hydraulic Leveling Jacks (26DS, 29KB, 31FS, 31MB)
  • Equalizer Stabilizer Jacks (Mandatory - 26DS, 23FS, 29KB, 31FS, 31MB)
Codes and Standards
  • Canadian Compliance (KPM Speedo)(Ford Only)
  • CD-MVSA (Ford Only)(Mandatory on Canadian Units)
  • Z240 CSA (Ford Only)
  • Nebraska State Seal
  • Washington State Seal
