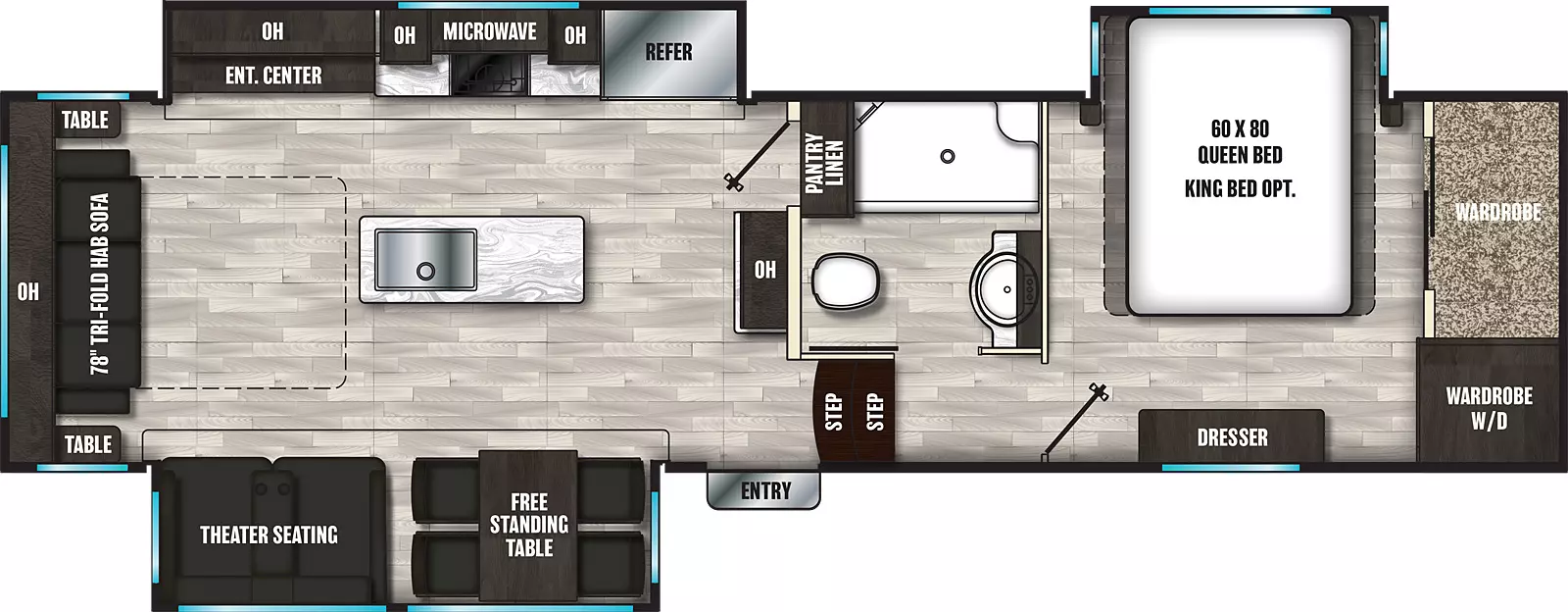

290RL Floorplan

Fifth Wheels

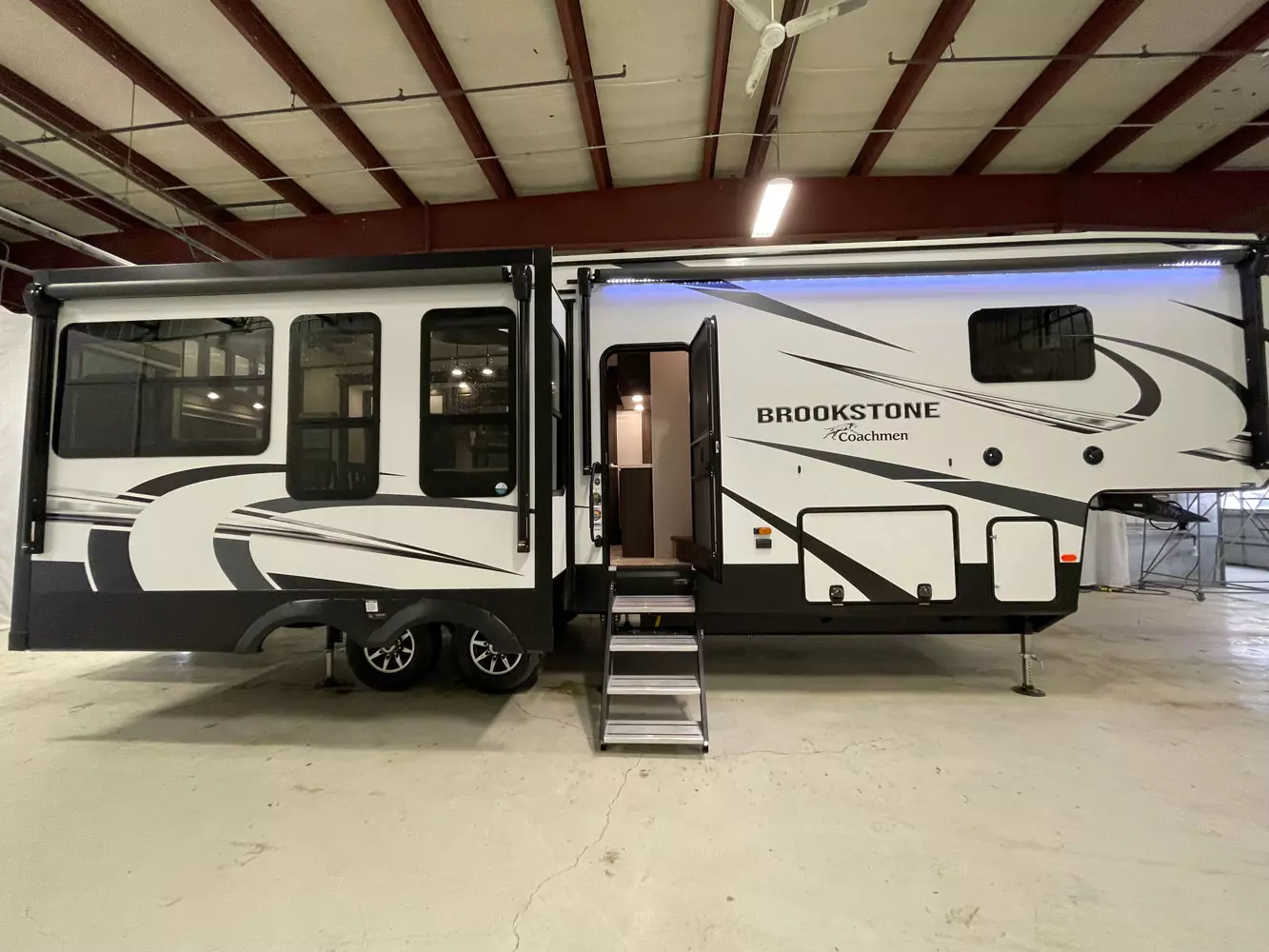

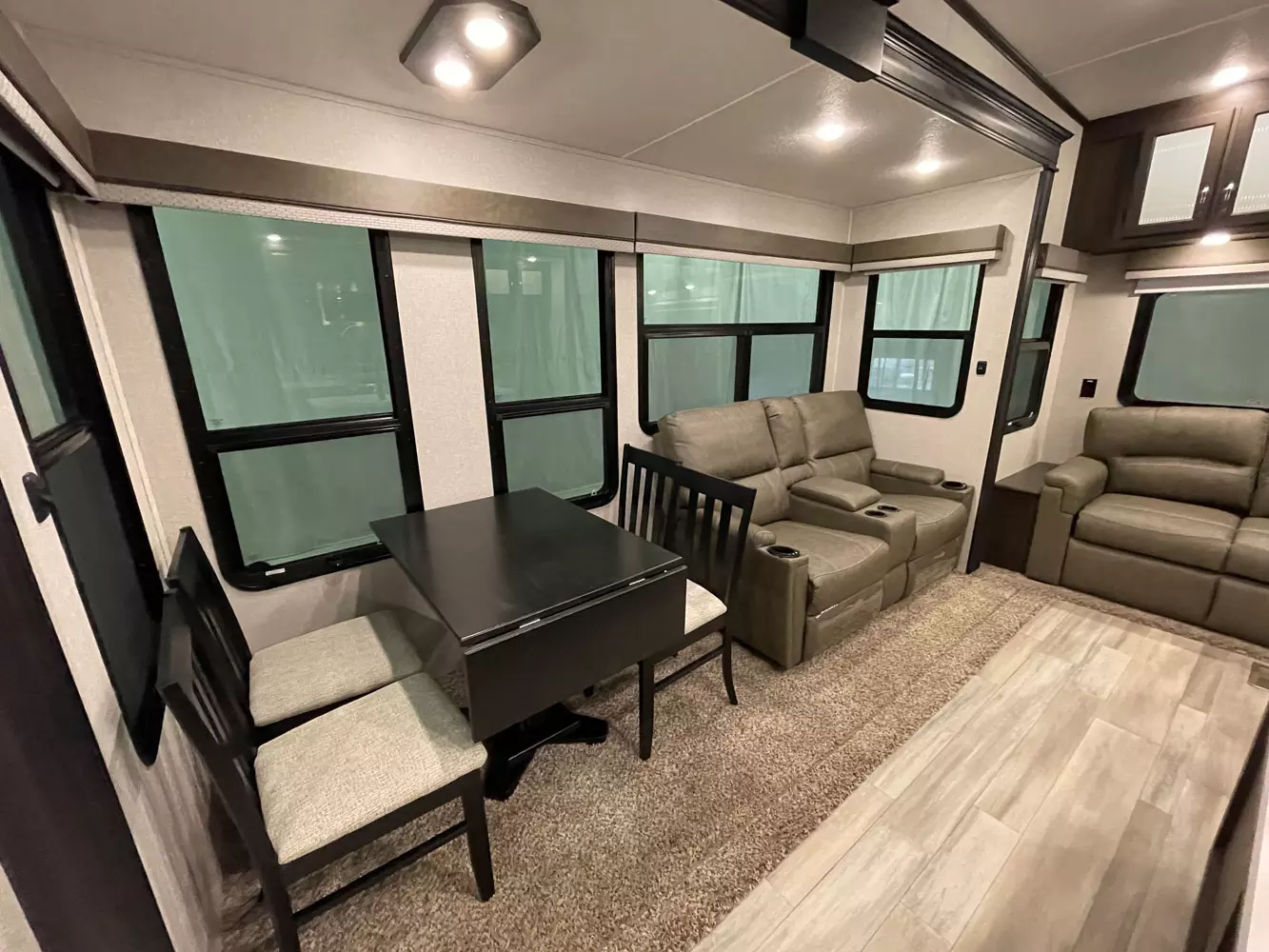

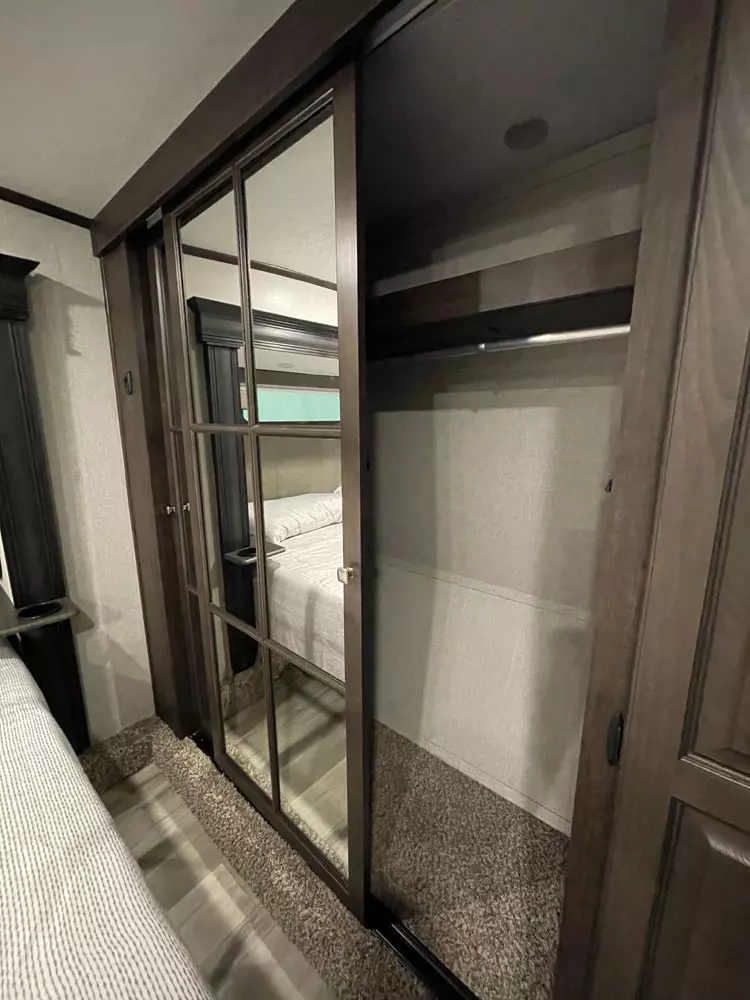

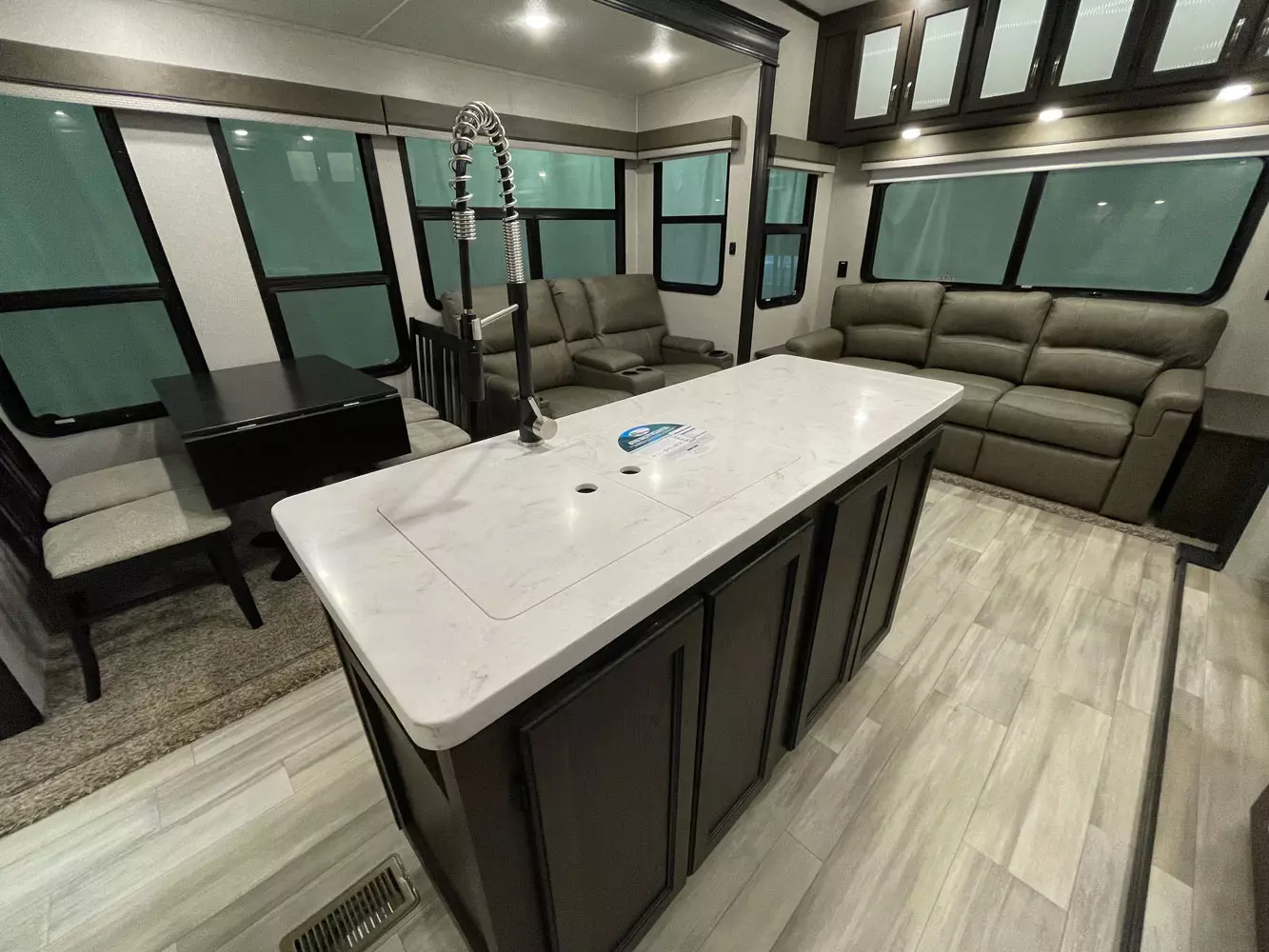

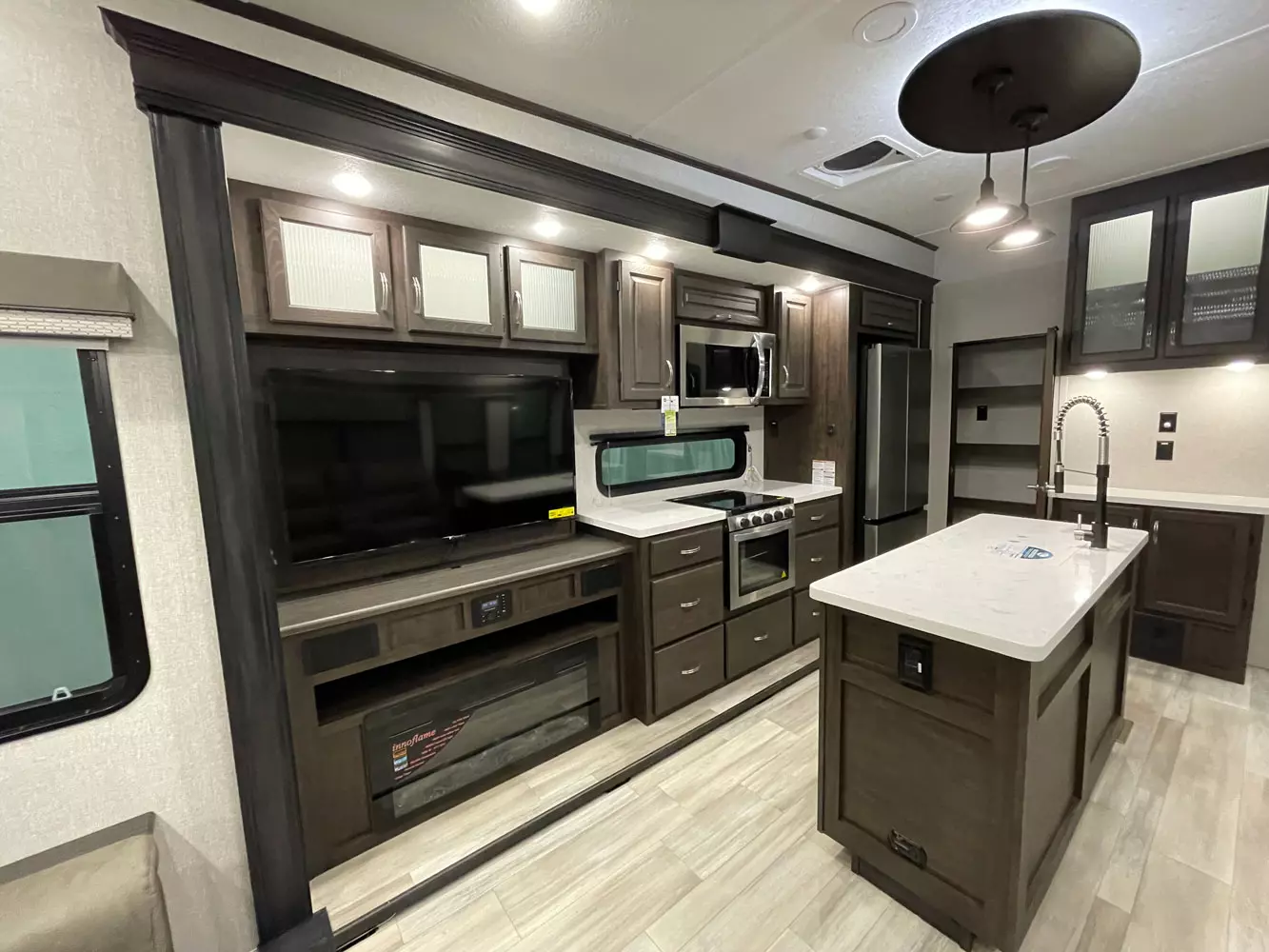

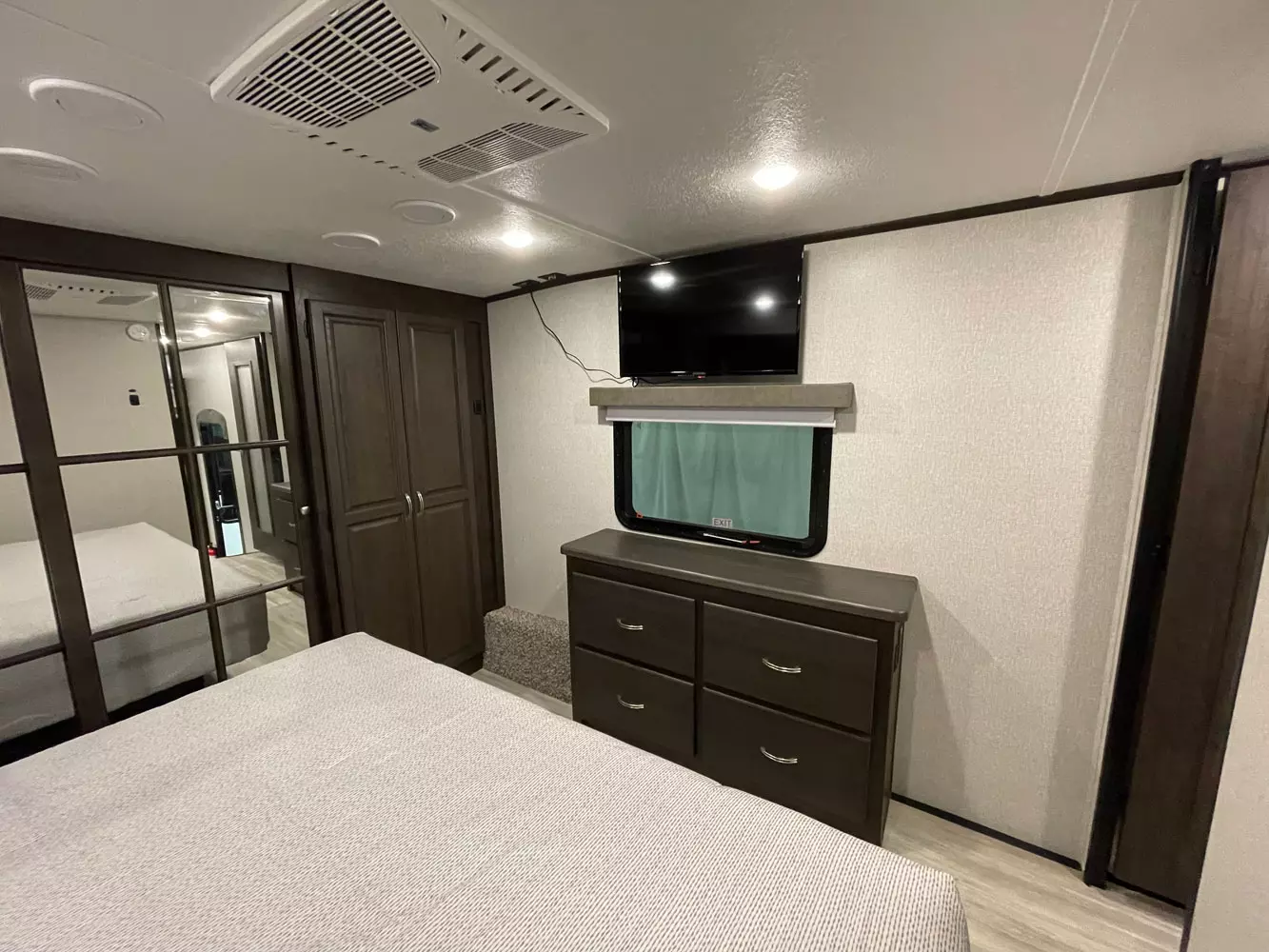

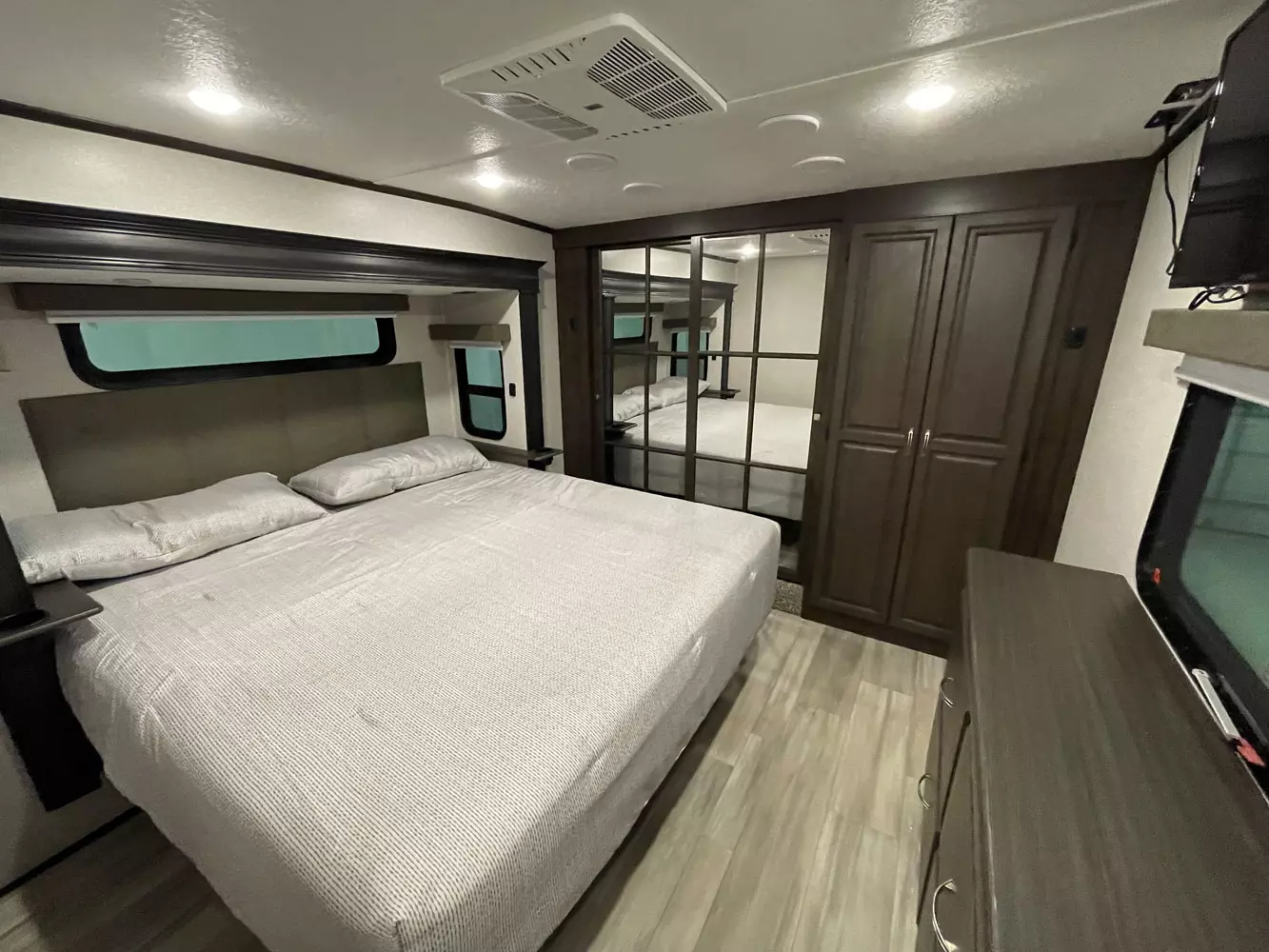

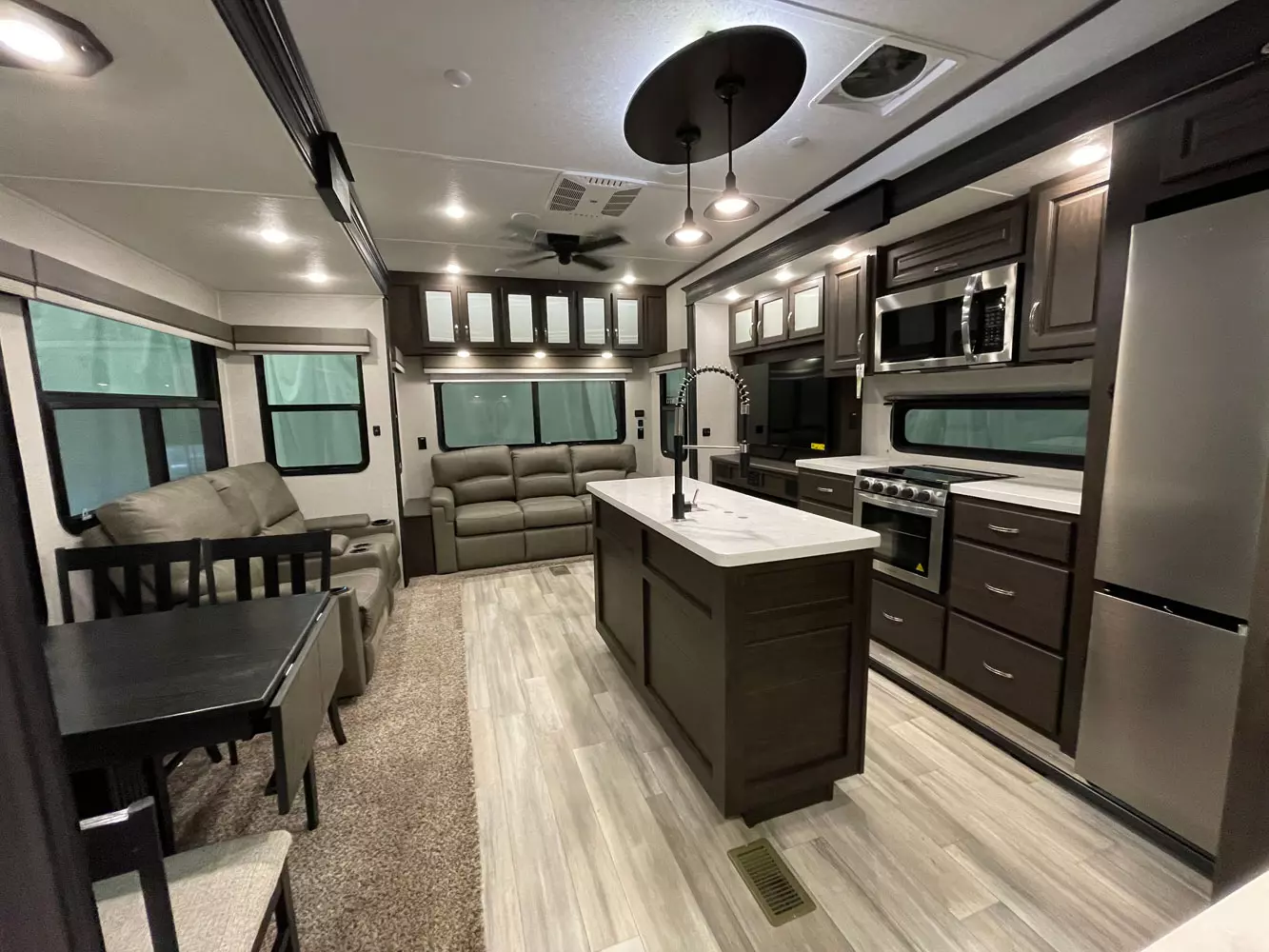

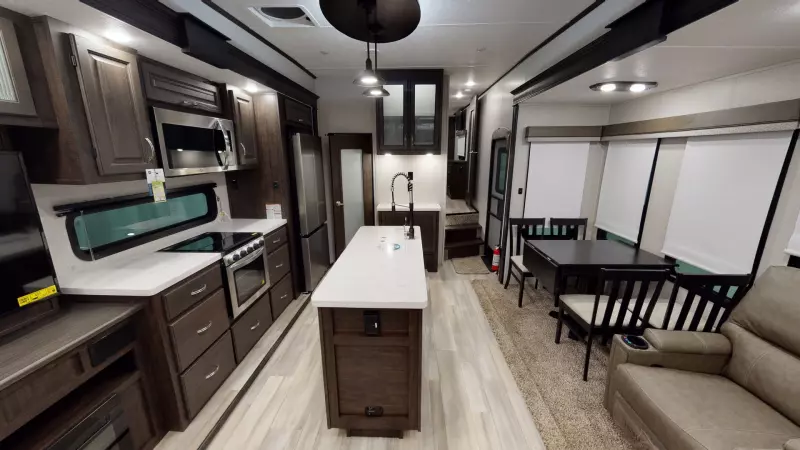

The 290RL has three slide outs and one entry. Interior layout front to back: front bedroom with off-door side queen bed slideout, front wardrobe with washer and dryer, and door side dresser; off-door side full bathroom; overhead cabinet and pantry/linen closet along inner wall; door side slide out containing free standing table, and theater seating; off-door side slide out containing refrigerator, kitchen counter, microwave, overhead cabinets, and entertainment center with overhead cabinet; kitchen island with sink; and rear tri-fold hide-a-bed sofa with side tables and overhead cabinet.
Enlarge

Specifications

Hitch Weight:
2,466 lb.
GVWR:
14,500 lb.
UVW
11,472 lb.
CCC
3,028 lb.
Exterior Length:
36' 4"
Exterior Height:
13' 5"
Exterior Width:
101"
Fresh Water:
60.00 gal.
Gray Water:
90.00 gal.
Black Water:
45.00 gal.
Awning Size:
17'



GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)*- is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Coachmen RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Coachmen RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.




Features & Options


  • Dual-Sided AZDEL® Composite Sidewall Panels (Vacuum Bonded & Aluminum Framed) X2 (BP)
  • Frameless Automotive Style Windows (80% Privacy Tint Safety Glass) (BP)
  • Extra Thick Slam Latch Pass Through Storage Compartment Doors W/ Magnet Catches (HD Metal Latches) (BP)
  • Roof Mounted Solar Panel Prep (Roof Mounted Solar Panel Opt. Avail.) (PP)
  • Furrion® Exterior Back-Up & Sideview Camera Prep (PP)
  • Electric Awning W/ LED Light Strip & One Hand Pitch Adjustment (2nd Awning Opt. Avail.) (PP)
  • Solid Step™ Entry (4-Step W/ Extra Large Top Step & LED Entry Step Light) (BP)
  • Protective Rear Bumper W/ Accessory Receiver Prep S
  • LED Head Knocker Preventer Lights Under Bed Slide* (Select Models) S
  • LED Sewer Hose Hook-Up Lights S
  • 6-Point Electric Auto-Leveling System (Gear Driven) (PP)
  • 16" Steel Belted Radial Tires (G-Rated) W/ Aluminum Rims (5, 2, 1 Lionshead Warranty) (BP)
  • Road Armor® Suspension By Trail Air® W/ Heavy Duty Shackles & Wet Bolts S
  • Secret Hidden Hinge Storage (Select Models)* S

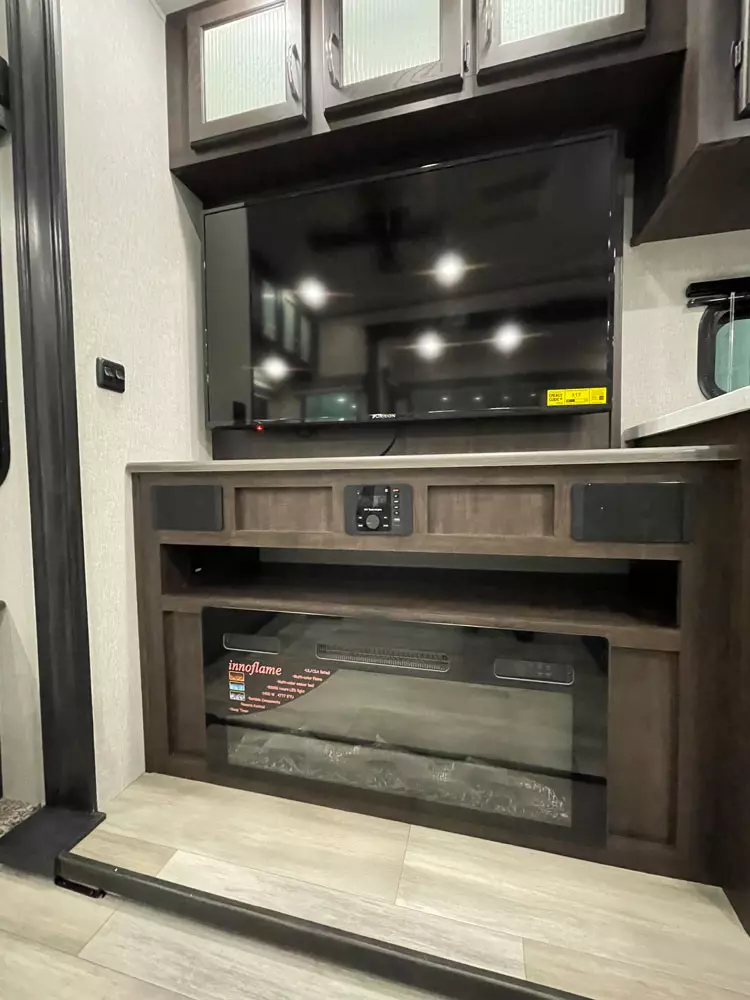

  • High BTU Output, Modern Electric Fireplace (PP)
  • Thomas Payne® Theatre Seating W/ Heat, Massage, LED Lights, & Cup Holders* (RLP)

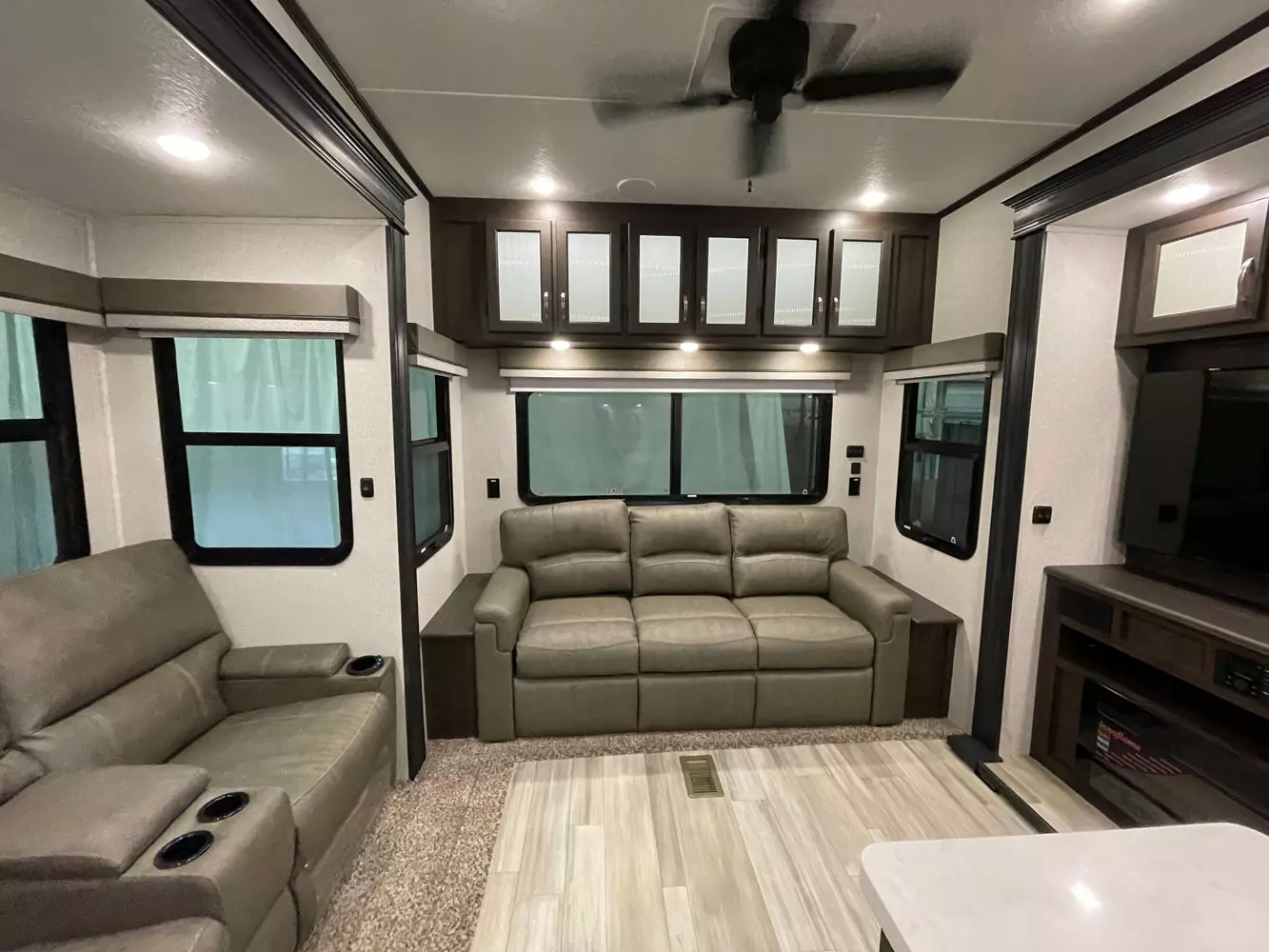

  • Thomas Payne® Memory Foam Tri-Fold HAB Sofa* (RLP)
  • Ceiling Fan In Living Room* S
  • Energy Efficient LED Interior Lighting Used Throughout W/ Motion Sensor Lites (Key Areas)* S
  • AM/FM Stereo W/ Bluetooth, USB, & Modern Sound Bar (PP)
  • Roller Night Shades (RLP)
  • Large Transom Window At Cooktop Backsplash Location S
  • Modern High Rise Kitchen Faucet S

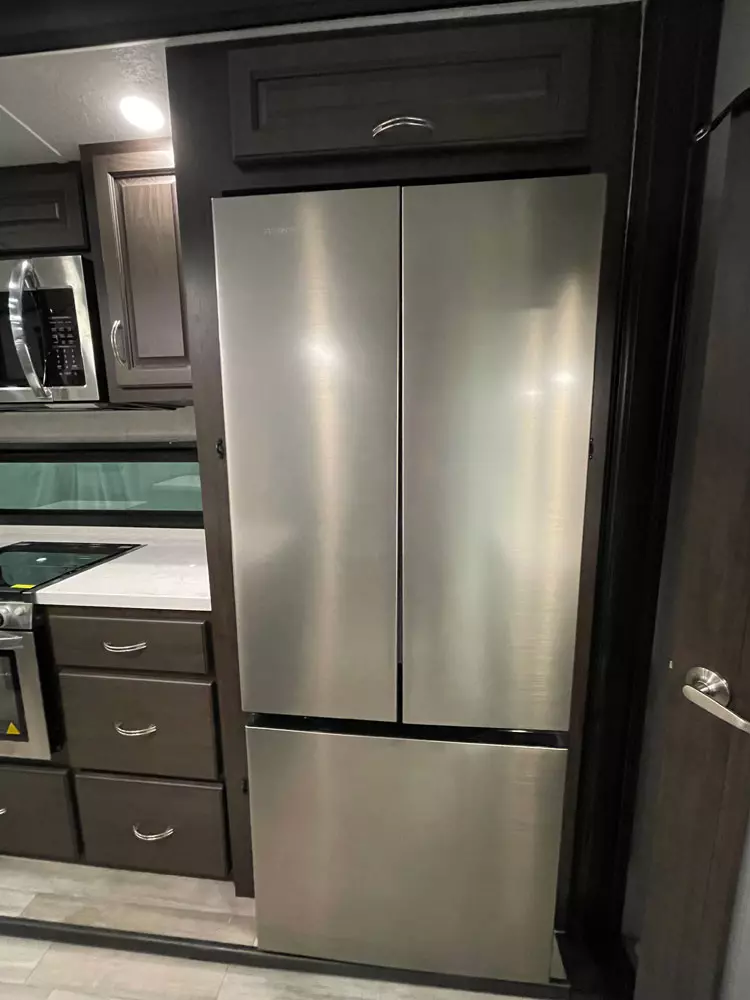

  • 17 Cubic Foot 12V Residential Refrigerator (RLP)
  • 30" Residential Microwave (RLP)

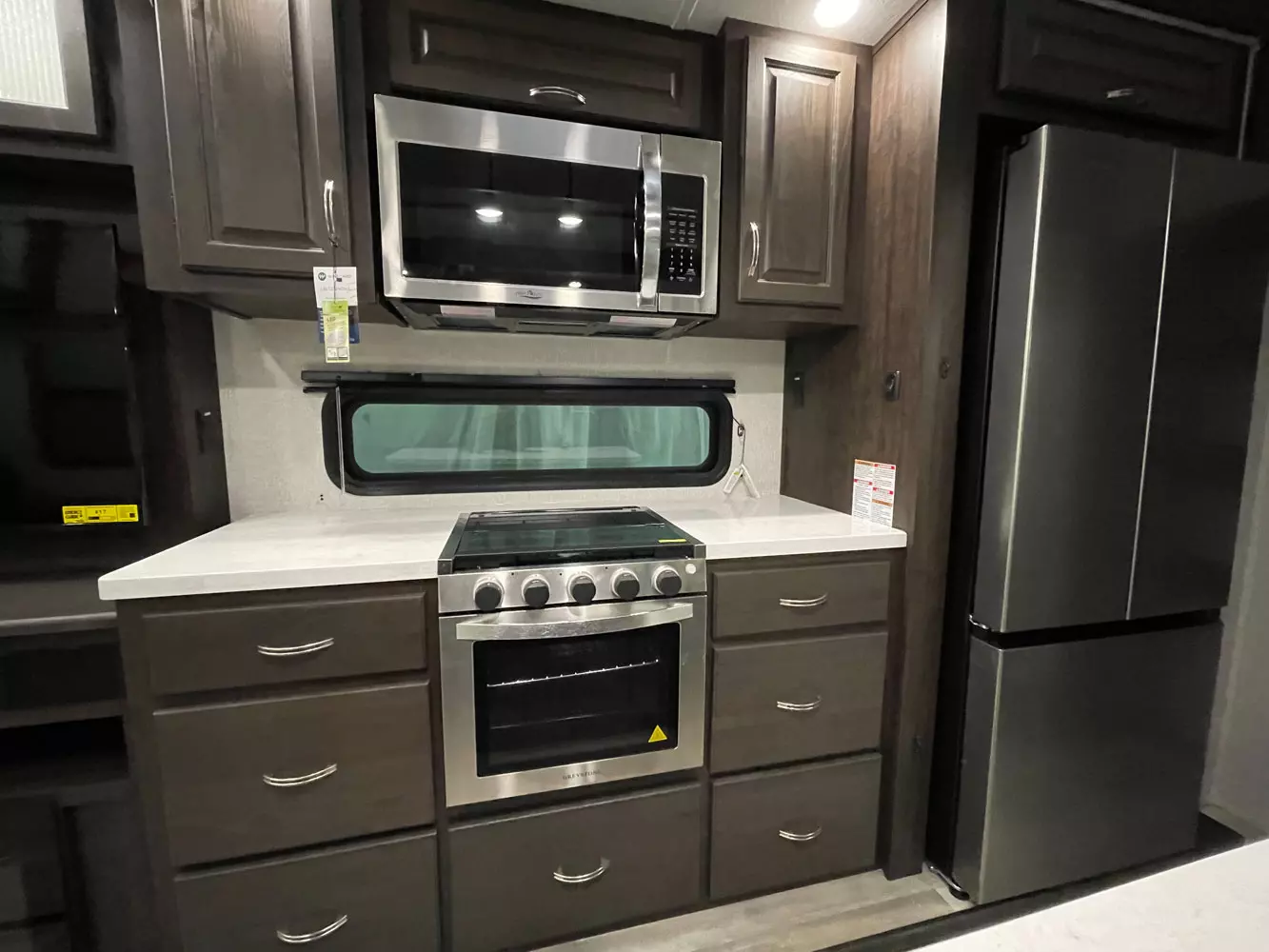

  • 3.73 Cubic Foot Residential Range W/ 4 Burner Cooktop (42,500 Combined BTUs) (RLP)
  • Extra Deep Single Basin Sink (Stainless Steel) (RLP)
  • Granite/Marble Style Solid Surface Countertops (Kitchen) W/ Matching Sink Covers (RLP)

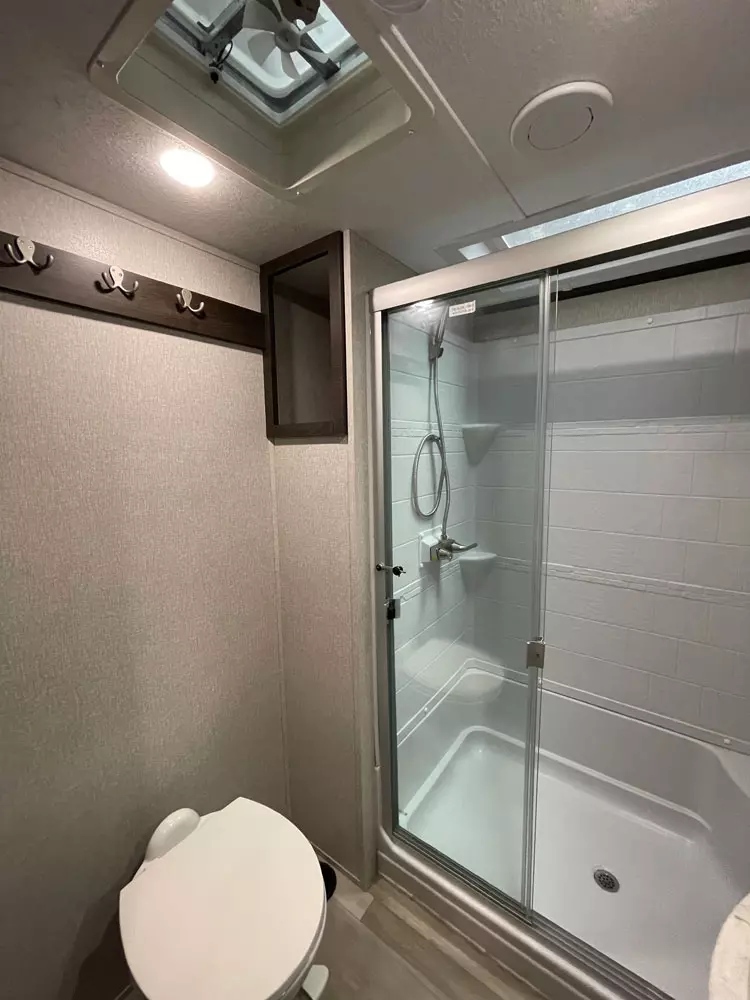

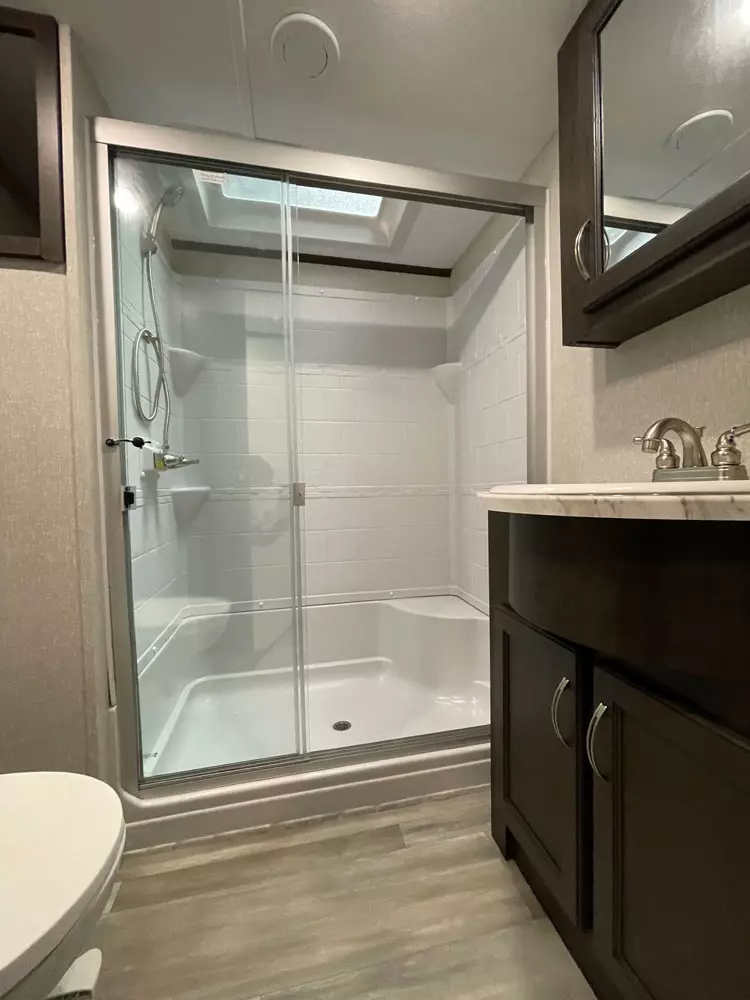

  • Full Size Shower W/ Sliding Glass Doors & Seat* (RLP)
  • Power Ceiling Vent Fan (12 Volt) S
  • Porcelain Foot Flush Toilet (RLP)

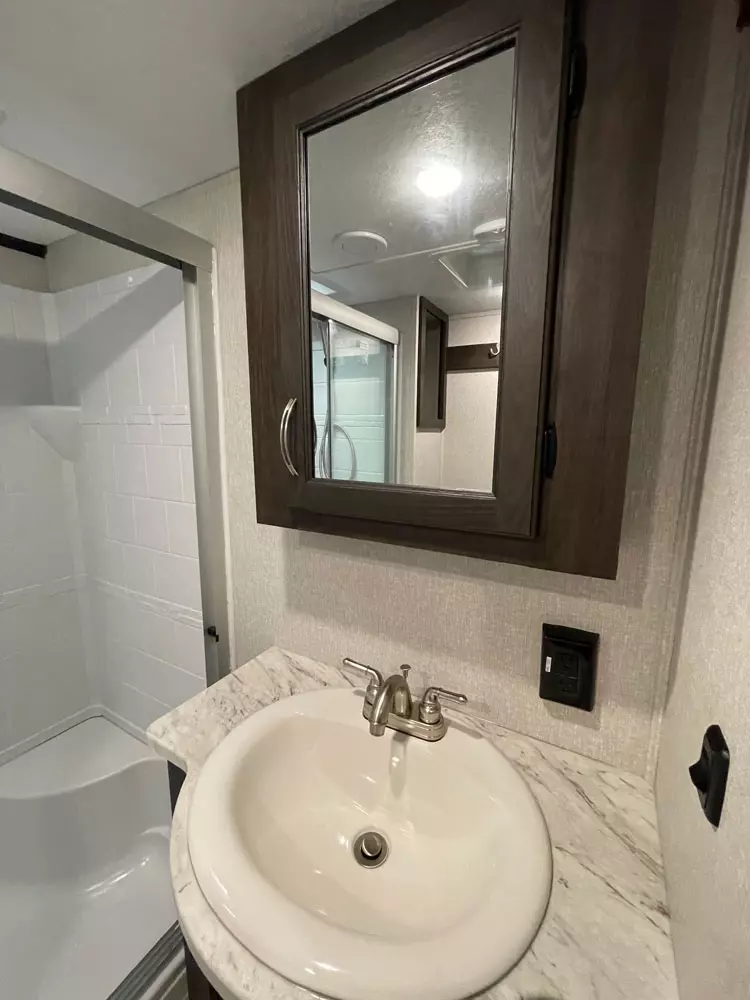

  • Porcelain Sink W/ Seamless Thermofoil Lav (No T-Mold) S

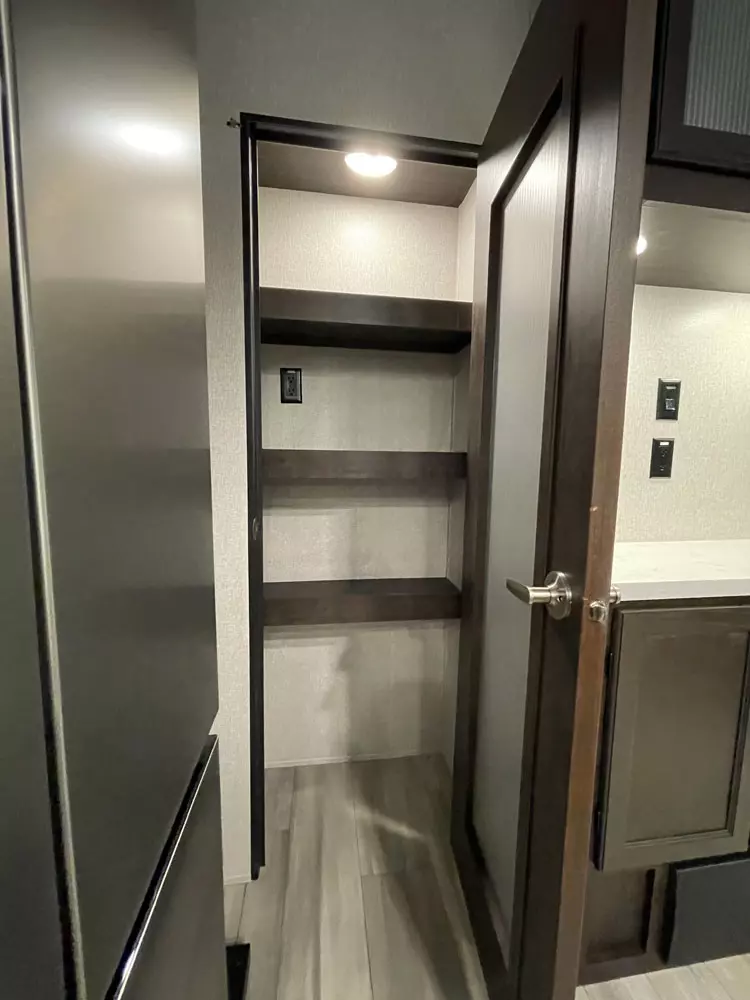

  • Large Linen Closet (RLP)
  • LED Motion Sensor Light S

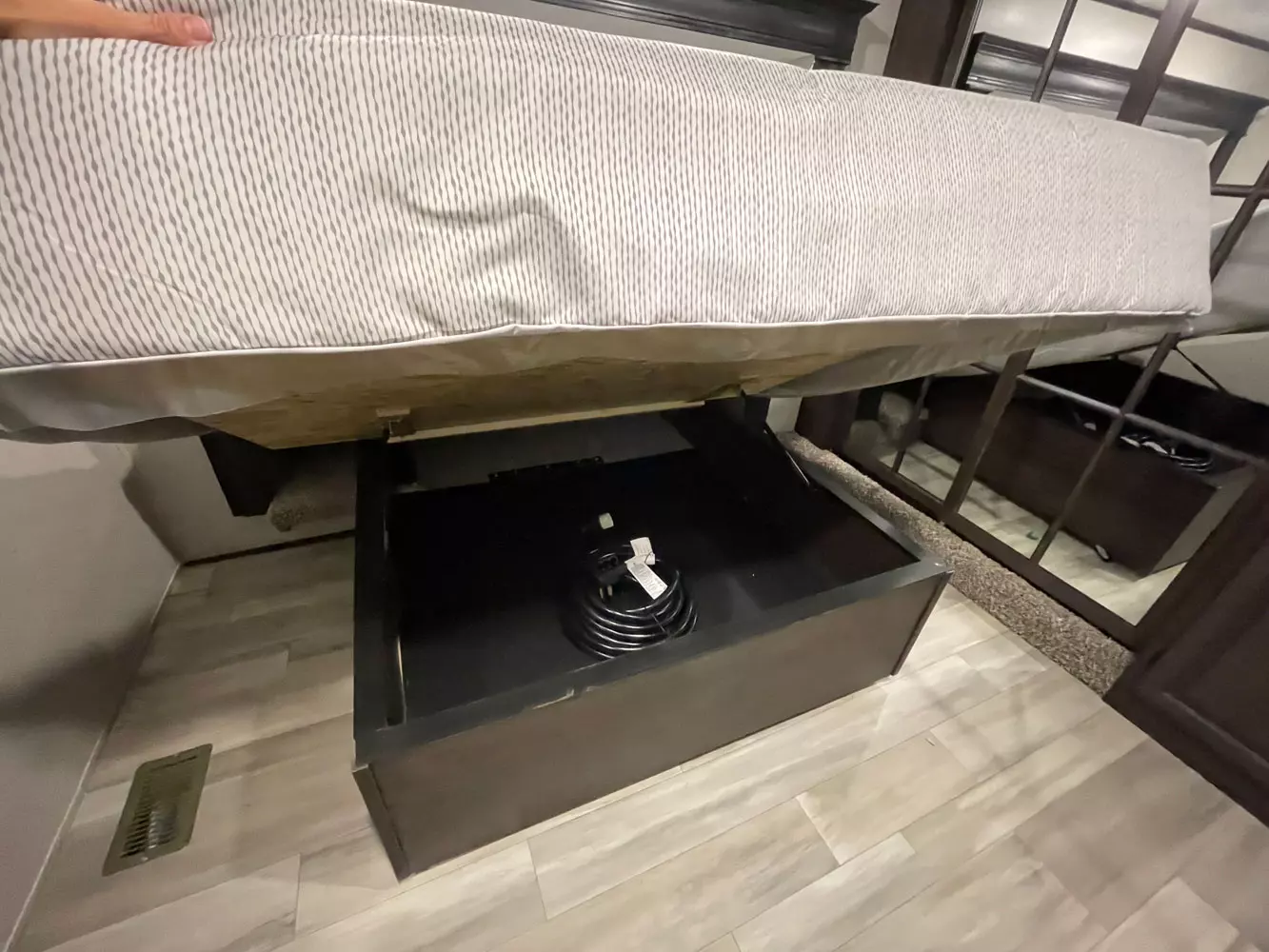

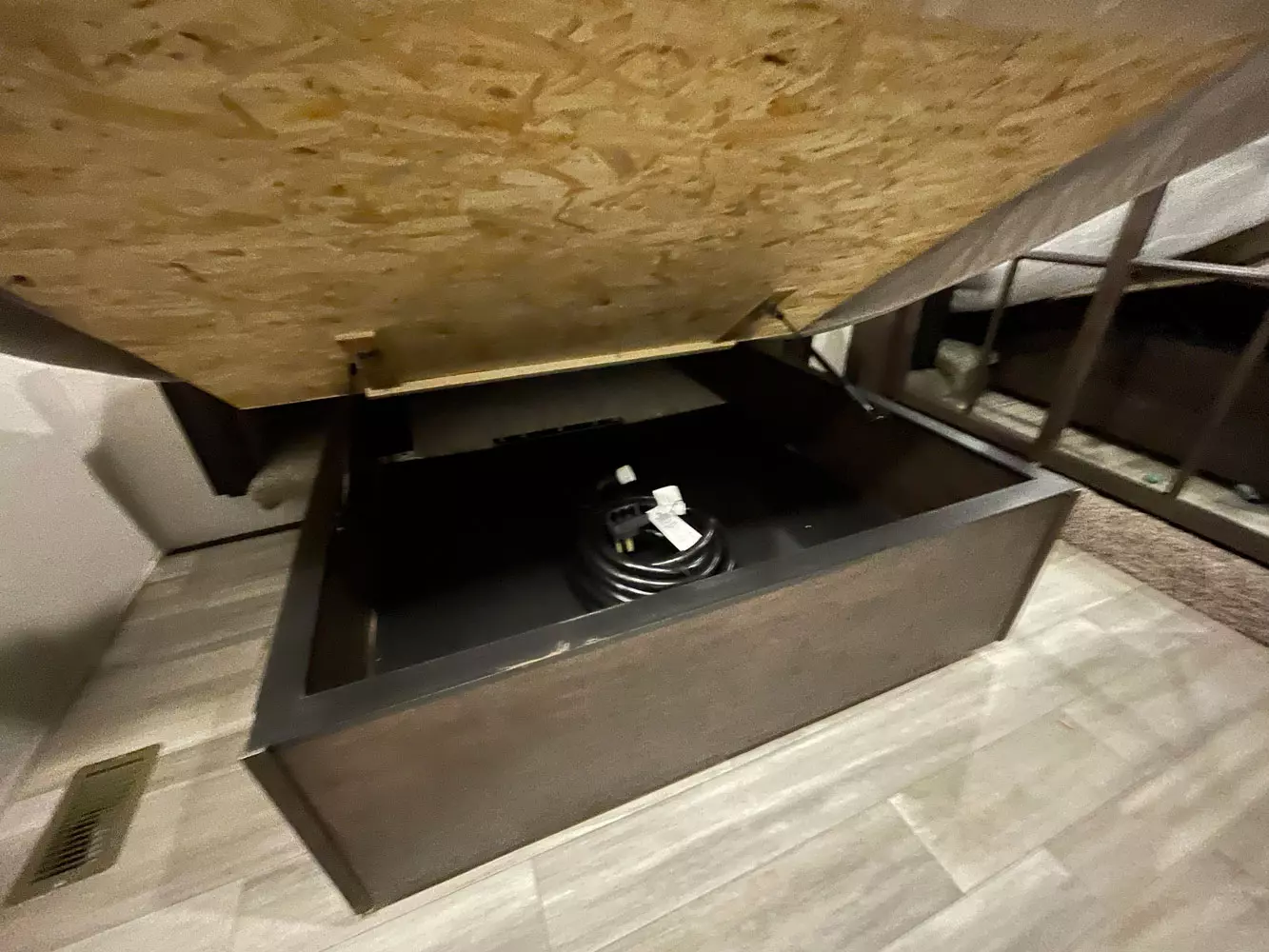

  • Hidden Hinge Storage Under Dresser Top* S
  • Large Transom Window Above Bed S
  • Residential 60” x 80” Pillow Top Mattress & Bedspread (King Opt. Available) (RLP)
  • Padded Soft Touch Headboard S
  • Bedside Nightstands* S
  • Dual 110 Volt Outlets At Bed* S
  • Ducted A/C Vents W/ Rotator/Closing Louvers S

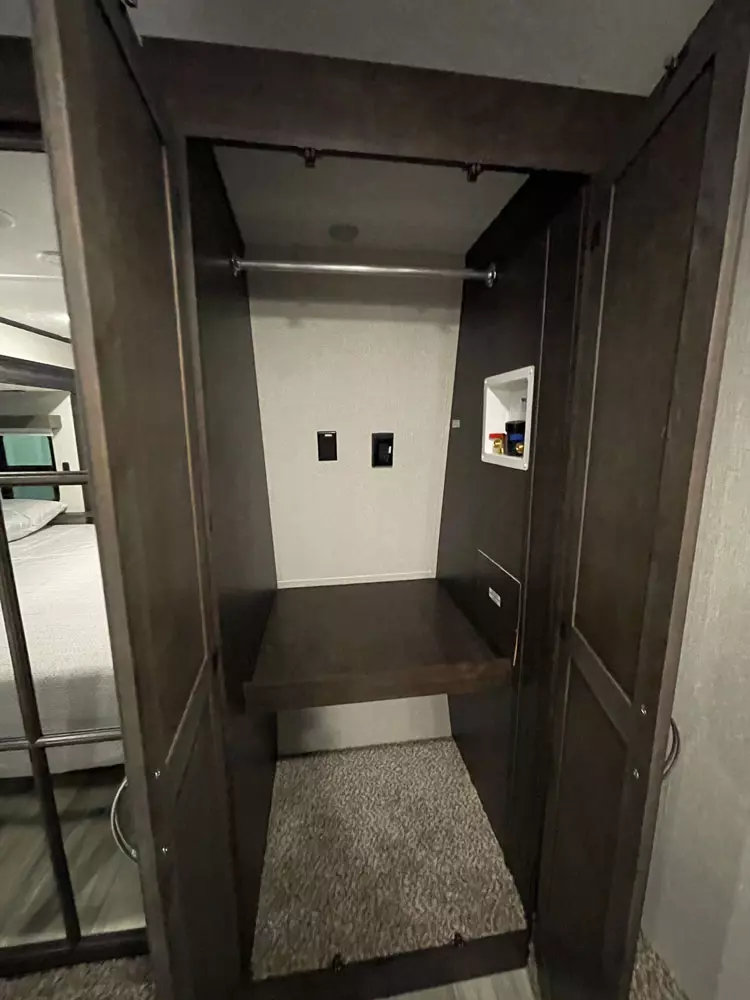

  • Stackable Washer/Dryer Prep (PP)
  • Roller Night Shades (RLP)
  • Residential 5" Truss Rafters (16" on Center) W/ Full Walk on 3/8" Roof Decking S
  • Double Batten Insulated Roof W/ Radiant Barrier Insulation (4SP)
  • 12" Extruded Main I-Beam W/ 10" Drop Z-Frame Chassis (Tri-Tex Powder Coated Frame Technology) S
  • Dual-Sided AZDEL® Composite Sidewall Panels (Vacuum Bonded & Aluminum Framed) X2 (BP)
  • 7,000 lb. USA-Made Dexter® E-Z Lube® Axles W/5-Year Defect and Lifetime Weld Warranty! (BP)
Weather Shield+™ 0° Cold Tested & 110° Hot Tested (Extreme Temperature Chamber) (P)
  • Space Age Reflective Technology (Underbelly, Roof, Slides & More!) (4SP)

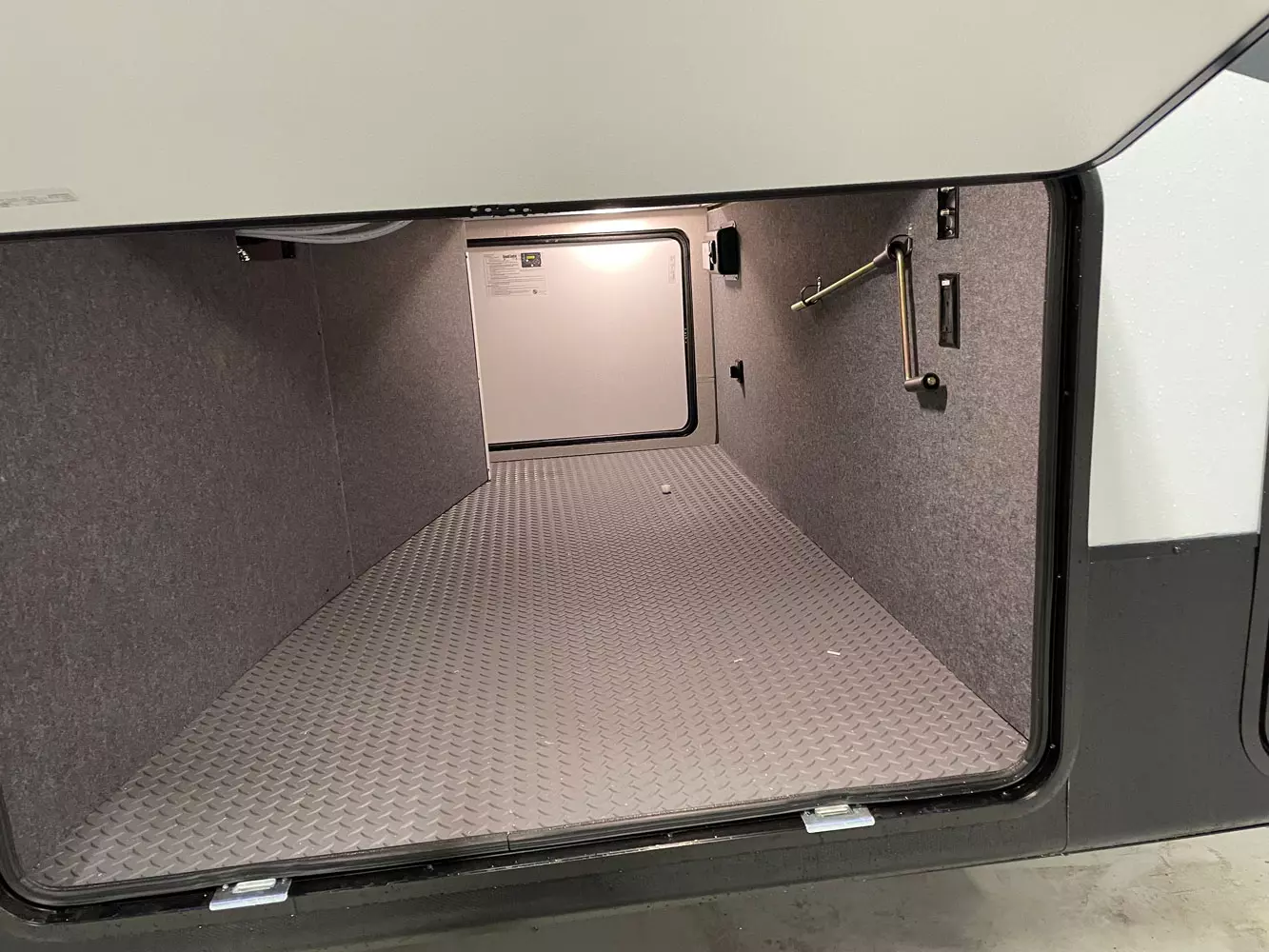

  • Unobstructed & Insulated Pass-Thru Storage (W/ Built-In Tool Storage) (4SP)
  • Weather Shield+™ Ducted 40K BTU Furnace to Enclosed, Insulated, & Heated Underbelly + Gate Valves (4SP)
  • R15+ Sidewalls, R47+ Floor, R44+ Roof (Equivalency, Based on 80° F W/ Radiant Barrier) (4SP)
  • 12 Volt Electric Heated Holding Tank Pads (4SP)
  • 6-Point Electric Auto-Leveling System (Gear Driven) (PP)
  • Roof Mounted Solar Panel Prep (Roof Mounted Solar Panel Opt. Avail.) S

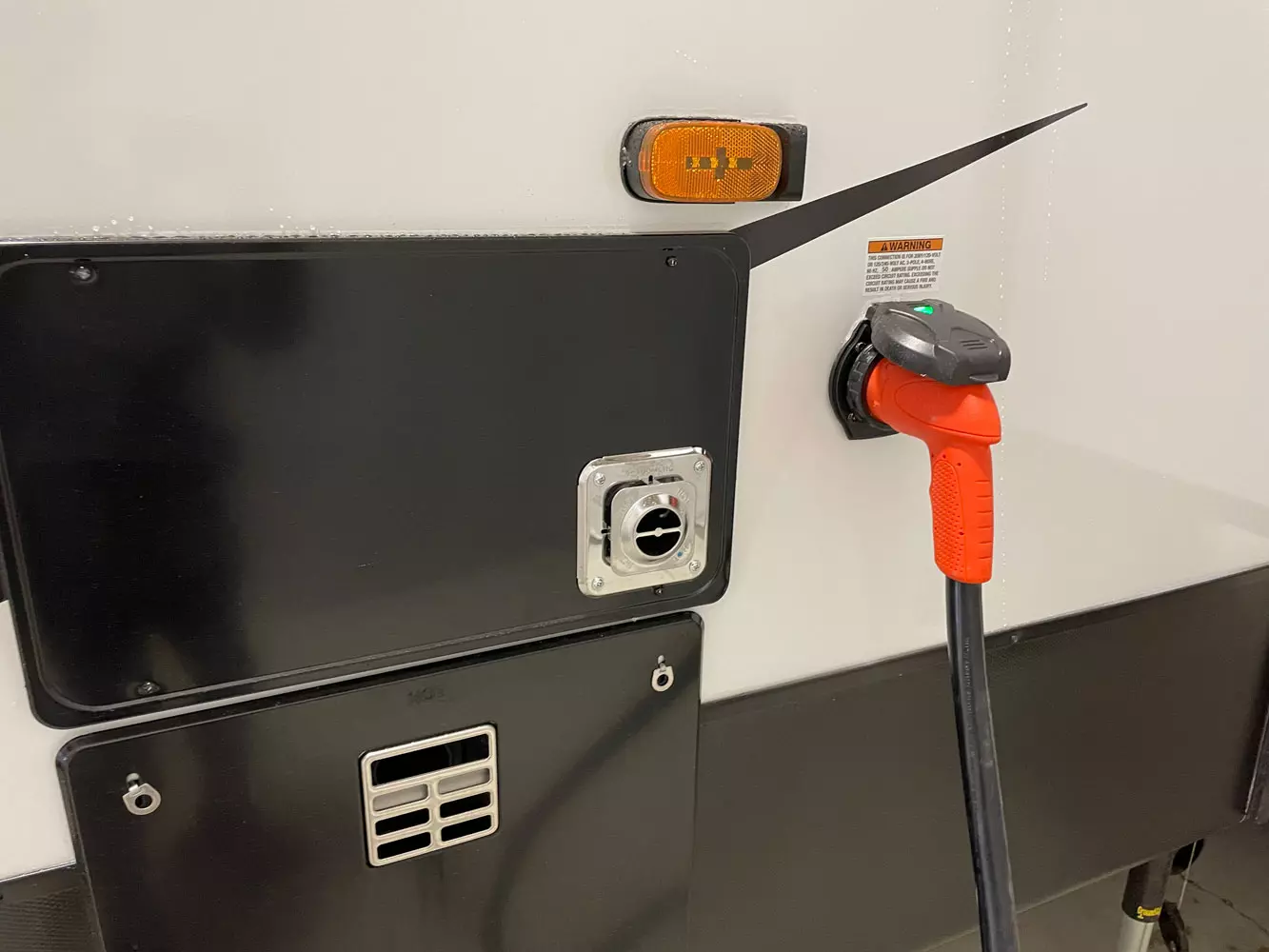

  • 50 AMP Service W/ Detachable Marine Cord W/ LED Indicator S
  • Comfort Air Fan® (Kitchen Only) (PP)
  • 40K BTU High Capacity Furnace (4SP)
  • 15,000 BTU Ducted Main Air Conditioner + 15,000 BTU Ducted Bedroom Air Conditioner (PP)
  • Quick Recovery 10 Gallon Gas/Elec. Hot Water Heater (20 GPH) (PP)
  • Winegard® Air 360™ HDTV/Radio Dome Antenna S
  • Prepped for Available Winegard Gateway Model: GW-1000 (Adds 4G LTE & Wi-Fi Capabilities) (PP)

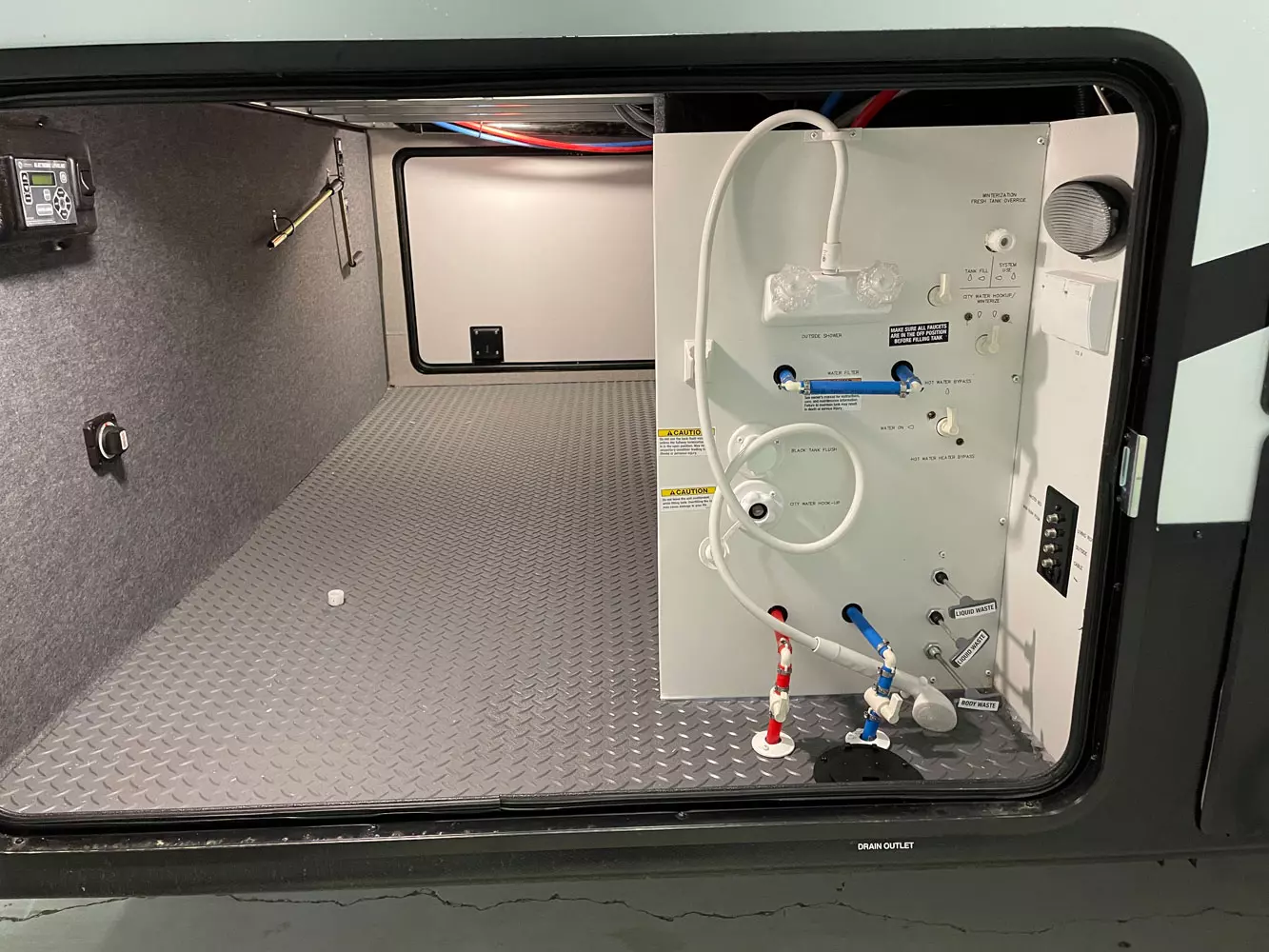

  • Outside Convenience Center W/ Black Tank Flush, Hot/Cold Shower, Water Filtration Prep, & WH Bypass (BP)
  • Interior & Exterior Satellite & Cable TV Hook-Up W/ Independent Satellite Feeds S
  • Stackable Washer/Dryer Prep (PP)
  • Roadside Assistance + 24/7 Roadside Assistance by SafeRide RV Motor Club™ (P)
  • King Size Bed
  • Bedroom 32" HD LED TV
  • 12 cu. ft. Gas/Electric Refrigerator IPO 17 cu. ft. 12V Refrigerator
  • Dual Pane Windows Frameless
  • 2nd Exterior Awning
  • Generator Ready (Onan LP 5.5Kw Specs)
  • 2" Accessory Receiver Hitch
  • Roof Mounted Solar Panel
  • 50" HD LED TV in Outdoor Kitchen
  • 3rd 15,000 BTU A/C
