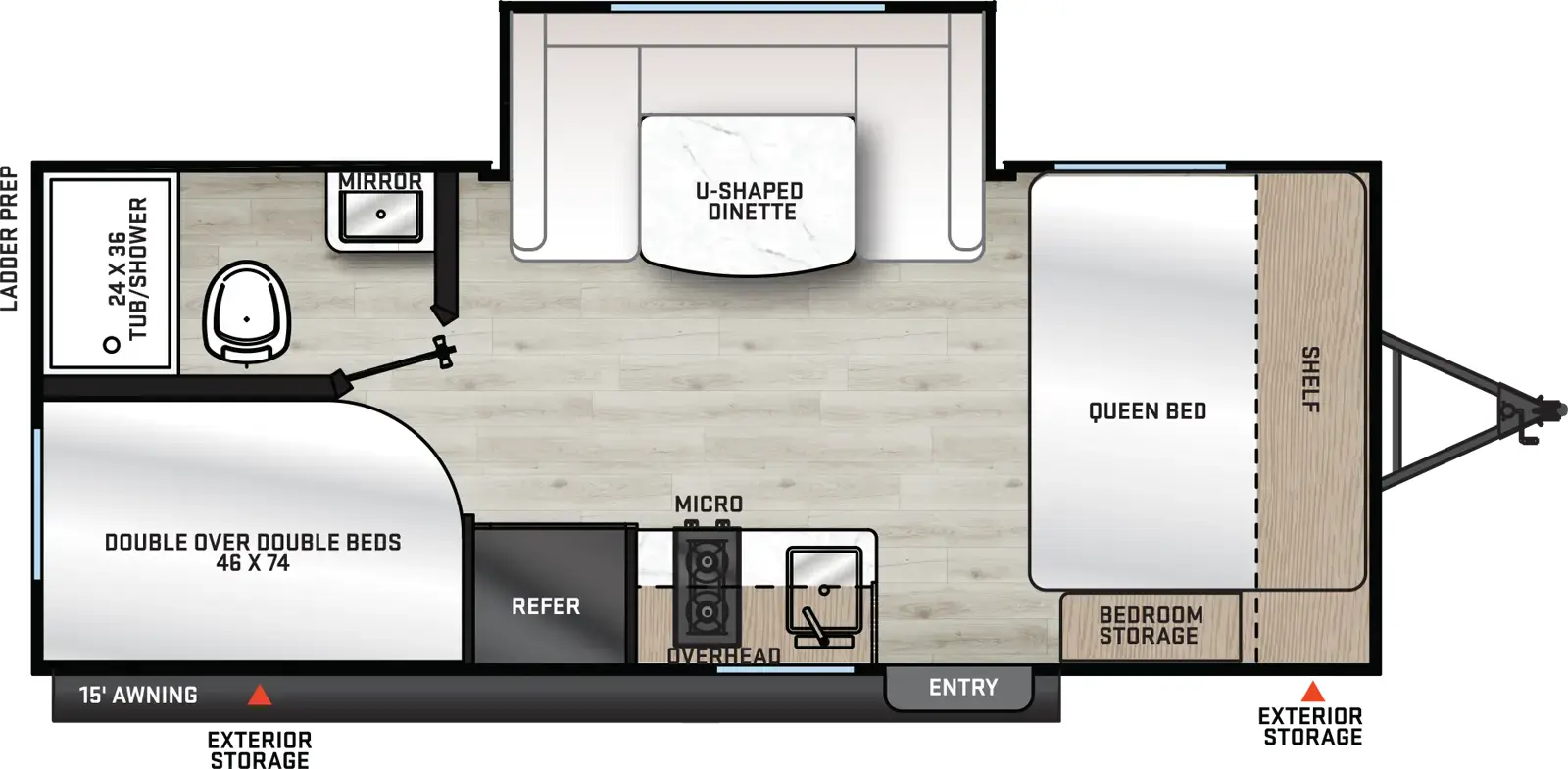

Catalina 184BHSX Floorplan

Hitch Weight
490 lb.
GVWR
5,590 lb.
UVW
3,989 lb.
CCC
1,601 lb.
Exterior Length
23' 1"
Exterior Height
10' 1"
Exterior Width
90"
Fresh Water
44 gal.
Gray Water
30 gal.
Black Water
30 gal.
Awning Size
15'

Specifications Definitions

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GCWR (Gross Combined Weight Rating) – is the maximum permissible loaded weight of your motor home and any towed trailer or towed vehicle. Actual GCWR of this vehicle may be limited by the sum of the GVWR and the installed hitch receiver maximum capacity rating; see hitch rating label for detail.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)* – is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity) ** – is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Actual towing capacity is dependent upon your particular loading and towing circumstances, which includes the GVWR, GAWR and GCWR as well as adequate trailer brakes. Please refer to the Operator's Manual of your vehicle for further towing information.

Note: Specifications are subject to change without notice.


  • EXTERIOR FEATURES

    • Electric Awning w/Multicolor LED Strip & Remote
    • Black Tank Flush
    • Battery Disconnect Switch
    • Siphon 360 Holding Tank Roof Vent
    • Heavy Duty Standard Tongue Jack
    • (1) 20 lb. LP Tanks
    • Flush Mount Baggage Doors w/Radius Corners
    • Diamond Plate Rock Guard
    • Stabilizer Jacks
    • G20 Tinted Privacy Windows
    • Premium JBL Exterior Speaker
    • Friction Hinged Black Glass Entry Door with Window (Black Glass, Window N/A 134 Series)
    • Exterior 110V G.F.C.I Protected Receptacle
    • Exterior RG-6 Coax Cabling and Satellite Prep
    • Rain Gutters with Drip Spouts
    • MORryde StepAbove Solid Steps
    • Rear View Camera Prep
    • Pets - "Leash Link" Quick Hookup D-Ring
    • Universal Solar Prep w/Roof & Chg. Contoller Connections & Wiring
    • Rear Ladder Prep
  • INTERIOR FEATURES

    • All-In-One Control Panel
    • Premium Audio JBL Aura Cube Multi-Zone Function Media Center
    • Premium JBL Interior Speaker
    • GE 10.7 Cu. Ft. 12V Refrigerator (3.3 Cu. Ft. 12V Refrigerator 134X,154X,164X Series)
    • Seamless Thermofoil Countertops Throughout
    • Deep Basin Farm Style Sink
    • High Rise Bullet Style Kitchen Faucet
    • GE Stainless 2-Burner Cooktop with Metal Back-Lit Knobs
    • Range Hood
    • Paper Towel Holder
    • GE Stainless Microwave W/Glass Turn Table
    • Congoleum Woodplank Linoleum Flooring
    • 4000 Lumin LED Interior Touch Lighting
    • Jiffy Sofa w/Flip Down Cup Holder/Arm Rest (Per Floorplan)
    • Hard Valance Window Treatments
    • Pedestal Thermofoil Dinette Table (134RDX, 154RDX, 184BHS, 184BHSX)
    • Under Bench Dinette Storage (Per Floorplan)
    • 12V 14" Bathroom Power Vent Fan
    • Marine Toilet with Foot Flush
    • Mirror
    • Bedroom Surface Mounts USB Ports (Each Night Stand)
    • Kitchen USB's & Outlets
    • USB Surface Mounts Near Bunk Beds
    • Master Bedroom Overhead Shelf
    • Designer Fitted Master Bed Sheet
    • Full Lino in Slide-Outs and Bedrooms (Carpetless)
    • Shower/Coat Hooks
  • CONSTRUCTION & EQUIPMENT FEATURES

    • GE 13,500 BTU Central A/C with Heat Pump
    • Cambered Structural Steel I-Beam Frame
    • Norco Electromagnetic, Powder Coated Chassis
    • Full Length Frame Outriggers
    • 5/8" Tongue & Groove StableDeck Flooring
    • 2"x2" Floor Joists on Approximately 12" Centers
    • 4" Floor To Frame Steel Lag Bolts
    • Darco Subfloor Protective Wrap/Enclosure
    • Seamless Alpha Roof Membrane with Lifetime Warranty
    • Cross-Braced Engineered Roof Trusses w/5" Crown
    • 3/8" Fully Decked Walk-On Roof
    • Screwed Cabinet Construction w/Pocket Bored Lumber Core Stiles
    • 5/8" Plywood Under Bunks & Dinette Base
    • 78" Interior Height (6'6")
    • Norco Cable Slide Out
    • R-7 Fiberglass Insulation Throughout
    • GE 6 Gal. Gas/Electric DSI Water Heater
    • Water Heater By-Pass Winterization Kit
    • 12V Demand Water Pump
    • Premium Exterior Graphics Package
    • Platinum .024" Aluminum Exterior w/.030 Skirt Metal
    • Smooth HD Aluminum Radius Front
    • EZ Lube Axles w/Leaf Spring Suspension
    • Self Adjusting Brakes
    • Roto-Cast Holding Tanks
    • Bumper w/ Drain Hose Carrier and End Caps
    • 19,000 BTU Direct Furnace w/Wall Thermostat
    • 30 Amp Elect. Service w/ 100v 45-Amp Power Covt.
    • Rugged Pro Black Steel Wheels
    • Magnetic Hands Free Baggage Door Latches
    • King Antenna
  • SAFETY FEATURES

    • Smoke Alarm
    • LP/CO Gas Detector
    • Fire Extinguisher
    • Fire Escape Windows
    • Entrance Door Window
    • Dead-Bolt Lock on Entry Door
    • Specialized Dispatch Services (1 YR Roadside Assistance)
  • OPTIONS

    • 7 Cu. Ft. LP Gas/Electric RV Refrigerator w/Reversible Door Inserts (N/A 134X, 154X, 164X Series)
    • CSA Standards
