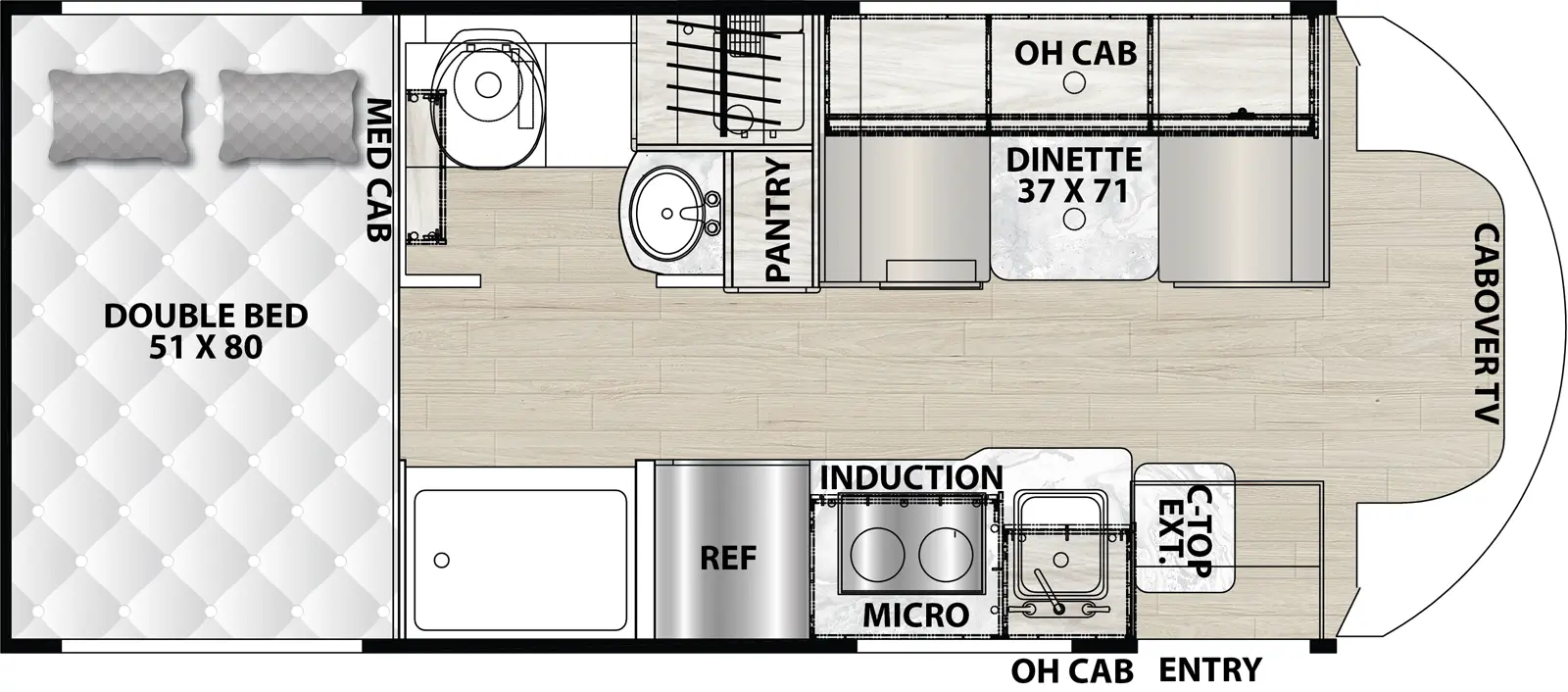

Cross Trail 20XG Floorplan
![](/ImageHandler/266480/2024_CT20XG_Enh copy.webp)
- Wheelbase
- 156"
- GVWR
- 11,000 lb.
- GCWR
- 15,000 lb.
- GAWR Front
- 4,630 lb.
- GAWR Rear
- 7,275 lb.
- Fuel Capacity
- 32 gal.
- LP Tank Capacity
- 70 lb.
- Exterior Length
- 24' 2"
- Exterior Height
- 10' 4"
- Exterior Width
- 91"
- Fresh Water
- 30 gal.
- Gray Water
- 27 gal.
- Black Water
- 28 gal.
- Awning Size
- 14' Armless
Specifications Definitions
GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.
GCWR (Gross Combined Weight Rating) – is the maximum permissible loaded weight of your motor home and any towed trailer or towed vehicle. Actual GCWR of this vehicle may be limited by the sum of the GVWR and the installed hitch receiver maximum capacity rating; see hitch rating label for detail.
GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.
UVW (Unloaded Vehicle Weight)* – is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.
CCC (Cargo Carrying Capacity) ** – is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.
Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.
The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.
Actual towing capacity is dependent upon your particular loading and towing circumstances, which includes the GVWR, GAWR and GCWR as well as adequate trailer brakes. Please refer to the Operator's Manual of your vehicle for further towing information.
Note: Specifications are subject to change without notice.
-
CROSS TRAIL EV (TRANSIT CHASSIS) INTERIOR FEATURES & OPTIONS
- Livable and Storage Friendly Floorplans
- 12v Refrigerator
- 2-Burner Induction Cooktop
- Convection Microwave
- Large Shower Facilities (20XG & 21XG) - Compared to Class B vans
- 11k BTU High-Efficiency A/C
- Large Sliding Tinted Windows
- Interior/Exterior Smart TV
- ECOFLOW Power System: 3,600W Inverter, and 416 Amp/hr Lithium Battery (Optional Dual 416 Amp/hr Lithium Batteries)
- Power Bed (20XG Only) - Allows for versatility with sleeping and storage
- Optional: Dual Power Beds (20XG Only)
-
CROSS TRAIL EV (TRANSIT CHASSIS) EXTERIOR FEATURES & OPTIONS
- Ford Transit Chassis with 3.5L Ecoboost Engine
- 4,000 lb Hitch
- 10-Speed Automatic Overdrive with SelectShift transmission
- All Wheel Drive
- Dual 250 Amp Alternator - efficiently recharge coach batteries
- Adaptive Cruise Control
- Lane-Keeping System - adjustable system to activate either Alert mode, Assist mode or both
- Pre-Collision Assist with Automatic Emergency Braking - detect, alert and brake-assist when vehicle sense a potential collision front of you
- Ford AdvanceTrac w/Roll Stability Control - Provides enhanced side-slip control and electronic rollover stability for the vehicle
- 10" Monitor Screen w/ Apple Car Play and Android Auto
- Azdel Composite Vacuum Bonded Sidewalls - with low entry door for safety
- CrossFlex Roof Membrane - Gives more puncture resistance
- Molded Fiberglass Front Cap
- Fuel Friendly Ford Transit Chassis
- Convenient Go-Anywhere Sized Floorplans
- Extra Large Exterior Storage for oversized cargo
- Up to 400W of Solar Available
- Armless Awning w/ LED Lights and Wind Sensor
- Exterior Entertainment Ready
- LP Quick Disconnect & Fresh Water Port
- Generator Prep Standard (Optional: Dual Fuel Generator)
- Exterior Full Body Paint (Optional)
- Back-Up Camera & Monitor Standard (Optional: Side View Cameras)
-
CROSS TRAIL EV XTREME PACKAGE (OPTIONAL, EV TRANSIT MODELS ONLY)
- Van Compass 2" Suspension Lift
- Falcon Racing Shocks
- All Terrain Tires
- Black Out Aluminum Rims
- Front Bumper Brush Guard w/LED Lights
- Rigid Running Boards
- XTREME Graphics Package
