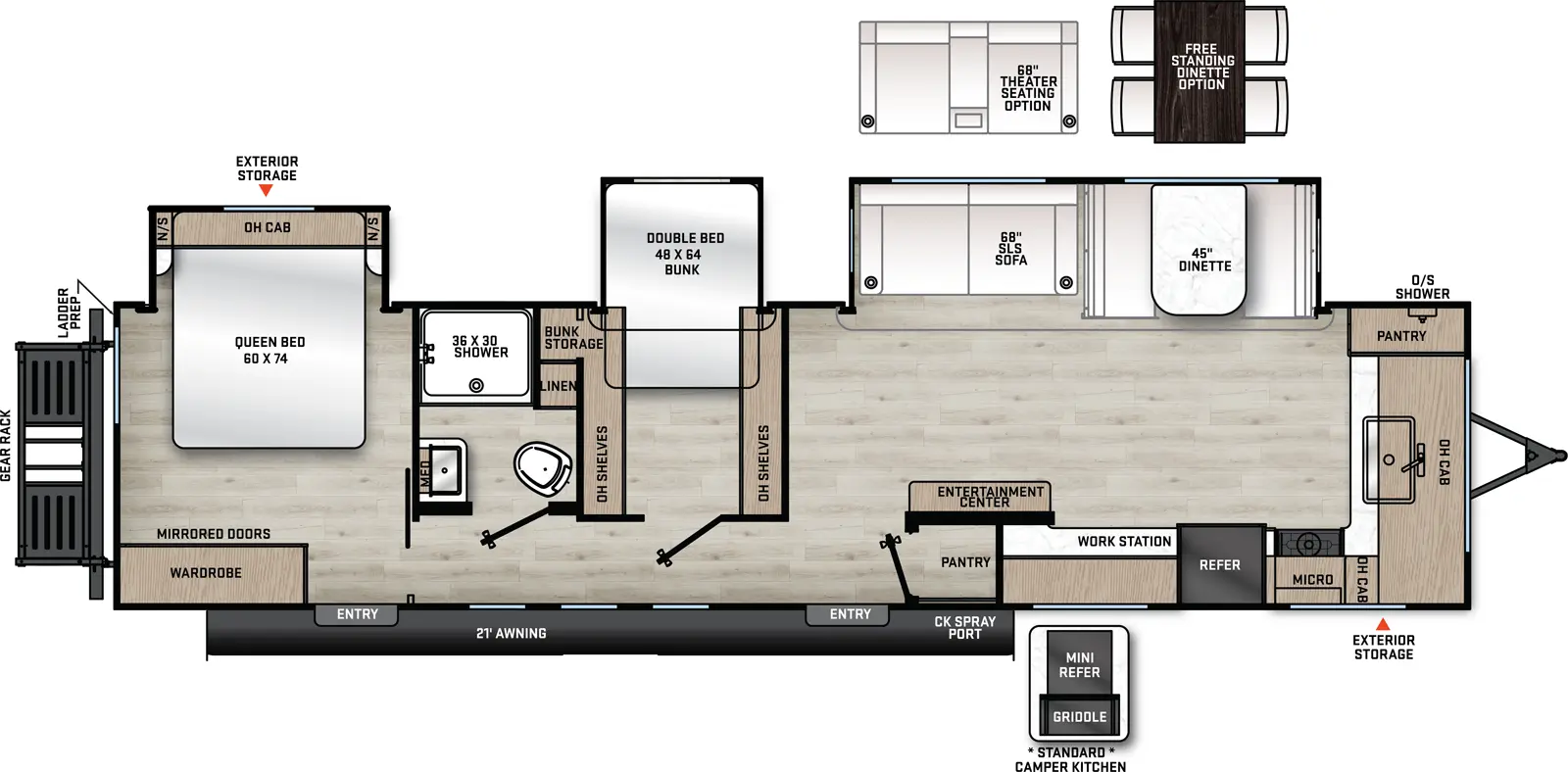

Catalina 333FKTS - DSO Floorplan
- Hitch Weight
- 1,256 lb.
- GVWR
- 11,000 lb.
- UVW
- 9,336 lb.
- CCC
- 1,664 lb.
- Exterior Length
- 38' 5"
- Exterior Height
- 11' 3"
- Exterior Width
- 96"
- Fresh Water
- 38 gal.
- Gray Water
- 74 gal.
- Black Water
- 30 gal.
- Awning Size
- 21'
Specifications Definitions
GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.
GCWR (Gross Combined Weight Rating) – is the maximum permissible loaded weight of your motor home and any towed trailer or towed vehicle. Actual GCWR of this vehicle may be limited by the sum of the GVWR and the installed hitch receiver maximum capacity rating; see hitch rating label for detail.
GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.
UVW (Unloaded Vehicle Weight)* – is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.
CCC (Cargo Carrying Capacity) ** – is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.
Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.
The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.
Actual towing capacity is dependent upon your particular loading and towing circumstances, which includes the GVWR, GAWR and GCWR as well as adequate trailer brakes. Please refer to the Operator's Manual of your vehicle for further towing information.
Note: Specifications are subject to change without notice.
-
EXTERIOR FEATURES
- Flip Down Cargo Rack w/200 lb. Cap.
- Electric Awning w/Multicolor LED Strip & Remote
- Black Tank Flush
- Battery Disconnect Switch
- Siphon 360 Holding Tank Roof Vent
- Electric Tongue Jack
- Hot/Cold Outside Utility Shower w/ Hands Free Holder
- (2) 20 lb. LP Tanks
- Black ABS LP Bottle Cover
- LP Quick Connect
- Flush Mount Baggage Doors w/Radius Corners
- Diamond Plate Rock Guard
- Stabilizer Jacks
- G20 Tinted Privacy Windows
- Front Landscape Picture Window (263FKDS, 283FEDS, 333FKTS)
- Premium JBL Exterior Speakers
- Friction Hinged Black Glass Entry Door with Window
- Exterior 110V G.F.C.I Protected Receptacle
- Exterior RG-6 Coax Cabling and Satellite Prep
- Exterior TV Hookup
- Rain Gutters with Drip Spouts
- MORryde StepAbove Solid Steps (Main Entrance Only)
- Safe-T-Rail Door Assist on Main Entry Door
- Rear View Camera Prep
- Bottle Openers (Exterior Camp Kitchens)
- Pets - "Leash Link" Quick Hookup D-Ring
- Universal Solar Prep w/Roof & Chg. Contoller Connections & Wiring
- Rear Ladder Prep
-
INTERIOR FEATURES
- All-In-One Control Panel with Dimmer Switch
- Premium Audio JBL Aura Cube Multi-Zone Function Media Center
- Premium JBL Interior Speakers
- GE Stainless 10.7 Cu. Ft. 12V Refrigerator
- Seamless Thermofoil Countertops Throughout
- Deep Basin Farm Style Sink
- Residential-Style Kitchen Faucet w/Pull Down Sprayer
- Stainless Steel Drying Rack
- High Pressure Glass Rinser
- Paper Towel Holder
- GE Stainless 3-Burner Gas Range with Metal Back-Lit Knobs
- Range Hood
- Brick Style Backsplash
- GE Stainless Microwave W/Glass Turn Table
- Congoleum Woodplank Linoleum Flooring
- 4000 Lumin LED Interior Touch Lighting
- SLS (Sit-Lounge-Sleep) Sofa with Interior Storage
- Designer Wall Lighting Main Slide Room
- Hard Valance Window Treatments
- Pedestal Thermofoil Dinette Table
- Under Bench Dinette Storage (Per Floorplan)
- Easy Access Booth Dinette Storage Doors
- 12V 14" Living Room Power Vent Fan
- 12V 14" Bathroom Power Vent Fan
- Marine Toilet with Foot Flush
- ABS Tub/Shower Surround w/Shelves
- Shower/Coat Hooks
- Skylight Above Tub/Shower
- Glass Step-In Shower w/ABS Surround (Per Floorplan)
- Medicine Wall Cabinet with Mirror
- Bedroom Surface Mounts USB Ports (Each Night Stand)
- Kitchen USB's & Outlets
- USB Surface Mounts Near Bunk Beds
- Solid Master Bedroom Door(s) (Per Floorplan)
- Solid Bunk Room Door (Per Floor Plan)
- Mirrored Wardrobes in Master Bedroom
- Master Bedroom Overhead Cabinets
- Underbed Storage w/Separation from Outside Front Storage
- Designer Fitted Master Bed Sheet
- Full Lino in Slide-Outs and Bedrooms (Carpetless)
-
CONSTRUCTION & EQUIPMENT FEATURES
- GE 13,500 BTU Fully Ducted A/C with Heat Pump
- Cambered Structural Steel I-Beam Frame
- Norco Electromagnetic, Powder Coated Chassis
- Full Length Frame Outriggers
- 5/8" Tongue & Groove StableDeck Flooring
- 2"x3" Floor Joists on Approximately 12" Centers
- 5" Floor To Frame Steel Lag Bolts
- Enclosed, Fully Sealed Corrugated Underbelly
- Darco Subfloor Protective Wrap/Enclosure
- Seamless Alpha Roof Membrane with Lifetime Warranty
- Cross-Braced Engineered Roof Trusses w/5" Crown
- 3/8" Fully Decked Walk-On Roof
- Screwed Cabinet Construction w/Pocket Bored Lumber Core Stiles
- 5/8" Plywood Under Bed & Dinette Base
- 81" Interior Height (6' 9")
- Easy-Trac Rack and Pinion Through Frame Main Slide-Out(s)
- R-7 Fiberglass Insulation Throughout
- GE 6 Gal. Gas/Electric DSI Water Heater
- Water Heater By-Pass Winterization Kit
- 12V Demand Water Pump
- Premium Exterior Graphics Package
- Upgraded Front Graphics Design
- Platinum .024" Aluminum Exterior w/.030 Skirt Metal
- Smooth HD Aluminum Radius Front
- Polished HD Aluminum Fender Skirts
- Undermount Spare Tire
- EZ Lube Axles w/Leaf Spring Suspension
- Self Adjusting Brakes
- Roto-Cast Holding Tanks
- Bumper w/ Drain Hose Carrier and End Caps
- 35,000 BTU Auto-Ignition Furnace w/Wall Thermostat (N/A 283RKS)
- Residential-Style In-Floor Ducted Heat
- King Antenna
- 30 Amp Electric Service w/ 100v 45-Amp Power Covt.
- 50 Amp Electric Service (Standard on 283FEDS, 303RKDS, 313RLTS, & 343BHTS) *see options
- Upgraded Aluminum Wheels
- Magnetic Hands Free Baggage Door Latches
-
SAFETY FEATURES
- Smoke Alarm
- LP/CO Gas Detector
- Fire Extinguisher
- Fire Escape Windows
- Entrance Door Window
- Dead-Bolt Lock on Entry Door
- Specialized Dispatch Services (1 YR Roadside Assistance)
-
OPTIONS
- 7 Cu. Ft. LP Gas/Electric RV Refrigerator w/Reversable Door Inserts
- GE 15,000 BTU Ducted A/C IPO 13.5 A/C with Heat Pump
- 50 Amp Service w/ 2nd 13.5 A/C (N/A 243RBS, 263BHSCK, 283RKS)
- 50 Amp Service w/2nd A/C Prep (N/A 243RBS, 263BHSCK, 283RKS)
- Peak Performance Solar Package - 30A Controller w/ 200W Panel
- Free Standing Table w/4 Chairs (N/A U-Dinette Floorplans)
- Power Theater Seating with Reclining Features (Standard on 283FEDS & 313RLTS)
- Fireplace w/Electric Heater in the Living Room
- CSA Standards
