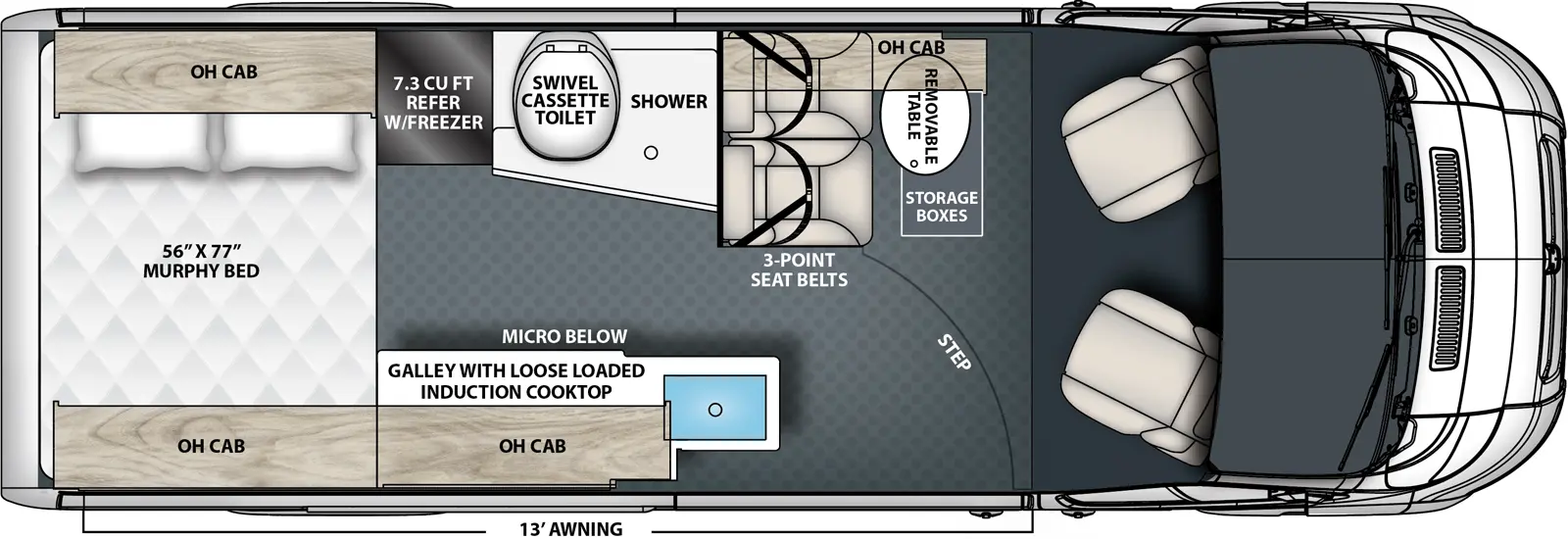

Pixel Floorplan

Wheelbase
159"
GVWR
9,350 lb.
GCWR
11,500 lb.
GAWR Front
4,629 lb.
GAWR Rear
5,291 lb.
Fuel Capacity
24 gal.
LP Tank Capacity
0 lb.
Exterior Length
20' 11"
Exterior Height
9' 4"
Exterior Width
86"
Fresh Water
29 gal.
Gray Water
26 gal.
Black Water
TBD
Awning Size
13'1"

Specifications Definitions

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GCWR (Gross Combined Weight Rating) – is the maximum permissible loaded weight of your motor home and any towed trailer or towed vehicle. Actual GCWR of this vehicle may be limited by the sum of the GVWR and the installed hitch receiver maximum capacity rating; see hitch rating label for detail.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)* – is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity) ** – is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Actual towing capacity is dependent upon your particular loading and towing circumstances, which includes the GVWR, GAWR and GCWR as well as adequate trailer brakes. Please refer to the Operator's Manual of your vehicle for further towing information.

Note: Specifications are subject to change without notice.



  • Standard Features

    • 30 Amp Smart Plug
    • King Olympus Digital Antenna, WiFi Router, Cell Booster Prep
    • 7.3 cu. ft. Refrigerator w/ Pull-Out Freezer Drawer
    • Air Fryer/Convection Microwave
    • Sumo Springs Front and Rear
    • Solid Hardwood High Pressure Laminate Cabintry
    • Rockwool R-15 Insulation
    • Cozy Wrap Heat Sheild Insulation
    • Hush Matt Sound Deadener
    • Dual Pane Acrylic Awning Style Windows
    • Truma Aventa 13.5K A/C w/ Soft Start (Not Available on Pop Top Models)
    • Truma Furnace/Hot Water Heater
    • Dual 115AH AGM Batteries
    • 1,000W Pure Sine Invertor
    • 200W Solar (190W on Pop Tops)
    • One-Piece Fiberglass Shower
    • Casette Toilet
    • Residential High-Rise Faucet w/ Pull-Out Sprayer
    • Large Square Sink
    • Induction Cooktop (Loose Loaded)
    • Maxx Air Fan w/ Remote (N/A with Pop Top)
    • LED Light Strips Throughout
    • 4 L-Track Tie Down/Mounting System (P2.0M Only)
    • Heated Shower
    • JBL Removable Speaker
    • Durable Coin Flooring Throughout
    • RVQG2800i 2.8KW Gas Quiet Generator
    • Side Screen Door
    • Rear Pull-Down Screen

  • Options

    • Chassis Colors: White, Silver, Ceramic Grey
    • Upgraded Firestone Tires w/ Black Rims
    • Rover Exterior Ladder, Spare Tire Carrier w/ Spare Tire
    • Pop Top w/ 190W Solar Panel, Coleman Mach 10 NDQ A/C, and Thule Awning
    • Driver and passenger Upgraded Seat Recovers
    • Tank Heater for Grey Tank
