Coachmen, Leader to the Great Outdoors

freedom-express-liberty-edition 320BHDSLE Liberty/Maple Leaf Edition Travel Trailers

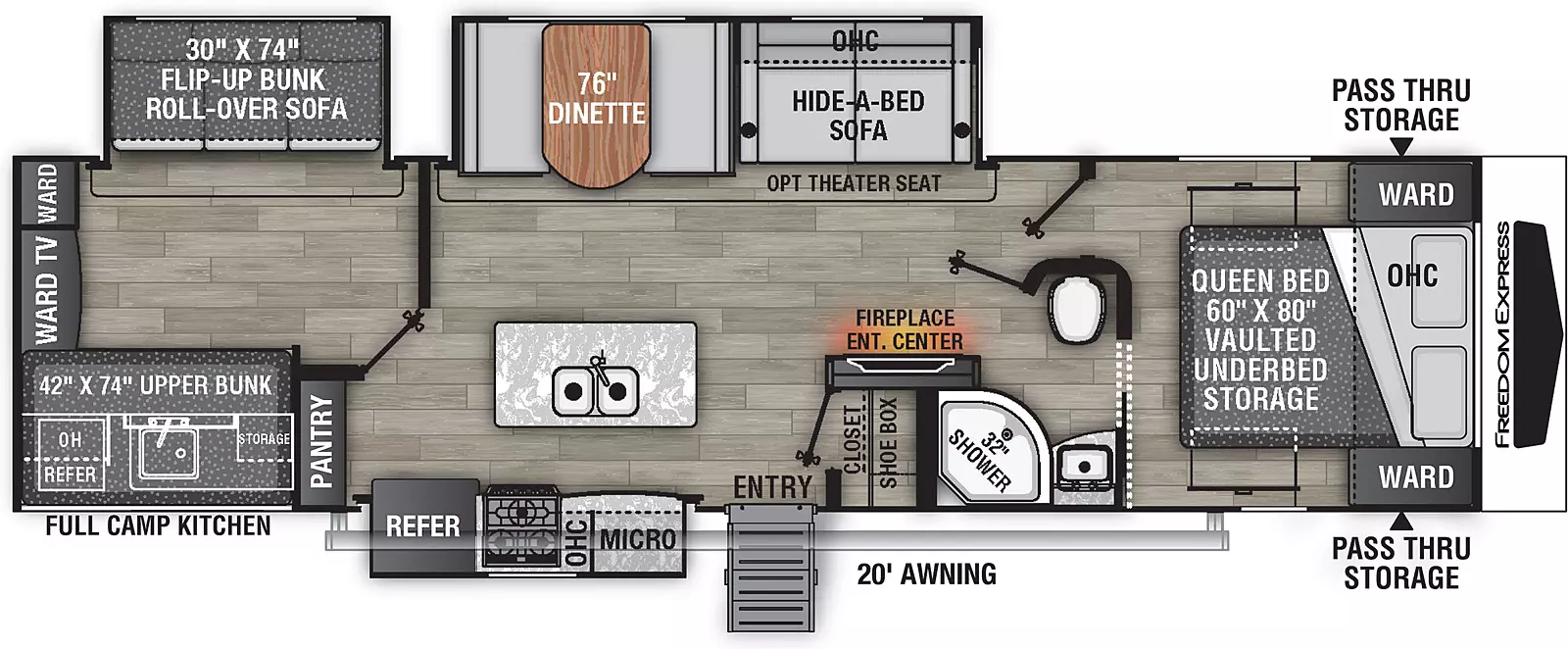

The 320BHDSLE has has three slide outs, two on the off-door side one on the door side and one entry door on the door side. Interior layout from front to back: front bedroom with foot facing queen bed, vaulted under-bed storage, overhead cabinet, and wardrobes on either side of the bed; walk through bathroom; entertainment center with fireplace; kitchen living dining area. With off-door side slide out containing dinette, hide-a-bed sofa with overhead cabinets; kitchen island containing double basin sink; door side slide out with kitchen containing microwave and overhead cabinet, cook top stove, and refrigerator; door side pantry; and rear bedroom with off door side slide out containing sofa with table and upper bunk, wardrobe, on the door side upper bunk with storage below. Exterior camp kitchen including; mini refrigerator, sink and cook top.

Hitch Weight:
1,164 lb.
GVWR:
10,500 lb.
UVW
8,470 lb.
CCC
2,030 lb.
Exterior Length:
36' 10"
Exterior Height:
11' 3"
Exterior Width:
96"
Fresh Water:
50.00 gal.
Gray Water:
70.00 gal.
Black Water:
35.00 gal.
Awning Size:
20'


Note: Specifications are subject to change without notice.


Specifications Definitions

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)* – is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity) ** – is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Coachmen RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Coachmen RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Actual towing capacity is dependent upon your particular loading and towing circumstances, which includes the GVWR, GAWR and GCWR as well as adequate trailer brakes. Please refer to the Operator's Manual of your vehicle for further towing information.

Note: Specifications are subject to change without notice.




Features & Options

Liberty Upgrades

  • Full Fiberglass Front cap w/Automotive Glass Windshield
  • Front Rock Guard Graphics
  • Liberty/Maple Leaf upgraded graphics
  • Slam Latch baggage doors
  • Enclosed/Heated Gate valves
  • Security light
  • Power Stabilizer System
  • Central Control Panel
  • LCI ONEControl® Smart Phone App
  • Solid Surface Kitchen countertop w/ sink covers
  • Slotted Knife storage
  • Pull-Out Faucet
  • Residential Light over Dinette
  • Hide-A-Bed Sofa
  • Fantastic Fan w/Remote
  • Roller shades
  • Two Slider Pots & Pan Drawer under Dinette
  • Designer Bedspread w/Matching pillows
  • Electric Fireplace

Freedom Value Package (Required)

  • 3/4 Gel Coated Fiberglass Cap w/ Auto Glass Windshield
  • Alumicage Construction
  • Vacuum Bonded Walls w/ Azdel Composite (Interior and Exterior)
  • Aluminum Wheels
  • Spare Tire
  • Detachable Power Cord
  • Power Awning w/ LED Light Strip
  • Tinted Safety Glass Windows
  • Front Diamond Plate
  • E-Z Lube® Axles
  • Spread Axle Design
  • Heated Enclosed Underbelly
  • Tufflex PVC Roofing
  • Exterior Shower
  • Winterize Ready Kit
  • Black Tank Flush
  • Ducted Furnace and A/C
  • Magnetic Compartment Door
  • Keyed-A-Like
  • 24" X 48" Outdoor Table
  • AIR 360+ Amplified Omnidirectional VHF/UHF, FM and WiFi Antenna with optional 4G LTE Gateway Add-On
  • Exterior TV Hook-up
  • Freedom Solar Ready
  • Back-up Camera Prep
  • Battery Disconnect
  • Aluminun Solid Steps
  • Pet leash/bottle opener
  • 81" Interior Height
  • AM/FM/HDMI/USB/Bluetooth Radio
  • Two Exterior/Four Interior Speakers
  • LED TV
  • LED Interior Lighting
  • Night Shades
  • Carefree Flooring
  • Hidden Hinge Cabinetry
  • Kitchen Backsplash
  • Dual Basin American Stonecast Sink
  • Microwave
  • Oven with 3-Burner Stove and Glass Top
  • Double Door Refrigerator
  • Utensil Drawer (N/A 326BHDSLE)
  • 60" X 80" Bed w/cover
  • USB Ports
  • Skylight/Power Vent in Bath
  • Porcelain Toilet
  • Friction Hinge Entry Door
  • 15K BTU Roof Air Conditioner
  • Freedom Vault Bed Storage (N/A 324RLDSLE)
  • RVIA

Liberty/Maple Leaf Express Pack (required)

  • Ladder
  • Frameless Windows
  • 50 AMP Service with Second Air Conditioner Prep
  • Griddle and Side Table

Options

  • Second 15K BTU Roof Air Conditioner Installed
  • 12V 10 Cu. Ft. Refrigerator
  • Theater Seats with Heat, Massage and Lights (IPO Hide-a-Bed Sofa)
  • 175 W Solar Panel and 30 Amp MPPT Control Charger
  • CSA Canadian Compliance - Inc. CSA
  • MEP Fee (REPLACES RVIA)
