323BHDSCK Floorplan

Travel Trailers

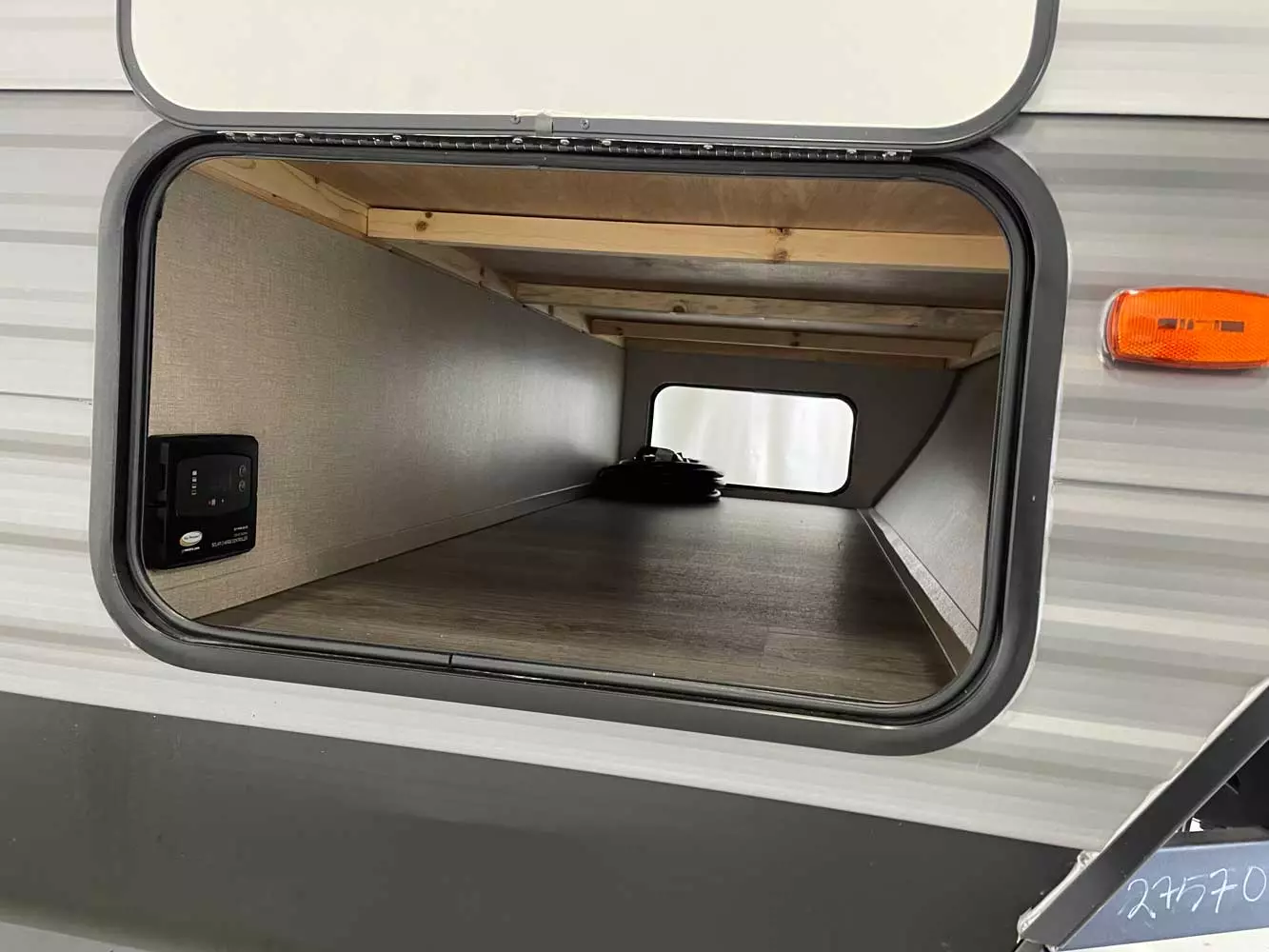

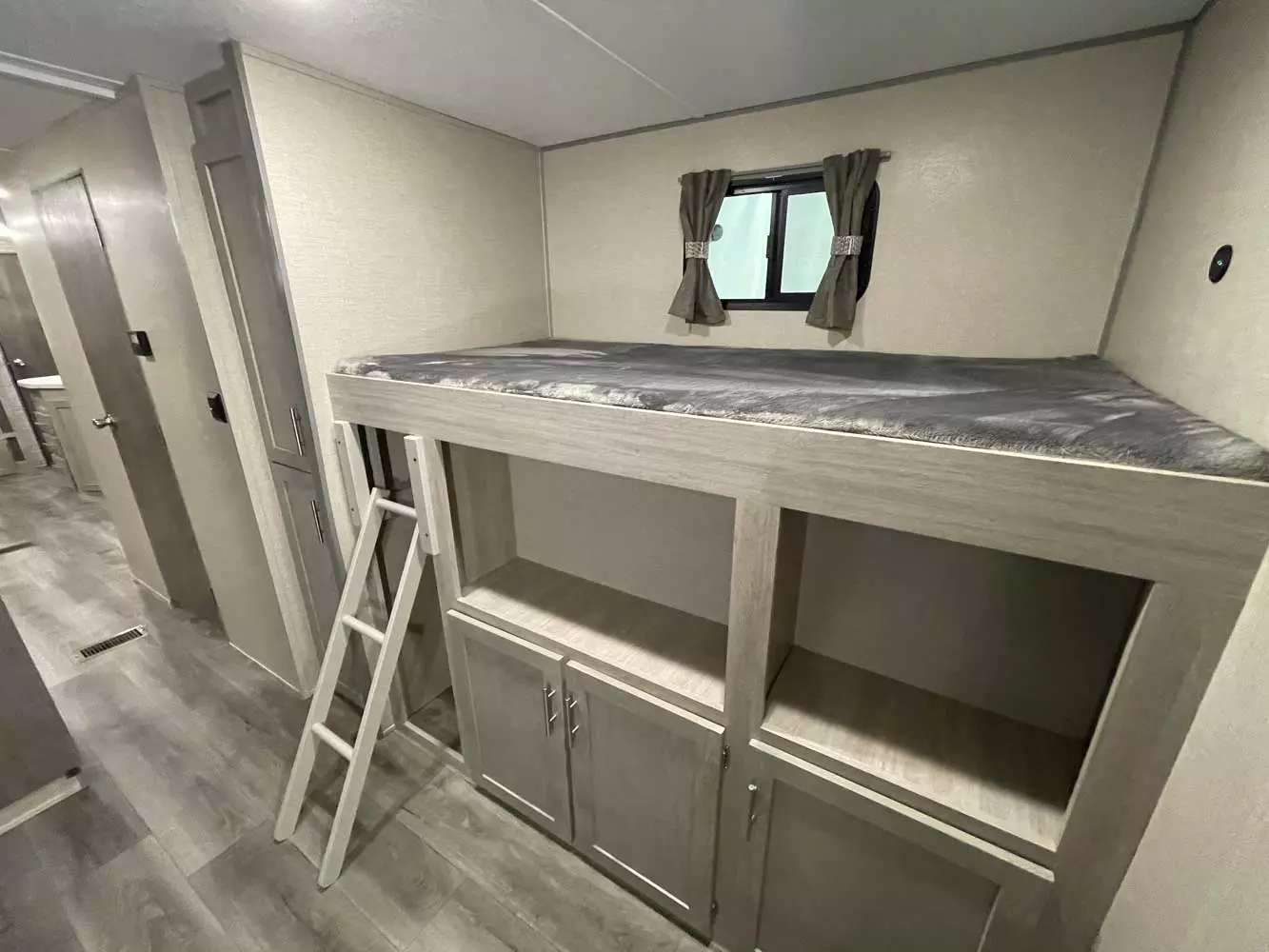

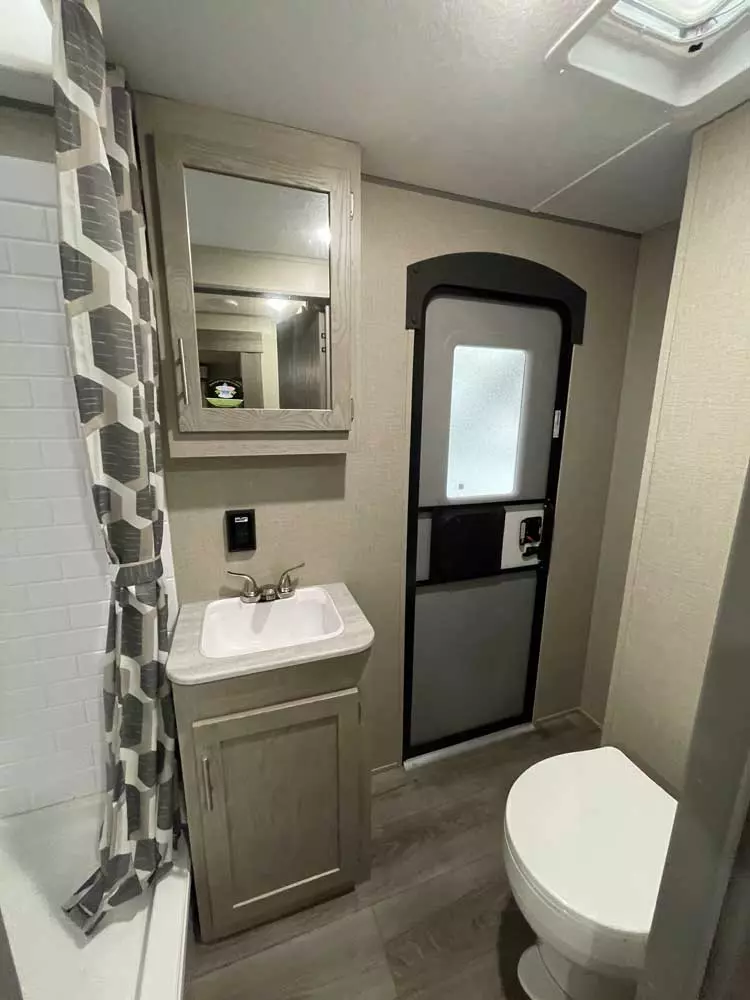

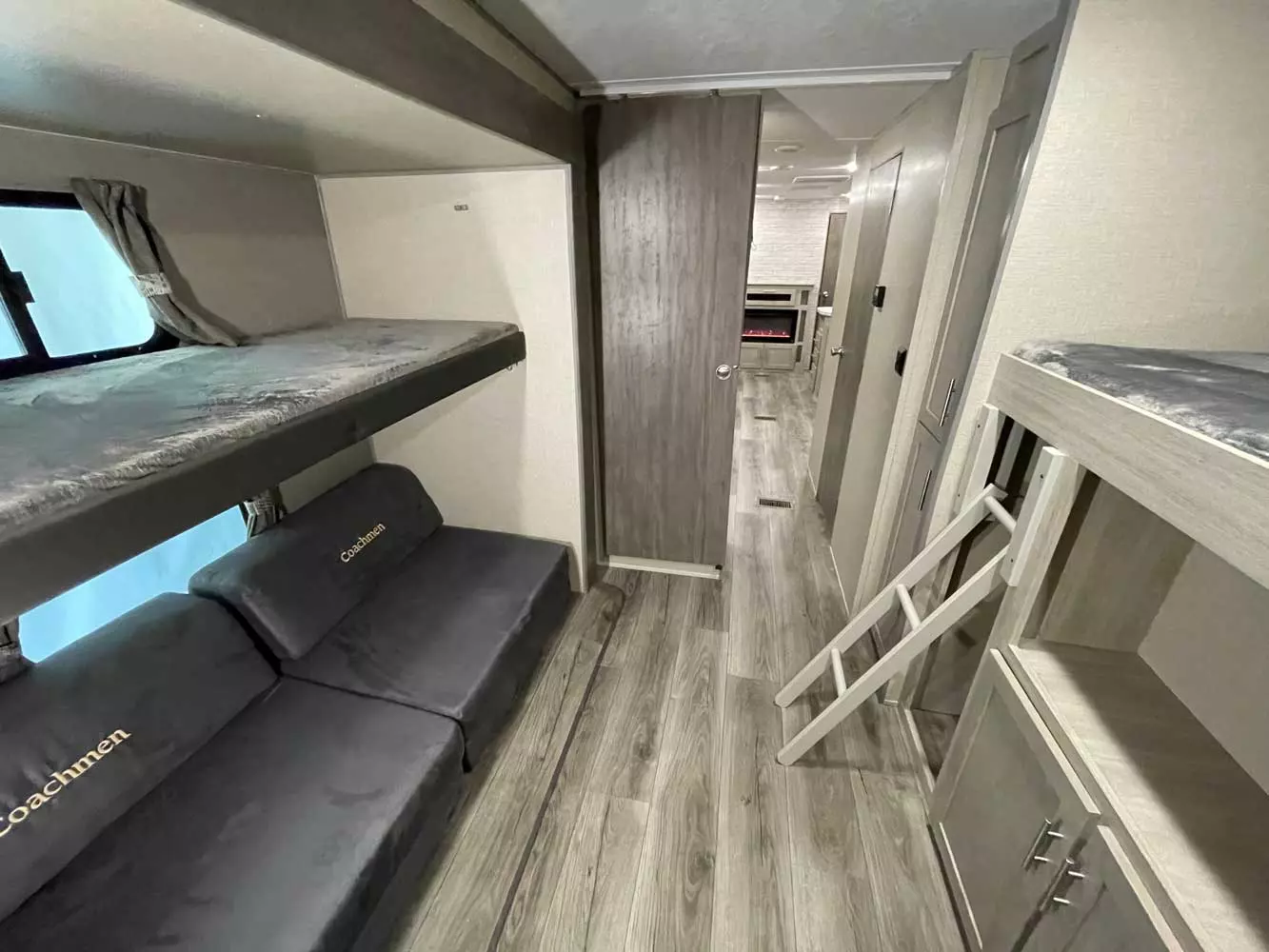

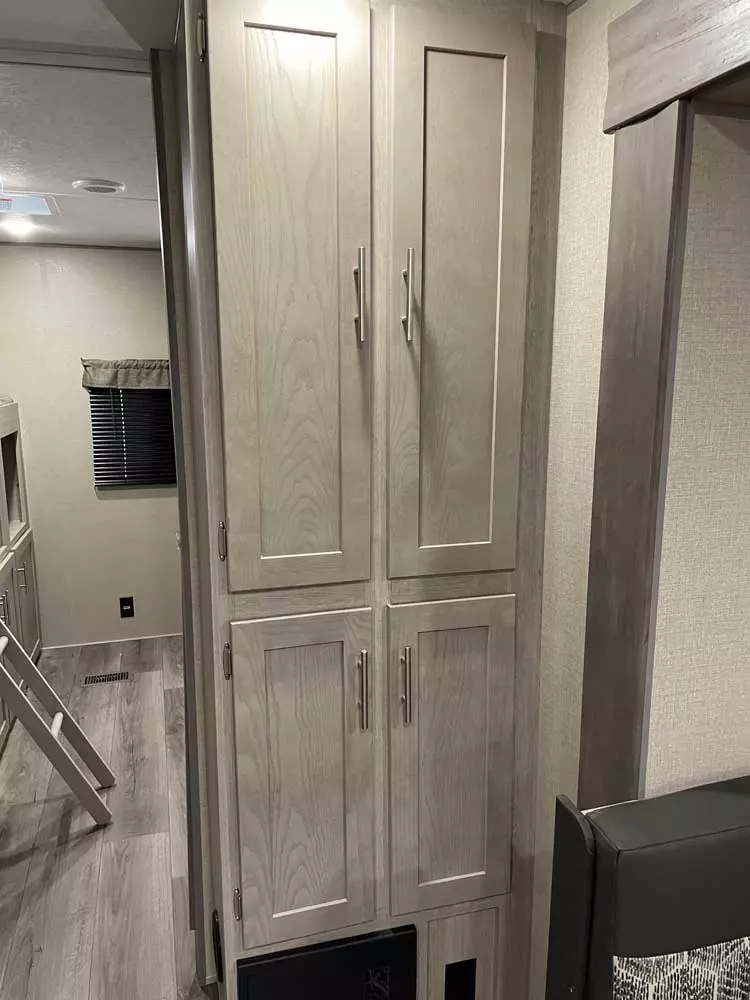

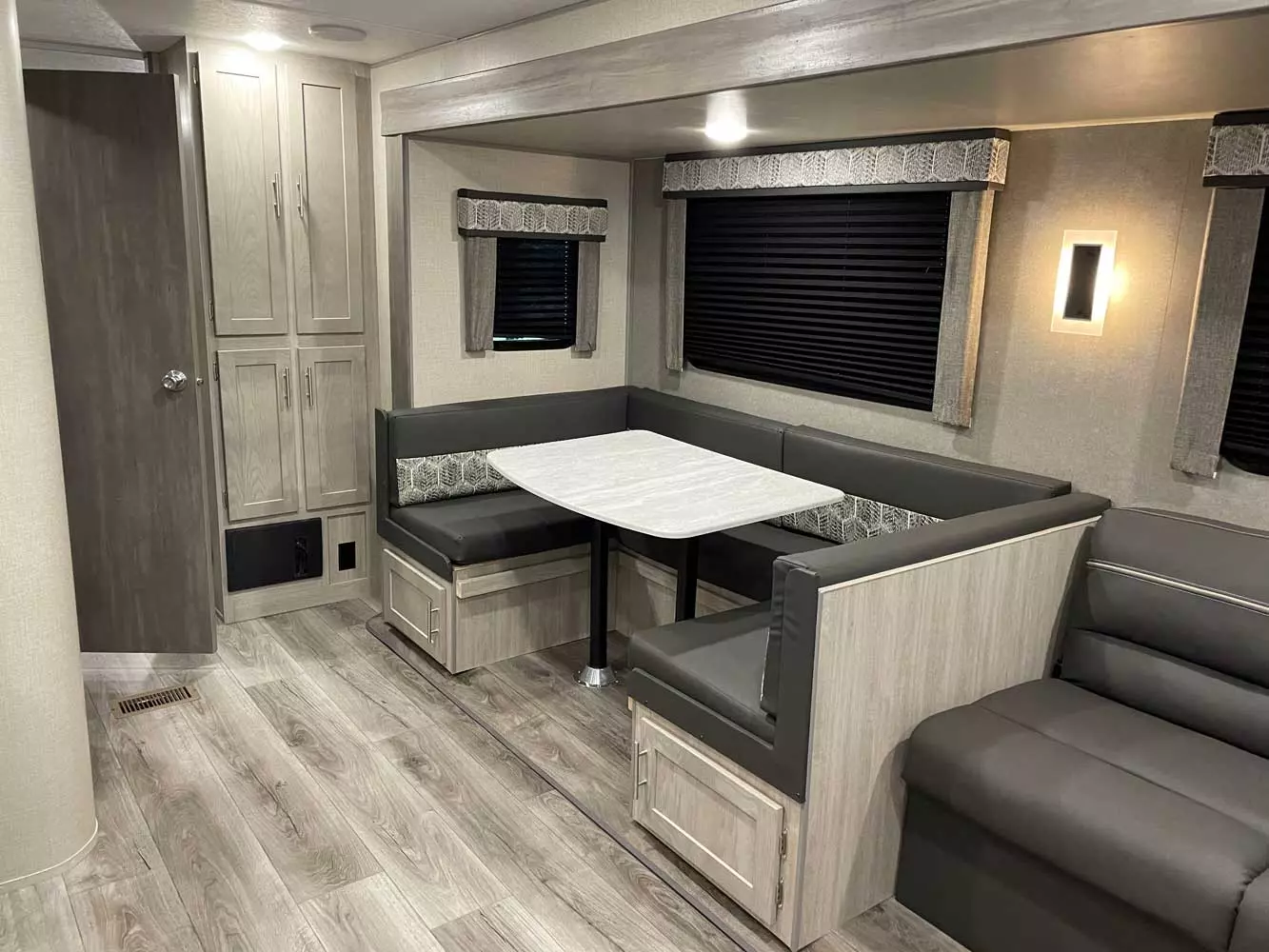

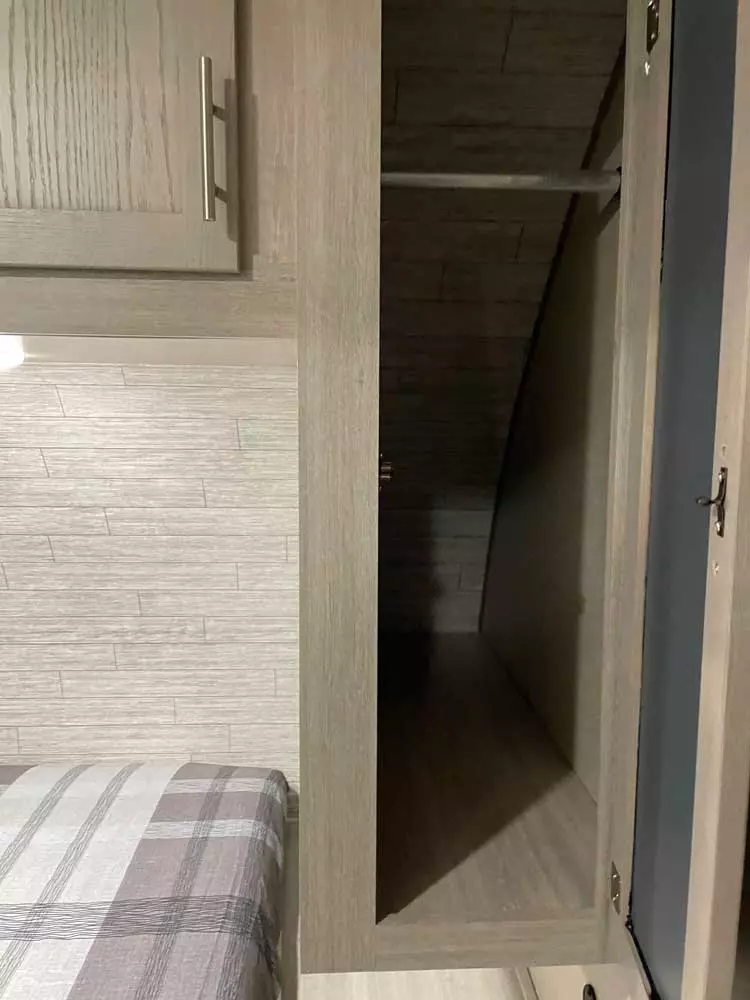

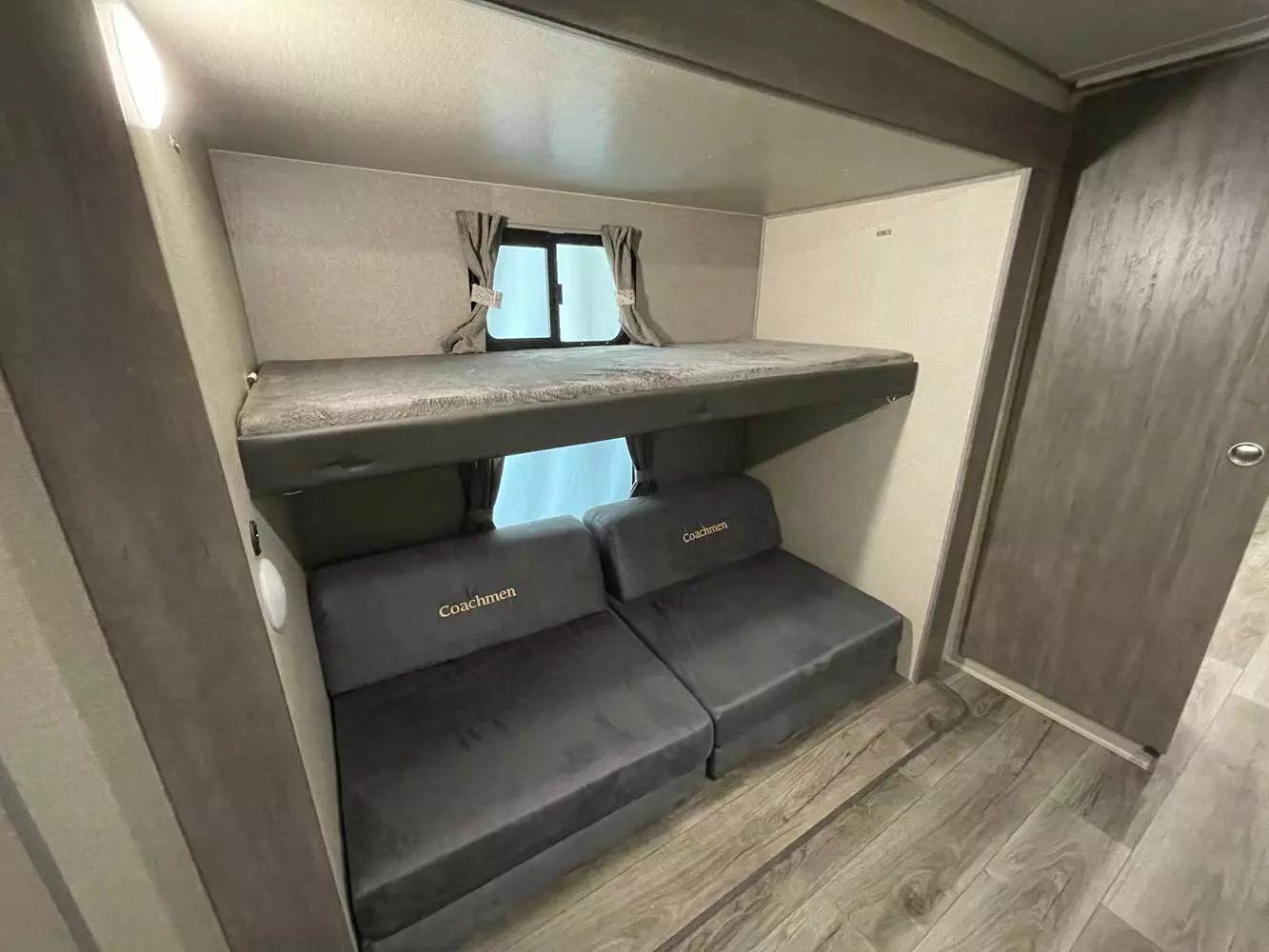

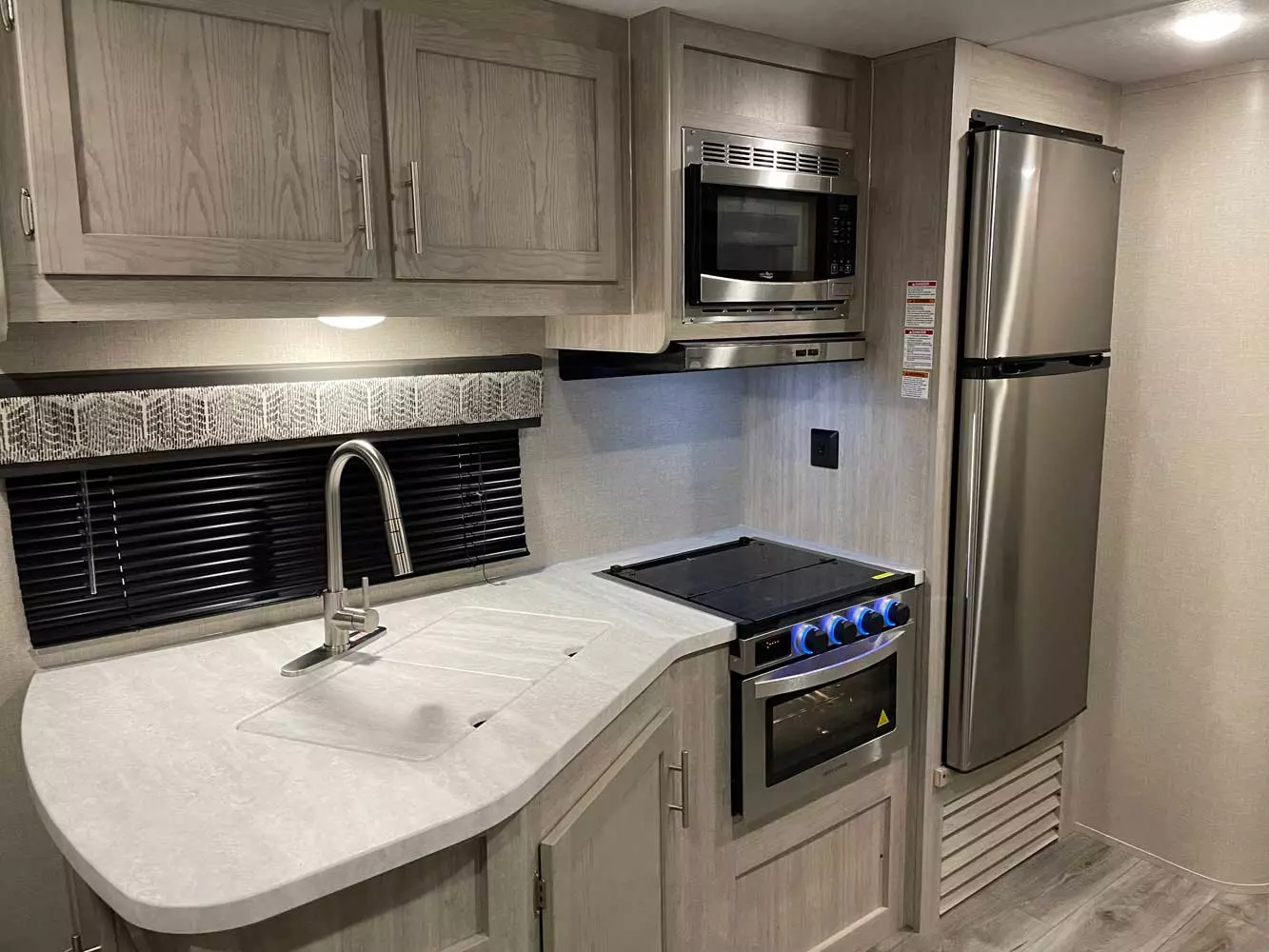

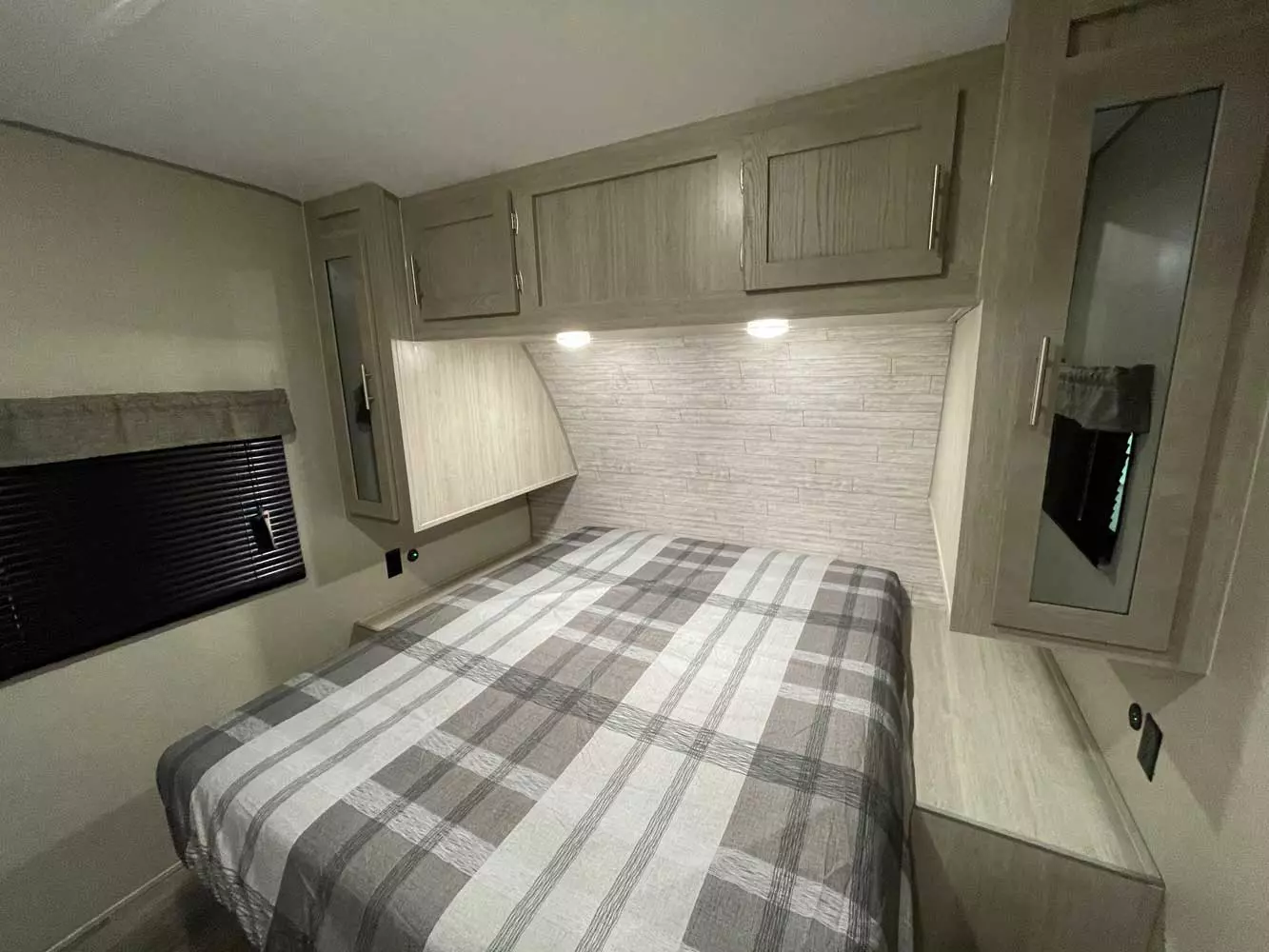

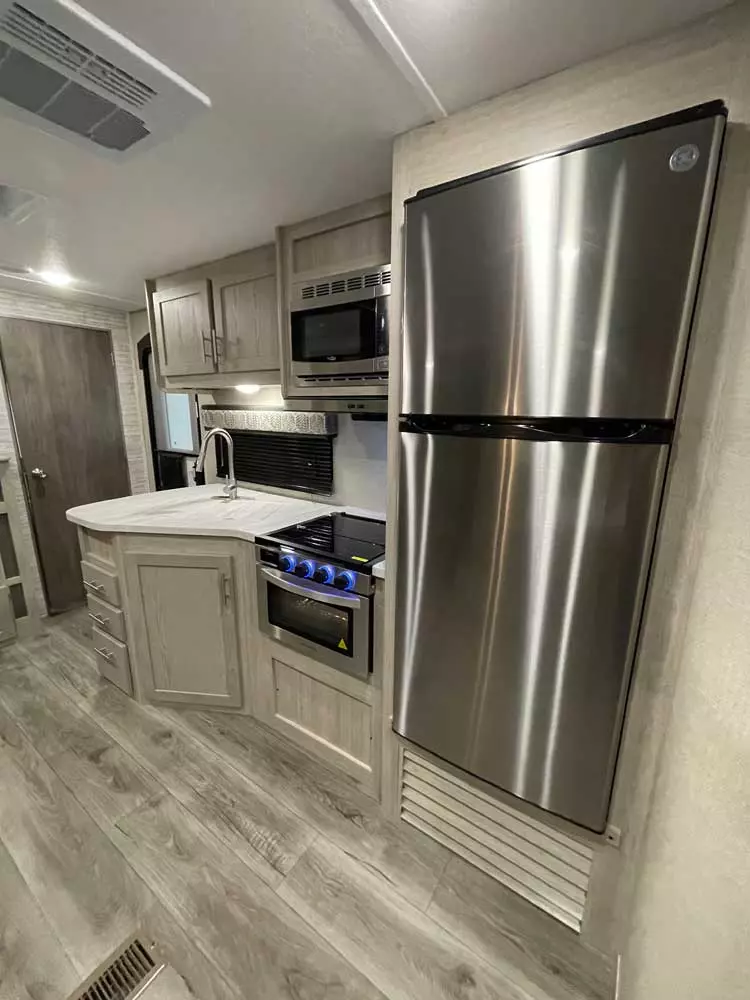

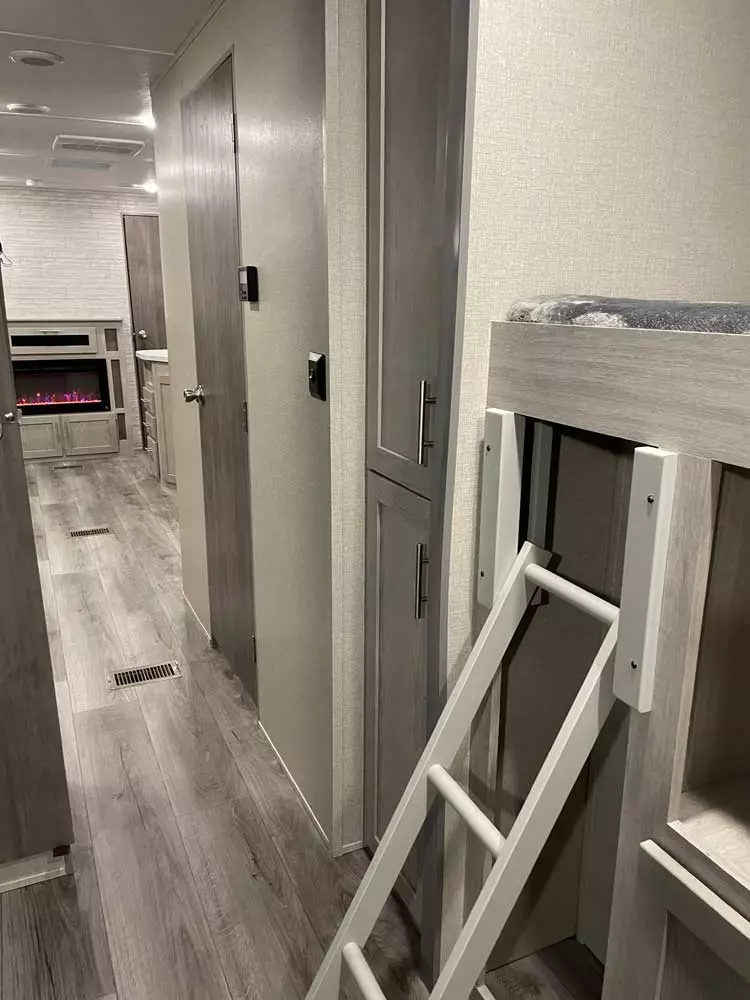

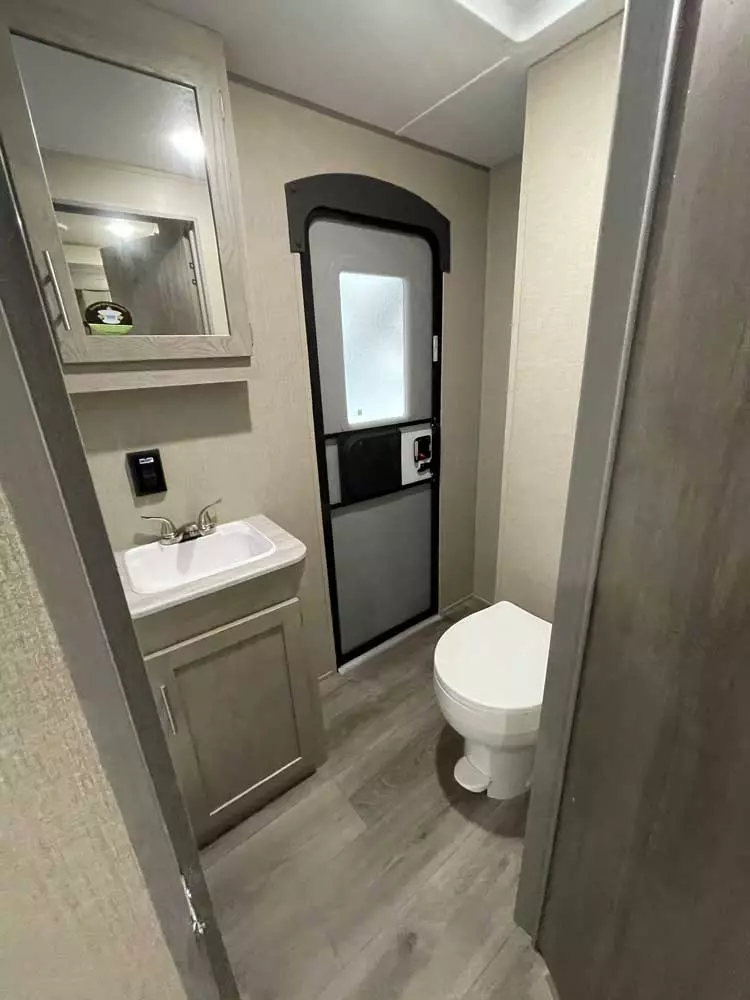

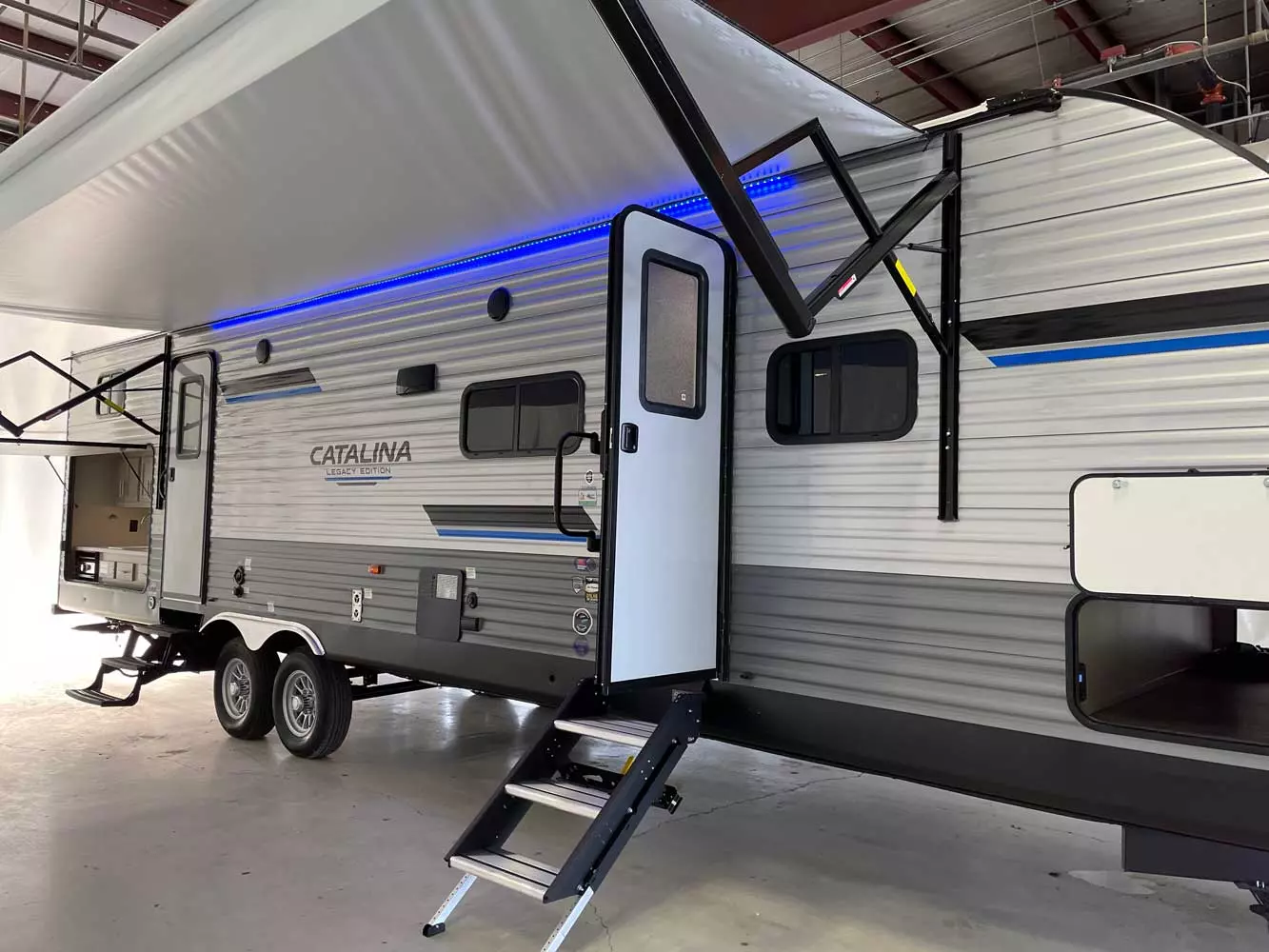

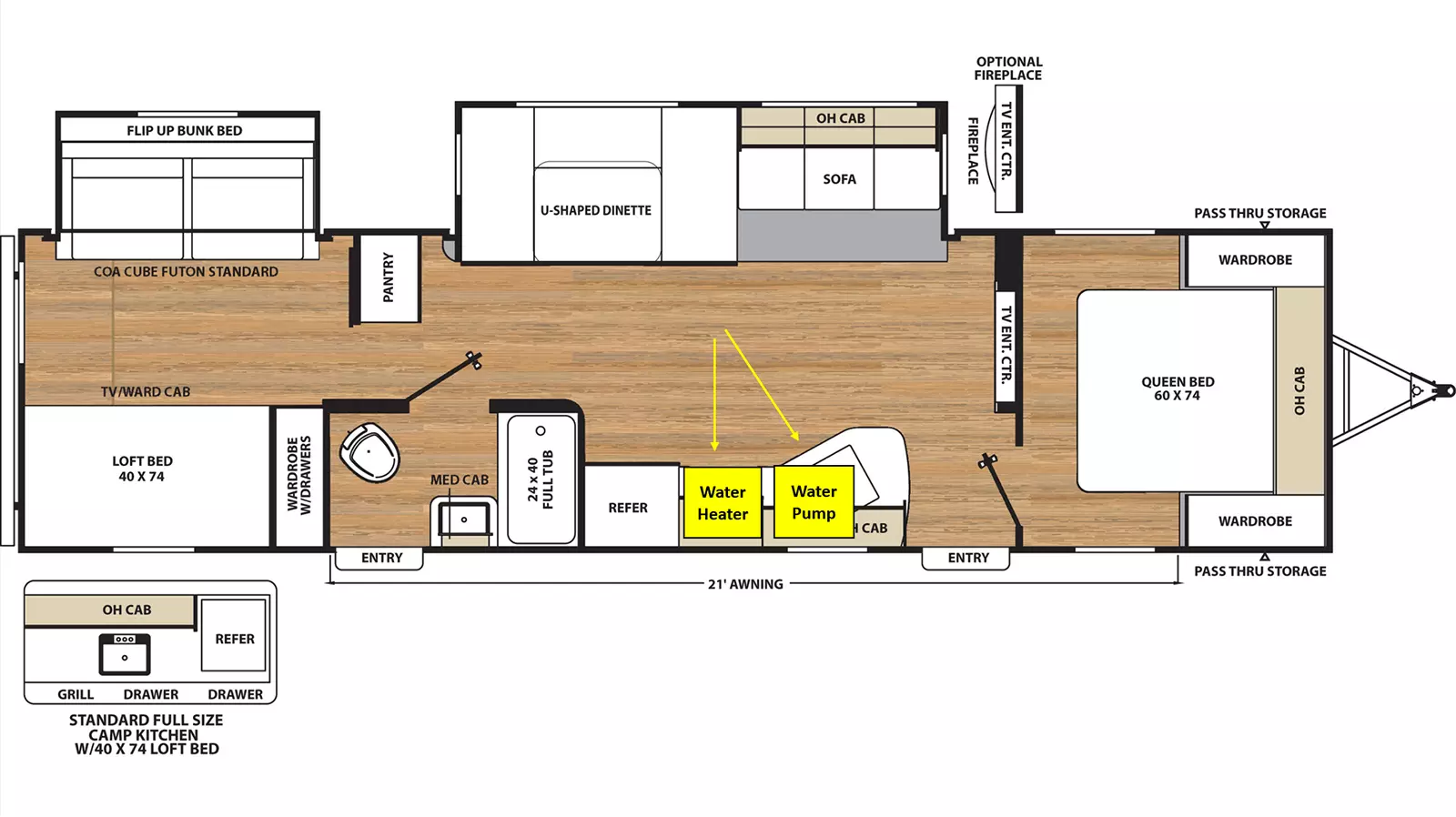

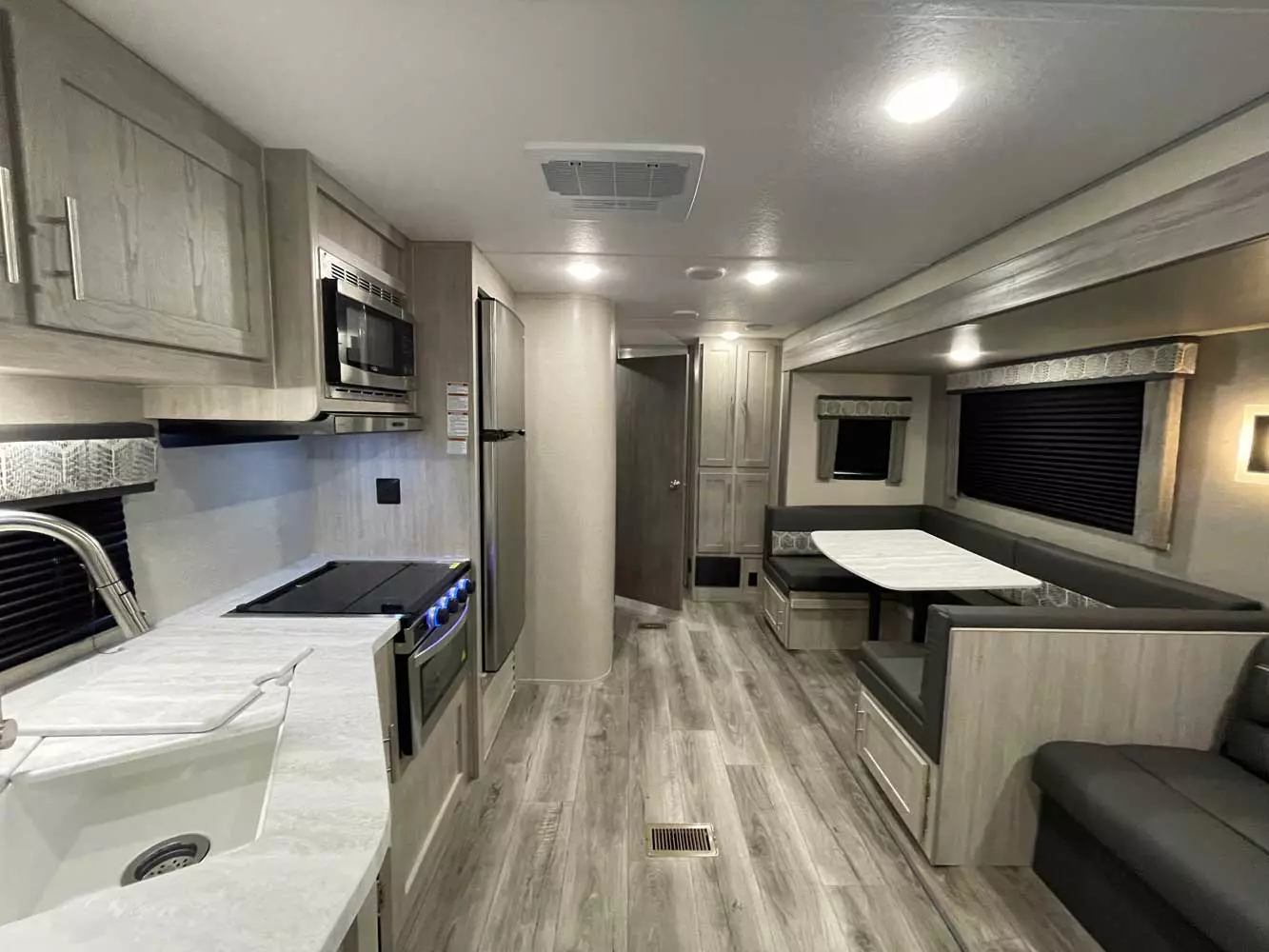

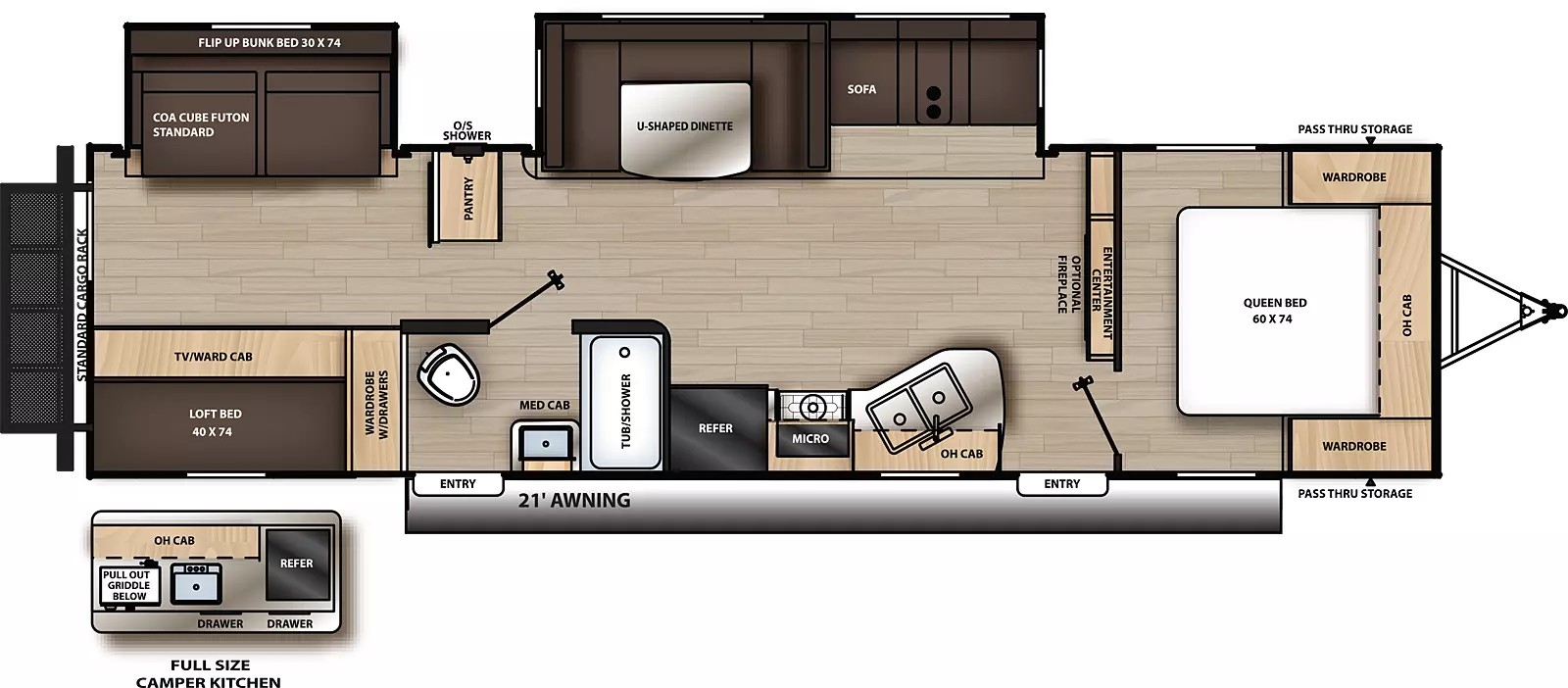

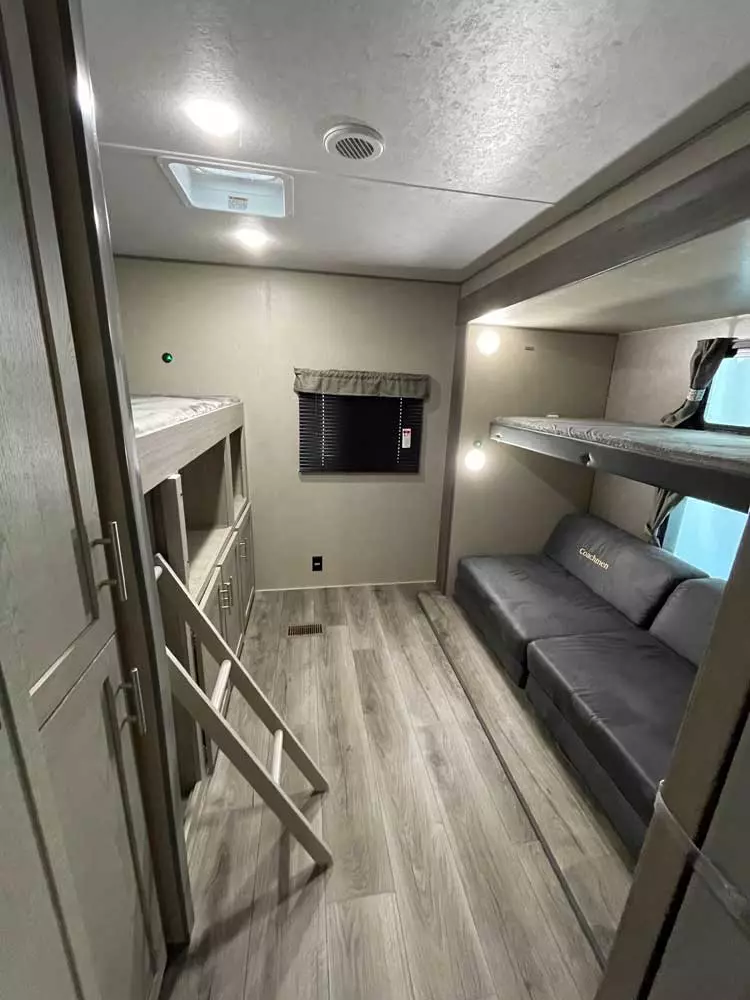

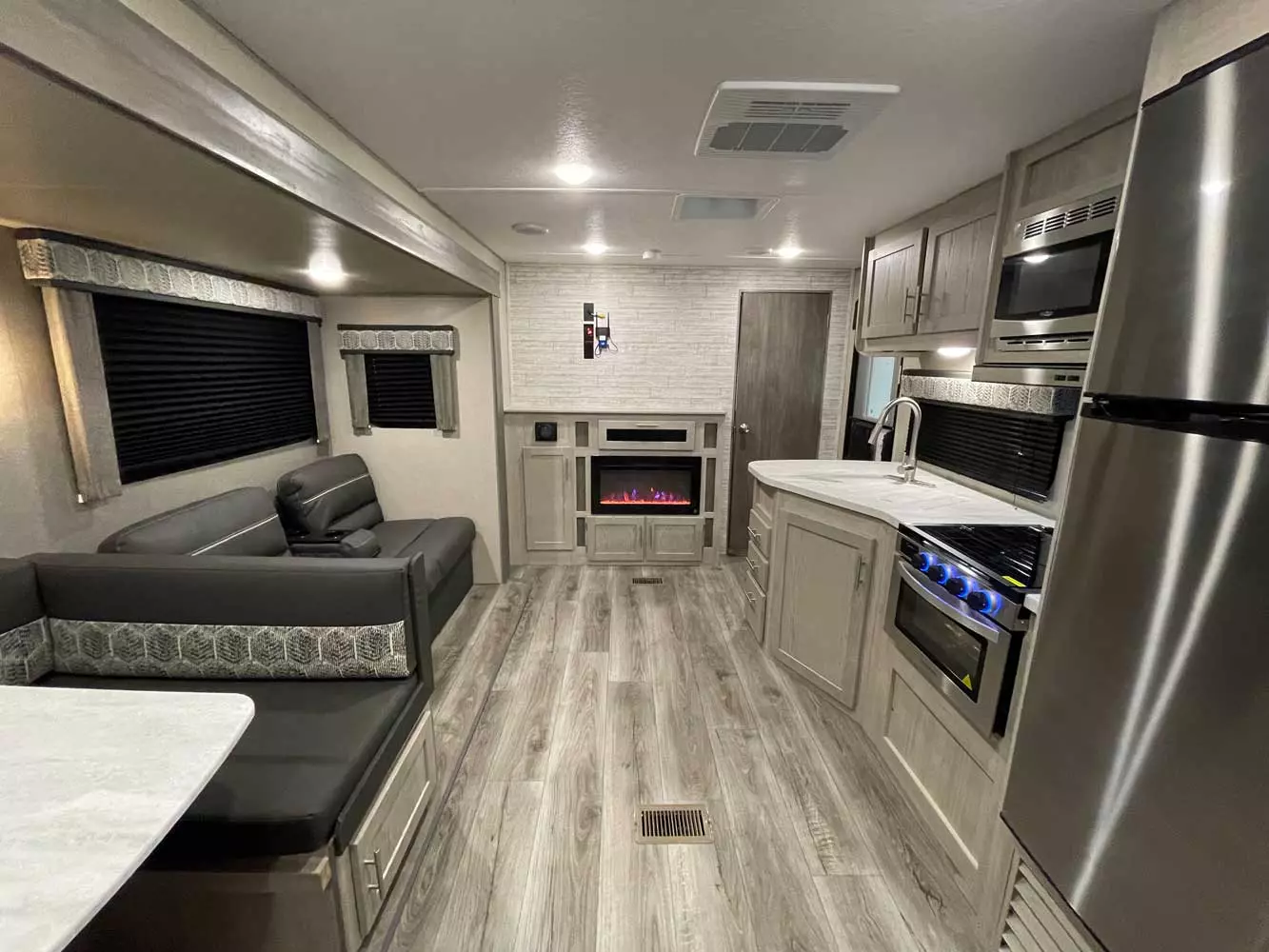

The 323BHDSCK has two slide outs and two entries. Exterior features a 21 foot awning, full size camper kitchen with pull out griddle, sink refrigerator, drawers and overhead cabinet, front pass-thru storage, outside shower, and rear cargo rack. Interior layout front to back: foot facing queen bed with overhead cabinet and wardrobes on each side; entertainment center along inner wall; off-door side slide out with sofa and u-shaped dinette; door side entry, kitchen counter with sink, overhead cabinet, cook top, microwave, and refrigerator; door side full bathroom with medicine cabinet and second entry; off-door side pantry; rear bunk room with off-door side slide out with COA cube futon with flip up bunk above, and door side loft bed with wardrobe/TV cabinet below and wardrobe with drawers. Optional fireplace available on living room entertainment center.
Enlarge

Specifications

Hitch Weight:
896 lb.
GVWR:
9,500 lb.
UVW
7,864 lb.
CCC
1,636 lb.
Exterior Length:
36' 8"
Exterior Height:
11' 1"
Exterior Width:
96"
Fresh Water:
44.00 gal.
Gray Water:
70.00 gal.
Black Water:
30.00 gal.
Awning Size:
21'



GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)*- is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Coachmen RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Coachmen RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.




Features & Options


  • Flip Down Cargo Rack w/200lb. Cap.

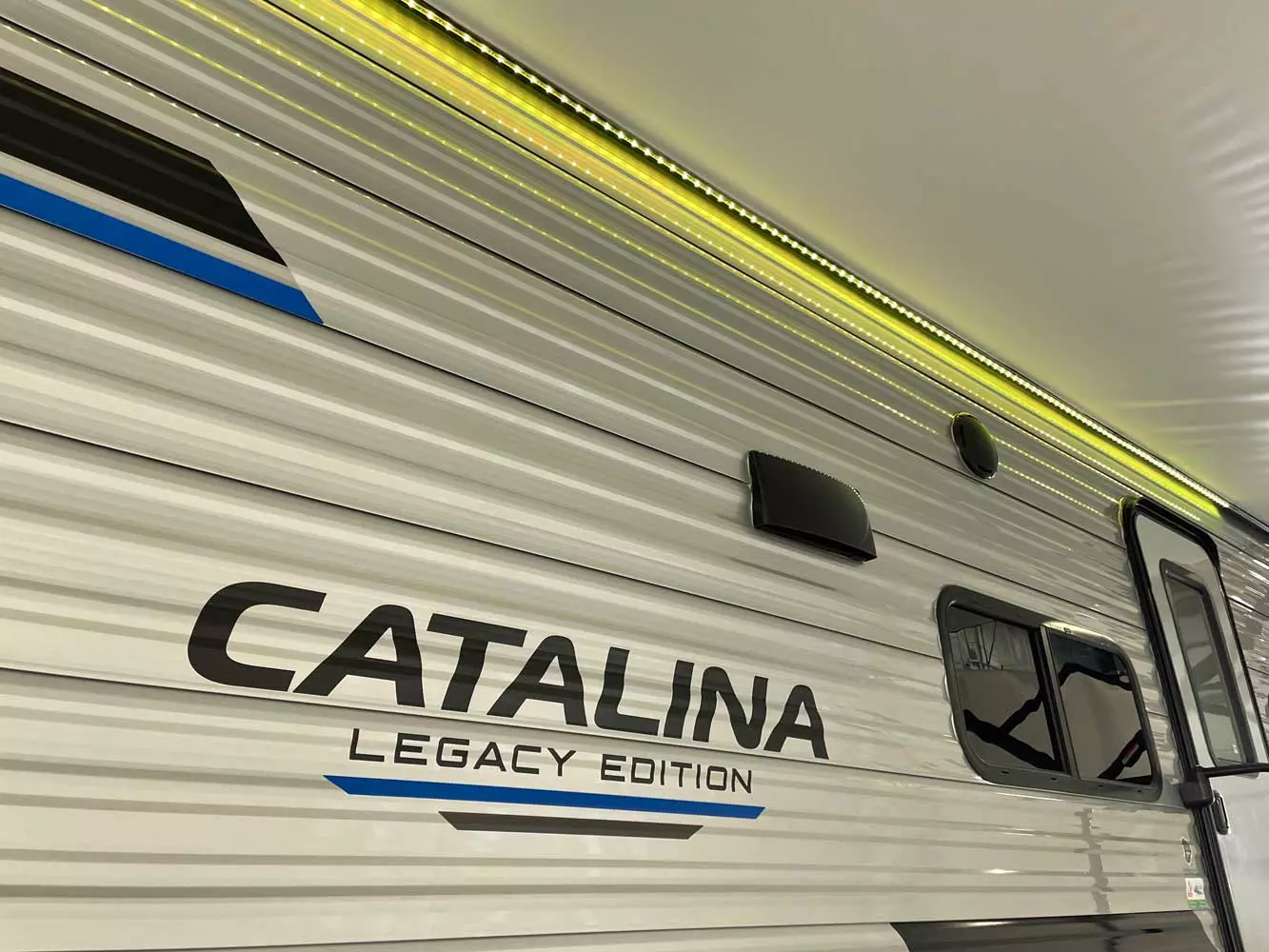

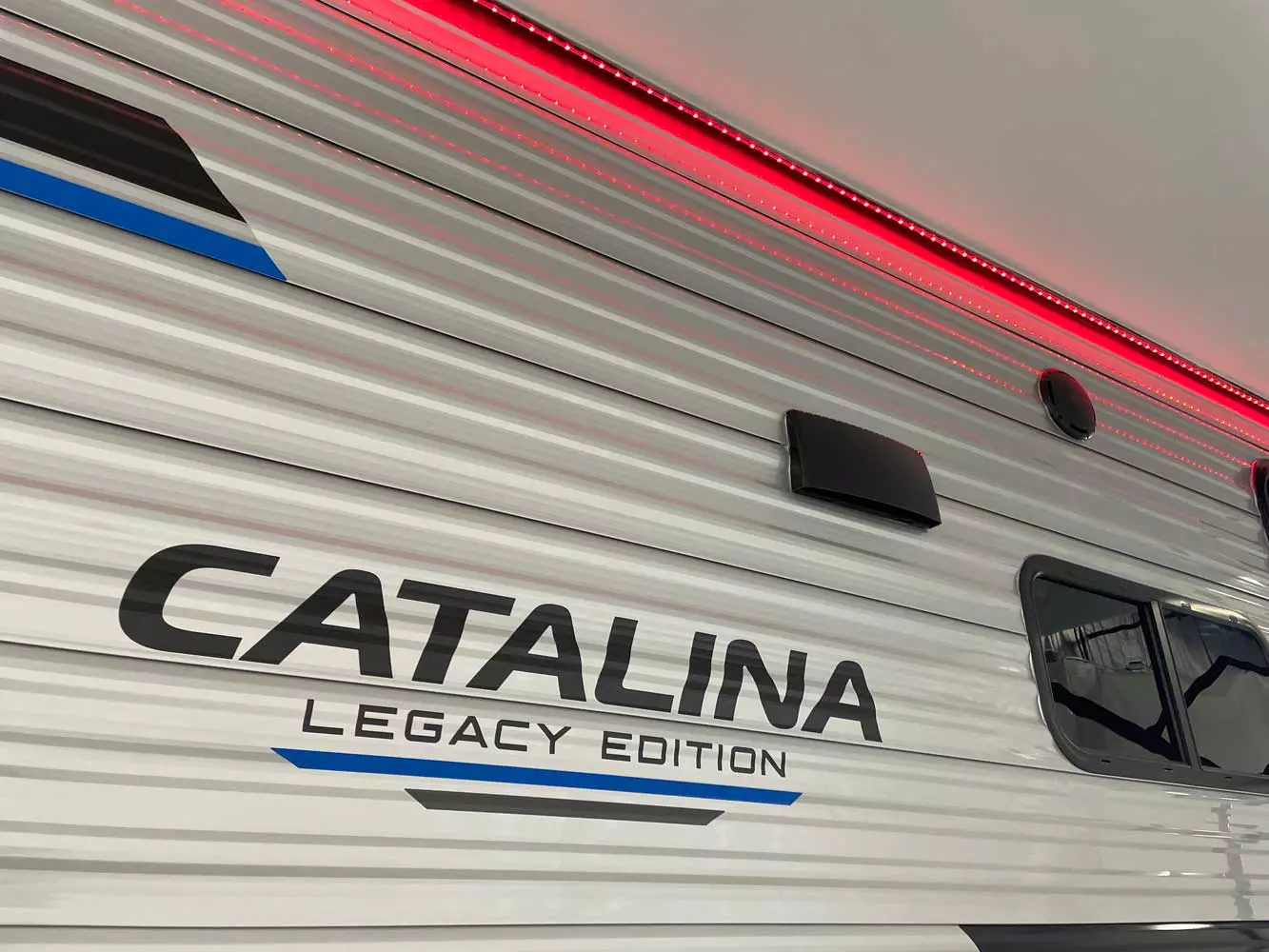

  • Electric Awning w/Multicolor LED Strip & Remote
  • Black Tank Flush
  • Battery Disconnect Switch
  • Siphon 360 Holding Tank Roof Vent
  • Electric Tongue Jack
  • Outside Utility Shower w/ Hands Free Holder
  • (2)20lb. LP Tanks
  • BlackABS LP Bottle Cover
  • LP Quick Connect
  • Flush Mount Baggage Doors w/Radius Corners
  • Diamond Plate Rock Guard
  • Stabilizer Jacks
  • G20 Tinted Privacy Windows
  • Premium JBL Exterior Speakers(s)
  • Friction Hinge Door
  • Radius Cornered Fiberglass Entry Door
  • Exterior 110V G.F.C.I Protected Receptacle
  • Exterior RG-6 Coax Cabling and Satellite Prep
  • Exterior TV Hookup
  • Rain Gutters with Drip Spouts

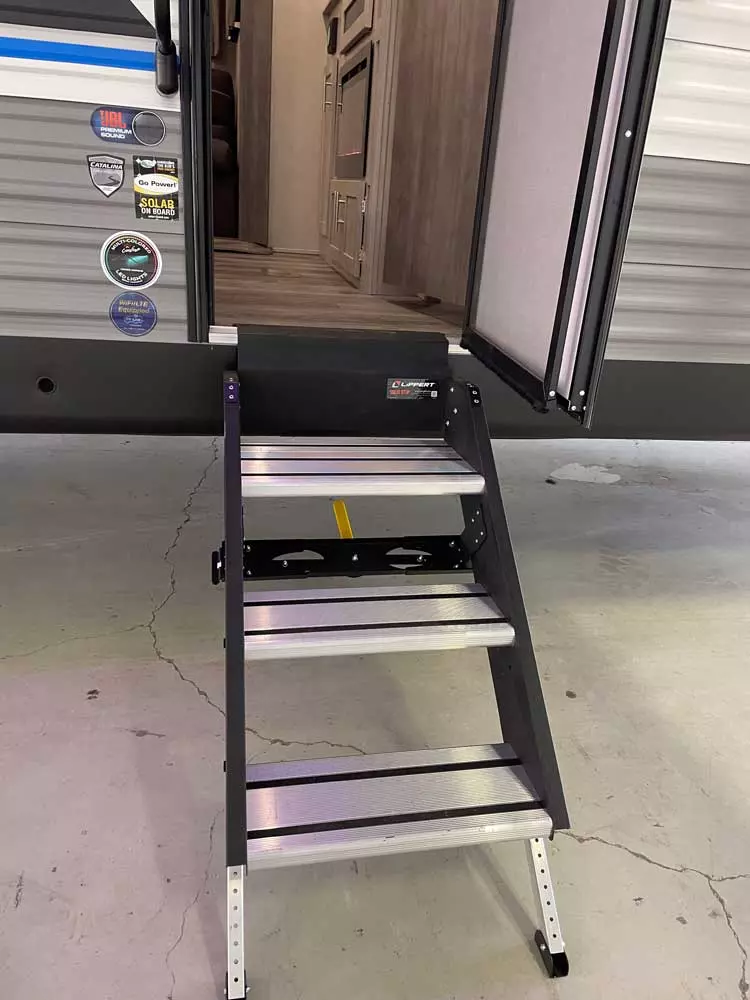

  • SolidStep Entrance Steps IPO Flip-Down Steps (Main Entrance Only)
  • XL Swing Arm Entry Assist Handle (Main Entrance Only)
  • Rear View Camera Prep

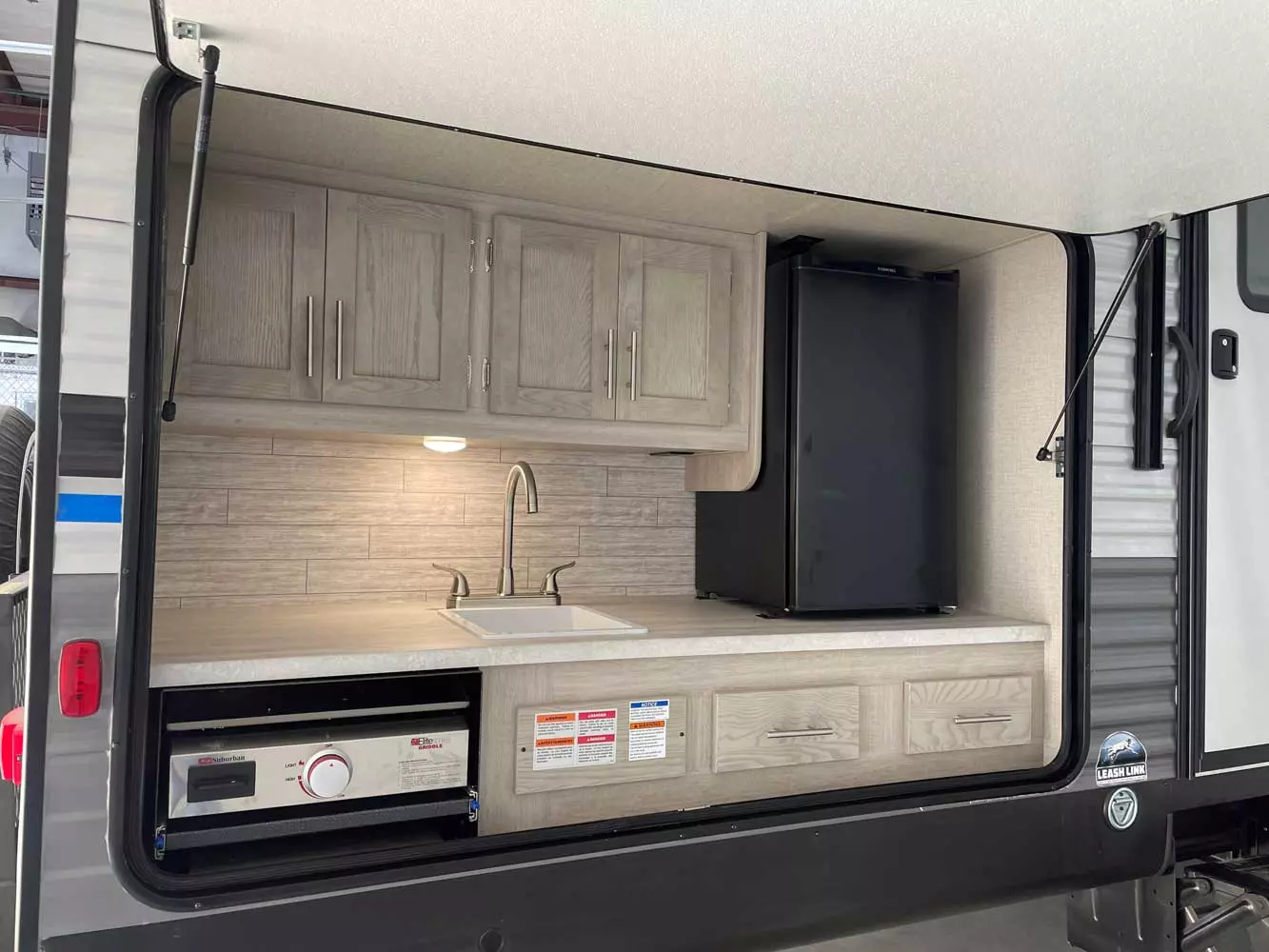

  • Full Size Exterior Camp Kitchen (323BHDSCK, 323QBTSCK, 343BHTS)
  • Bottle Openers (Exterior Camp Kitchens)

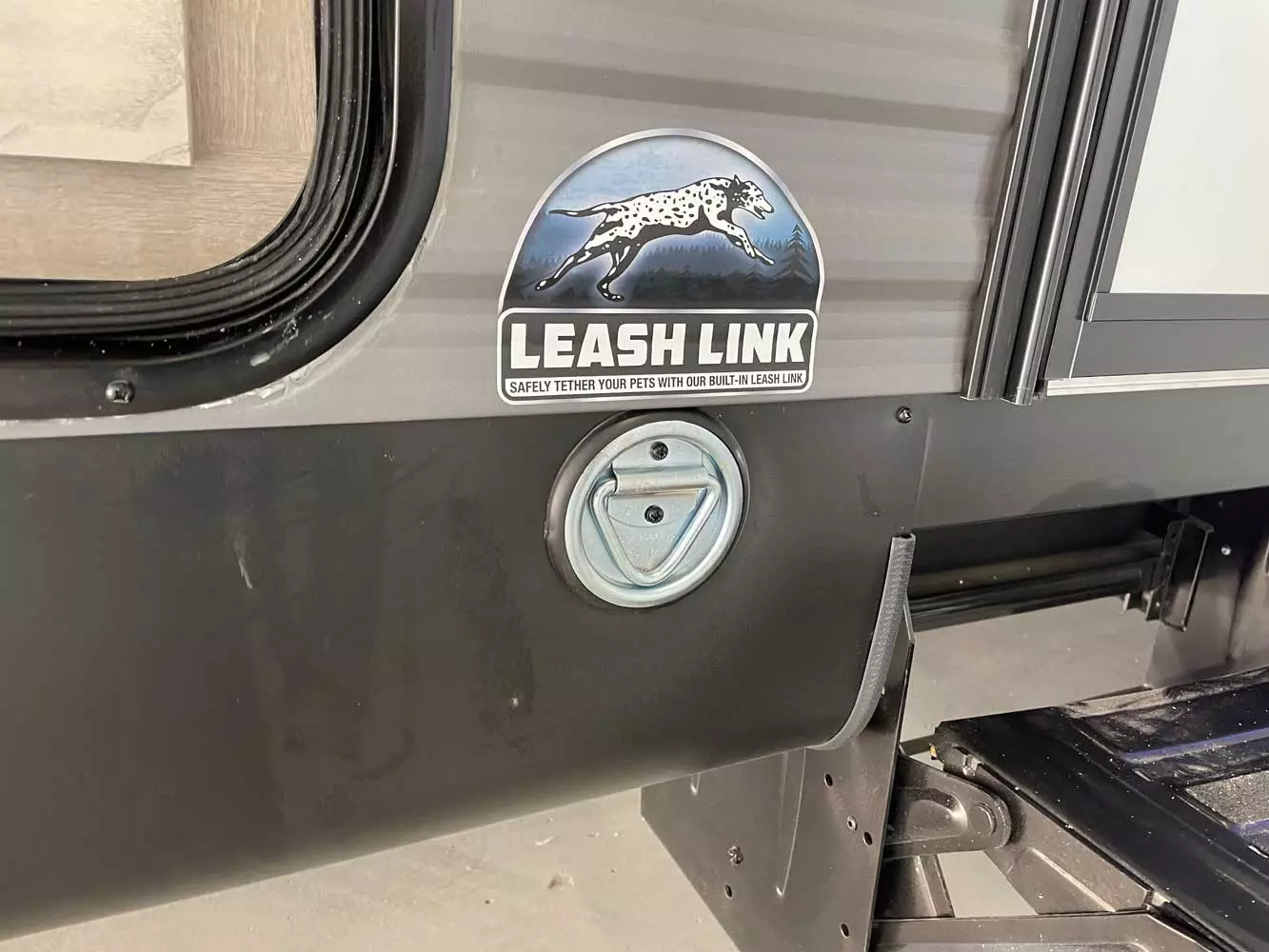

  • Pets - "Leash Link" Quick Hookup D-Ring

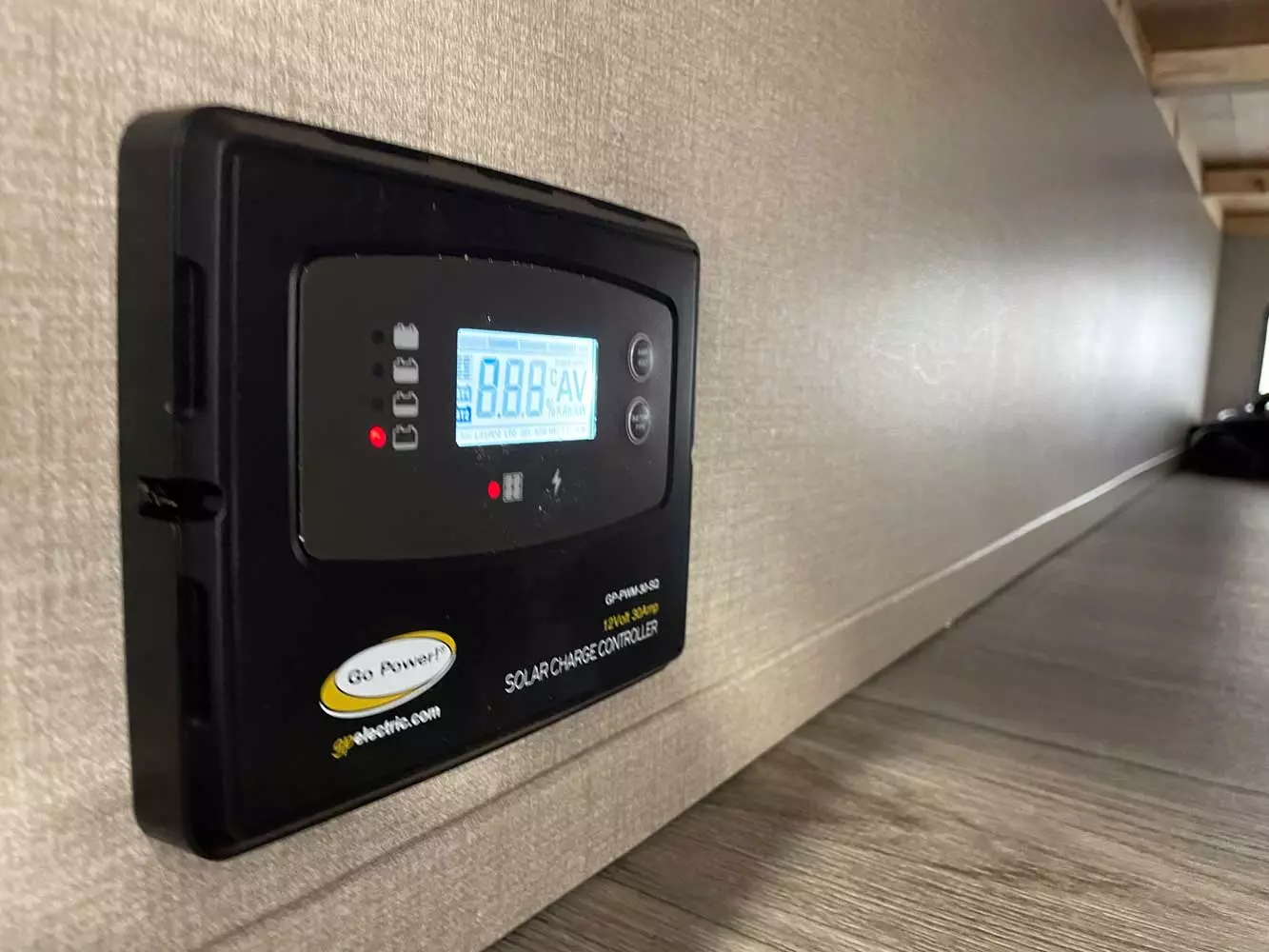

  • Universal Solar Prep w/Roof & Chg. Contoller Connections & Wiring

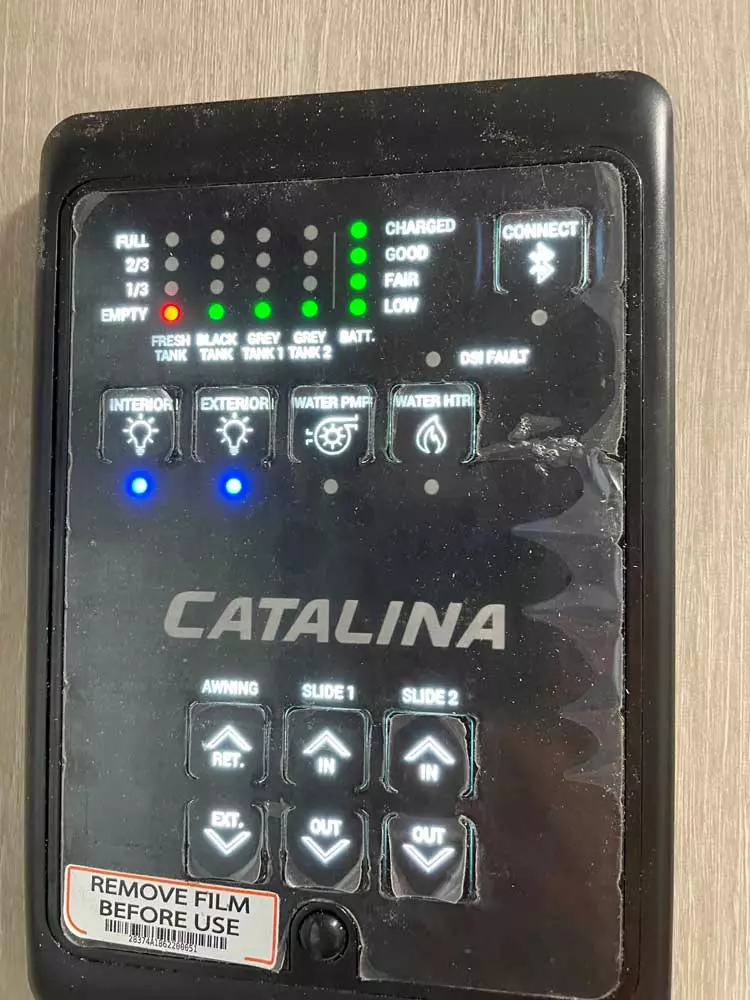

  • One Control Smart RV Tech Monitor Panel (uses LCI OneControl - App)

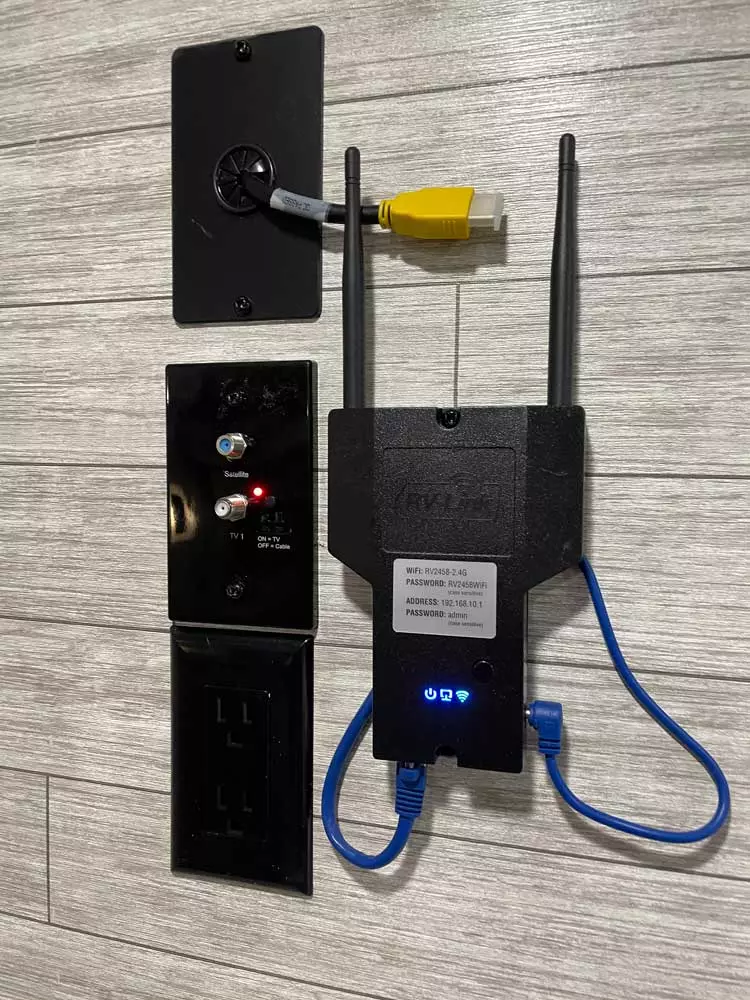

  • RV-LINK 4G LTE Remote Connect, WiFi, Booster, and Extender

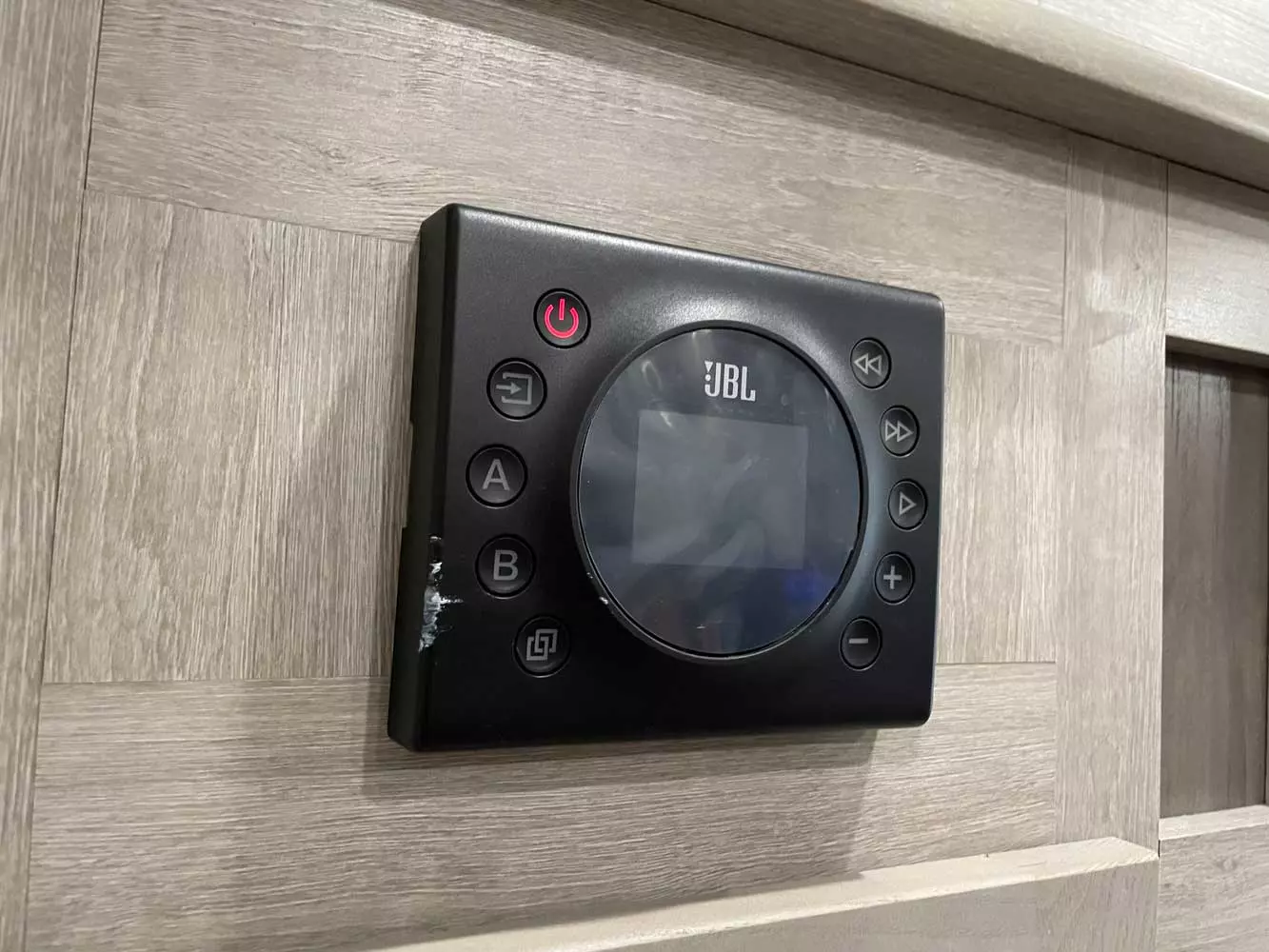

  • Premium Audio JBL Aura Cube Multi-Zone Function Media Center
  • Premium JBL Interior Speaker(s)

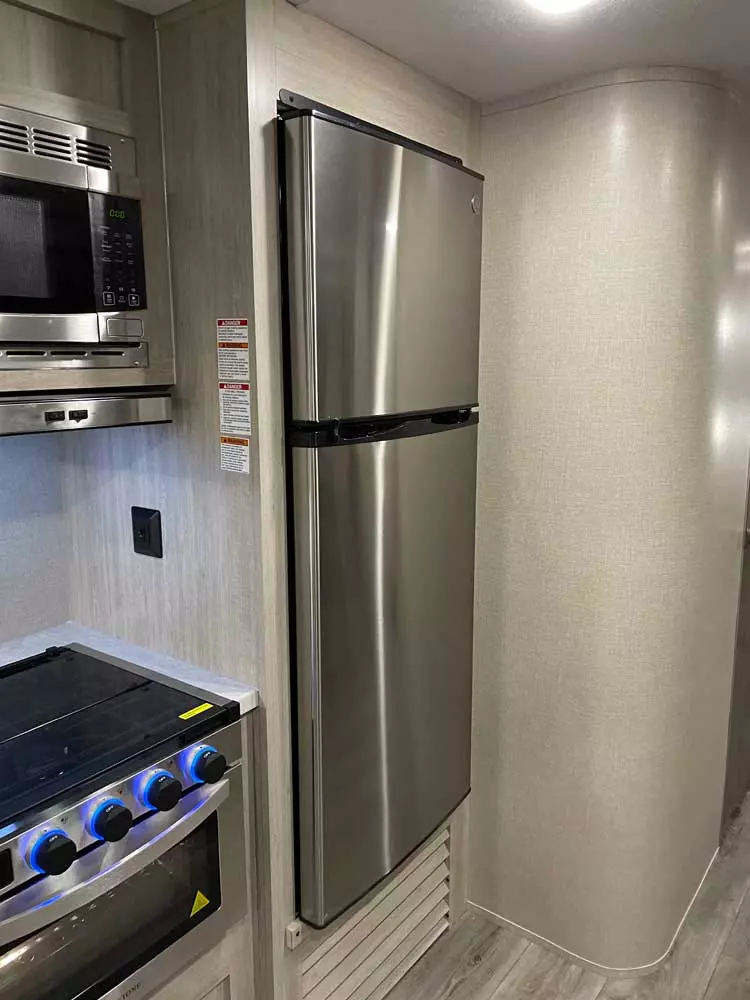

  • 10 Cu. Ft. 12V Refrigerator
  • Seamless Thermofoil Countertops Throughout

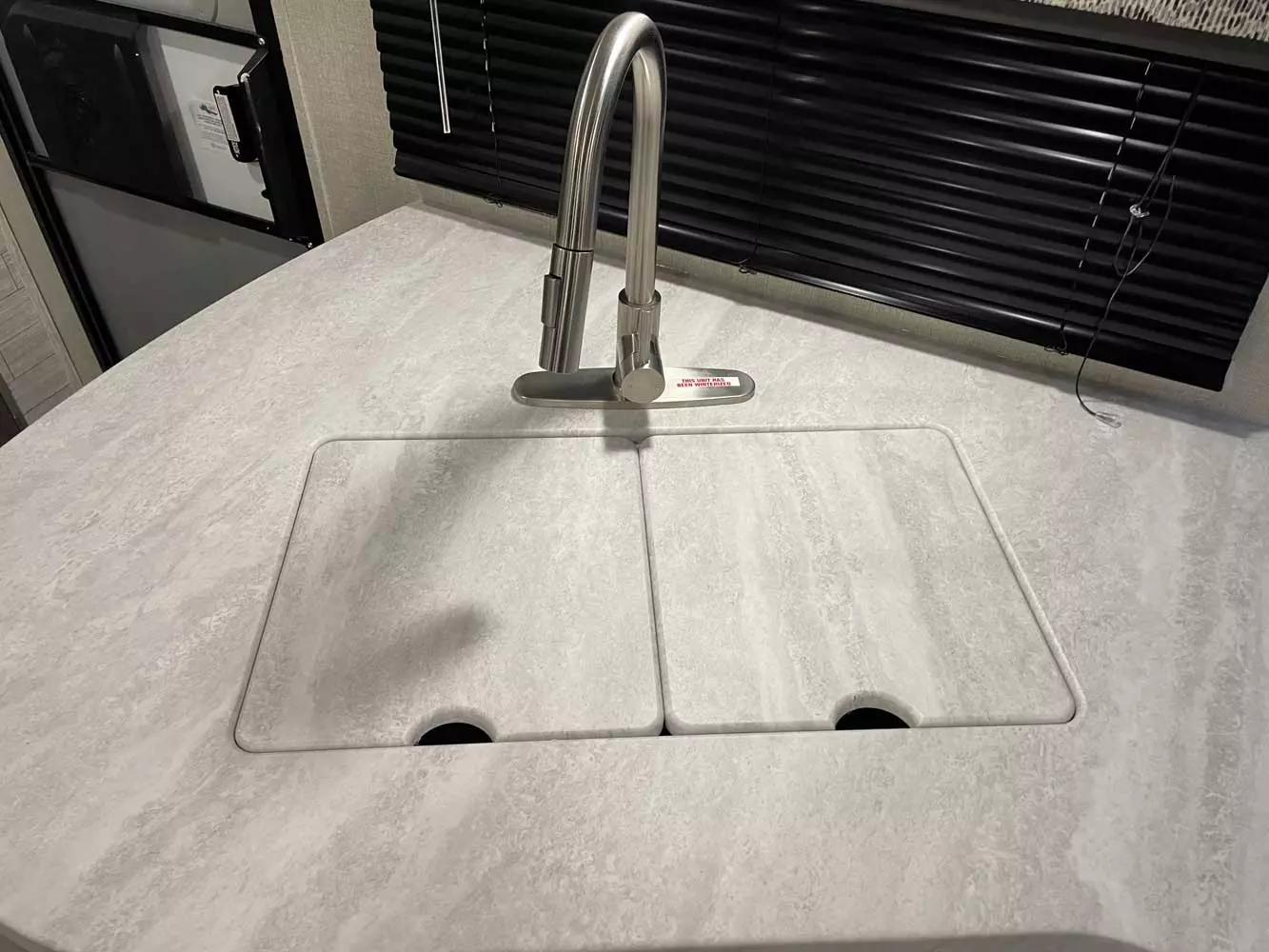

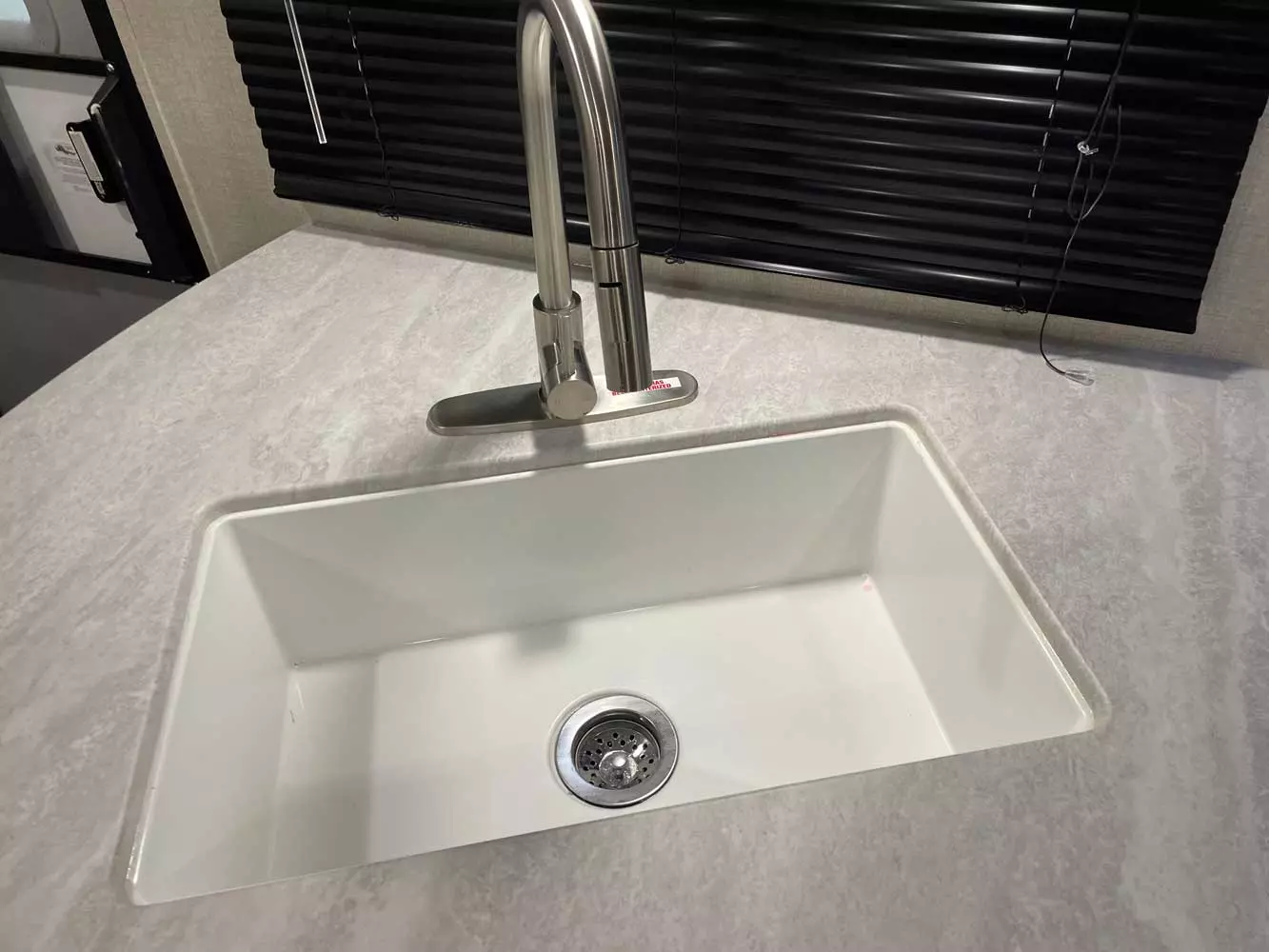

  • Under-mount Farm Style Sink
  • Residential Kitchen Faucet w/Pull Down Sprayer
  • Flush Counter Split Kitchen Sink Covers
  • Salvaged Light Oak Cabinets

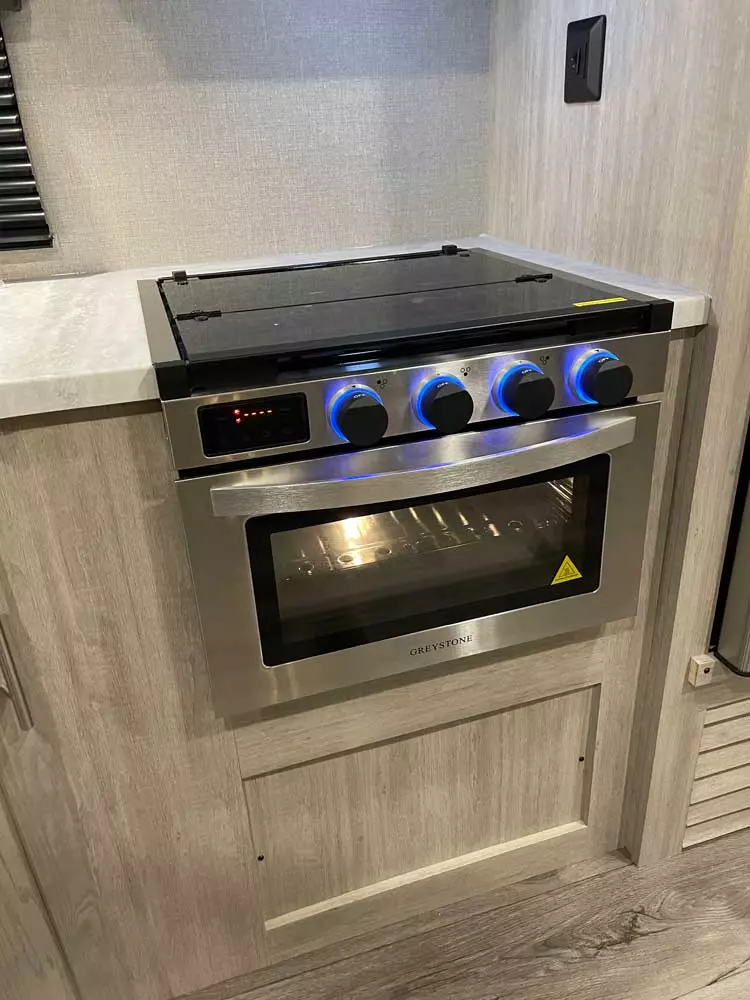

  • 3 Burner SST Range w/Flush Glass Top & LED Accent's
  • Slim Line Range Hood

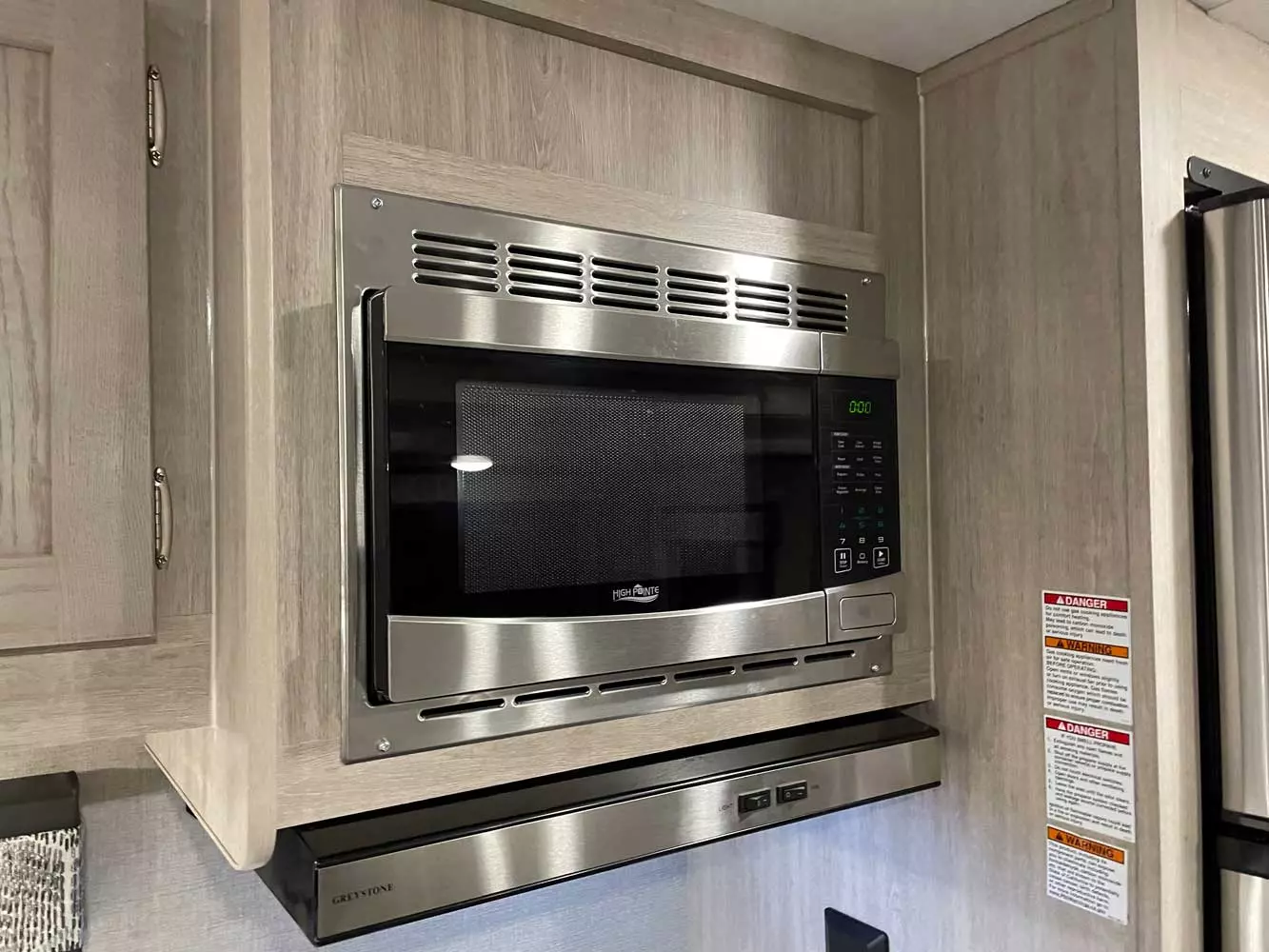

  • SST Microwave W/Glass Turn Table
  • Congoleum Woodplank Linoleum Flooring
  • 4000 Lumin LED Interior Lighting

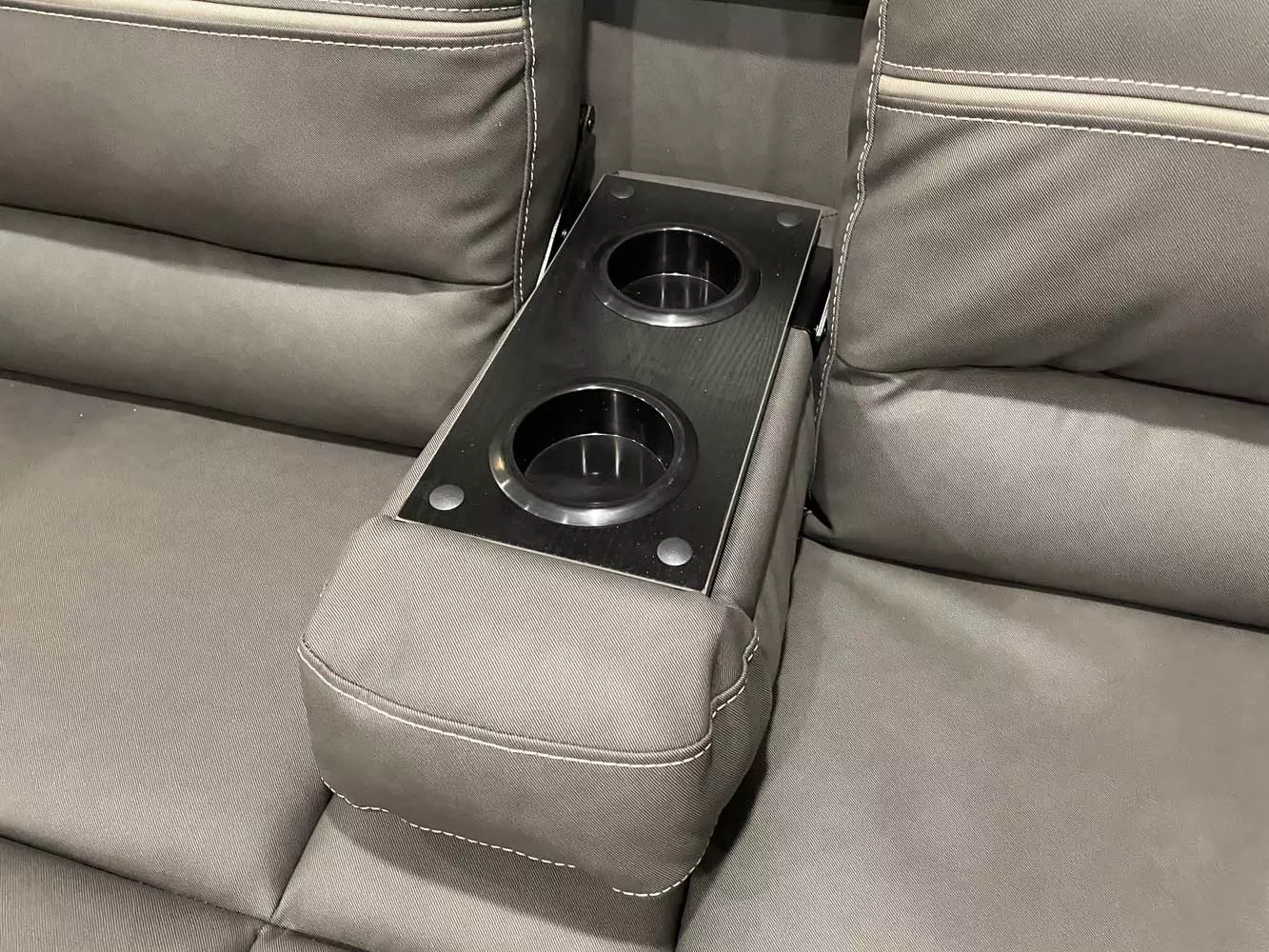

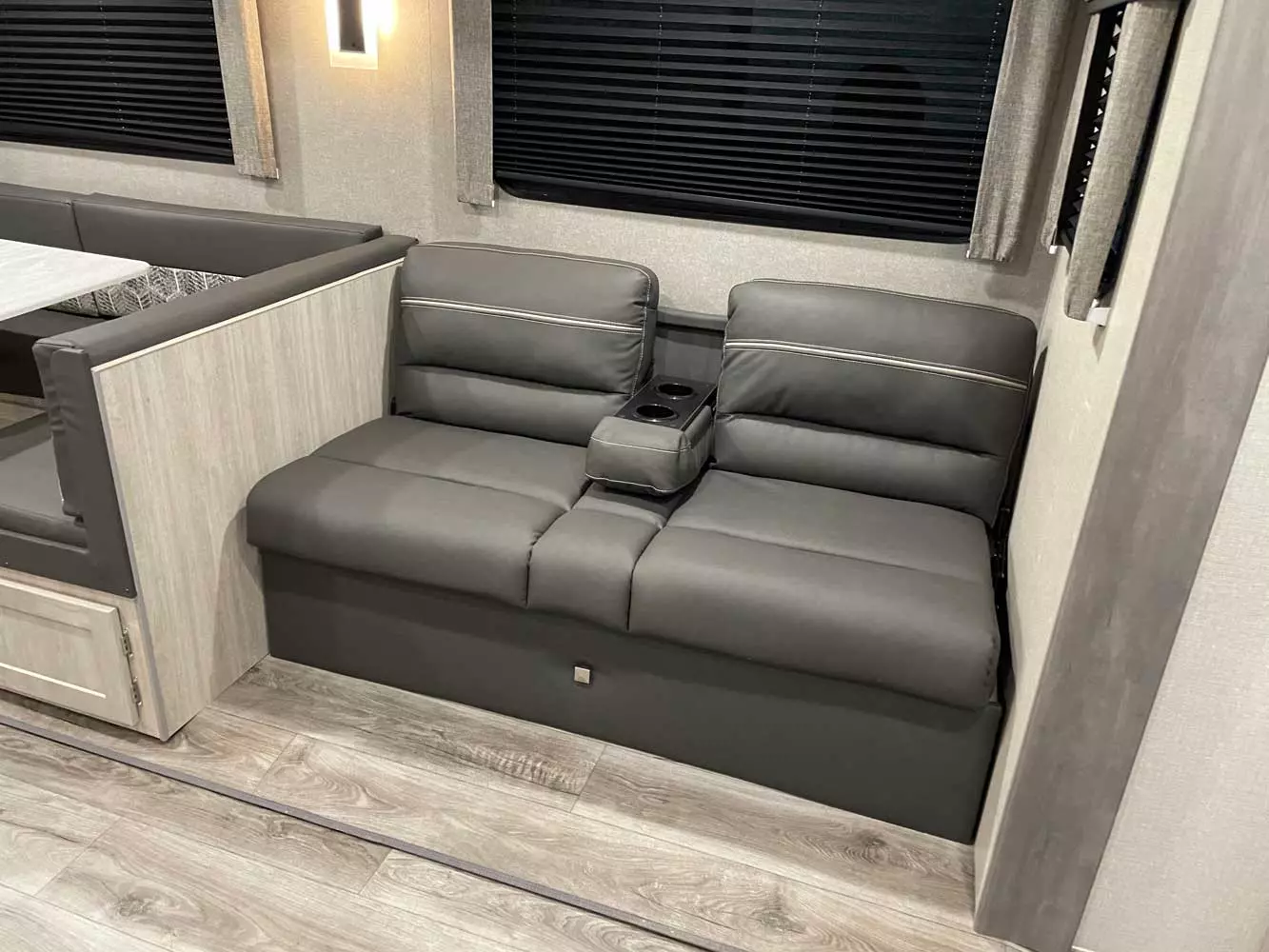

  • Jiffy Sofa w/Flip Down Cup Holder/Arm Rest
  • Easy Access Kickboard Storage Underneath Jiffy Sofa (Per Floorplan)
  • Designer Wall Light Main Slide Room
  • Hard Valance Window Treatments

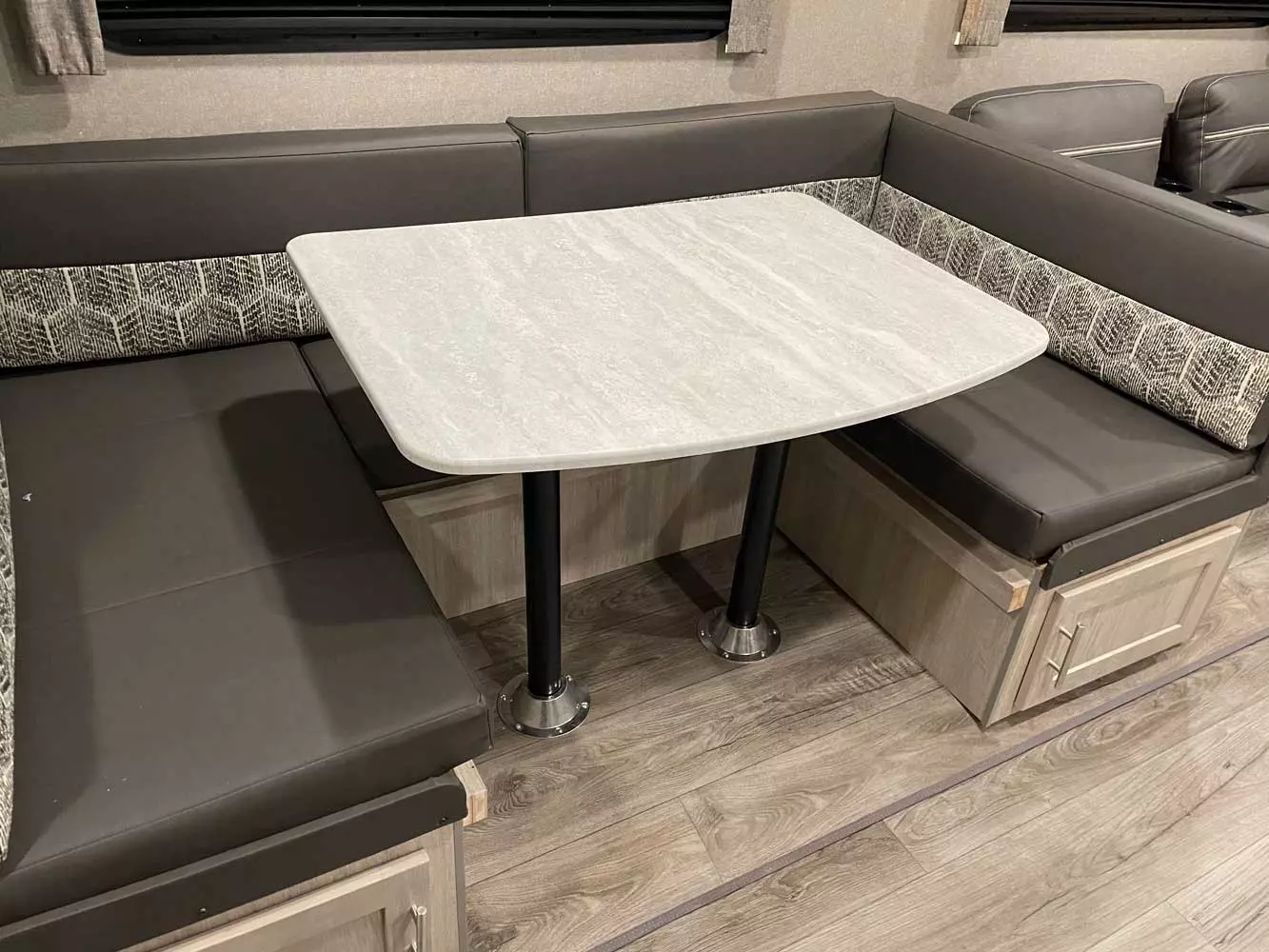

  • Pedestal Thermofoil Dinette Table
  • Under Bench Dinette Storage (Per Floorplan)
  • Easy Access Booth Dinette Storage Doors

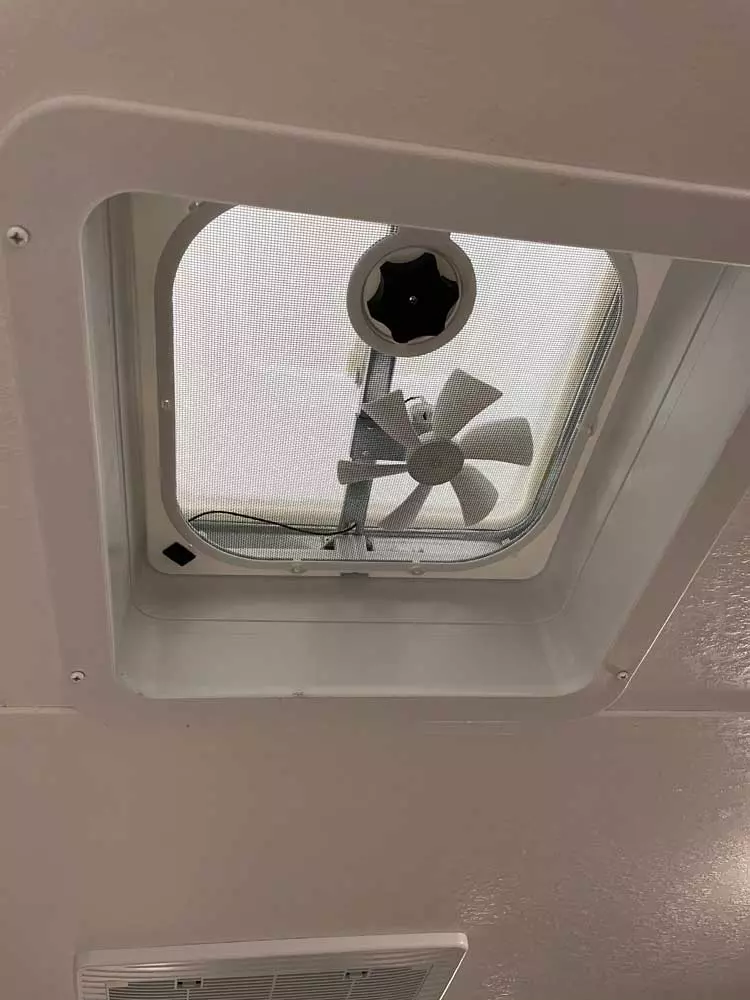

  • 12V 14" Living Room Power Vent Fan
  • 12V 14" Bathroom Power Vent Fan
  • Marine Toilet with Foot Flush

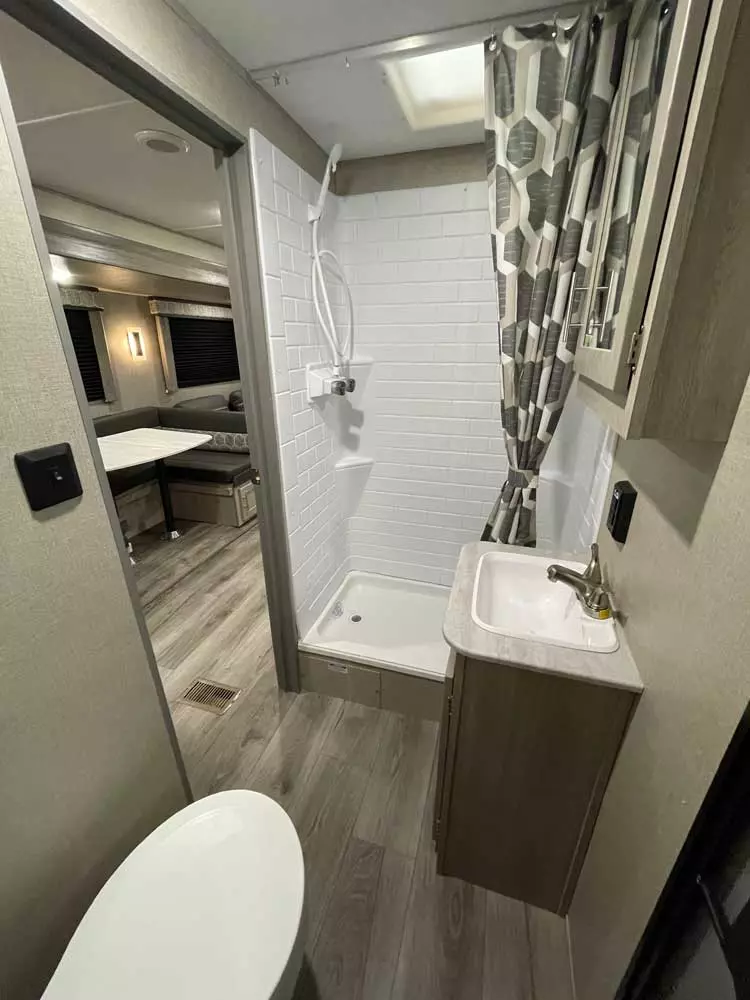

  • ABS Tub/Shower Surround w/Shelves
  • Skylight Above Tub/Shower
  • Glass Step-In Shower w/ABS Surround (Per Floorplan)
  • Medicine Wall Cabinet with Mirror
  • Bedroom Surface Mounts USB Ports (Each Night Stand)
  • Kitchen USB's & Outlets
  • USB Surface Mounts Near Bunk Beds
  • Solid Master Bedroom Door(s) (Per Floorplan)
  • Solid Bunk Room Door (Per Floor Plan)
  • Full Length Night Stands (N/A Bed Slide-Outs)
  • Mirrored Wardrobes in Master Bedroom
  • Master Bedroom Overhead Cabinets
  • Underbed Storage w/Separation from Outside Front Storage
  • Designer Fitted Master Bed Sheet
  • Teddy Bear Bunk Mats
  • Full Lino in Slide-Outs and Bedrooms (Carpetless)
  • Cambered Structural Steel I-Beam Frame
  • New Road Defense Chassis Powder Coating
  • Full Length Frame Outriggers
  • 5/8" Tongue & Groove Plywood Floor Decking
  • 2"x3" Floor Joists on Approximately 12" Centers
  • 5" Floor To Frame Steel Lag Bolts
  • Enclosed, Fully Sealed Corrugated Underbelly
  • Darco Subfloor Protective Wrap/Enclosure
  • Seamless Alpha Roof Membrane with Lifetime Warranty
  • Cross-Braced Engineered Roof Trusses w/5" Crown
  • 3/8" Fully Decked Walk-On Roof
  • Screwed Cabinet Construction w/Pocket Bored Lumber Core Stiles
  • Hardwood Cabinet Doors
  • 5/8" Plywood Under Bed & Dinette Base
  • 81" Interior Height (6' 9")
  • Easy-Trac Rack and Pinion Through Frame Main Slide-Out(s)
  • R-7 Fiberglass Insulation Throughout
  • 6 Gal. Gas/Electric DSI Water Heater
  • Water Heater By-Pass Winterization Kit
  • 12V Demand Water Pump
  • Premium Exterior Graphics Package
  • Upgraded Front Graphics Design
  • Platinum .024" Aluminum Exterior w/.030 Skirt Metal
  • Smooth HD Aluminum Radius Front
  • Polished HD Aluminum Fender Skirts
  • Spare Tire, Carrier, and Cover
  • Dexter EZ Lube Axles w/Leaf Spring Suspension
  • Self Adjusting Brakes
  • Roto-Cast Holding Tanks
  • Bumper w/ Drain Hose Carrier and End Caps
  • 35,000 BTU Auto-Ignition Furnace w/Wall Thermostat (N/A 283RKS)
  • Residential In-Floor Ducted Heat

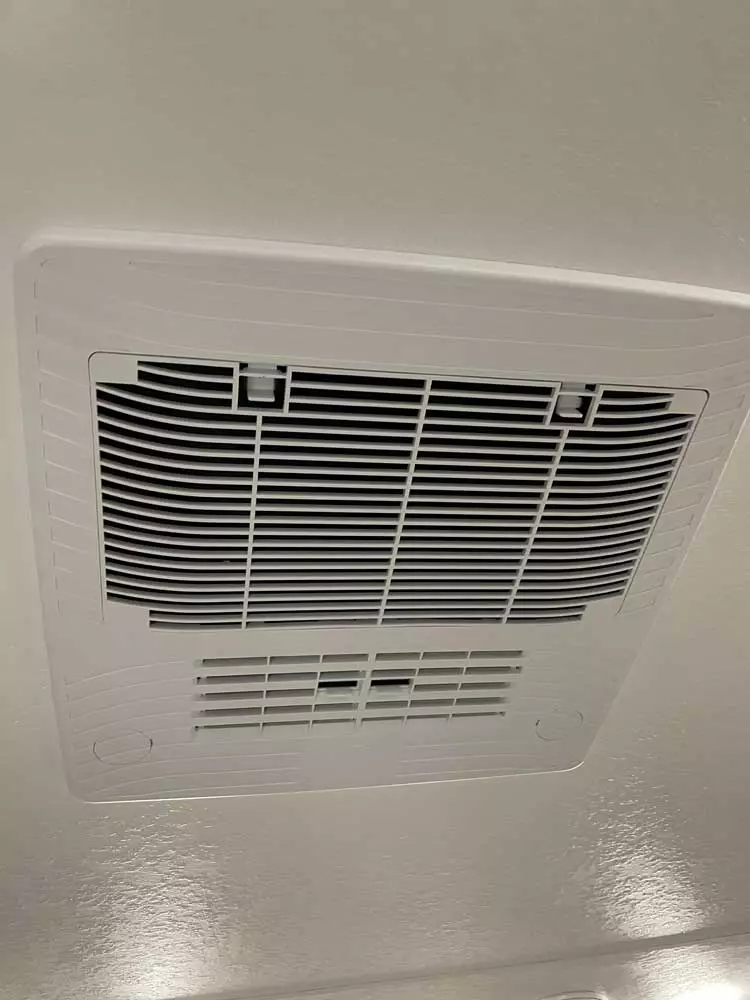

  • 13,500 BTU Fully Ducted A/C
  • 30 Amp Elect. Service w/ 100v 45-Amp Power Covt.
  • 50 AMP Elect. Service (Standard on 303RKDS, 313RLTS, & 343BHTS) *see options
  • Upgraded Aluminum Wheels
  • Magnetic Hands Free Baggage Door Latches
  • Smoke Alarm
  • LP/CO Gas Detector
  • Fire Extinguisher
  • Fire Escape Windows
  • Entrance Door Window
  • Dead-Bolt Lock on Entry Door
  • SafeRide RV Motor Club (1 YR Roadside Assistance)
  • 7 Cu. Ft. LP Gas/Electric RV Refrigerator w/Reversable Door Inserts
  • 15,000 BTU Ducted A/C IPO 13.5 A/C
  • 50 Amp Service w/ 2nd 13.5 A/C (N/A 243RBS, 263BHSCK, 283RKS)
  • 50 Amp Service w/2nd A/C Prep (N/A 243RBS, 263BHSCK, 283RKS)
  • Peak Performance Solar Package - 30A Controller w/ 200W Panel
  • Tri-Fold Hide A Bed Sofa

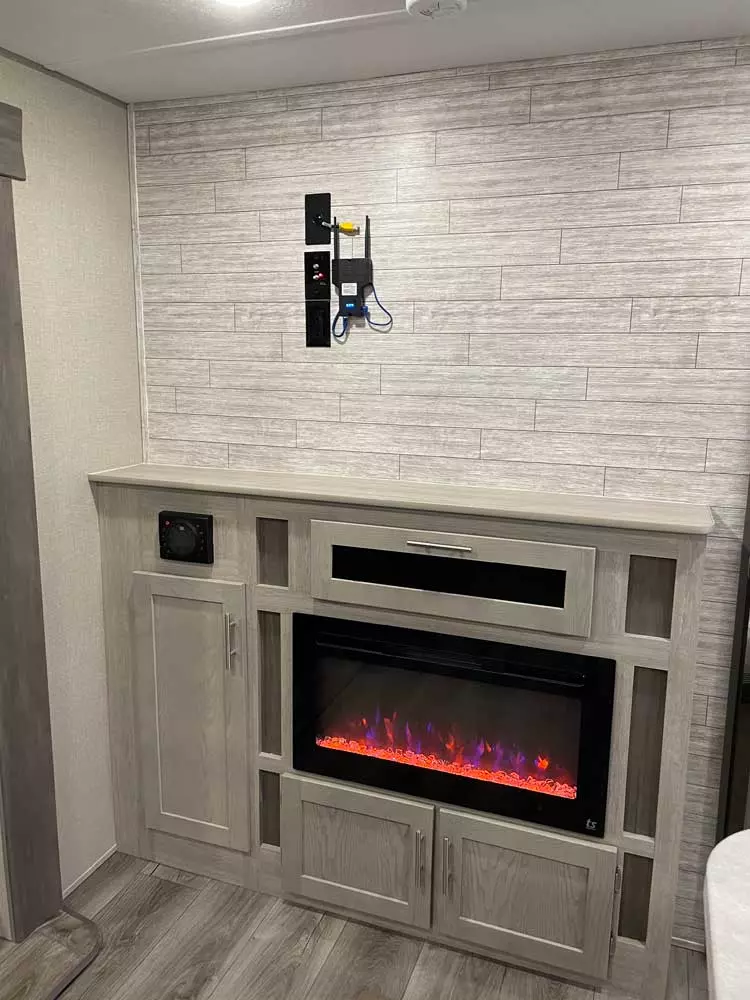

  • Fireplace w/Electric Heater in the Living Room
  • Steel Fold-Down Steps ipo SolidStep Entrance Steps
  • GE Washer/Dryer Combo Unit (Per Floorplan)
  • CSA Standards
