28.7SE Floorplan

Travel Trailers

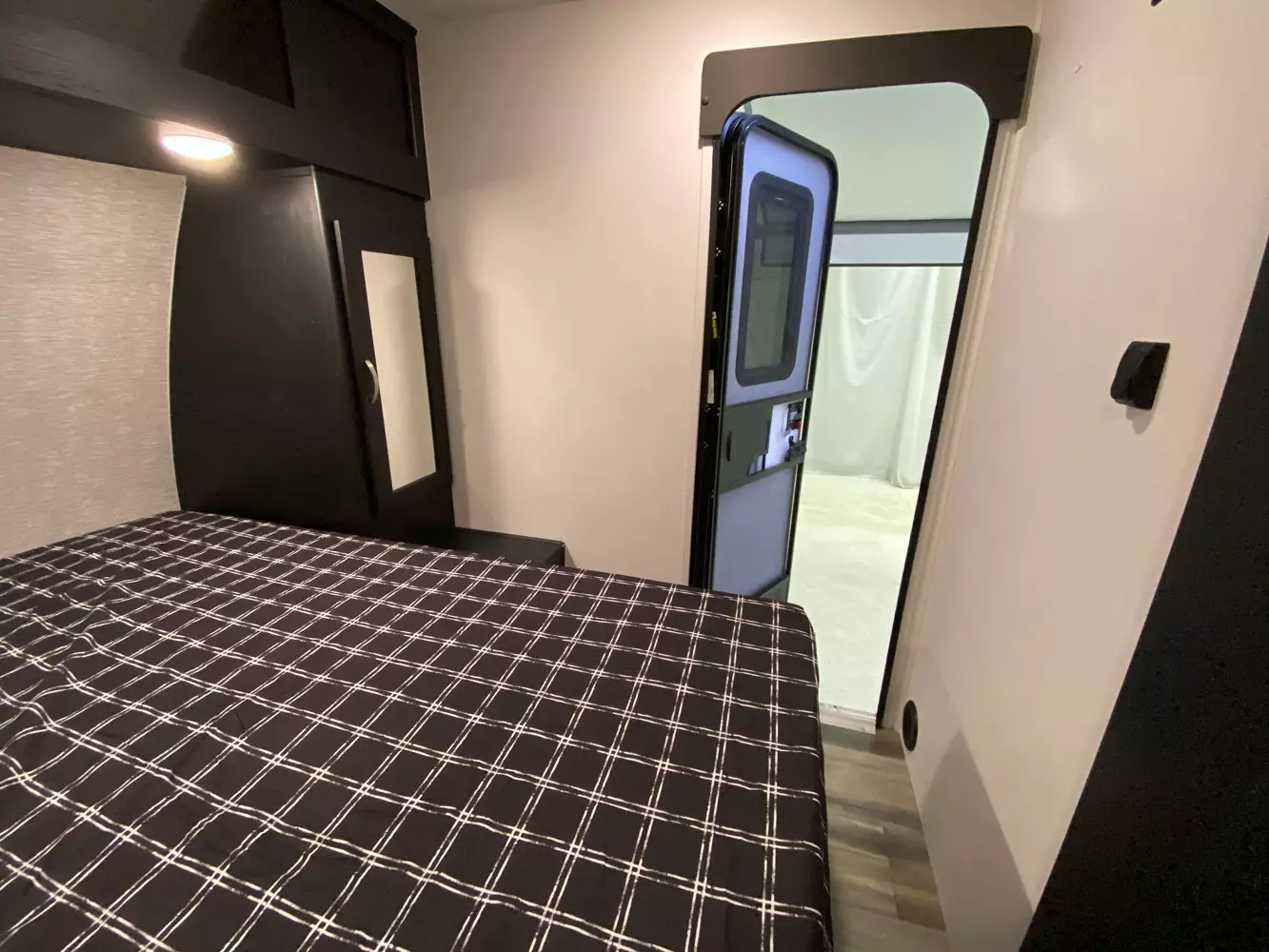

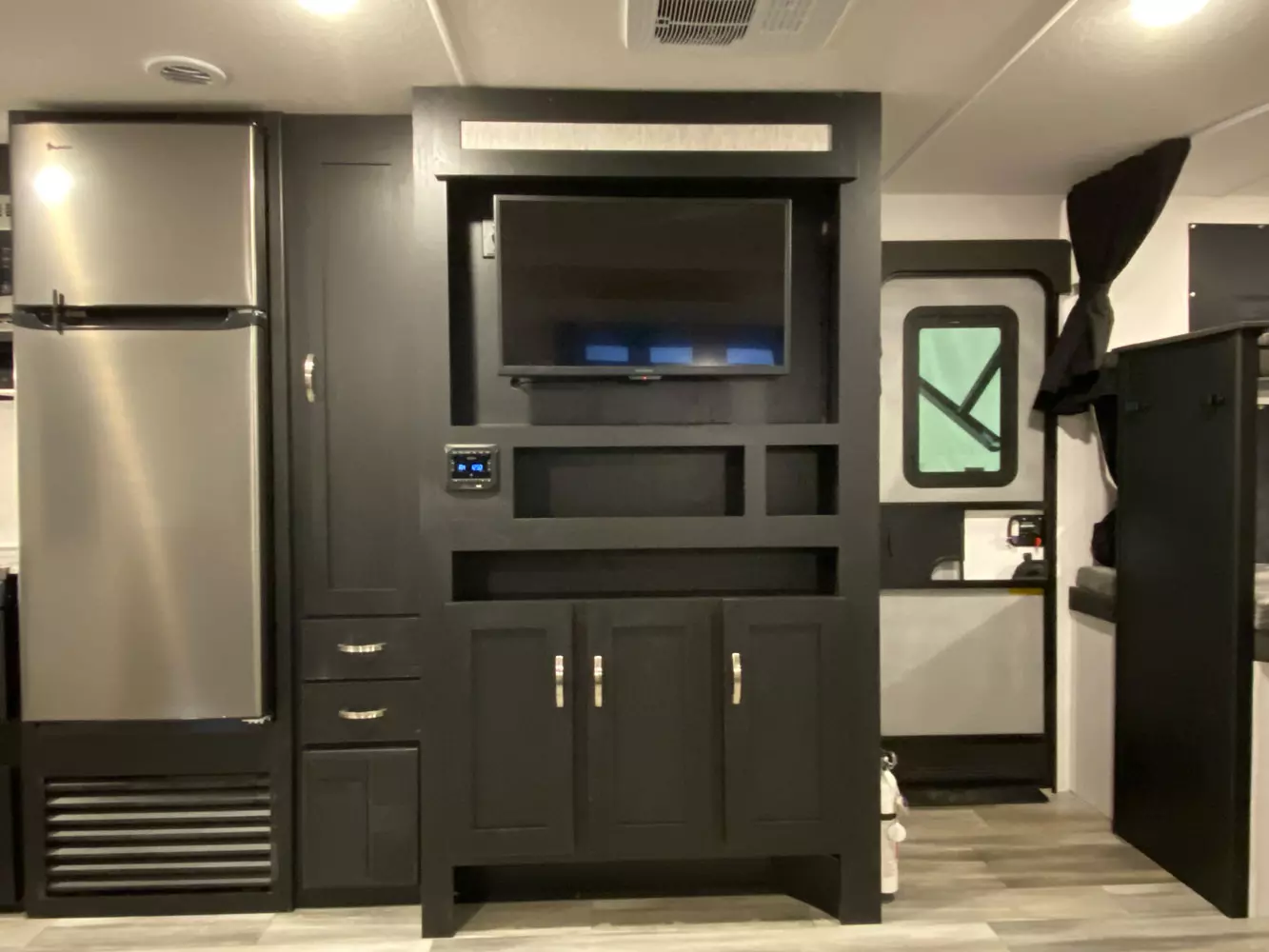

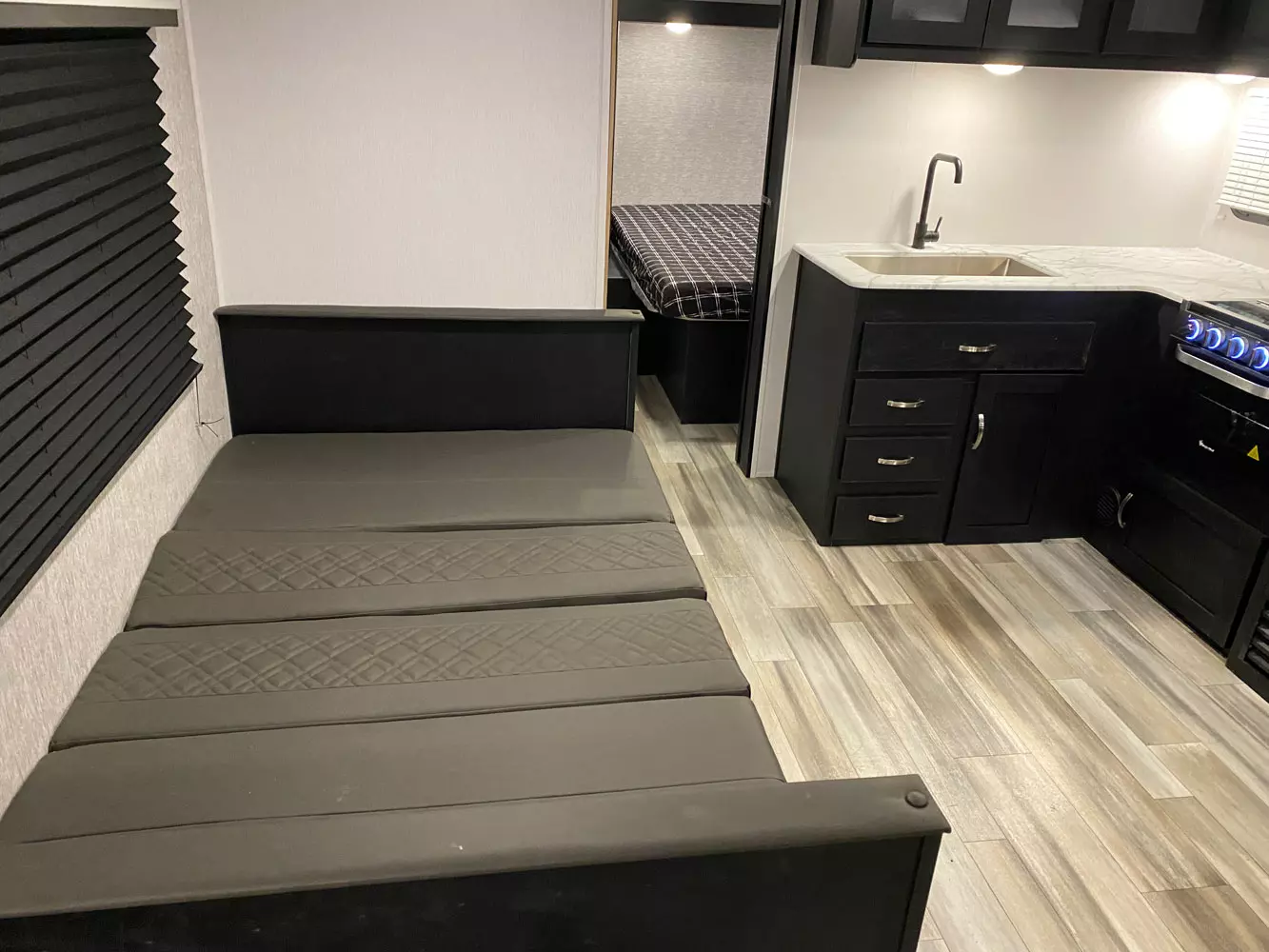

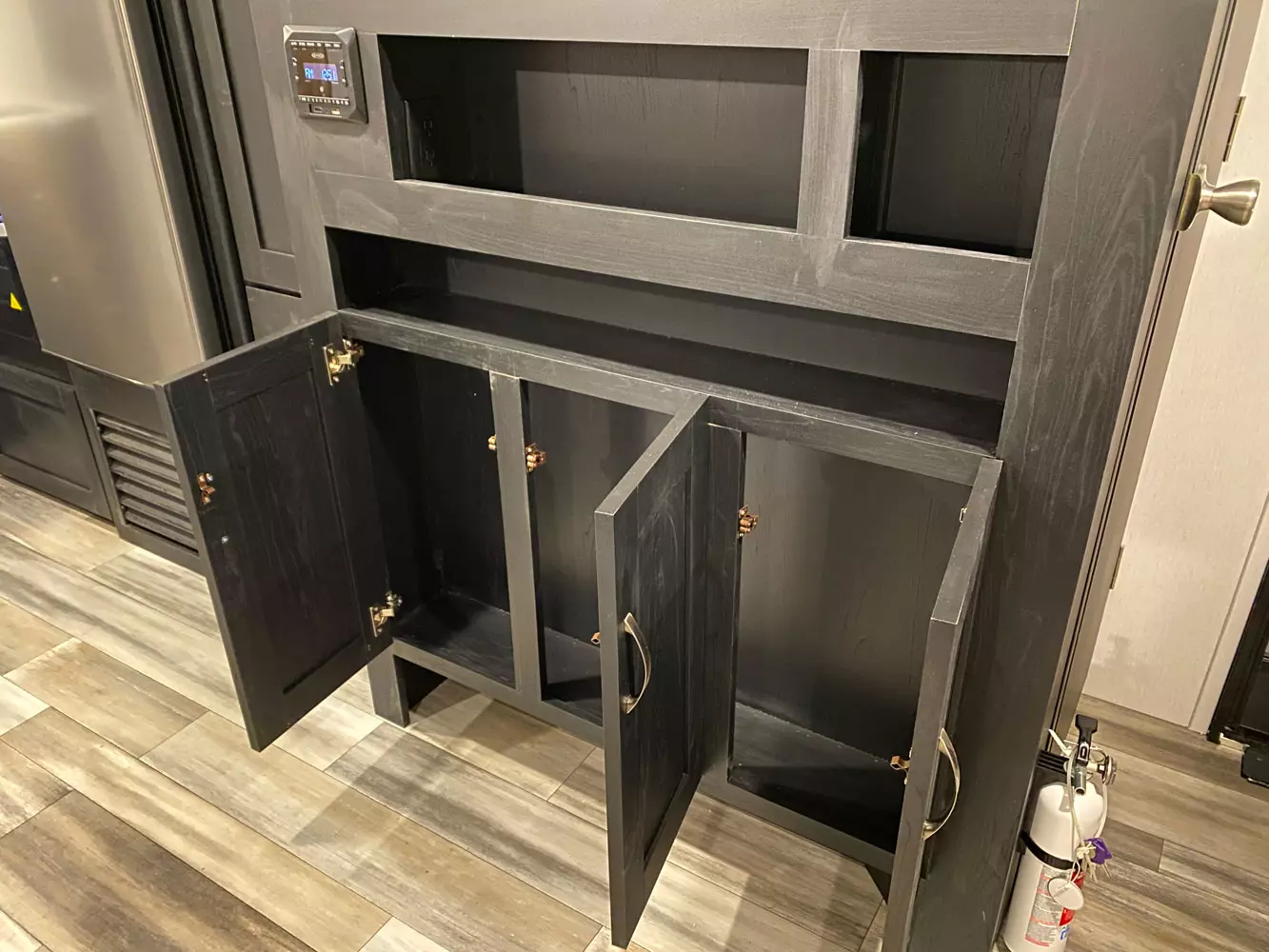

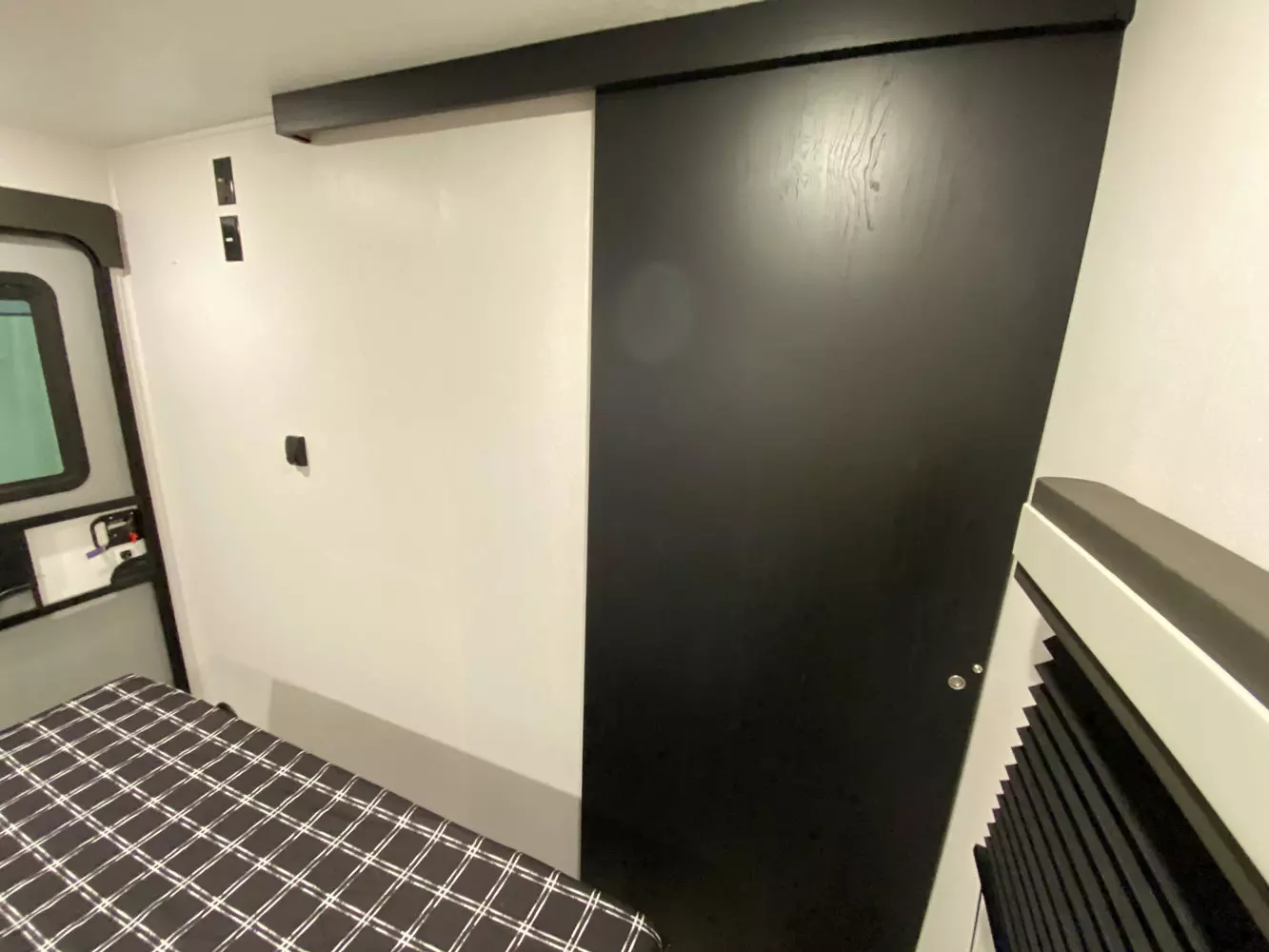

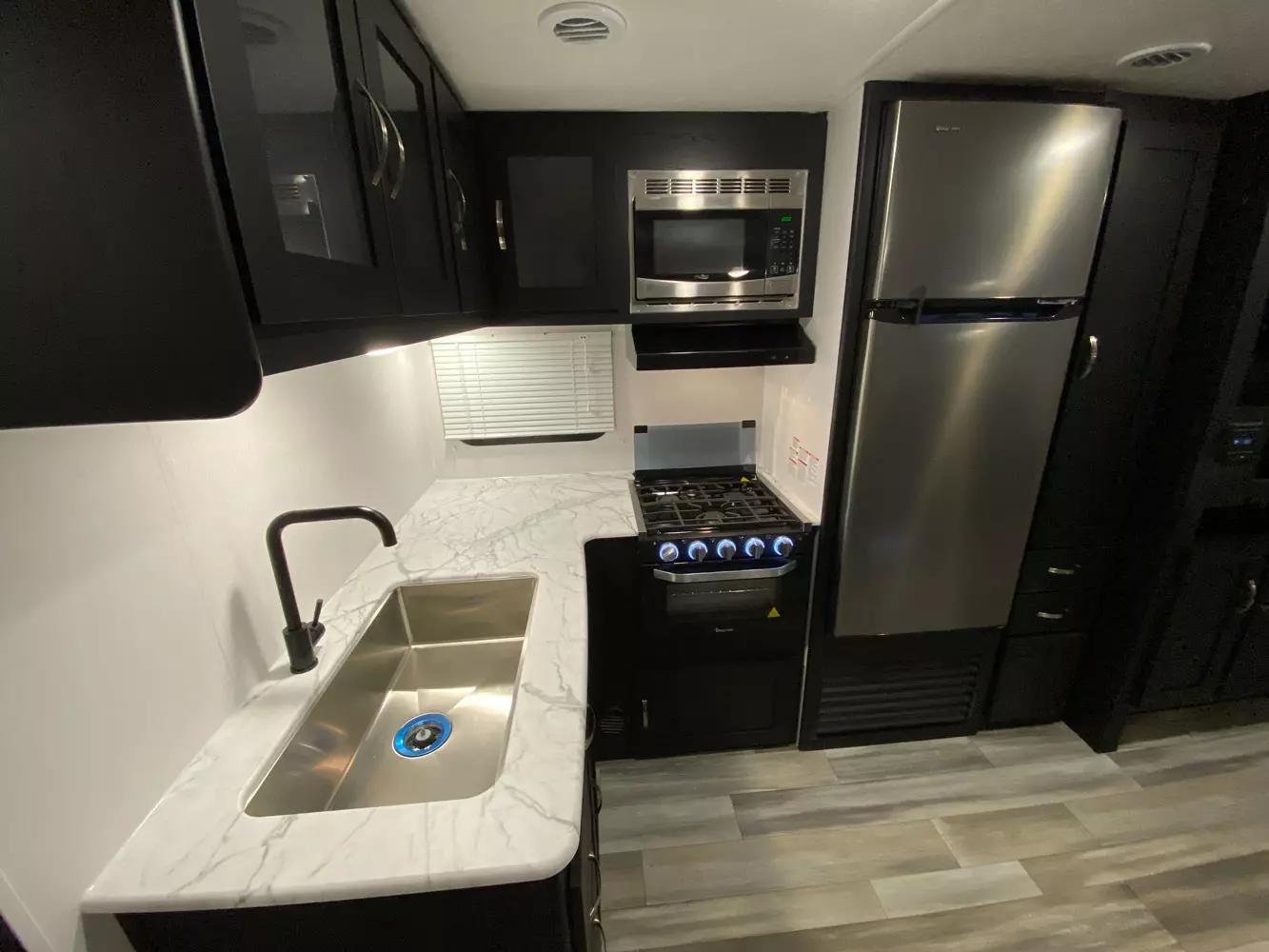

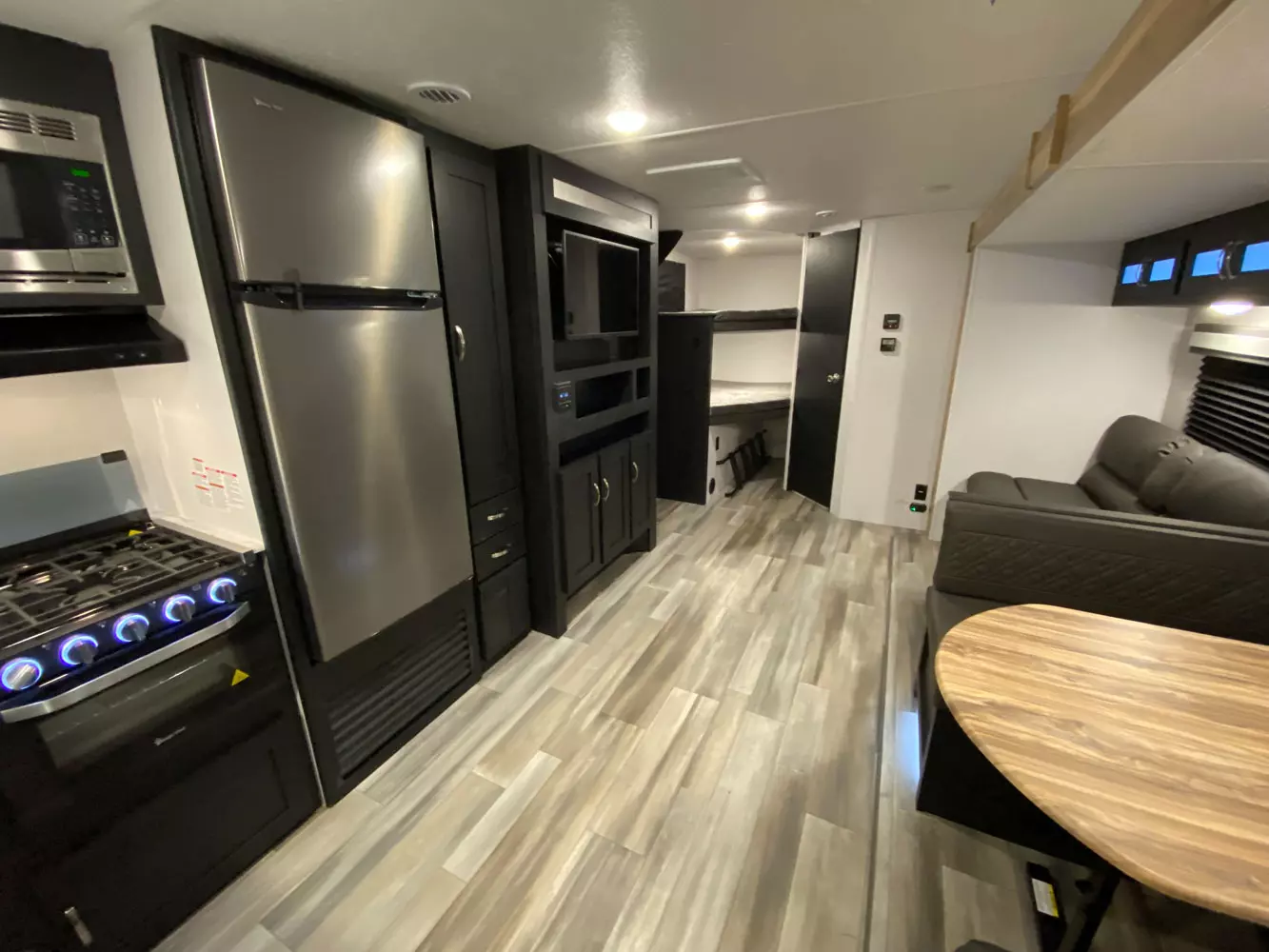

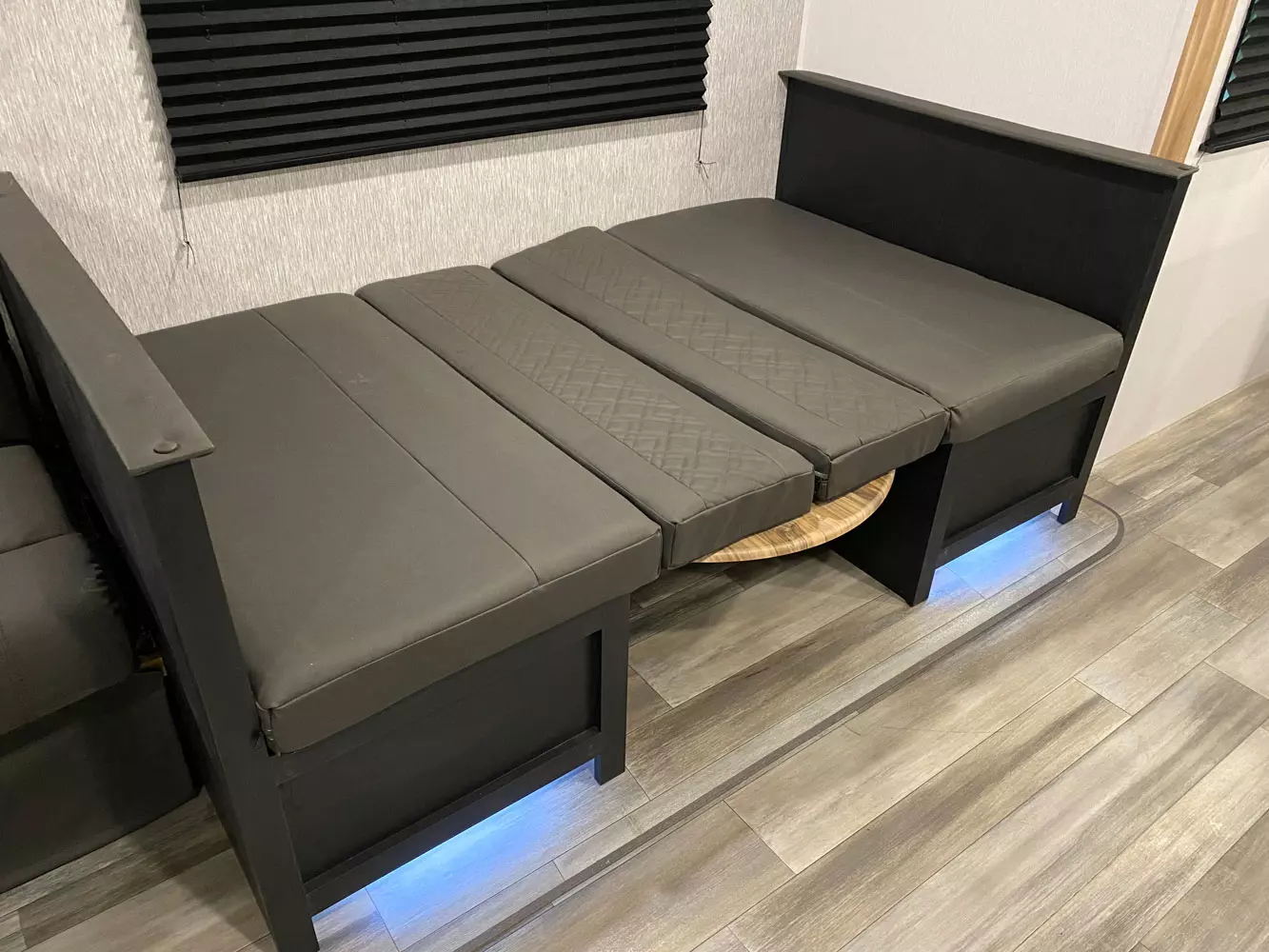

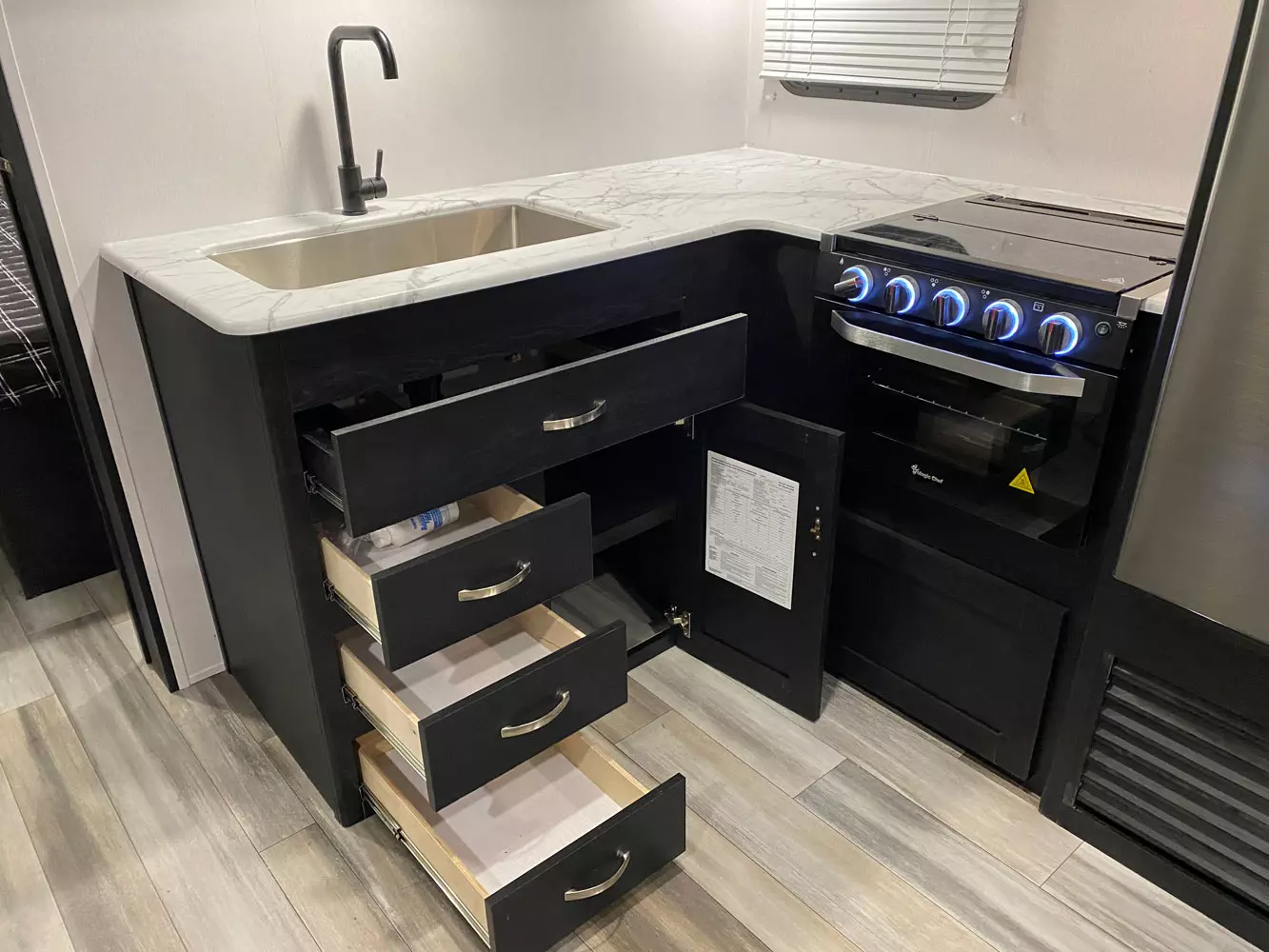

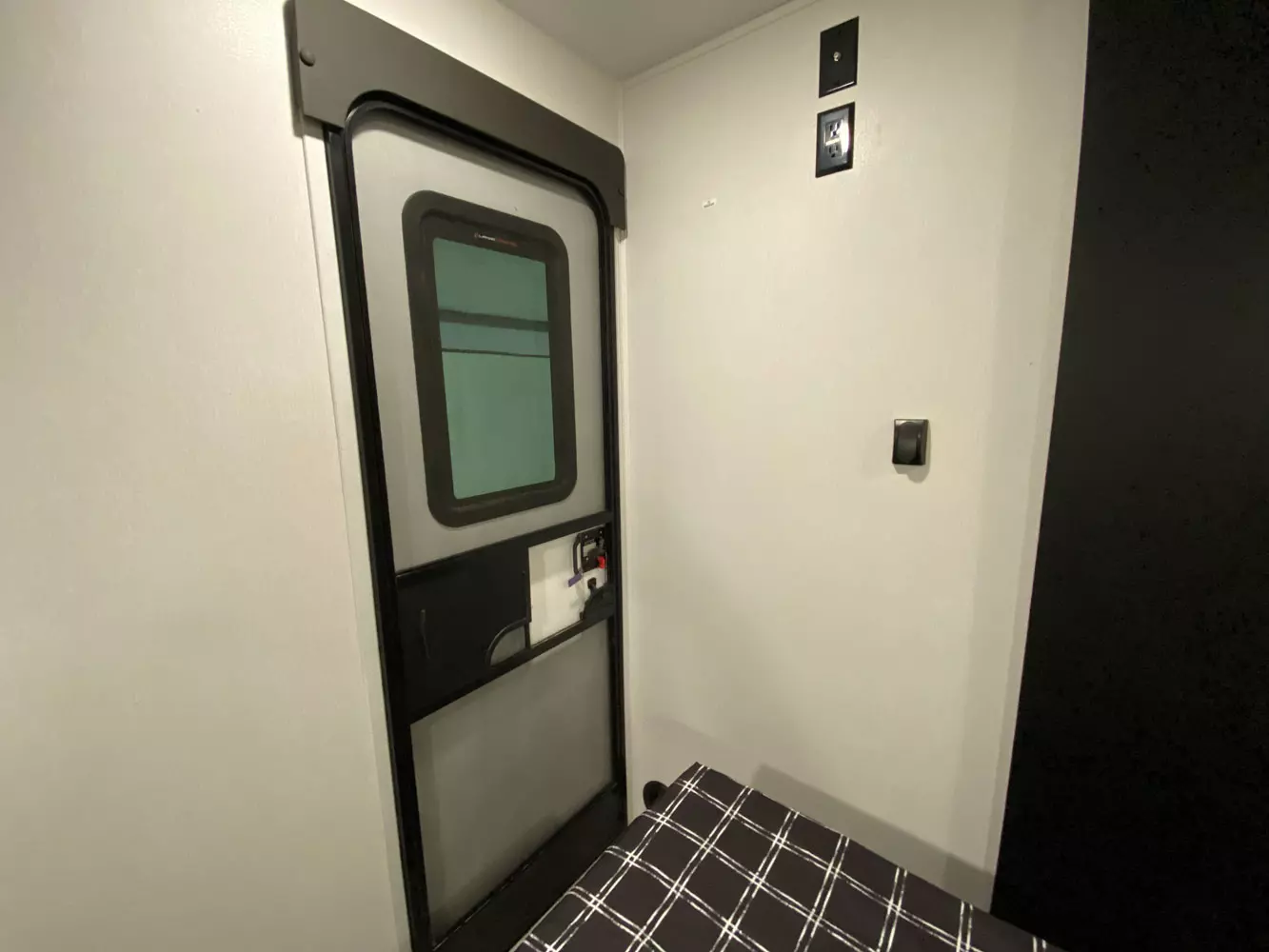

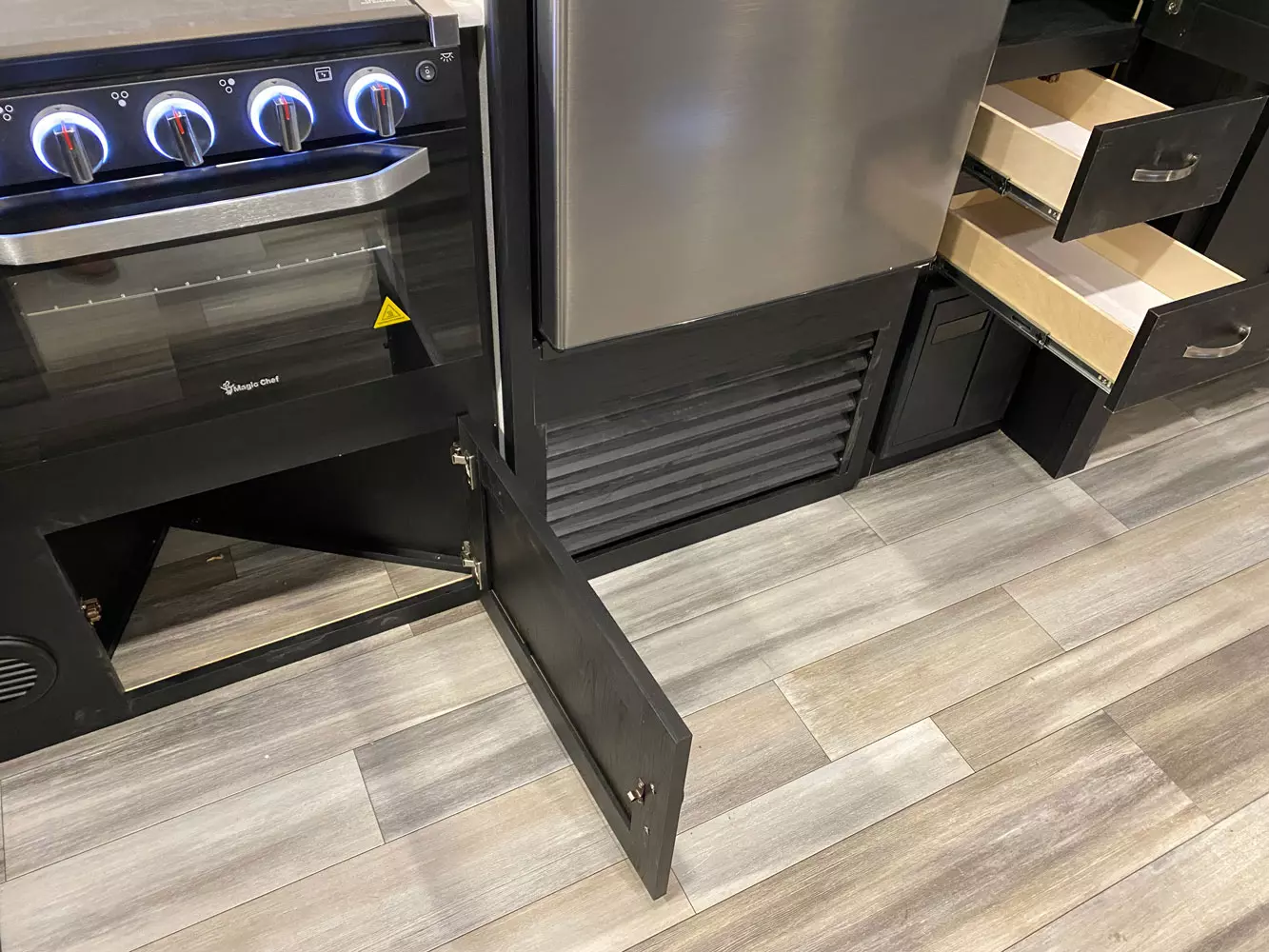

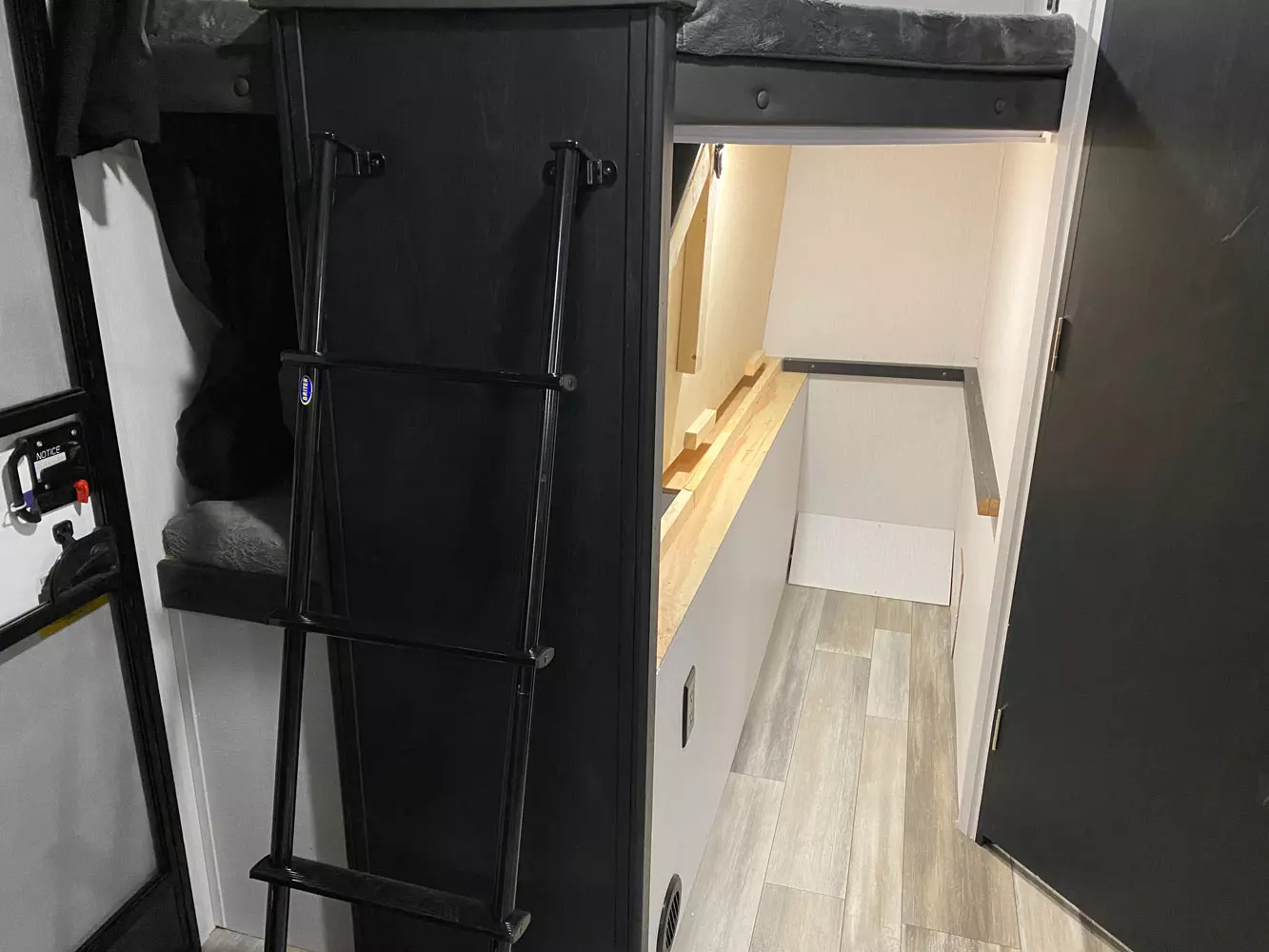

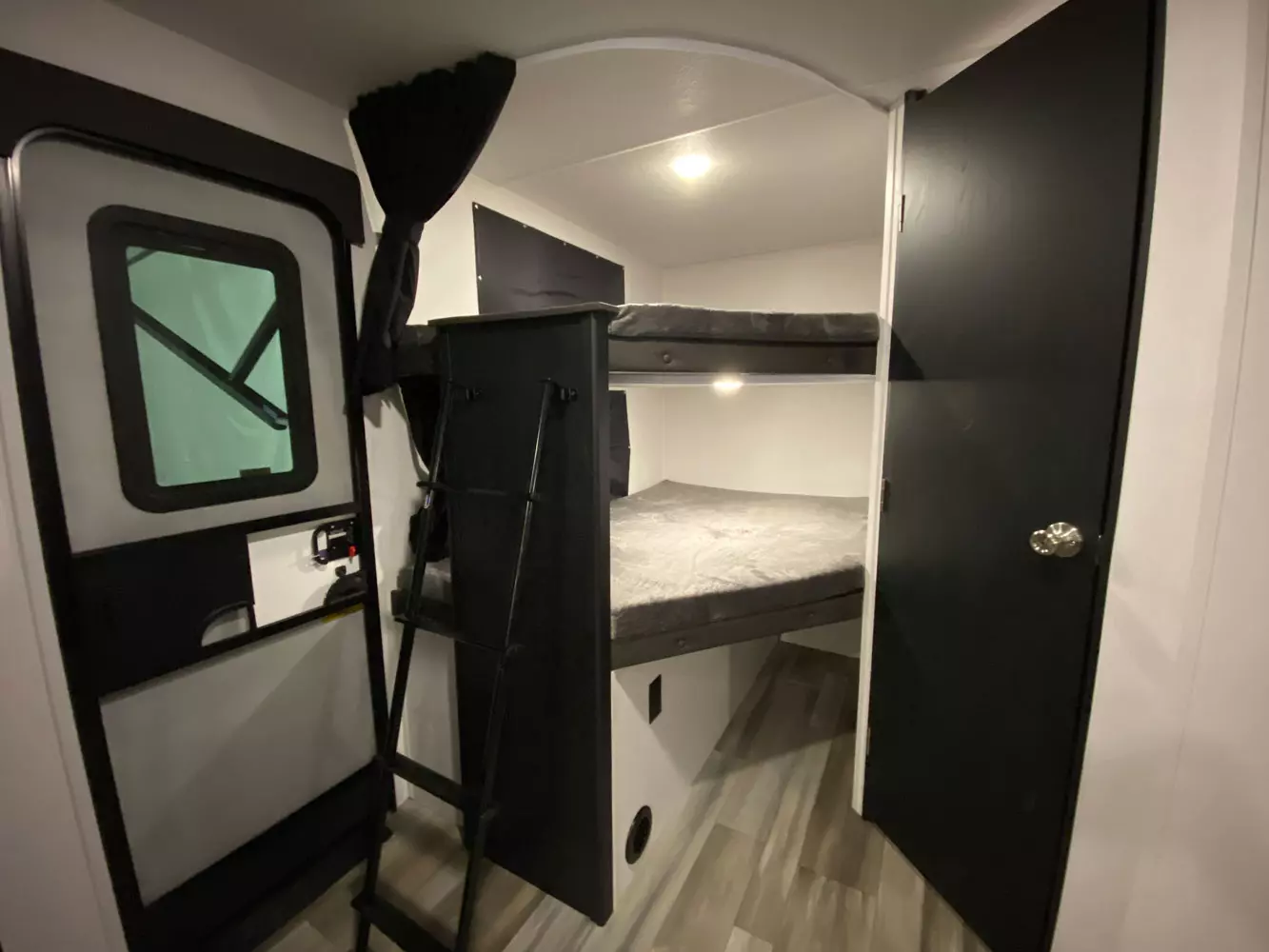

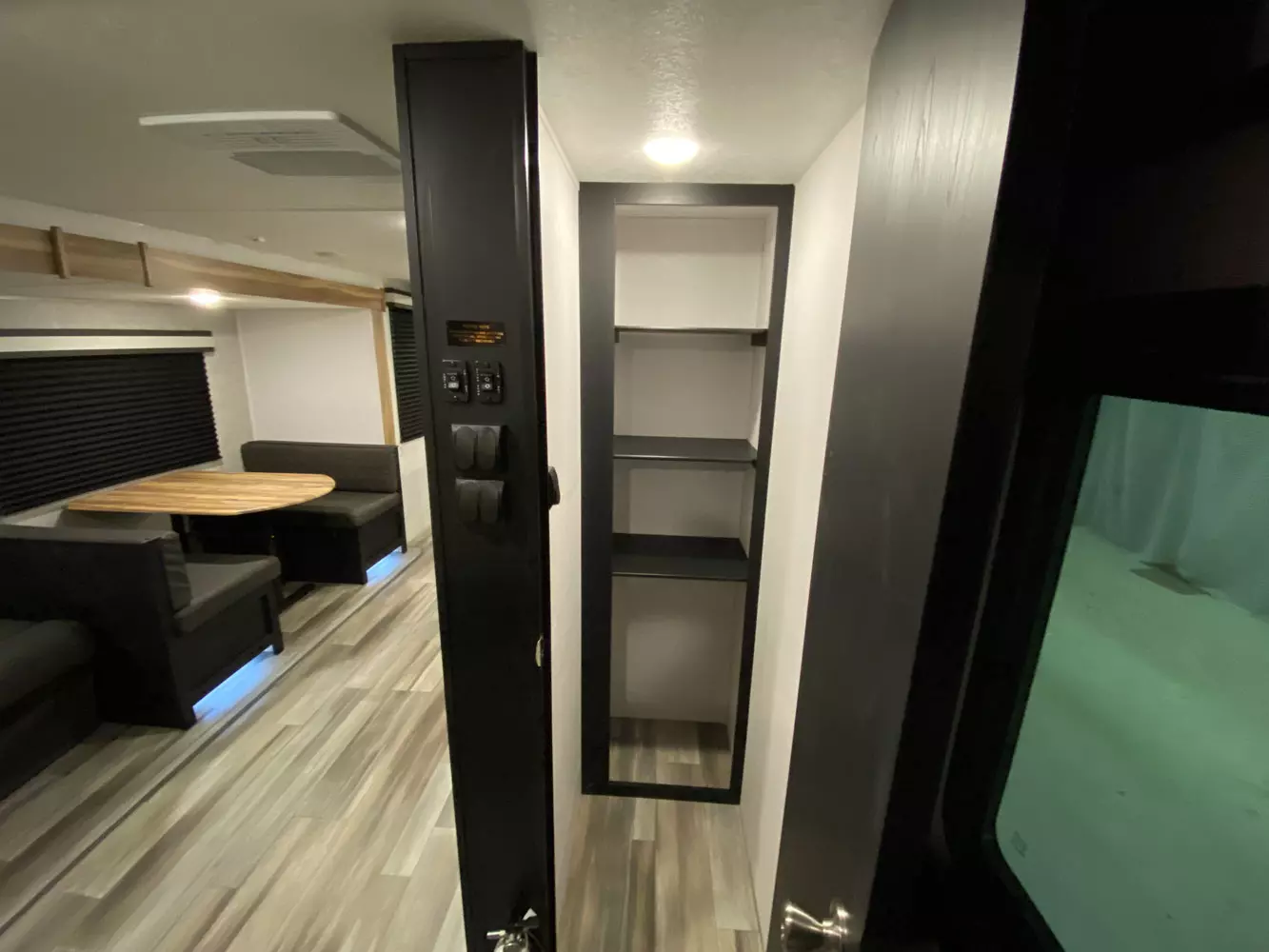

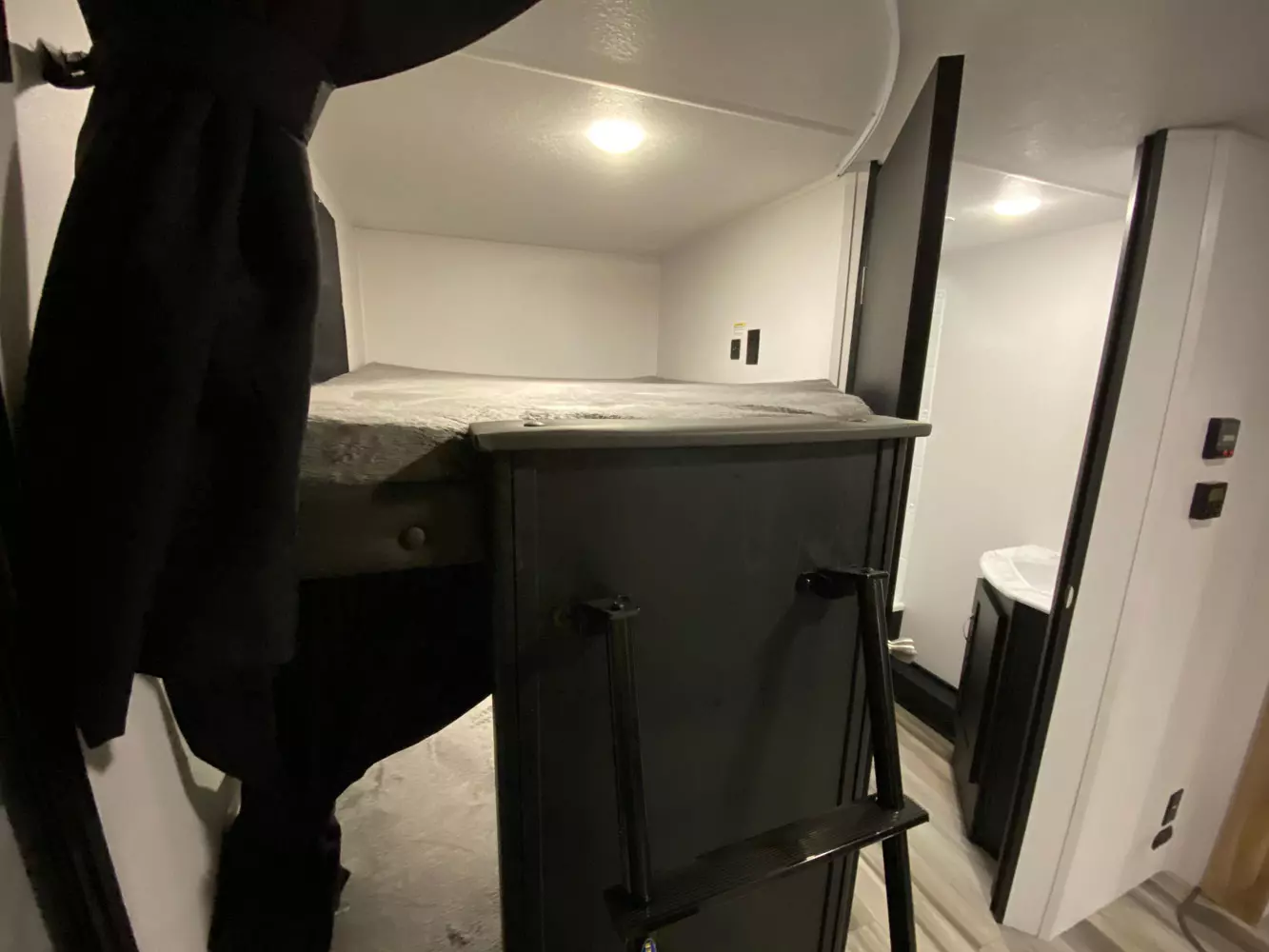

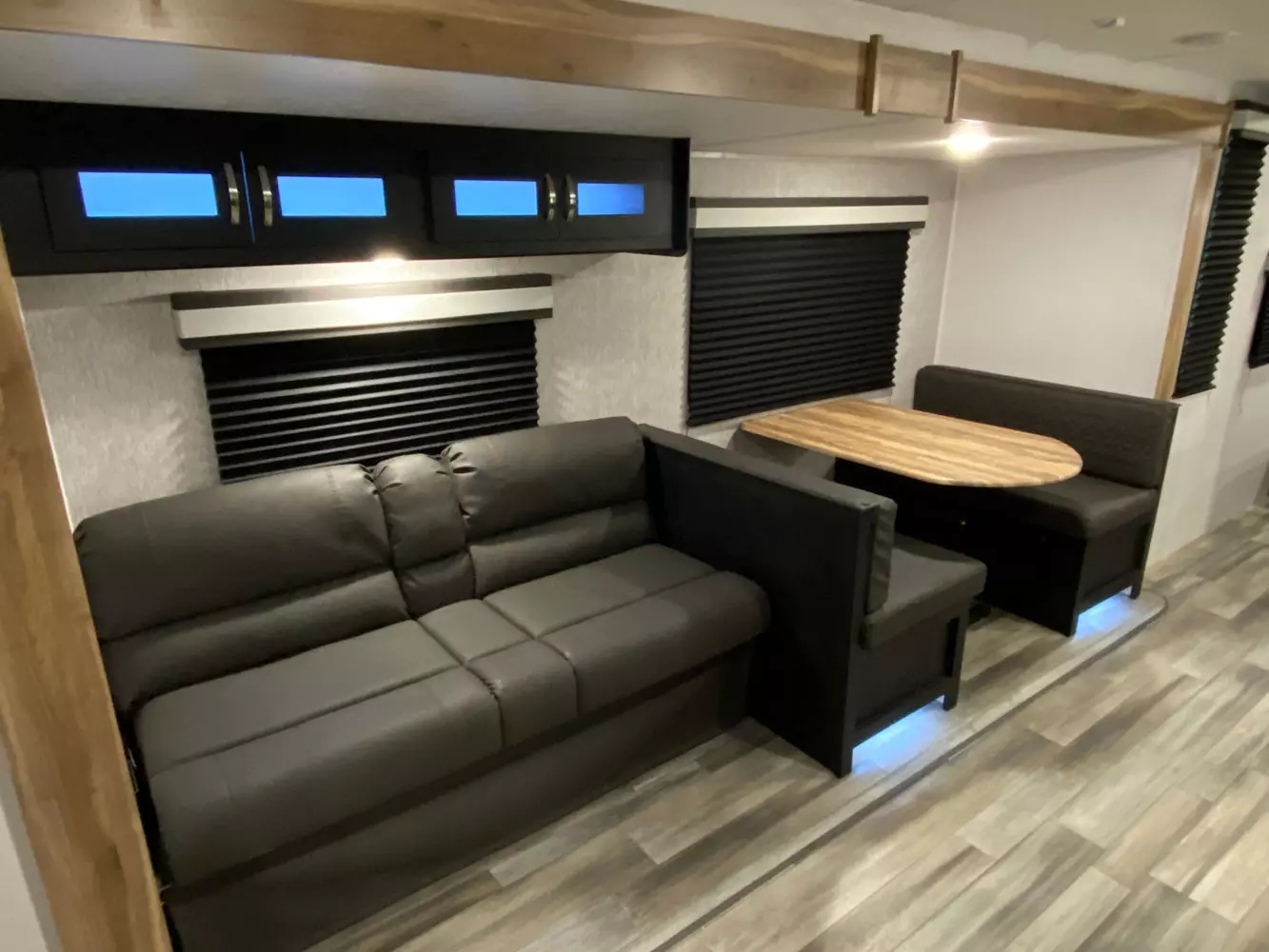

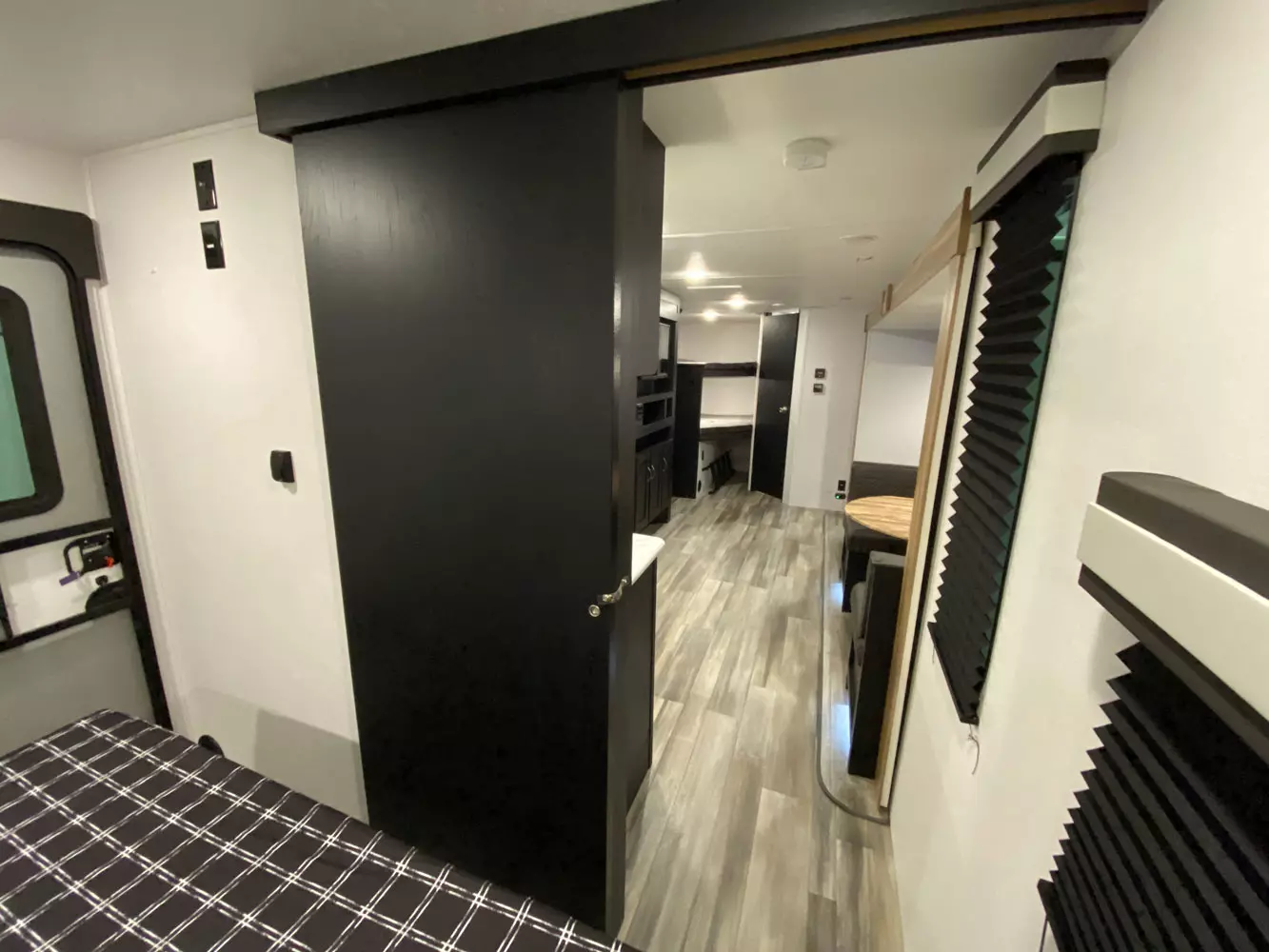

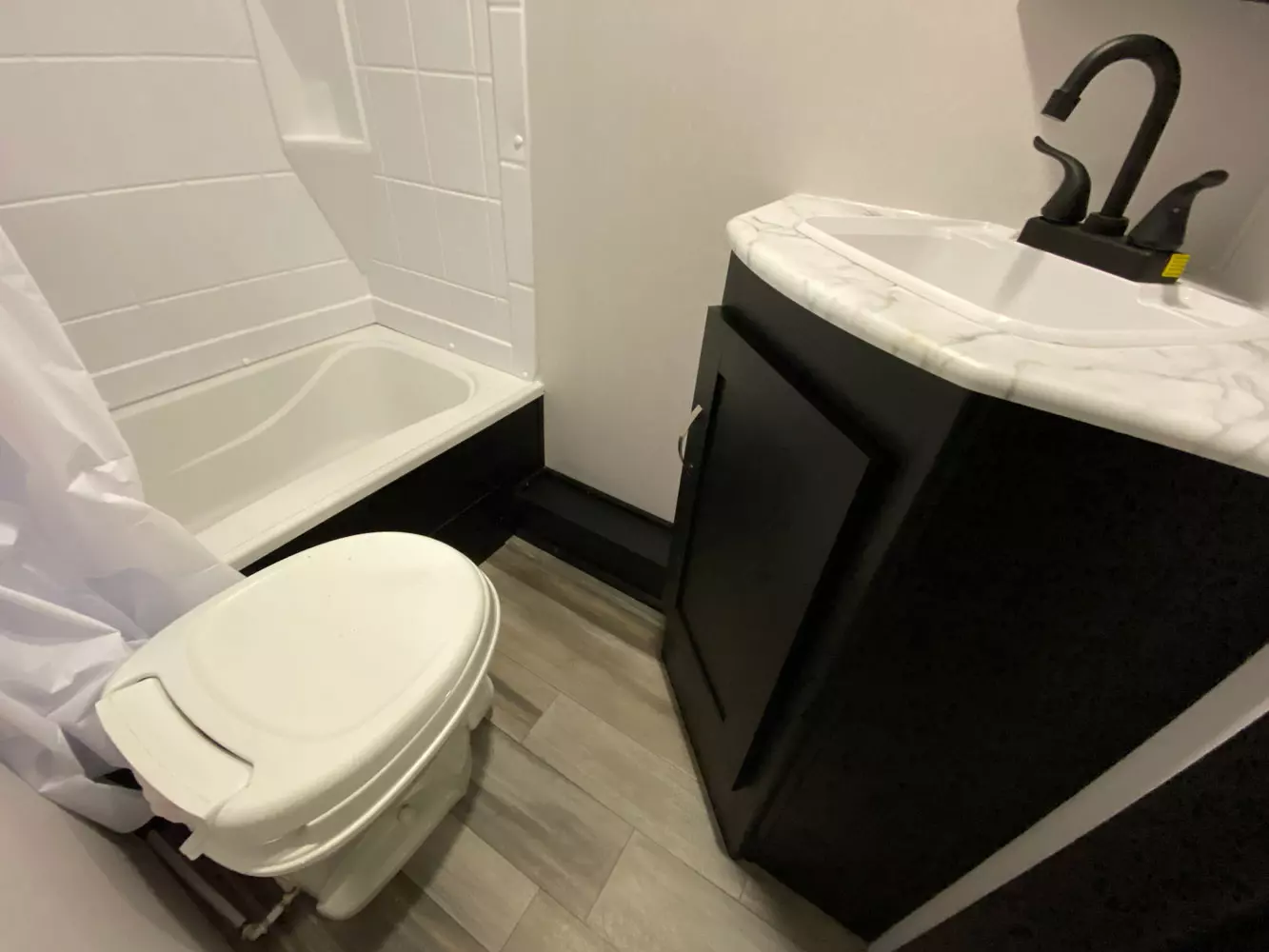

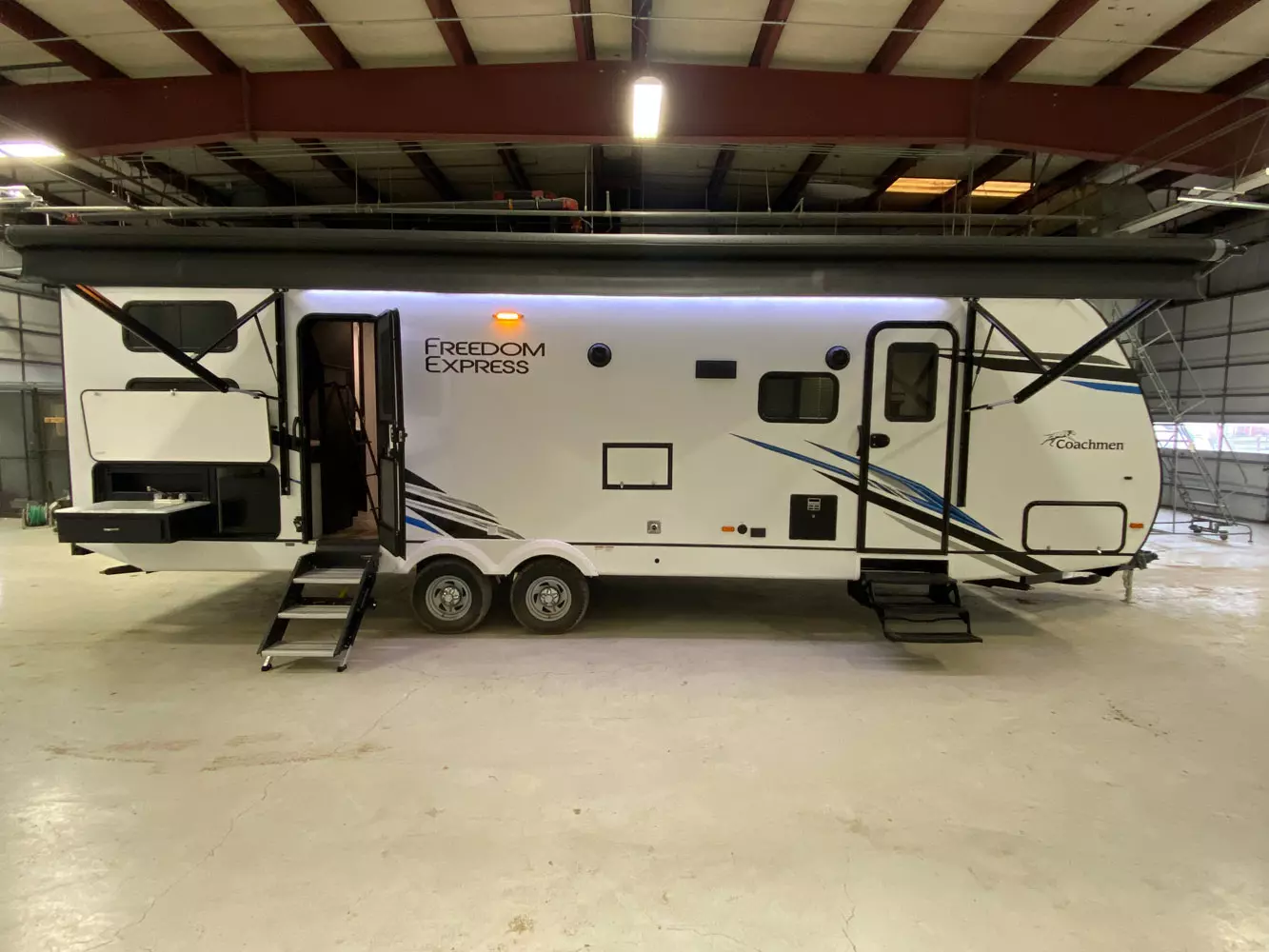

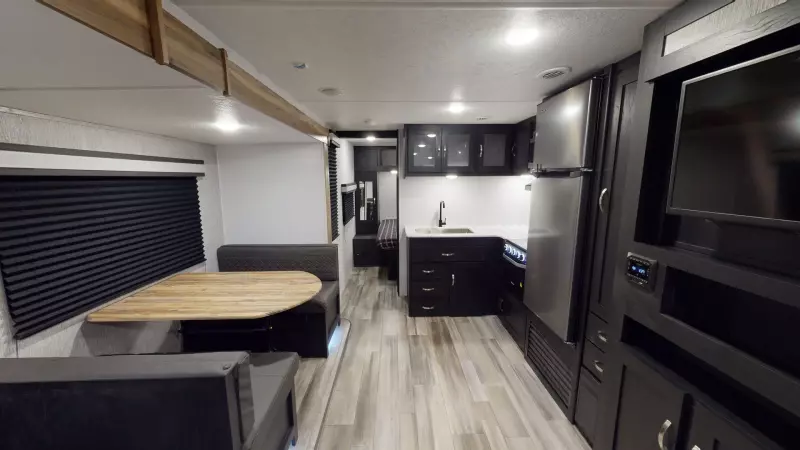

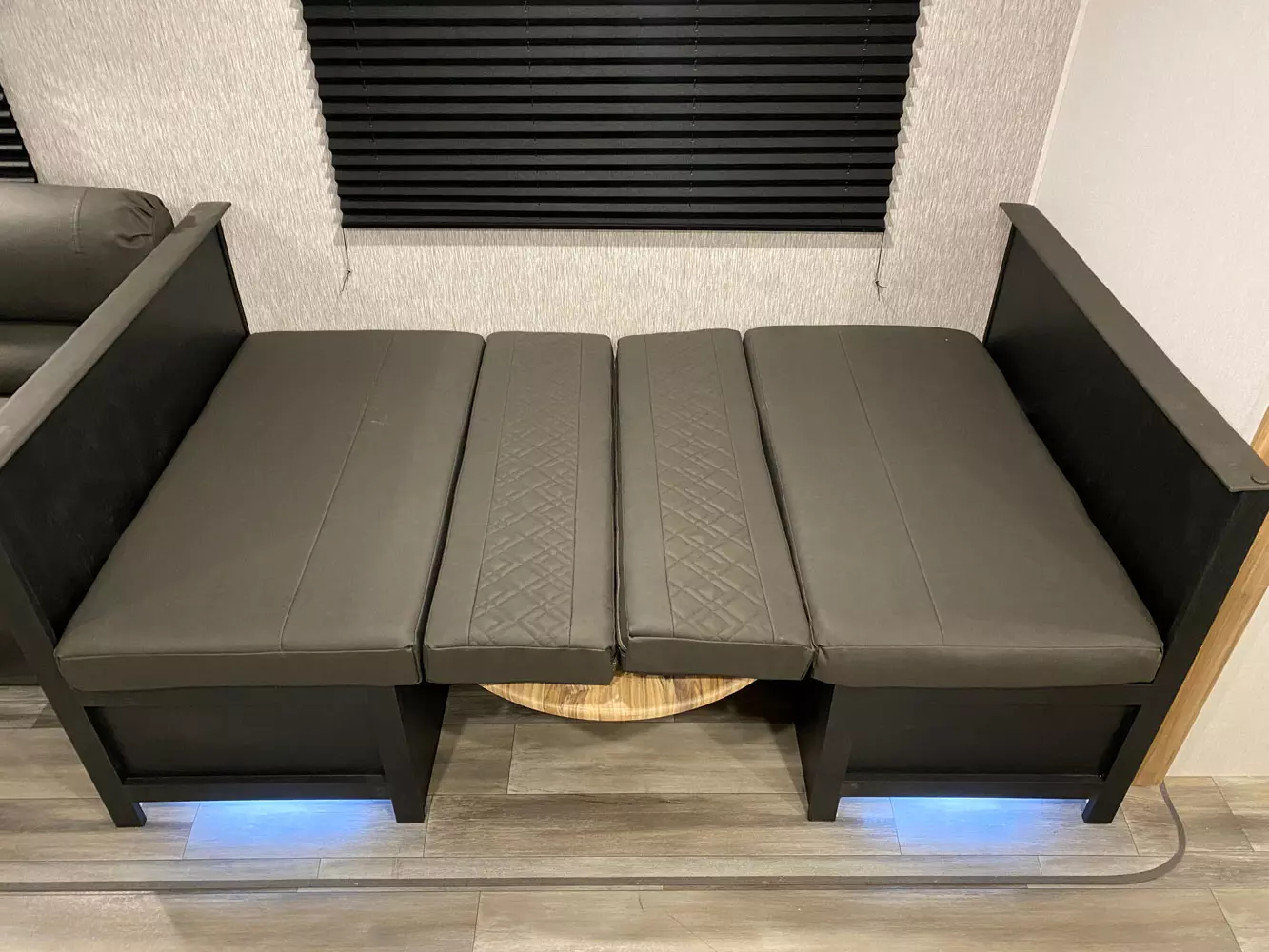

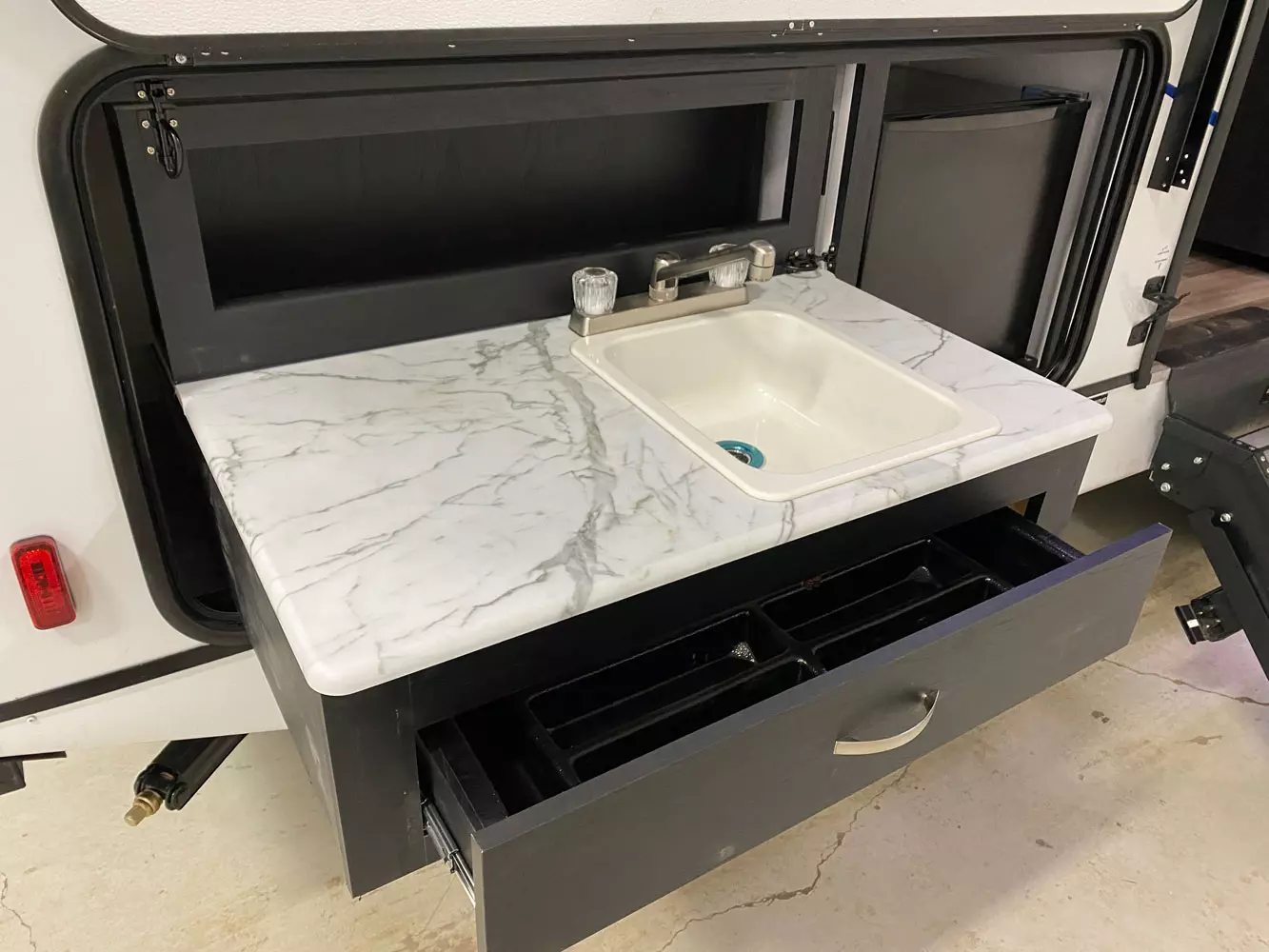

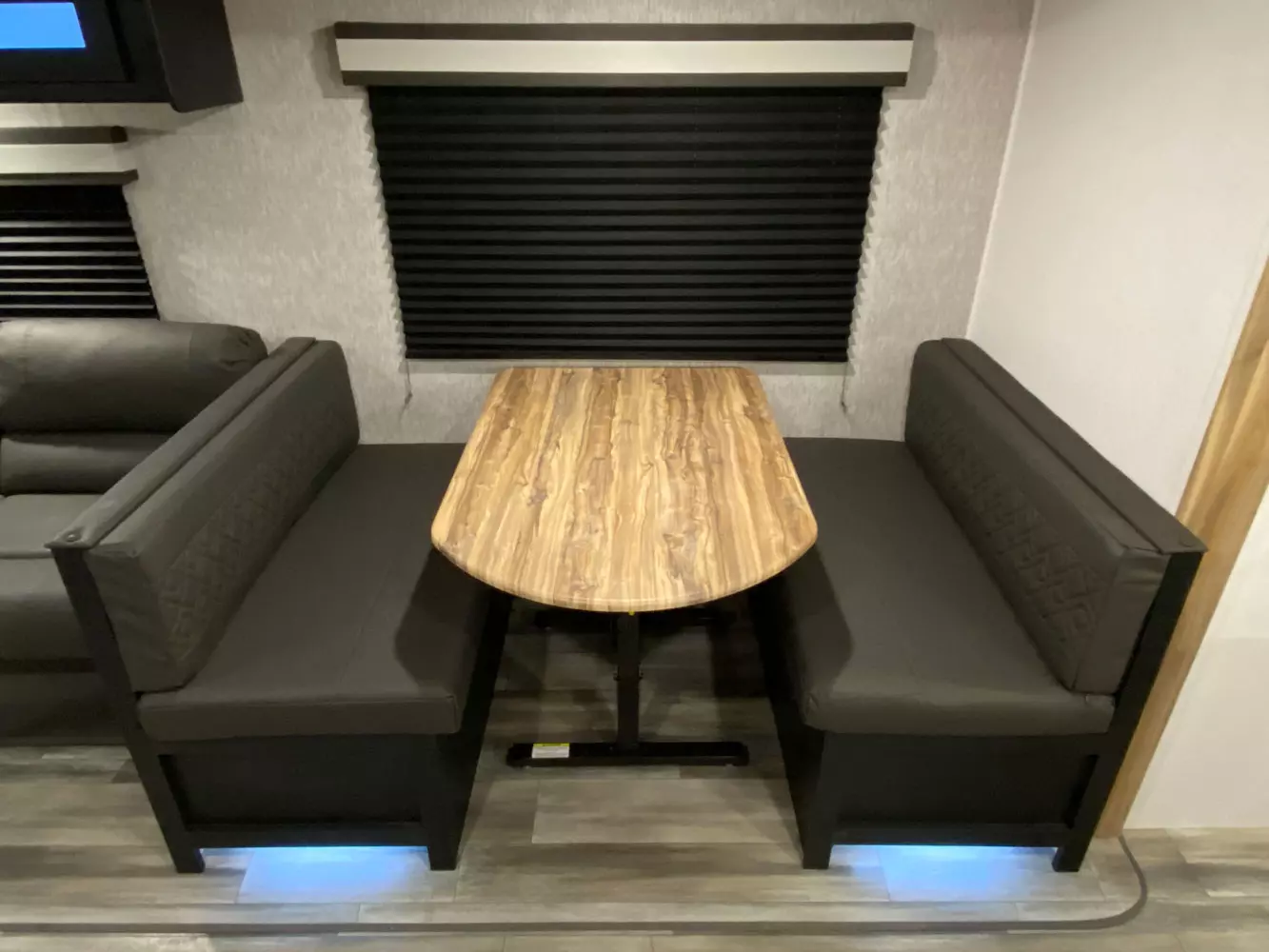

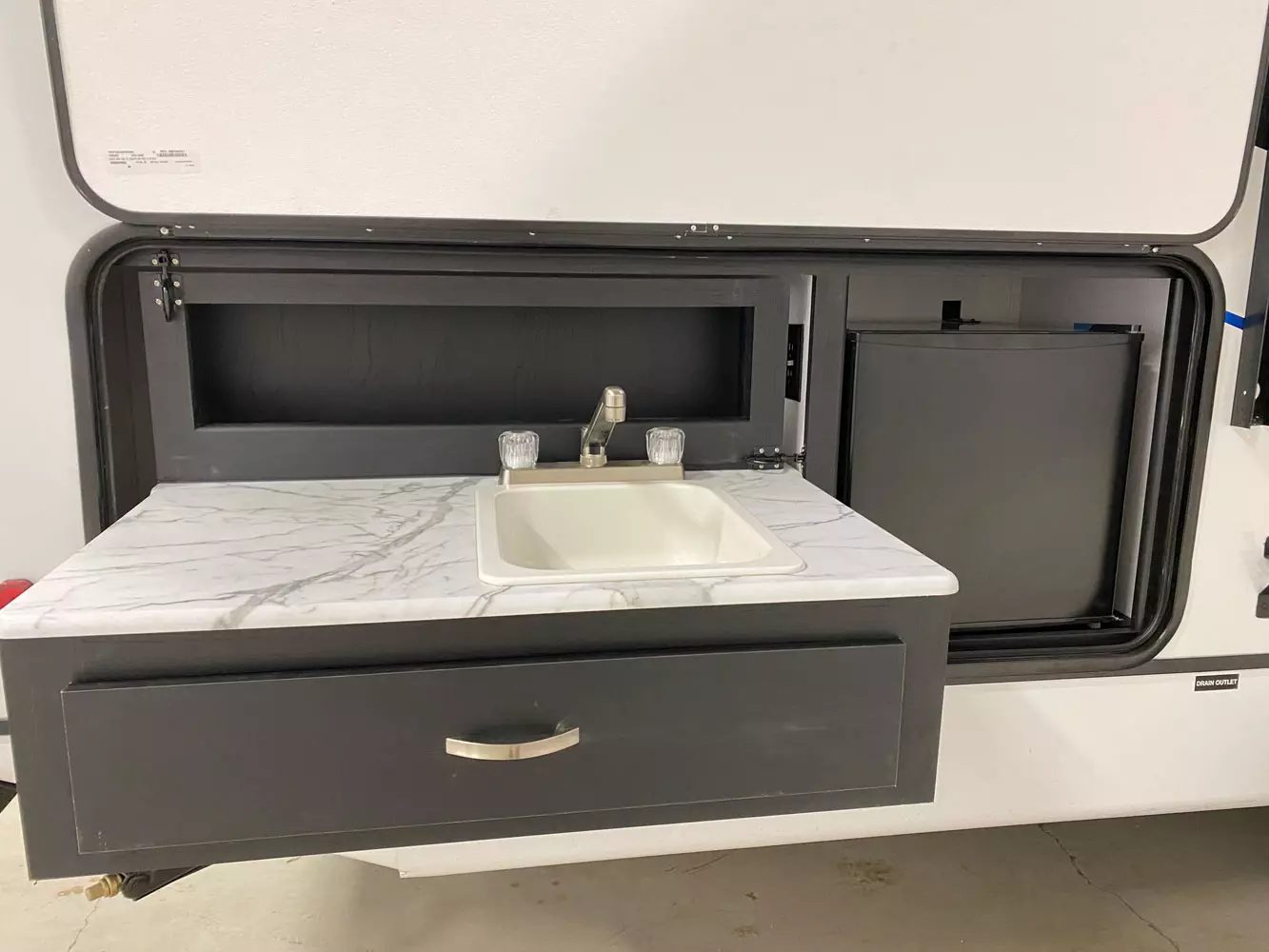

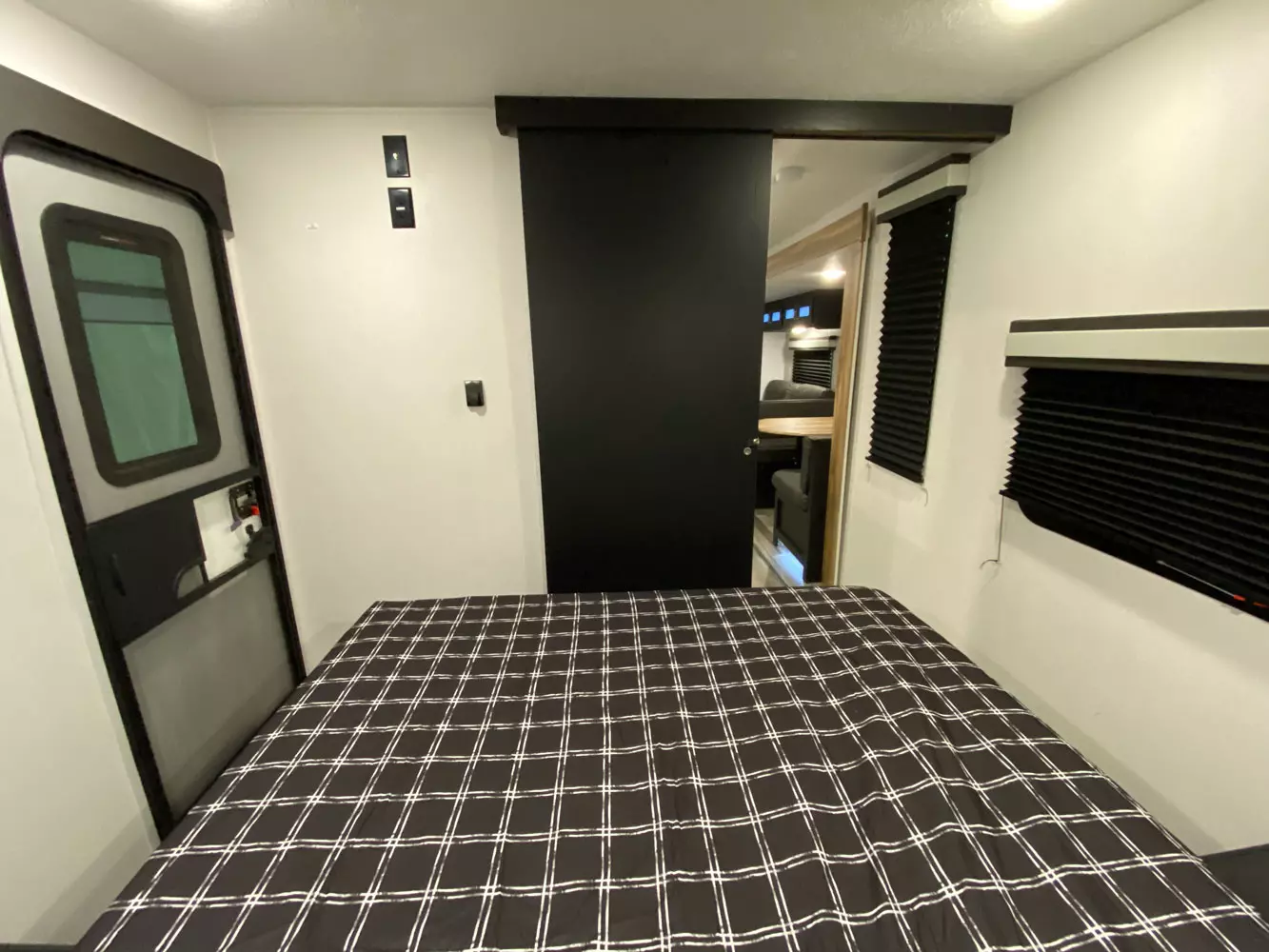

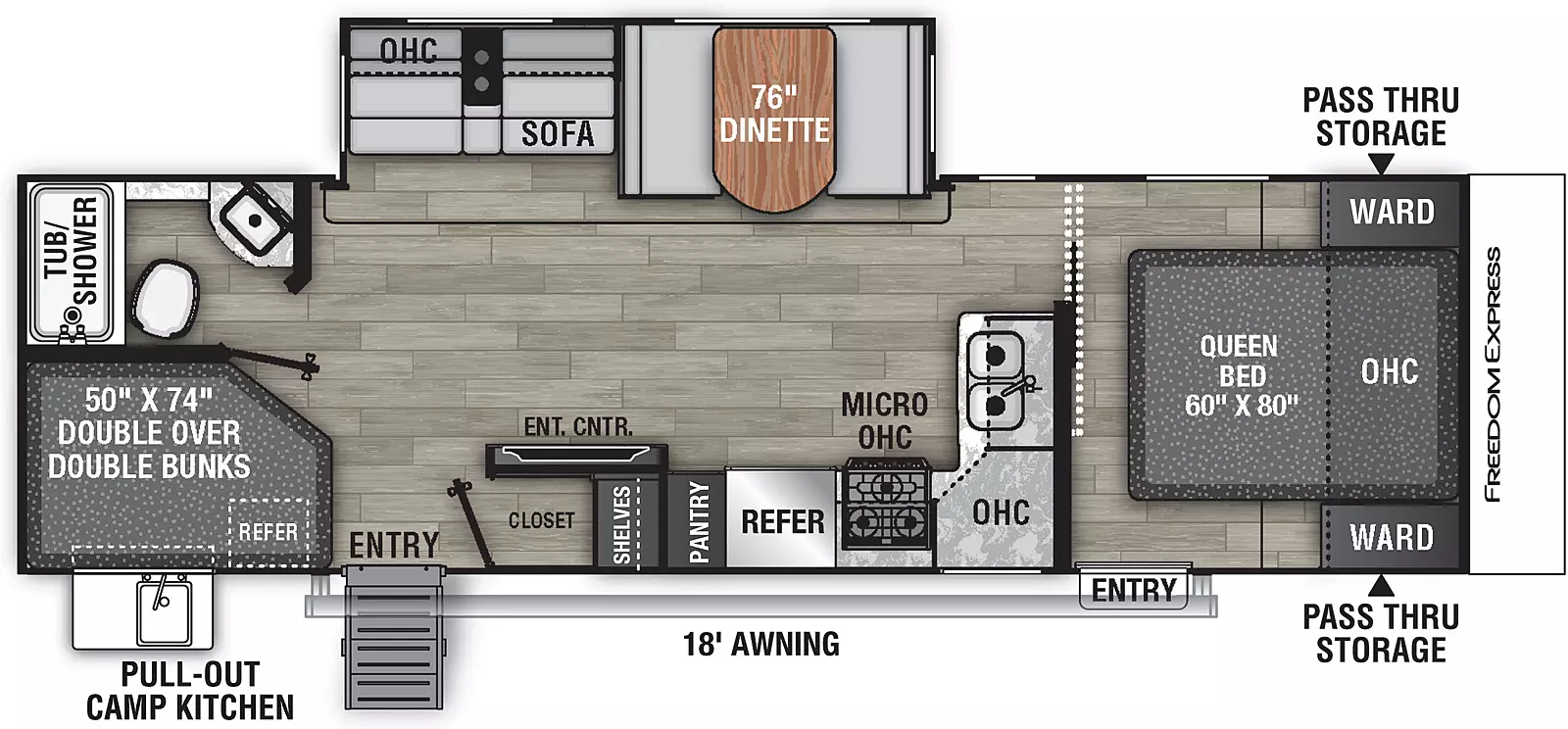

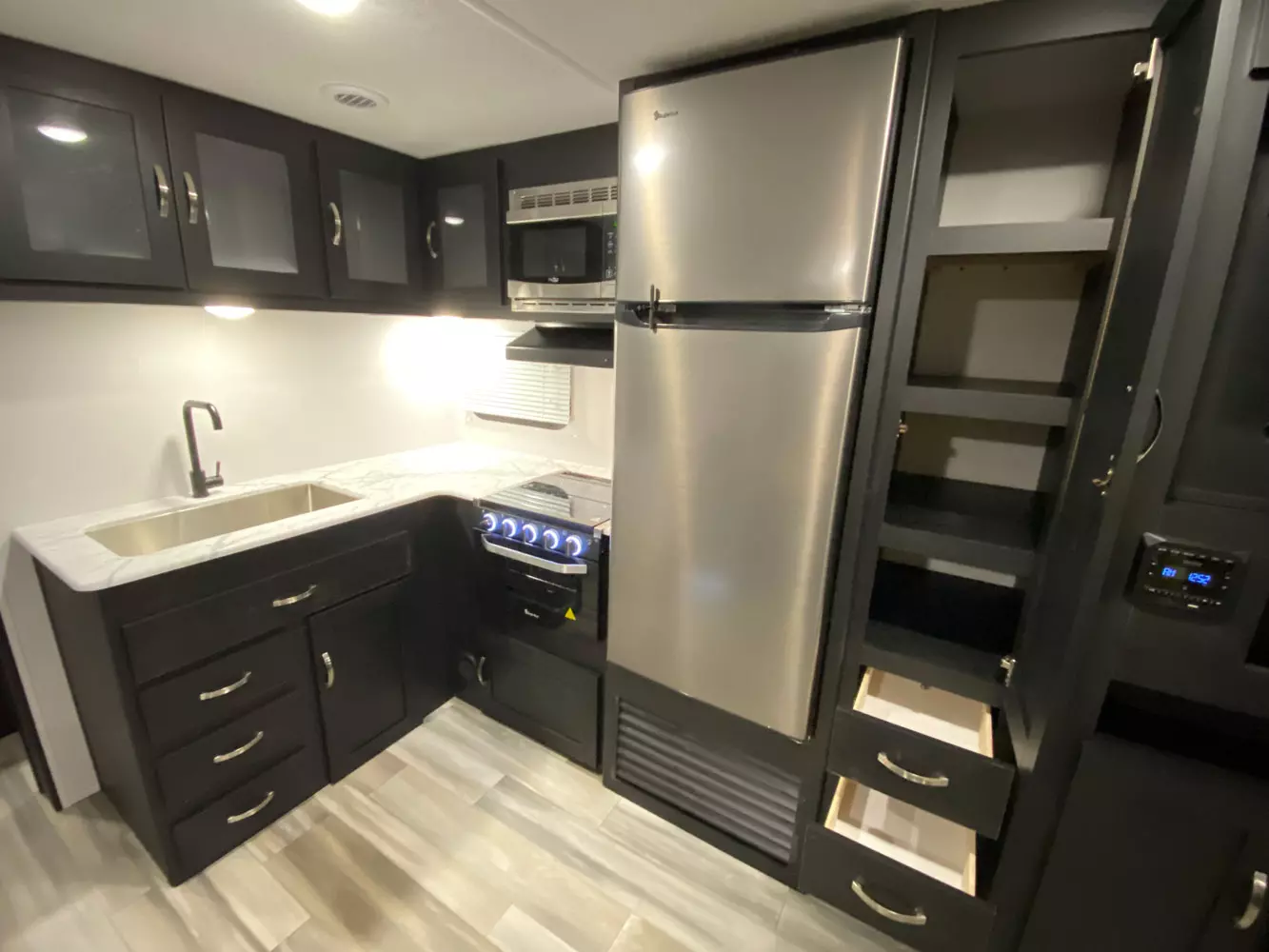

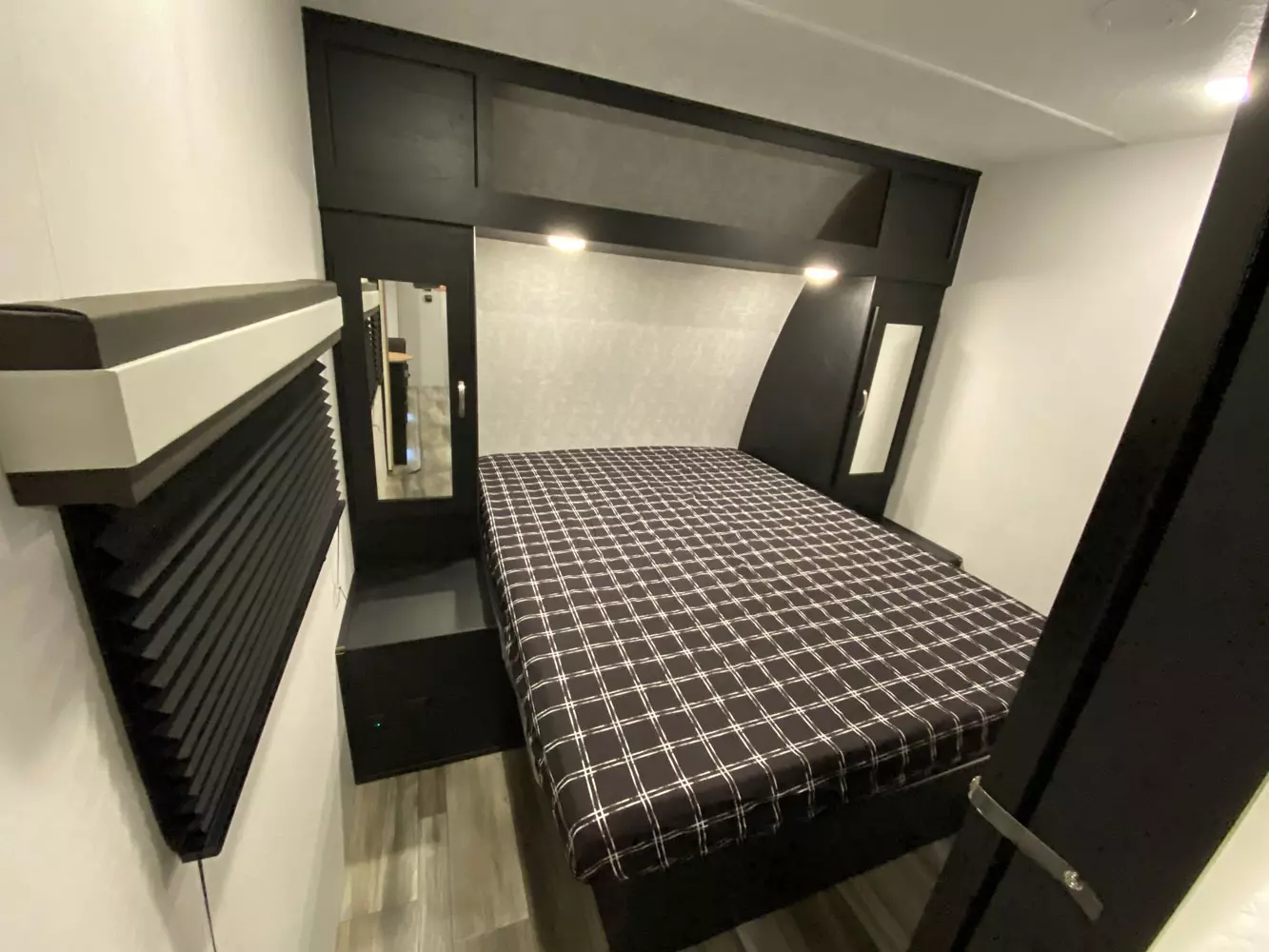

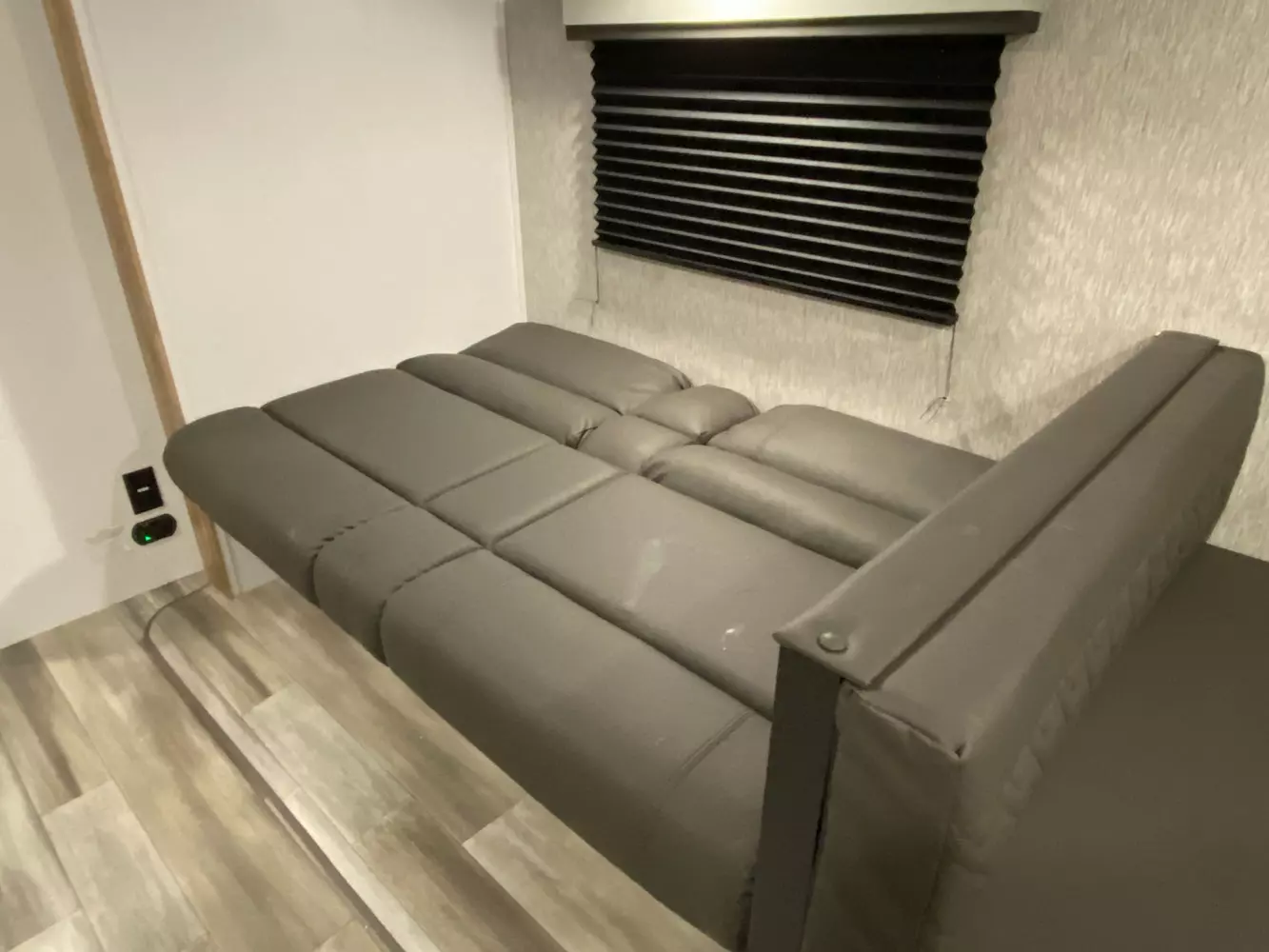

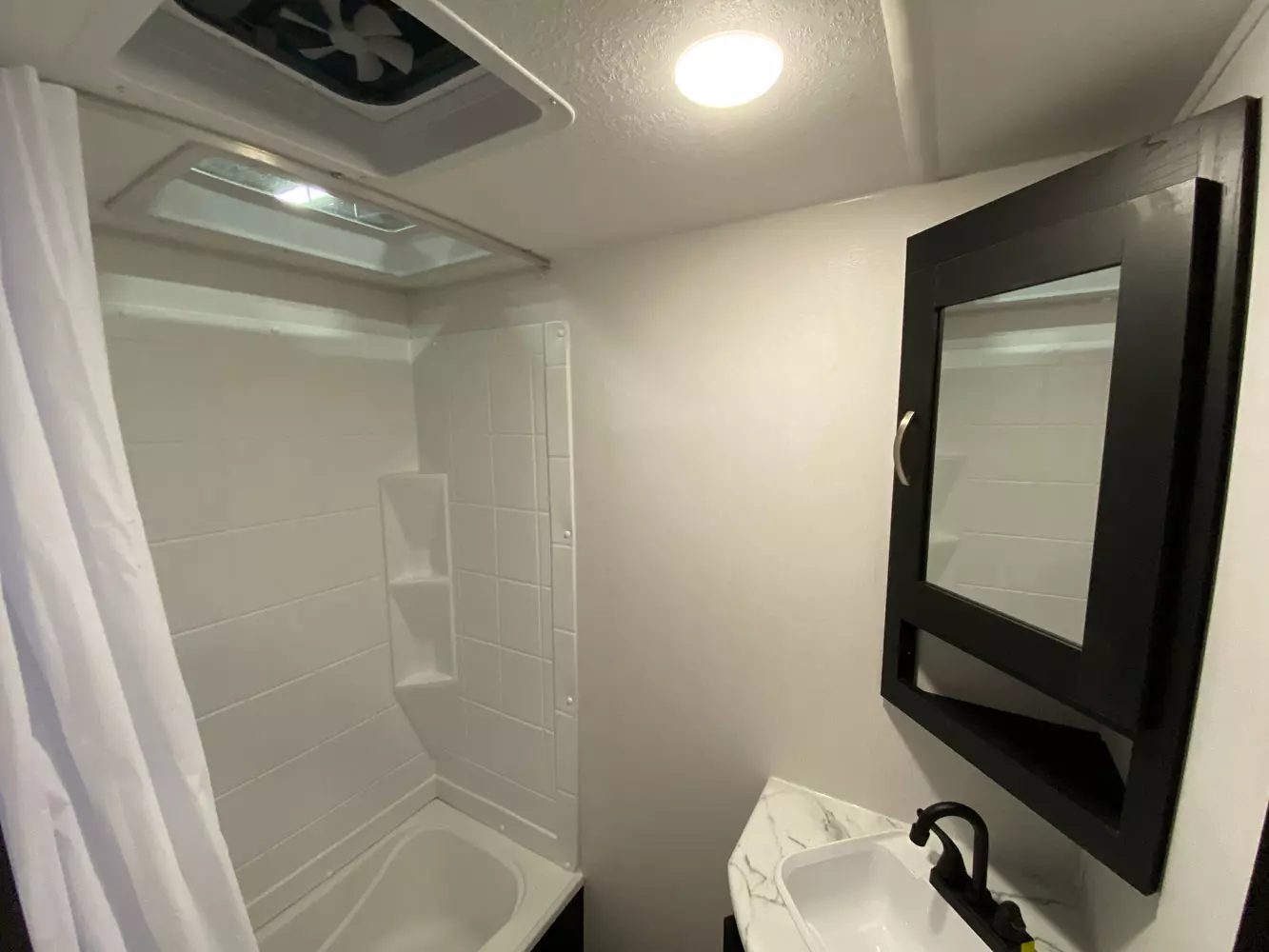

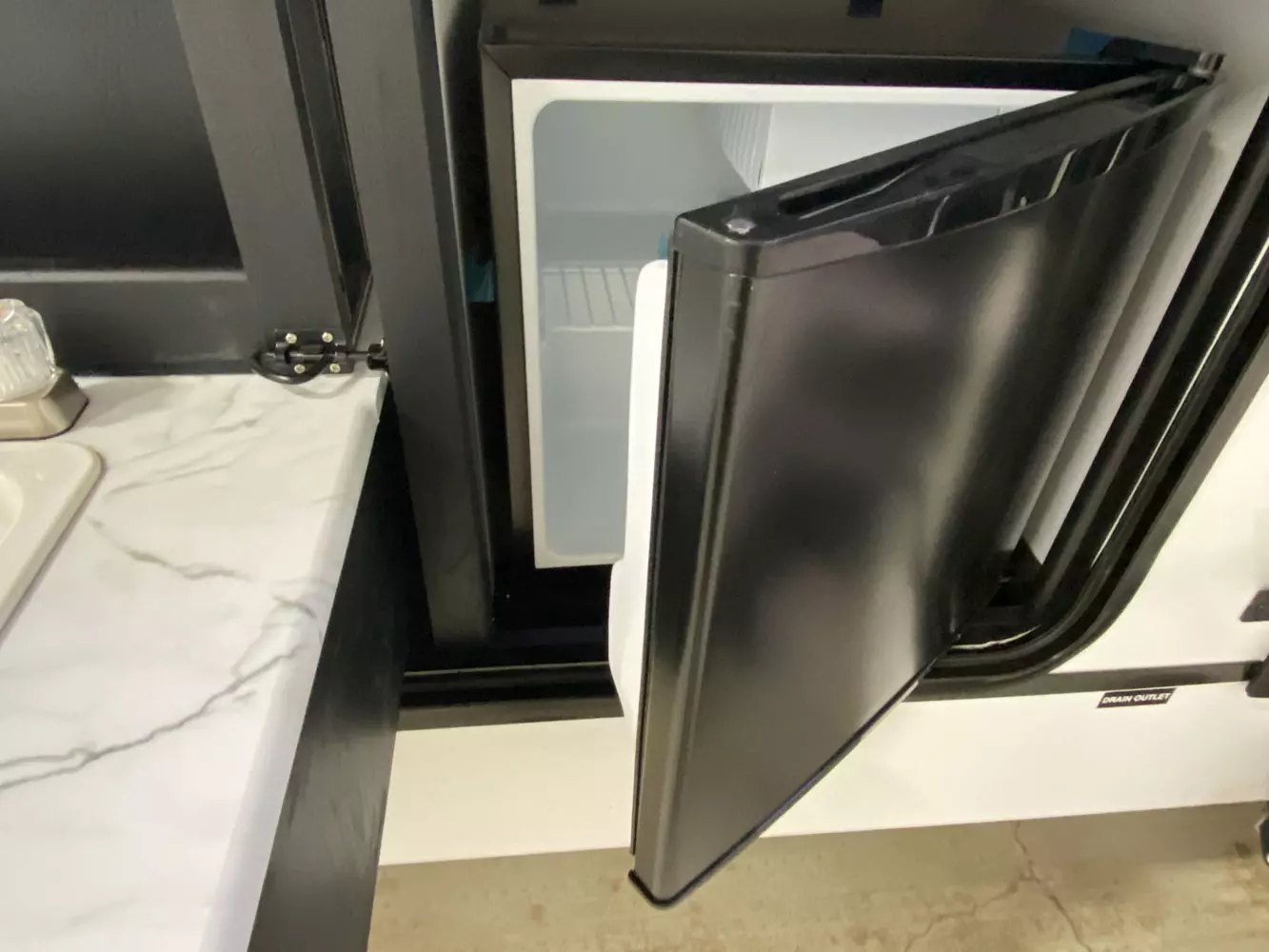

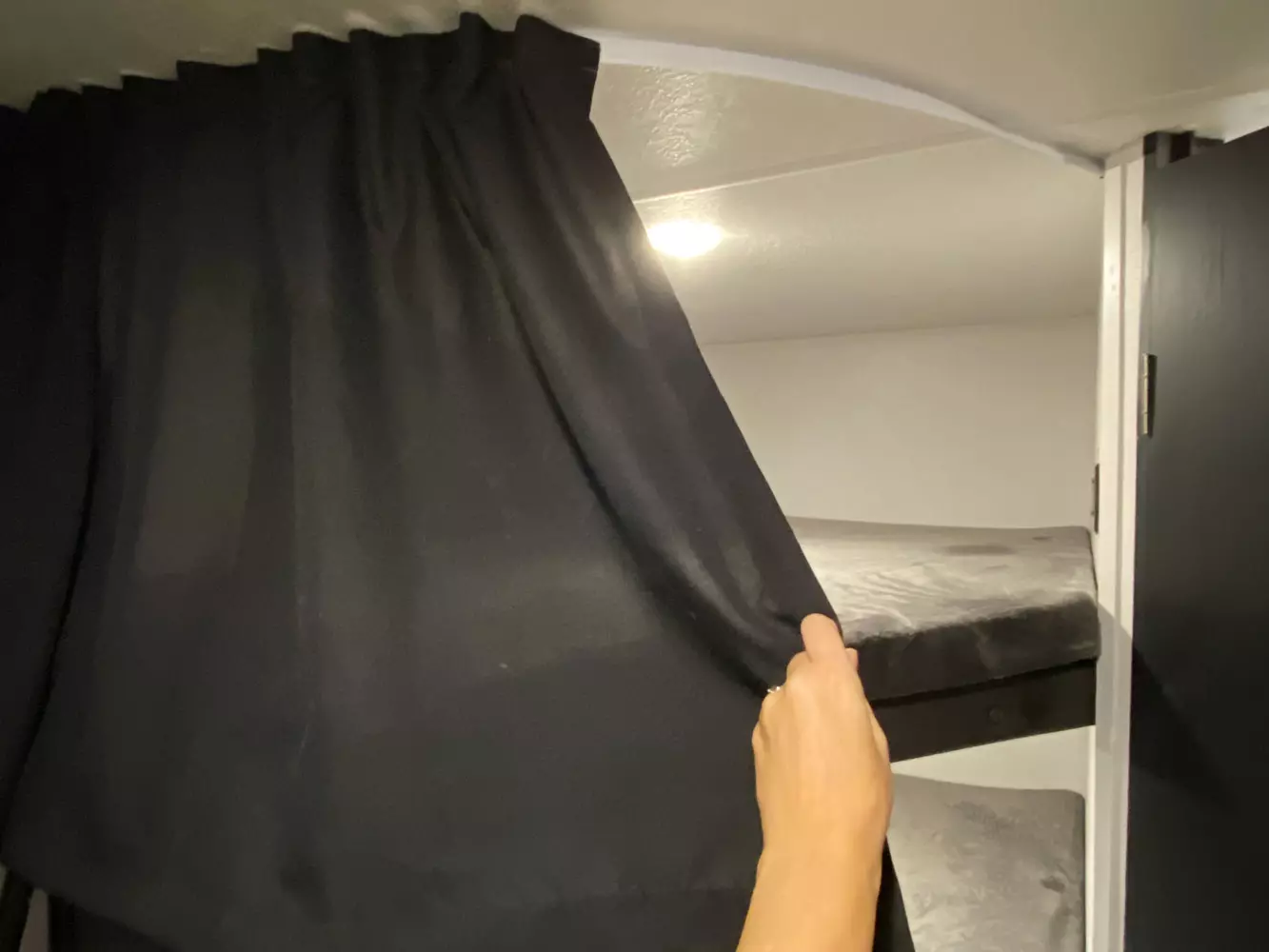

The 28.7SE has one slide out on the off-door side and two entry doors on the door side. Interior layout from front to back: front bedroom with foot facing queen bed with entry door to the bedroom, kitchen dining living area with slide out on the off-door side containing sofa and dinette. On the door side: double basin sink, stove top, microwave overhead, refrigerator, pantry and closet with the entertainment center. Rear off-door side bathroom and double over double bunks on the door side. Camp kitchen is located on the door side rear of the unit.
Enlarge

Specifications

Hitch Weight:
720 lb.
GVWR:
7,700 lb.
UVW
6,100 lb.
CCC
1,600 lb.
Exterior Length:
32' 10"
Exterior Height:
10' 11"
Exterior Width:
96"
Fresh Water:
50.00 gal.
Gray Water:
70.00 gal.
Black Water:
35.00 gal.
Awning Size:
18'



GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)*- is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Coachmen RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Coachmen RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.




Features & Options

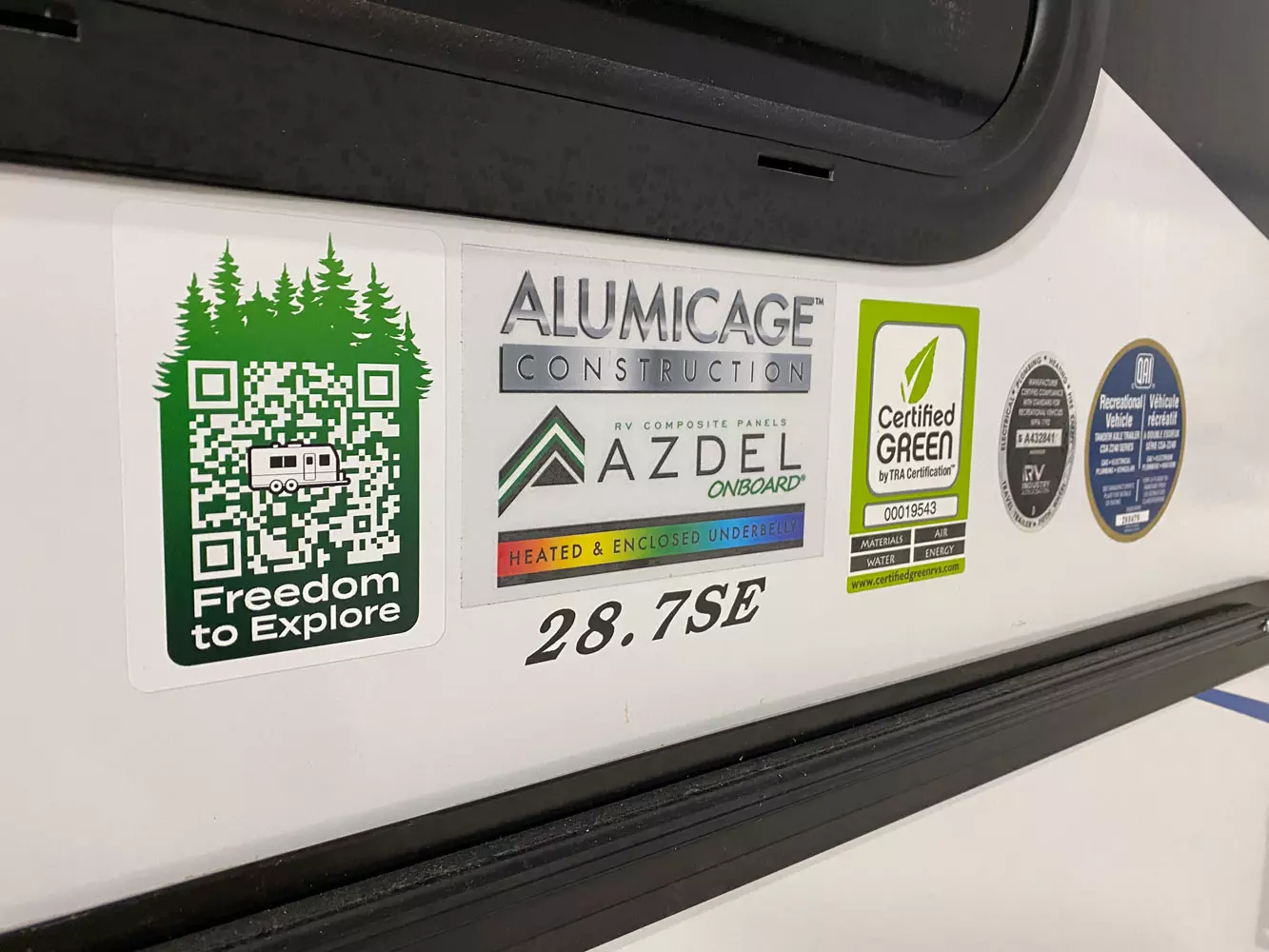

  • Alumicage Construction
  • Vacuum Bonded Walls w/ Azdel Composite
  • Radial Tires w/silver steel wheels

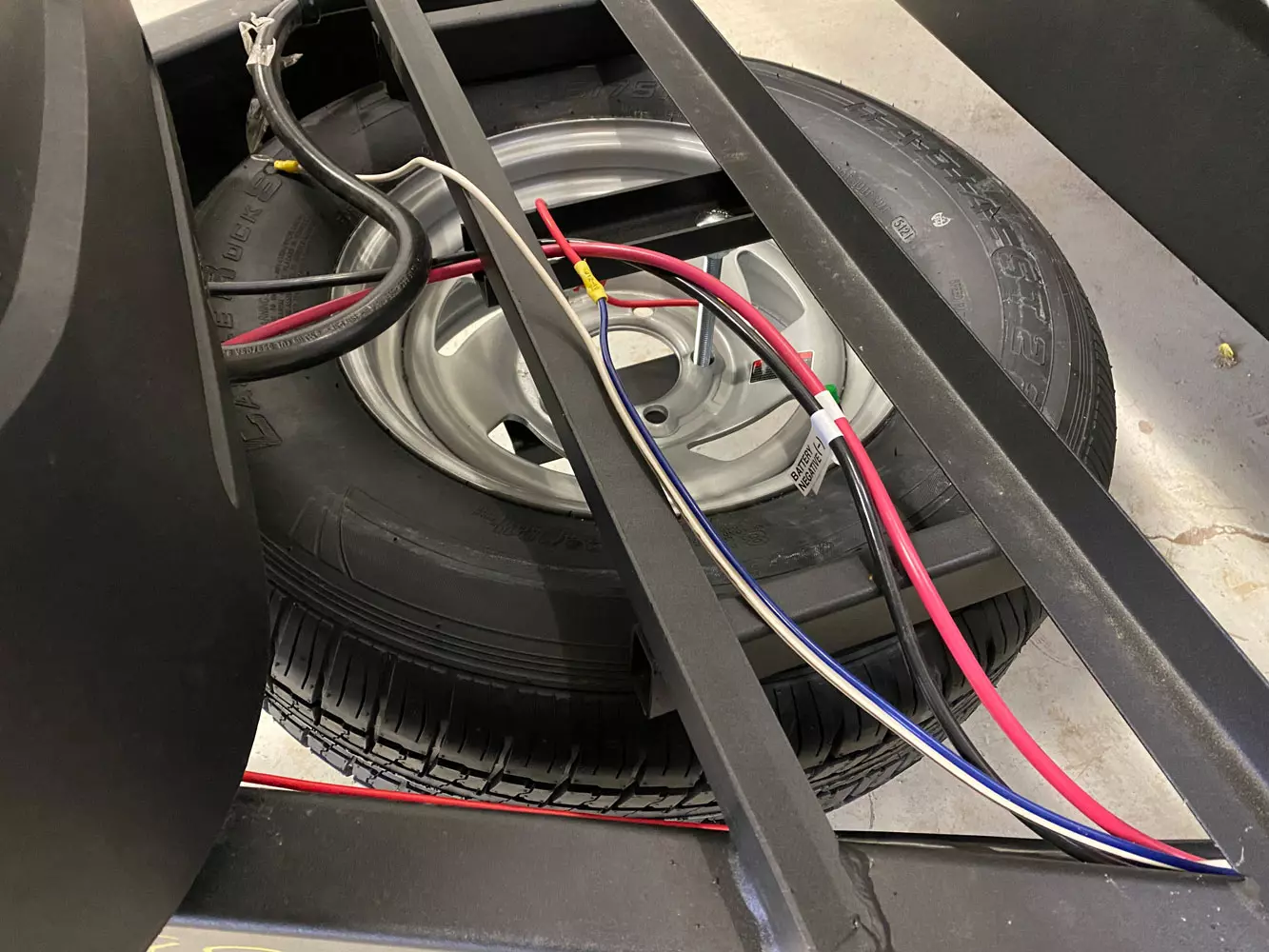

  • Spare Tire
  • Detachable Power Cord
  • Power Awning
  • Tinted Safety glass windows

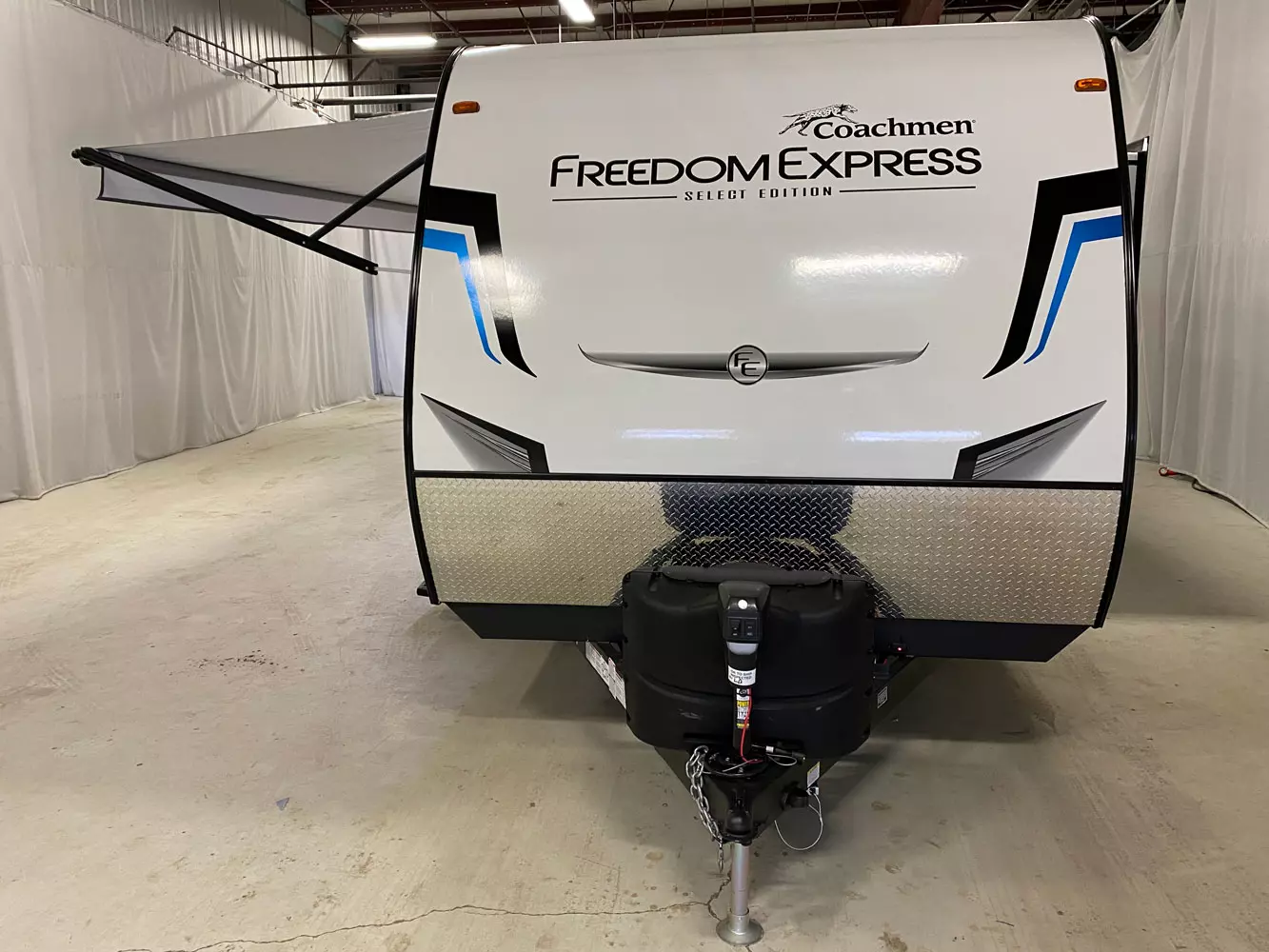

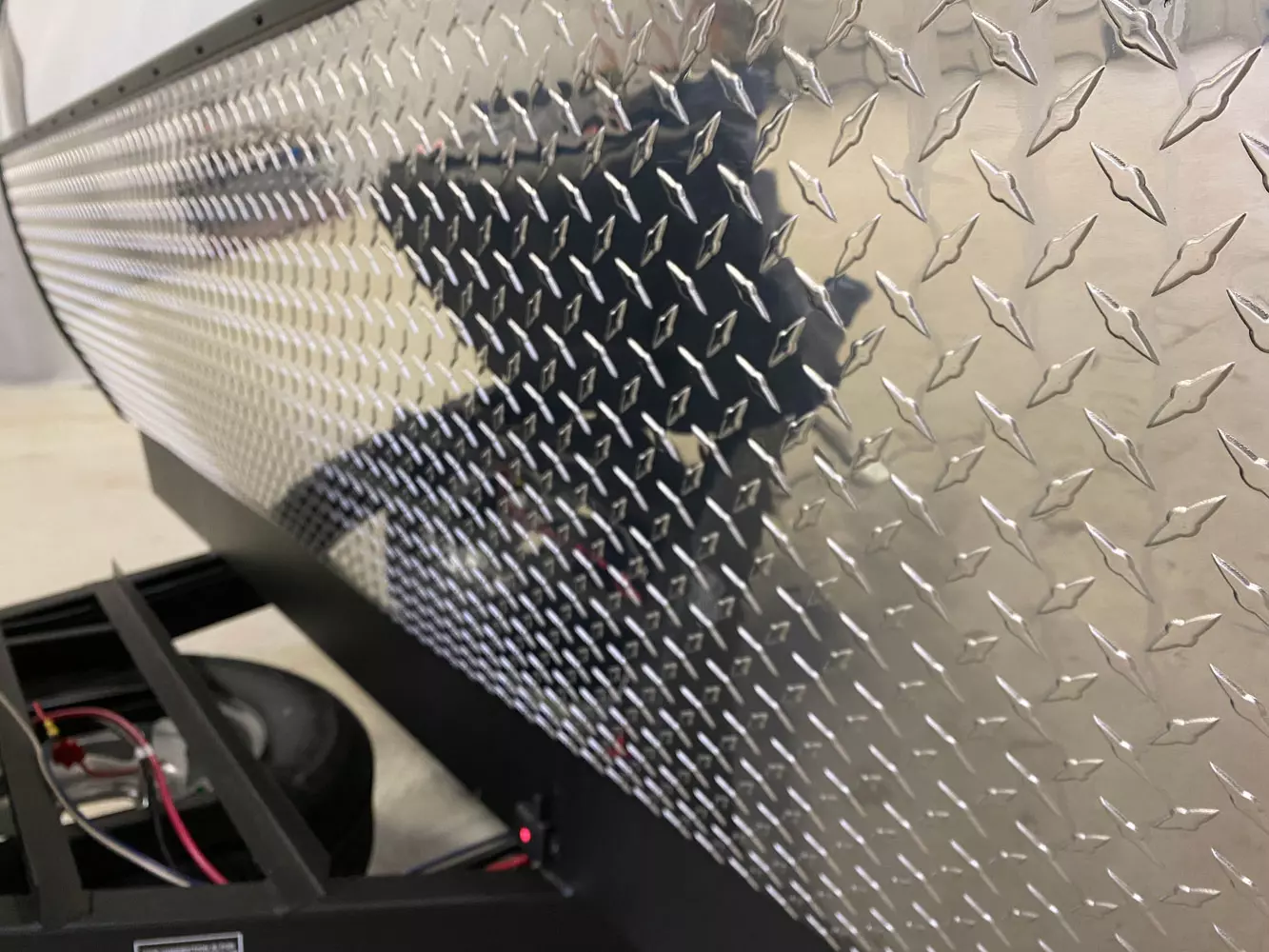

  • Front Diamond plate
  • E-Z Lube® Axles
  • Heated/enclosed Underbelly
  • Tufflex PVC Roofing
  • Winterize Ready Kit
  • Ducted Furnace and Air Conditioner (N/A 17BLSE, 20SE)
  • AIR 360+ Amplified Omnidirectional VHF/UHF, FM and WiFi Antenna with optional 4G LTE Gateway Add-On
  • Freedom Solar Ready

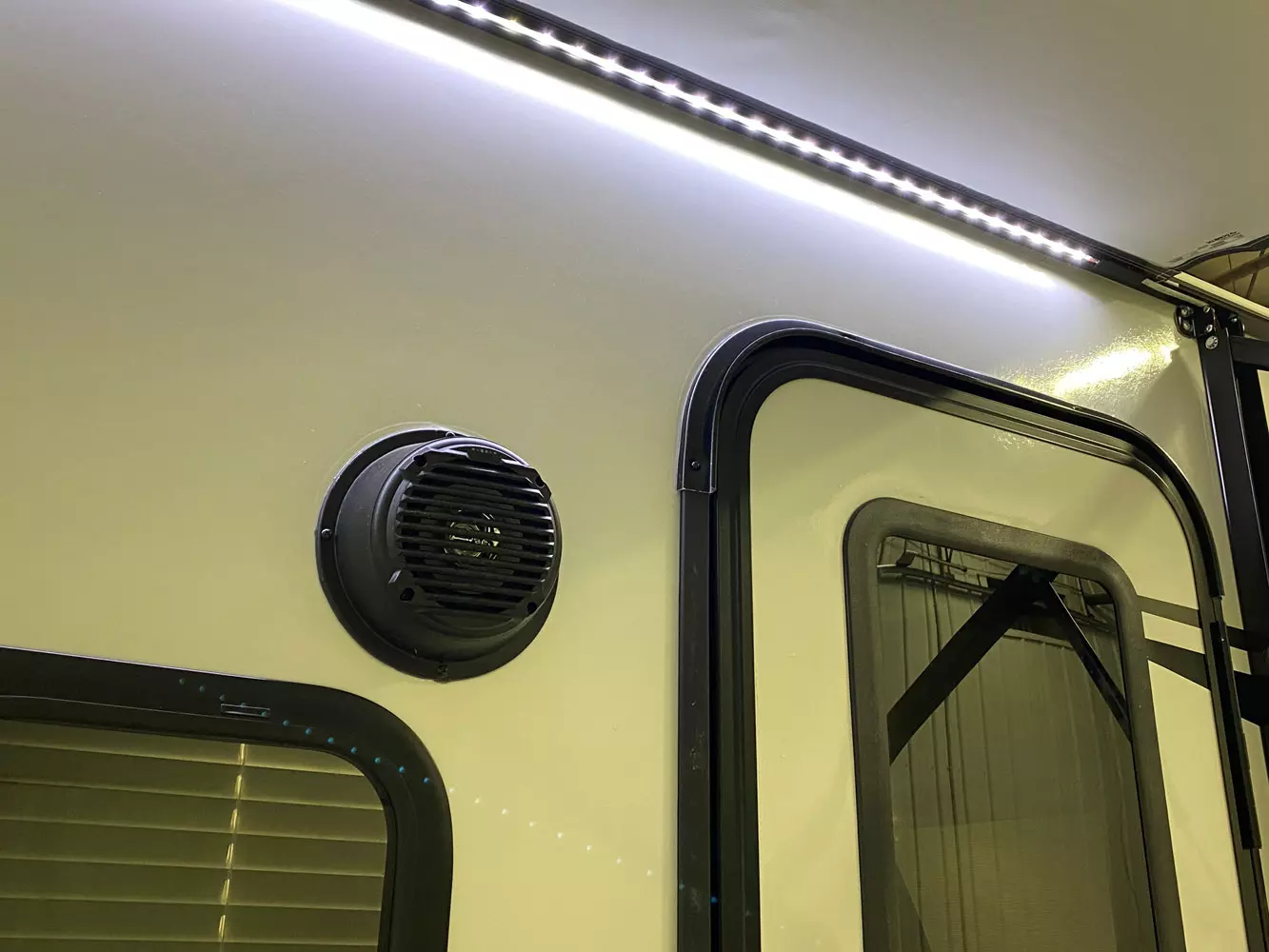

  • Two Interior/Two Exterior Speakers

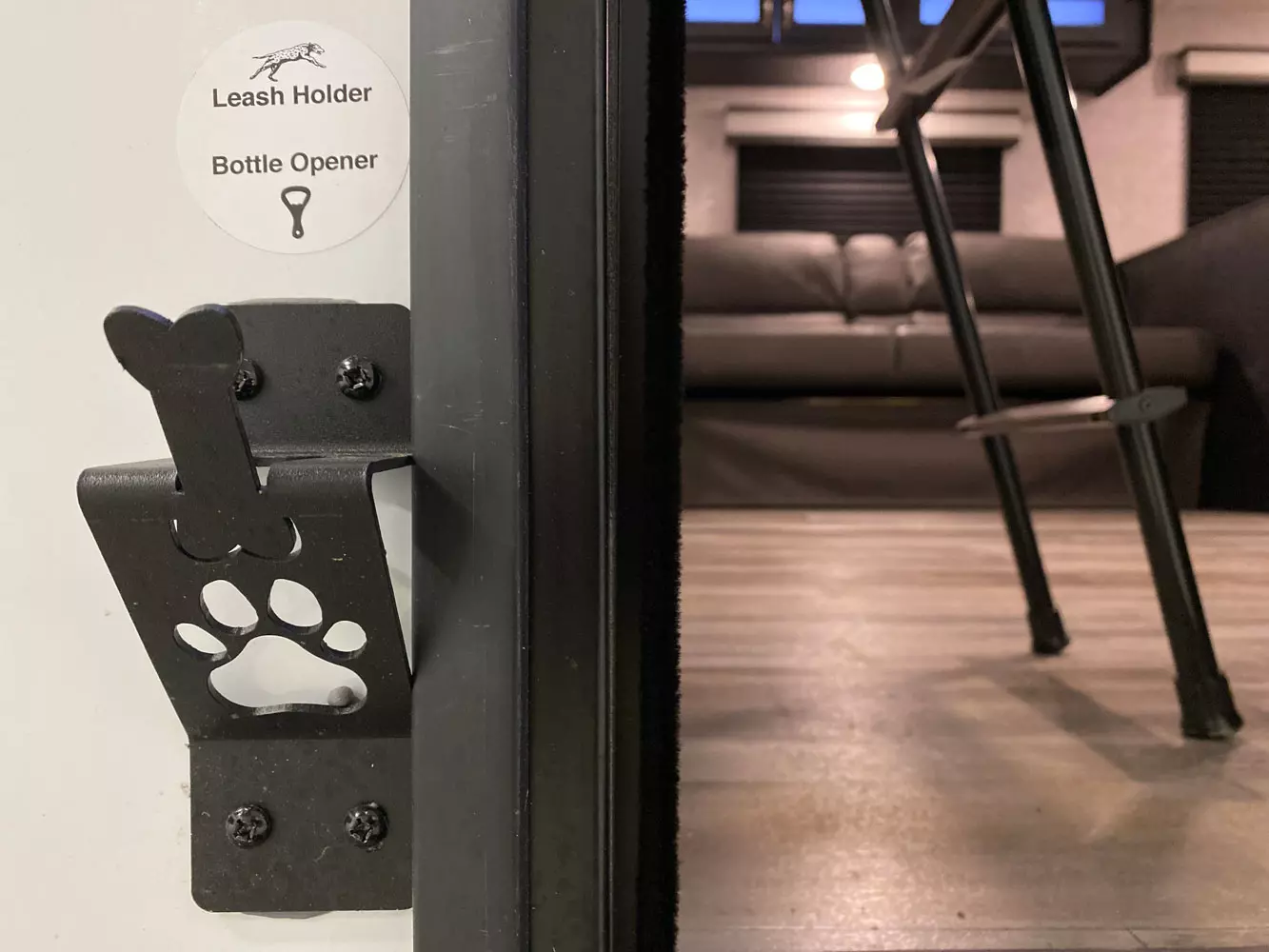

  • Pet Leash & Bottle Opener
  • 81" Interior Ceiling
  • AM/FM/HDMI/USB/Bluetooth Stereo
  • Two Interior Speakers
  • 6 Gallon DSI Gas/Electric Water Heater
  • LED Interior Lighting
  • Night Shades
  • Congoleum Diamond Flooring

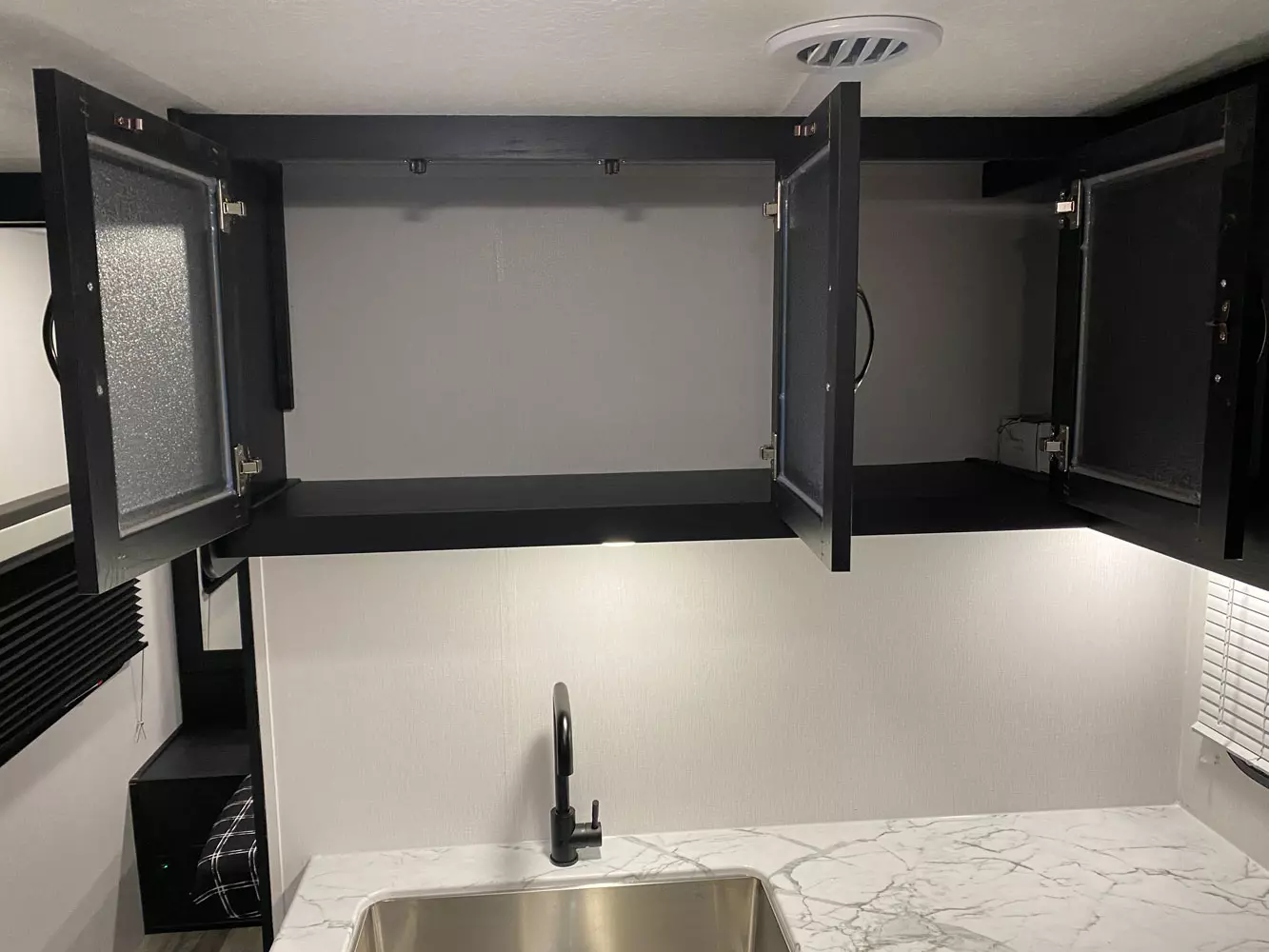

  • Hidden Hinge Cabinetry

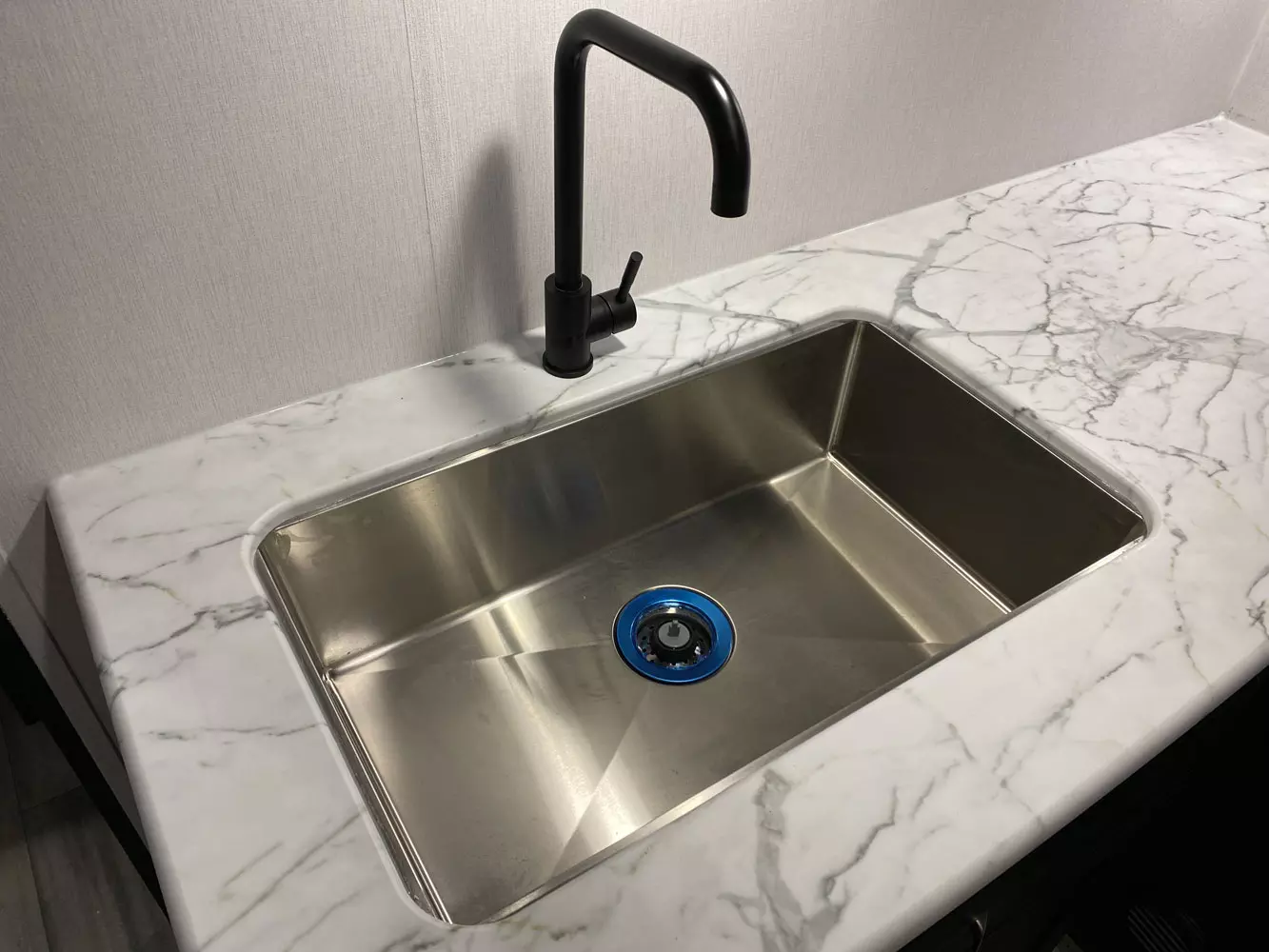

  • Dual Basin American Stonecast Sink

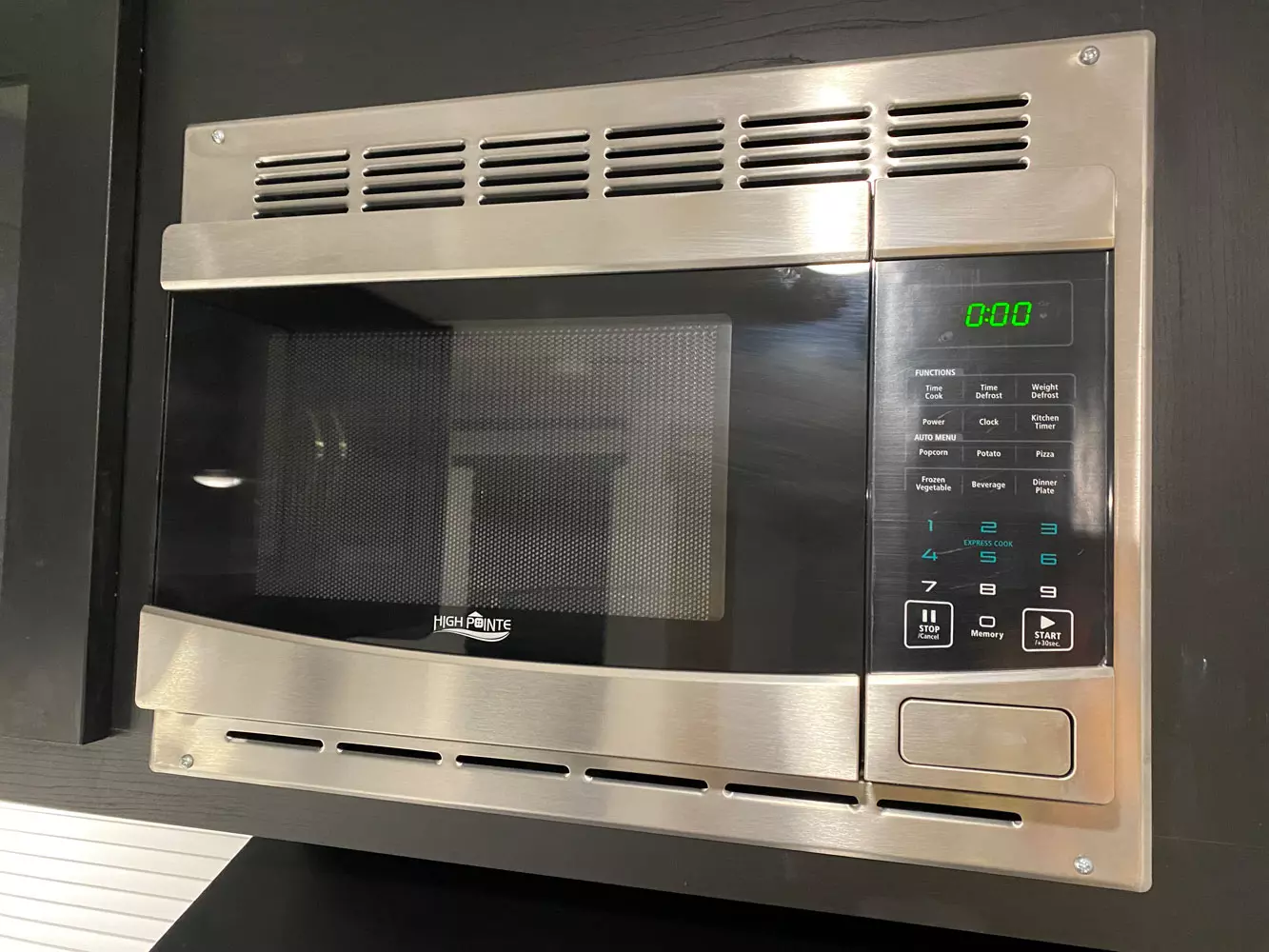

  • Microwave

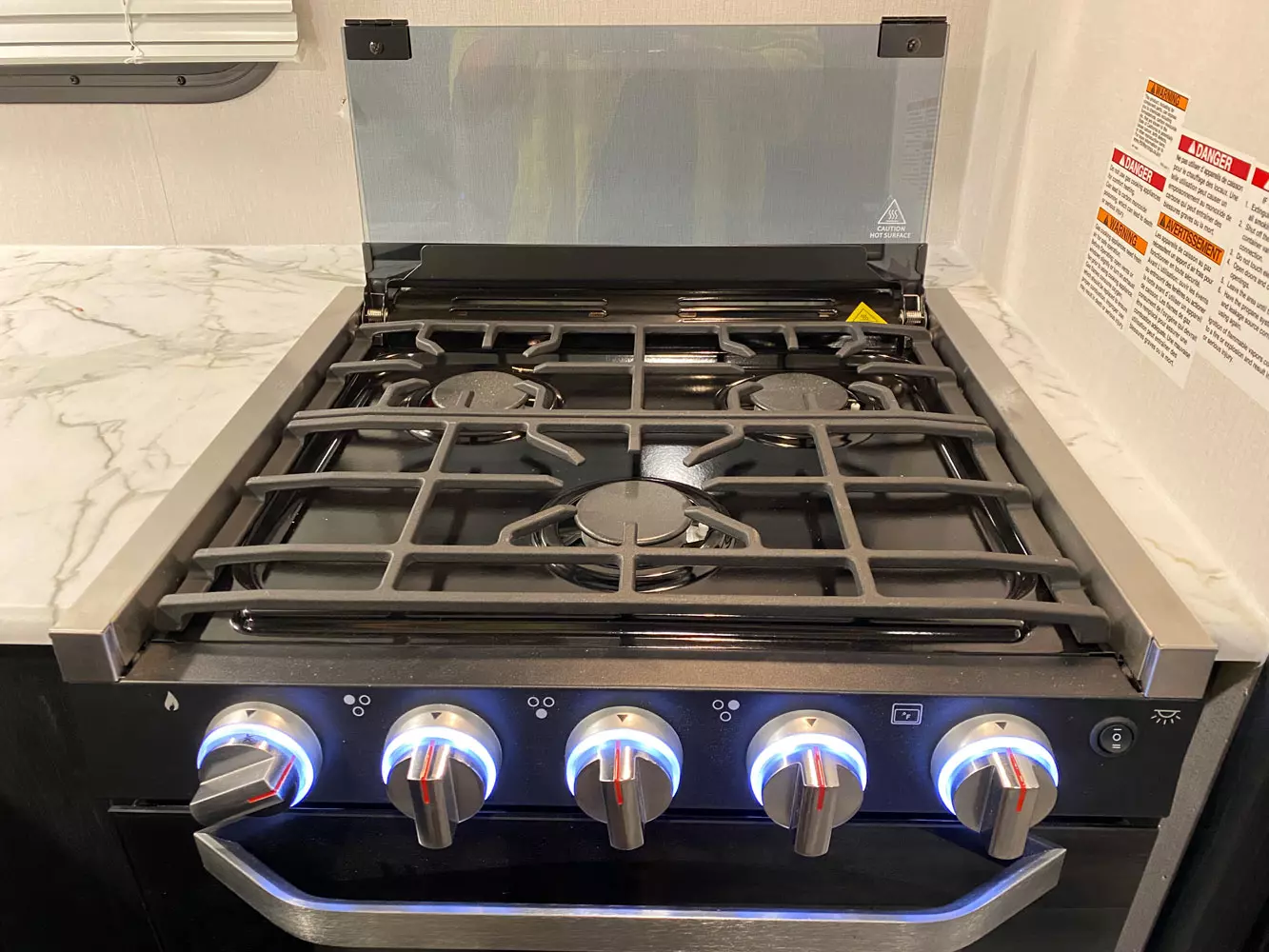

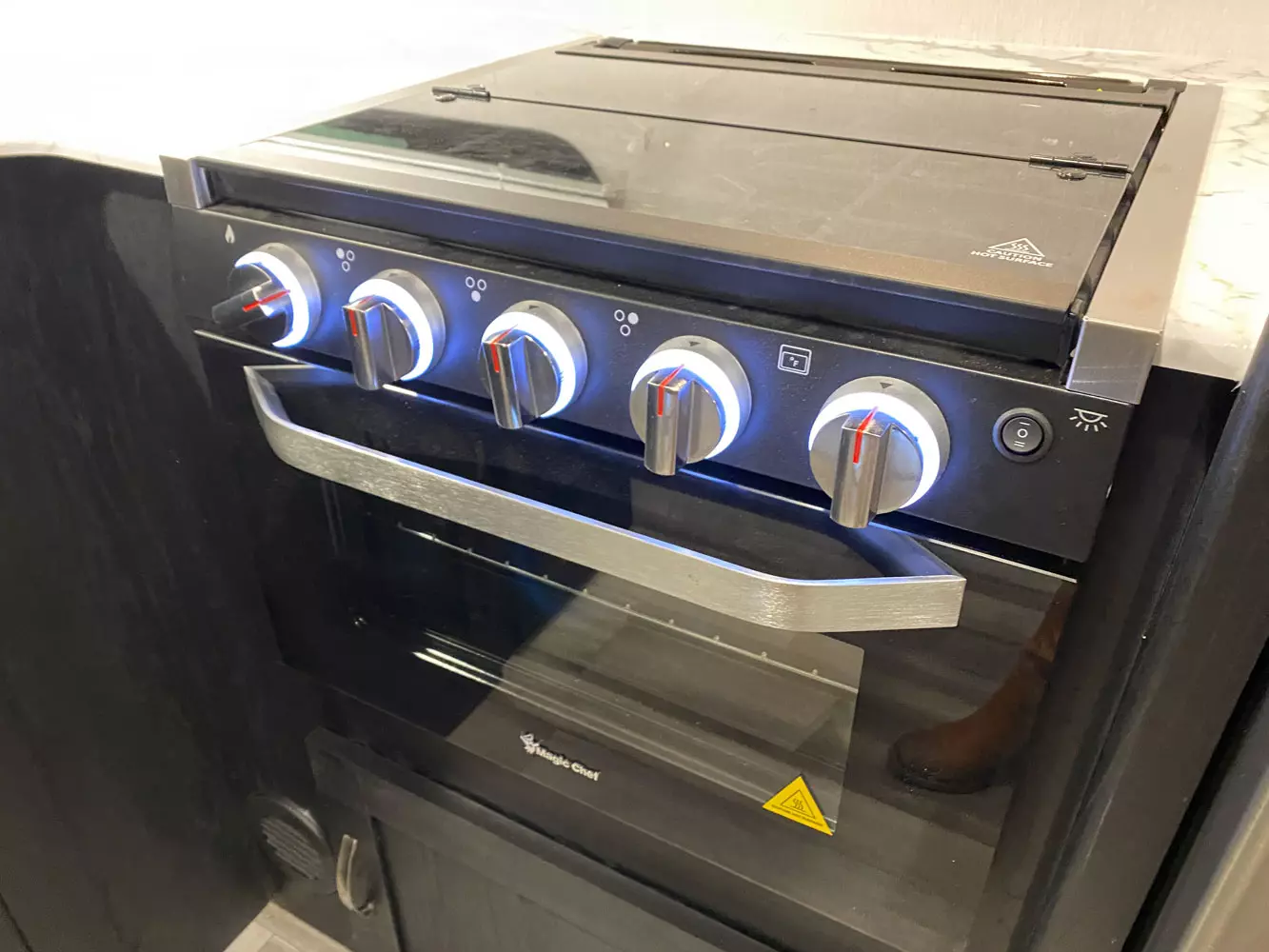

  • Oven with 3-Burner Cooktop (N/A 17BLSE)
  • Double Door Refrigerator
  • Utensil Drawer (N/A 17BLSE)
  • 60" x 80" queen mattress w/cover (17BLSE 54" x 80")
  • USB Ports
  • Bath Skylight
  • Friction Hinge Entry Door
  • RVIA
  • 32" TV
  • Power tongue jack

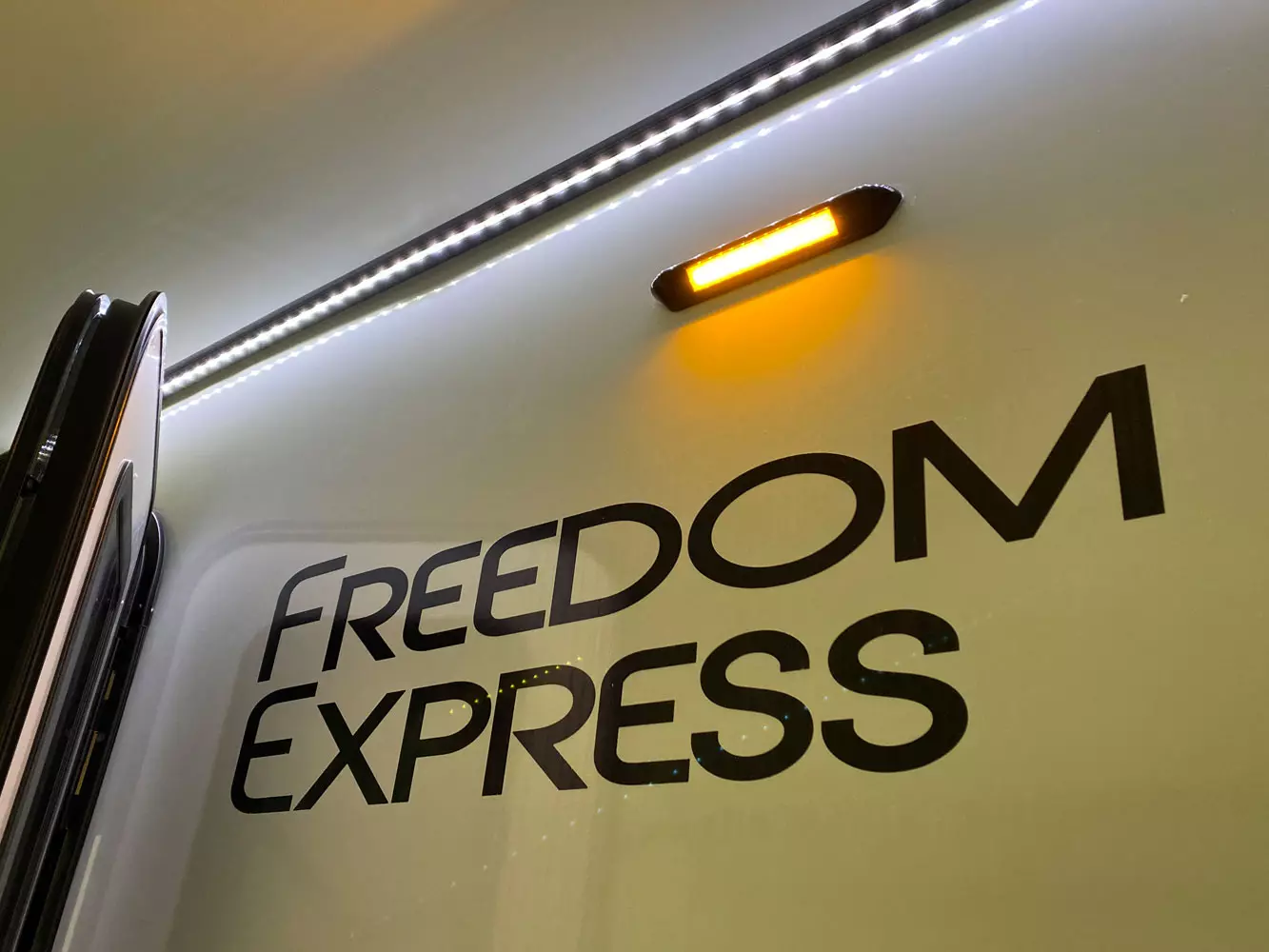

  • LED awning light
  • 50 AMP Service with Second Air Conditioner Prep
  • 15K BTU Roof Air Conditioner
  • 12 Volt 10 cu. ft. Refrigerator

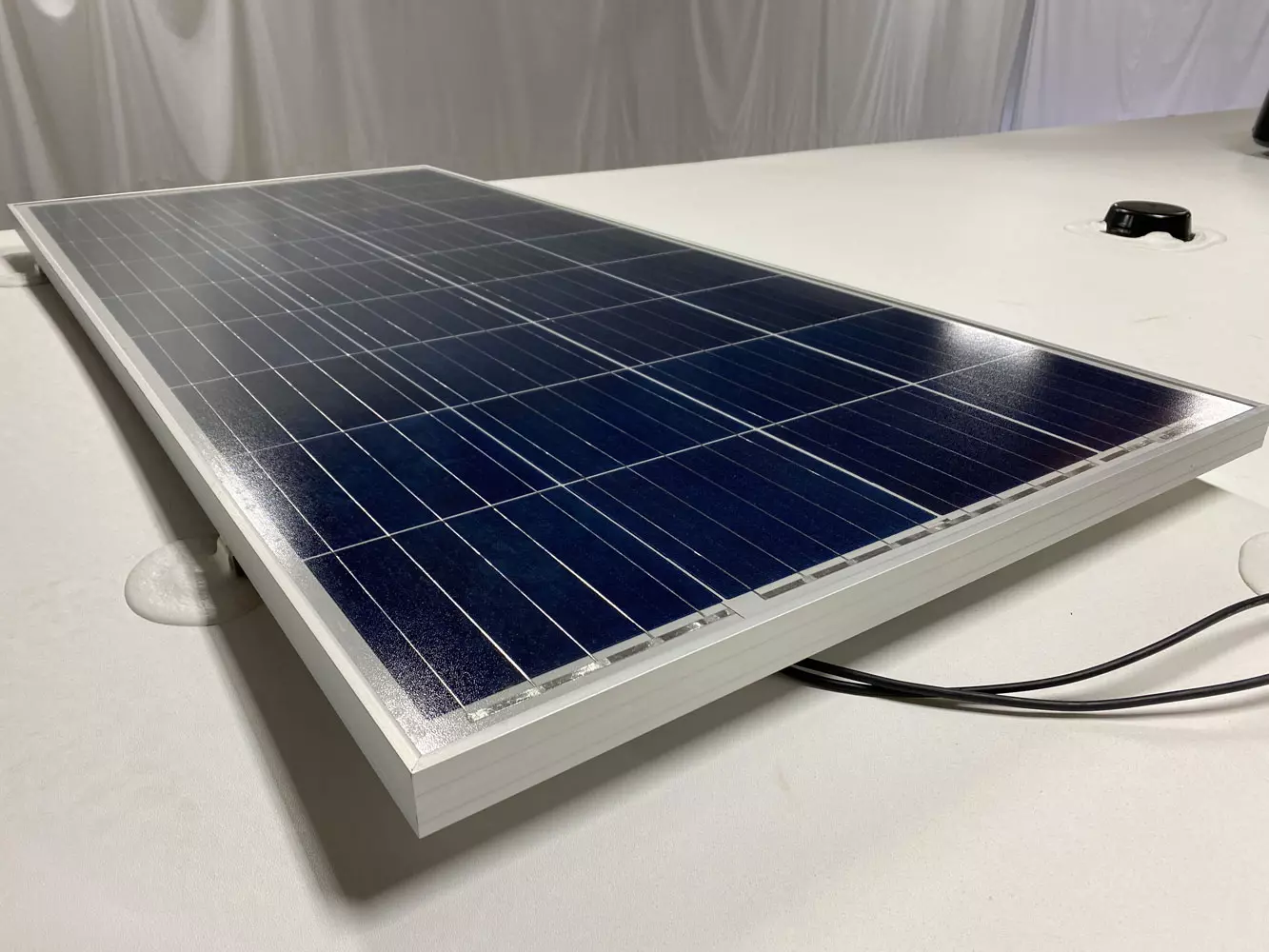

  • 175 W Solar Panel and 30 Amp MPPT Control Charger
  • CSA Canadian Compliance - Inc. CSA
  • MEP Fee (REPLACES RVIA)
