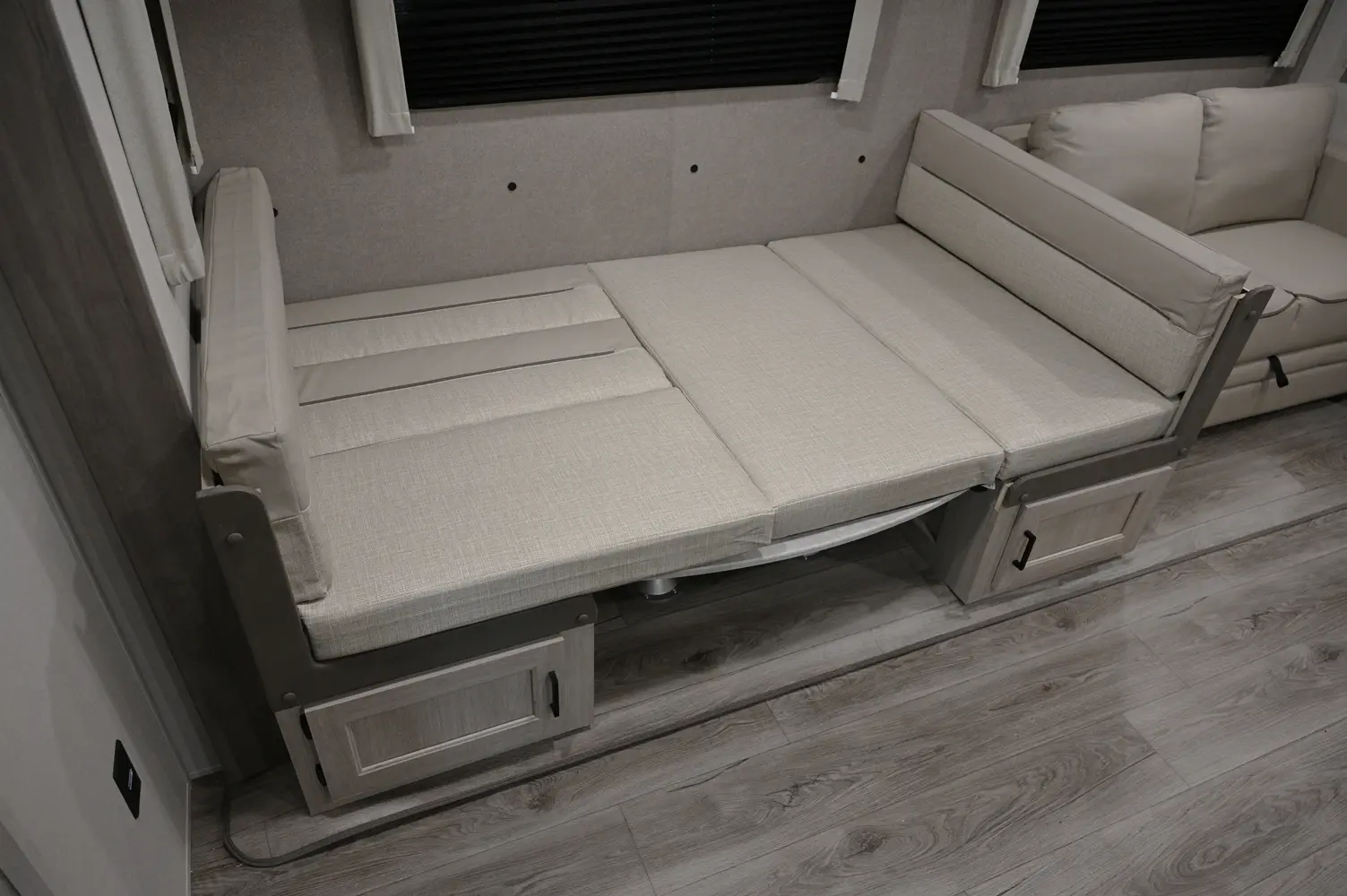

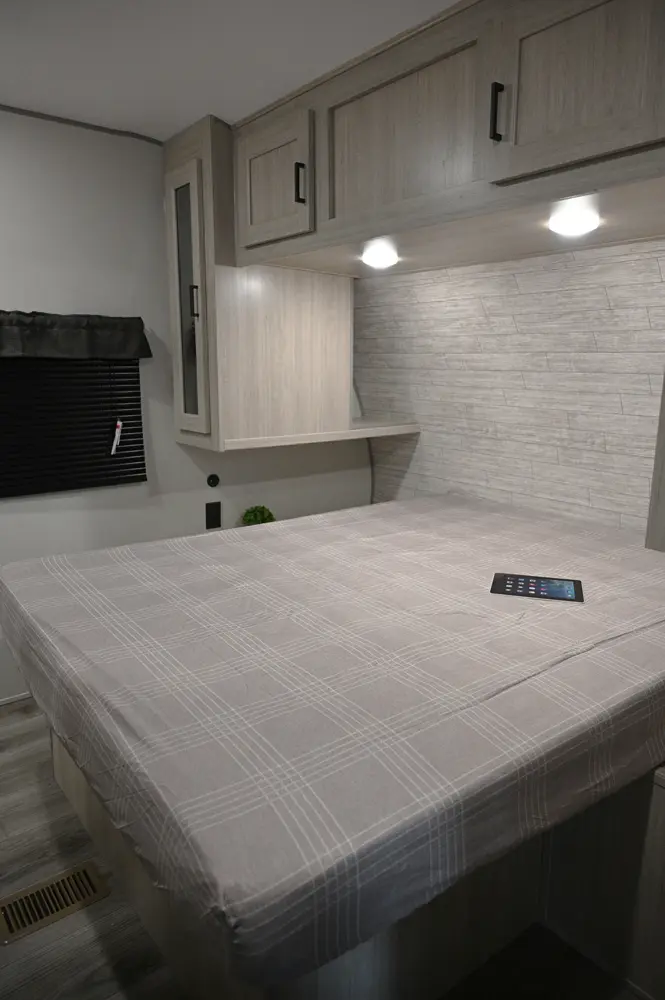

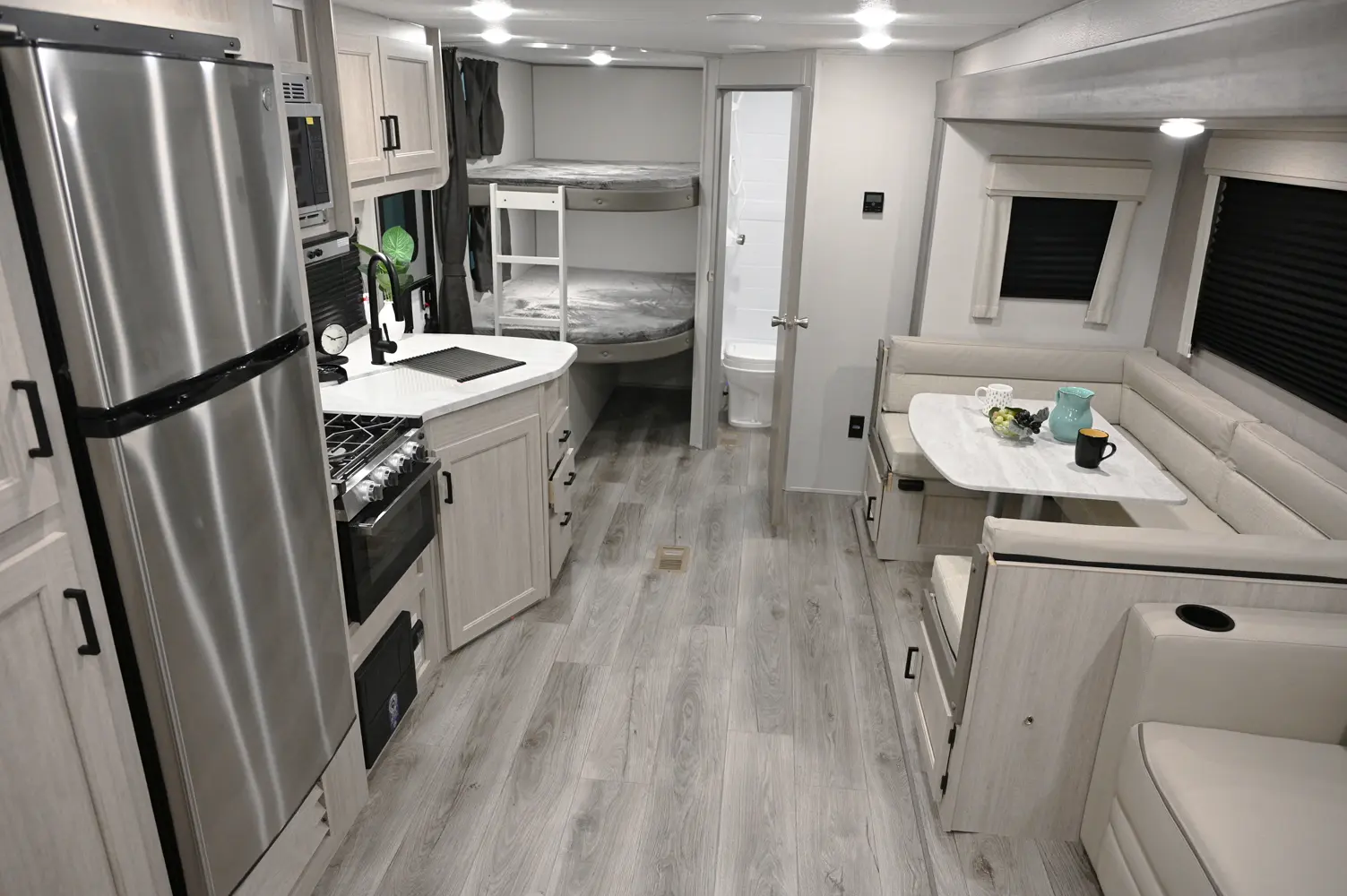

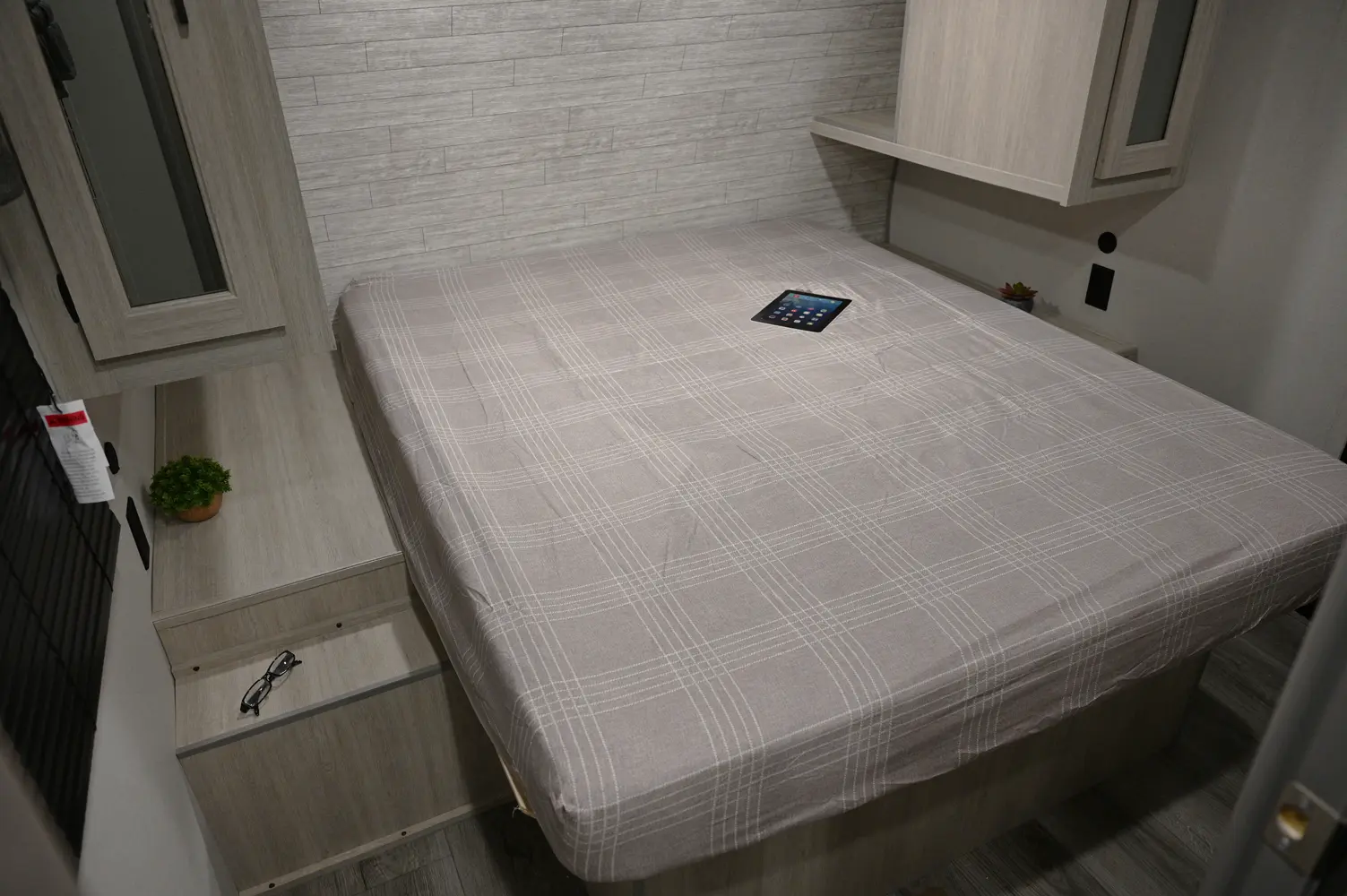

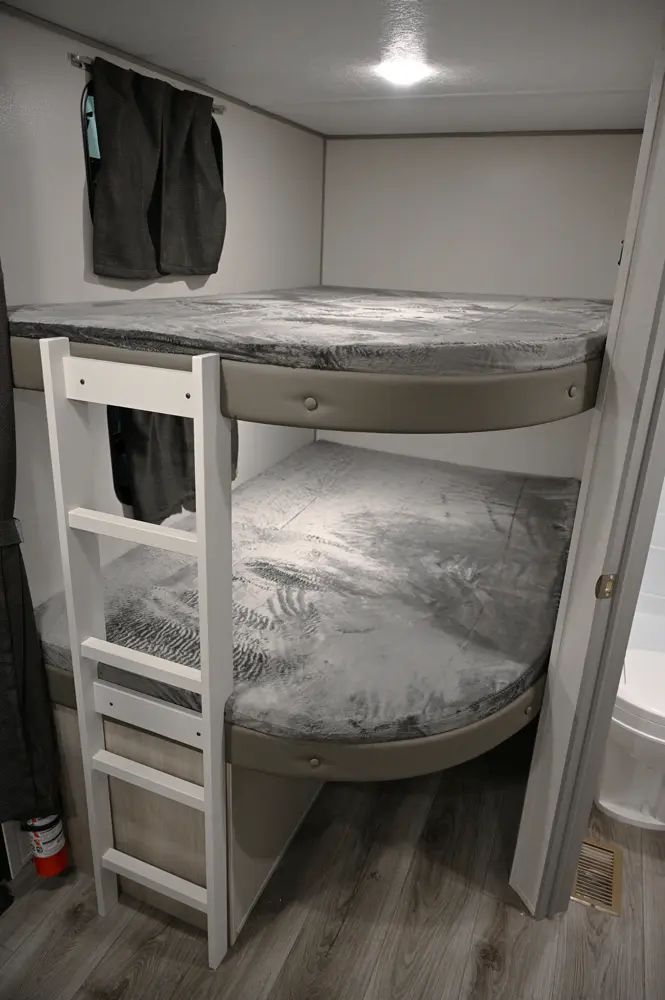

The 263BHS is a classic family bunk house floorplan. Plenty of sleeping is provided by a queen bed in the private master bedroom, two spacious double-over-double bunk beds, as well as our extra-large U-shaped dinette and jiffy bed sofa. Well thought-out features including the easy view angled entertainment center, generous kitchen pantry and standard outside camp kitchen. Additional storage spaces include the under-bunk cubby and floor-to-ceiling closet in the master bedroom.
- Hitch Weight
- 728 lb.
- GVWR
- 8,300 lb.
- UVW
- 6,532 lb.
- CCC
- 1,768 lb.
- Exterior Length
- 32' 9"
- Exterior Height
- 11' 1"
- Exterior Width
- 96"
- Fresh Water
- 44 gal.
- Gray Water
- 70 gal.
- Black Water
- 30 gal.
- Awning Size
- 18'

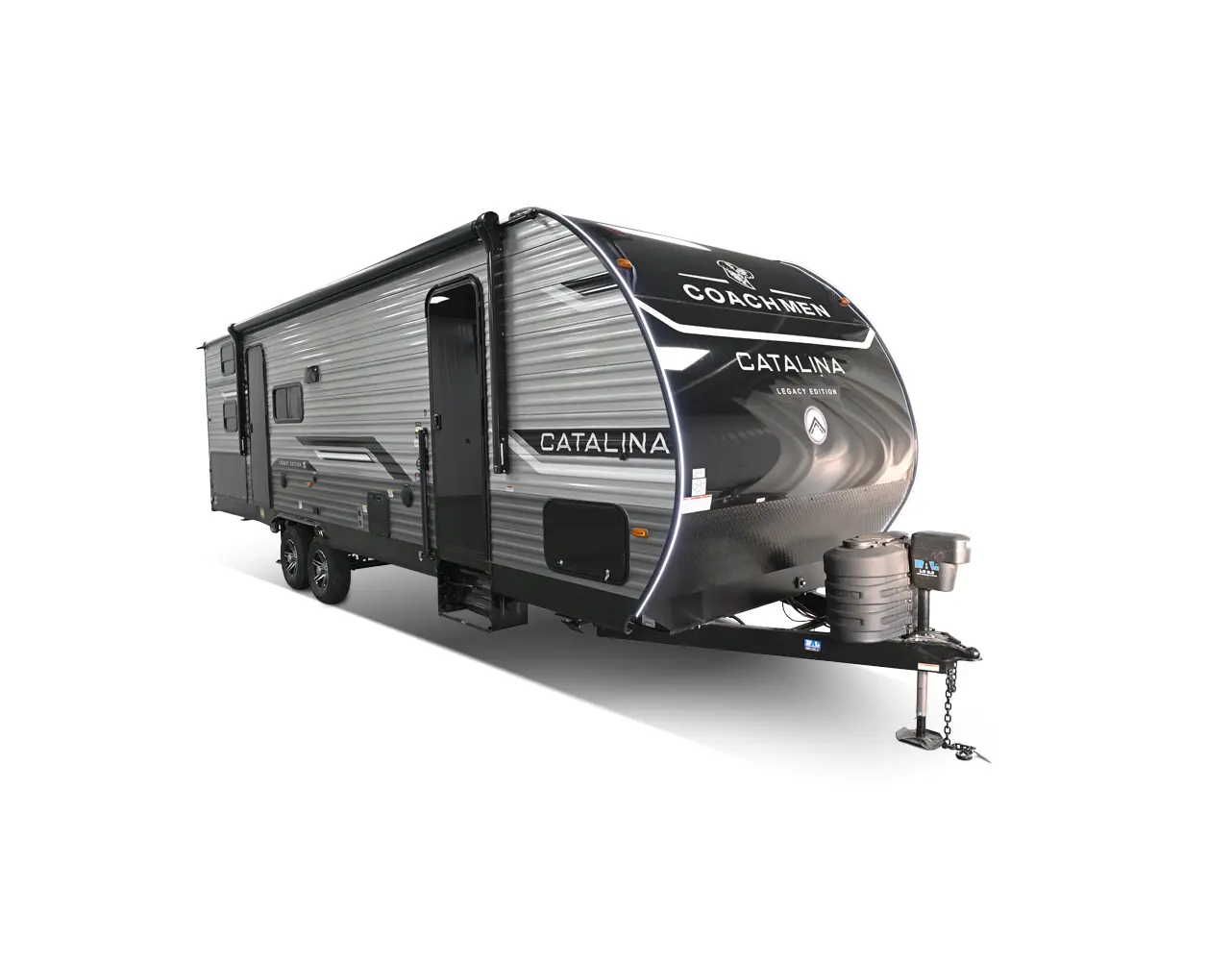

Catalina Legacy Edition 263BHSCK
The 263BHS is a classic family bunk house floorplan. Plenty of sleeping is provided by a queen bed in the private master bedroom, two spacious double-over-double bunk beds, as well as our extra-large U-shaped dinette and jiffy bed sofa. Well thought-out features including the easy view angled entertainment center, generous kitchen pantry and standard outside camp kitchen. Additional storage spaces include the under-bunk cubby and floor-to-ceiling closet in the master bedroom.

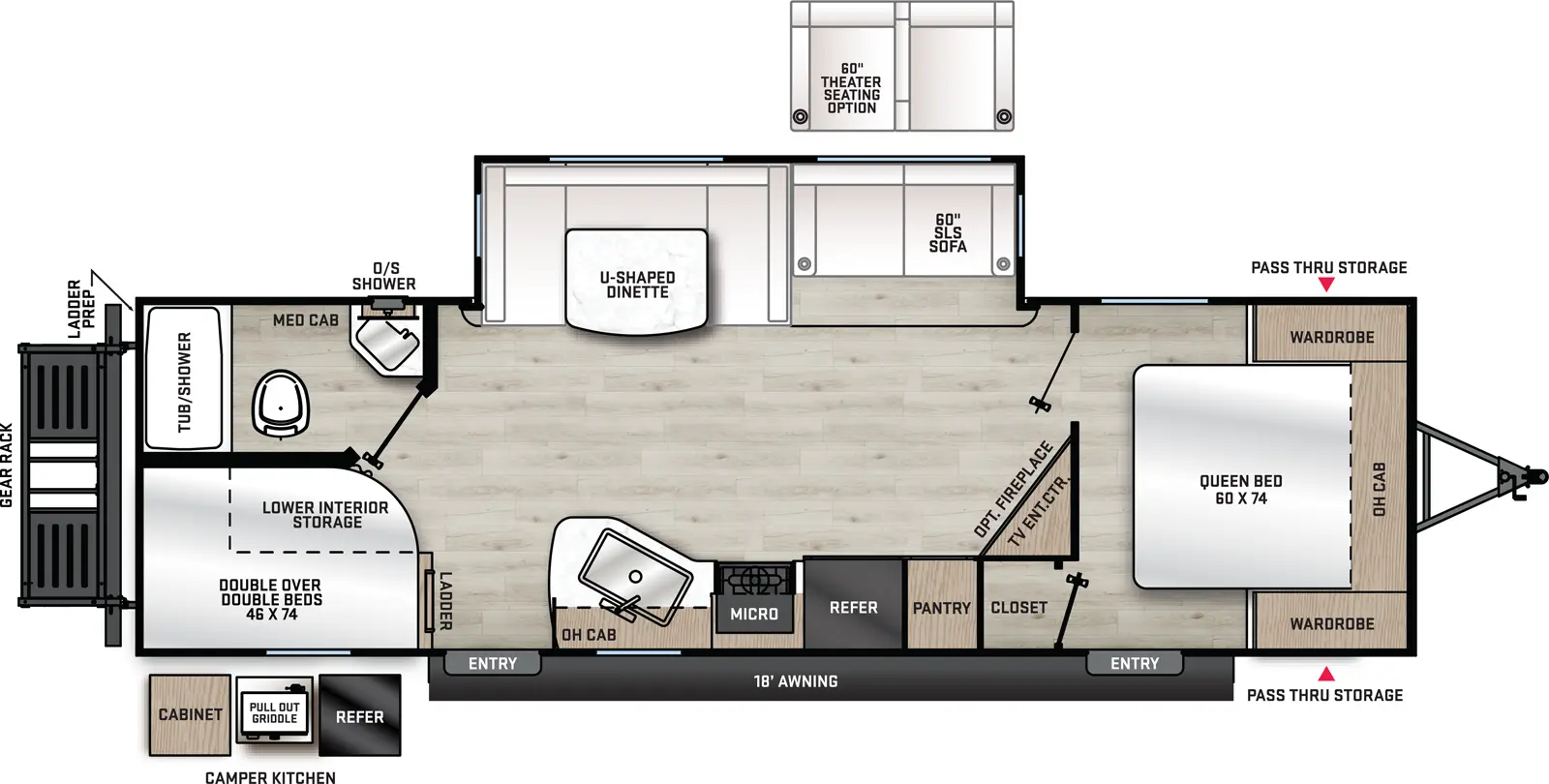

263BHSCK Floorplan Travel Trailers Features & Options
-
- Flip Down Cargo Rack w/200 lb. Cap.
- Electric Awning w/Multicolor LED Strip & Remote
- Black Tank Flush
- Battery Disconnect Switch
- Siphon 360 Holding Tank Roof Vent
- Electric Tongue Jack
- Hot/Cold Outside Utility Shower w/ Hands Free Holder
- (2) 20 lb. LP Tanks
- Black ABS LP Bottle Cover
- LP Quick Connect
- Flush Mount Baggage Doors w/Radius Corners
- Diamond Plate Rock Guard
- Stabilizer Jacks
- G20 Tinted Privacy Windows
- Premium JBL Exterior Speakers
- Friction Hinged Black Glass Entry Door with Window
- Exterior 110V G.F.C.I Protected Receptacle
- Exterior RG-6 Coax Cabling and Satellite Prep
- Exterior TV Hookup
- Rain Gutters with Drip Spouts
- MORryde StepAbove Solid Steps (Main Entrance Only)
- Safe-T-Rail Door Assist on Main Entry Door
- Rear View Camera Prep

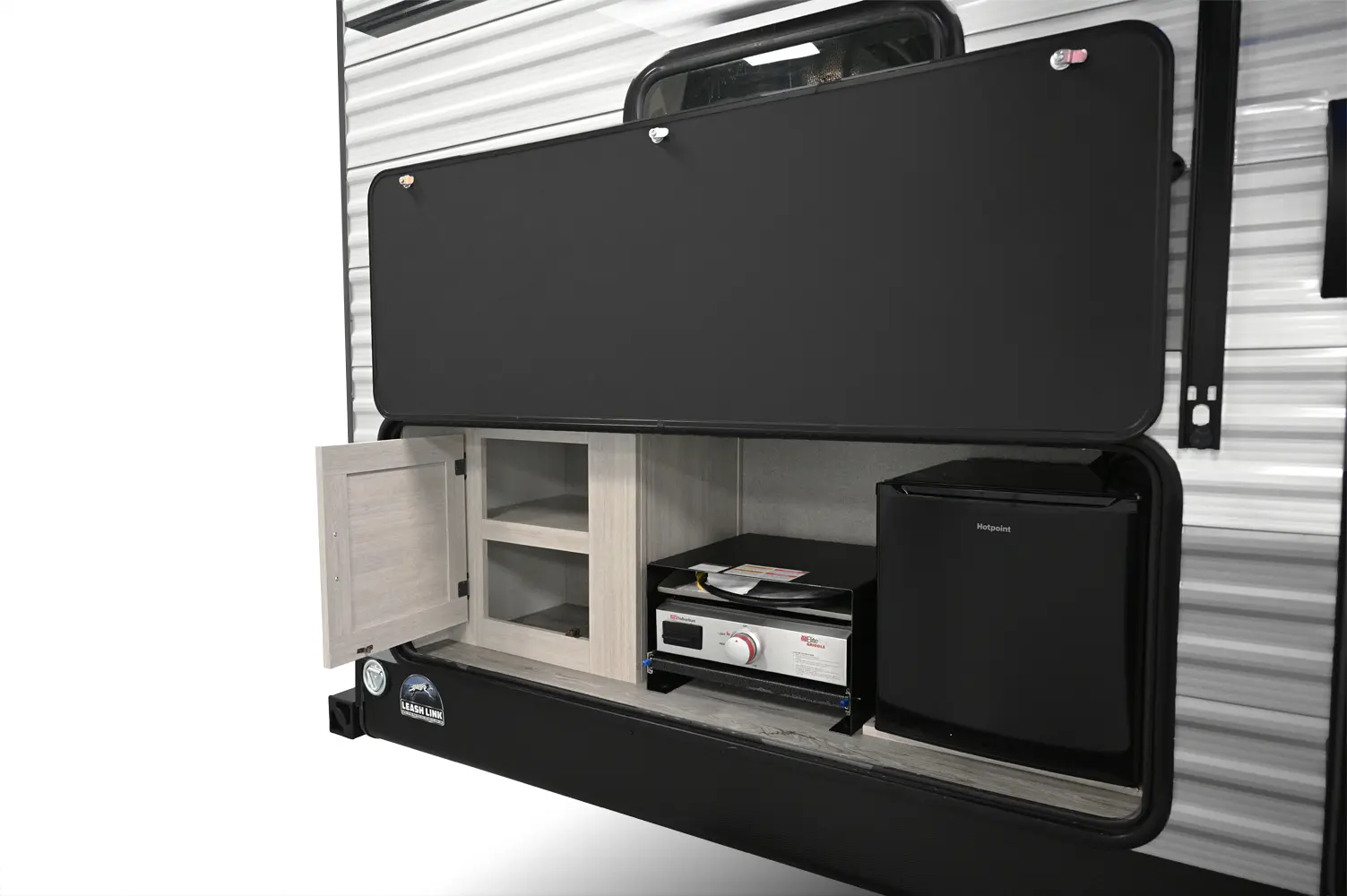

- Exterior Camp Kitchen + Storage (263BHSCK, 293QBCK, 293TQBS)
- Bottle Openers (Exterior Camp Kitchens)
- Pets - "Leash Link" Quick Hookup D-Ring
- Universal Solar Prep w/Roof & Chg. Contoller Connections & Wiring
- Rear Ladder Prep
-
- All-In-One Control Panel with Dimmer Switch
- Premium Audio JBL Aura Cube Multi-Zone Function Media Center
- Premium JBL Interior Speakers
- GE Stainless 10.7 Cu. Ft. 12V Refrigerator
- Seamless Thermofoil Countertops Throughout

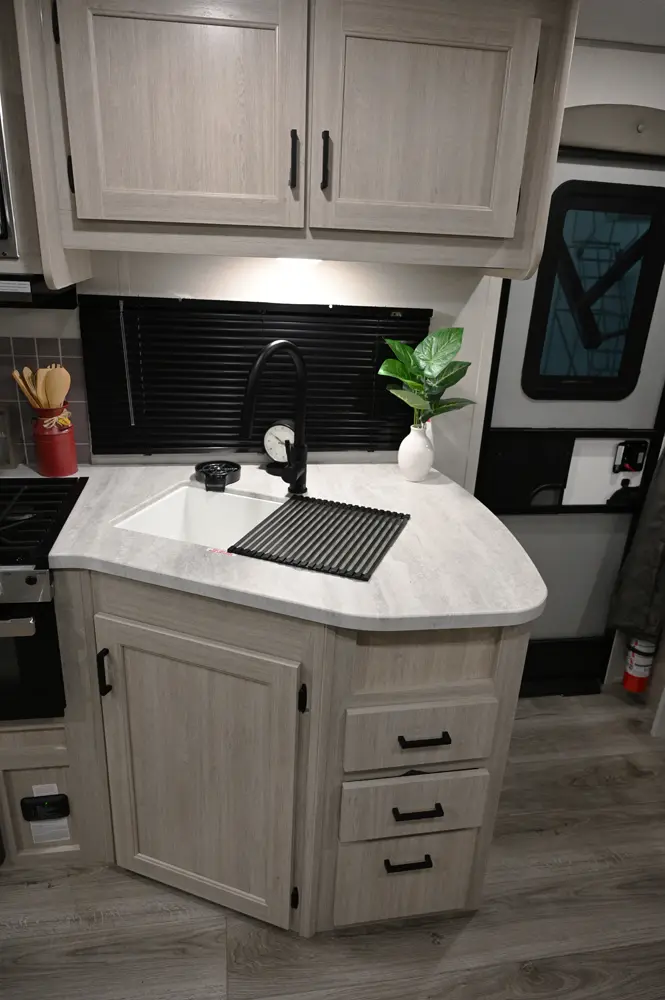

- Deep Basin Farm Style Sink
- Residential-Style Kitchen Faucet w/Pull Down Sprayer
- Stainless Steel Drying Rack
- High Pressure Glass Rinser
- Paper Towel Holder

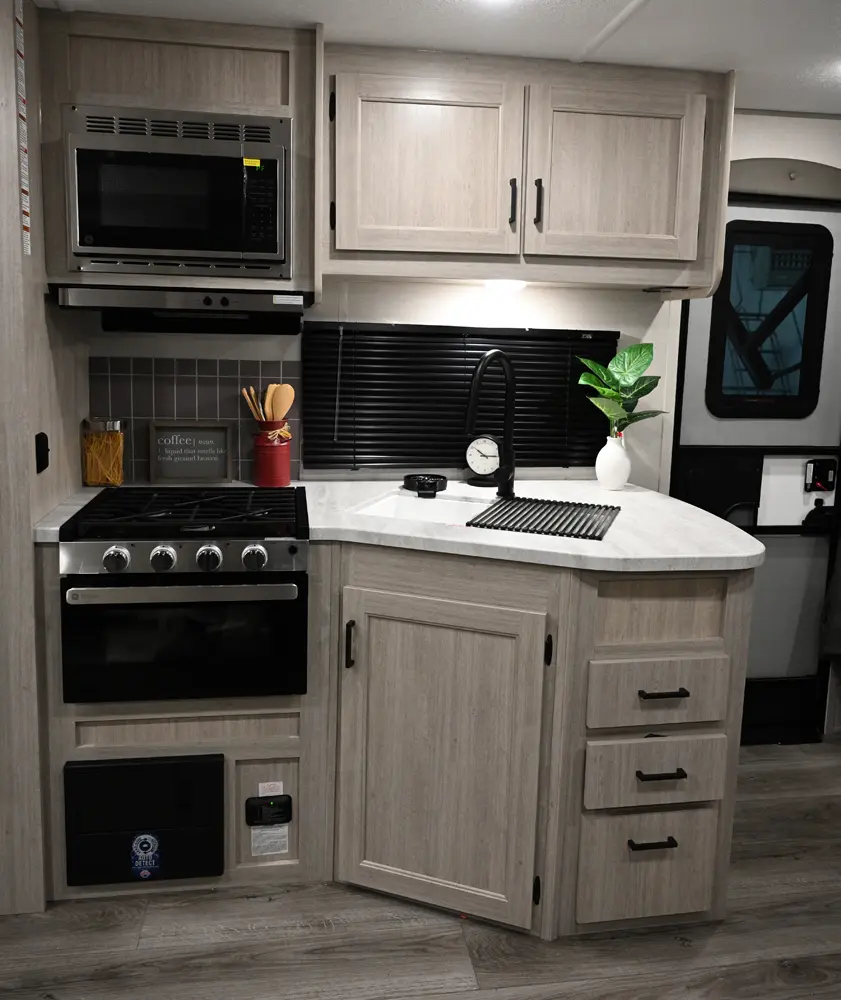

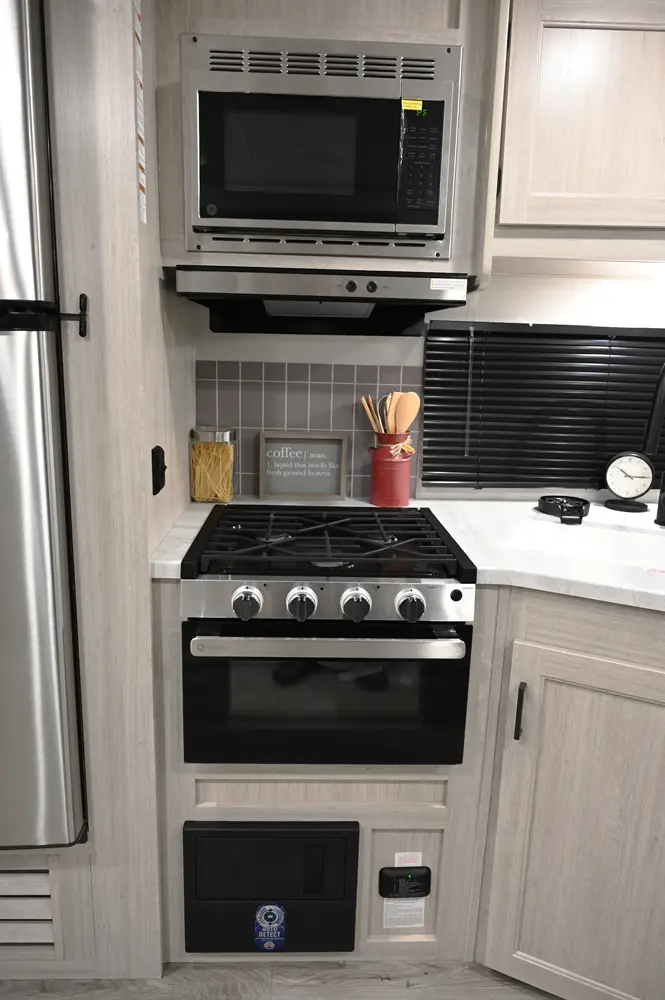

- GE Stainless 3-Burner Gas Range with Metal Back-Lit Knobs
- Range Hood
- Brick Style Backsplash
- GE Stainless Microwave W/Glass Turn Table
- Congoleum Woodplank Linoleum Flooring
- 4000 Lumin LED Interior Touch Lighting

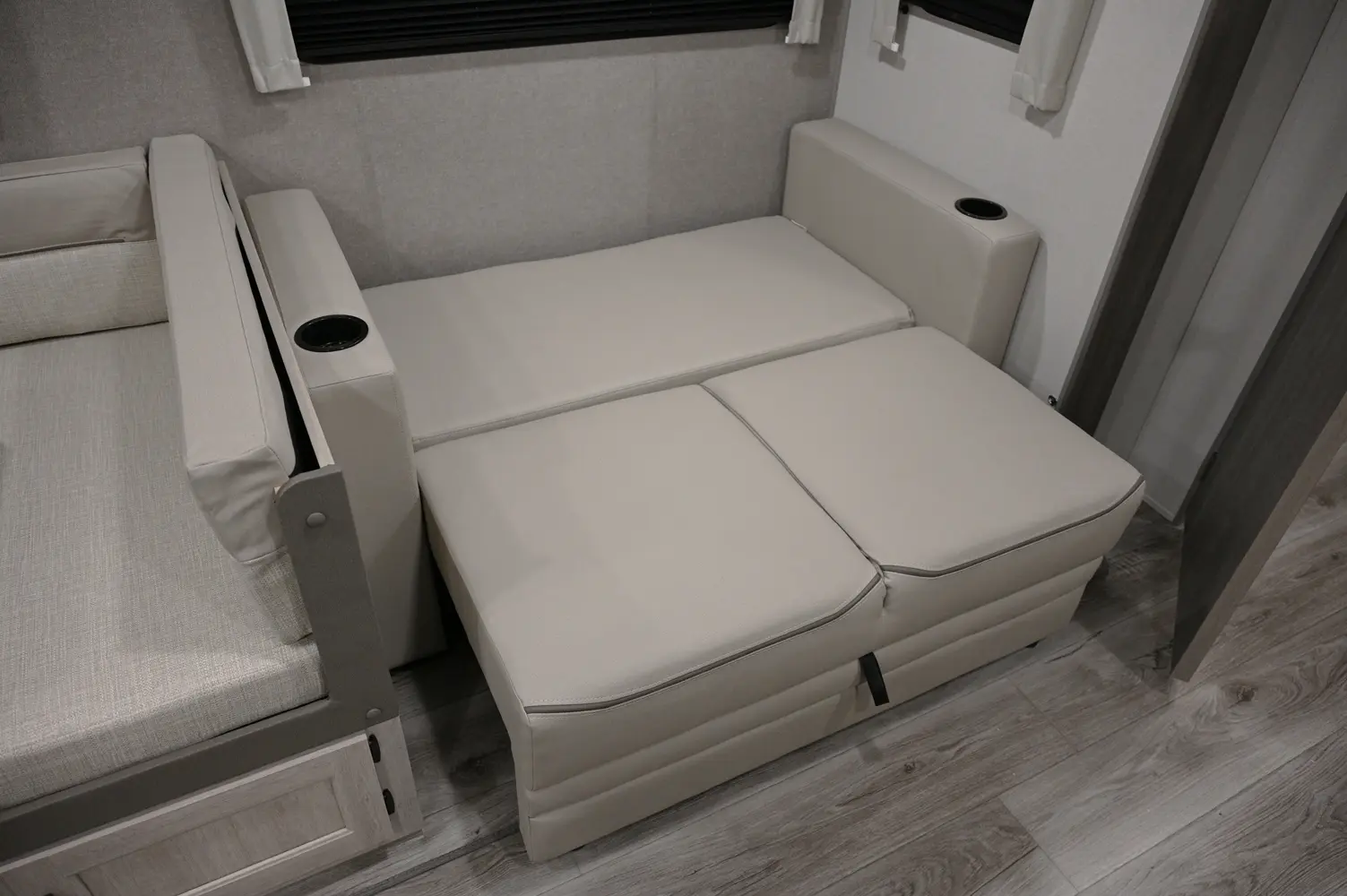

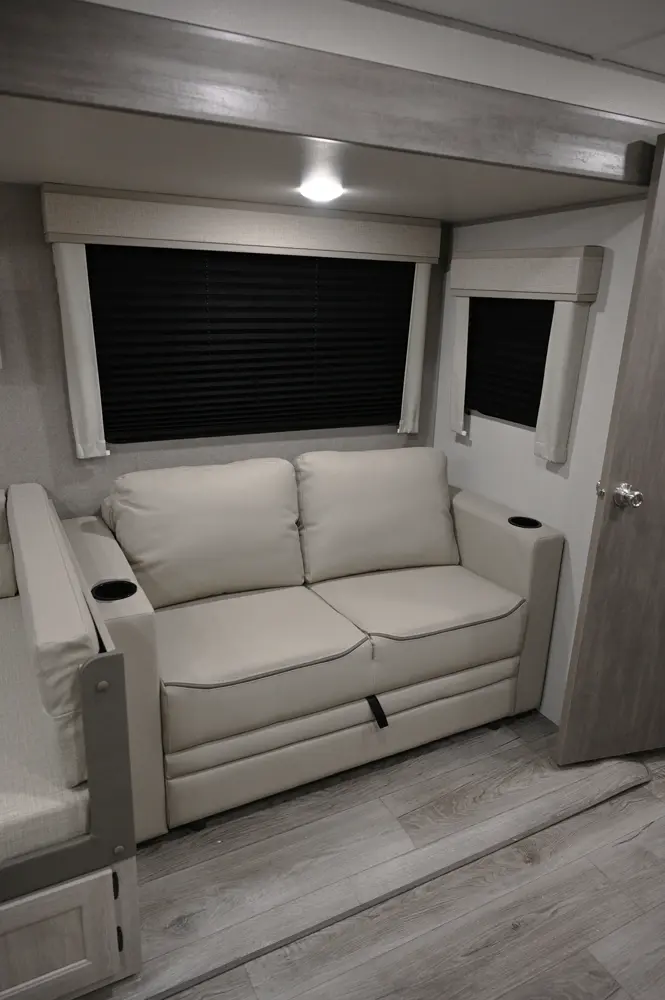

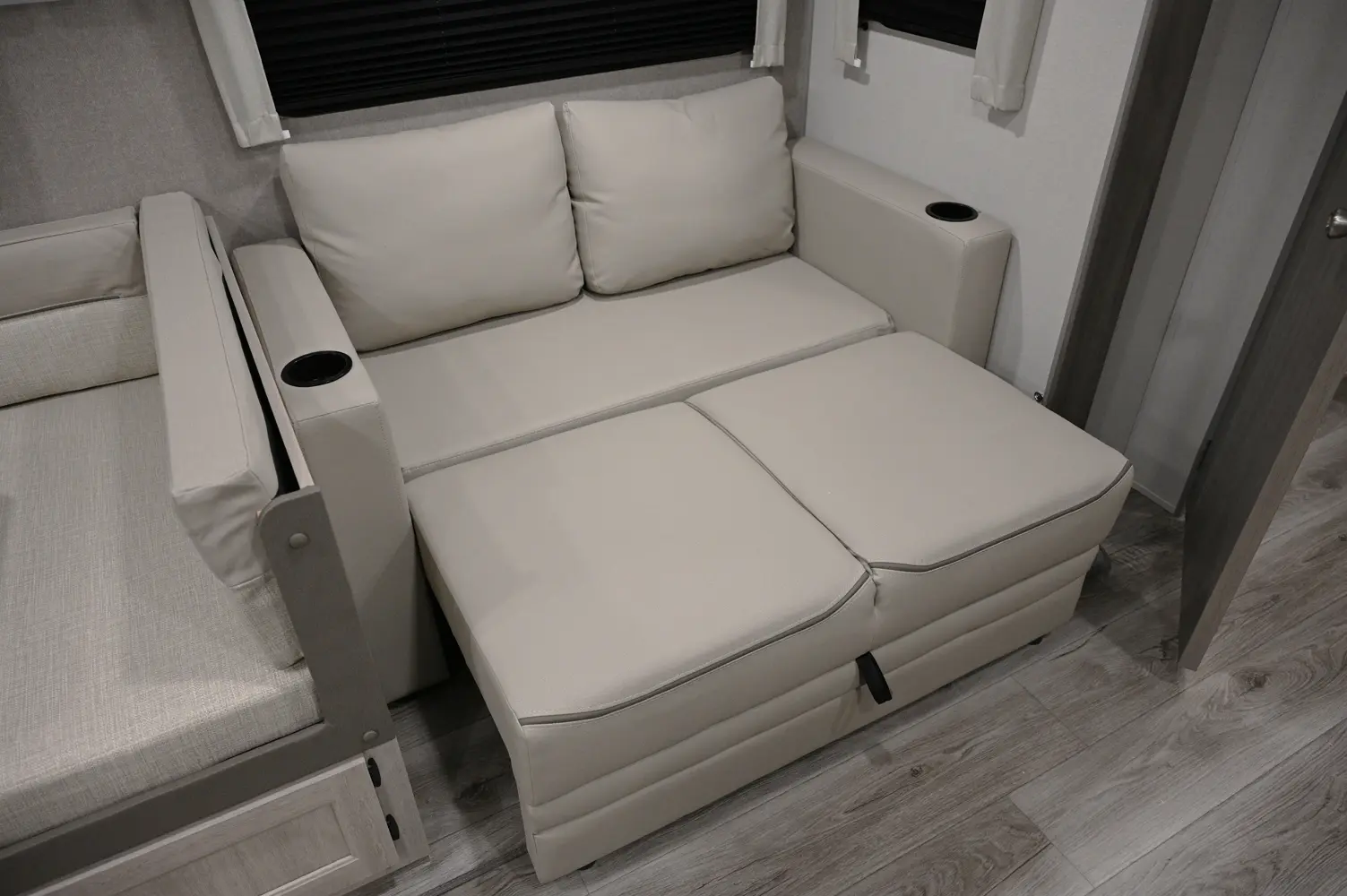

- SLS (Sit-Lounge-Sleep) Sofa with Interior Storage
- Designer Wall Lighting Main Slide Room
- Hard Valance Window Treatments

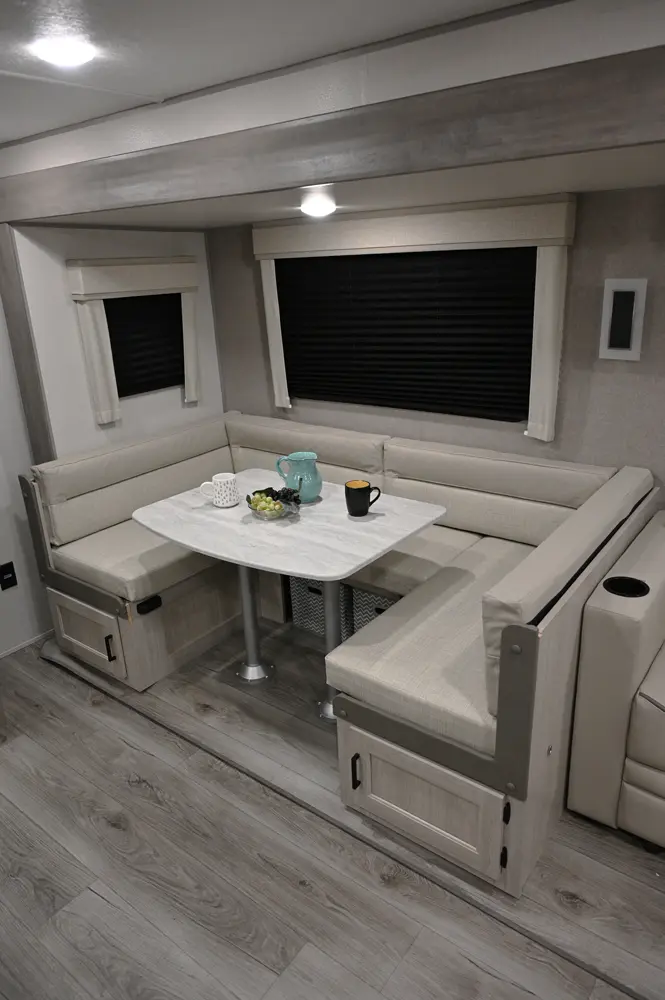

- Pedestal Thermofoil Dinette Table

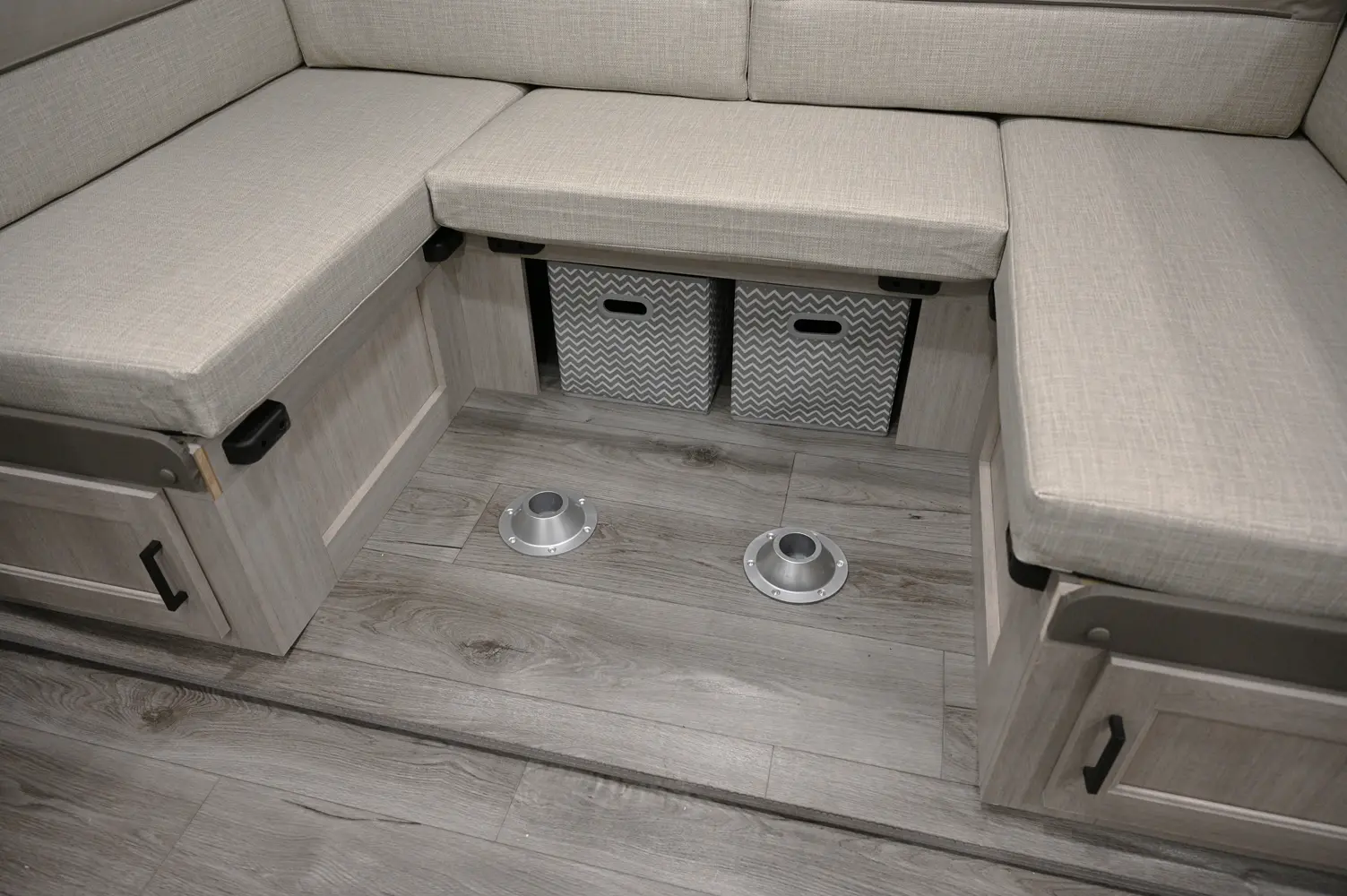

- Under Bench Dinette Storage (Per Floorplan)
- Easy Access Booth Dinette Storage Doors
- 12V 14" Living Room Power Vent Fan
- 12V 14" Bathroom Power Vent Fan
- Marine Toilet with Foot Flush

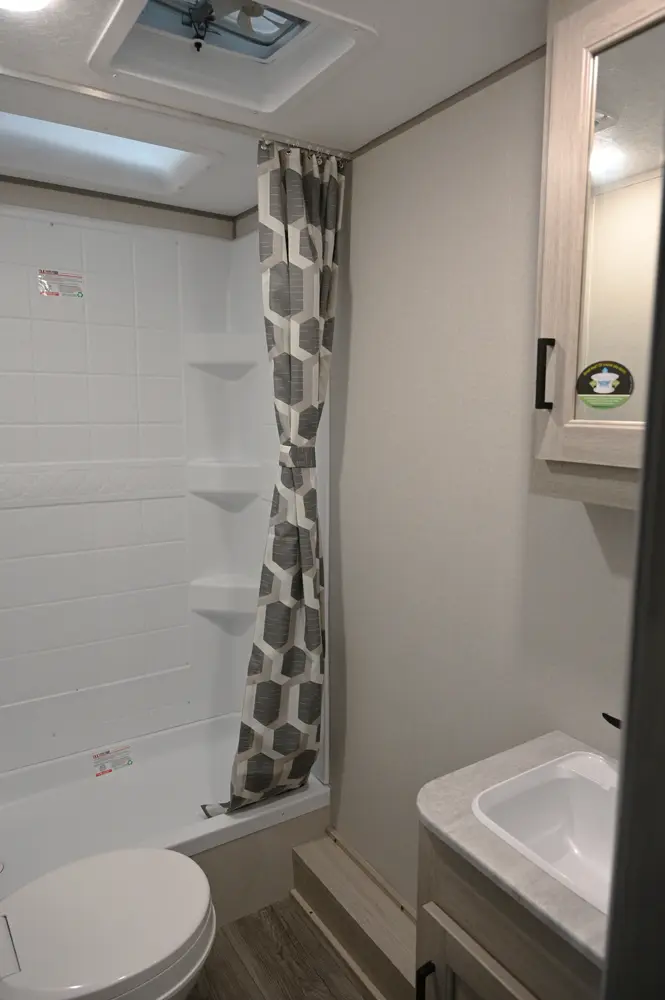

- ABS Tub/Shower Surround w/Shelves
- Shower/Coat Hooks
- Skylight Above Tub/Shower
- Glass Step-In Shower w/ABS Surround (Per Floorplan)
- Medicine Wall Cabinet with Mirror
- Bedroom Surface Mounts USB Ports (Each Night Stand)
- Kitchen USB's & Outlets
- USB Surface Mounts Near Bunk Beds
- Solid Master Bedroom Door(s) (Per Floorplan)
- Solid Bunk Room Door (Per Floor Plan)
- Full Length Night Stands with Shelves (N/A Bed Slide-Outs)”
- Mirrored Wardrobes in Master Bedroom
- Master Bedroom Overhead Cabinets
- Underbed Storage w/Separation from Outside Front Storage
- Designer Fitted Master Bed Sheet
- Full Lino in Slide-Outs and Bedrooms (Carpetless)
-
- GE 13,500 BTU Fully Ducted A/C with Heat Pump
- Cambered Structural Steel I-Beam Frame
- Norco Electromagnetic, Powder Coated Chassis
- Full Length Frame Outriggers
- 5/8" Tongue & Groove StableDeck Flooring
- 2"x3" Floor Joists on Approximately 12" Centers
- 5" Floor To Frame Steel Lag Bolts
- Enclosed, Fully Sealed Corrugated Underbelly
- Darco Subfloor Protective Wrap/Enclosure
- Seamless Alpha Roof Membrane with Lifetime Warranty
- Cross-Braced Engineered Roof Trusses w/5" Crown
- 3/8" Fully Decked Walk-On Roof
- Screwed Cabinet Construction w/Pocket Bored Lumber Core Stiles
- 5/8" Plywood Under Bed & Dinette Base
- 81" Interior Height (6' 9")
- Easy-Trac Rack and Pinion Through Frame Main Slide-Out(s)
- R-7 Fiberglass Insulation Throughout
- GE 6 Gal. Gas/Electric DSI Water Heater
- Water Heater By-Pass Winterization Kit
- 12V Demand Water Pump
- Premium Exterior Graphics Package
- Upgraded Front Graphics Design
- Platinum .024" Aluminum Exterior w/.030 Skirt Metal
- Smooth HD Aluminum Radius Front
- Polished HD Aluminum Fender Skirts
- Undermount Spare Tire
- EZ Lube Axles w/Leaf Spring Suspension
- Self Adjusting Brakes
- Roto-Cast Holding Tanks
- Bumper w/ Drain Hose Carrier and End Caps
- 35,000 BTU Auto-Ignition Furnace w/Wall Thermostat (N/A 283RKS)
- Residential-Style In-Floor Ducted Heat
- King Antenna
- 30 Amp Electric Service w/ 100v 45-Amp Power Covt.
- 50 Amp Electric Service (Standard on 283FEDS, 303RKDS, 313RLTS, & 343BHTS) *see options
- Upgraded Aluminum Wheels
- Magnetic Hands Free Baggage Door Latches
-
- Smoke Alarm
- LP/CO Gas Detector
- Fire Extinguisher
- Fire Escape Windows
- Entrance Door Window
- Dead-Bolt Lock on Entry Door
- Specialized Dispatch Services (1 YR Roadside Assistance)
-
- 7 Cu. Ft. LP Gas/Electric RV Refrigerator w/Reversable Door Inserts
- GE 15,000 BTU Ducted A/C IPO 13.5 A/C with Heat Pump
- 30 Amp Service w/2nd 13.5 A/C (243RBS, 263BHSCK, 283RKS)
- Peak Performance Solar Package - 30A Controller w/ 200W Panel
- Power Theater Seating with Reclining Features (Standard on 283FEDS & 313RLTS)

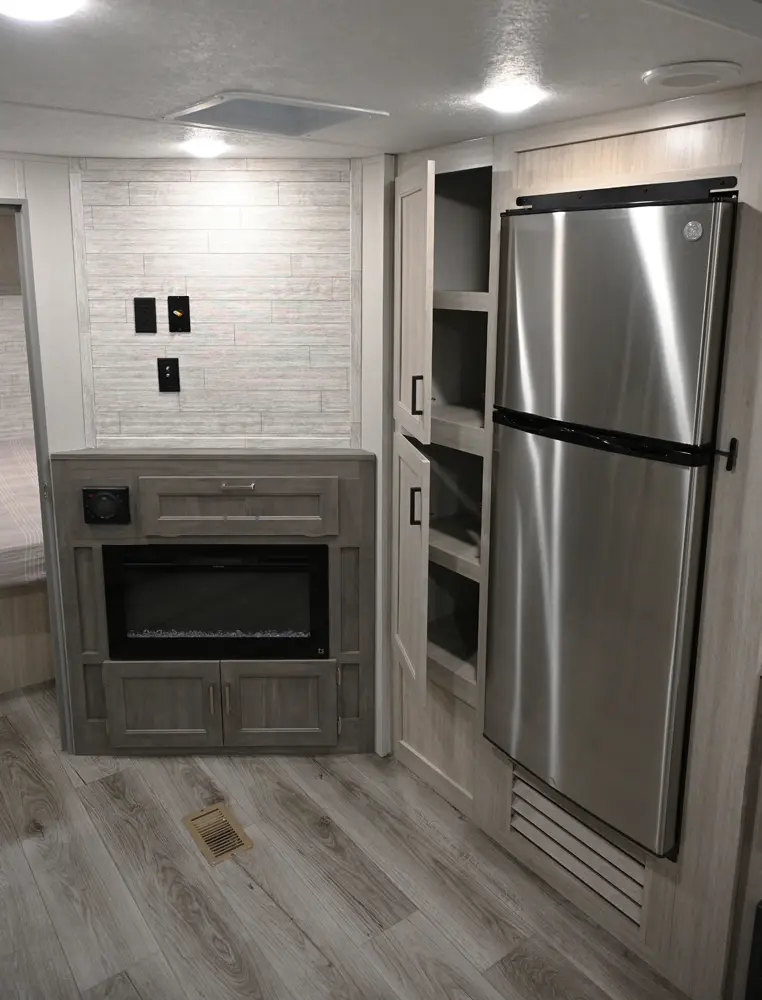

- Fireplace w/Electric Heater in the Living Room
- CSA Standards
