2024 Catalina Legacy Edition 263BHSCK Floorplan

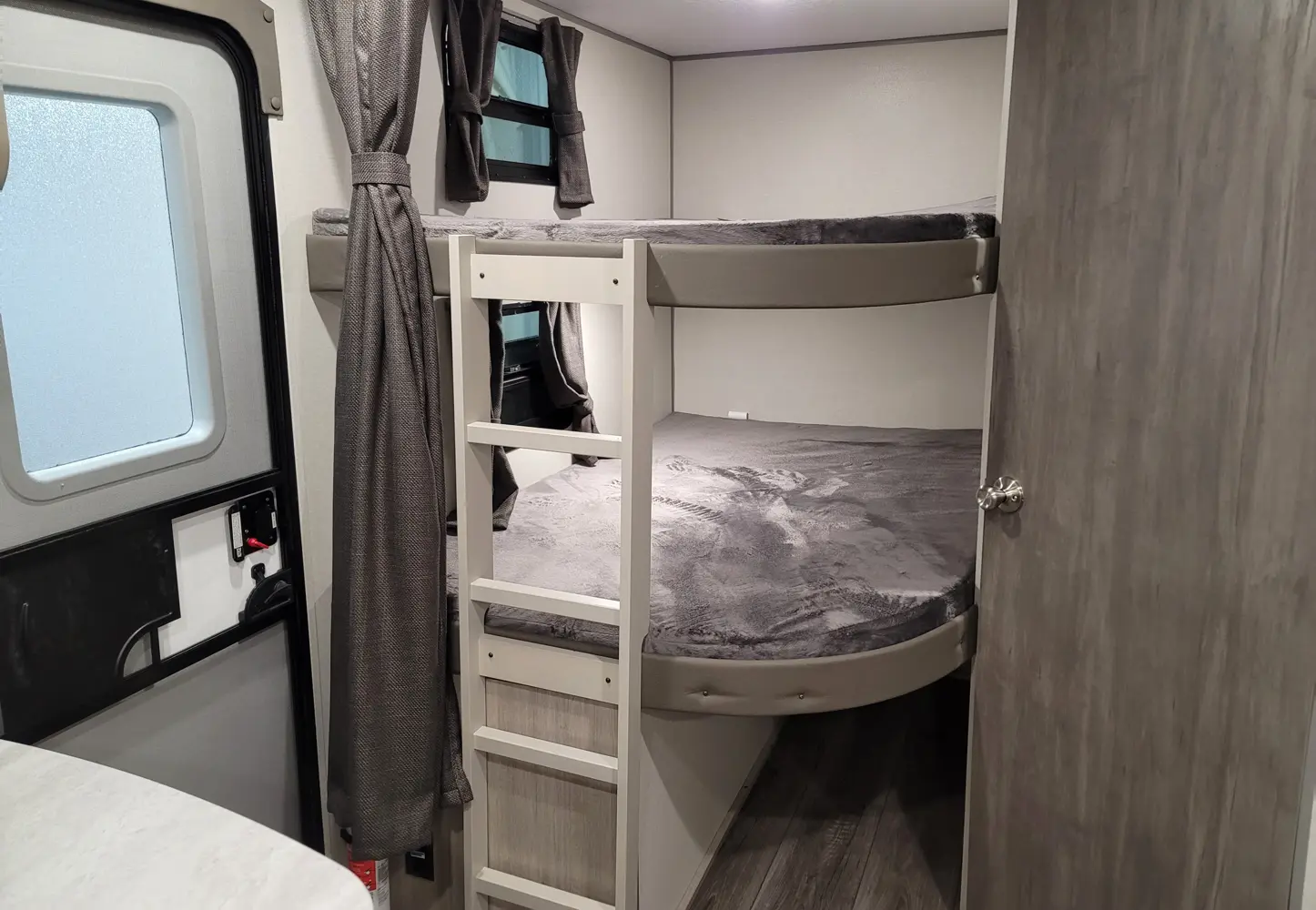

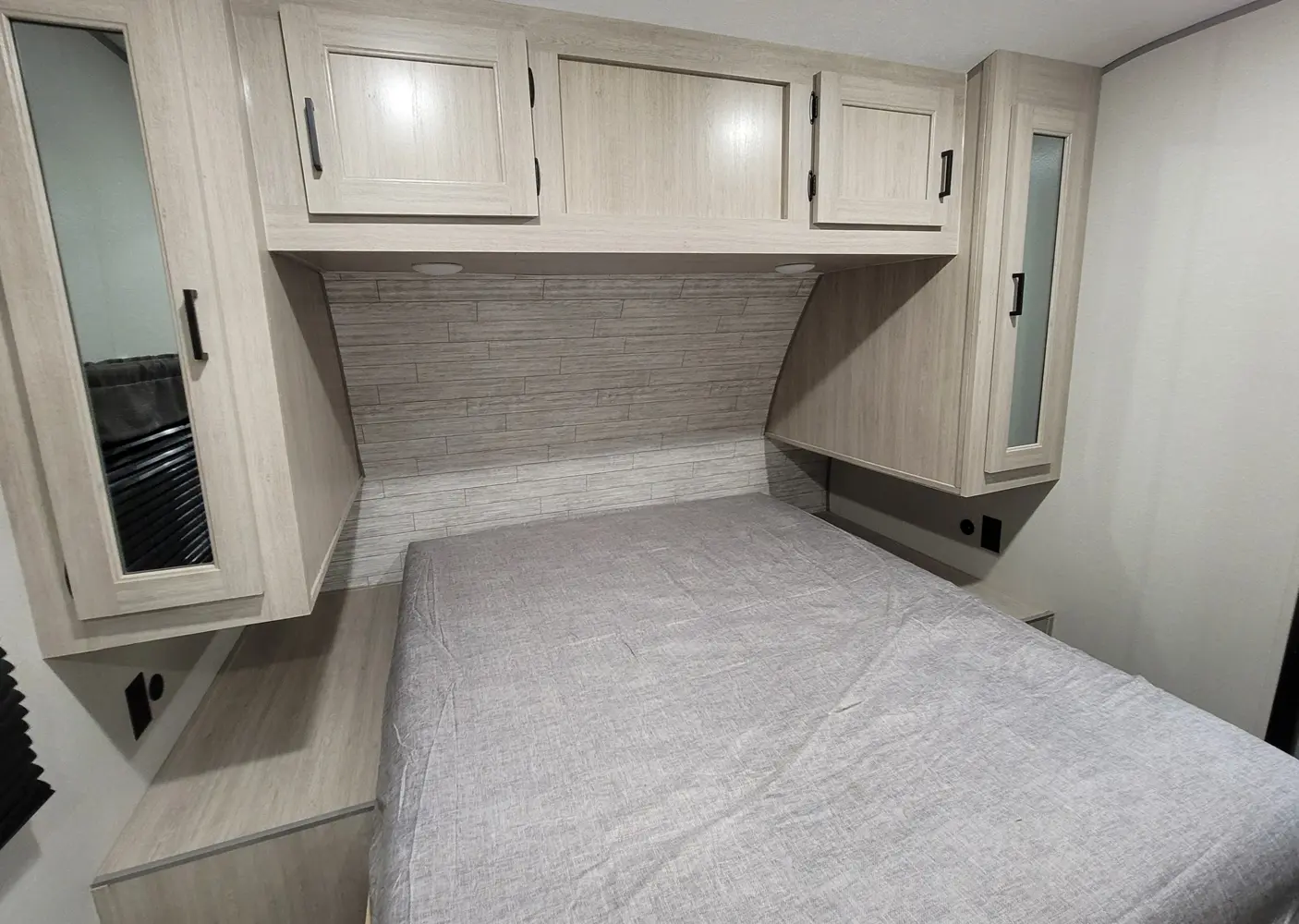

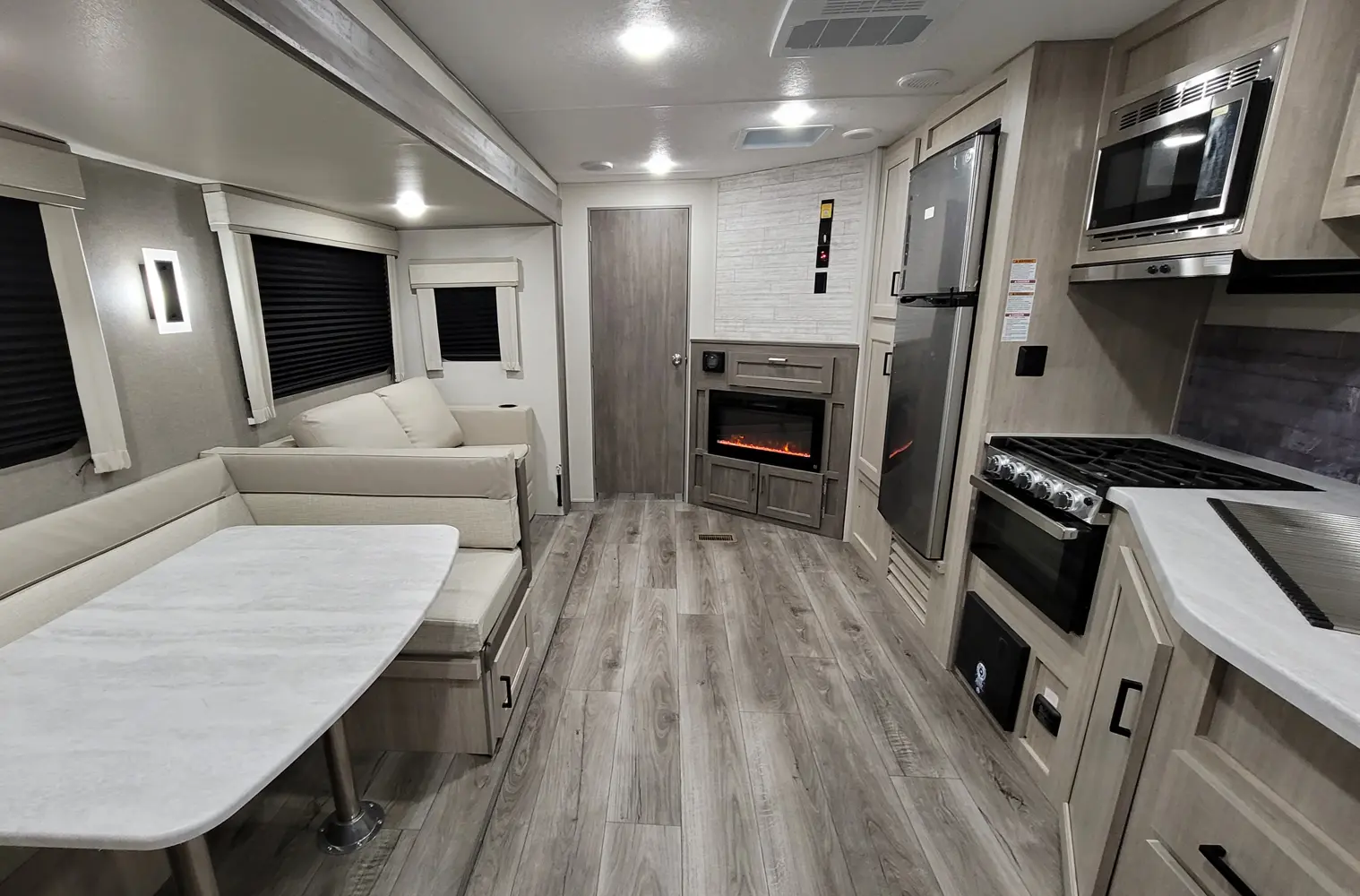

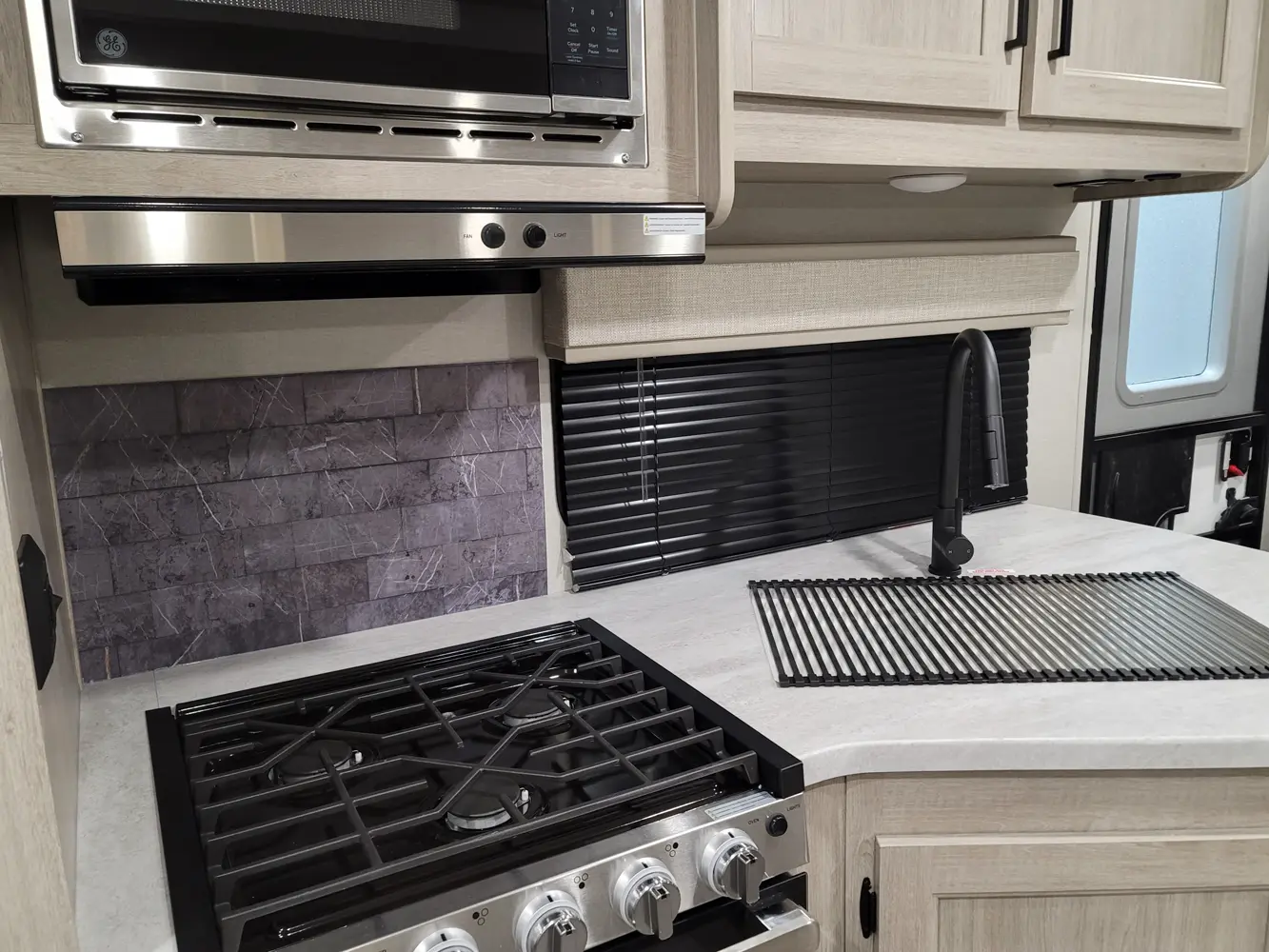

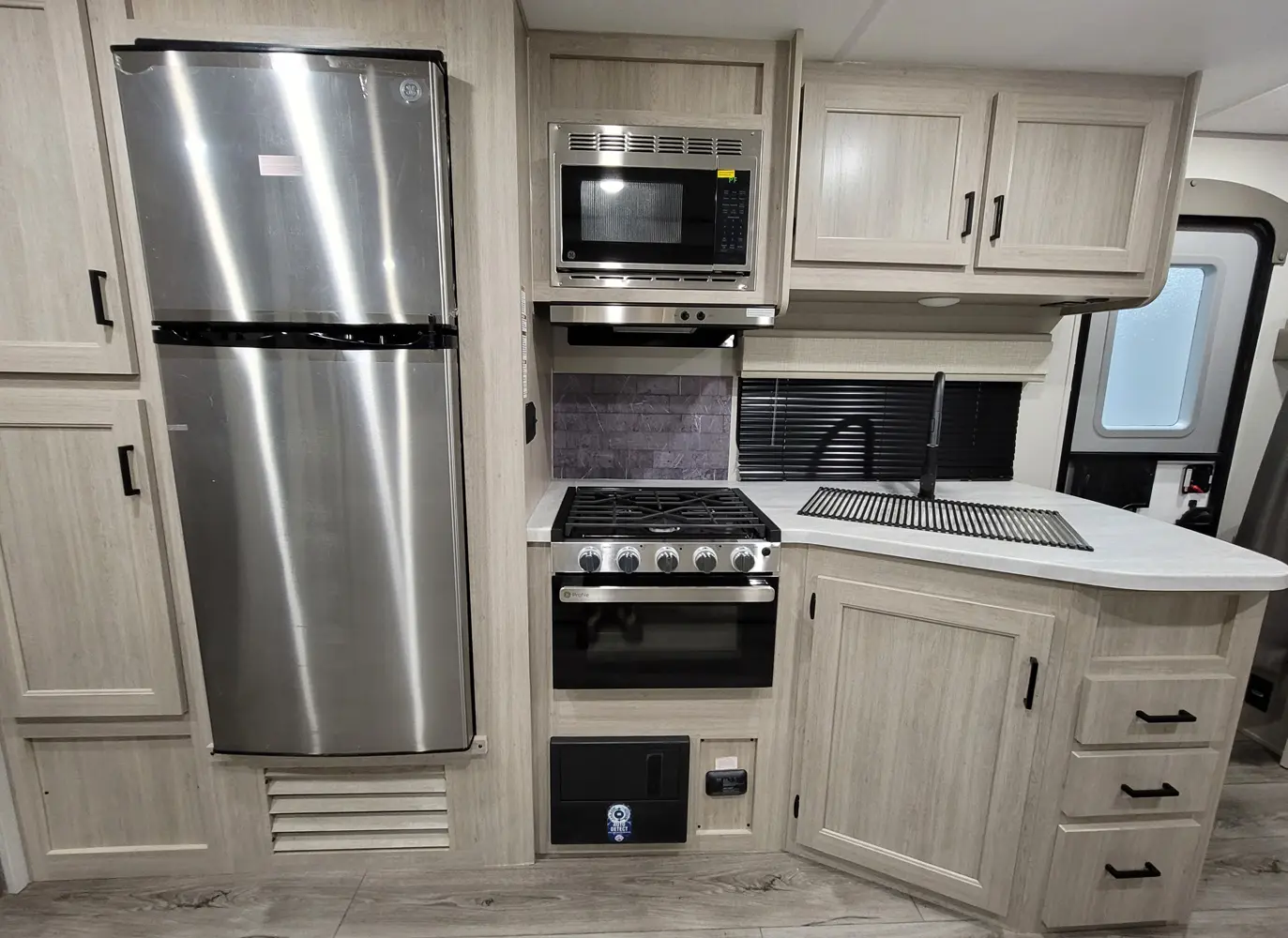

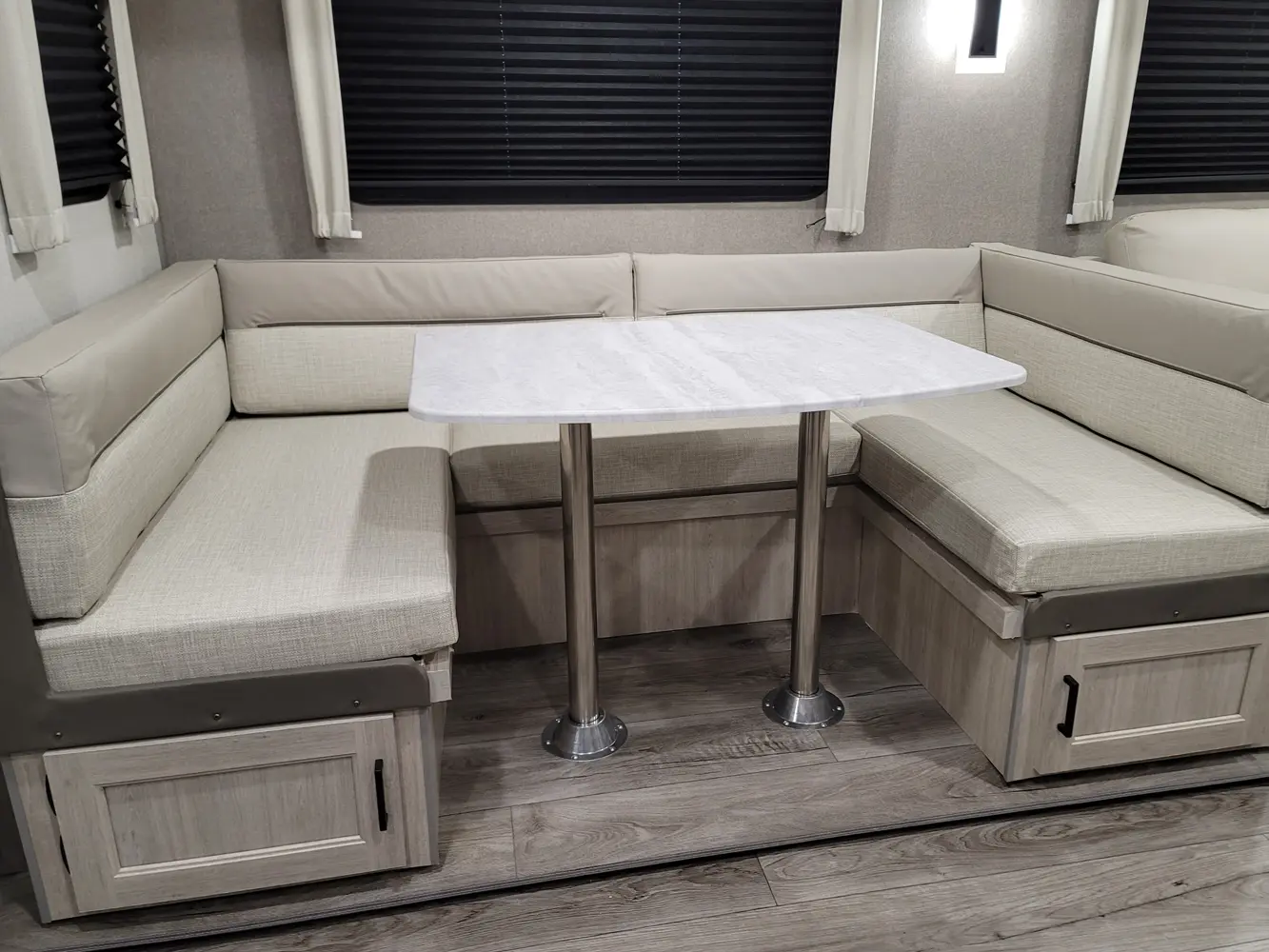

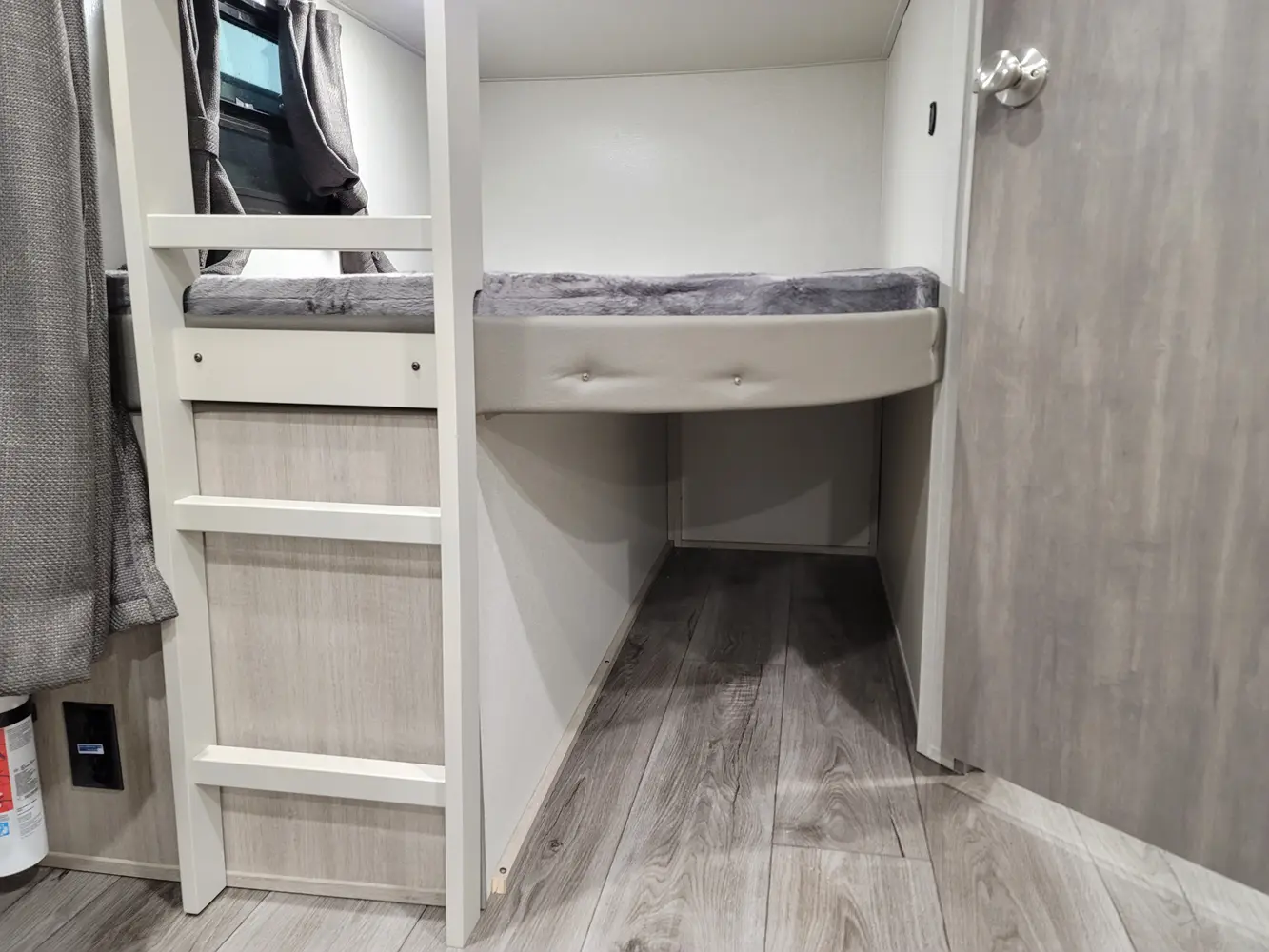

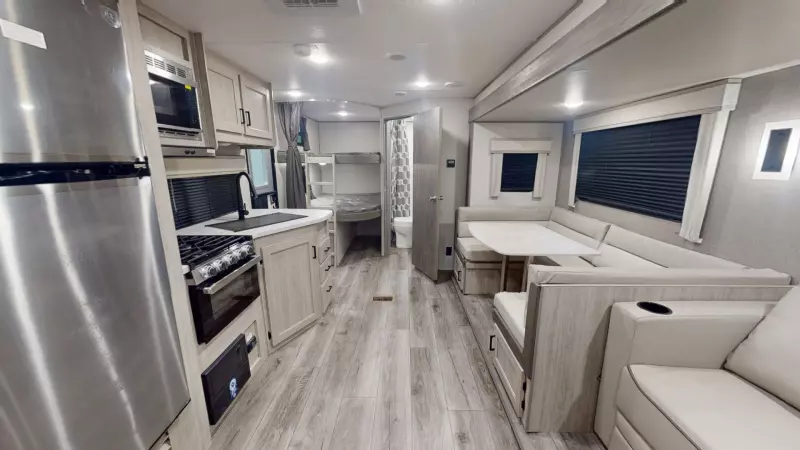

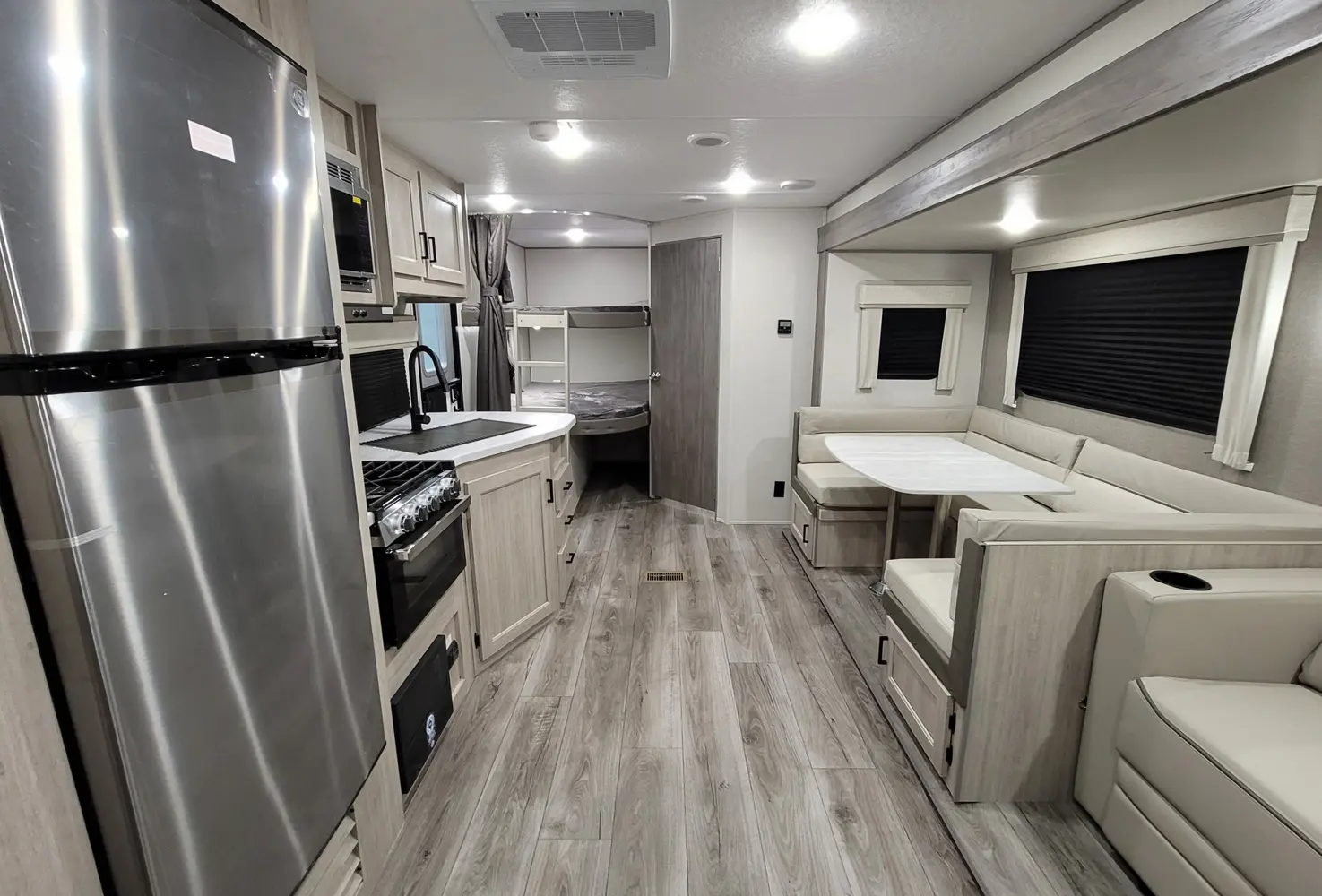

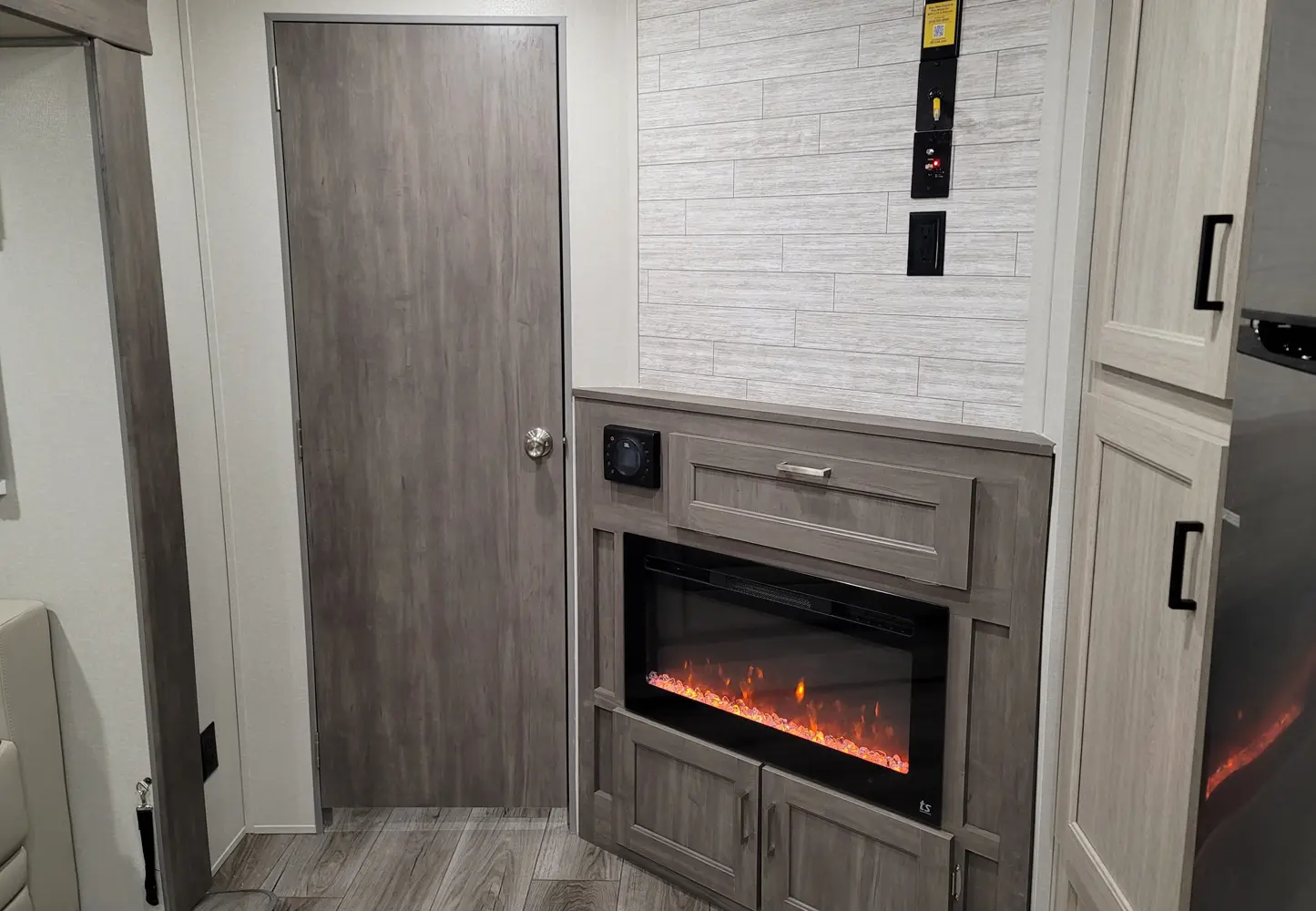

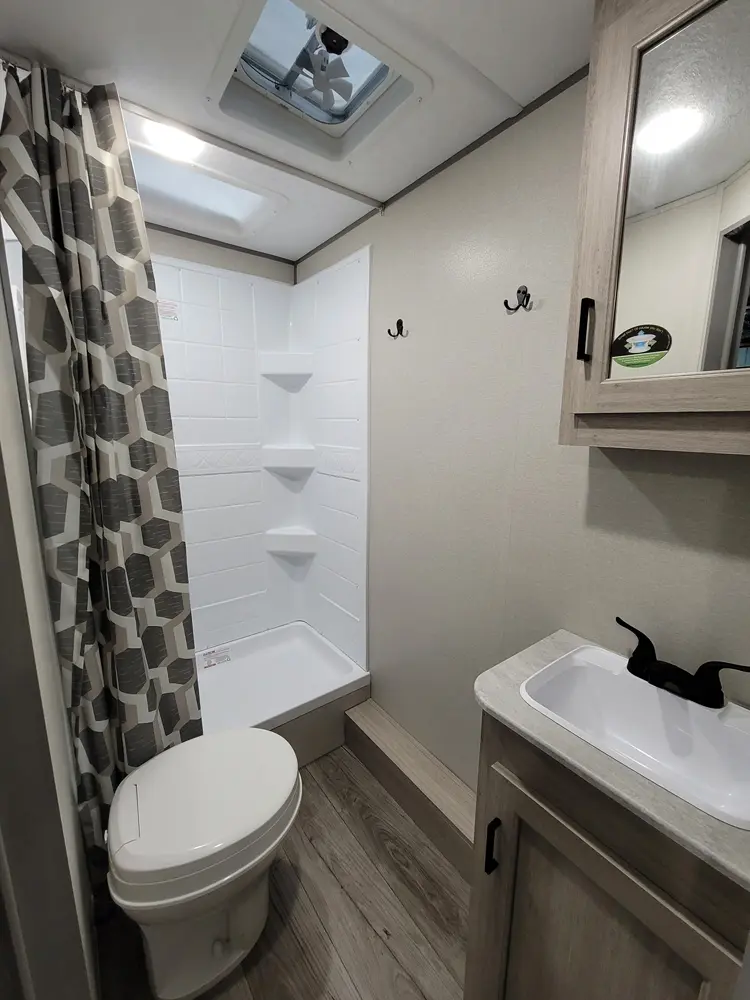

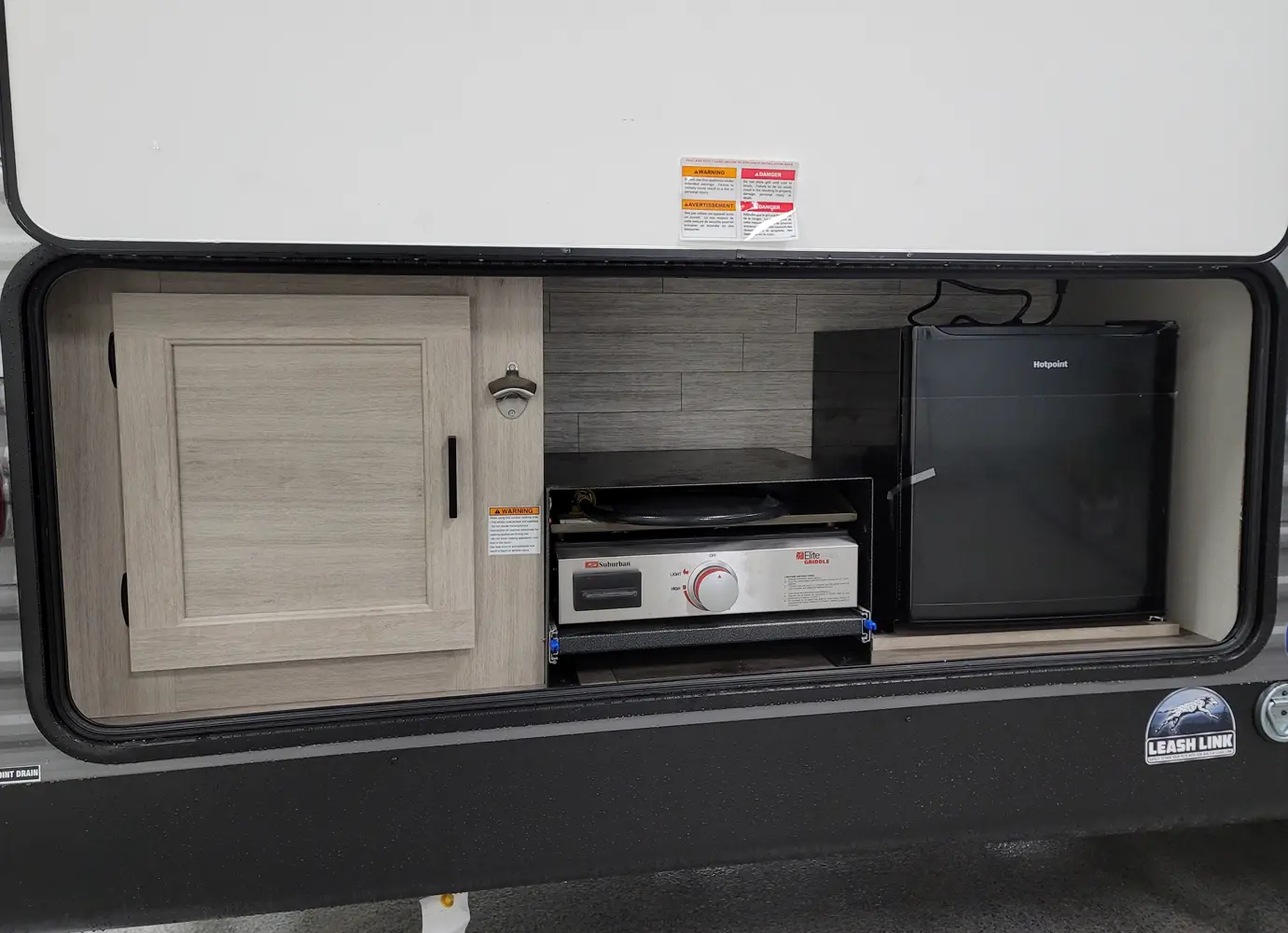

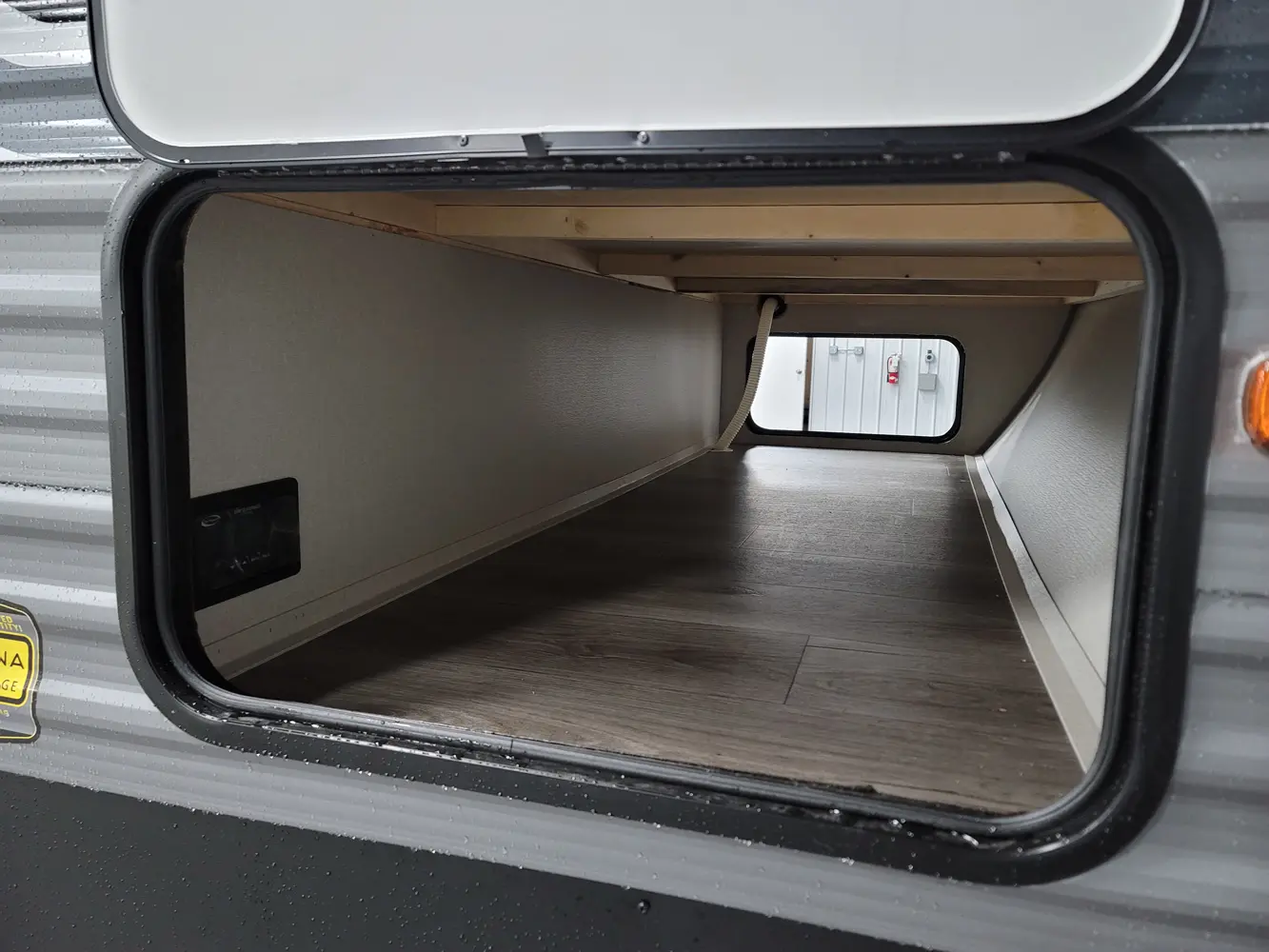

The 263BHSCK has one slide out and two entries. Exterior features an 18 foot awning, front pass-thru storage, outside shower, rear cargo rack, and camp kitchen with cabinet, pull-out griddle and refrigerator. Interior layout front to back: foot facing queen bed, overhead cabinet, wardrobes on each side, closet, and entry door; angled entertainment center; off-door side slide out with sofa and u-shaped dinette; door side pantry, refrigerator, cook top stove, microwave, sink, overhead cabinet, and second entry; rear off-door side full bathroom with medicine cabinet; rear door side double over double bunks.

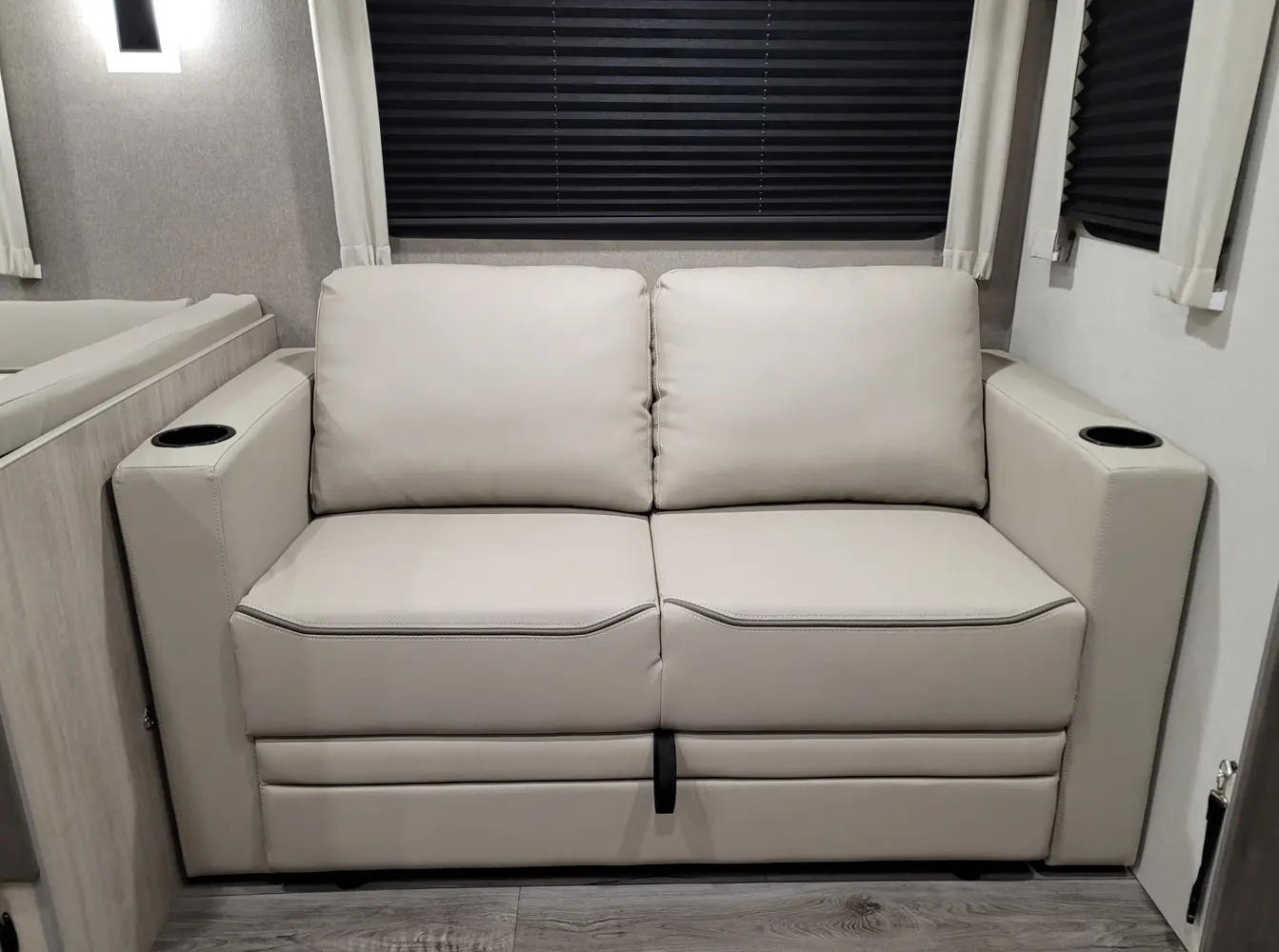

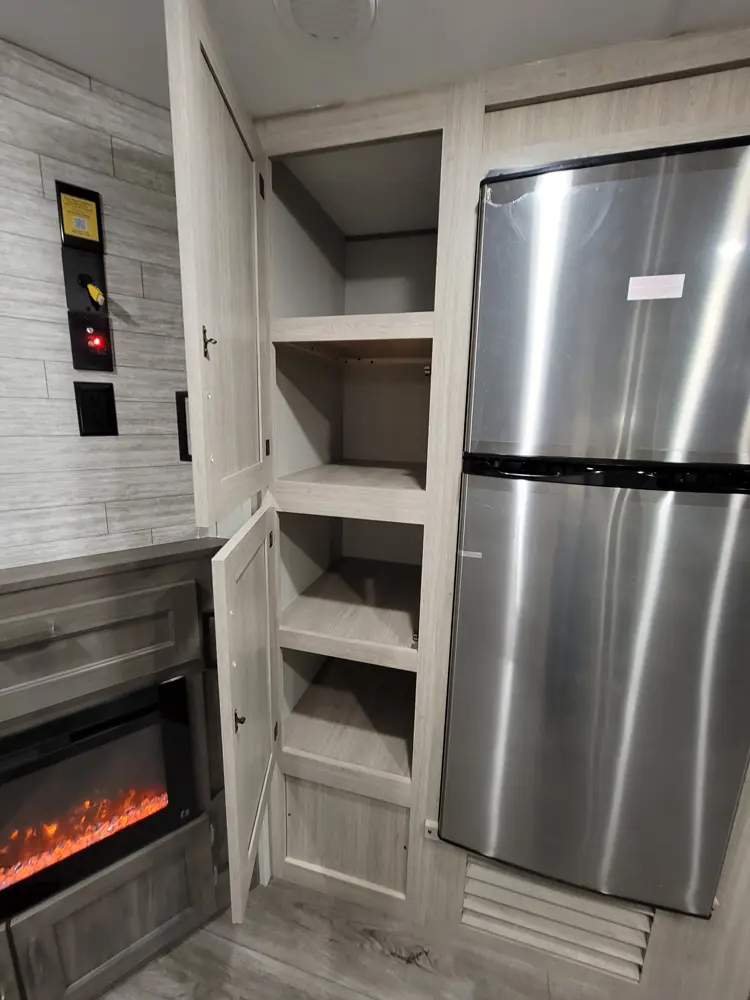

The 263BHS is a classic family bunk house floorplan. Plenty of sleeping is provided by a queen bed in the private master bedroom, two spacious double-over-double bunk beds, as well as our extra-large U-shaped dinette and jiffy bed sofa. Well thought-out features including the easy view angled entertainment center, generous kitchen pantry and standard outside camp kitchen. Additional storage spaces include the under-bunk cubby and floor-to-ceiling closet in the master bedroom.

GVWR (Gross Vehicle Weight Rating): – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)*- is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.
