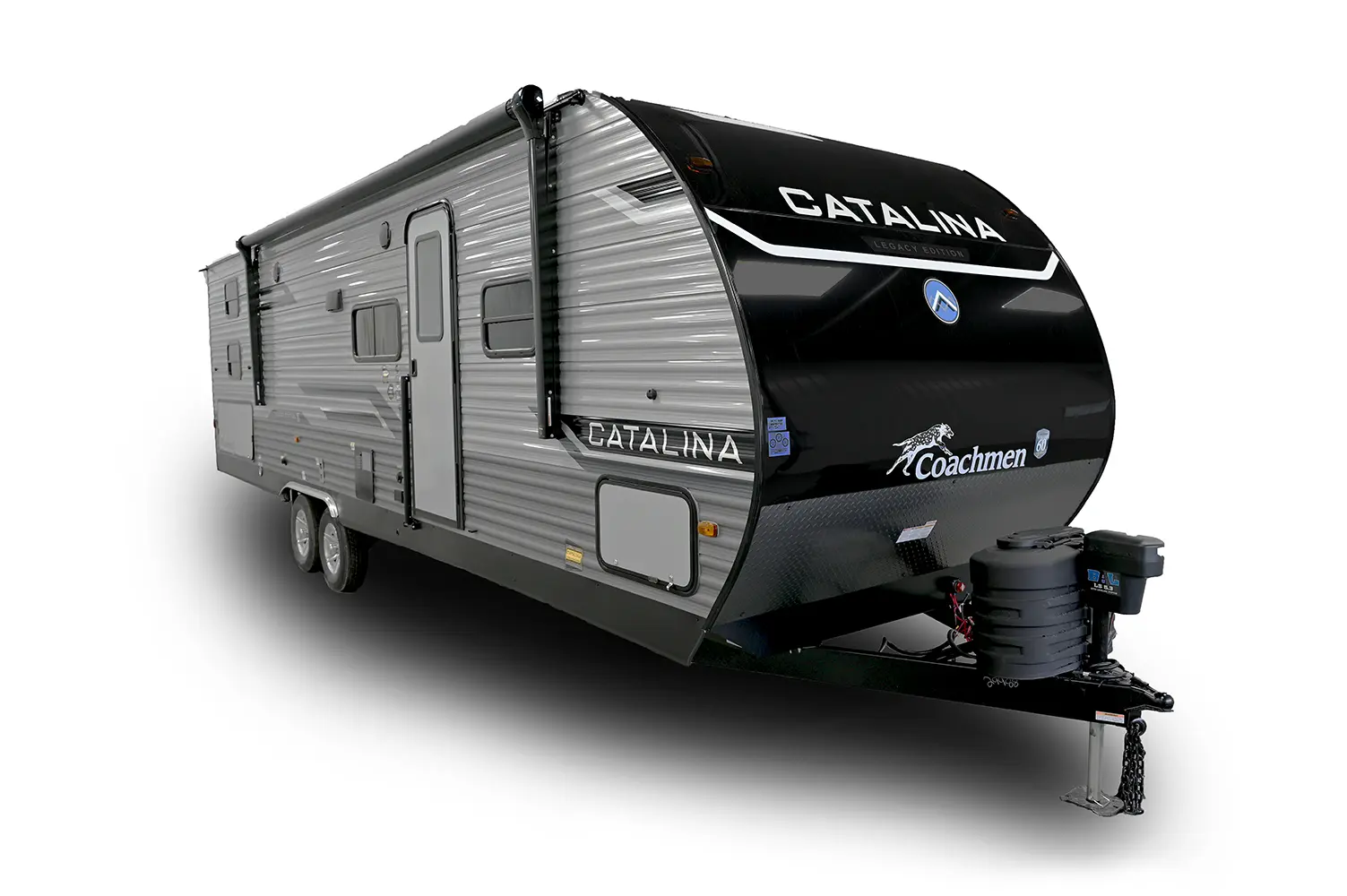

2024 Catalina Legacy Edition 293QBCK Floorplan

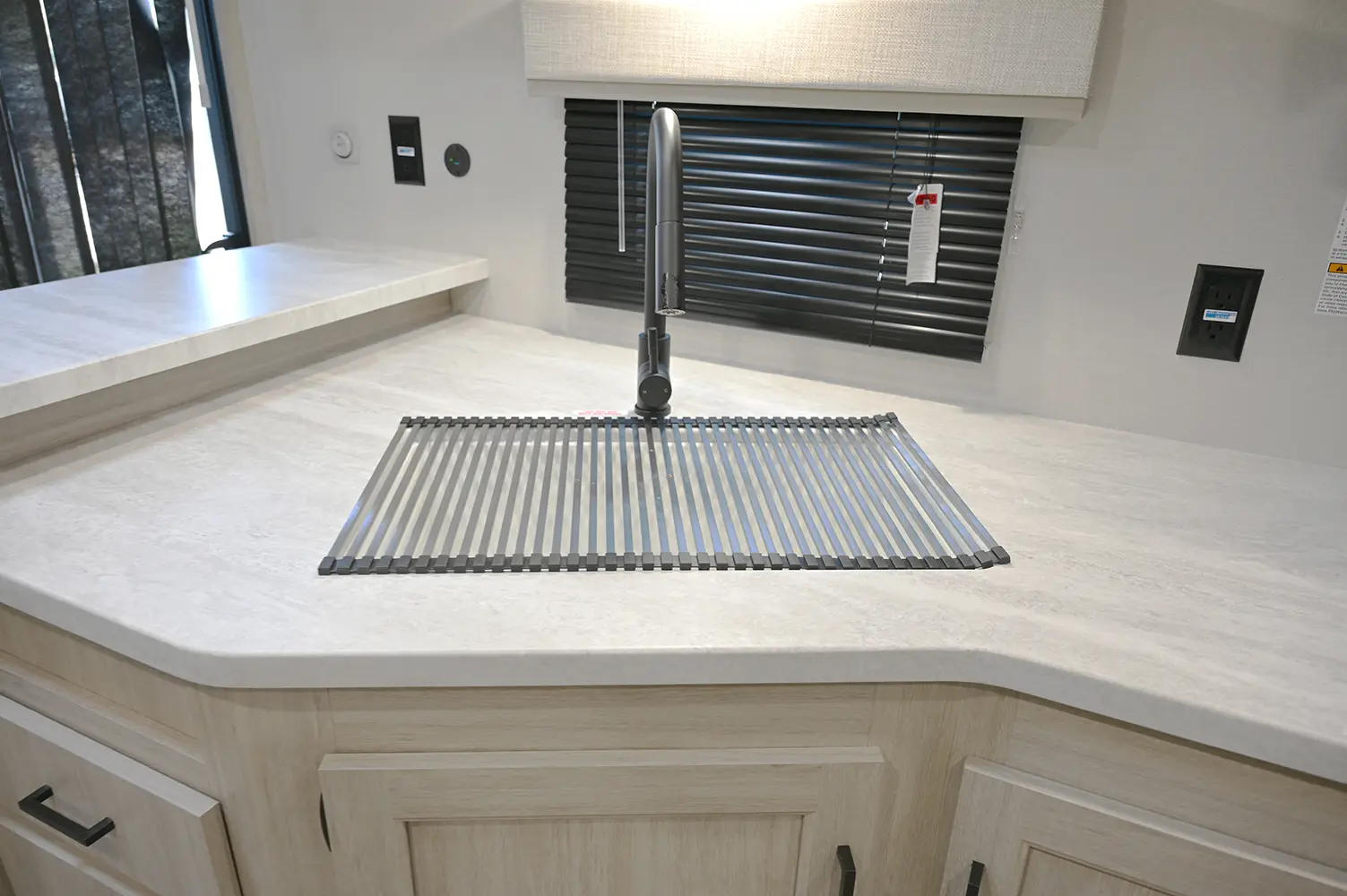

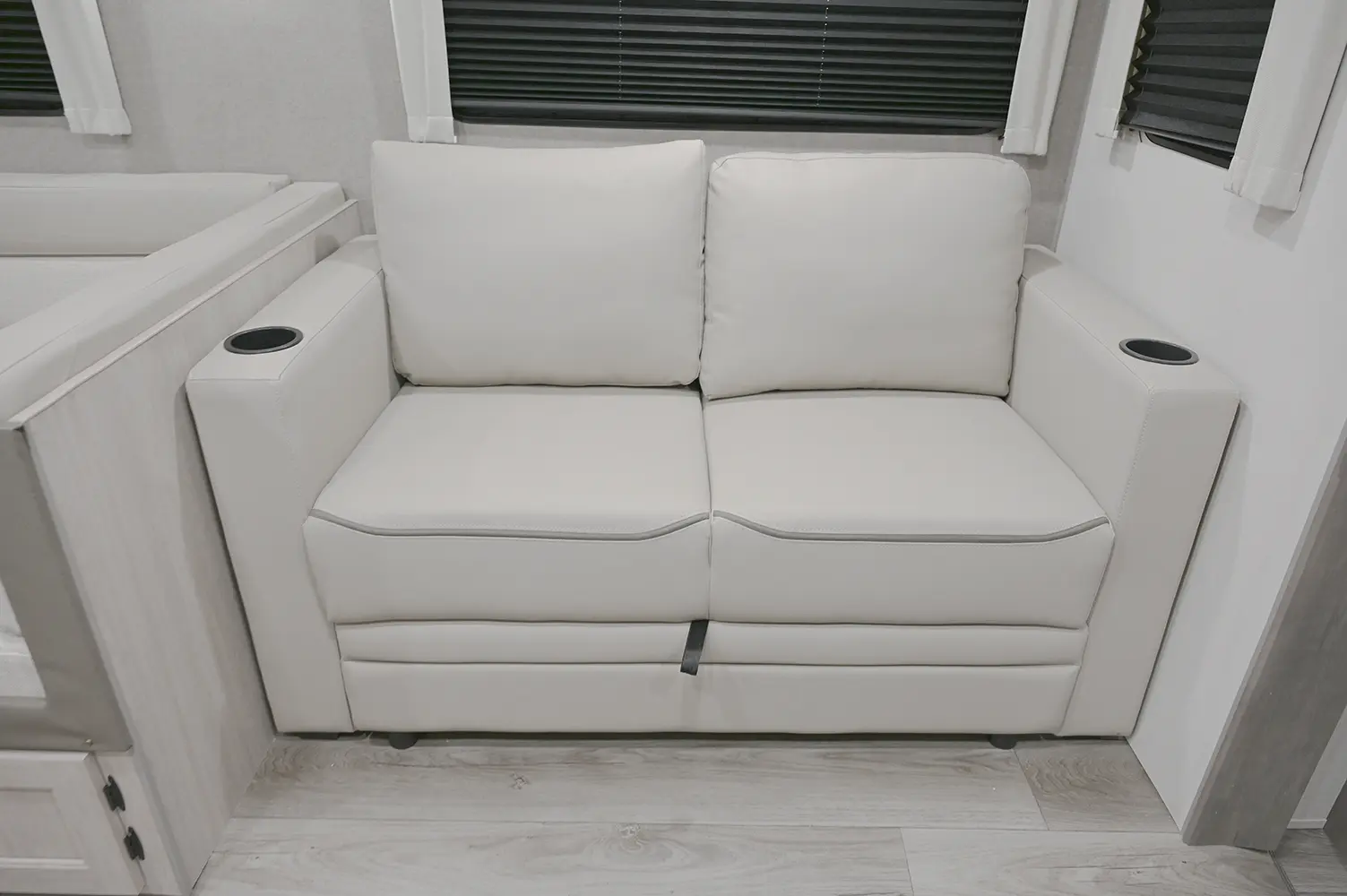

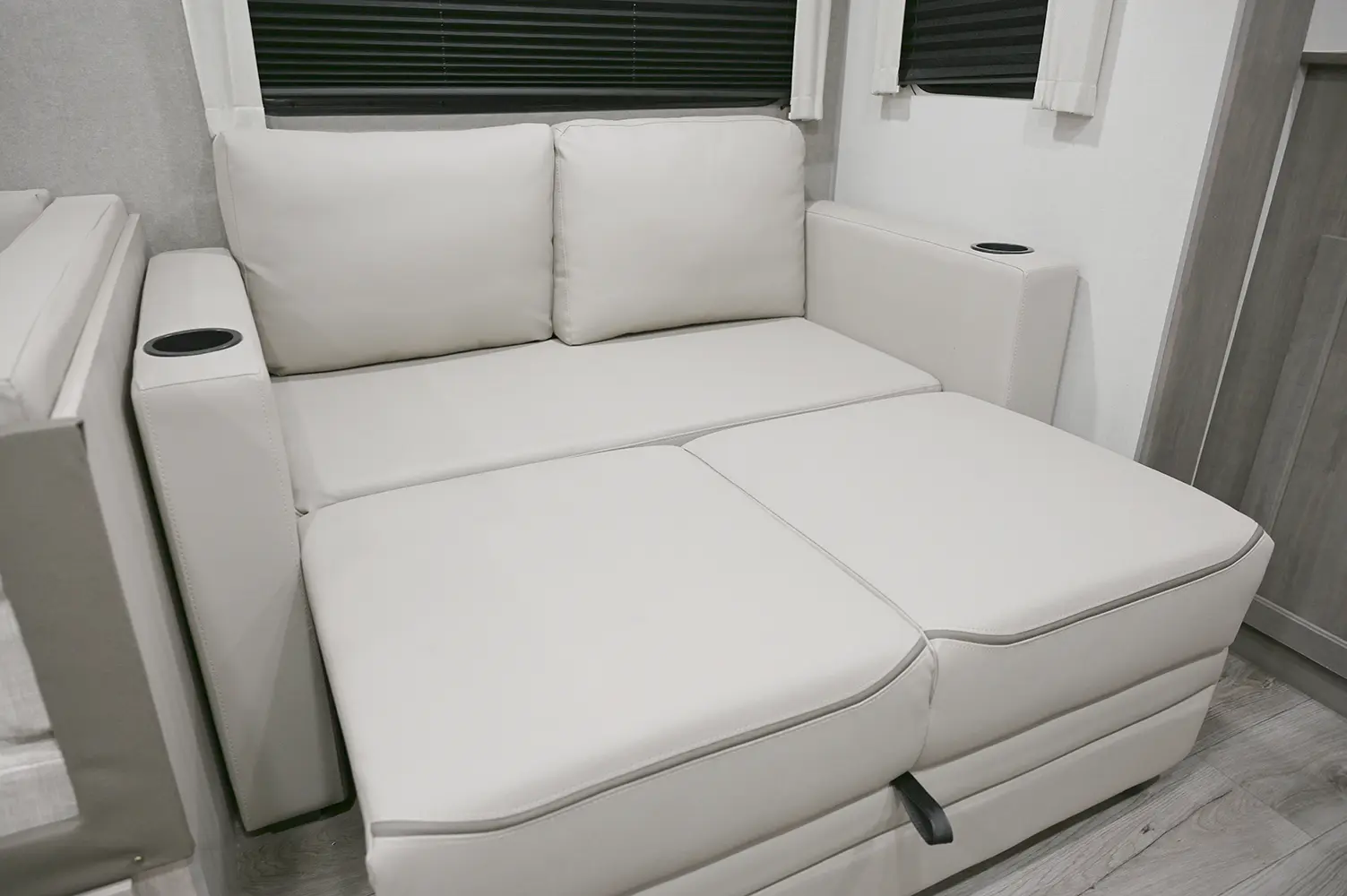

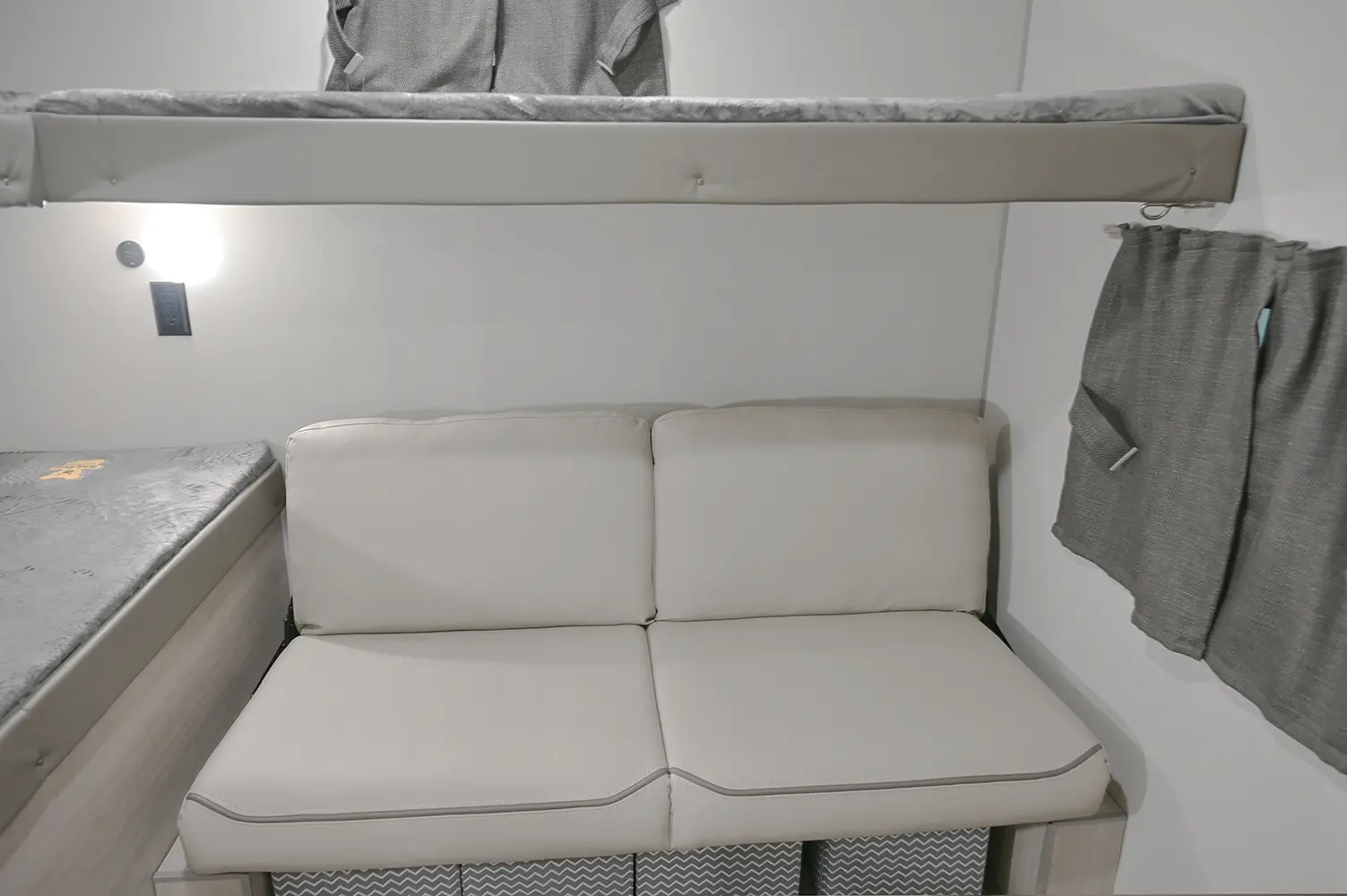

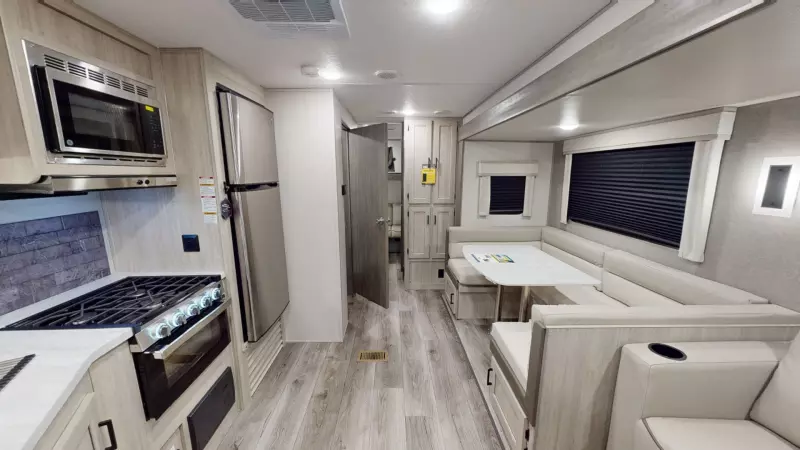

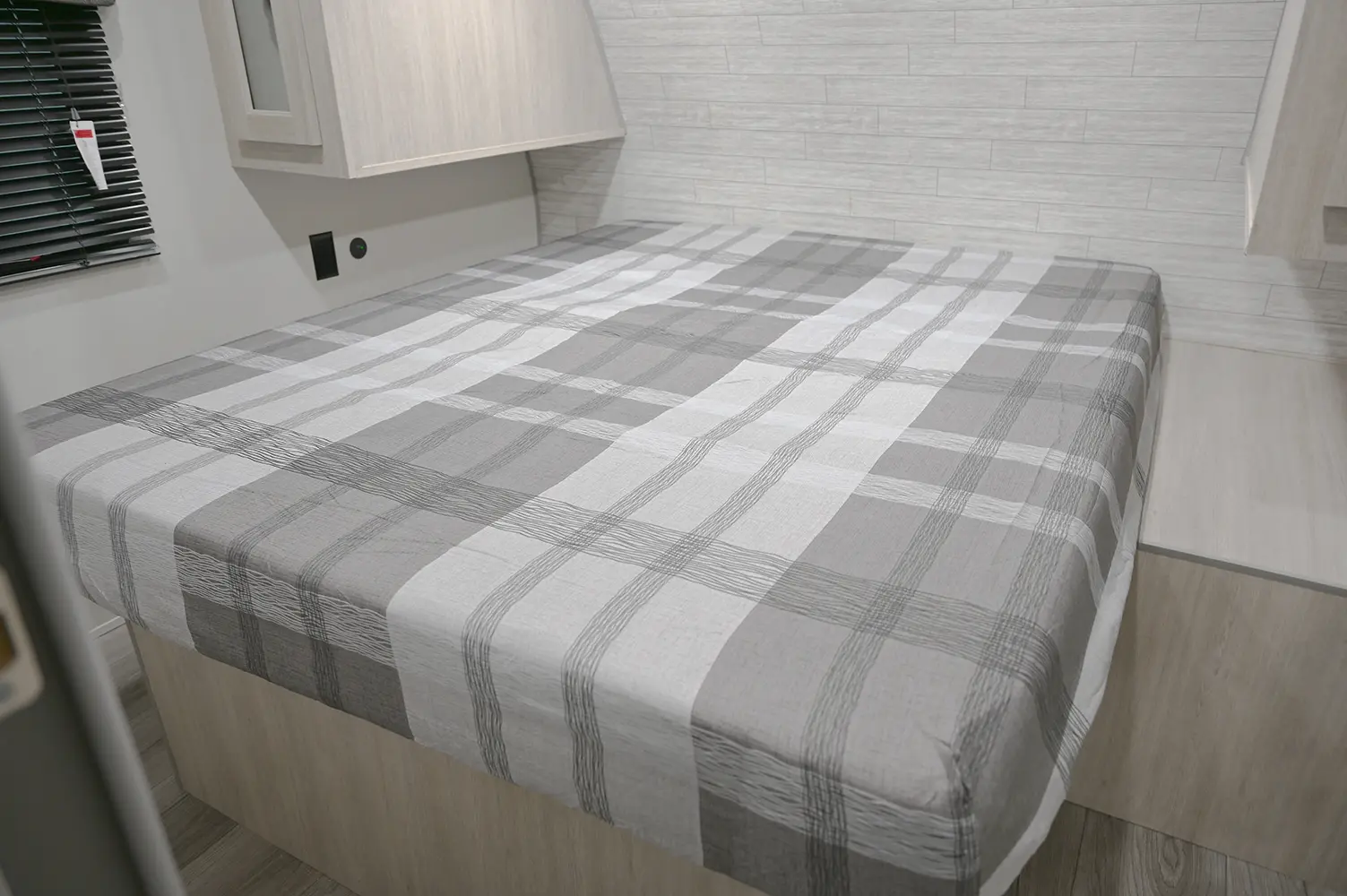

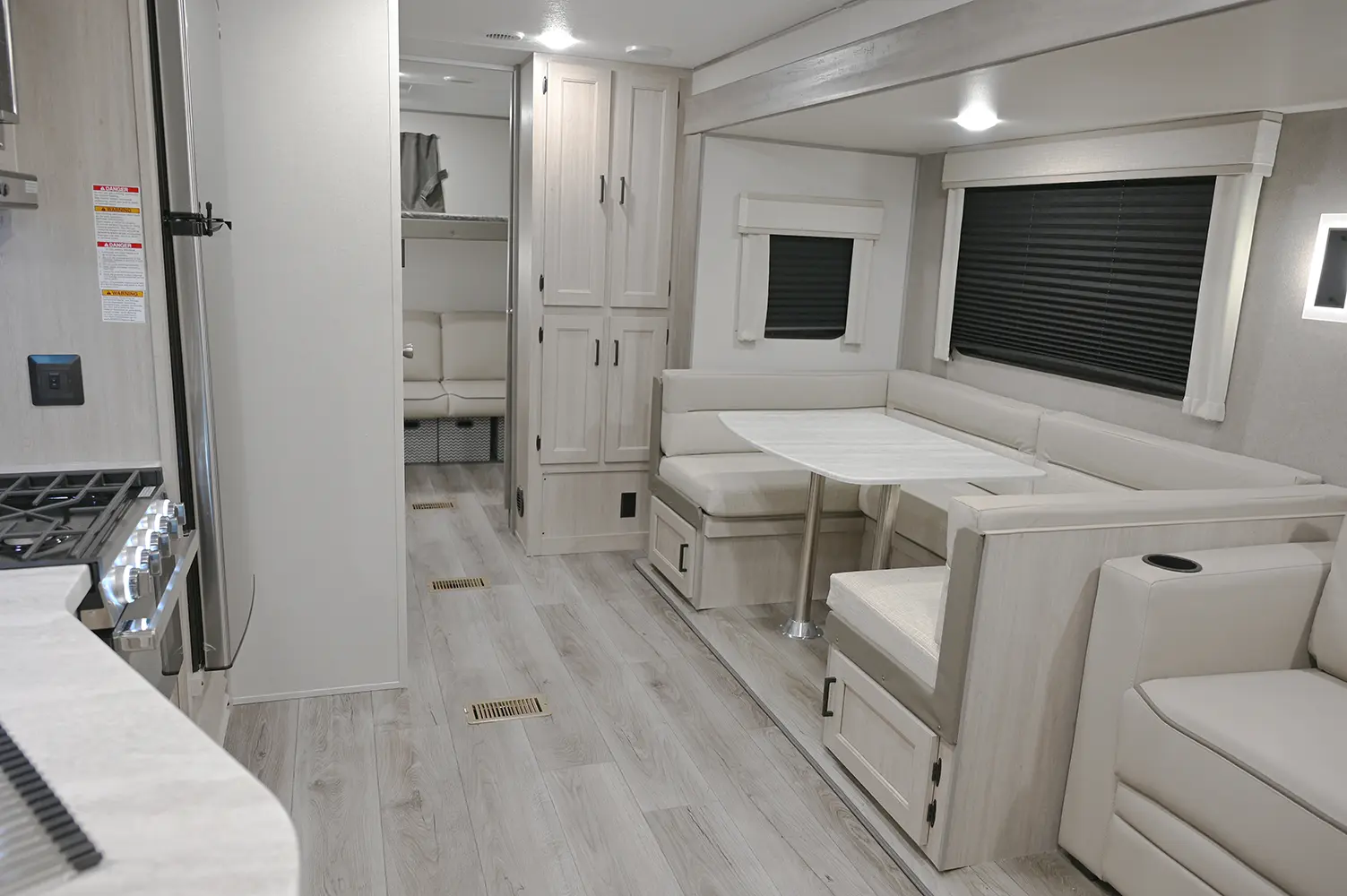

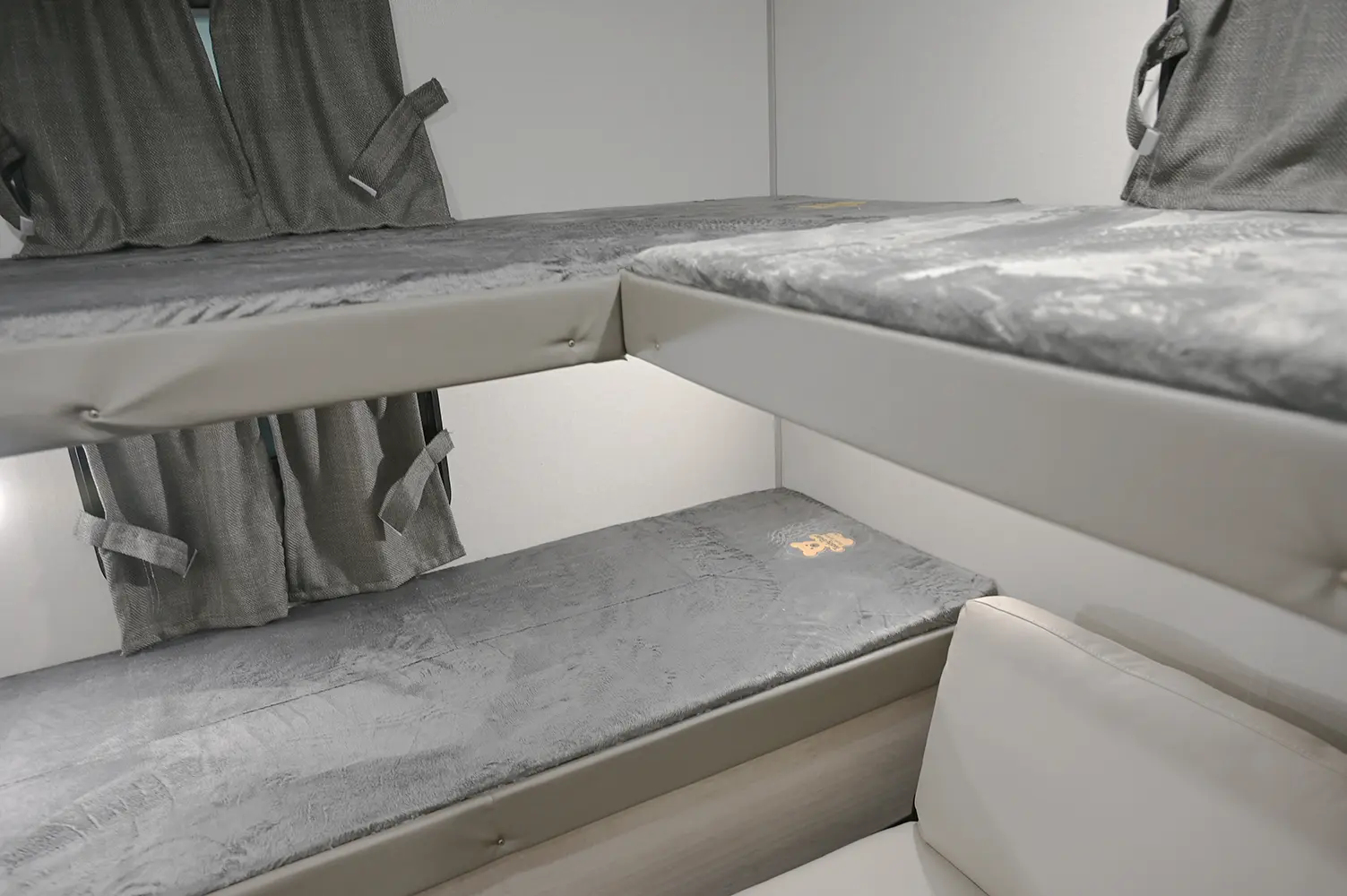

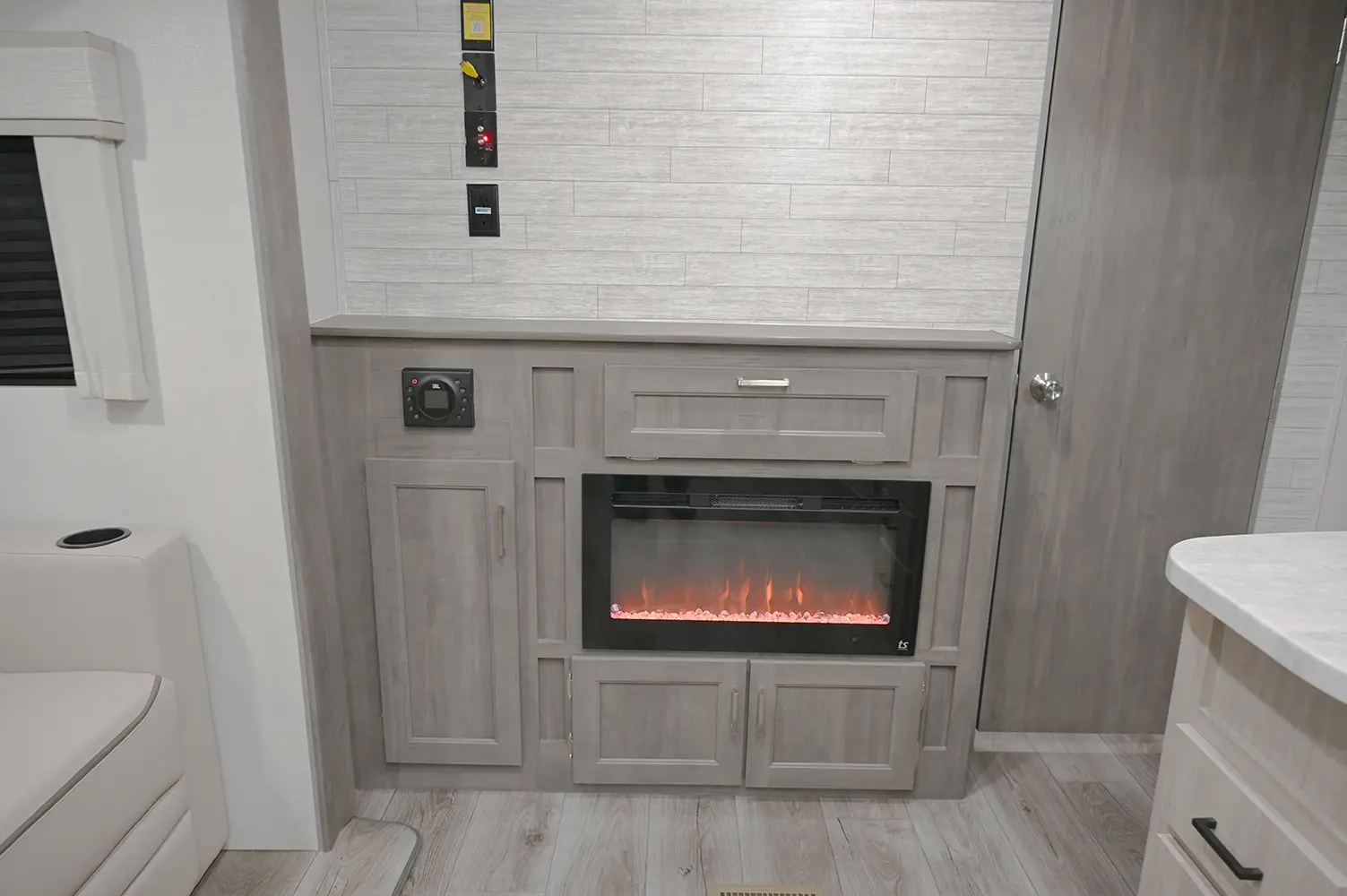

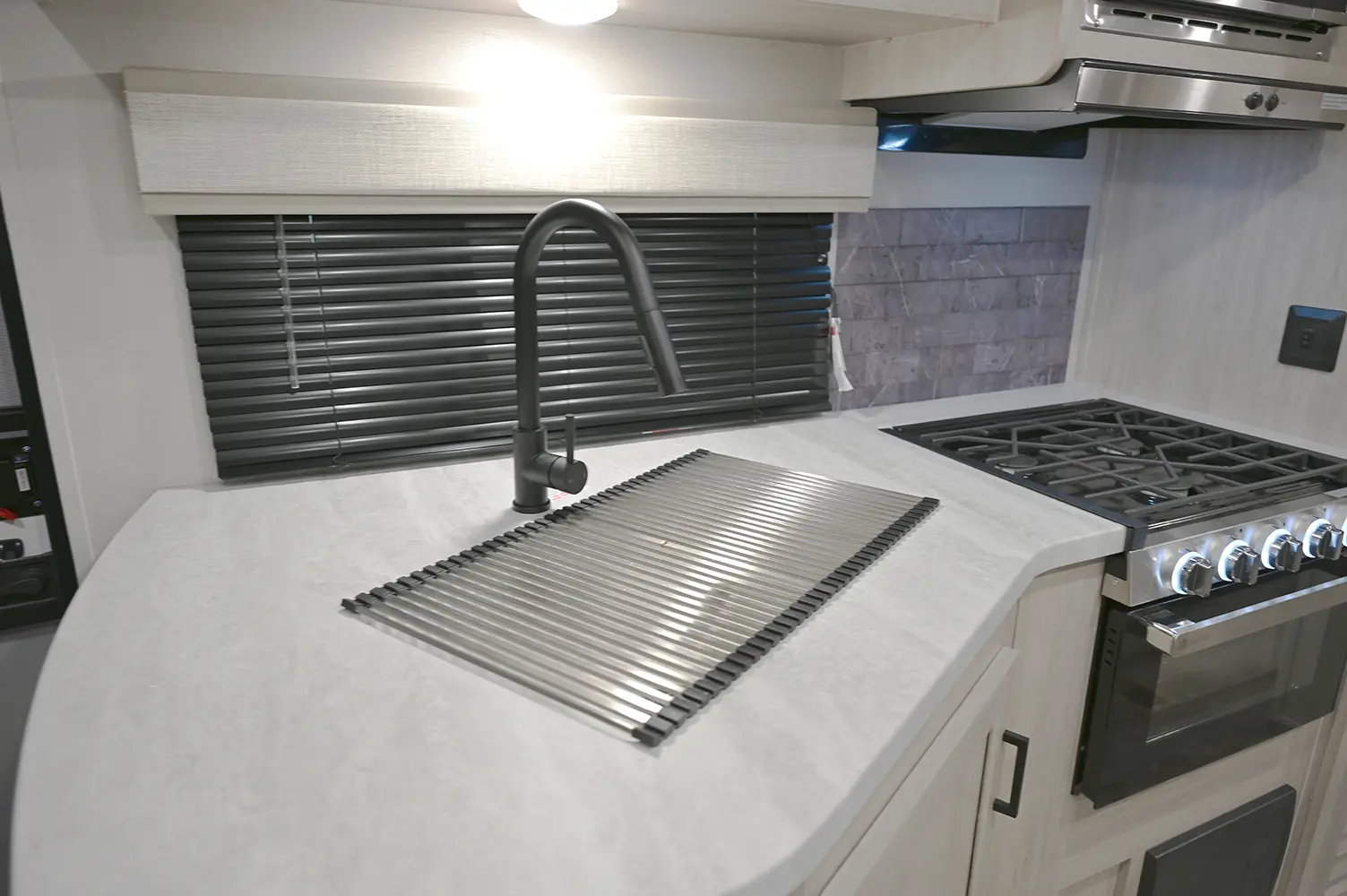

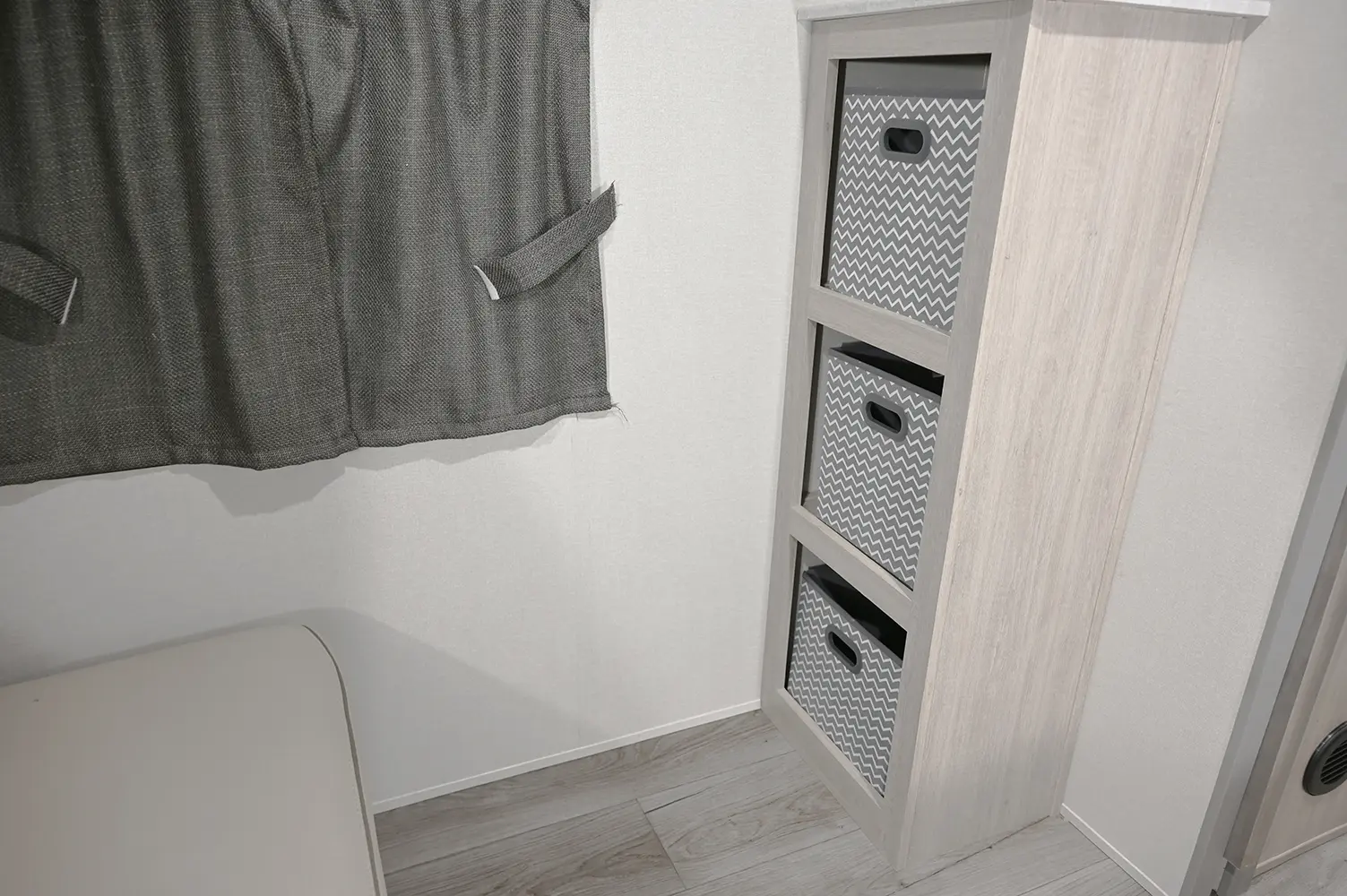

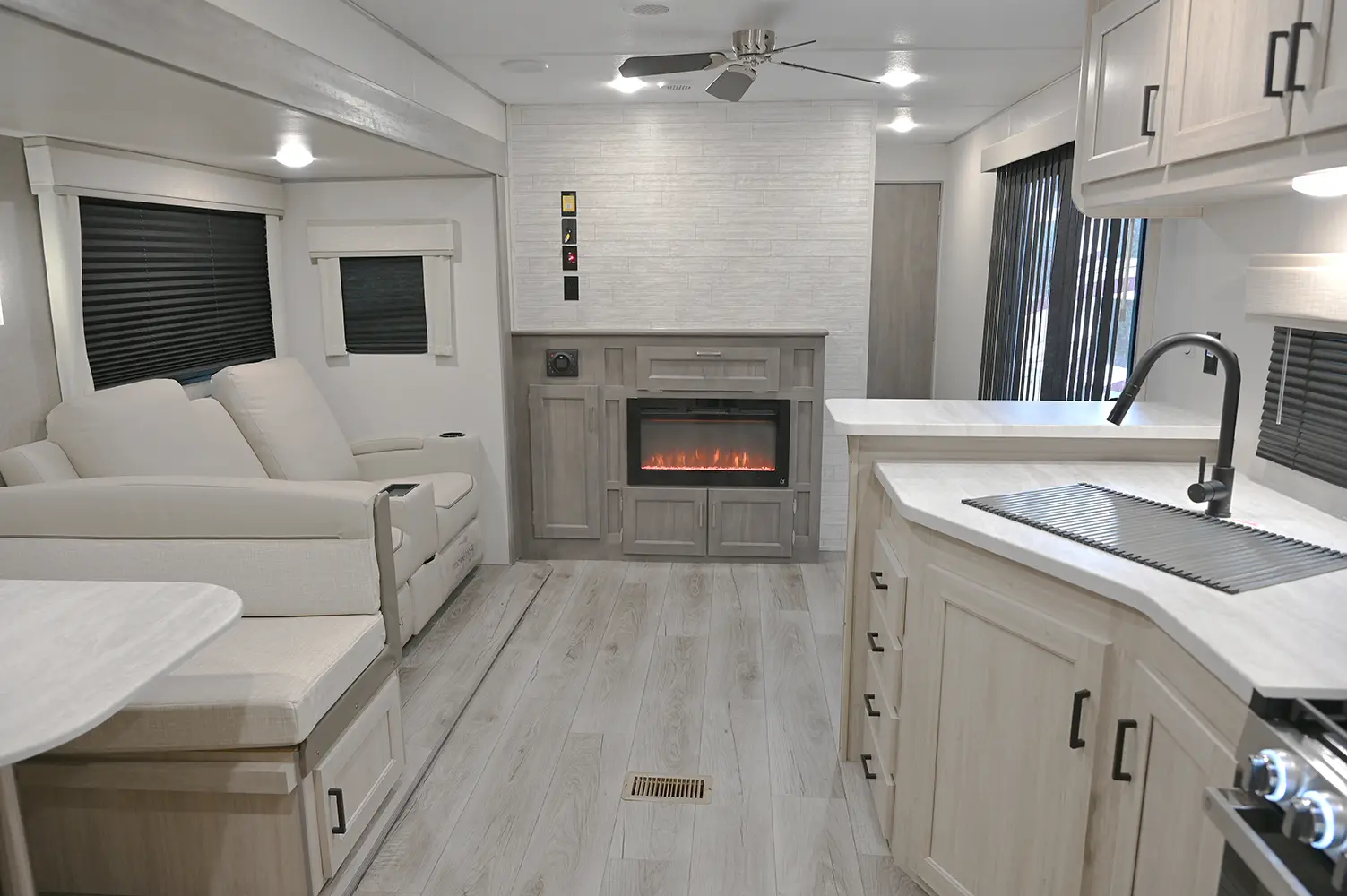

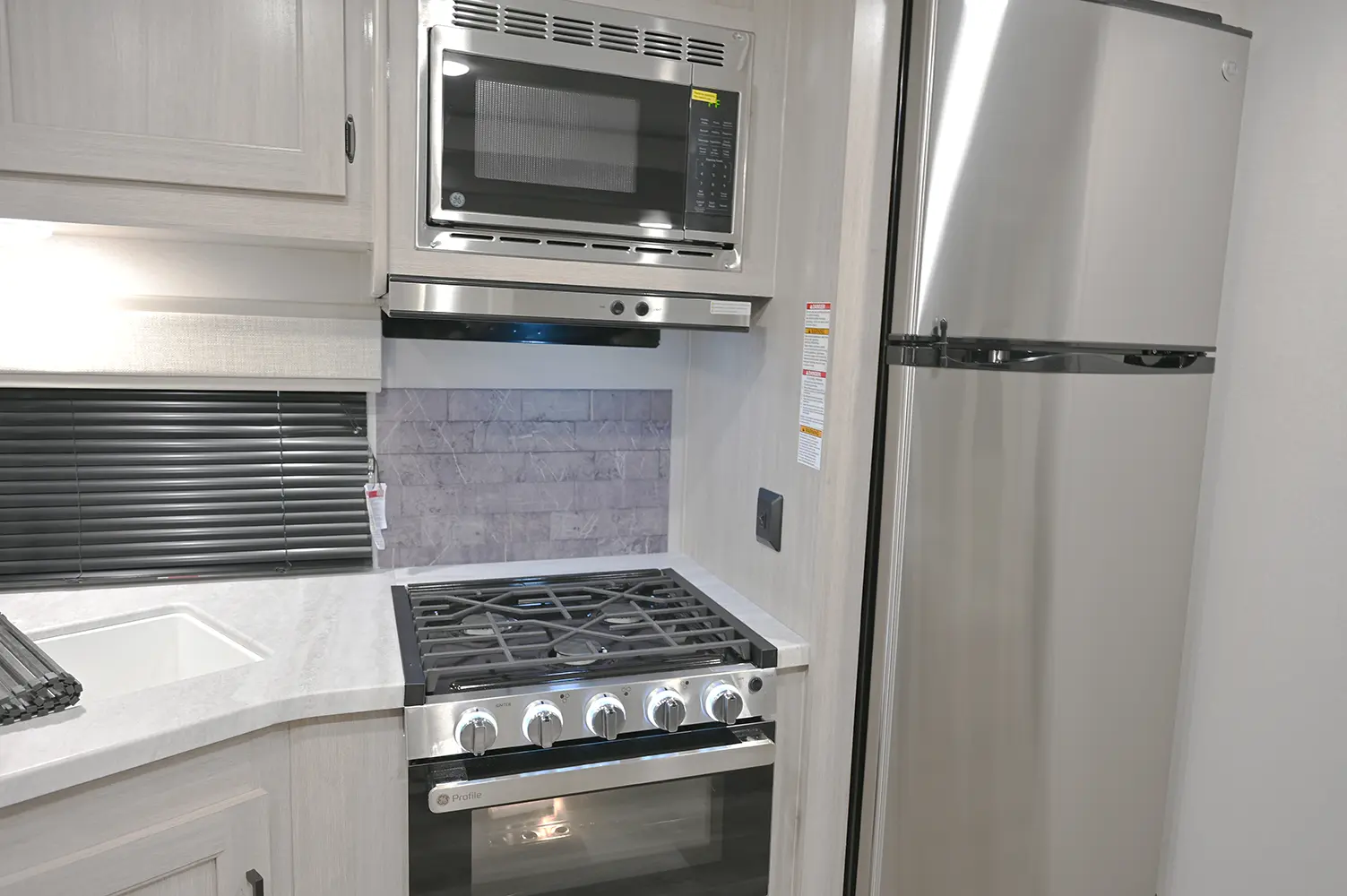

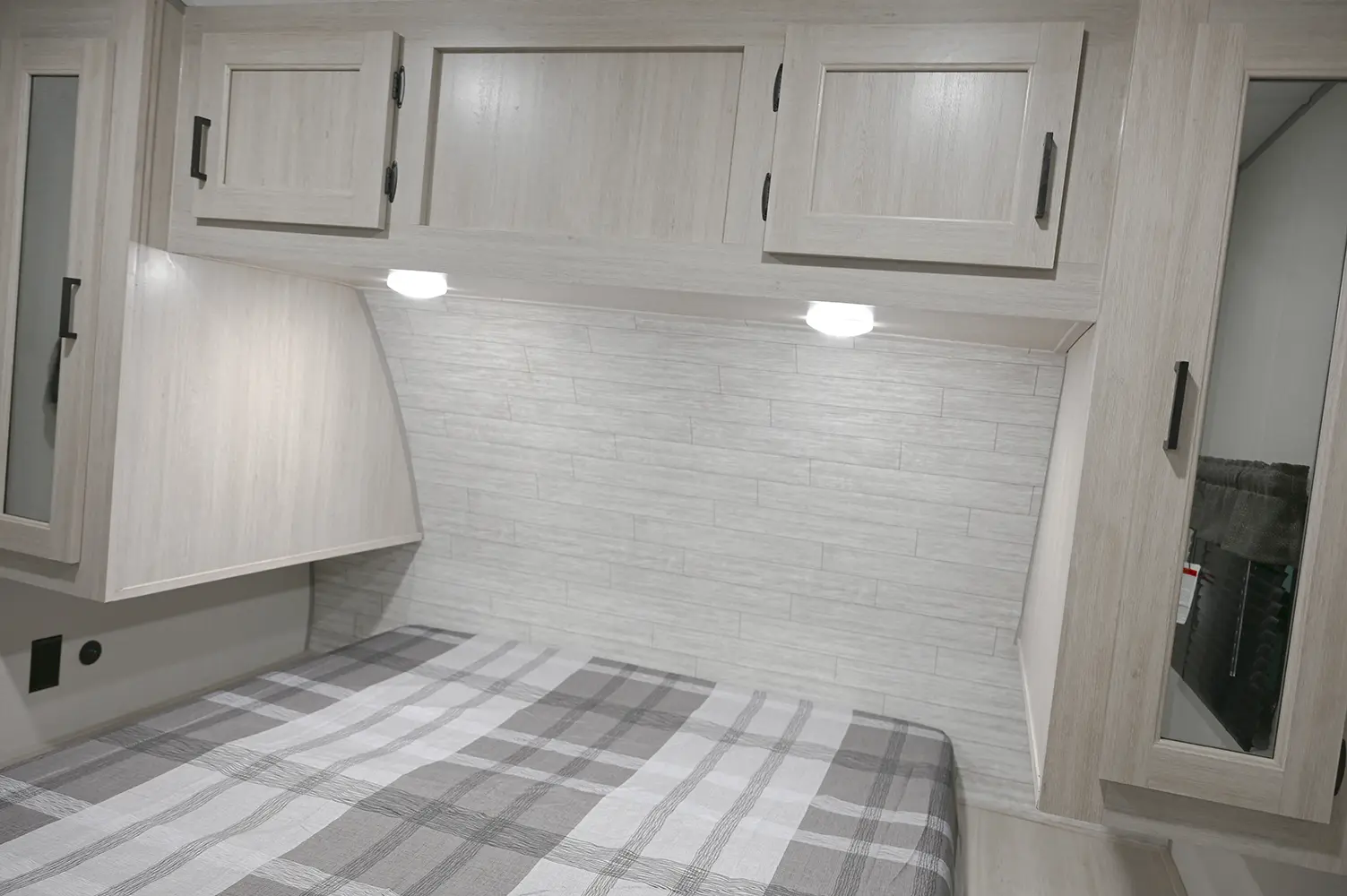

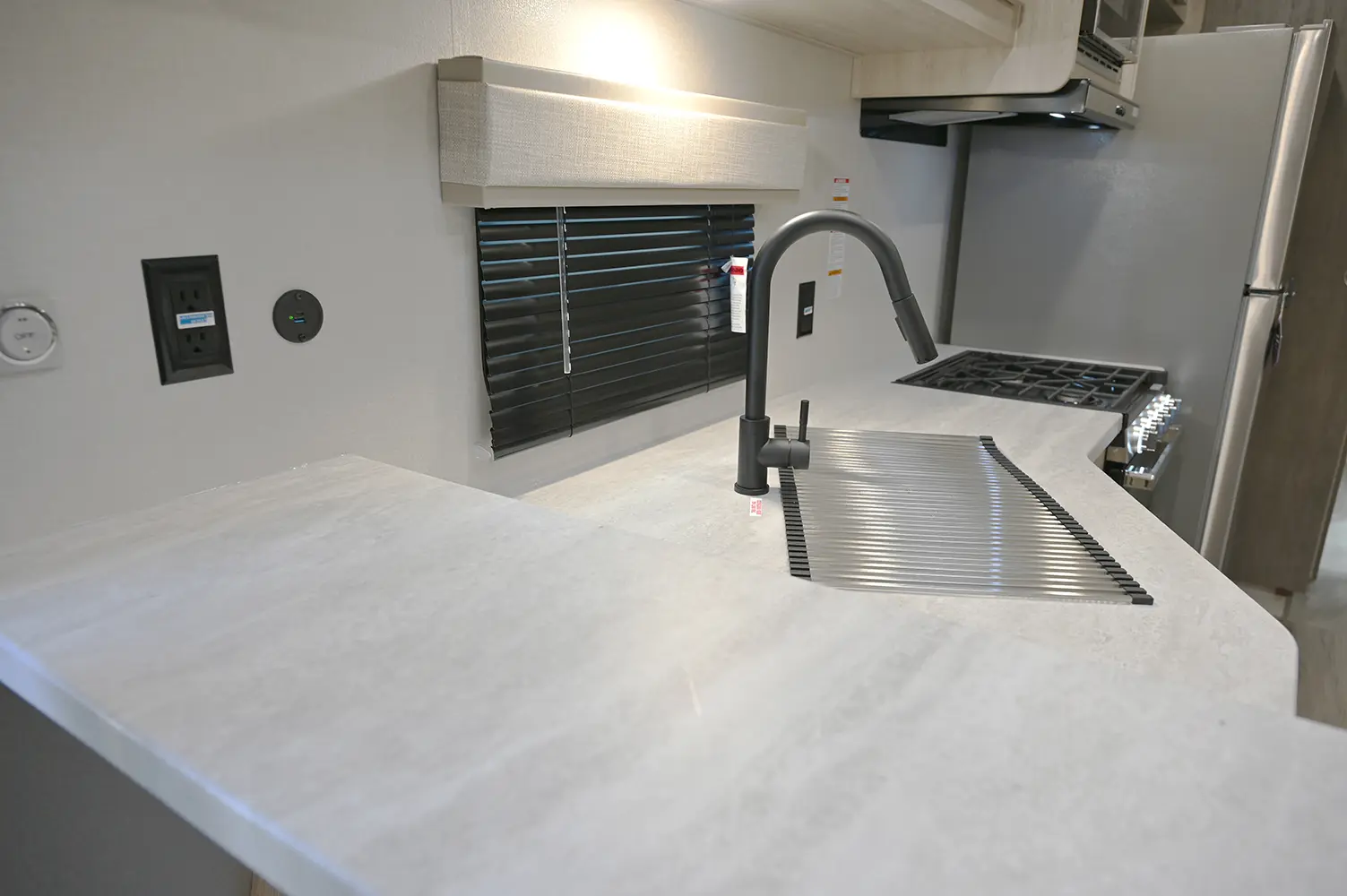

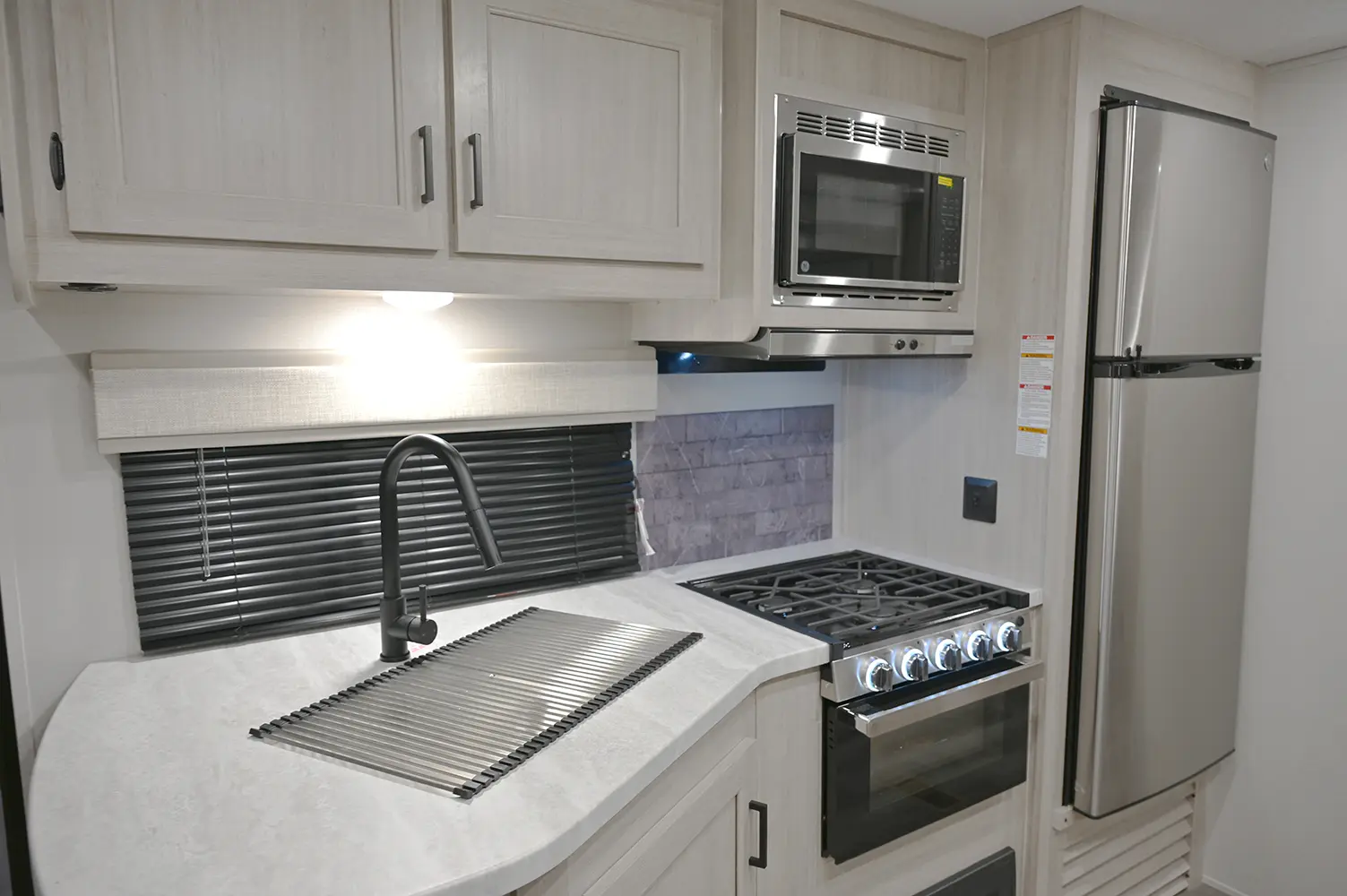

The 293QBCK has one slide out and one entry. Exterior includes an 18 foot awning, camper kitchen with cabinet, pull out griddle and refrigerator, front pass thru storage, outside shower, and rear cargo rack. Interior layout front to back: foot facing queen bed with overhead cabinet and wardrobes on each side; entertainment center along inner wall; off-door side slide out with sofa and u-shaped dinette; door side entry, kitchen counter with sink, overhead cabinet, cook top stove, microwave, and refrigerator; door side full bathroom with medicine cabinet; rear bunk room with door side bunk beds, wardrobe, rear COA cubes with upper bunk, and off-door side TV cabinet and wardrobe.

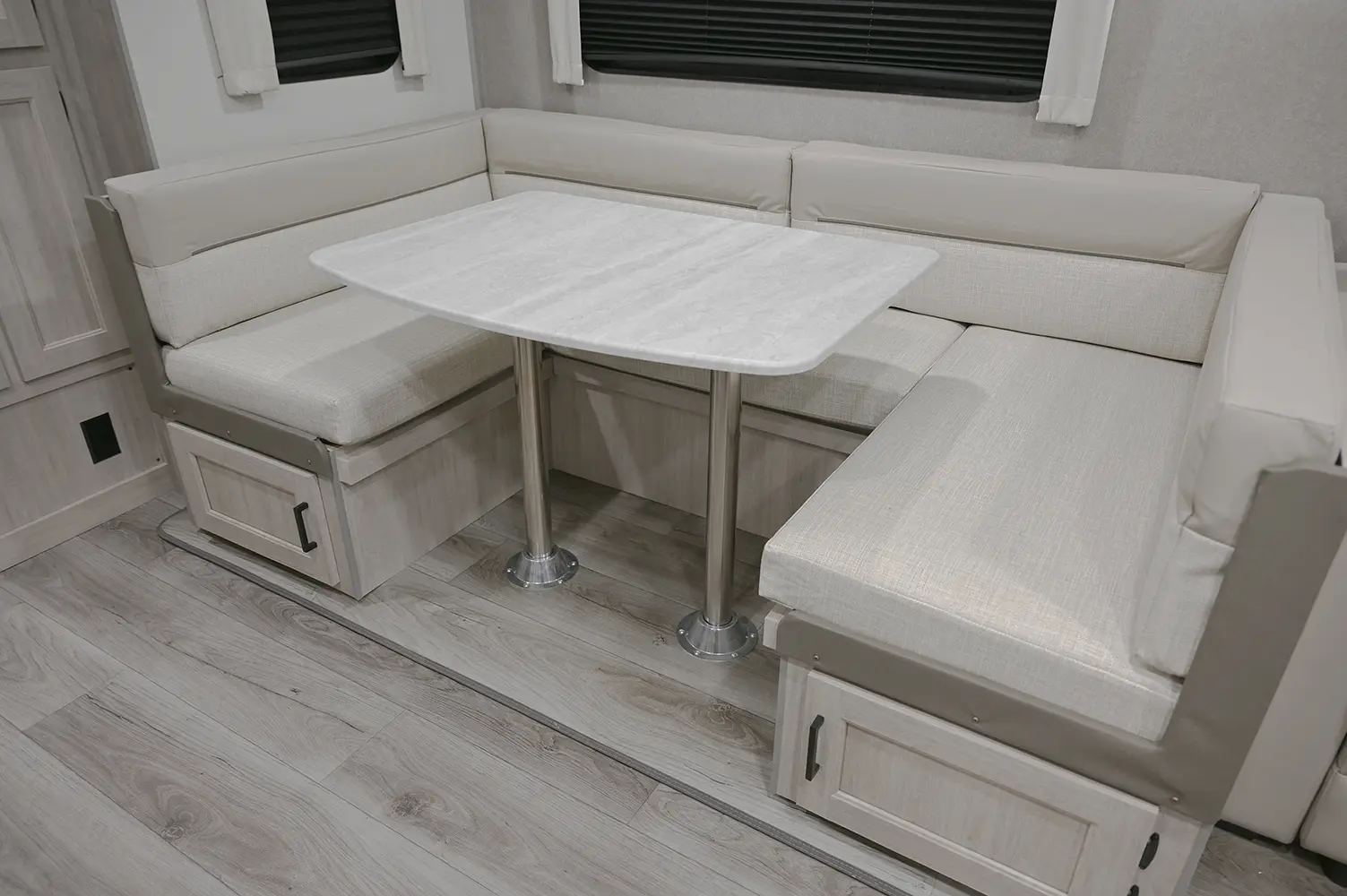

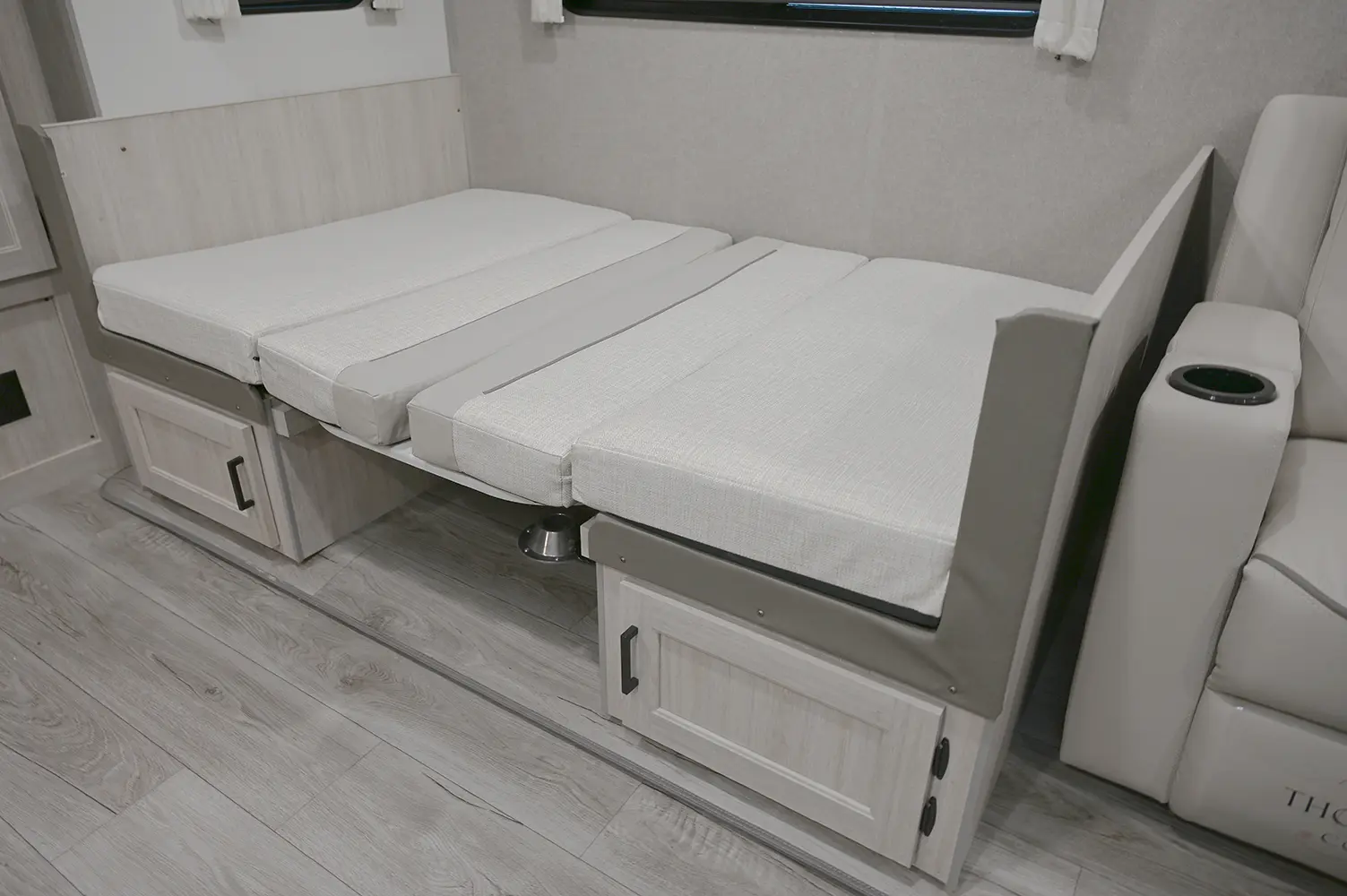

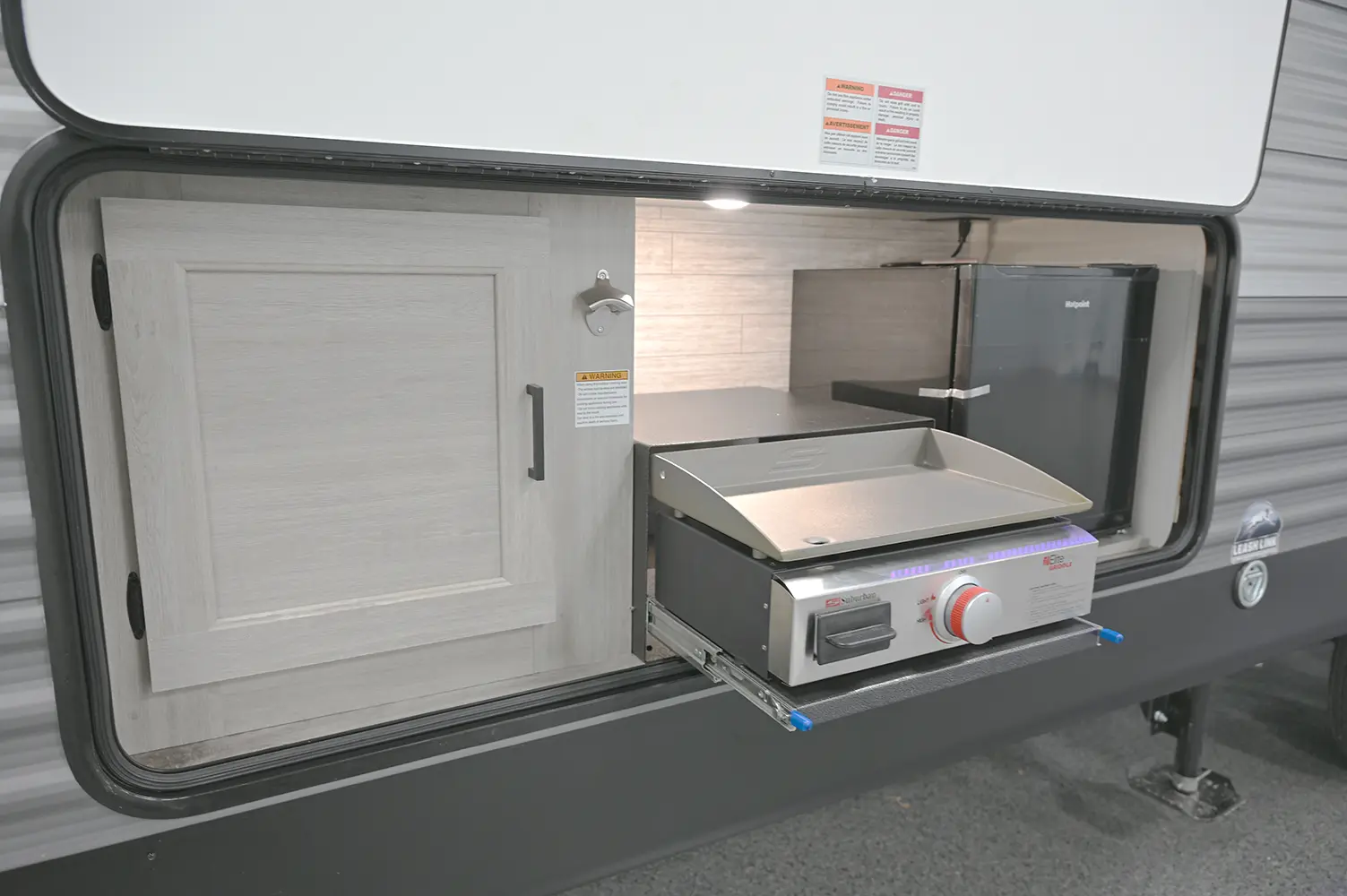

The 293QBCK is our unique take on the traditional quad bunk floorplan. The extra-large U-shape dinette offers plenty of seating while the bunk room easily sleeps 5+ and is designed for the maximum amount of comfort and convenience. The bunk room comes with its own wardrobe, dresser, and a solid slider door for privacy. No bunk house is complete without the addition of our standard outside camp kitchen with mini refrigerator, pull-out griddle cooktop, storage cabinet and sprayer hose!

GVWR (Gross Vehicle Weight Rating): – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)*- is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.
