2024 Catalina Trail Blazer 29THS Floorplan

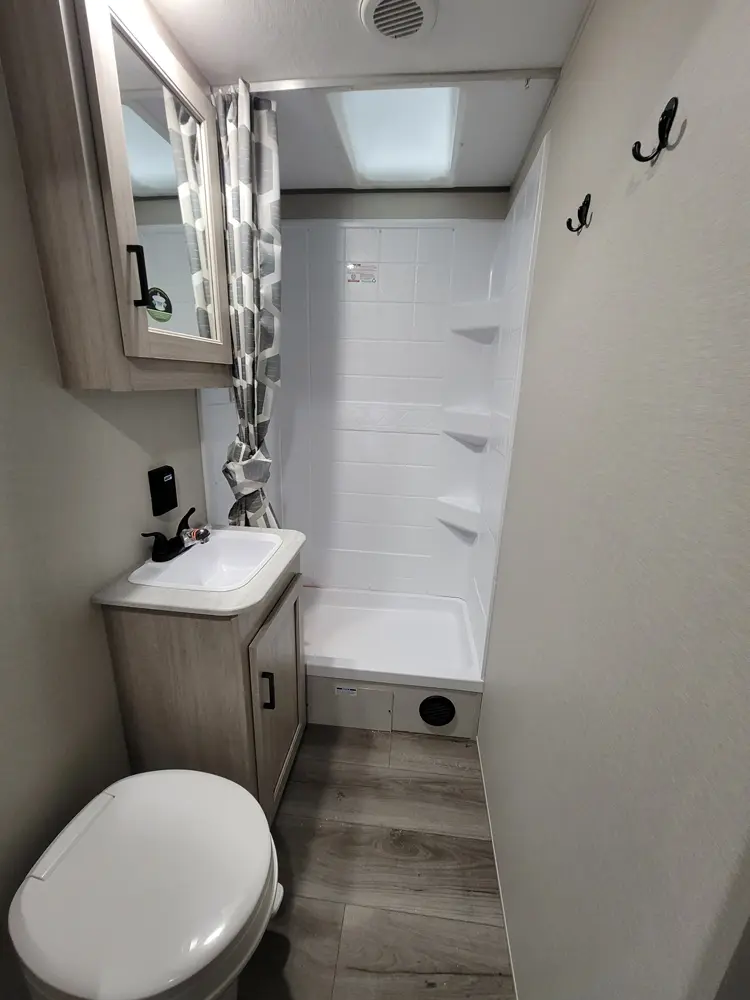

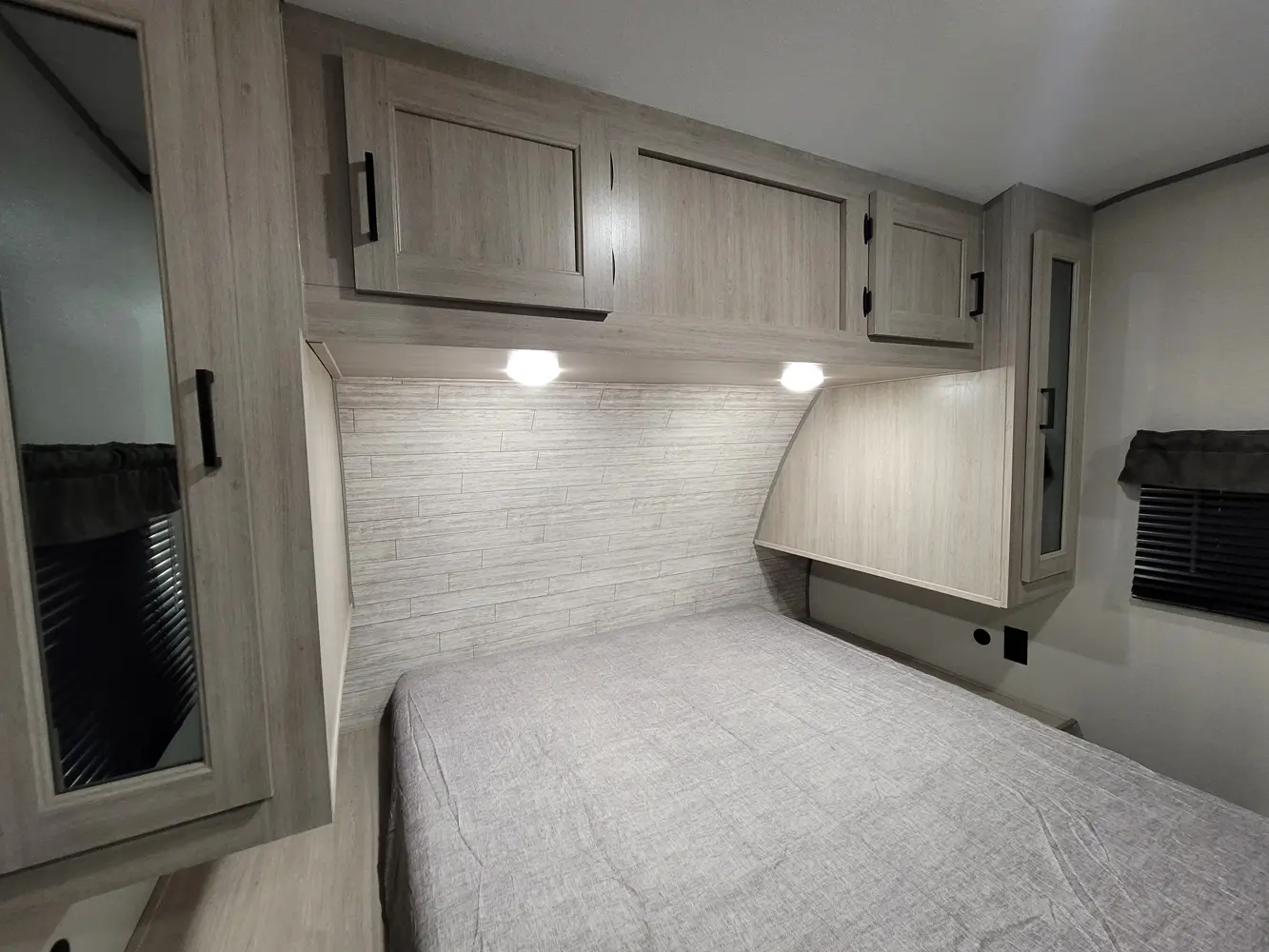

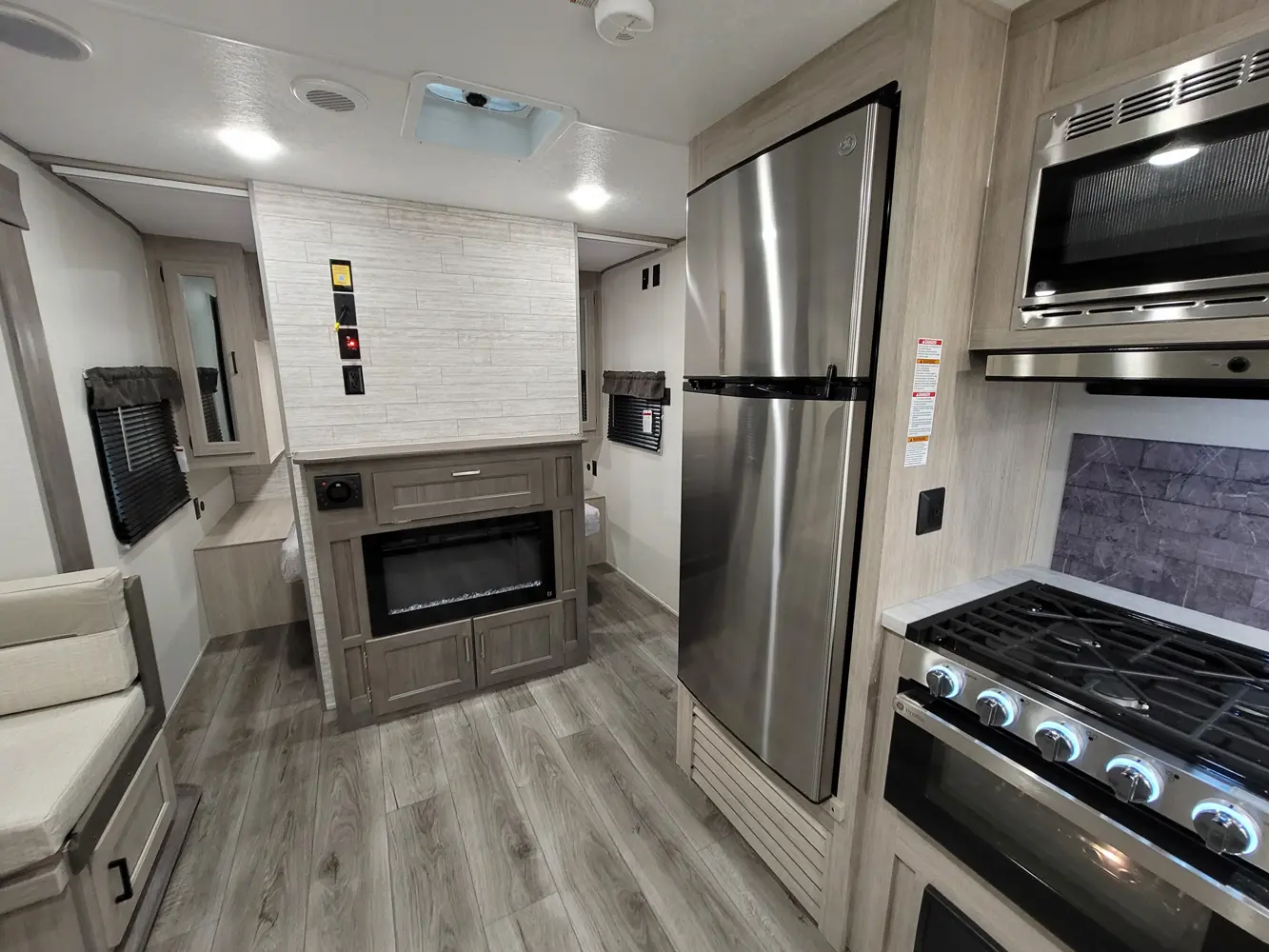

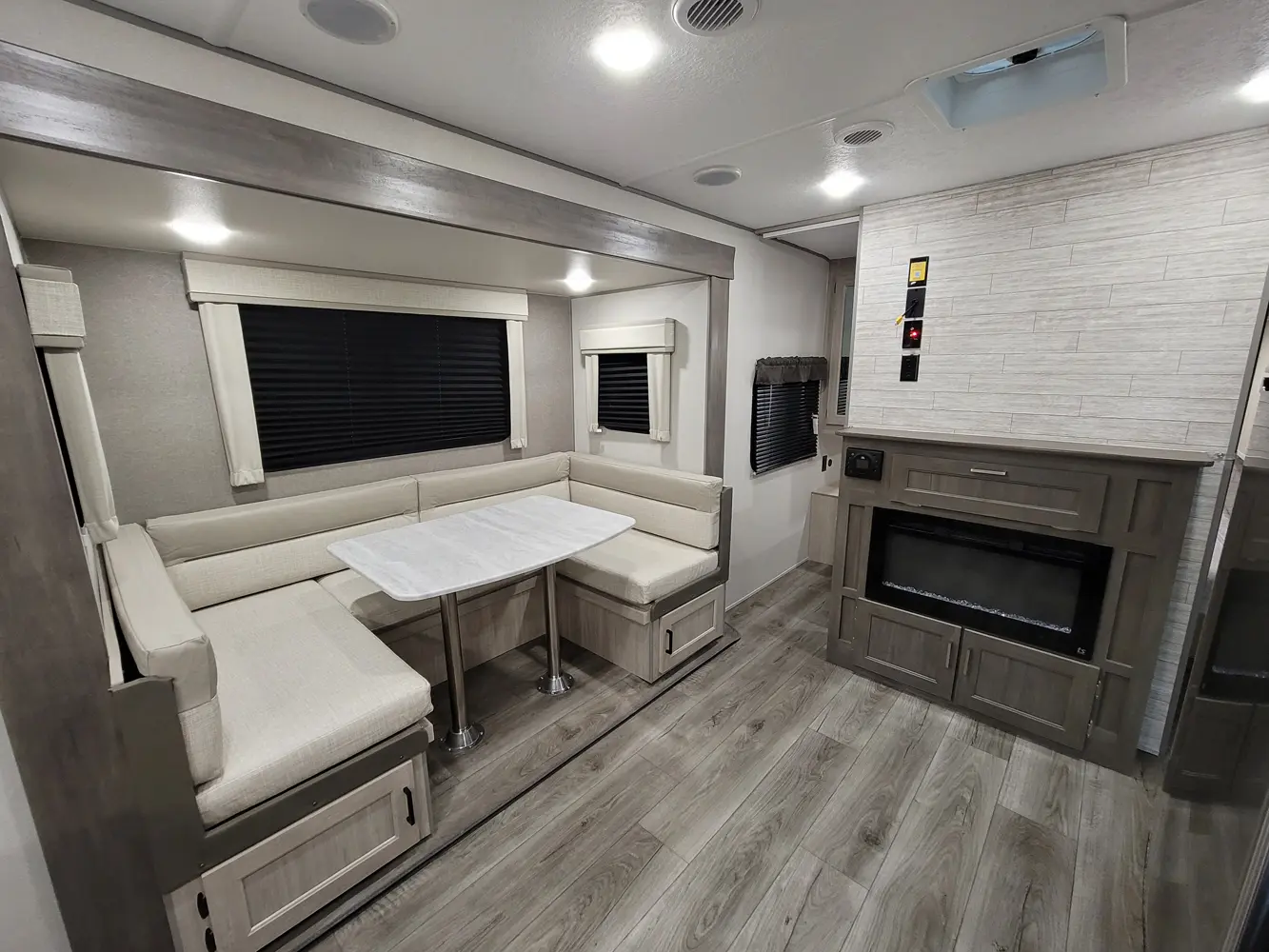

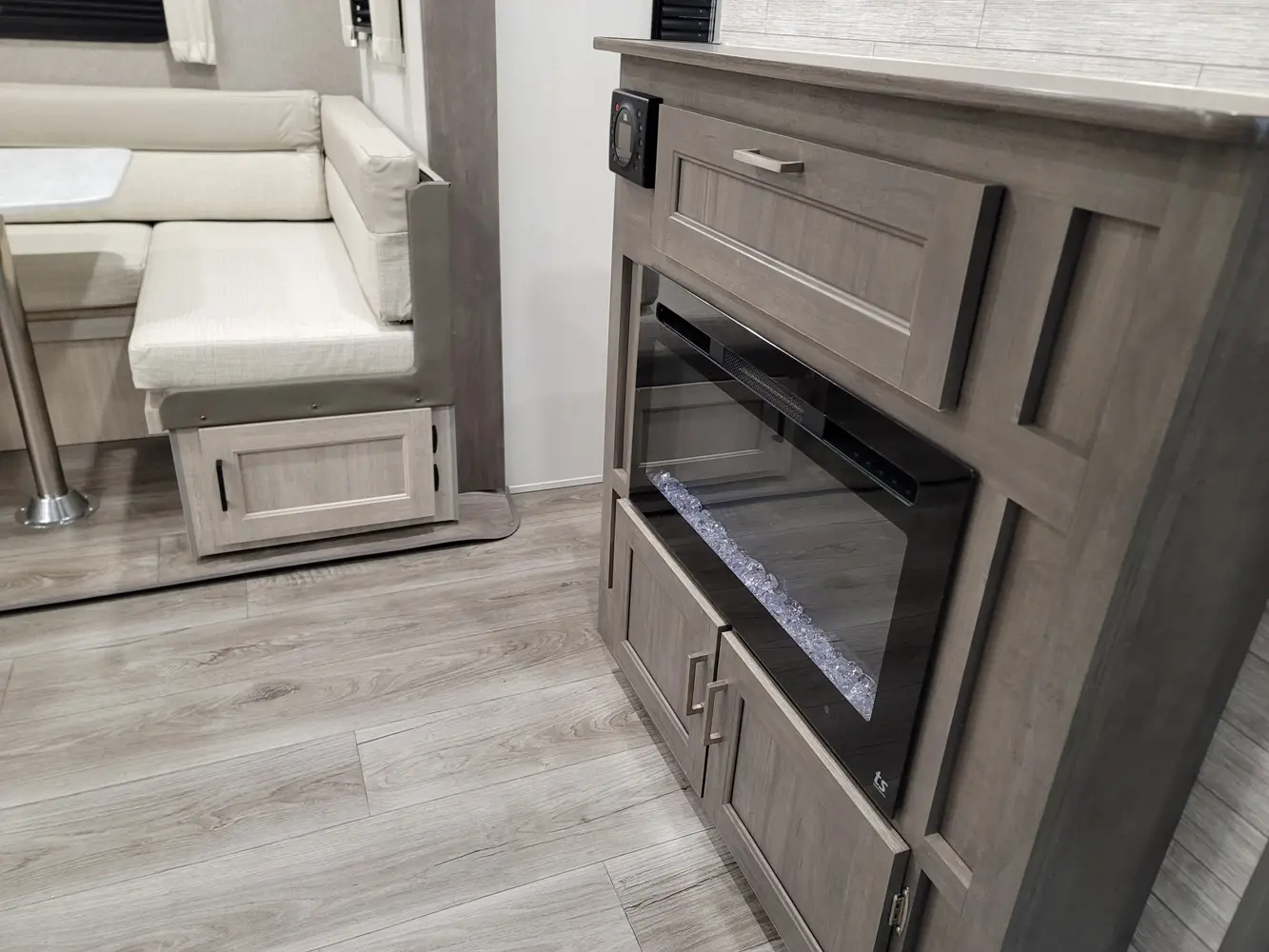

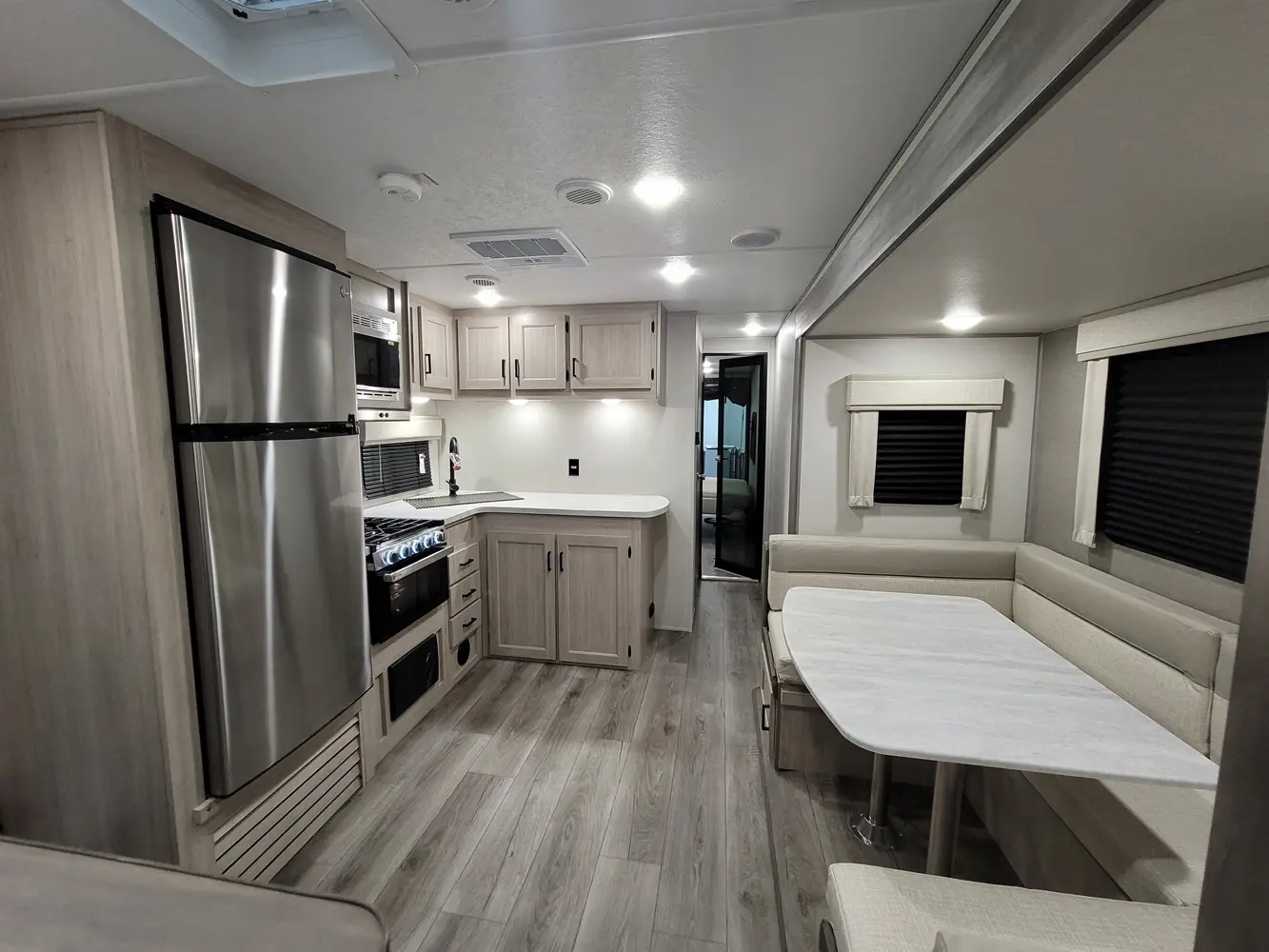

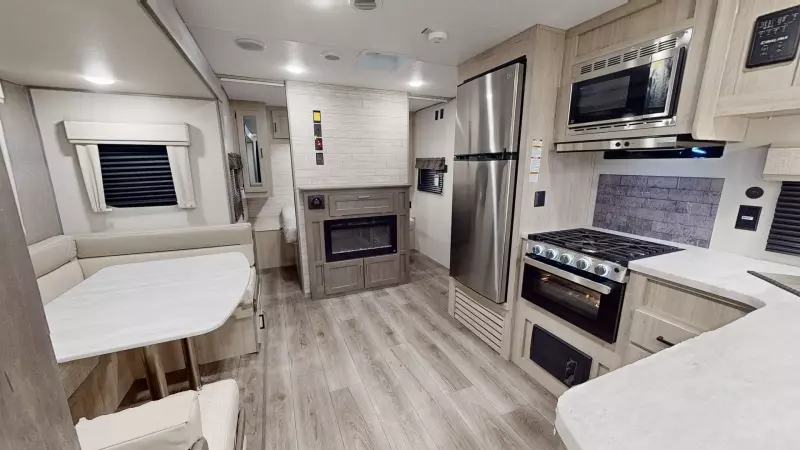

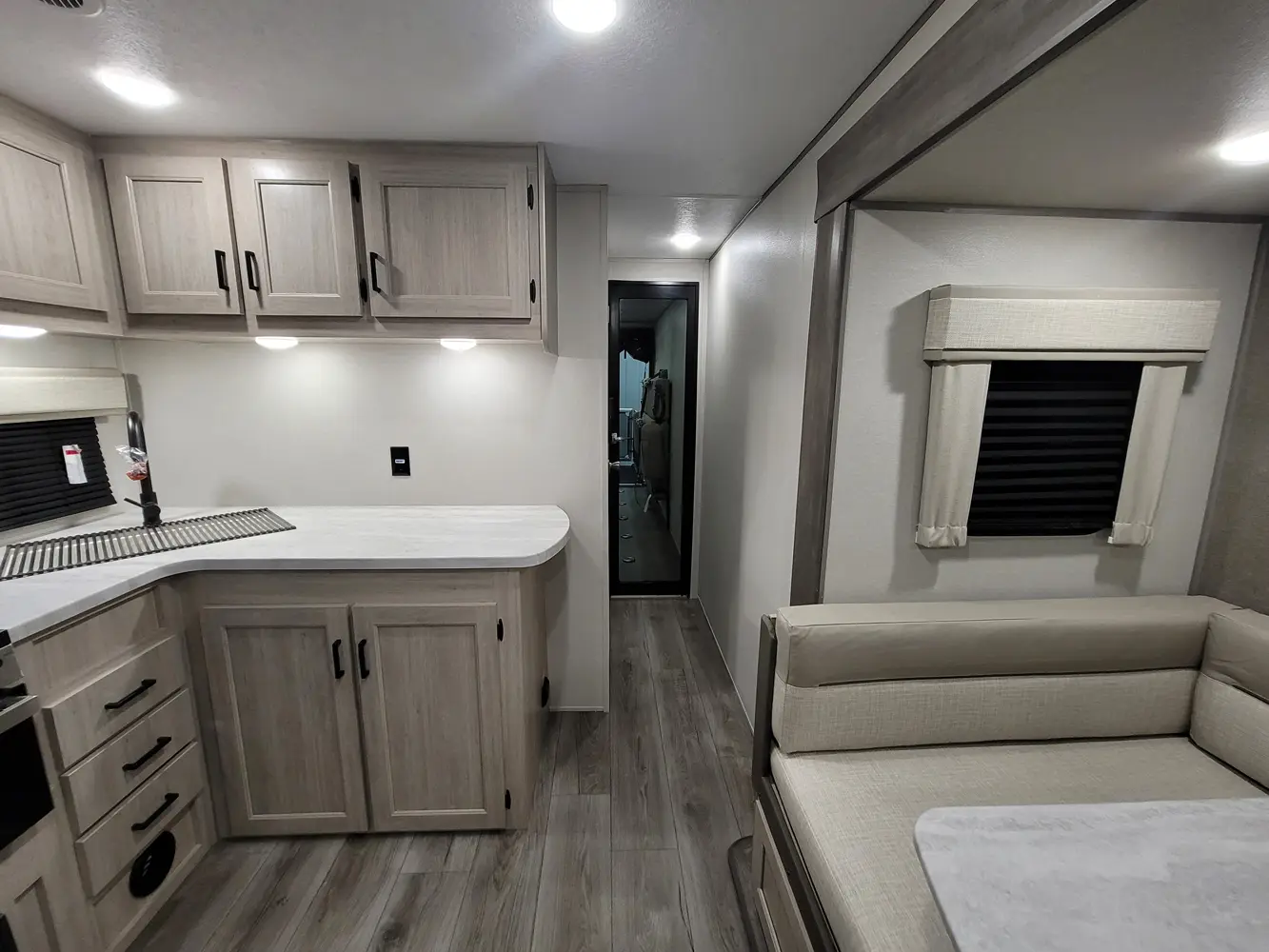

The 29THS has one slide out two entry doors. Exterior features include a 15 foot awning, front exterior storage, outside shower, heavy-duty table, and rear ramp door. Interior layout front to back: foot facing queen bed with overhead cabinet and wardrobes on either side; island entertainment center along inner wall; off-door side u-dinette slide out; door side entry, refrigerator, cook top stove, microwave, corner sink, overhead cabinet, and counter that wraps to inner wall; door side full bathroom with medicine cabinet; rear garage with opposing fold-down sofas with overhead cabinet on door side, and second entry. Optional 30 gallon fuel station available. Optional party deck available on rear ramp door. Garage Dimensions: 132 inches from rear ramp to bathroom wall.

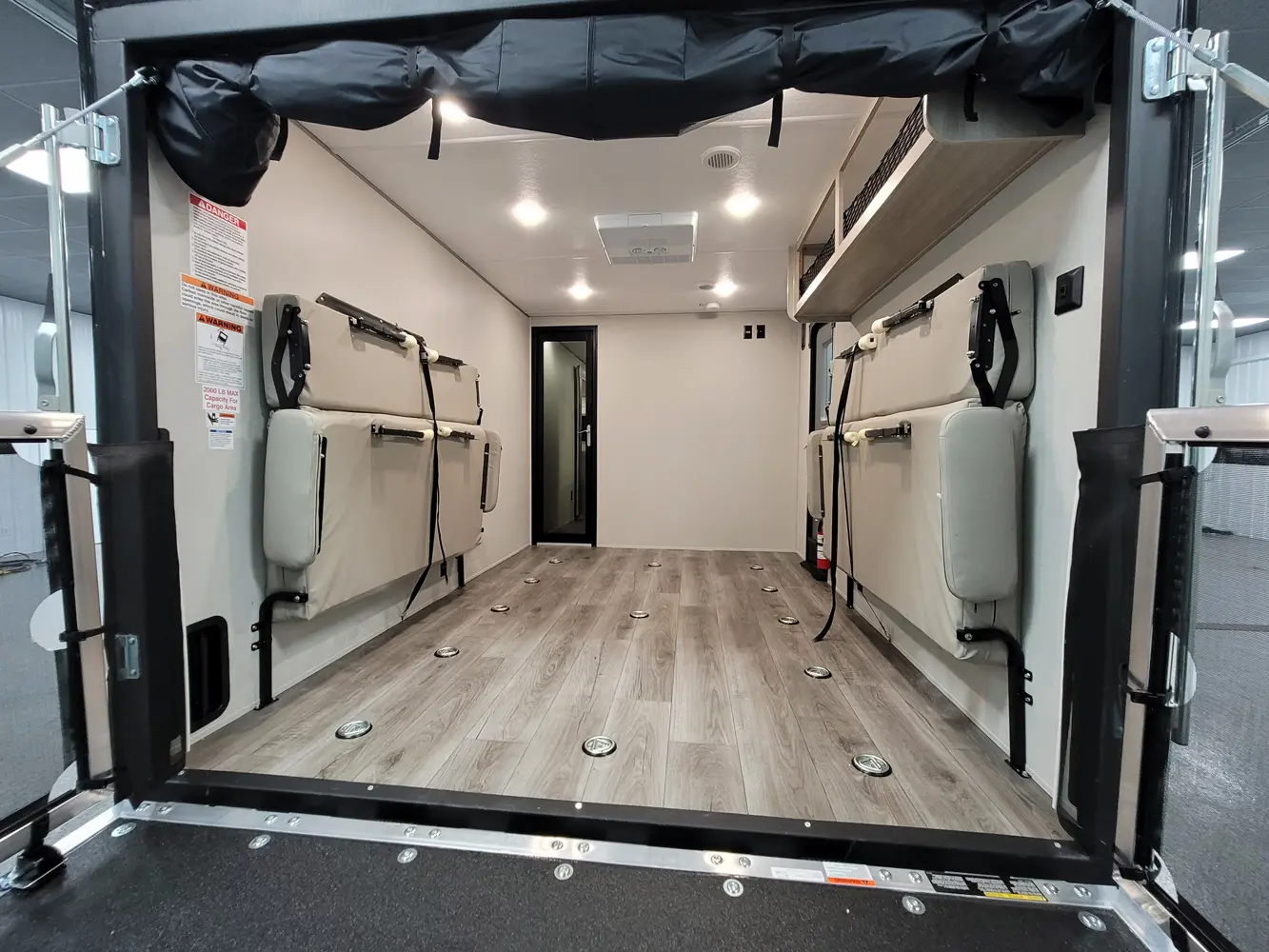

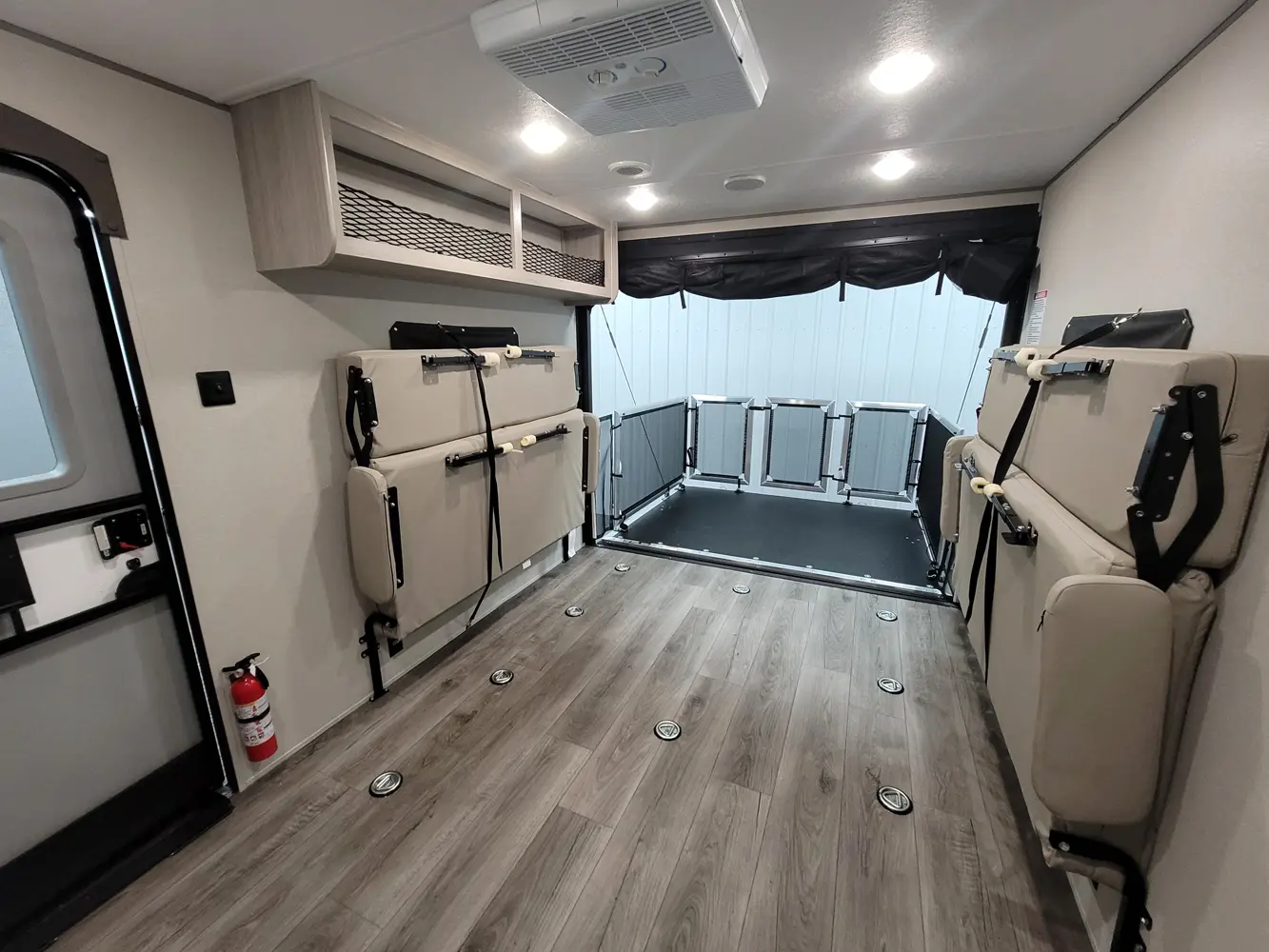

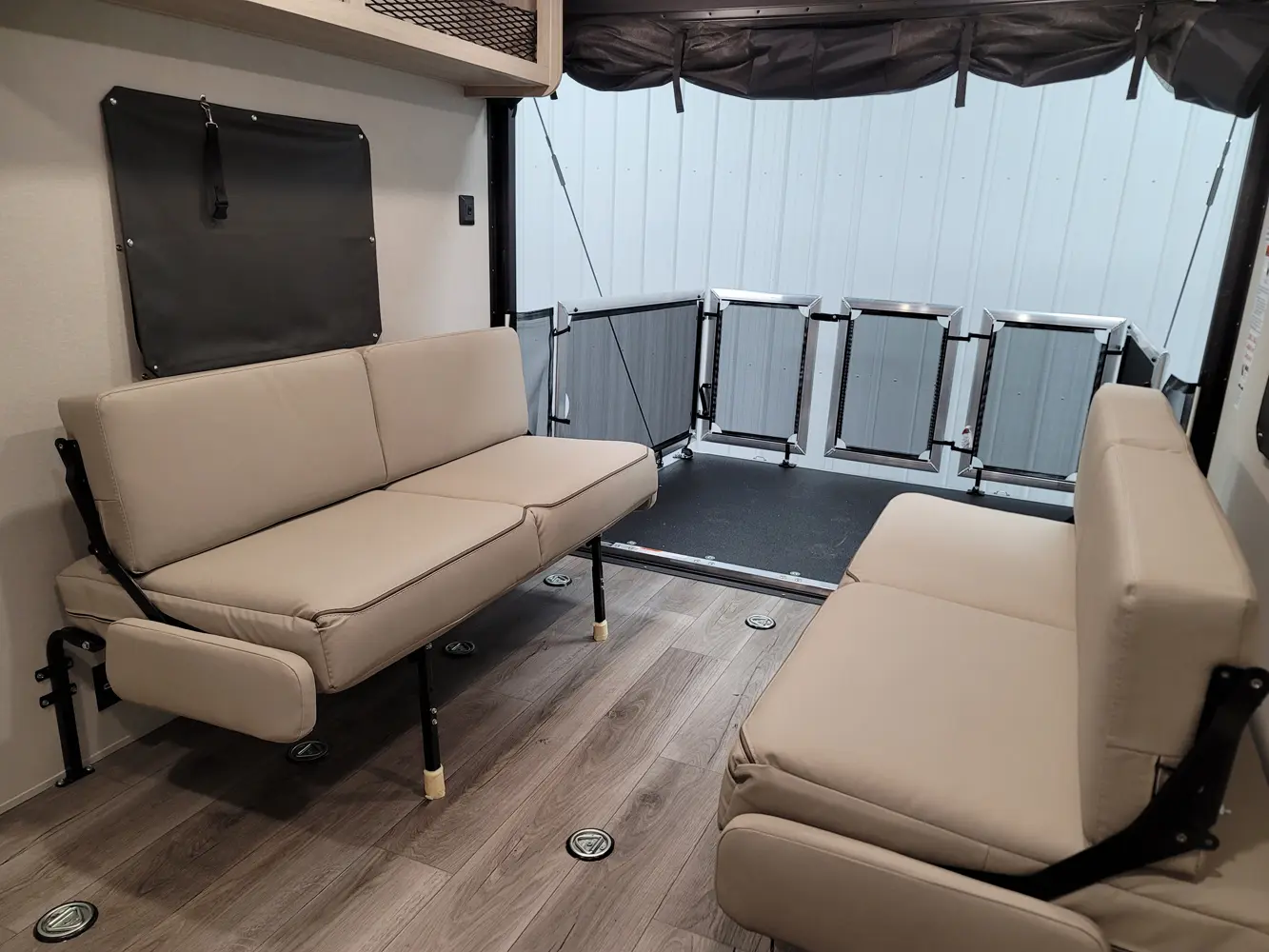

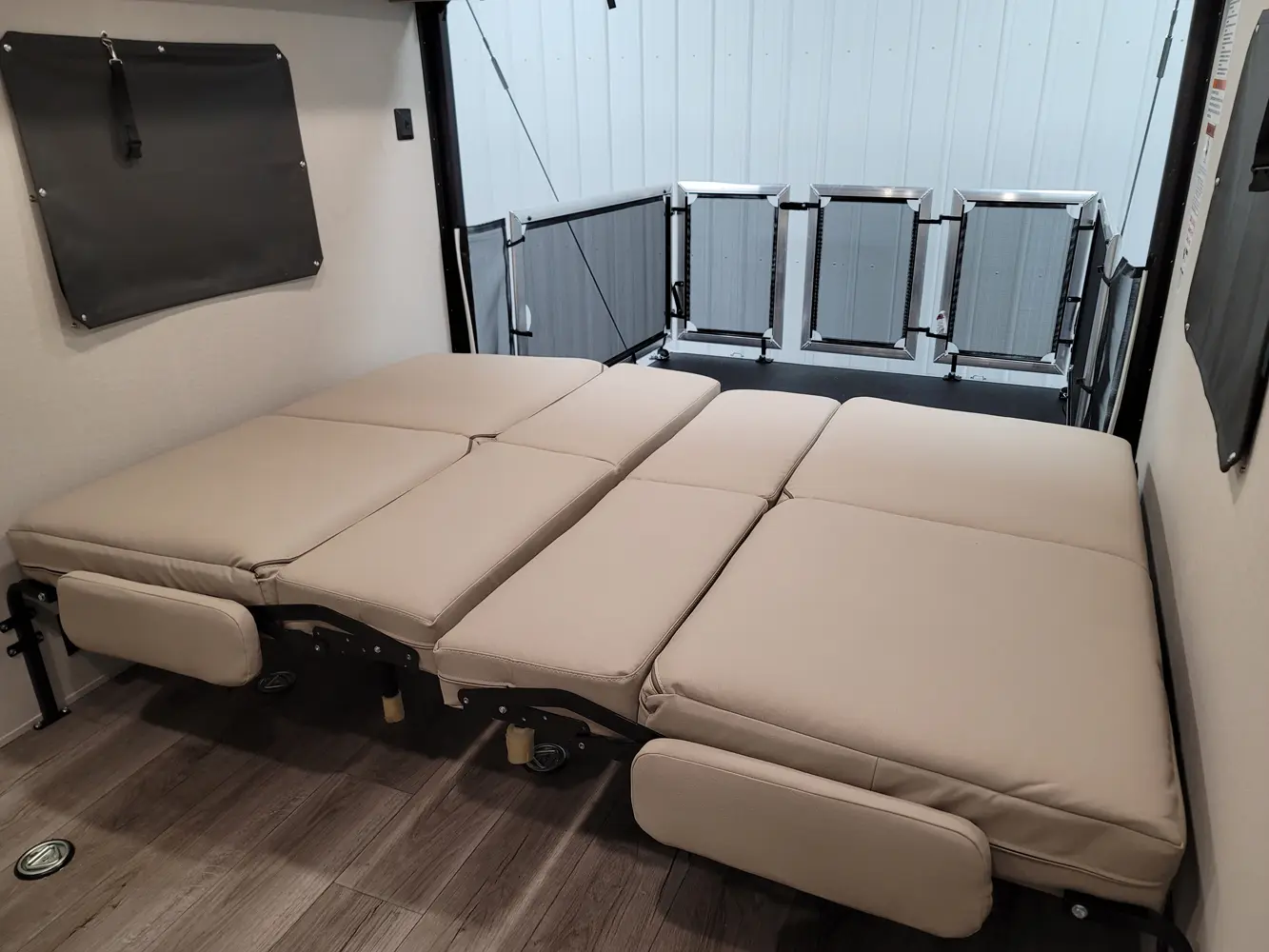

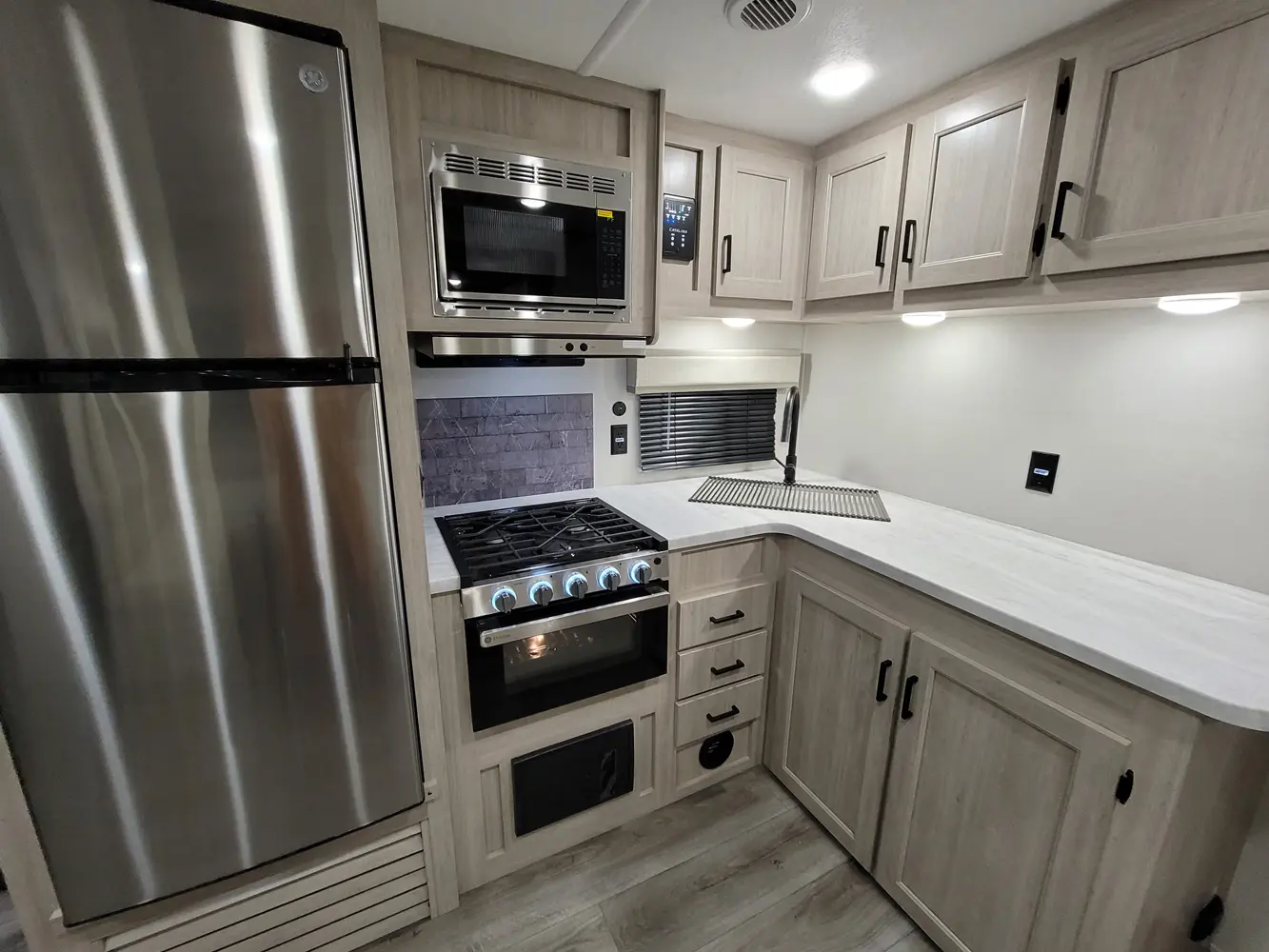

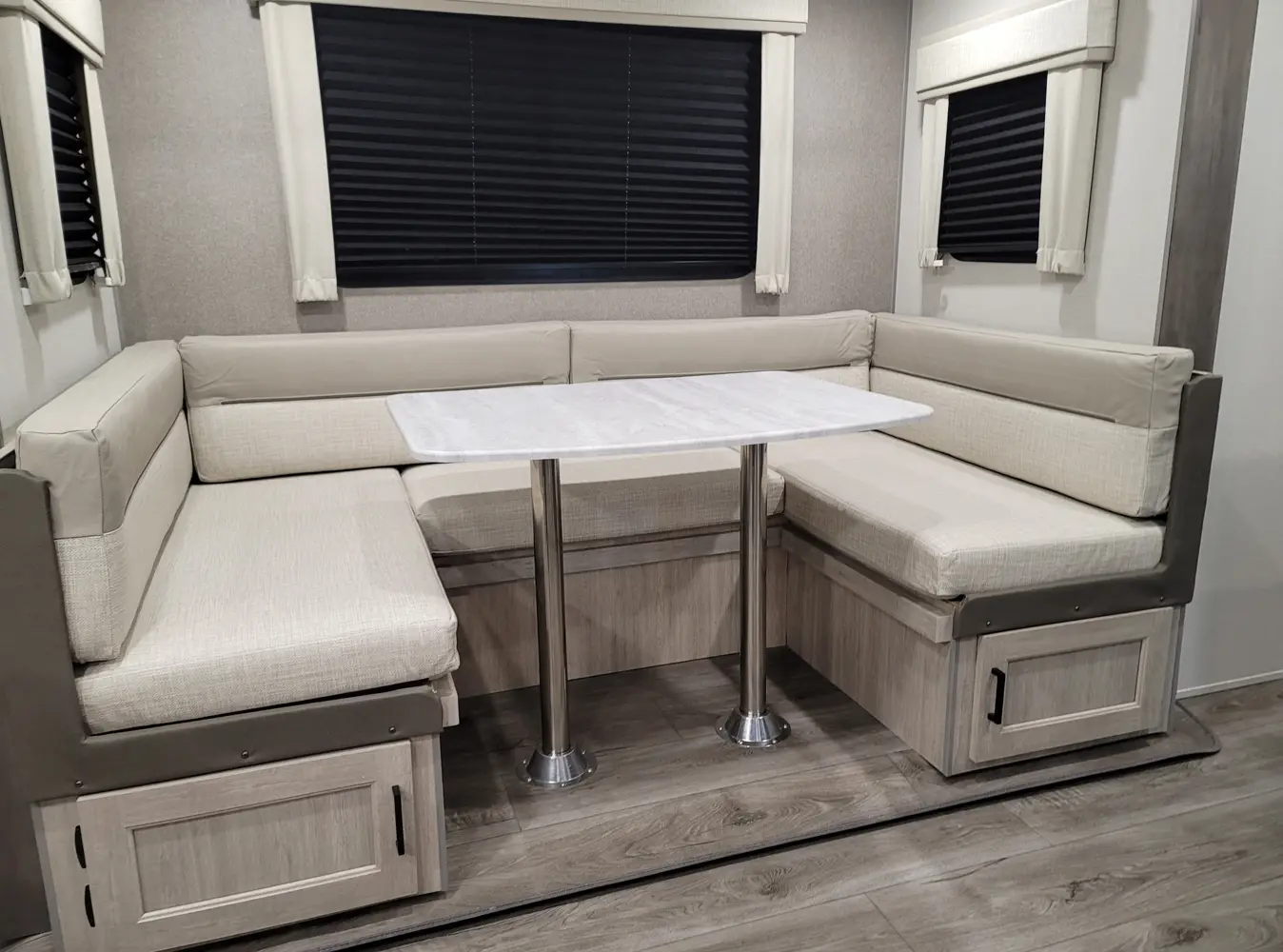

The 29THS is a toy hauler that offers the best of both worlds! The 11’ garage is completely walled off from the living quarters with a vapor lock door and its own exterior entrance door. The living quarters include a large corner kitchen, ample overhead cabinetry and counter top space, a spacious U-shape dinette with storage, and spacious master bedroom. The cargo has 13 tie downs, standard rollover sofas that offer additional sleeping, overhead cabinetry, and a standard extra-large table.

GVWR (Gross Vehicle Weight Rating): – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)*- is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.
