Nova Class B Motorhomes

The all NEW Coachmen Nova is the latest member of the Coachmen Class B Family, representing Quality, Value & Innovation. Built on the Ram Pro Master 3500 extended chassis, the Nova truly stands out in a class of its own. Loaded with practical innovations and contemporary features and amenities. Designed with reliable construction and technology. Backed with exceptional Customer service and support. The Coachmen Nova delivers lasting memories, adventure after adventure, on the open road. For over 54 Years, Coachmen has been the Leader to the Great Outdoors.


Filter

Select filters below and then click the Filter Results button to remove non-matching Floorplans and their Specifications








to




Floorplans

Print


Ram Pro Master 3500

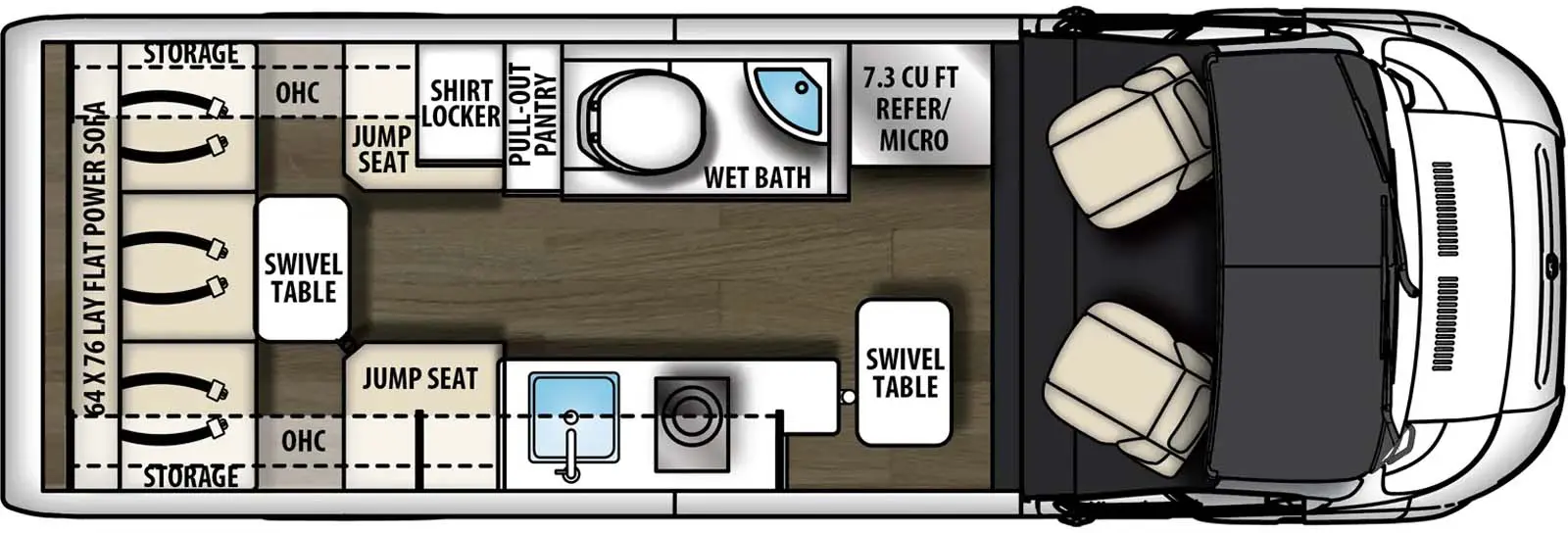

20C

20C - COMING SOON


New Floorplan
 wish list
X
You must be logged in, or create an accont to use the Forest River wish list.

View your wish list here.
I am logged in now.

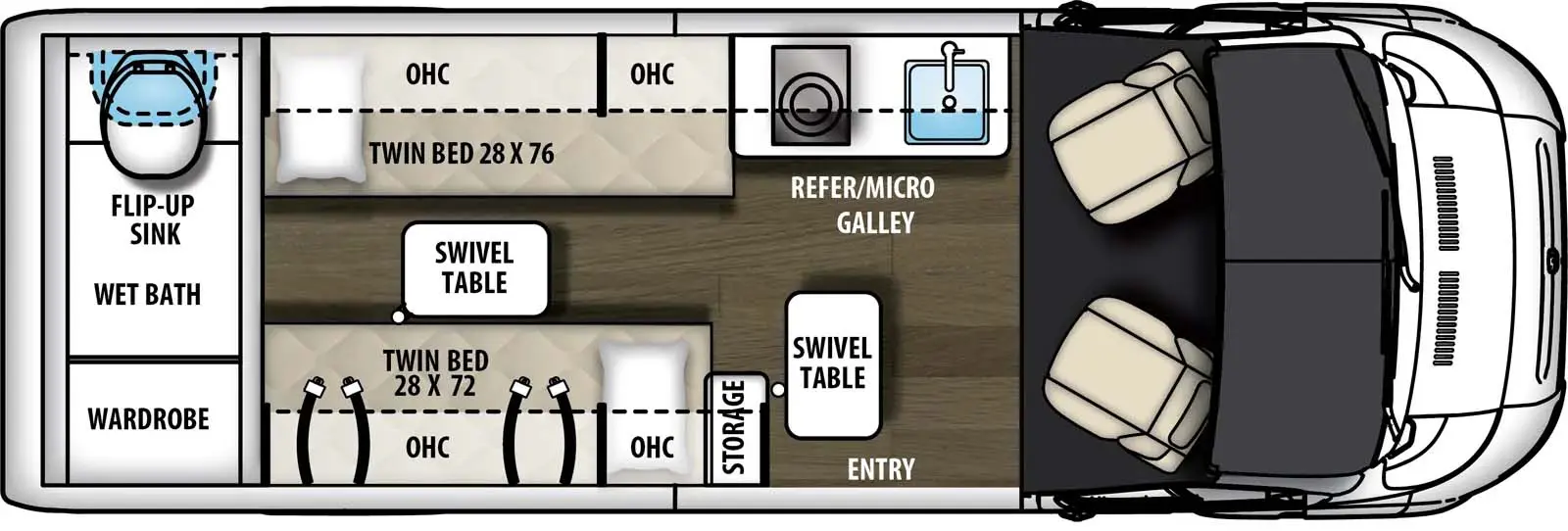

20RB
Has Gallery Photos Has 360 Tour

20RB


 wish list
X
You must be logged in, or create an accont to use the Forest River wish list.

View your wish list here.
I am logged in now.


Specifications

Print


Wheelbase:
GVWR:
GCWR
GAWR Front:
GAWR Rear:
Fuel Capacity:
Exterior Length:
Exterior Height:
Exterior Width:
Fresh Water:
Gray Water:
Black Water:
Awning Size:
159"
9350 lb.
11500 lb.
4629 lb.
5291 lb.
24 gal.
20' 11"
9' 4"
86"
27.00 gal.
23.00 gal.
10.00 gal.
13' 1"
159"
9350 lb.
11500 lb.
4629 lb.
5291 lb.
24 gal.
20' 11"
9' 4"
86"
27.00 gal.
23.00 gal.
10.00 gal.
13' 1"

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GCWR (Gross Combined Weight Rating) - Is the maximum permissible loaded weight of your motor home and any towed trailer or towed vehicle. Actual GCWR of this vehicle may be limited by the sum of the GVWR and the installed hitch receiver maximum capacity rating; see hitch rating label for detail.

GAWR (Gross Axle Weight Rating) - is the maximum permissible weight, including cargo, fl uids, optional equipment and accessories that can be safely supported by each axle.

UVW (Unloaded Vehicle Weight)* - is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s), including full fuel, all fl uids and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, passengers, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before fi lling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Coachmen RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Coachmen RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Actual towing capacity is dependent upon your particular loading and towing circumstances, which includes the GVWR, GAWR and GCWR as well as adequate trailer brakes. Please refer to the Operator's Manual of your vehicle for further towing information.

Features & Options

Print
  • RAM Pro Master 3500 3.6L V6, 24 valve engine/280 (HP)
  • 6-Speed automatic transmission/front wheel drive
  • Sumo Spring front and rear suspension
  • 24-Gallon fuel tank
  • Solid hardwood cabinetry (Not found on any Pro Master competition)
  • Rockwool R-15 insulation (Best insulated of any Pro Master competition)
  • Imported European dual pane acrylic windows with solar reflective exterior pull-downs
  • Truma Combi Eco Plus furnace/water heating system
  • 13.5K BTU Coleman Mach 10 A/C
  • Firefly Multiplex, 2000W Xantrex inverter with Auto Gen Start
  • 330AH AGM 8D battery
  • 220W Solar (Dual 110W panels)
  • Fresh tank and black tank above floor to protect water lines
  • Tru-Tank tank sensors – read tank levels at 5% increments
  • Fiberglass shower vs. competitor’s ABS shower
  • Residential high rise faucet and sink
  • 2-Burner LP cooktop
  • Lagun table (Rear), removable table (Front)
  • Marine grade PVC vinyl with 3/8” foam backer
  • Nova Kool refrigerator
  • Remote control Fantastic fan with rain sensor
  • Roof rack with ladder
  • Sirius XM 1-year radio subscription
  • Li3 lithium battery system includes: 600 amp hour lithium battery, second under hood alternator, multi-stage volt regulator, battery management system, Xantrex 3000 Freedom SW inverter/charger and bat
  • Mandatory for 20RB Li3 only – tank heaters for grey tank
  • Driver and passenger upgraded seat recovers
  • Tank heaters for grey tank only
  • Bike rack
  • Upgrade Firestone tires with black rims
  • Induction cooktop
