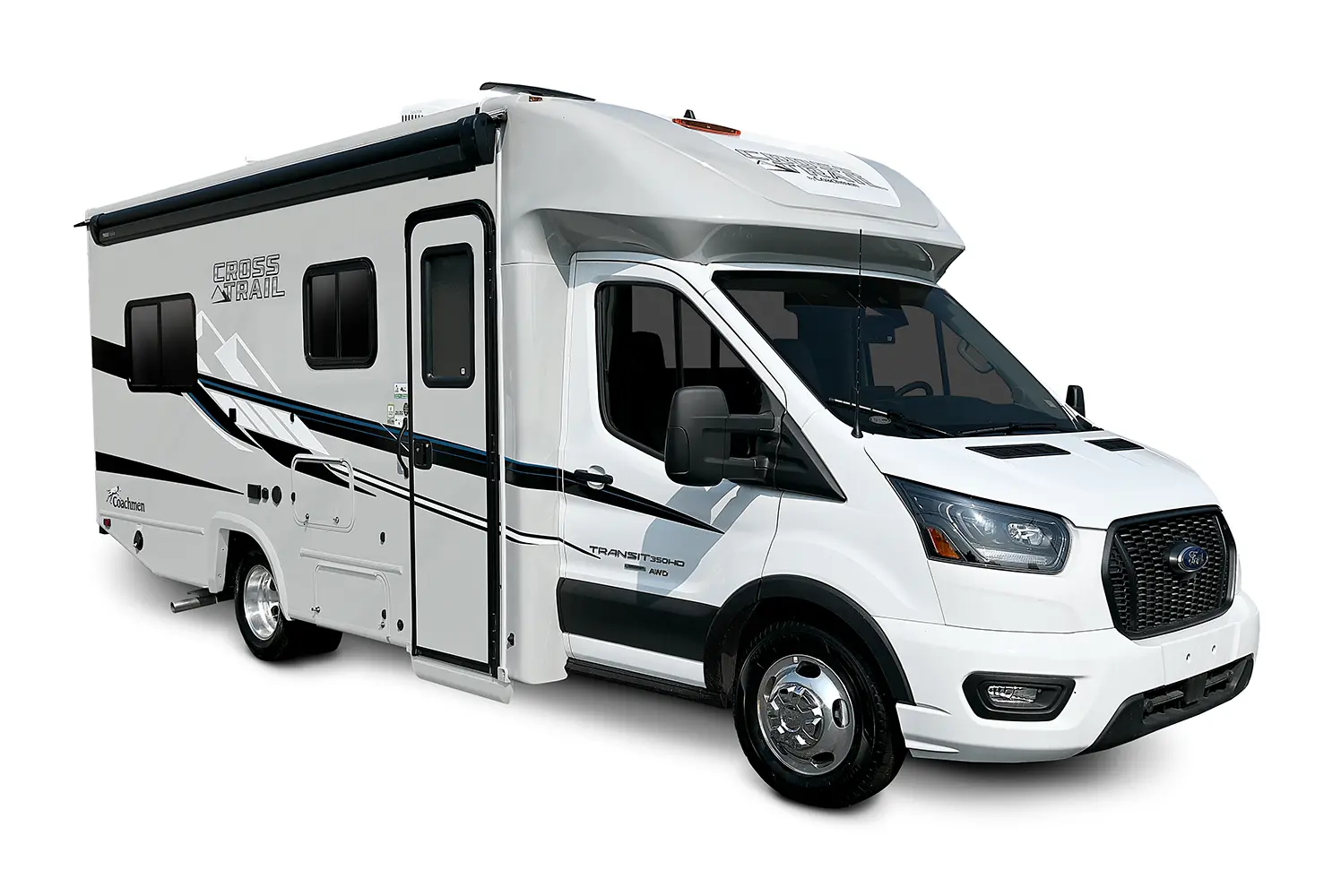

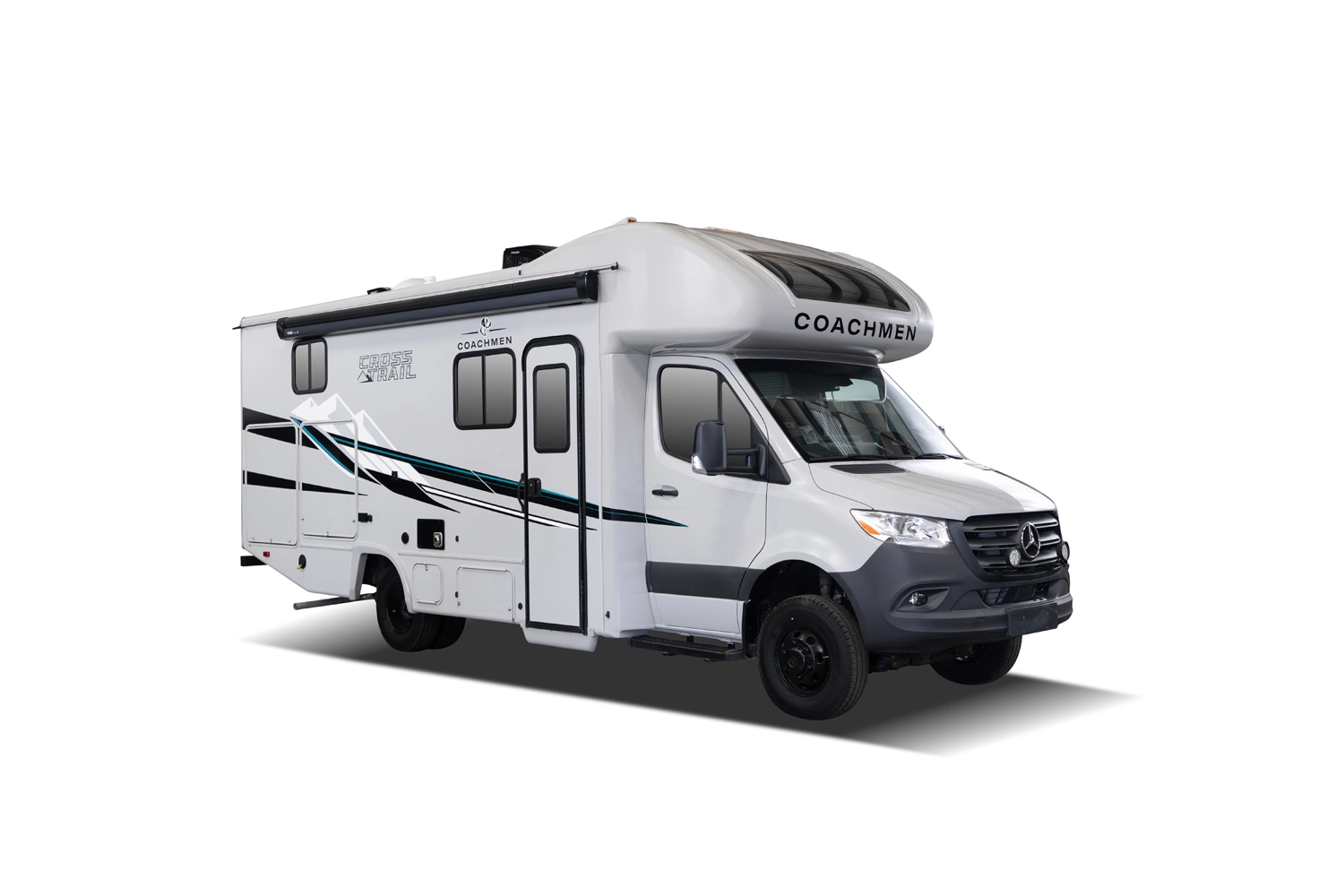

Cross Trail Class C Motorhomes

Introducing the eco-friendly Cross Trail. The Cross Trail's size and capabilities give you nearly endless possibilities. Take your adventure where most motorhomes cannot. With unrivaled exterior storage, you can outfit your Cross Trail with the gear and equipment needed to conquer any expedition.

Coachmen Cross Trek Has a New Name, the All-New Cross Trail Click to View Press Release

View Cross Trail Debut Video

* Due to the current environment our features and options are subject to change due to material availability


2022 RV Business Top RV Debut 2022 RV Pro Best New Model Certified Green by TRA Certification™Link opens in a new tab/window Azdel Onboard™, RV Composite PanelsLink opens in a new tab/window Care Camps, fighting cancer and making memoriesLink opens in a new tab/window

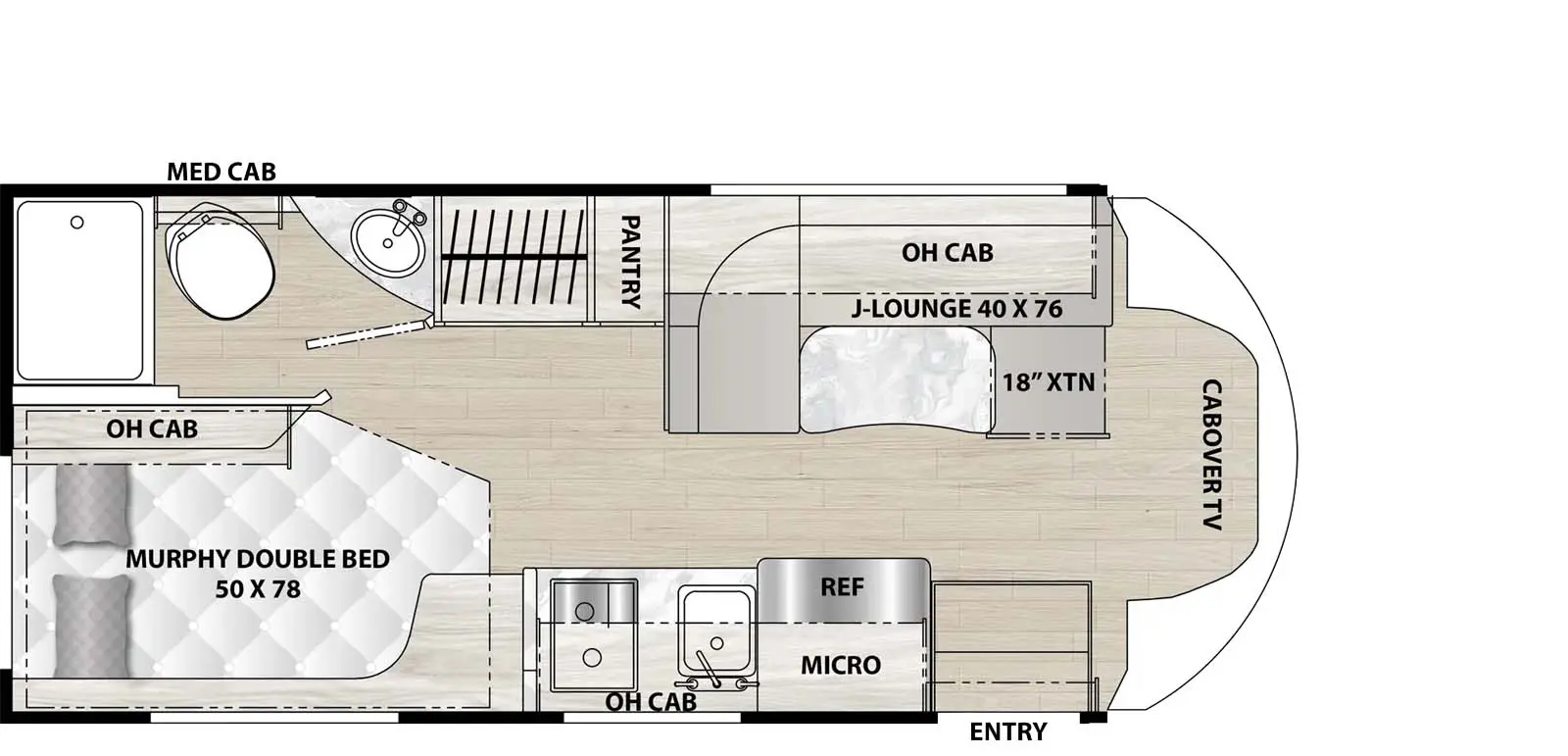

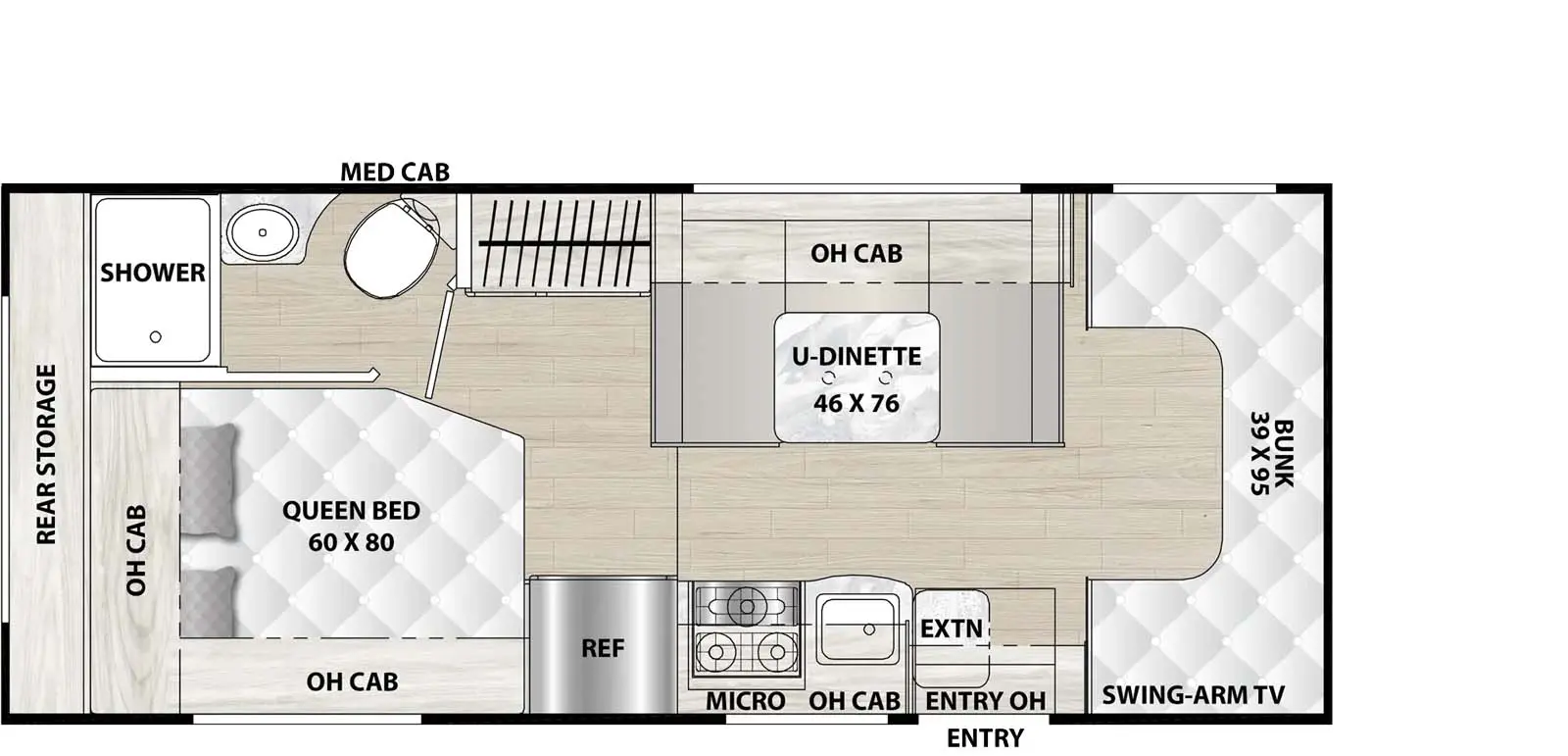

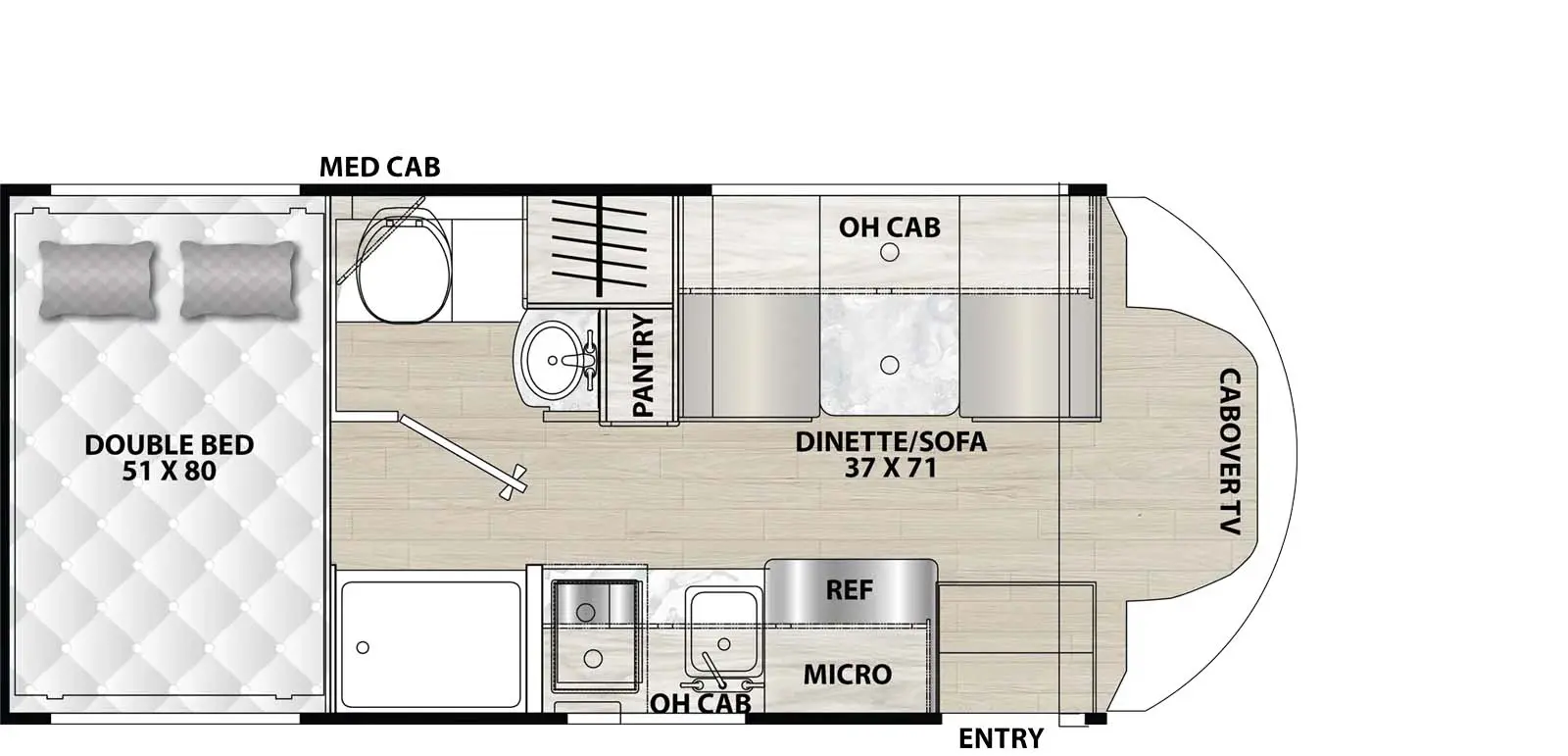

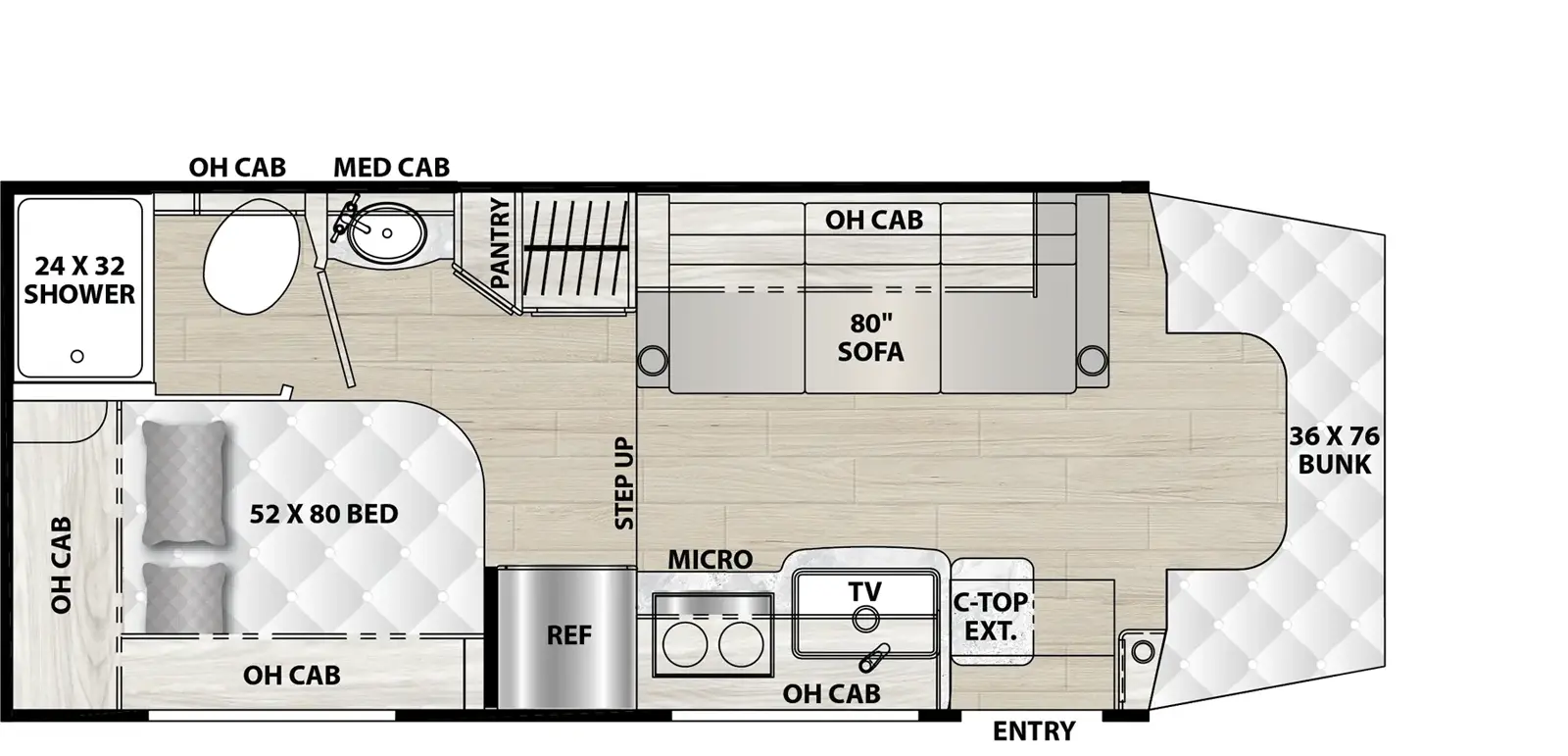

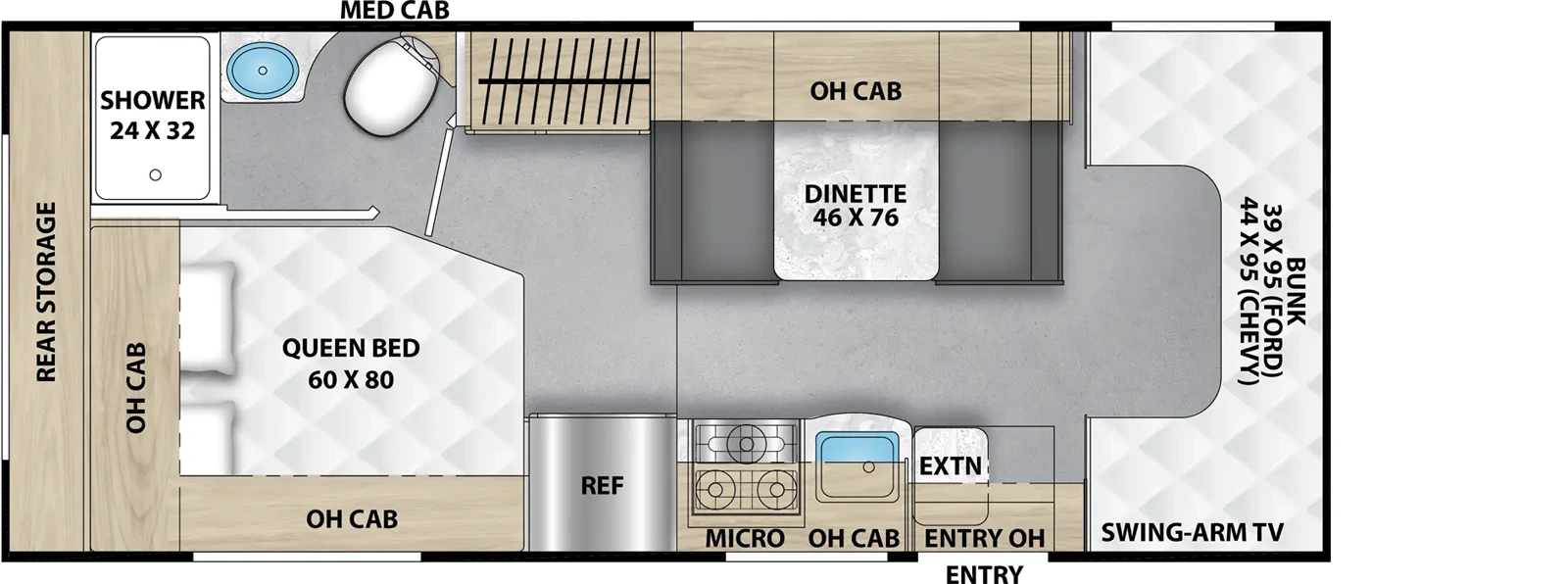

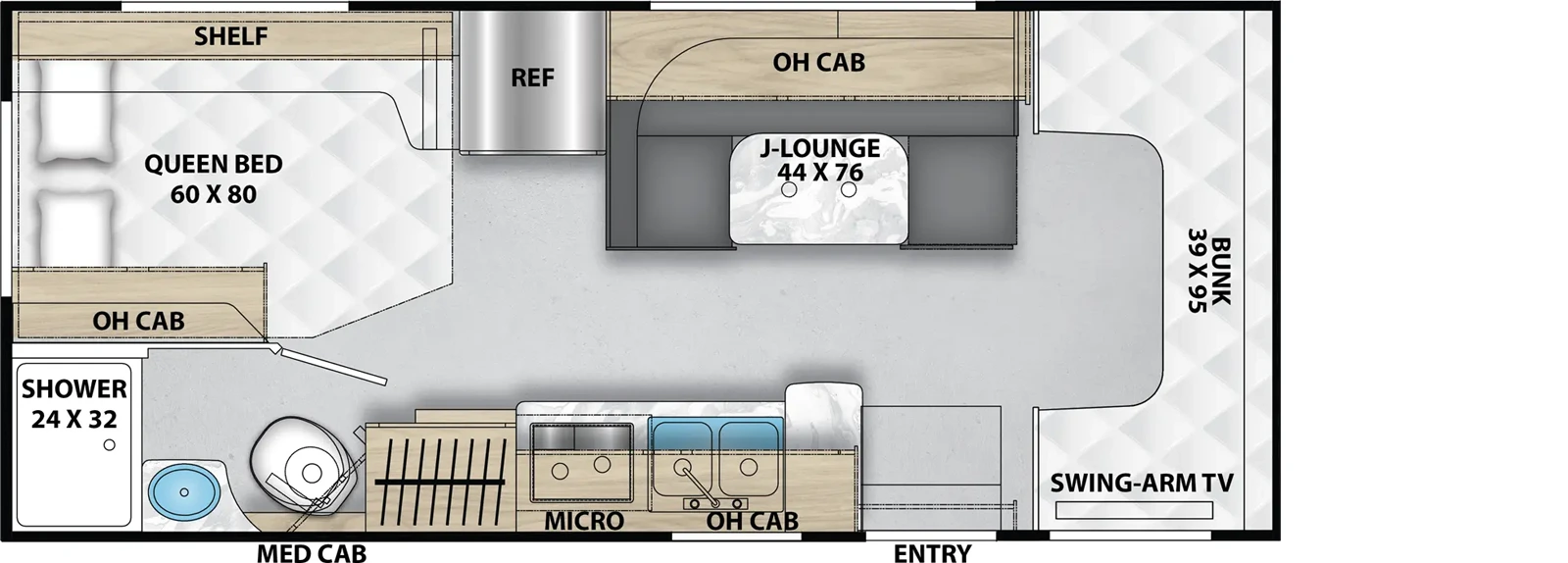

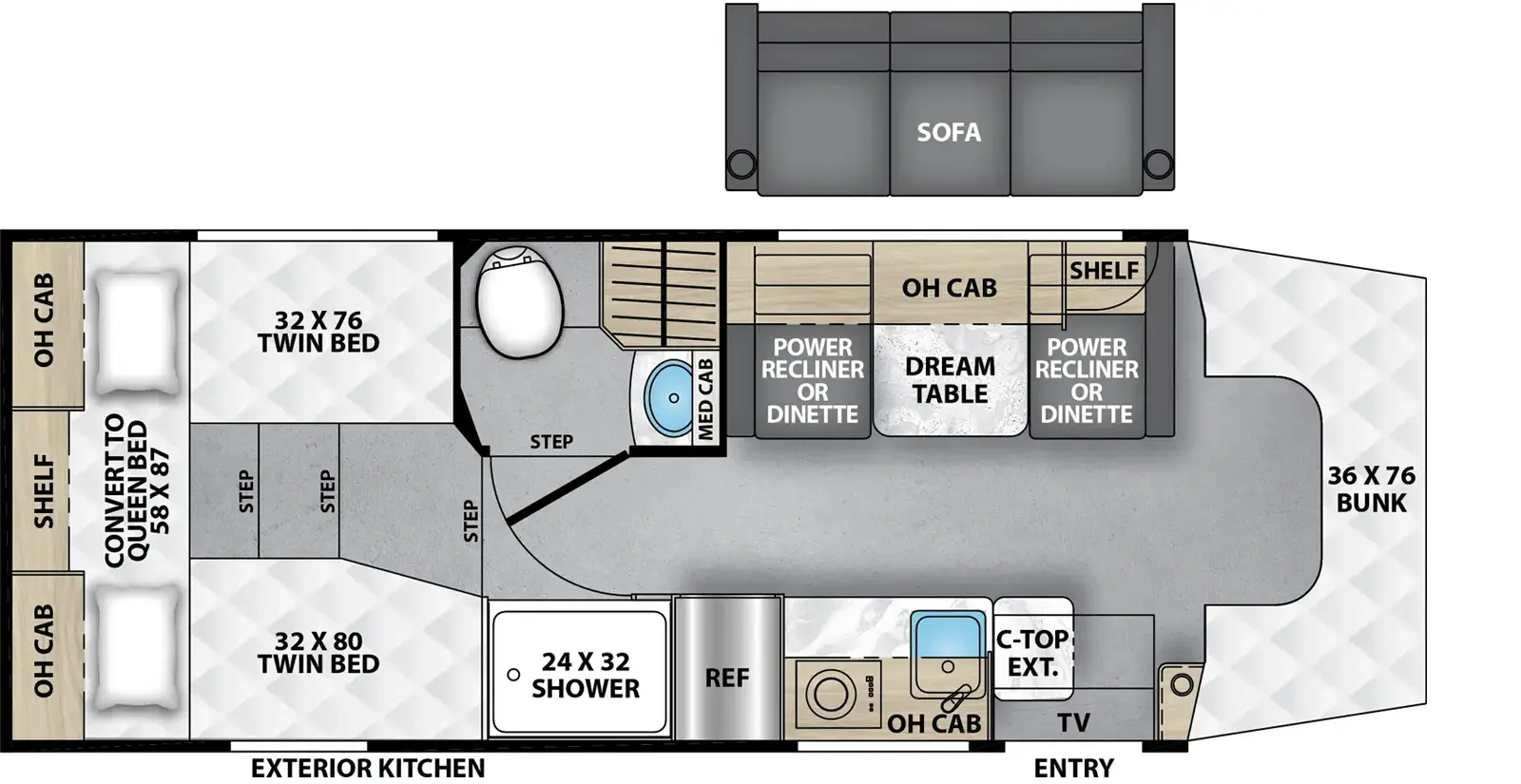

Floorplans

Print

Cross Trail EV
Cross Trail XL


Specifications

Print

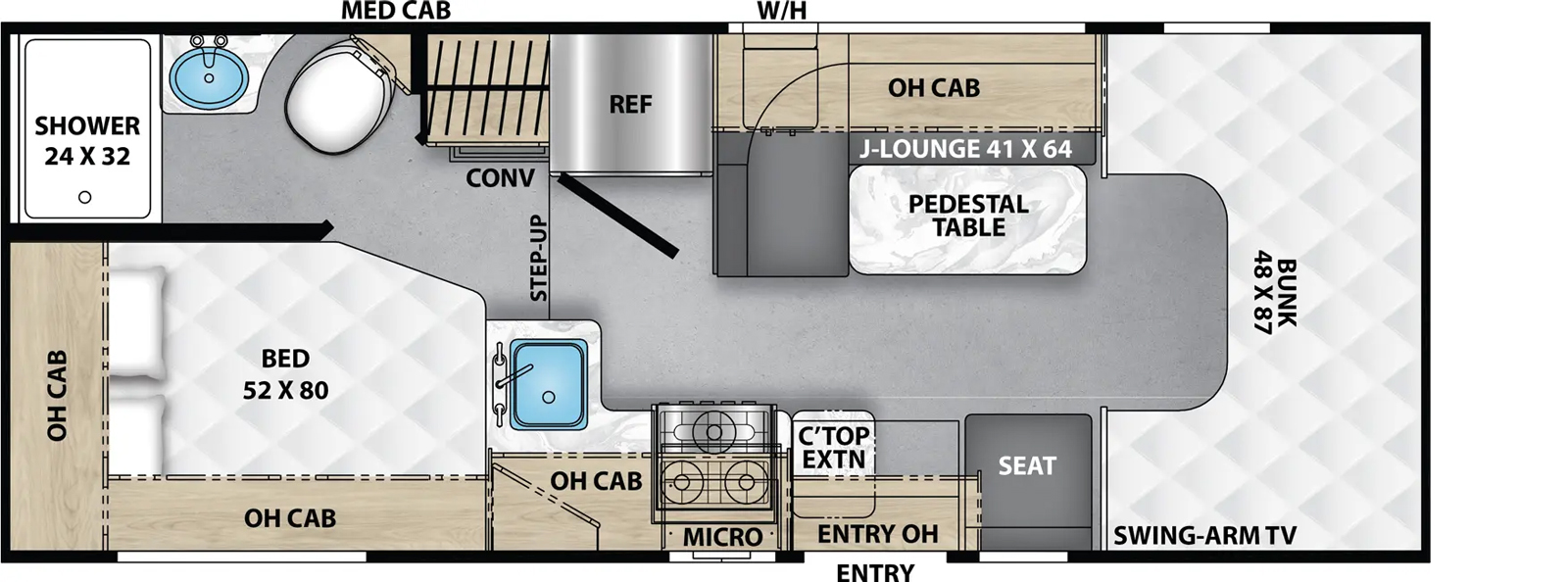

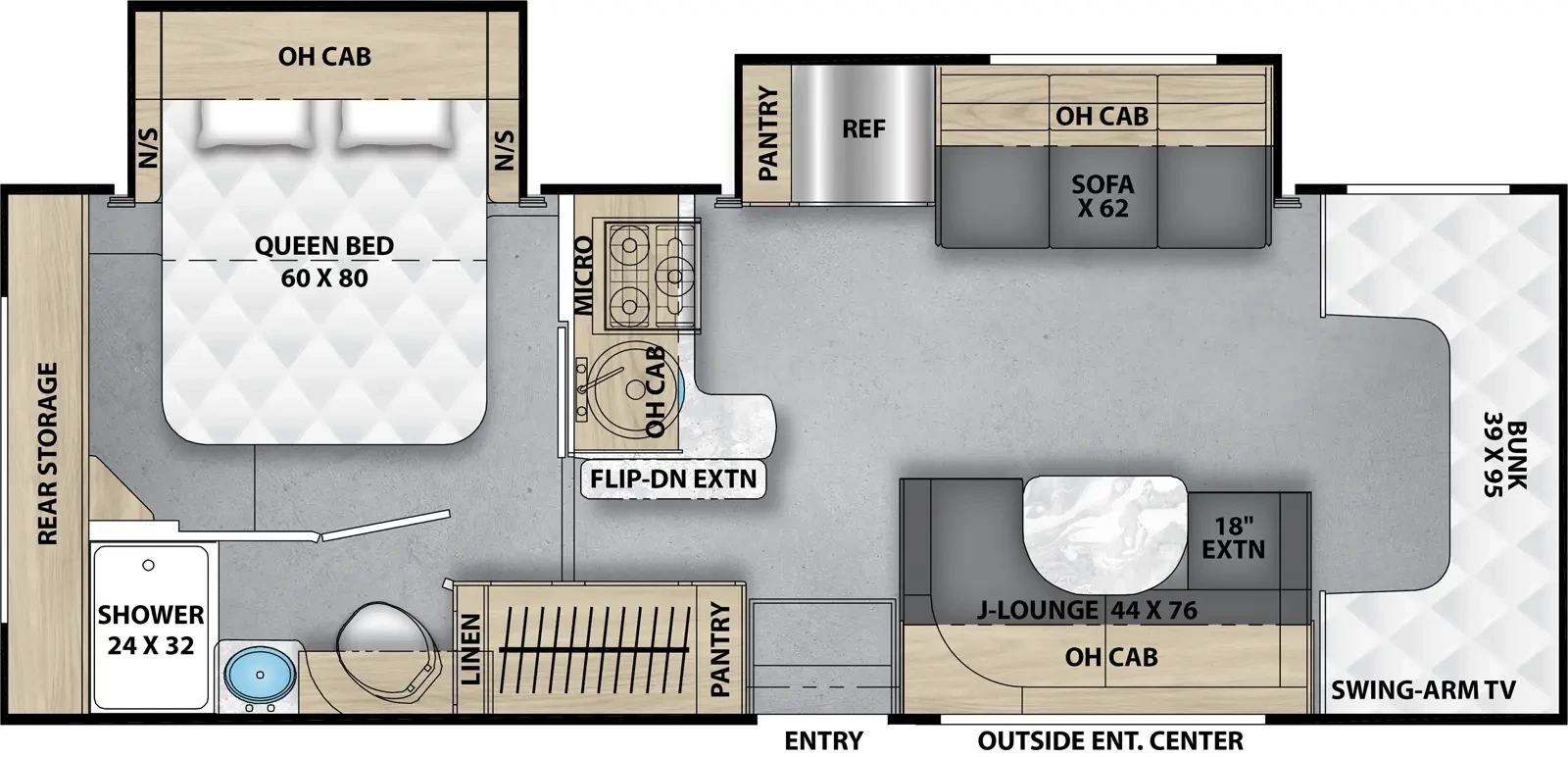

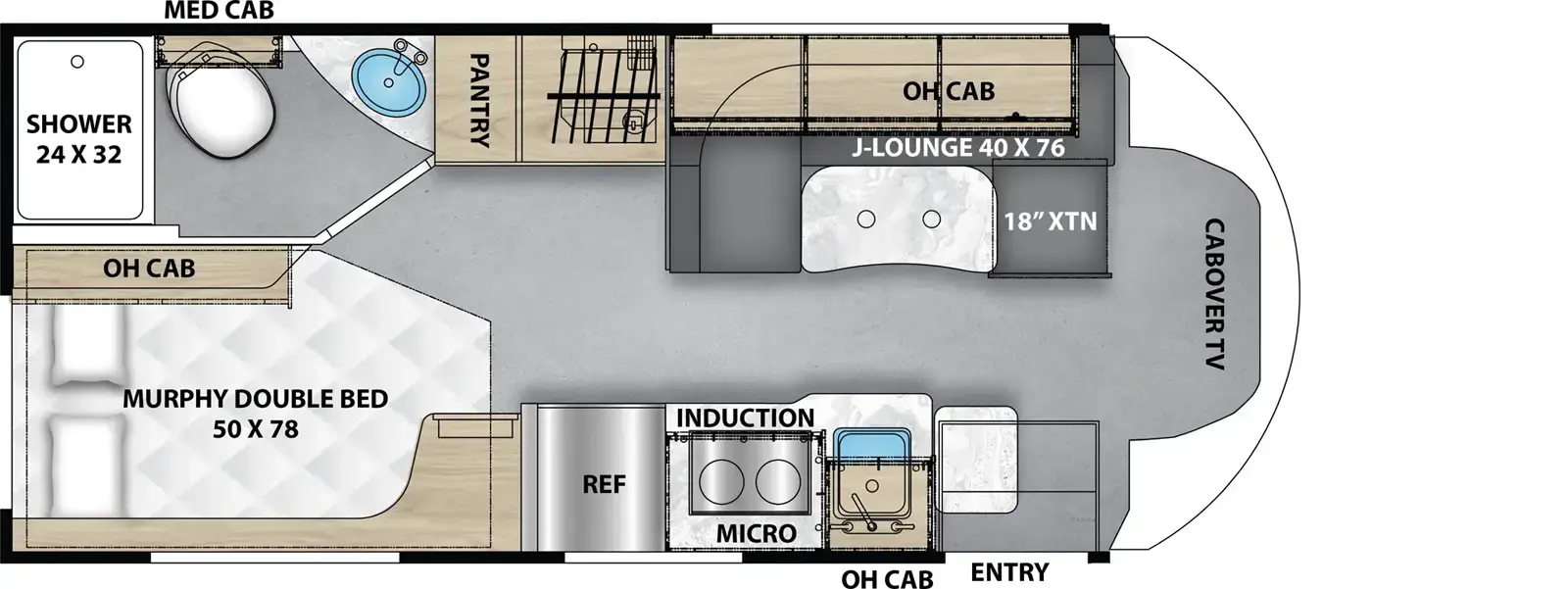

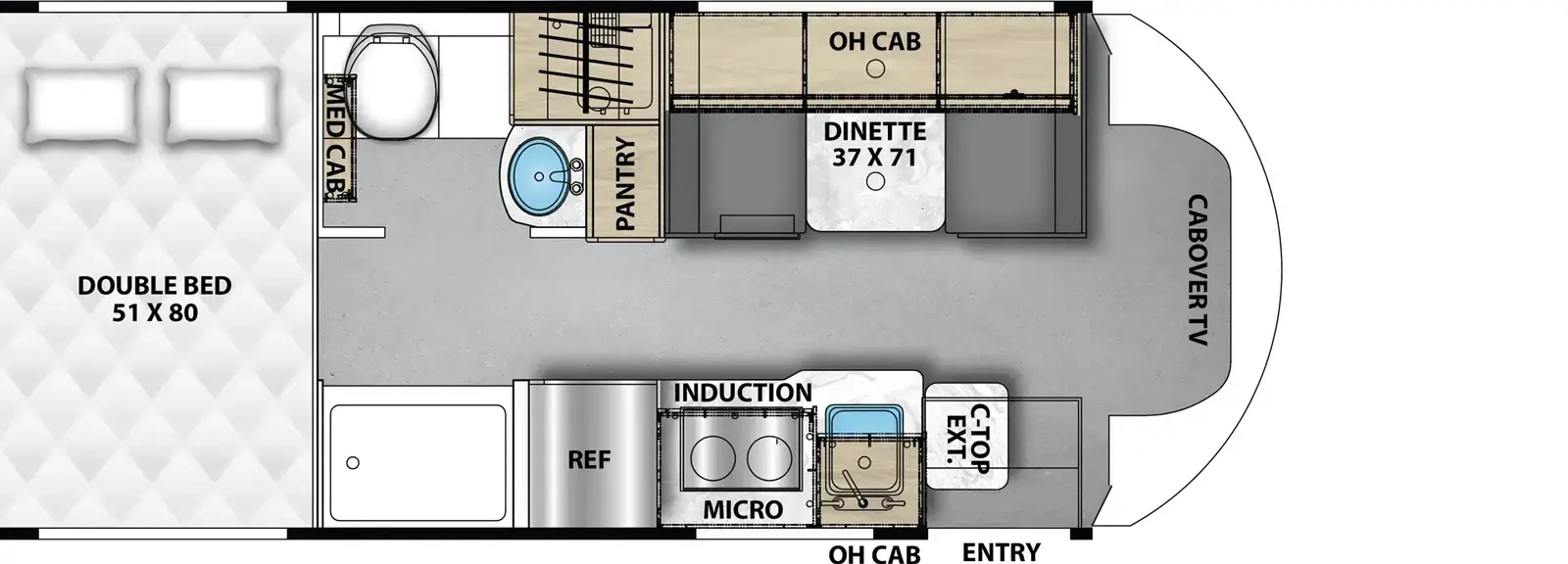

Floorplan: 20BH (NEW) : Cross Trail EV 20XG : Cross Trail EV 21XG : Cross Trail EV 20CB : Cross Trail XL 22XG : Cross Trail XL 23XG : Cross Trail XL 26XG : Cross Trail XL
Wheelbase:156"156"156"156"158"158"190"
GVWR:11,000 lb.11,000 lb.11,000 lb.11,000 lb.12,500 lb.12,500 lb.14,500 lb.
GCWR:15,000 lb.15,000 lb.15,000 lb.15,000 lb.20,000 lb.20,000 lb.22,000 lb.
GAWR Front:4,630 lb.4,630 lb.4,630 lb.4,630 lb.5,000 lb.5,000 lb.5,000 lb.
GAWR Rear:7,275 lb.7,275 lb.7,275 lb.7,275 lb.8,500 lb.8,500 lb.9,600 lb.
Fuel Capacity:31 gal.31 gal.31 gal.31 gal.55 gal.55 gal.55 gal.
Exterior Length:24' 1"24' 1"24' 1"23' 9"24' 3"25' 10"29' 4"
Exterior Height:10' 6"10' 4"10' 4"10' 6"10' 10"10' 10"10' 11"
Exterior Width:91"91"91"91"100"100"100"
Fresh Water:25.00 gal.30.00 gal.41.00 gal.38.00 gal.41.00 gal.50.00 gal.50.00 gal.
Gray Water:31.00 gal.27.00 gal.59.00 gal.26.00 gal.28.00 gal.32.00 gal.31.00 gal.
Black Water:31.00 gal.28.00 gal.28.00 gal.21.00 gal.31.00 gal.31.00 gal.31.00 gal.
Awning Size:14' Thule14' Power14' Power14'15' Power16' Power20' Power

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GCWR (Gross Combined Weight Rating) - Is the maximum permissible loaded weight of your motor home and any towed trailer or towed vehicle. Actual GCWR of this vehicle may be limited by the sum of the GVWR and the installed hitch receiver maximum capacity rating; see hitch rating label for detail.

GAWR (Gross Axle Weight Rating) - is the maximum permissible weight, including cargo, fl uids, optional equipment and accessories that can be safely supported by each axle.

UVW (Unloaded Vehicle Weight)* - is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s), including full fuel, all fl uids and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, passengers, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before fi lling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Coachmen RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Coachmen RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Actual towing capacity is dependent upon your particular loading and towing circumstances, which includes the GVWR, GAWR and GCWR as well as adequate trailer brakes. Please refer to the Operator's Manual of your vehicle for further towing information.

Features & Options

Print

* Due to the current environment our features and options are subject to change due to material availability

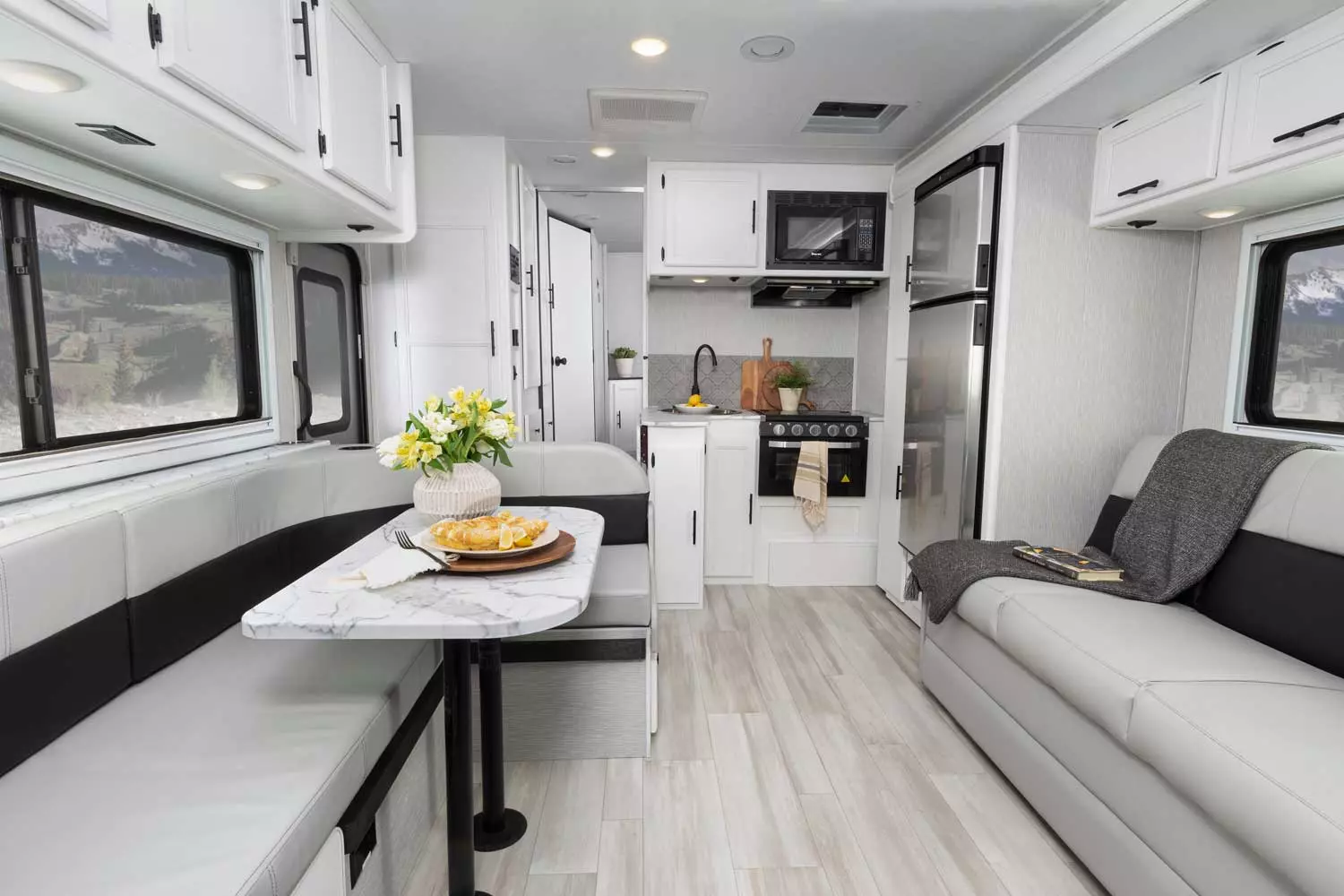

  • Livable and Storage Friendly Floorplans

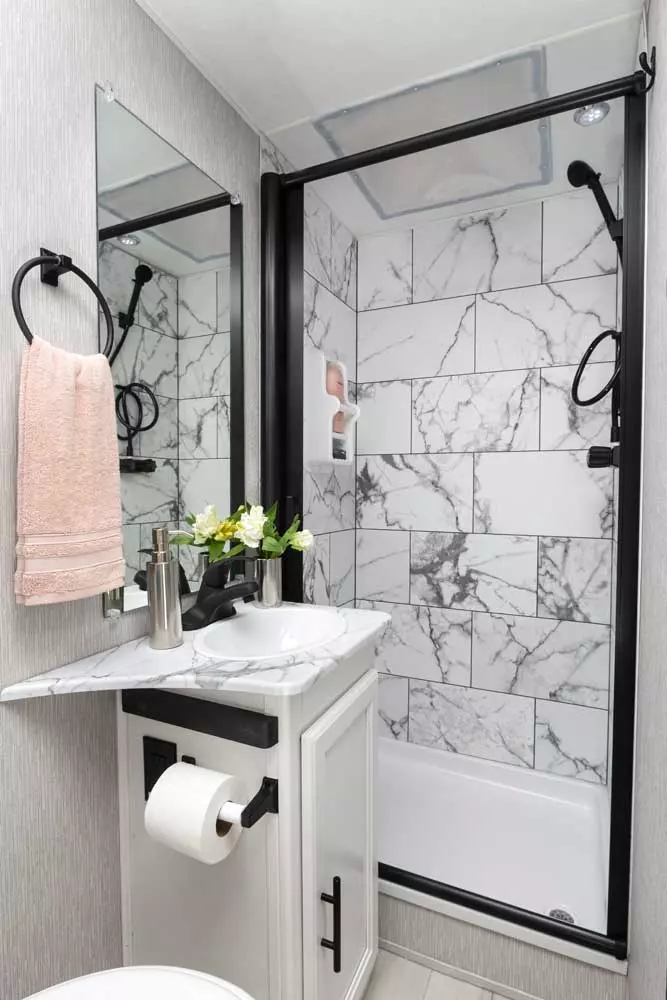

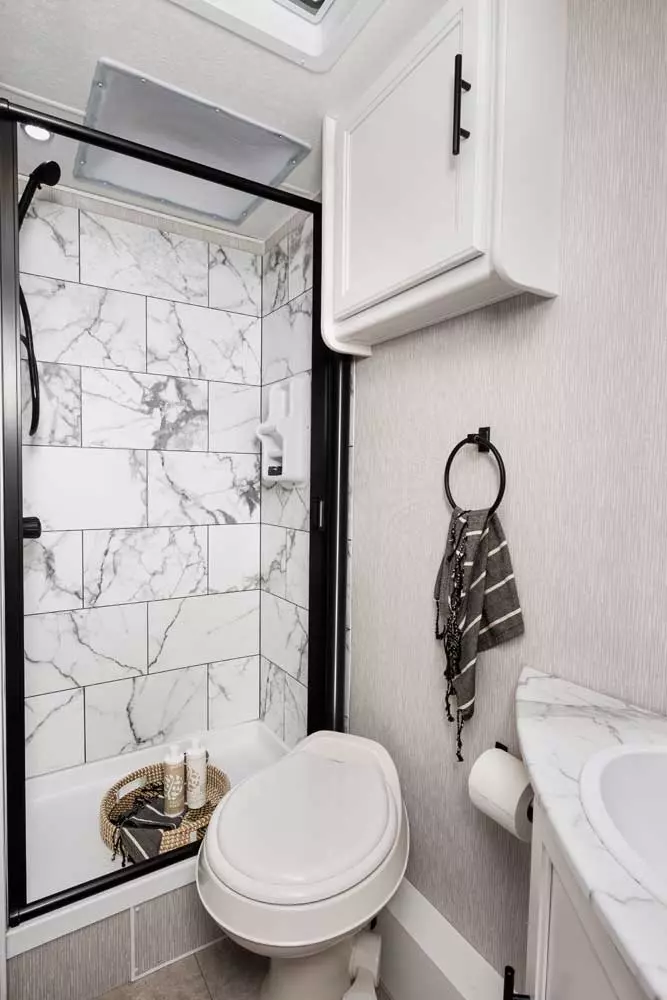

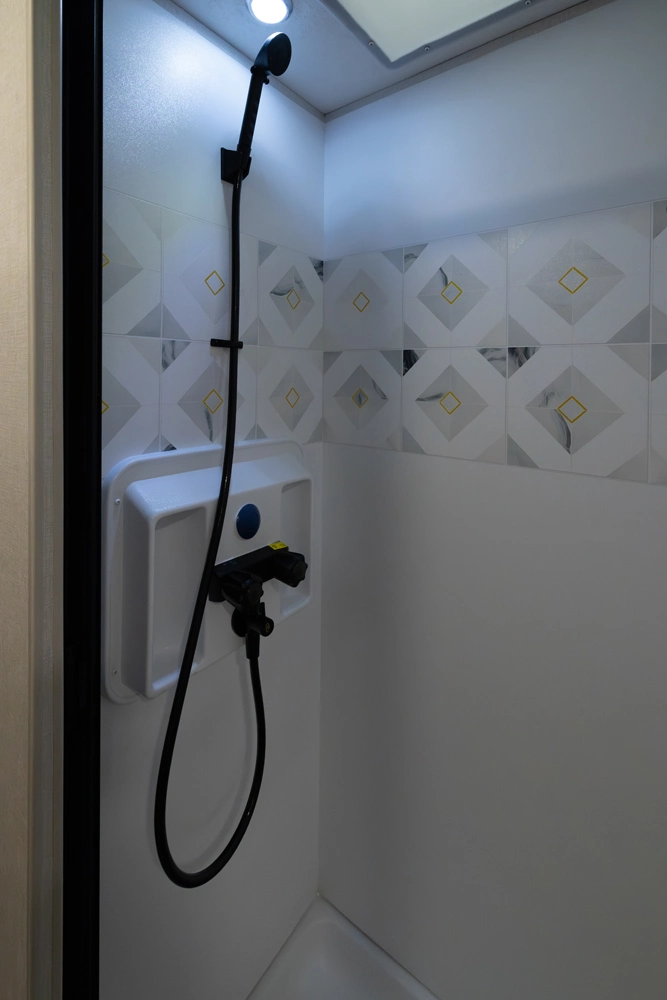

  • Large Shower Facilities - Compared to Class B vans

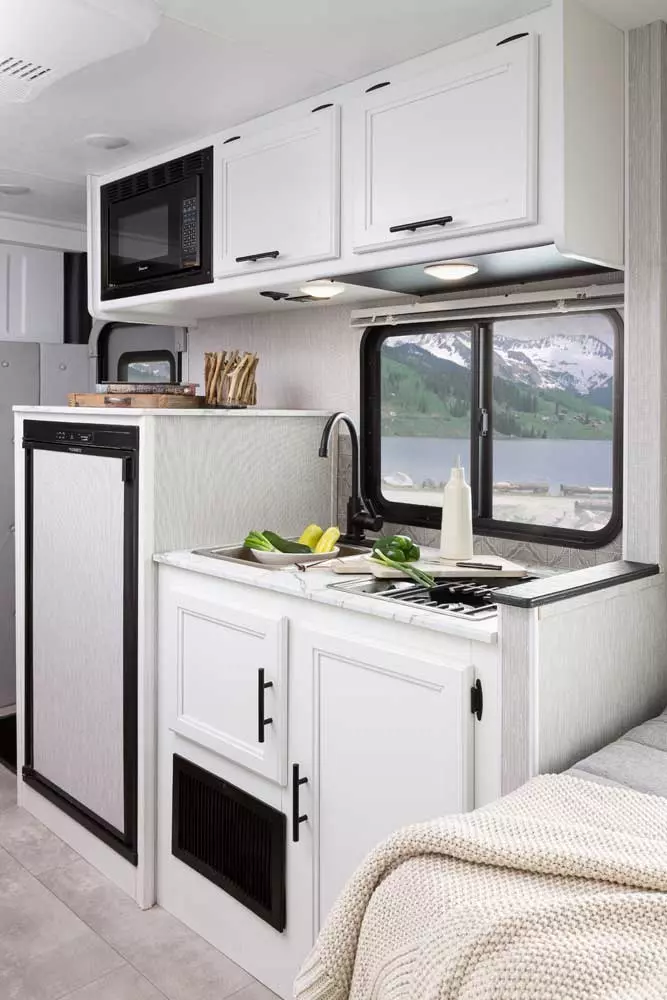

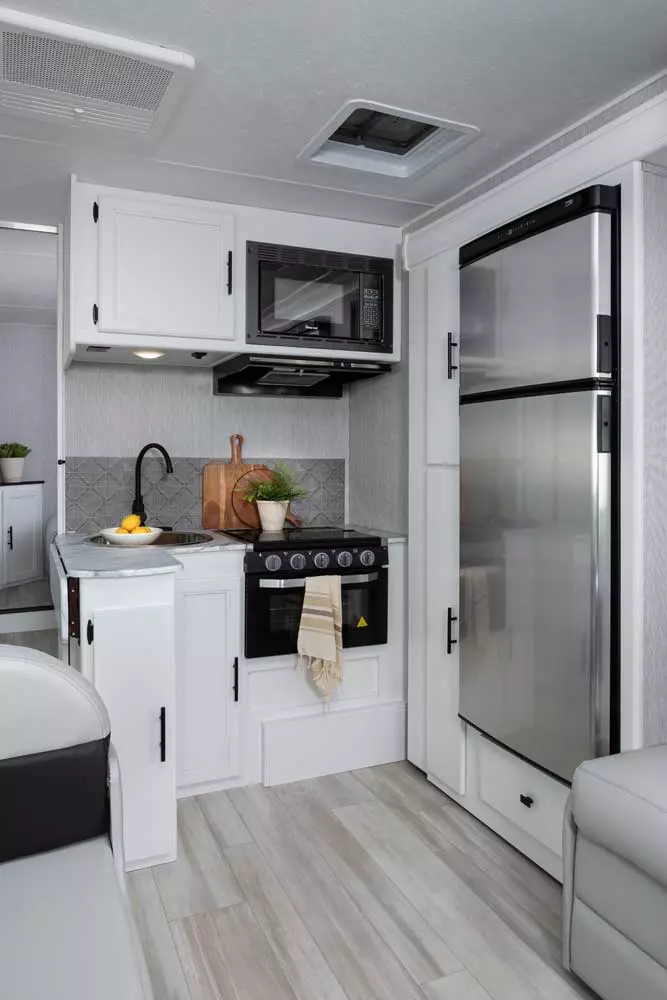

  • Extra Large Kitchen Counters and Three Way Refrigerators
  • Large Sliding Tinted Windows
  • Interior/Exterior Smart TV
  • Standard 400AMP/HR Lithium Battery (Optional: Dual 400AMP/HR Lithium Batteries)
  • 3,000W Inverter - Pass through inverter provides power when needed, flexible to work with either AGM or lithium batteries.
  • Power Bed (20XG Only) - Allows for versatility with sleeping and storage.
  • Renogy Empowered State-of-art Hybrid Electrical System - Designed to operate every coach function from battery power, including A/C. Convenient for operating systems while traveling without the use of a generator.
  • Ford Transit Chassis with 3.5L Ecoboost Engine
  • 10-Speed Automatic Overdrive with SelectShift transmission
  • Available All Wheel Drive
  • Dual 250 Amp Alternator - efficiently recharge coach batteries
  • Lane-Keeping System - adjustable system to activate either Alert mode, Assist mode or both.
  • Pre-Collision Assist with Automatic Emergency Braking - detect, alert and brake-assist when vehicle sense a potential collision front of you
  • Ford AdvanceTrac w/Roll Stability Control - Provides enhanced side-slip control and electronic rollover stability for the vehicle
  • Azdel Composite Vacuum Bonded Sidewalls - with low entry door for safety
  • CrossFlex Roof Membrane - Gives more puncture resistance
  • Molded Fiberglass Front Cap
  • Fuel Friendly Ford Transit Chassis - 3.5L Ecoboost Engine with AWD availability (Optional)
  • Convenient Go-Anywhere Sized Floorplans
  • Extra Large Exterior Storage for oversized cargo
  • Solar Equipped (Optional, Up to 400W of roof solar)
  • Armless Awning w/ LED Lights and Sensor

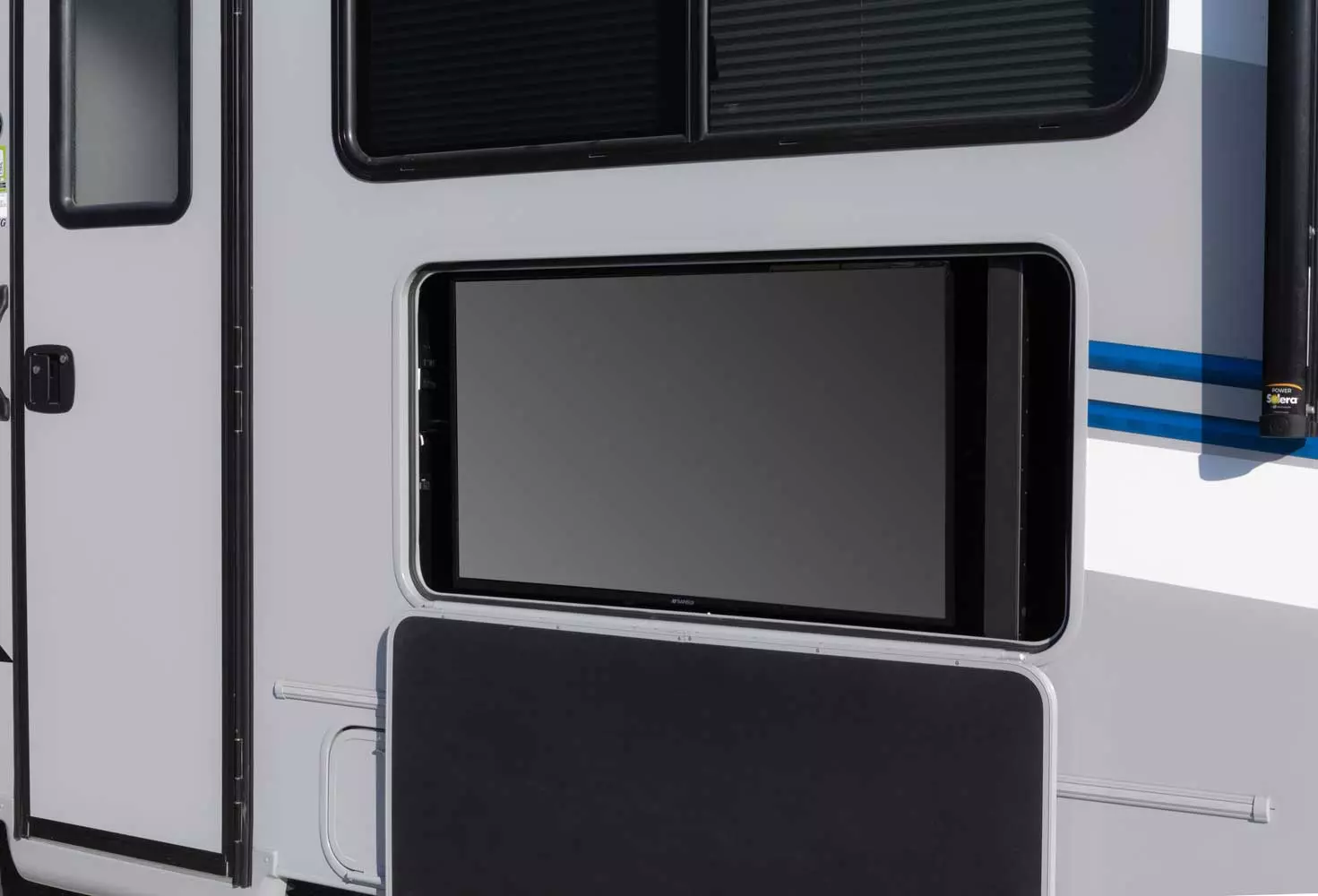

  • Exterior Entertainment Ready
  • LP Quick Disconnect & Fresh Water Port
  • Best-in-Class Capacities - Up to 41 gallons of fresh water, 68 lb. of propane, and over 2,000 lb. of cargo carrying capacity
  • Van Compass 2” Suspension Lift
  • Falcon Racing Shocks
  • All Terrain Tires
  • Black Out Aluminum Rims
  • Front Bumper Brush Guard w/ LED Lights
  • Rigid Running Boards

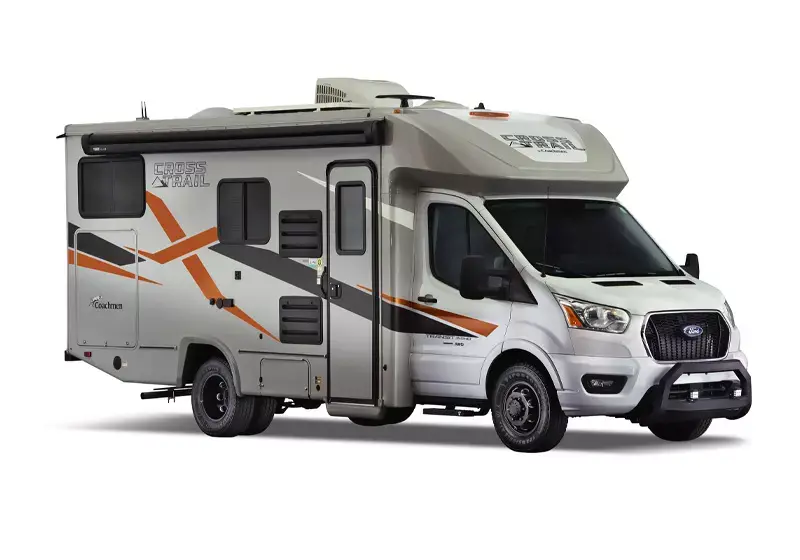

  • Xtreme Graphics Package

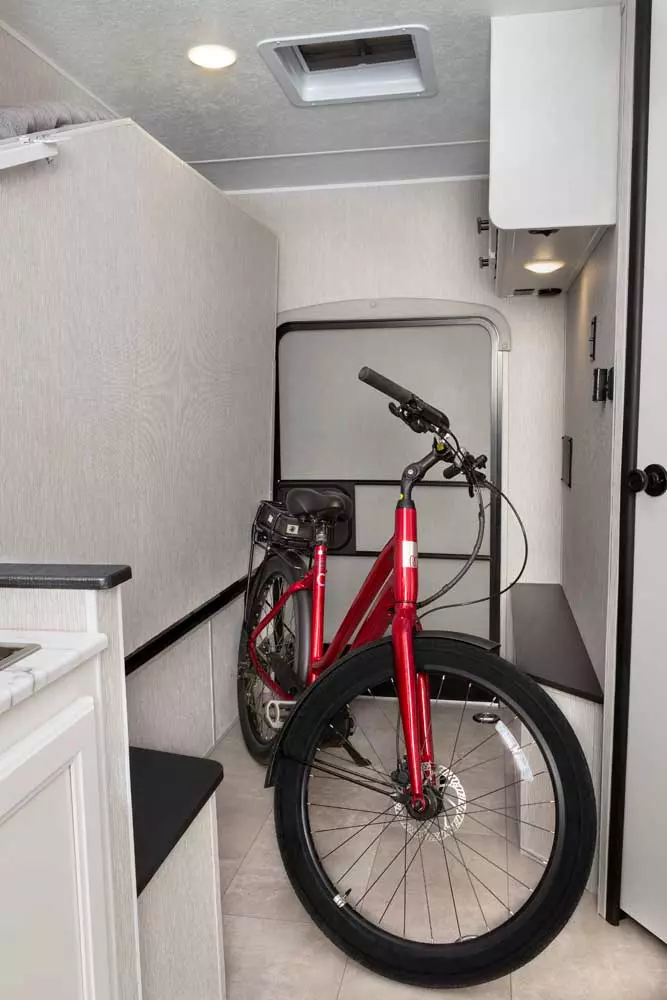

  • Incredible Storage on All Floorplans - Allows for more gear and bicycles to be brought along and stored away from the elements
  • Coachmen Even Cool Ducting System (On Select Models) - Evenly distributes air throughout your coach for more efficient cooling
  • Pre-wired for Rooftop Solar and sidewall Portable Solar panel (Optional) Rooftop 200W Solar Panel and Solar Controller

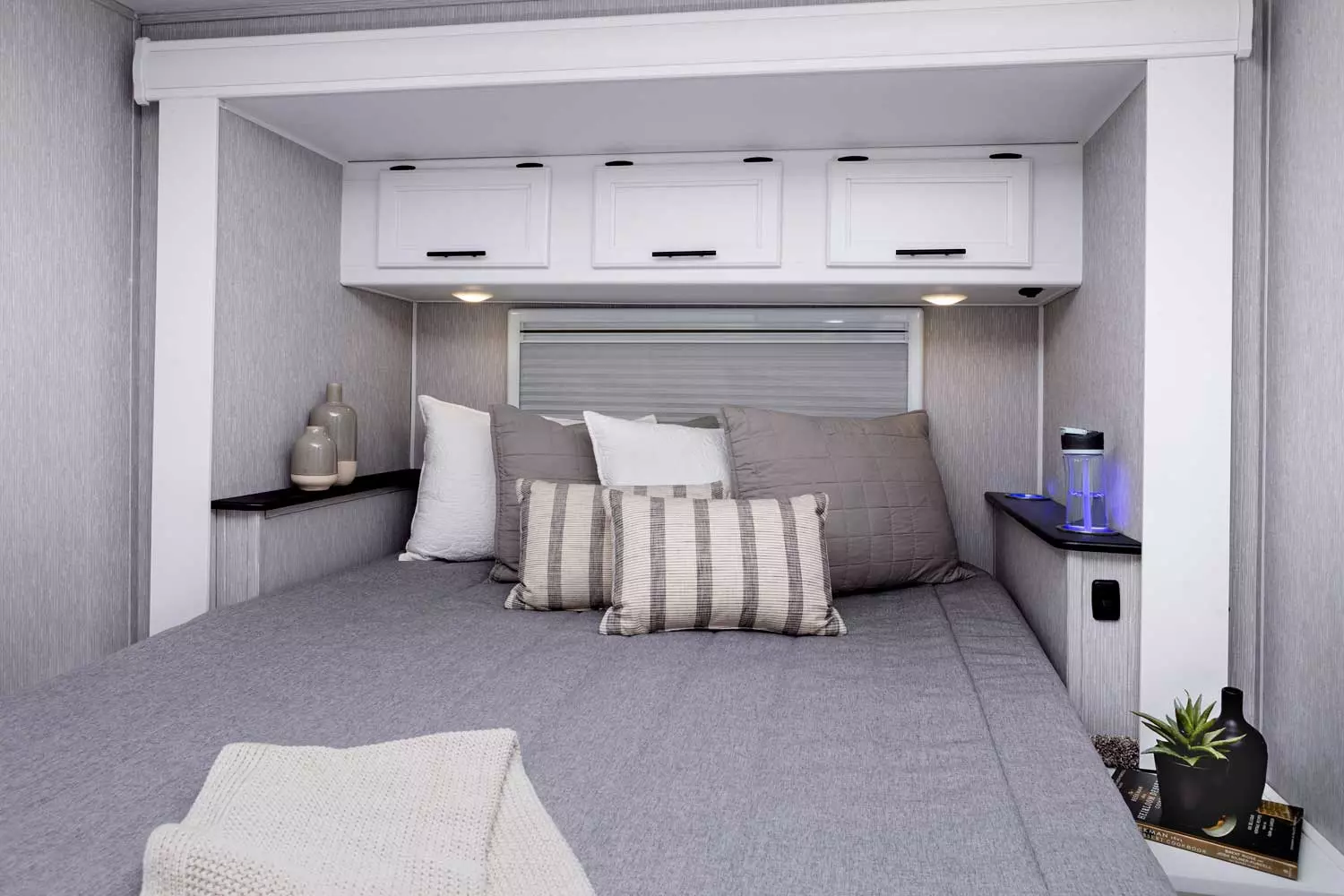

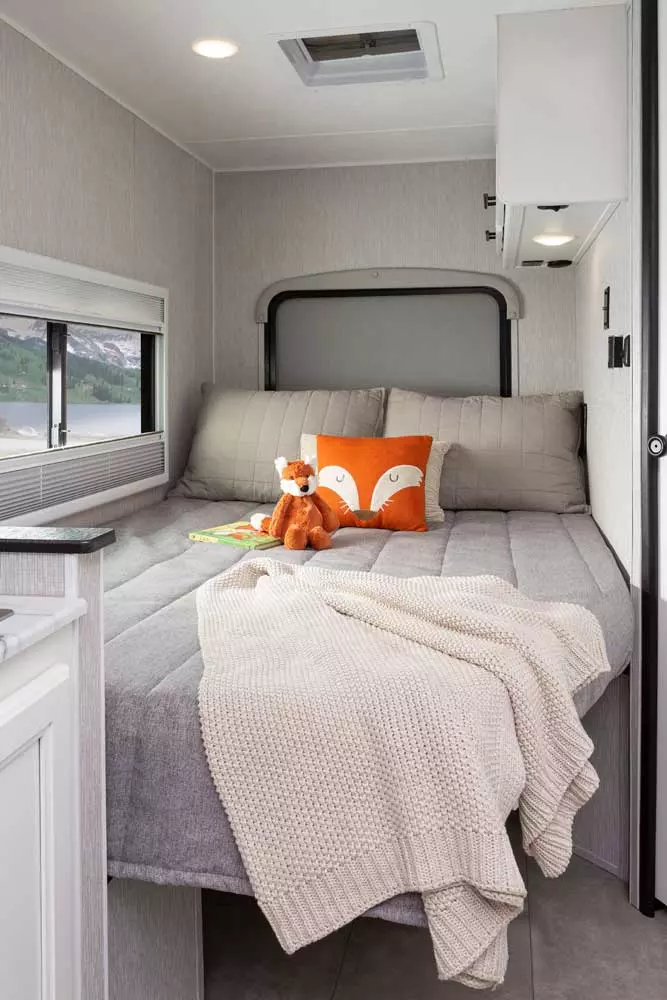

  • Residential Queen Sized Bed - Extra thick cushioning provides comfort and space
  • Seamless Thermofoil Countertops - Designed without seams to prevent food and moisture damage
  • 3-Burner Cooktop w/Oven - More cooking options provided by an extra-large LP tank
  • Heated Black and Grey Holding Tank Pads - Extend your stays in the Spring and Fall
  • Ford E-350, Ford E-450 or Ford Transit Chassis (Depending on Model)
  • 2" Thick Azdel Composite Vacuum Bonded Sidewalls - Increase lifetime and insulation of your sidewalls with water resistant Azdel Composite backed sidewalls
  • CrossFlex Roof Membrane - Durable exterior that is tear and puncture resistant, while providing heat reflectance benefits
  • 4000 Lamilux Color Infused Fiberglass - Thick automotive gray fiberglass provides smooth high gloss exterior finish

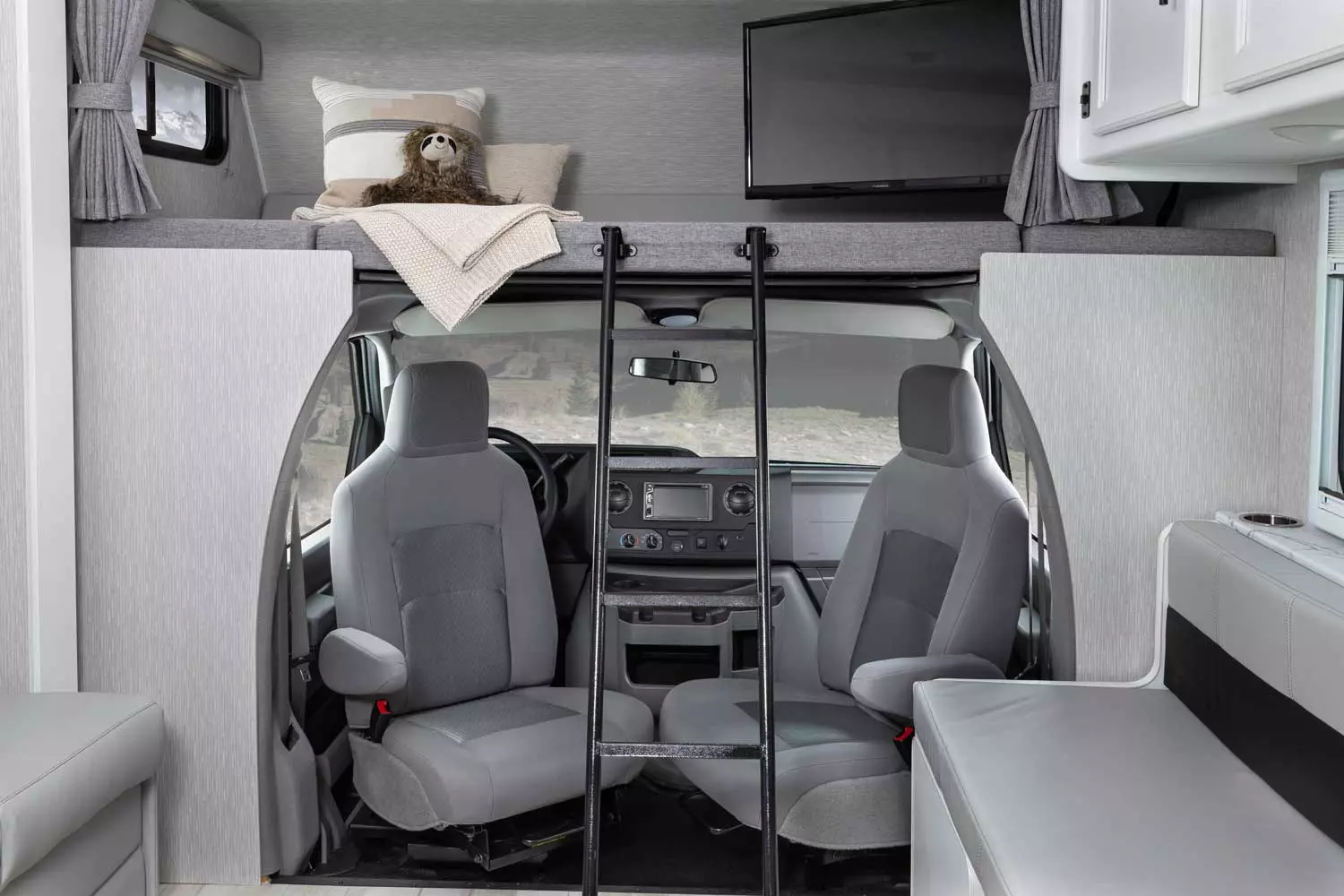

  • Shorter Cabover Bunk - Increases curb appeal and improves vision for driver and passenger
  • Up to 400W of Roof Solar (Optional)
  • Exterior Entertainment Center (Optional)

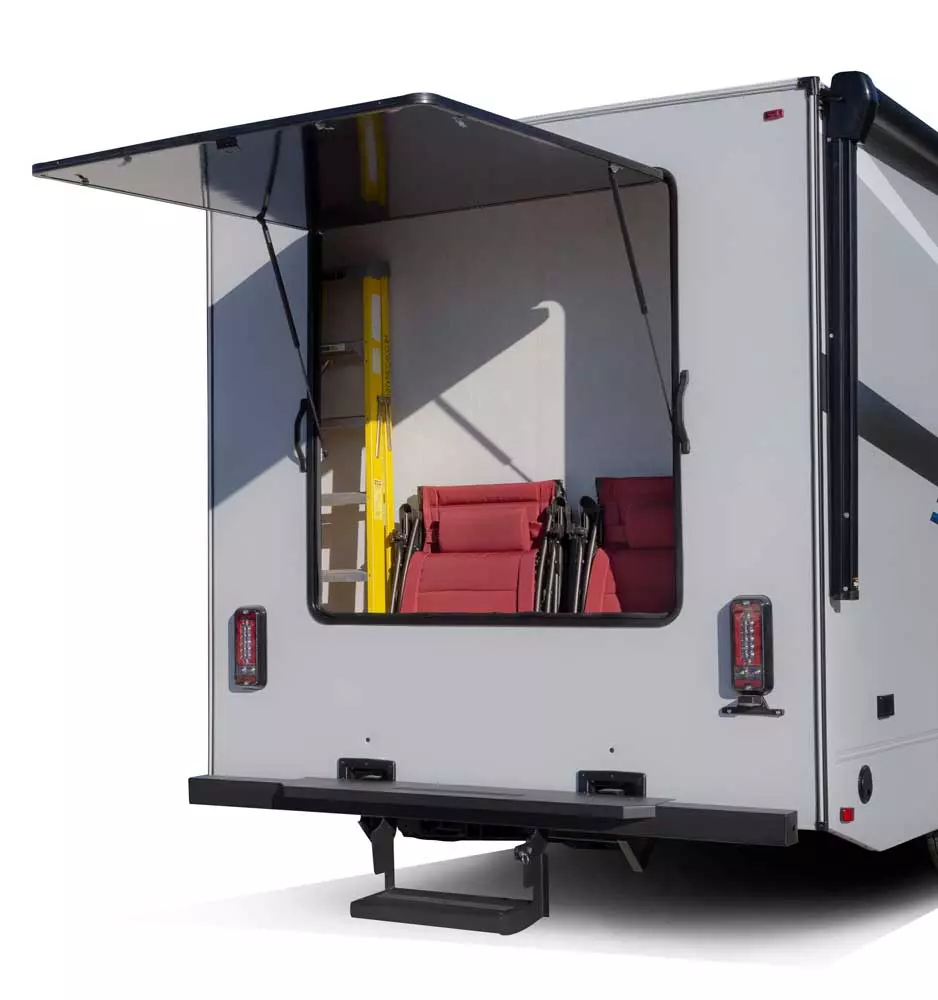

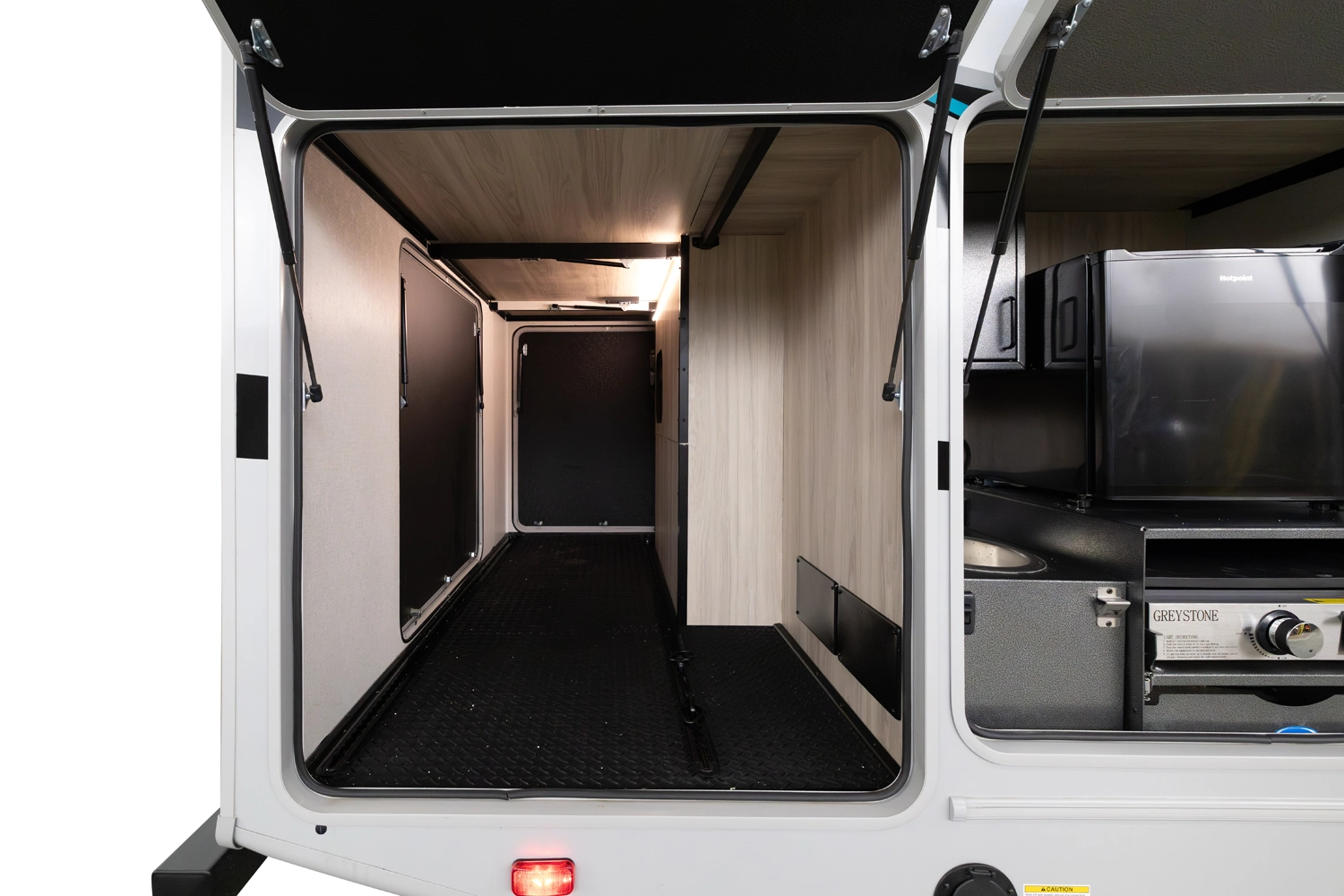

  • Oversized Rear Cargo Storage (On Select Models) - Cargo storage designed to bring bicycles, camping equipment, and necessary adventure gear along with you.
  • Standard 4,000W Onan Generator on Board
  • Up to 7,500 Pounds of Towing Capacities (with E-450 floorplans)
