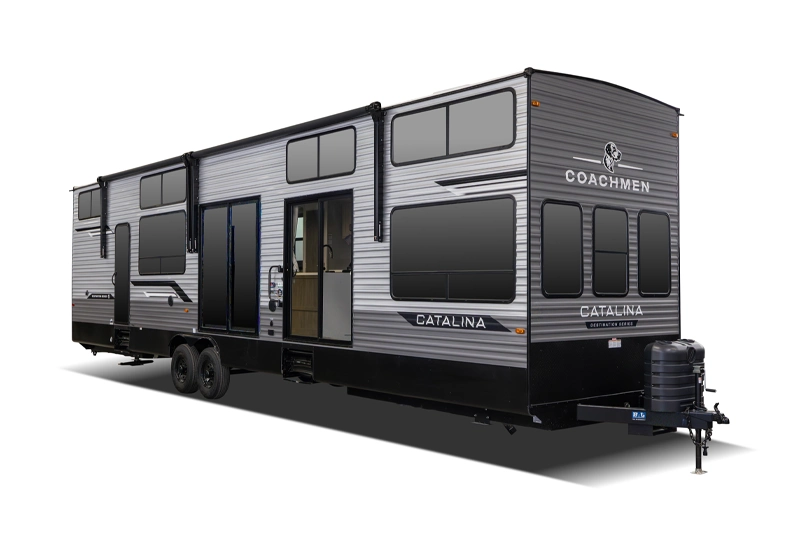

Catalina Destination Trailers

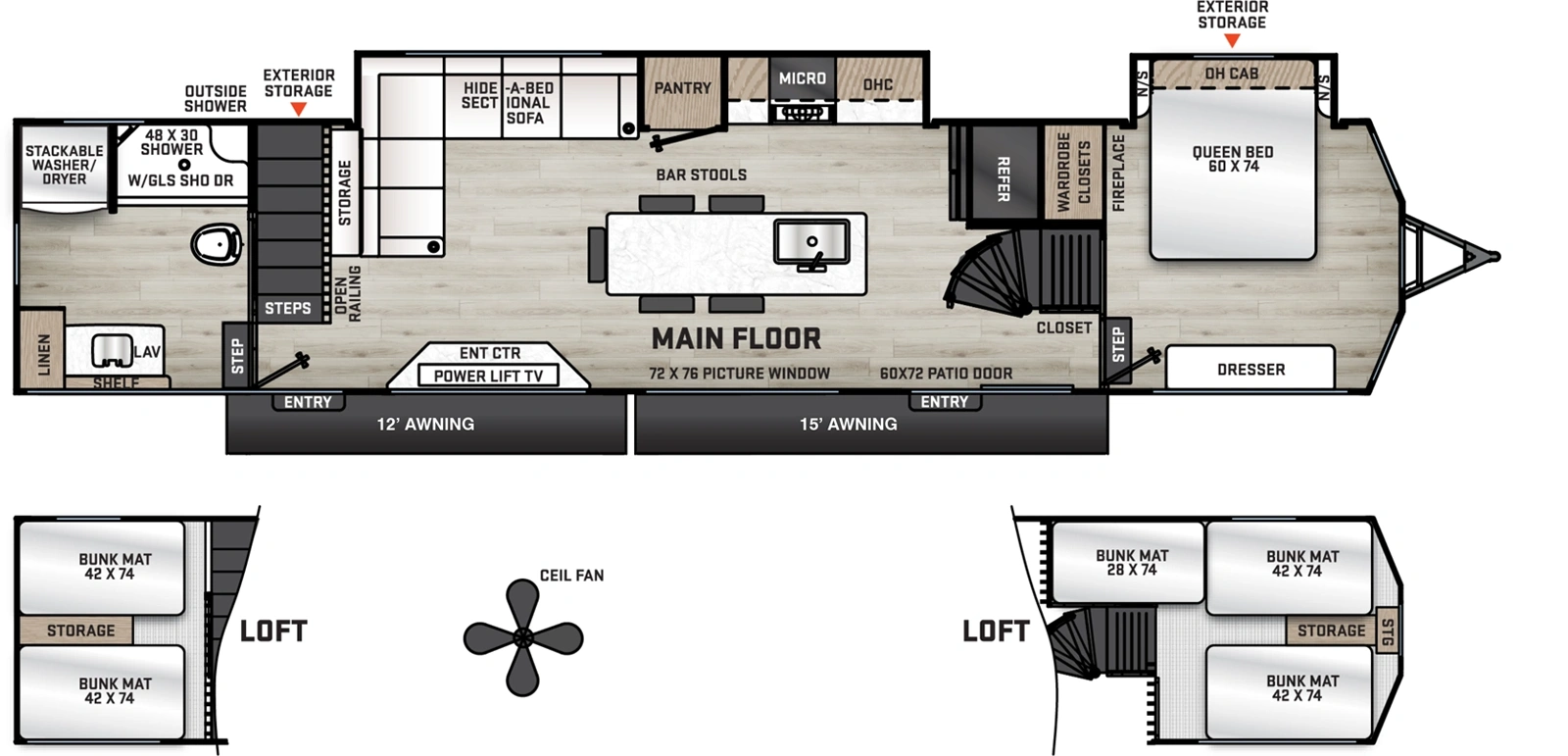

The Catalina Deluxe Edition Destination Series features five different floor plans that are engineered to maximize room, storage, and comfort. The Destination Series has also focused on upholding the quality that has made Coachmen famous over the years. These floorplans were specifically designed for campers that plan extended stays at their favorite locations.

Filter

Select filters below and then click the Filter Results button to remove non-matching Floorplans and their Specifications










to

to




Specifications

Print


Hitch Weight:
GVWR:
UVW:
CCC:
Exterior Length:
Exterior Height:
Exterior Width:
Fresh Water:
Gray Water:
Black Water:
Awning Size:
1102 lb.
10500 lb.
8114 lb.
2386 lb.
35' 0"
11' 6"
96"
44 gal.
80 gal.
30 gal.
21' (opt)
1110 lb.
11000 lb.
9539 lb.
1461 lb.
40' 9"
11' 8"
96"
44 gal.
80 gal.
40 gal.
21' (opt)
1330 lb.
11000 lb.
9409 lb.
1591 lb.
40' 9"
11' 8"
96"
44 gal.
80 gal.
30 gal.
15' (opt)
1494 lb.
11000 lb.
9761 lb.
1239 lb.
40' 9"
11' 8"
96"
44 gal.
80 gal.
30 gal.
18' (opt)
1130 lb.
11000 lb.
9669 lb.
1331 lb.
40' 9"
11' 8"
96"
44 gal.
110 gal.
40 gal.
21' (opt)

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)* – is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity) ** – is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Coachmen RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Coachmen RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Actual towing capacity is dependent upon your particular loading and towing circumstances, which includes the GVWR, GAWR and GCWR as well as adequate trailer brakes. Please refer to the Operator's Manual of your vehicle for further towing information.

Features & Options

Print
  • Cambered Structural Steel I-Beam Frame
  • Full Length Frame E-Coated Outriggers
  • 5/8" Tongue & Groove Plywood Floor Decking
  • 2"x3" Floor Joists on Approximately 12" Centers
  • 4" Floor To Frame Steel Lag Bolts
  • 3/8" Fully Decked Walk-On Roof (Tandem Axle Models)
  • Seamless Roof Membrane with 12 Year Warranty
  • Screwed Cabinet Construction w/Pocket Bored Lumber Core Stiles
  • 5/8" Plywood Under Bed & Dinette Base
  • 84" Interior Height
  • Easy-Trac Rack and Pinion Slide-Out(s)
  • R-7 Fiberglass Insulation Throughout
  • 6 Gal. Gas/Electric DSI Water Heater
  • Water Heater By-Pass Winterization Kit
  • 12V Demand Water Pump
  • Platinum .024" Aluminum Exterior w/.030 Skirt Metal
  • Polished HD Aluminum Fender Skirts
  • Dexter EZ Lube Axles w/Leaf Spring Suspension
  • Self Adjusting Brakes
  • Roto-Cast Holding Tanks
  • Painted Bumper w/ Drain Hose Carrier and End Caps
  • 35,000 BTU Auto-Ignition Furnace w/Wall Thermostat
  • 15,000 BTU Ducted A/C
  • Aluminum Wheels
  • Heavy Duty Standard Tongue Jack
  • Black Tank Flush
  • Outside Utility Shower w/ Hands Free Holder
  • Two 30lb. LP Bottles w/ABS Cover
  • Flush Mount Baggage Doors w/Radius Corners
  • Four Stabilizer Jacks
  • G20 Tinted Windows
  • Two Marine Grade Exterior Speakers w/LED Lighting
  • Friction Hinge Door
  • Radius Cornered Fiberglass Entry Door
  • Exterior 110V G.F.C.I Protected Receptacle
  • Exterior RG-6 Coax Cabling and Satellite Prep
  • Rain Gutters with Drip Spouts
  • Radius Entry Steps
  • XL Swing Arm Grab Handle
  • Residential Sliding Glass Patio Door
  • Large Front Bay Windows
  • Bottle Openers (Exterior Camp Kitchens)
  • Pets - "Leash Link" Quick Hookup D-Ring
  • Smoke Alarm
  • LP/CO Gas Detector
  • Fire Extinguisher
  • Fire Escape Windows
  • Entrance Door Window
  • Dead-Bolt Lock on Entry Door
  • Drop Edge Thermofoil Seamless Countertops
  • Kitchen Power Tower w/ 2 USB Ports & 2 110 Outlets
  • Bluetooth Stereo and DVD Player w/CD,MP3, USB and AM/FM Radio
  • 39" Flat Screen TV
  • Swing Arm TV Bracket
  • In-Wall Mounted Interior Speakers
  • 18 Cu. Ft. Residential Refrigerator
  • Deep Basin Under-mount Farm Style Sink
  • Residential Kitchen Faucet w/Pull Down Sprayer
  • Flush Thermofoil Kitchen Sink Covers (2) (Tandem Axle Models)
  • Full Length Kitchen Drawer Guides
  • Salvaged Light Oak Cabinets
  • All-In-One Monitor Panel System
  • 3 Burner Range w/Flush Glass Top & Blue LED Accent Lights
  • Slim Line Furrion Range Hood
  • 3 Burner High Output Range w/21" Oven
  • Silverware Kitchen Drawer
  • Mosaic Glass Tile Backsplash
  • Microwave W/Glass Turn Table
  • Congoleum Woodplank Linoleum Flooring
  • Residential In-Floor Ducted Heat
  • LED Interior Lighting
  • Residential Tri-Fold Sofa
  • Decorative Sofa Throw Pillows
  • Designer Lighting Over Dinette
  • Hard Valance Window Treatment w/Decorative Lambrequins
  • Pleated Night Window Shades
  • Pedestal Thermofoil Dinette Table
  • Dinette Storage Under Benches
  • Easy Access Booth Dinette Storage Doors
  • Marine Toilet with Foot Flush
  • ABS Tub/Shower Surround w/Shelves
  • Skylight Above Tub/Shower
  • Power Vent Fan in Bathroom

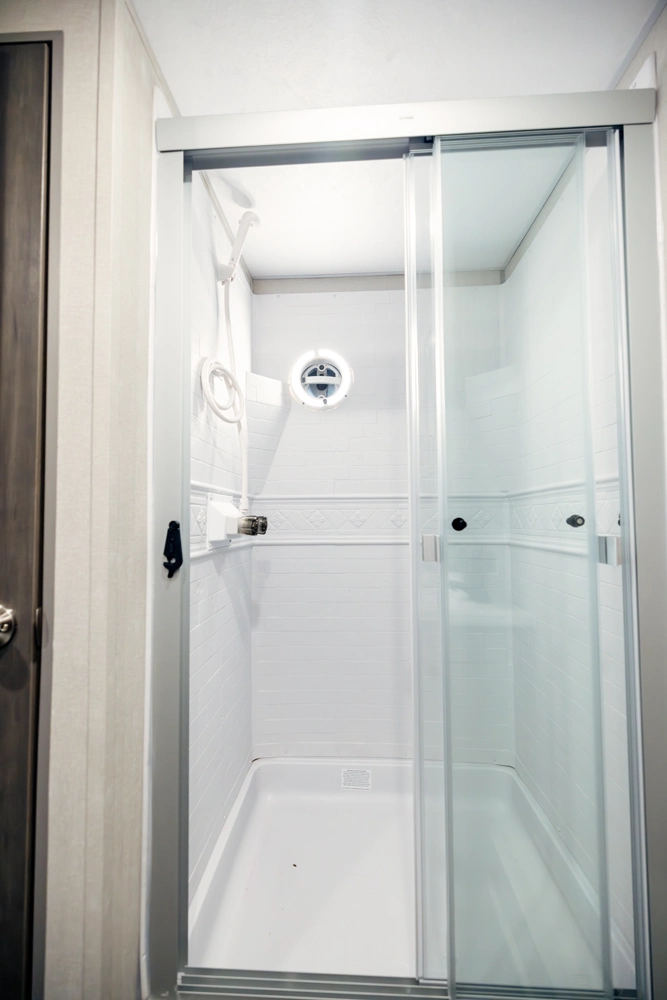

  • Glass Step-In Shower w/ABS Surround (Per Floorplan)
  • Medicine Cabinet with Mirror
  • Bedroom USB Surface Mounts(2)
  • USB Surface Mount Near Bunk Beds
  • Solid Master Bedroom Door(s) (Per Floorplan)
  • Solid Bunk Room Door (Per Floor Plan)
  • Mirrored Wardrobes in Master Bedroom (N/A King Bed Models)
  • Master Bedroom Overhead Cabinets
  • Underbed Storage w/Separation from Outside Front Storage
  • Quilted Designer Bedspread
  • Teddy Bear Bunk Mats
  • Furrion Fireplace in the Living Room
  • Bar Stools
  • Ceiling Fans in Living Room and Master Bedroom w/Wall Switch
  • King Bed
  • Washer/Dryer Prep (39MKTS, 39RLTS)
  • Enclosed, Fully Sealed Underbelly
  • 2ND 13.5 A/C
  • Free Standing Table w/4 Chairs (N/A U-Dinette Floorplans)
  • Full Size Exterior Camp Kitchen (40BHTS)
  • Power Electric Awning w / 12V Power Channel and LED Light and Directional Spotlight Attachment
  • Spare Tire w/ Tire Carrier & Cover
  • Non-Self Contained w/Porcelain Toilet
  • Detachable Hitch
  • CSA Standards


Virtual Tours

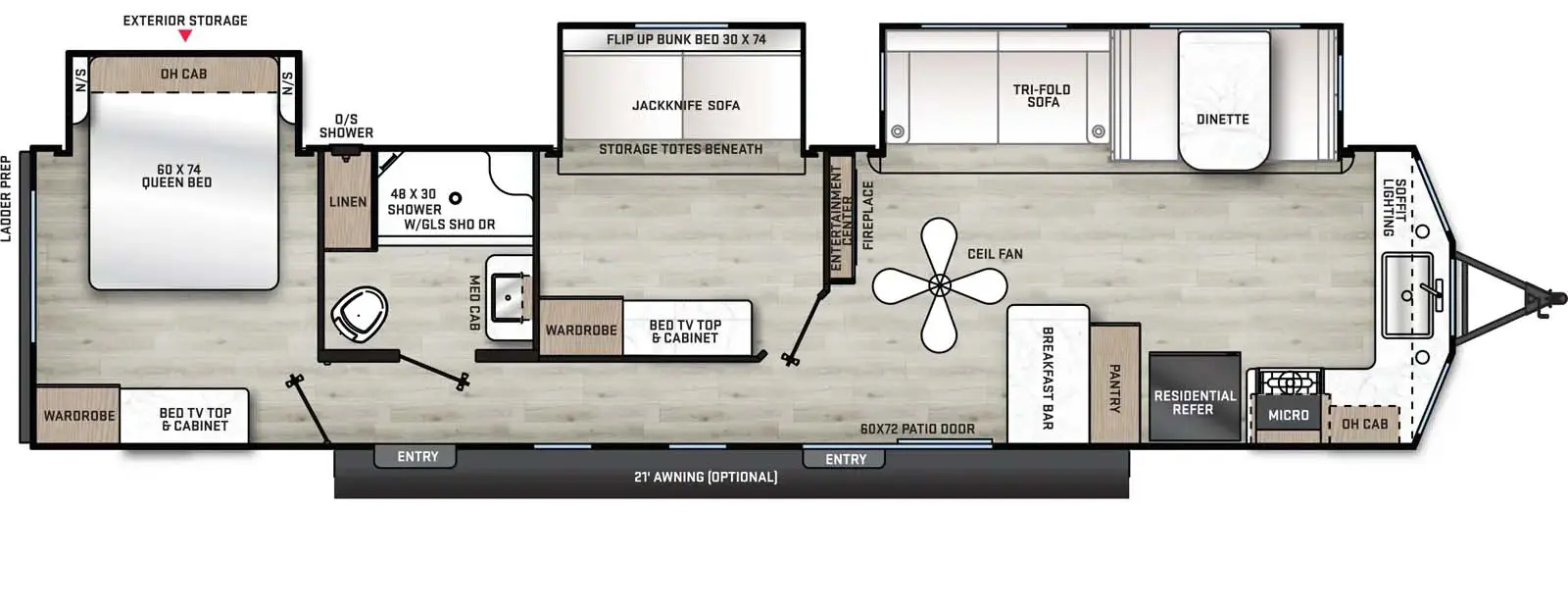

39FKTS

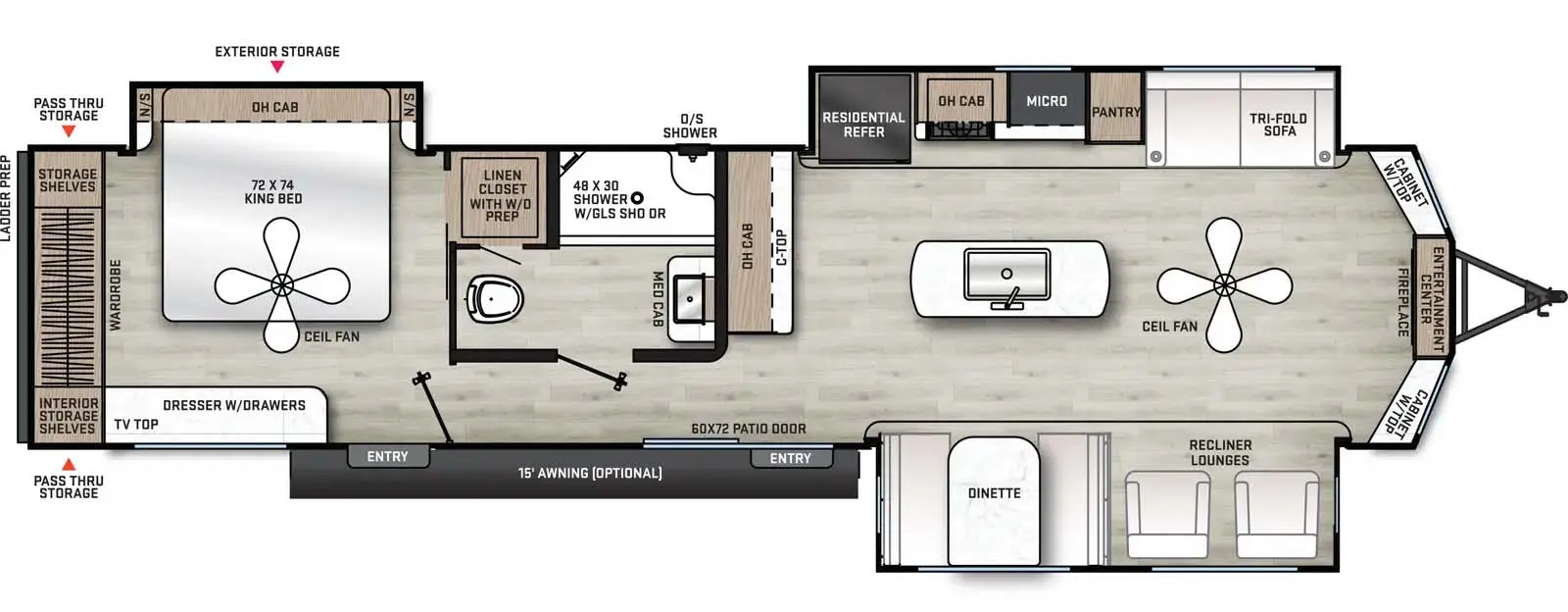

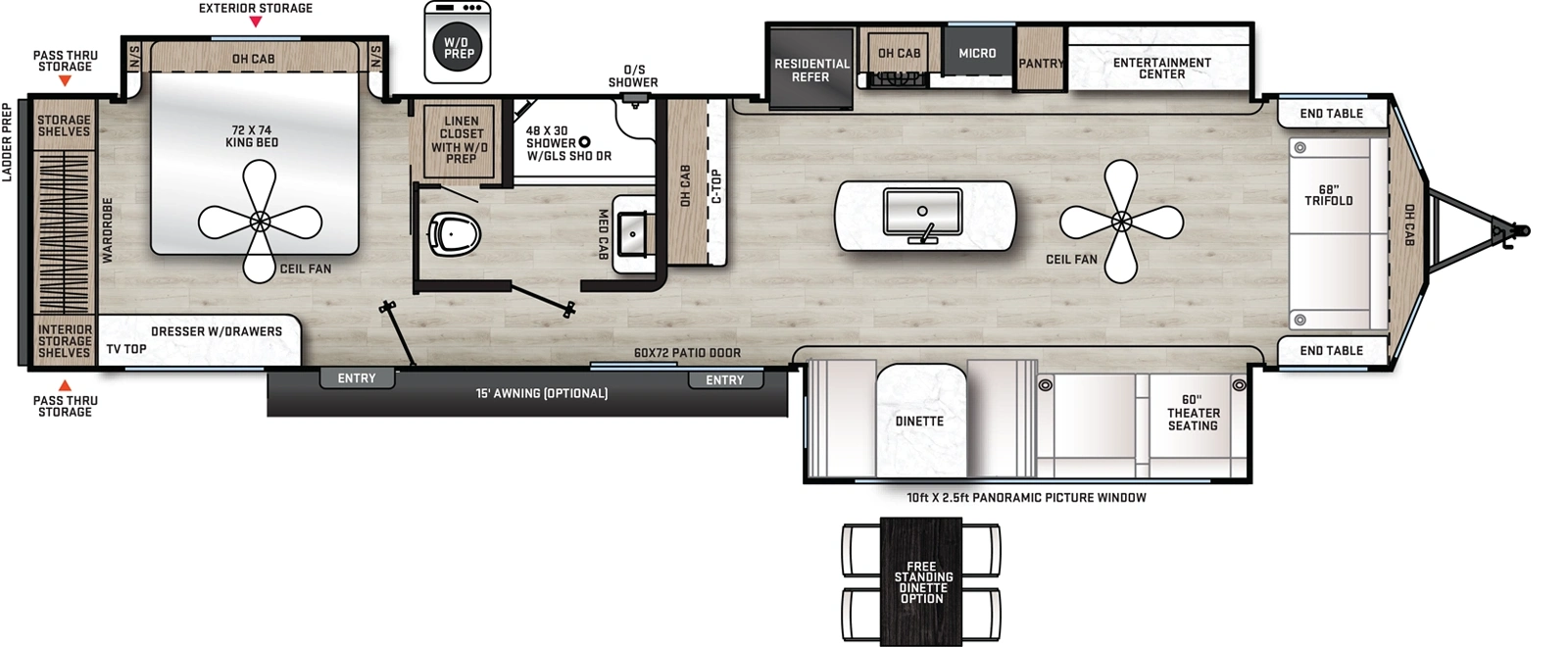

39MKTS

39RLTS

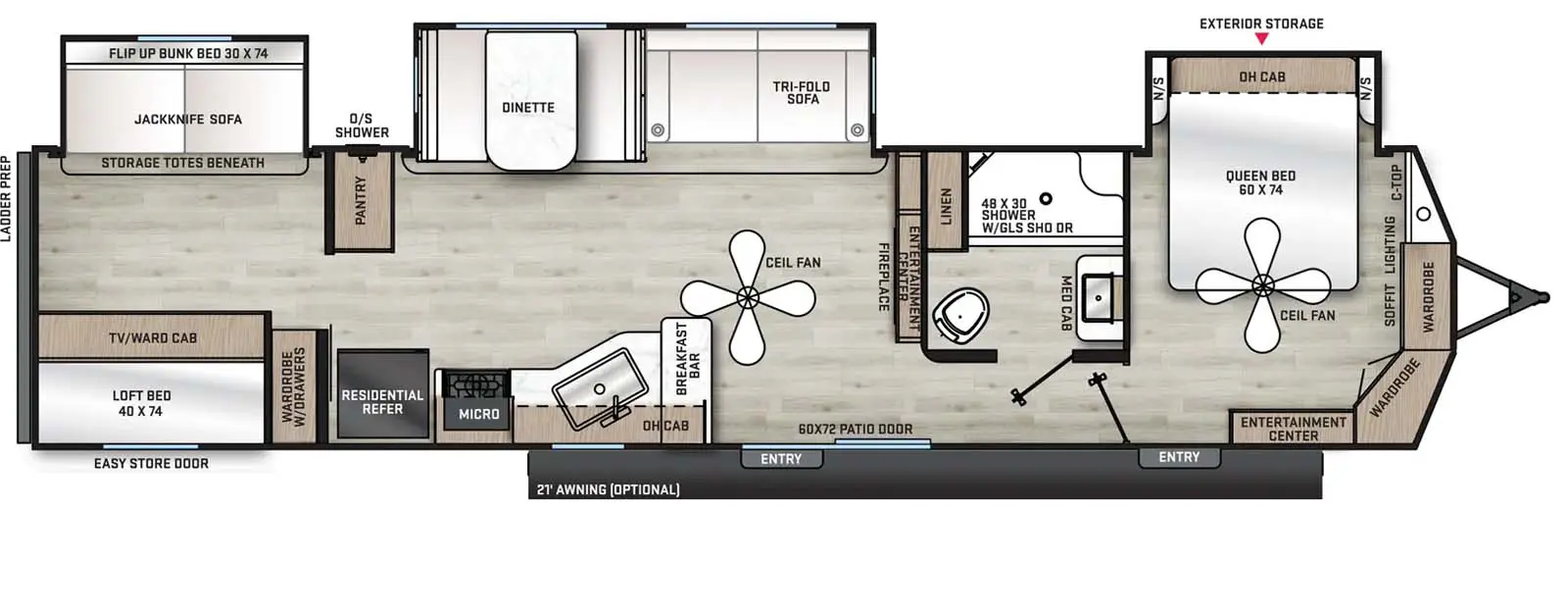

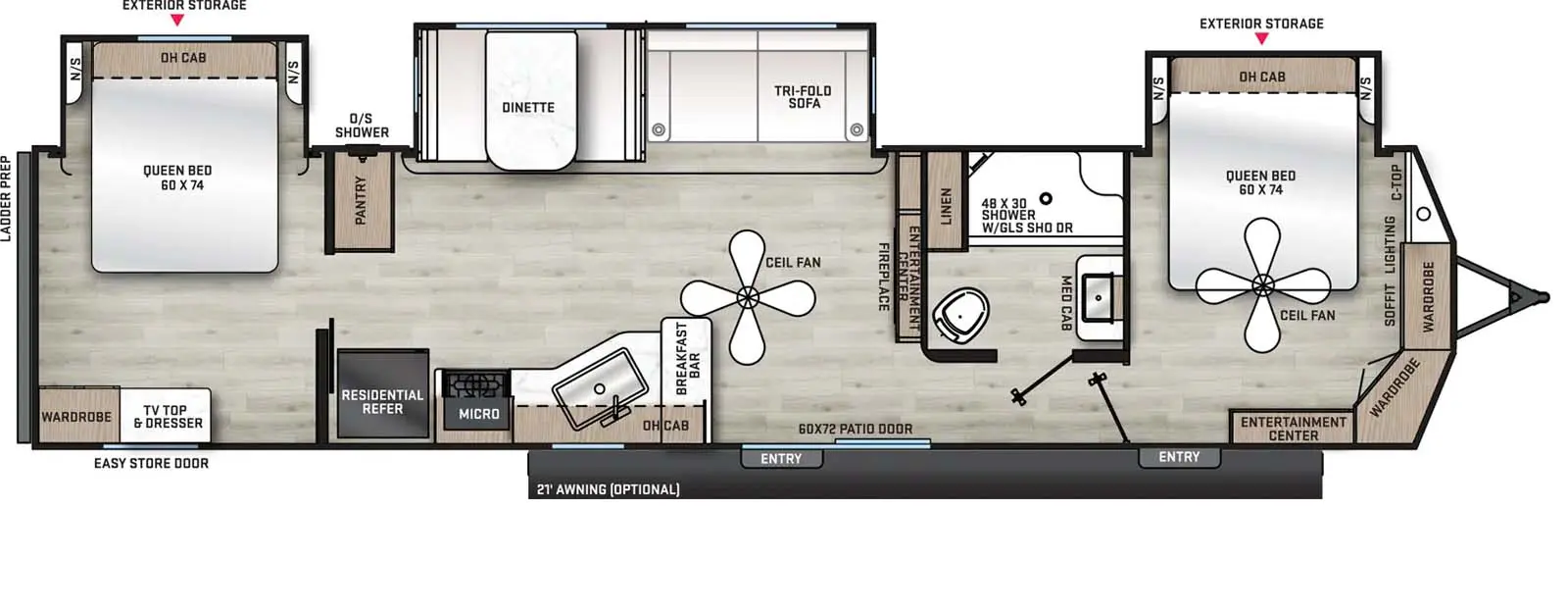

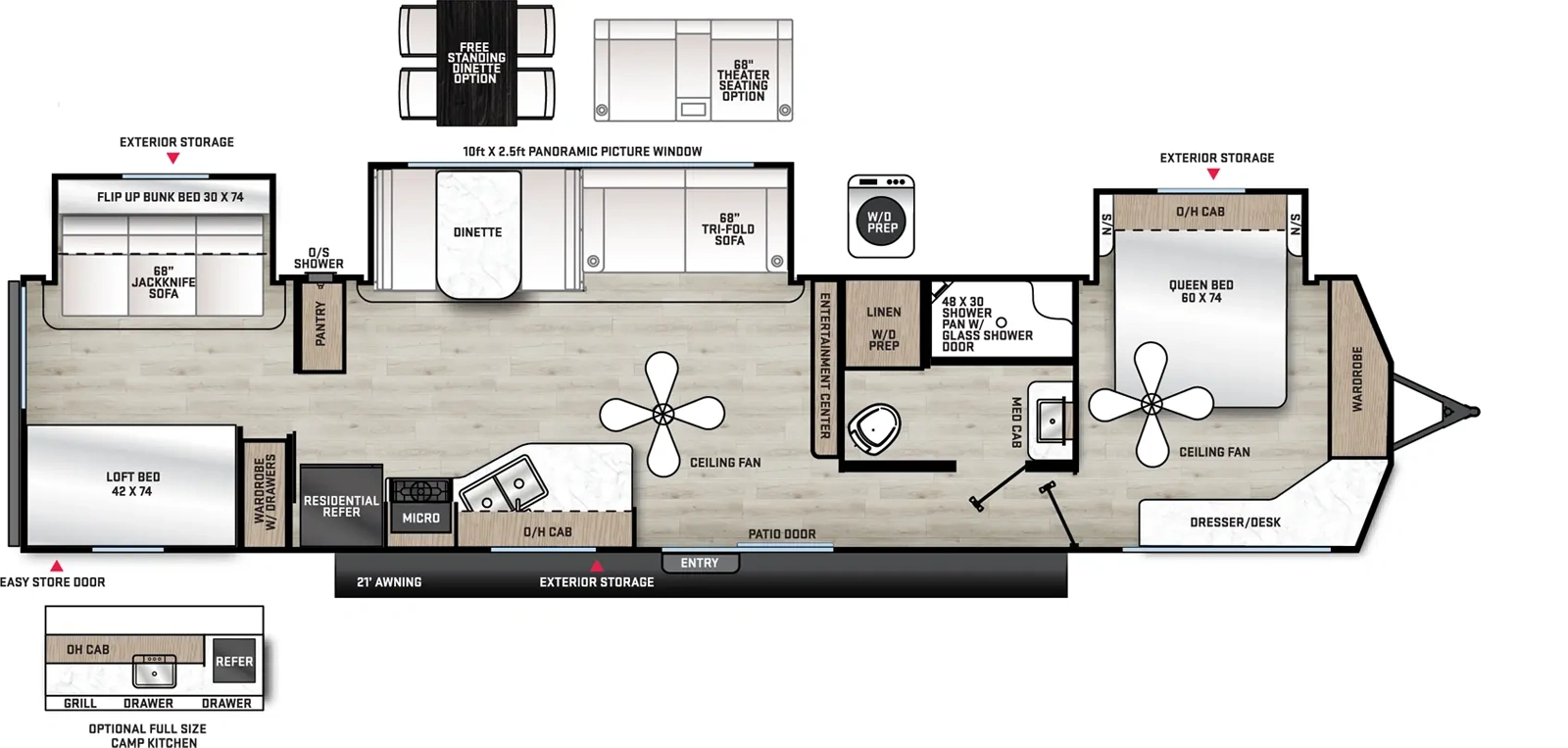

40BHTS
