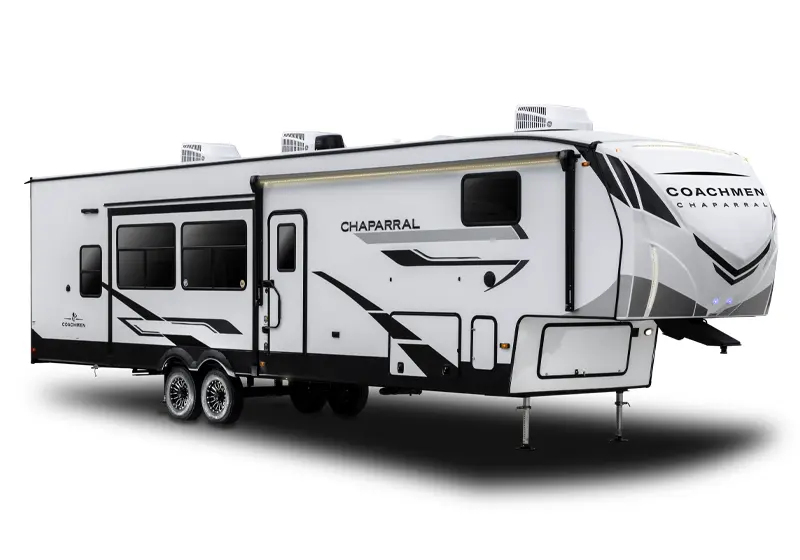

Chaparral Fifth Wheels

Chaparral Mid-Profile Fifth Wheels have been the flagship fifth wheel at Coachmen RV for over a decade. Chaparral's are designed from the inside out for easy and adventurous travel. Roomy bedroom suites, enormous storage space and exciting aerodynamics and weights will make weekend or month long camping trips leaving you wanting for more! Chaparral Mid-Profiles come well equipped with residential features and elegant interiors that surround you with a home-like feel.

Filter

Select filters below and then click the Filter Results button to remove non-matching Floorplans and their Specifications










to

to




Specifications

Print


Hitch Weight:
GVWR:
UVW:
CCC:
Exterior Length:
Exterior Height:
Exterior Width:
Fresh Water:
Gray Water:
Black Water:
Awning Size:
1953 lb.
12000 lb.
9803 lb.
2197 lb.
33' 6"
12' 4"
96"
48 gal.
90 gal.
45 gal.
15'
1935 lb.
12000 lb.
9575 lb.
2425 lb.
33' 10"
12' 4"
96"
48 gal.
90 gal.
45 gal.
15'
1880 lb.
12000 lb.
10520 lb.
1480 lb.
36' 3"
12' 4"
96"
48 gal.
90 gal.
45 gal.
16'
2100 lb.
14000 lb.
11450 lb.
2550 lb.
39' 0"
12' 4"
96"
48 gal.
90 gal.
45 gal.
18'
TBD
TBD
TBD
TBD
TBD
TBD
TBD
TBD
TBD
TBD
TBD
2211 lb.
14500 lb.
11863 lb.
2637 lb.
41' 9"
12' 9"
96"
48 gal.
90 gal.
45 gal.
20'
2219 lb.
15000 lb.
13031 lb.
1969 lb.
41' 9"
12' 6"
96"
48 gal.
120 gal.
75 gal.
17'
2310 lb.
14500 lb.
12246 lb.
2254 lb.
41' 9"
12' 6"
96"
48 gal.
90 gal.
45 gal.
20'
2287 lb.
14500 lb.
12695 lb.
1805 lb.
41' 9"
12' 6"
96"
48 gal.
85 gal.
45 gal.
20'
2249 lb.
14500 lb.
12277 lb.
2223 lb.
41' 9"
12' 6"
96"
48 gal.
90 gal.
45 gal.
20'

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)* – is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity) ** – is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Coachmen RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Coachmen RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Actual towing capacity is dependent upon your particular loading and towing circumstances, which includes the GVWR, GAWR and GCWR as well as adequate trailer brakes. Please refer to the Operator's Manual of your vehicle for further towing information.

Features & Options

Print
  • Aerodynamic Front Cap Design W/ LED Strip Lighting (MID-PROFILE PACKAGE - MANDATORY)
  • UV Treated, Weather Resistant Decals
  • UV Resistant Gel Coat Exterior Sidewall Panels

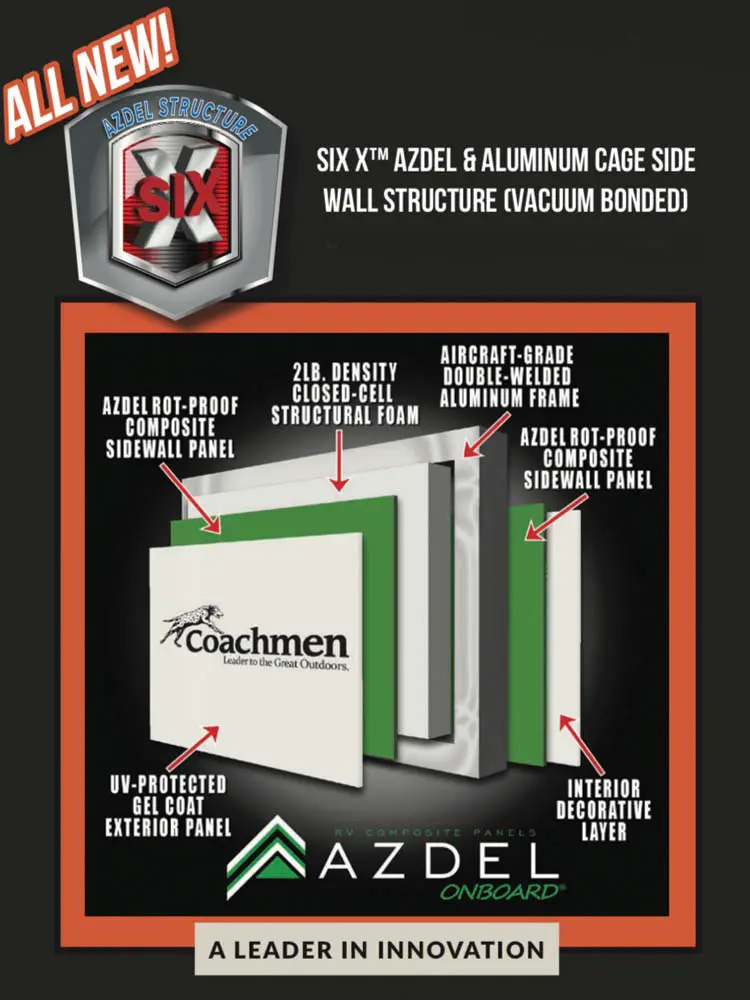

  • Vacuum Bonded & Aluminum Framed Sidewalls W/ Rot Proof AZDEL® Composite Sidewall Panels (x2) (MID-PROFILE PACKAGE - MANDATORY)
  • 80% Privacy Tint Safety Glass Windows
  • UV & Corrosion Resistant TPO Roof  W/ 12 Year Warranty
  • Slam Latch Pass Through Storage Compartment Doors W/ Magnet Latches*
  • 50" TV Bracket In Outside Kitchen *
  • Exterior TV Hook Up & Mounting Bracket* (+ Secondary Bracket Where Applicable) (MID-PROFILE PACKAGE - MANDATORY)
  • Solar Panel Prep (MID-PROFILE PACKAGE - MANDATORY)
  • LP Quick Connect Port
  • Exterior Back-Up Camera Prep (MID-PROFILE PACKAGE - MANDATORY)
  • Electric Awning W/ LED Light Strip & One Hand Pitch Adjustment (MID-PROFILE PACKAGE - MANDATORY)
  • Exterior Marine Speakers W/ LED Light  (MID-PROFILE PACKAGE - MANDATORY)
  • LED Entry Step Lights
  • LED Head Knocker Preventer Lights Under Bed Slide* (Select Models)
  • Solid Step™ Entry (MID-PROFILE PACKAGE - MANDATORY)
  • Electric Front Jacks (MID-PROFILE PACKAGE - MANDATORY)
  • Electric Rear Stabilizer Jacks (MID-PROFILE PACKAGE - MANDATORY)
  • Accessory Receiver Prep (MID-PROFILE PACKAGE - MANDATORY)
  • 16” Radial Tires W/ Aluminum Rims (MID-PROFILE PACKAGE - MANDATORY)
  • Spare Tire (MID-PROFILE PACKAGE - MANDATORY)
  • Friction Hinge Main Entry Door
  • LED Exterior Running & Marker Lights
  • Road Armor® Suspension By Trail Air® W/ Heavy Duty Shackles & Wet Bolts (MID-PROFILE PACKAGE - MANDATORY)
  • Modern Entertainment Center Prepped For 50" - 55" TV (Bracket Standard)
  • Articulating TV Swing Arm Bracket, Main Living TV & Outside Kitchens* (W/ TV Opt. Only)
  • Solid Hardwood Slide Fascia
  • Brazilian Walnut Free Standing Table & Chairs W/ Leaf & Built-In Storage (Storage In Table & Chairs)
  • Decorative, Modern Window Box Valance W/ Pleated Privacy Shades
  • Thomas Payne® Theatre Seating W/ Heat, Massage, LED Lights, & Cup Holders*
  • Thomas Payne®* Memory Foam Tri-Fold HAB Sofa*
  • Congoleum® Carefree Resilient Sheet Flooring (USA Made W/ 3 Year Cold Crack Warranty)
  • Dual USB Charging Ports (Where Applicable)
  • Ceiling Fan In Living Room (N/A 373MBRB) (MID-PROFILE PACKAGE - MANDATORY)
  • Energy Efficient LED Interior Lighting Used Throughout
  • LED Motion Sensor Lights (Key Areas)*
  • AM/FM/CD/DVD Player W/ Bluetooth (MID-PROFILE PACKAGE - MANDATORY)
  • Roller Night Shades (MID-PROFILE PACKAGE - MANDATORY)
  • Large Transom Window At Cooktop Backsplash Location
  • Solid Wood, Pecan Stained Cabinet Doors W/ Brazilian Walnut Accents
  • Solid Hardwood Drawer & Cabinet Faces
  • Solid Lumber Core Cabinet Stiles
  • Pre-Drilled & Screwed Cabinetry
  • Full-Extend Ball Bearing Drawer Guides (75# & 100# Guide Capacities)
  • Stainless Steel 8 Cubic Foot Refrigerator (MID-PROFILE PACKAGE - MANDATORY)
  • Stainless Steel 30" Residential Microwave (MID-PROFILE PACKAGE - MANDATORY)
  • 21" Stainless Steel Oven W/ Residential Cooktop, Glass Cover, & Piezo Ignition
  • 50/50 Extra Deep Stainless Sink
  • Durable & Seamless Thermofoil, Granite/Marble Style Counters (No T-Mold & Heat Resistant)
  • Matching Thermofoil Sink Covers (Solid Surface Covers W/ Solid Surface Option)

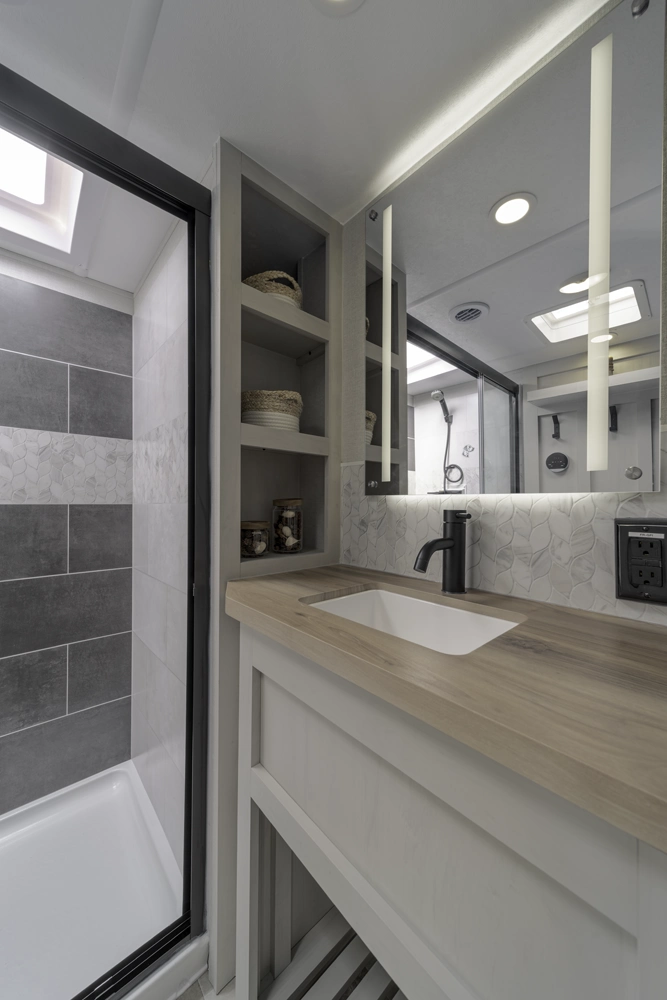

  • Full Size Shower W/ Sliding Glass Doors & Seat
  • Large Privacy Dome Skylight
  • Power Ceiling Vent Fan (12 Volt)
  • Heat Duct & A/C Venting W/ Rotating/Closing Louvers
  • Large Medicine Cabinet W/ Mirror
  • Large Sink W/ Seamless Thermofoil Lav (No T-Mold)
  • Large Linen Closet
  • Decorative Wood Plank With Metal Towel Hooks
  • LED Motion Sensor Lights
  • Large Porcelain Toilet W/ Foot Flush
  • Large Wardrobe W/ Hanging Storage
  • Residential 60” x 80” Black Label® Pillow Top Mattress & Designer Bedspread (MID-PROFILE PACKAGE - MANDATORY)
  • Padded Soft Touch Headboard
  • Congoleum® Carefree Resilient Sheet Flooring (USA Made W/ 3 Year Cold Crack Warranty)
  • Satellite & Cable TV Hook-Up W/ Removable Bracket
  • Bedside Nightstands W/ Cup Holders (N/A Queen Size Slide Rooms)
  • Dual USB Charging Ports
  • Dual 110 Volt Outlets At Bed*
  • Oversized Under Bed Storage
  • Ducted A/C Vents W/ Rotator/Closing Louvers
  • Bedroom Heat Registers
  • Roller Night Shades (MID-PROFILE PACKAGE - MANDATORY)
  • Residential 5" Truss Rafters (16" On Center)
  • Full Walk On 3/8" Roof Decking
  • Vacuum Bonded & Aluminum Framed Sidewalls W/ Rot Proof AZDEL® Composite Sidewall Panels (x2) (MID-PROFILE PACKAGE - MANDATORY)
  • 6 Layer, Bonded & Aluminum Framed Main Floor Structure (MID-PROFILE PACKAGE - MANDATORY)
  • Weather Shield+™ 0° Cold Tested & 110° Hot Tested (Extreme Temperature Chamber) (MID-PROFILE PACKAGE - MANDATORY)
  • Weather Shield+™ Space Age Reflective Technology (Underbelly, Roof, Slides & More!) (MID-PROFILE PACKAGE - MANDATORY)
  • Weather Shield+™ Unobstructed & Insulated Pass-Thru Storage W/ Built-In Tool Storage (MID-PROFILE PACKAGE - MANDATORY)
  • Weather Shield+™ Ducted Furnace to Enclosed, Insulated, & Heated Underbelly (MID-PROFILE PACKAGE - MANDATORY)
  • Weather Shield+™ Heated & Enclosed Gate Valves (MID-PROFILE PACKAGE - MANDATORY)
  • Weather Shield+™ R11 Sidewalls, R30+ Floor, R38+ Roof (MID-PROFILE PACKAGE - MANDATORY)
  • Dexter® E-Z Lube® Axles (MID-PROFILE PACKAGE - MANDATORY)
  • Road Armor® Suspension By Trail Air® W/ Heavy Duty Shackles & Wet Bolts (MID-PROFILE PACKAGE - MANDATORY)
  • Hot/Cold Outside Shower
  • Black Tank Flush
  • Wire, Frame, & Prep For 2nd (Opt.) Air Conditioner (Fully Ducted) (MID-PROFILE PACKAGE - MANDATORY)
  • 50 AMP Service W/ Detachable Marine Cord (MID-PROFILE PACKAGE - MANDATORY)
  • 15,000 BTU Ducted Main Air Conditioner (MID-PROFILE PACKAGE - MANDATORY)
  • Dual Zone Thermostat/Controller
  • Quick Recovery 10 Gallon Gas/Elec. Hot Water Heater (20 GPH) (MID-PROFILE PACKAGE - MANDATORY)
  • 12 Volt Battery Disconnect Switch (MID-PROFILE PACKAGE - MANDATORY)
  • Winegard® Air 360™ HDTV/Radio Dome Antenna (MID-PROFILE PACKAGE - MANDATORY)
  • Prewired For Optional Winegard® Connect™ 2.0 WIFI Extender or 4G + WIFI Extender Dome (MID-PROFILE PACKAGE - MANDATORY)
  • Satellite & Cable TV Hook-Up W/ Independent Satellite Feeds (MID-PROFILE PACKAGE - MANDATORY)
  • Exterior TV Hook-Up W/ Bracket* (MID-PROFILE PACKAGE - MANDATORY)
  • Dual 30# "Saddle Storage" LP Bottles W/ Auto Change Over (MID-PROFILE PACKAGE - MANDATORY)
  • Washer/Dryer Prep (MID-PROFILE PACKAGE - MANDATORY)
  • Water Filtration Prep (MID-PROFILE PACKAGE - MANDATORY)
  • 50" LED TV (27RKS, 336TSIK, 360IBL, 367BH, 370FL, & 381RD)
  • 55" LED TV (298RLS, 373MBRB, & 392MBL)
  • 50" TV In Outdoor Kitchen (298RLS, 373MBRB, & 392MBL)
  • Booth Dinette IPO Freestanding (N/A 370FL, 381RD)
  • 36" Wide Electric Fireplace (5,200 BTU)
  • LG® Solid Surface Countertops & Sink Covers W/ Glass Stove Cover (Standard 370FL)
  • King Bed IPO Standard Queen (N/A 27RKS, 298RLS, 360IBL, 367BH, & 373MBRB)
  • Comfort Air Fan® (Kitchen Only)
  • 10 Cubic Foot Stainless Steel (12 Volt Only) Refer IPO 8 Cubic Foot Refer
  • 12 Cubic Foot Stainless Steel (Gas/110 Volt) Refer IPO 8 Cubic Foot Refer (N/A 360IBL)
  • 14.7 Cubic Foot Stainless Steel (110 Volt Only W/ Inverter) Refer IPO 8 Cubic Foot (N/A 360IBL)
  • Roller Night Shades
  • 2nd 13,500 BTU A/C In Front Bedroom
  • Dual Pane Windows
  • 4-Point Electric Auto-Leveling System (27RKS, 298RLS)
  • 6-Point Electric Auto-Leveling System (336TSIK & Larger)
  • Electronic Heated Holding Tanks
  • 2" Accessory Receiver
  • JT Strong Arms
  • Vacuum Bonded & Aluminum Framed Sidewalls W/ Rot Proof AZDEL® Composite Sidewall Panels (x2)
  • 6 Layer, Bonded & Aluminum Framed Main Floor Structure
  • Weather Shield+™ 0° Cold Tested & 110° Hot Tested (Extreme Temperature Chamber)
  • 15,000 BTU Ducted Main Air Conditioner
  • Wire, Frame, & Prep For 2nd (Opt.) Air Conditioner (Fully Ducted)
  • 50 AMP Service W/ Detachable Marine Cord
  • 12 Volt Battery Disconnect Switch
  • Solar Panel Prep
  • Exterior Back-Up Camera Prep
  • Electric Awning W/ LED Light Strip & One Hand Pitch Adjustment
  • Quick Recovery 10 Gallon Gas/Elec. Hot Water Heater (20 GPH)
  • Washer/Dryer Prep
  • Water Filtration Prep
  • 8 Cubic Foot Stainless Steel Refrigerator
  • Residential 60” x 80” Black Label® Pillow Top Mattress, Designer Bedspread, & Pillows
  • Ceiling Fan In Living Room (N/A 373, 367BH)
  • 30" Residential Stainless Steel Microwave
  • Solid Step™ Entry
  • Electric Front Jacks
  • Electric Rear Stabilizer Jacks
  • Winegard® Air 360™ HDTV/Radio Dome Antenna
  • Prewired For Optional Winegard® Connect™ 2.0 WIFI Extender or 4G + WIFI Extender Dome
  • Satellite & Cable TV Hook-Up W/ Independent Satellite Feeds
  • Exterior TV Hook-Up W/ Bracket*
  • AM/FM/CD/DVD Player W/ Bluetooth
  • Exterior Marine Speakers W/ LED Light
  • 16" Radial Tires W/ Aluminum Rims
  • Spare Tire
  • 7,000# Dexter® E-Z Lube® Axles (5,100# 27RKS, 298RLS, & 336TSIK)
  • Accessory Receiver Prep
  • Road Armor® Suspension By Trail Air® W/ Heavy Duty Shackles & Wet Bolts
  • Roller Night Shades

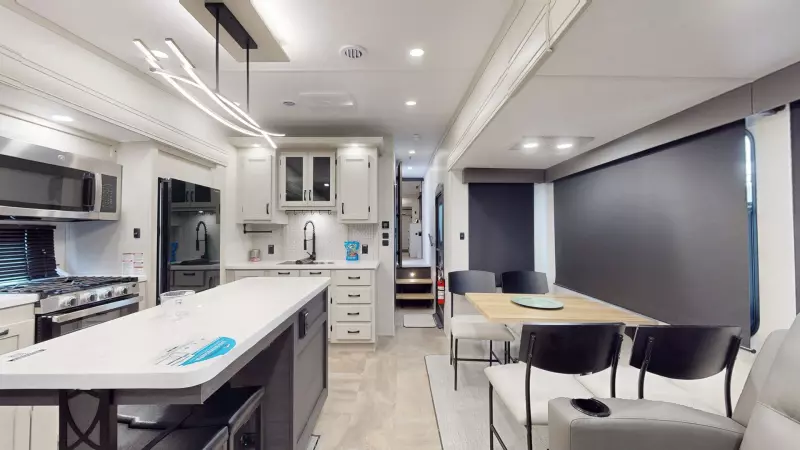

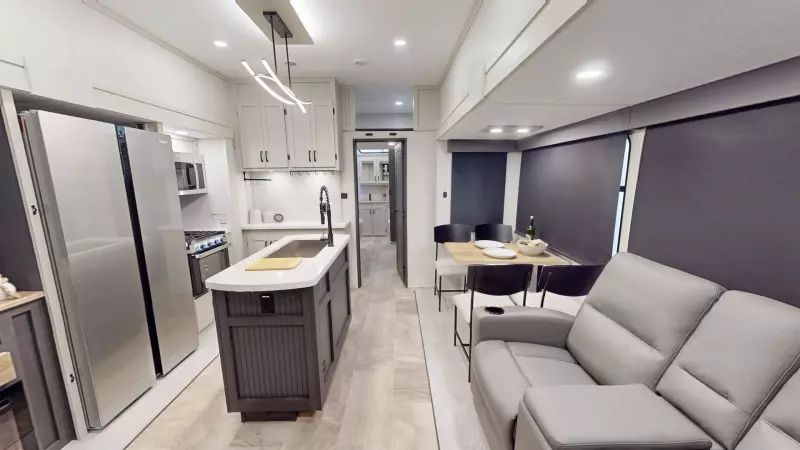

Virtual Tours

27RKS

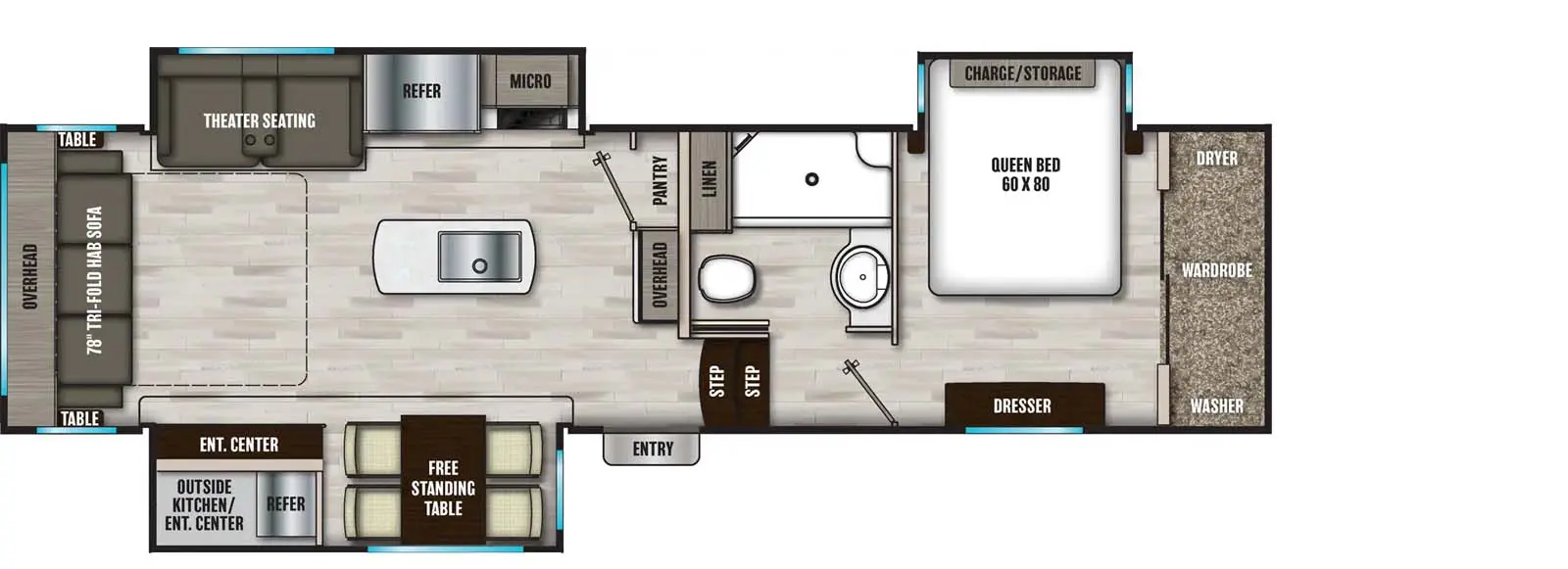

298RLS

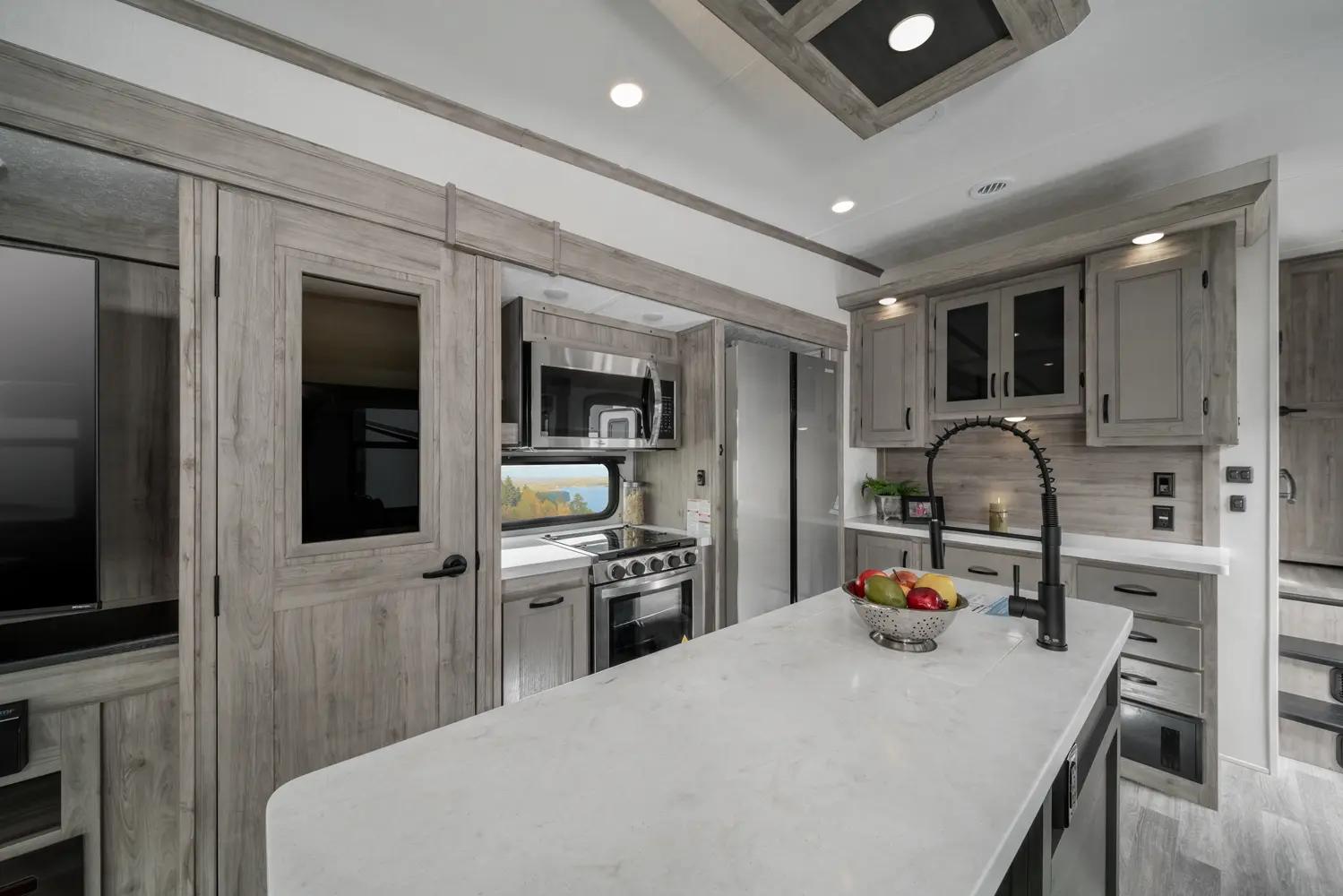

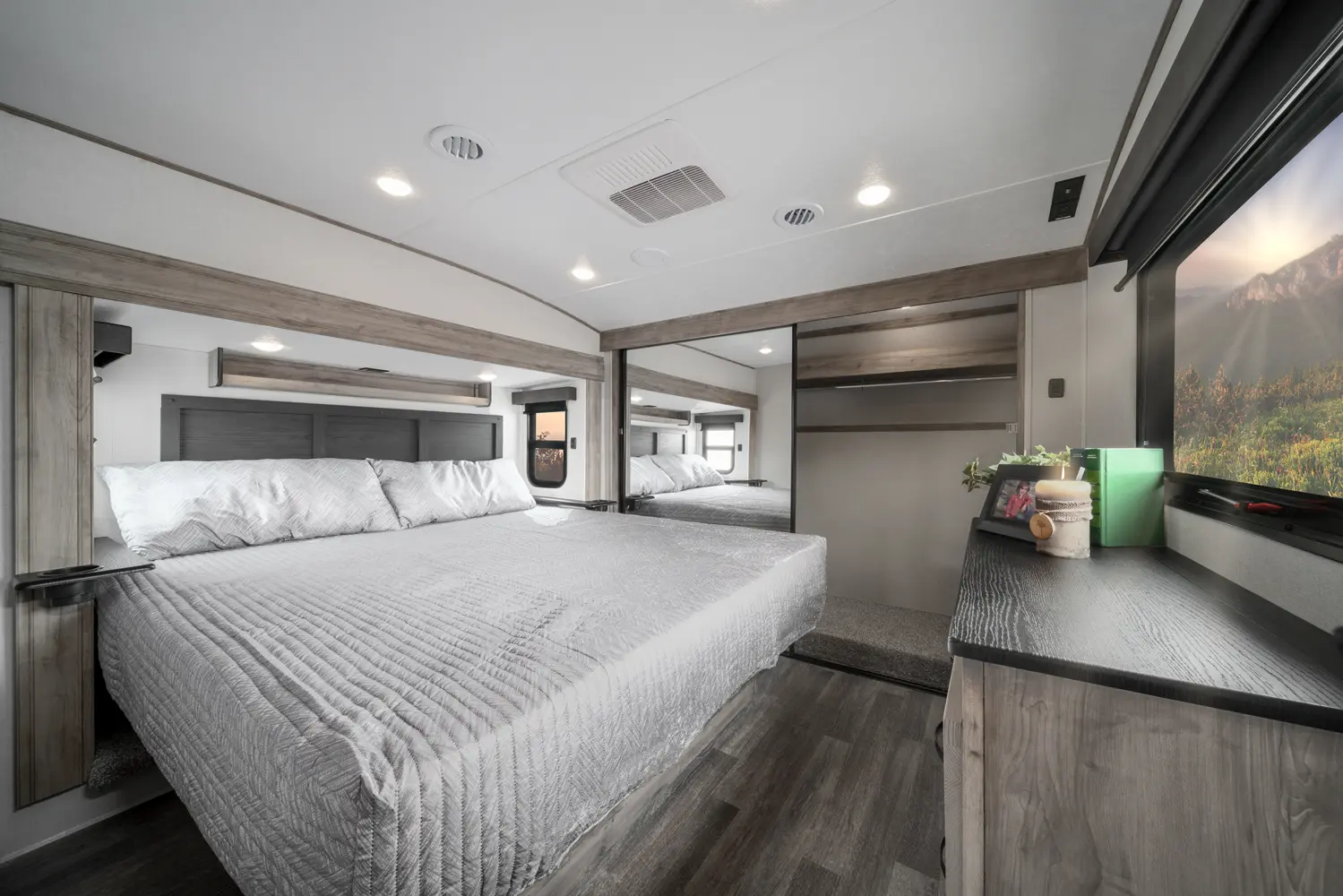

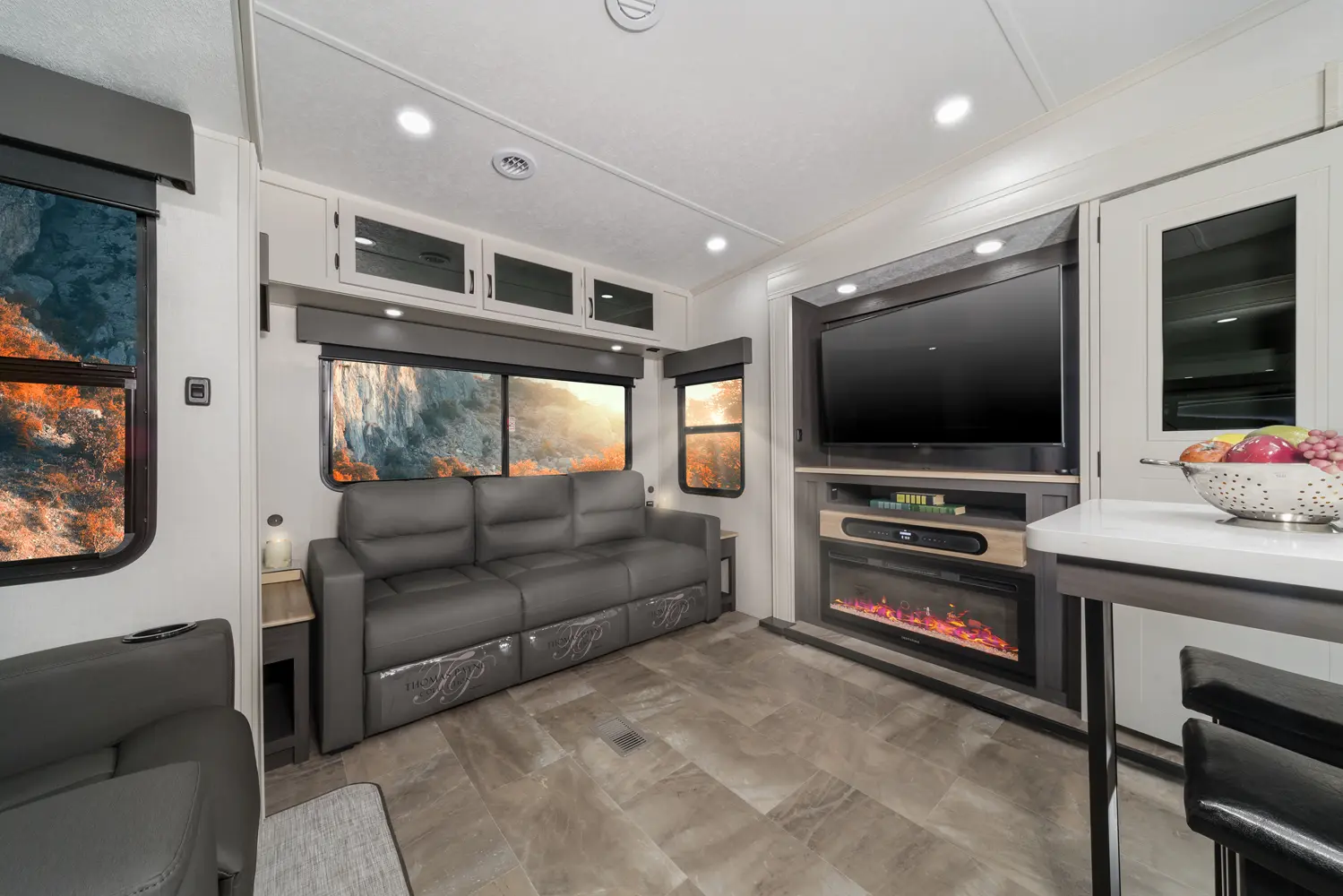

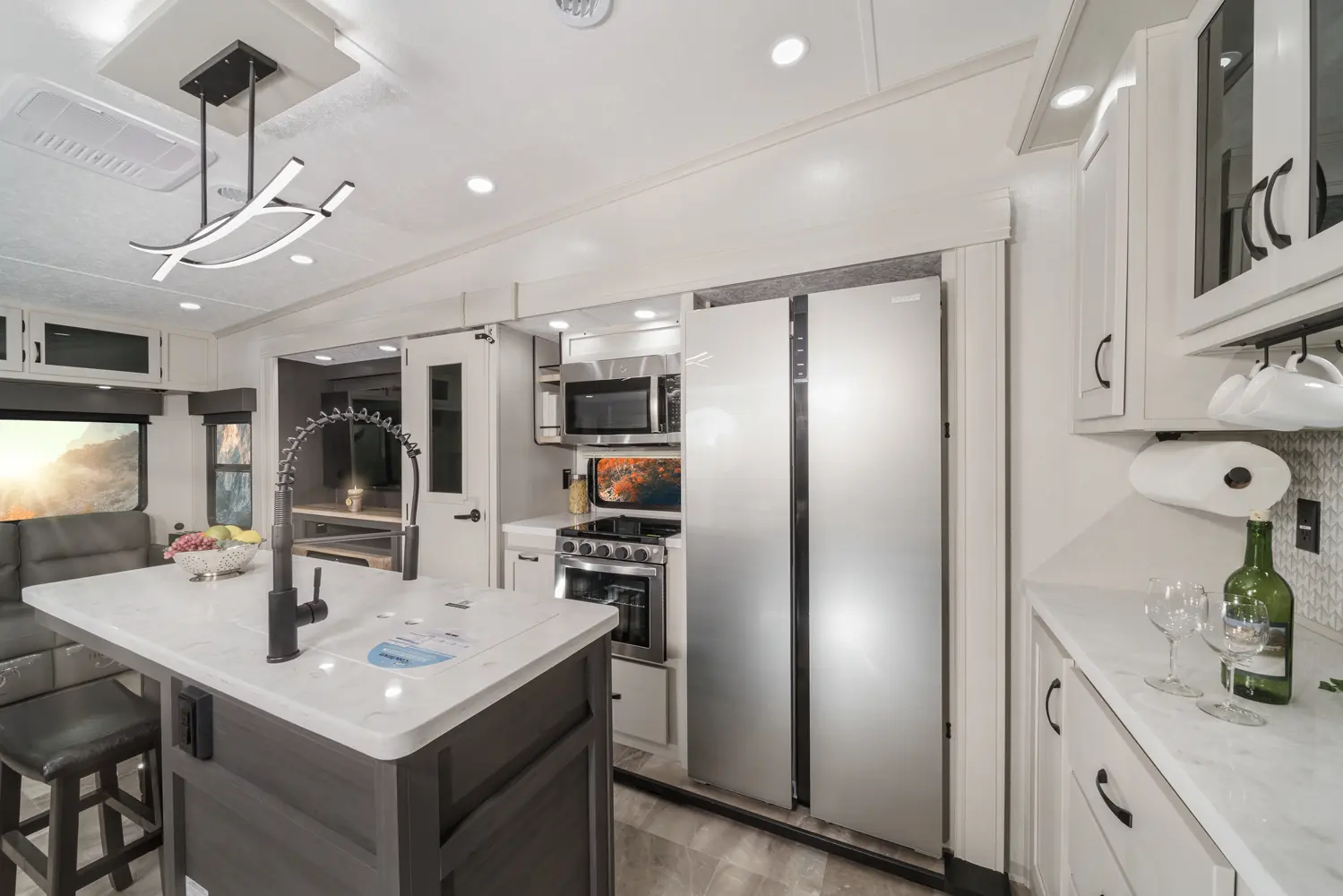

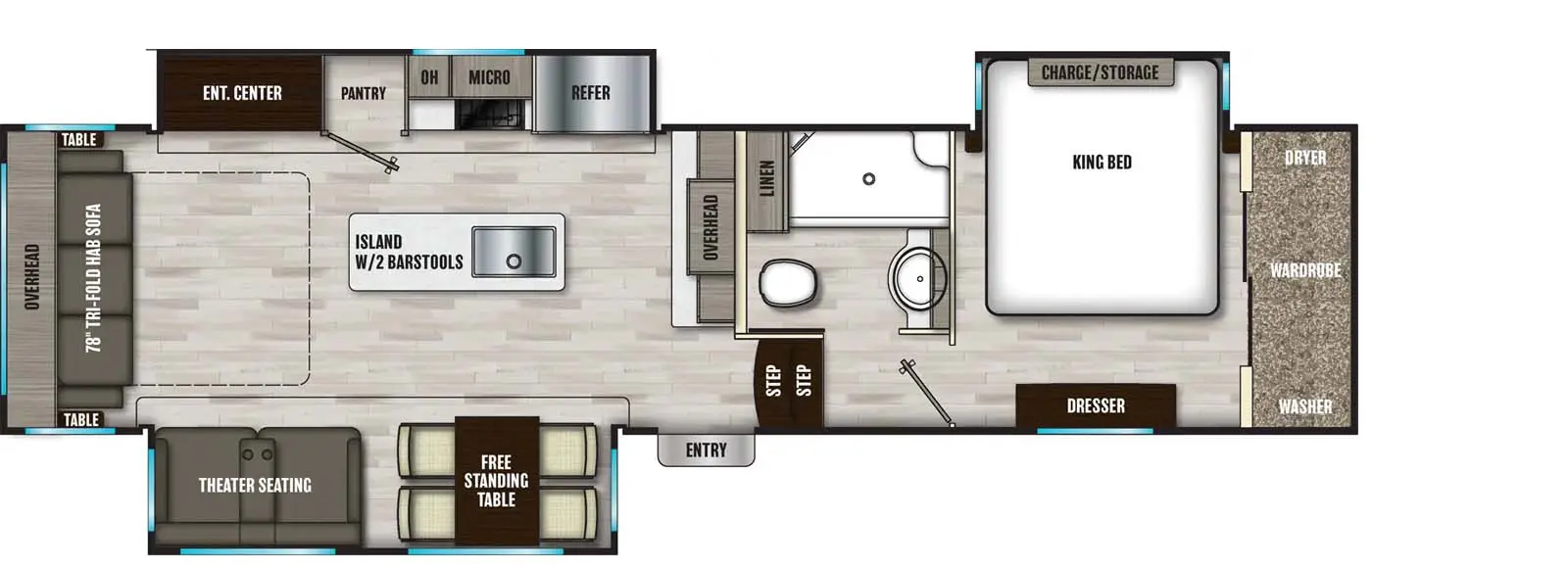

336TSIK

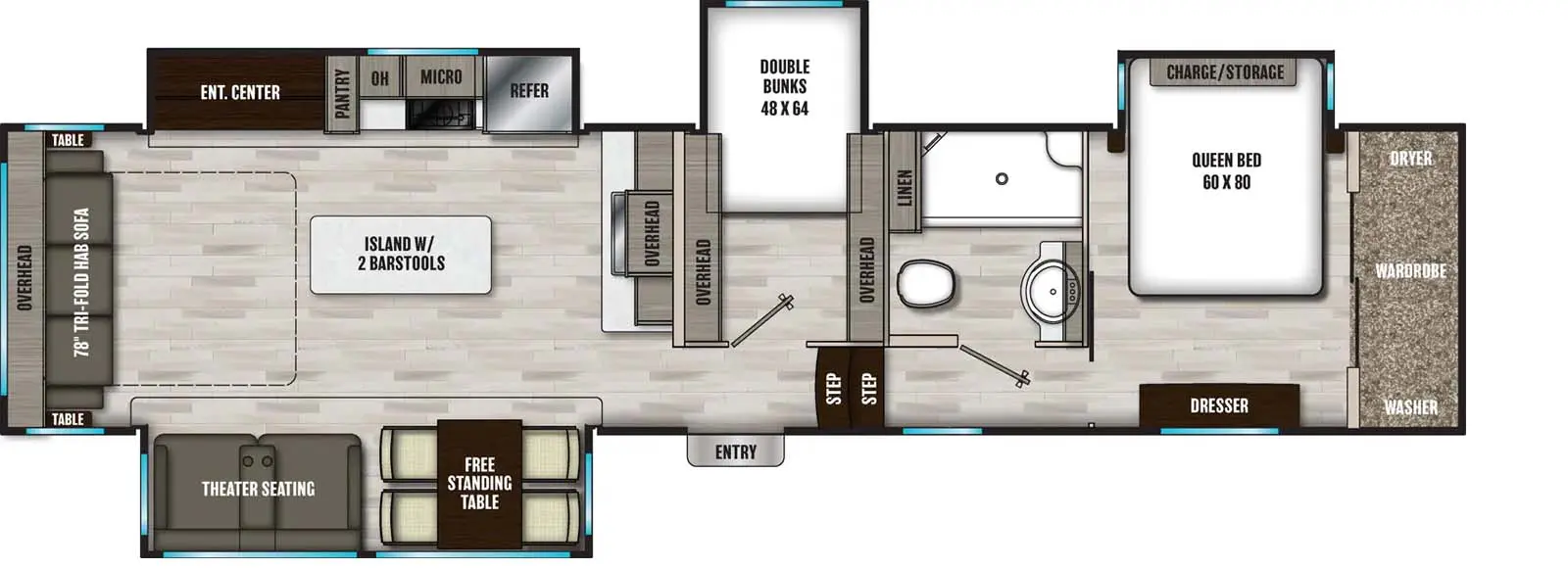

360IBL

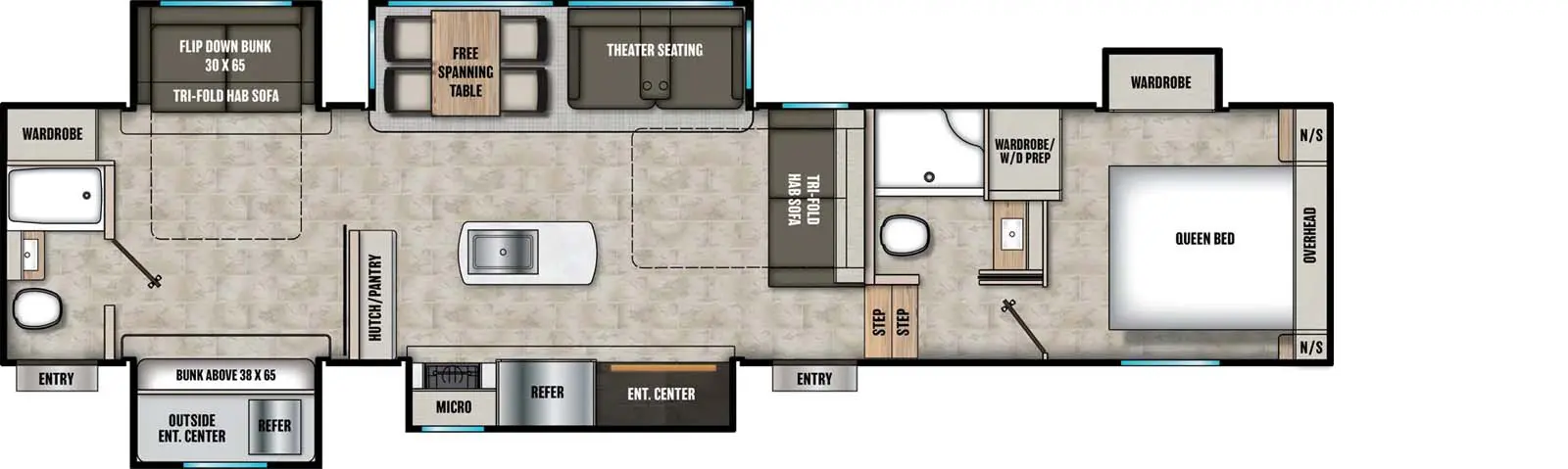

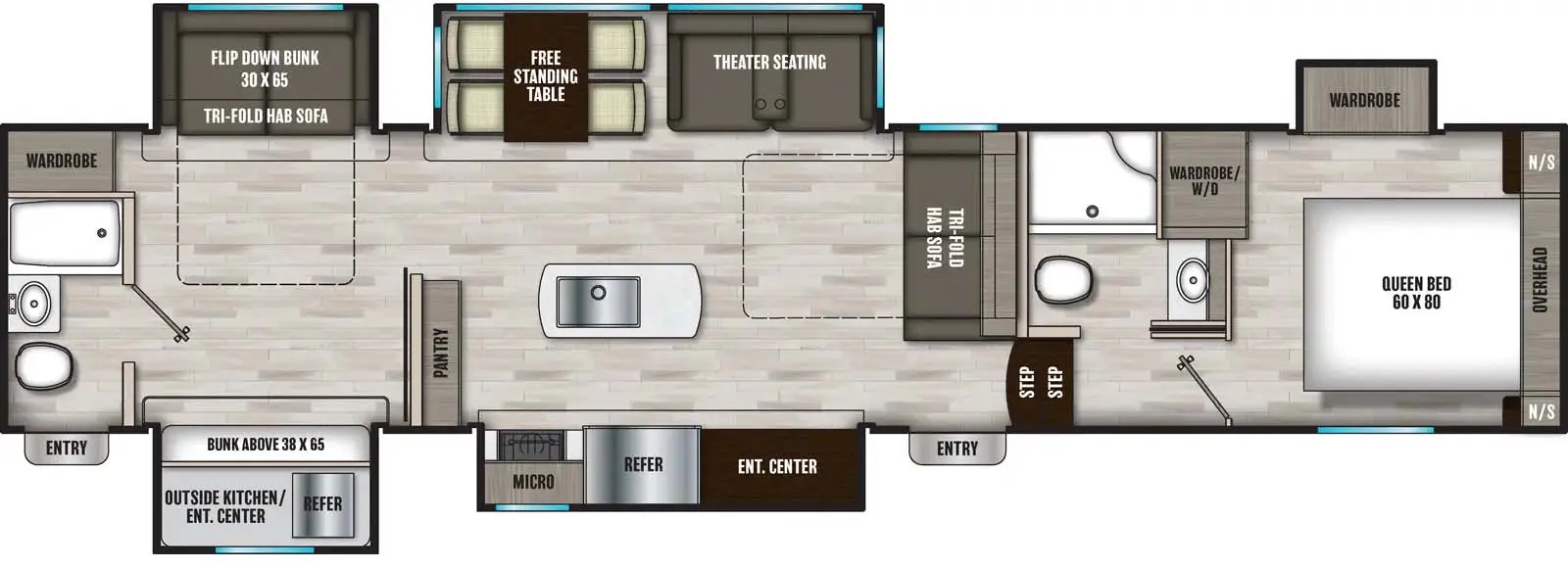

367BH

370FL

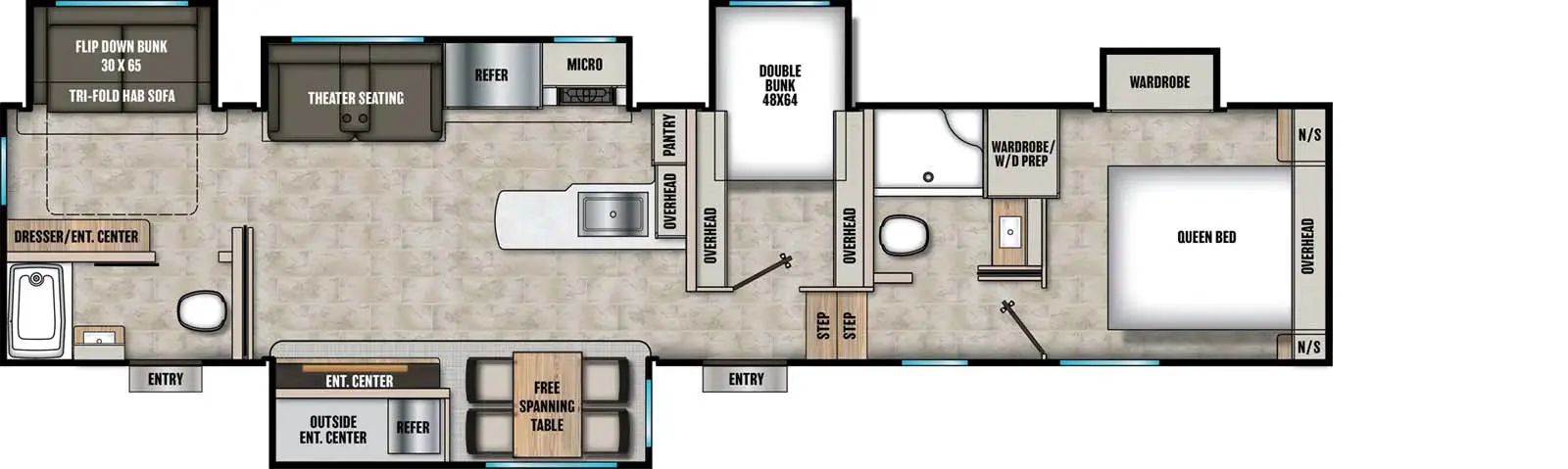

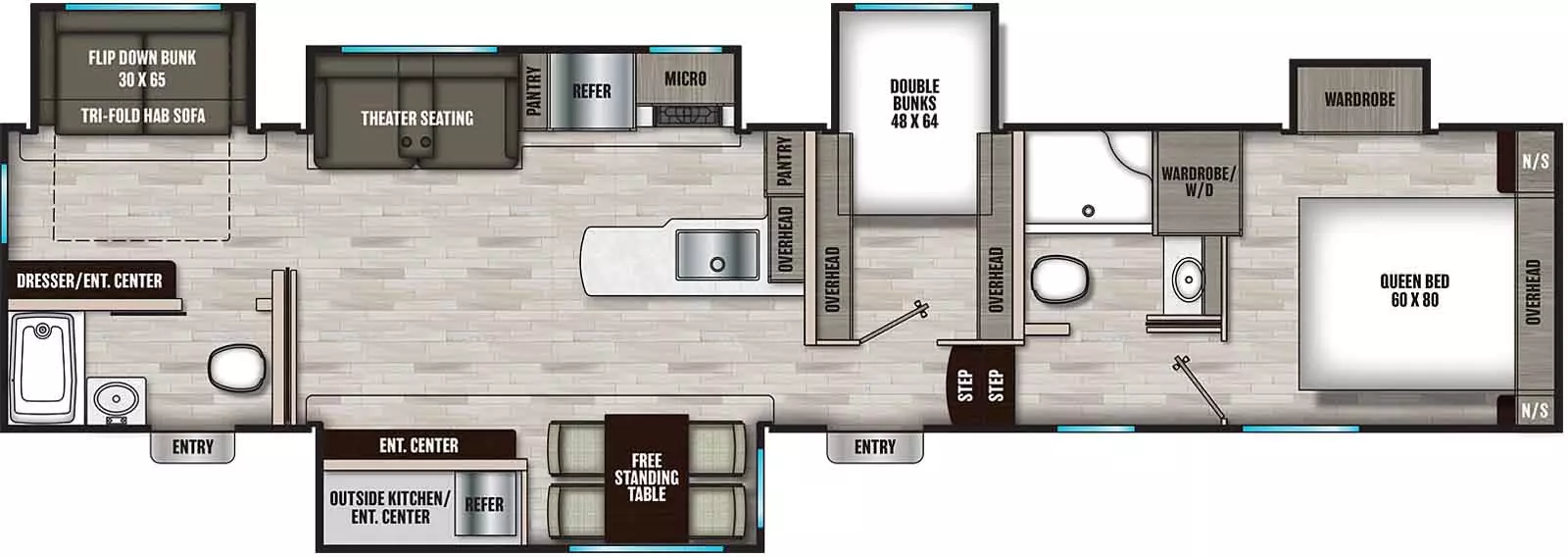

373MBRB

381RD

391QSMB - DSO

392MBL



Videos

Some videos may show features or options not available on all products. Contact our service representatives or your local dealer if you have questions about how your specific RV operates.


Literature


Chaparral Brochure
Chaparral Brochure

Chaparral Construction
Chaparral Construction
