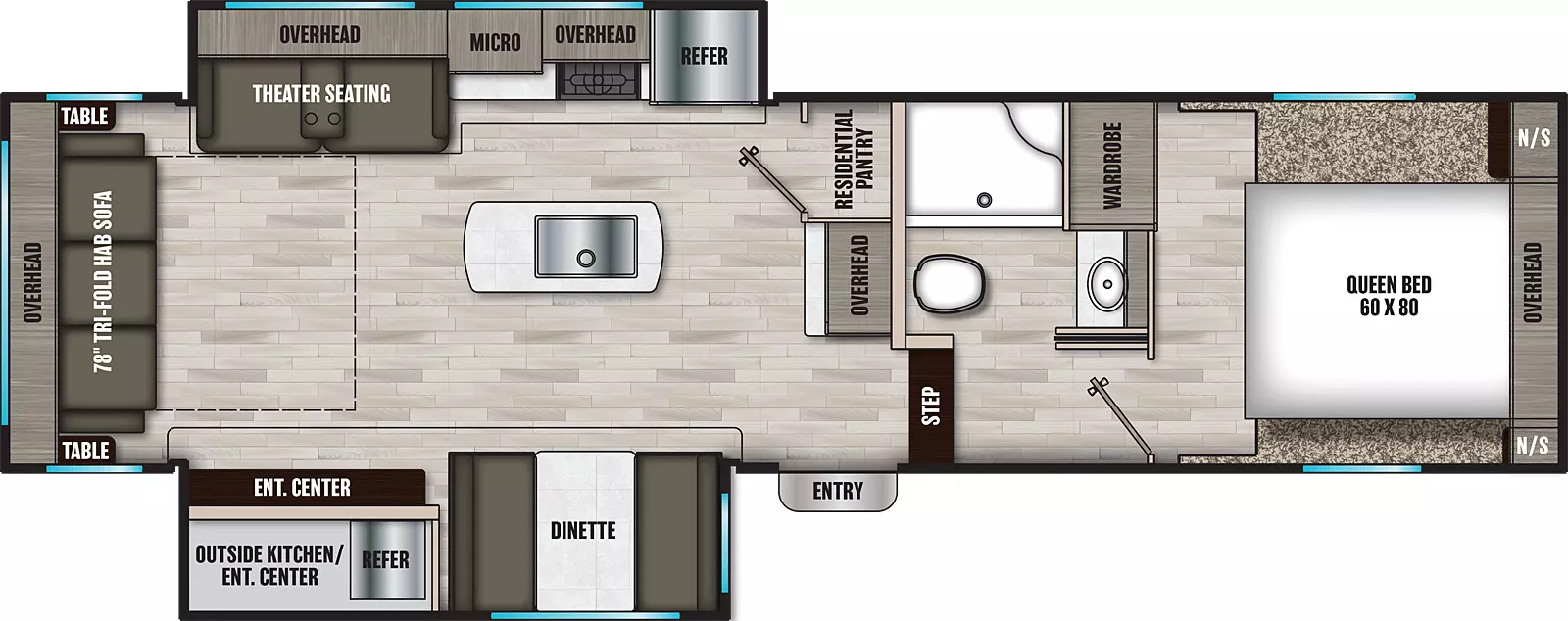

284RL Floorplan

Fifth Wheels

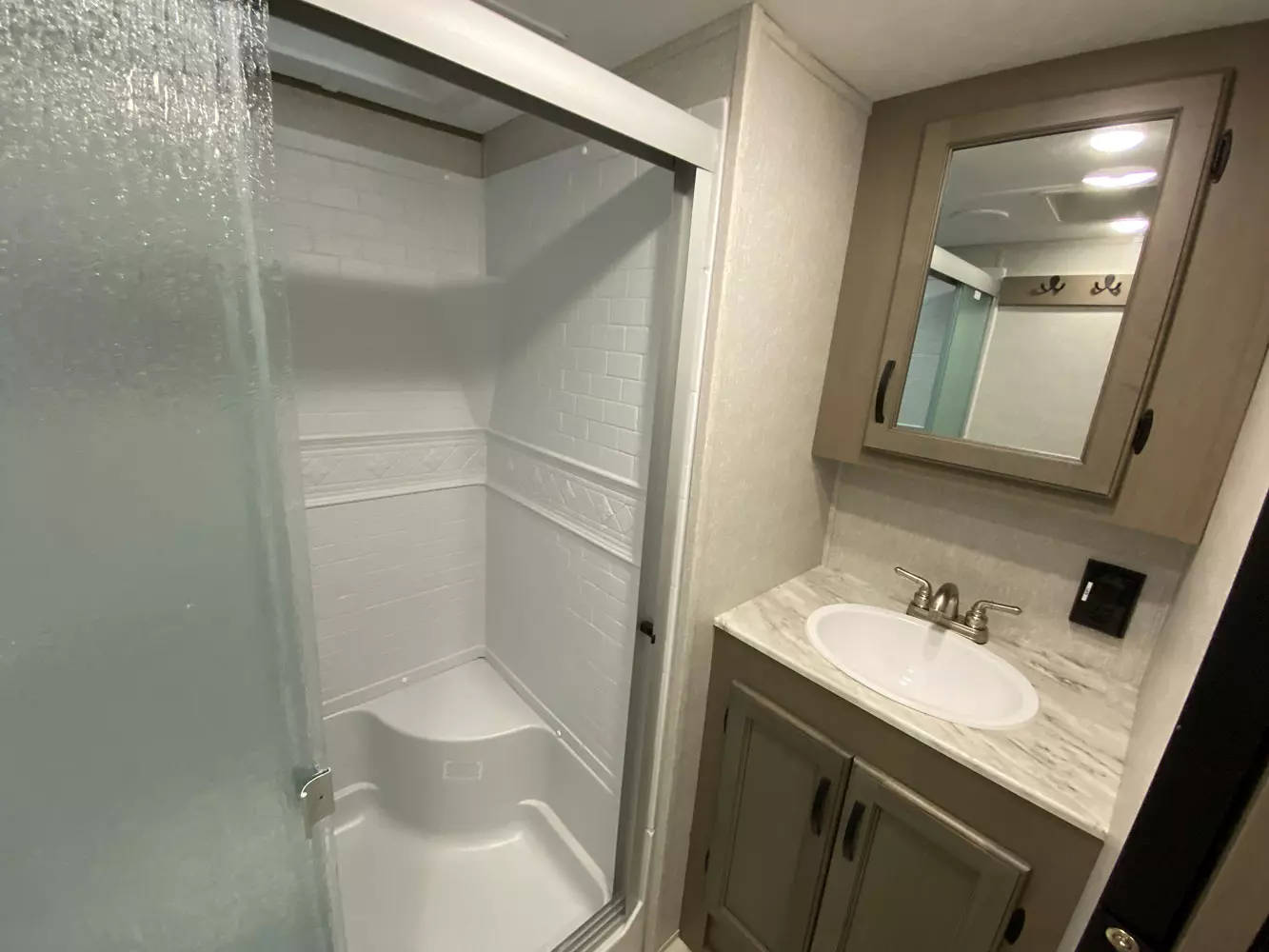

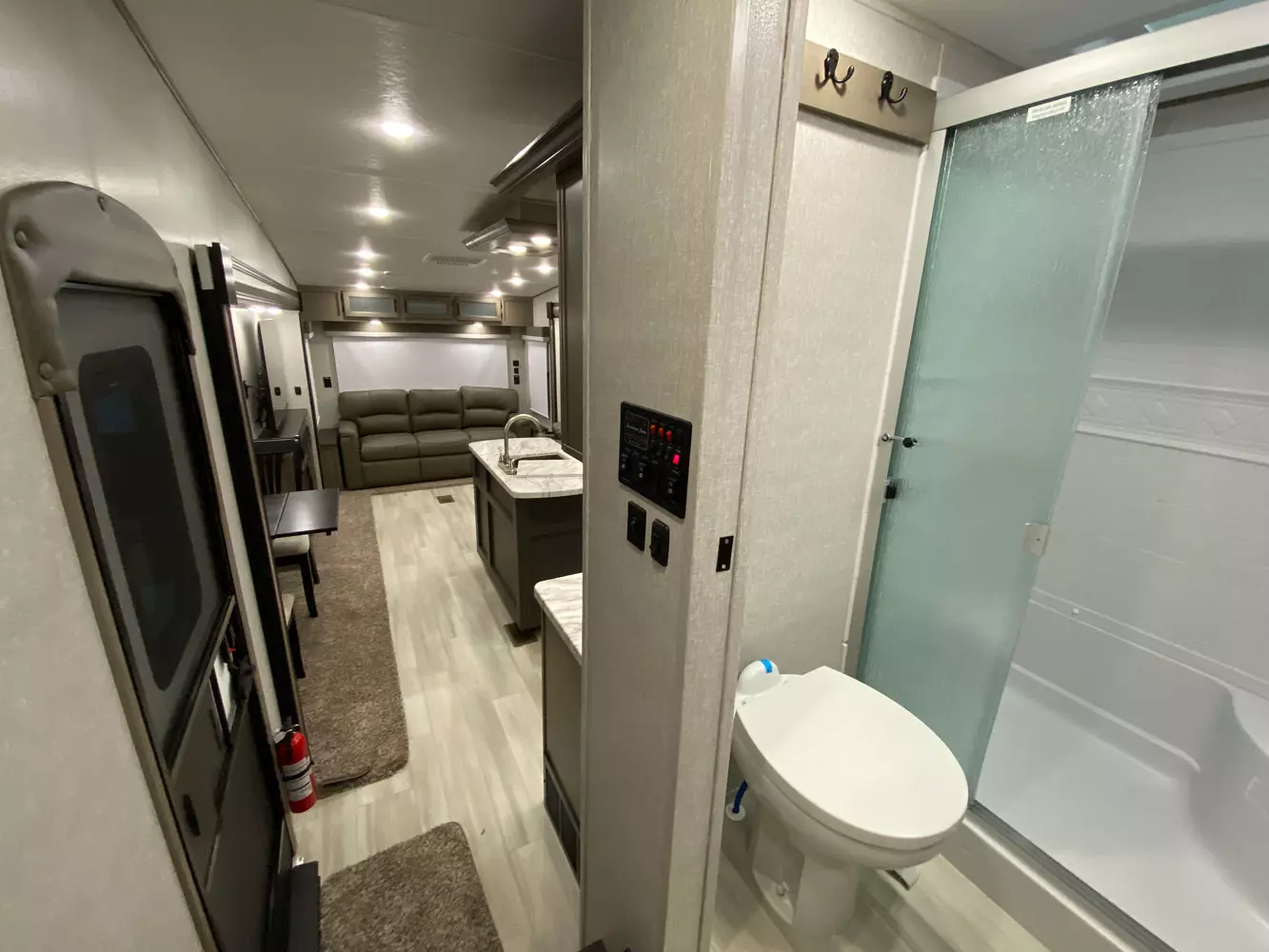

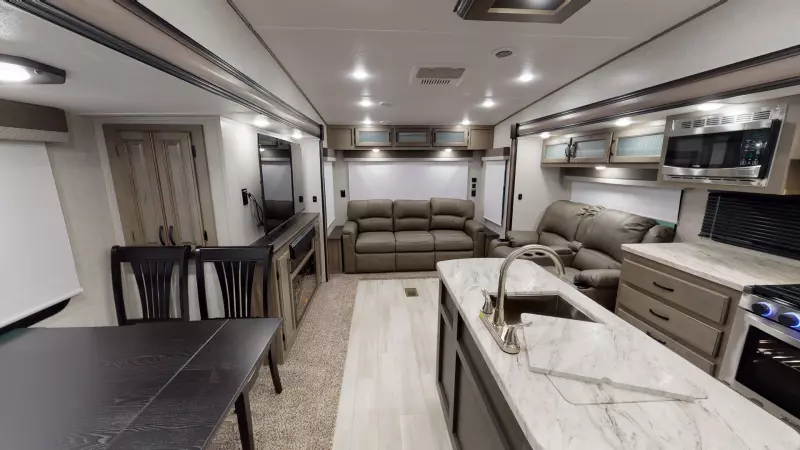

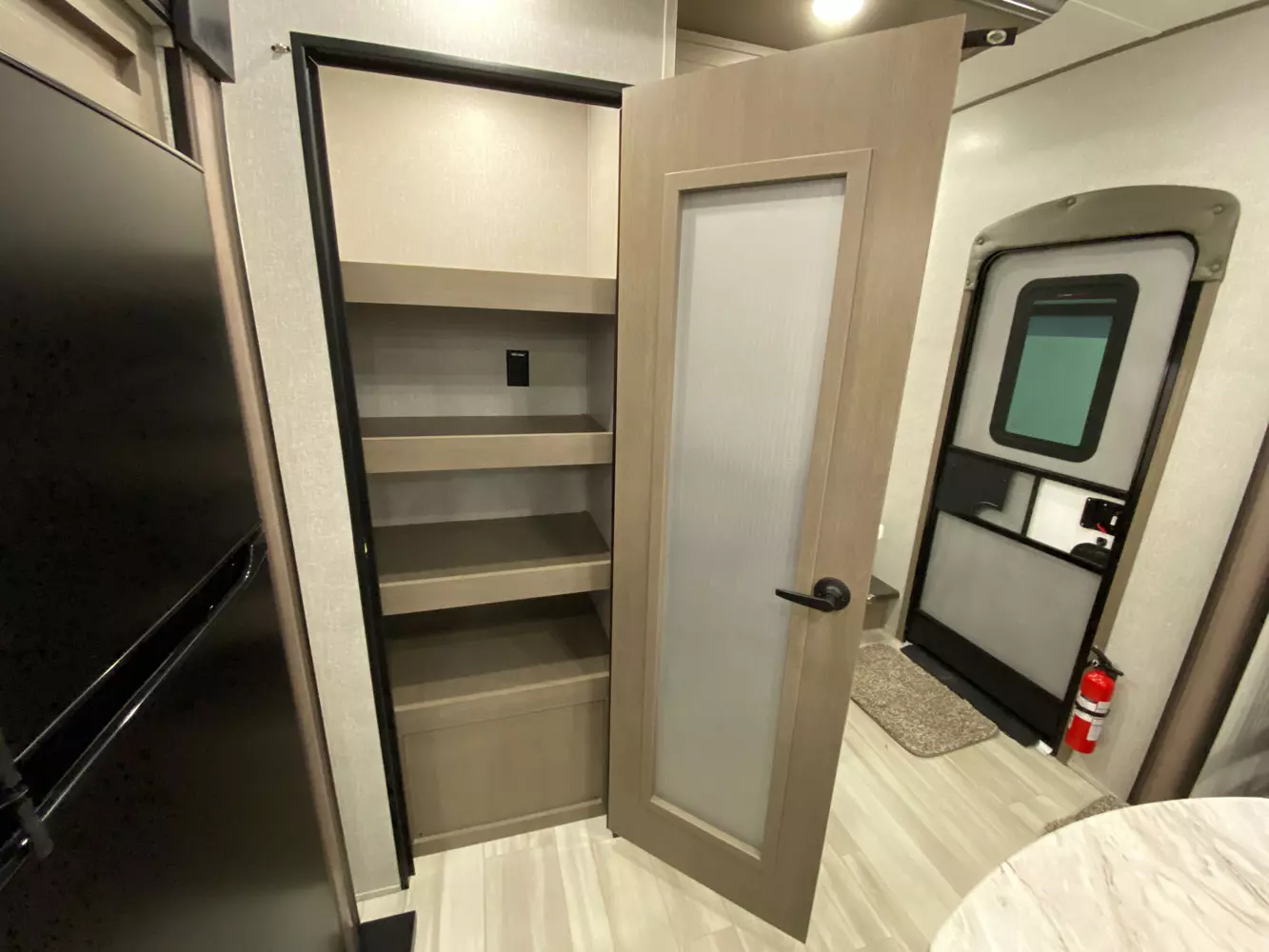

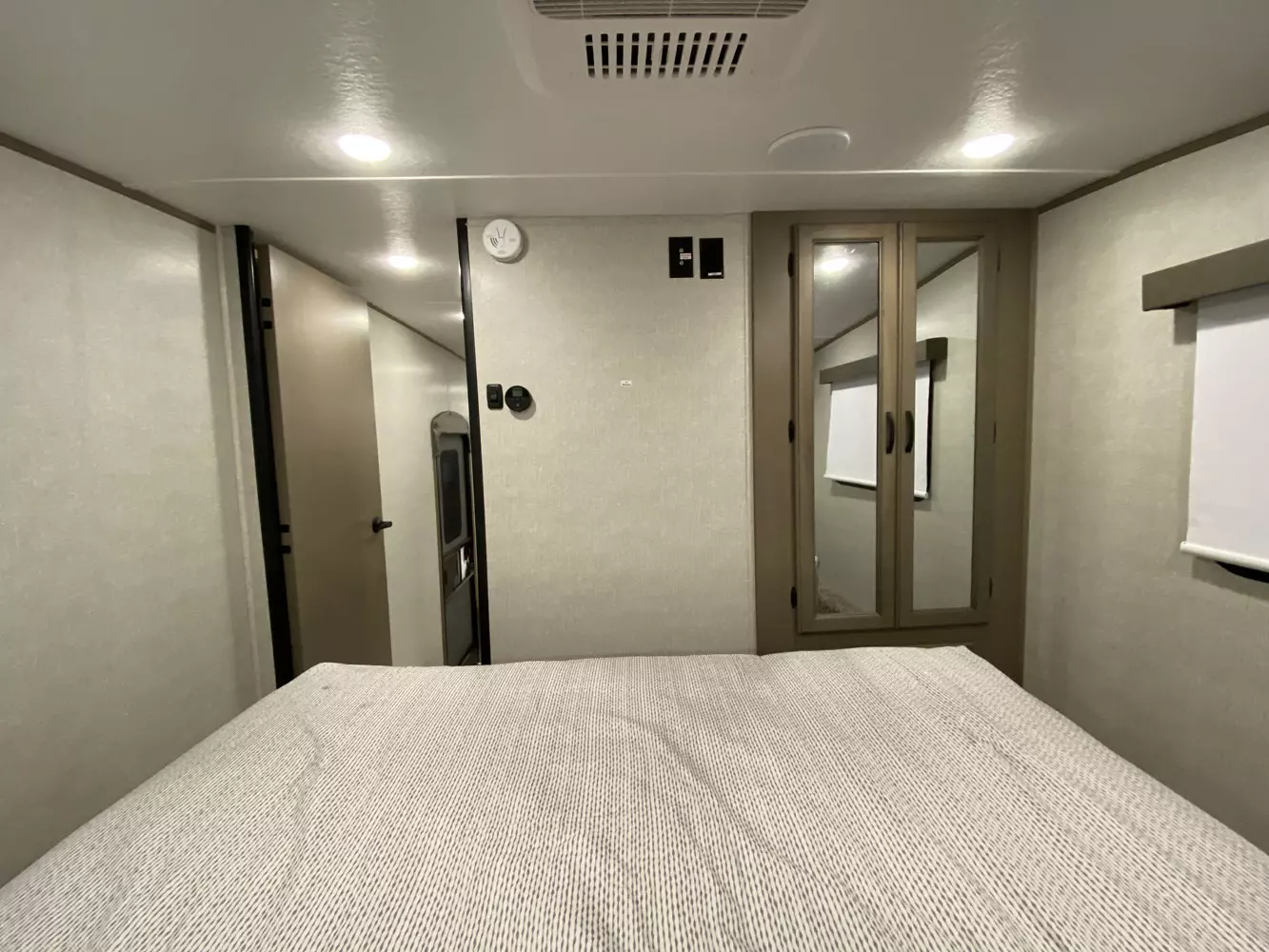

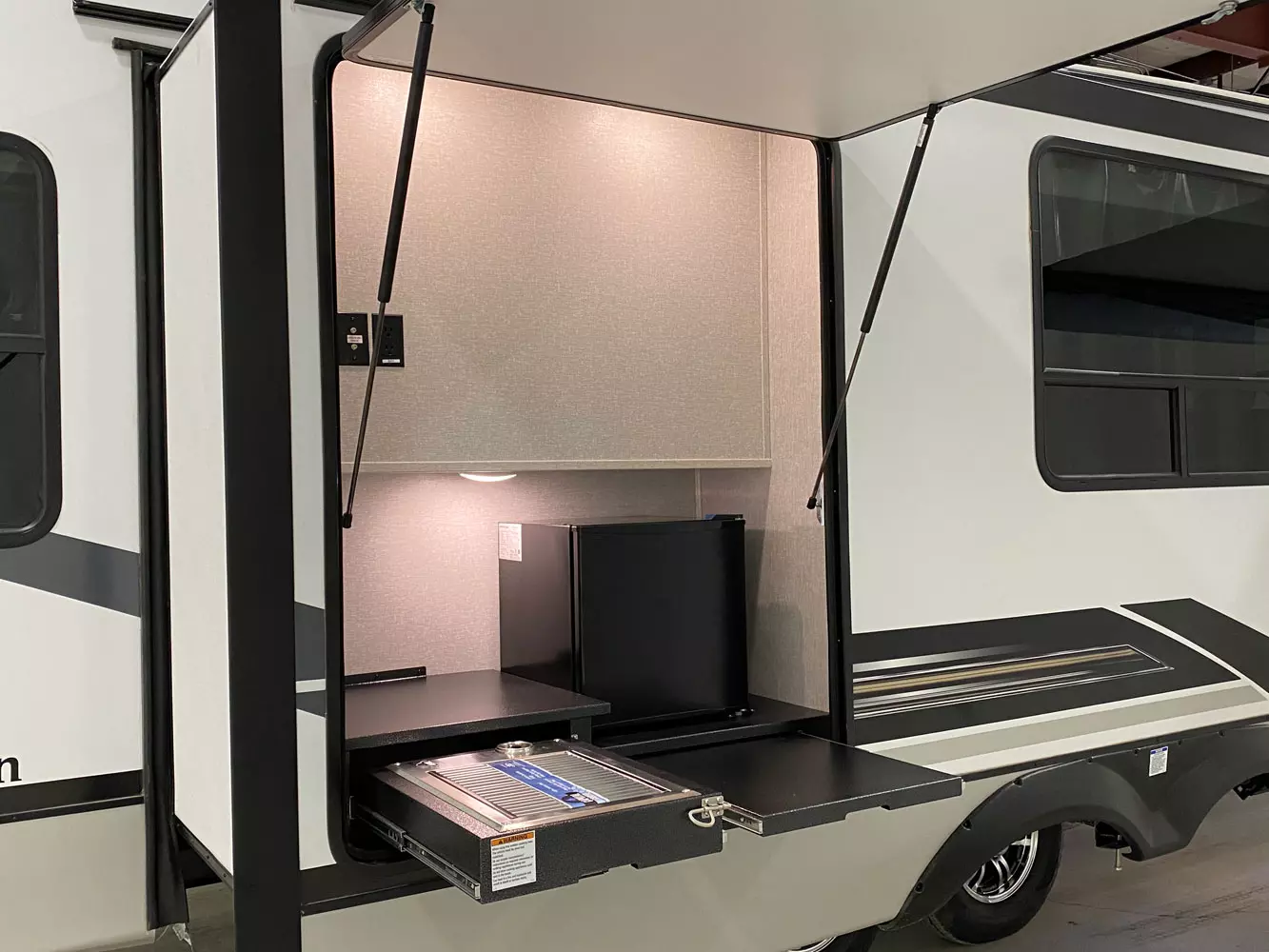

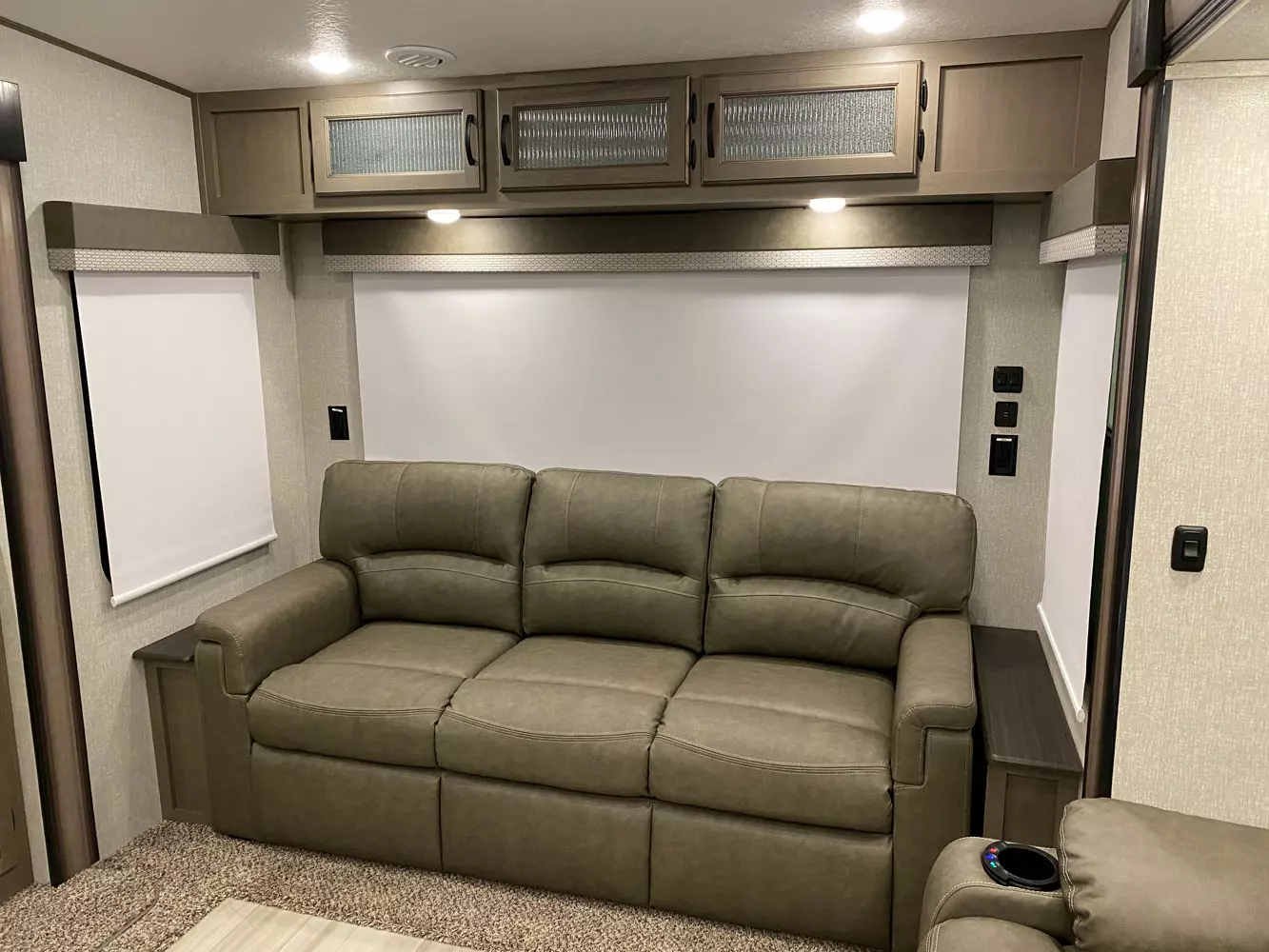

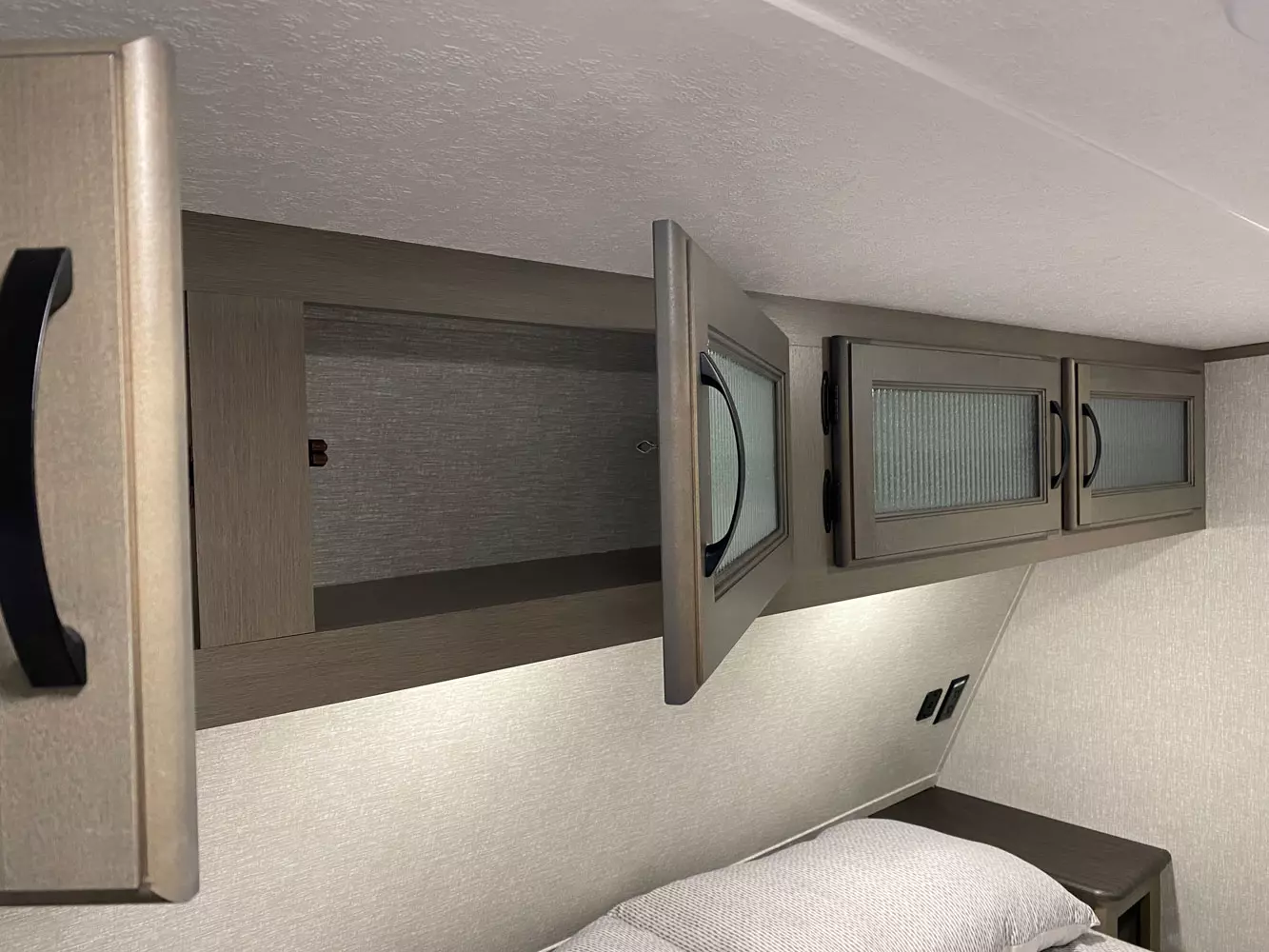

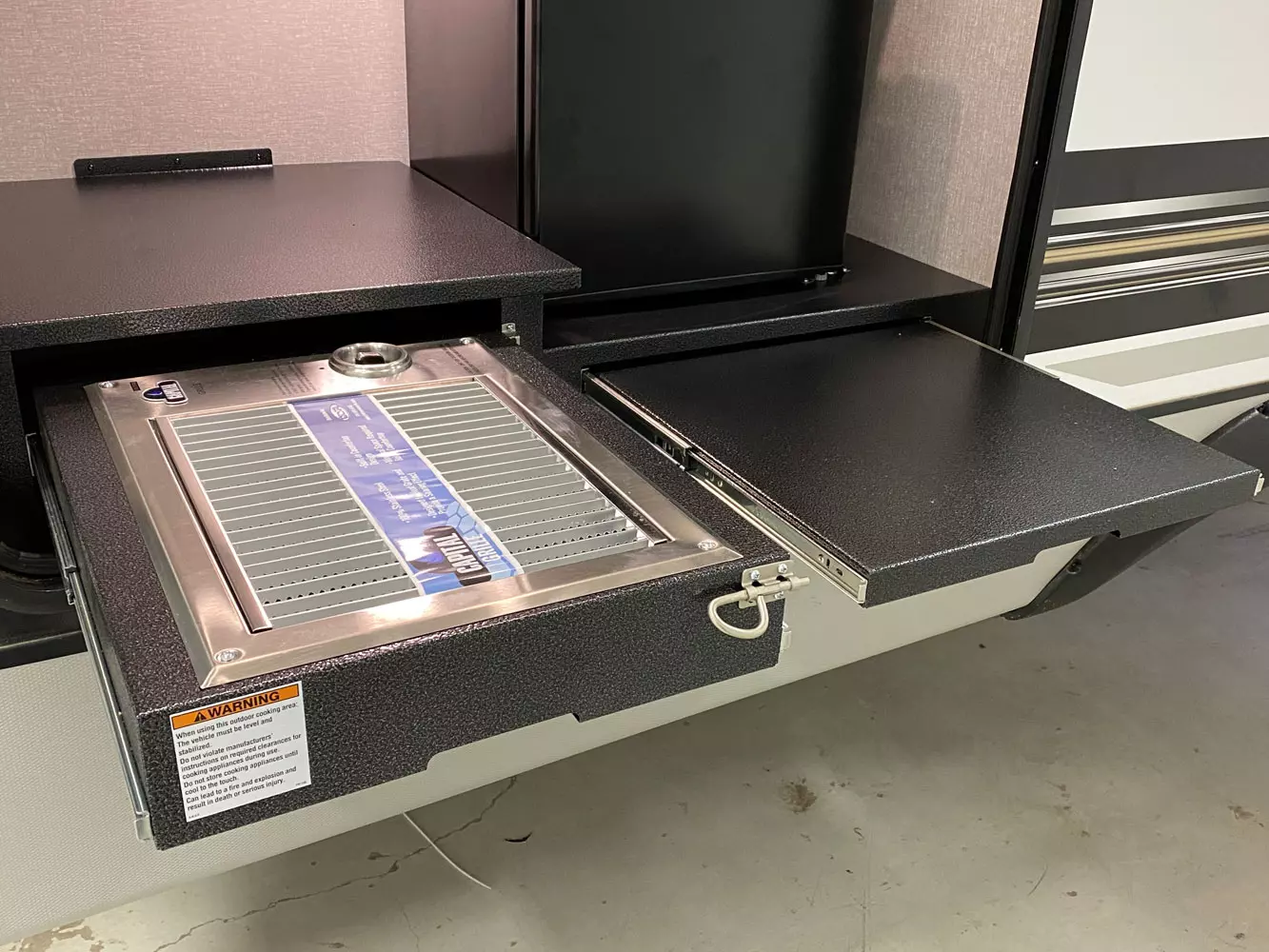

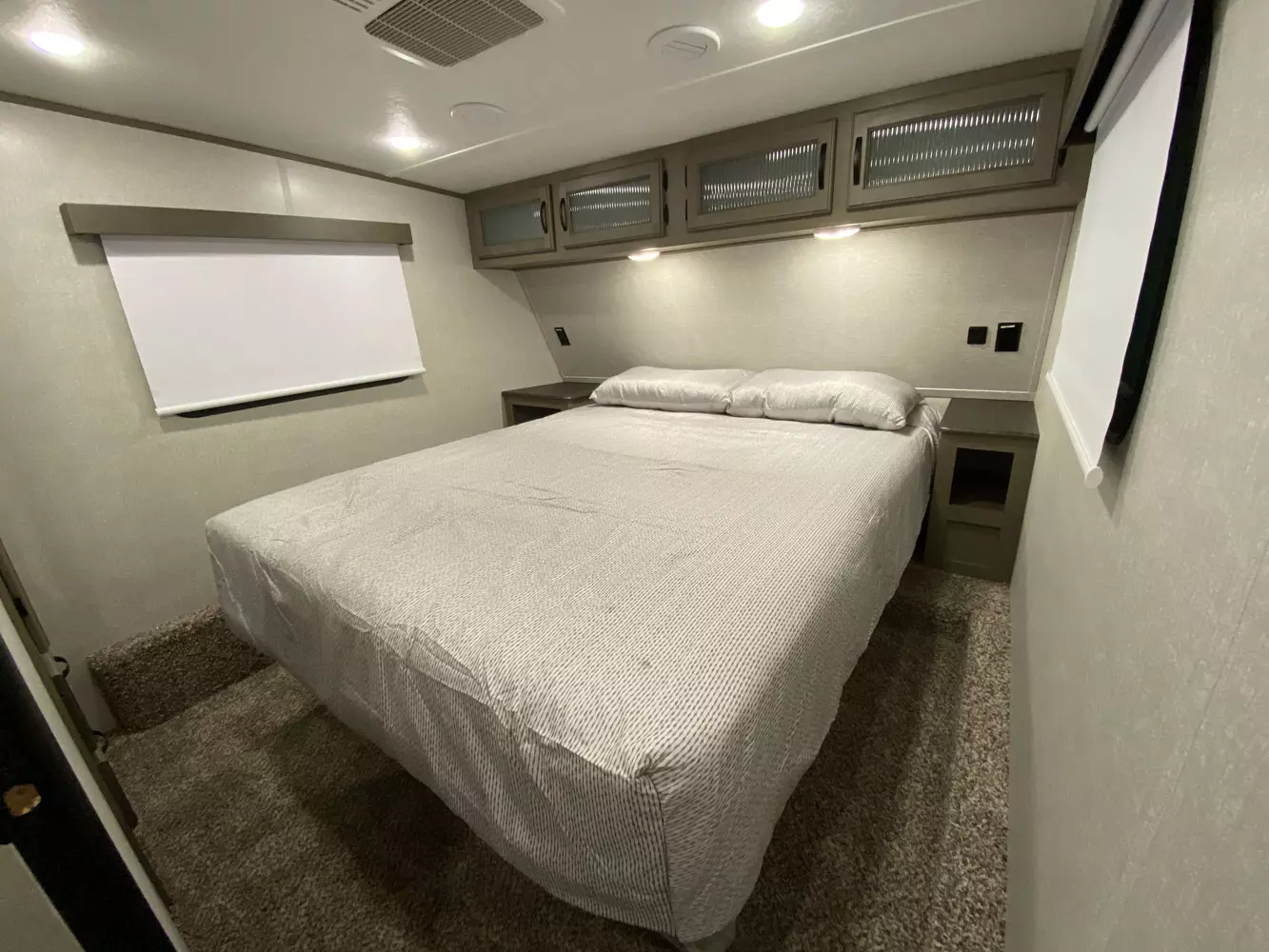

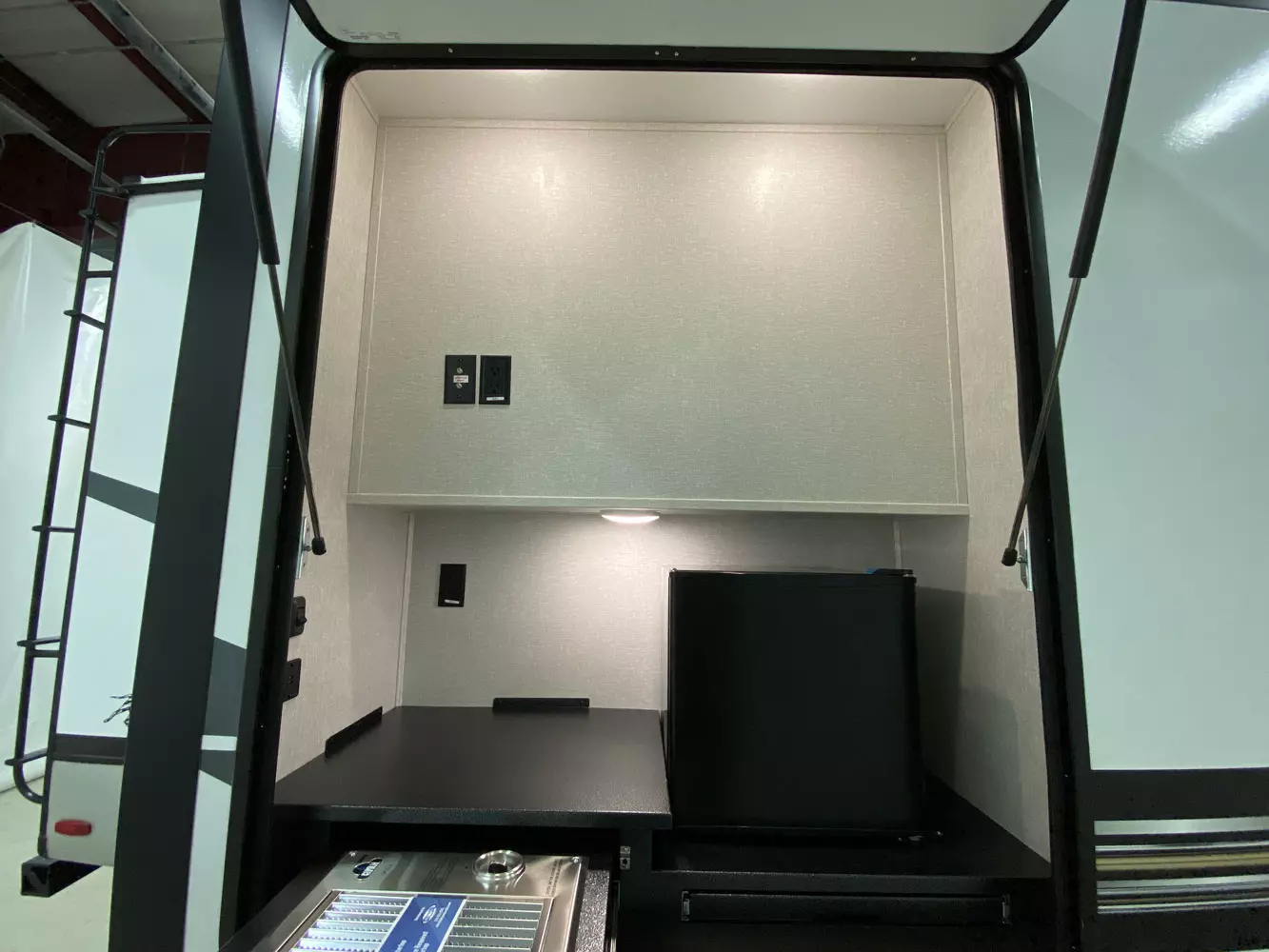

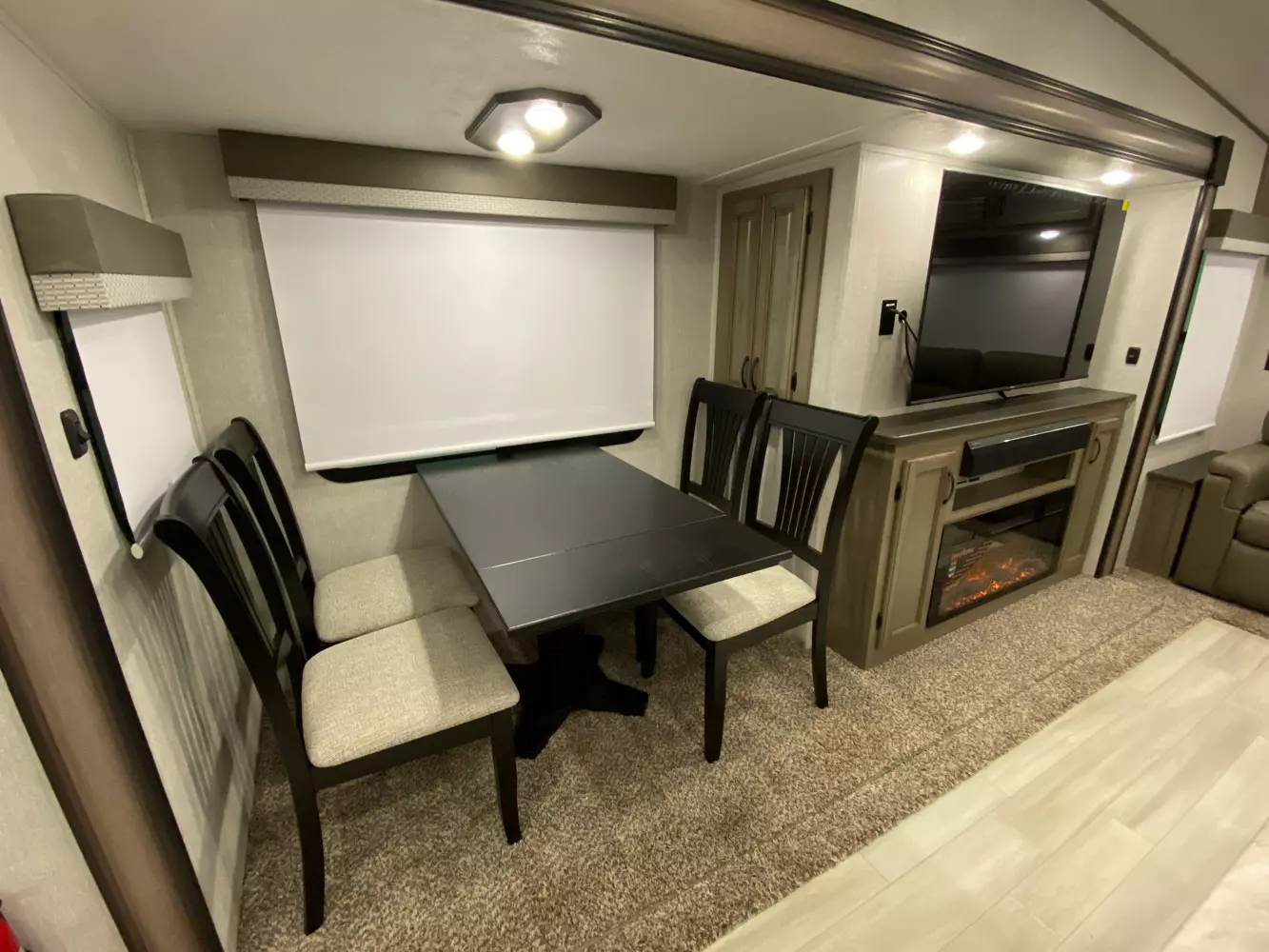

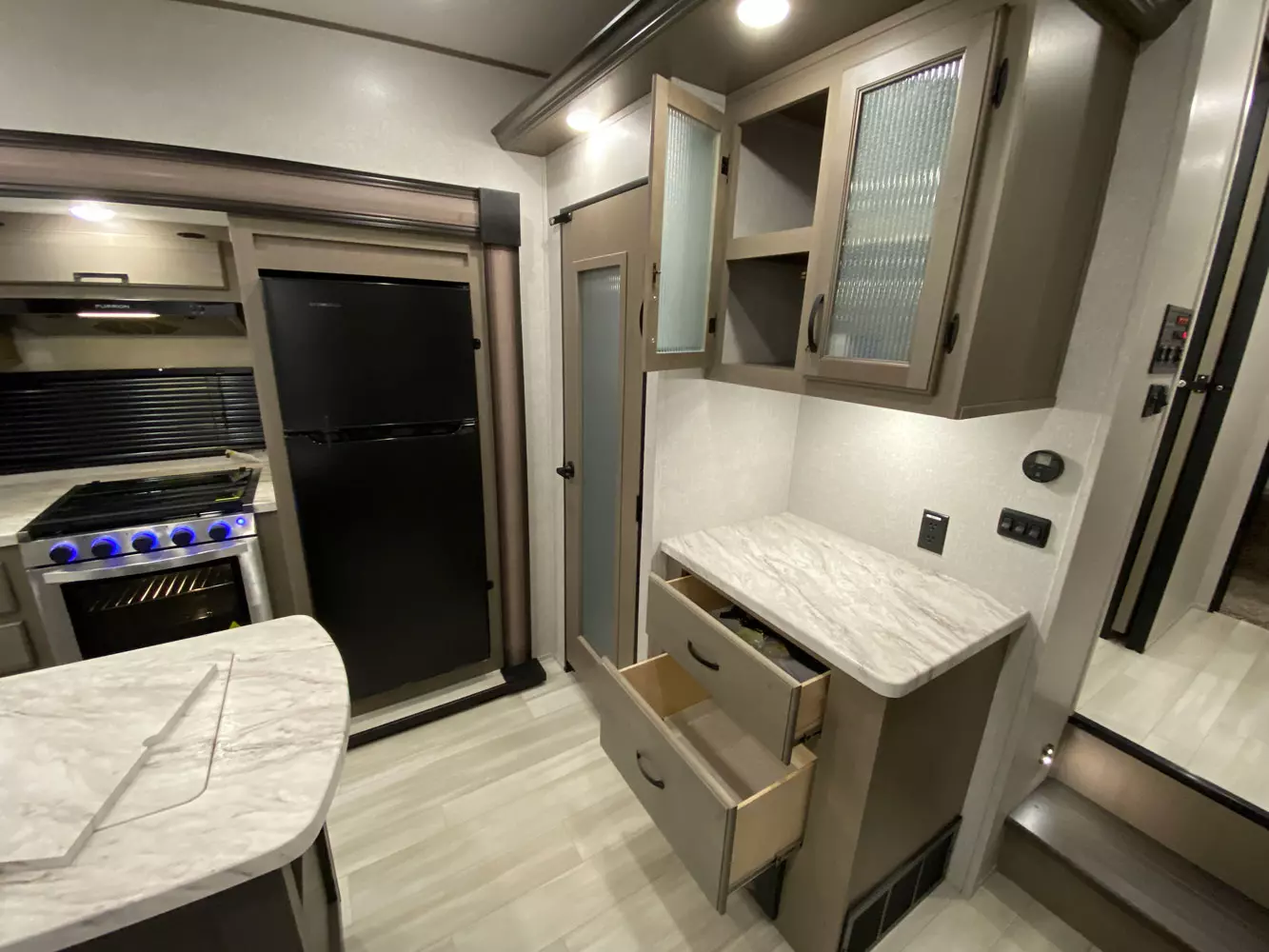

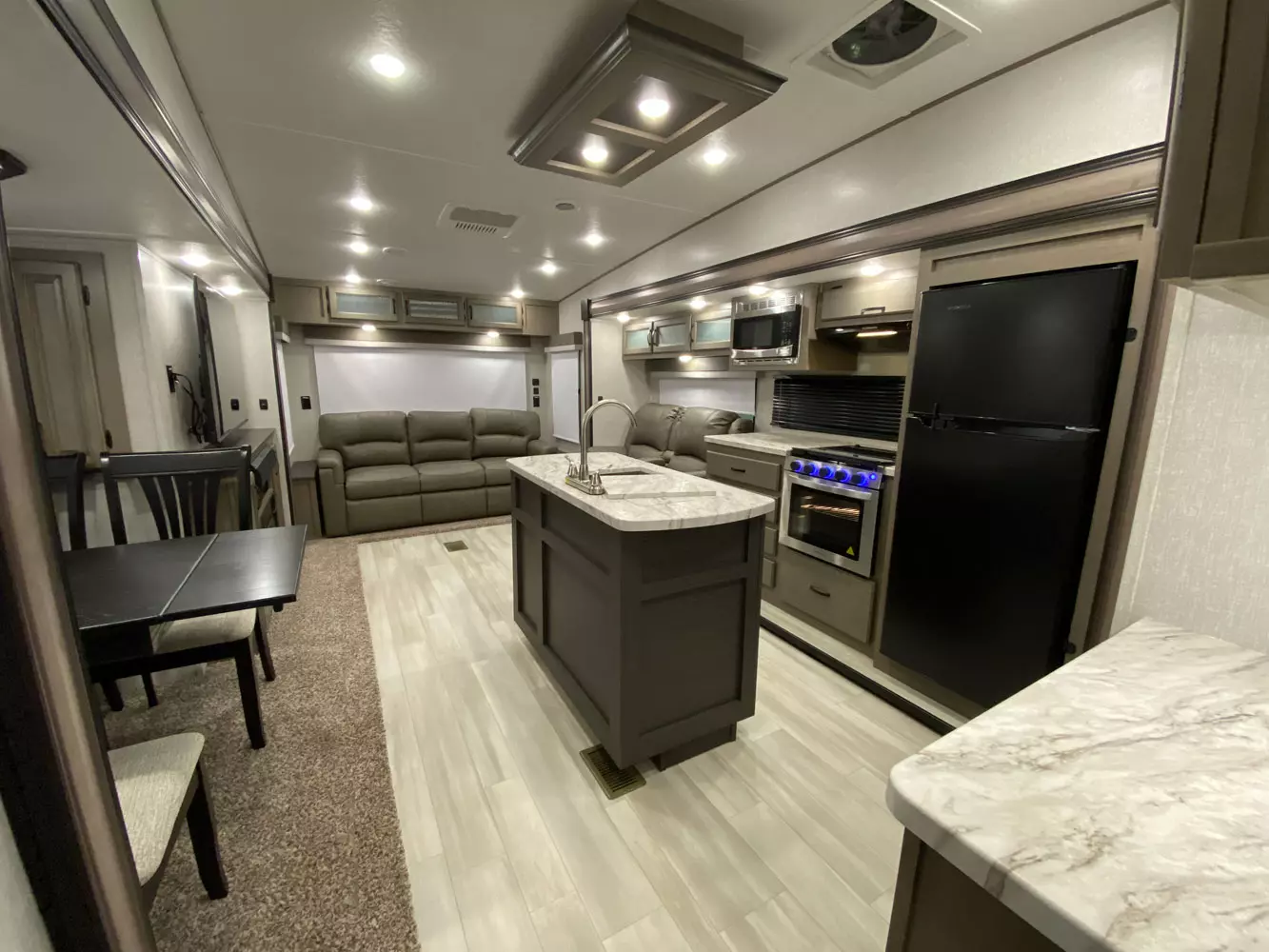

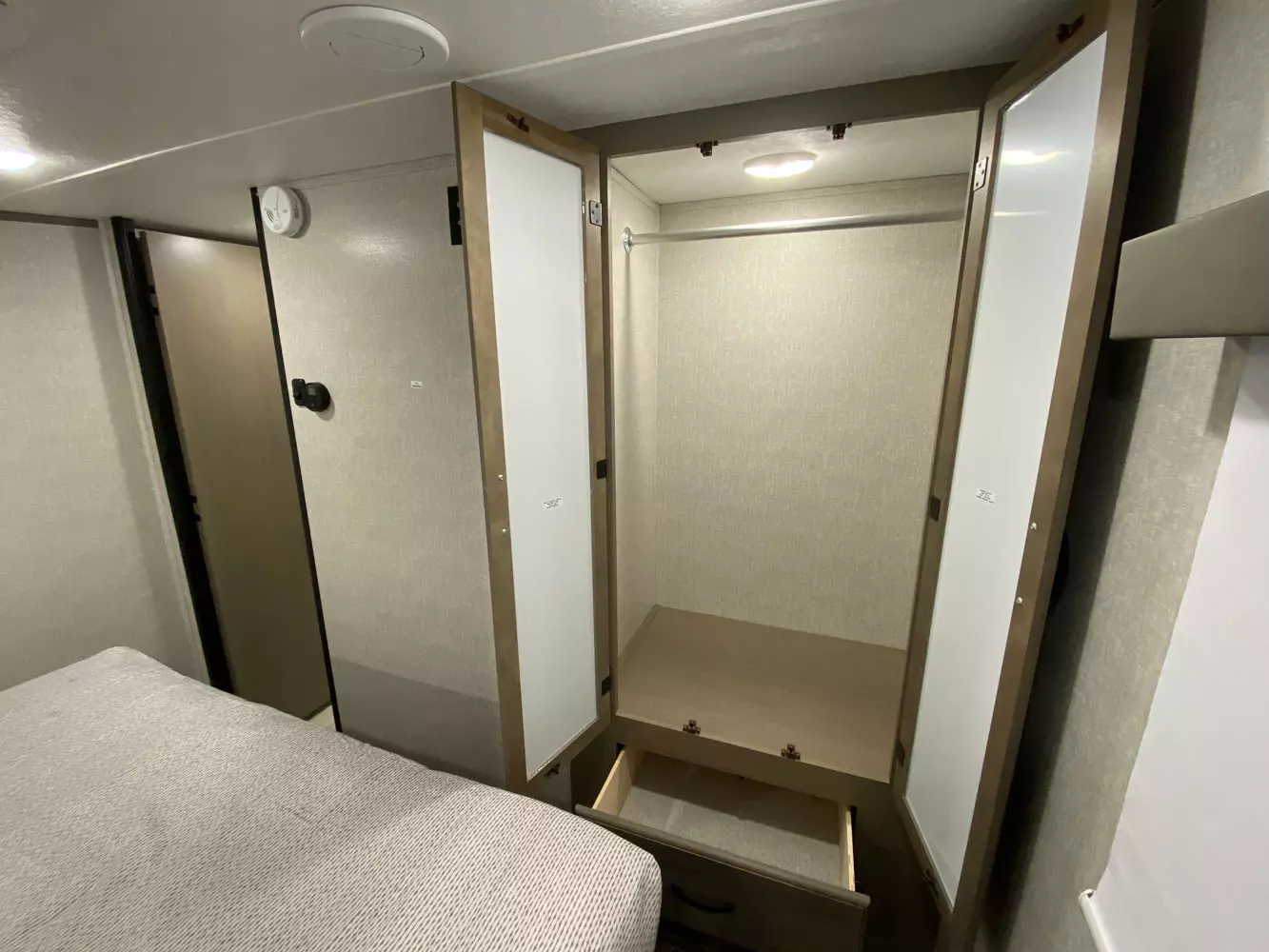

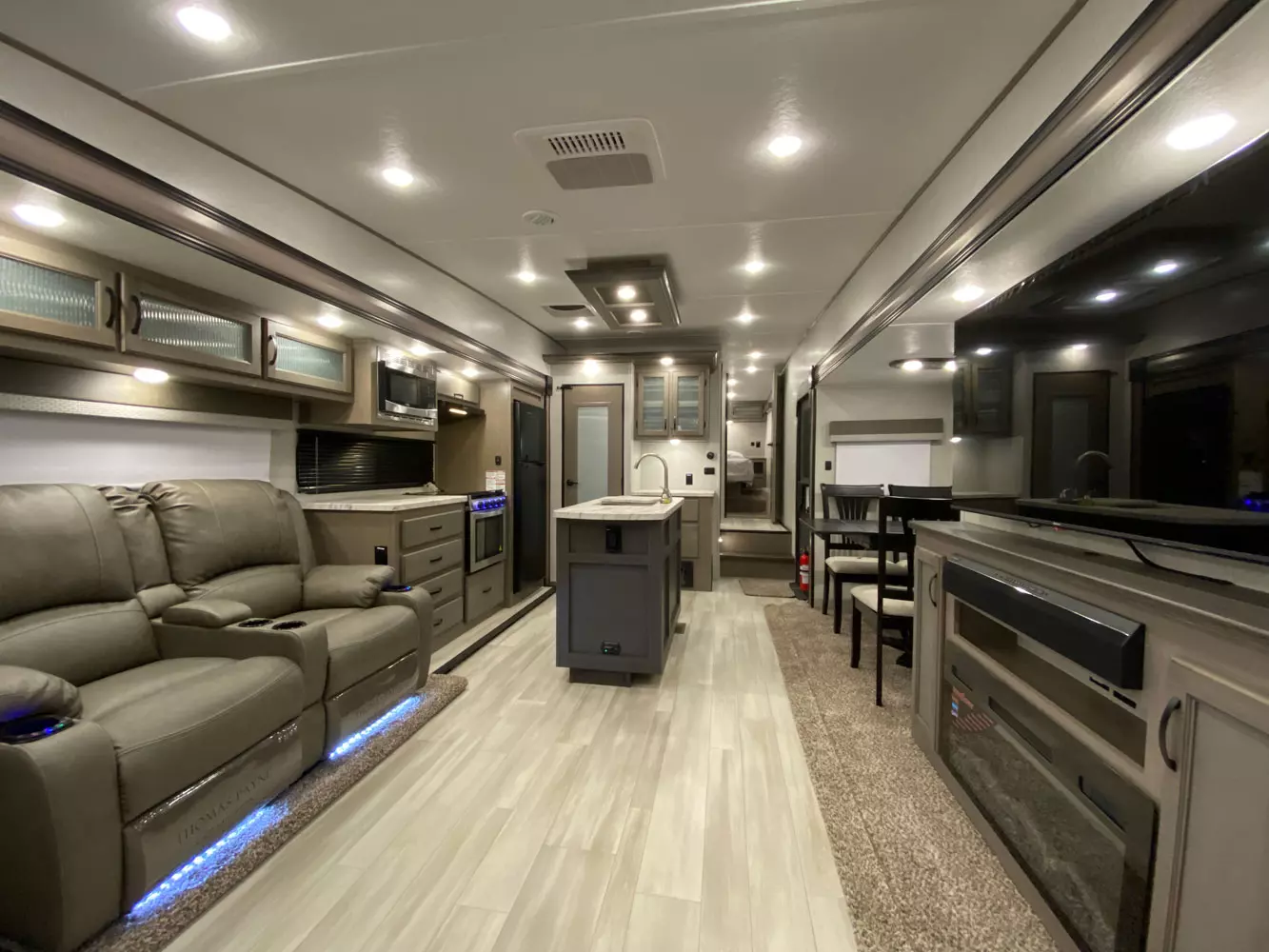

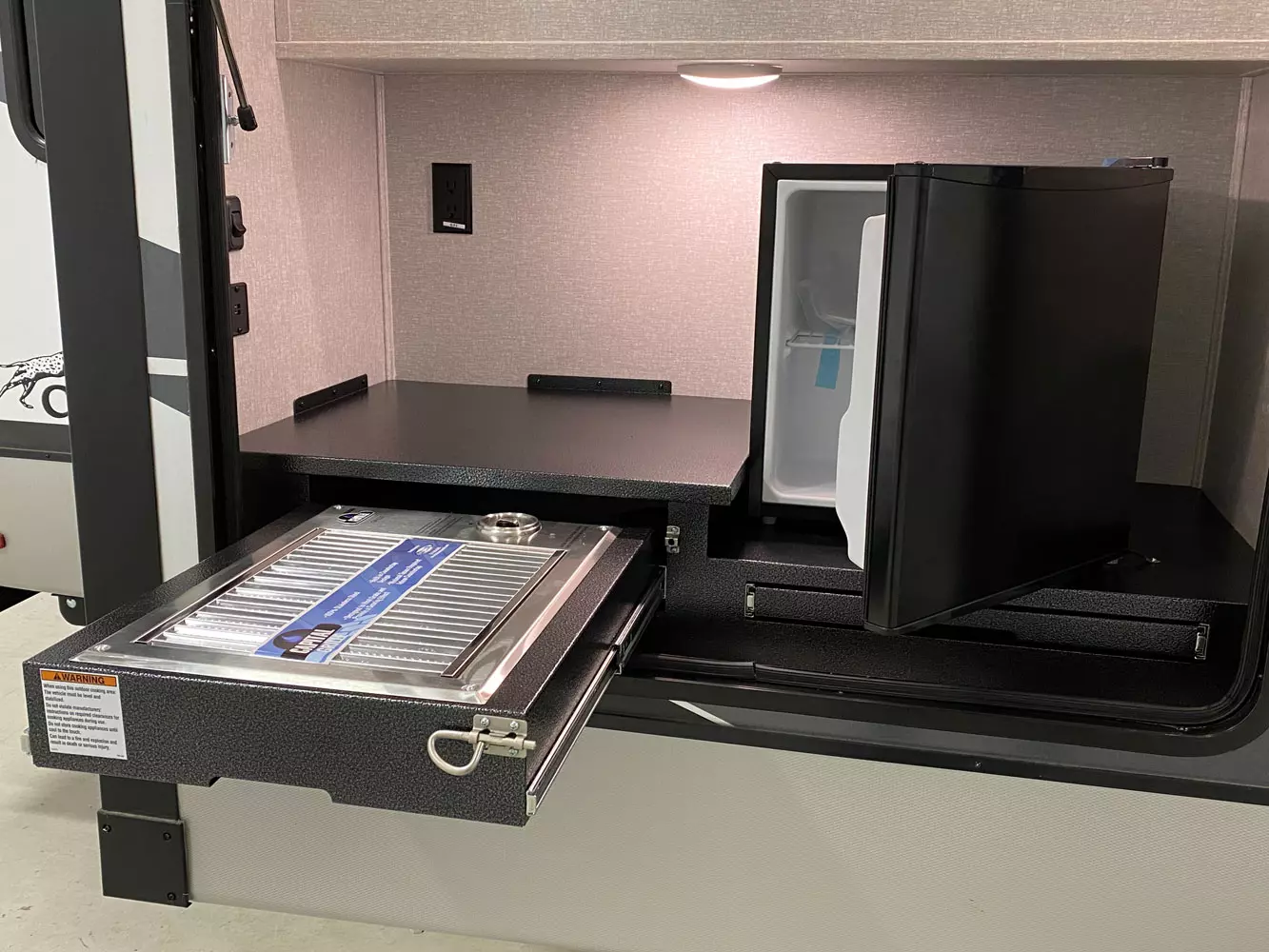

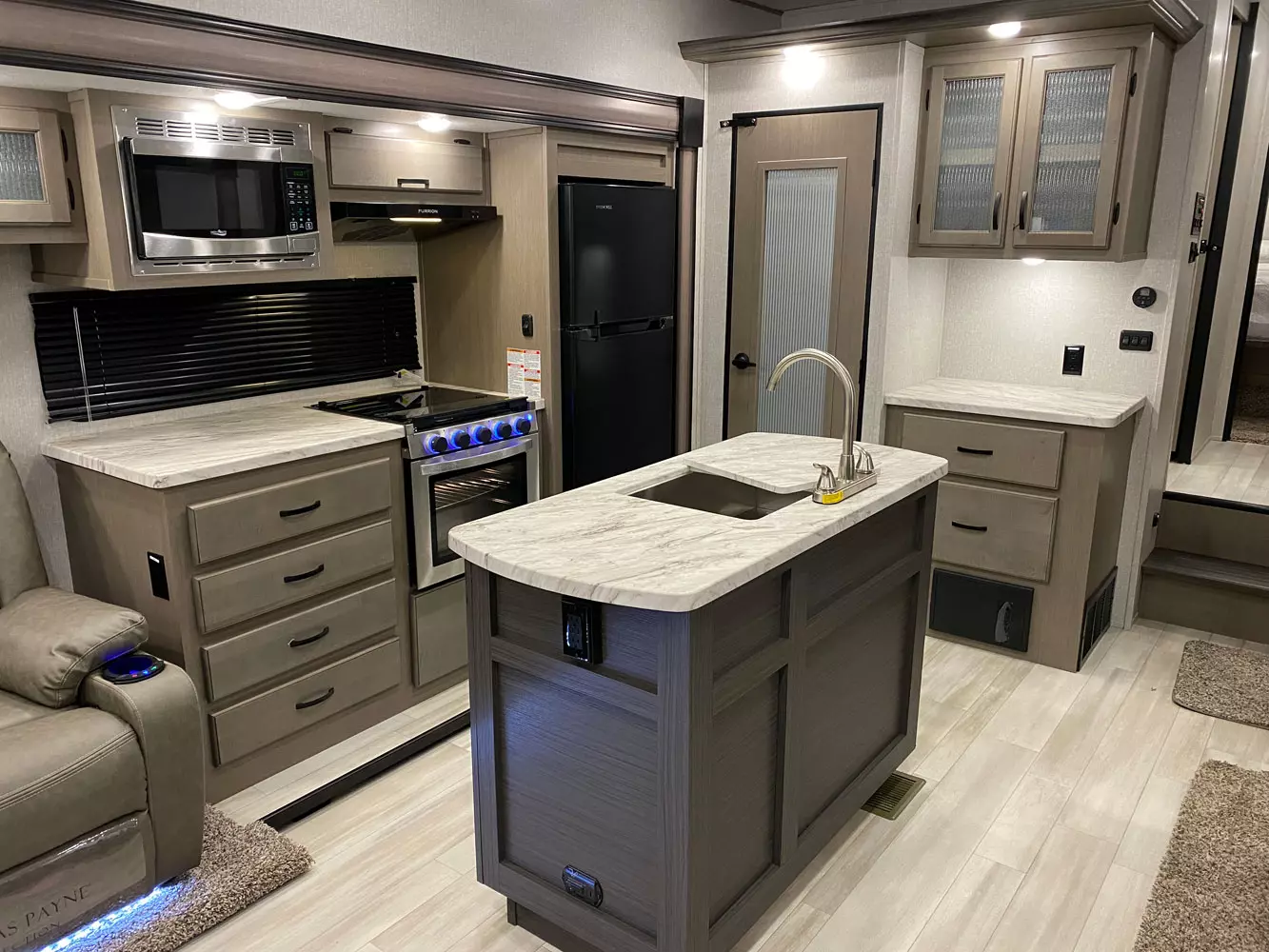

The 284RL has two slideouts and one entry. Exterior features an outside kitchen with entertainment center. Interior layout front to back: front bedroom with a foot facing queen bed with overhead cabinet, night stands on either side, and off-door side wardrobe; off-door side aisle full bathroom; step down to main living area and entry; counter with overhead cabinet, and residential pantry along inner wall; kitchen island with sink; off-door side slideout with refrigerator, countertop, overhead cabinet, microwave, and theater seating with overhead cabinet; door side slideout with dinette and entertainment center; rear tri-fold hide-a-bed sofa with tables on each side, and overhead cabinet.
Enlarge

Specifications

Hitch Weight:
1,434 lb.
GVWR:
11,500 lb.
UVW
8,908 lb.
CCC
2,592 lb.
Exterior Length:
34' 2"
Exterior Height:
12' 0"
Exterior Width:
96"
Fresh Water:
40.00 gal.
Gray Water:
66.00 gal.
Black Water:
33.00 gal.
Awning Size:
11'



GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)*- is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Coachmen RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Coachmen RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.




Features & Options


  • Dual-Sided AZDEL® Composite Sidewall Panels (Vacuum Bonded & Aluminum Framed) X2 (P)
  • 80% Privacy Tint Safety Glass Windows S
  • Extra Thick Slam Latch Pass Through Storage Compartment Doors W/ Magnet Catches (HD Metal Latches) S
  • Roof Mounted Solar Panel Prep (Roof Mounted Solar Panel Opt. Avail.) (P)
  • Furrion® Exterior Back-Up & Sideview Camera Prep (P)
  • Electric Awning W/ LED Light Strip & One Hand Pitch Adjustment (P)
  • LED Sewer Hose Hook-Up Lights S

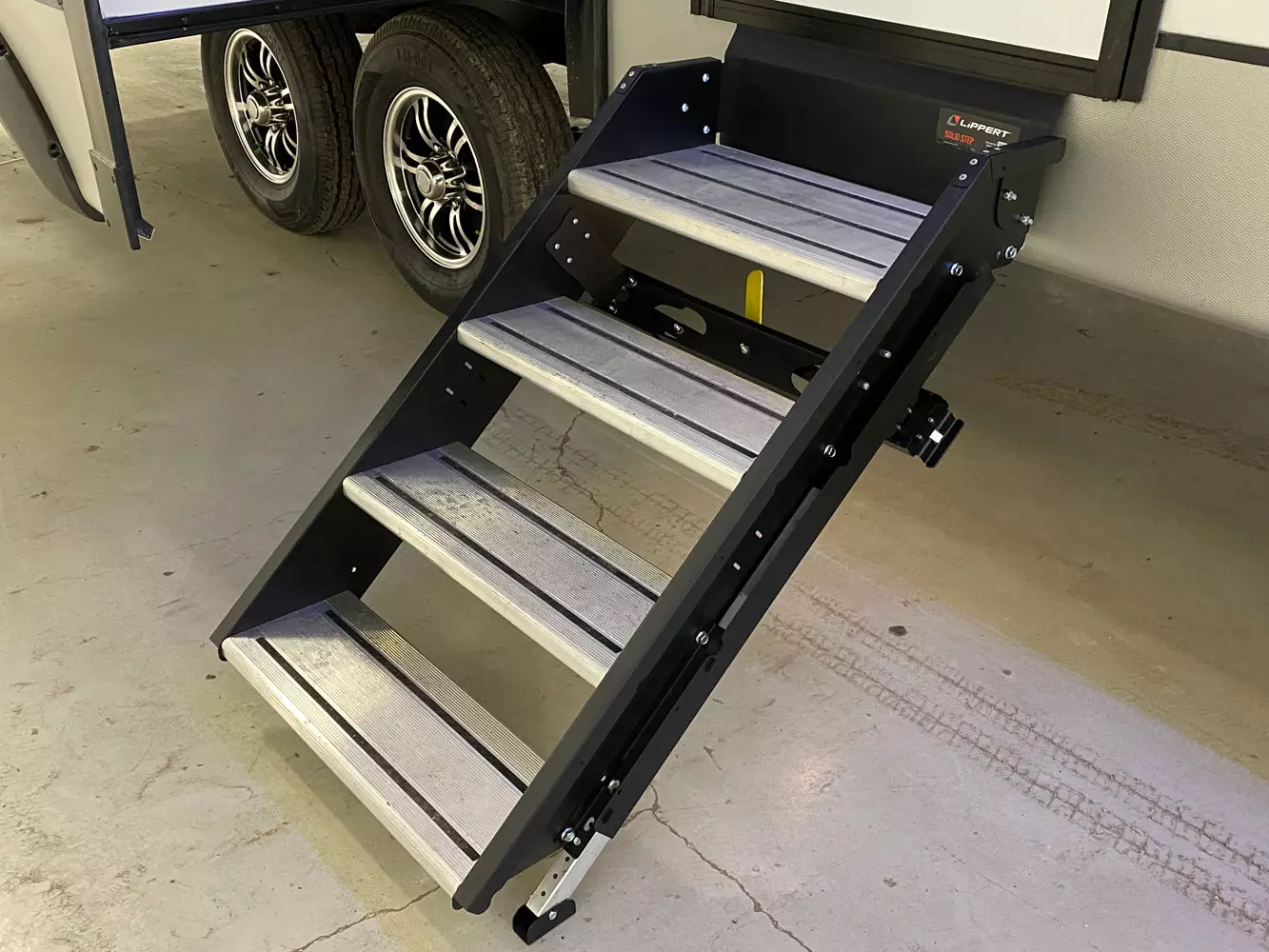

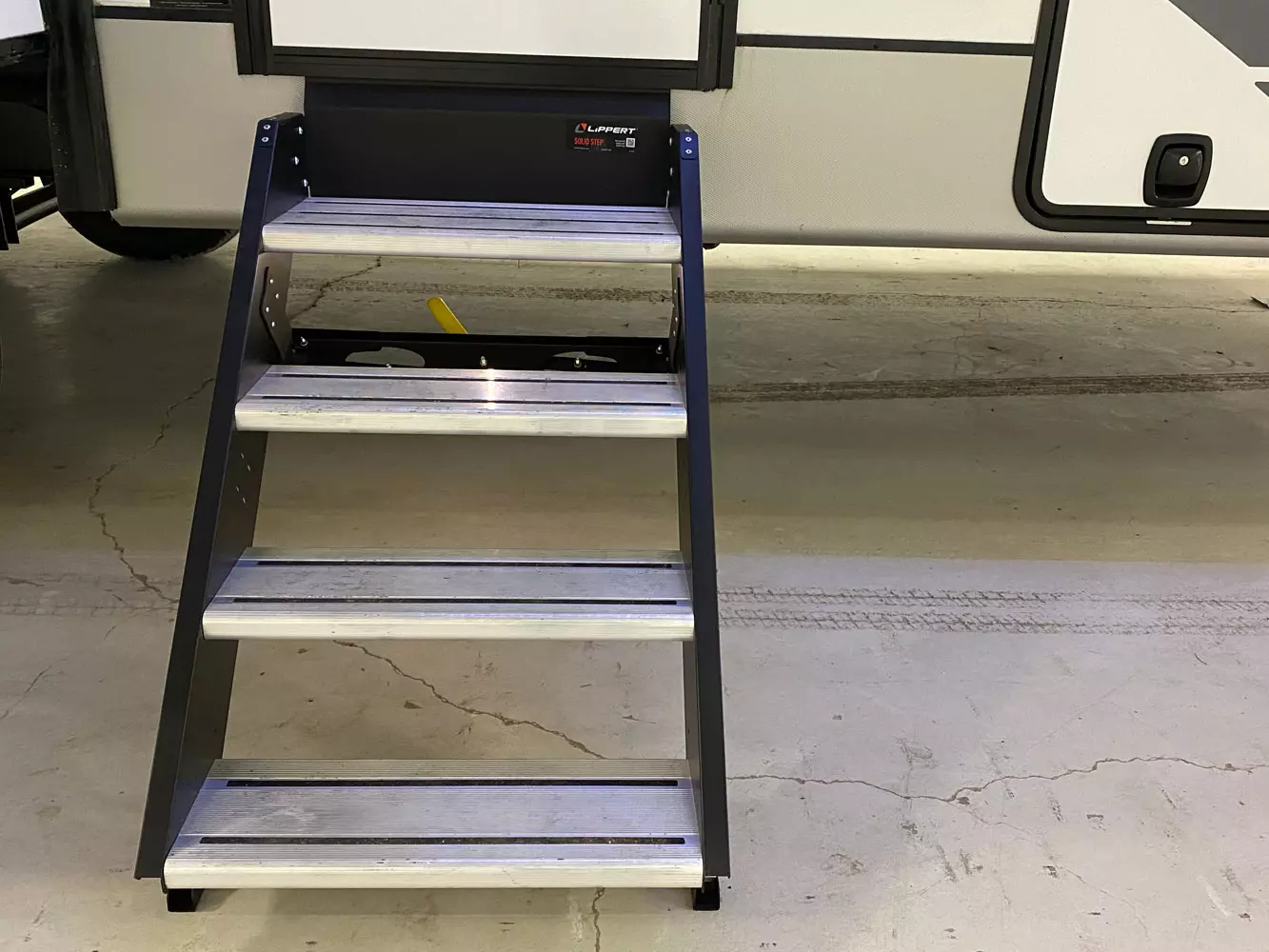

  • Solid Step™ Entry (4-Step W/ Extra Large Top Step & LED Entry Step Light) (P)

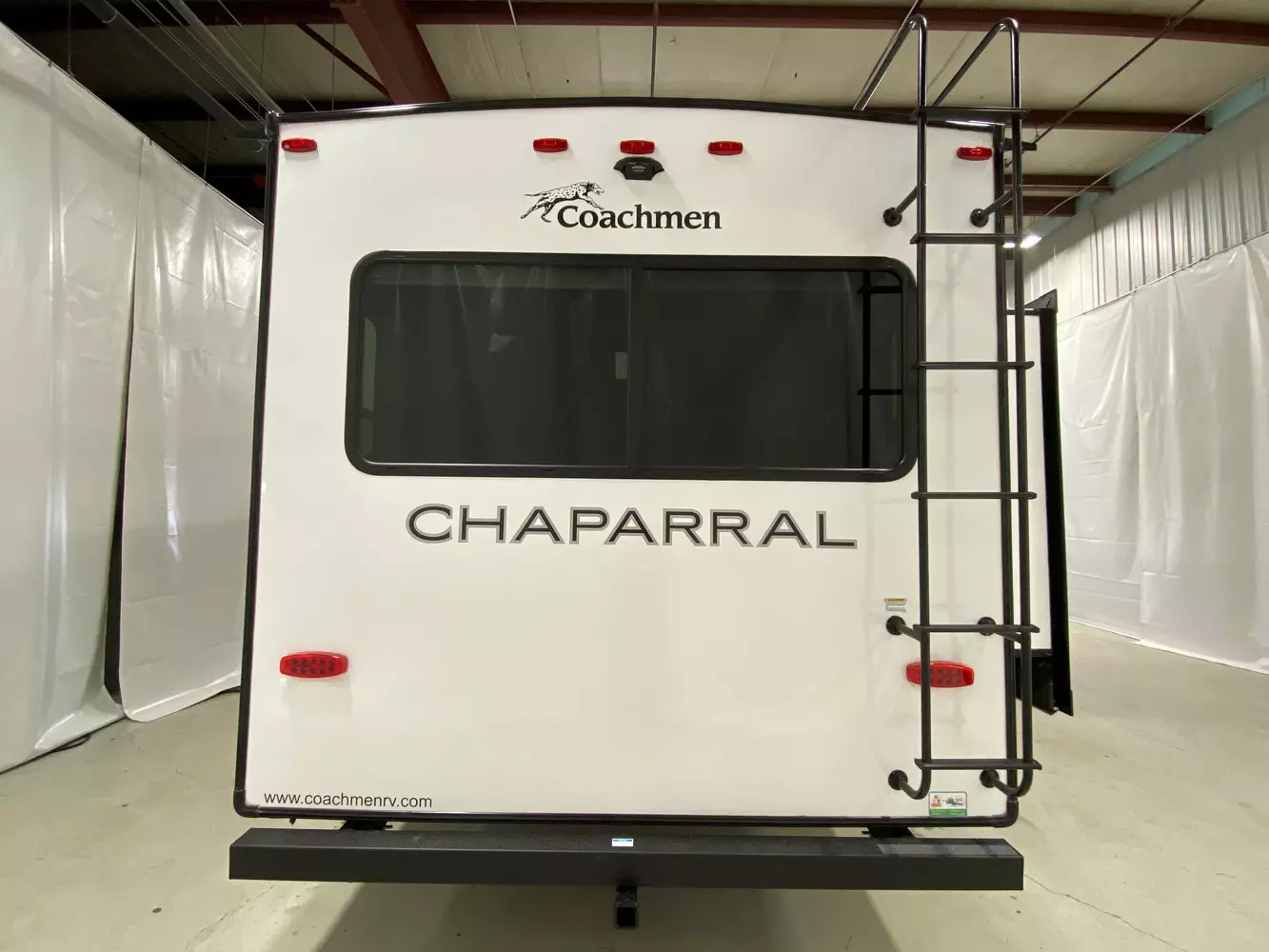

  • Protective Rear Bumper W/ Accessory Receiver Prep (P)
  • Electric Front Jacks & Electric Rear Stabilizer Jacks (Auto-Level Available) (P)
  • 16" Radial Tires W/ Aluminum Rims (5, 2, 1 Warranty) (P)
  • Road Armor® Suspension By Trail Air® W/ Heavy Duty Shackles & Wet Bolts S

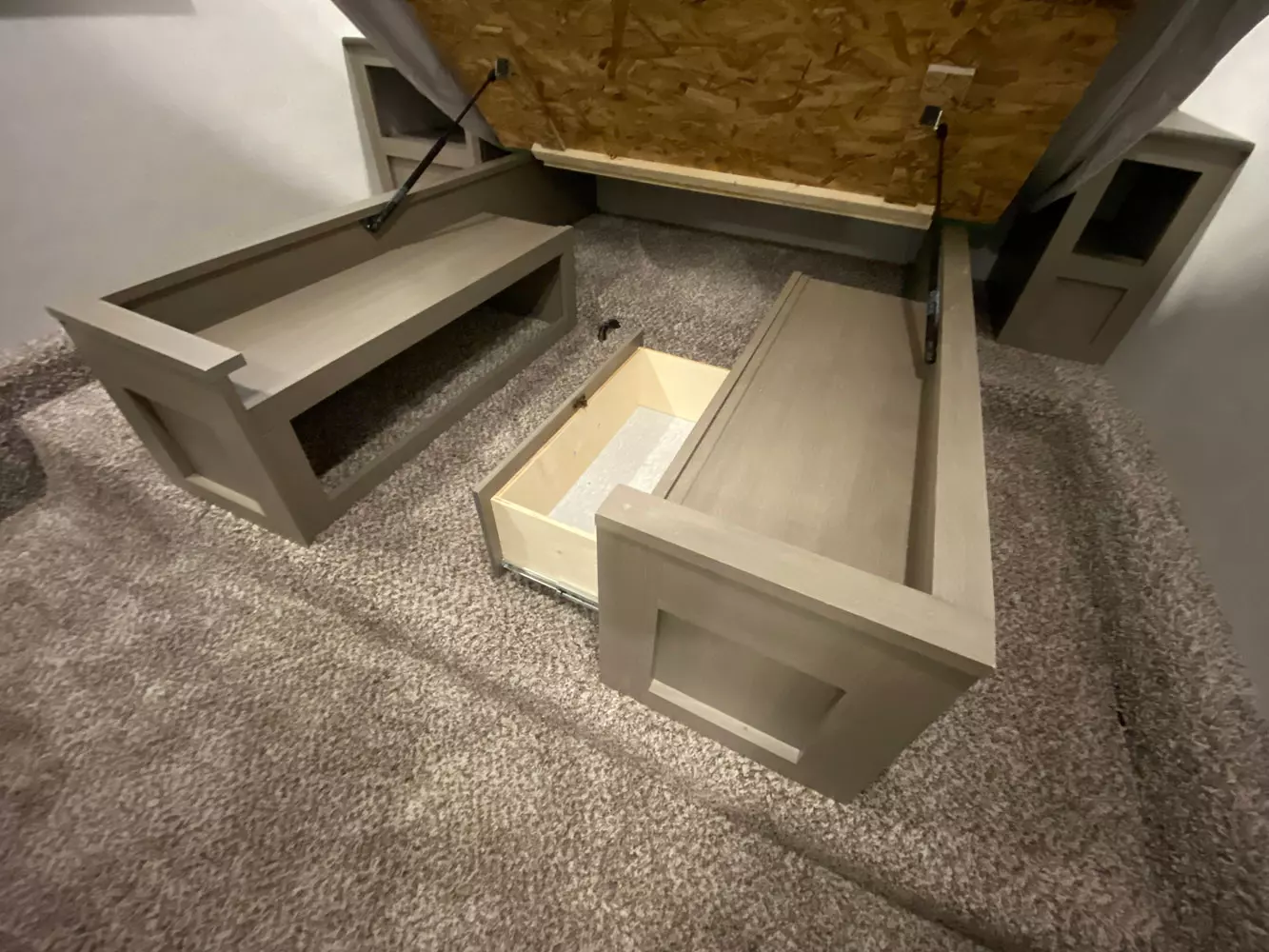

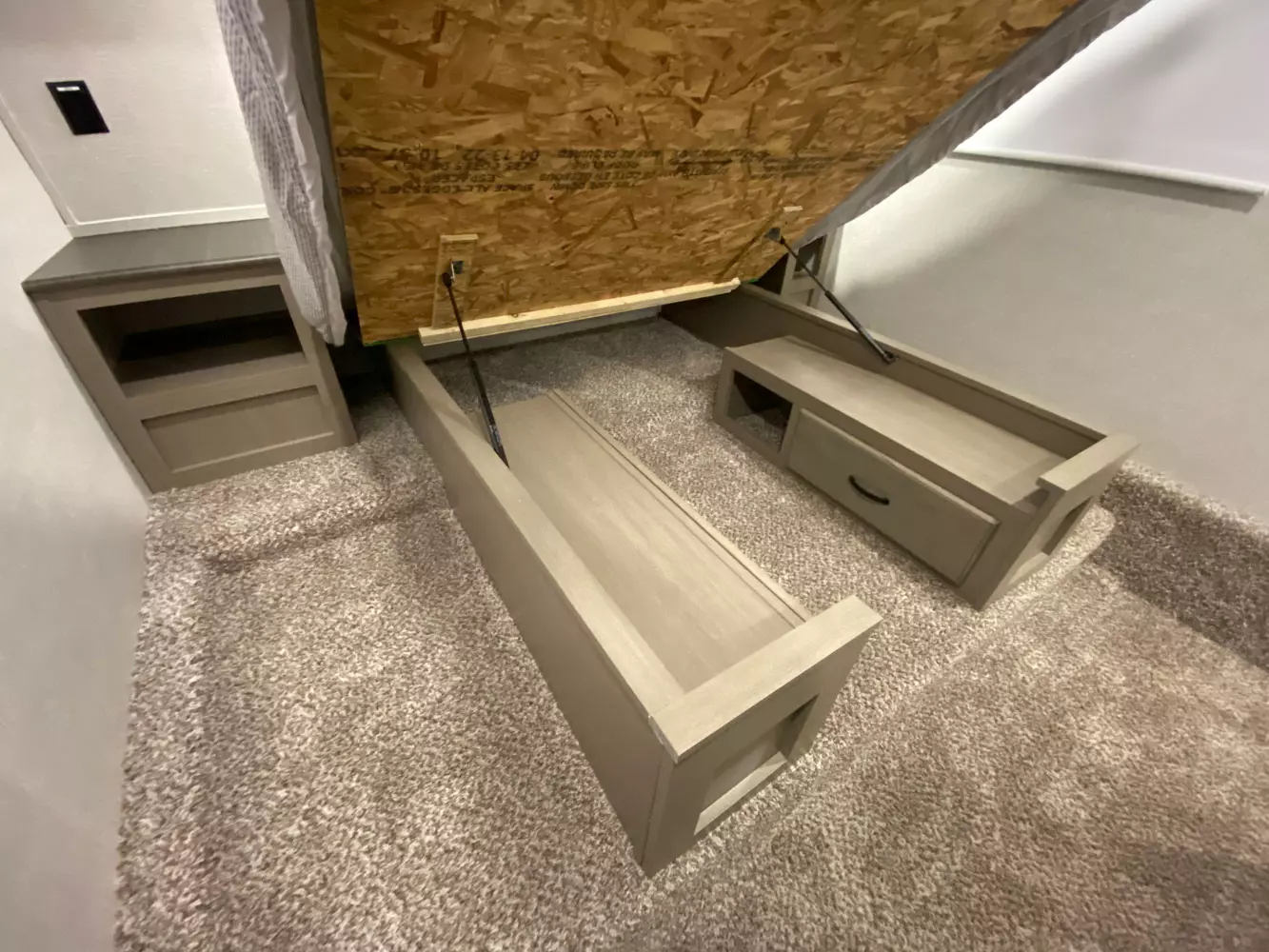

  • Secret Hidden Hinge Storage (Select Models)* S

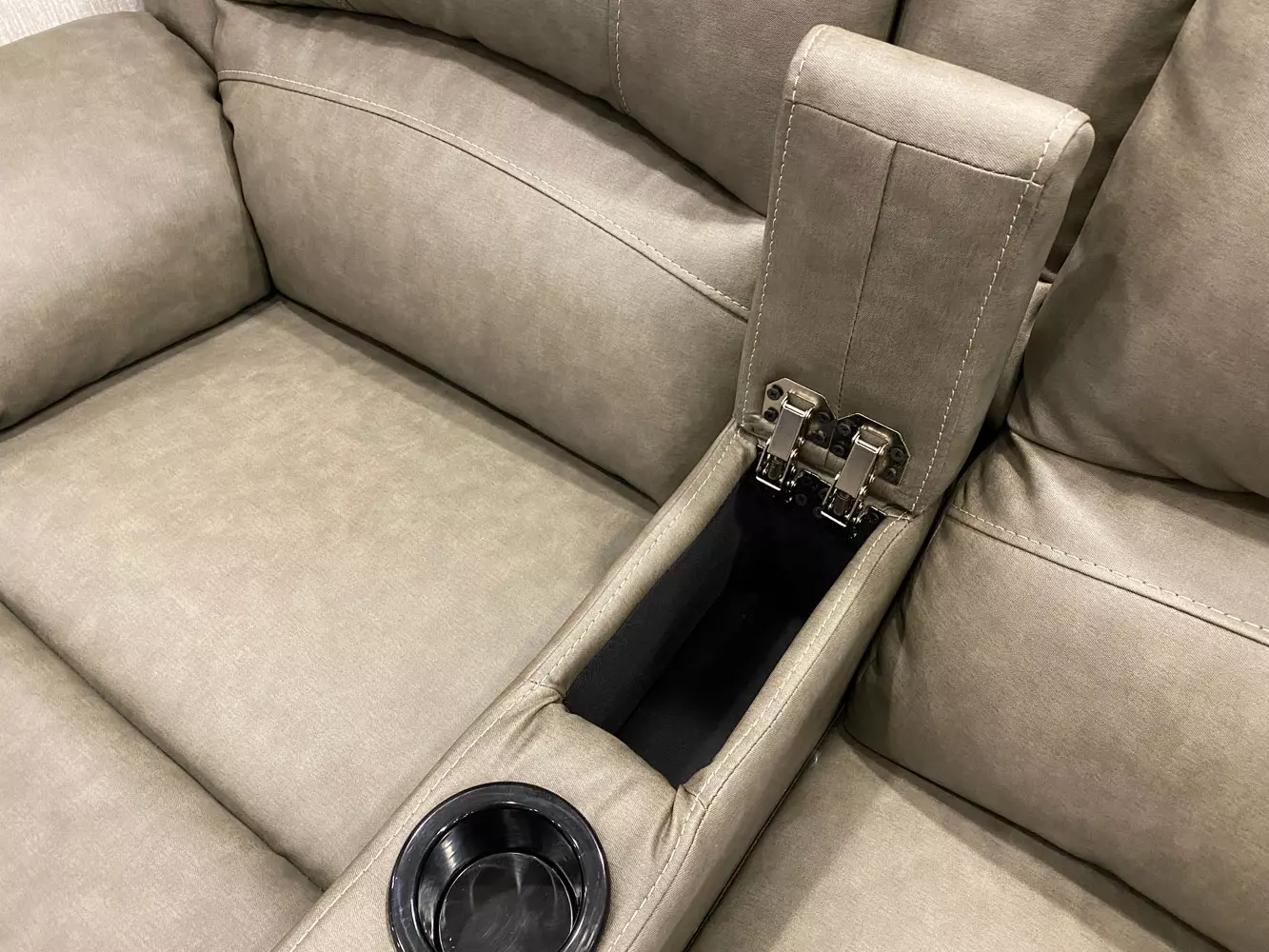

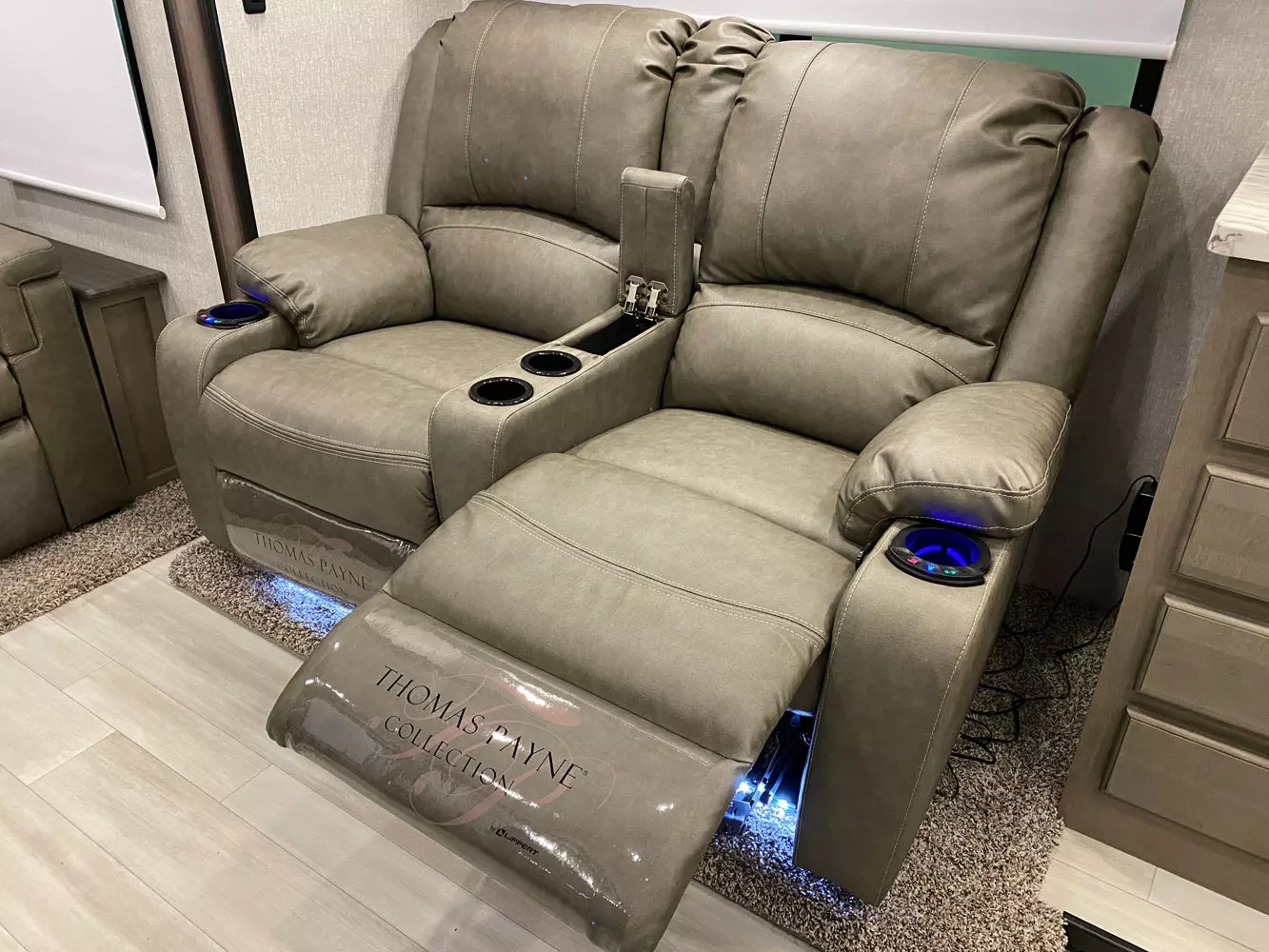

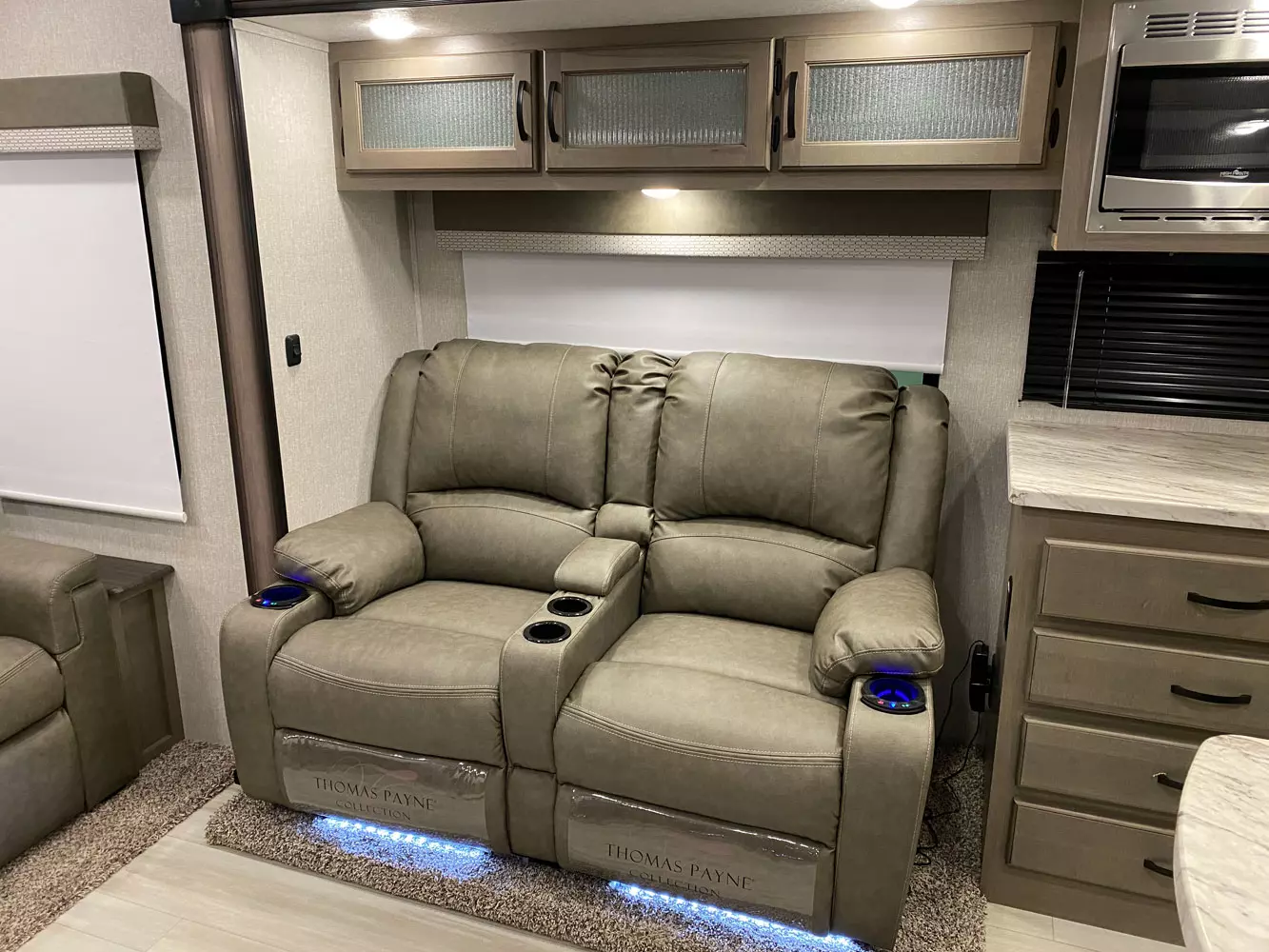

  • Thomas Payne® Theatre Seating W/ Heat, Massage, LED Lights, & Cup Holders* S
  • Thomas Payne®* Memory Foam Tri-Fold HAB Sofa* S
  • LED Interior Lighting Used Throughout W/ Motion Sensor Lites (Key Areas)* S
  • AM/FM Stereo W/ Bluetooth, USB, & Modern Sound Bar (P)
  • Roller Night Shades (P)

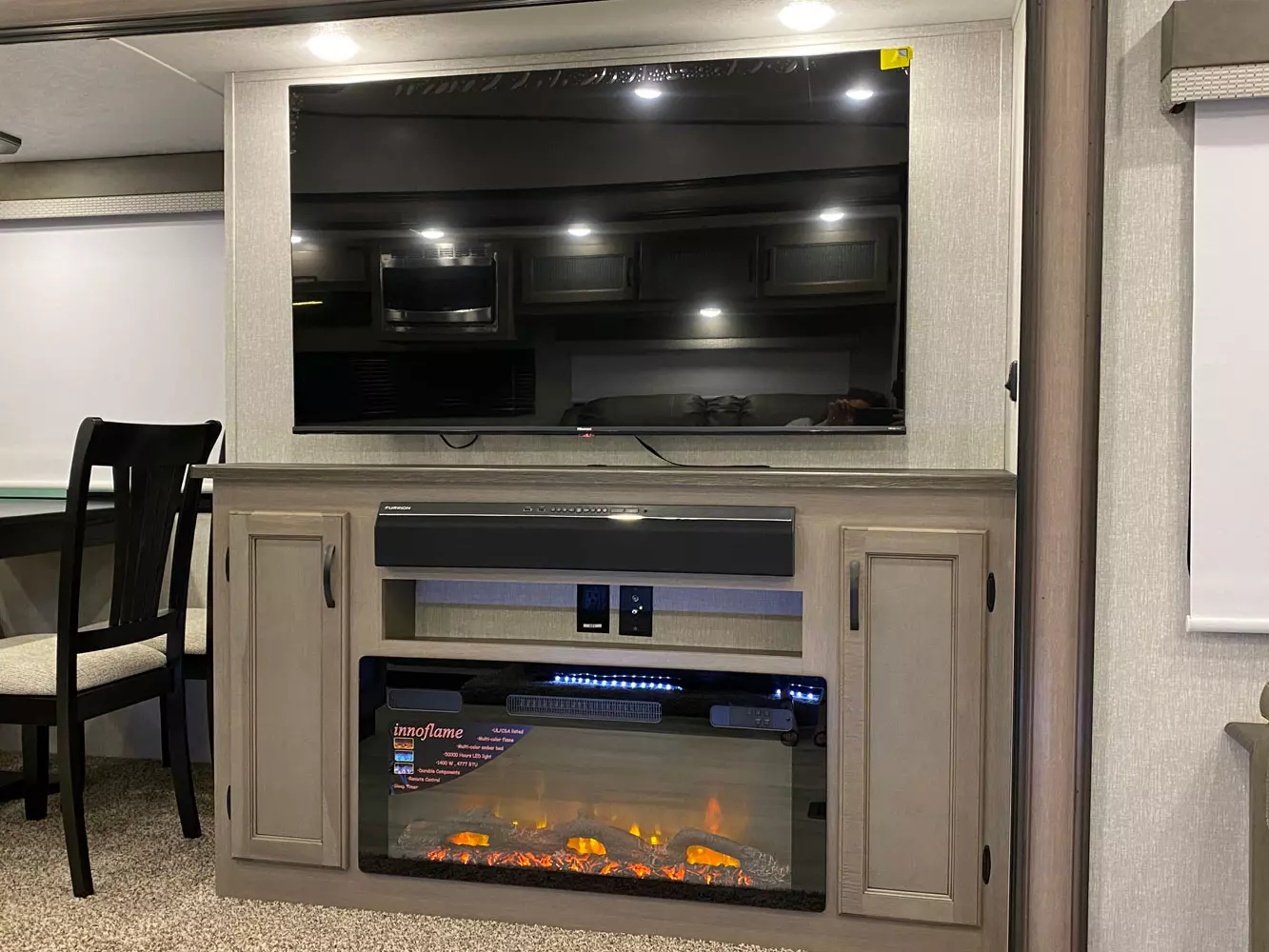

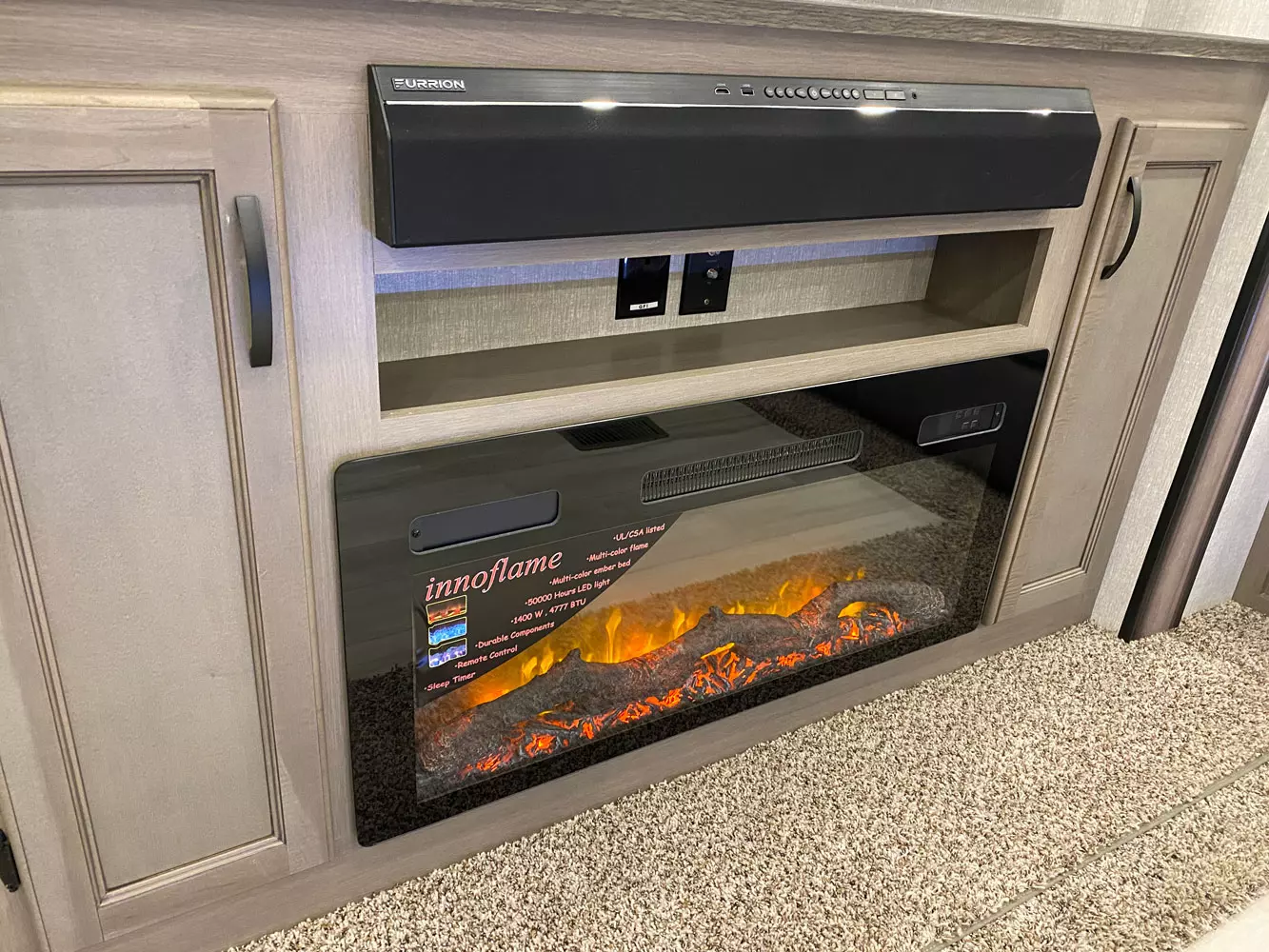

  • High BTU Output, Modern Electric Fireplace (P)
  • Large Transom Window At Cooktop Backsplash Location S
  • Modern High Rise Kitchen Faucet S

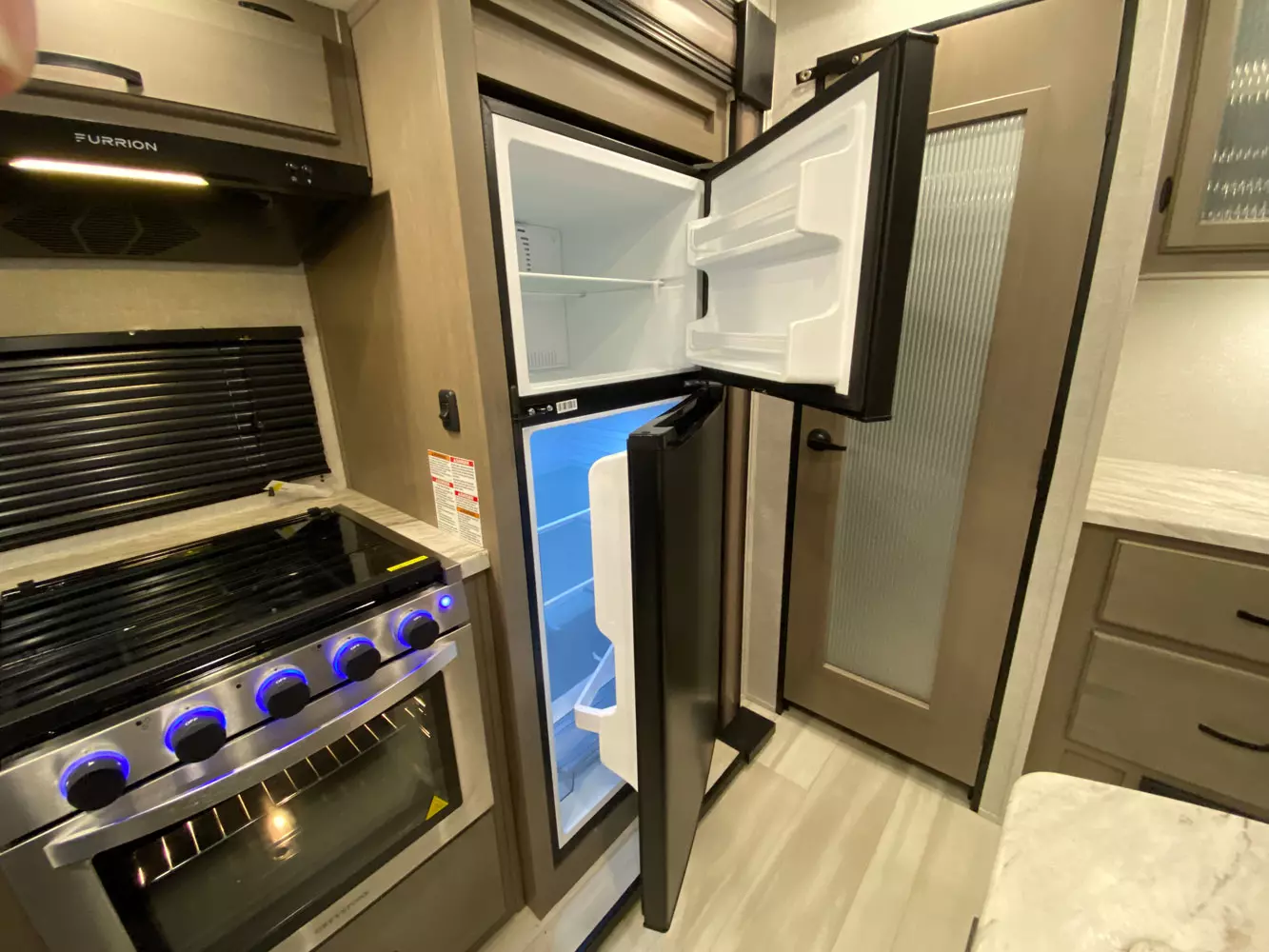

  • 8 Cubic Foot Refrigerator (XL Residential & Gas/Electric Options Available)* (P)

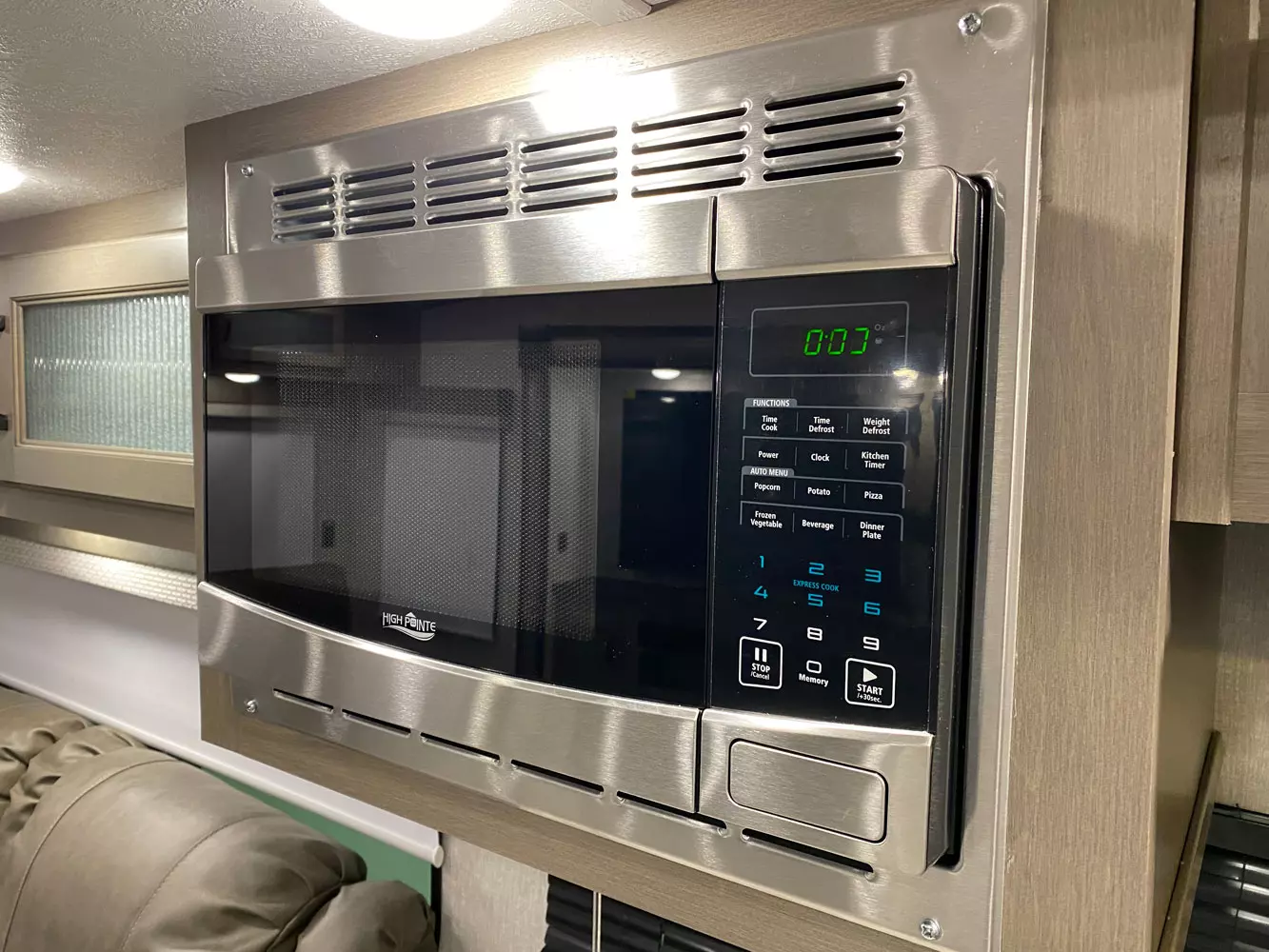

  • RV Microwave S

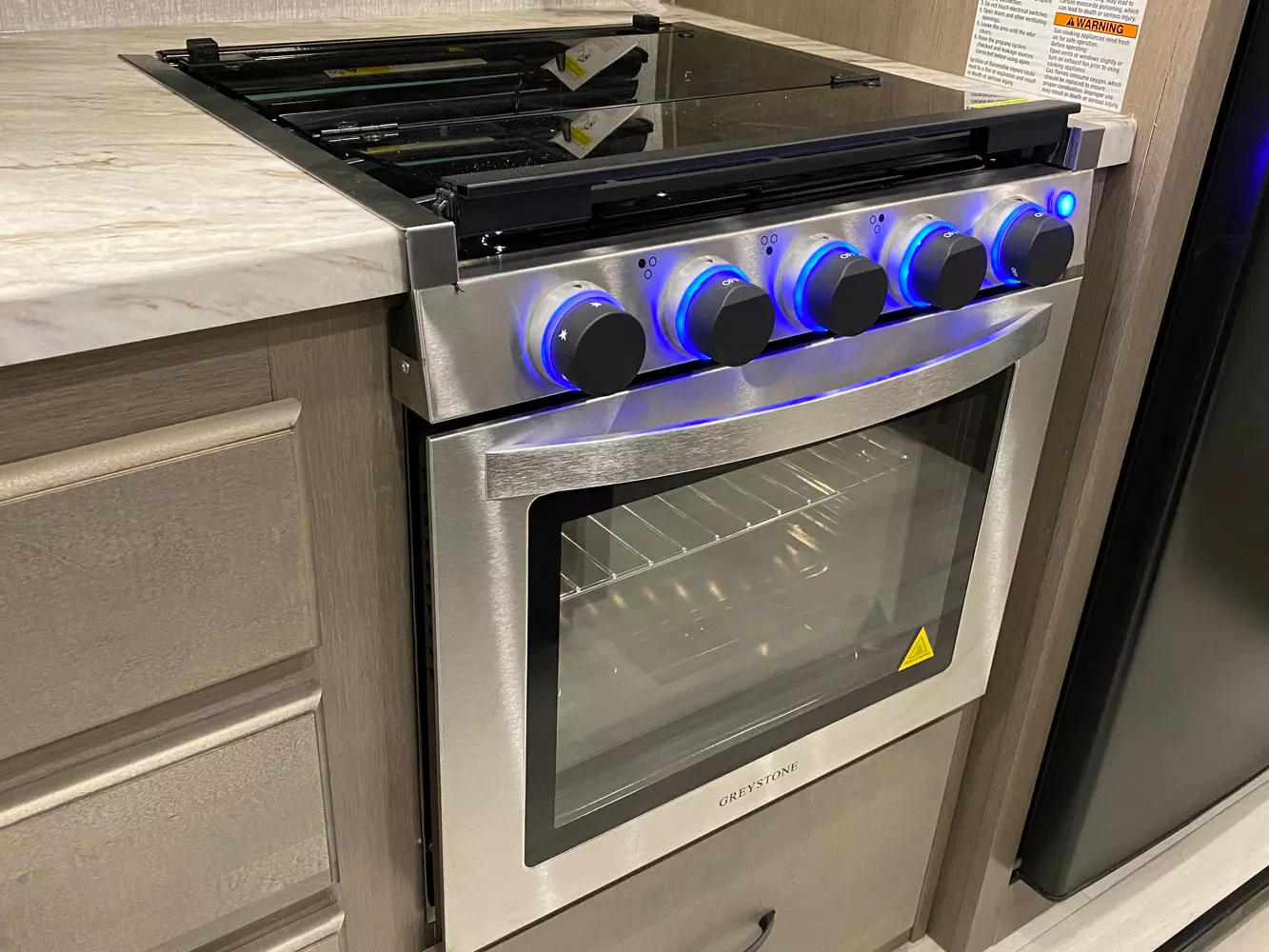

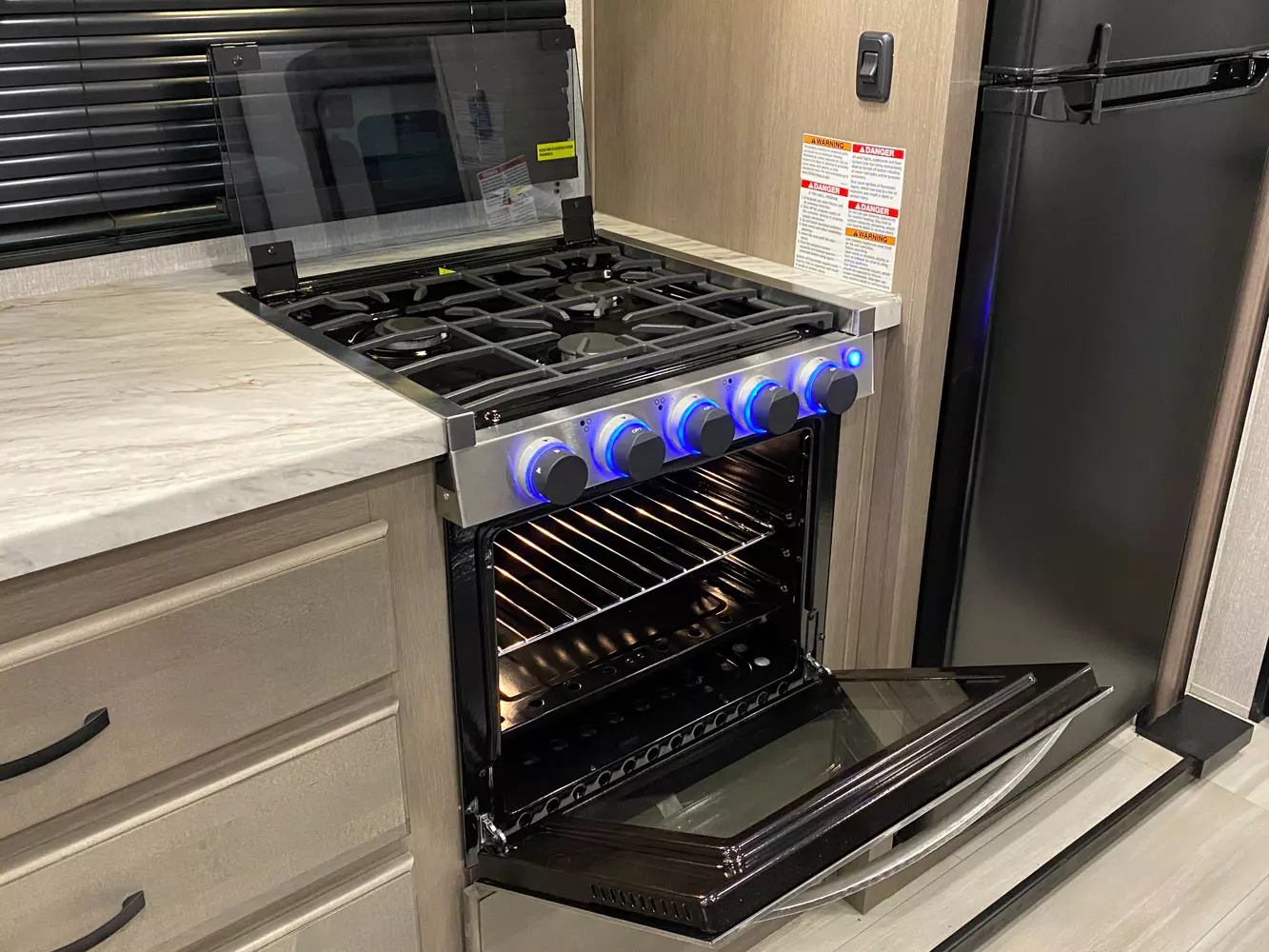

  • 21" Stainless Steel Oven W/ Residential Cooktop, Glass Cover, & Piezo Ignition S

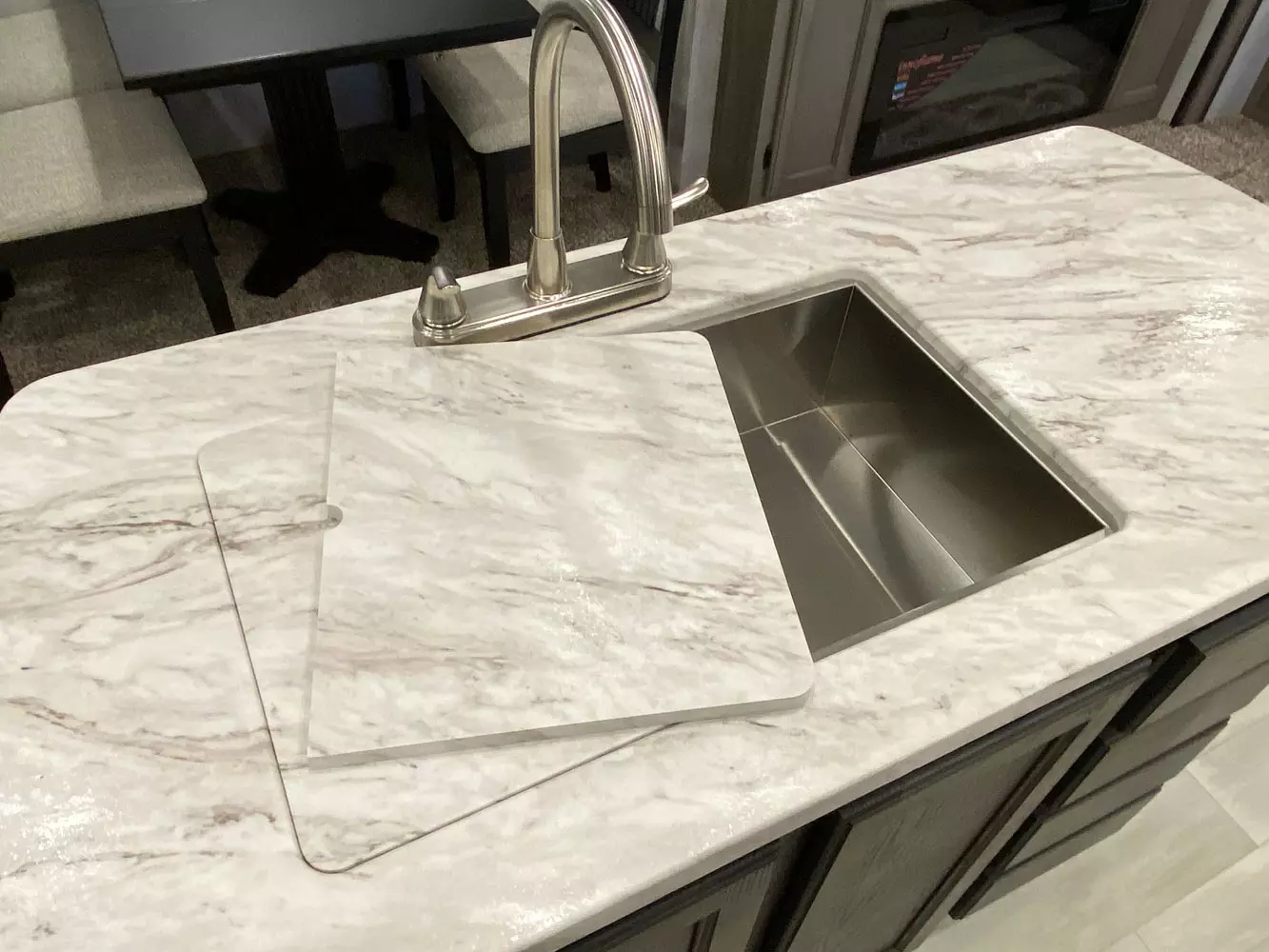

  • Extra Deep Single Basin Sink (Stainless Steel) S

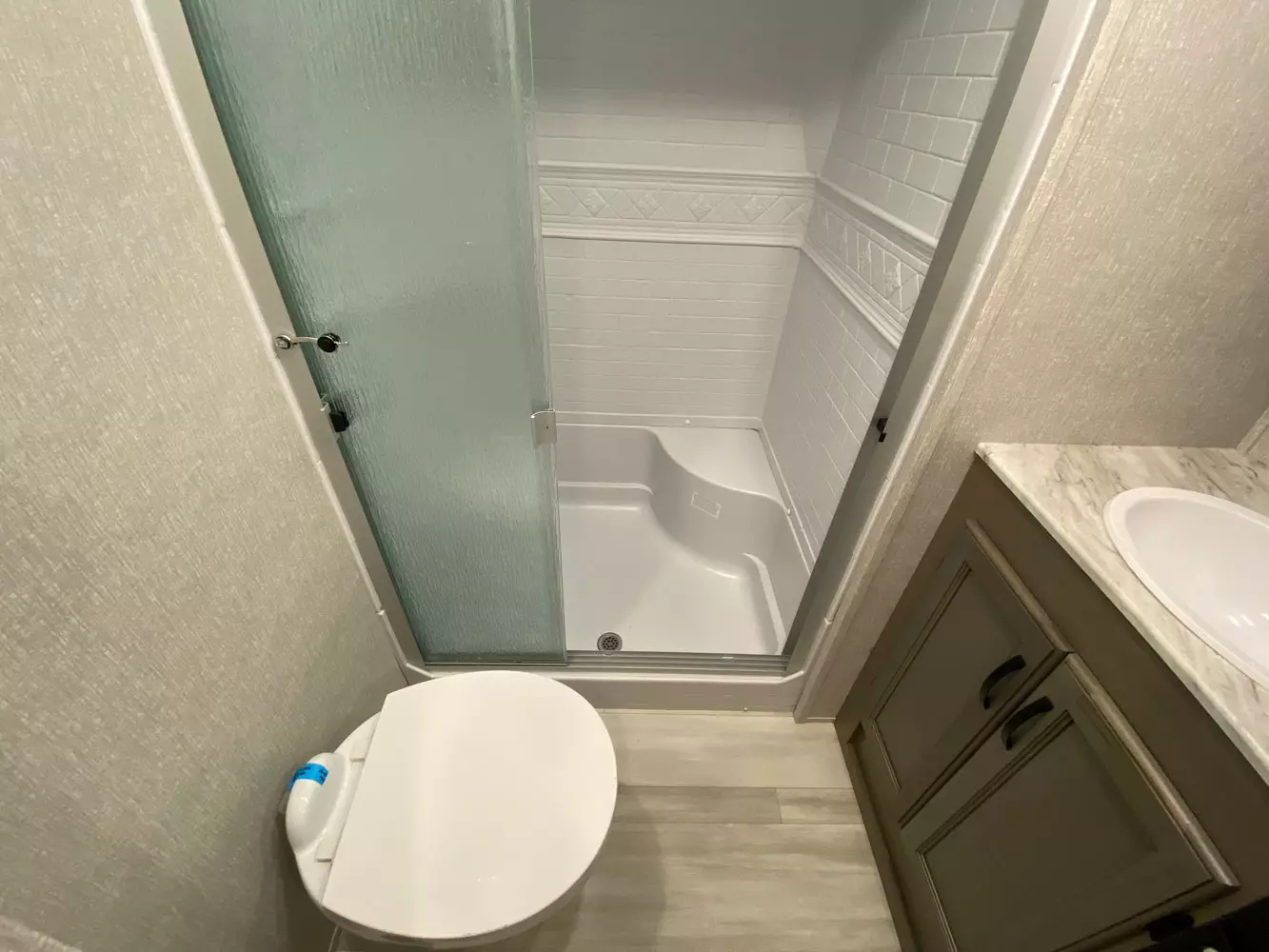

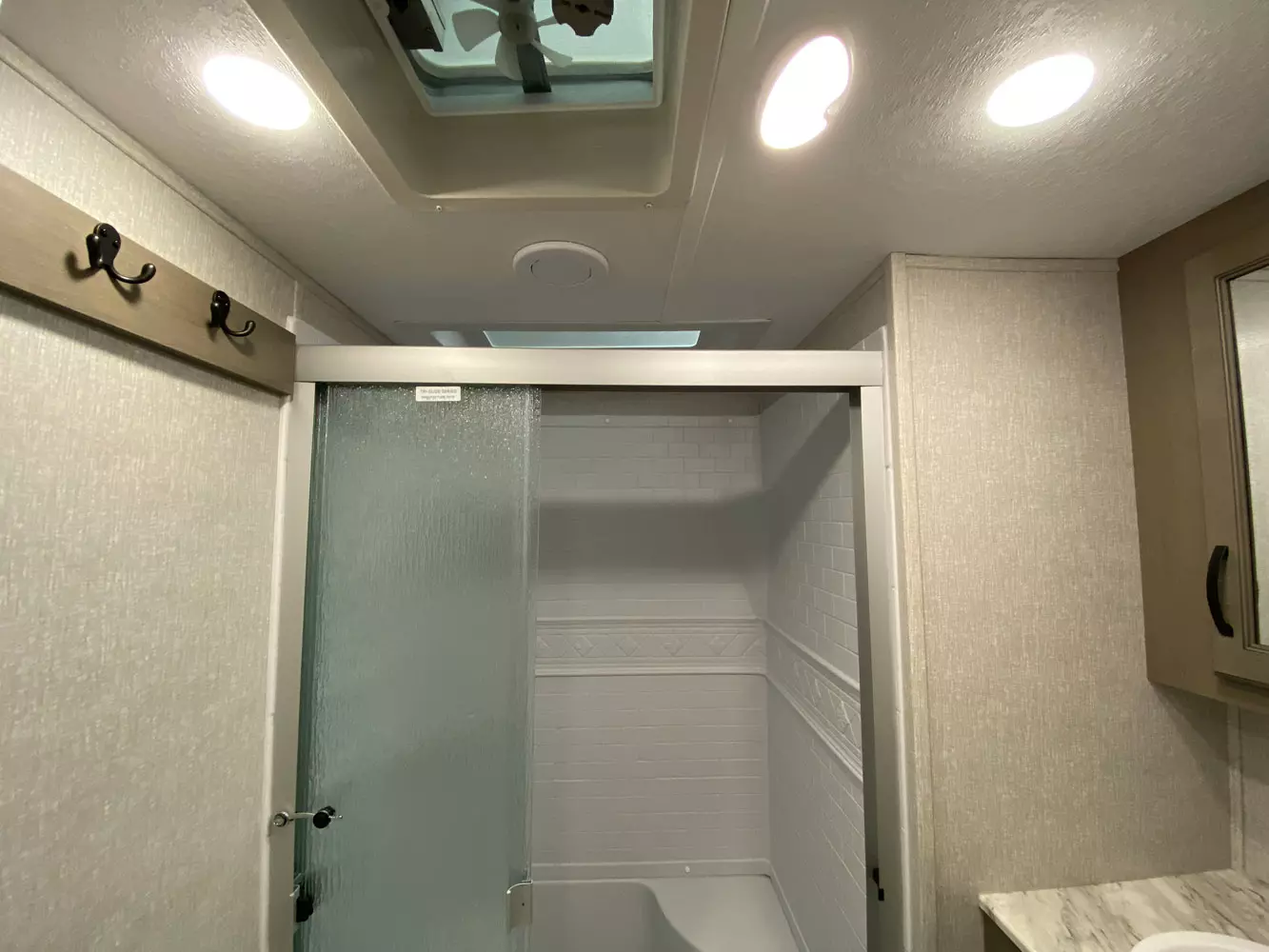

  • Large Shower W/ Sliding Glass Doors S
  • Power Ceiling Vent Fan (12 Volt) S
  • Large Sink W/ Seamless Thermofoil Lav (No T-Mold) S
  • Large Linen Closet* S
  • LED Motion Sensor Light S
  • Porcelain Toilet W/ Foot Flush S
  • Residential 60” x 80” Pillow Top Mattress & Bedspread (P)
  • Bedside Night Stands* S
  • Dual USB Charging Ports S
  • Dual 110 Volt Outlets At Bed* S

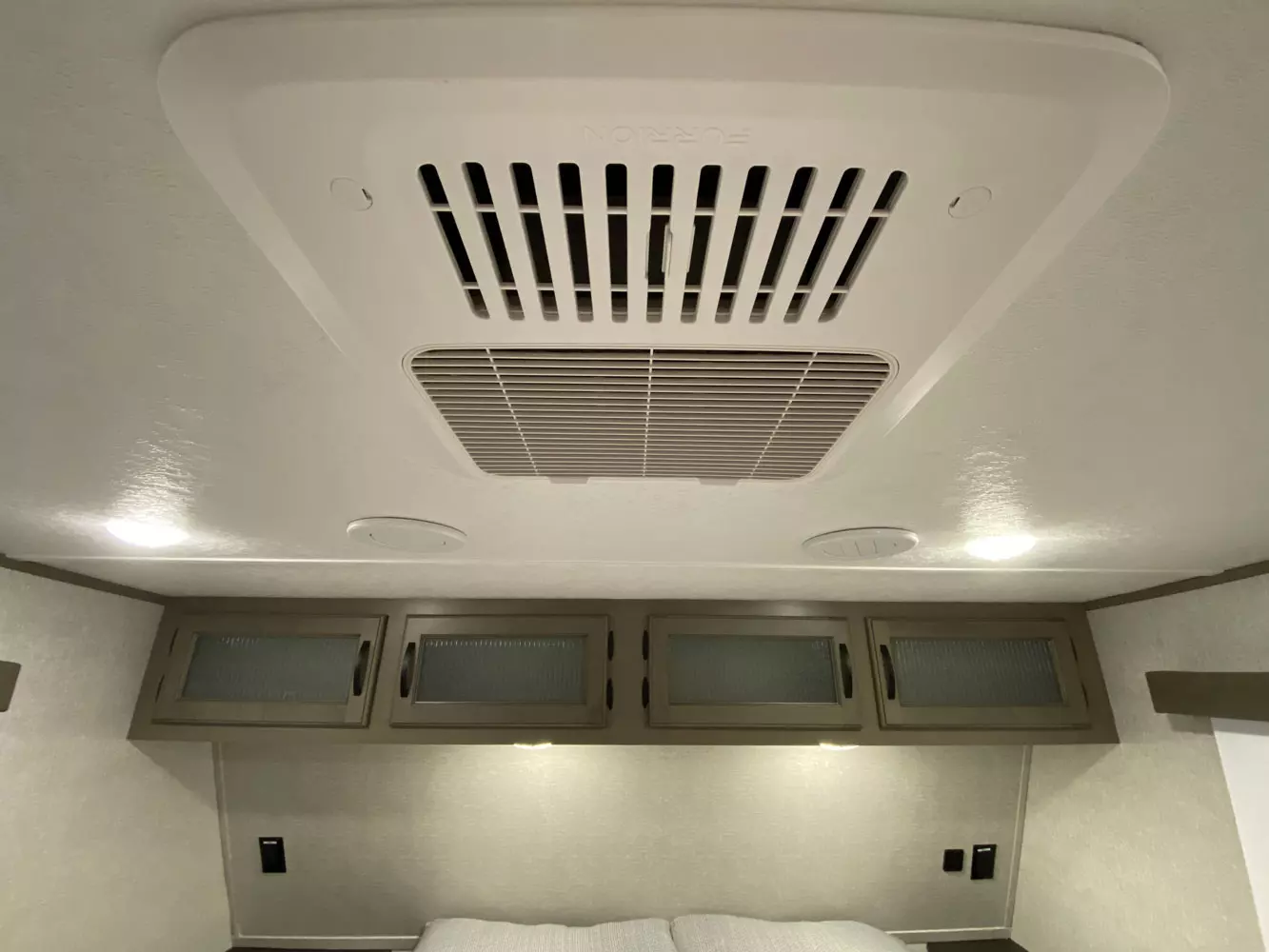

  • Ducted A/C Vents W/ Rotator/Closing Louvers S
  • Roller Night Shades (P)
  • Residential 5" Truss Rafters (16" on Center) W/ Full Walk on 3/8" Roof Decking S
  • Tri-Tex Powder Coated Frame Technology (Up To 5X More Weather Resistance!) S
  • Dual-Sided AZDEL® Composite Sidewall Panels (Vacuum Bonded & Aluminum Framed) X2 (P)
  • USA-Made Dexter® E-Z Lube® Axles W/5-Year Defect and Lifetime Weld Warranty! (P)

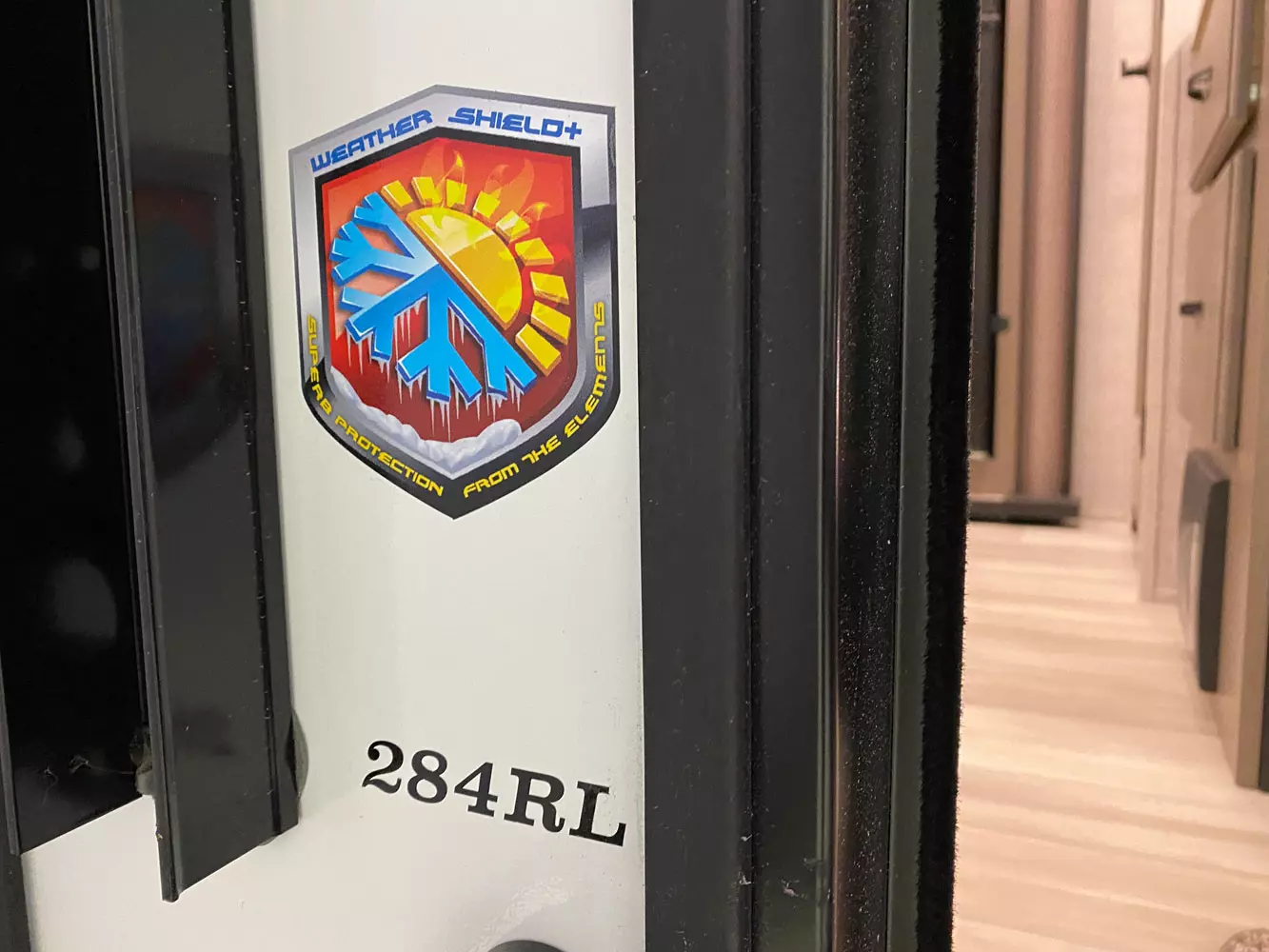

Weather Shield+™ 0° Cold Tested & 110° Hot Tested (Extreme Temperature Chamber) (P)
  • Space Age Reflective Technology (Underbelly, Roof, Slides & More!)
  • Unobstructed & Insulated Pass-Thru Storage (W/ Built-In Tool Storage)
  • Ducted Furnace to Enclosed, Insulated, & Heated Underbelly + Gate Valves (Circulating Heat)
  • R15+ Sidewalls, R47+ Floor, R37+ Roof (Equivalency, Based on 80° F W/ Radiant Barrier)
  • Roof Mounted Solar Panel Prep (Roof Mounted Solar Panel Opt. Avail.) (P)
  • LP Quick Connect Port S
  • Hot/Cold Outside Shower S
  • 15,000 BTU Dual Ducted Main Air Conditioner (+ Wire Frame & Prep For 2nd A/C) (P)
  • 50 AMP Service W/ Detachable Marine Cord W/ LED Indicator (P)
  • Quick Recovery 6 Gallon Gas/Elec. Hot Water Heater (18 GPH) S
  • 12 Volt Battery Disconnect Switch (P)
  • Winegard® Air 360+™ HDTV/Radio Dome Antenna (P)
  • Prepped for Available Winegard Gateway Model: GW-1000 (Adds 4G LTE & Wi-Fi Capabilities) (P)
  • Satellite & Cable TV Hook-Up W/ Independent Satellite Feeds (P)
  • Roadside Assistance + 24/7 Roadside Assistance by SafeRide RV Motor Club™ (P)
  • 10.7 cu. ft. 12V Fridge IPO 8 cu. ft. Gas/Electric Fridge
  • 50" HD LED TV (Living)
  • 55" HD LED TV (Living) (284 Only)
  • 50" HD LED TV in Outdoor Kitchen (284 Only)
  • Free Standing Table & 4 Chairs
  • Comfort Air Fan (Kitchen Only)
  • 2nd 15,000 BTU A/C (Ducted)
  • Electronic Heated Holding Tanks
  • 4-Point Electric Auto-Leveling
  • 2" Accessory Receiver Hitch
  • Roof Mounted Solar Panel
