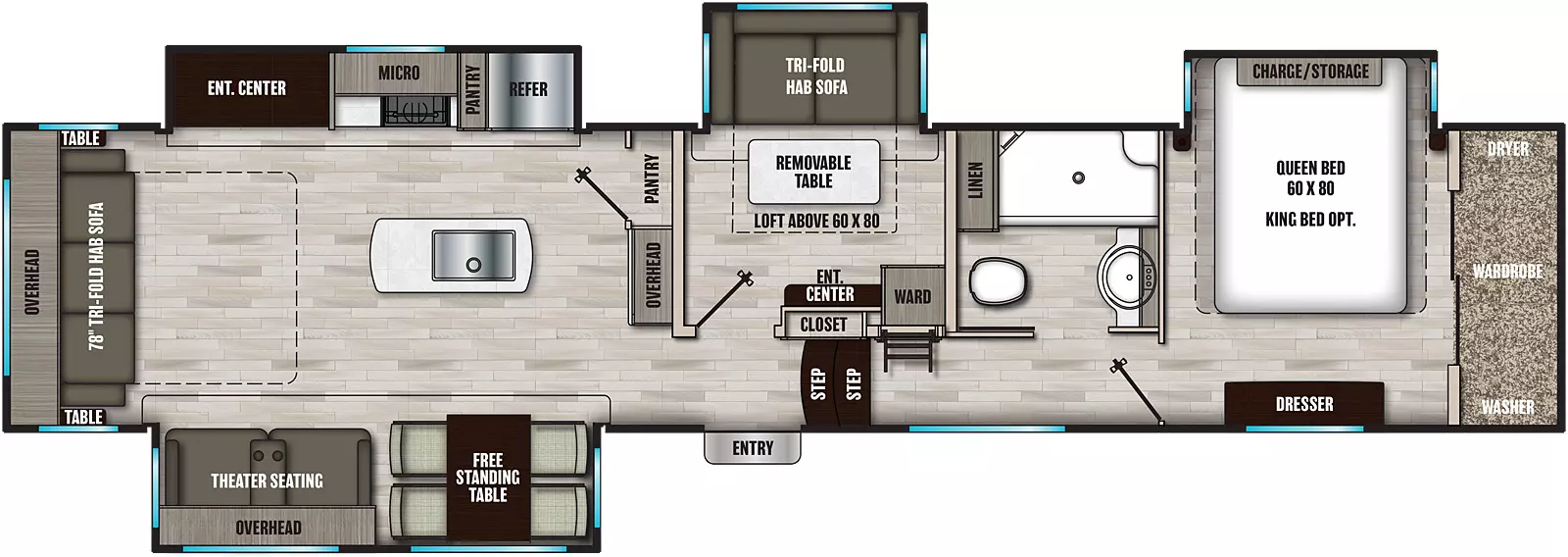

393MBX Floorplan

X Edition Fifth Wheels

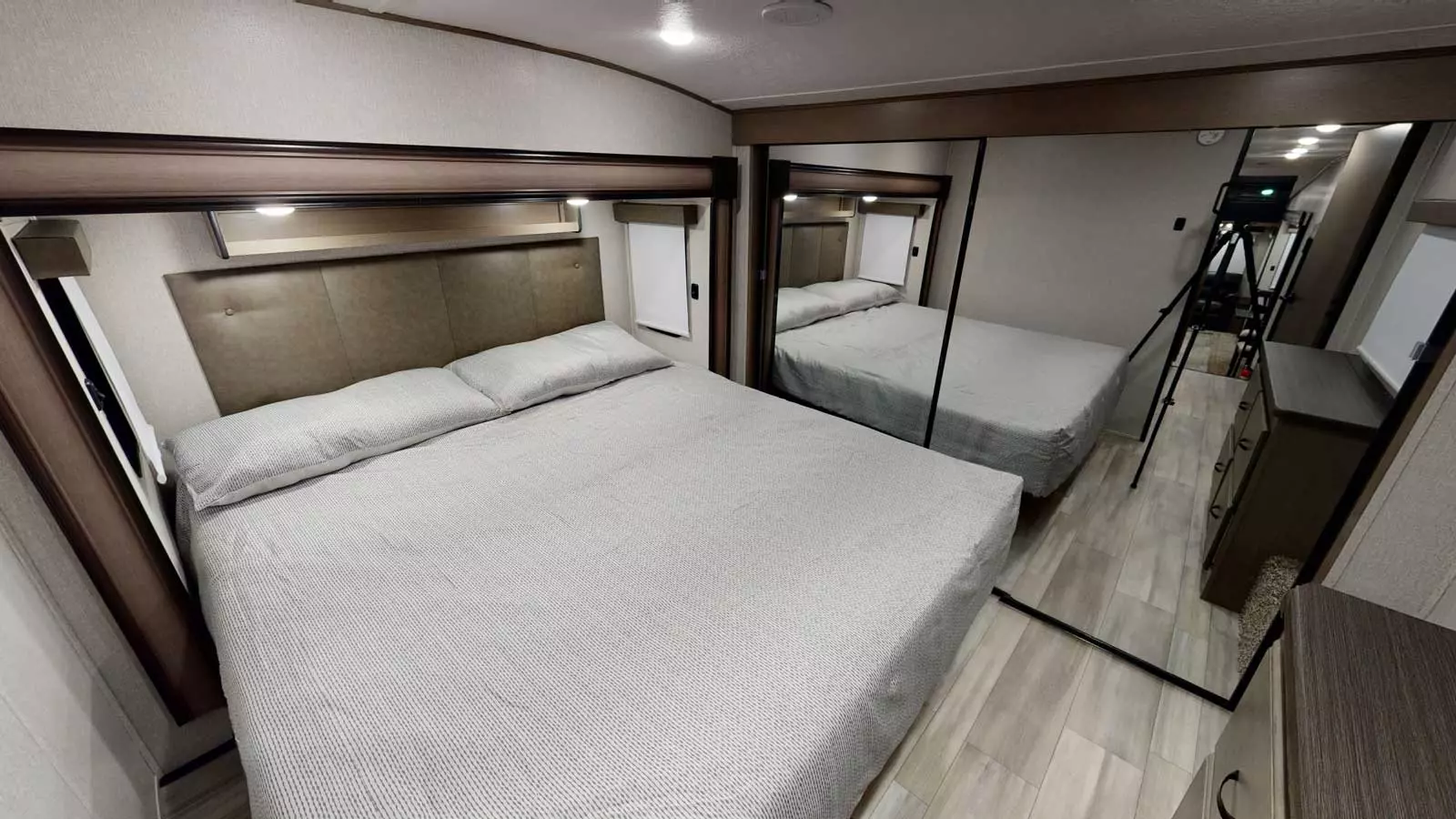

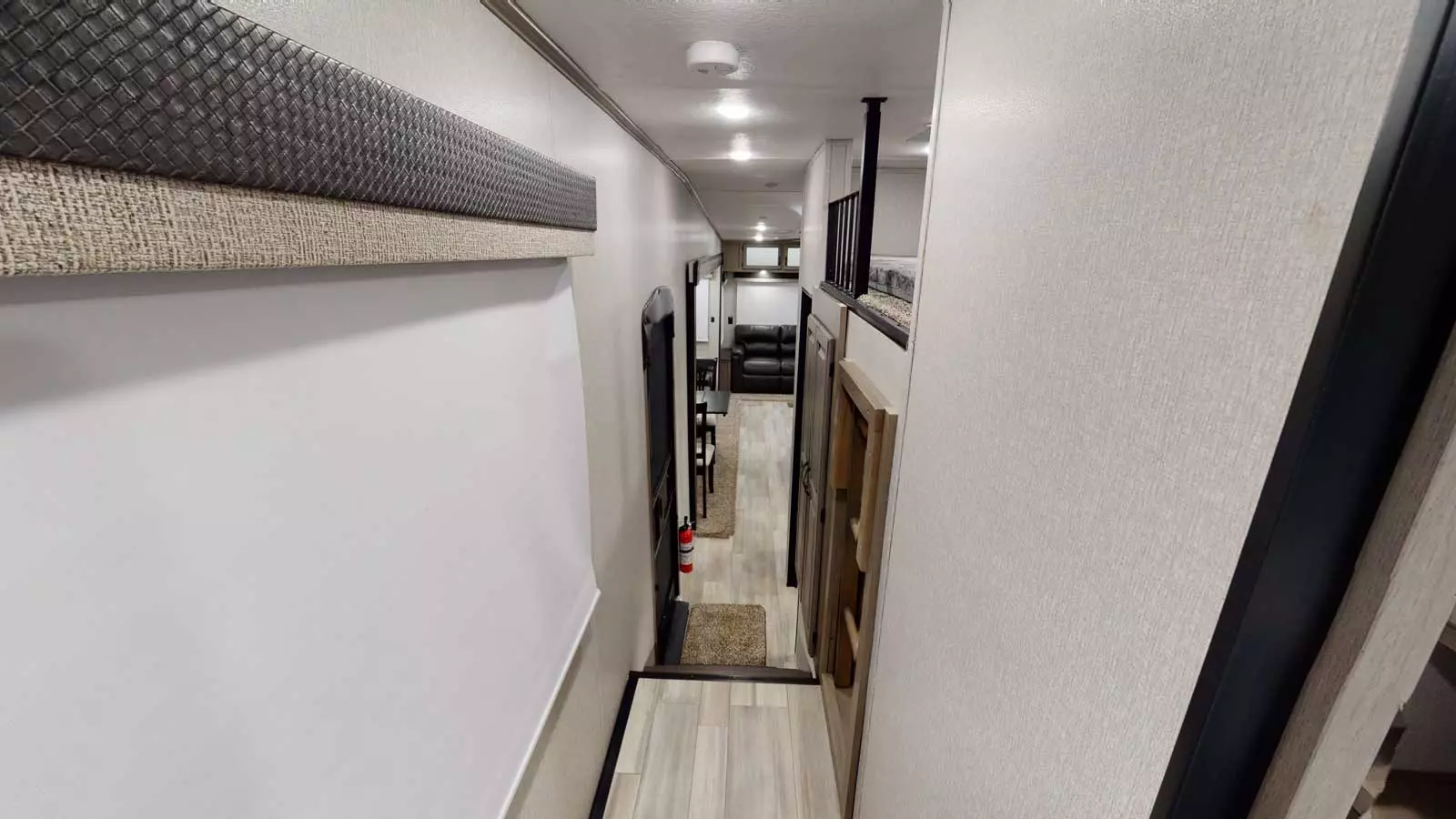

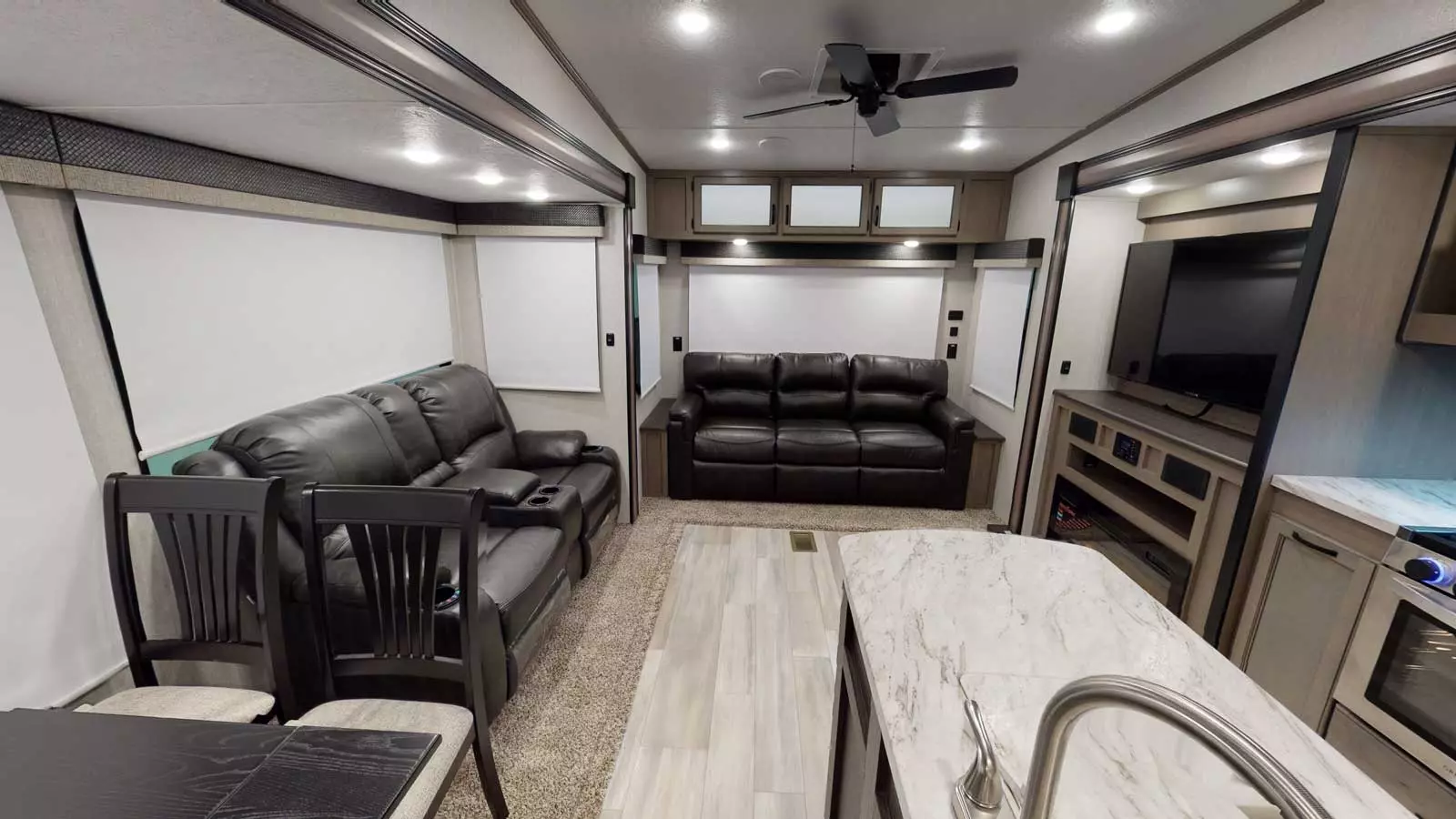

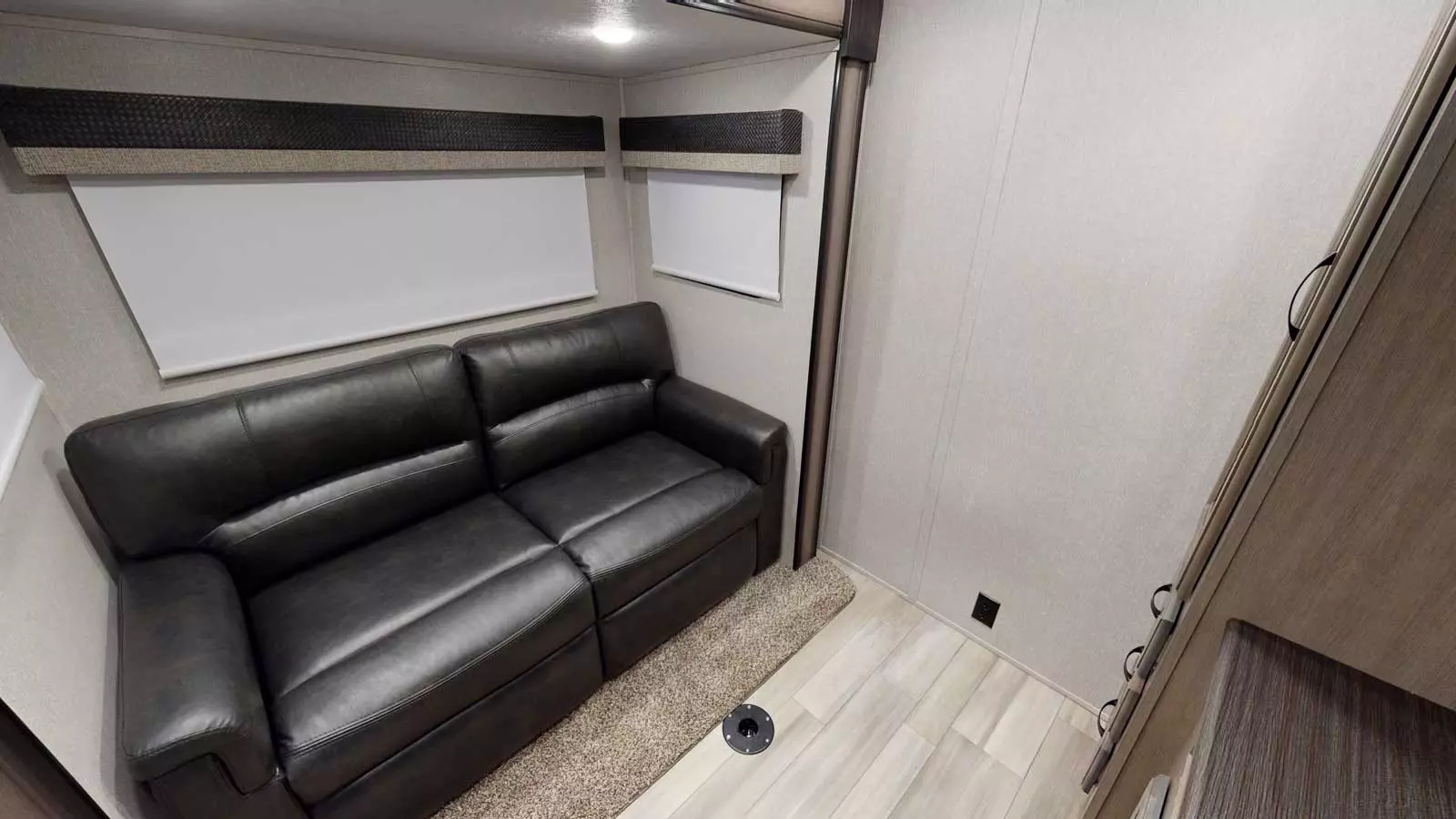

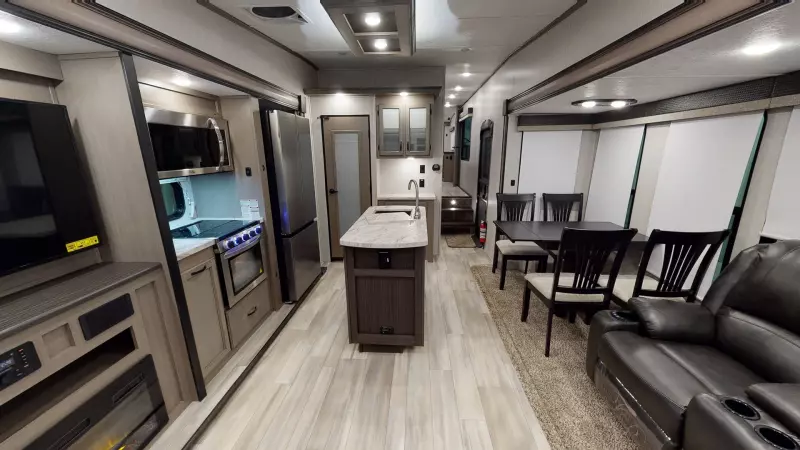

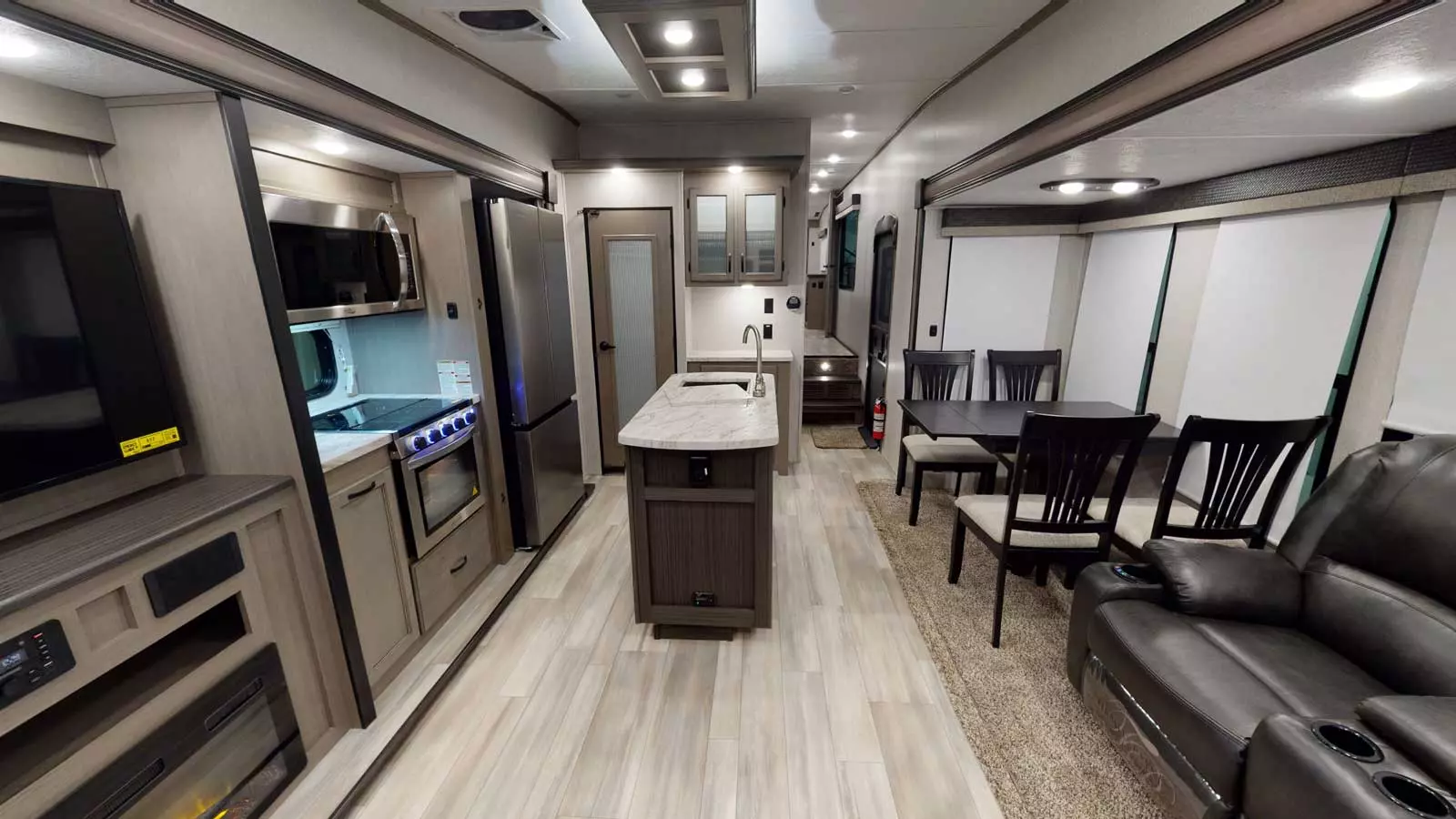

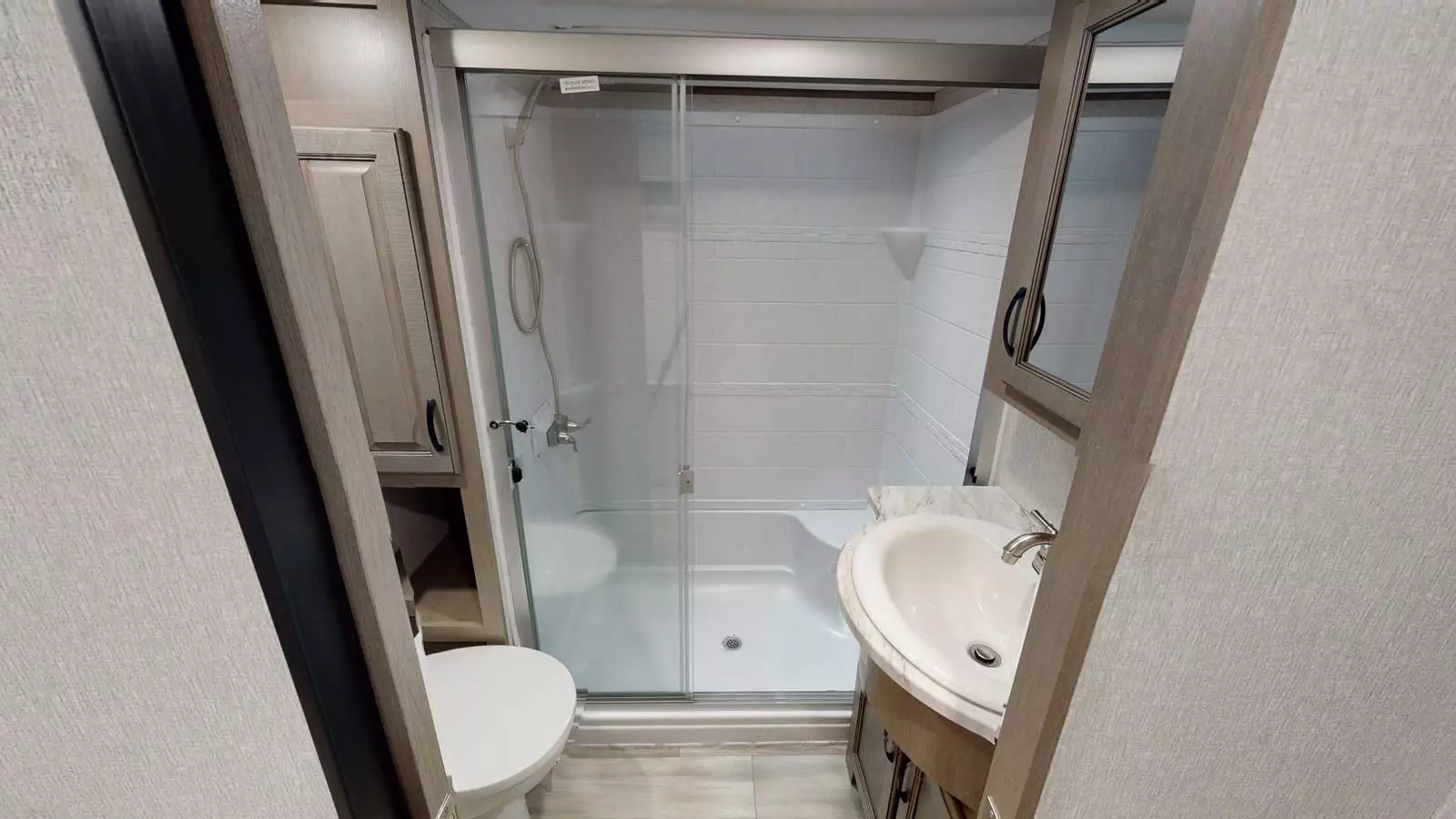

The 393MBX has four slideouts and one entry. Exterior features a refrigerator. Interior layout front to back: front bedroom with front wardrobe with washer and dryer, off-door side queen bed slideout, and door side dresser; off-door side full bathroom with linen closet; ladder to loft above mid room; two steps down to the main entry, closet, and mid room with entertainment center and wardobe along inner wall opposite a tri-fold hide-a-bed sofa slideout with removeable table; overhead cabinet and pantry along inner wall; kitchen island with sink; off-door side slideout with refrigerator, pantry, microwave, counter, and entertainment center; door side free-standing table, and theater seating with overhead cabinet; rear tri-fold hide-a-bed sofa with overhead cabinet and tables on each side. Optional king bed available in place of queen bed.
Enlarge

Specifications

Hitch Weight:
2,498 lb.
GVWR:
15,500 lb.
UVW
13,080 lb.
CCC
2,420 lb.
Exterior Length:
42' 6"
Exterior Height:
TBD
Exterior Width:
96"
Fresh Water:
TBD
Gray Water:
85.00 gal.
Black Water:
45.00 gal.
Awning Size:
TBD



GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)*- is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Coachmen RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Coachmen RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.




Features & Options


  • Dual-Sided AZDEL® Composite Sidewall Panels (Vacuum Bonded & Aluminum Framed) X2 (P)
  • 80% Privacy Tint Safety Glass Windows S
  • Extra Thick Slam Latch Pass Through Storage Compartment Doors W/ Magnet Catches (HD Metal Latches) S
  • Roof Mounted Solar Panel Prep (Roof Mounted Solar Panel Opt. Avail.) (P)
  • Furrion® Exterior Back-Up & Sideview Camera Prep (P)
  • Electric Awning W/ LED Light Strip & One Hand Pitch Adjustment (P)
  • LED Sewer Hose Hook-Up Lights S
  • Solid Step™ Entry (4-Step W/ Extra Large Top Step & LED Entry Step Light) (P)
  • Protective Rear Bumper W/ Accessory Receiver Prep (P)
  • Electric Front Jacks & Electric Rear Stabilizer Jacks (Auto-Level Available) (P)
  • 16" Steel Belted Radial Tires W/ Aluminum Rims (5, 2, 1 Warranty + G-Rated Tires on 7,000lb. Axle Models) (P)
  • Road Armor® Suspension By Trail Air® W/ Heavy Duty Shackles & Wet Bolts S
  • Secret Hidden Hinge Storage (Select Models)* S
  • Free Standing Table & Four Chairs (Hidden Storage in Chairs) N/A 355FBX (P)
  • Thomas Payne® Theatre Seating W/ Heat, Massage, LED Lights, & Cup Holders* (N/A 355FBX) S
  • Thomas Payne®* Memory Foam Tri-Fold HAB Sofa* S
  • Ceiling Fan In Living Room (P)
  • AM/FM Stereo W/ Bluetooth, USB, & Modern Sound Bar (P)
  • Roller Night Shades (P)
  • High BTU Output, Modern Electric Fireplace (P)
  • Large Transom Window At Cooktop Backsplash Location S
  • Modern High Rise Kitchen Faucet S
  • 8 Cubic Foot Refrigerator (XL Residential & Gas/Electric Options Available)* (P)
  • 30" Residential Microwave (P)
  • 21" Oven W/ Residential Cooktop, Glass Cover, & Piezo Ignition S
  • Extra Deep Single Basin Sink (Stainless Steel) S
  • Full Size Shower W/ Sliding Glass Doors & Seat S
  • Power Ceiling Vent Fan (12 Volt) S
  • Large Sink W/ Seamless Thermofoil Lav (No T-Mold) S
  • Large Linen Closet* S
  • Porcelain Toilet W/ Foot Flush S
  • Residential 60” x 80” Pillow Top Mattress & Bedspread (King Options Where Applicable) (P)
  • Bedside Night Stands* S
  • Dual USB Charging Ports S
  • Dual 110 Volt Outlets At Bed* S
  • Ducted A/C Vents W/ Rotator/Closing Louvers S
  • Roller Night Shades (P)
  • Residential 5" Truss Rafters (16" on Center) W/ Full Walk on 3/8" Roof Decking S
  • Tri-Tex Powder Coated Frame Technology (Up To 5X More Weather Resistance!) S
  • Dual-Sided AZDEL® Composite Sidewall Panels (Vacuum Bonded & Aluminum Framed) X2 (P)
  • USA-Made Dexter® E-Z Lube® Axles W/5-Year Defect and Lifetime Weld Warranty! (P)
Weather Shield+™ 0° Cold Tested & 110° Hot Tested (Extreme Temperature Chamber) (P)
  • Space Age Reflective Technology (Underbelly, Roof, Slides & More!)
  • Unobstructed & Insulated Pass-Thru Storage (W/ Built-In Tool Storage)
  • Ducted Furnace to Enclosed, Insulated, & Heated Underbelly + Gate Valves (Circulating Heat)
  • R15+ Sidewalls, R47+ Floor, R37+ Roof (Equivalency, Based on 80° F W/ Radiant Barrier)
  • Roof Mounted Solar Panel Prep (Roof Mounted Solar Panel Opt. Avail.) (P)
  • LP Quick Connect Port S
  • 50 AMP Service W/ Detachable Marine Cord W/ LED Indicator (P)
  • 15,000 BTU Ducted Main Air Conditioner + 15,000 BTU Ducted Bedroom Air Conditioner* (P)
  • Quick Recovery 10 Gallon Gas/Elec. Hot Water Heater (20 GPH) (P)
  • Winegard® Air 360+™ HDTV/Radio Dome Antenna (P)
  • Prepped for Available Winegard Gateway Model: GW-1000 (Adds 4G LTE & Wi-Fi Capabilities) (P)
  • Satellite & Cable TV Hook-Up W/ Independent Satellite Feeds (P)
  • Washer/Dryer Prep (P)
  • Outside Convenience Center W/ Black Tank Flush, Hot/Cold Shower, Water Filtration Prep, & WH Bypass (P)
  • Roadside Assistance + 24/7 Roadside Assistance by SafeRide RV Motor Club™ (P)
  • 50" HD LED TV (Living)
  • King Bed IPO Standard Queen
  • 10.7 cu. ft. 12V Fridge IPO 8 cu. ft. Gas/Electric Fridge
  • 12 cu. ft. Fridge IPO 8 cu. ft. Gas/Electric Fridge
  • 17 cu. ft. 12V Fridge IPO 8 cu. ft. Gas/Electric Fridge
  • Comfort Air Fan (Kitchen Only)
  • 3rd 15,000 BTU A/C
  • 4-Point Electric Auto-Leveling
  • Electronic Heated Holding Tanks
  • 2" Accessory Receiver Hitch
  • Roof Mounted Solar Panel
