Catalina Trail Blazer Toy Haulers

Introducing the newest segment to the Catalina line-up, the Trail Blazer toy hauler. The Trail Blazer is a versatile new line that gives RV users the functionality of a toy hauler, with the luxury and amenities of a travel trailer. Designed to provide an abundant number of uses that fit the RV lifestyle, the Trail Blazer is assembled with a focus on quality and functionality. Steel-to-steel tie-downs and tongue-and-groove plywood floors secure the garage, while a full kitchen, entertainment center, bed and bathroom provide exceptional living quarters. An optional party deck transforms the loading ramp into usable space that turns this unit into the ultimate weekend warrior! Offered in two floorplans, the 19TH and 26TH provide campers with extreme functionality without lacking any amenities.

* Due to the current environment our features and options are subject to change due to material availability


RV Pro Best New Model 2021Care Camps, fighting cancer and making memoriesLink opens in a new tab/window

Floorplans

Print

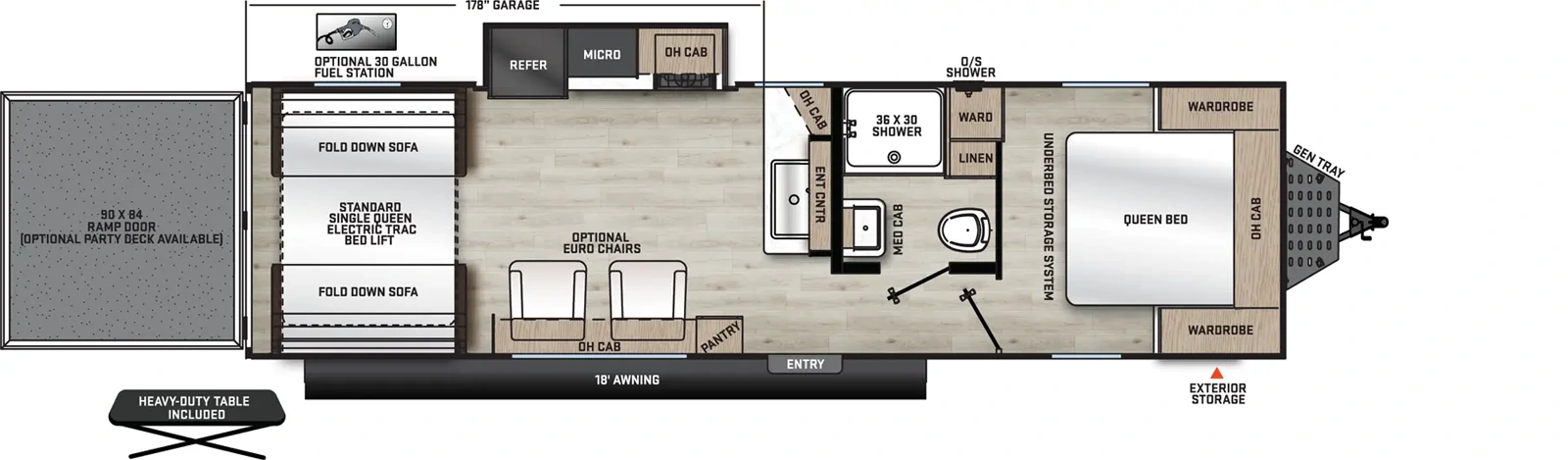

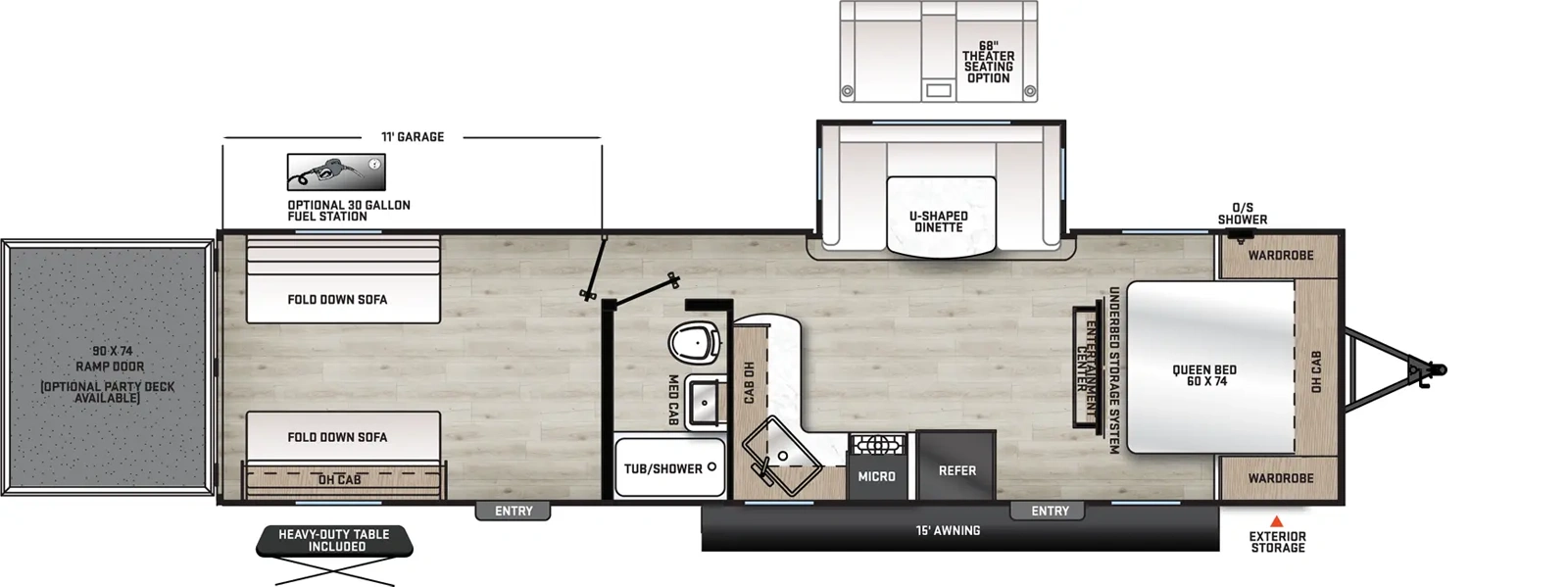

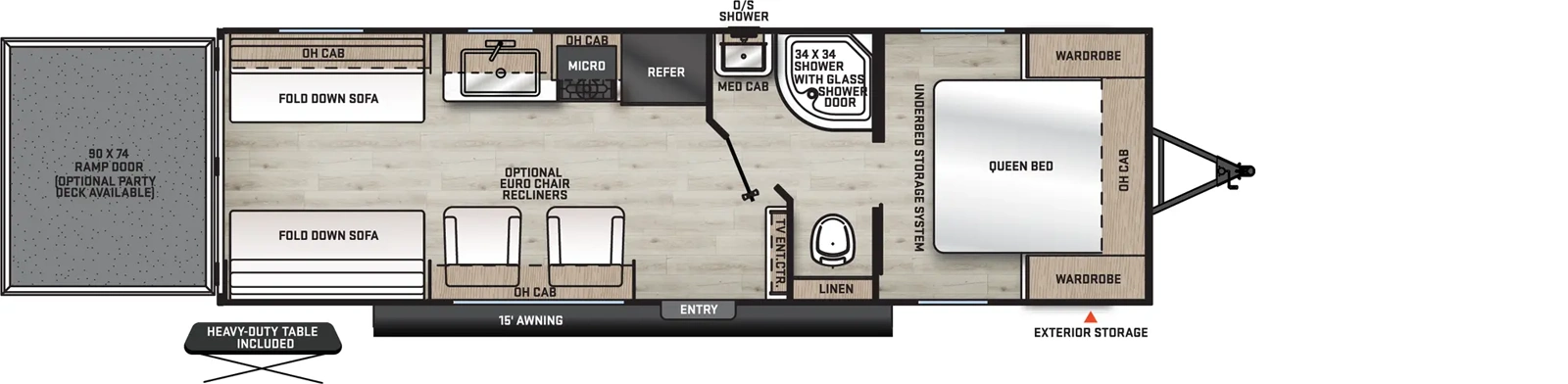

Trail Blazer Floorplans


Specifications

Print

Floorplan: 26TH : Trail Blazer Floorplans 28THS : Trail Blazer Floorplans 29THS : Trail Blazer Floorplans 30THS : Trail Blazer Floorplans
Hitch Weight:957 lb.1,126 lb.1,206 lb.1,382 lb.
GVWR:7,900 lb.10,500 lb.9,800 lb.10,500 lb.
UVW:5,486 lb.7,226 lb.7,082 lb.7,600 lb.
CCC:2,414 lb.3,274 lb.2,718 lb.2,900 lb.
Exterior Length:30' 0"33' 10"35' 8"36' 1"
Exterior Height:10' 7"12' 0"11' 1"11' 10"
Exterior Width:96"96"96"96"
Fresh Water:44.00 gal.98.00 gal.44.00 gal.98.00 gal.
Gray Water:40.00 gal.40.00 gal.40.00 gal.70.00 gal.
Black Water:30.00 gal.30.00 gal.30.00 gal.30.00 gal.
Awning Size:15'18'15'18'

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)*- is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Coachmen RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Coachmen RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Features & Options

Print

* Due to the current environment, our features and options are subject to change due to material availability.


  • Universal Solar Prep w/ Installed Roof Panel Port
  • Full Length Frame E-Coated Outriggers
  • 5/8" Tongue & Groove Plywood Floor Decking
  • 2"x3" Floor Joists on Approximately 12" Centers
  • 5" Floor To Frame Steel Lag Bolts
  • Enclosed, Fully Sealed Underbelly
  • Darco Subfloor Protective Wrap/Enclosure
  • 3/8" Fully Decked Walk-On Roof
  • Seamless Alpha Roof Membrane with Lifetime Warranty
  • Screwed Cabinet Construction w/Pocket Bored Lumber Core Stiles
  • 5/8" Plywood Under Bed & Dinette Base
  • 6’9” Interior Height
  • Easy-Trac Rack and Pinion Slide-Out(s)
  • R-7 Fiberglass Insulation Throughout
  • 6 Gal. Gas/Electric DSI Water Heater
  • Water Heater By-Pass Winterization Kit
  • 12V Demand Water Pump
  • Premium Exterior Graphics Package
  • Upgraded Front Graphics Design
  • Platinum .024" Aluminum Exterior w/.030 Skirt Metal
  • Smooth HD Aluminum Radius Front
  • Polished HD Aluminum Fender Skirts
  • Spare Tire
  • Dexter EZ Lube Axles w/Leaf Spring Suspension
  • Self Adjusting Brakes
  • Roto-Cast Holding Tanks
  • Painted Bumper w/ Drain Hose Carrier and End Caps
  • 30,000 BTU Auto-Ignition Furnace w/Wall Thermostat
  • 13,500 BTU Fully Ducted A/C
  • 30 Amp Elect. Service w/ 100v 45-Amp Power Covt.
  • Upgraded Aluminum Wheels
  • Magnetic Baggage Door Latches
  • Full Lino in Slides and Bedroom
  • Cambered Structural Steel I-Beam Frame
  • Electric Awning w/Multicolor LED Strip & Remote -Carefree
  • Electric Tongue Jack
  • Black Tank Flush
  • Battery Disconnect Switch
  • Outside Utility Shower w/ Hands Free Holder
  • 20lb. LP Tank (2) w/ABS Cover
  • LP Quick Connect
  • Flush Mount Baggage Doors w/Radius Corners
  • Diamond Plate Rock Guard
  • Stabilizer Jacks
  • G20 Tinted Privacy Windows
  • (2) JBL Elite Exterior Speakers
  • Friction Hinge Door
  • Radius Cornered Fiberglass Entry Door w/ Window
  • Exterior 110V G.F.C.I Protected Receptacle
  • Exterior RG-6 Coax Cabling and Satellite Prep
  • Exterior TV Hookup
  • Rain Gutters with Drip Spouts
  • Standard Solid Step at Main Entry Door
  • XL Swing Arm Entry Assist Handle (Main Entrance Only)
  • Rear View Camera Prep
  • 15' Toy Loc Cable
  • Lockable Ramp Door Latches
  • Rear LED Loading Lights
  • Pets - "Leash Link" Quick Hookup D-Ring
  • Smoke Alarm
  • LP/CO Gas Detector
  • Fire Extinguisher
  • Fire Escape Windows
  • Entrance Door Window
  • Dead-Bolt Lock on Entry Door
  • SafeRide RV Motor Club (1 YR Roadside Assistance)
  • (2) 12V 14" Ceiling Vent Fans (Living Room & Bathroom)
  • JBL Aura MP3/FM Stereo w/Bluetooth and USB Charge Port
  • (2) Multizonal JBL Premium Interior Speakers

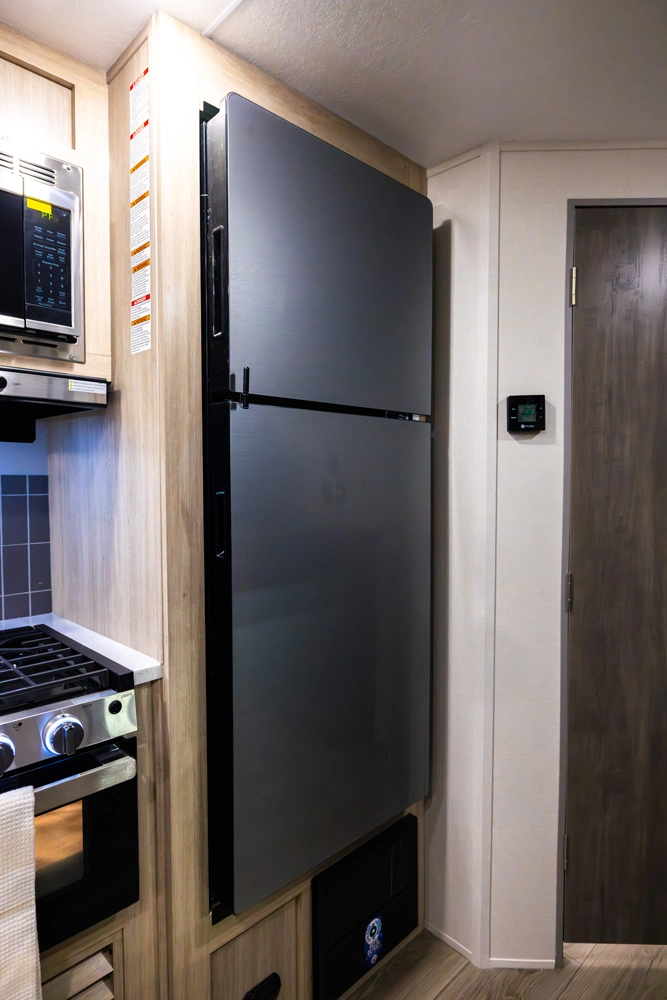

  • 10 Cu. Ft. 12V Refrigerator
  • Seamless Thermofoil Countertops Throughout
  • Under-mount Farm Style Sink
  • Residential Kitchen Faucet w/Pull Down Sprayer
  • Flush Counter Kitchen Sink Covers (2-Tandem Axle Models)
  • Full Length Kitchen Drawer Guides
  • LCI One Control Monitor Panel System

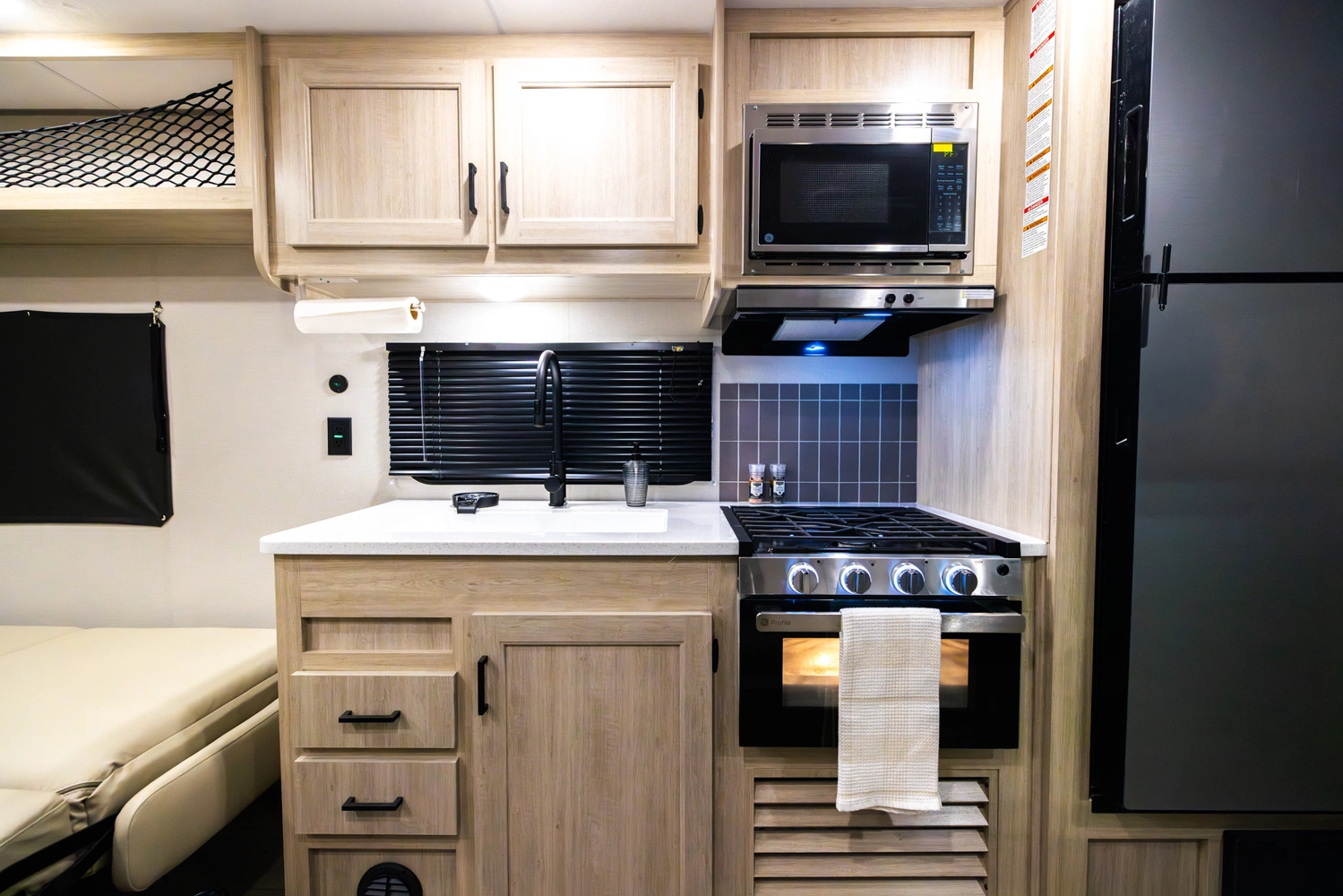

  • 3 Burner SST Range w/Flush Glass Top & LED Accent's
  • Slim Line Range Hood
  • Silverware Kitchen Drawer
  • Microwave W/Glass Turn Table
  • Congoleum Woodplank Linoleum Flooring (including Slides and Bedroom)
  • Flex Ducted Cabinet/Wall Heat
  • 4,000 Lumen Interior Lighting
  • Hard Valance Window Treatment w/Decorative Lambrequins
  • Pleated Night Window Shades

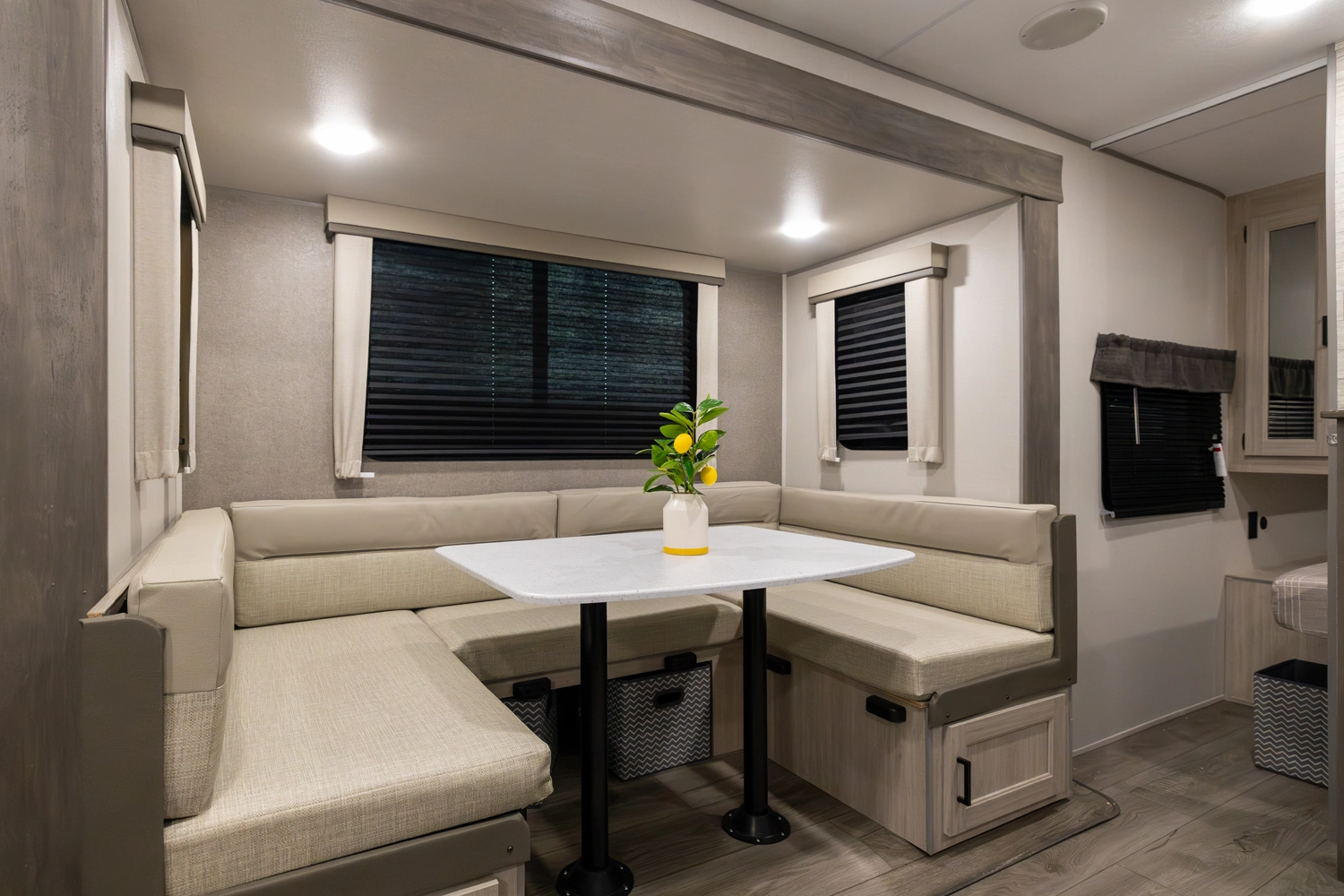

  • Pedestal Thermofoil Dinette Table (29THS only)
  • Under Bench Dinette Storage (29THS only)
  • Easy Access Booth Dinette Storage Doors (29THS only)

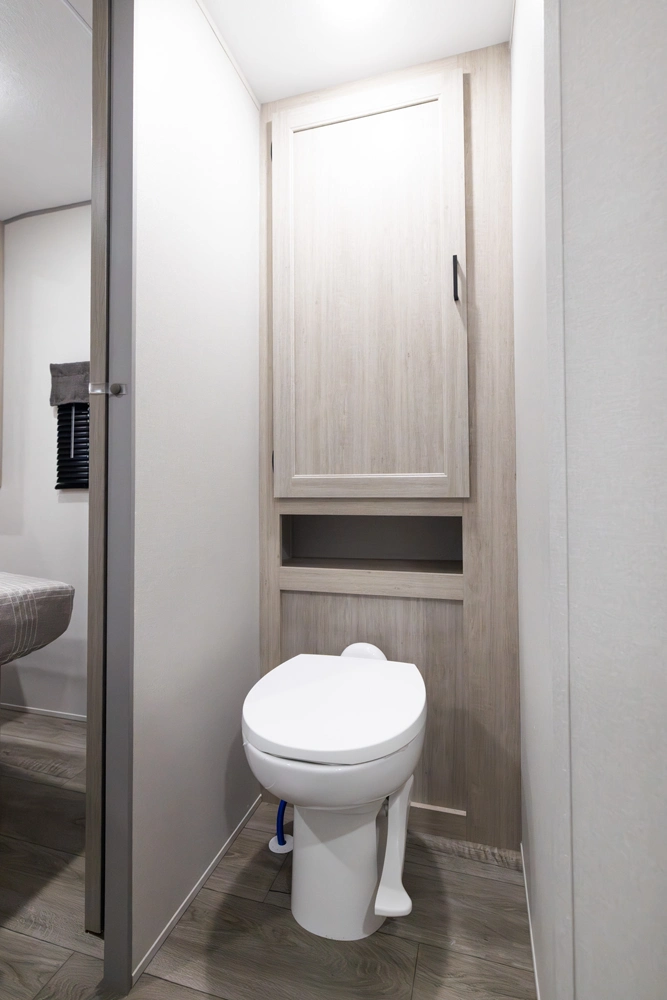

  • Marine Toilet with Foot Flush

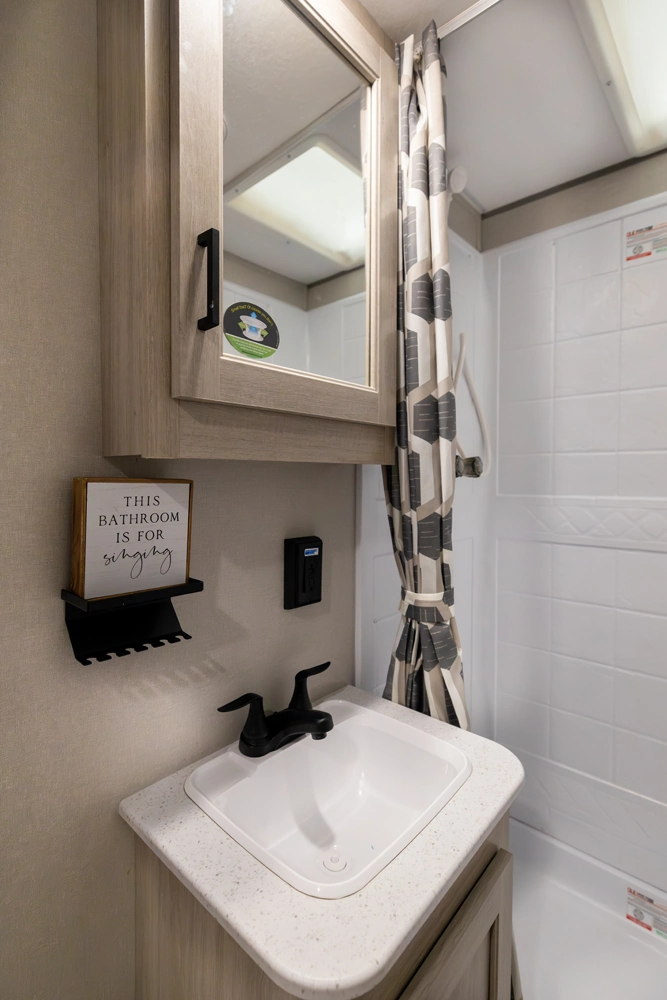

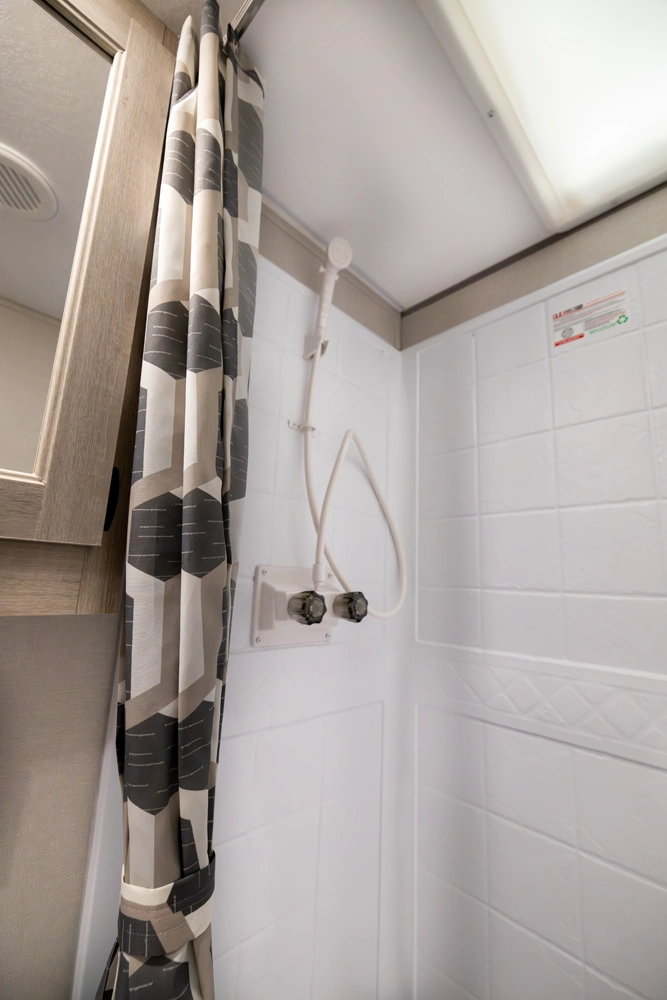

  • ABS Tub/Shower Surround w/Shelves
  • Skylight Above Tub/Shower

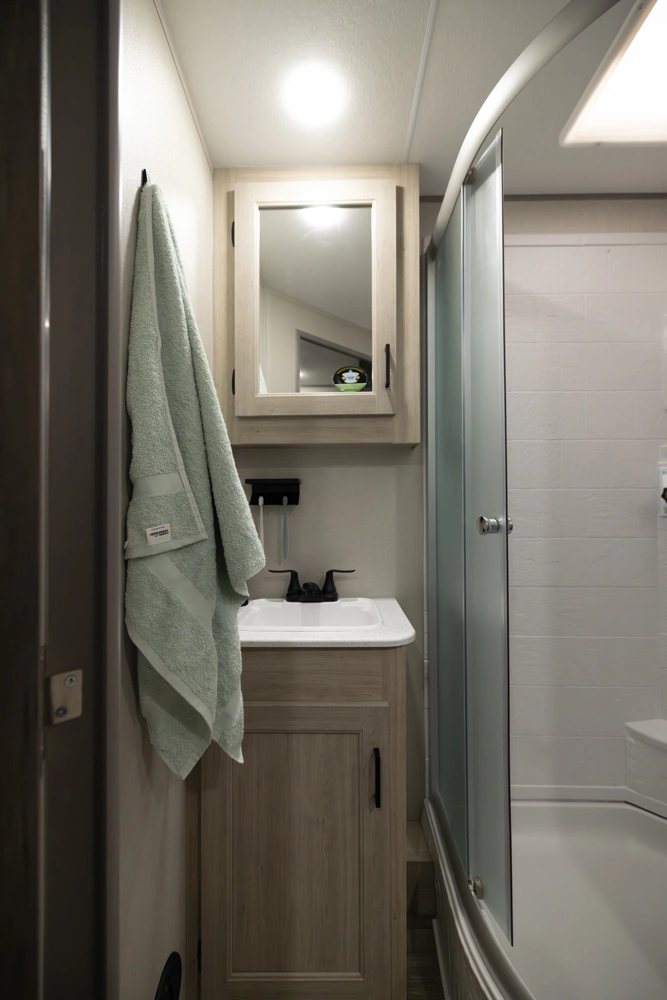

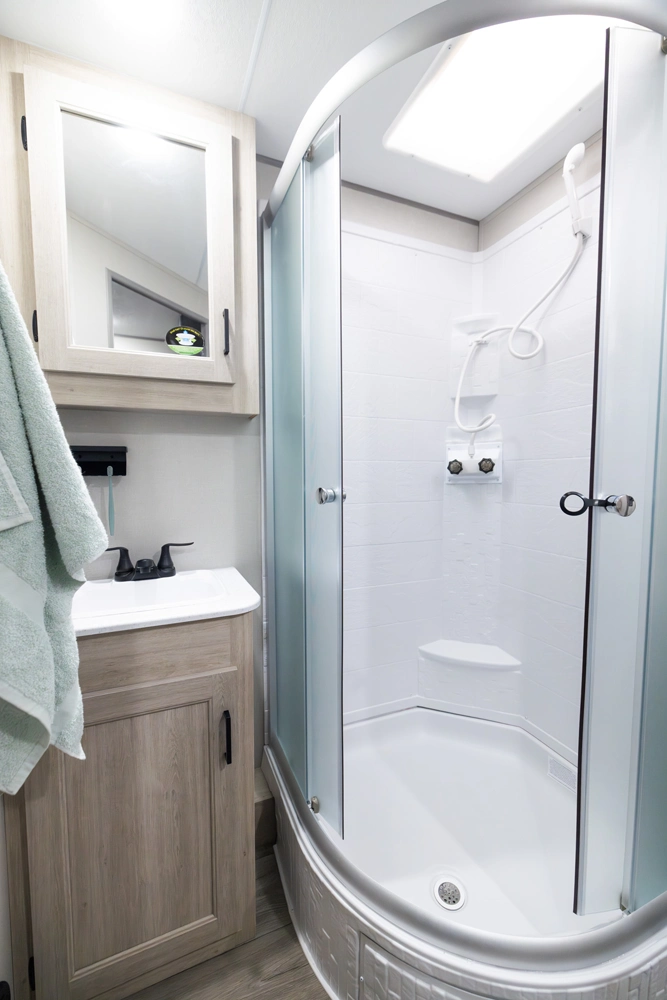

  • Glass Step-In Shower w/ABS Surround (Per Floorplan)
  • Medicine Cabinet with Mirror
  • Bedroom USB Surface Mounts(2)
  • Kitchen USB's & Outlets
  • Solid Master Bedroom Door(s) (Per Floorplan)
  • Full Length Night Stands
  • Mirrored Wardrobes in Master Bedroom (N/A King Bed Models)

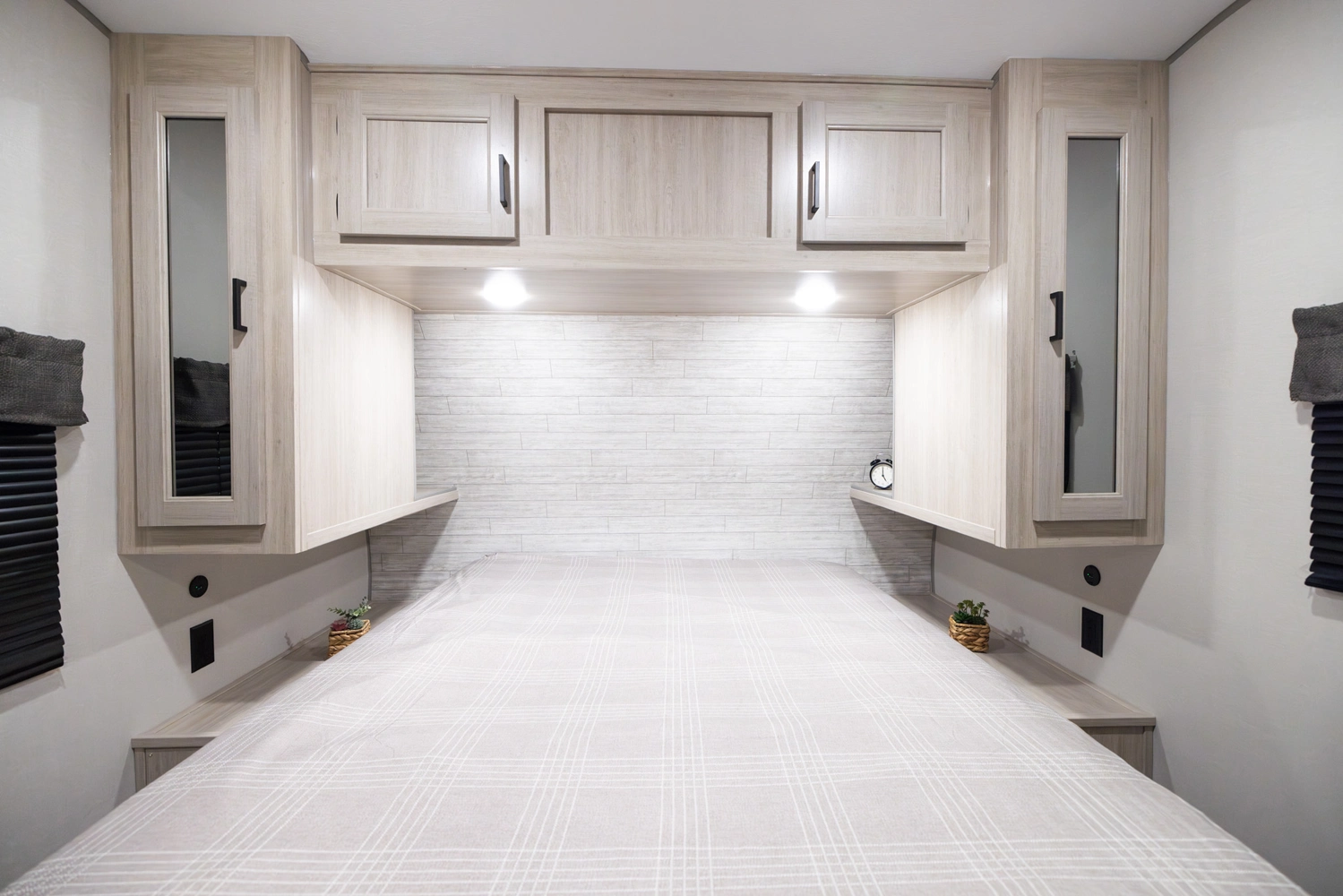

  • Master Bedroom Overhead Cabinets
  • Underbed Storage w/Separation from Outside Front Storage
  • Designer Fitted Master Bed Sheet

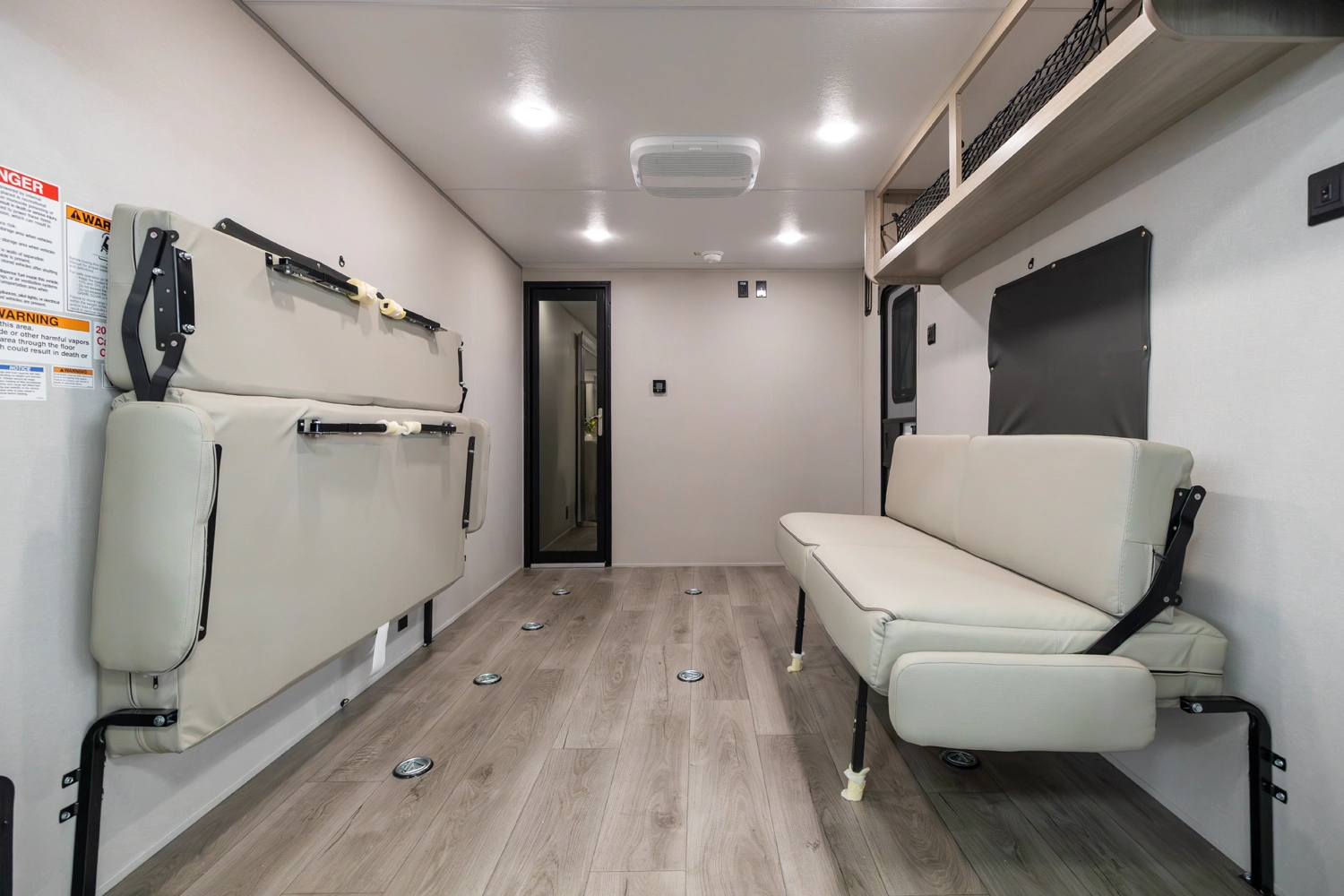

  • 500LB. Tie Down - 10-12 Ties per Floorplan
  • Rear Loading Cargo Door w/3000lb. Capacity
  • Black Out Screen Wall w/Zip Walk-Thru & Windows
  • Rock Run Reinforced Interior Drive On Wheel Wells (26TH Only)
  • Magnydyne 4G LTE Connectivity with WiFi Booster and Extender
  • Siphon 360 Roof Vent in Bathroom
  • Accent Wall Board Behind Entertainment Center and Bedroom”
  • 7 Cu. Ft. LP Gas/Electric RV Refrigerator w/Reversable Door Inserts
  • 15,000 BTU Ducted A/C IPO 13.5 A/C
  • Steel Fold Down Steps IPO Standard Solid Steps at Main Entry Door
  • 50 Amp Service w/2nd 13.5 A/C (28TH, 29THS, 30THS)
  • 50 Amp Service w/2nd A/C Prep (28TH, 29THS, 30THS)
  • Peak Performance Solar Package – 200W Panel w/ 30 A Solar Controller
  • Tri-Fold Hide A Bed Sofa (29THS only)
  • Ramp Door Patio & Railing System
  • Fuel Station w/ 30 Gallon Fuel Tank (N/A 26TH)
  • CSA Standards

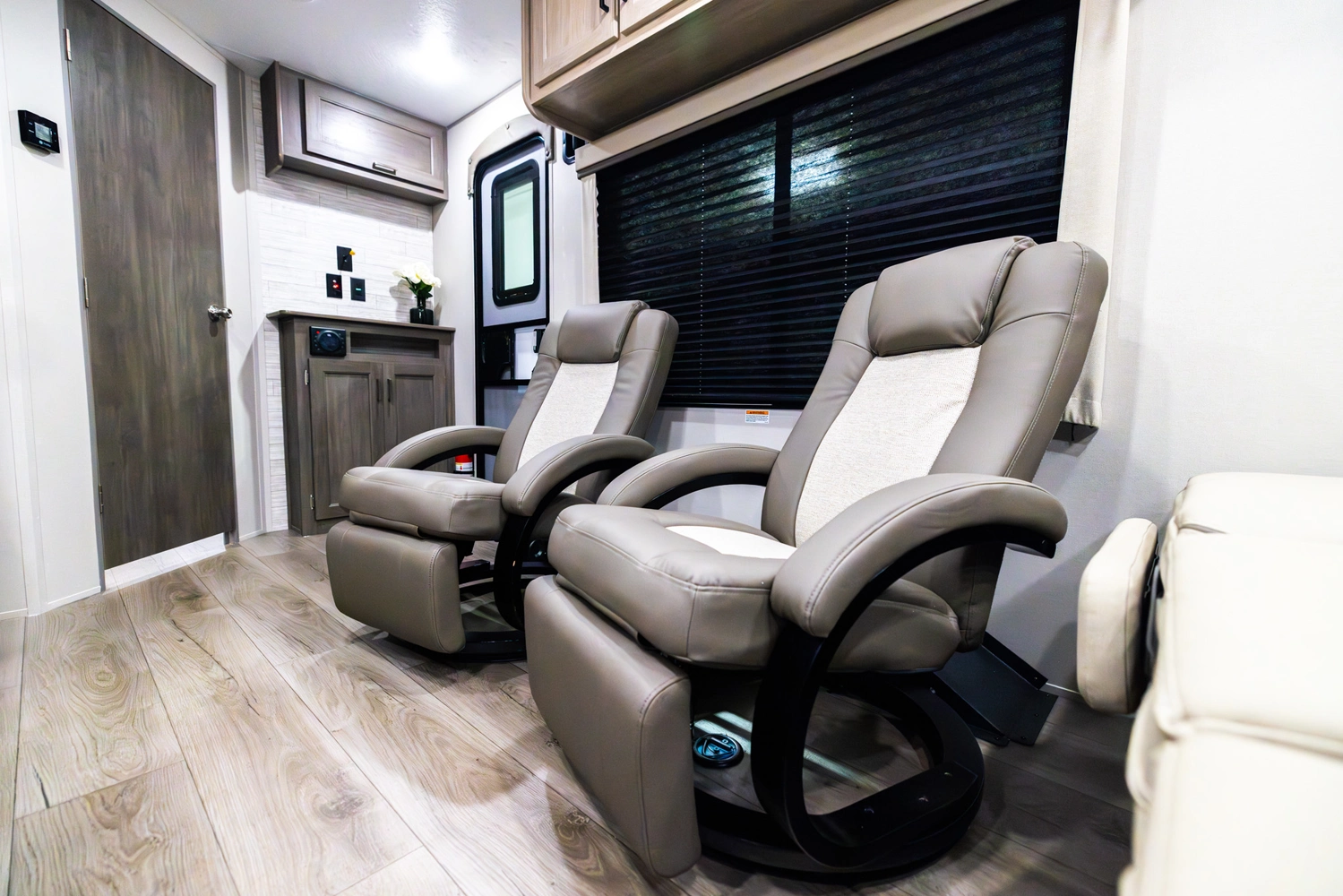

  • (2) Pushback Recliners (26TH, 28THS, 30THS, Only)
