30THS Floorplan

Trail Blazer Floorplans

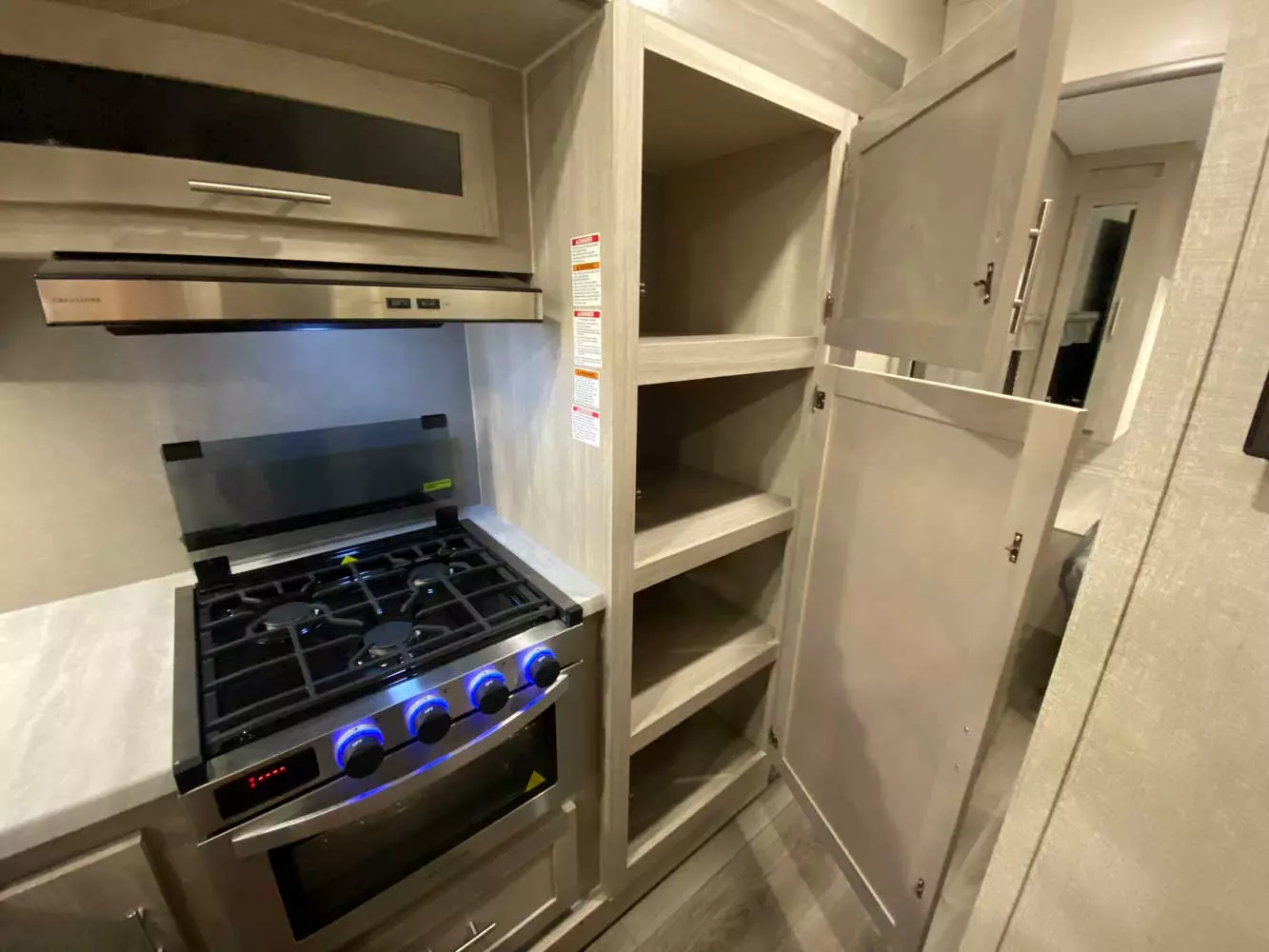

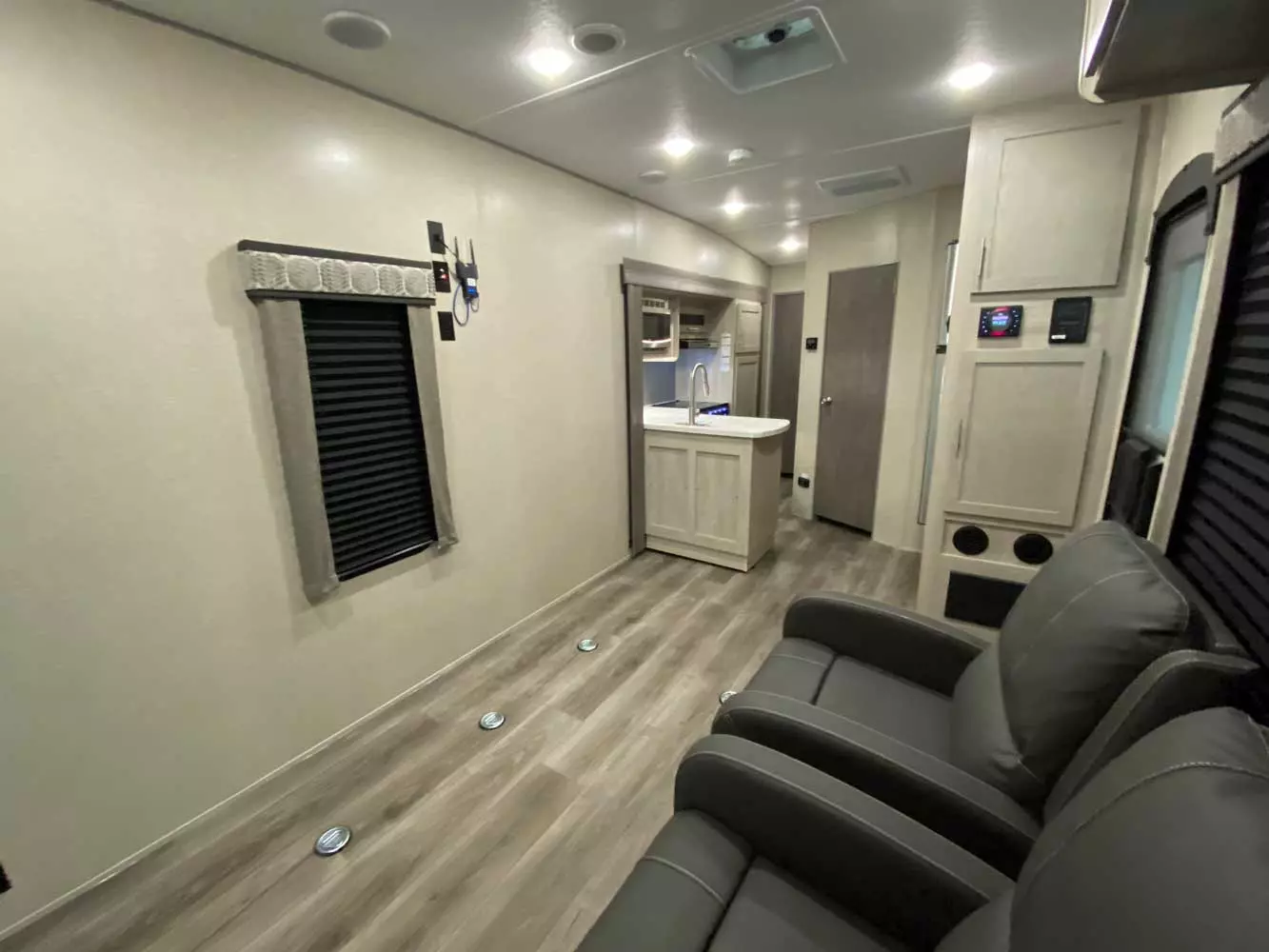

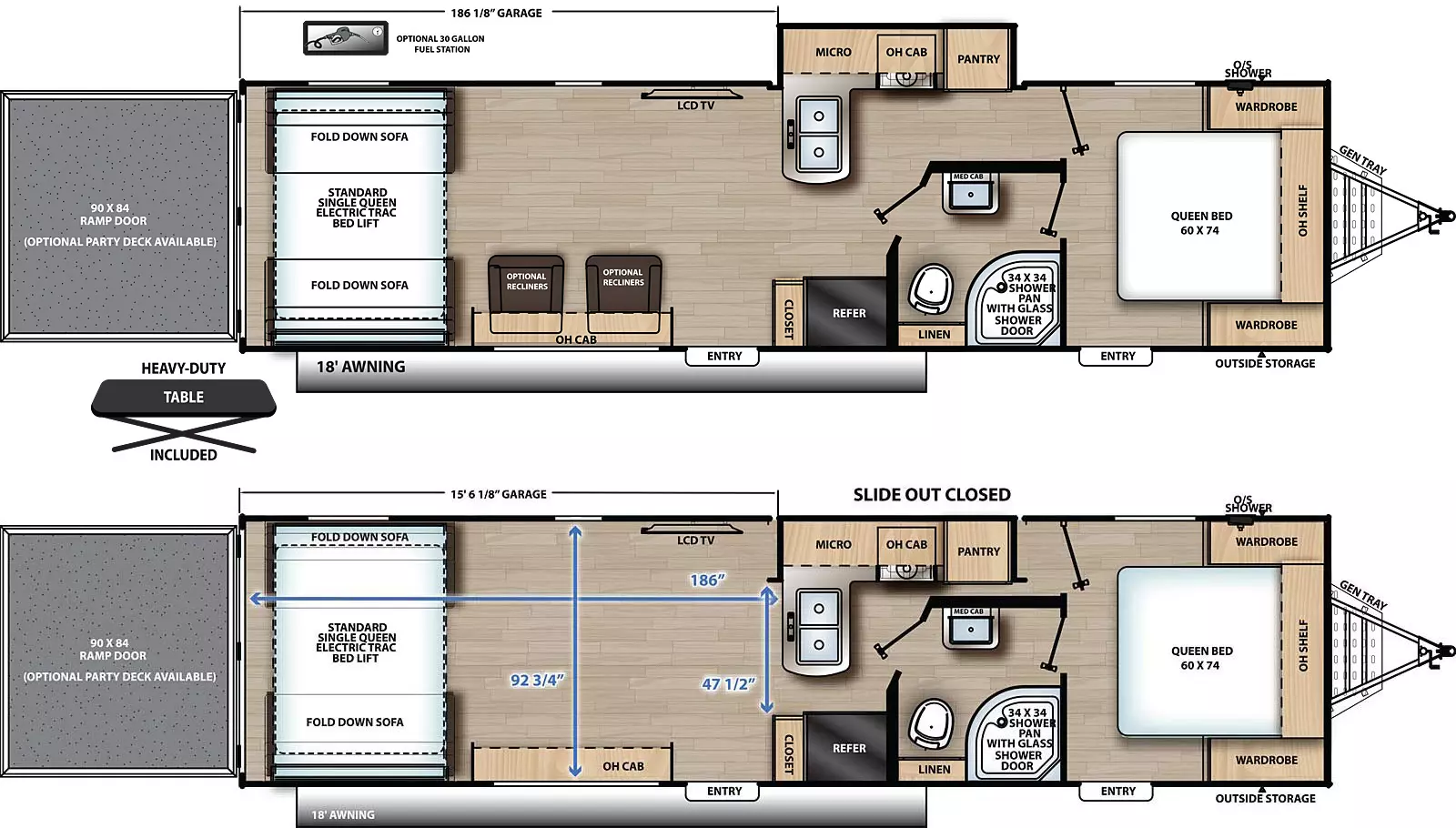

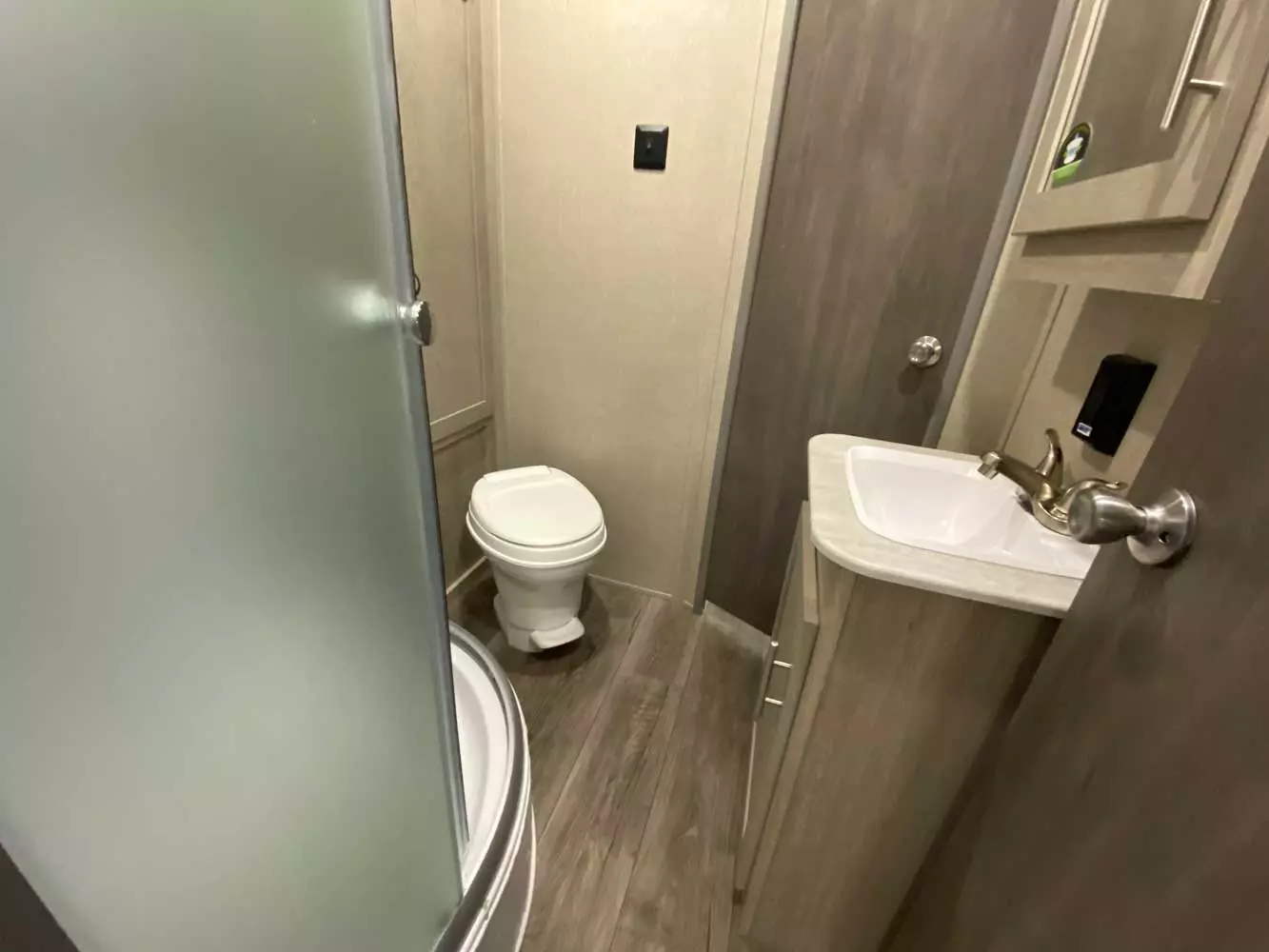

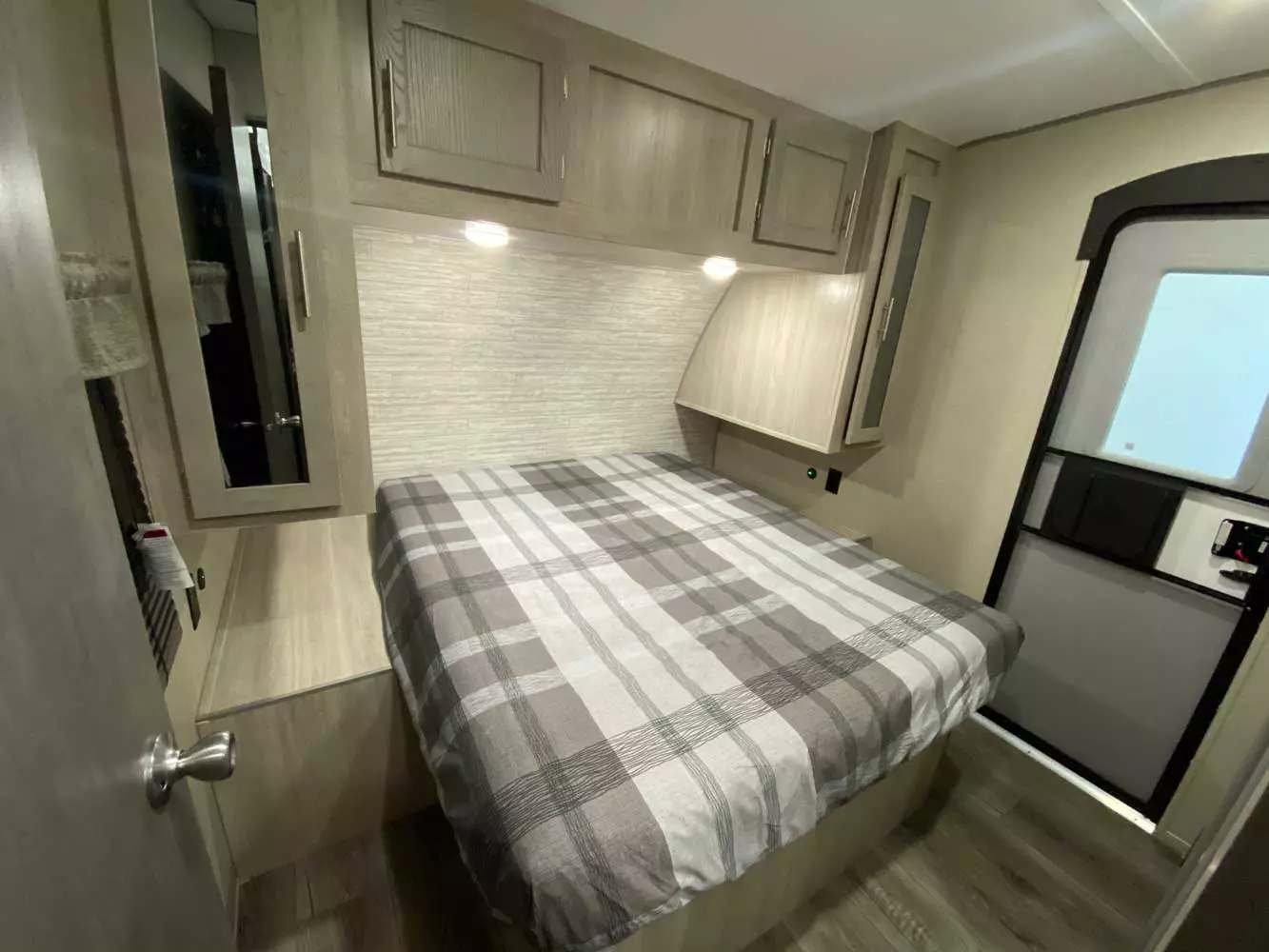

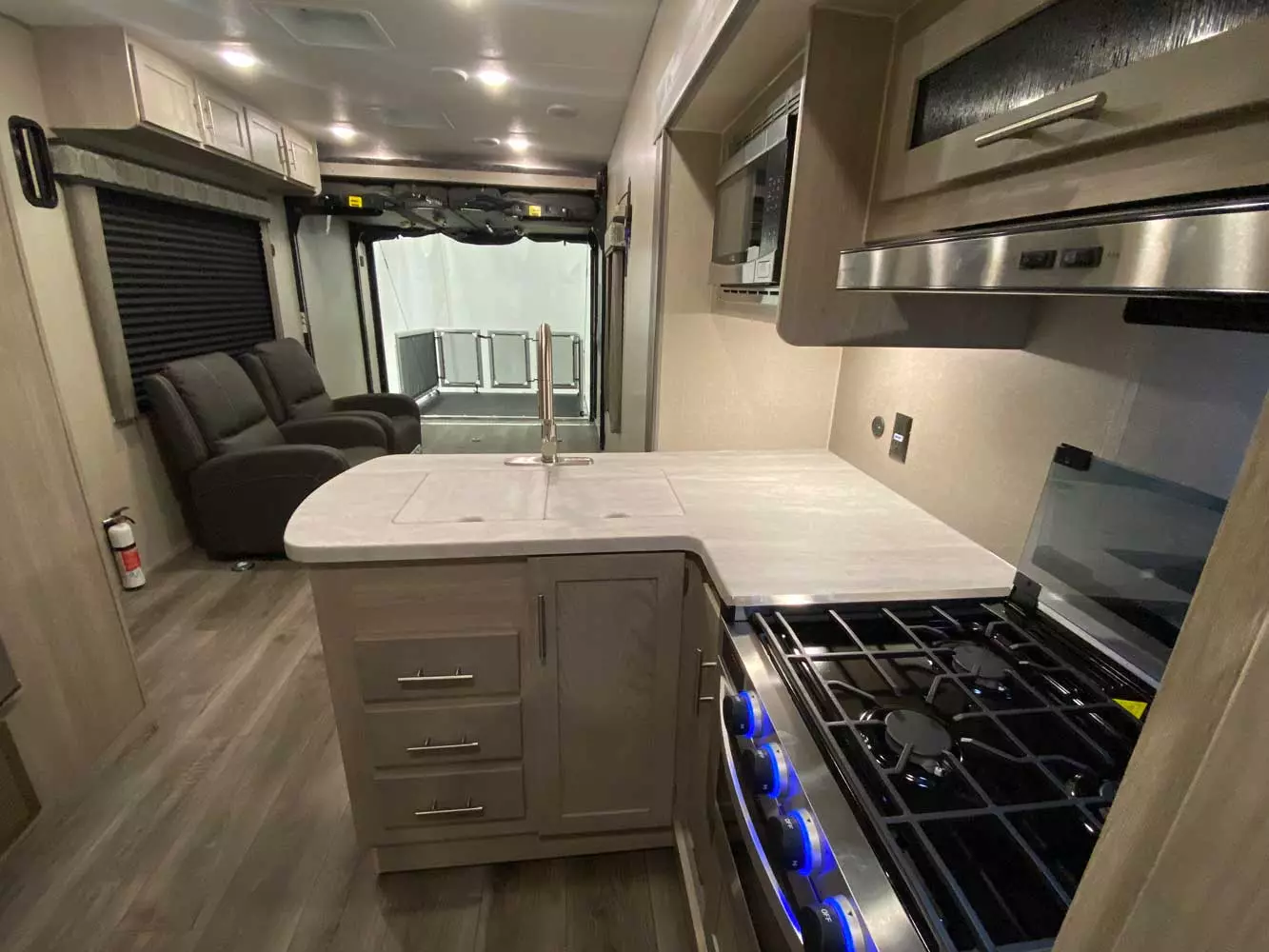

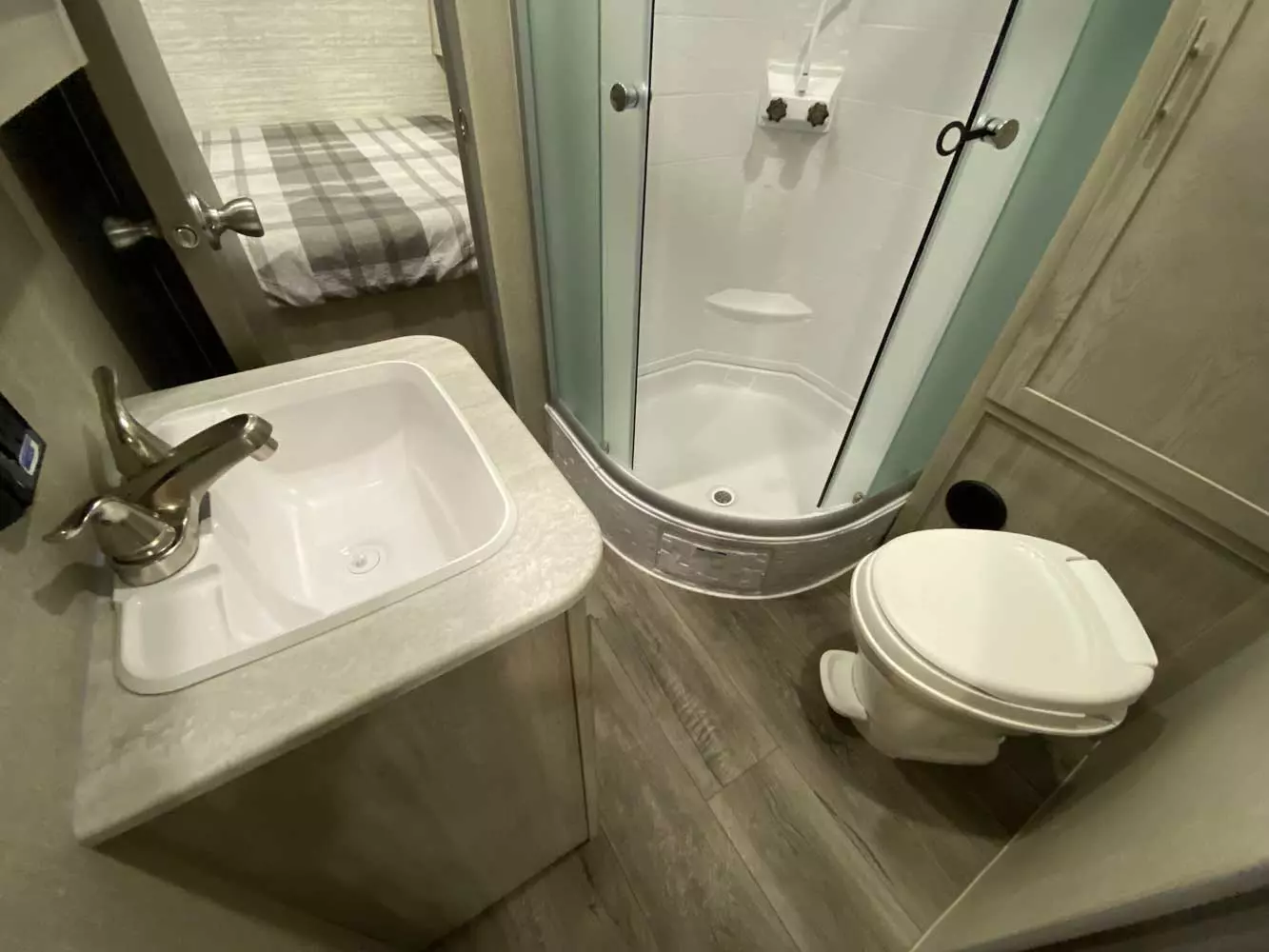

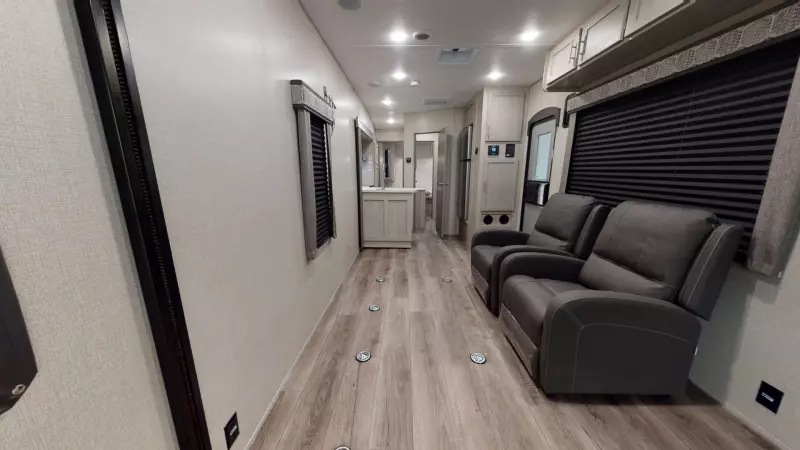

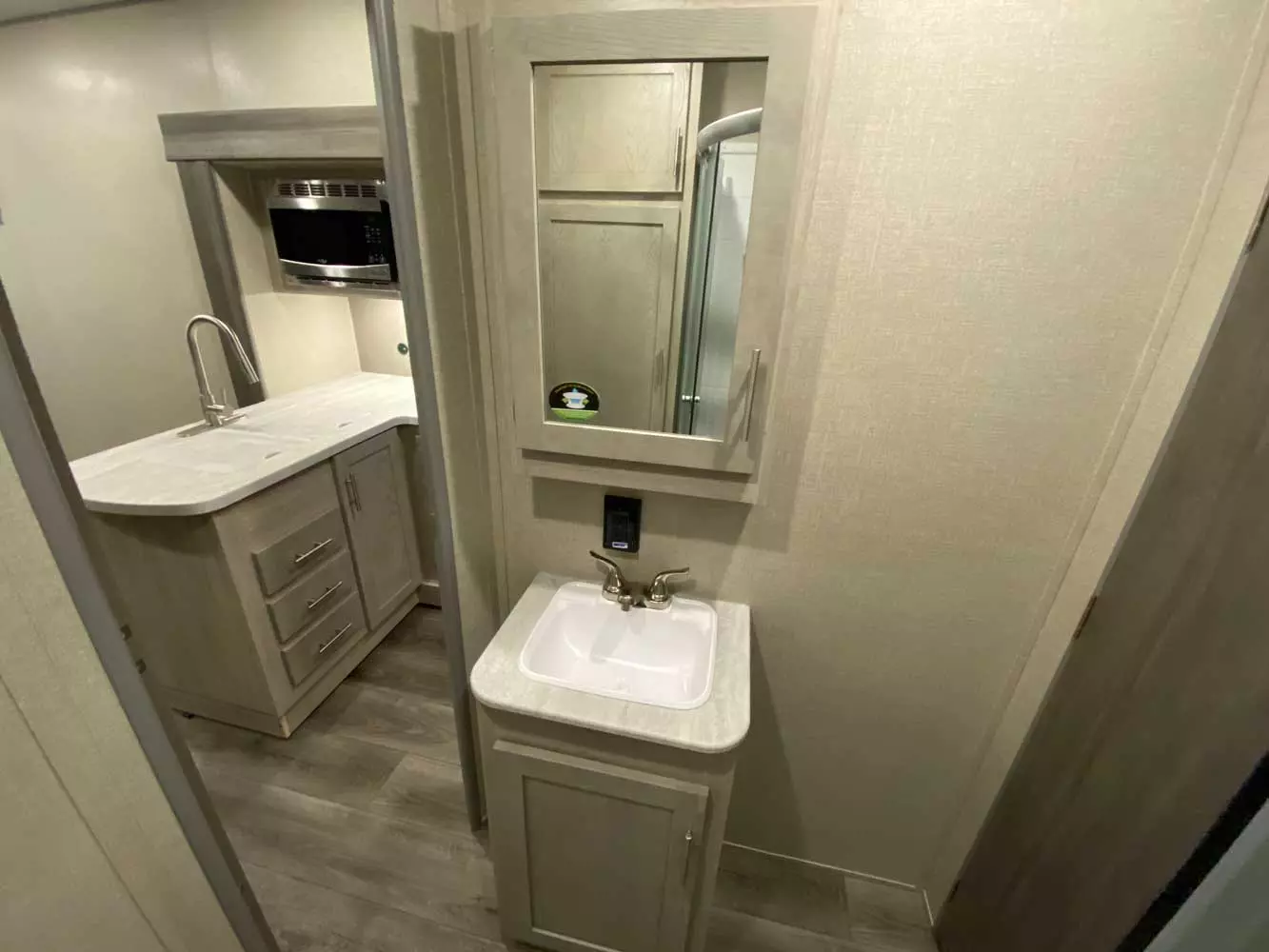

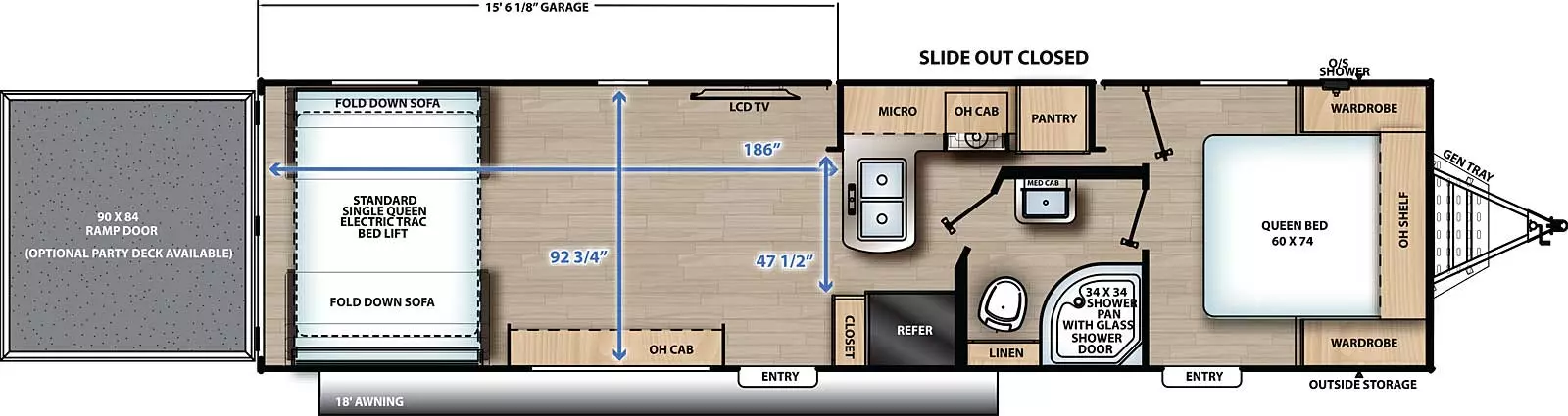

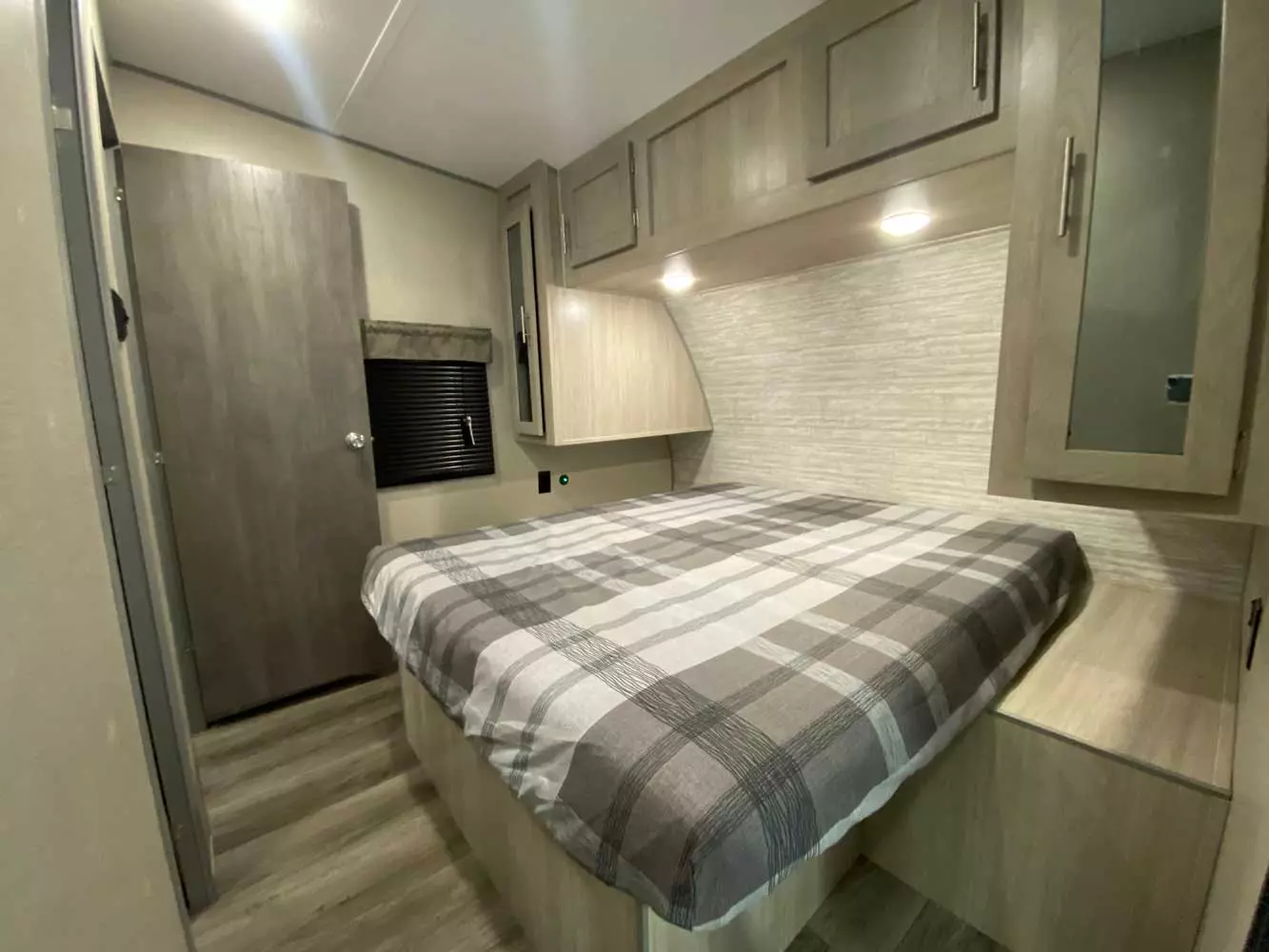

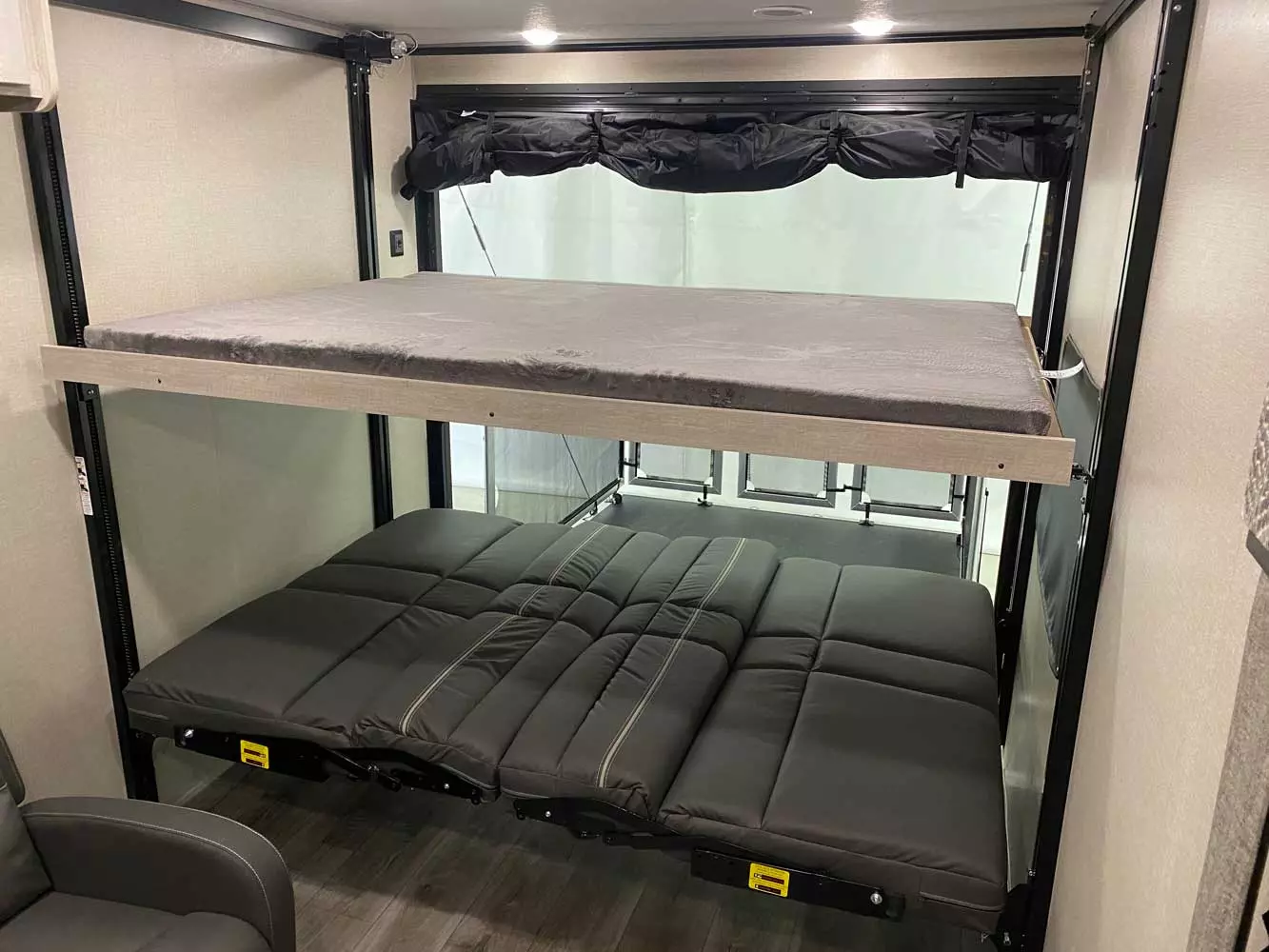

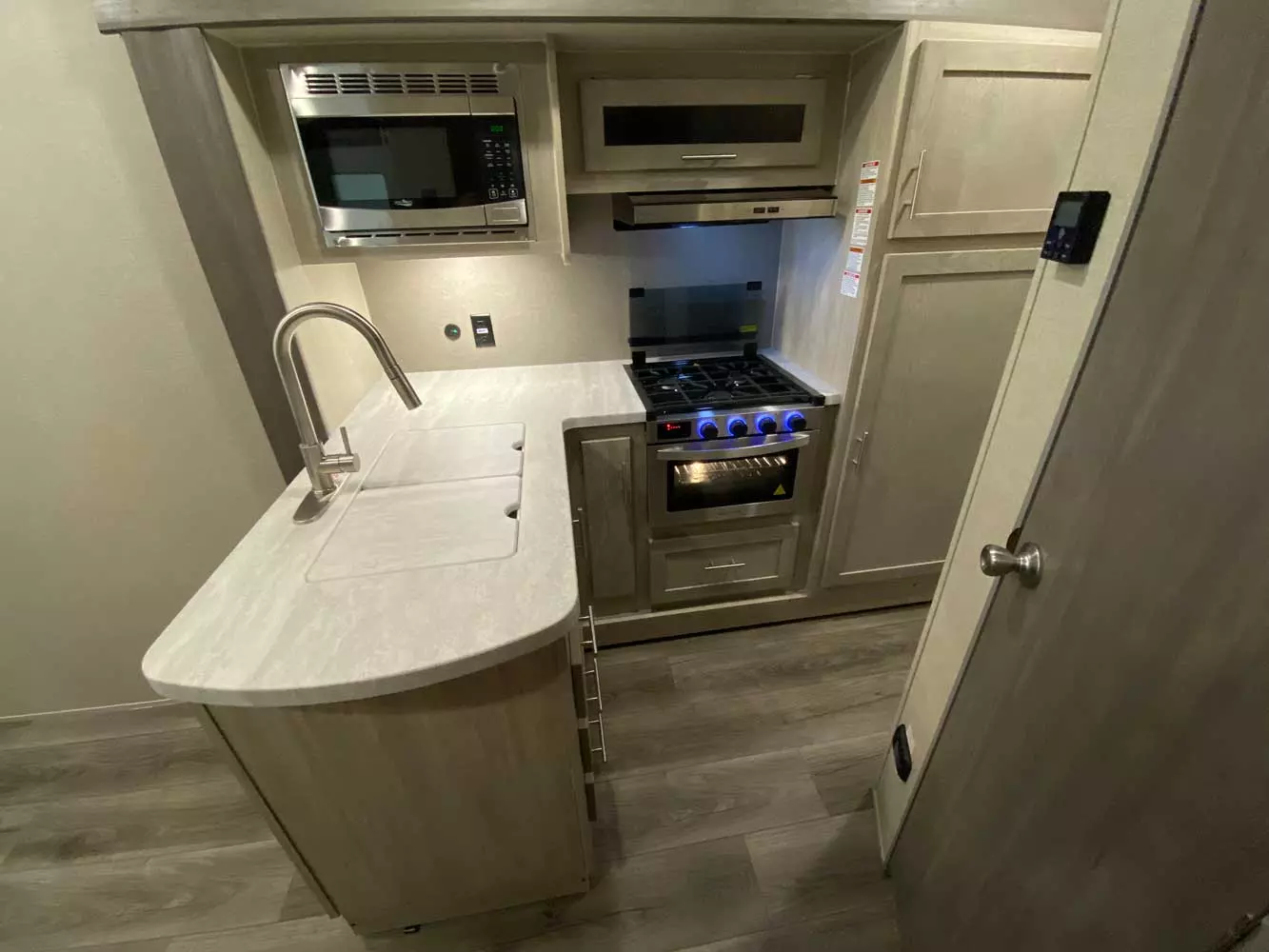

RV Pro Best New Model 2021. The 30THS has one slide out on the off-door side and two entry doors on the door side. Interior layout from front to back: foot facing queen bed with overhead cabinet and wardrobes on either side; door side bathroom; off-door side slide out containing pantry, cook top stove, overhead cabinet, microwave cabinet, and double basin sink; door side refrigerator and closet; off-door side television; overhead cabinet and optional recliners; and rear fold-down sofas and single queen electric trac bed lift
Enlarge

Specifications

Hitch Weight:
1,382 lb.
GVWR:
10,500 lb.
UVW
7,600 lb.
CCC
2,900 lb.
Exterior Length:
36' 1"
Exterior Height:
11' 10"
Exterior Width:
96"
Fresh Water:
98.00 gal.
Gray Water:
70.00 gal.
Black Water:
30.00 gal.
Awning Size:
18'



GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)*- is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Coachmen RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Coachmen RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.




Features & Options


  • Universal Solar Prep w/ Installed Roof Panel Port
  • Full Length Frame E-Coated Outriggers
  • 5/8" Tongue & Groove Plywood Floor Decking
  • 2"x3" Floor Joists on Approximately 12" Centers
  • 5" Floor To Frame Steel Lag Bolts
  • Enclosed, Fully Sealed Underbelly
  • Darco Subfloor Protective Wrap/Enclosure
  • 3/8" Fully Decked Walk-On Roof
  • Seamless Alpha Roof Membrane with Lifetime Warranty
  • Screwed Cabinet Construction w/Pocket Bored Lumber Core Stiles
  • 5/8" Plywood Under Bed & Dinette Base
  • 6’9” Interior Height
  • Easy-Trac Rack and Pinion Slide-Out(s)
  • R-7 Fiberglass Insulation Throughout
  • 6 Gal. Gas/Electric DSI Water Heater
  • Water Heater By-Pass Winterization Kit
  • 12V Demand Water Pump
  • Premium Exterior Graphics Package
  • Upgraded Front Graphics Design
  • Platinum .024" Aluminum Exterior w/.030 Skirt Metal
  • Smooth HD Aluminum Radius Front
  • Polished HD Aluminum Fender Skirts
  • Spare Tire
  • Dexter EZ Lube Axles w/Leaf Spring Suspension
  • Self Adjusting Brakes
  • Roto-Cast Holding Tanks
  • Painted Bumper w/ Drain Hose Carrier and End Caps
  • 30,000 BTU Auto-Ignition Furnace w/Wall Thermostat
  • 13,500 BTU Fully Ducted A/C
  • 30 Amp Elect. Service w/ 100v 45-Amp Power Covt.
  • Upgraded Aluminum Wheels
  • Magnetic Baggage Door Latches
  • Full Lino in Slides and Bedroom
  • Cambered Structural Steel I-Beam Frame

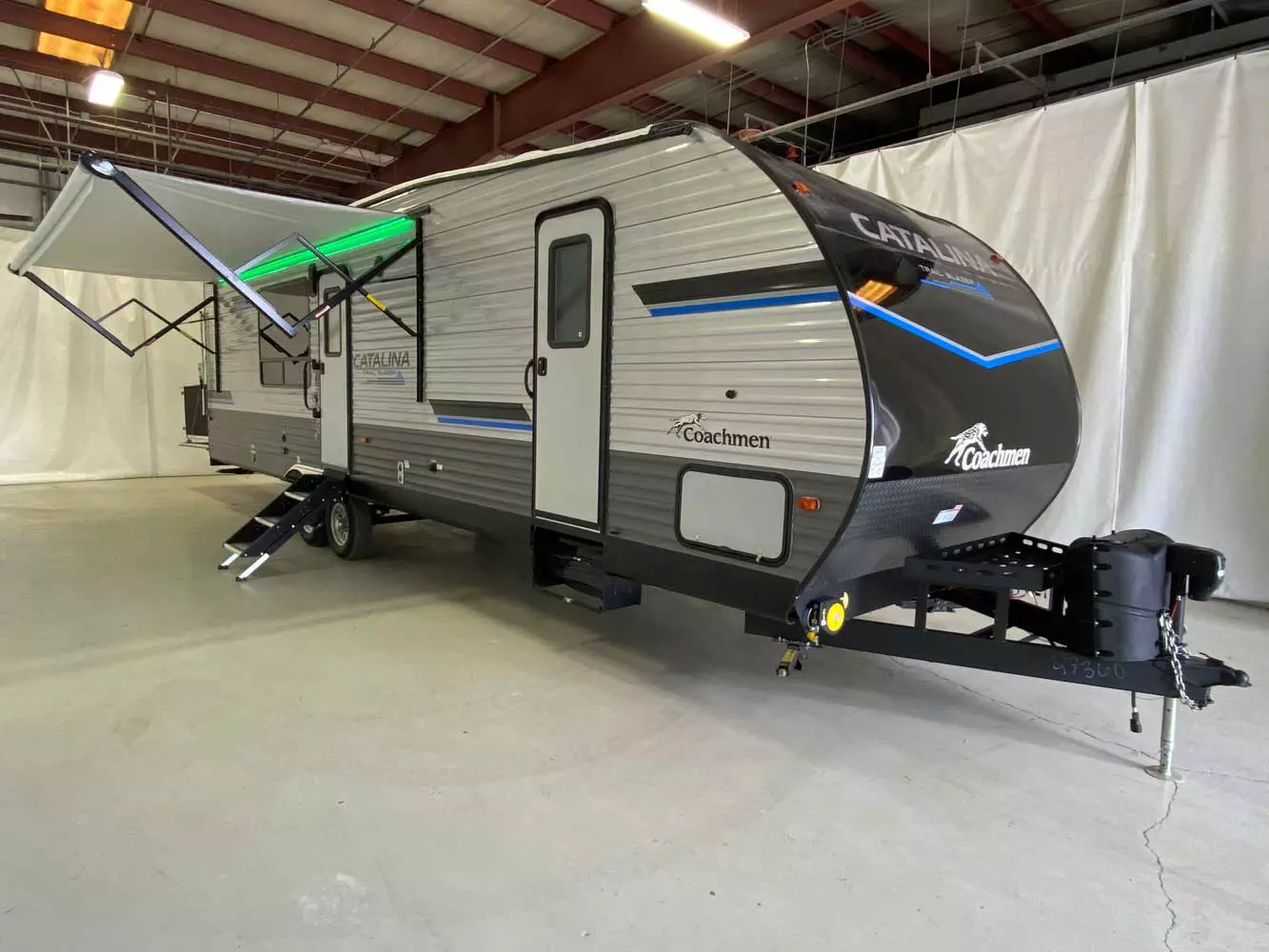

  • Electric Awning w/Multicolor LED Strip & Remote -Carefree
  • Electric Tongue Jack
  • Black Tank Flush
  • Battery Disconnect Switch
  • Outside Utility Shower w/ Hands Free Holder
  • 20lb. LP Tank (2) w/ABS Cover
  • LP Quick Connect

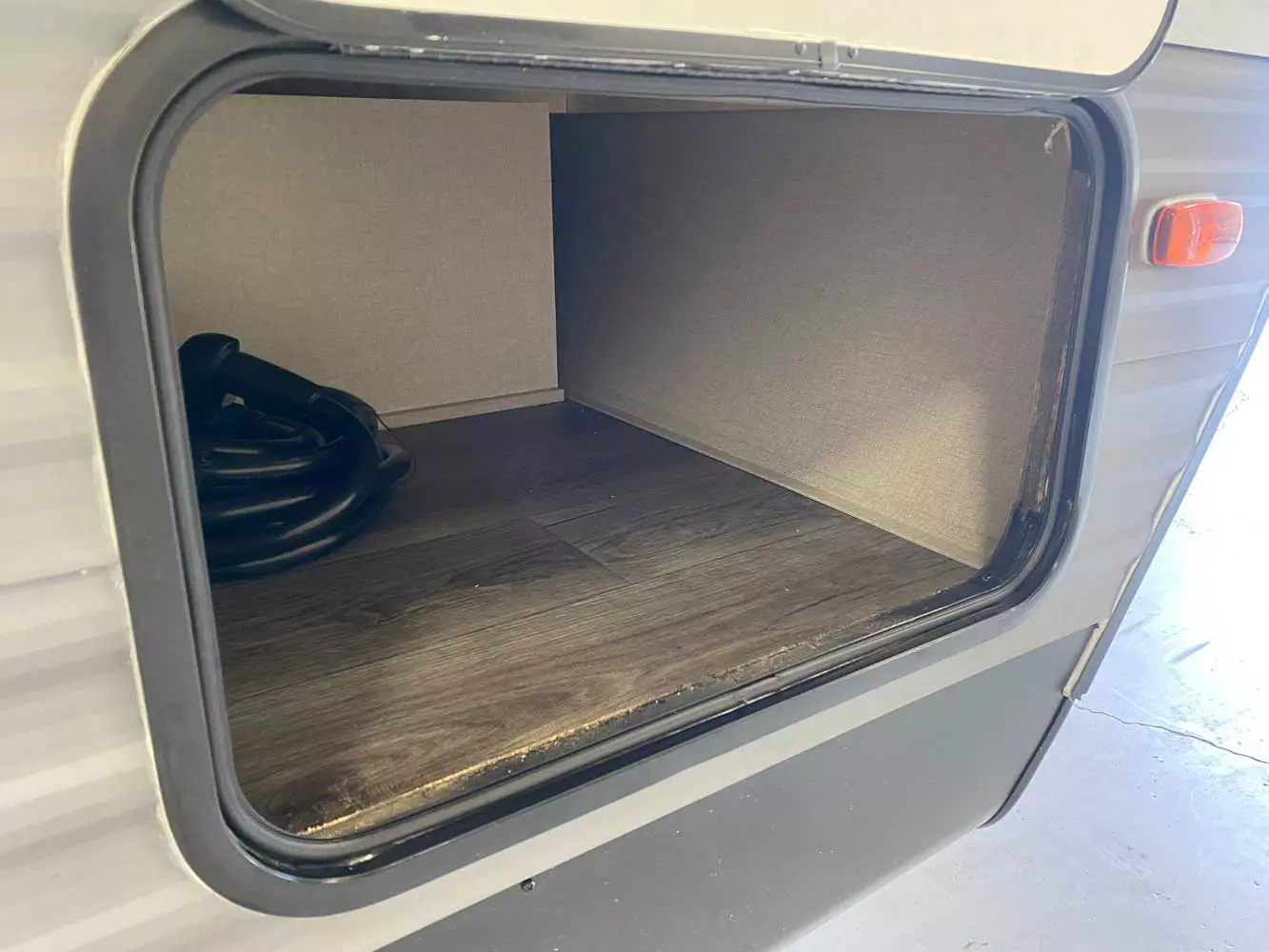

  • Flush Mount Baggage Doors w/Radius Corners

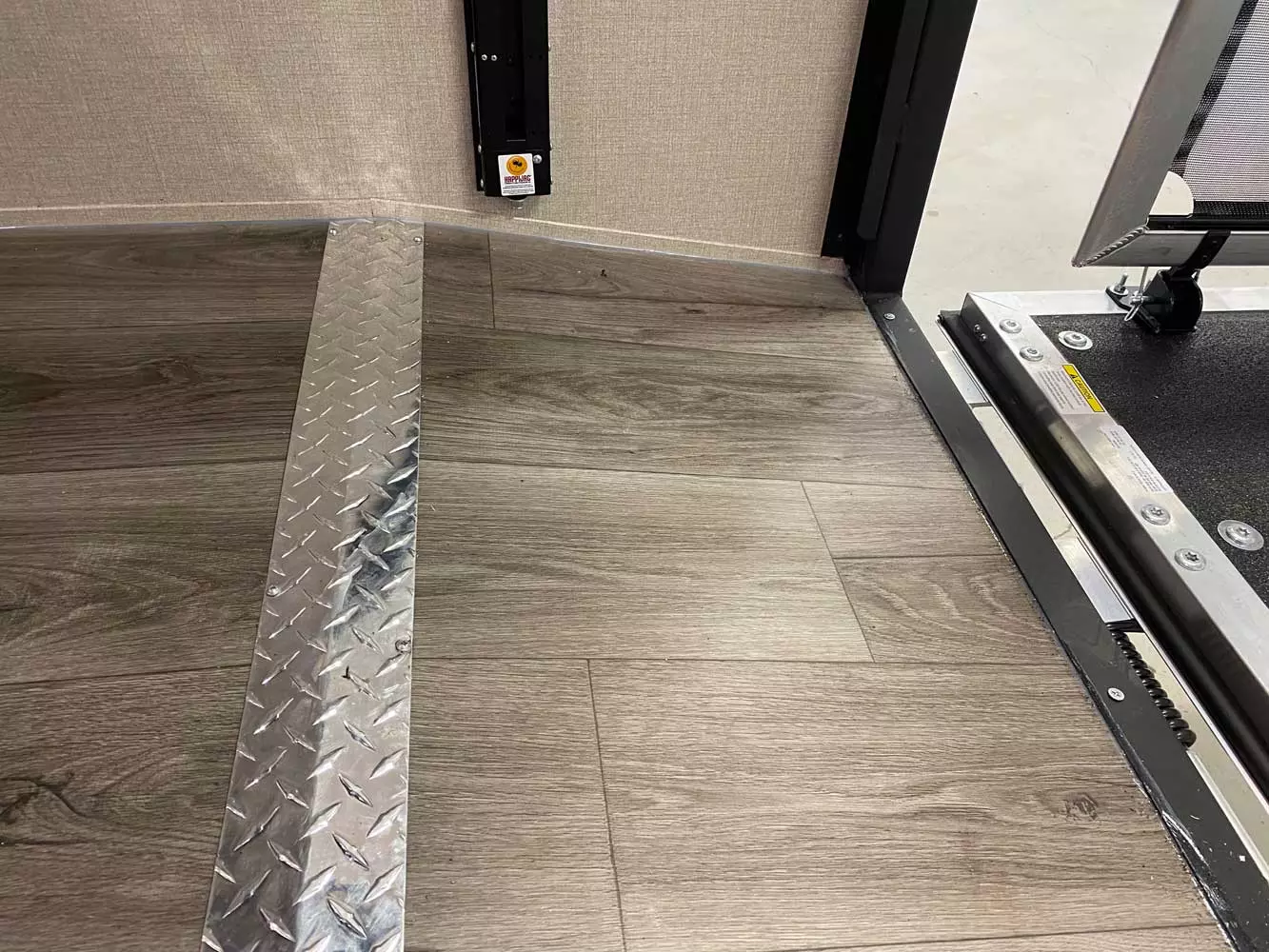

  • Diamond Plate Rock Guard
  • Stabilizer Jacks
  • G20 Tinted Privacy Windows
  • (2) JBL Elite Exterior Speakers
  • Friction Hinge Door
  • Radius Cornered Fiberglass Entry Door w/ Window
  • Exterior 110V G.F.C.I Protected Receptacle
  • Exterior RG-6 Coax Cabling and Satellite Prep
  • Exterior TV Hookup
  • Rain Gutters with Drip Spouts
  • Standard Solid Step at Main Entry Door
  • XL Swing Arm Entry Assist Handle (Main Entrance Only)
  • Rear View Camera Prep
  • 15' Toy Loc Cable
  • Lockable Ramp Door Latches
  • Rear LED Loading Lights
  • Pets - "Leash Link" Quick Hookup D-Ring
  • Smoke Alarm
  • LP/CO Gas Detector
  • Fire Extinguisher
  • Fire Escape Windows
  • Entrance Door Window
  • Dead-Bolt Lock on Entry Door
  • SafeRide RV Motor Club (1 YR Roadside Assistance)
  • (2) 12V 14" Ceiling Vent Fans (Living Room & Bathroom)

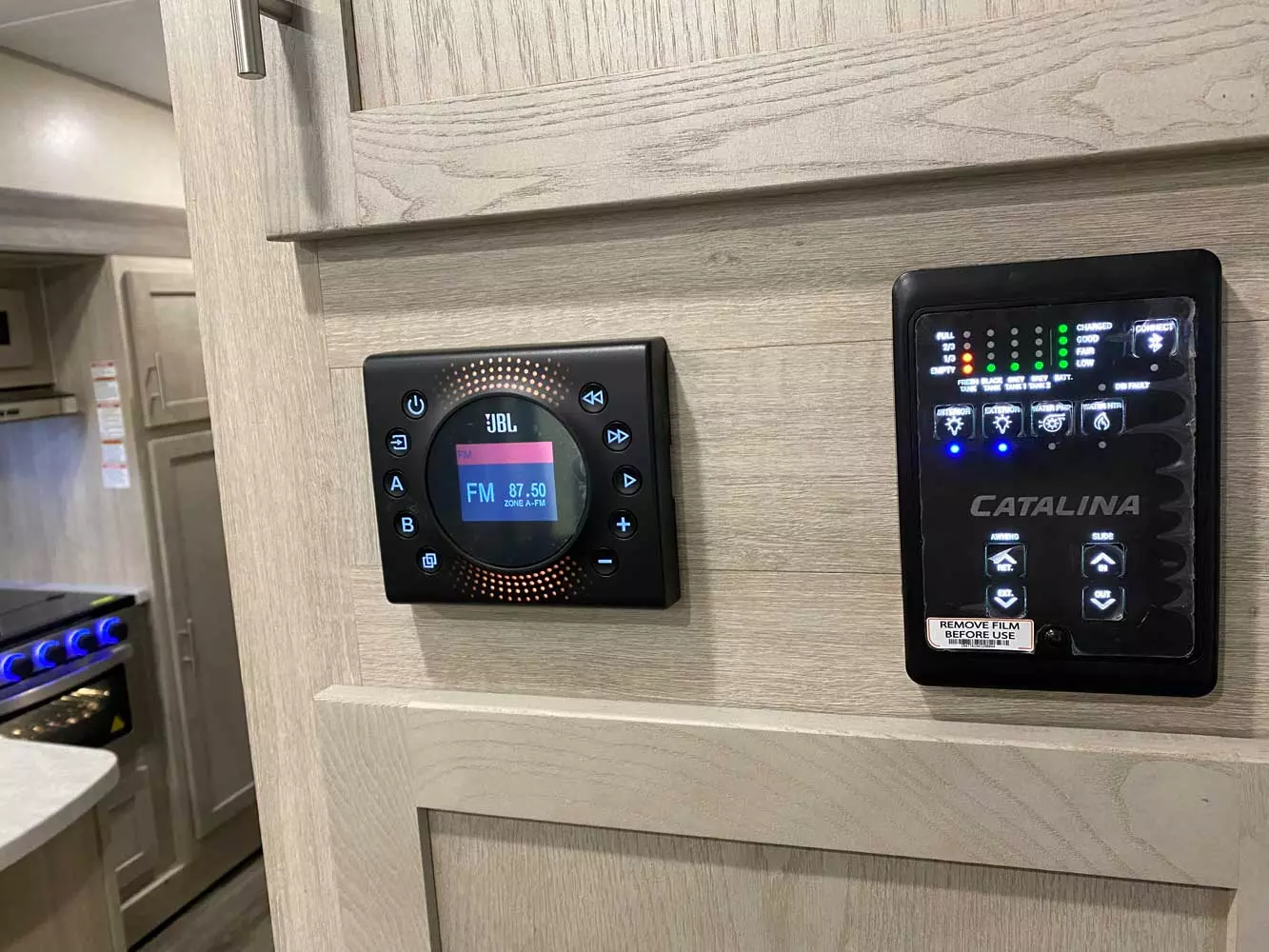

  • JBL Aura MP3/FM Stereo w/Bluetooth and USB Charge Port
  • (2) Multizonal JBL Premium Interior Speakers
  • 10 Cu. Ft. 12V Refrigerator
  • Seamless Thermofoil Countertops Throughout

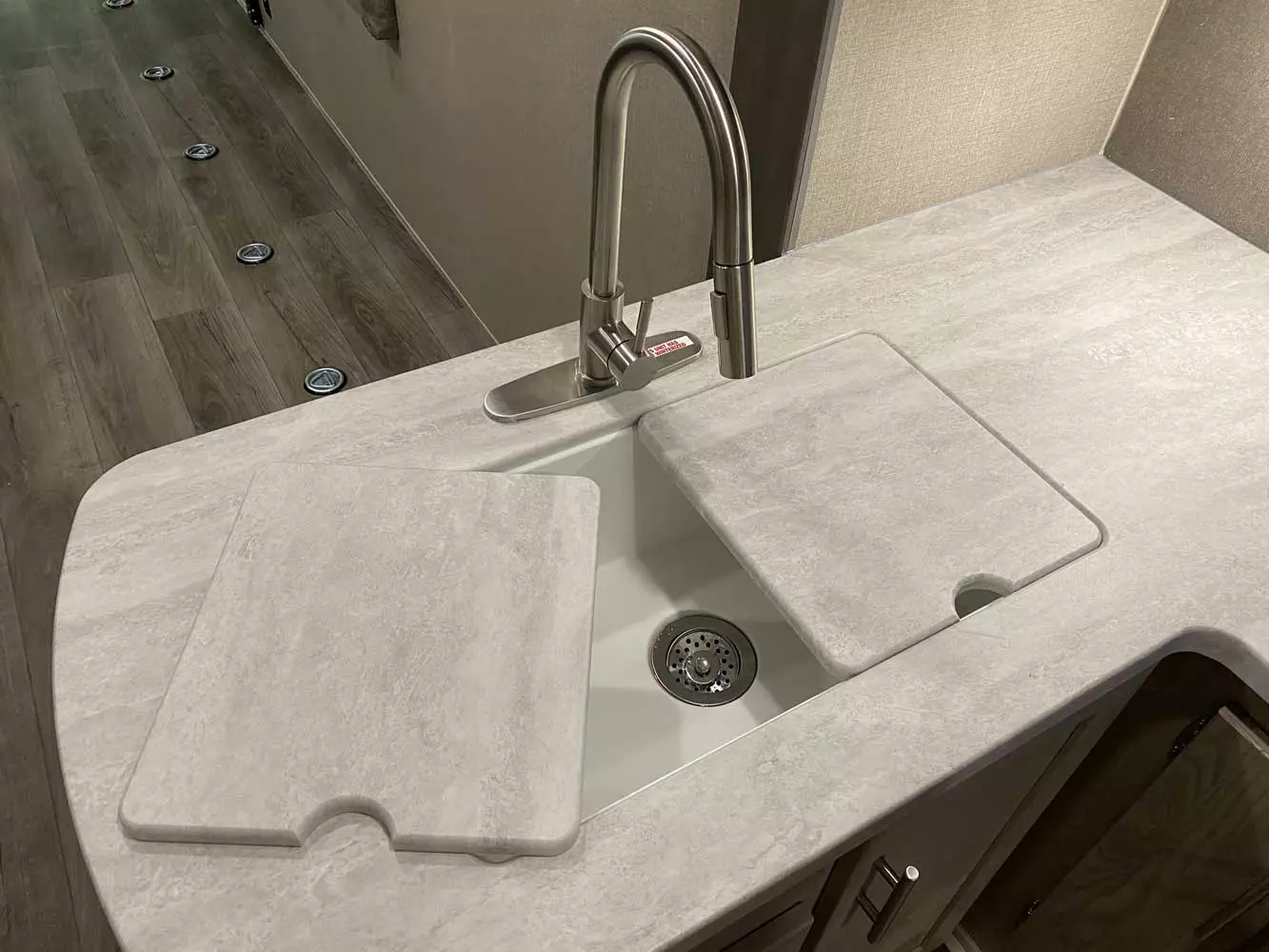

  • Under-mount Farm Style Sink
  • Residential Kitchen Faucet w/Pull Down Sprayer
  • Flush Counter Kitchen Sink Covers (2-Tandem Axle Models)
  • Full Length Kitchen Drawer Guides
  • LCI One Control Monitor Panel System

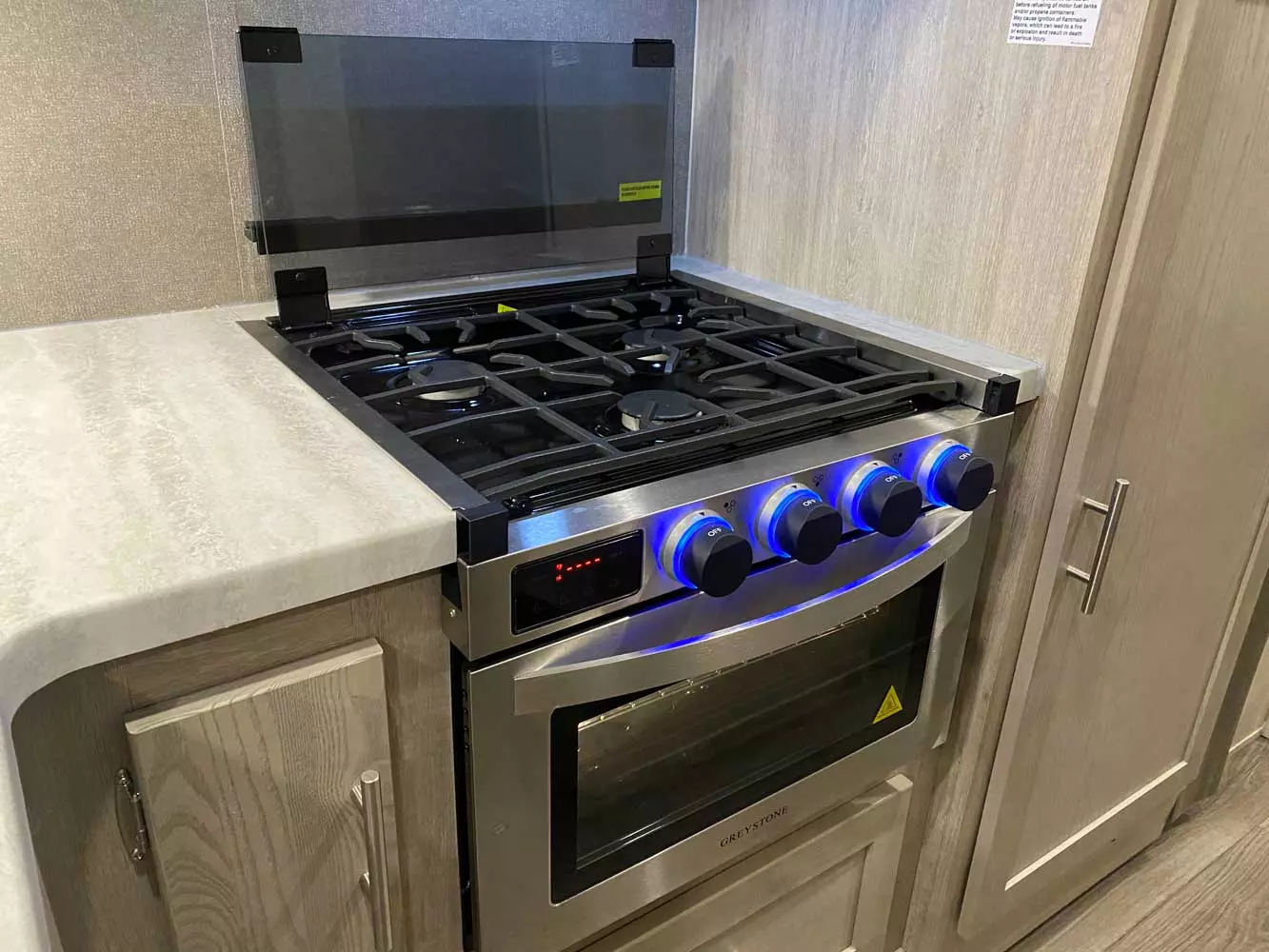

  • 3 Burner SST Range w/Flush Glass Top & LED Accent's
  • Slim Line Range Hood
  • Silverware Kitchen Drawer

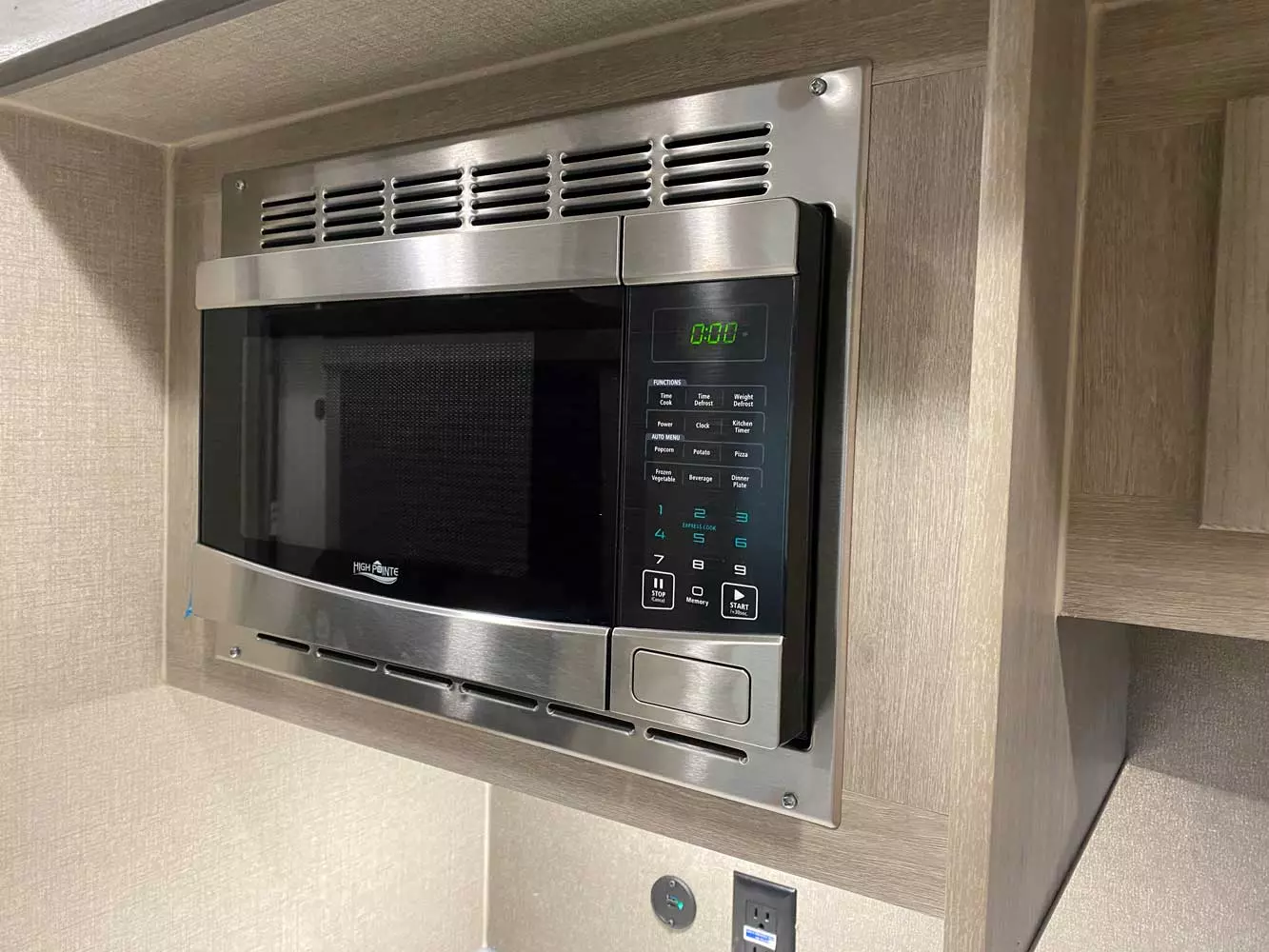

  • Microwave W/Glass Turn Table
  • Congoleum Woodplank Linoleum Flooring (including Slides and Bedroom)
  • Flex Ducted Cabinet/Wall Heat
  • 4,000 Lumen Interior Lighting
  • Hard Valance Window Treatment w/Decorative Lambrequins
  • Pleated Night Window Shades
  • Marine Toilet with Foot Flush
  • ABS Tub/Shower Surround w/Shelves
  • Skylight Above Tub/Shower

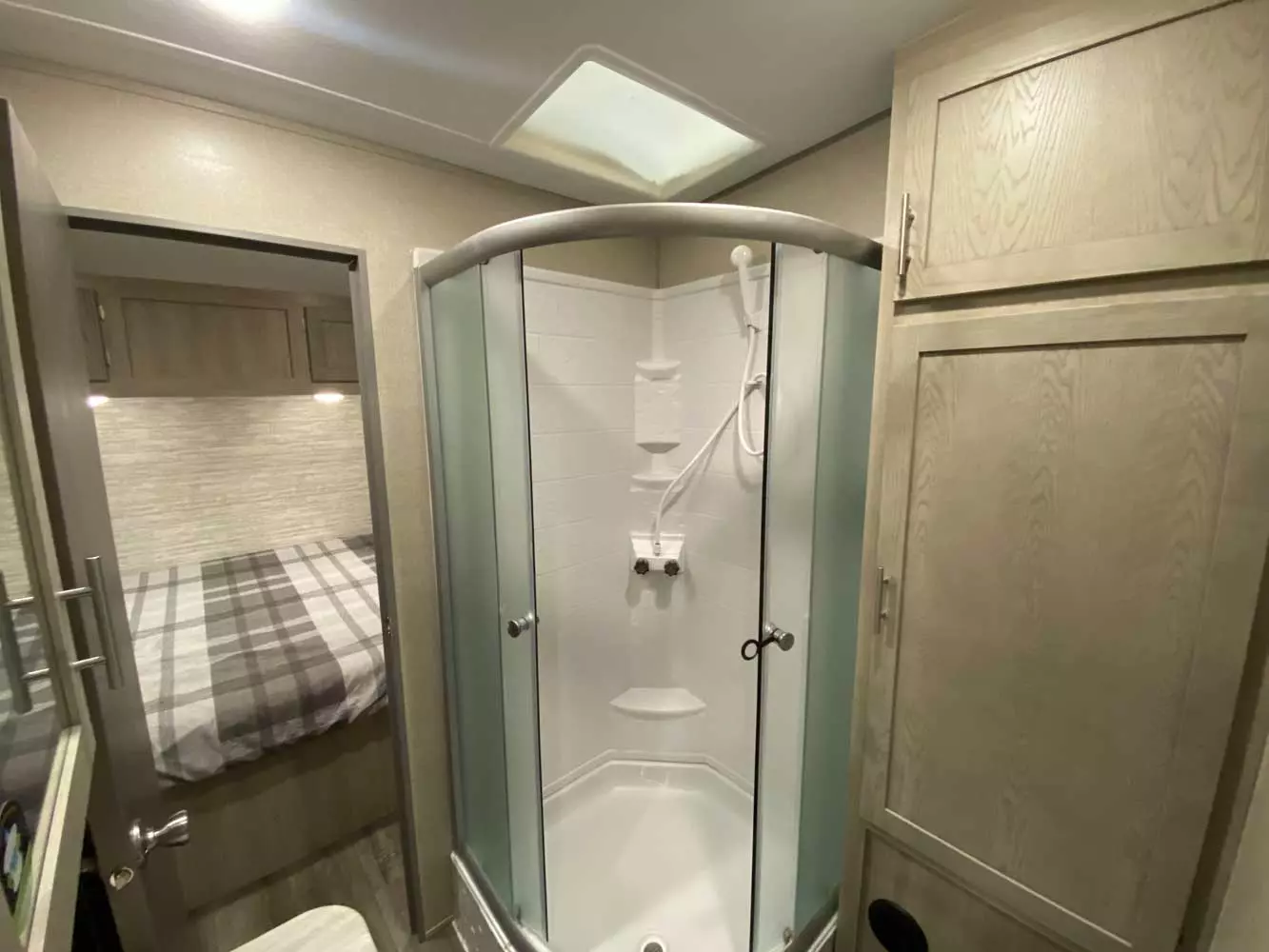

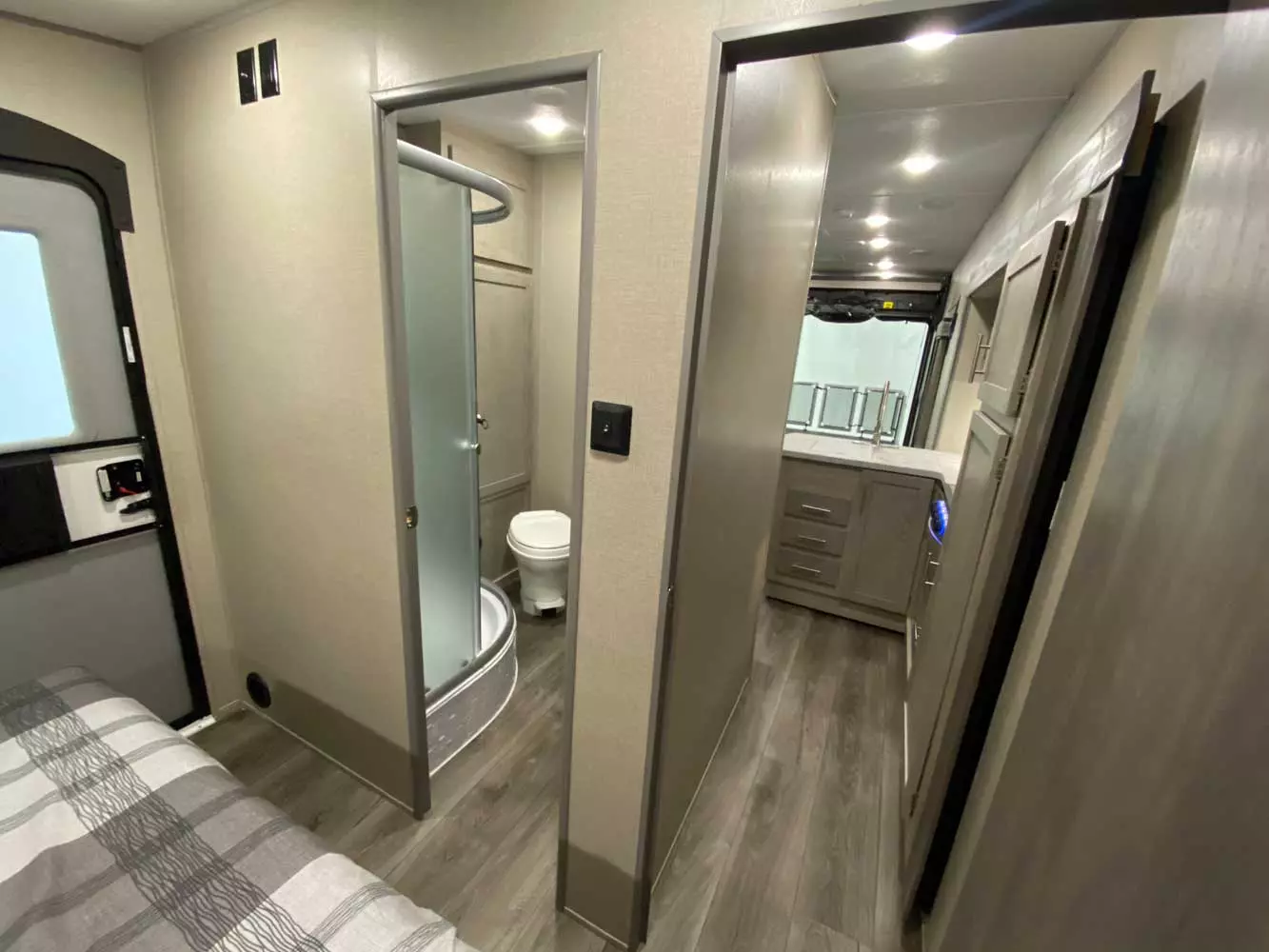

  • Glass Step-In Shower w/ABS Surround (Per Floorplan)
  • Medicine Cabinet with Mirror
  • Bedroom USB Surface Mounts(2)
  • Kitchen USB's & Outlets
  • Solid Master Bedroom Door(s) (Per Floorplan)
  • Full Length Night Stands
  • Mirrored Wardrobes in Master Bedroom (N/A King Bed Models)
  • Master Bedroom Overhead Cabinets

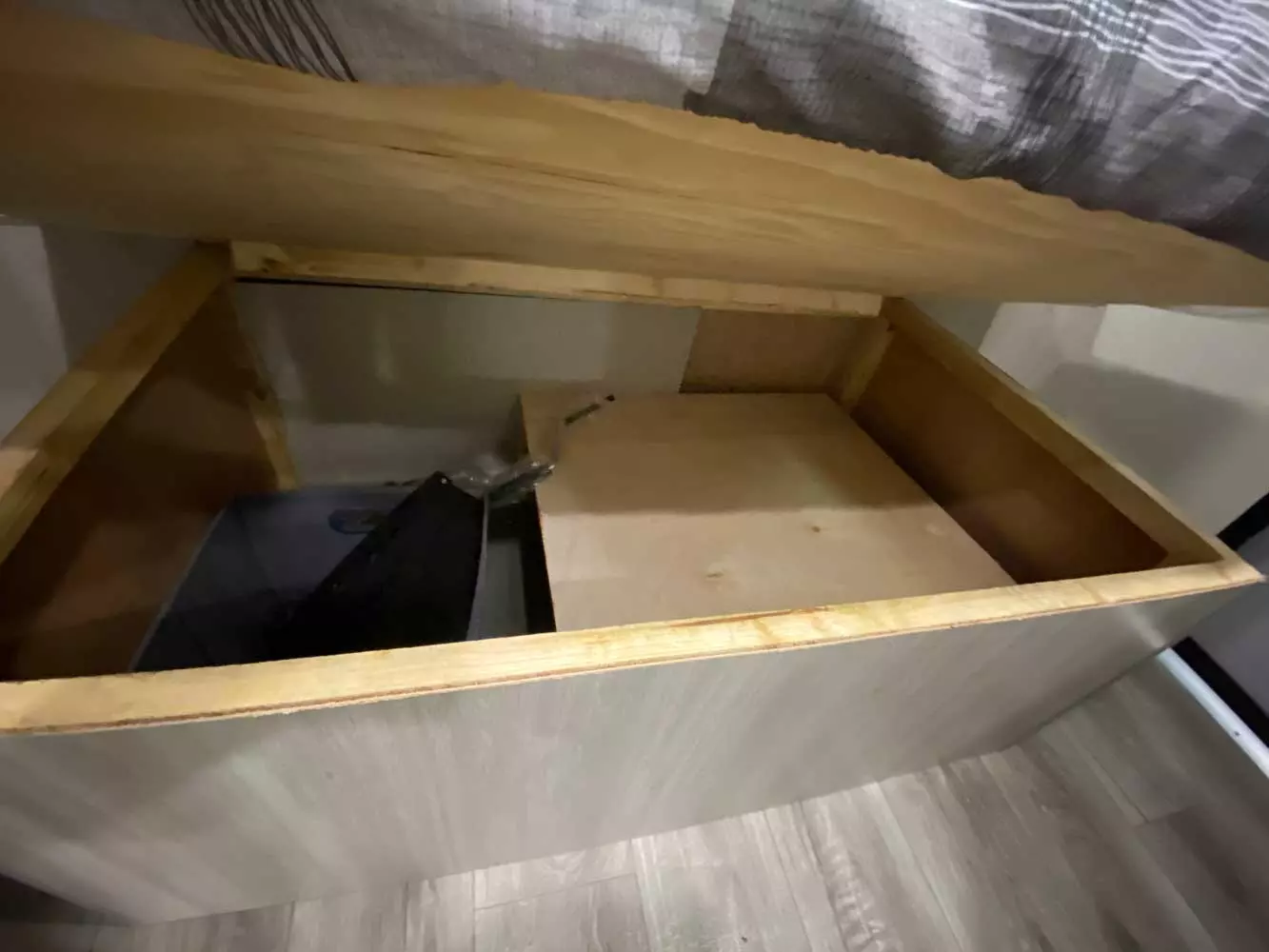

  • Underbed Storage w/Separation from Outside Front Storage
  • Designer Fitted Master Bed Sheet
  • 500LB. Tie Down - 10-12 Ties per Floorplan

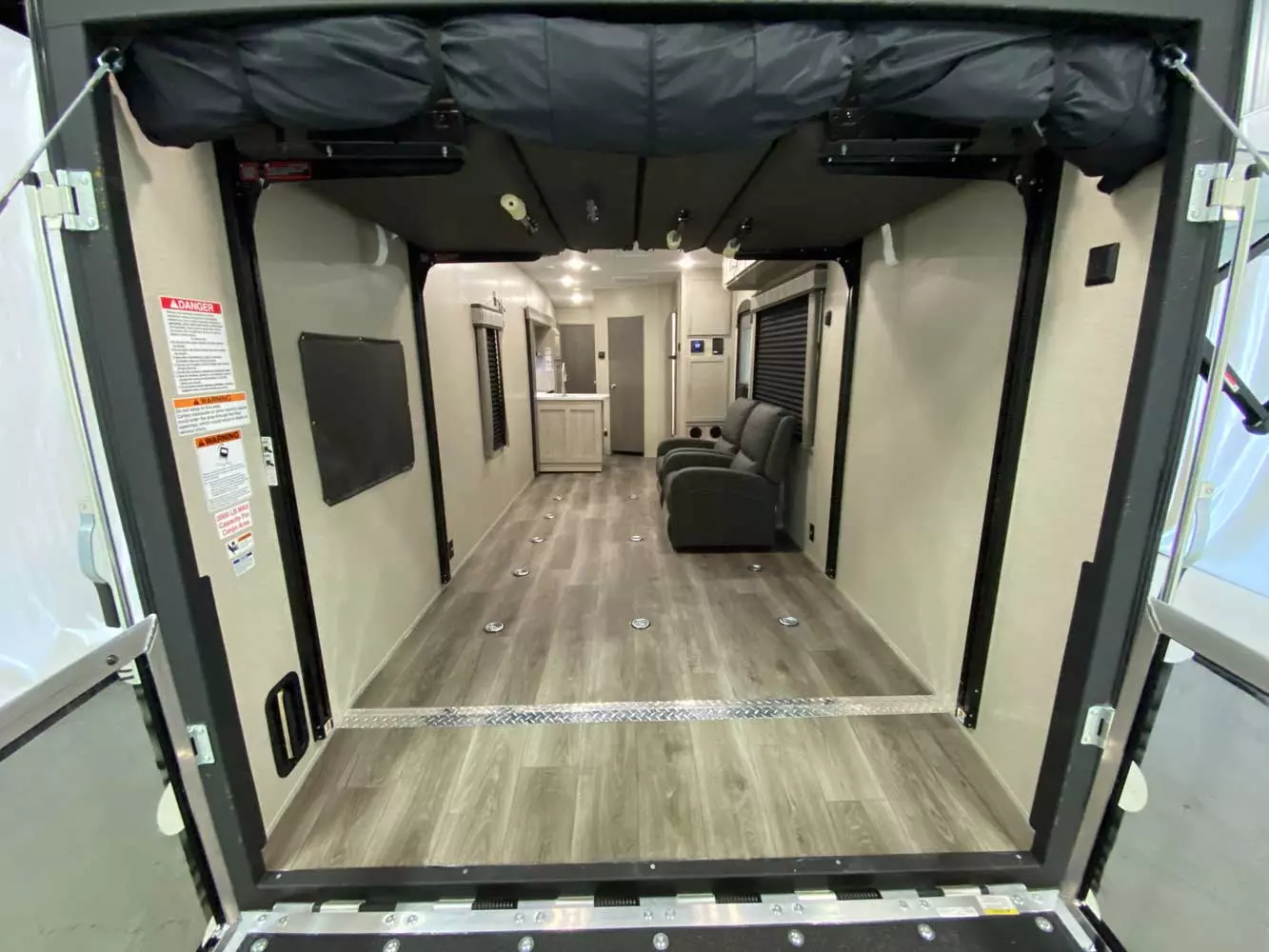

  • Rear Loading Cargo Door w/3000lb. Capacity
  • Black Out Screen Wall w/Zip Walk-Thru & Windows
  • Magnydyne 4G LTE Connectivity with WiFi Booster and Extender
  • Siphon 360 Roof Vent in Bathroom
  • Accent Wall Board Behind Entertainment Center and Bedroom”
  • 7 Cu. Ft. LP Gas/Electric RV Refrigerator w/Reversable Door Inserts
  • 15,000 BTU Ducted A/C IPO 13.5 A/C
  • Steel Fold Down Steps IPO Standard Solid Steps at Main Entry Door
  • 50 Amp Service w/2nd 13.5 A/C (28TH, 29THS, 30THS)
  • 50 Amp Service w/2nd A/C Prep (28TH, 29THS, 30THS)

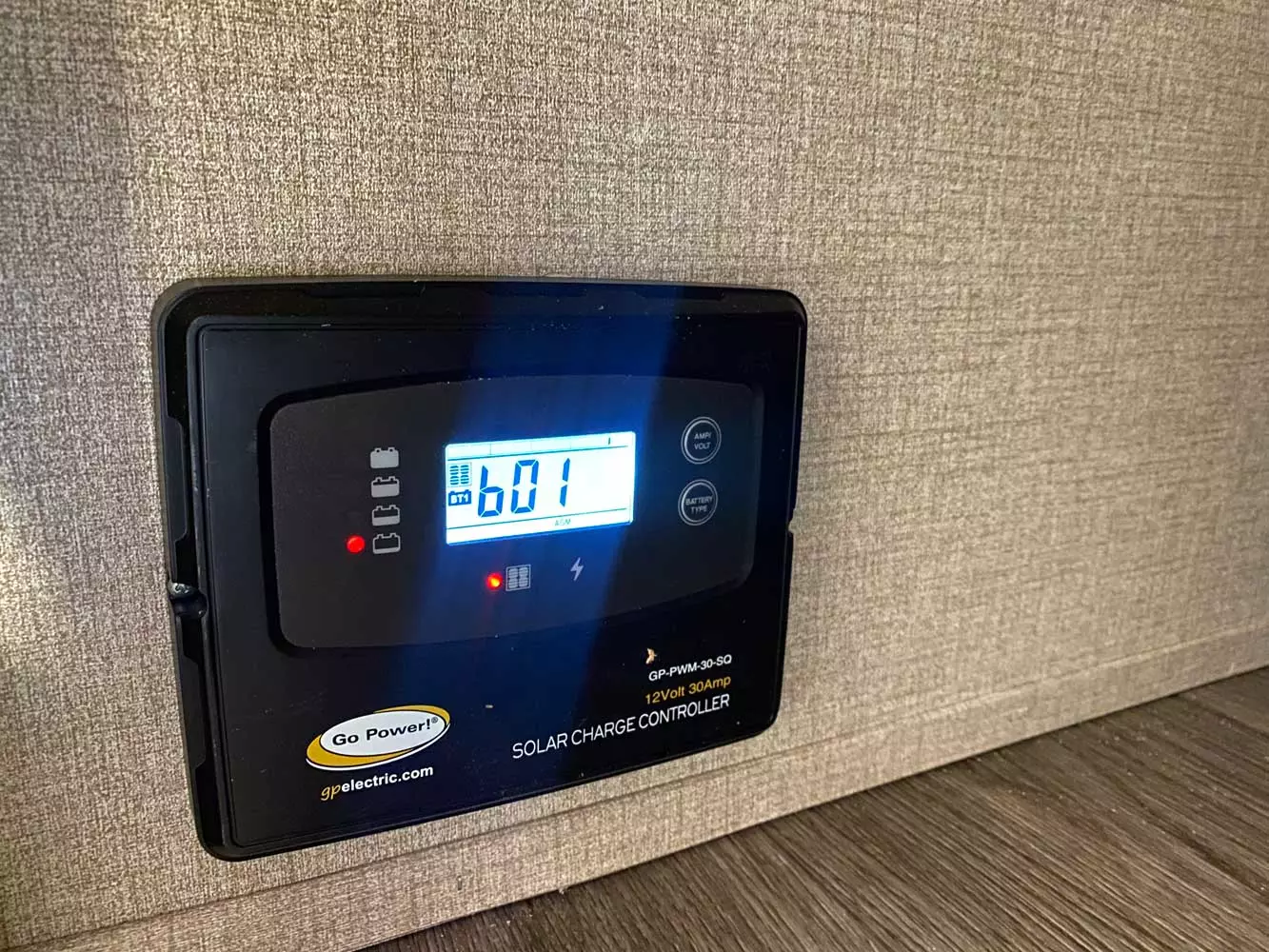

  • Peak Performance Solar Package – 200W Panel w/ 30 A Solar Controller

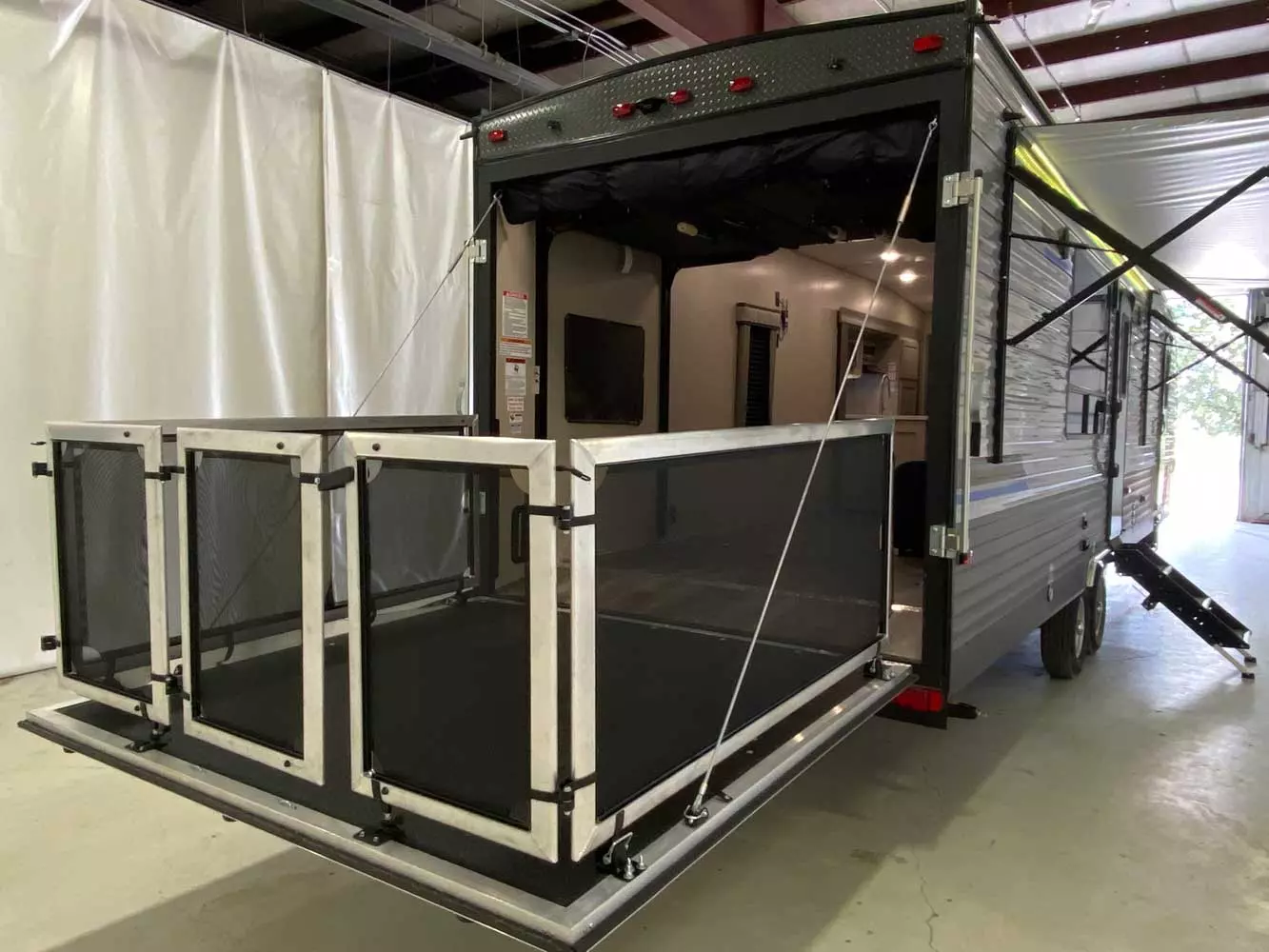

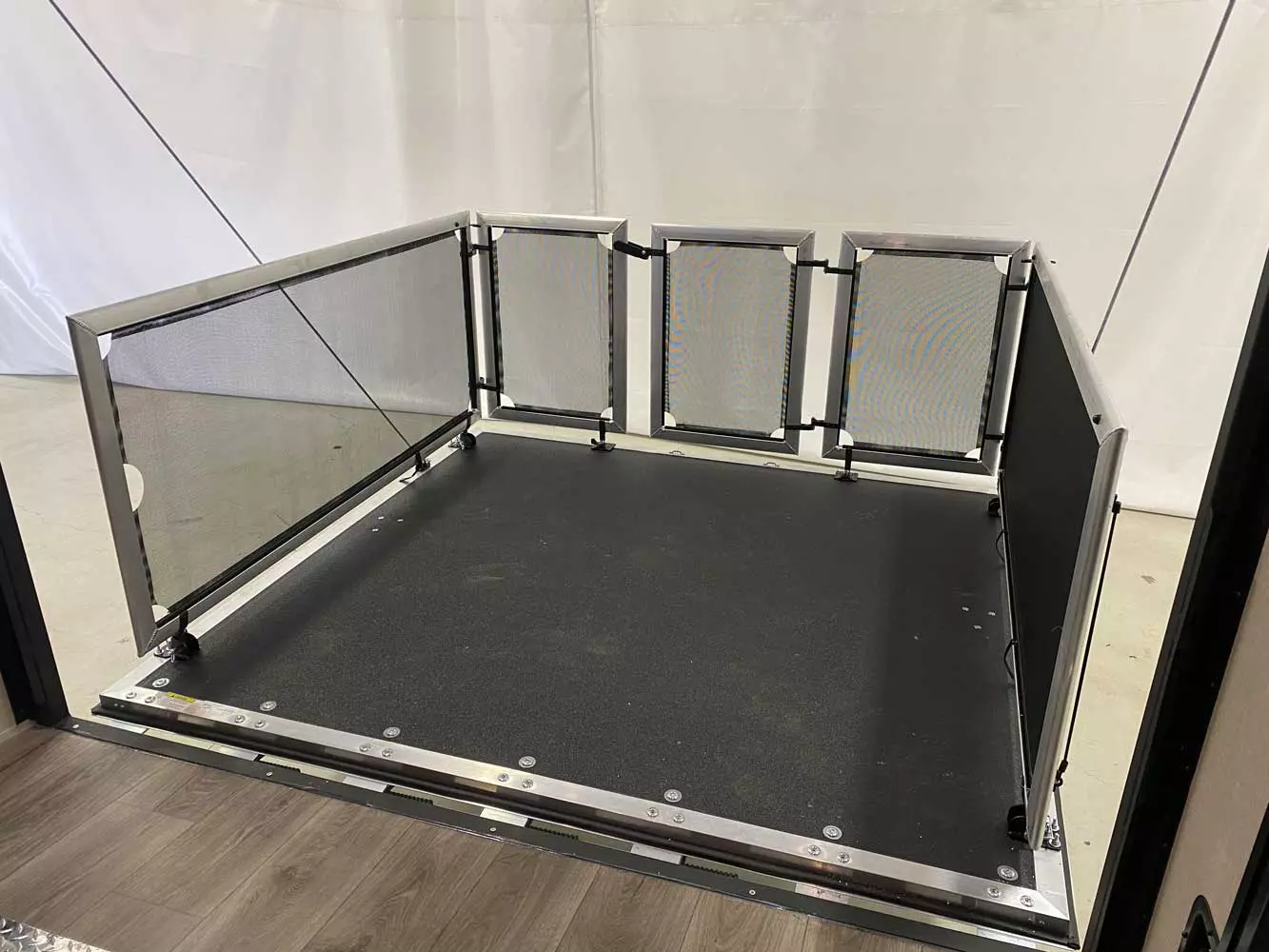

  • Ramp Door Patio & Railing System
  • Fuel Station w/ 30 Gallon Fuel Tank (N/A 26TH)
  • CSA Standards

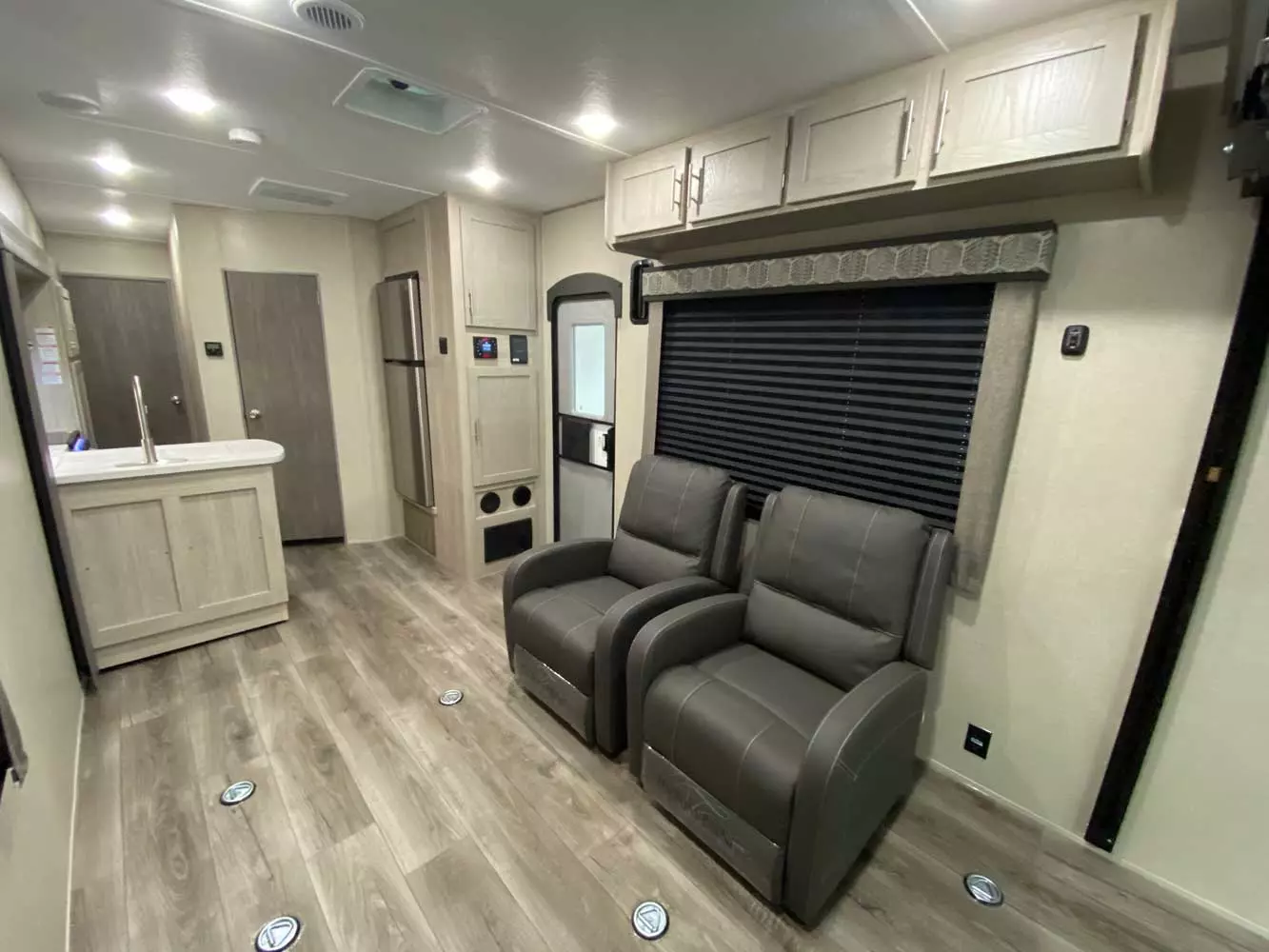

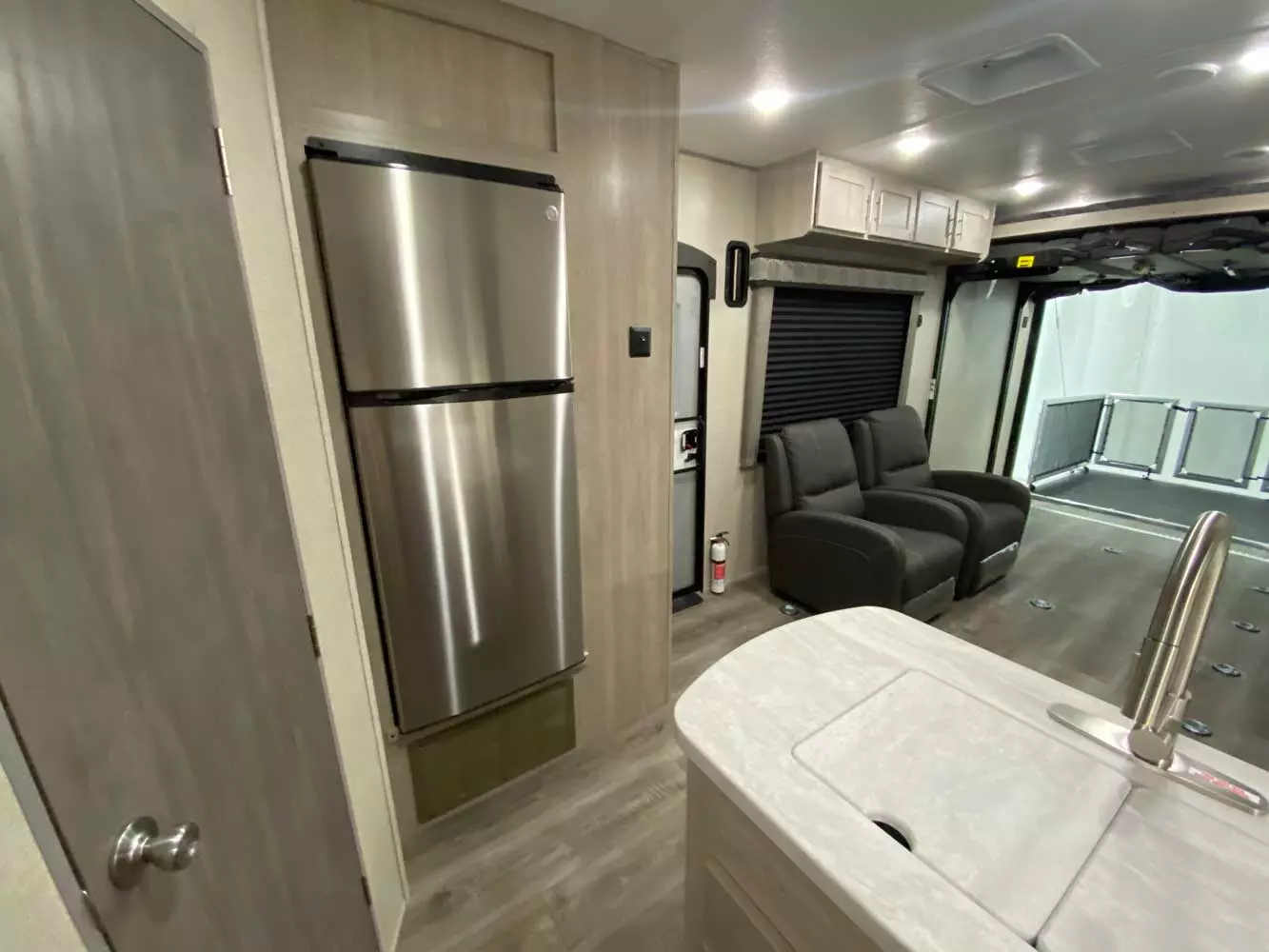

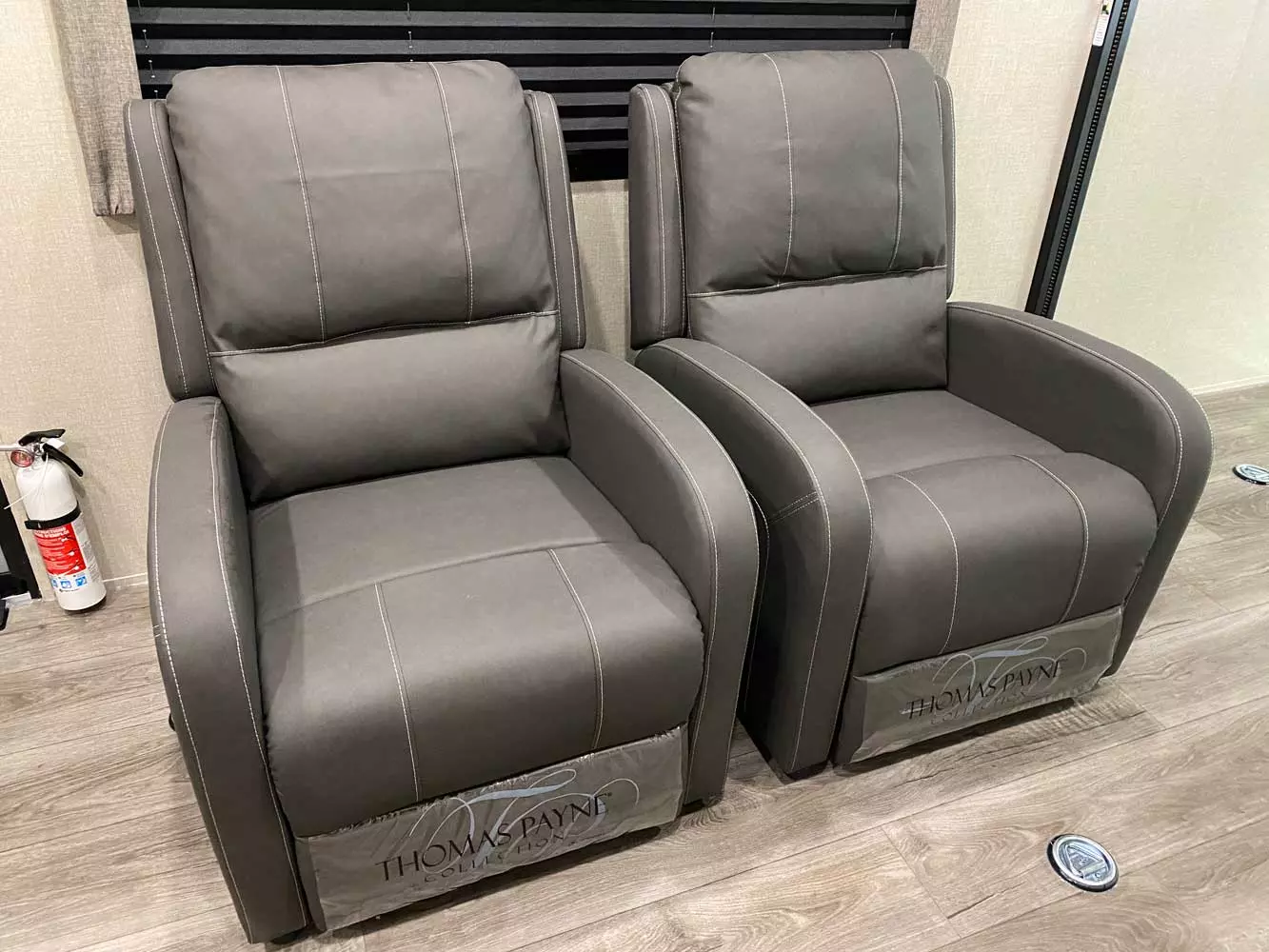

  • (2) Pushback Recliners (26TH, 28THS, 30THS, Only)
