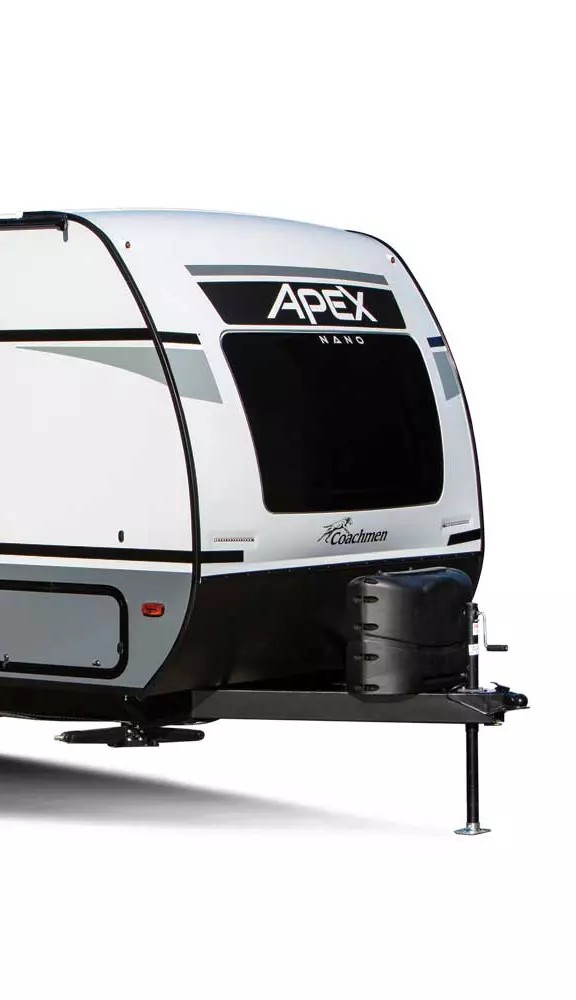

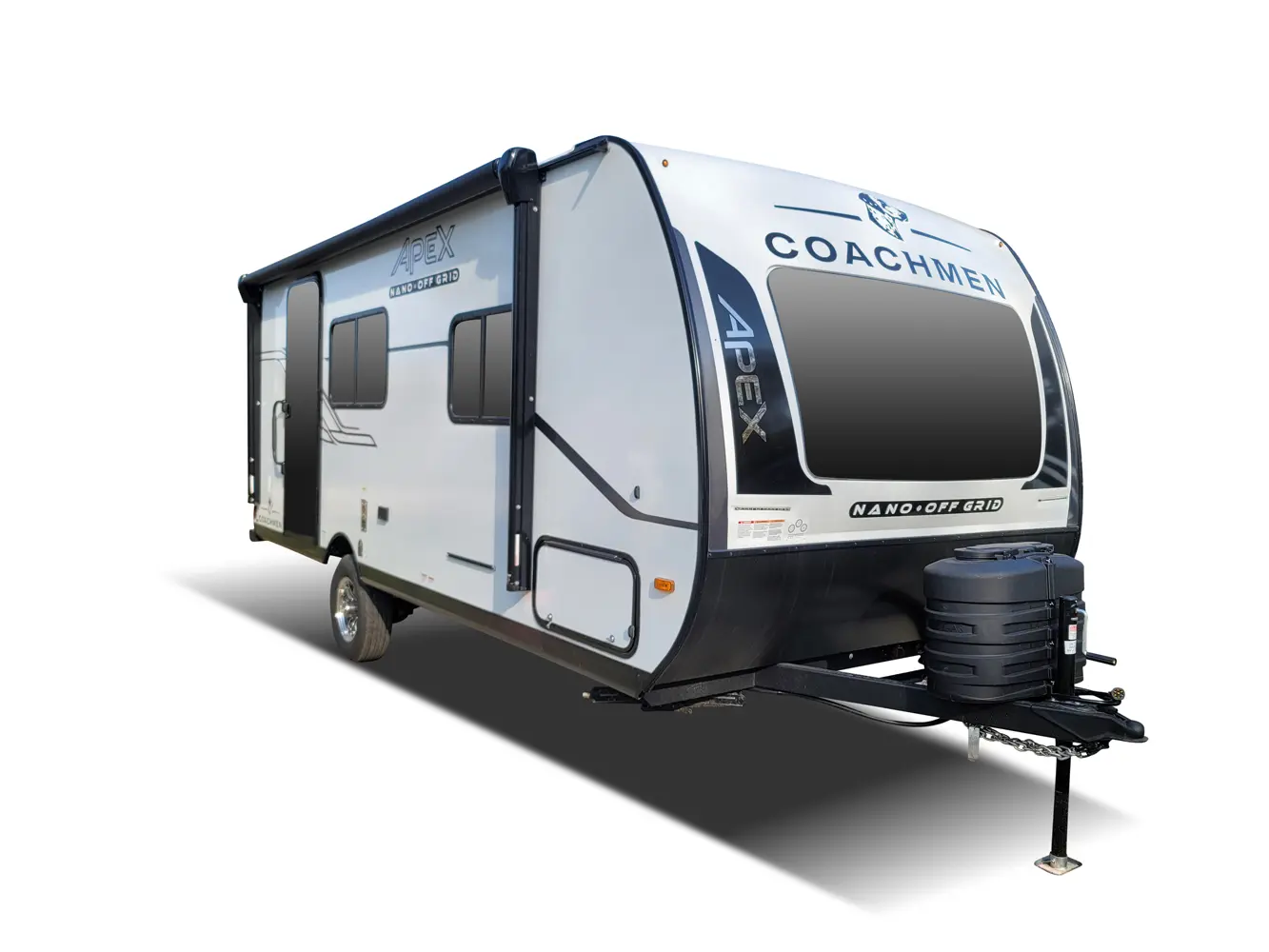

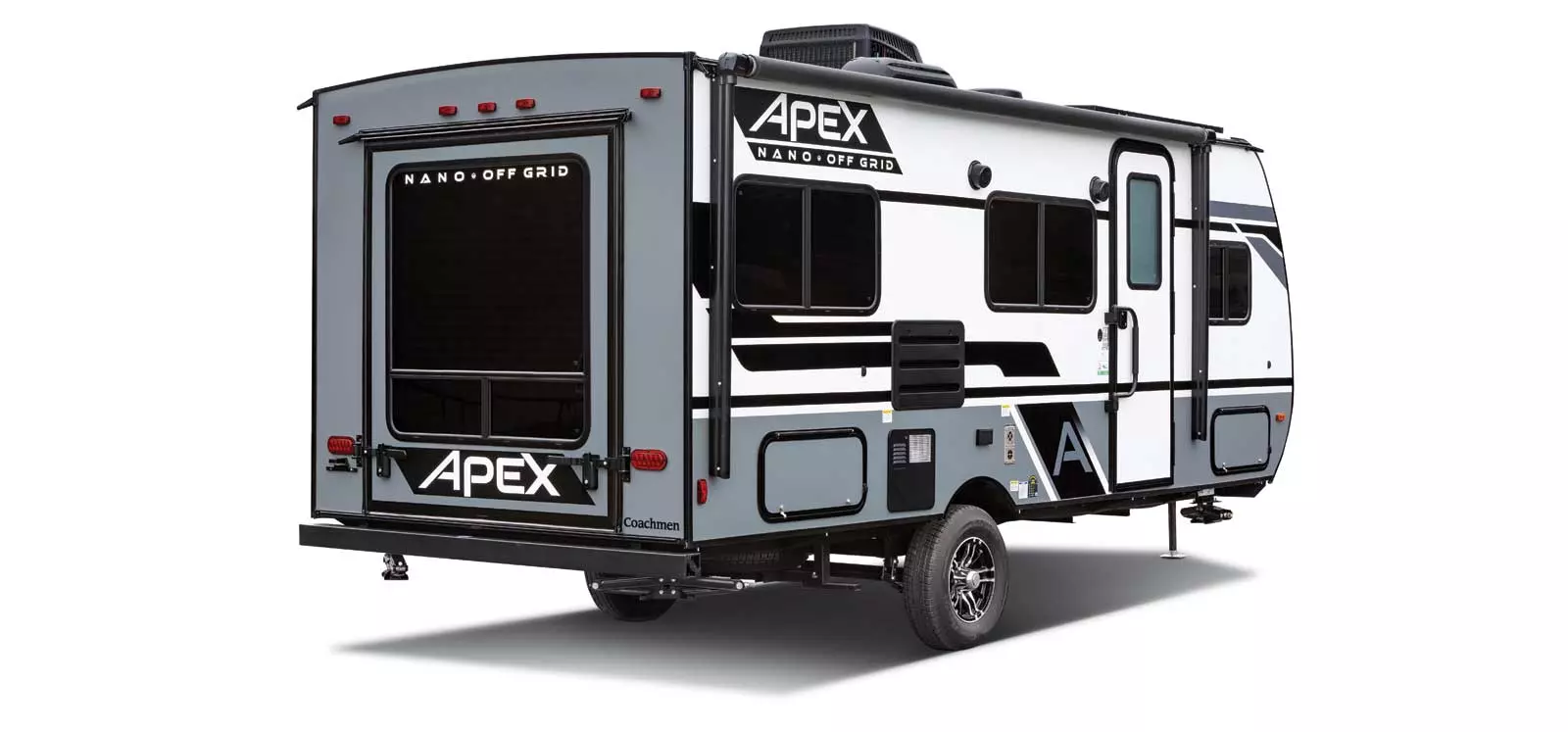

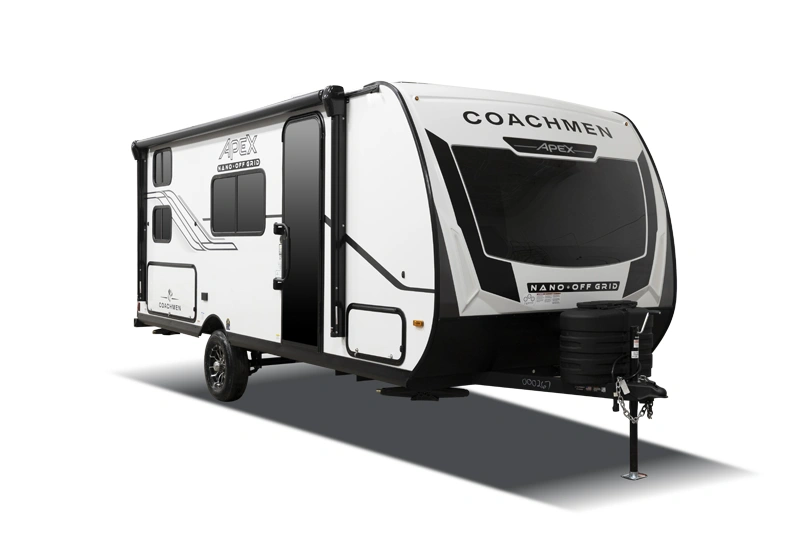

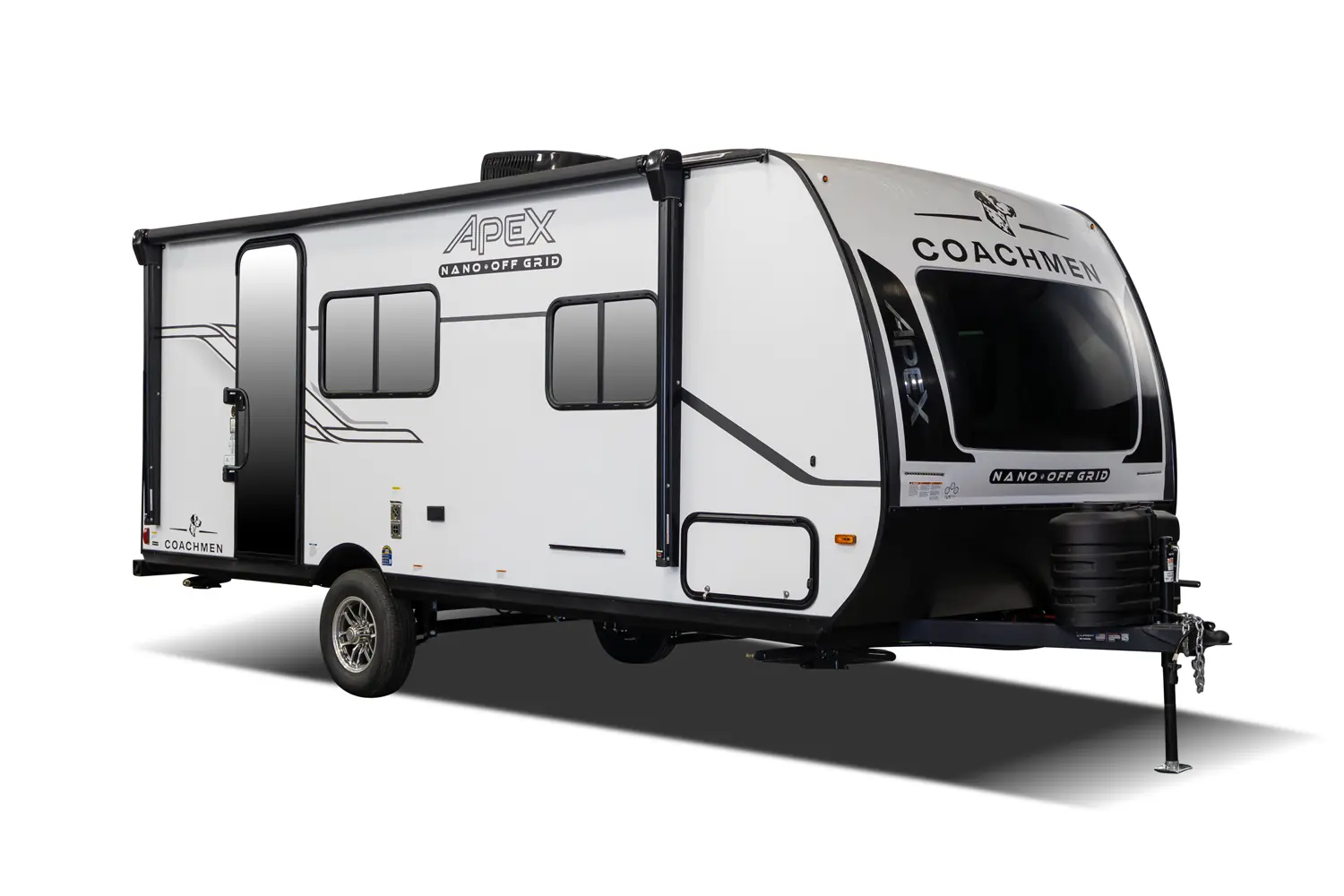

Apex Nano Travel Trailers

Designed for towing with today’s half-ton trucks, minivans and SUVs, with weights all under 4,000 lb.


Certified Green by TRA Certification™Link opens in a new tab/window Azdel Onboard™, RV Composite PanelsLink opens in a new tab/window Care Camps, fighting cancer and making memoriesLink opens in a new tab/window

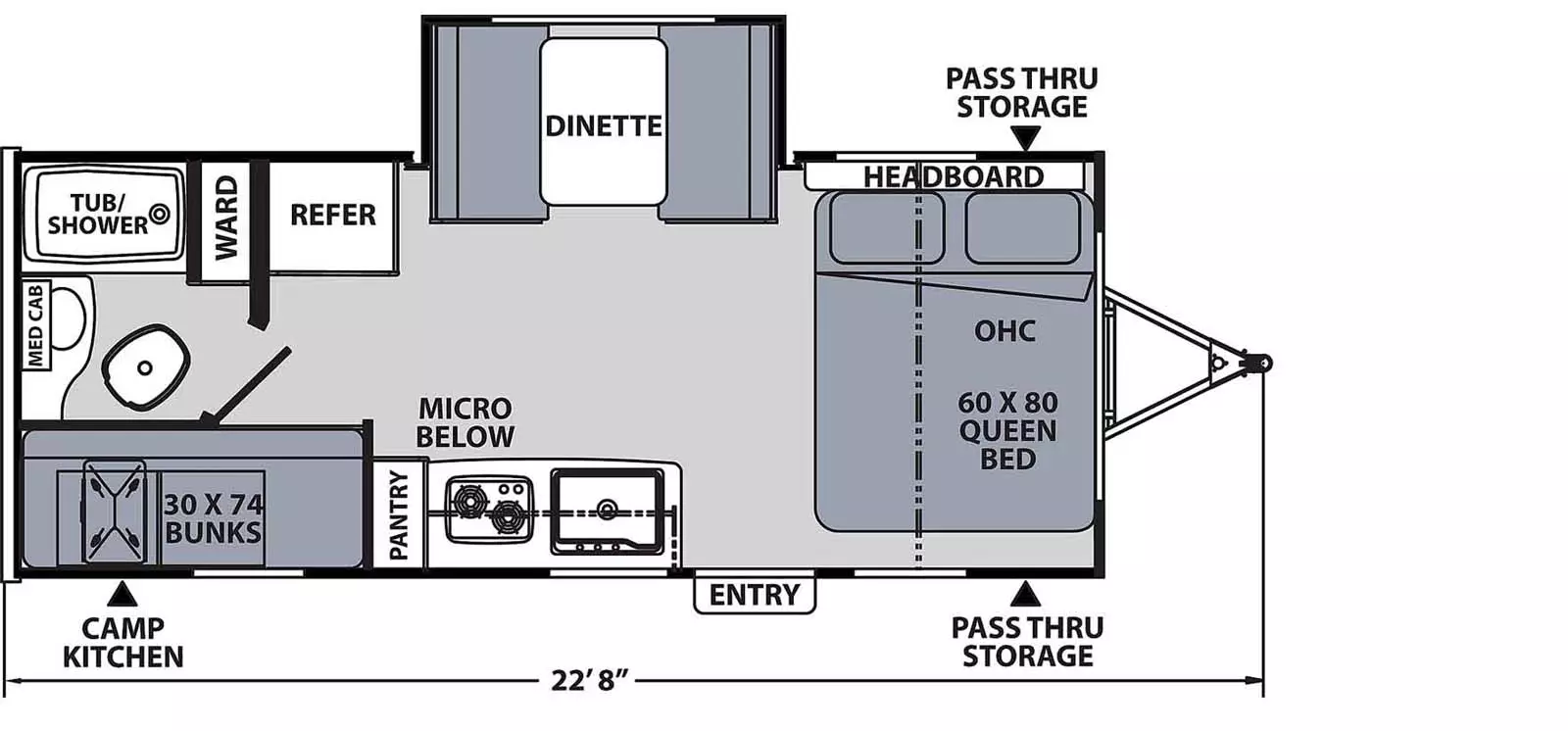

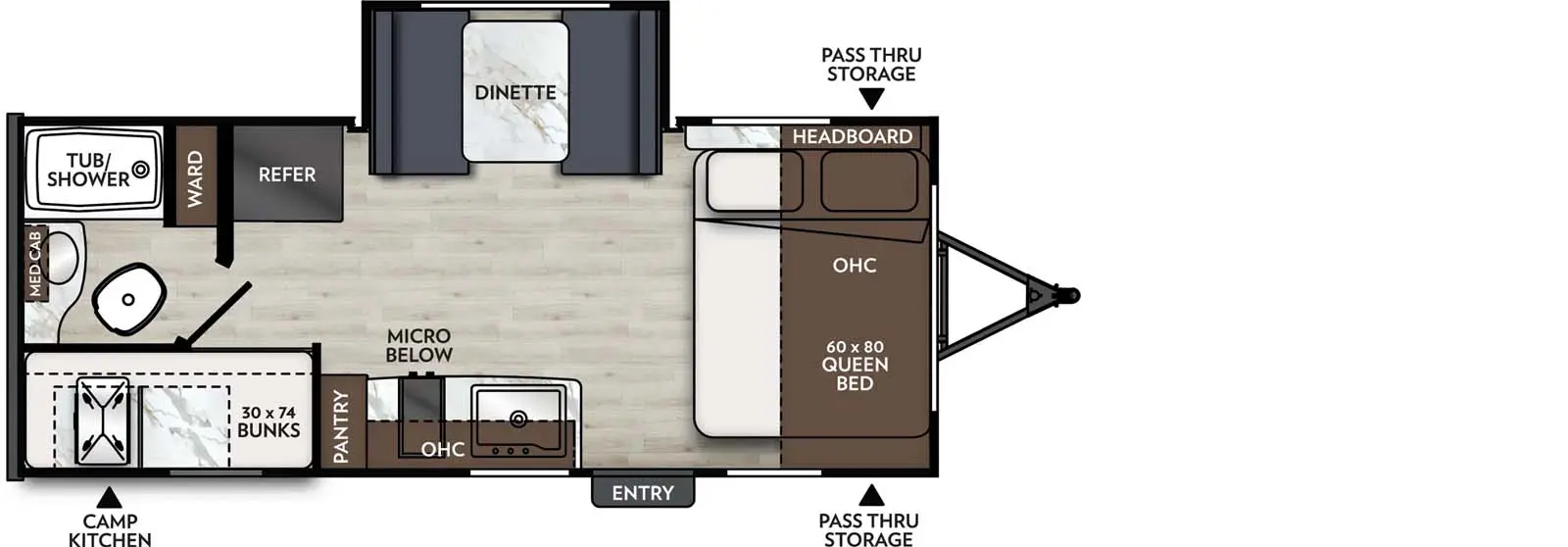

Our Apex Nano 194BHS was the perfect size camper for our 6500 mile adventure. It’s small enough to make it super versatile but when you let the slide out, it provide plenty of room for our family of 4. - Jason L.

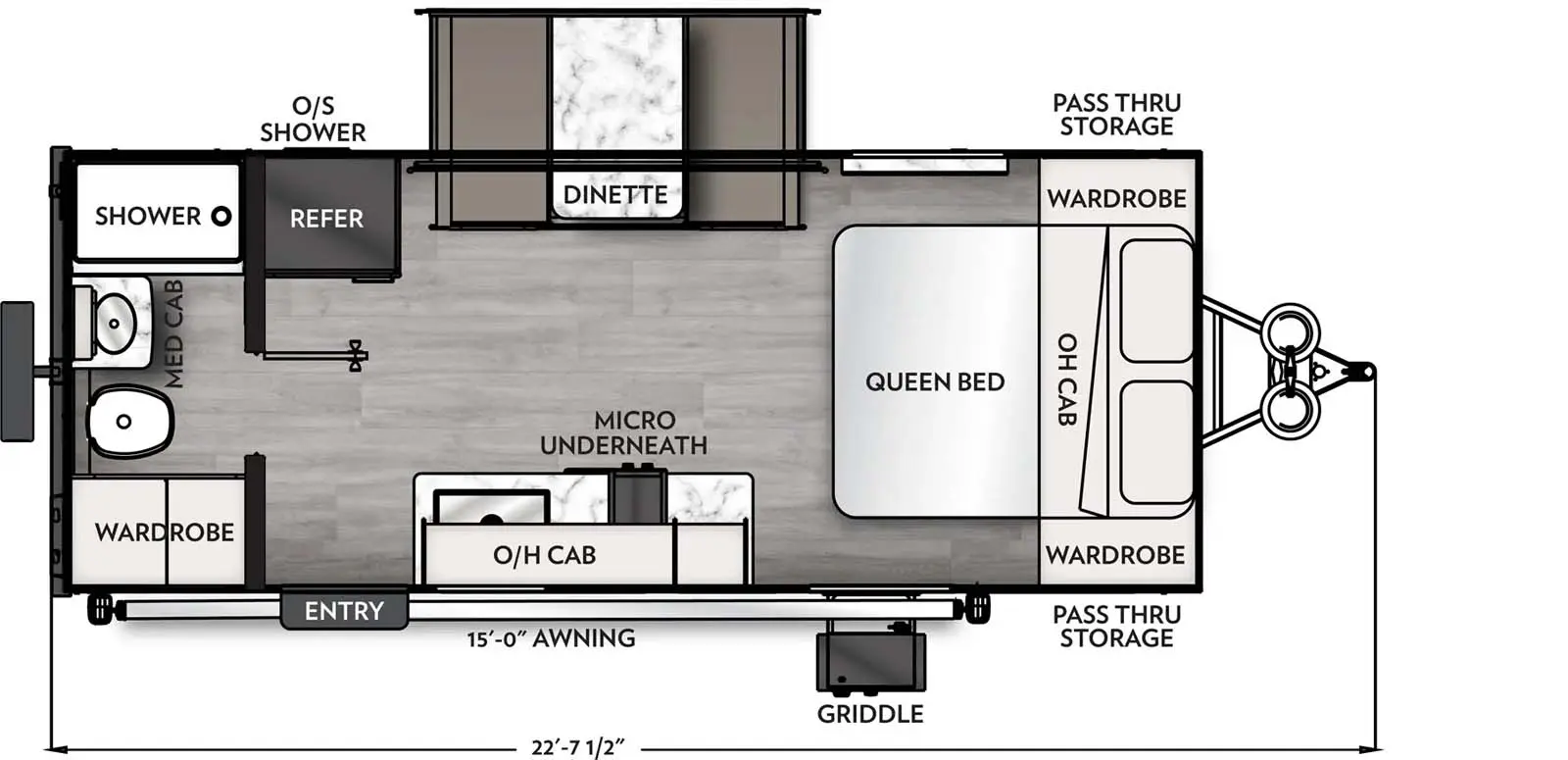

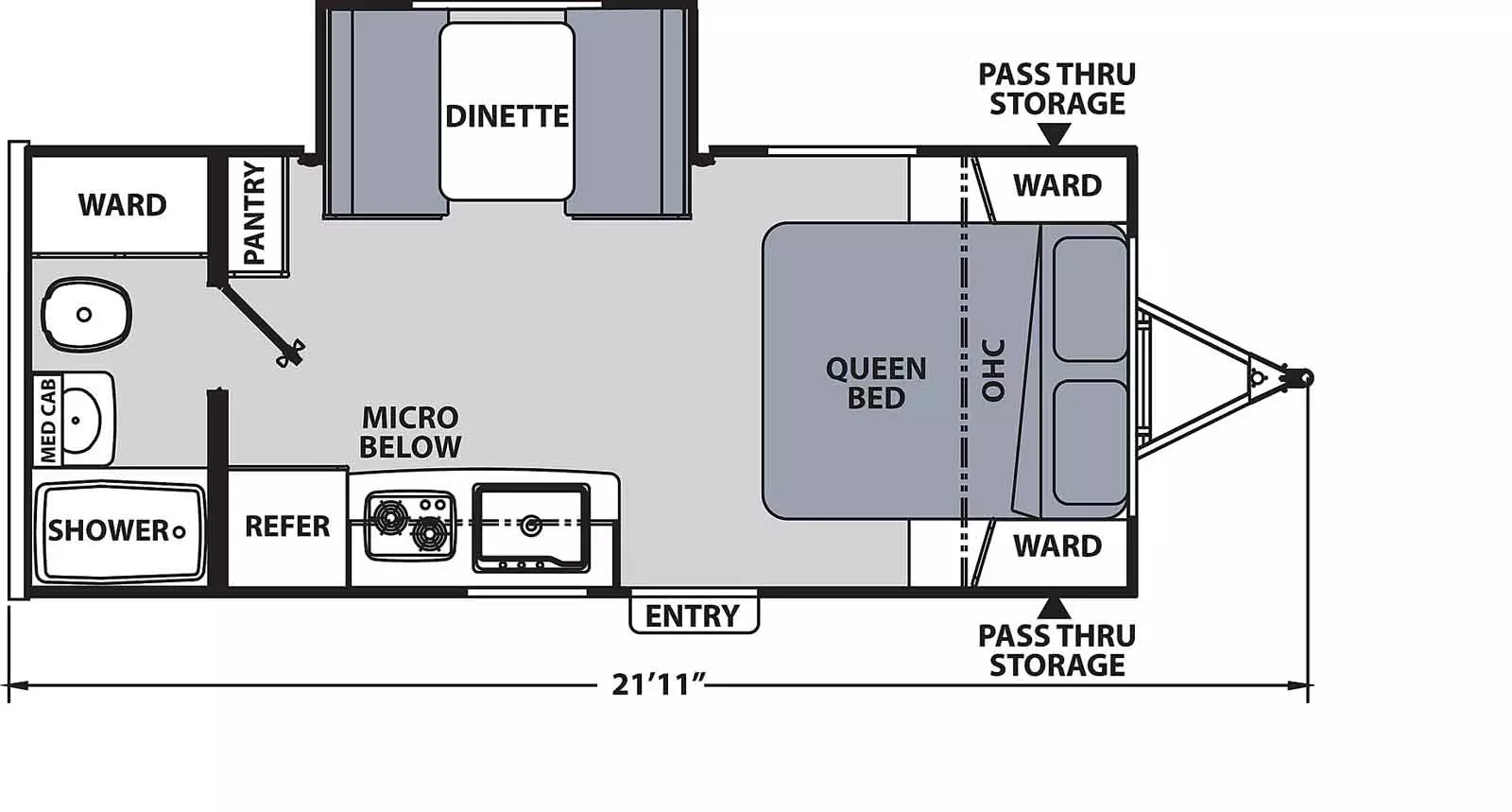

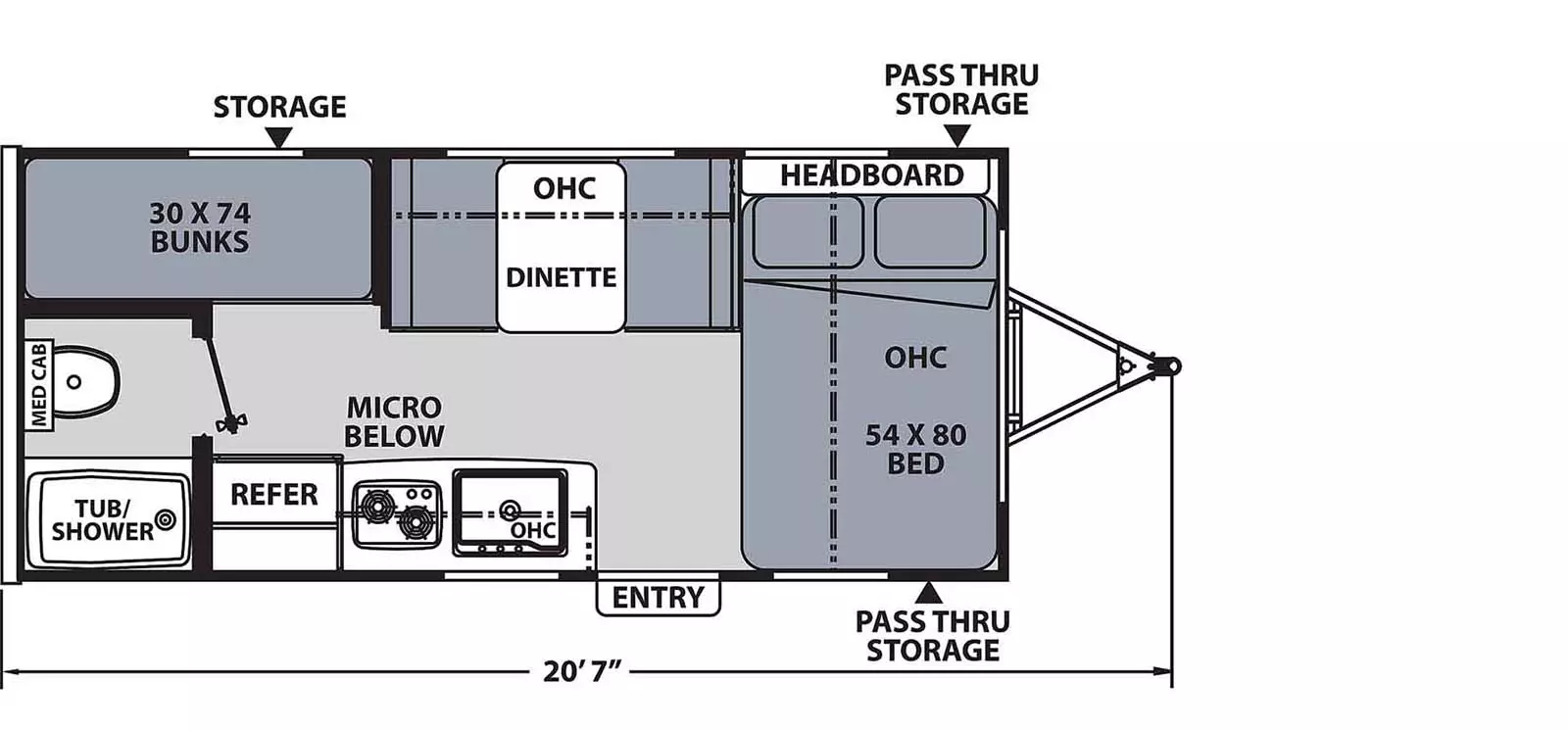

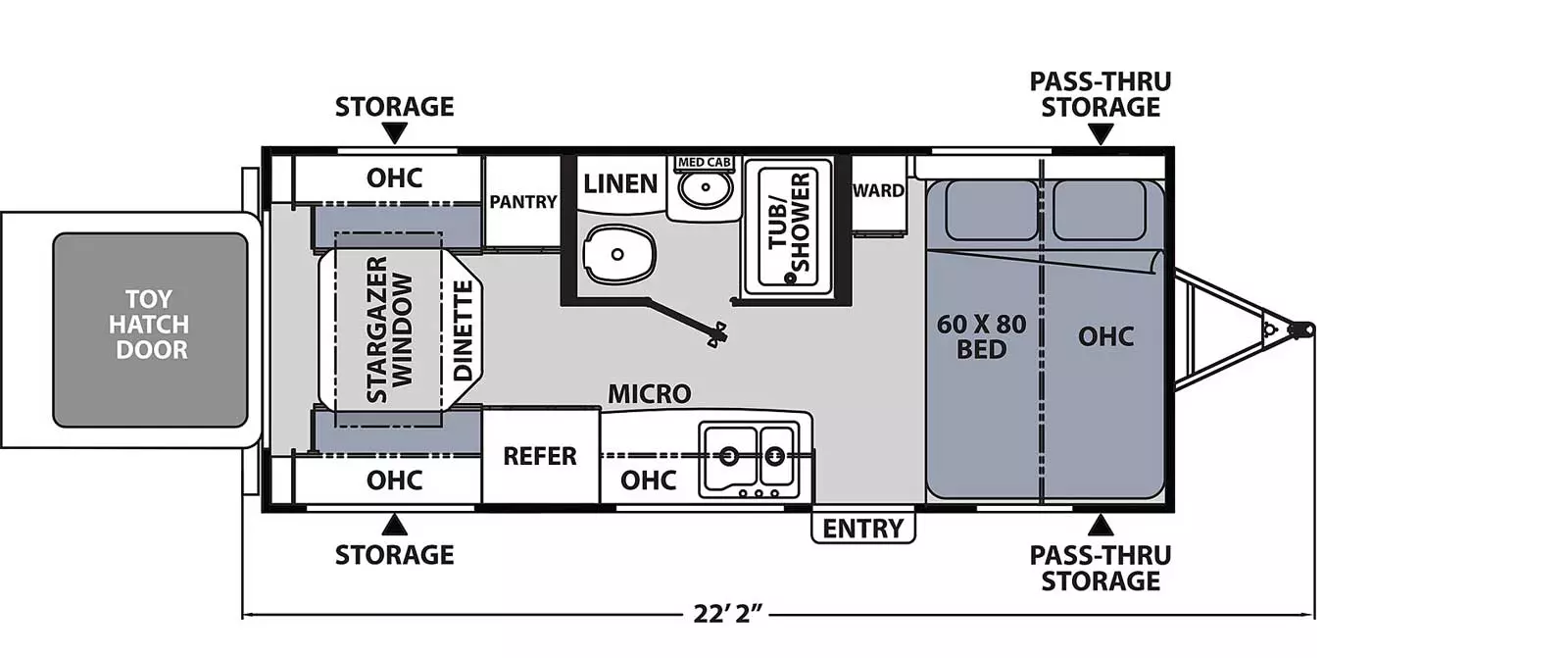

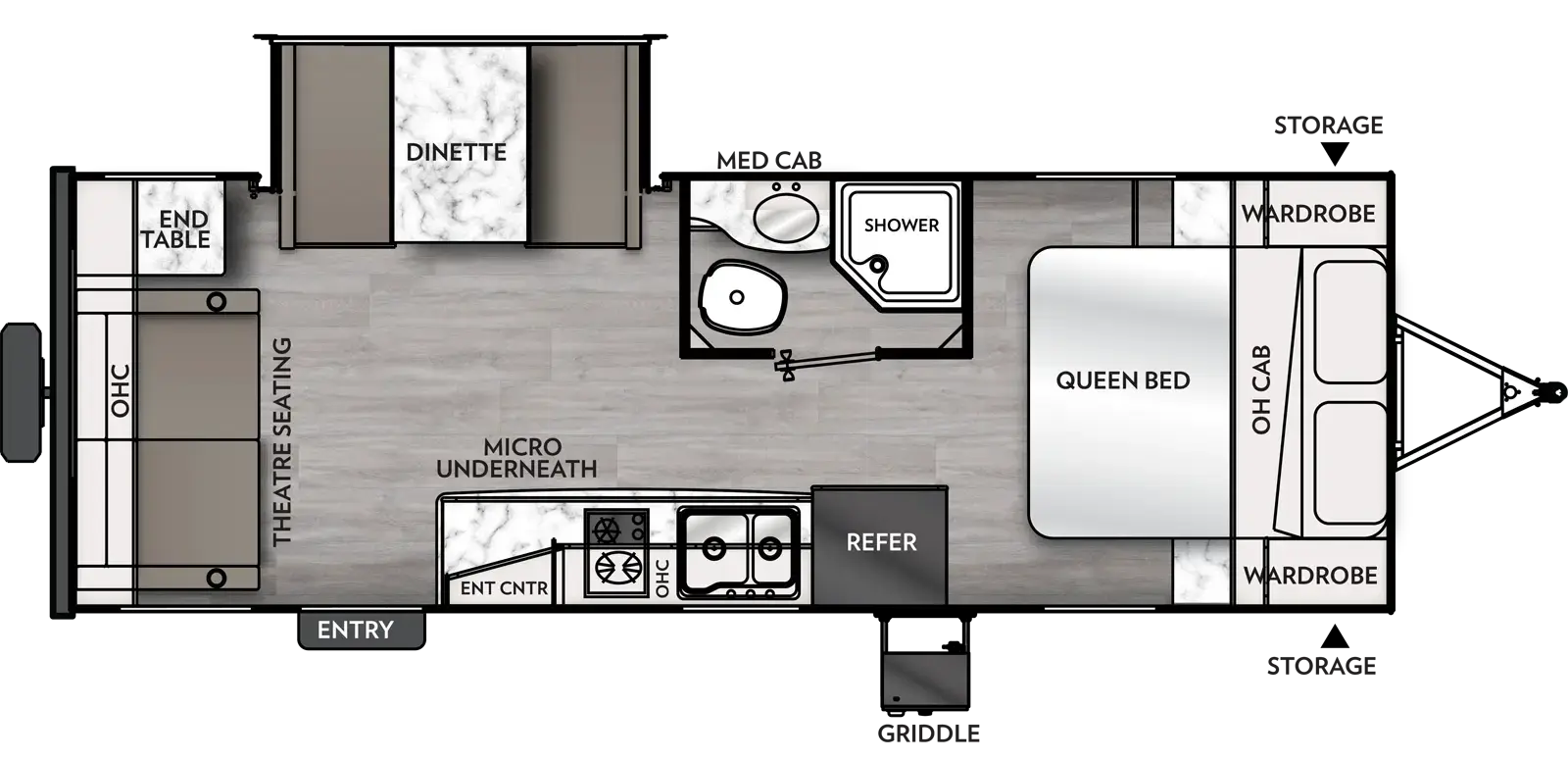

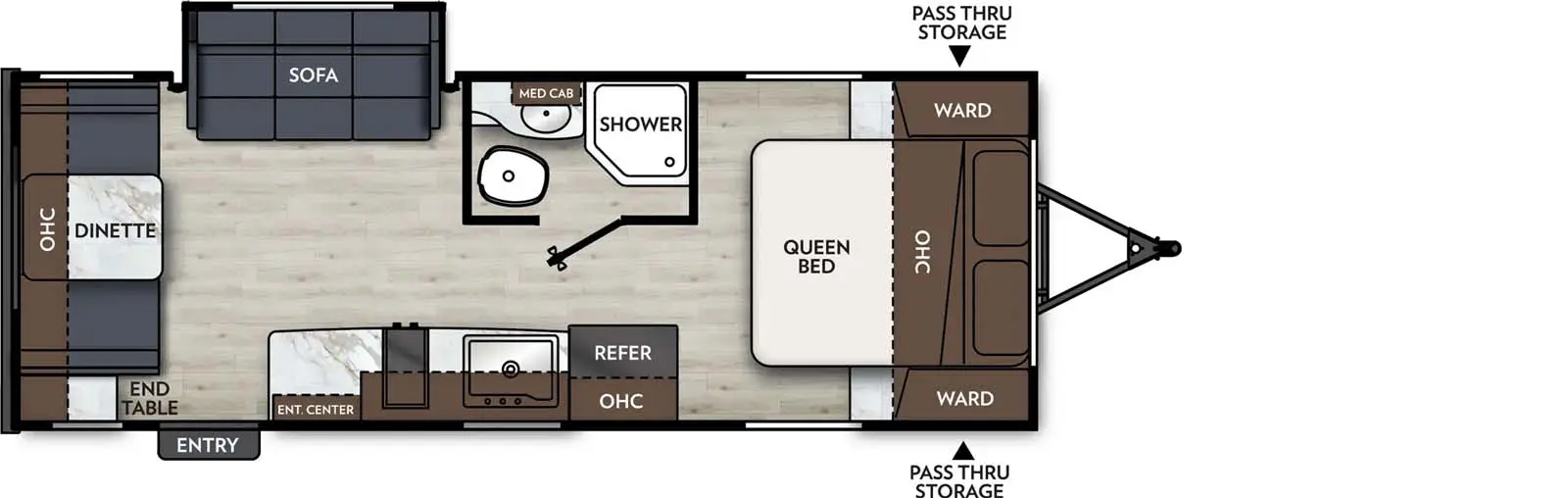

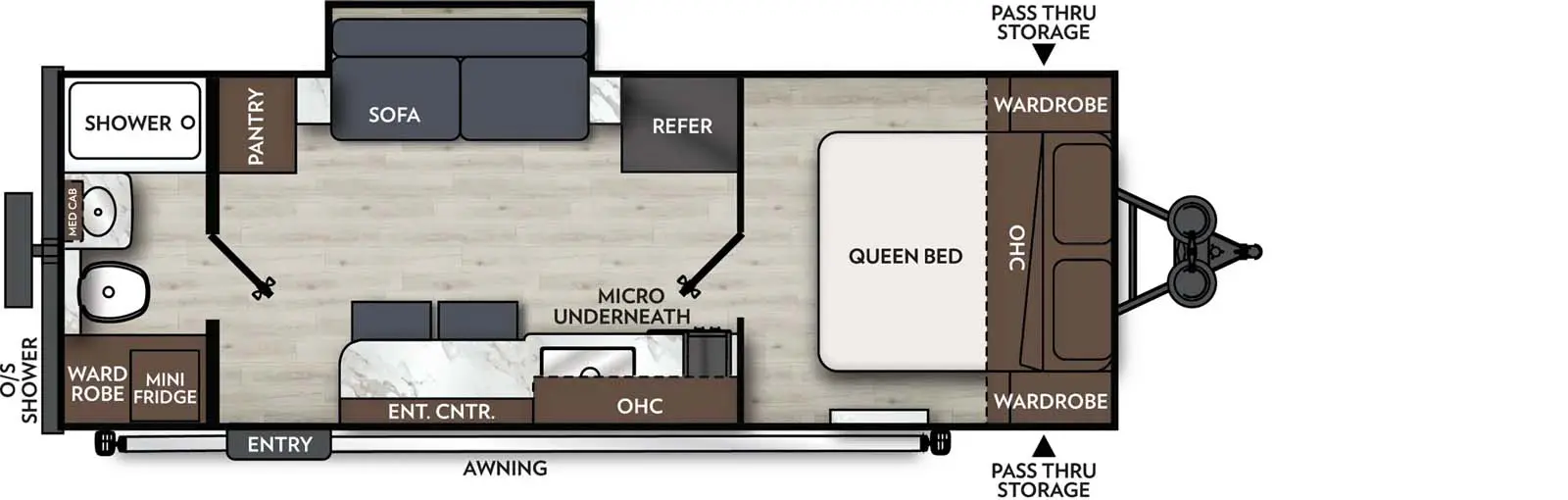

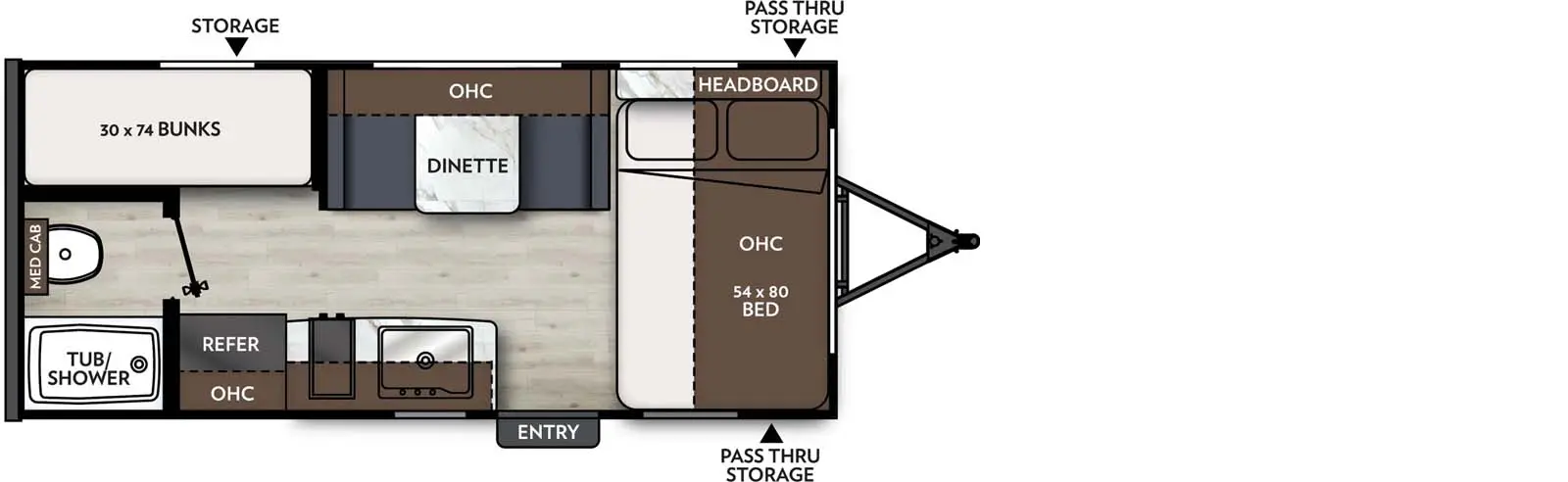

Floorplans

Print

Apex Nano


Specifications

Print

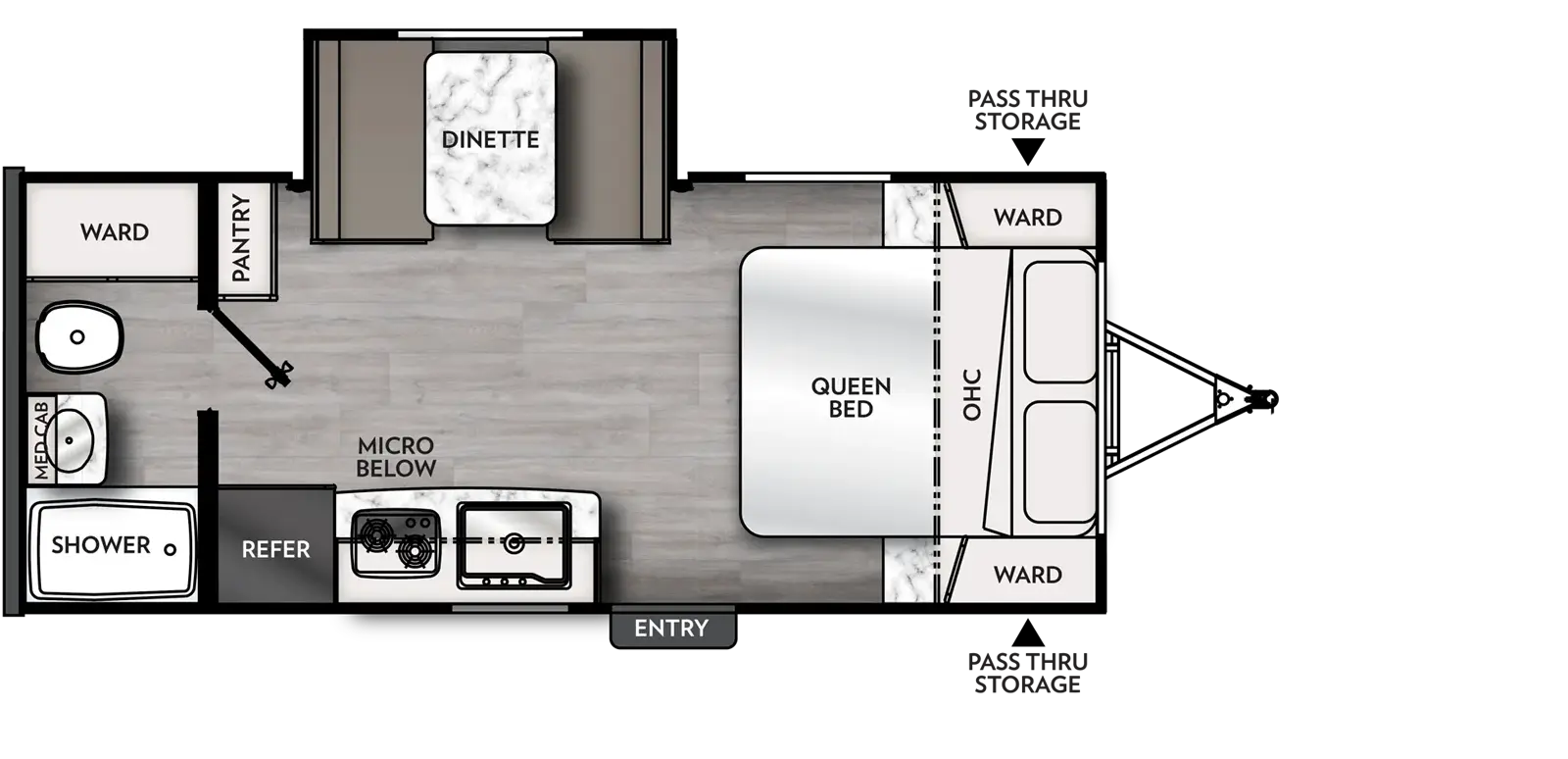

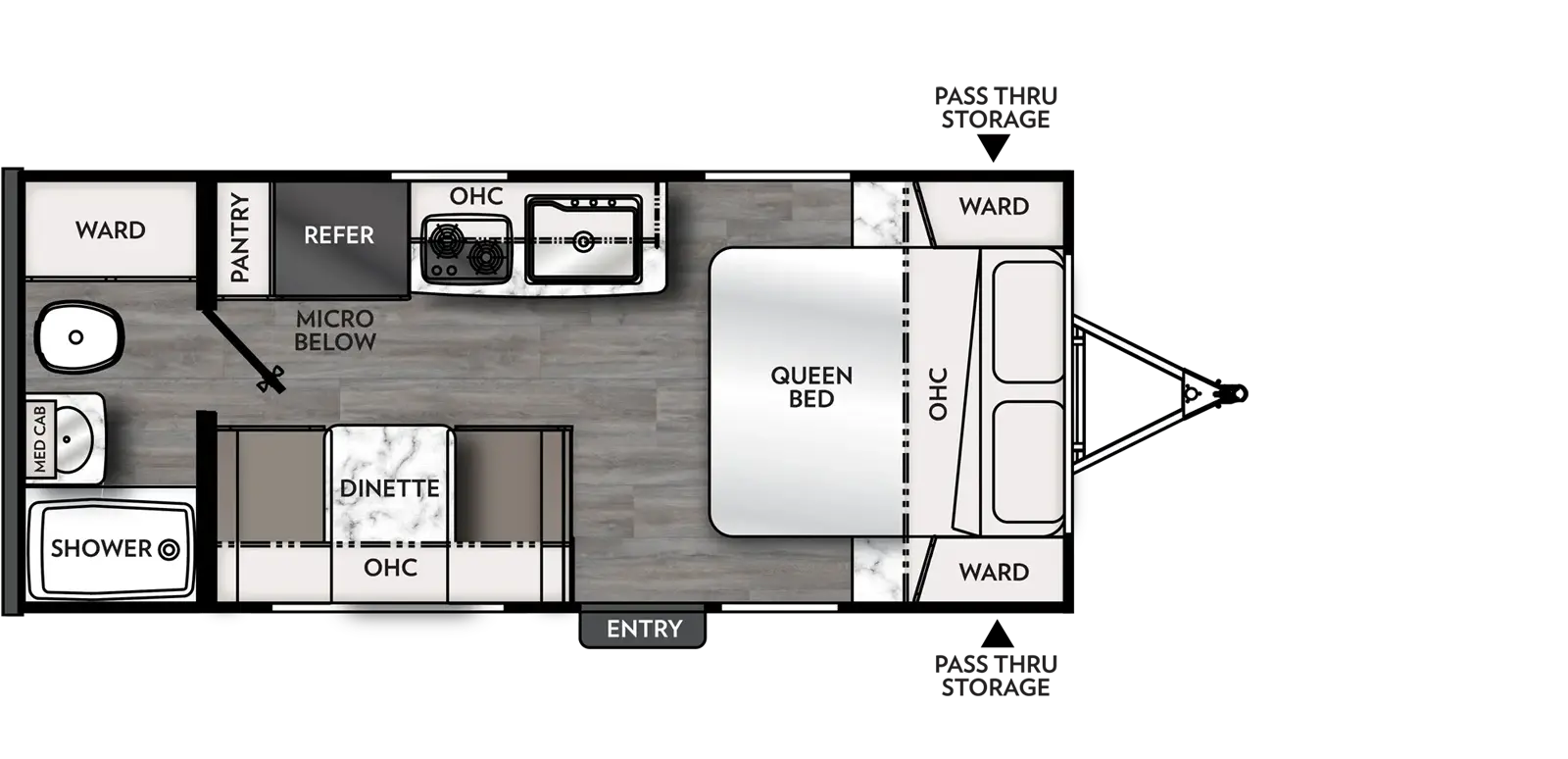

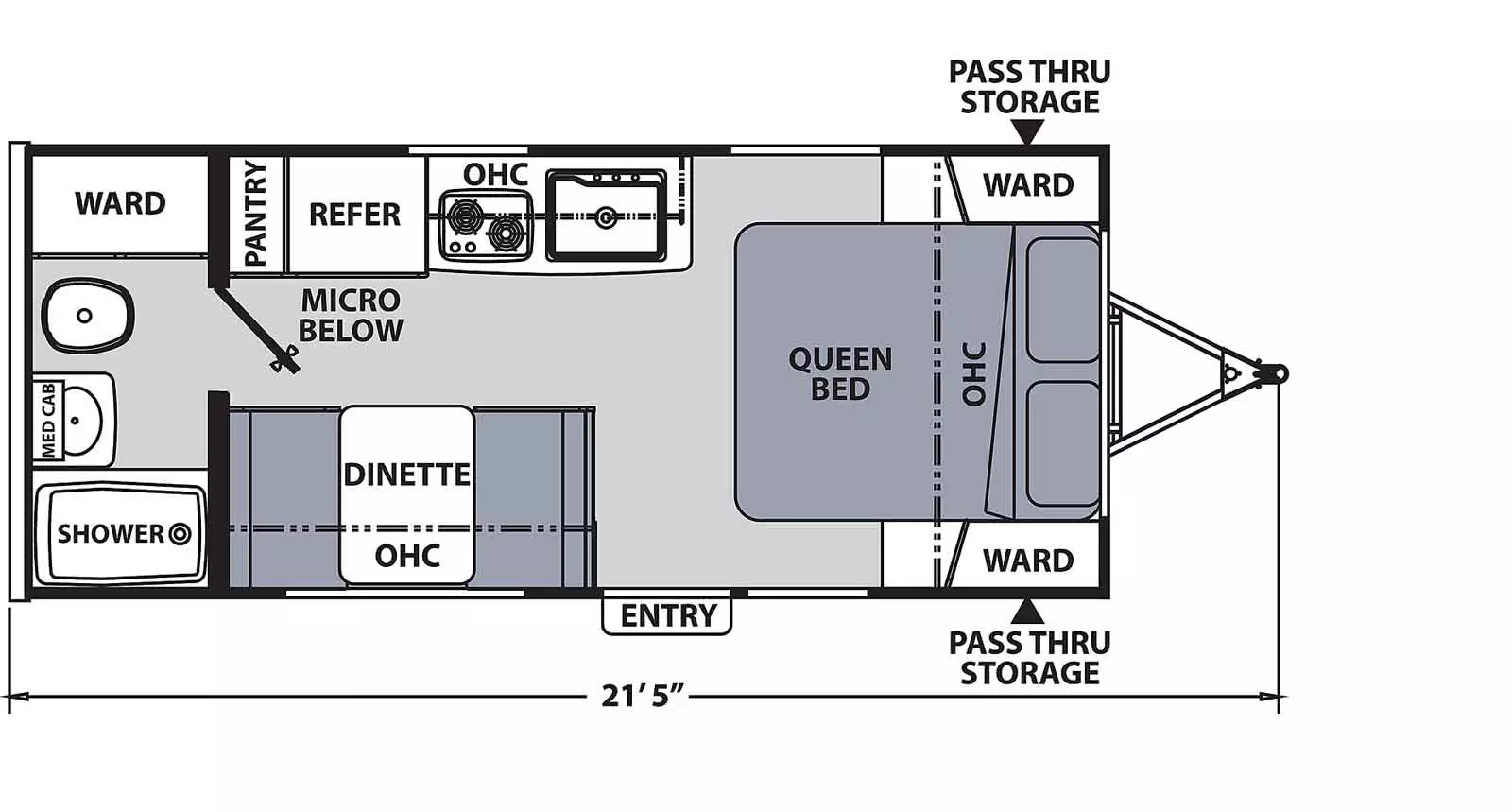

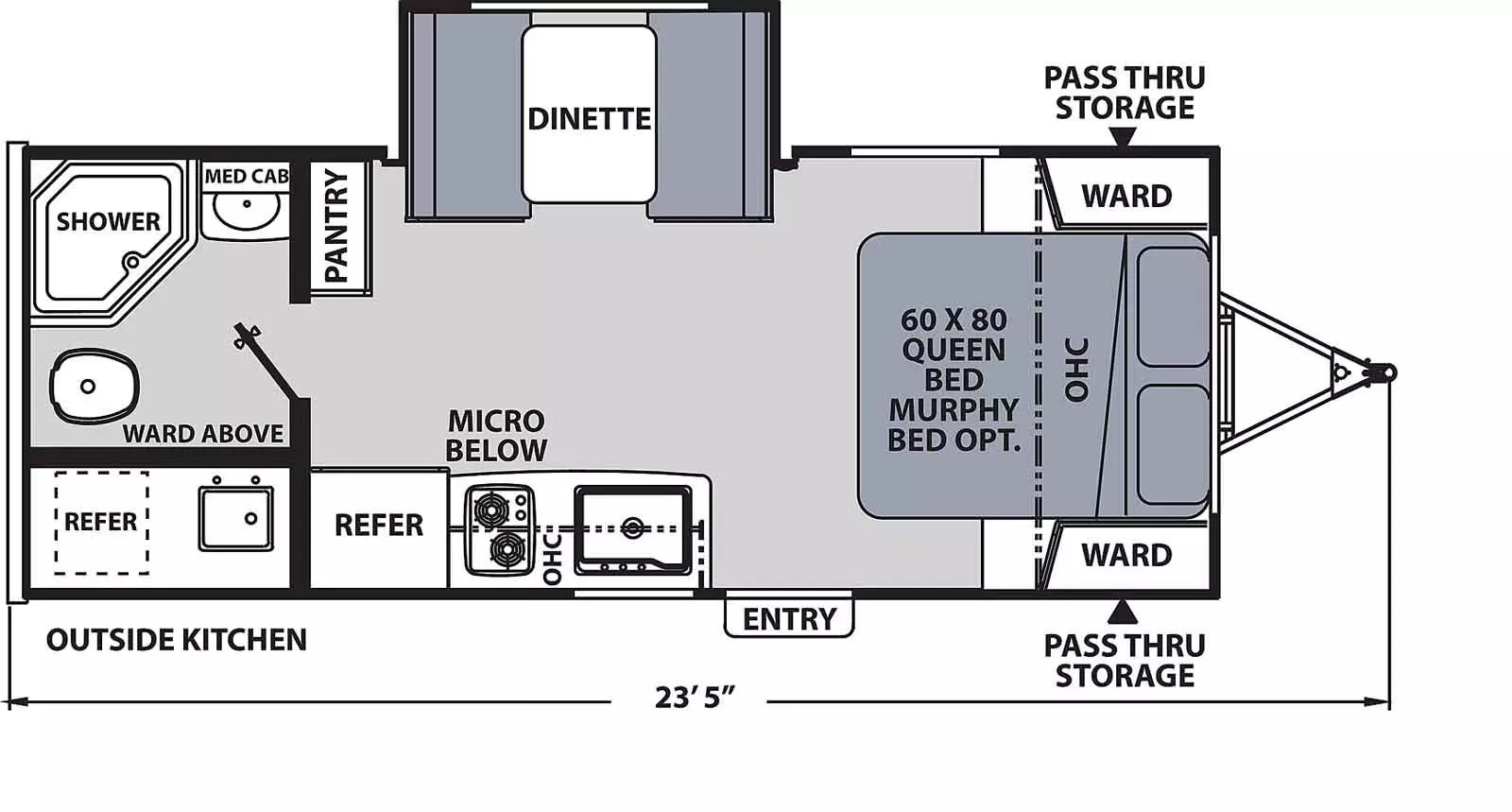

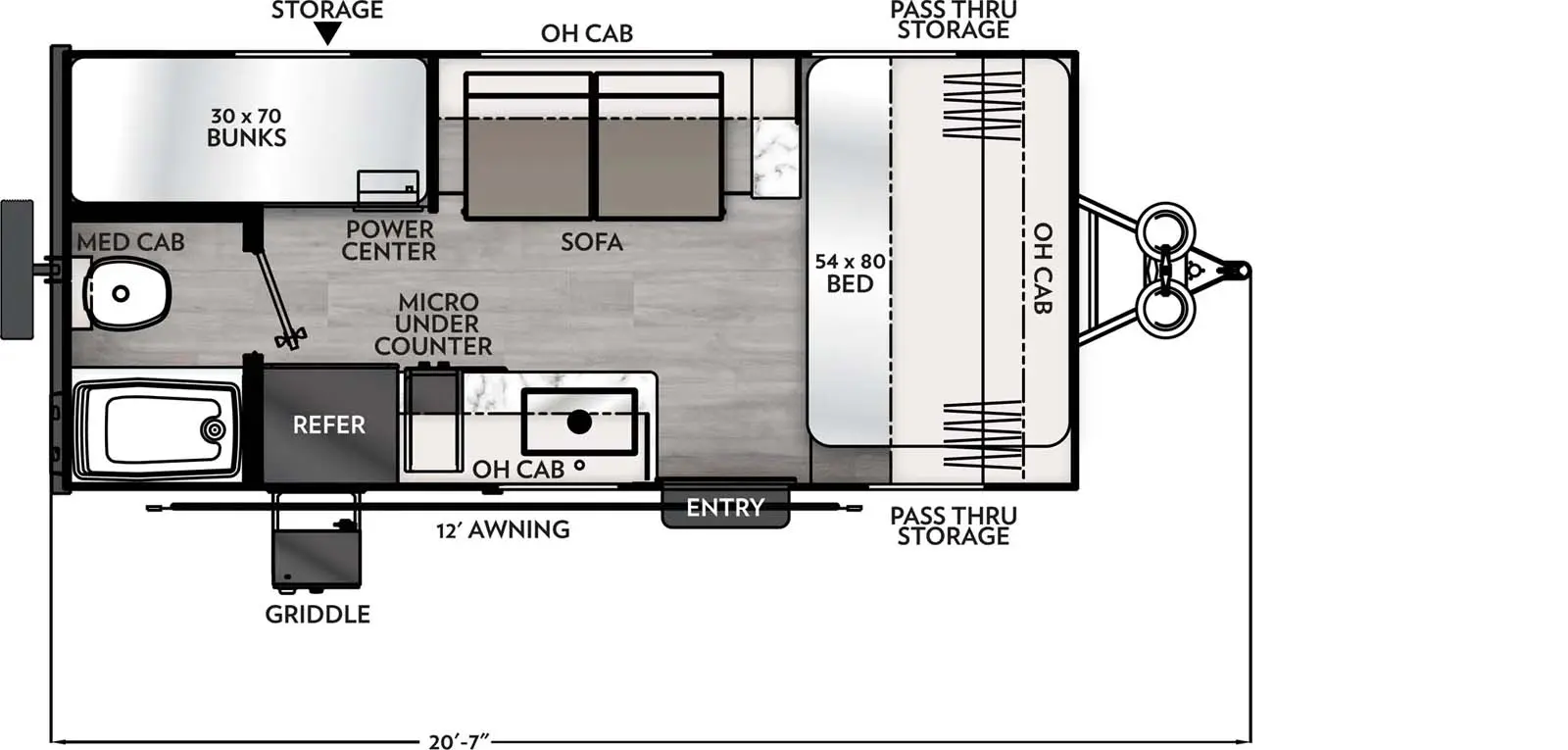

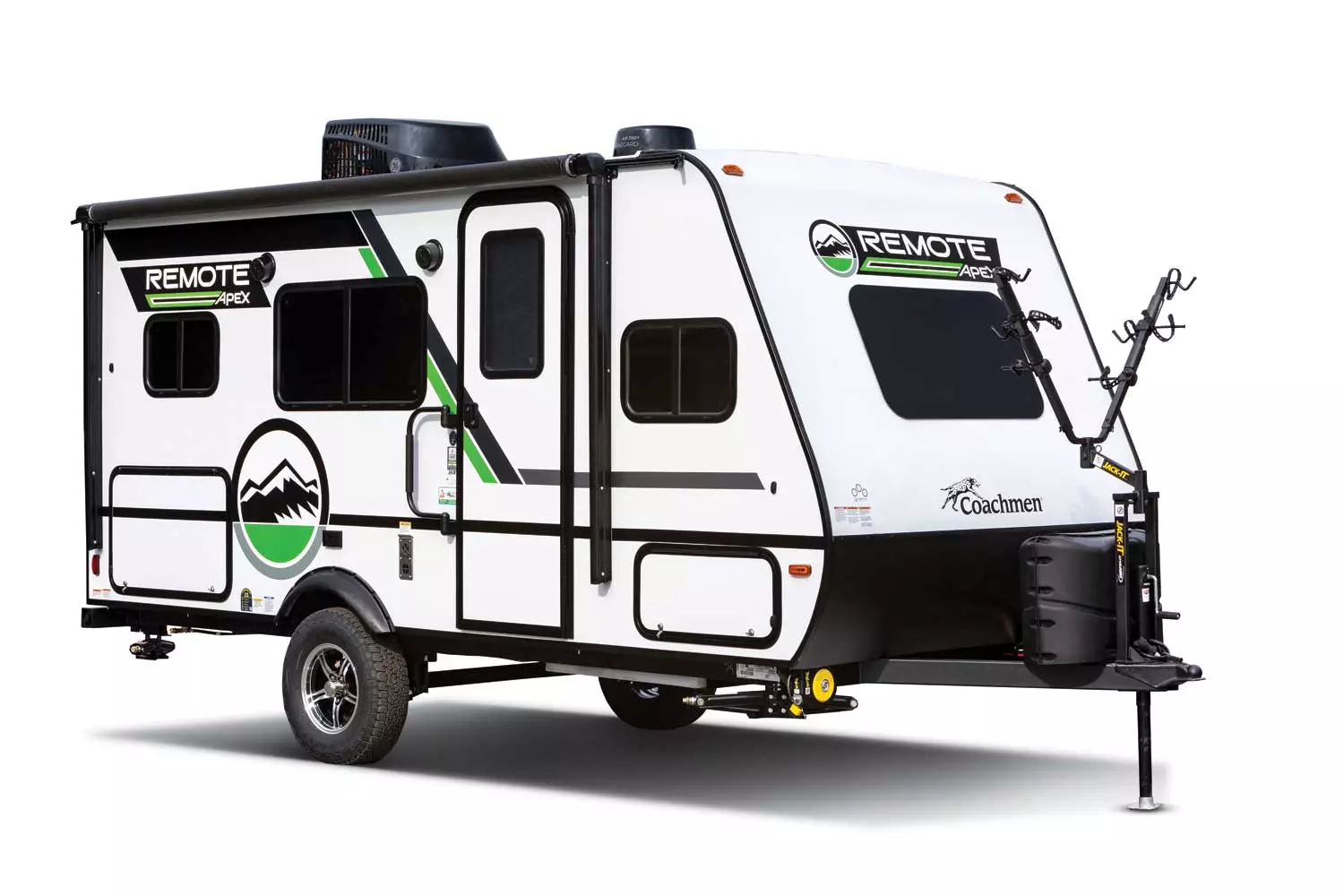

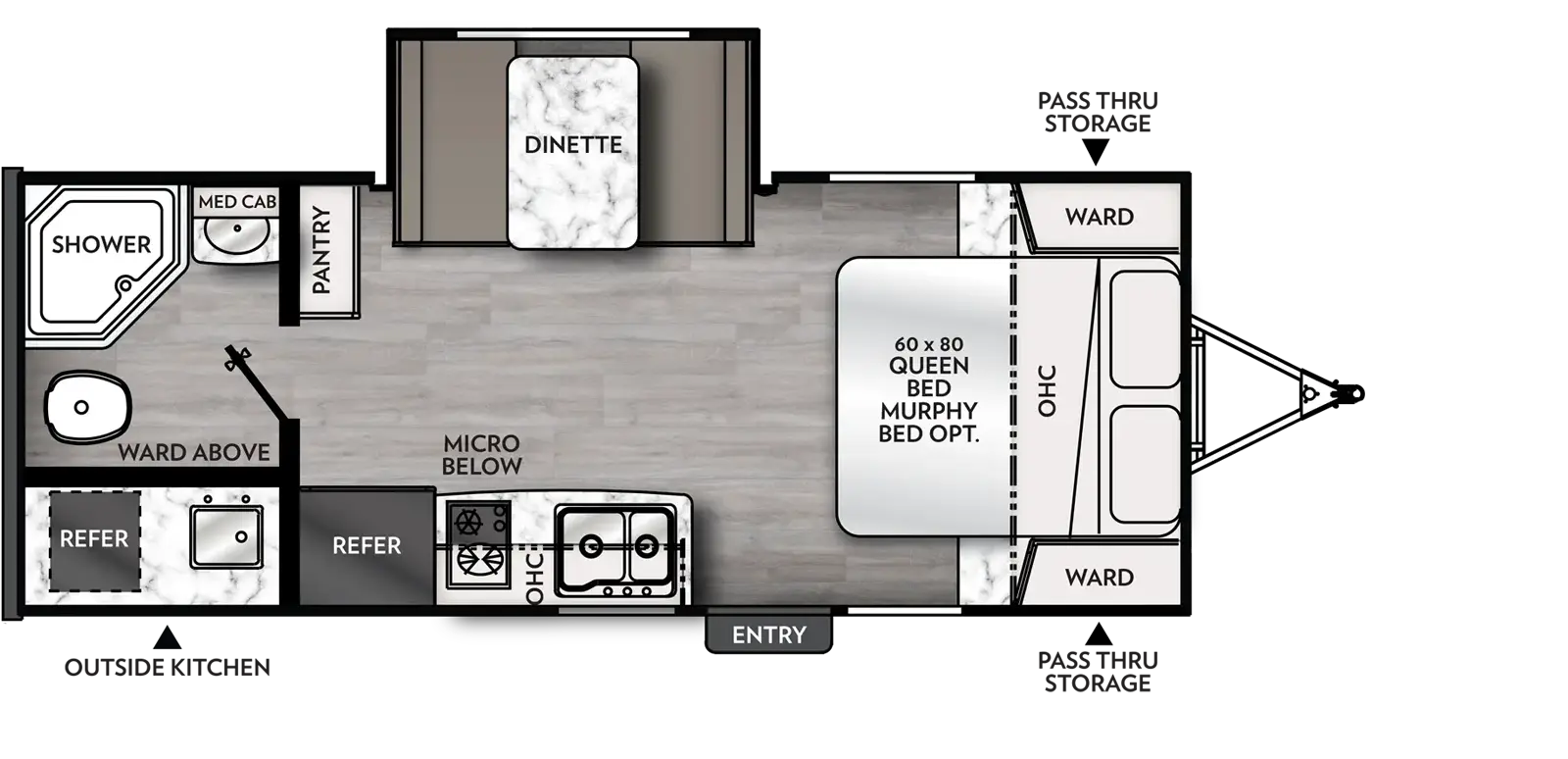

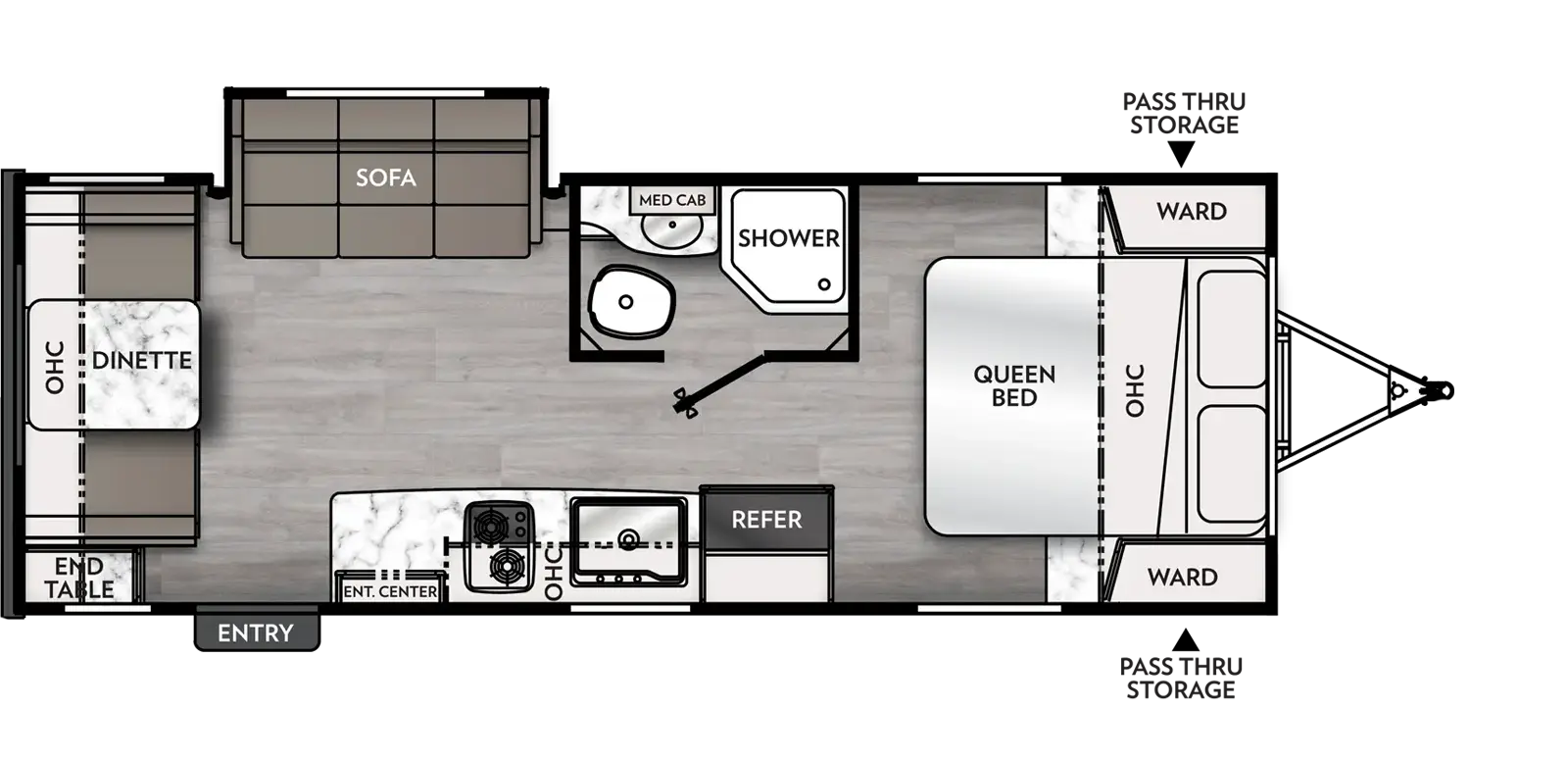

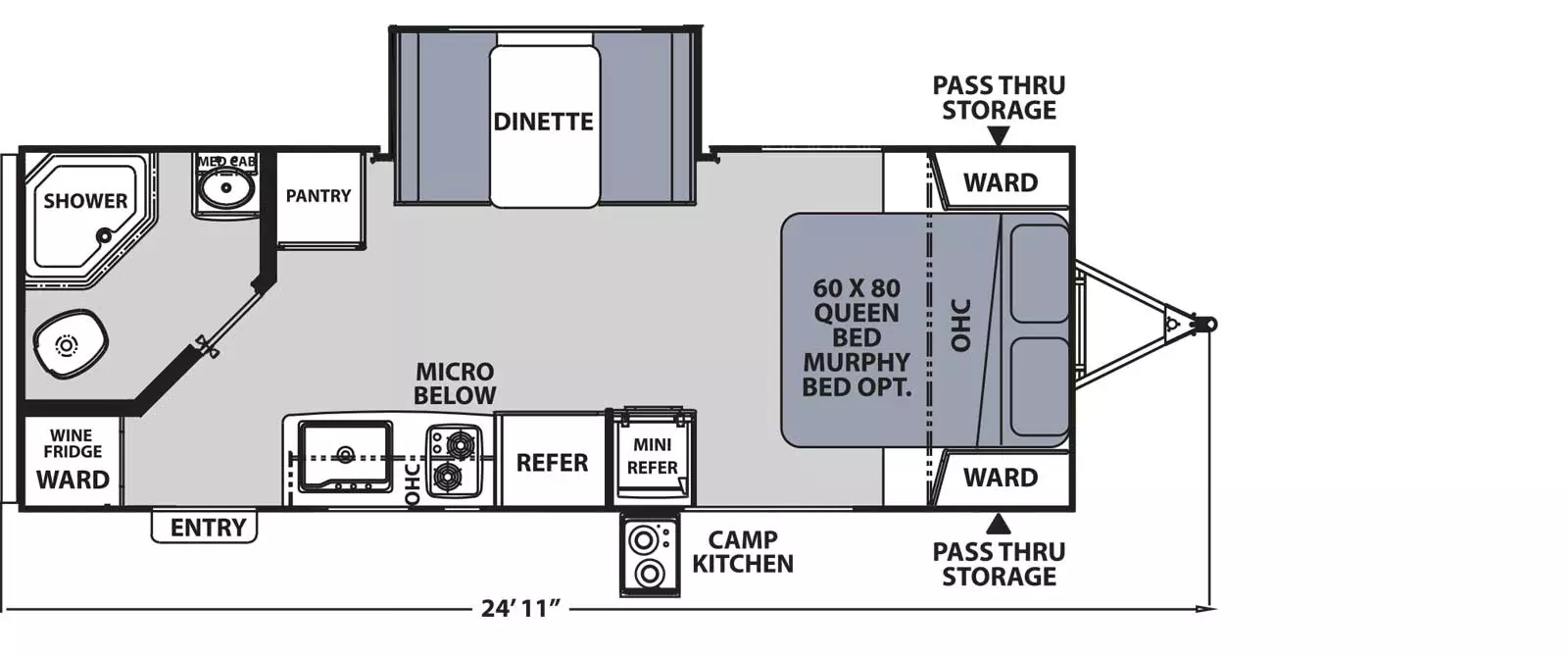

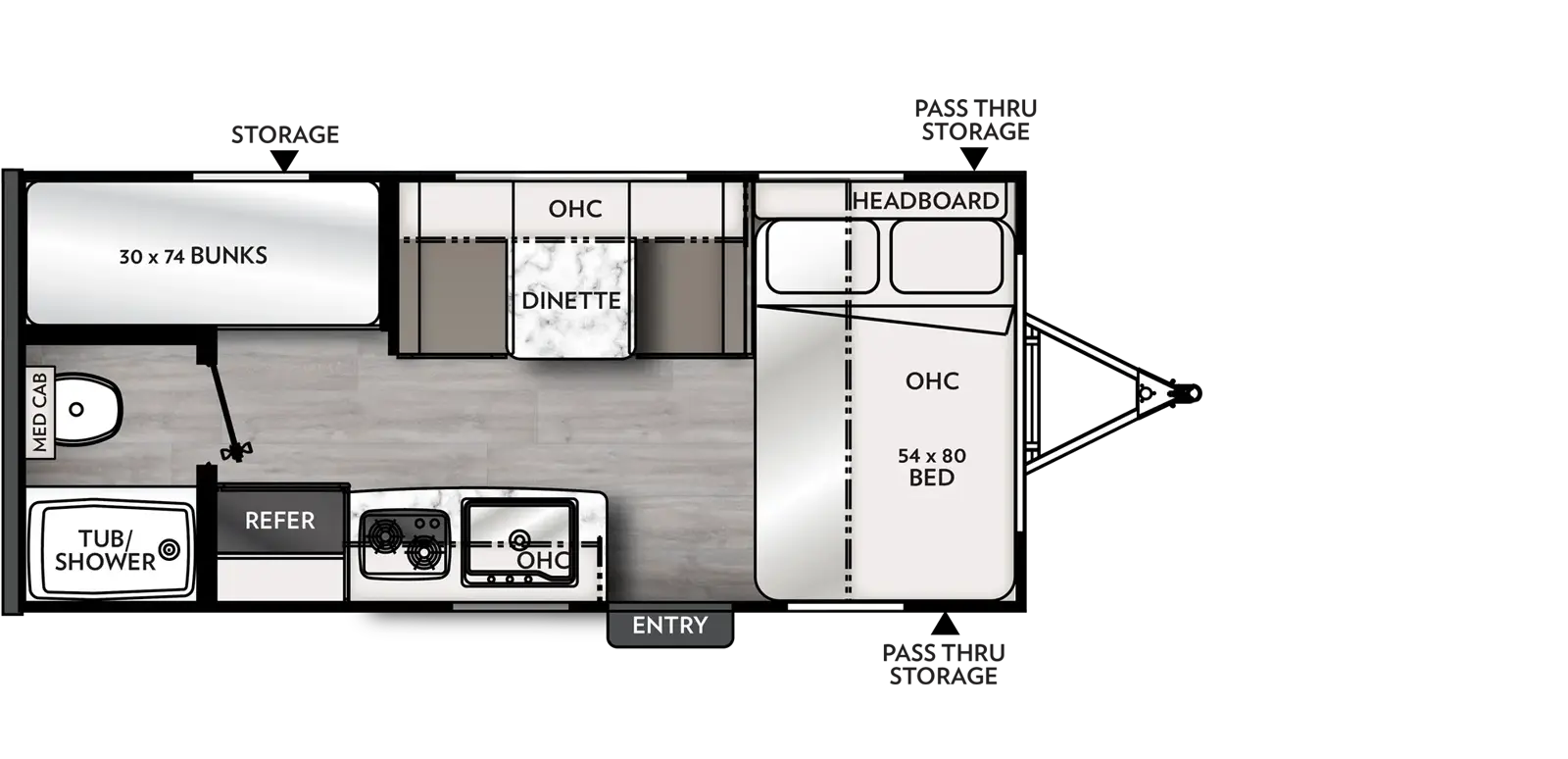

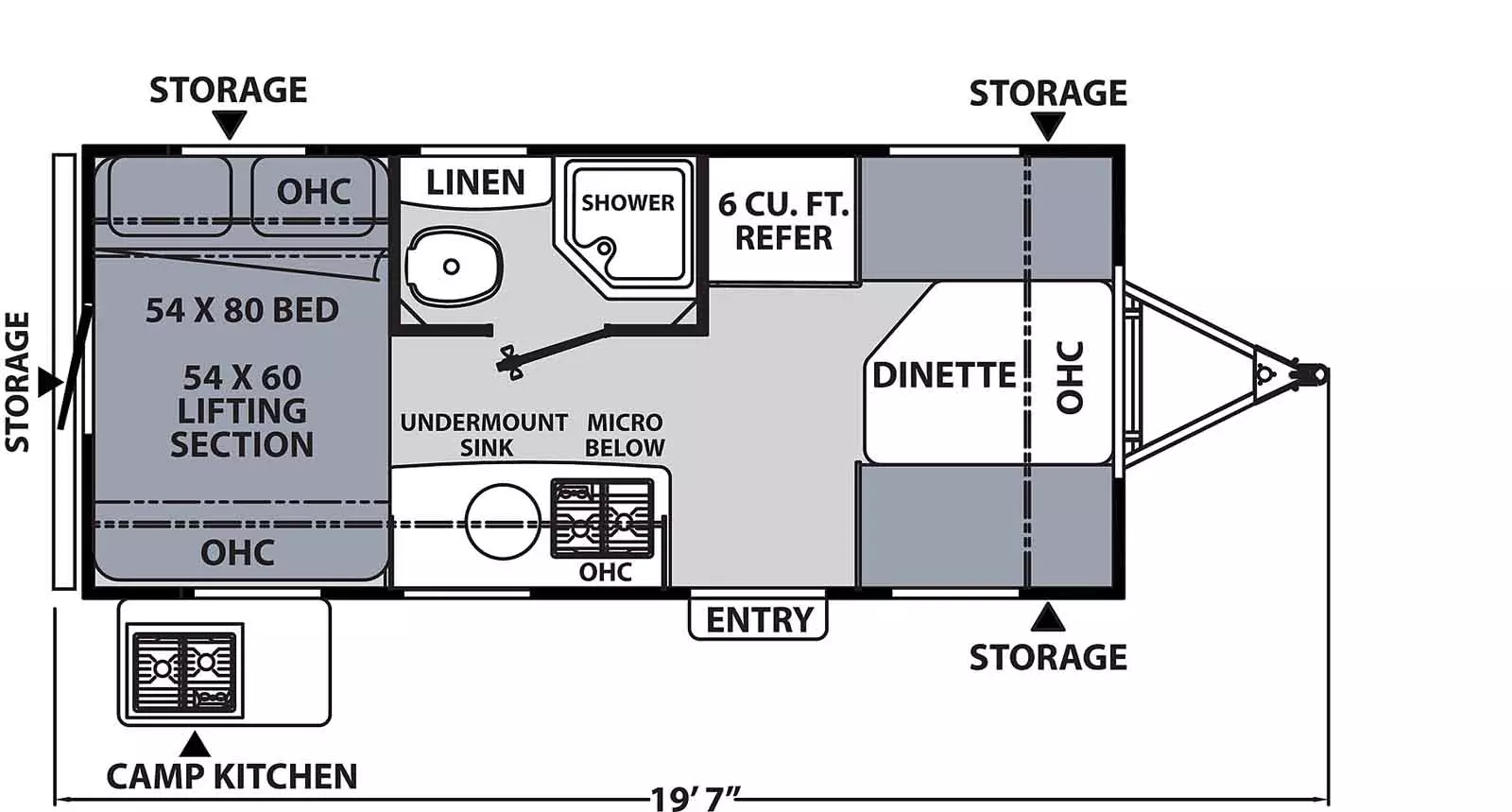

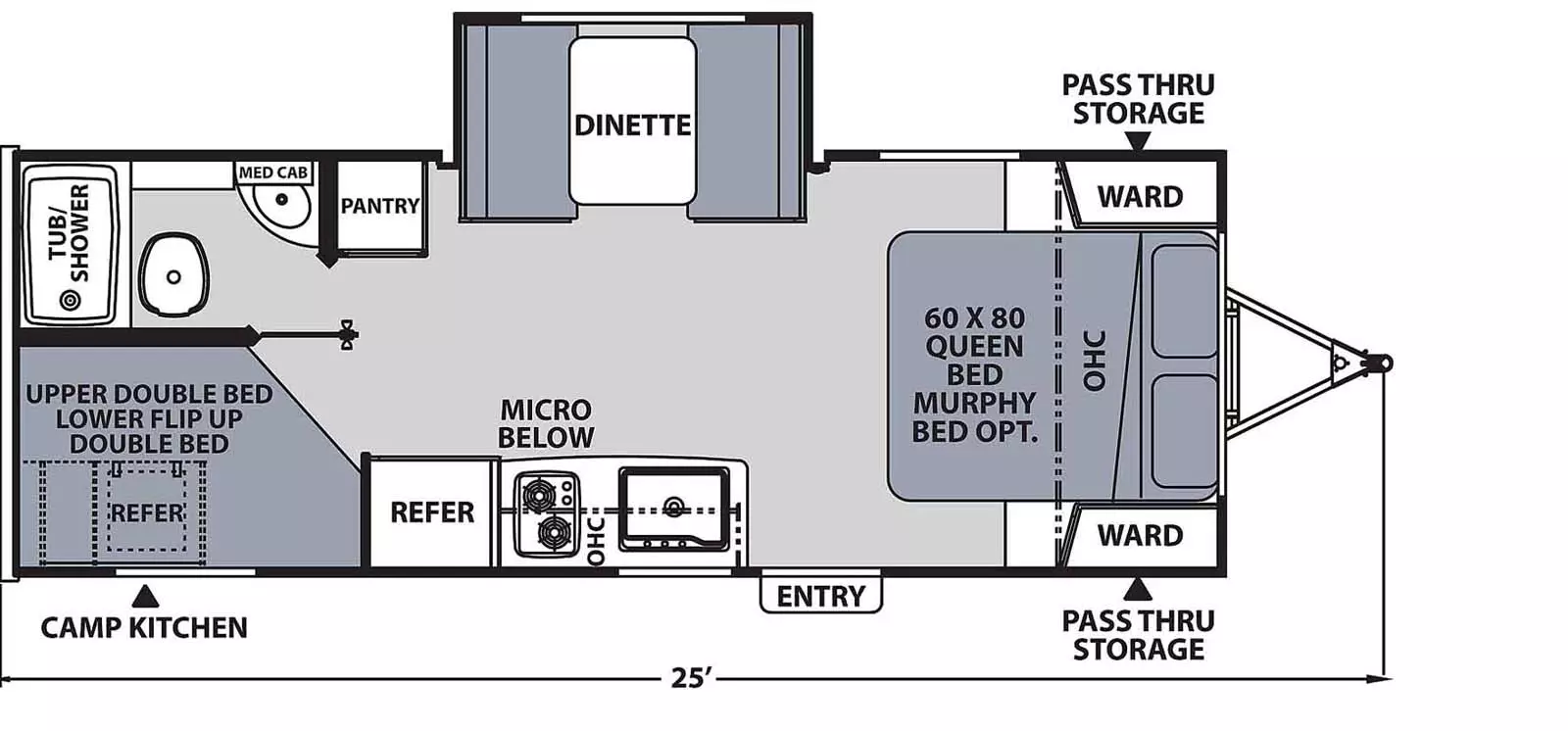

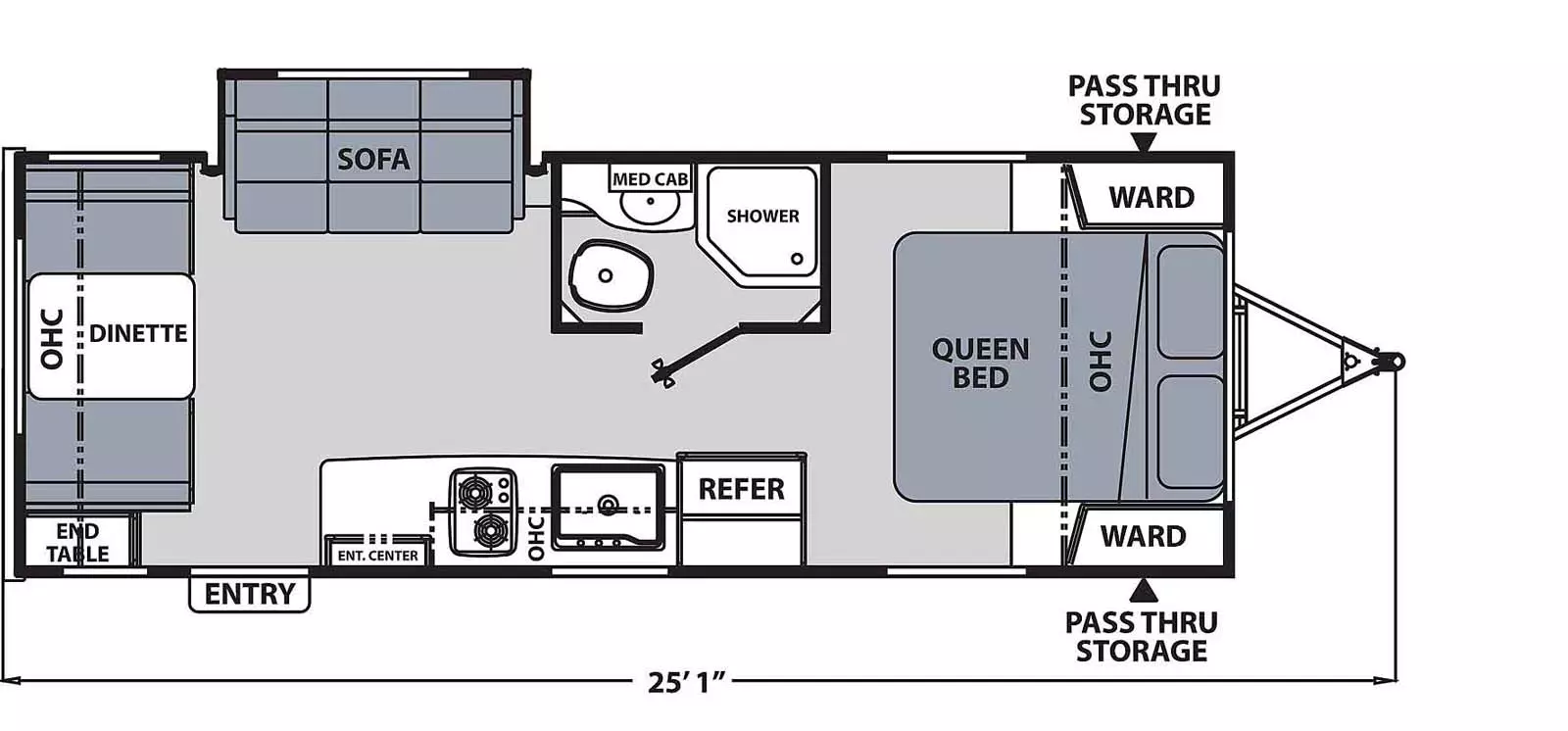

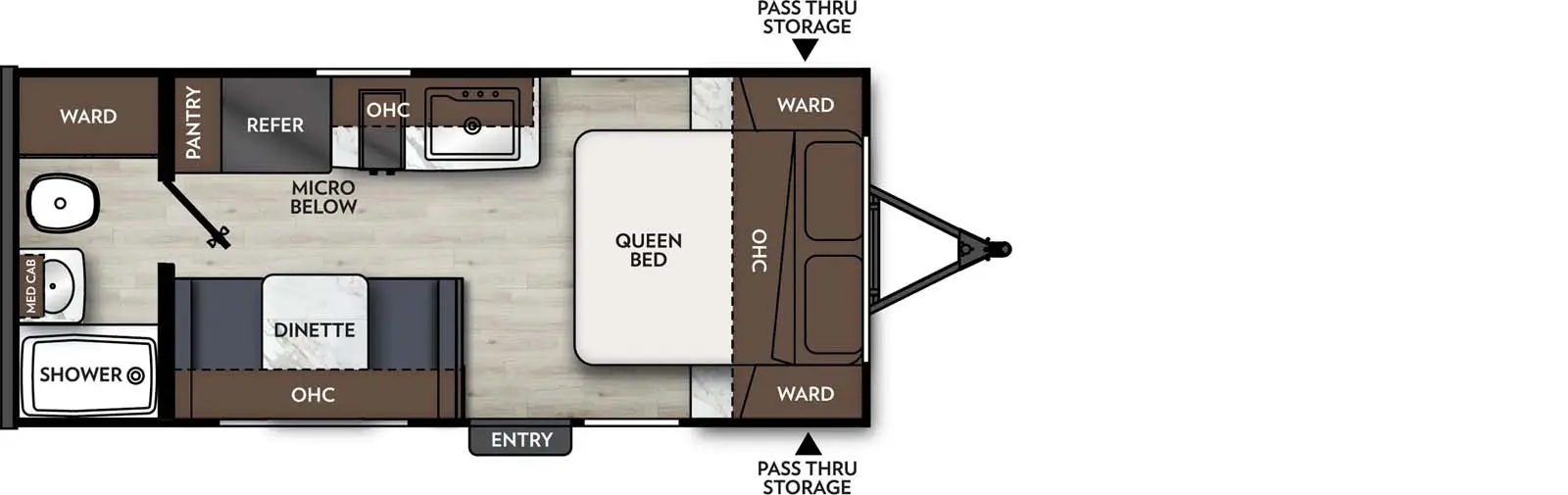

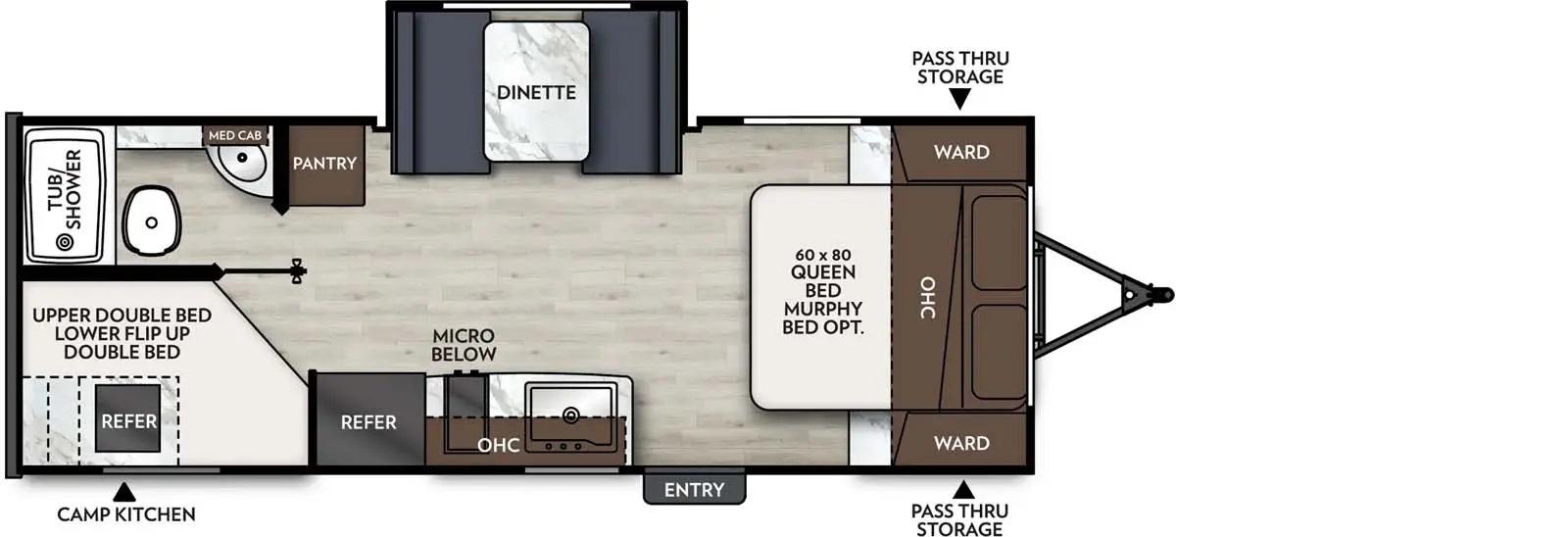

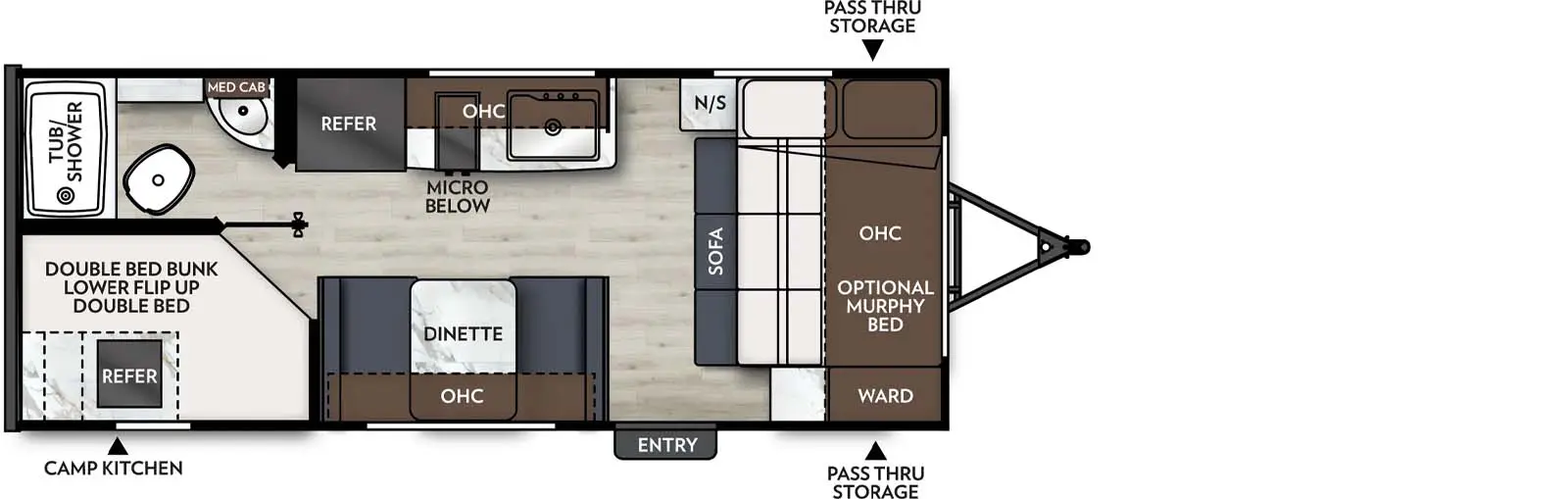

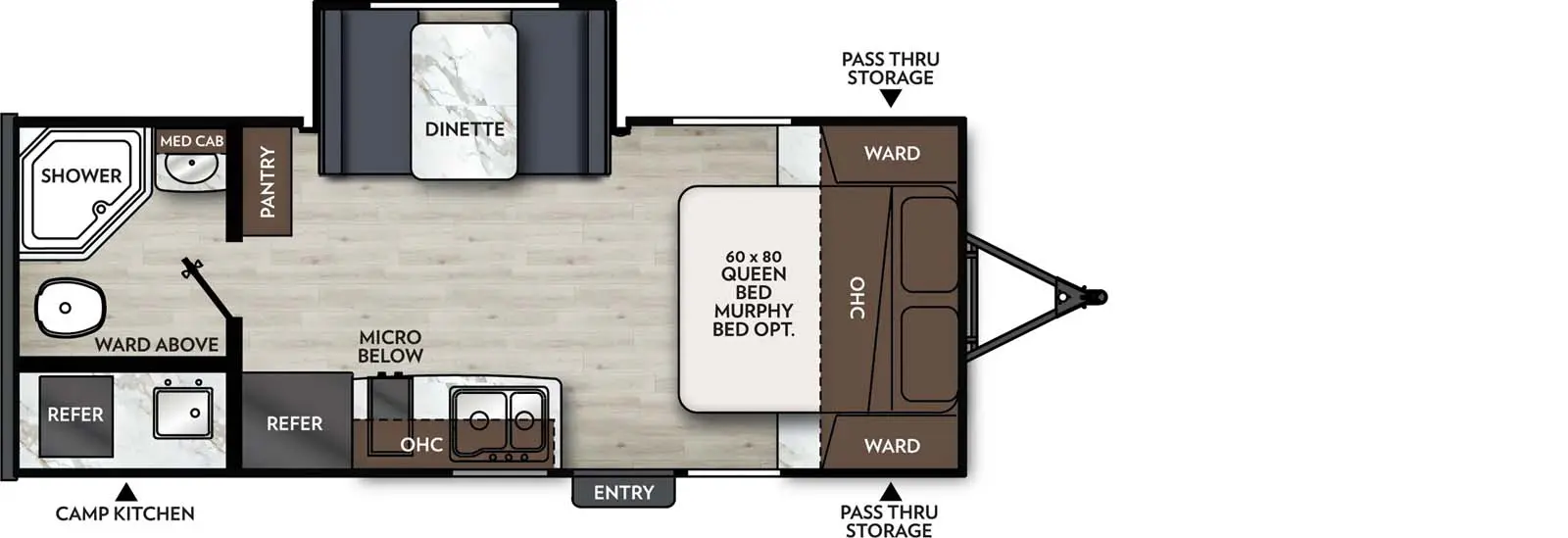

Floorplan: 16R : Apex Nano 17TH : Apex Nano 185BH : Apex Nano 186BH : Apex Nano 187RB : Apex Nano 191RBS : Apex Nano 194BHS : Apex Nano 201RBS : Apex Nano 203RBK : Apex Nano 208BHS : Apex Nano 213RDS : Apex Nano
Hitch Weight:330 lb.478 lb.400 lb.472 lb.462 lb.406 lb.428 lb.544 lb.478 lb.596 lb.467 lb.
GVWR:3,830 lb.4,700 lb.4,700 lb.4,700 lb.4,700 lb.4,700 lb.4,800 lb.7,544 lb.6,000 lb.6,000 lb.6,000 lb.
UVW:2,860 lb.3,580 lb.3,406 lb.3,626 lb.3,358 lb.3,466 lb.3,634 lb.4,048 lb.3,916 lb.4,260 lb.3,826 lb.
CCC:970 lb.1,120 lb.1,294 lb.1,074 lb.1,342 lb.1,234 lb.1,166 lb.3,496 lb.2,084 lb.1,740 lb.2,174 lb.
Exterior Length:19' 7"22' 2"20' 7"22' 11"21' 5"21' 11"22' 8"24' 11"23' 5"25' 0"25' 1"
Exterior Height:9' 10"9' 10"9' 10"9' 9"9' 9"9' 10"9' 10"TBD9' 9"10' 0"9' 11"
Exterior Width:84"90"90"90"90"90"90"90"90"90"90"
Fresh Water:50.00 gal.30.00 gal.50.00 gal.30.00 gal.50.00 gal.50.00 gal.50.00 gal.50.00 gal.50.00 gal.50.00 gal.50.00 gal.
Gray Water:35.00 gal.30.00 gal.30.00 gal.30.00 gal.30.00 gal.30.00 gal.30.00 gal.35.00 gal.35.00 gal.35.00 gal.35.00 gal.
Black Water:35.00 gal.30.00 gal.30.00 gal.30.00 gal.30.00 gal.30.00 gal.30.00 gal.35.00 gal.35.00 gal.35.00 gal.35.00 gal.
Awning Size:12'14'12'15'12'12'14'TBD15'14'15'

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)*- is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Coachmen RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Coachmen RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Features & Options

Print

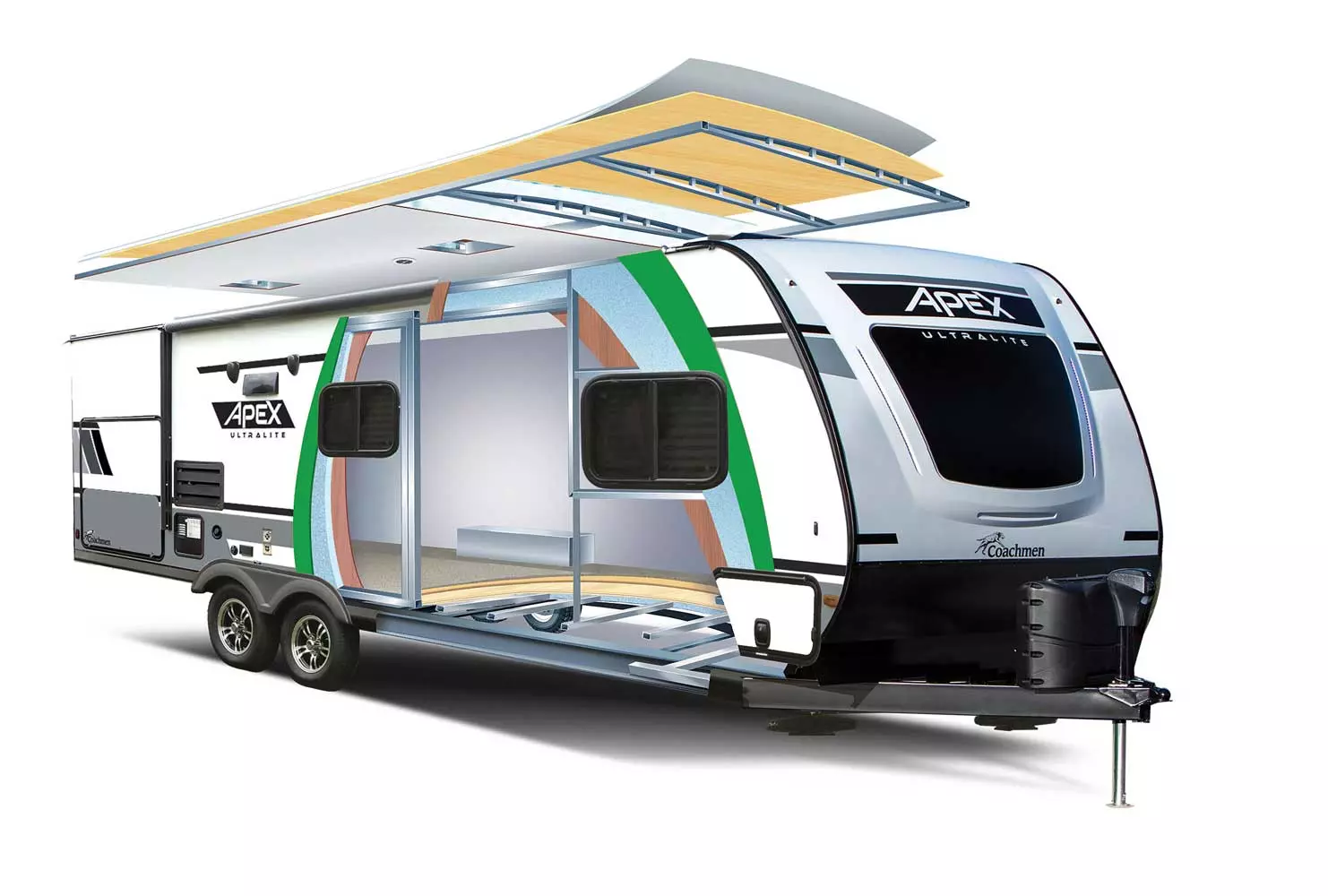

  • Vacuum-bonded Laminated Azdel/Fiberglass Side Walls
  • Vacuum-bonded Laminated Azdel/Fiberglass Rear Wall

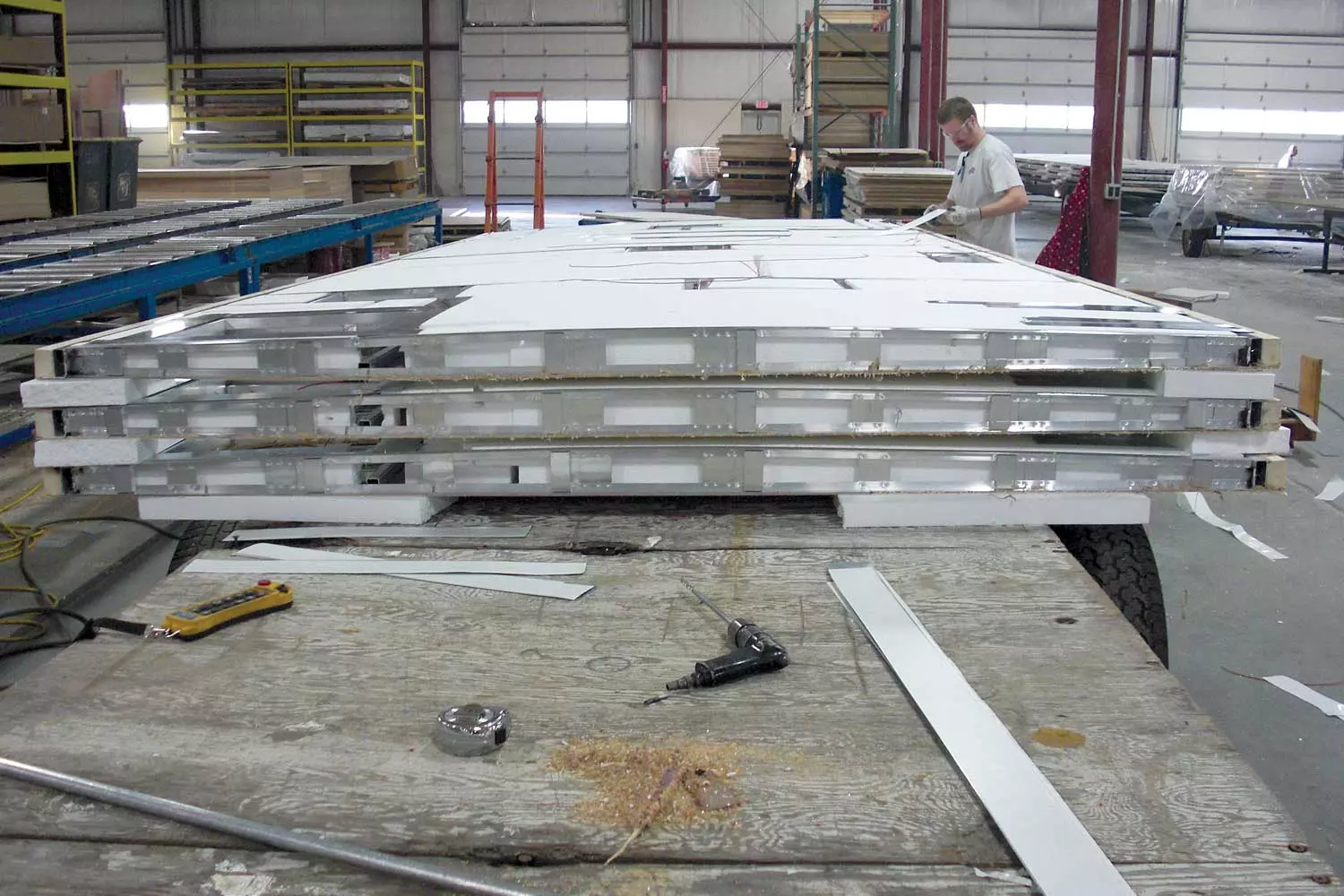

  • Vacuum-bonded Laminated Crowned Roof
  • Laminated Aluminum Framed Floor
  • Fiberglass Front Cap w/LED Lighting and Window (N/A Remote)

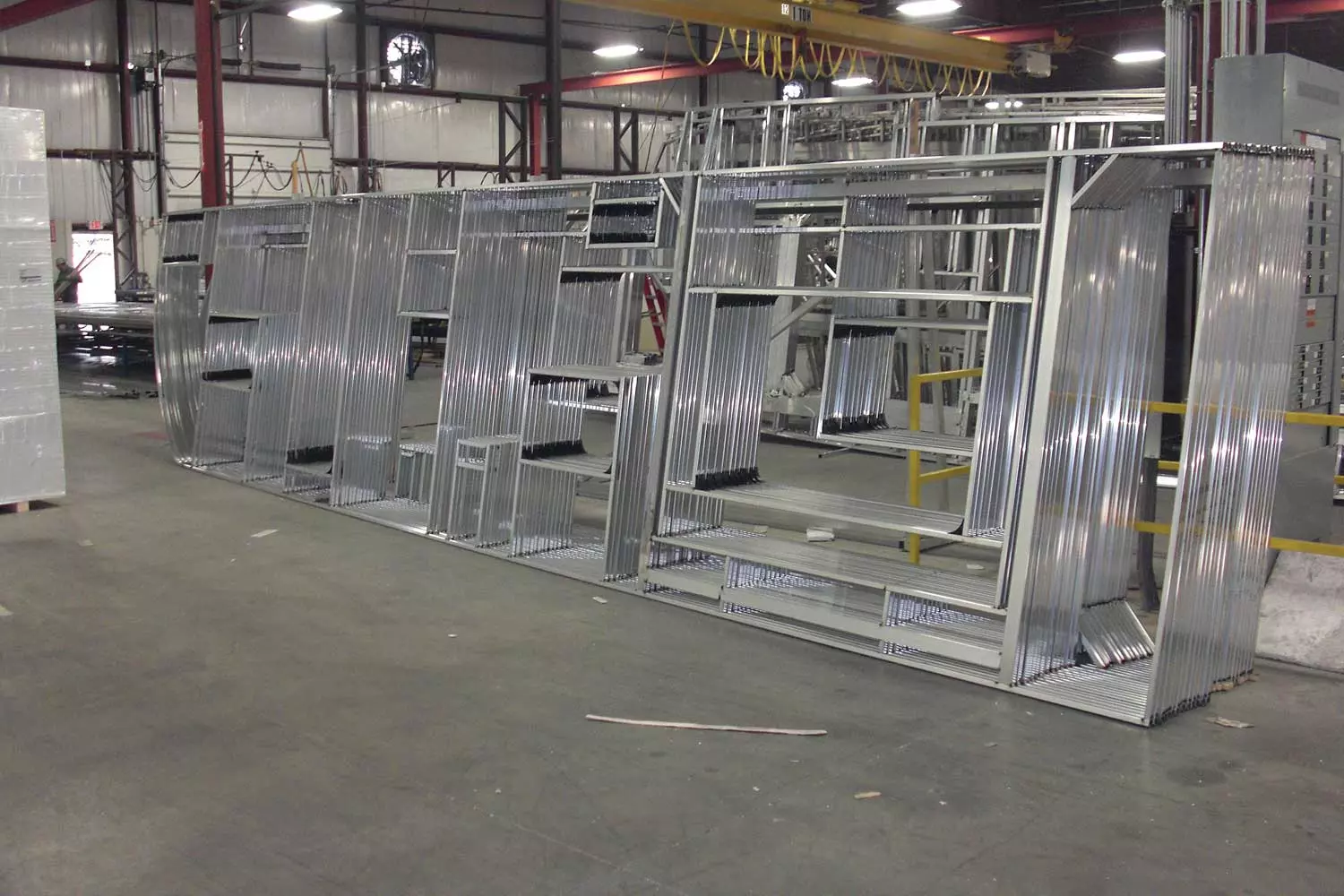

  • Aluma-cage Construction
  • Two-Tone White and Grey Fiberglass Exterior Sidewalls
  • Dark Grey Exterior Rear Wall
  • Front Stone Guard
  • Schwintek Slide System (N/A 185BH, 186 BH, 187RB)
  • Enclosed Underbelly w/Forced Air Heat (Double axle models) (N/A Remote)
  • Spare Tire
  • Slide Topper Prep
  • Outside Speakers
  • Stabilizer Jacks (4)
  • Regulated LP Port
  • DSI Gas/Electric Water Heater
  • Hot/Cold Outside Shower
  • Black Tank Flush
  • Swing Away Assist Handle
  • Friction Hinge Entrance Door

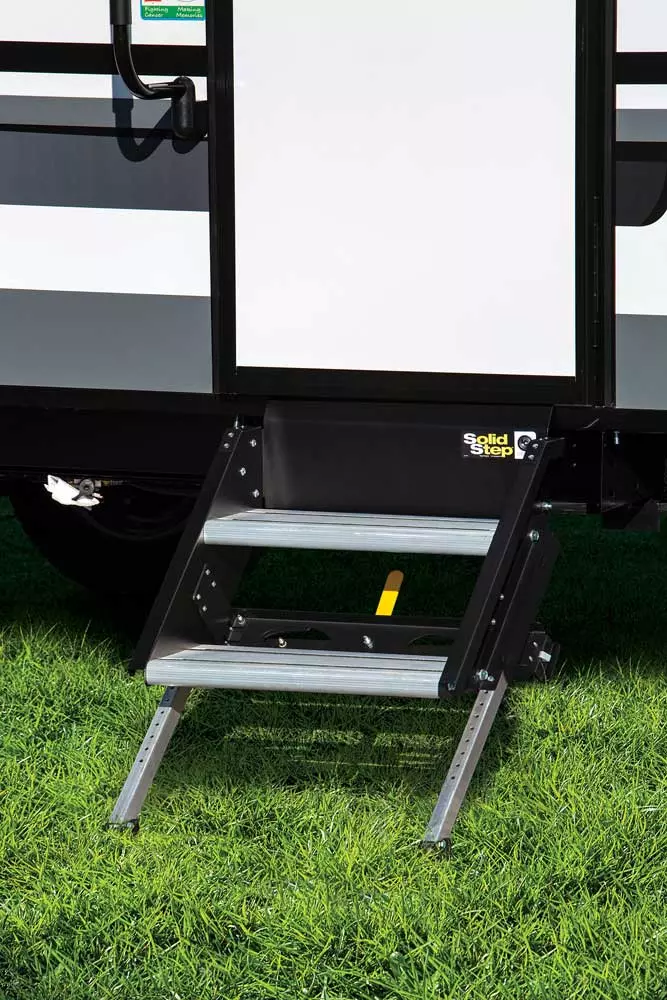

  • Solid Step

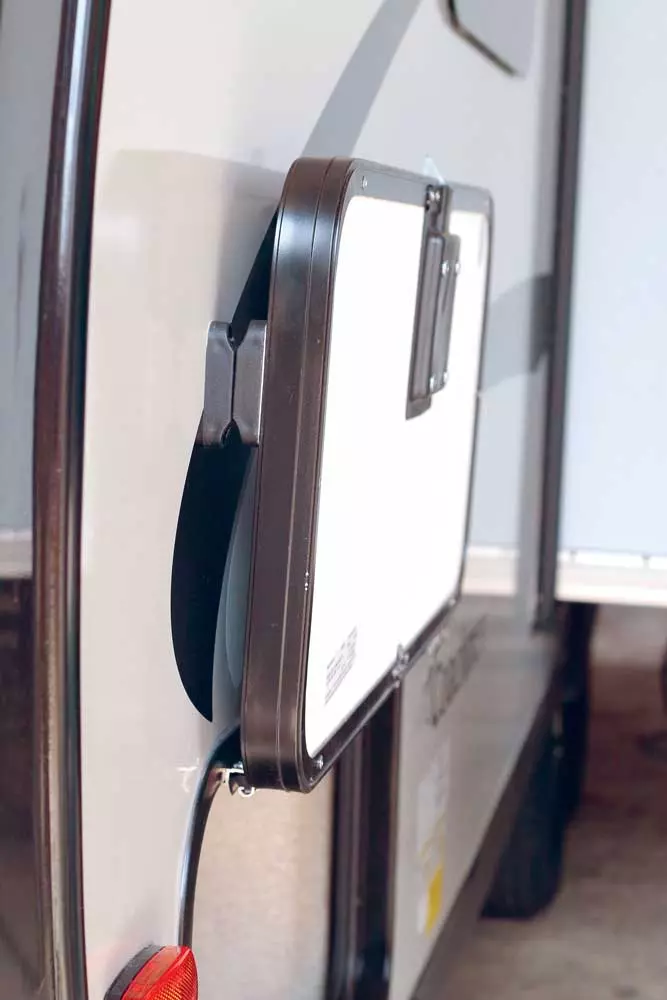

  • Magnetic Baggage Door Catches
  • Hard Valances w/Night Shades Throughout
  • LED Interior Lighting Throughout

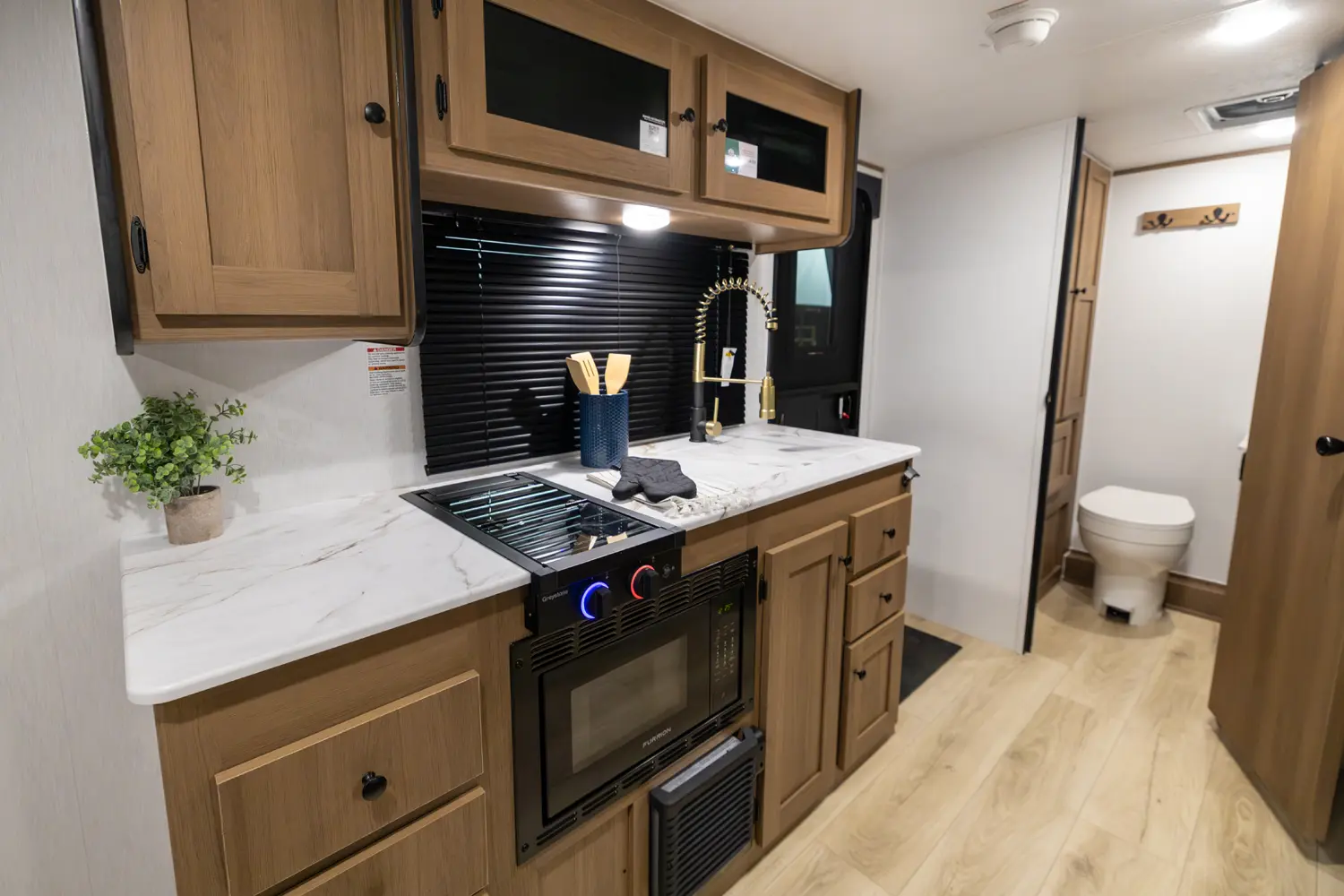

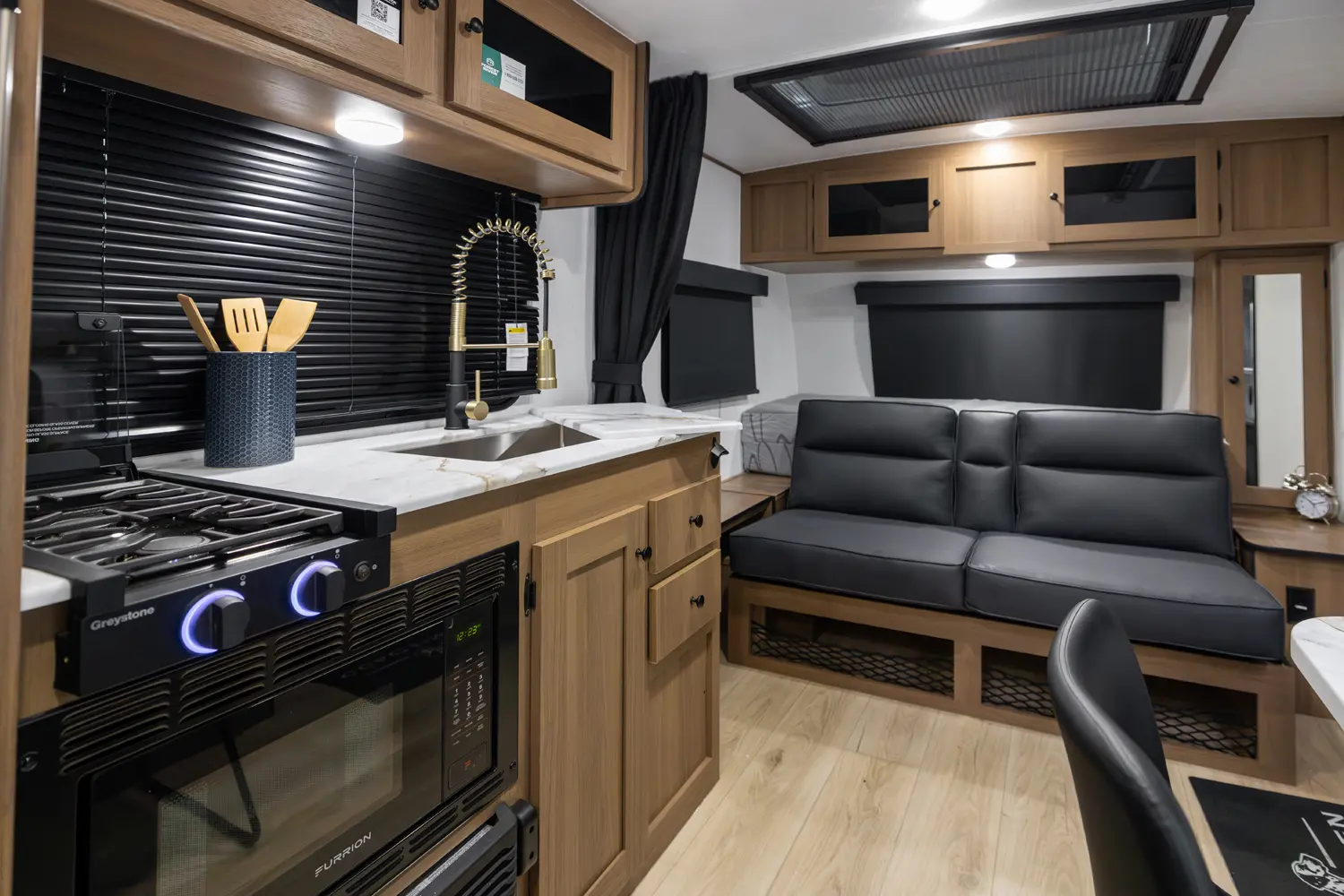

  • Microwave
  • Flush-mount 2-Burner Cooktop

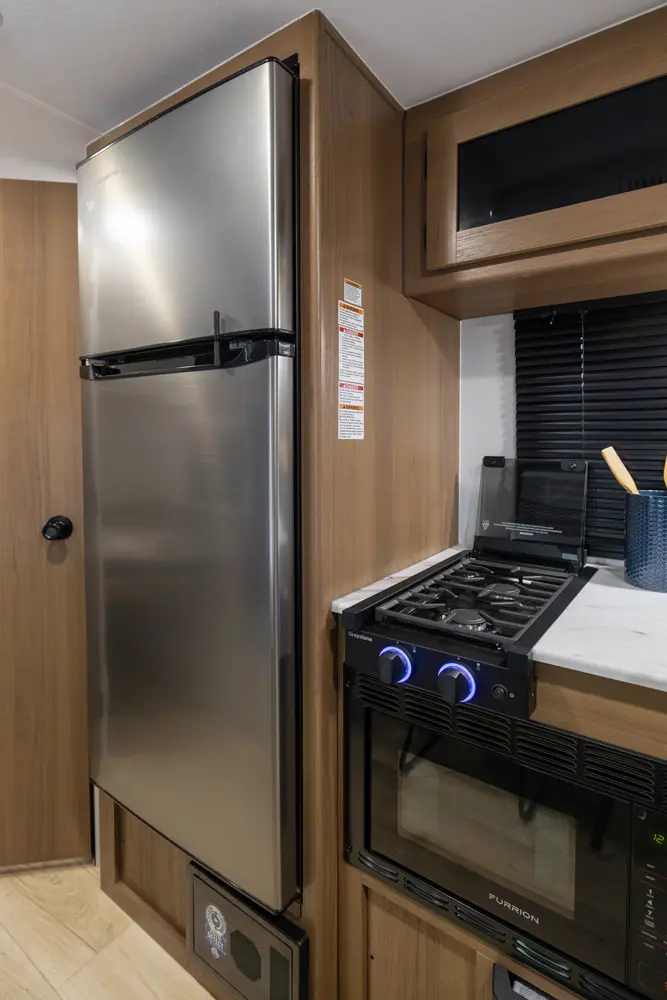

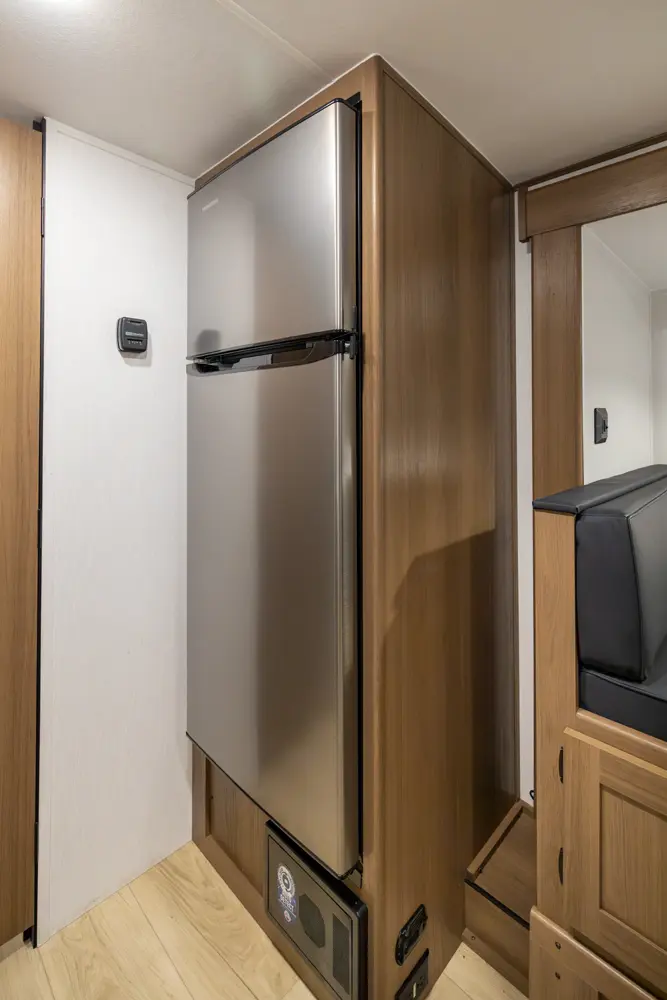

  • 6 Cu. Ft. Gas/Electric Refrigerator
  • Stainless Steel Single Bowl Sink w/Flush-mount Cover
  • Access Doors Under Dinette
  • AM/FM Stereo w/Bluetooth
  • Digital TV Antenna w/Cable Hook-ups and WiFi Capability

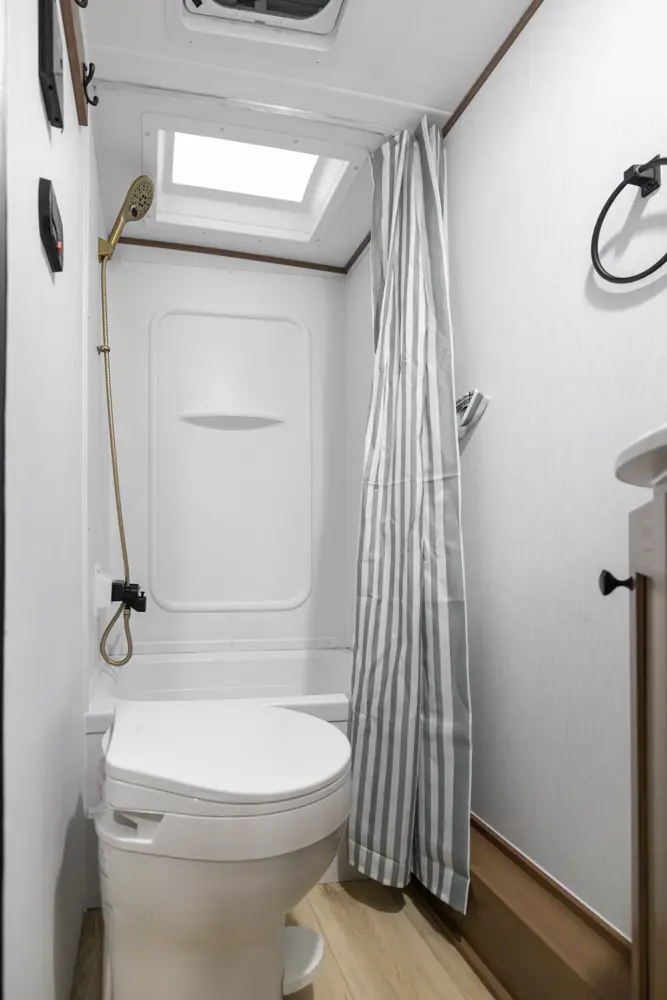

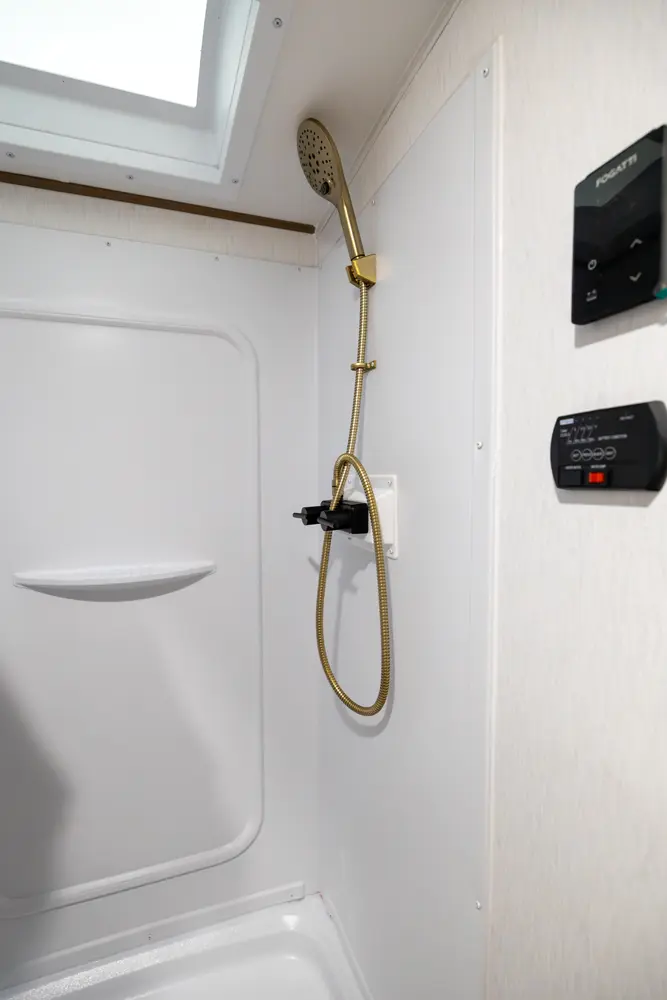

  • Tub Surround
  • Skylight in Bath
  • Mattress
  • Prestige Poplar Cabinetry
  • Shaker Cabinet Door Frames
  • Stile and Rail Cabinet Front Construction
  • One-Piece Seamless Edge Countertops
  • Congoleum DiamondFlor Flooring

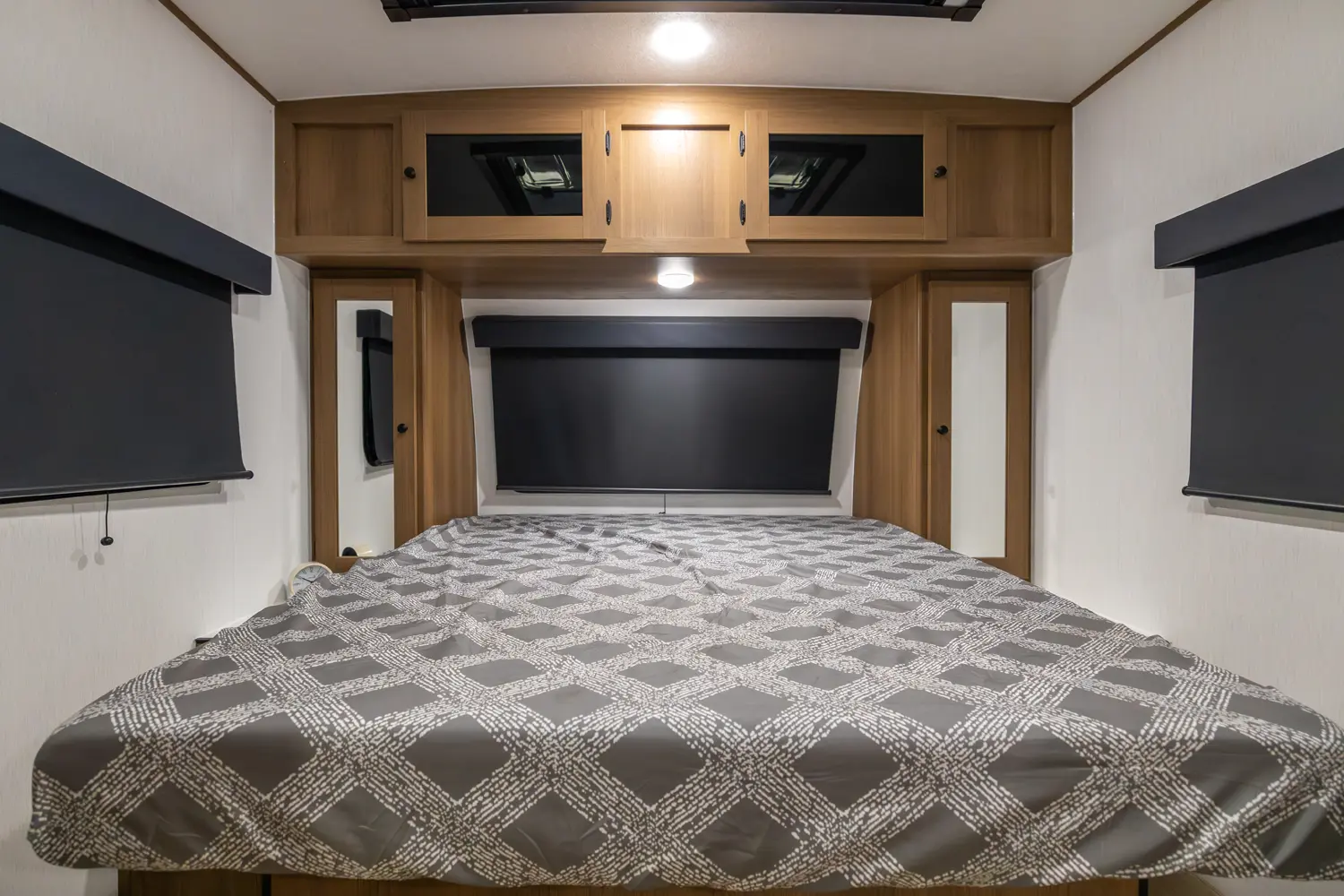

  • Overhead Bedroom Cabinets w/Side Wardrobes
  • Residential Comforter (Select models)
  • Hard Valances w/Night Shades Throughout
  • Pedestal Dinette Table

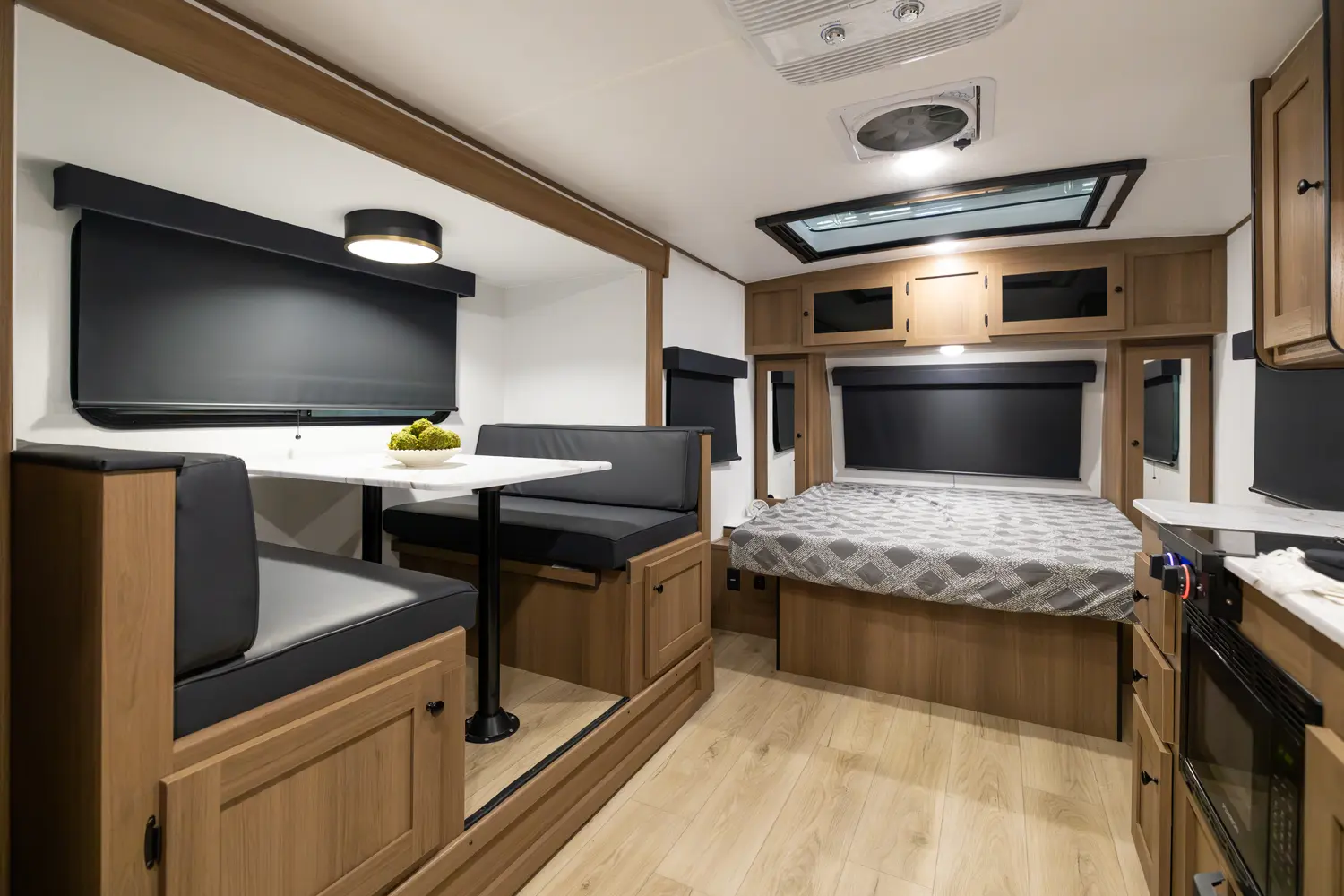

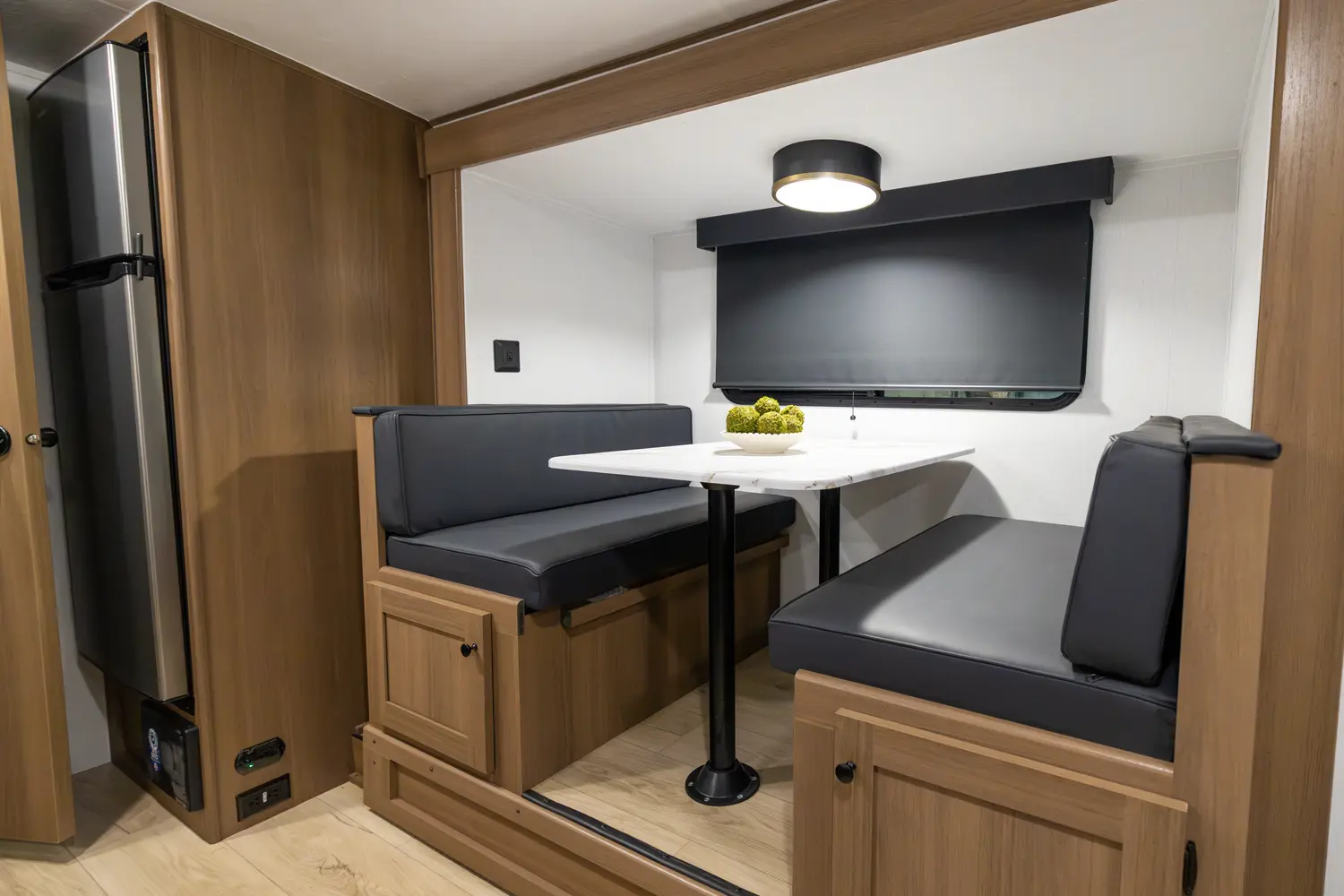

  • Large Oversized Booth Dinette
  • LP Leak Alarm
  • Fire Extinguisher
  • Smoke Alarm
  • Carbon Monoxide Detector
  • Direct Vent Furnace
  • 13.5K BTU A/C
  • 55 Amp Power Center
  • Outside Receptacle GFI
  • Detachable Marine Style Power Cord

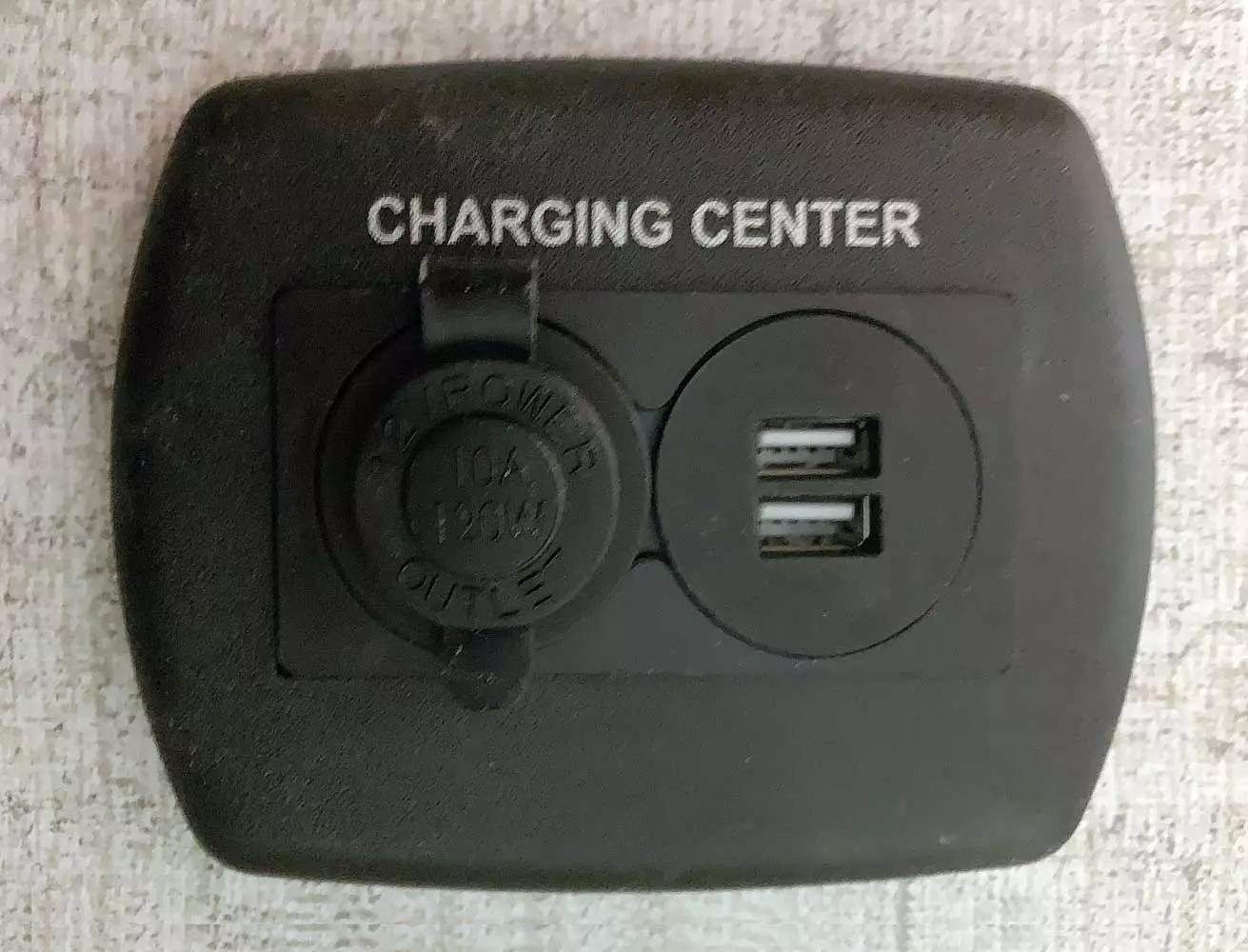

  • USB Chargers
  • 6 Cu. Ft. Gas/Electric Refrigerator
  • Flush-mount 2- Burner Cooktop
  • Microwave
  • Stainless Steel Single Bowl Sink w/Flush-mount Cover
  • One-Piece Seamless Edge Countertops
  • Matte Black Hardware
  • 6 Gal. Gas/Electric DSI Hot Water Heater

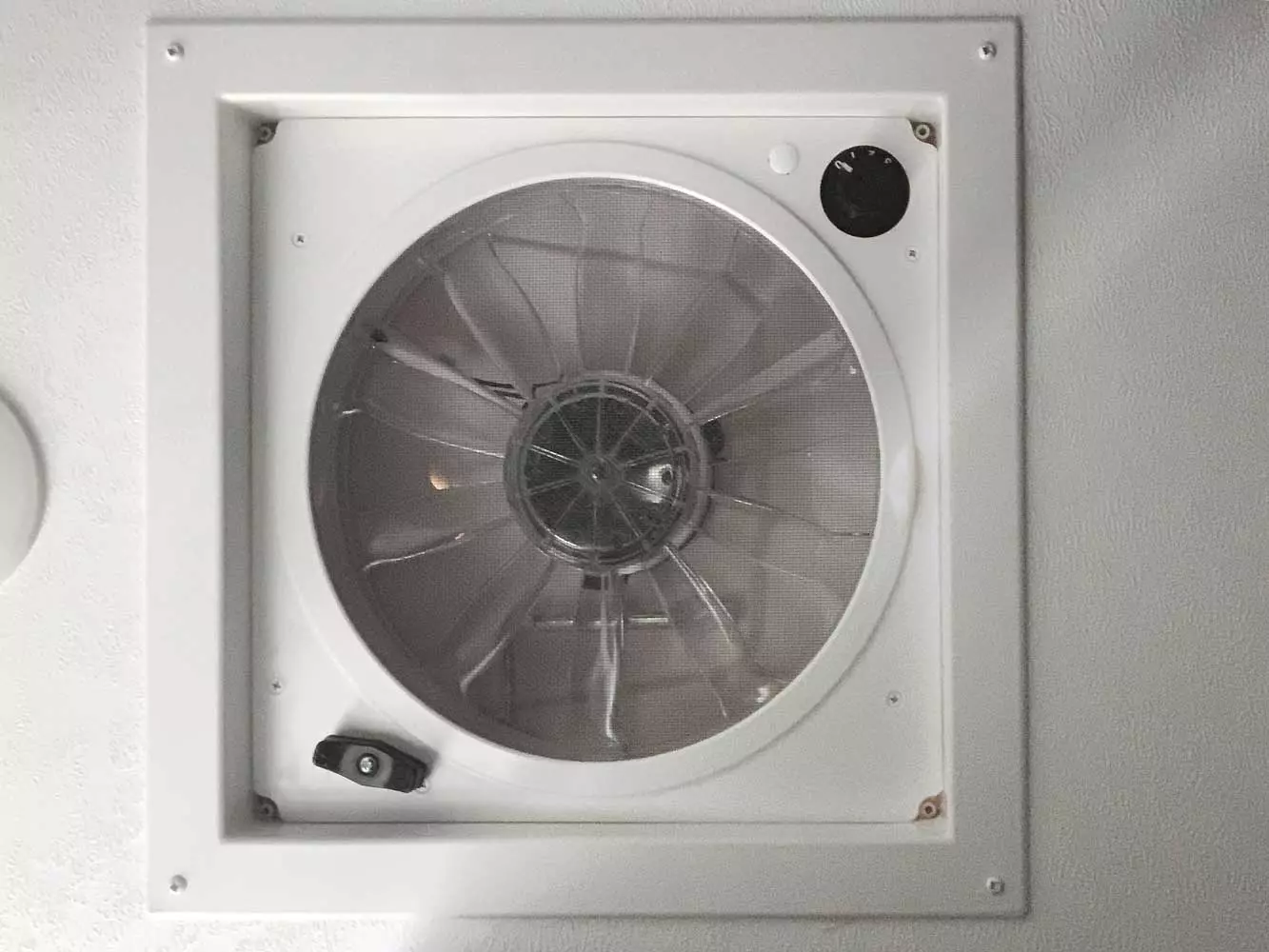

  • Power Bath Vent
  • Water Heater Bypass Valve
  • On-demand Water Pump
  • Below Floor Low Point Drains

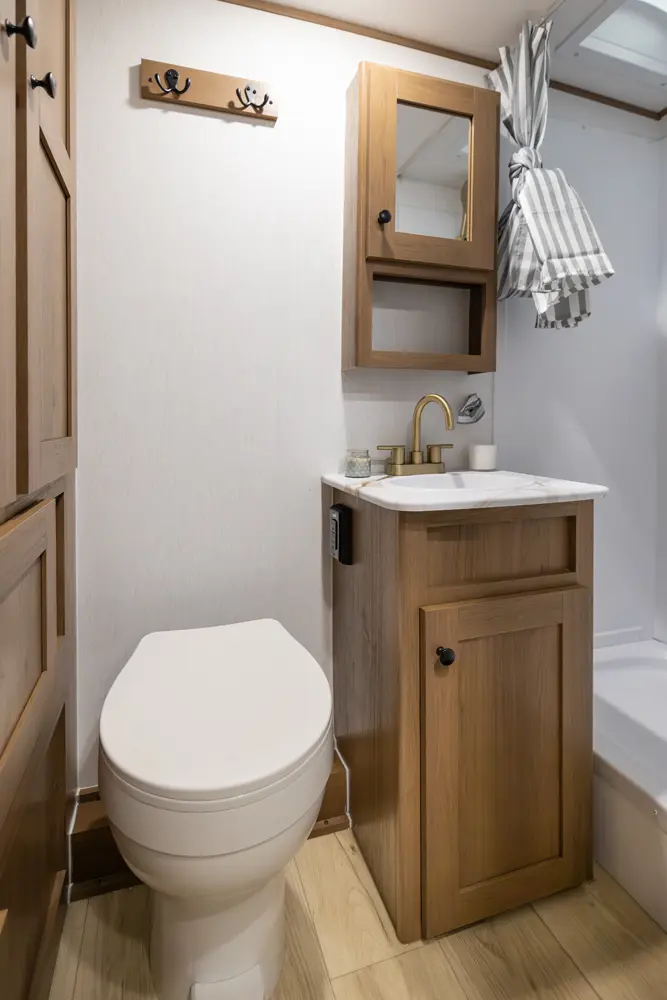

  • Foot Flush Toilet
  • Tub Surround

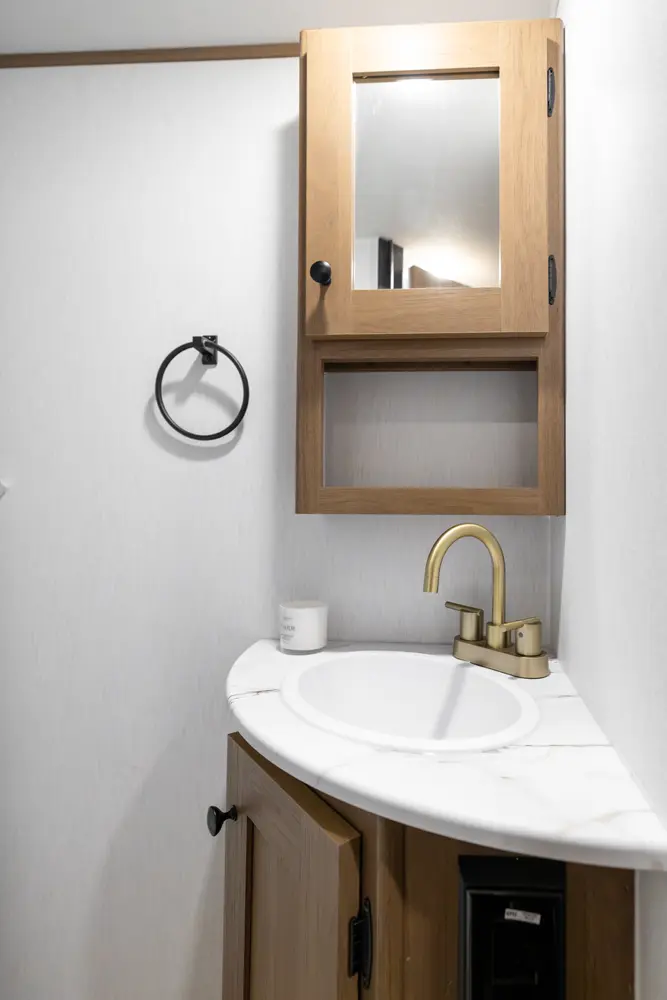

  • Hand-crafted Wood Medicine Cabinet
  • Aluma-Cage Construction
  • Vacuum-bonded, Aluminum Trussed Roof w/Dicor Crossflex Roof Membrane
  • Vacuum-bonded Azdel Fiberglass Sidewalls (R-9)
  • Vacuum-bonded Azdel Fiberglass Rear Wall

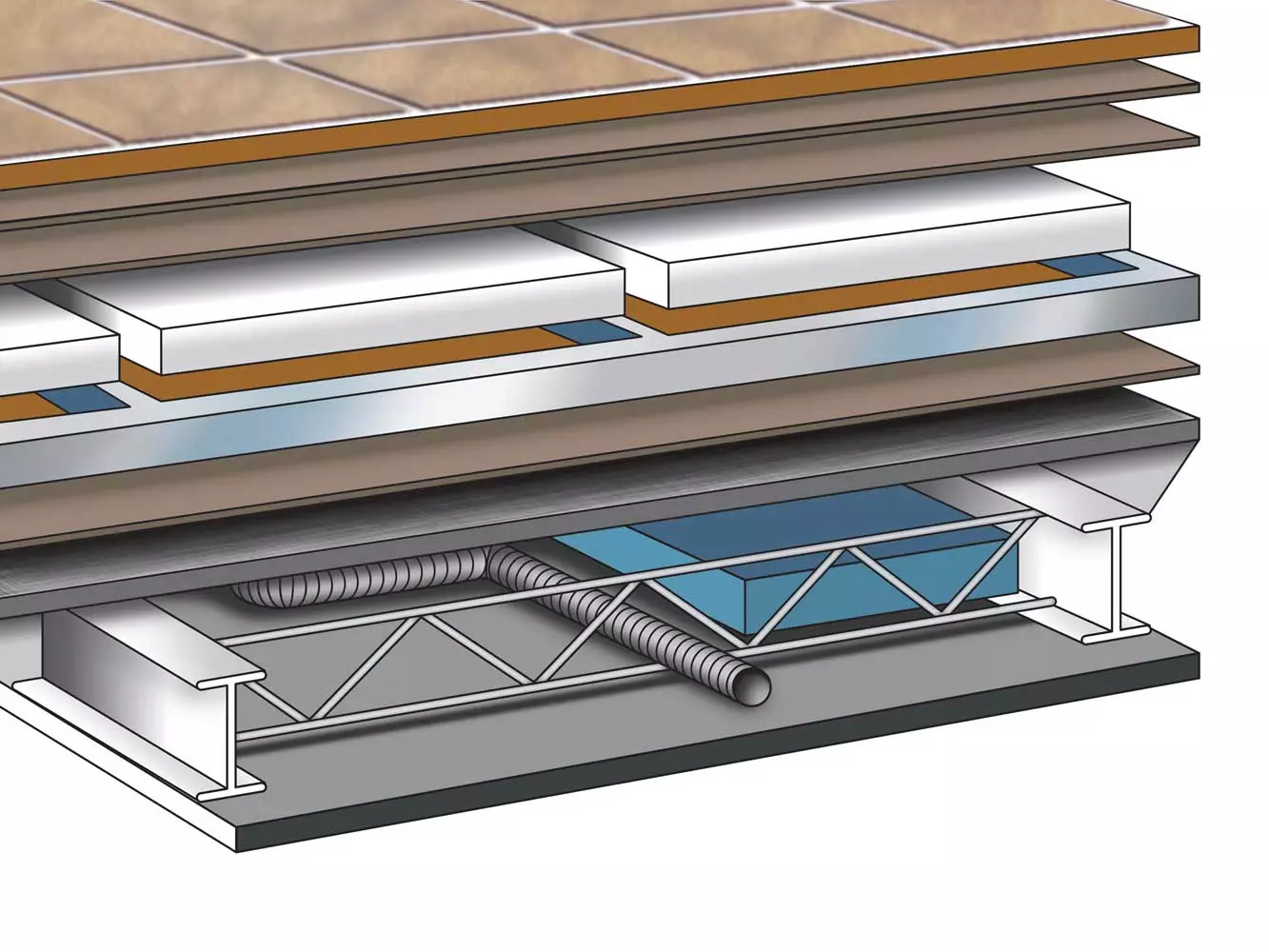

  • Laminated Aluminum Framed Floor (R-11)
  • Corrosion Resistant Powder Coated Frame
  • I-beam Chassis Construction
  • Heated and Enclosed Underbelly w/Forced Air (Double Axle Only)
  • Gutter Rail
  • (2) 20 Lb. LP Tanks
  • Dual Battery Tray
  • Solid Step
  • Tinted Safety Glass Radius Windows
  • Radius Entrance Door w/Window
  • Deadbolt Lock
  • Radius Thumb Latch Baggage Doors
  • Break Away Switch
  • Dexter® E-Z Lube® Axles
  • Nitrogen Filled Radial Tires
  • Schwintek Slide Room System
  • Direct Vent Furnace

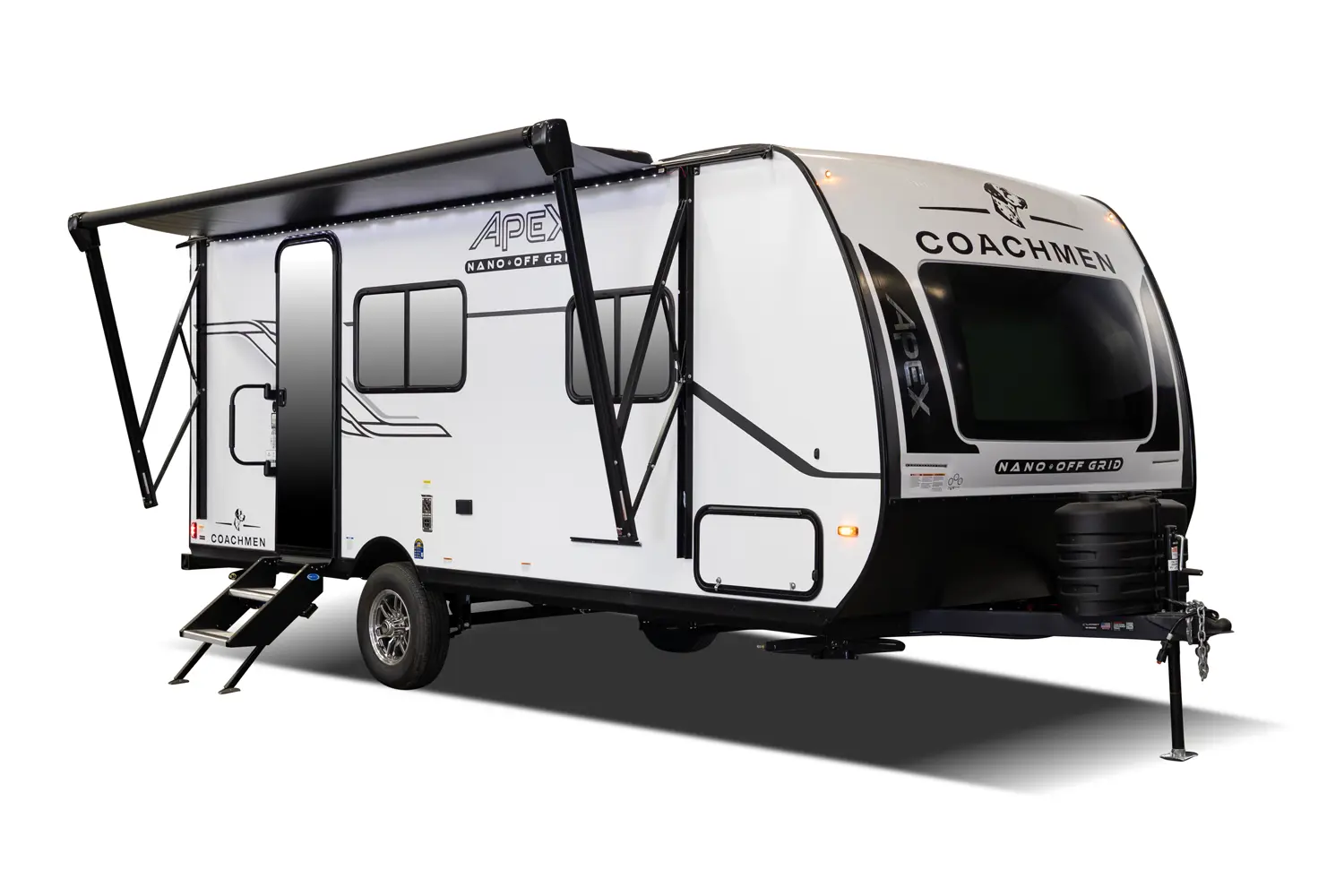

  • Power Awning w/LED Lighting
  • 13.5k BTU A/C

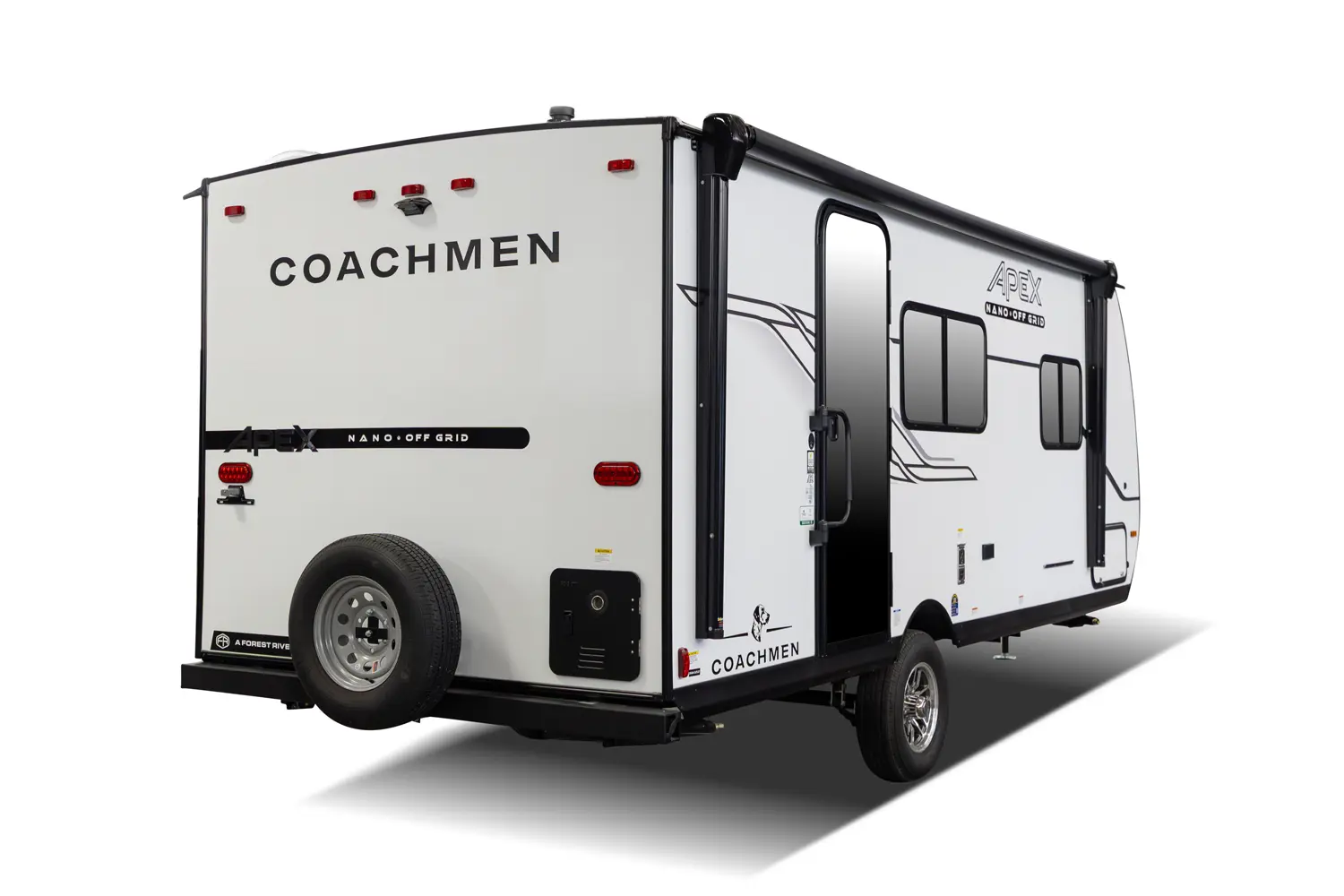

  • Spare Tire and Carrier

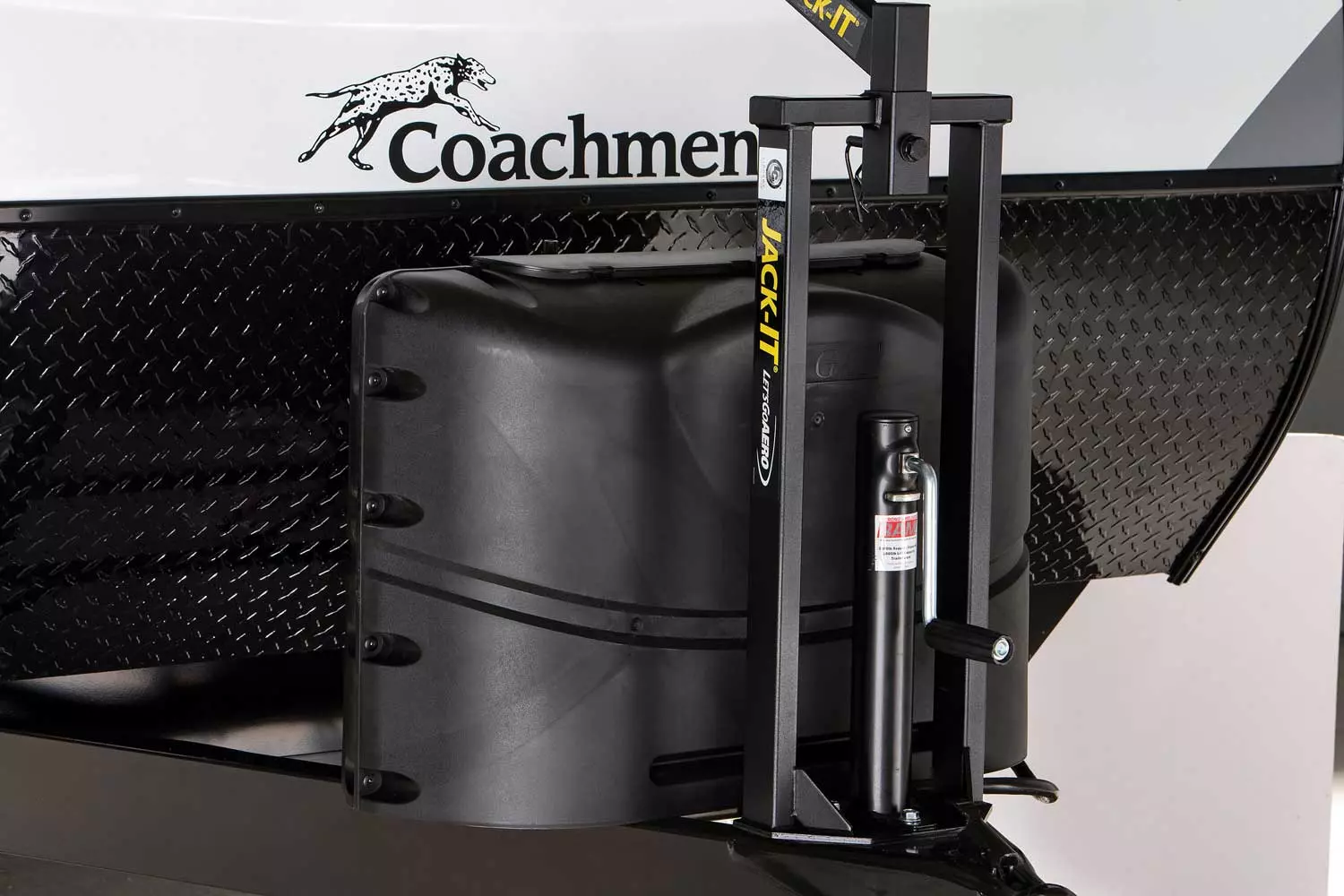

  • (2) 20 Lb. LP Tanks w/Cover
  • High Velocity 10” Power Roof Vent

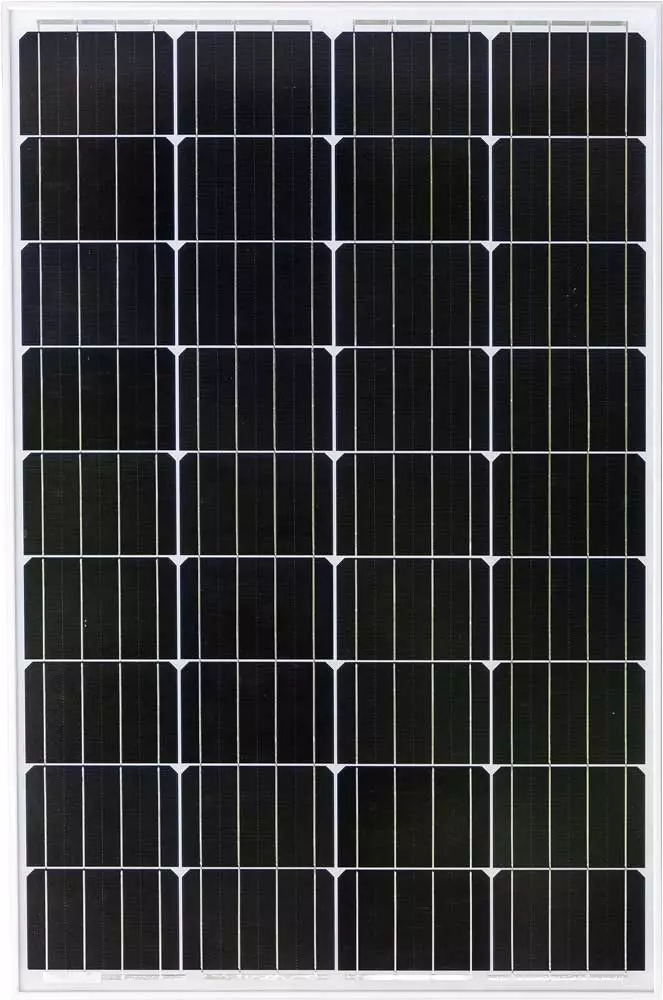

  • 100 Watt Solar Panel w/10 Amp Control Charger

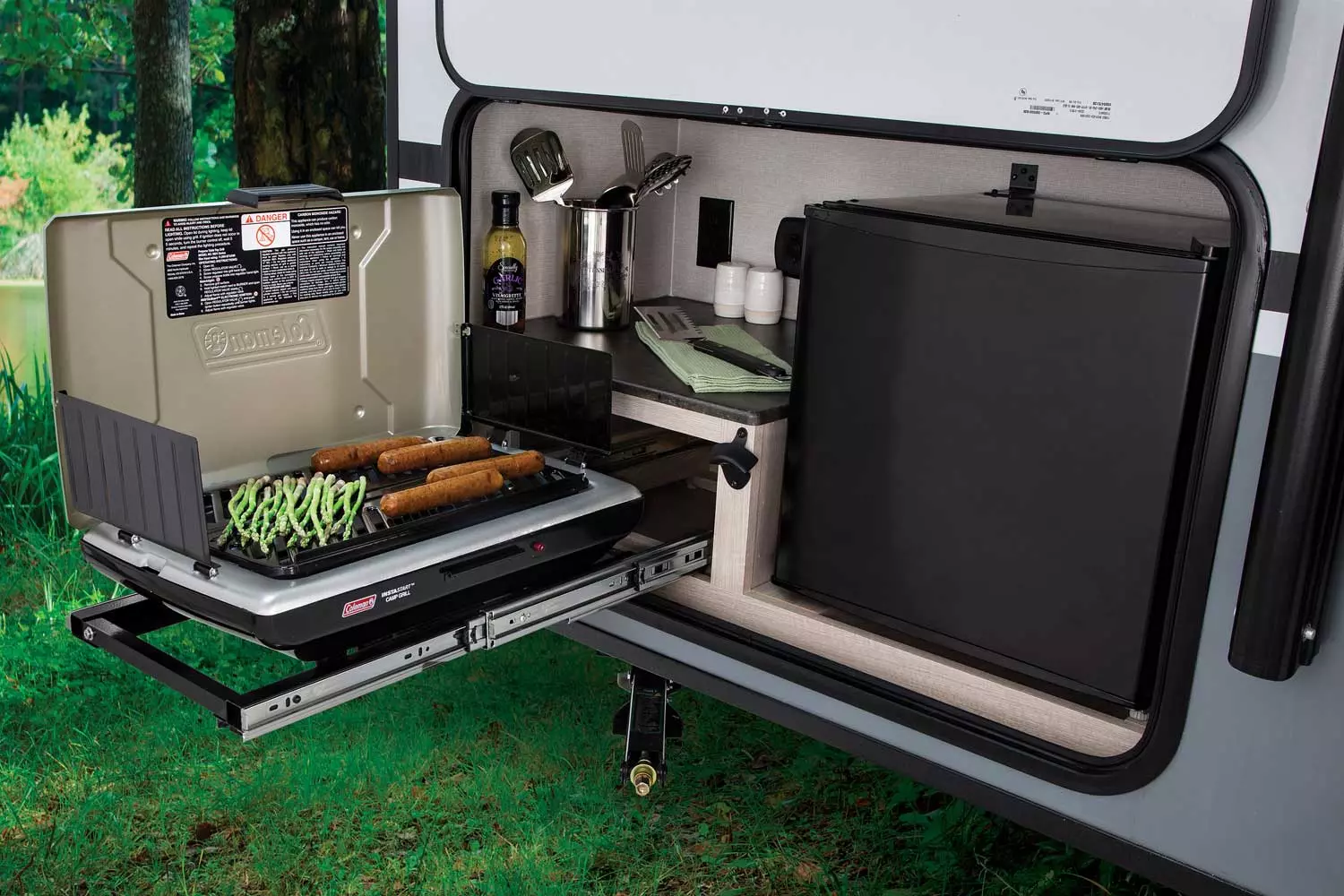

  • 12V Outlets (Pass-thru and Outside Kitchen)
  • 15” All-Terrain Tires
  • Aluminum Rims
  • Front Bike Rack
  • Toy Lock
  • (2) 20 Lb. LP Tanks w/Cover
  • 100 Watt Solar Panel w/10 AMP Control Charger
  • 13.5 BTU A/C

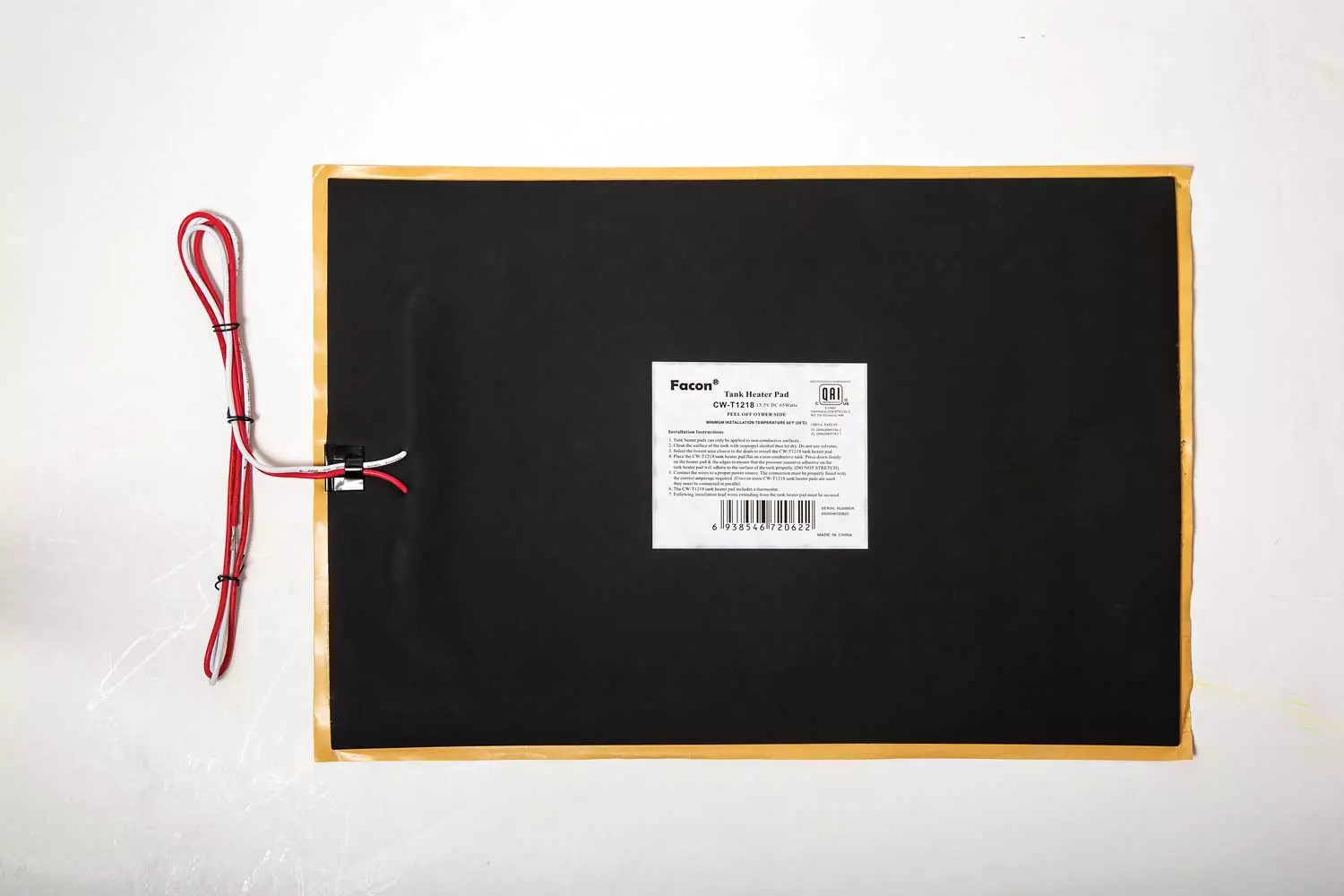

  • 12V Heat Pads for Black, Grey and Fresh Water Tanks

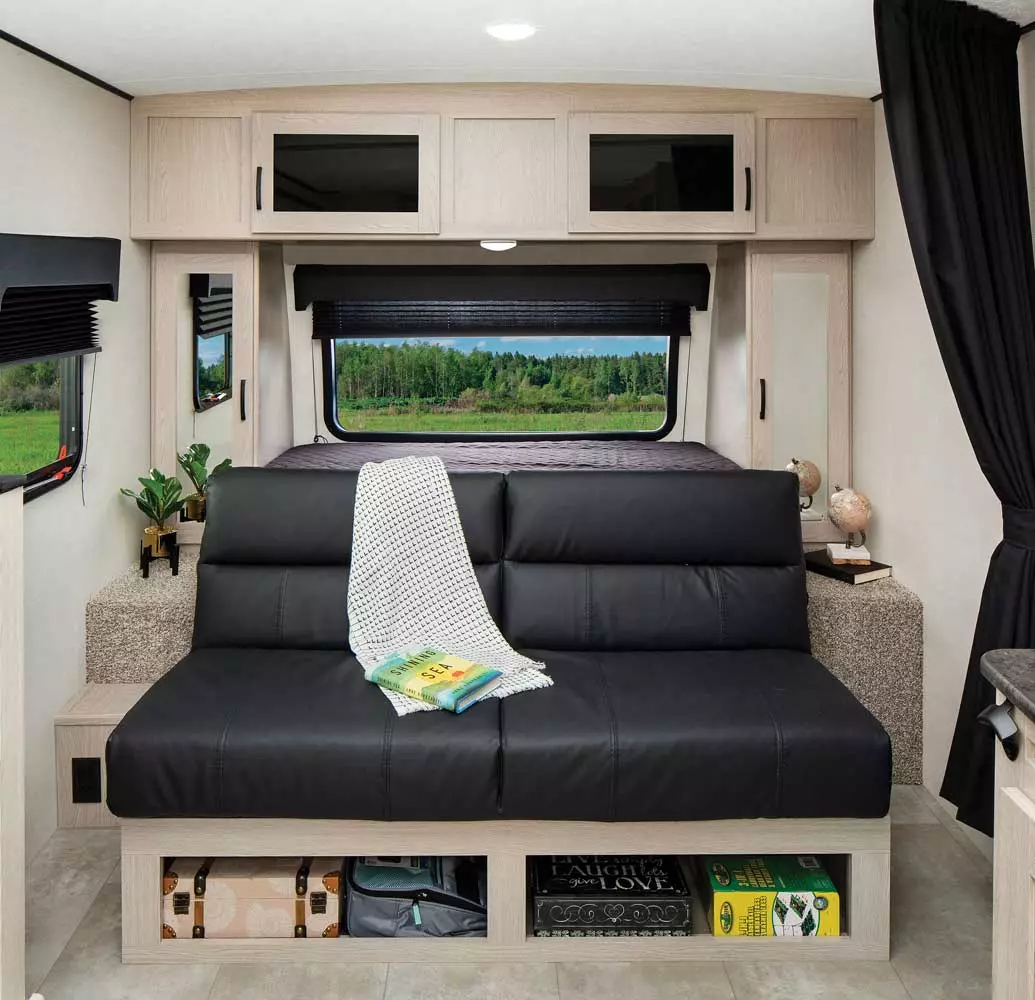

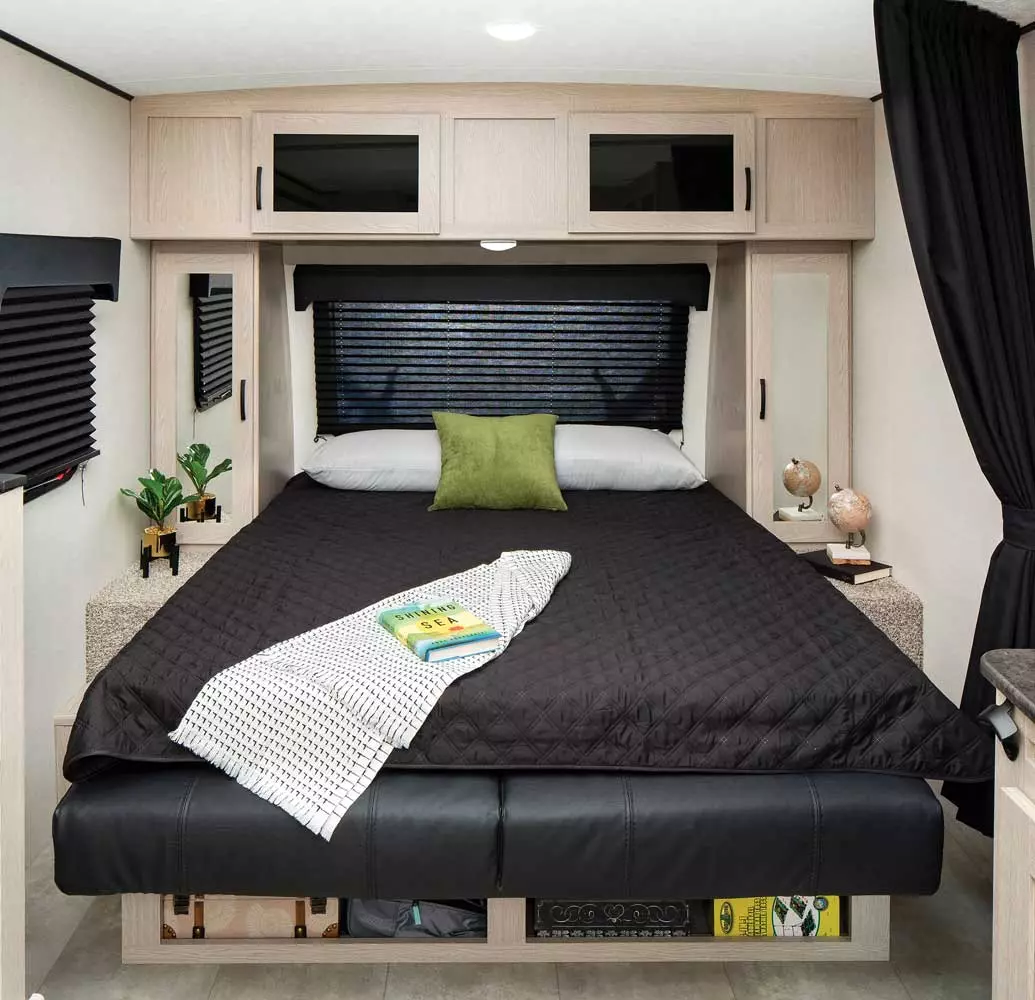

  • Murphy Bed (203RBK, 208BHS Only)
  • 12V Tank Heater Pads
  • 15K BTU A/C Upgrade
  • 15” All-Terrain Tires w/Aluminum Rims
