Catalina Expedition Travel Trailers

ADVENTURE WITHOUT LIMITS! Carefully equipped and designed to be lightweight, with outstanding solar benefits, 12V features and our rugged tires and suspension; the Expedition is the perfect trailer for the most enjoyable off grid experience!

* Due to the current environment our features and options are subject to change due to material availability


Filter

Select filters below and then click the Filter Results button to remove non-matching Floorplans and their Specifications










to

to




Floorplans

Print


Travel Trailers

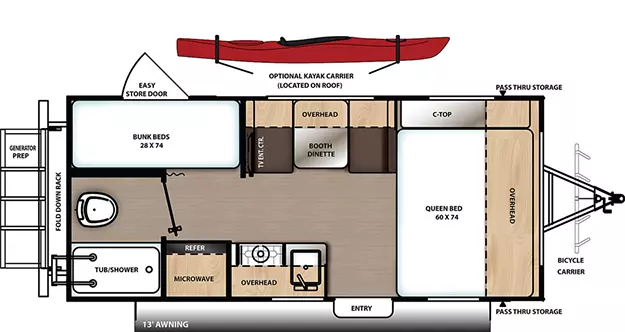

192BH
Has Gallery Photos Has 360 Tour Has Video Tour

192BH


 wish list
X
You must be logged in, or create an accont to use the Forest River wish list.

View your wish list here.
I am logged in now.

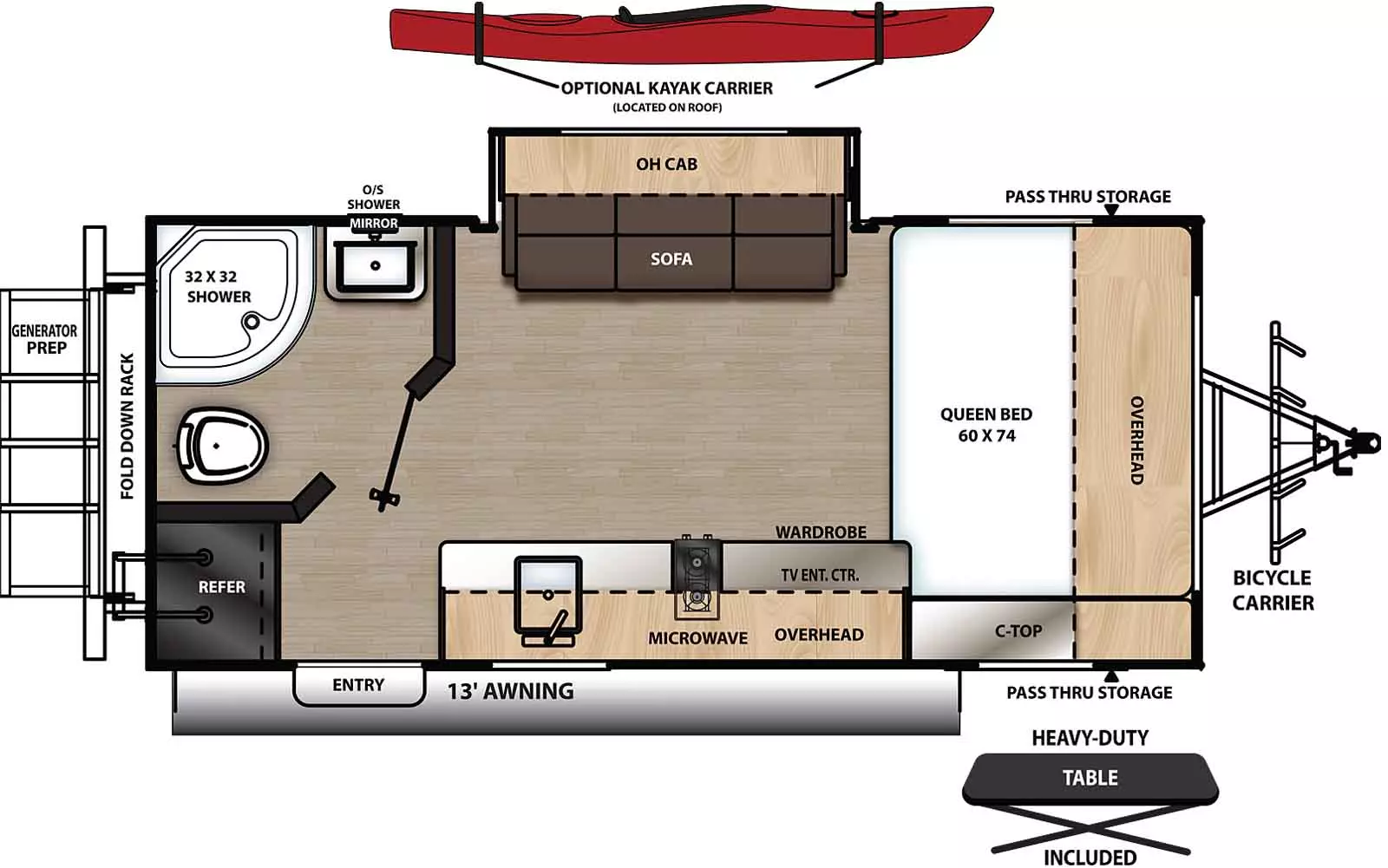

192FQS
Has Gallery Photos Has 360 Tour Has Video Tour

192FQS


 wish list
X
You must be logged in, or create an accont to use the Forest River wish list.

View your wish list here.
I am logged in now.

Temporarily Unavailable

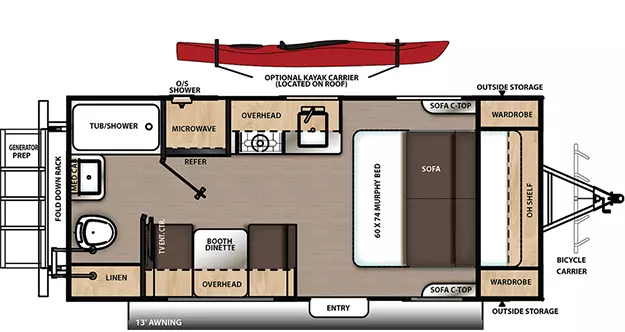

192RB
Has Gallery Photos Has 360 Tour Has Video Tour

192RB


 wish list
X
You must be logged in, or create an accont to use the Forest River wish list.

View your wish list here.
I am logged in now.


Specifications

Print


Hitch Weight:
GVWR:
UVW:
CCC:
Exterior Length:
Exterior Height:
Exterior Width:
Fresh Water:
Gray Water:
Black Water:
Awning Size:
484 lb.
4900 lb.
3895 lb.
1005 lb.
21' 6"
10' 3"
90"
44.00 gal.
30.00 gal.
30.00 gal.
13'
540 lb.
5040 lb.
4008 lb.
1032 lb.
21' 6"
10' 1"
90"
44.00 gal.
30.00 gal.
30.00 gal.
13'
512 lb.
5000 lb.
4034 lb.
966 lb.
21' 6"
10' 1"
90"
44.00 gal.
30.00 gal.
30.00 gal.
13'

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)*- is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Coachmen RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Coachmen RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Features & Options

Print

* Due to the current environment, our features and options are subject to change due to material availability.

  • Cambered Structural Steel I-Beam Frame
  • Full Length Frame E-Coated Outriggers
  • 5/8" Tongue & Groove Plywood Floor Decking
  • 2"x2" Floor Joists on Approximately 12" Centers
  • 5" Floor To Frame Steel Lag Bolts (4" Summit 7/Expedition)
  • Darco Subfloor Protective Wrap/Enclosure
  • 3/8" Fully Decked Walk-On Roof
  • Seamless Alpha Roof Membrane with 18 Year Warranty
  • Screwed Cabinet Construction w/Pocket Bored Lumber Core Stiles
  • 5/8" Plywood Under Bed & Dinette Base
  • 78" Interior Height
  • Schwintek Slide Out
  • R-7 Fiberglass Insulation Throughout
  • Shower Miser Water Saver
  • 6 Gal. Gas/Electric DSI Water Heater
  • Water Heater By-Pass Winterization Kit
  • 12V Demand Water Pump
  • Premium Exterior Graphics Package
  • Platinum .024" Aluminum Exterior w/.030 Skirt Metal
  • Smooth HD Aluminum Radius Front
  • Oversized Off-Road Fender Flaires
  • Spare Tire, Carrier, and Cover
  • Dexter Torflex Torsion Axle
  • All-Terrain Tires
  • 3" Lift Kit
  • Built In Roof Backers - Kayak Rack Prep
  • Self Adjusting Brakes
  • Roto-Cast Holding Tanks
  • Painted Bumper w/ Drain Hose Carrier and End Caps
  • 30,000 BTU Auto-Ignition Furnace w/Wall Thermostat (261BH & 283RKS Only)
  • 13,500 BTU Central A/C
  • 30 Amp Elect. Service w/ 100v 45-Amp Power Covt.
  • Upgraded Aluminum Wheels
  • Magnetic Baggage Door Latches
  • Flip Down Cargo Rack w/200lb. Cap.
  • Electric Awning w/Multicolor LED Strip & Remote -Carefree
  • Black Tank Flush
  • Battery Disconnect Switch
  • Outside Utility Shower w/ Hands Free Holder
  • 20lb. LP Tank (2) w/ABS Cover, (1) Summit Series 7's
  • LP Quick Connect
  • Flush Mount Baggage Doors w/Radius Corners
  • Diamond Plate Rock Guard
  • Stabilizer Jacks
  • G20 Tinted Privacy Windows
  • Front Landscape Picture Window (N/A 192RB)
  • (2) JBL Elite Exterior Speakers
  • Friction Hinge Door
  • Radius Cornered Fiberglass Entry Door
  • Exterior 110V G.F.C.I Protected Receptacle
  • Exterior RG-6 Coax Cabling and Satellite Prep
  • Exterior TV Hookup
  • Rain Gutters with Drip Spouts
  • SolidStep Entrance Steps IPO Flip-Down Steps (Main Entrance Only)
  • XL Swing Arm Grab Handle
  • Rear View Camera Prep
  • Pets - "Leash Link" Quick Hookup D-Ring
  • Rear Mounted Roof Ladder
  • Jack-It Bike Carrier
  • Off Grid Solar Prep System: Universal Solar Junction Box's (1)Roof Top & (1)Rear Wall, 40A/480W Solar Store Controller, Battery Monitor w/Bluetooth & Renogy App, 1,000 Watt Inverter
  • Smoke Alarm
  • LP/CO Gas Detector
  • Fire Extinguisher
  • Fire Escape Windows
  • Entrance Door Window
  • Dead-Bolt Lock on Entry Door
  • (2) 12V 14" Ceiling Vent Fans (Living Room & Bathroom)
  • 32" 12Volt DC TV
  • Swing Arm TV Bracket (N/A 192RB, 192BH)
  • MP3/FM Stereo w/Bluetooth and USB Charge Port
  • (2) Interior Ceiling Speakers
  • 5.5 Cu. Ft. Gas/Elec Refrigerator
  • Seamless Thermofoil Countertops Throughout
  • Under-mount Farm Style Sink
  • High Rise Bullet Style Kitchen Faucet
  • Flush Thermofoil Kitchen Sink Covers (2) (Tandem Axle Models)
  • Full Length Kitchen Drawer Guides
  • Salvaged Light Oak Cabinets
  • All-In-One Monitor Panel System
  • 3 Burner Range w/Flush Glass Top & Blue LED Accent Lights
  • Slim Line Range Hood
  • Silverware Kitchen Drawer
  • Microwave W/Glass Turn Table
  • Congoleum Woodplank Linoleum Flooring
  • Flex Ducted Cabinet/Wall Heat (261BH Only on Summit 8)
  • LED Interior Lighting
  • Jiffy Sofa w/Flip Down Cup Holder/Arm Rest (192FQS)
  • Murphy Bed Sofa (Per floorplan)
  • Decorative Sofa Throw Pillows
  • Hard Valance Window Treatment w/Decorative Lambrequins
  • Pleated Night Window Shades
  • Pedestal Thermofoil Dinette Table (N/A 192FQS/174FQS)
  • Portable Thermofoil Dinette Table (192FQS/174FQS Only)
  • Dinette Storage Under Benches
  • Marine Toilet with Foot Flush
  • ABS Tub/Shower Surround w/Shelves
  • Skylight Above Tub/Shower
  • Medicine Cabinet with Mirror
  • Bedroom USB Surface Mounts(2)
  • USB Surface Mount Near Bunk Beds
  • Mirrored Wardrobes in Master Bedroom (192RB)
  • Master Bedroom Overhead Cabinets
  • Quilted Designer Bedspread
  • Teddy Bear Bunk Mats
  • Pre-Wireed for WI-FI
  • 100 Watt Roof Mounted 48"X22" Solar Panel
  • Electric Tongue Jack
  • Roof Mounted Kayak Rack
  • CSA Standards


Virtual Tours

192BH

192FQS

192RB



Literature



Catalina Expedition Brochure
Catalina Expedition Brochure
