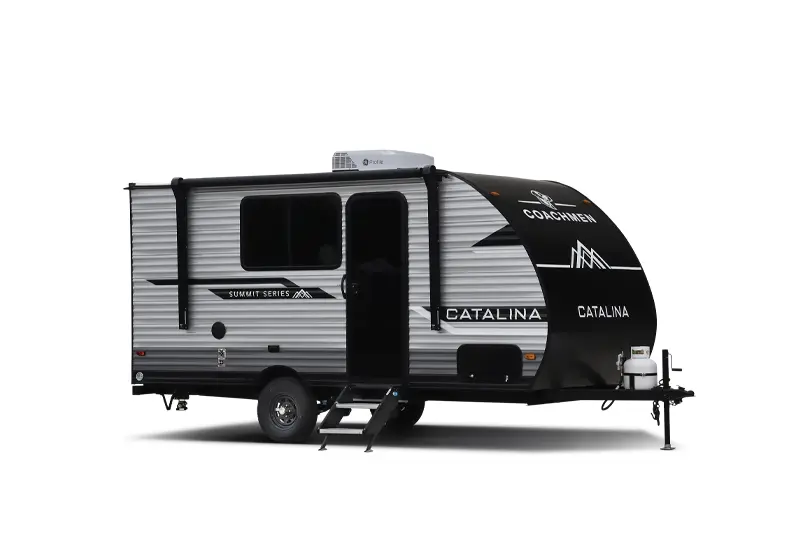

Catalina Summit Series 7' Travel Trailers

The Catalina Summit Series is the newest product line in a long lineage of great looking and affordable Coachmen Catalina travel trailers! Constructed of the best materials in the industry, the Catalina Summit Series is made for explorers who want to push the boundaries of their camping experience, without giving up any of the comforts associated with their everyday lifestyle. With a focus on light dry weights, industry best interior heights, and well-designed layouts, the Summit Series feels spacious while still able to be towed by a wide range of vehicles. Plan your next camping adventure around one of the affordable and highly versatile six floorplans that the Catalina Summit Series offers.


Select filters below and then click the Filter Results button to remove non-matching Floorplans and their Specifications





Hitch Weight:
Exterior Length:
Exterior Height:
Exterior Width:
Fresh Water:
Gray Water:
Black Water:
Awning Size:
330 lb.
3830 lb.
3011 lb.
819 lb.
18' 3"
10' 0"
33 gal.
25 gal.
25 gal.
336 lb.
3836 lb.
2994 lb.
842 lb.
20' 5"
10' 0"
33 gal.
25 gal.
25 gal.
430 lb.
4430 lb.
3445 lb.
985 lb.
20' 5"
10' 0"
33 gal.
25 gal.
25 gal.
330 lb.
3830 lb.
3010 lb.
821 lb.
20' 5"
10' 0"
33 gal.
25 gal.
25 gal.
326 lb.
4326 lb.
3368 lb.
958 lb.
20' 5"
10' 0"
33 gal.
25 gal.
25 gal.
550 lb.
6550 lb.
4533 lb.
2017 lb.
27' 0"
10' 0"
46 gal.
32 gal.
32 gal.
496 lb.
6496 lb.
4996 lb.
1500 lb.
27' 0"
10' 0"
46 gal.
32 gal.
32 gal.

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)* – is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity) ** – is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Coachmen RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Coachmen RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Actual towing capacity is dependent upon your particular loading and towing circumstances, which includes the GVWR, GAWR and GCWR as well as adequate trailer brakes. Please refer to the Operator's Manual of your vehicle for further towing information.

Features & Options

  • Norco NXG Chassis
  • E-Coated A-Frame
  • Full Length Frame E-Coated Outriggers
  • E-Coated Bumper w/Drain Hose Carrier and End Caps
  • Radius Double Entry Steps
  • Dexter® E-Z Lube® Axle(s)
  • Dexter® Leaf Spring Suspension
  • Electric Brakes
  • Nitrogen Filled D-Rated Radial Tires
  • Screwed Cabinets w/Pocket Bored Lumber Core Stiles
  • 100% Adhesion Congoleum Woodplank Linoleum Flooring
  • 12” O.C. Floor Joists
  • 4” Floor to Frame Steel Lag Bolts Solid Sheet
  • Seamless Floor w/Limited Lifetime Warranty
  • Darco Underbelly Wrapped Floor Protection
  • R7 Fiberglass Complete Insulation in Floor, Walls, and Roof
  • Alpha Superflex Seamless Roof Membrane w/12 Year Warranty
  • Walk-On Roof (Tandem Axle Models)
  • Radiused Entry and Baggage Doors
  • Front Diamond Plate Rock Guard
  • Heavy Duty Platinum .024 Aluminum Mesa Exterior
  • Aerodynamic Front Profile w/.030 Smooth Aluminum
  • Polished Aluminum Fender Skirts
  • Water Heater By-Pass Winterization Kit
  • Tinted Safety Glass Windows
  • ABS Tub Surround w/ Shelves
  • Roto-Cast Holding Tanks
  • 78” Interior Ceiling Height
  • 7 cu. ft. Gas/Electric RV Refrigerator
  • 13,500 BTU Roof A/C
  • 20,000 BTU Furnace w/Wall Thermostat
  • 12 Volt On Demand Water Pump
  • Microwave w/Glass Turn Table
  • 6 Gal. DSI Gas Water Heater
  • Power Awning White LED Patio Light
  • Exterior Hot/Cold Utility Shower
  • XL Swing Arm Entry Door Grab Handle
  • Outside Camp Kitchen (212RBS)
  • Bathroom Skylight
  • (2) Exterior Marine Grade Speakers
  • Rain Gutters w/Drip Spouts
  • Onmidirectional TV Antenna
  • Cable/Satellite Hook-Up
  • 120 Volt GFI Exterior Recept
  • LED Exterior Lights
  • Rear View Camera Prep
  • Heavy Duty Tongue Jack
  • Summit Graphics Package
  • 4 Stabilizer Jacks w/Pads
  • Zamp Solar Port
  • 20# LP Tank (1) Single Axle Models, (2) Tandem Axle Models
  • Sport Style Aluminum Wheels
  • Spare Tire, Carrier, and Cover
  • Seamless Thermofoil Counter Tops
  • Deep Basin Undermounted Kitchen Sink
  • Flush Mount Thermofoil Kitchen Sink Cover(s)
  • High Rise Kitchen Faucet
  • 2 Burner High Output Range (Single Axle Models)
  • 3 Burner High Output Range (Tandem Axle Models)
  • Powered Range Vent
  • Salvaged Light Oak Cabinets
  • USB Charging Stations (Bunk Beds & Monitor Panels)
  • Bluetooth Jensen Stereo w/DVD/CD Player, AM/FM, and MP3 (2)
  • Interior Ceiling Speakers
  • 12 Volt LED Interior Lights
  • 120 Volt Interior Outlets
  • All-In-One Monitor Panel System
  • Interior Light Switches
  • Power Roof Vent - Bathroom
  • Medicine Cabinet w/Mirror (N/A 172BH & 172BHS)
  • Marine Toilet w/Foot Flush
  • Reversible Refer Front Inserts
  • Portable Themofoil Dinette Table (N/A 172FSS)
  • Hidden Electric Bunk Bed (212RBS)
  • Pleated Window Shades Living/Front Bed Areas
  • Hard Valance Decorative Window Treatments
  • Jiffy Sofa w/Flip Down Cup Holder/Arm Rest (172FSS & 212RBS)
  • Decorative Sofa Throw Pillows (172FSS & 212RBS)
  • Quilted Designer Bedspread
  • Master Bed Overhead Cabinets
  • Overhead Kitchen Cabinets
  • Lower Kitchen Cabinets
  • Oversized Under Bed Storage Area
  • Exterior Front Large Pass Through Storage Area
  • Interior Lower Bunk Storage Door (Bunk Models)
  • Headboard Shelf w/ Wall Cubbies (172BH & 172BHS)
  • Dinette Overhead Cabinets (Non-Slides)
  • Dinette Storage Under Benches (N/A 172FSS)
  • Bathroom Linen Cabinets (Select Floorplans)
  • Wardrobe Closets (212BHS & 212RBS)
  • 78” Pantry (212BHS & 212RBS)
  • EZ Store Locking Exterior Door w/Flipup Bunk Storage (Bunk Models)
  • Smoke Alarm
  • LP/Carbon Monoxide Gas Detector
  • Fire Extinguisher
  • Emergency Exit Window
  • Dead-Bolt Lock On Entry Door
  • Dead-Bolt Lock On EZ Store Door (Bunk Models)
  • GFI Recept By Kitchen/Lavatory Sinks
  • Entry Door Safety-View Window
  • Trailer Tow Safety Chains
  • 15,000 BTU A/C in Place of 13,500 BTU
  • Solidstep Entrance Steps in Place of Flip-Down Steps

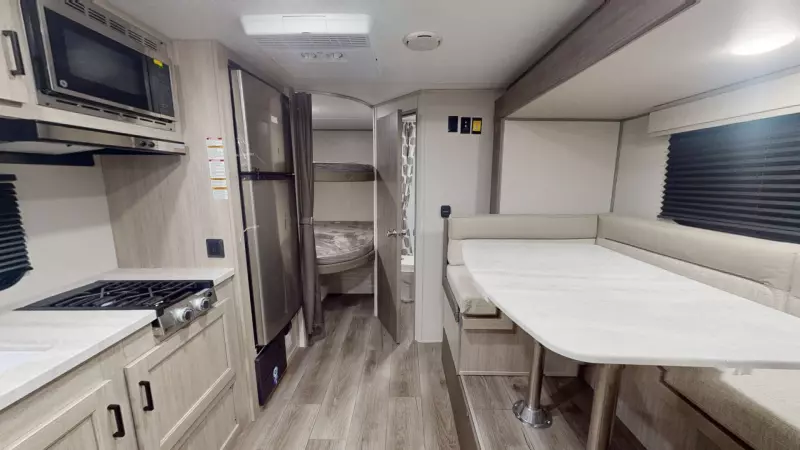

Virtual Tours
