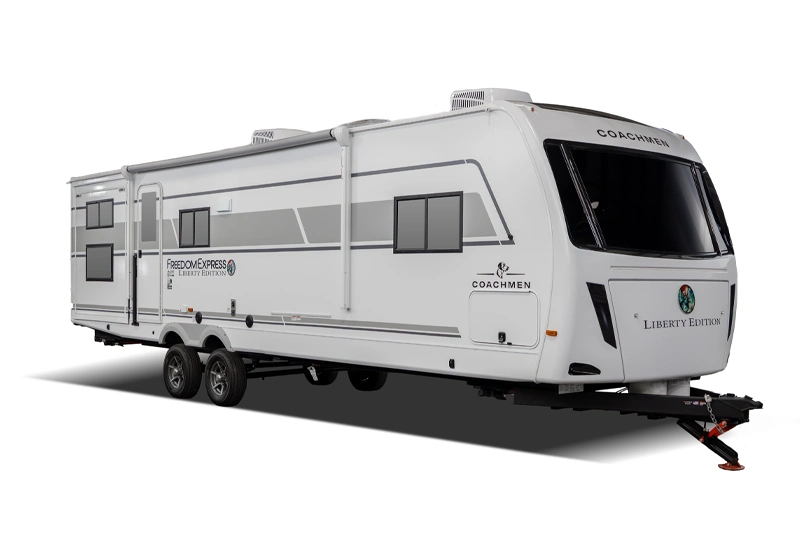

Freedom Express Liberty Edition Travel Trailers

Freedom Express Liberty Edition Travel Trailers deliver ultra-lite luxury combined with top selling floorplans in an affordable value added package designed to be towed by today’s midsize SUVs and half-ton vehicles.

Our full Freedom Express Liberty Edition models range from 28’ to 35’, and sport a full range of consumer inspired conveniences, from our complete push button setup Power Package to a Coleman® Perfect Flow camp grill. And towing the Freedom Express is made simple and safe with an unsurpassed aerodynamic design and our exclusive Stable-Ryd™ spread axle design.

Freedom Express conventional and hybrid travel trailers boast vacuum bond laminated sidewalls with durable Lami-Lux 1000® fiberglass exteriors. Available in models from 18’ to 28’, you are sure to find a model that suits your style, whether you are going it alone or taking the whole family.

Check out the Toy Haulers from Freedom Express. Our Toy Haulers combine lightweight design with payload capacities to handle your toy hauling needs. Fold up sofas, power vertical glide beds, and numerous tie down points give you practical dual purpose space for your needs.


Filter

Select filters below and then click the Filter Results button to remove non-matching Floorplans and their Specifications












to

to




Specifications

Print


Hitch Weight:
GVWR:
UVW:
CCC:
Exterior Length:
Exterior Height:
Exterior Width:
Fresh Water:
Gray Water:
Black Water:
Awning Size:
791 lb.
TBD
6365 lb.
1235 lb.
31' 6"
10' 9"
96"
49 gal.
66 gal.
33 gal.
20'
741 lb.
TBD
5929 lb.
1231 lb.
31' 11"
10' 9"
96"
49 gal.
33 gal.
33 gal.
20'
747 lb.
TBD
6622 lb.
1216 lb.
33' 5"
10' 7"
96"
49 gal.
33 gal.
33 gal.
18'
937 lb.
TBD
7454 lb.
2446 lb.
35' 7"
11' 0"
96"
49 gal.
33 gal.
33 gal.
18'
879 lb.
TBD
7952 lb.
2548 lb.
36' 11"
11' 2"
96"
49 gal.
66 gal.
33 gal.
20'
1071 lb.
TBD
7906 lb.
2594 lb.
36' 11"
11' 2"
96"
49 gal.
66 gal.
33 gal.
17'
1126 lb.
TBD
7878 lb.
2622 lb.
36' 11"
11' 2"
96"
49 gal.
66 gal.
33 gal.
15'
1132 lb.
TBD
8328 lb.
2172 lb.
36' 11"
11' 0"
96"
49 gal.
33 gal.
33 gal.
10' & 12'
1040 lb.
TBD
8054 lb.
2366 lb.
36' 11"
11' 0"
96"
49 gal.
66 gal.
33 gal.
8' & 11'
645 lb.
TBD
5268 lb.
2232 lb.
26' 10"
10' 9"
96"
49 gal.
33 gal.
33 gal.
14'
821 lb.
TBD
6367 lb.
1233 lb.
31' 8"
10' 9"
96"
49 gal.
33 gal.
33 gal.
18'
985 lb.
TBD
7849 lb.
2051 lb.
35' 11"
11' 2"
96"
49 gal.
33 gal.
33 gal.
12' & 10'

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)* – is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity) ** – is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Coachmen RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Coachmen RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Actual towing capacity is dependent upon your particular loading and towing circumstances, which includes the GVWR, GAWR and GCWR as well as adequate trailer brakes. Please refer to the Operator's Manual of your vehicle for further towing information.

Features & Options

Print
  • ¾ Gel Coated Fiberglass Cap with Automotive Glass Windshield
  • Alumicage Construction
  • Vacuum Bonded Walls with Azdel Composite Panels
  • Aluminum Wheels
  • Spare Tire Kit
  • Detachable Power Cord
  • Power Awning with LED Light Strip
  • Tinted Safety Glass Windows
  • Front Diamond Plate
  • E-Z Lube® Axles
  • Spread Axle Design (N/A 192 RBS or 204RD)

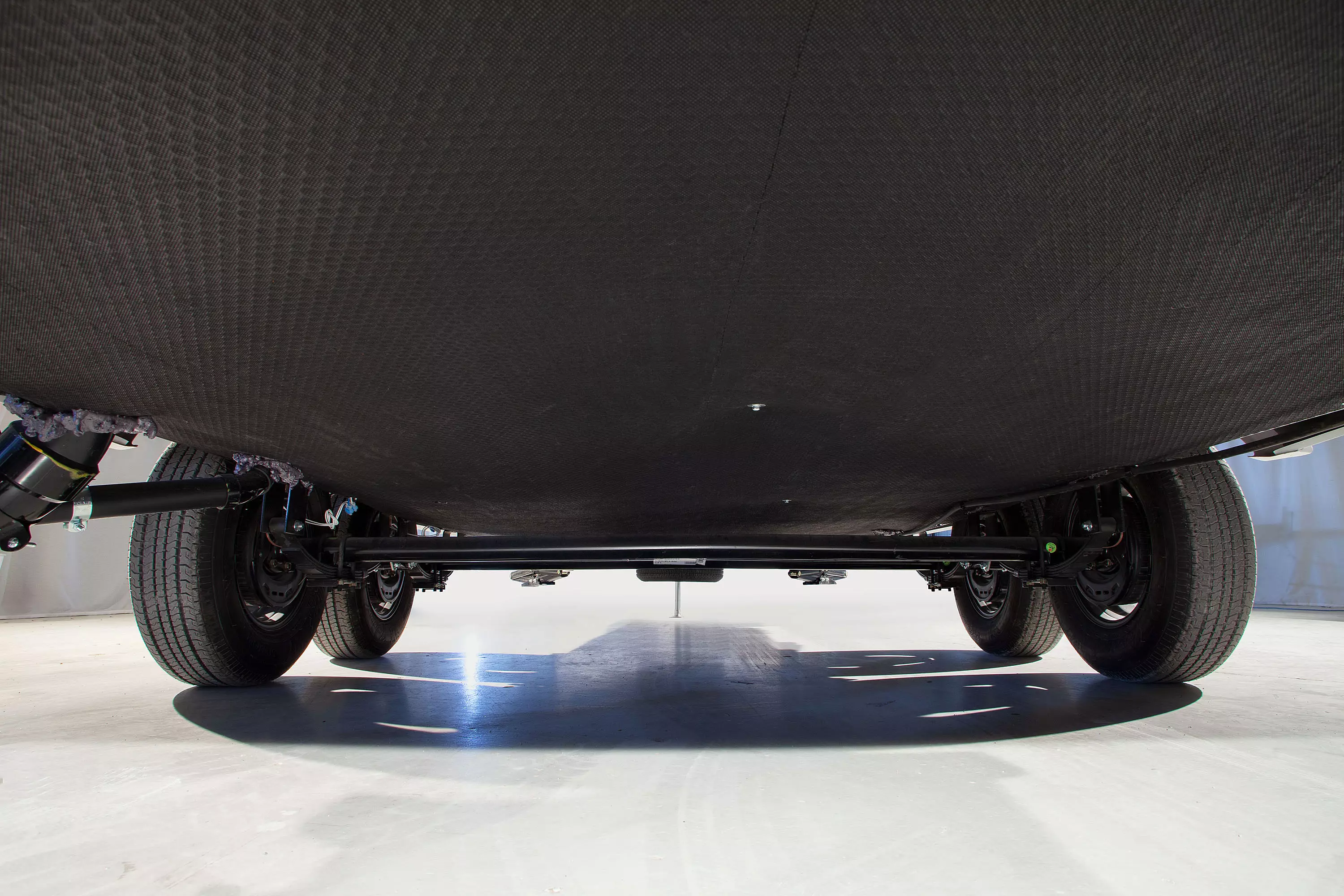

  • Heated Enclosed Underbelly
  • Full Walk-on Roof
  • One Piece Tufflex PVC Roofing 15 year Warranty
  • Exterior Shower Station
  • Winterize Ready Kit
  • Black Tank Flush
  • Ducted Furnace (N/A 192 RBS or 204RD)
  • Ducted Ceiling Air Conditioning (N/A 192 RBS or 204RD)
  • Magnetic Compartment Door with LED Strip Light
  • 24”x 48” Resin Outdoor Table
  • TV & Radio Antenna with Winegard 360+ WIFI
  • & 4G Prep
  • RG6 TV Hook-up Camp Side

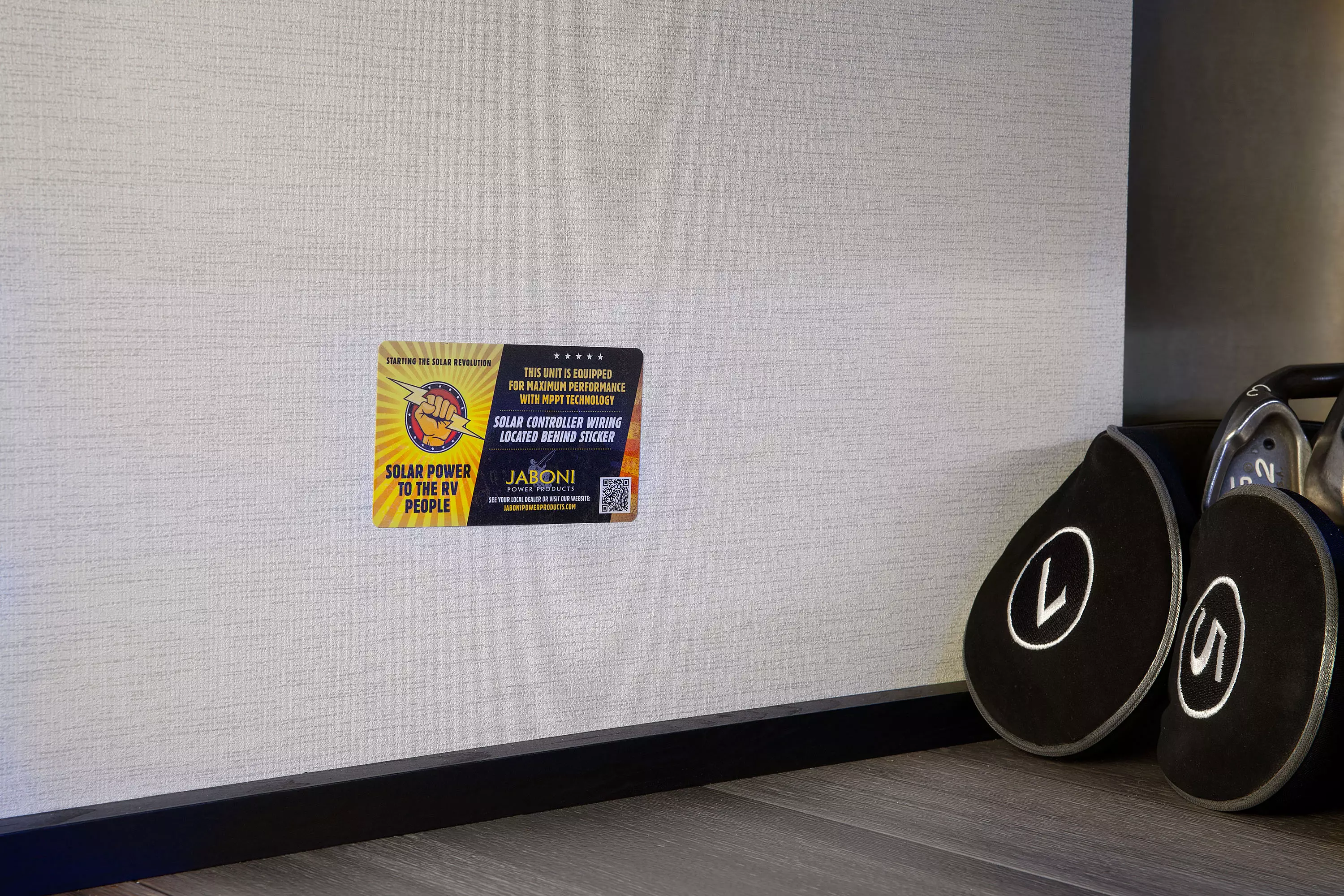

  • Solar Port
  • Back-up Camera Prep
  • Battery Disconnect
  • Aluminum Solid Steps
  • Pet Leash & Bottle Opener by Entry Door
  • Gel Coated Fiberglass Full Cap with Automotive Glass Windshield
  • Upgraded Front Rock Guard Graphics
  • Special Liberty/Maple Leaf Edition Graphics

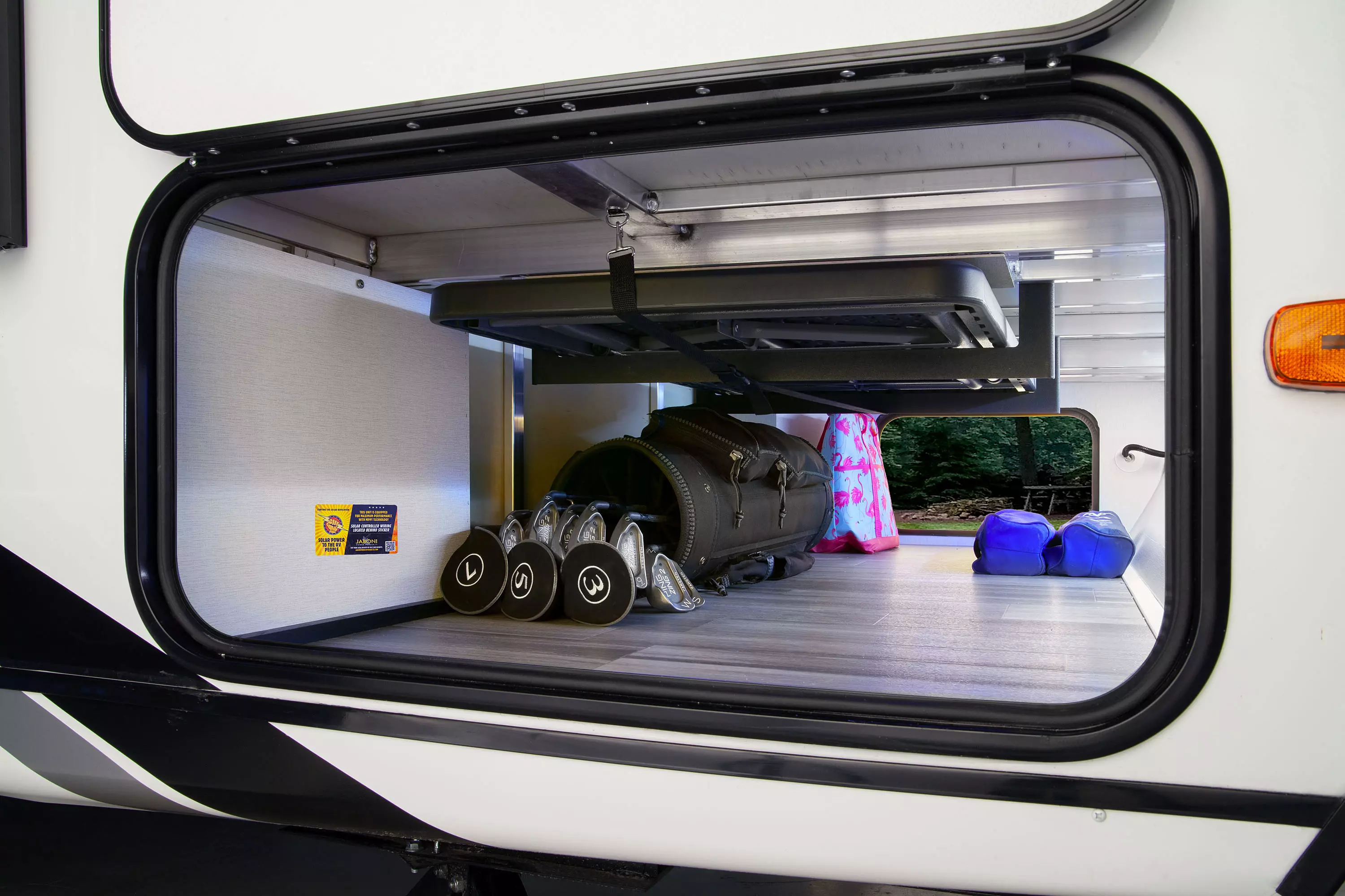

  • Slam Latch Baggage Doors on Pass-through Storage
  • Enclosed and Heated Gate Valves
  • Camp Side Security Light
  • Five Point Stabilizer Power Tongue Jack System

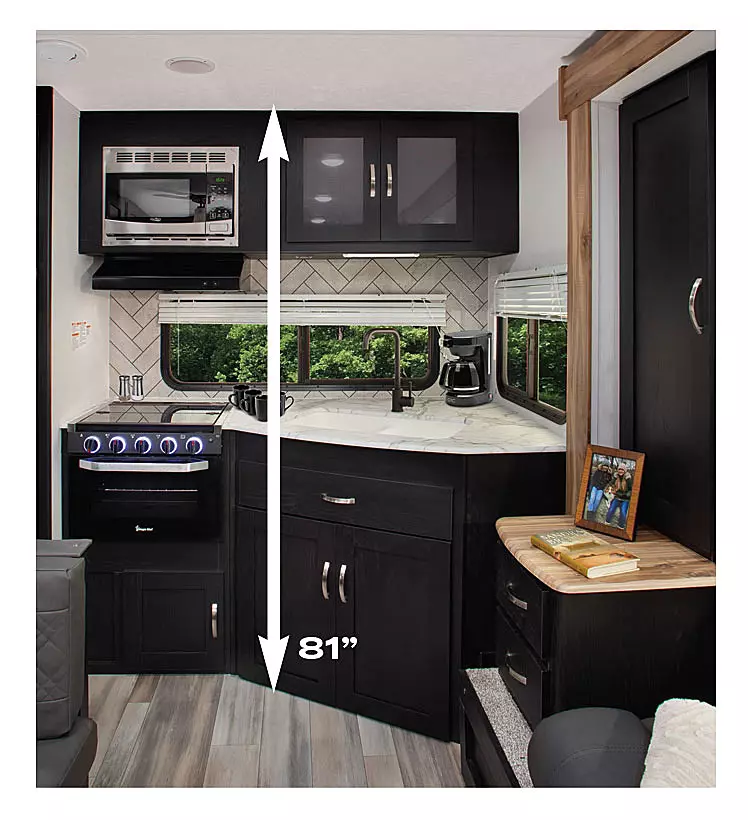

  • 81” Interior Ceiling Throughout

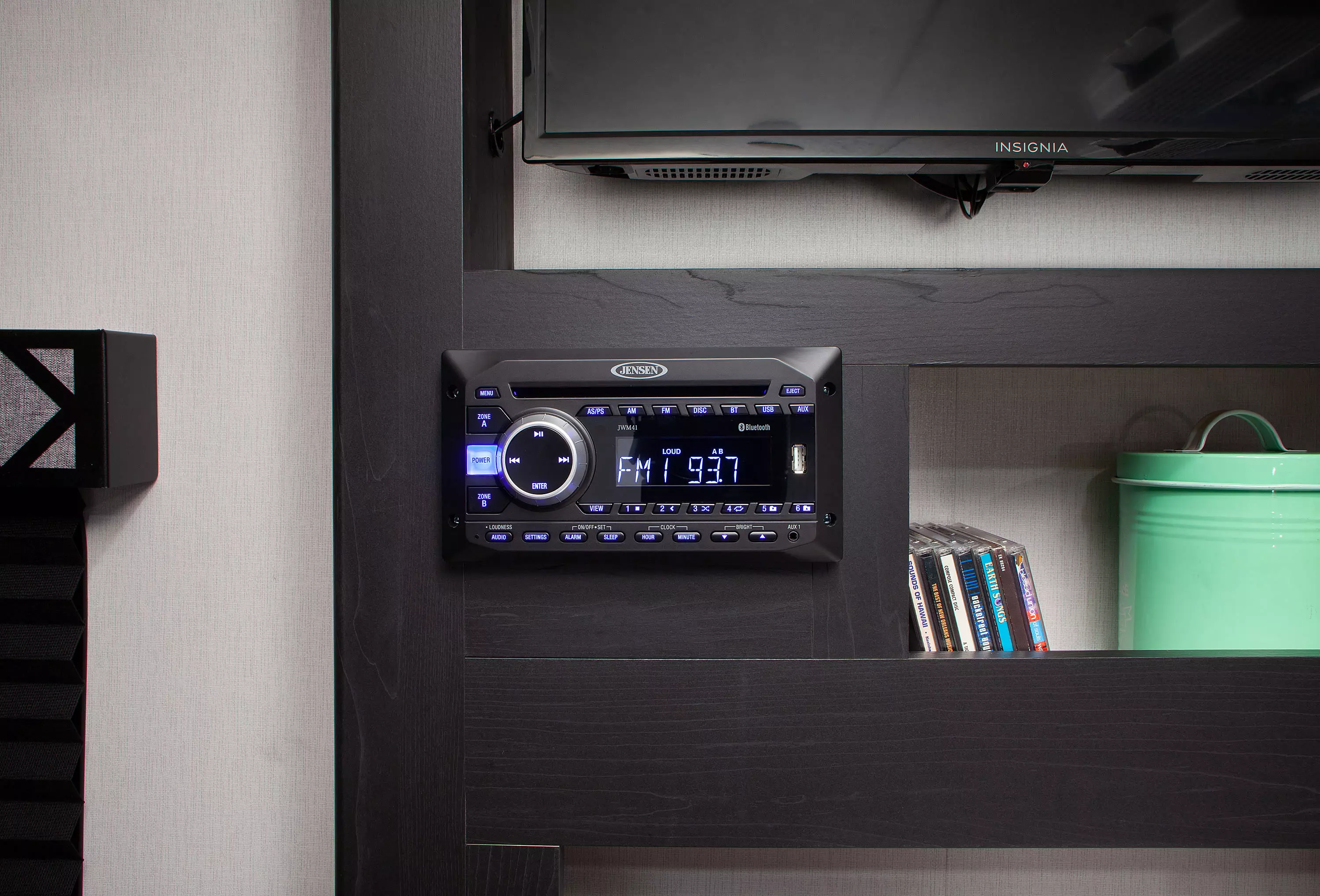

  • AM/FM/CD/DVD/Bluetooth Stereo
  • 2 Exterior Speakers, 4 Interior Speakers
  • LED Satellite Ready TV
  • LED Interior Lighting
  • Night Shades
  • Congoleum Designer Carefree Flooring
  • Hidden Hinge Cabinetry
  • Stainless Steel Sink with Sink Covers
  • Microwave
  • Oven with 3 Burners & Glass Top
  • Double Door Refrigerator

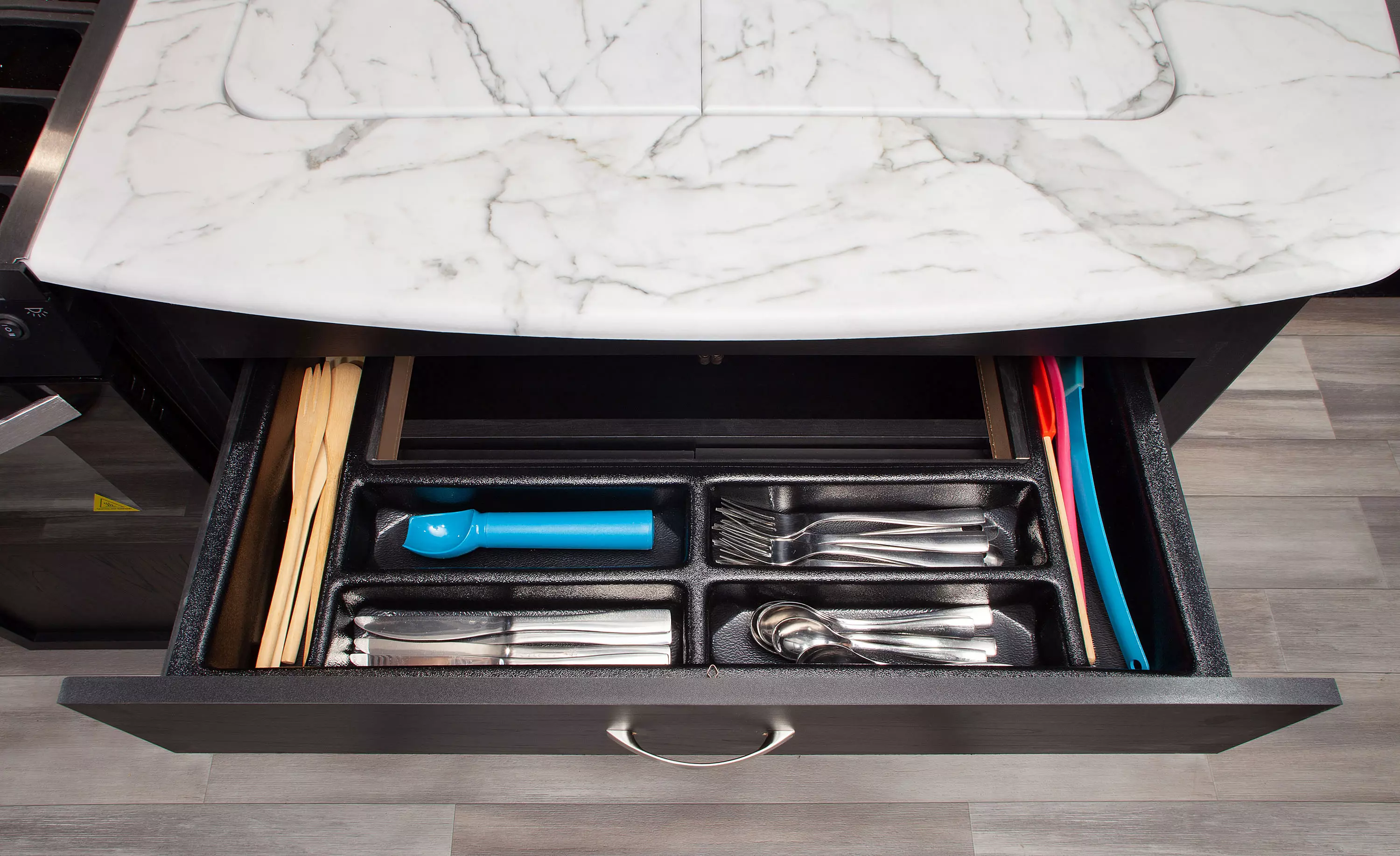

  • Utensil Drawer (Some models)

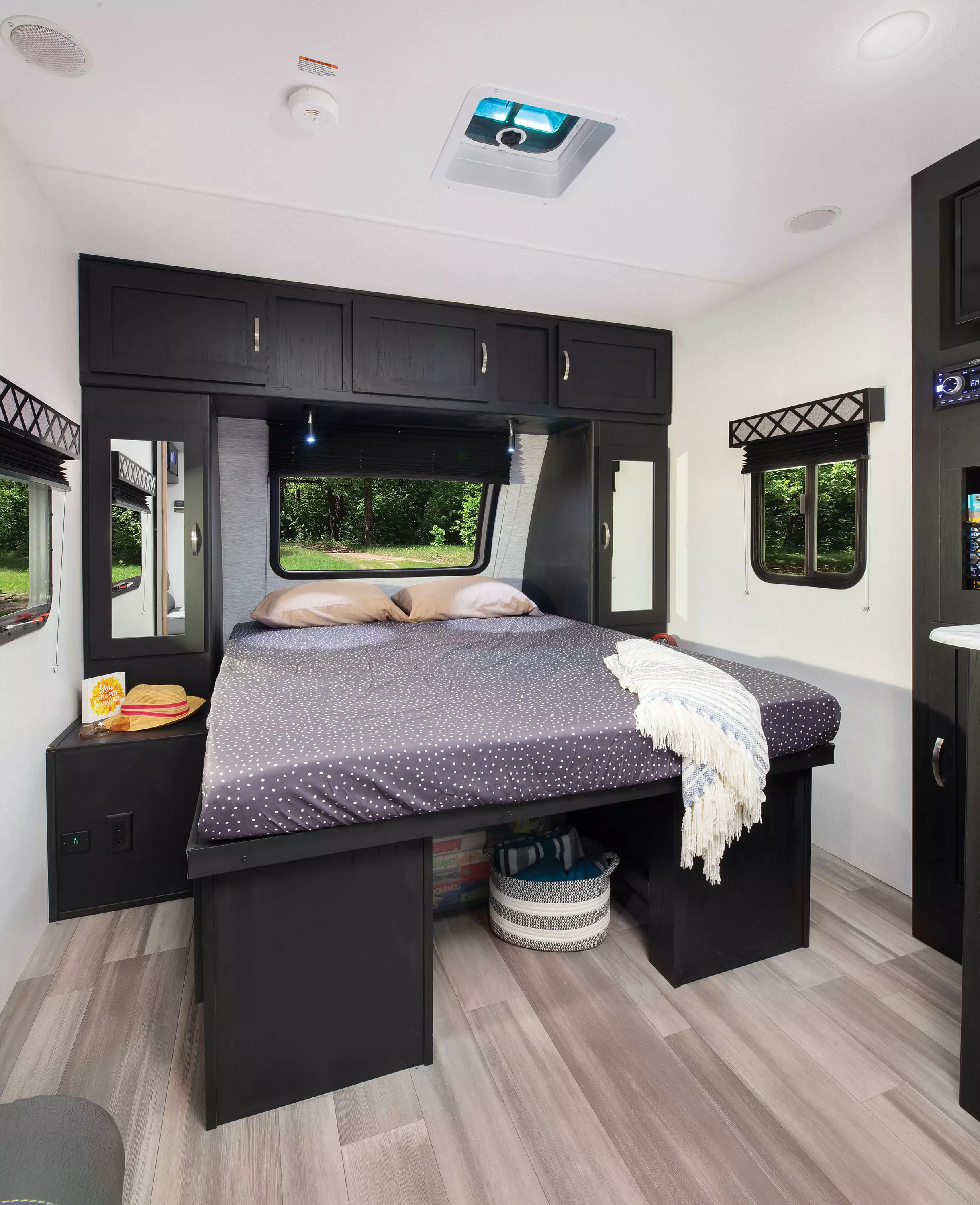

  • 60” x 80” Queen Bed with Residential Bed Spread
  • USB Ports in Master & Bunk Rooms
  • Skylight in Bath & Power Vent Fan
  • Porcelain Toilet
  • Freedom Express Clock
  • RVIA
  • Enclosed Central Control Panel for Switches and Gauges
  • Residential Solid Surface Kitchen Countertop with Matching Sink Cover
  • Slotted Knife Storage Behind Stove
  • Tile Kitchen Backsplash
  • Pull-out Sprayer Faucet
  • Residential Decorative Light over Dinette
  • Hide-A-Bed Sofa
  • Fantastic Fan with Wireless Remote in Master
  • Two Slider Pots and Pans Drawer under Dinette
  • Designer Residential Bedspread with Matching Pillows
  • Electric Fireplace (NA 276 RKDS)
  • Large 8 Cu. Ft. Double Door Refrigerator
  • Residential Roller Shades Throughout
  • 15,000 BTU A/C
  • 50 Amp Service with Second A/C Prep
  • Second 15,000 AC Installed

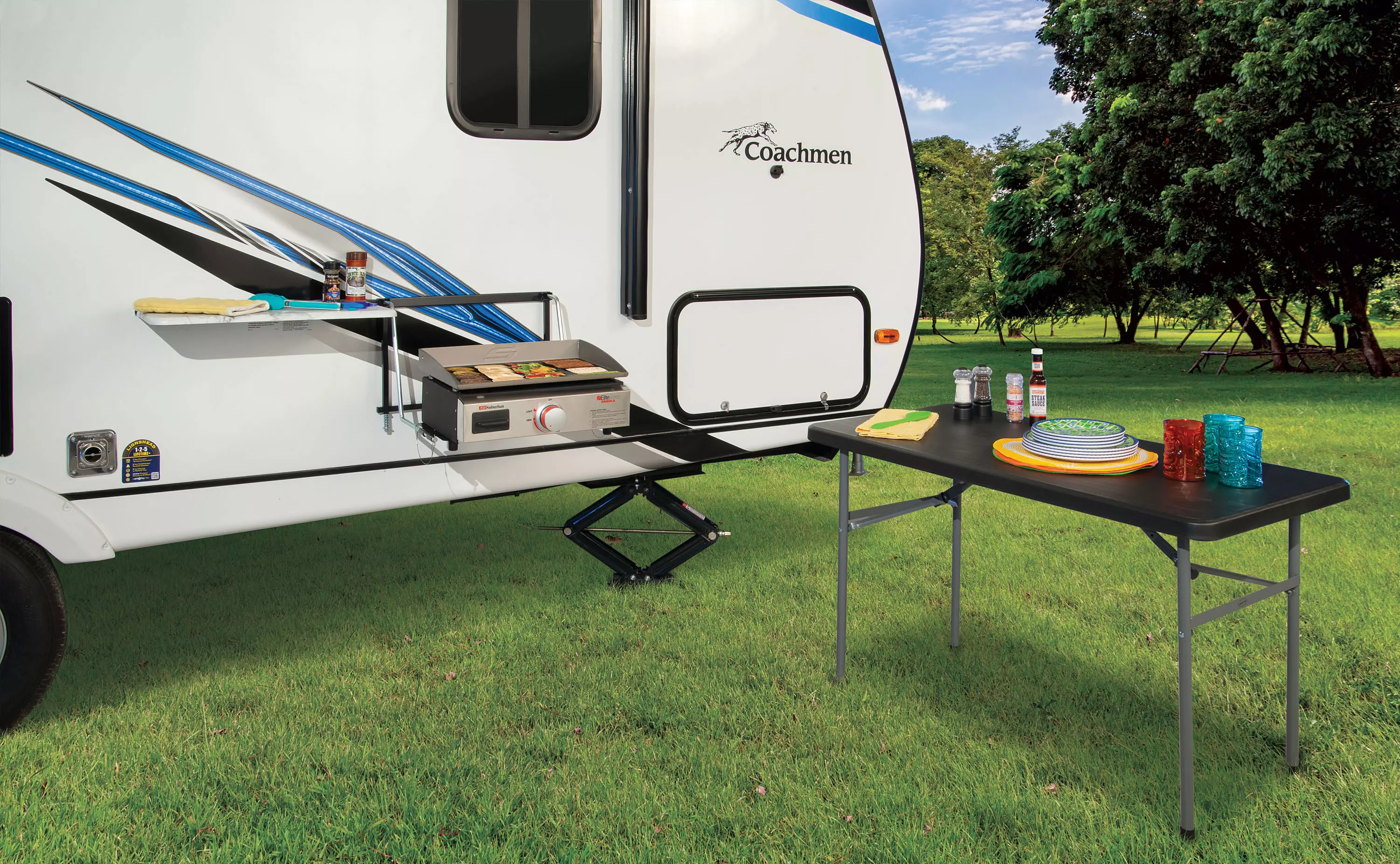

  • Coleman® High Output Grill with Burner
  • Frameless Windows
  • Ladder
  • Radiant Barrier Insulation Pack (Added R Value equivalent)
  • Free Standing Dinette with Chairs (Some models)
  • Theater Seats with Heat, Massage & LED Lighting (IPO Sofa) (Some models)
  • 12 Volt 10.7 Cu. Ft. Residential Refrigerator
  • Canadian Compliance
