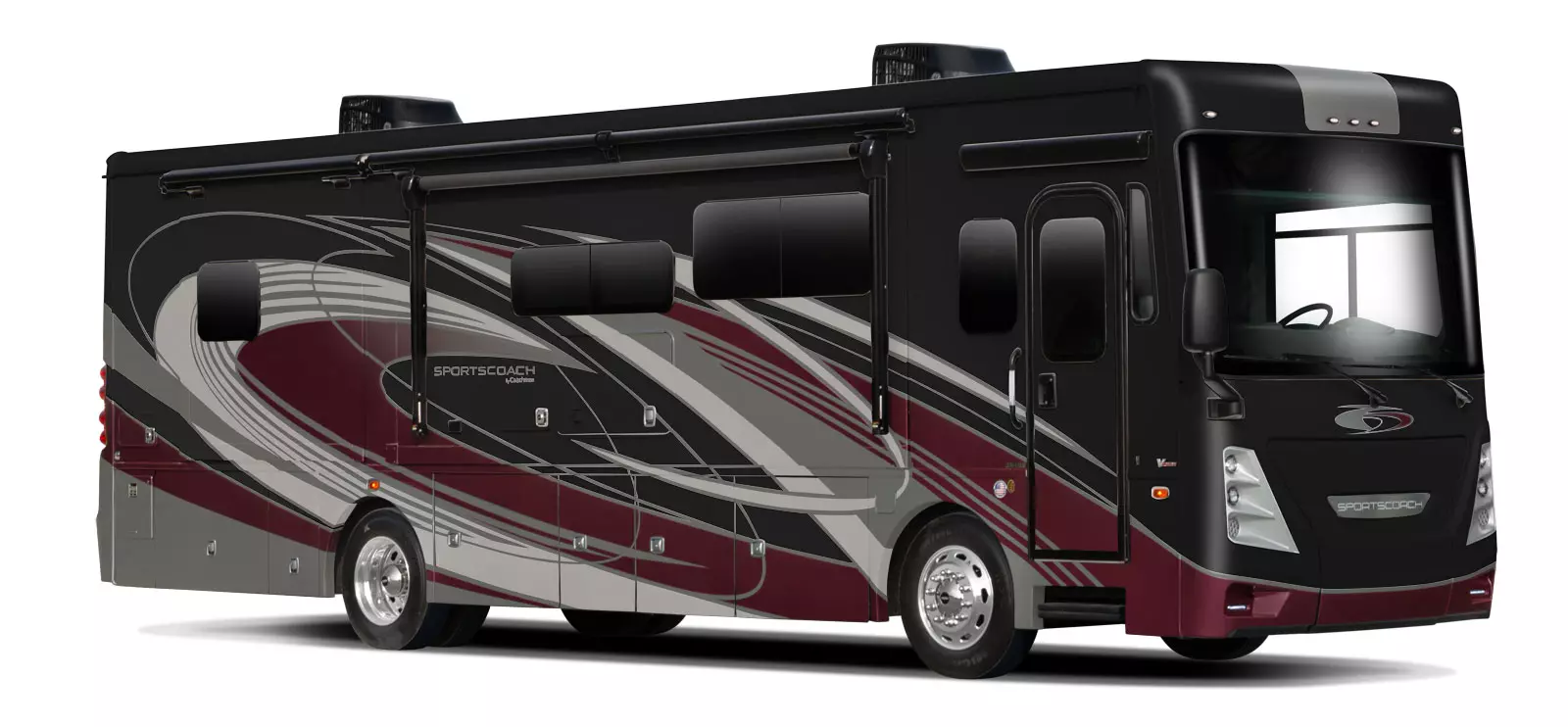

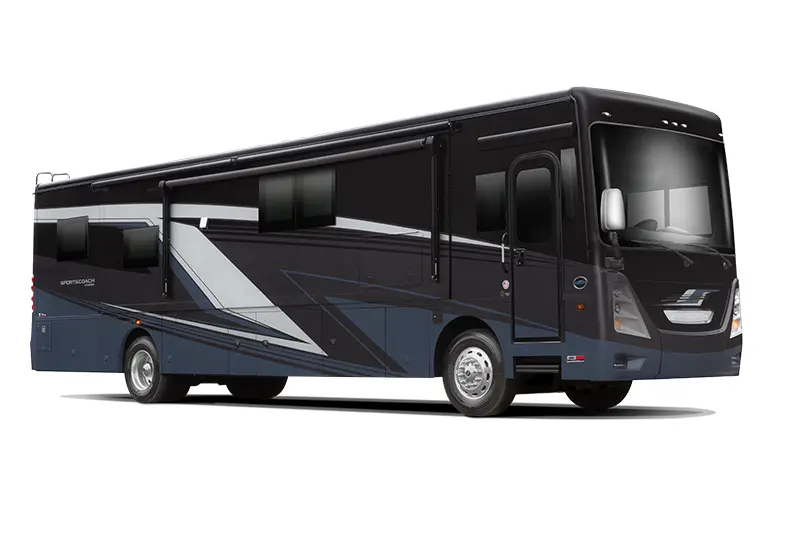

Sportscoach Rear Diesel Class A Motorhomes

Simply put, the Sportscoach is exceptional elegance in design and value at a price that makes an RD possible! The Sportscoach Diesel Pusher is the most affordable rear diesel in the market today – bar none! With all the amenities you need in the comfort and use of a Class A motorhome, built on the Freightliner chassis, the Sportscoach provides you with all the advantages of a Rear Diesel Motorhome at the price that compares with some front engine gas Motorhomes.

Feel the prestige of a Rear Diesel Motorhome as you confidently ride high with air ride suspension, air brakes, huge pass through exterior storage, panoramic views and the ride and handling that only a Rear Diesel Motorhome can provide. Inside the Sportscoach, you will immediately find you don’t have to add a lot of options as the Sportscoach is equipped with the amenities and comforts of home. Corian kitchen countertop, full extension roller bearing drawer guides, raised panel hardwood cabinet doors and a long list of other customer friendly features Motorhome users appreciate.

The Sportscoach also features many practical innovations that appeal to experienced Class A Motorhome users. For instance, the true flat floor bedroom design, which eliminates the unnecessary climbing over the engine cover just to get in bed, convenient side opening compartment doors for easier access to your supplies and toys and the smart design of interior storage so that you can take what you want.


Filter

Select filters below and then click the Filter Results button to remove non-matching Floorplans and their Specifications








to

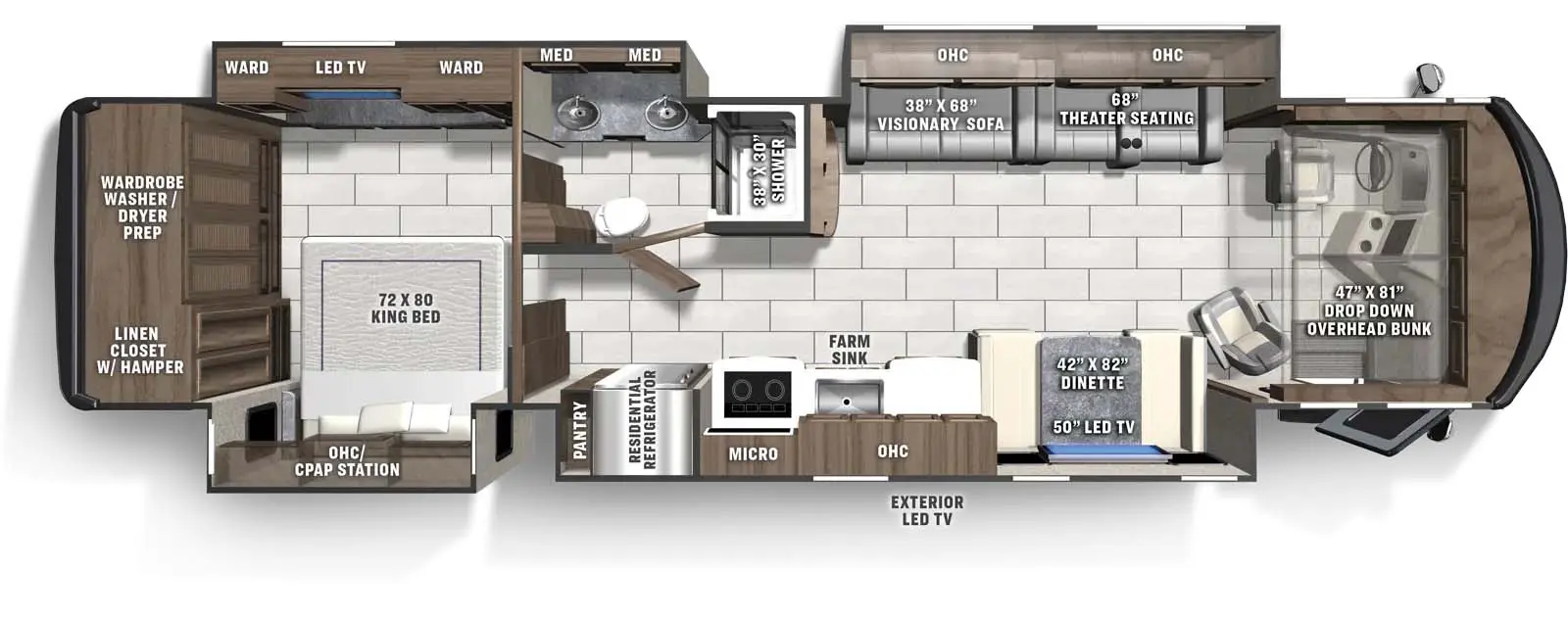

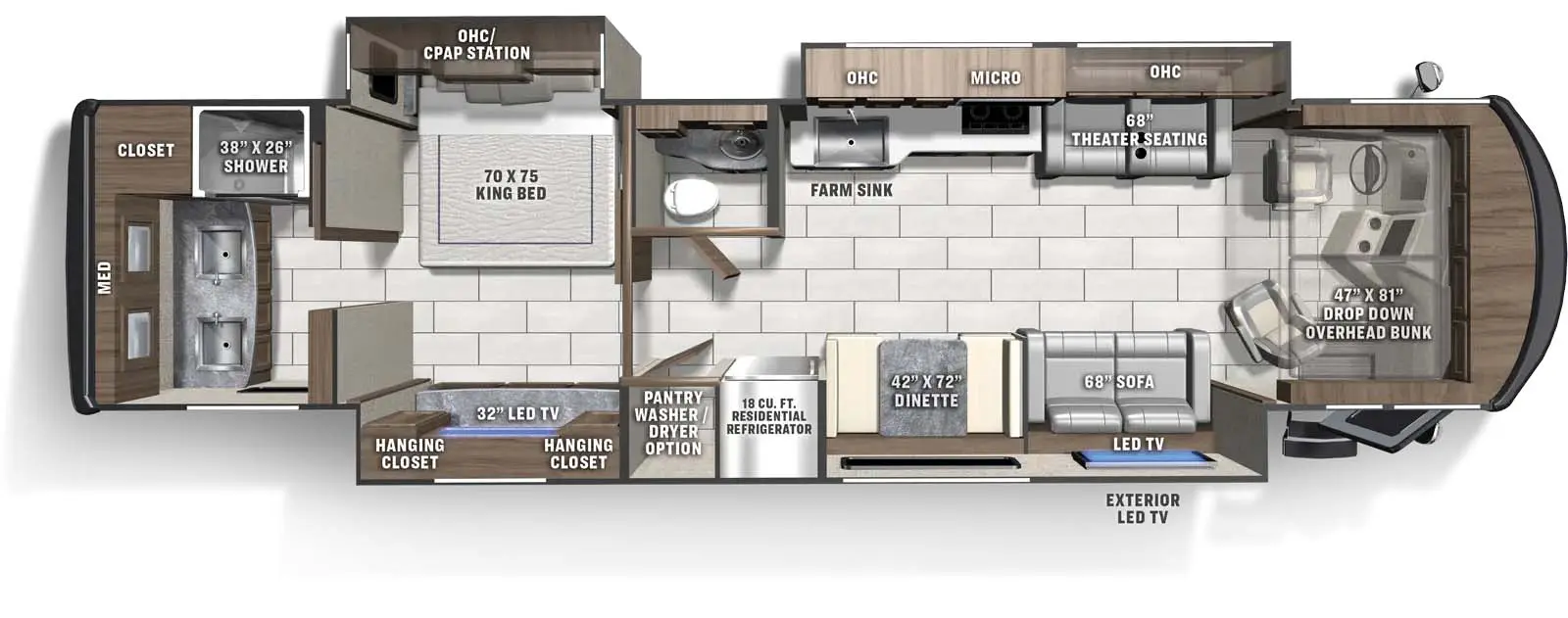

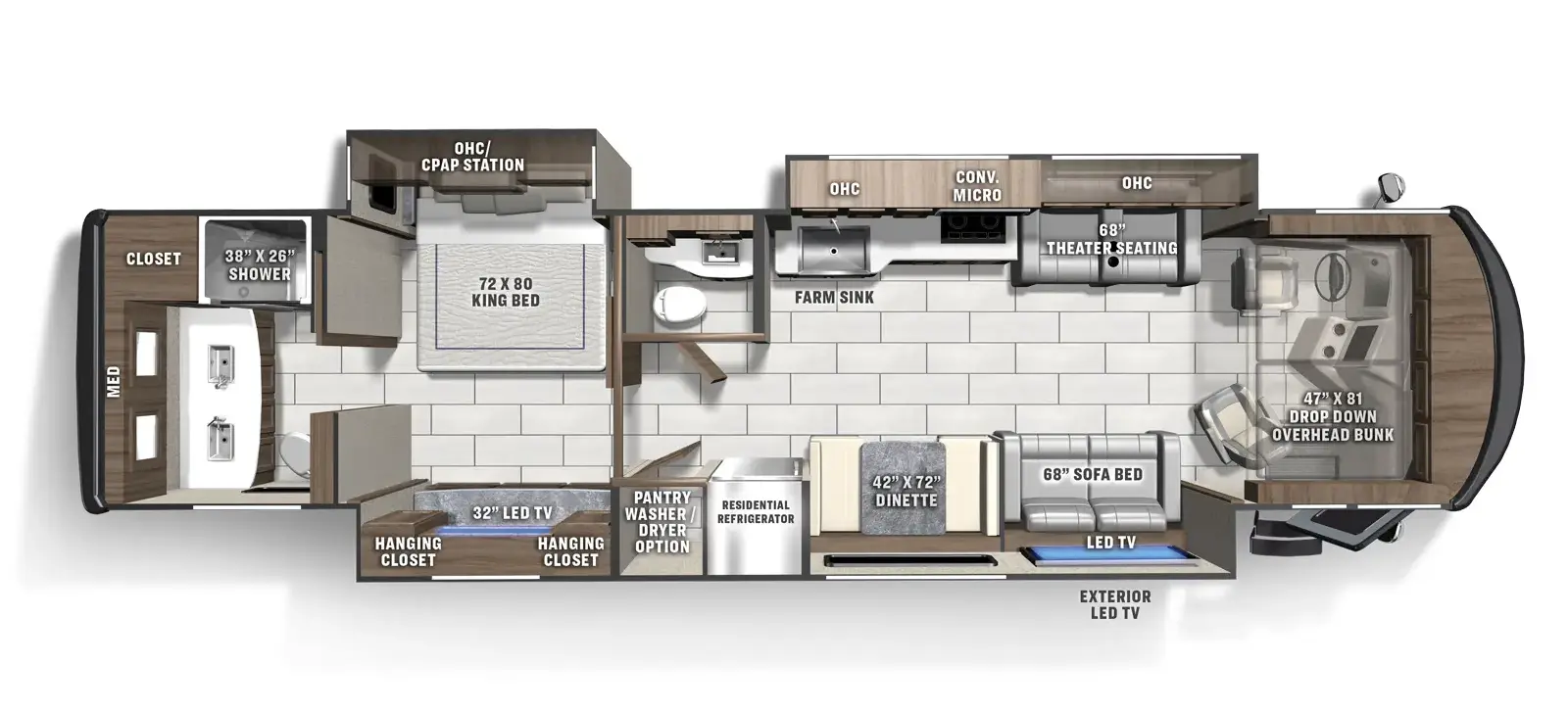

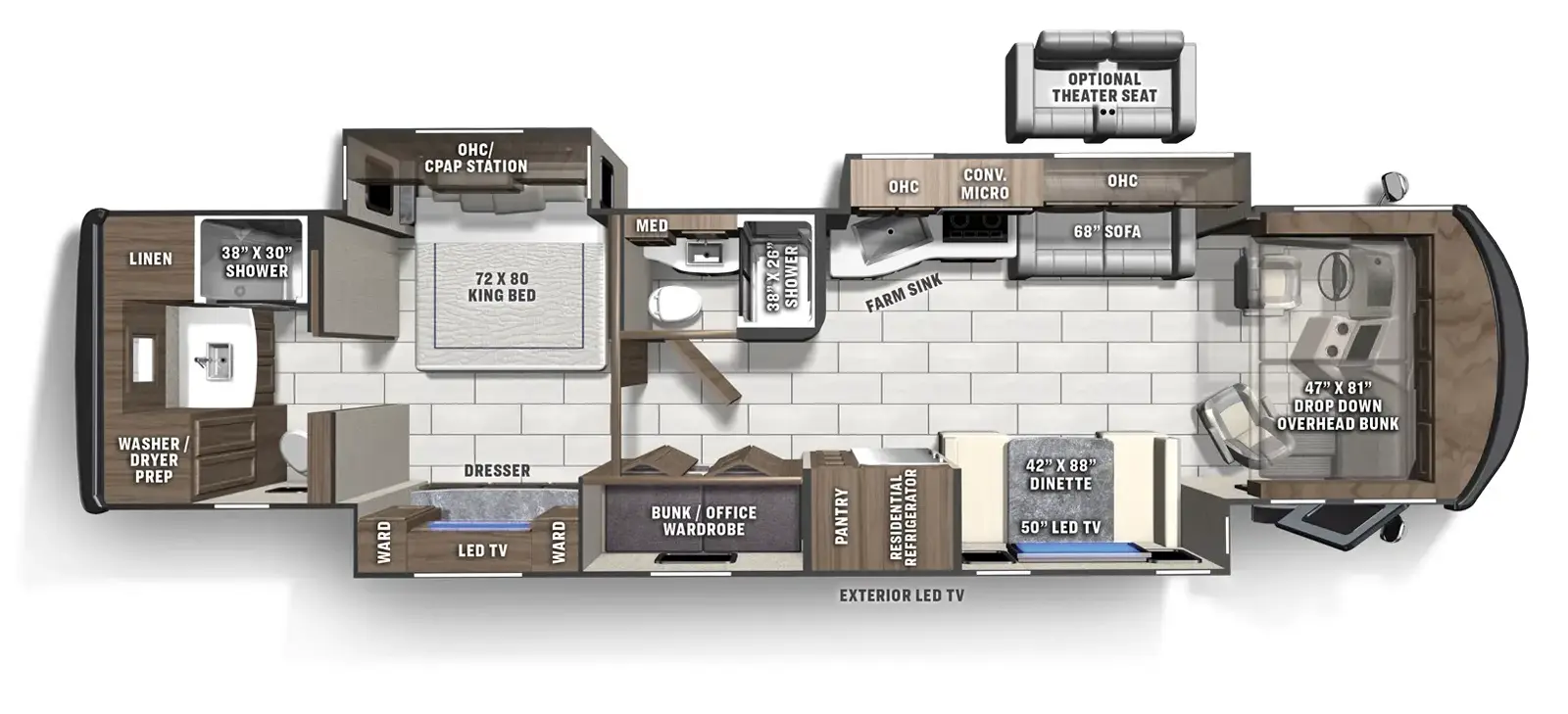

Floorplans

Print



Specifications

Print


Wheelbase:
GVWR:
GCWR
GAWR Front:
GAWR Rear:
Fuel Capacity:
Exterior Length:
Exterior Height:
Exterior Width:
Fresh Water:
Gray Water:
Black Water:
Awning Size:
266"
32000 lb.
42000 lb.
12000 lb.
20000 lb.
100 gal.
41' 1"
12' 10"
102"
89 gal.
52 gal.
46 gal.
17'
266"
32000 lb.
42000 lb.
12000 lb.
20000 lb.
100 gal.
41' 1"
12' 10"
102"
89 gal.
52 gal.
52 gal.
18'
266"
32000 lb.
42000 lb.
12000 lb.
20000 lb.
100 gal.
41' 1"
12' 10"
102"
89 gal.
104 gal.
52 gal.
18'

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GCWR (Gross Combined Weight Rating) – is the maximum permissible loaded weight of your motor home and any towed trailer or towed vehicle. Actual GCWR of this vehicle may be limited by the sum of the GVWR and the installed hitch receiver maximum capacity rating; see hitch rating label for detail.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)* – is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity) ** – is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Coachmen RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Coachmen RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Actual towing capacity is dependent upon your particular loading and towing circumstances, which includes the GVWR, GAWR and GCWR as well as adequate trailer brakes. Please refer to the Operator's Manual of your vehicle for further towing information.

Features & Options

Print
  • Padded Vinyl Ceiling
  • Hardwood Cabinet Doors Throughout
  • Tile Floor Throughout
  • Self-Closing Ball Bearing Drawer Guides Throughout
  • Brushed Nickel Hardware and Fixtures
  • Electric Step Cover
  • Power Front Privacy Shade and Manual Side Shades

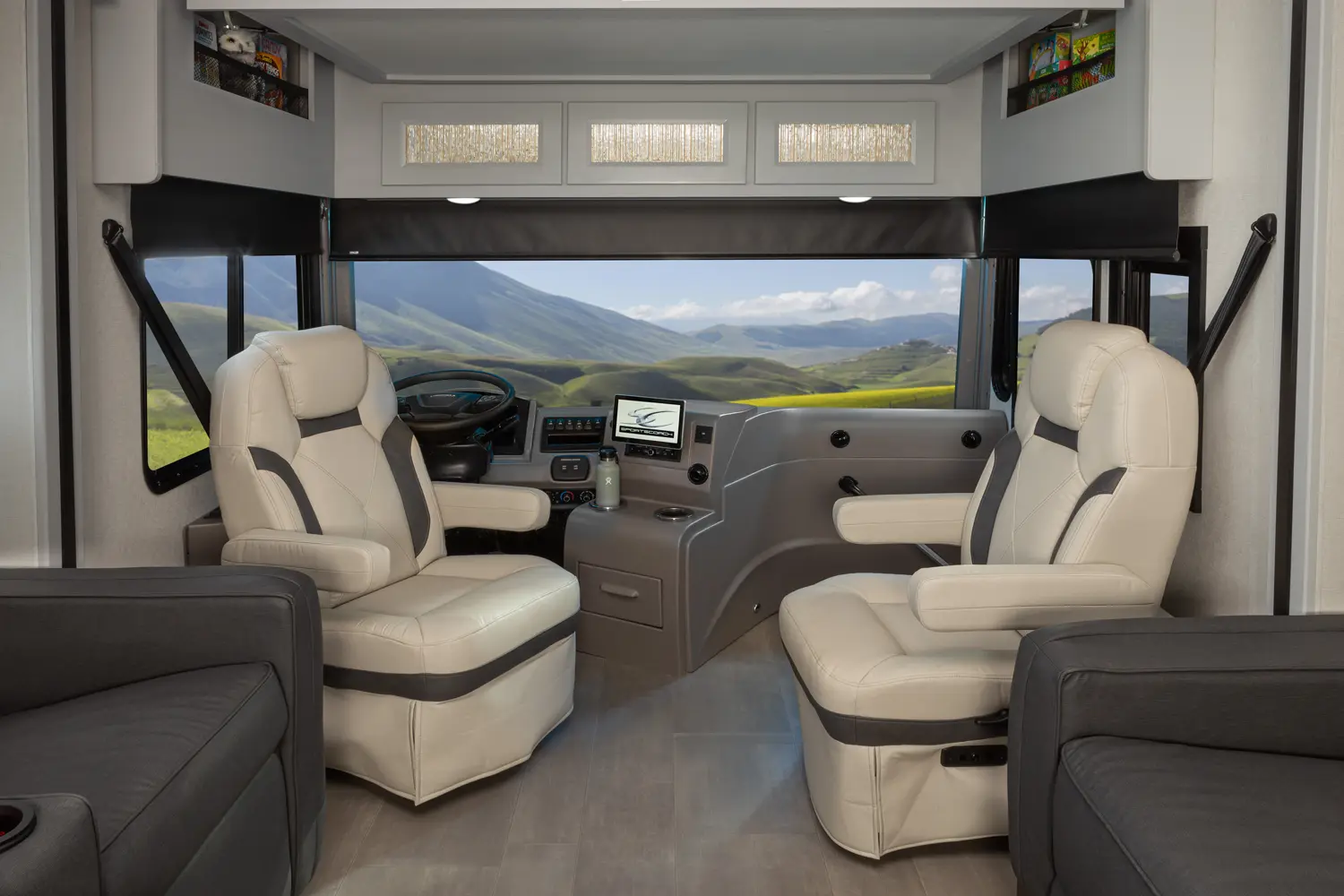

  • 6-Way Power Driver and Passenger Seats
  • Solar Privacy Shades Throughout
  • Faux Leather Visionary Sofa Hide-A-Bed (n/a 409BG)
  • Chaise Lounge Sofa (409BG Only)
  • Dream Dinette
  • Storage Drawers Under Booth Dinette
  • Solid Surface Countertops Throughout
  • Fire Extinguisher
  • 40” LED TV (409BG)
  • 50” LED TV Coach (404RB, 407FW)
  • Charging Station for Electronic Devices
  • King Jack TV Antenna
  • Pre-Wired for Satellite Dish and Blu-ray Players
  • Cable TV Jack
  • LP Leak Alarm
  • Smoke Detector
  • Carbon Monoxide Detector
  • 10 .1" Touch Screen Radio AM/FM with Bluetooth, Dual Mirror Technology and Camera Monitor
  • Fireplace (407FW, 409BG)
  • Stackable Washer/Dryer Ready
  • Three-Speed Roof Vent
  • Wi Fi Ranger
  • Sound Bar Entertainment System
  • 30” Stainless Steel OTR Convection Microwave
  • 2-Burner Induction Cook Top
  • 22 Cubic Foot Stainless Steel Refrigerator
  • Tile Kitchen Back Splash
  • Fantastic Power Ceiling Vent
  • Solid Surface Sink Covers
  • Large Stainless Steel Sink
  • Pop-Up Receptacle with USB Ports
  • Whole Coach Water Filter (Quantity of two (2) on 409BG)
  • Single Pedal Porcelain Toilet with Sprayer

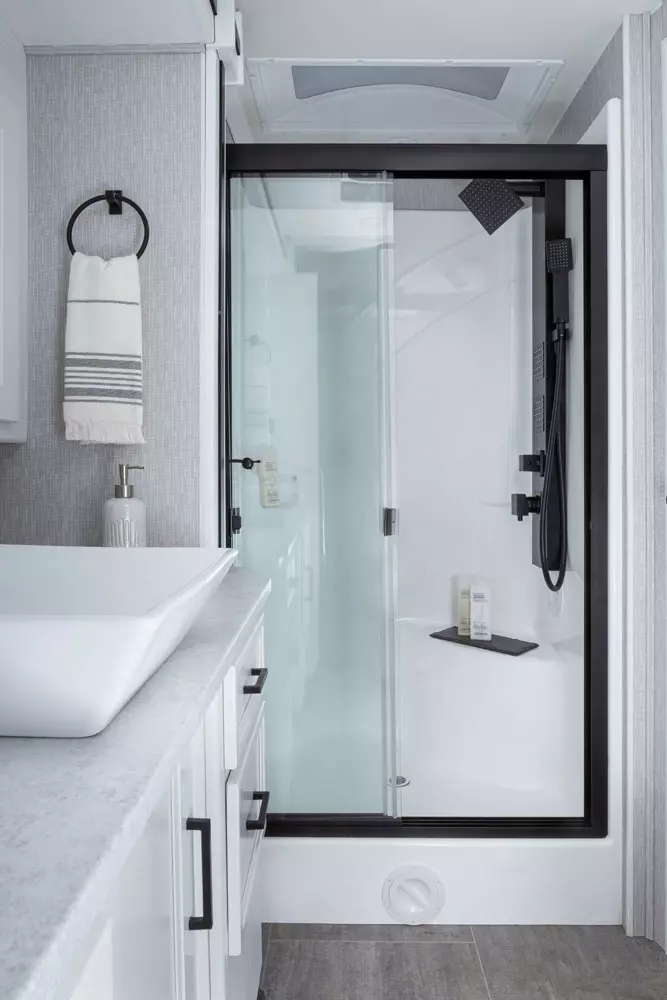

  • Fiberglass Shower Stall (Quantity of two (2) on 409BG)
  • Clear Glass Shower Door (Quantity of two (2) on 409BG)
  • Power Bath Vent
  • Water Pump Switch at Termination
  • Demand Water Pump (Quantity of two (2) on 409BG)
  • Black Tank Flush System
  • Skylight Over Shower (Quantity of two (2) on 409BG)
  • Winterization Inlet at Termination Compartment
  • Chair-Rail in Toilet Room
  • 10-Gallon (Gas/Electric) E.I. Water Heater (Quantity of two (2) on 409BG)
  • King Bed 72W X 80L
  • Upgraded Mattress
  • Bedspread, Pillows with Shams
  • Residential Style Headboard
  • 32” LED TV Bedroom
  • 13” TV with DVD Player in Bunks (407FW, 409BG)
  • Coach-Pap™ Station
  • Bedroom Radio AM/FM/Bluetooth with Outside Speakers
  • My RV Multiplexing Control Center
  • 50-Amp Power Cord
  • Two GFI Circuits (Kitchen and Bathroom)
  • Outside Receptacle (DS)
  • LED Interior Ceiling Lighting
  • Emergency Start Switch
  • Coach and Chassis Battery Disconnect
  • Auto Generator Start
  • Exterior LED Strip Light
  • 13,500-BTU Ducted Roof Air Conditioner Front
  • 13,500-BTU Ducted Roof Air Conditioner Rear
  • 20-Gallon LP Tank

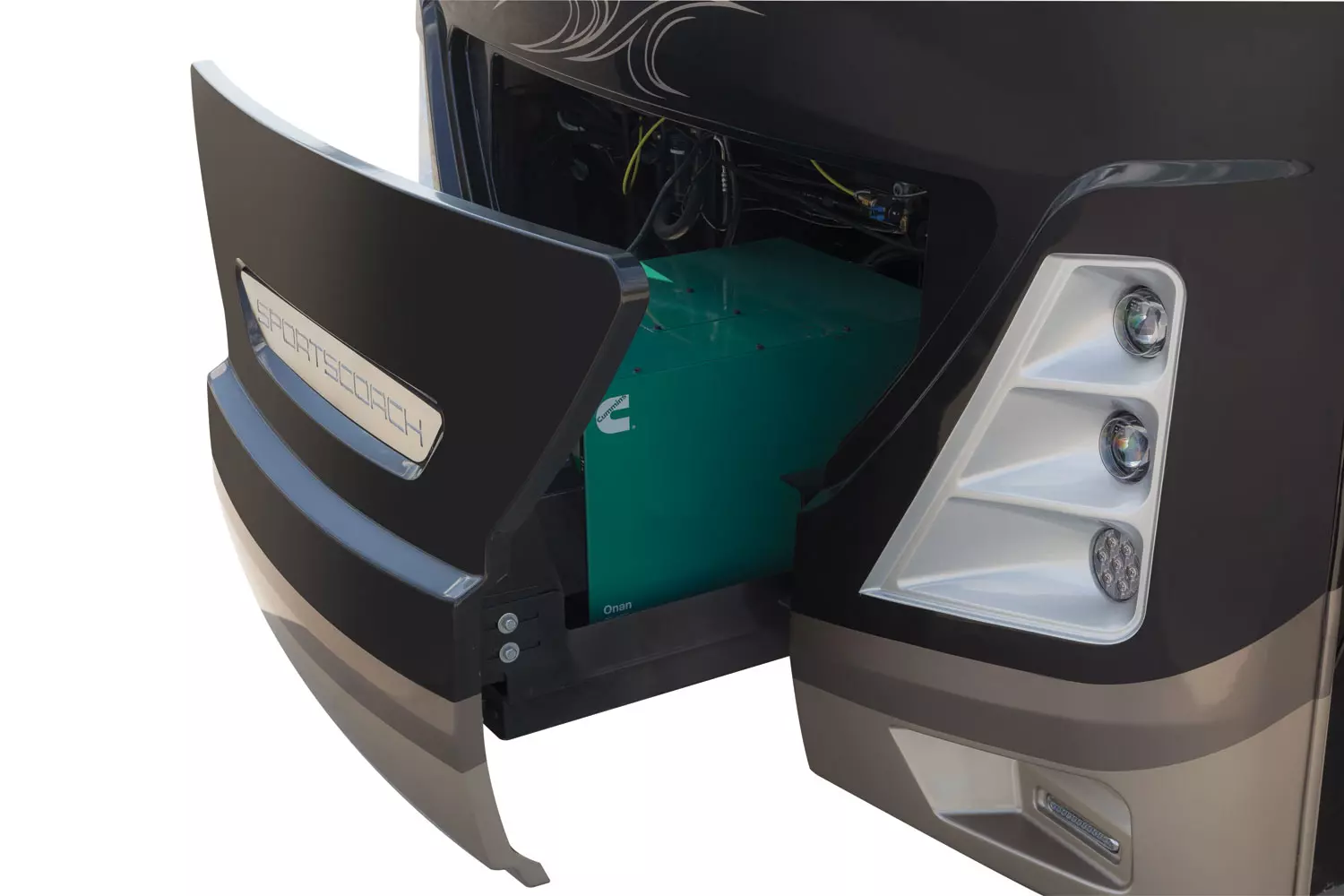

  • 8.0KW Diesel Generator with Slide Tray
  • Power Control System with Inverter Assist-120V
  • Automatic Transfer Switch
  • 2000-Watt Inverter with Four (4) Auxiliary Batteries
  • Solar Panel Hook-Up
  • New Diesel Cockpit Dash Console
  • Raised Rail Freightliner Chassis
  • Defroster Fans
  • Telescoping Tilt Steering Wheel
  • Cruise Control
  • Intermittent Wipers
  • Dash Air Conditioning
  • Chrome Exterior Mirrors with Heat and Remote
  • Auxiliary Driving Lights
  • Fuel Fills, Both Sides
  • Fully Automatic Leveling Jacks
  • Chassis Air Suspension and Air Brakes
  • 360 HP ISB Cummins Rear Diesel Engine, Torque 800 lbs./ft.
  • 6-Speed Allison 3,000 MH Automatic Transmission
  • 22.5” Radial Tires with Aluminum Rims
  • Deluxe Radius Entrance Door with Dead Bolt Lock
  • Front and Rear Mud Flaps
  • Power Entrance Steps-Double
  • Aluminum Side Swing Compartment Doors
  • Front and Rear Fiberglass Caps
  • Air Horn
  • Rear Vision Camera with Color Monitor
  • Color Side Cameras with Color Monitor
  • Roof Ladder
  • 10,000-Pound Towing Hitch with 7-Way Plug
  • Slide-Out Awning(s)
  • Auxiliary Air Supply Hook-Ups
  • Flush Floor Bedroom
  • Pass-Through Basement Storage
  • Full-Body Paint
  • Crowned, Laminated Fiberglass Roof
  • Power Patio Awning
  • Frameless Tinted Windows with Safety Glass
  • Power Entry Door Awning

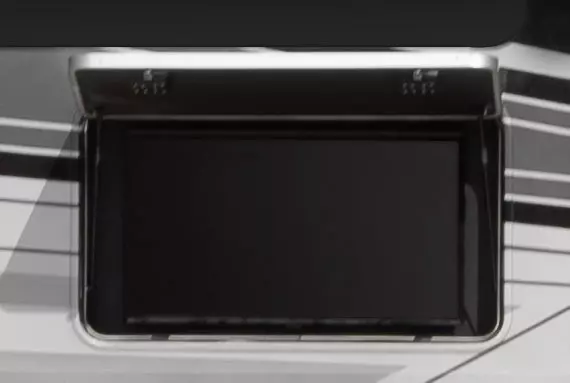

  • Outside Entertainment Center
  • Full Width Rear Rock Guard “SPORTSCOACH”
  • Lighted Interior and Exterior Assist Handles
  • High Gloss Gelcoat Sidewalls (with Azdel™ Superlight Composite)
  • Exterior Propane Hook-Up
  • Free 24/7 Roadside Assistance for One Year from Purchase Date
  • Monterey
  • Napa
  • Sonoma
  • Sumatra
  • Driftwood
  • Slate Cherry
  • Eventide Full-Body Paint
  • Siesta Key Full-Body Paint
  • Brandywine Full-Body Paint
  • Cimmaron Full-Body Paint
  • Glacier Full-Body Paint

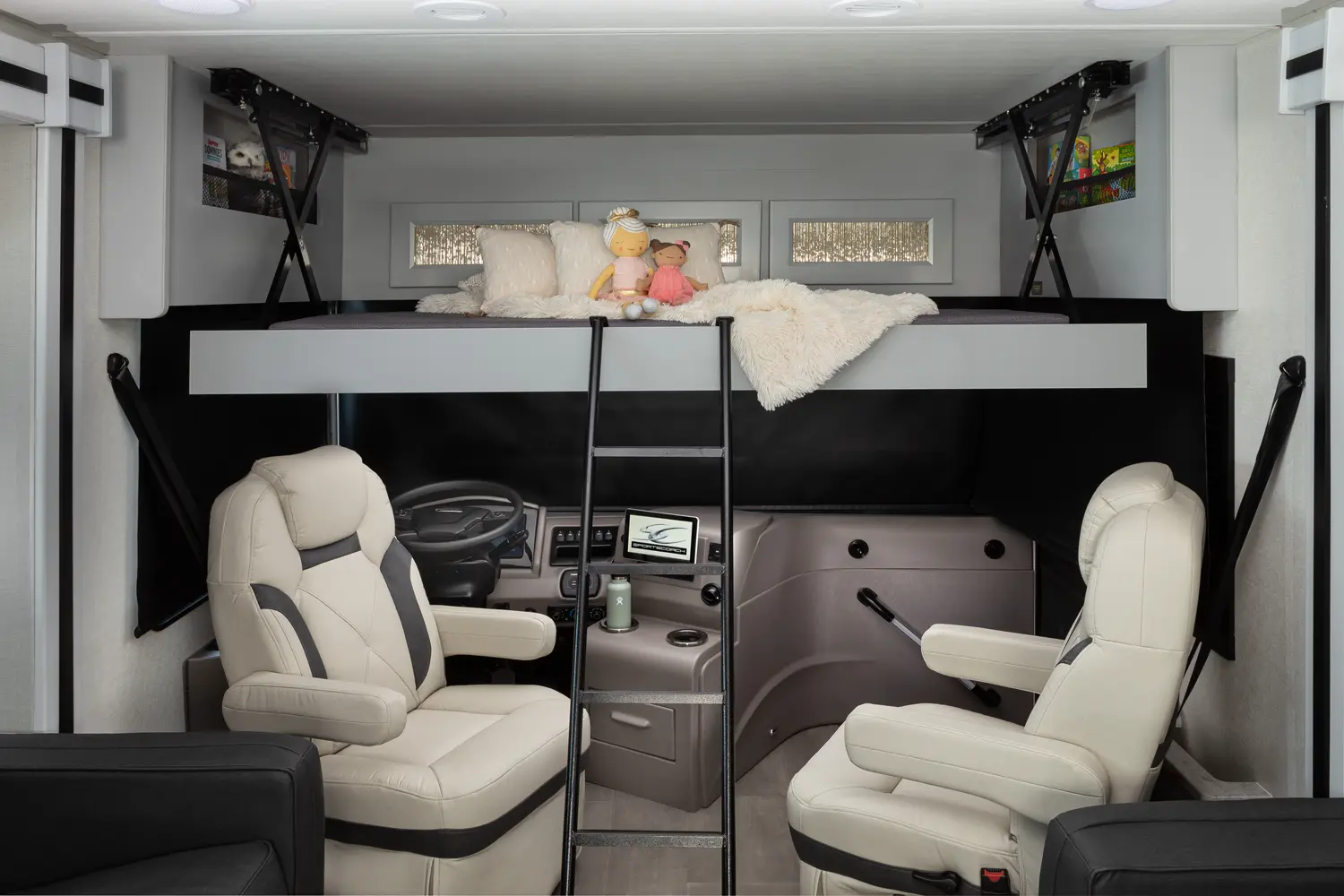

  • Front Drop-Down-Bunk
  • Theater Seating
  • Buffet Table with 2 Chairs/2 Folding (404RB Only)
  • 40” Cockpit Mounted TV (n/a with bunk)
  • Wardrobe in Place of Bunks (409BG Only)
  • Dual Pane Frameless Windows
  • 15,000-BTU Air Conditioner with Heat Pump Front
  • 15,000-BTU Air Condtioner with Heat Pump Rear
  • Slide Out Basement Storage Tray
  • Stackable Washer and Dryer
  • Double Clear Coat for Full-Body Paint
  • Diamond Shield Protection
  • CSA Up-Fit
  • CD-MVSA (Canadian Motor Vehicle Safety Act) (Mandatory For All Canadian Provinces)
  • Exterior Paint - Eventide
  • Custom Logo Etched (Retail Nameplate - Numbered)
  • Custom Logo 50th Anniversary Jackets
  • Custom Logo 50th Anniversary Embroidered Seats
  • Black Chrome Headlight Bezels and Side View Mirrors
  • Black Chrome Compartment Door Moldings
  • Black Chrome Rims
  • Chassis Underbody LED Lighting
  • Solar Panel
  • Cedar Lined Wardrobe
