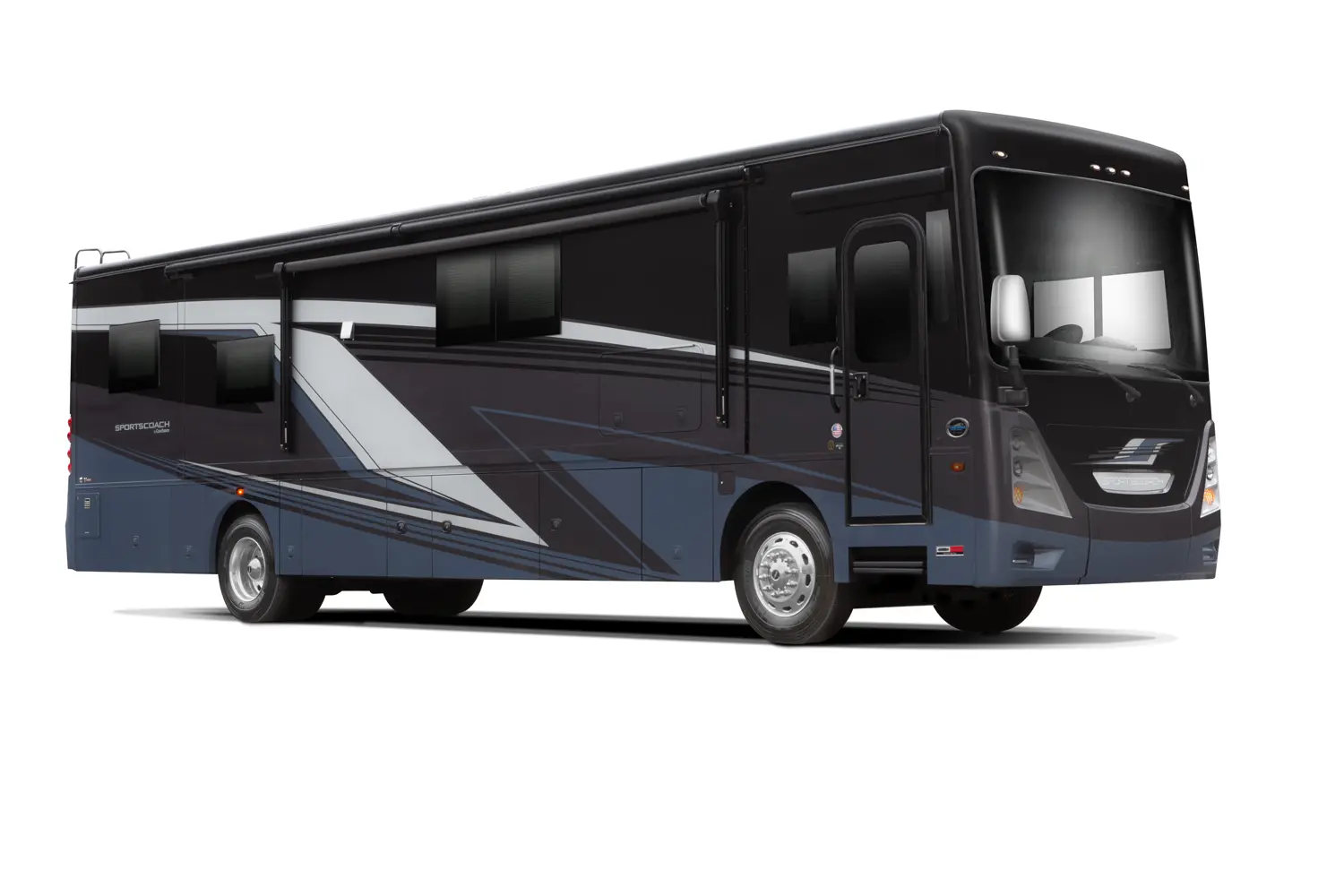

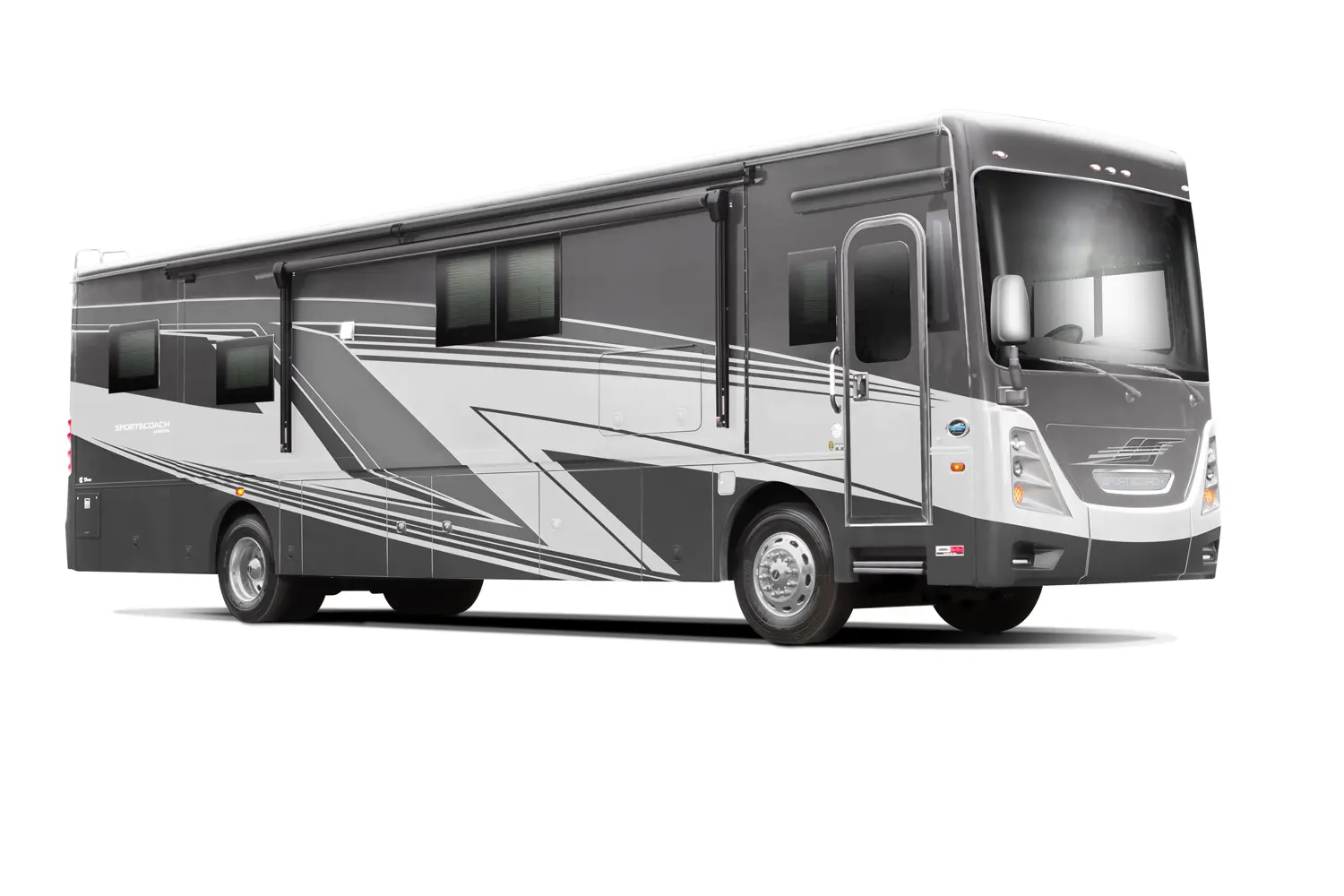

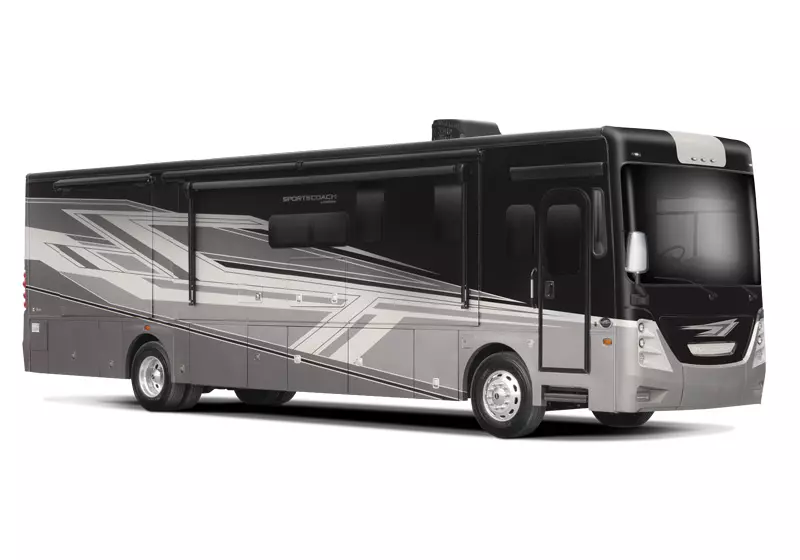

Sportscoach SRS Class A Motorhomes

The Sportscoach SRS Class A Motorhome gives you everything you’d want out of a diesel pusher. Smooth and powerful driving. Spacious floor plans. Tons of amenities. Attractive interior design. Top-quality fixtures and appliances. And if none of that gets your attention, just wait until you see the price.

Sportscoach 339DS named one of RVBusiness 2019 Top RV Debuts!

Filter

Select filters below and then click the Filter Results button to remove non-matching Floorplans and their Specifications








to




Specifications

Print


Wheelbase:
GVWR:
GCWR
GAWR Front:
GAWR Rear:
Fuel Capacity:
Exterior Length:
Exterior Height:
Exterior Width:
Fresh Water:
Gray Water:
Black Water:
Awning Size:
208"
26000 lb.
30000 lb.
10410 lb.
17500 lb.
90 gal.
36' 3"
12' 10"
102"
72 gal.
45 gal.
45 gal.
18'
208"
26000 lb.
30000 lb.
10410 lb.
17500 lb.
90 gal.
36' 3"
12' 10"
102"
79 gal.
45 gal.
45 gal.
17'
252"
29410 lb.
33000 lb.
10410 lb.
19000 lb.
90 gal.
40' 0"
12' 10"
102"
72 gal.
45 gal.
45 gal.
17'
252"
29410 lb.
33000 lb.
10410 lb.
19000 lb.
90 gal.
40' 0"
12' 10"
102"
72 gal.
45 gal.
45 gal.
20'

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GCWR (Gross Combined Weight Rating) – is the maximum permissible loaded weight of your motor home and any towed trailer or towed vehicle. Actual GCWR of this vehicle may be limited by the sum of the GVWR and the installed hitch receiver maximum capacity rating; see hitch rating label for detail.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)* – is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity) ** – is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Coachmen RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Coachmen RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Actual towing capacity is dependent upon your particular loading and towing circumstances, which includes the GVWR, GAWR and GCWR as well as adequate trailer brakes. Please refer to the Operator's Manual of your vehicle for further towing information.

Features & Options

Print
  • Padded Vinyl Ceiling
  • Hardwood Cabinet Doors Throughout
  • Self-Closing Ball Bearing Drawer Guides Throughout
  • Solid Surface Countertop in Galley
  • Brushed Nickel Hardware and Fixtures
  • Manual Side Shades in Driver - Passenger Area
  • 6-Way Power Driver Seat With 3-Point Seat Belt
  • Deluxe Manual Passenger Seat With 3-Point Seat Belt
  • Solar Privacy Shades Throughout
  • Theater Seating (339DS)
  • Visionary Sofa Hide-A-Bed (365RB)
  • Dream Dinette
  • Storage Drawers under Booth Dinette
  • Power Front Privacy Shade
  • Upgraded Linoleum Throughout
  • Fireplace (365RB Only)
  • 40” LCD TV Coach
  • Wi Fi Ranger
  • Sound Bar Entertainment System
  • King Jack TV Antenna
  • Pre-Wired for Satellite Dish and Blu-ray Players
  • 10 .1" Touch Screen Radio- AM/FM/CD with Bluetooth, Dual Mirror Technology and Camera Monitor
  • 30” Stainless Steel OTR Convection Microwave
  • 3-Burner Cook Top with Glass Cover
  • Stainless Steel 22 Cubic Foot Residential Refrigerator (365RB)
  • Stainless Steel 18 Cubic Foot Residential Refrigerator (339DS, 366BH)
  • Kitchen Back Splash
  • Fantastic Power Ceiling Vent
  • Large Stainless Steel Sink
  • Pop-Up Receptacle with USB Ports
  • Whole Coach Water Filter
  • Single Pedal Porcelain Toilet with Sprayer
  • Power Bath Vent
  • Skylight Over Shower
  • Winterization Inlet at Termination Compartment
  • Water Pump Switch at Termination
  • Black Tank Flush System
  • Demand Water Pump
  • 10-Gallon Gas/Electric Water Heater
  • Systems Monitor Panel
  • Stackable Washer/Dryer Prep
  • King Bed
  • Upgraded Mattress
  • Bedspread, Pillows with Shams
  • Residential Style Headboard
  • 32" LCD TV Bedroom
  • Bedroom Radio AM/FM/Bluetooth with Outside Speakers
  • Front Drop-Down-Bunk
  • Coach-Pap™ Station
  • 50-Amp Power Cord
  • GFCI Circuit
  • Outside Receptacle (DS)
  • Emergency Start Switch
  • Coach and Chassis Battery Disconnect
  • Auxiliary Batteries (4)
  • Exterior LED Strip Light
  • Solar Panel Hook-Up
  • 13,500-BTU Ducted Roof Air Conditioner Front
  • 13,500-BTU Ducted Roof Air Conditioner Rear
  • 20-Gallon LP Tank
  • 6.0KW Diesel Generator
  • 2000-Watt Pure Sine Wave Inverter
  • Automatic Transfer Switch
  • Cable TV Jack
  • LED Interior Ceiling Lighting
  • Auto Generator Start
  • Charging Station for Electronic Devices
  • Straight Rail Freightliner Chassis
  • Chassis Air Suspension and Air Brakes
  • 340 HP ISB Cummins Rear Diesel Engine, 700 lbs./ft. Torque
  • 6-Speed Allison 2,100 MH Automatic Transmission (339DS)
  • 6-Speed Alison 2500MH Automatic Transmission (365RB, 366BH)
  • Diesel Cockpit Dash Console
  • Cupholders with LED Lighting at Dash
  • Rear Vision Camera With Color Monitor
  • Color Side Cameras With Color Monitor
  • Fully Automatic Leveling Jacks
  • Defroster Fans
  • Cruise Control
  • Manual Air Dump
  • Intermittent Wipers
  • Dash Air Conditioning
  • Frameless Windows
  • Exterior Mirrors with Heat and Remote
  • Auxiliary Driving Lights
  • Fuel Fills, Both Sides
  • Auxiliary Air Supply Hook-Ups
  • 22.5” Radial Tires with Chrome Wheel Inserts
  • Front and Rear Mud Flaps
  • Power Entrance Steps-Double
  • Deluxe Radius Entrance Door with Dead Bolt Lock
  • Front and Rear Fiberglass Caps
  • Air Horn
  • High Gloss Gelcoat Sidewalls (with Azdel™ Superlight Composite)
  • Aluminum Side Swing Compartment Doors
  • Towing Hitch with 7-Way Plug
  • Power Patio Awning
  • Slide-Out Awning(s)
  • Roof Ladder
  • Pass-Through Basement Storage
  • Full-Body Paint
  • Fire Extinguisher
  • LP Leak Alarm
  • Smoke Detector
  • Carbon Monoxide Detector
  • Outside Entertainment Center
  • Interior and Exterior Assist Handles
  • Exterior Propane Hook-Up
  • Oval Cockpit Pedestal Table
  • Free 24/7 Roadside Assistance for One Year from Purchase Date
  • Champagne
  • Prosecco
  • Driftwood
  • Slate Cherry
  • Eventide Full-Body Paint
  • Siesta Key Full-Body Paint
  • Brandywine Full-Body Paint
  • Cimmaron Full-Body Paint
  • Glacier Full-Body Paint
  • Theater Seating (365RB)
  • Washer / Dryer
  • Diamond Shield Protection
  • 15,000-BTU Air Conditioner with Heat Pump Front
  • 15,000-BTU Air Conditioner with Heat Pump Rear
  • CSA Up-Fit (Mandatory For All Canadian Provinces)
  • CD-MVSA (Canadian Motor Vehicle Safety Act)


Virtual Tours

339DS

360DL

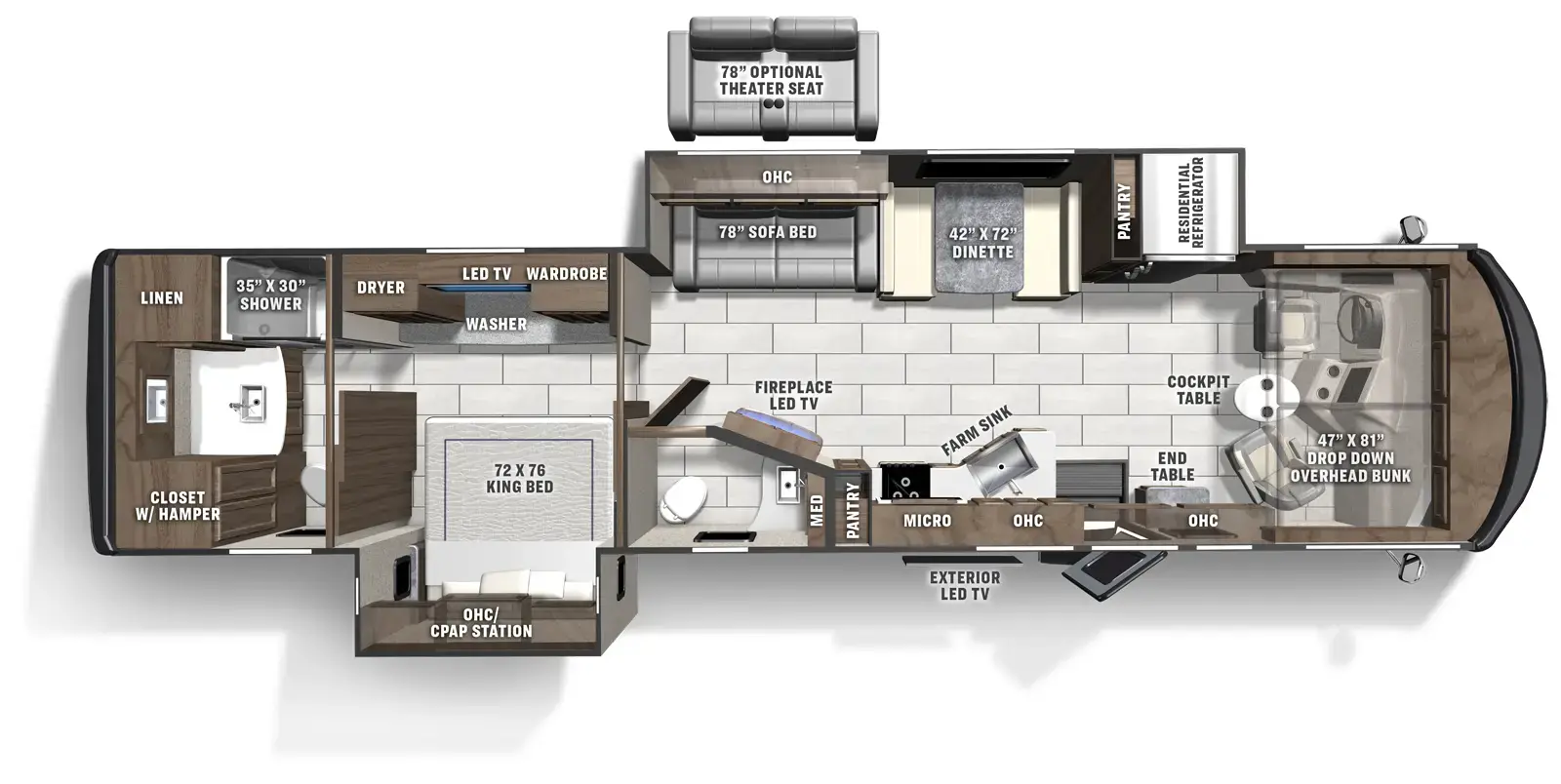

365RB
