Galleria Class B Motorhomes

Coachmen RV and Mercedes have combined their decades worth of experience to introduce Galleria, a Class B Motorhome that offers the utmost in quality, luxury and value. Built on the award winning 3500 Mercedes Sprinter extended platform with one of the cleanest running turbo-diesel "Blue TEC" engines on the market which delivers an impressive 325 ft lb of torque while still providing excellent fuel economy. Galleria uses high end components like the Truma Combi furnace/water heater system, Onan generator and maple cabinetry that is handcrafted by a local Amish cabinet maker with radius cabinet doors, soft close doors/drawers and custom trim.


Certified Green by TRA Certification™Link opens in a new tab/window KOA Care Camps, fighting cancer and making memoriesLink opens in a new tab/window

Filter

Select filters below and then click the Filter Results button to remove non-matching Floorplans and their Specifications









to

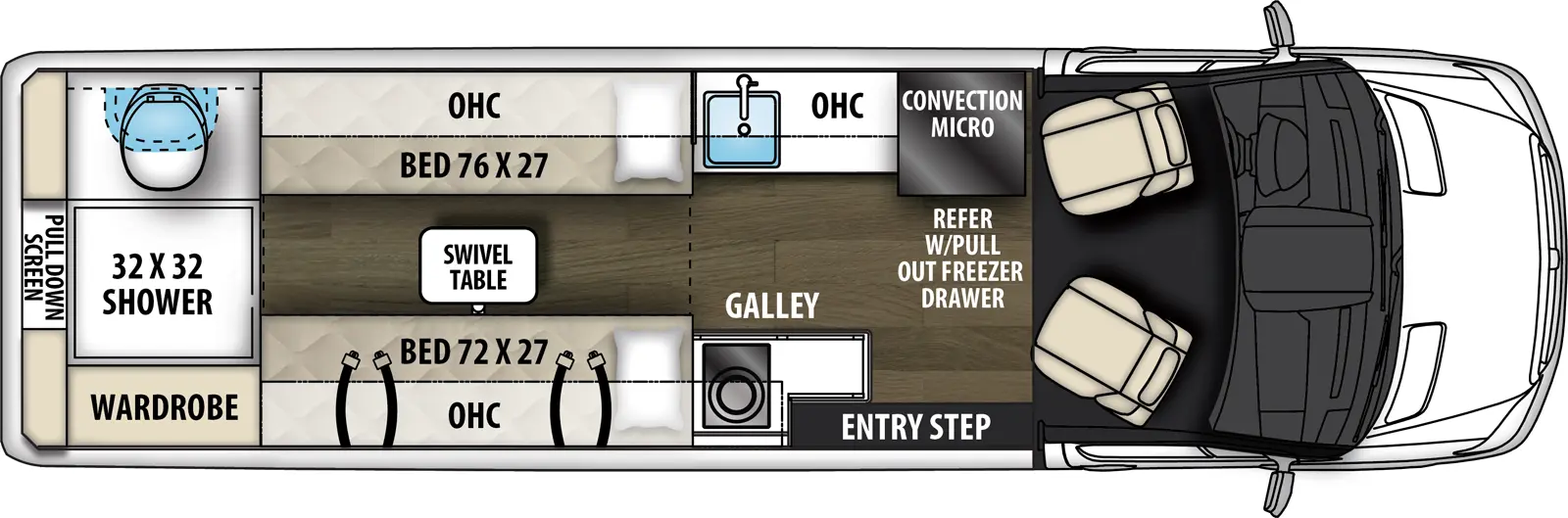

Floorplans

Print


Mercedes 3500 Ext

Unfilled heart, add model to wishlist
X
You must be logged in, or create an accont to use the Forest River wish list.

View your wish list here.
I am logged in now.

24A
Has Gallery Photos Has 360 Tour
24A

Unfilled heart, add model to wishlist
X
You must be logged in, or create an accont to use the Forest River wish list.

View your wish list here.
I am logged in now.

24FL
Has Gallery Photos Has 360 Tour
24FL

Unfilled heart, add model to wishlist
X
You must be logged in, or create an accont to use the Forest River wish list.

View your wish list here.
I am logged in now.

24Q
Has Gallery Photos Has 360 Tour
24Q

Unfilled heart, add model to wishlist
X
You must be logged in, or create an accont to use the Forest River wish list.

View your wish list here.
I am logged in now.

24T
Has Gallery Photos Has 360 Tour
24T



Specifications

Print


Wheelbase:
GVWR:
GCWR
GAWR Front:
GAWR Rear:
Fuel Capacity:
Exterior Length:
Exterior Height:
Exterior Width:
Fresh Water:
Gray Water:
Black Water:
Awning Size:
170"
11030 lb.
15250 lb.
TBD
TBD
24 gal.
24' 3"
9' 6"
83"
30.00 gal.
22.00 gal.
19.00 gal.
13' 1"
170"
11030 lb.
15250 lb.
TBD
TBD
24 gal.
24' 3"
9' 6"
83"
30.00 gal.
22.00 gal.
26.00 gal.
13' 1"
170"
11030 lb.
15250 lb.
TBD
TBD
24 gal.
24' 3"
9' 6"
83"
30.00 gal.
22.00 gal.
12.00 gal.
13' 1"
170"
11030 lb.
15250 lb.
TBD
TBD
24 gal.
24' 3"
9' 6"
83"
30.00 gal.
22.00 gal.
12.00 gal.
13' 1"

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GCWR (Gross Combined Weight Rating) - Is the maximum permissible loaded weight of your motor home and any towed trailer or towed vehicle. Actual GCWR of this vehicle may be limited by the sum of the GVWR and the installed hitch receiver maximum capacity rating; see hitch rating label for detail.

GAWR (Gross Axle Weight Rating) - is the maximum permissible weight, including cargo, fl uids, optional equipment and accessories that can be safely supported by each axle.

UVW (Unloaded Vehicle Weight)* - is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s), including full fuel, all fl uids and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, passengers, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before fi lling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Coachmen RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Coachmen RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Actual towing capacity is dependent upon your particular loading and towing circumstances, which includes the GVWR, GAWR and GCWR as well as adequate trailer brakes. Please refer to the Operator's Manual of your vehicle for further towing information.

Features & Options

Print
  • Mercedes 3.0L Turbo V6 Diesel
  • 7-Speed Automatic Transmission
  • Blind Spot Monitoring/Lane Assist Sensor
  • ESP – Electronic Stability Program
  • Collision Avoidance Indicator
  • Front Window and Side Airbags
  • High Beam Assist
  • Back-up Camera
  • Heated Side View Mirrors
  • Heated Front Swivel Seats
  • Multi-function Steering Wheel
  • Xenon Head Lamps and Fog Lamps
  • Head Lamp Washer
  • 5,000 Lb. Tow Hitch with 7-Pin Wiring Connector
  • NEW Remote Access Eclipse App – Controls Firefly system while away (Coach must have internet)
  • NEW WiFi Ranger SkyPro
  • NEW 24” LED?Smart TV
  • NEW Oxygenics Fury handheld shower head with On/Off
  • NEW Nova Kool 7300 Refrigerator with pull-out freezer drawer (24A, 24FL)
  • NEW Onan QG 2500 LP quiet generator
  • NEW Q-Foam in sofas and jump seats
  • 330W Solar (3-110W panels)
  • Aluminum wheels
  • Sumo Spring suspension (2x4)
  • Standard Upgraded Insulation R-15
  • Tru-Tank sensors read tank levels at 5% increments
  • Black Tank Flush
  • Horizon Solid Surface Countertop with Plate Drying Rack and Sink Cover
  • High Rise Kitchen Faucet
  • Custom high gloss hardwood cabinetry with radius doors and soft close hinges
  • Motion sensor lighting and composite cabinet backing in overhead cabinets
  • Positive catches and soft close drawer guides kitchen base cabinets
  • Reading lights with individual switches and USB ports
  • Cup holders by rear sofa
  • Undercarriage Lighting
  • Gen Start and Auto Start features
  • Interior PVC vinyl wall color and texture
  • Standard 330 AMP Hour AGM Battery with 2,000 W Pure Sine Wave Inverter – 2,000 W Pure Sine Wave Inverter powers microwave and all outlets (not A/C)
  • Turbo II 12V Air Conditioner
  • Multiple USB ports in living area
  • True lay flat memory foam power sofa (Industry first)
  • Dedicated C-PAP machine outlet and location
  • R-38 Reflective insulation in floor
  • Shower miser water saver
  • 360 Siphon black tank vent
  • Lagun table (N/A 24A)
  • Hardwood expanding table with cup holders (24T, 24Q)
  • One-piece carpet mat
  • New Stealth Package: High gloss black painted Mercedes steel OEM rims. No paint on front bumper, rear bumper, and side cladding.
  • New Upgraded Alcoa Aluminum Rims with Inner Alcoa Dually Rim (Replaces 4 standard aluminum rims)
  • Cozy Wrap Upgraded Insulation
  • New Lagun Table with front post behind driver and passenger seats (24FL/24A)
  • Side entry screen door
  • LP Cooktop (IPO induction)
  • Upgraded front window covers
  • 4 x 4 Chassis option (All floorplans)
  • Sumo Springs suspension 4 x 4
  • VB Air suspension
  • Second row seat delete (N/A 24FL, 24A)
  • Polar Package Plus Heating Pads
  • Summit Bike Rack
  • Li3 Lithium Battery– 600 amp-hour lithium battery, Bluetooth battery management system and remote LCD display, second under hood alternator with multi-stage voltage regulator, Xantrex XC Pro 3000W inverter/ charger with Bluetooth XC Remote, Xantrex Echo-charge (charges chassis battery while plugged into shore power). Onan Generator not included with Li3 Lithium Battery option.
  • Brilliant Silver
  • Arctic White
  • High Gloss Cherry
  • High Gloss Maple
  • Cashmere
  • Fog
  • Onyx
